Next Article in Journal
Differences in Dry Sliding Wear Behavior between Al–12Si–CuNiMg Alloy and Its Composite Reinforced with Al2O3 Fibers
Previous Article in Journal
Structural Properties and Damage Detection Capability of Carbon Nanotube Modified Mortars after Freeze-Thaw
Open AccessArticle

Oxidation Behavior of Fe–Al, Fe–Si and Fe–Al–Si Intermetallics

Department of Metals and Corrosion Engineering, University of Chemistry and Technology, Prague, Technická 5, 166 28 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2019, 12(11), 1748; https://doi.org/10.3390/ma12111748
Received: 30 April 2019 / Revised: 25 May 2019 / Accepted: 27 May 2019 / Published: 29 May 2019
(This article belongs to the Section Corrosion)

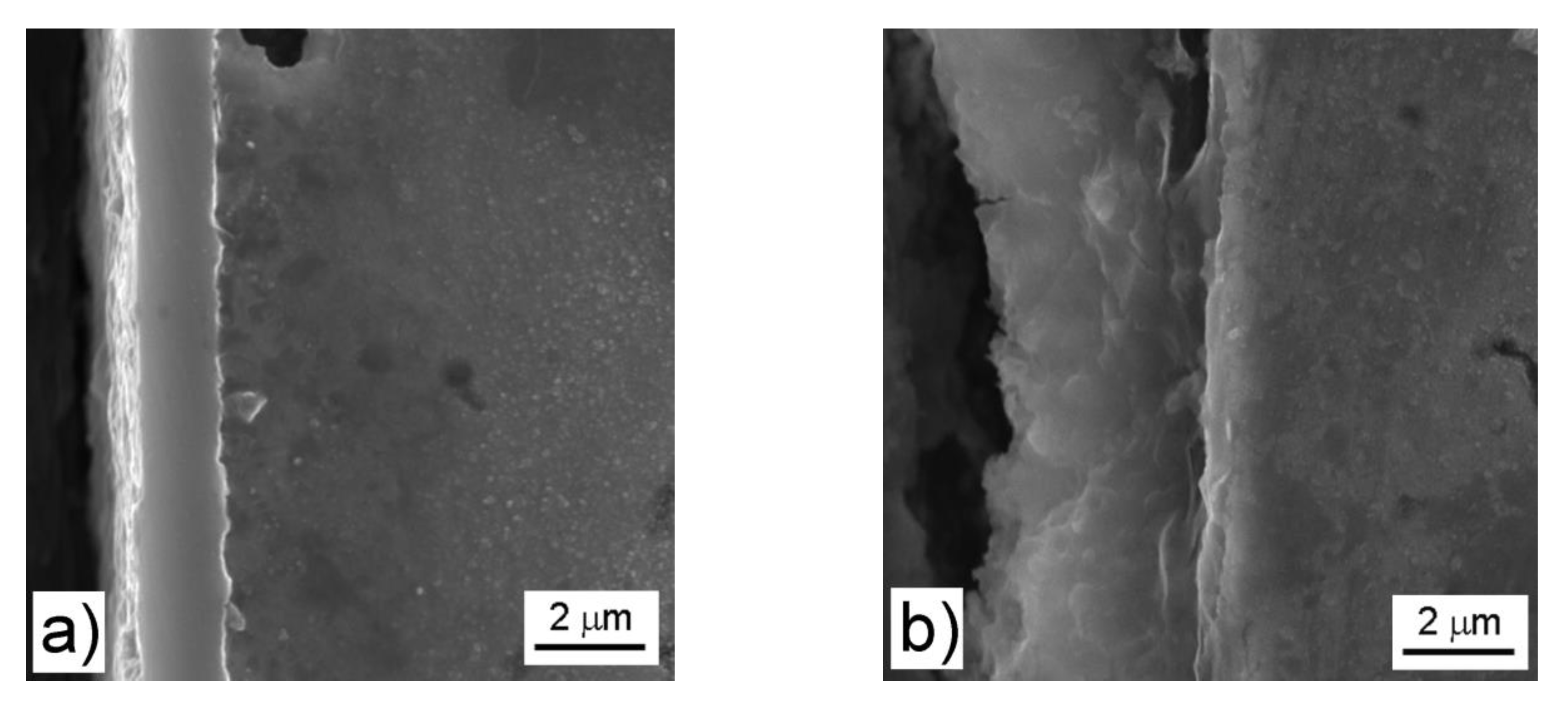

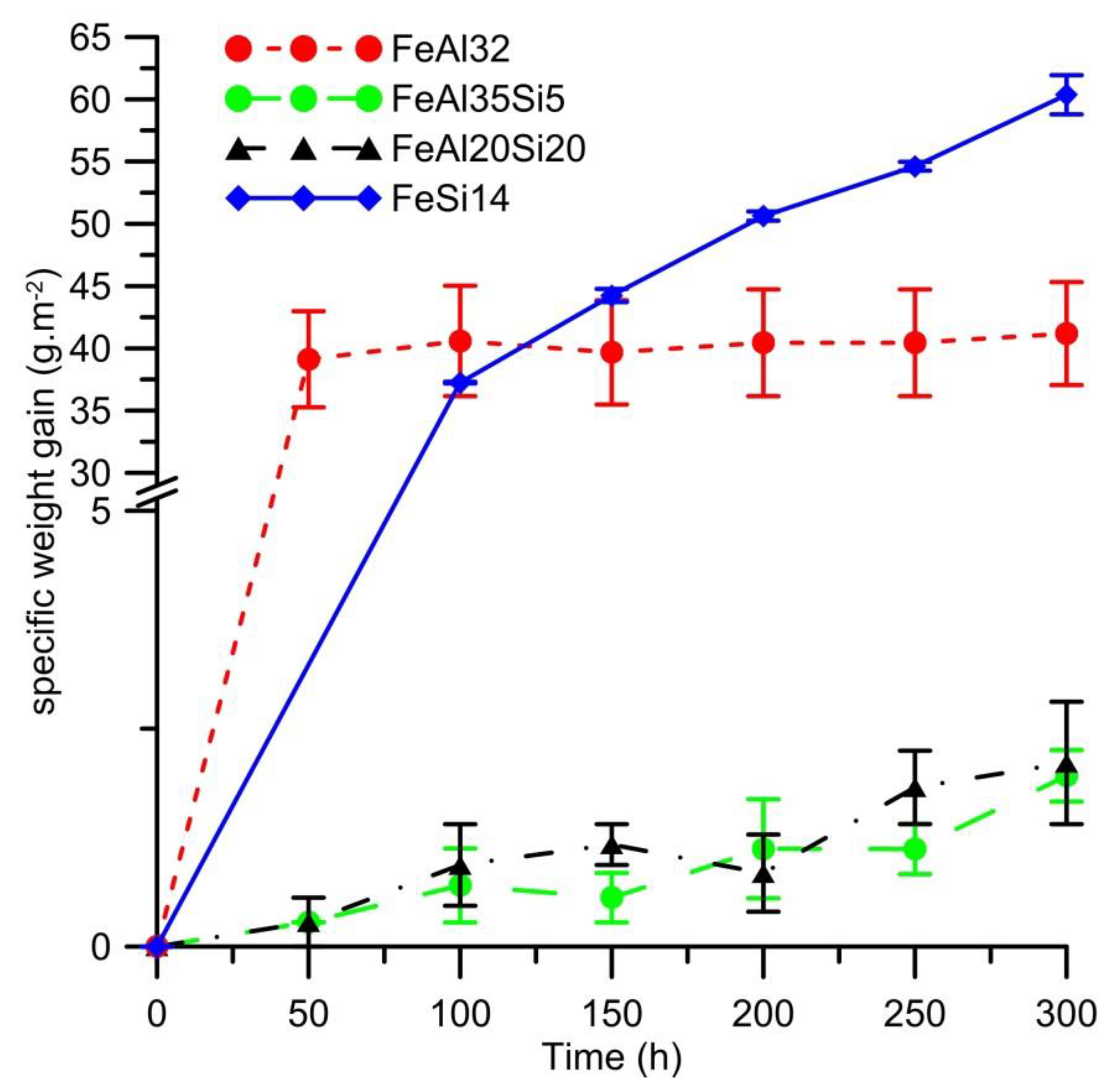

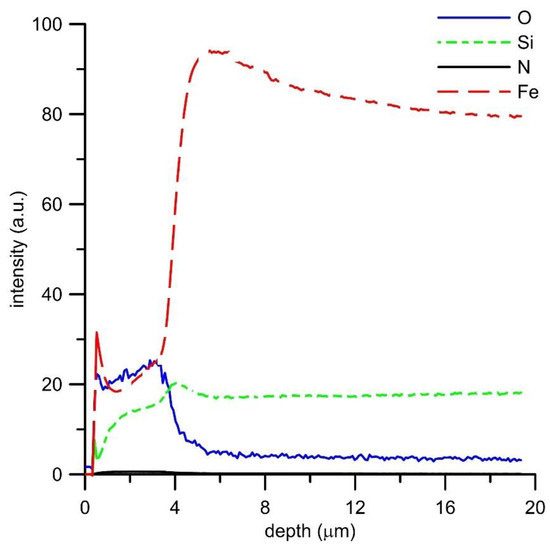

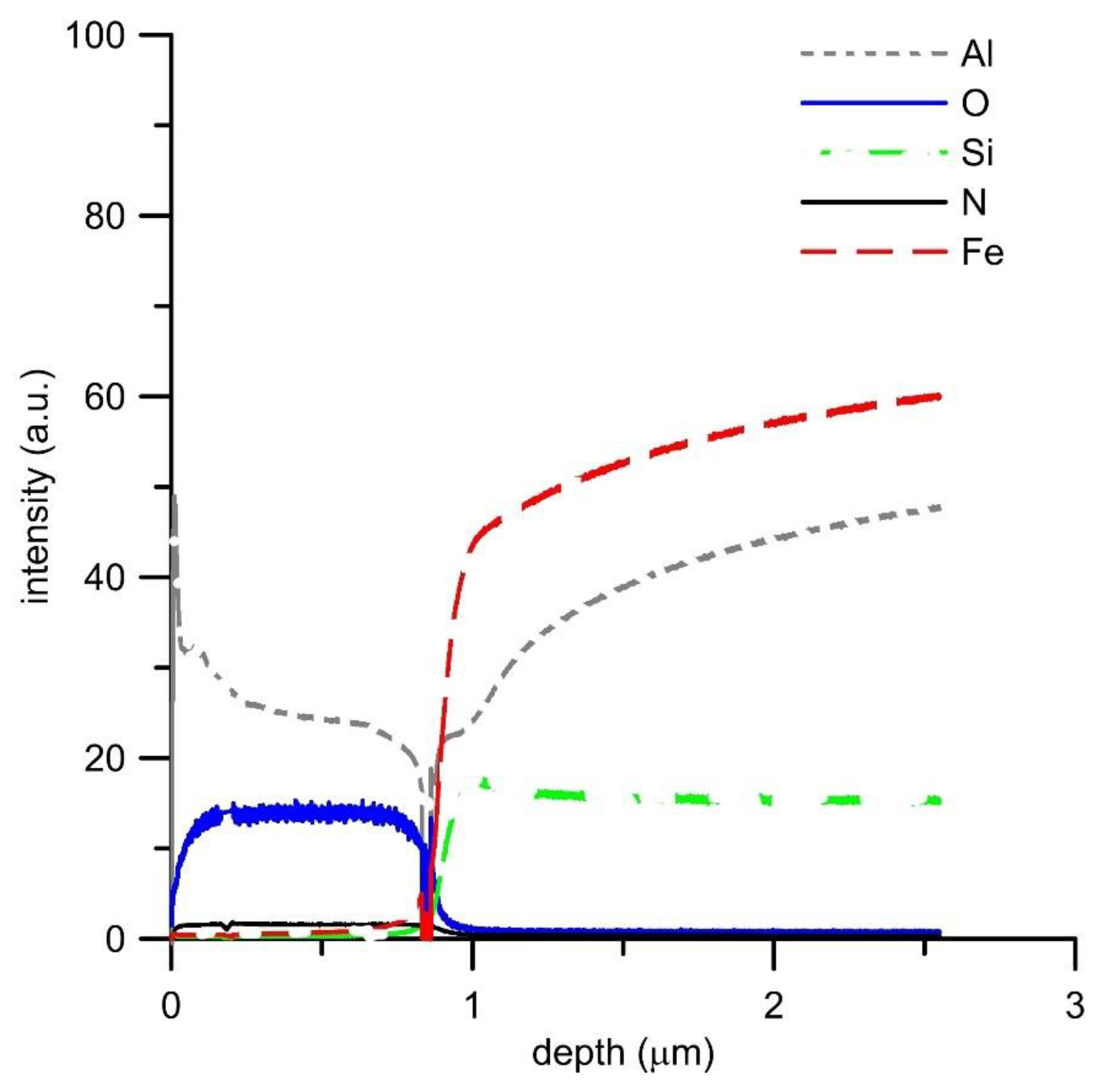

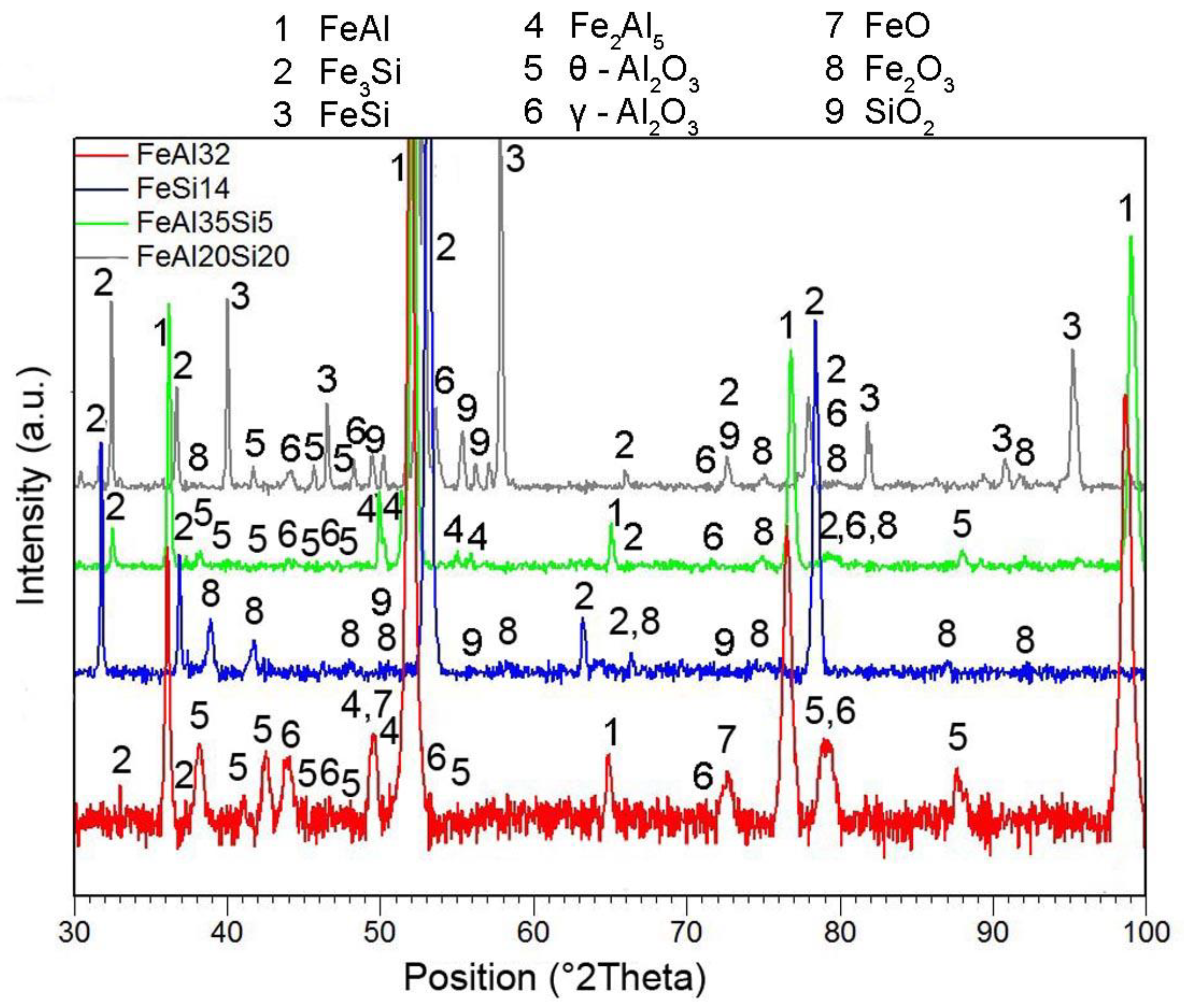

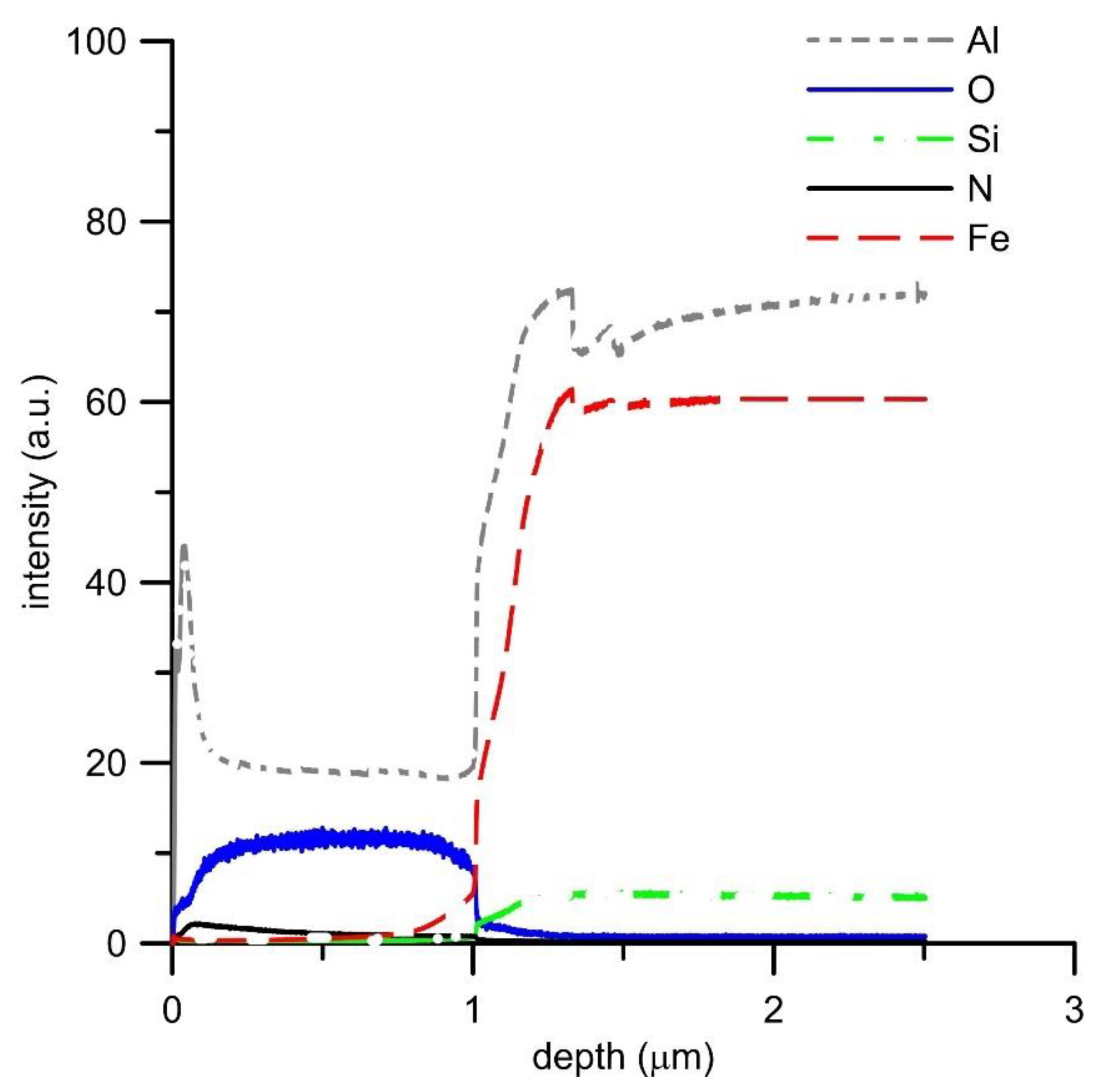

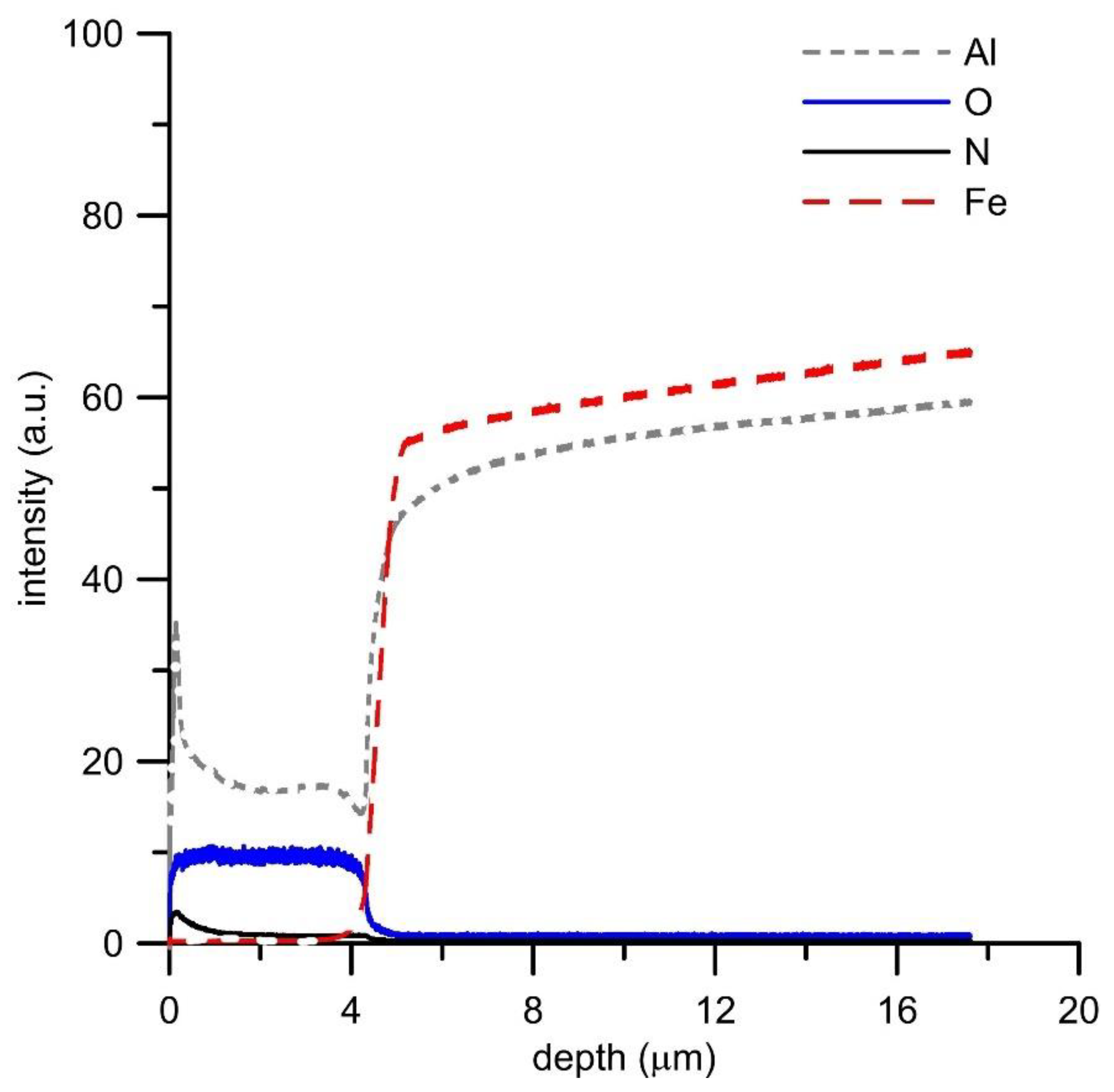

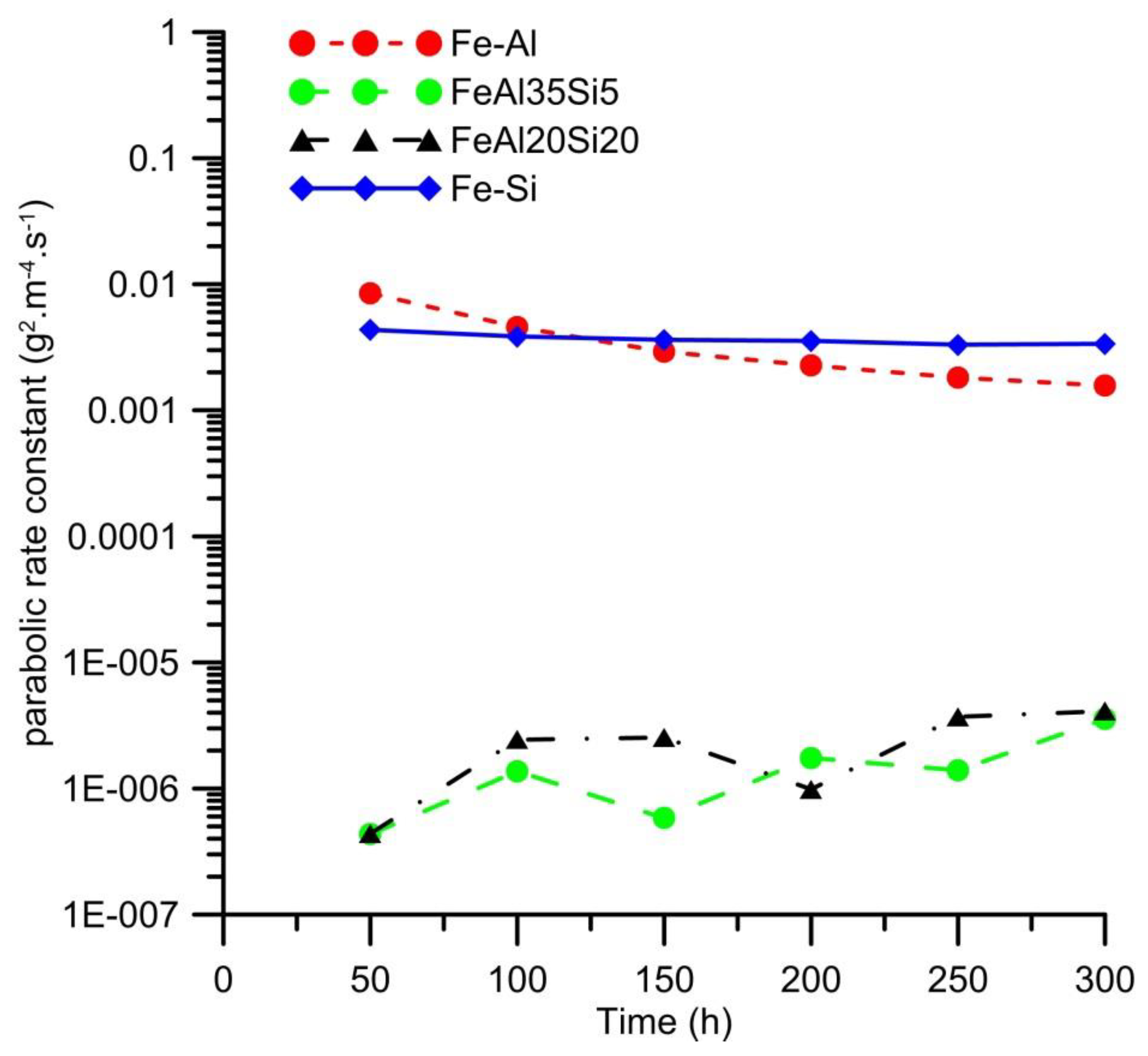

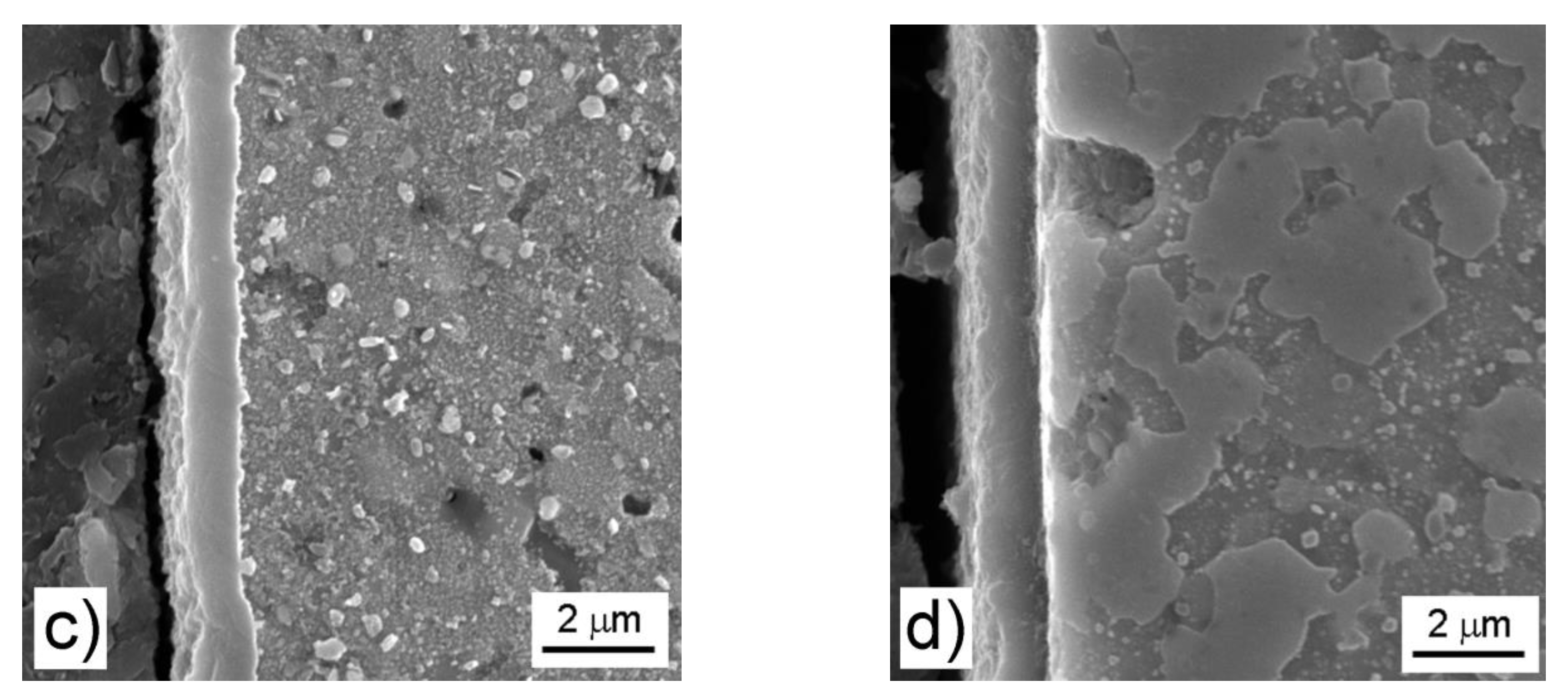

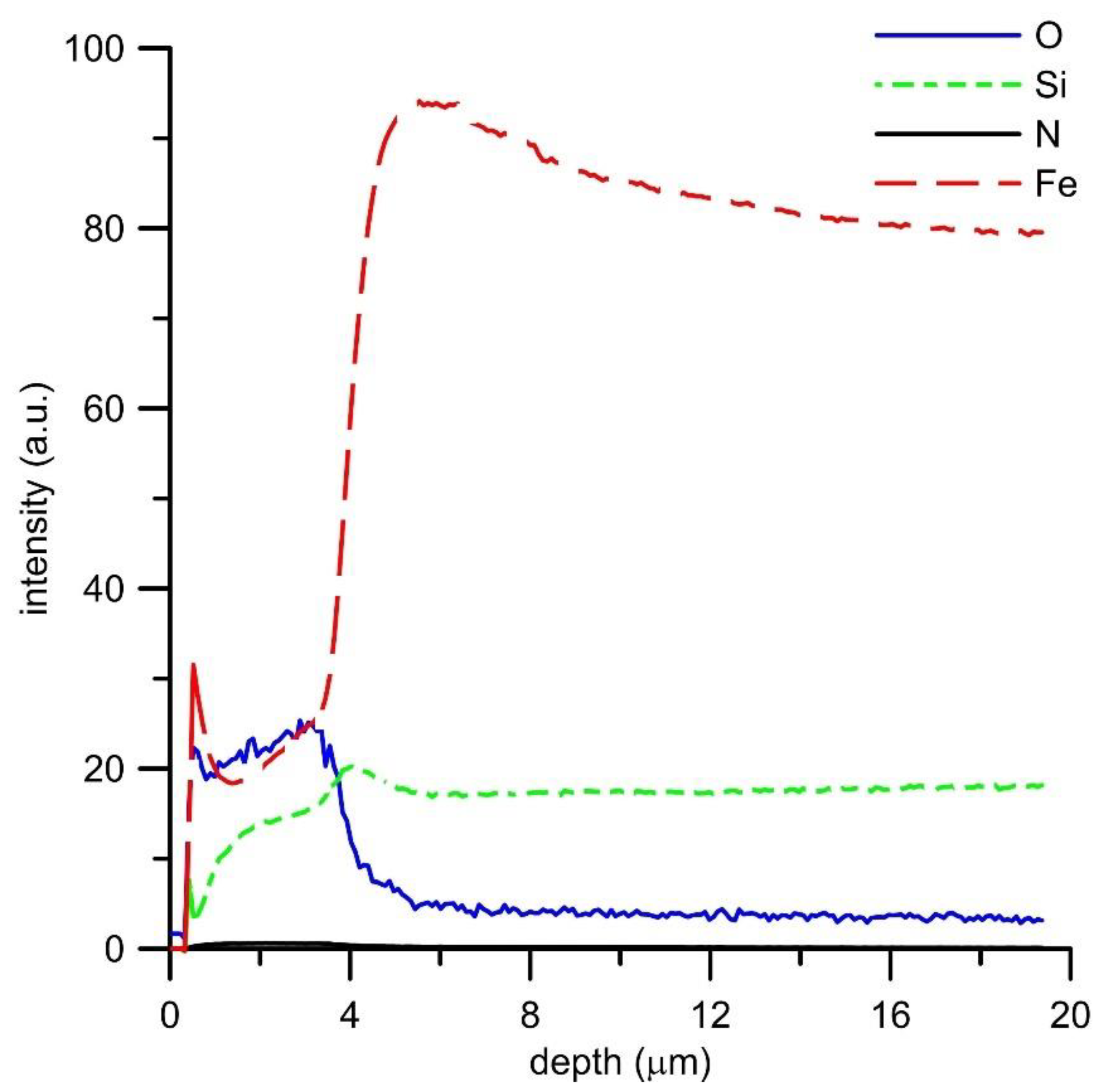

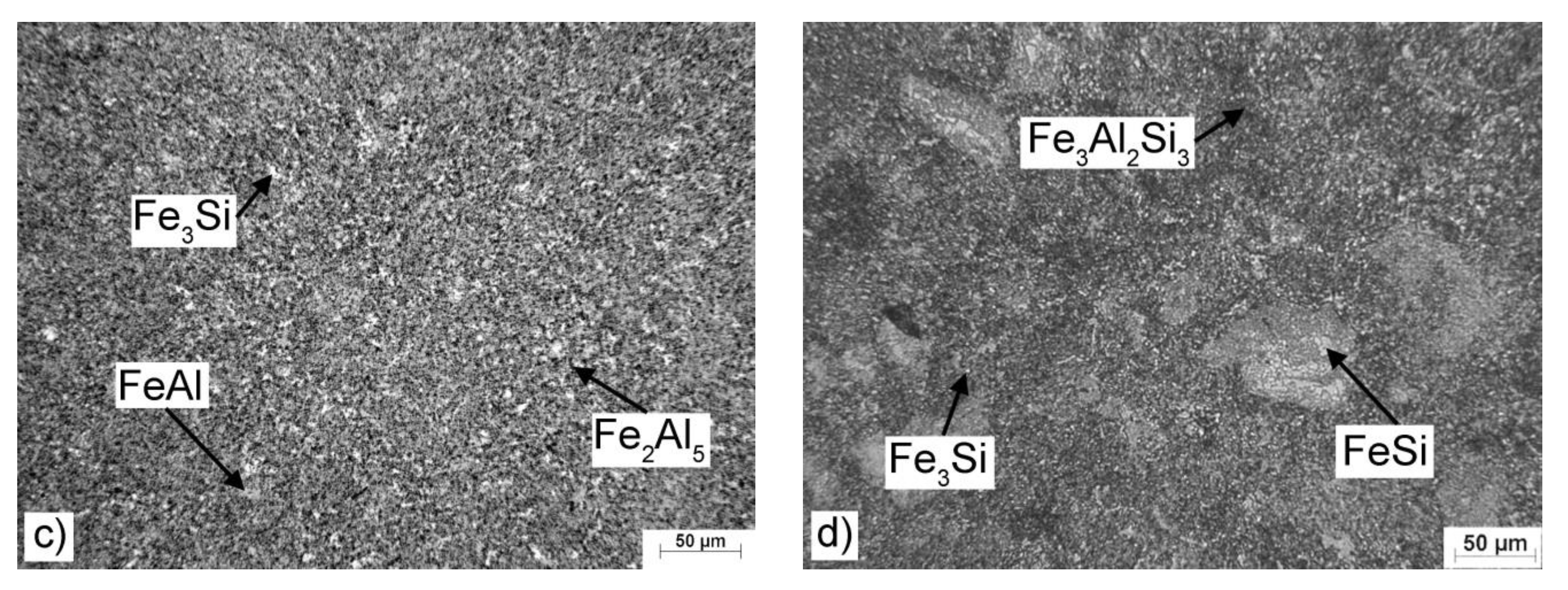

Iron aluminides are still deeply investigated materials for their use in power plants, automotive and chemical industry, and other sectors. This paper shows that it is possible to strongly improve their oxidation behavior by the addition of silicon. The description of the synergic effect of aluminum and silicon on the oxidation behavior of Fe–Al–Si alloys at 800 °C in air is presented. The oxidation rate, microstructure, phase, and chemical composition of these ternary alloys are compared with the binary Fe–Al and Fe–Si alloys. Results showed that the oxidation of Fe–Al–Si ternary alloys provides an oxide layer based on aluminum oxide with a low concentration of iron and silicon. Below this oxide layer, there is a layer of silicides formed as a result of depletion by aluminum, which forms a secondary oxidation protection. View Full-Text
Keywords: oxidation; iron aluminide; iron silicide; Fe–Al–Si alloy oxidation; iron aluminide; iron silicide; Fe–Al–Si alloy
Show Figures

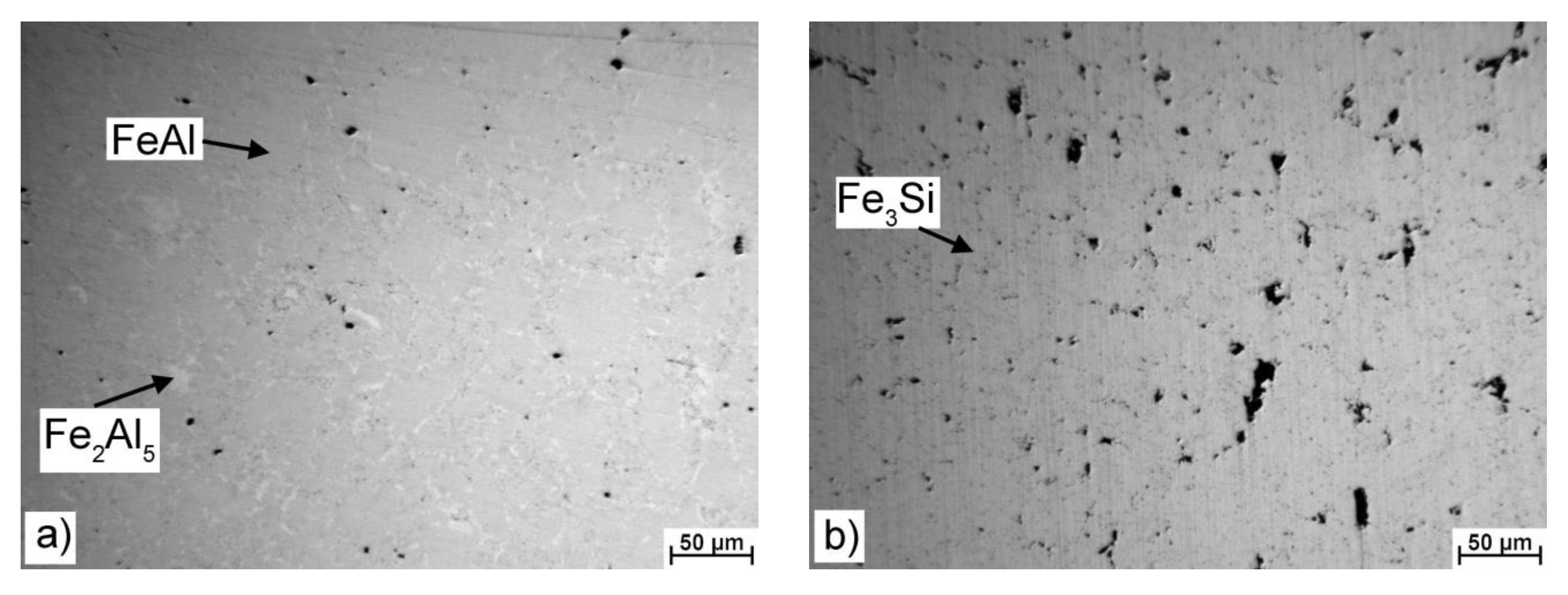

Figure 1

MDPI and ACS Style

Novák, P.; Nová, K. Oxidation Behavior of Fe–Al, Fe–Si and Fe–Al–Si Intermetallics. Materials 2019, 12, 1748. https://doi.org/10.3390/ma12111748

AMA Style

Novák P, Nová K. Oxidation Behavior of Fe–Al, Fe–Si and Fe–Al–Si Intermetallics. Materials. 2019; 12(11):1748. https://doi.org/10.3390/ma12111748

Chicago/Turabian Style

Novák, Pavel; Nová, Kateřina. 2019. "Oxidation Behavior of Fe–Al, Fe–Si and Fe–Al–Si Intermetallics" Materials 12, no. 11: 1748. https://doi.org/10.3390/ma12111748

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
