Next Article in Journal
Smart Injectable Self-Setting Monetite Based Bioceramics for Orthopedic Applications
Next Article in Special Issue
Minor Review: An Overview of a Synthetic Nanophase Bone Substitute
Previous Article in Journal
First-Principles Study on the Adsorption and Dissociation of Impurities on Copper Current Collector in Electrolyte for Lithium-Ion Batteries
Previous Article in Special Issue
A Novel Multiscale Mathematical Model for Building Bone Substitute Materials for Children
Open AccessArticle

Hierarchical Characterization and Nanomechanical Assessment of Biomimetic Scaffolds Mimicking Lamellar Bone via Atomic Force Microscopy Cantilever-Based Nanoindentation

1
Department of Biomedical Engineering, University of Connecticut Health Center, Farmington, CT 06030-165, USA
2
Department of Mechanical and Aerospace Engineering, University of Florida, Gainesville, FL 32611, USA
3
Department of Materials Science and Engineering, University of Florida, Gainesville, FL 32611, USA
*
Author to whom correspondence should be addressed.
Materials 2018, 11(7), 1257; https://doi.org/10.3390/ma11071257
Received: 30 June 2018 / Revised: 18 July 2018 / Accepted: 19 July 2018 / Published: 22 July 2018
(This article belongs to the Special Issue Bone Substitute Materials)

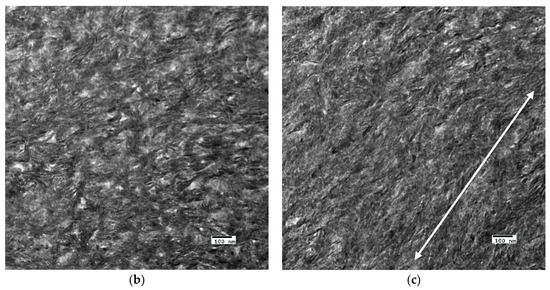

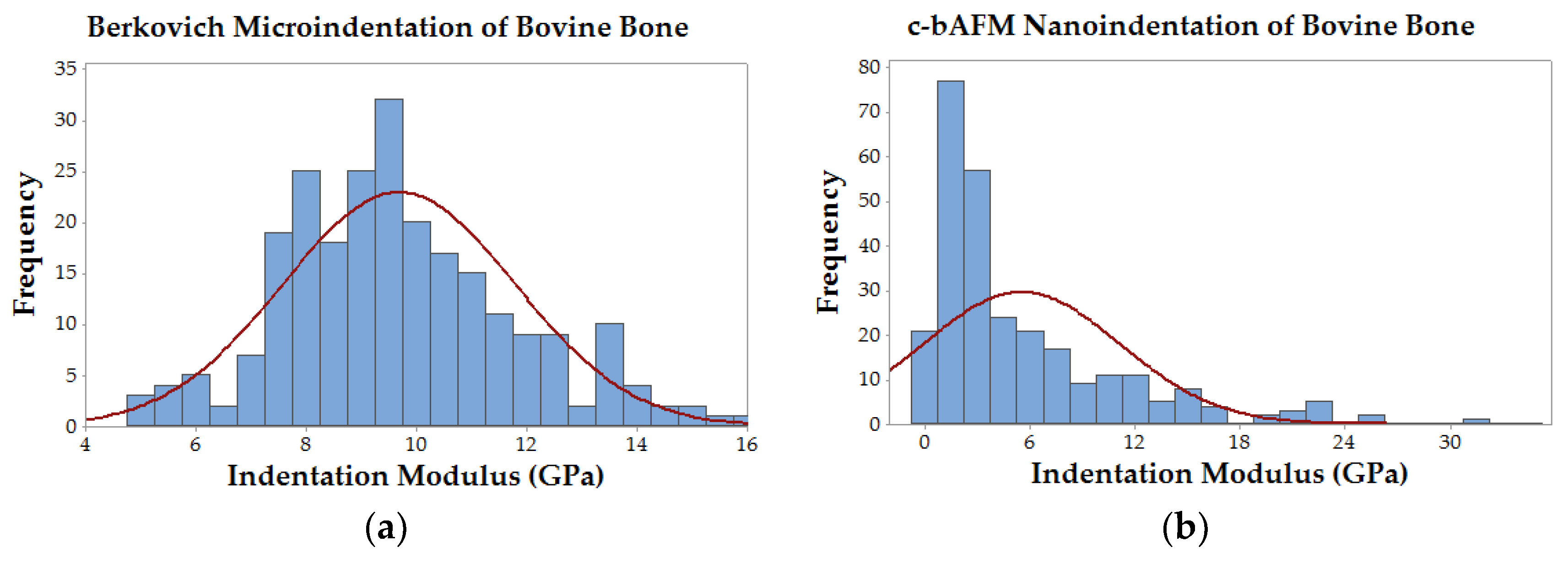

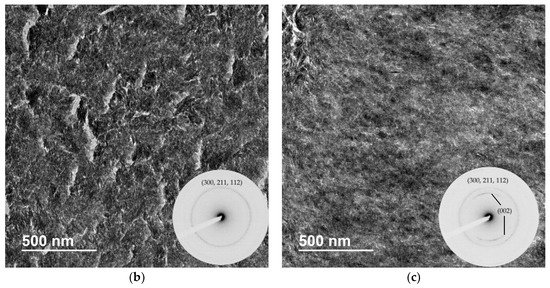

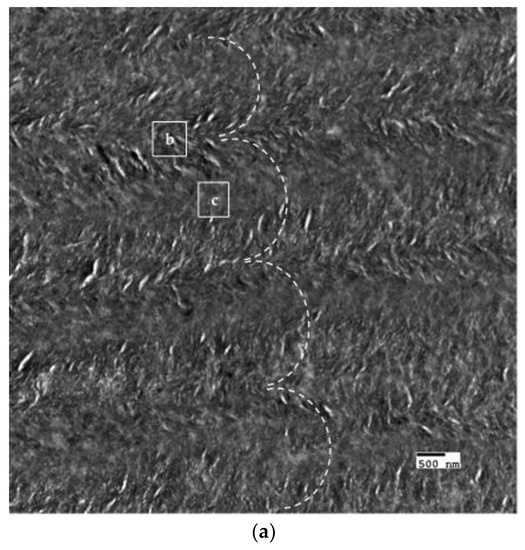

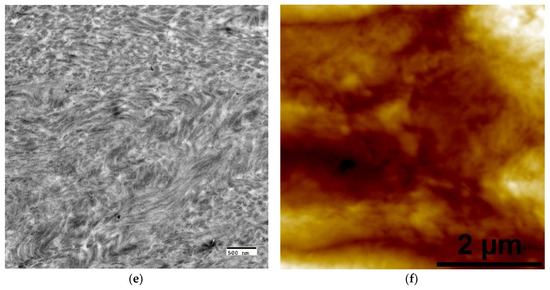

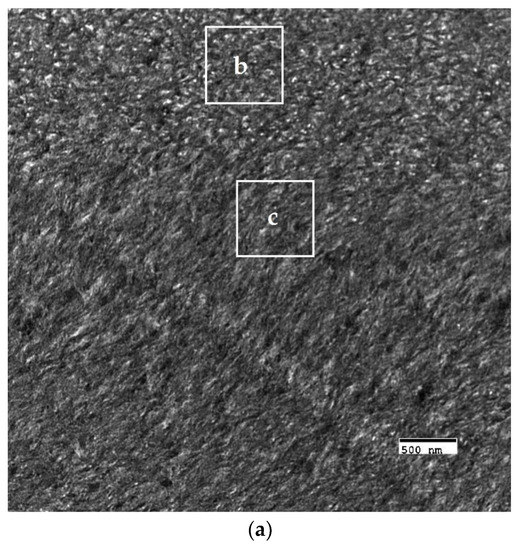

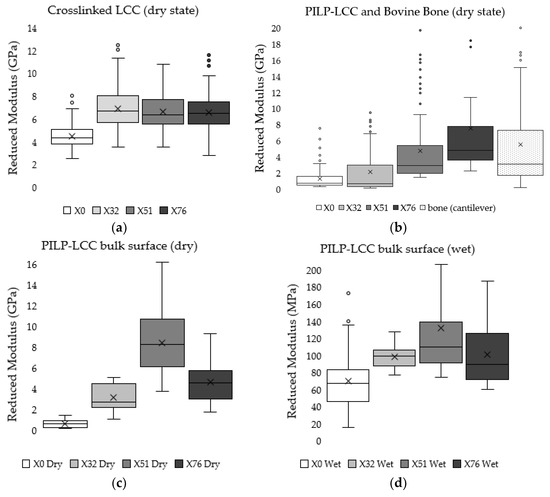

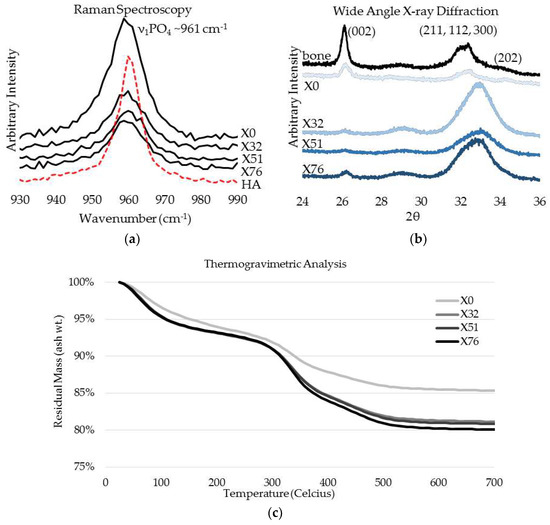

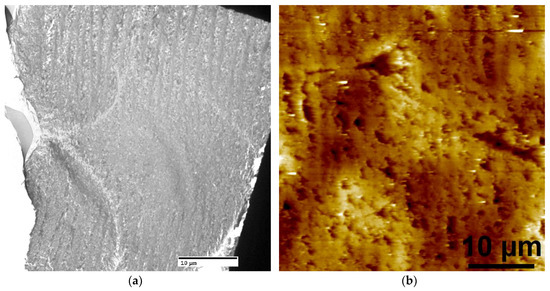

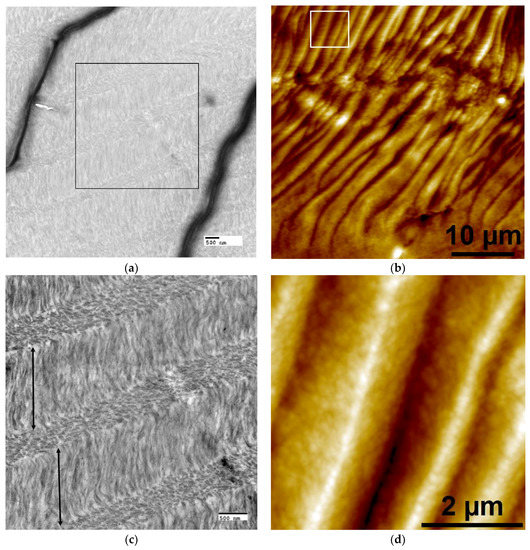

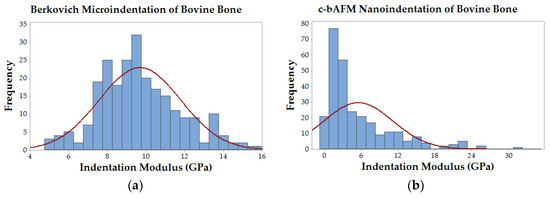

The hierarchical structure of bone and intrinsic material properties of its two primary constituents, carbonated apatite and fibrillar collagen, when being synergistically organized into an interpenetrating hard-soft composite, contribute to its excellent mechanical properties. Lamellar bone is the predominant structural motif in mammalian hard tissues; therefore, we believe the fabrication of a collagen/apatite composite with a hierarchical structure that emulates bone, consisting of a dense lamellar microstructure and a mineralized collagen fibril nanostructure, is an important first step toward the goal of regenerative bone tissue engineering. In this work, we exploit the liquid crystalline properties of collagen to fabricate dense matrices that assemble with cholesteric organization. The matrices were crosslinked via carbodiimide chemistry to improve mechanical properties, and are subsequently mineralized via the polymer-induced liquid-precursor (PILP) process to promote intrafibrillar mineralization. Neither the crosslinking procedure nor the mineralization affected the cholesteric collagen microstructures; notably, there was a positive trend toward higher stiffness with increasing crosslink density when measured by cantilever-based atomic force microscopy (AFM) nanoindentation. In the dry state, the average moduli of moderately (X51; 4.8 ± 4.3 GPa) and highly (X76; 7.8 ± 6.7 GPa) crosslinked PILP-mineralized liquid crystalline collagen (LCC) scaffolds were higher than the average modulus of bovine bone (5.5 ± 5.6 GPa). View Full-Text
Keywords: cholesteric collagen; bone apatite; cantilever-based AFM nanoindentation; biomimetic mineralization; PILP; liquid crystalline collagen; cholesteric; lamellar; intrafibrillar mineral cholesteric collagen; bone apatite; cantilever-based AFM nanoindentation; biomimetic mineralization; PILP; liquid crystalline collagen; cholesteric; lamellar; intrafibrillar mineral
Show Figures

Graphical abstract

MDPI and ACS Style

Wingender, B.; Ni, Y.; Zhang, Y.; Taylor, C.; Gower, L. Hierarchical Characterization and Nanomechanical Assessment of Biomimetic Scaffolds Mimicking Lamellar Bone via Atomic Force Microscopy Cantilever-Based Nanoindentation. Materials 2018, 11, 1257.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
