Next Article in Journal
Microstructural Evolution in High-Strain-Rate Deformation of Ti-5Al-5Mo-5V-1Cr-1Fe Alloy
Previous Article in Journal
Diffusibility Enhancement of Rejuvenator by Epoxidized Soybean Oil and Its Influence on the Performance of Recycled Hot Mix Asphalt Mixtures
Open AccessArticle

2.45 GHz Microwave Processing and Its Influence on Glass Fiber Reinforced Plastics

Technical University of Munich, Chair of Carbon Composites, Boltzmannstr. 15, 85748 Garching, Germany
*
Author to whom correspondence should be addressed.
Materials 2018, 11(5), 838; https://doi.org/10.3390/ma11050838
Received: 11 April 2018 / Revised: 13 May 2018 / Accepted: 15 May 2018 / Published: 18 May 2018
(This article belongs to the Section Advanced Composites)

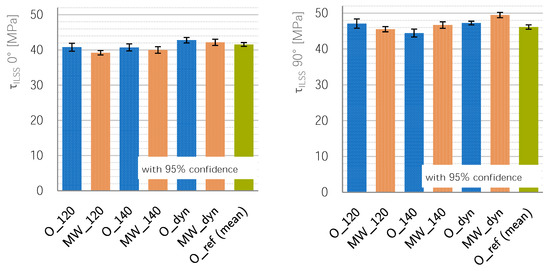

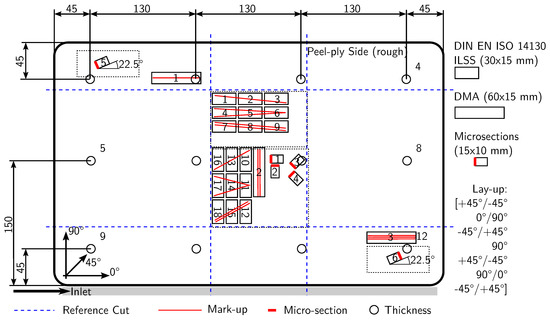

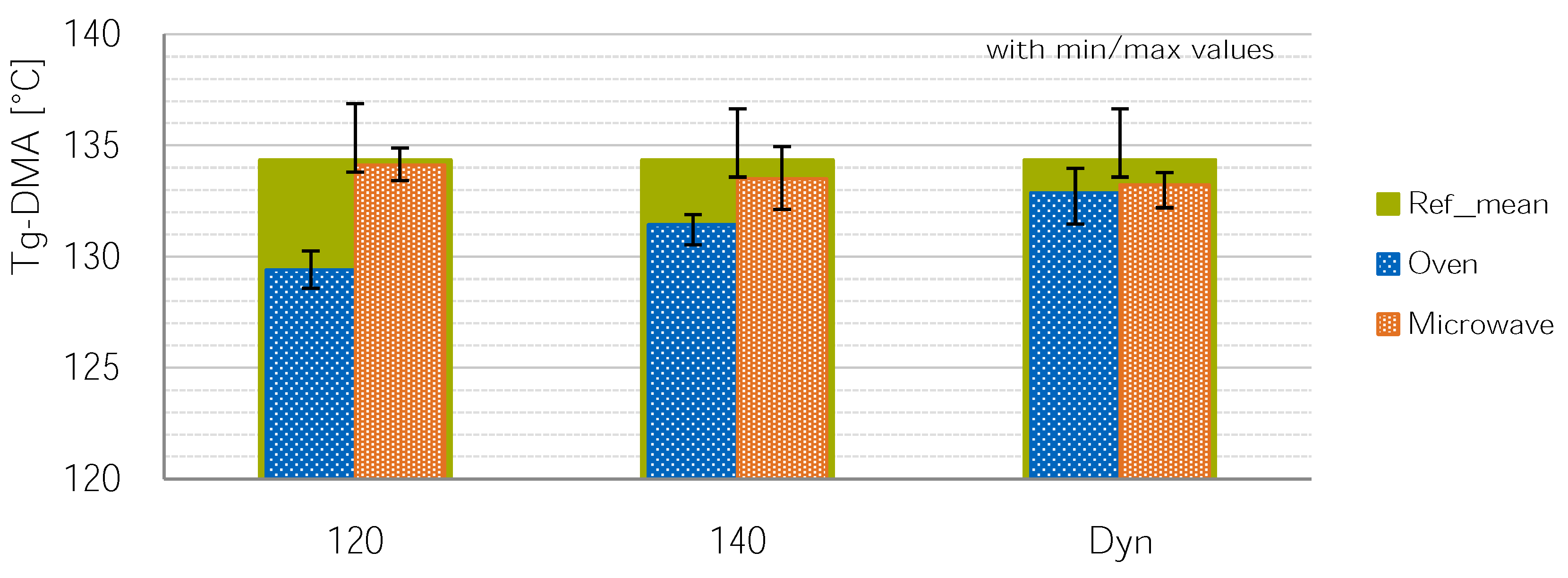

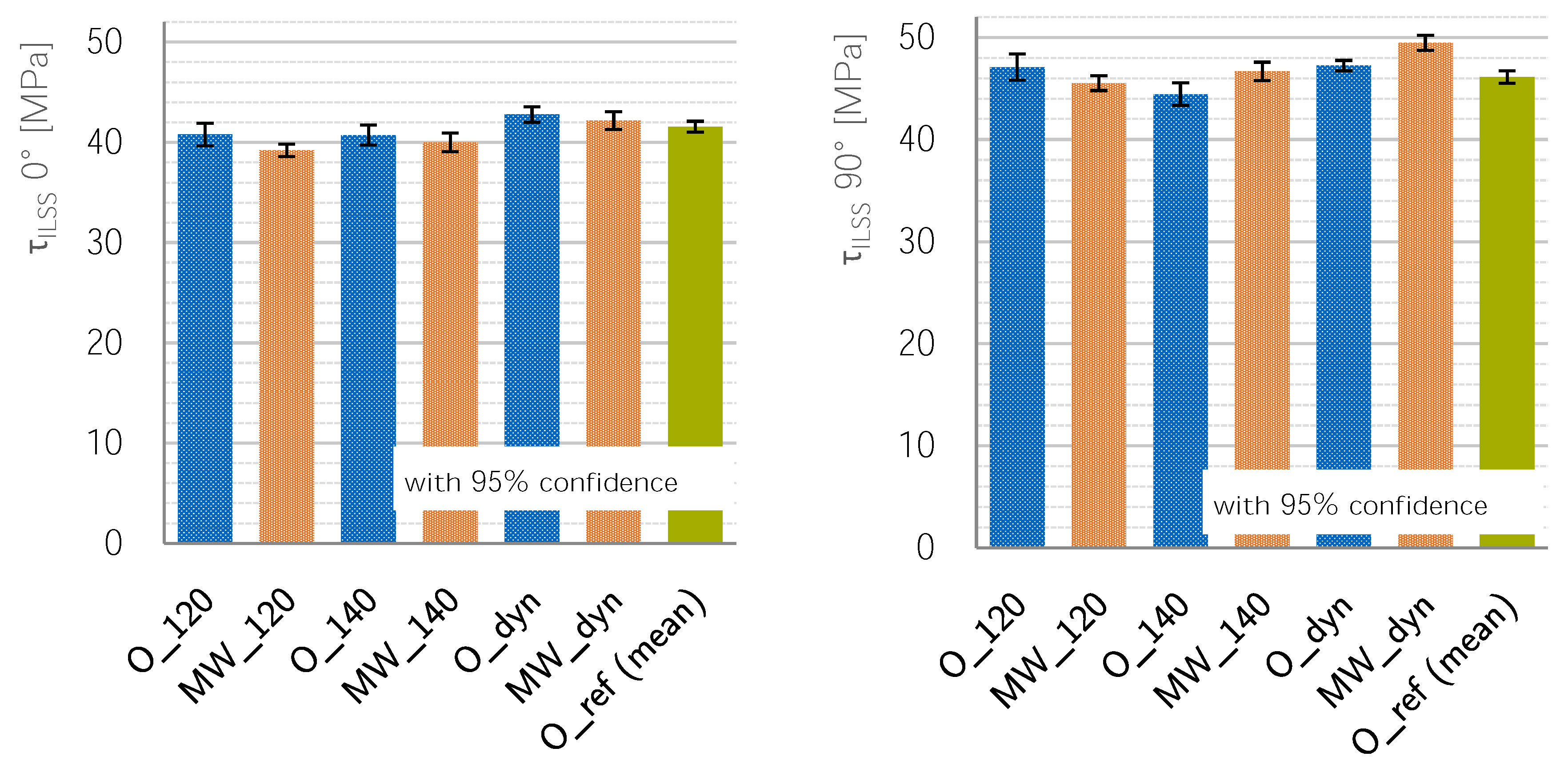

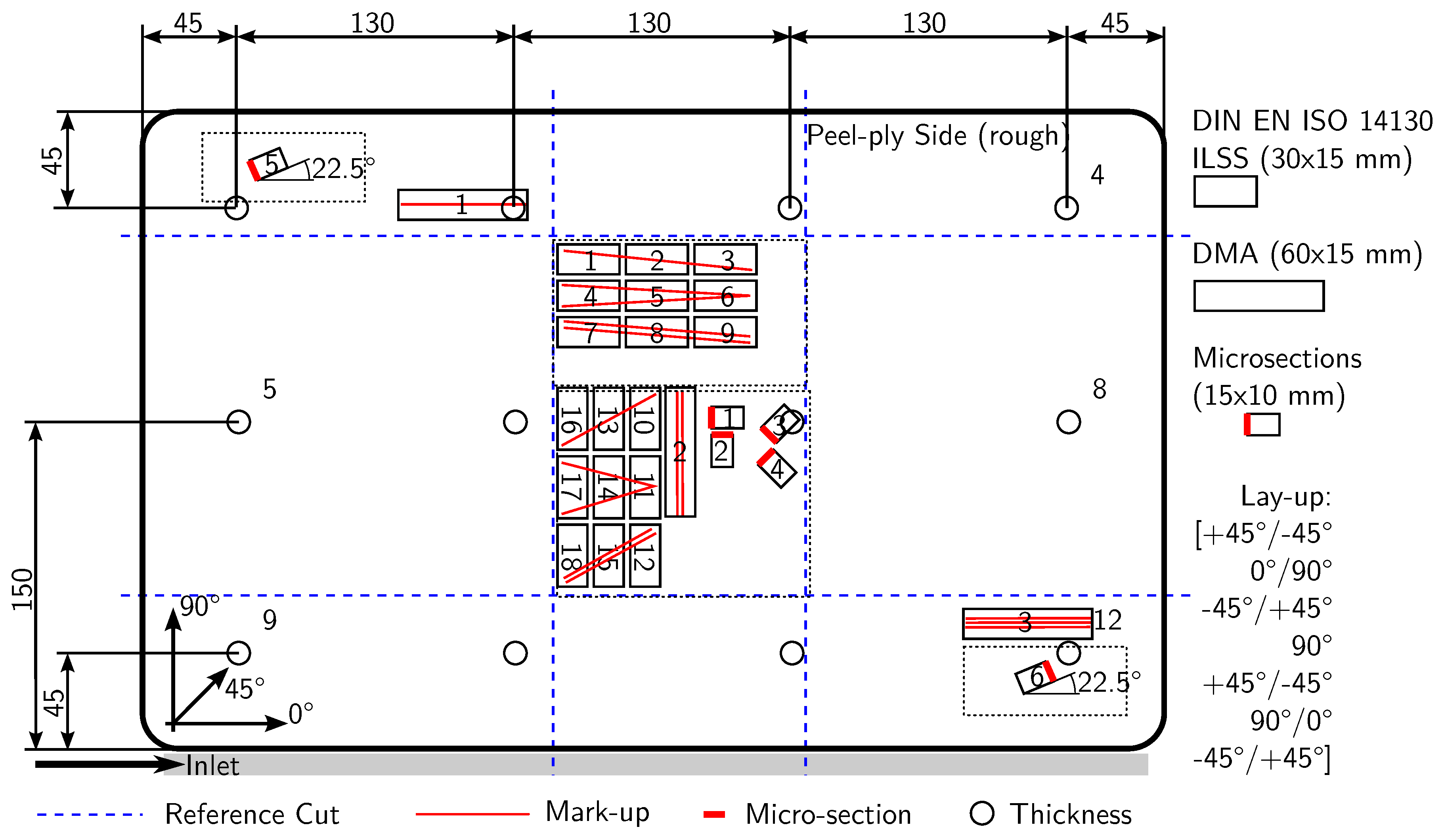

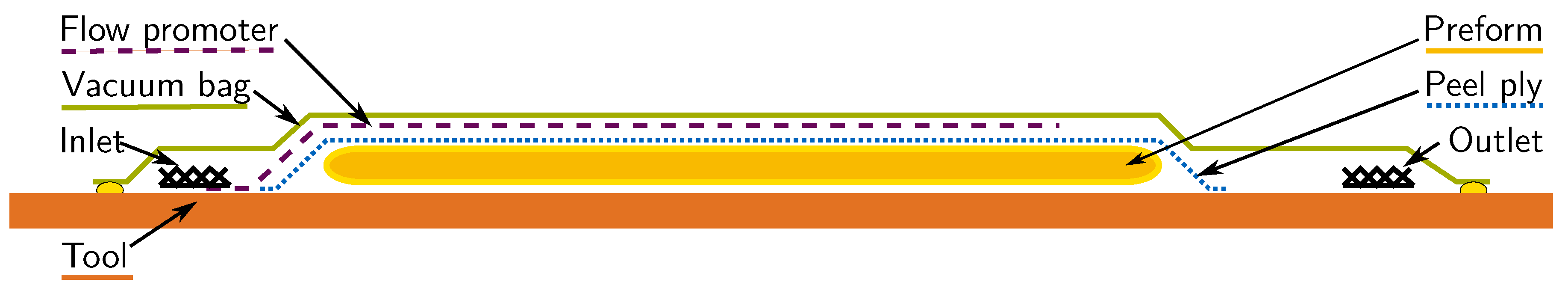

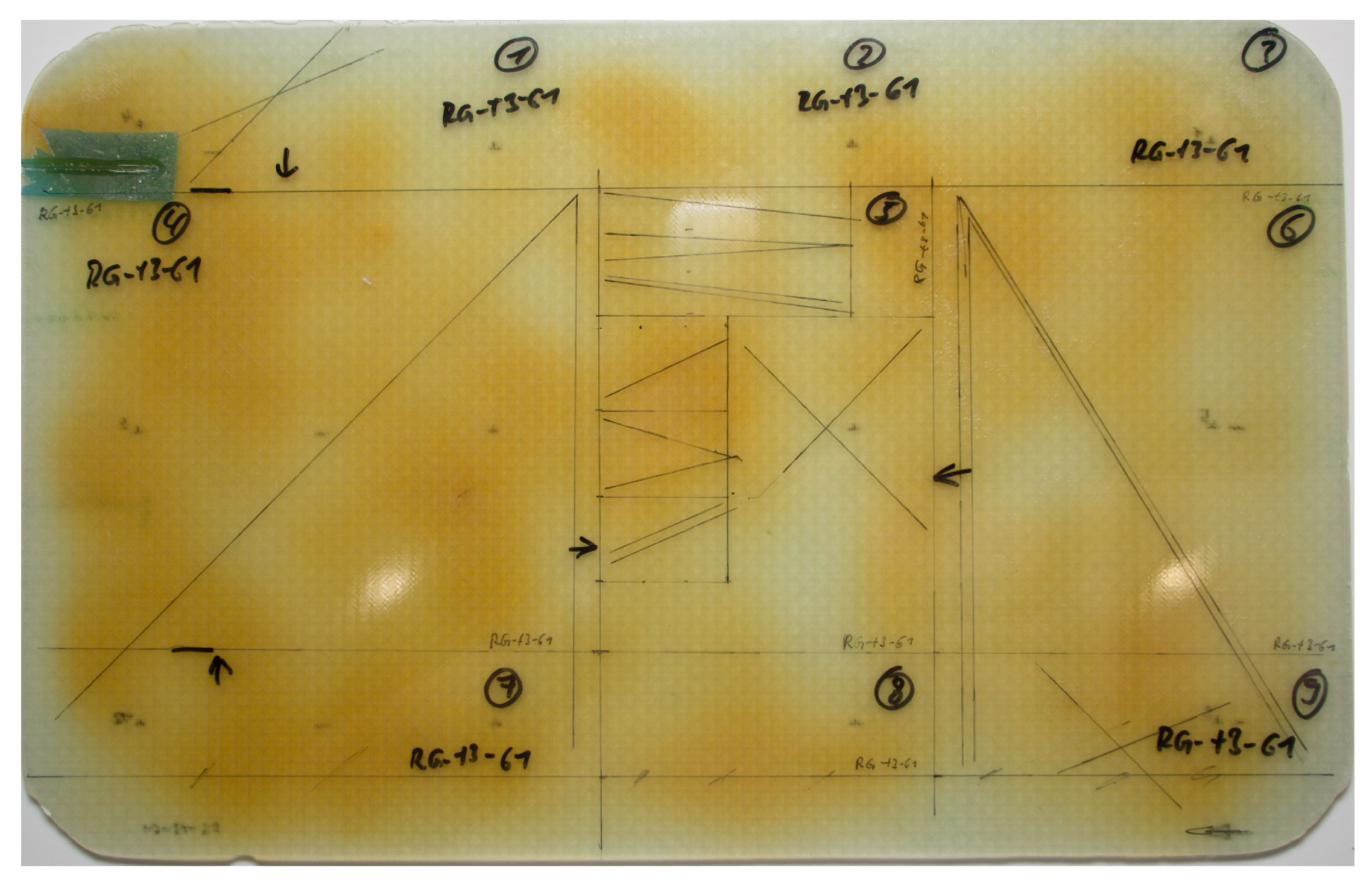

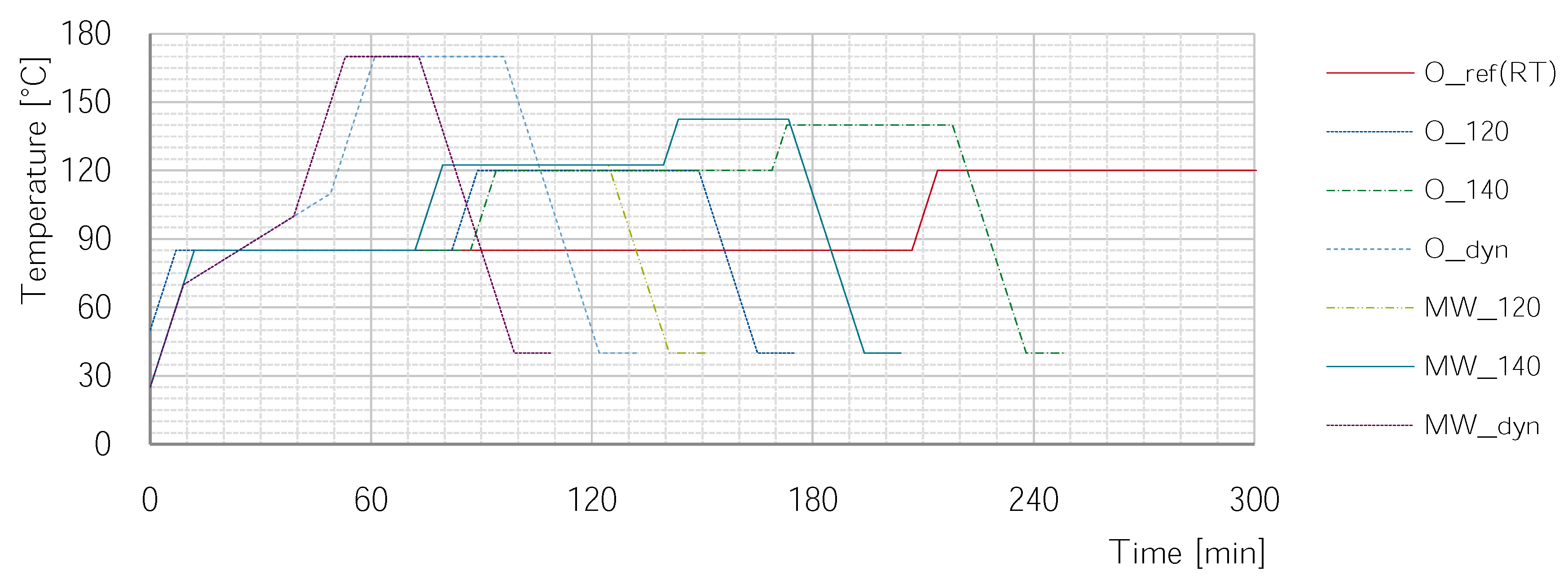

During the production of fiber-reinforced composite materials, liquid resin is introduced into the fiber material and cured, i.e., hardened. An elevated temperature is needed for this curing. Microwave curing of composites has been investigated for some time, but it has mostly been done using small domestic or laboratory equipment. However, no investigation has been carried out using an industrial-sized chamber-microwave for glass fiber-reinforced plastic (GFRP). Here, we show that microwave curing produces laminates of the same quality as oven-cured ones. The study shows that, if the process is done right, GFRP samples can be produced with an industrial scale microwave. Even if not fully cured, microwave samples show a glass transition temperature measured with DMA (Tg-DMA) that is comparable to the Tg-DMA according to the proposed cure cycle on the data sheet. Specific microwave-cured configurations show better inter-laminar shear strength than oven specimens. The results show that microwave-based heat introduction can be a beneficial curing method for GFRP laminates. A microwave-optimized process is faster and leads to better mechanical properties. View Full-Text
Keywords: microwave; 2.45 GHz; curing; composites; glass; epoxy; GFRP; mechanical properties; DIN EN 14130; hephaistos microwave; 2.45 GHz; curing; composites; glass; epoxy; GFRP; mechanical properties; DIN EN 14130; hephaistos

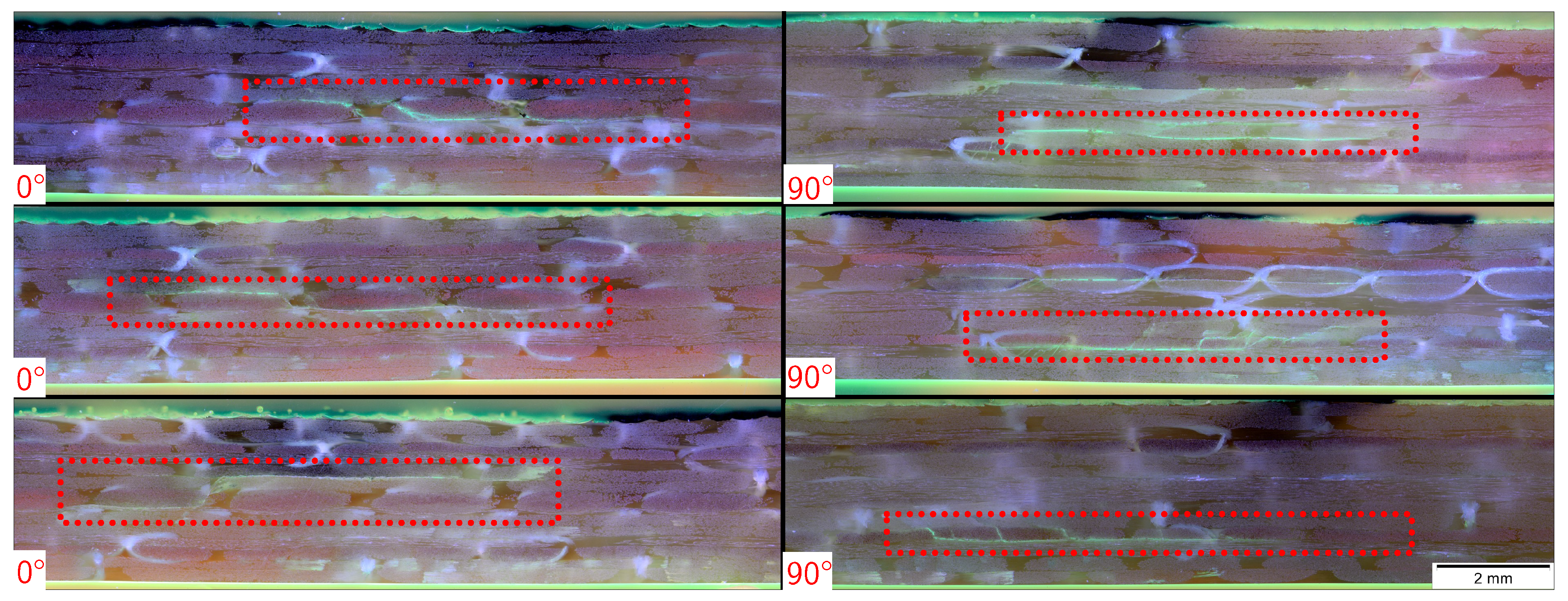

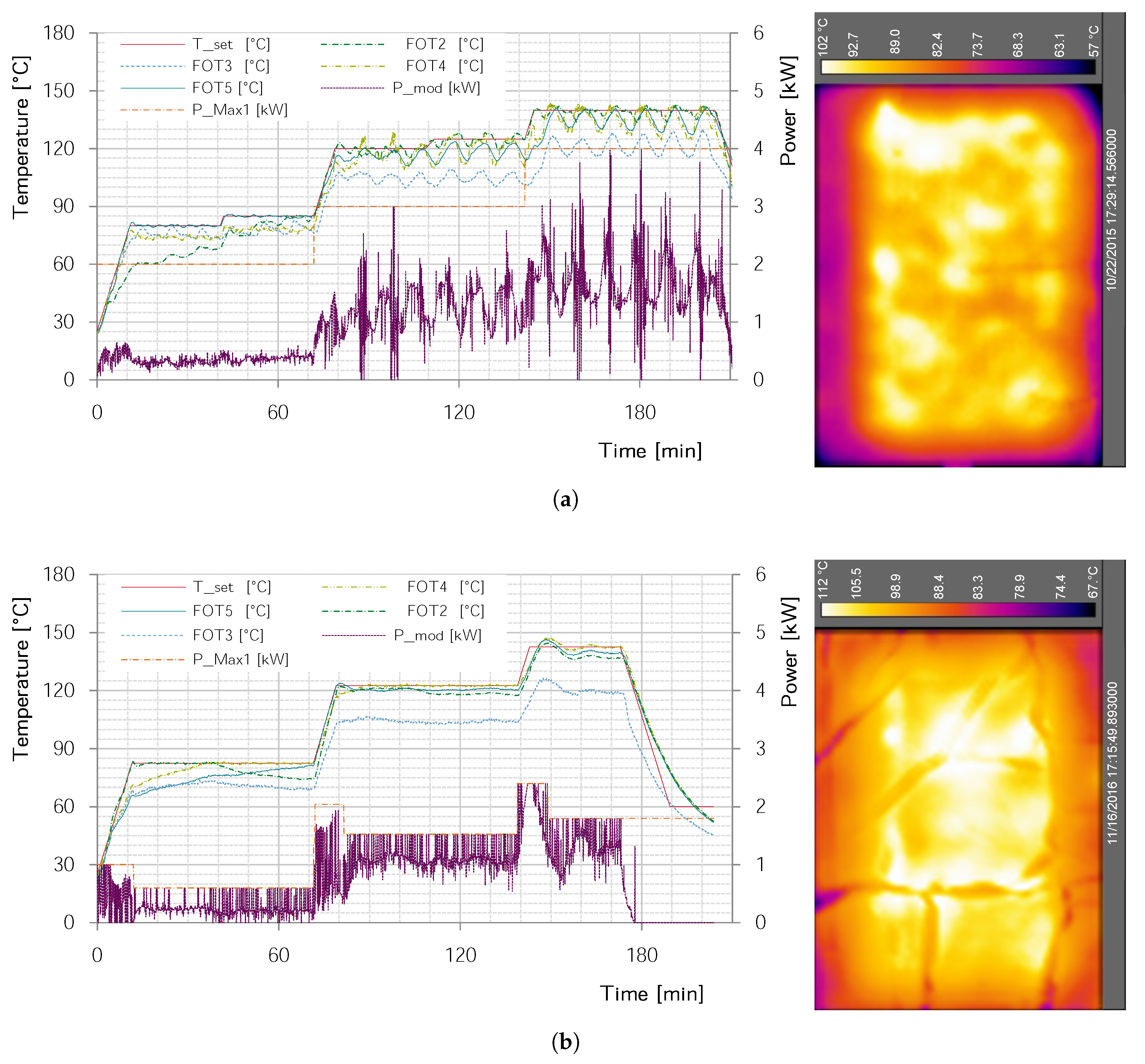

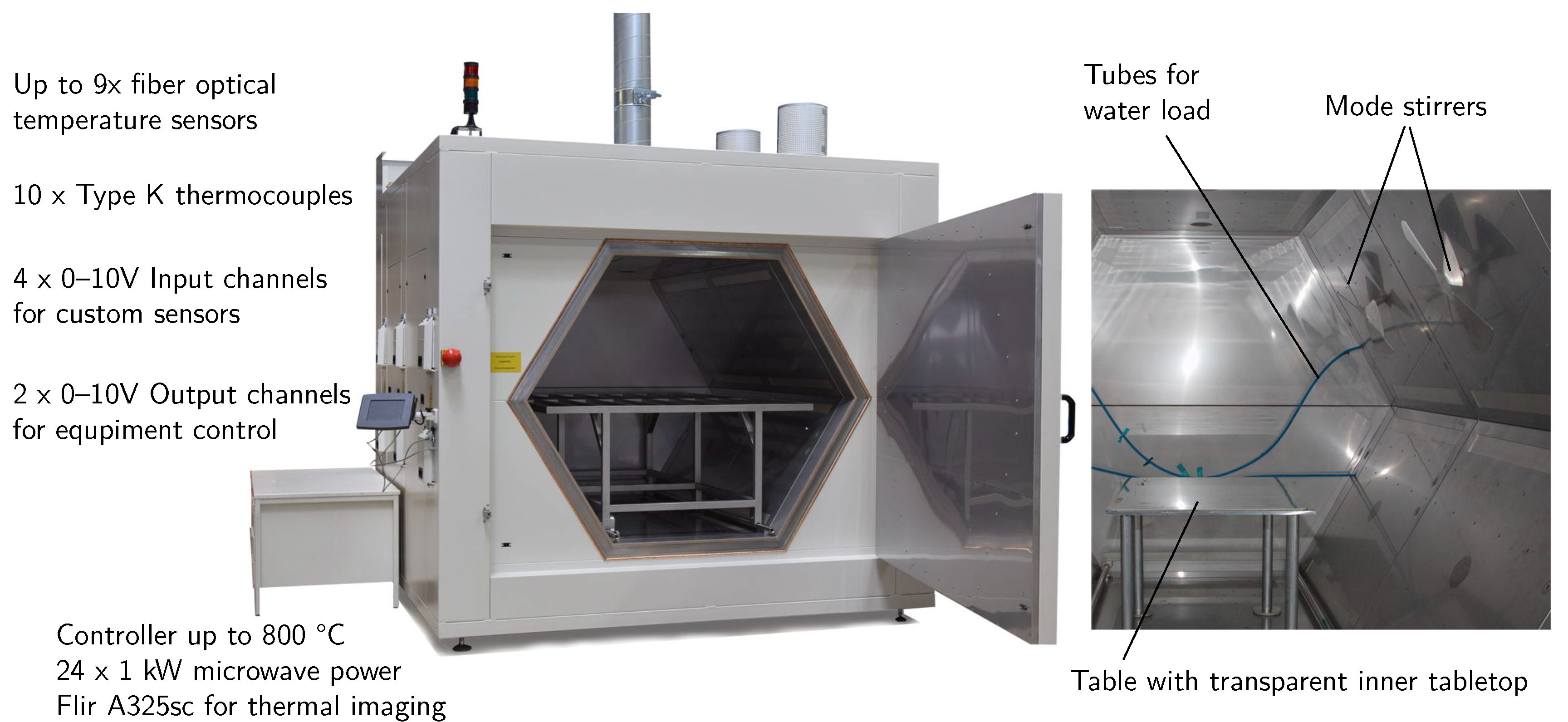

Show Figures

Graphical abstract

MDPI and ACS Style

Teufl, D.; Zaremba, S. 2.45 GHz Microwave Processing and Its Influence on Glass Fiber Reinforced Plastics. Materials 2018, 11, 838.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
