Next Article in Journal
The Evaluation of Damage Effects on MgO Added Concrete with Slag Cement Exposed to Calcium Chloride Deicing Salt
Next Article in Special Issue
Femtosecond Laser Texturing of Surfaces for Tribological Applications
Previous Article in Journal
Synthesis and Broadband Spectra Photocatalytic Properties of Bi2O2(CO3)1−xSx
Previous Article in Special Issue
Multifunctional Hierarchical Surface Structures by Femtosecond Laser Processing
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2018, 11(5), 792; https://doi.org/10.3390/ma11050792

The Effect of the Traverse Feed Rate on the Microstructure and Mechanical Properties of Laser Deposited Fe3Al (Zr,B) Intermetallic Alloy

Department of Advanced Materials and Technologies, Military University of Technology, Gen. Urbanowicza 2 Str., 00-908 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Received: 7 April 2018 / Revised: 3 May 2018 / Accepted: 10 May 2018 / Published: 14 May 2018
(This article belongs to the Special Issue Laser Materials Processing)
Full-Text   |   PDF [2420 KB, uploaded 14 May 2018]   |

Abstract

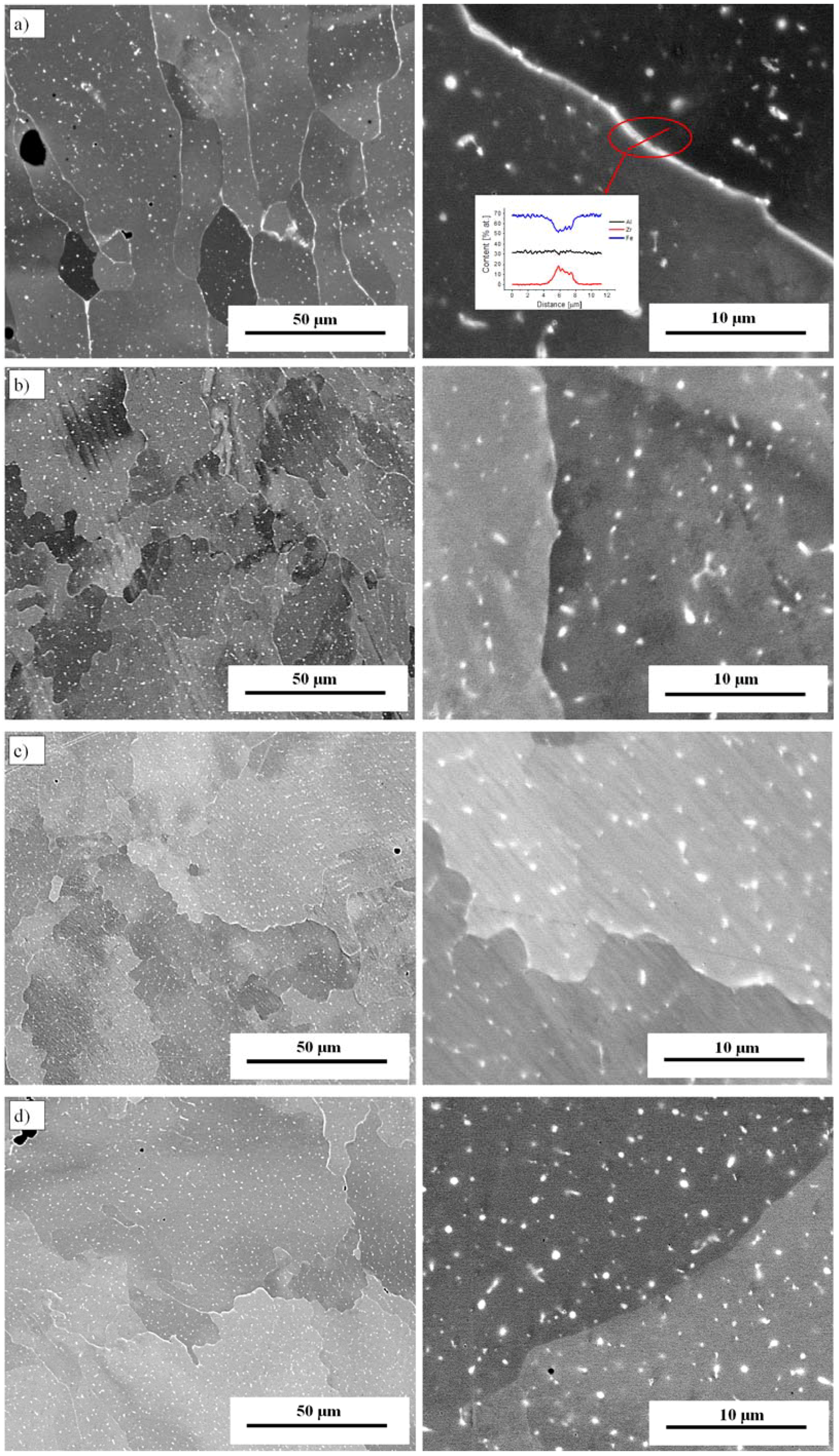

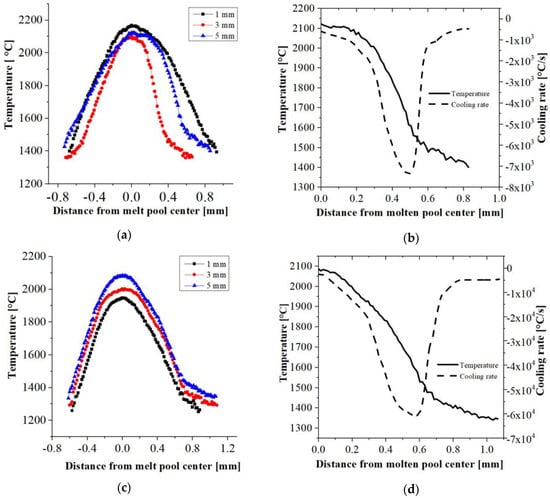

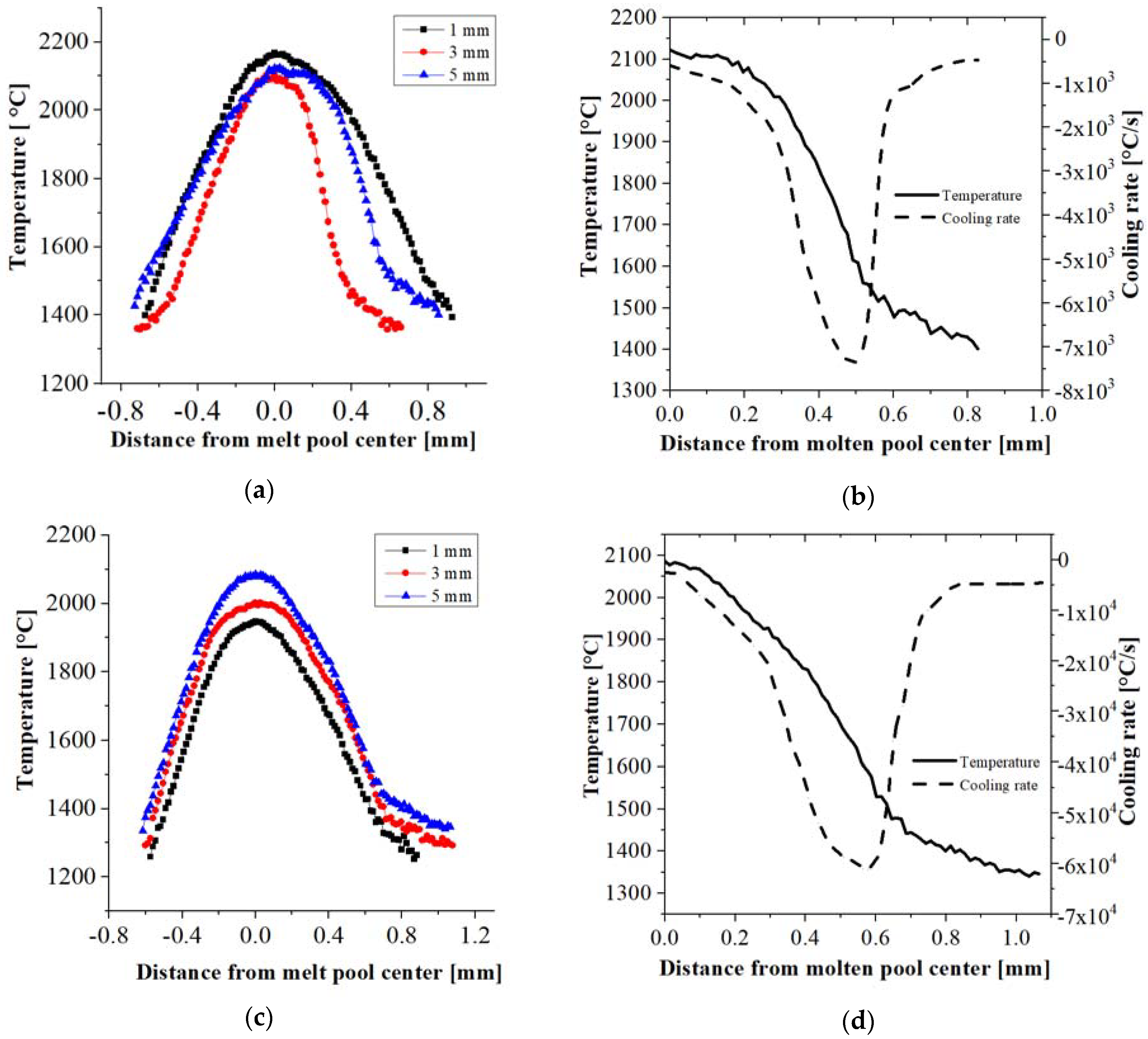

The results of the fabrication of components made with Fe-30%Al-0.35%Zr-0.1%B alloy powder using the Laser Engineered Net Shaping (LENSTM) system operated at different traverse feed rates are described in this paper. The temperature of the molten metal pool was recorded during this process. Depending on the assumed feed rate, the formation of Zr–based precipitates with various morphologies and distributions was observed in the structure of the investigated material. It was found that as the traverse speed increased, spheroidization, refinement, and a more homogeneous distribution of these precipitates occurred. View Full-Text
Keywords: laser deposition; iron aluminides; cooling rate; microstructure; precipitation laser deposition; iron aluminides; cooling rate; microstructure; precipitation

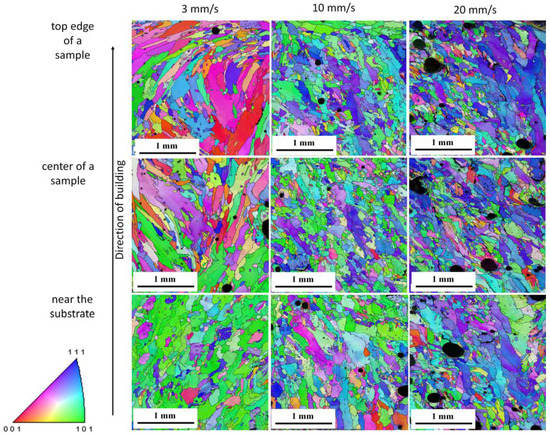

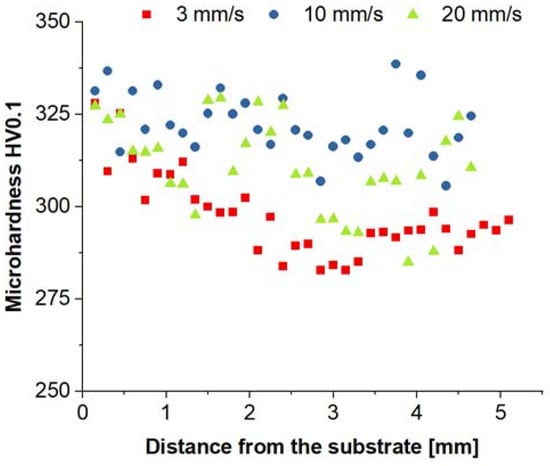

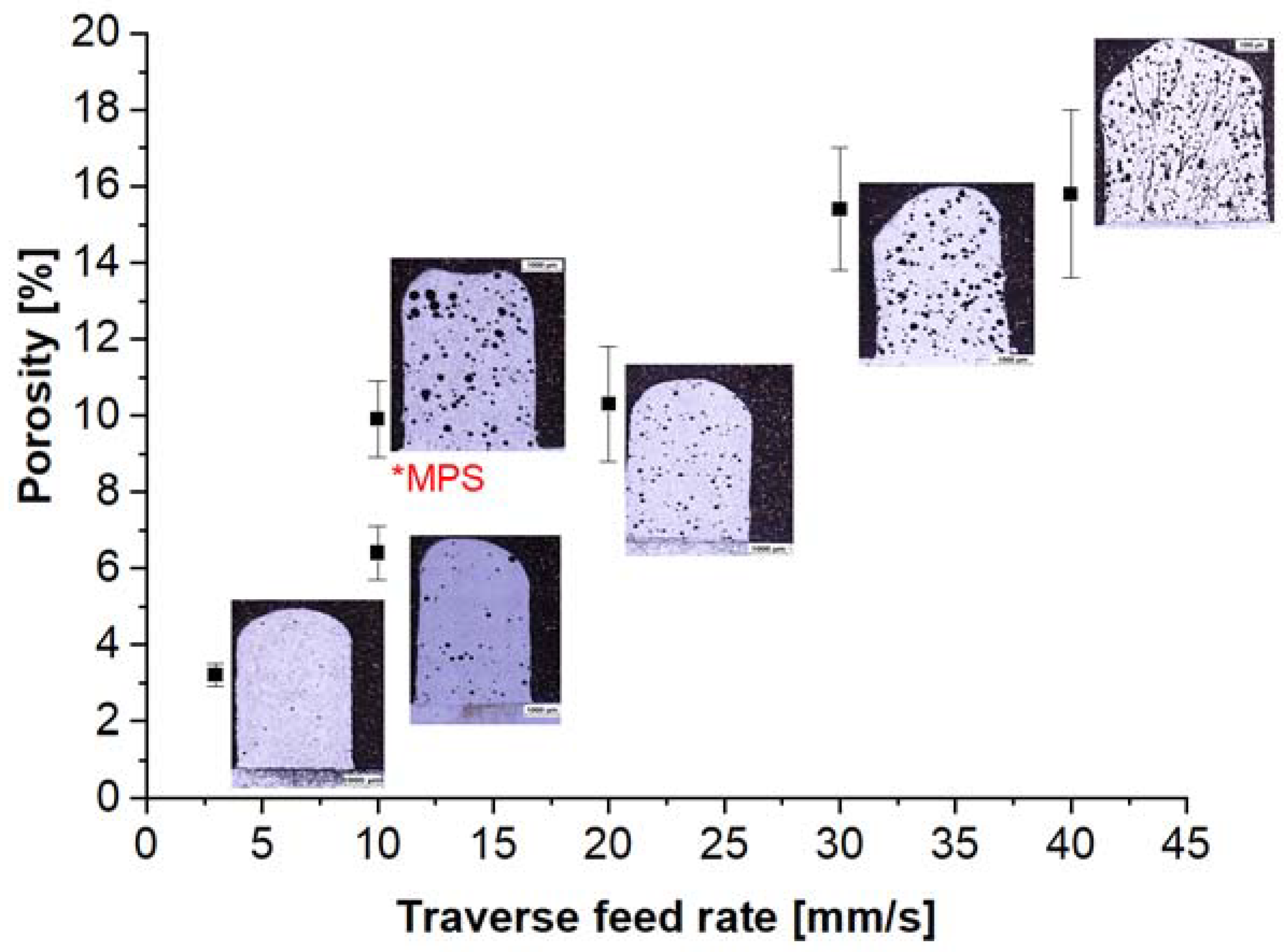

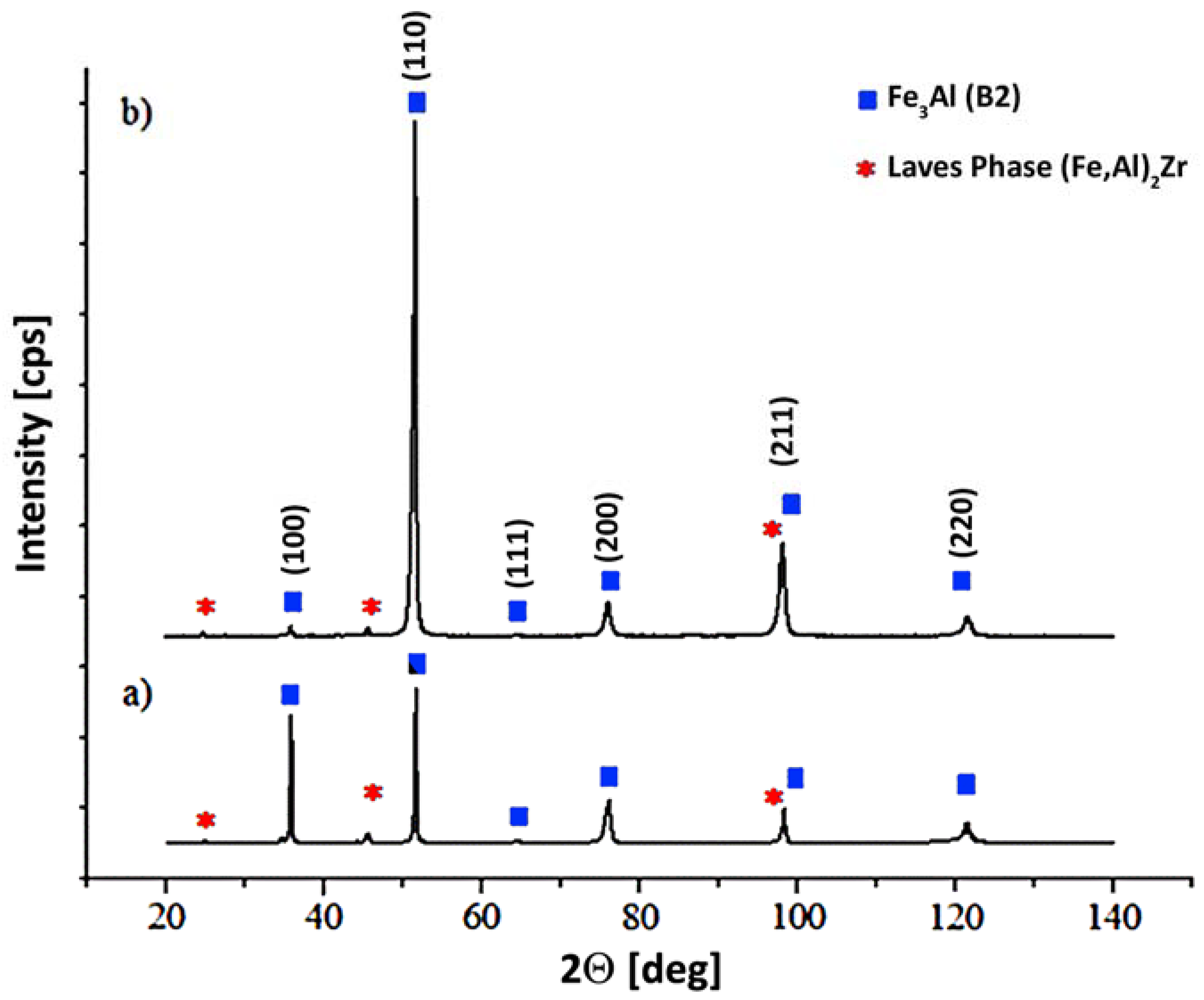

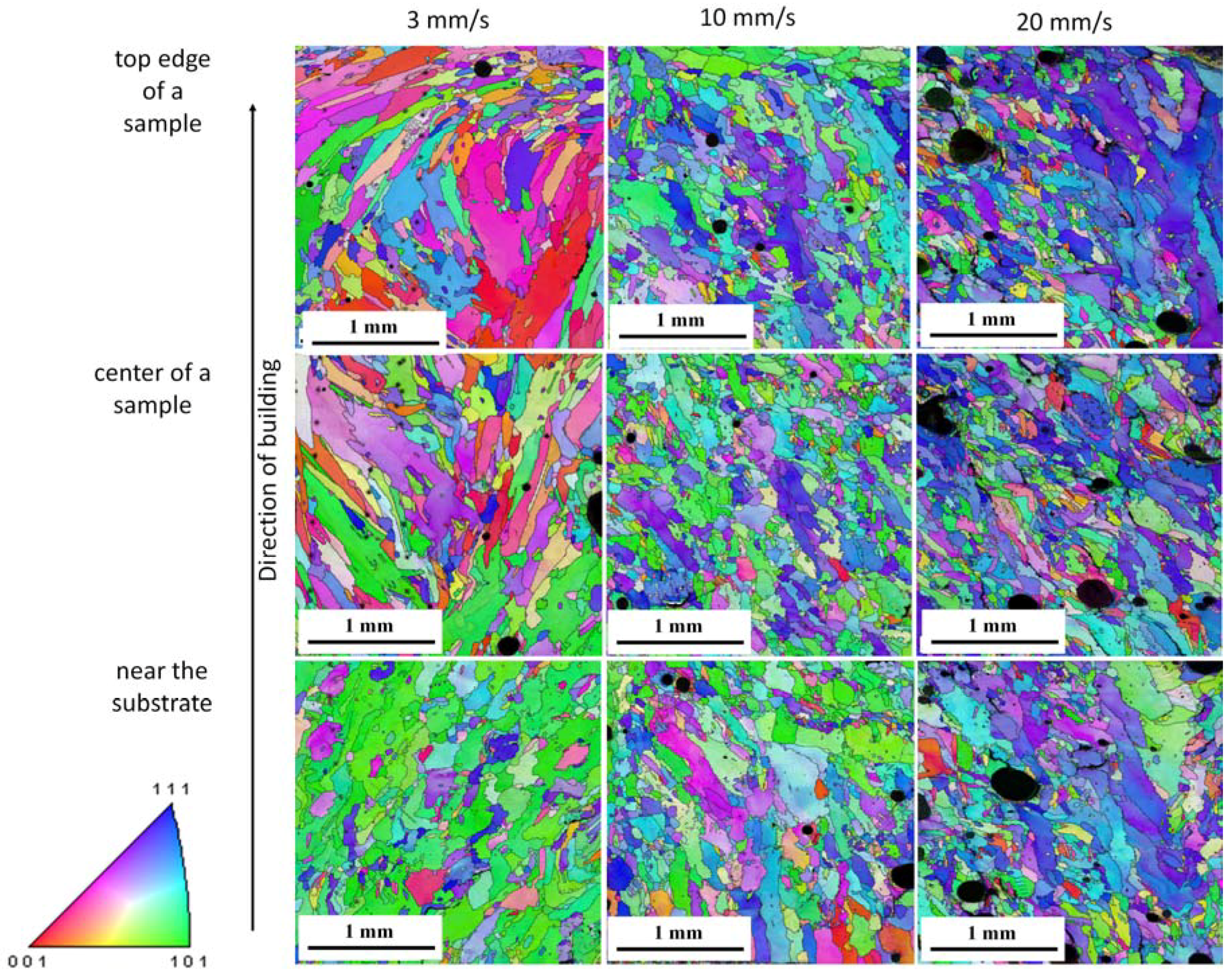

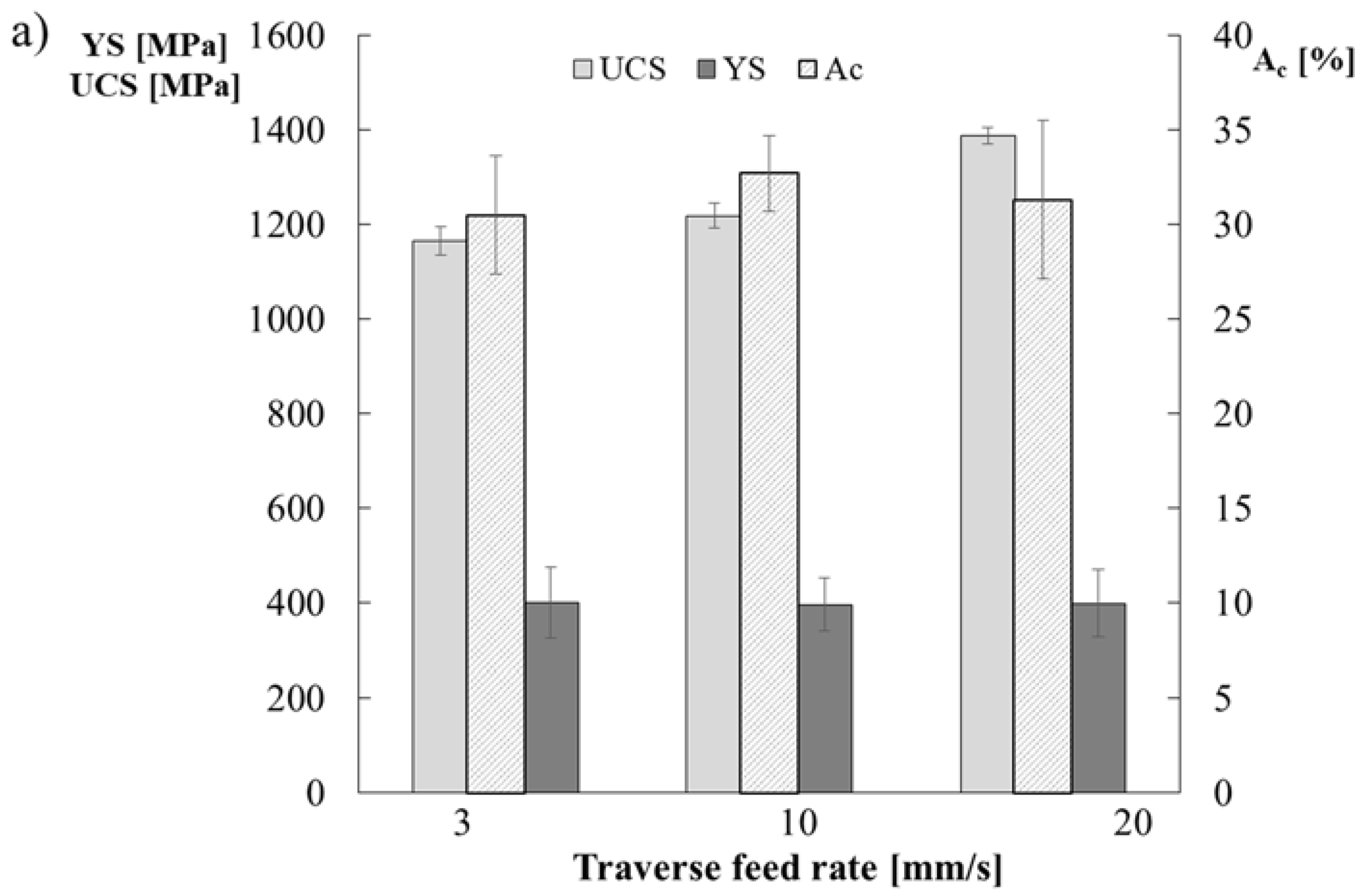

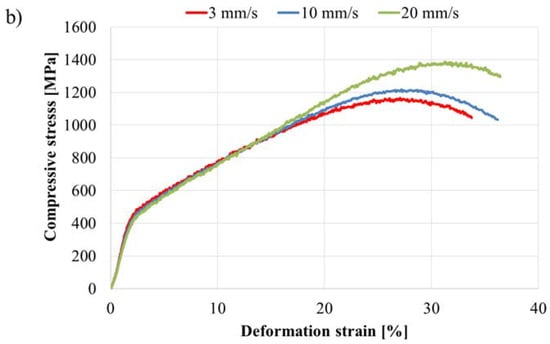

Figures

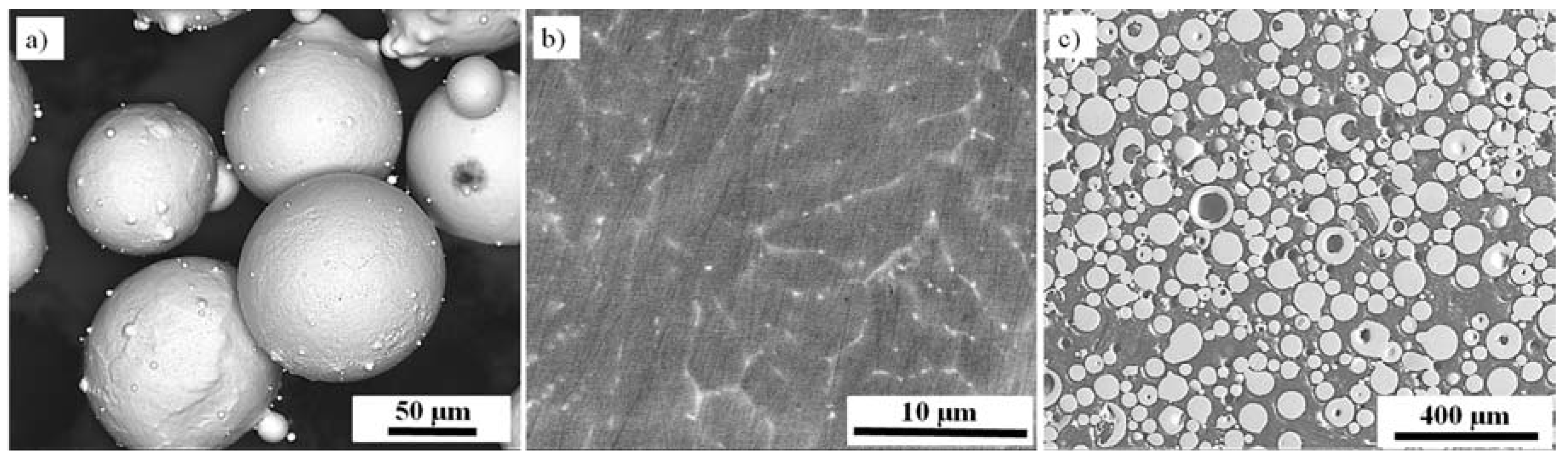

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Łazińska, M.; Durejko, T.; Czujko, T.; Bojar, Z. The Effect of the Traverse Feed Rate on the Microstructure and Mechanical Properties of Laser Deposited Fe3Al (Zr,B) Intermetallic Alloy. Materials 2018, 11, 792.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
