Next Article in Journal
Impacts of Different Functional Groups on the Kinetic Rates of α-Amine Ketoximesilanes Hydrolysis in the Preparation of Room Temperature Vulcanized Silicone Rubber
Next Article in Special Issue
The Effect of the Traverse Feed Rate on the Microstructure and Mechanical Properties of Laser Deposited Fe3Al (Zr,B) Intermetallic Alloy
Previous Article in Journal
Effect of Cementite on the Hydrogen Diffusion/Trap Characteristics of 2.25Cr-1Mo-0.25V Steel with and without Annealing
Previous Article in Special Issue
Microstructure and Solidification Crack Susceptibility of Al 6014 Molten Alloy Subjected to a Spatially Oscillated Laser Beam
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2018, 11(5), 789;

Multifunctional Hierarchical Surface Structures by Femtosecond Laser Processing

Otto Schott Institute of Materials Research (OSIM), Friedrich Schiller University Jena, Löbdergraben 32, 07743 Jena, Germany
Author to whom correspondence should be addressed.
Received: 25 April 2018 / Revised: 9 May 2018 / Accepted: 10 May 2018 / Published: 12 May 2018
(This article belongs to the Special Issue Laser Materials Processing)
Full-Text   |   PDF [8748 KB, uploaded 15 May 2018]   |


Hierarchical surface structures were fabricated on fused silica by using a fs-laser with a pulse duration τ = 300 fs and a wavelength λ = 512 nm. The resulting surface structures were characterized by scanning electron microscopy, atomic force microscopy and white light interference microscopy. The optical properties were analyzed by transmittance measurements using an integrating sphere and the wettability was evaluated by measuring the water contact angle θ. The silanization of structured fused silica surfaces with trichloro(1H,1H,2H,2H-perfluorooctyl)silane allows to switch the wettability from superhydrophilic (θ = 0°) to superhydrophobic behavior with θ exceeding 150°. It was shown that the structured silica surfaces are a suitable master for negative replica casting and that the hierarchical structures can be transferred to polystyrene. The transmittance of structured fused silica surfaces decreases only slightly when compared to unstructured surfaces, which results in high transparency of the structured samples. Our findings facilitate the fabrication of transparent glass samples with tailored wettability. This might be of particular interest for applications in the fields of optics, microfluidics, and biomaterials. View Full-Text
Keywords: fs-laser; hierarchical surface structures; fused silica; silanization; optical properties; wettability; negative replica casting; polystyrene fs-laser; hierarchical surface structures; fused silica; silanization; optical properties; wettability; negative replica casting; polystyrene

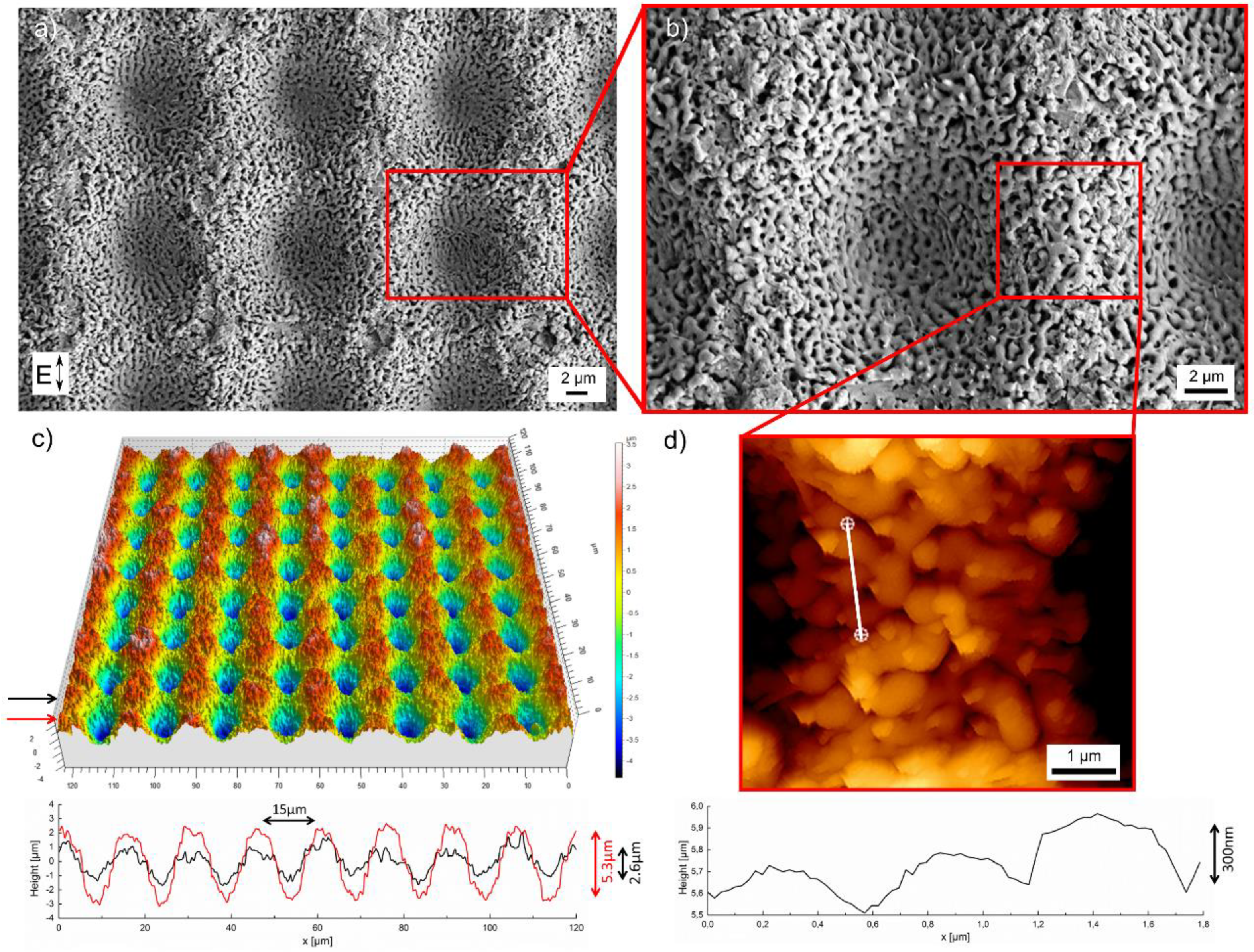

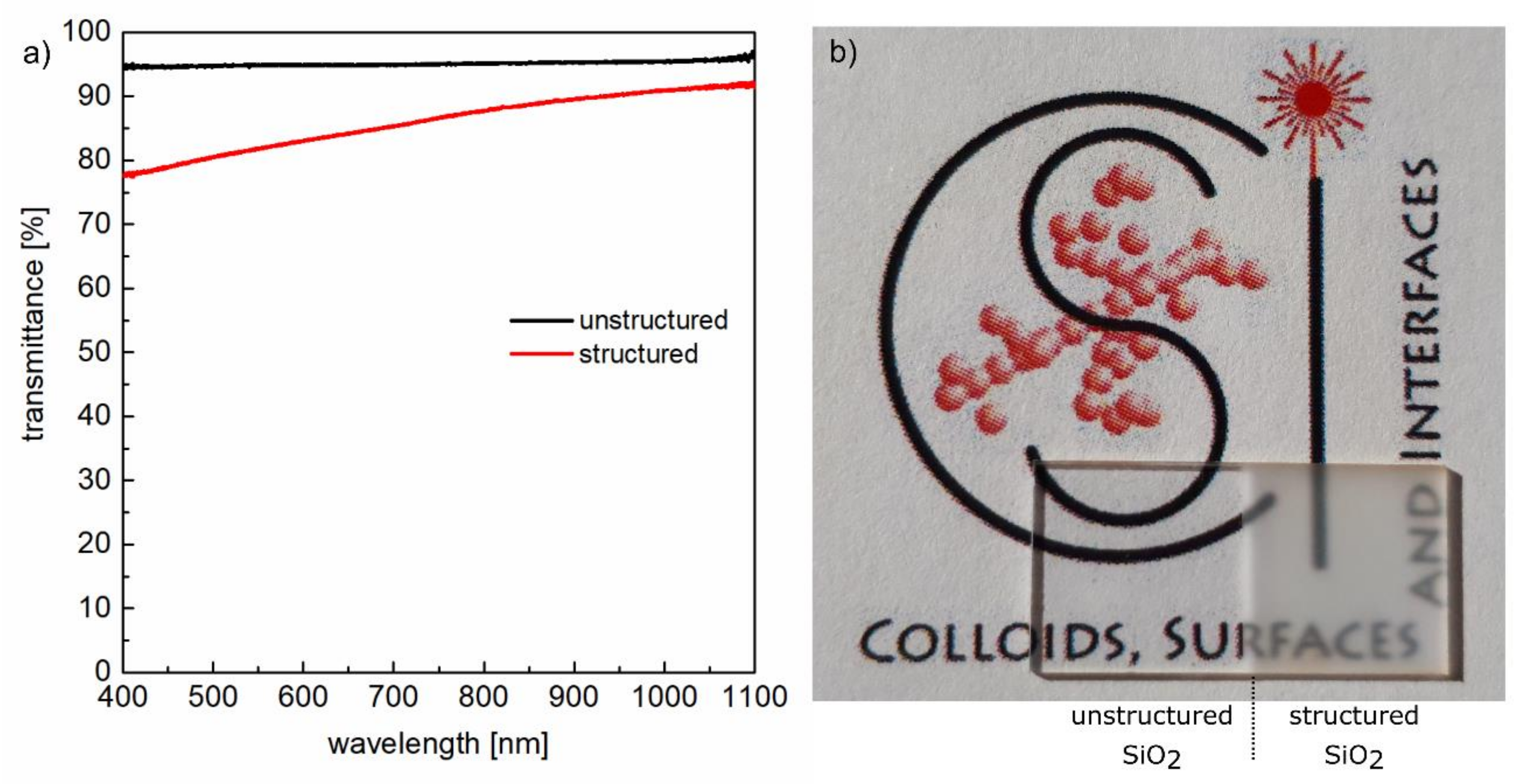

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Kunz, C.; Müller, F.A.; Gräf, S. Multifunctional Hierarchical Surface Structures by Femtosecond Laser Processing. Materials 2018, 11, 789.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
