Materials 2018, 11(5), 691; https://doi.org/10.3390/ma11050691

Article
C60 Bioconjugation with Proteins: Towards a Palette of Carriers for All pH Ranges
1
Dipartimento di Chimica “G. Ciamician”, Università di Bologna, via F. Selmi 2, 40126 Bologna, Italy
2
Istituto per lo Studio dei Materiali Nanostrutturati (CNR-ISMN), Consiglio Nazionale delle Ricerche, via P. Gobetti 101, 40129 Bologna, Italy
*
Authors to whom correspondence should be addressed.
Received: 16 March 2018 / Accepted: 23 April 2018 / Published: 27 April 2018

Abstract

:
The high hydrophobicity of fullerenes and the resulting formation of aggregates in aqueous solutions hamper the possibility of their exploitation in many technological applications. Noncovalent bioconjugation of fullerenes with proteins is an emerging approach for their dispersion in aqueous media. Contrary to covalent functionalization, bioconjugation preserves the physicochemical properties of the carbon nanostructure. The unique photophysical and photochemical properties of fullerenes are then fully accessible for applications in nanomedicine, sensoristic, biocatalysis and materials science fields. However, proteins are not universal carriers. Their stability depends on the biological conditions for which they have evolved. Here we present two model systems based on pepsin and trypsin. These proteins have opposite net charge at physiological pH. They recognize and disperse C60 in water. UV-Vis spectroscopy, zeta-potential and atomic force microscopy analysis demonstrates that the hybrids are well dispersed and stable in a wide range of pH’s and ionic strengths. A previously validated modelling approach identifies the protein-binding pocket involved in the interaction with C60. Computational predictions, combined with experimental investigations, provide powerful tools to design tailor-made C60@proteins bioconjugates for specific applications.
Keywords:
fullerenes; nanohybrids; nanobiotechnology; bioconjugation; chemical stability

1. Introduction

C60, the most representative member of the fullerenes family, has steadily attracted interest for its possible use in various fields, including nanomedicine [1,2,3,4,5,6,7]. A plethora of fullerene-based compounds have been synthesized with different targets. They display a range of biological activities that are potentially useful in anticancer therapy, antimicrobial therapy, enzyme inhibition, controlled drug delivery, and contrast or radioactivity-based diagnostic imaging [7,8,9,10,11,12,13]. Noteworthy is the possibility of their use in photodynamic and photothermal therapies [8,14,15]. The photophysical and electrochemical properties of C60 depend on their dispersion and a strict control of their disaggregation is truly necessary for nanotechnological applications [16,17,18]. To date two main approaches have been followed to tackle fullerene insolubility in water:
(i)
the covalent approach is the most used method to prevent fullerene aggregation. The benefits obtained by functionalization are often offset by reduced photophysical performances [19];
(ii)
the noncovalent approach requires the use of supramolecular hosts that are amphipathic molecules able to interact with a single fullerene and to screen it from the aqueous environment. A variety of hosts is capable of interacting with fullerenes. They include surfactants, synthetic polymers, biopolymers, cyclodextrin [20], to name a few. In all cases, they stabilize small clusters of fullerenes [21]. In recent years, also proteins have become used as dispersing agents of fullerenes [9,22,23,24], CNTs [25,26,27,28,29] and graphene [30]. Proteins are naturally amphiphilic. This feature may avoid complicated synthetic procedures or the use of organic solvents. Most proteins are also pH responsive, which is an advantage for some manipulations [26]. Steric hindrance and electrostatic repulsion are the key factors determining the stability of the dispersion of carbon nanomaterials-protein complexes in aqueous solutions [31].
Protein corona [32,33,34] determines the biological fate of ultra-small NPs and nanoclusters and controls physiological responses. From the biological point of view, encapsulation of fullerenes by proteins may control and possibly decrease the cytotoxicity. Well-dispersed fullerenes [35] and CNTs are less toxic than their agglomerates [36]. Protein binding can also alter the cellular pathways of interaction with carbon nanomaterials. Ultimately, coating of carbon nanomaterials with proteins can confer them a new biological identity [37].
We recently proposed the use of lysozyme to disperse with a 1:1 stoichiometry C60 in water [23]. The hybrid is well-defined and the fullerene binds selectively in the protein-substrate binding pocket. The protein-based supramolecular adduct preserves the photophysical properties of C60 and allows the exploitation of C60 as a photosensitizer for photodynamic treatments [35].
In this work, we show that the non-covalent bioconjugation of C60 with proteins offers a palette of carriers for fullerenes for all pH ranges. We evaluate the stability of C60@protein complexes in biologically relevant conditions. Two proteins characterized by opposite net charges in physiological conditions are used as model systems and the role of the electrostatic contribution to the stability of their adducts with C60 is identified. Applications of docking protocols and Molecular Mechanics Poisson–Boltzmann Surface Area (MMPBSA) calculations [38,39] further provide accurate description of the C60 binding pocket involved in the interaction between protein and C60.

2. Materials and Methods

Trypsin from porcine pancreas (Cat. no. T0303), pepsin from porcine gastric mucosa (Cat. no. P7012), fullerene C60 (Cat. no. 483036) were purchased from Sigma Aldrich. They were used without further purifications. Phosphate-buffered saline (PBS) solutions were prepared dissolving the tablets purchased from Sigma Aldrich (Cat. no. P4417) in milli-Q ultrapure water.

2.1. C60@Protein Synthesis

The C60@protein hybrids were prepared mixing an excess of fullerene powder with a 0.3 mM solution of each protein (5 mL), with a 2:1 stoichiometry. NaOH and HCl 1M were used to adjust pH of the protein solutions. The heterogeneous mixtures were then sonicated in a vial for 120 min using a probe tip ultrasonicator (Ultrasonic Processor UP200St, Hielscher Ultrasonics GmbH, Teltow, Germany), equipped with a sonotrode S26d7, used at 40% of the maximum amplitude). During the process, the sample was refrigerated with an ice bath. The dark brown turbid mixture obtained after the sonication was centrifuged at 10 kRCF. The resulting supernatant was then collected and characterized.

2.2. C60@Protein Characterization

UV-Vis absorption spectra were recorded at 25 °C by means of Cary 60 UV-Vis Spectrophotometer (Agilent, Santa Clara, CA, USA). Surface charge analysis of the hybrids were estimated measuring the zeta-potential at 25 °C by means of Malvern Nano ZS.
Atomic Force Microscopy (AFM) experiments were performed at the [email protected] microscopy facility in Bologna. AFM analysis were done with a Multimode VIII equipped with a Nanoscope V controller (Bruker Nano Surface, Santa Barbara, CA, USA) operated in ScanAsyst mode to evaluate the quality of the monodispersion of the bioconjugates. The samples were prepared by drop casting 10 μL of C60@protein solution onto a freshly cleaved mica substrate for 10 min then rinsed with milli-Q ultrapure water and dried under a nitrogen stream.

2.3. Computational Protocol

Generation of the poses. Docking models were obtained using the PatchDock algorithm [40]. PatchDock takes as input two molecules and computes three-dimensional transformations of one of the molecules with respect to the other with the aim of maximizing surface shape complementarity, while minimizing the number of steric clashes.
Scoring of the poses. Accurate rescoring of the complexes is then carried out using FireDock program [41]. This method simultaneously targets the problem of flexibility and scoring of solutions produced by fast rigid-body docking algorithms. Sidechain flexibility is modeled by rotamers and Monte Carlo minimization [42]. Following the rearrangement of the side-chains, the relative position of the docking partners is refined by Monte Carlo minimization of the binding score function. Free energy of solvation/desolvation in the binding process is taken into account by a solvation model that uses estimated effective atomic contact energies (ACE) [43]. All the candidates are ranked by a binding score [43]. This score includes, in addition to atomic contact energy used to estimate the desolvation energies [43], van der Waals interactions, partial electrostatics, explicit hydrogen and disulfide bonds contribution. In addition, three components to the total binding score are added:Eπ-π for the calculation of the π-π interactions, Ecation-π for the calculation of the cation-π interactions and Ealiph for the calculation of hydrophobic interactions.
Minimizing the pose. The best poses for every selected protein were full minimized by AMBER 12 [44]. The ff12SB force field [44] was used to model the proteins, while the fullerene atoms were modeled as uncharged Lennard-Jones particles by using the CA atom type (sp2 Aromatic Carbon parameter), also from the AMBER force field. The minimization was carried out with sander, using the GB (Generalized Born) model [45] for the solvation and no cut-off for van der Waals and electrostatic was used.
MM-GBSA analysis. In order to identify the residues responsible for the binding of the proteins to C60, we carried out a decomposition analysis of the optimized structure according to the MM-GBSA scheme [38,39]. The per-residue decomposition analysis provides the contribution of the individual amino acids to the binding.

3. Results and Discussions

The ability of C60 to interact with proteins is a recent subject of investigation. Collectively, van der Waals, hydrophobic and electrostatic interactions must cooperate to establish energetically favorable interactions between a protein and a fullerene in order to allow the formation of a stable complex [46]. Geometrical complementarity also plays a primary role to maximize the effect of the stabilizing contributes [47]. Crucial for the understanding of protein-fullerene interactions is the identification of the fullerene-binding site together with the possible subsequent proteins structural modification [48]. It should also be further assessed if the interaction occurs between a single fullerene with a single protein or if fullerenes clusters are surrounded by a number of proteins.
Pepsin (pI = 2.2–3) [49] and trypsin (pI = 10.2–10.8) [50] are proteins characterized by very different values of isoelectric point, which makes one negatively and the other positively charged in physiological conditions. Sonication of C60 with each protein was performed in acidic (pH 2), neutral, and basic pH (pH 12) of unbuffered aqueous solutions, to avoid stabilizing/destabilizing effects due to the different buffer composition. Pepsin was able to disperse fullerene in water only at basic pH, where the protein is negatively charged, while trypsin showed the best performances at acidic pH.
The two batches of hybrids were synthetized under optimized conditions. After sonication and centrifugation, the supernatants were collected and characterized. UV-Vis spectra of the solutions (Figure 1) show the diagnostic absorption bands of C60 at 341 nm and the overlap of C60 and protein absorption bands between 260 and 290 nm. Based on the extinction coefficients of both components of the adducts [51], the absorption spectra suggest a 1:1 stoichiometry between C60 and trypsin, while 1:2 stoichiometry can be estimated for the C60 and pepsin complex. UV-Vis spectra also suggest that the presence of particle aggregates, observed prior to centrifugation, was completely removed since scattering is not exhibited.

3.1. C60@Pepsin—C60@trypsin, an Atomistic View

Surface complementarity between the proteins and the C60 surface appears. The results of the docking protocol explain the stoichiometry observed by the UV-visible spectra. Pepsin is characterized by a dimeric interface region. In this region, two fullerene binding pockets are identifiable (Figure 2a,b).
The binding between C60 and pepsin is not surprising, since pepsin is an aspartic protease and structurally strongly correlates to HIV protease: fullerenes are well known inhibitors of HIV-1 protease [52,53,54,55]. In pepsin, as in the HIV protease, fullerenes block the large active site groove [52,53,54,55]. C60 is also a known serine protease inhibitor [56], and in fact C60 binds in the trypsin active site: a single, well defined binding pocket is identified by the docking protocol in this region (Figure 2c,d). For the two C60@protein hybrids tested here, MM-GBSA analysis of the structures in their optimized geometries provides a quantitative description of the C60 binding pocket and identifies the more effectively interacting residues. Table 1 shows the 10 largest interactions between the residues of the proteins and C60. The three most interacting residue for binding pocket are represented in Figure 3a–c.
From Table 1, Figure 3, and Figures S1–S3 it appears that proteins are able to interact with C60 via:
(i)
π-π stacking interactions that are established between aromatic residues (phenylalanine, tyrosine, histidine) and C60 surface [25,57];
(ii)
Hydrophobic interactions (leucine, isoleucine, methionine, proline, glycine) that are established in water between aliphatic residues and C60 surface [25];
(iii)
Surfactant-like interactions where amphiphilic residues (threonine, serine, aspartate) behave similarly to surfactants and solvate C60. The hydrophobic aliphatic chains of these residues interact with C60 surface, whereas the hydrophilic groups point out toward water [25,58,59].
In the case of trypsin, of interest is the interaction between a disulfide bridge (Cys42-Cys58) and C60 (Figure 3d). This kind of interaction was recently highlight by Hirano and coworkers for carbon nanotubes [60,61].

3.2. AFM Analysis of C60@Protein Hybrids

UV-Vis spectra and molecular modelling exhibit the expected stoichiometry between C60 and proteins. They do not give information about the possible aggregation of the adducts. Atomic force microscopy is a direct technique to evaluate the size distribution of particles.
In Figure 4a, the C60@trypsin hybrids are monomoleculary dispersed when deposited on a negatively charged mica surface. C60@trypsin is positively charged; hence, an electrostatic interaction takes place with the surface. The height distribution (Figure 4c) of both C60@trypsin and the trypsin reference (obtained in the same conditions) shows an average height which is slightly lower than the expected value. This behavior is a consequence of the strong electrostatic interaction, which squashes the proteins over the surface in order to maximize the attractive electrostatic contacts. Conversely, negatively charged pepsin hybrid (Figure 4f) shows an average height, which is slightly higher than the average size of the protein. These results mainly originate from the combination of different forces: (i) the pepsin tendency to self-associate; (ii) the electrostatic repulsion between the pepsin and the surface, which reduces the number of interactions, as confirmed also by the small number of the particles deposited on the mica which repels the adduct.
The AFM analysis demonstrates the absence of C60@proteins aggregates, or nC60 clusters dispersed by the proteins.

3.3. Stability of the Complex in Aqueous Media

Compared to the chemical functionalization of the fullerenes, one of the advantages from the use of host-guest system is the possibility to tune the stability of the complex in aqueous media. The tuning can be achieved by acting only on the host system, which is the protein. Evaluating the behavior of C60@proteins at different pH’s and physiological conditions, it was found that the stability of the hybrid in aqueous media was completely governed by the protein. To understand if proteins pH sensitivity was retained, acid-basic titration was performed. Zeta potential and UV-Vis spectra were obtained. The correlation between zeta potential and pH gives information about the behavior of the complex for possible future in vivo experiments, since pH varies in different compartments of the organisms. Moreover, the greater the range of pH stability the wider the conditions for subsequent manipulation of the adduct. pH dependent zeta potential trends of C60@trypsin and C60@pepsin are shown in Figure 5.
The isoelectric points (IEP) of both adducts resulted slightly shifted to values of pH’s closer to neutrality with respect to IEP of the pristine proteins. This phenomenon can be attributed to a reduced accessibility to pH sensitive groups upon fullerene complexation. A further effect is related to the local change of the environment polarity, which could slightly perturb the pKa of few charged residues. Electrostatic repulsion and steric hindrance are two of the major mechanisms active in the dispersion of fullerene in protein solutions. At pH values different from the isoelectric point (IEP), the charge distribution on the atoms of the proteins makes the protein-stabilized C60 repel each other. For pH values closer to the IEP, the electrostatic repulsion between the proteins/adducts becomes minimal. The stability of possible aggregates is governed only by steric hindrance.
For C60@pepsin complexes at pH values close to IEP (2.7 and 4.5), aggregation phenomena occurred after few minutes. C60@trypsin complexes did not aggregate also for pH values close to the IEP. Around the IEP, for C60@trypsin, protein steric repulsion provides a barrier to prevent fullerene aggregation. The maximum stability for individual C60@pepsin complexes was obtained in neutral and basic conditions. Absorption spectra performed on the same samples did not show changes of shape and intensity (Figure 6) between the different samples. After three months, C60@pepsin is perfectly stable while for C60@trypsin, more than 90% of the initial dispersed fullerene is detected (Figure S4).
Comparison of the absorption spectra of C60@trypsin (Figure 6a) and C60@pepsin (Figure 6b) in water and phosphate-buffered saline solution shows that the hybrids are stable also in physiologically relevant conditions (represented by PBS). This is an important difference with other C60 adducts, for instance fullerenes dispersed by cyclodextrins rapidly precipitates when NaCl is added [62]. On the opposite, proteins are stable in a “salty environment” that represents their physiological condition.
These results suggest that fine-tuning of the net charge of the complex is possible and therefore it should also be possible to take advantage of the nature of each protein to create optimal C60-protein systems as a function of the pH. Tuning the net charge of the protein used to host the C60 molecule it is possible to governs its interactions with cellular and bacterial surface, controlling C60 toxicity [63,64,65,66].

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1996-1944/11/5/691/s1.

Author Contributions

Synthesis and characterization of C60@proteins A.C. and M.D.G.; AFM Measurements and Data Analysis, F.V. and M.D.G.; Computational Analysis, M.C., A.B. and F.Z.; Conceptualization, Methodology M.C.; Funding Acquisition, M.C. All authors contributed to the analysis of the results and the writing of the manuscript.

Acknowledgments

This study was supported by the Italian Ministry of Education, University and Research MIUR-SIR Programme no. RBSI149ZN9-BIOTAXI funded to M.C.

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Nakamura, E.; Isobe, H. Functionalized fullerenes in water. The First 10 years of their chemistry, Biology, and Nanoscience. Acc. Chem. Res. 2003, 36, 807–815. [Google Scholar] [CrossRef] [PubMed]
  2. Goodarzi, S.; Da Ros, T.; Conde, J.; Sefat, F.; Mozafari, M. Fullerene: Biomedical engineers get to revisit an old friend. Mater. Today 2017, 20, 460–480. [Google Scholar] [CrossRef]
  3. Castro, E.; Garcia, A.H.; Zavala, G.; Echegoyen, L. Fullerenes in biology and medicine. J. Mater. Chem. B 2017, 5, 6523–6535. [Google Scholar] [CrossRef] [PubMed]
  4. Dellinger, A.; Zhou, Z.; Connor, J.; Madhankumar, A.; Pamujula, S.; Sayes, C.M.; Kepley, C.L. Application of fullerenes in nanomedicine: An update. Nanomedicine 2013, 8, 1191–1208. [Google Scholar] [CrossRef] [PubMed]
  5. Partha, R.; Conyers, J.L. Biomedical applications of functionalized fullerene-based nanomaterials. Int. J. Nanomedicine 2009, 4, 261–275. [Google Scholar] [CrossRef] [PubMed]
  6. Bosi, S.; Da Ros, T.; Spalluto, G.; Prato, M. Fullerene derivatives: An attractive tool for biological applications. Eur. J. Med. Chem. 2003, 38, 913–923. [Google Scholar] [CrossRef] [PubMed]
  7. Montellano, A.; Da Ros, T.; Bianco, A.; Prato, M. Fullerene C60 as a multifunctional system for drug and gene delivery. Nanoscale 2011, 3, 4035–4041. [Google Scholar] [CrossRef] [PubMed]
  8. Mroz, P.; Tegos, G.P.; Gali, H.; Wharton, T.; Sarna, T.; Hamblin, M.R. Fullerenes as photosensitizers in photodynamic therapy. In Medicinal Chemistry and Pharmacological Potential of Fullerenes and Carbon Nanotubes. Carbon Materials: Chemistry and Physics; Springer: Dordrecht, The Netherlands, 2008; pp. 79–106. [Google Scholar]
  9. Calvaresi, M.; Zerbetto, F. Baiting proteins with C60. ACS Nano 2010, 4, 2283–2299. [Google Scholar] [CrossRef] [PubMed]
  10. Yang, S.-T.; Wang, H.; Guo, L.; Gao, Y.; Liu, Y.; Cao, A. Interaction of fullerenol with lysozyme investigated by experimental and computational approaches. Nanotechnology 2008, 19, 395101. [Google Scholar] [CrossRef] [PubMed]
  11. Chaudhuri, P.; Paraskar, A.; Soni, S.; Mashelkar, R.A.; Sengupta, S. Fullerenol−Cytotoxic conjugates for cancer chemotherapy. ACS Nano 2009, 3, 2505–2514. [Google Scholar] [CrossRef] [PubMed]
  12. Bolskar, R.D. Gadolinium endohedral metallofullerene-based MRI contrast agents. In Medicinal Chemistry and Pharmacological Potential of Fullerenes and Carbon Nanotubes. Carbon Materials: Chemistry and Physics; Springer: Dordrecht, The Netherlands, 2008; pp. 157–180. [Google Scholar]
  13. Da Ros, T. Twenty years of promises: Fullerene in medicinal chemistry. In Medicinal Chemistry and Pharmacological Potential of Fullerenes and Carbon Nanotubes. Carbon Materials: Chemistry and Physics; Springer: Dordrecht, The Netherlands, 2008; pp. 1–21. [Google Scholar]
  14. Sharma, S.K.; Chiang, L.Y.; Hamblin, M.R. Photodynamic therapy with fullerenes in vivo: Reality or a dream? Nanomedicine 2011, 6, 1813–1825. [Google Scholar] [CrossRef] [PubMed]
  15. Mroz, P.; Tegos, G.P.; Gali, H.; Wharton, T.; Sarna, T.; Hamblin, M.R. Photodynamic therapy with fullerenes. Photochem. Photobiol. Sci. 2007, 6, 1139–1149. [Google Scholar] [CrossRef] [PubMed]
  16. Guldi, D.M.; Hungerbuehler, H.; Asmus, K.-D. Redox and excitation studies with C60-substituted malonic acid diethyl esters. J. Phys. Chem. 1995, 99, 9380–9385. [Google Scholar] [CrossRef]
  17. Guldi, D.M.; Prato, M. Excited-state properties of C60 fullerene derivatives. Acc. Chem. Res. 2000, 33, 695–703. [Google Scholar] [CrossRef] [PubMed]
  18. Verma, M.L.; Naebe, M.; Barrow, C.J.; Puri, M. Enzyme immobilisation on amino-functionalised multi-walled carbon nanotubes: Structural and biocatalytic characterisation. PLoS ONE 2013, 8, e73642. [Google Scholar] [CrossRef] [PubMed]
  19. Hamano, T.; Okuda, K.; Mashino, T.; Hirobe, M.; Arakane, K.; Ryu, A.; Mashiko, S.; Nagano, T. Singlet oxygen production from fullerene derivatives: Effect of sequential functionalization of the fullerene core. Chem. Commun. 1997, 21–22. [Google Scholar] [CrossRef]
  20. Ikeda, A. Water-soluble fullerenes using solubilizing agents, and their applications. J. Incl. Phenom. Macrocycl. Chem. 2013, 77, 49–65. [Google Scholar] [CrossRef]
  21. Dallavalle, M.; Leonzio, M.; Calvaresi, M.; Zerbetto, F. Explaining fullerene dispersion by using micellar solutions. ChemPhysChem 2014, 15, 2998–3005. [Google Scholar] [CrossRef] [PubMed]
  22. Vance, S.J.; Desai, V.; Smith, B.O.; Kennedy, M.W.; Cooper, A. Aqueous solubilization of C60 fullerene by natural protein surfactants, latherin and ranaspumin-2. Biophys. Chem. 2016, 214–215, 27–32. [Google Scholar] [CrossRef] [PubMed]
  23. Calvaresi, M.; Arnesano, F.; Bonacchi, S.; Bottoni, A.; Calò, V.; Conte, S.; Falini, G.; Fermani, S.; Losacco, M.; Montalti, M.; et al. C60@Lysozyme: Direct observation by nuclear magnetic resonance of a 1:1 fullerene protein adduct. ACS Nano 2014, 8, 1871–1877. [Google Scholar] [CrossRef] [PubMed]
  24. Calvaresi, M.; Zerbetto, F. Fullerene sorting proteins. Nanoscale 2011, 3, 2873–2881. [Google Scholar] [CrossRef] [PubMed]
  25. Calvaresi, M.; Zerbetto, F. The devil and holy water: Protein and carbon nanotube hybrids. Acc. Chem. Res. 2013, 46, 2454–2463. [Google Scholar] [CrossRef] [PubMed]
  26. Nepal, D.; Geckeler, K.E. pH-Sensitive dispersion and debundling of single-walled carbon nanotubes: Lysozyme as a tool. Small 2006, 2, 406–412. [Google Scholar] [CrossRef] [PubMed]
  27. Matsuura, K.; Saito, T.; Okazaki, T.; Ohshima, S.; Yumura, M.; Iijima, S. Selectivity of water-soluble proteins in single-walled carbon nanotube dispersions. Chem. Phys. Lett. 2006, 429, 497–502. [Google Scholar] [CrossRef]
  28. Nepal, D.; Geckeler, K.E. Proteins and Carbon Nanotubes: Close Encounter in Water. Small 2007, 3, 1259–1265. [Google Scholar] [CrossRef] [PubMed]
  29. Karajanagi, S.S.; Yang, H.; Asuri, P.; Sellitto, E.; Dordick, J.S.; Kane, R.S. Protein-assisted solubilization of single-walled carbon nanotubes. Langmuir 2006, 22, 1392–1395. [Google Scholar] [CrossRef] [PubMed]
  30. Joseph, D.; Tyagi, N.; Ghimire, A.; Geckeler, K.E. A direct route towards preparing pH-sensitive graphene nanosheets with anti-cancer activity. RSC Adv. 2014, 4, 4085–4093. [Google Scholar] [CrossRef]
  31. Bhattacharjee, S. DLS and zeta potential—What they are and what they are not? J. Control. Release 2016, 235, 337–351. [Google Scholar] [CrossRef] [PubMed]
  32. Piella, J.; Bastús, N.G.; Puntes, V. Size-dependent protein–nanoparticle interactions in ctrate-stabilized gold nanoparticles: The emergence of the protein corona. Bioconjugate Chem. 2017, 28, 88–97. [Google Scholar] [CrossRef] [PubMed]
  33. Boselli, L.; Polo, E.; Castagnola, V.; Dawson, K.A. Regimes of biomolecular ultrasmall nanoparticle interactions. Angew. Chem. Int. Ed. 2017, 56, 4215–4218. [Google Scholar] [CrossRef] [PubMed]
  34. Bekdemir, A.; Stellacci, F. A centrifugation-based physicochemical characterization method for the interaction between proteins and nanoparticles. Nat. Commun. 2016, 7, 13121. [Google Scholar] [CrossRef] [PubMed]
  35. Soldà, A.; Cantelli, A.; Di Giosia, M.; Montalti, M.; Zerbetto, F.; Rapino, S.; Calvaresi, M. C60@lysozyme: A new photosensitizing agent for photodynamic therapy. J. Mater. Chem. B 2017, 1757, 525–534. [Google Scholar] [CrossRef]
  36. Ge, C.; Du, J.; Zhao, L.; Wang, L.; Liu, Y.; Li, D.; Yang, Y.; Zhou, R.; Zhao, Y.; Chai, Z.; et al. Binding of blood proteins to carbon nanotubes reduces cytotoxicity. Proc. Natl. Acad. Sci. USA 2011, 108, 16968–16973. [Google Scholar] [CrossRef] [PubMed]
  37. Walczyk, D.; Bombelli, F.B.; Monopoli, M.P.; Lynch, I.; Dawson, K.A. What the cell “Sees” in bionanoscience. J. Am. Chem. Soc. 2010, 132, 5761–5768. [Google Scholar] [CrossRef] [PubMed]
  38. Genheden, S.; Ryde, U. The MM/PBSA and MM/GBSA methods to estimate ligand-binding affinities. Expert Opin. Drug Discov. 2015, 10, 449–461. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, C.; Greene, D.; Xiao, L.; Qi, R.; Luo, R. Recent developments and applications of the MMPBSA method. Front. Mol. Biosci. 2017, 4, 87. [Google Scholar] [CrossRef] [PubMed]
  40. Schneidman-Duhovny, D.; Inbar, Y.; Polak, V.; Shatsky, M.; Halperin, I.; Benyamini, H.; Barzilai, A.; Dror, O.; Haspel, N.; Nussinov, R.; et al. Taking geometry to its edge: Fast unbound rigid (and hinge-bent) docking. Proteins 2003, 52, 107–112. [Google Scholar] [CrossRef] [PubMed]
  41. Andrusier, N.; Nussinov, R.; Wolfson, H.J. FireDock: Fast interaction refinement in molecular docking. Proteins 2007, 69, 139–159. [Google Scholar] [CrossRef] [PubMed]
  42. Kingsford, C.L.; Chazelle, B.; Singh, M. Solving and analyzing side-chain positioning problems using linear and integer programming. Bioinformatics 2005, 21, 1028–1039. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, C.; Vasmatzis, G.; Cornette, J.L.; DeLisi, C. Determination of atomic desolvation energies from the structures of crystallized proteins. J. Mol. Biol. 1997, 267, 707–726. [Google Scholar] [CrossRef] [PubMed]
  44. Case, D.A.; Darden, T.A.; Cheatham, E.T.; Simmerling, C.L.; Wang, J.; Duke, R.E.; Luo, R.; Walker, R.C.; Zhang, W.; Merz, K.M.; et al. AMBER 12, University of California, San Francisco. 2012. Available online: http://ambermd.org/CiteAmber.php (accessed on 27 April 2018).
  45. Tsui, V.; Case, D.A. Theory and applications of the generalized born solvation model in macromolecular simulations. Biopolymers 2000, 56, 275–291. [Google Scholar] [CrossRef]
  46. Calvaresi, M.; Bottoni, A.; Zerbetto, F. Thermodynamics of binding between proteins and carbon nanoparticles: The Case of C60@Lysozyme. J. Phys. Chem. C 2015, 119, 28077–28082. [Google Scholar] [CrossRef]
  47. Calvaresi, M.; Furini, S.; Domene, C.; Bottoni, A.; Zerbetto, F. Blocking the passage: C60 geometrically clogs K+ Channels. ACS Nano 2015, 9, 4827–4834. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Trozzi, F.; Marforio, T.D.; Bottoni, A.; Zerbetto, F.; Calvaresi, M. Engineering the fullerene-protein interface by computational design: The sum is more than its Parts. Isr. J. Chem. 2017, 57, 547–552. [Google Scholar] [CrossRef]
  49. Jonsson, M. Isoelectric spectra of native and base denatured crystallized swine pepsin. Acta Chem. Scand. 1972, 26, 3435–3440. [Google Scholar] [CrossRef] [PubMed]
  50. Walsh, K.A. Trypsinogens and trypsins of various species. Methods Enzymol. 1970, 19, 41–63. [Google Scholar] [CrossRef]
  51. Chen, Z.; Westerhoff, P.; Herckes, P. Quantification of C60 fullerene concentrations in water. Environ. Toxicol. Chem. 2008, 27, 1852–1859. [Google Scholar] [CrossRef] [PubMed]
  52. Friedman, S.H.; DeCamp, D.L.; Sijbesma, R.P.; Srdanov, G.; Wudl, F.; Kenyon, G.L. Inhibition of the HIV-1 protease by fullerene derivatives: Model building studies and experimental verification. J. Am. Chem. Soc. 1993, 115, 6506–6509. [Google Scholar] [CrossRef]
  53. Sijbesma, R.; Srdanov, G.; Wudl, F.; Castoro, J.A.; Wilkins, C.; Friedman, S.H.; DeCamp, D.L.; Kenyon, G.L. Synthesis of a fullerene derivative for the inhibition of HIV enzymes. J. Am. Chem. Soc. 1993, 115, 6510–6512. [Google Scholar] [CrossRef]
  54. Marcorin, G.L.; Da Ros, T.; Castellano, S.; Stefancich, G.; Bonin, I.; Miertus, S.; Prato, M. Design and synthesis of novel [60]Fullerene Derivatives as Potential HIV Aspartic Protease Inhibitors. Org. Lett. 2000, 2, 3955–3958. [Google Scholar] [CrossRef] [PubMed]
  55. Schuster, D.I.; Wilson, S.R.; Schinazi, R.F. Anti-human immunodeficiency virus activity and cytotoxicity of derivatized buckminsterfullerenes. Bioorganic Med. Chem. Lett. 1996, 6, 1253–1256. [Google Scholar] [CrossRef]
  56. Tokuyama, H.; Yamago, S.; Nakamura, E.; Shiraki, T.; Sugiura, Y. Photoinduced biochemical activity of fullerene carboxylic acid. J. Am. Chem. Soc. 1993, 115, 7918–7919. [Google Scholar] [CrossRef]
  57. Iwashita, K.; Shiraki, K.; Ishii, R.; Tanaka, T.; Hirano, A. Liquid chromatographic analysis of the interaction between amino acids and aromatic surfaces using single-wall carbon nanotubes. Langmuir 2015, 31, 8923–8929. [Google Scholar] [CrossRef] [PubMed]
  58. Calvaresi, M.; Hoefinger, S.; Zerbetto, F. Probing the structure of lysozyme-carbon-nanotube hybrids with molecular dynamics. Chem. A Eur. J. 2012, 18, 4308–4313. [Google Scholar] [CrossRef] [PubMed]
  59. Hirano, A.; Tanaka, T.; Kataura, H.; Kameda, T. Arginine side chains as a dispersant for individual single-wall carbon nanotubes. Chem. Eur. J. 2014, 20, 4922–4930. [Google Scholar] [CrossRef] [PubMed]
  60. Hirano, A.; Kameda, T.; Wada, M.; Tanaka, T.; Kataura, H. Carbon nanotubes facilitate oxidation of cysteine residues of proteins. J. Phys. Chem. Lett. 2017, 8, 5216–5221. [Google Scholar] [CrossRef] [PubMed]
  61. Hirano, A.; Kameda, T.; Sakuraba, S.; Wada, M.; Tanaka, T.; Kataura, H. Disulfide bond formation of thiols by using carbon nanotubes. Nanoscale 2017, 9, 5389–5393. [Google Scholar] [CrossRef] [PubMed]
  62. Deguchi, S.; Alargova, R.G.; Tsujii, K. Stable dispersions of fullerenes, C60 and C70, in water. preparation and characterization. Langmuir 2001, 17, 6013–6017. [Google Scholar] [CrossRef]
  63. Tang, Y.J.; Ashcroft, J.M.; Chen, D.; Min, G.; Kim, C.-H.; Murkhejee, B.; Larabell, C.; Keasling, J.D.; Chen, F.F. Charge-associated effects of fullerene derivatives on microbial structural integrity and central metabolism. Nano Lett. 2007, 7, 754–760. [Google Scholar] [CrossRef] [PubMed]
  64. Deryabin, D.G.; Efremova, L.V.; Vasilchenko, A.S.; Saidakova, E.V.; Sizova, E.A.; Troshin, P.A.; Zhilenkov, A.V.; Khakina, E.A. A zeta potential value determines the aggregate’s size of penta-substituted [60]fullerene derivatives in aqueous suspension whereas positive charge is required for toxicity against bacterial cells. J. Nanobiotechnol. 2015, 13, 50. [Google Scholar] [CrossRef] [PubMed]
  65. Deryabin, D.G.; Davydova, O.K.; Yankina, Z.Z.; Vasilchenko, A.S.; Miroshnikov, S.A.; Kornev, A.B.; Ivanchikhina, A.V.; Troshin, P.A. The Activity of [60]Fullerene derivatives bearing amine and carboxylic solubilizing Groups against Escherichia coli: A Comparative Study. J. Nanomater. 2014, 2014, 1–9. [Google Scholar] [CrossRef]
  66. Tegos, G.P.; Demidova, T.N.; Arcila-Lopez, D.; Lee, H.; Wharton, T.; Gali, H.; Hamblin, M.R. Cationic fullerenes are effective and selective antimicrobial photosensitizers. Chem. Biol. 2005, 12, 1127–1135. [Google Scholar] [CrossRef] [PubMed]

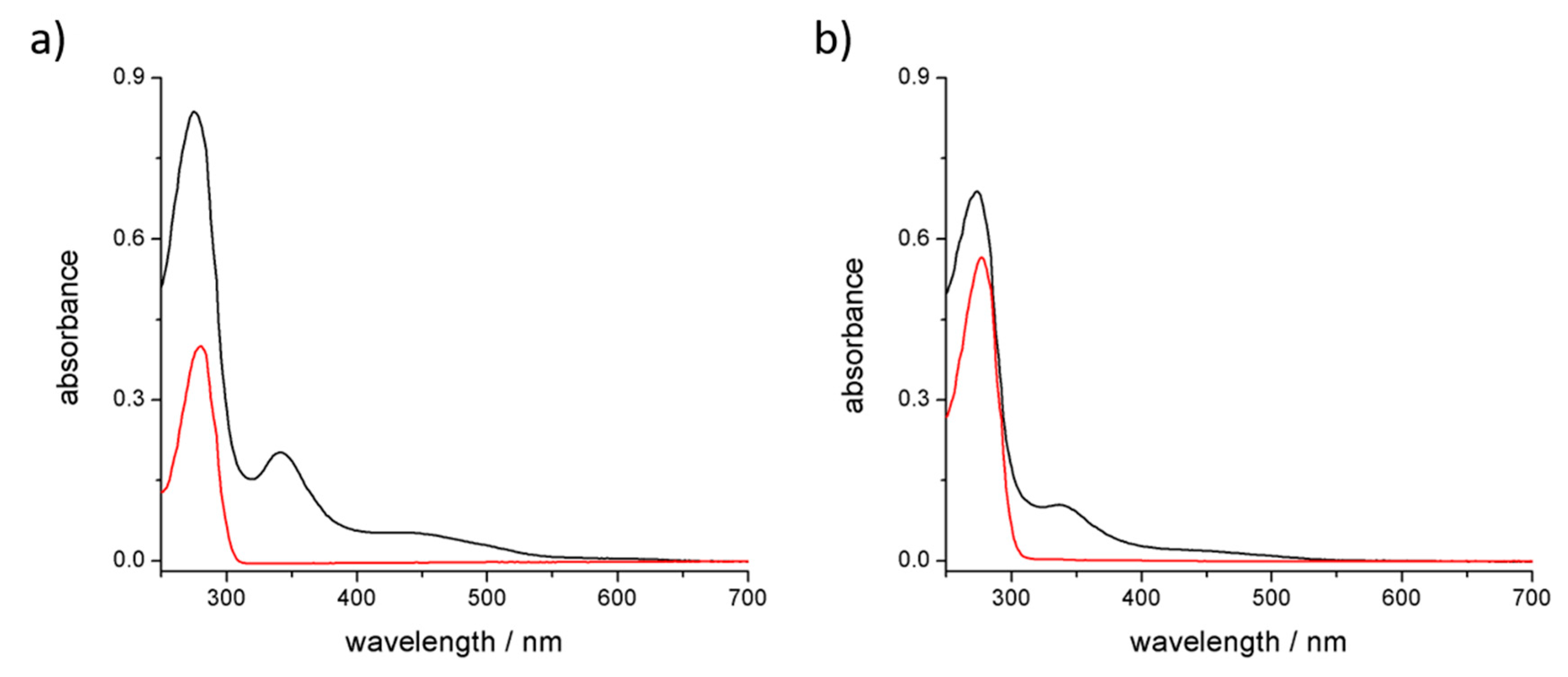

Figure 1. UV-visible spectra of (a) C60@trypsin (black line) and trypsin (red line); (b) C60@pepsin (black line) and pepsin (red line).
Figure 1. UV-visible spectra of (a) C60@trypsin (black line) and trypsin (red line); (b) C60@pepsin (black line) and pepsin (red line).
Materials 11 00691 g001

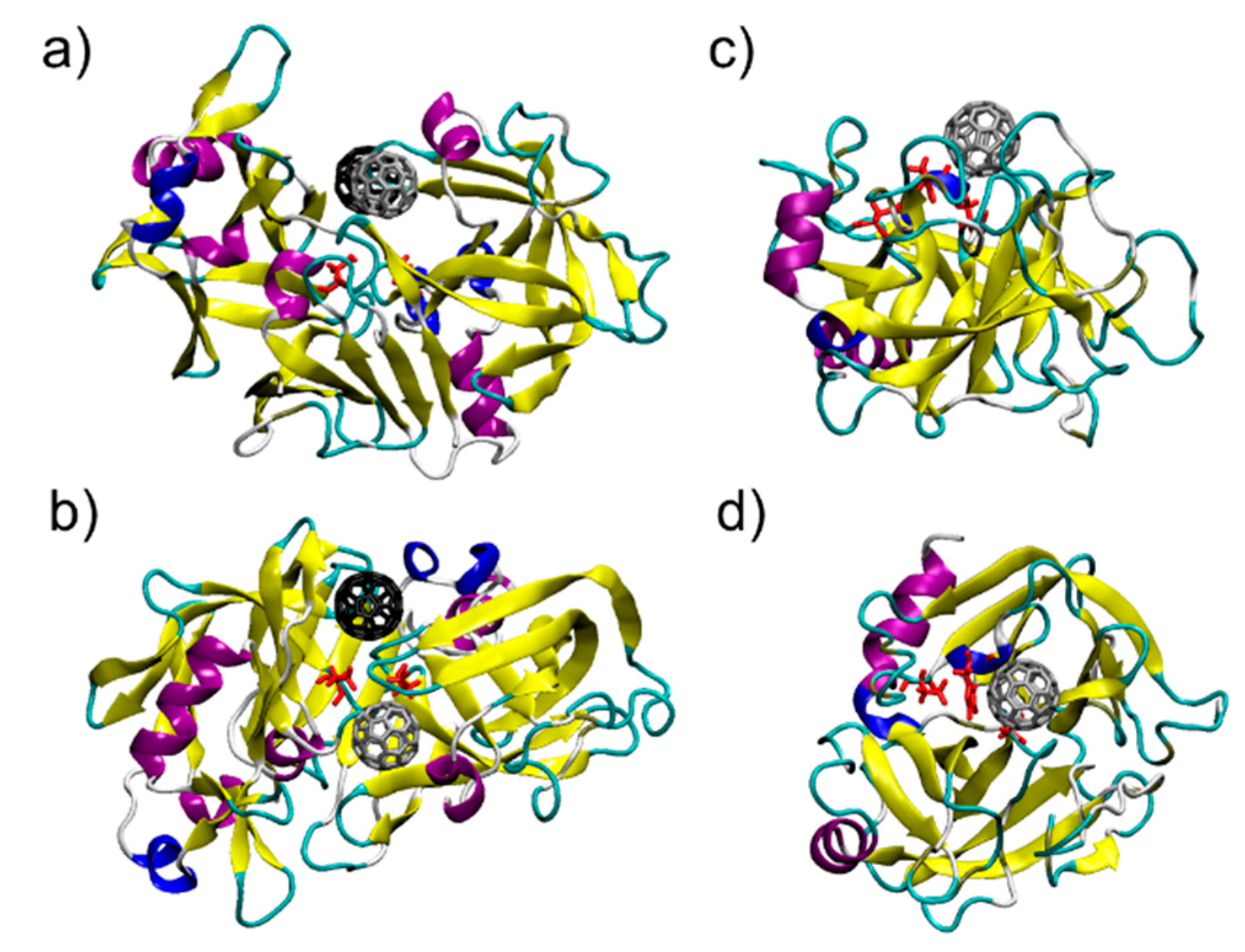

Figure 2. Two perspectives of C60@pepsin (a,b) grey coloured C60 occupies the binding pocket 1, black coloured C60 occupies the binding pocket 2 and C60@trypsin (c,d). In red, the catalytic residues of the two proteins.
Figure 2. Two perspectives of C60@pepsin (a,b) grey coloured C60 occupies the binding pocket 1, black coloured C60 occupies the binding pocket 2 and C60@trypsin (c,d). In red, the catalytic residues of the two proteins.
Materials 11 00691 g002

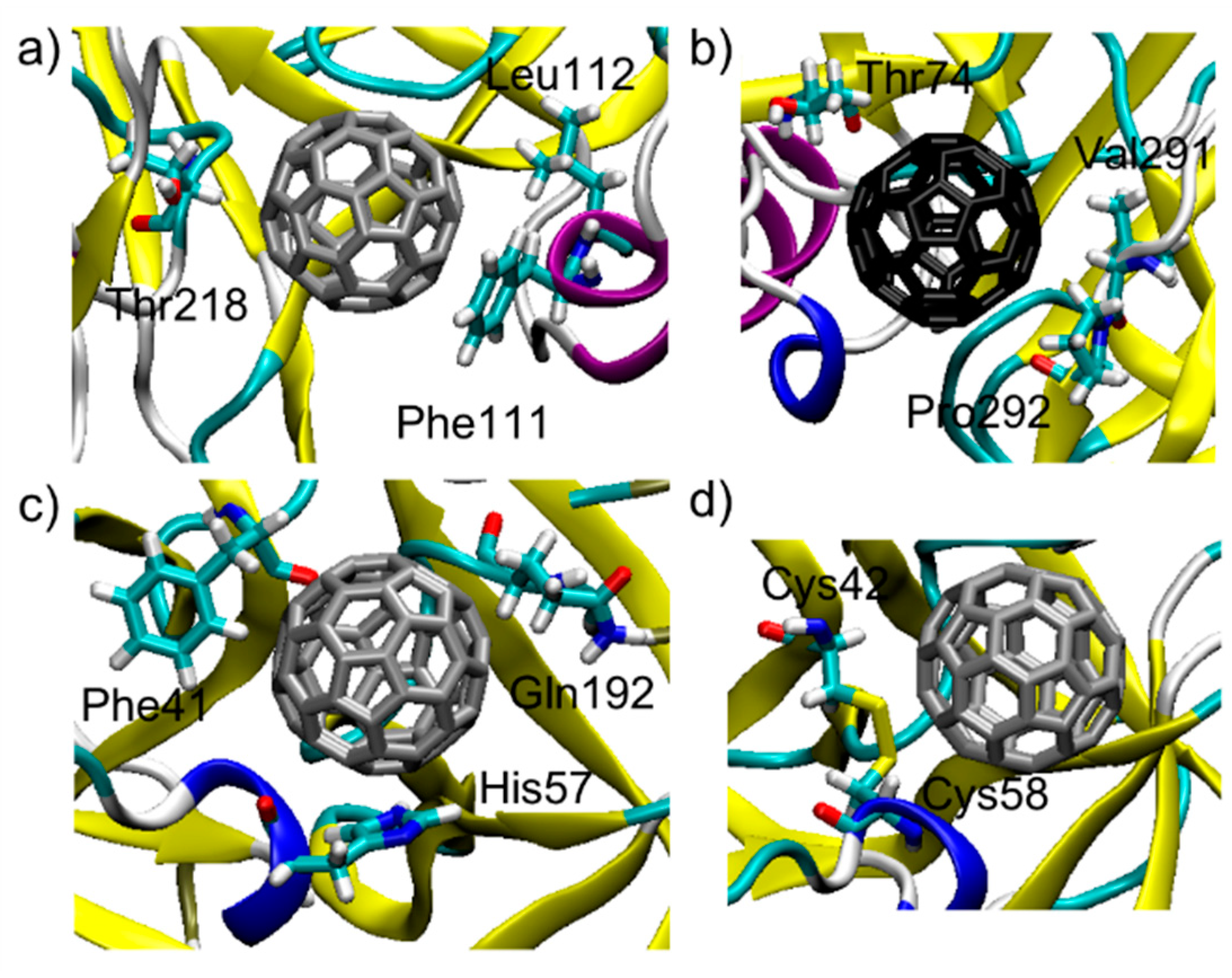

Figure 3. Top 3 residues interacting with C60 in the (a) pepsin binding pocket 1; (b) pepsin binding pocket 2; (c) Top 3 residues interacting with the C60 in the trypsin binding pocket; (d) Interaction in the trypsin binding pocket between C60 and a disulfide bridge (Cys42-Cys58).
Figure 3. Top 3 residues interacting with C60 in the (a) pepsin binding pocket 1; (b) pepsin binding pocket 2; (c) Top 3 residues interacting with the C60 in the trypsin binding pocket; (d) Interaction in the trypsin binding pocket between C60 and a disulfide bridge (Cys42-Cys58).
Materials 11 00691 g003
Figure 4. AFM images of (a) C60@trypsin; (b) trypsin and (c) height distribution of C60@trypsin (red) and trypsin (black). AFM images of (d) C60@pepsin, (e) pepsin and (f) height distribution of C60@pepsin (red) and pepsin (black). Scale bar (a,b) 100 nm; (d,e) 1 µm.
Figure 4. AFM images of (a) C60@trypsin; (b) trypsin and (c) height distribution of C60@trypsin (red) and trypsin (black). AFM images of (d) C60@pepsin, (e) pepsin and (f) height distribution of C60@pepsin (red) and pepsin (black). Scale bar (a,b) 100 nm; (d,e) 1 µm.
Materials 11 00691 g004

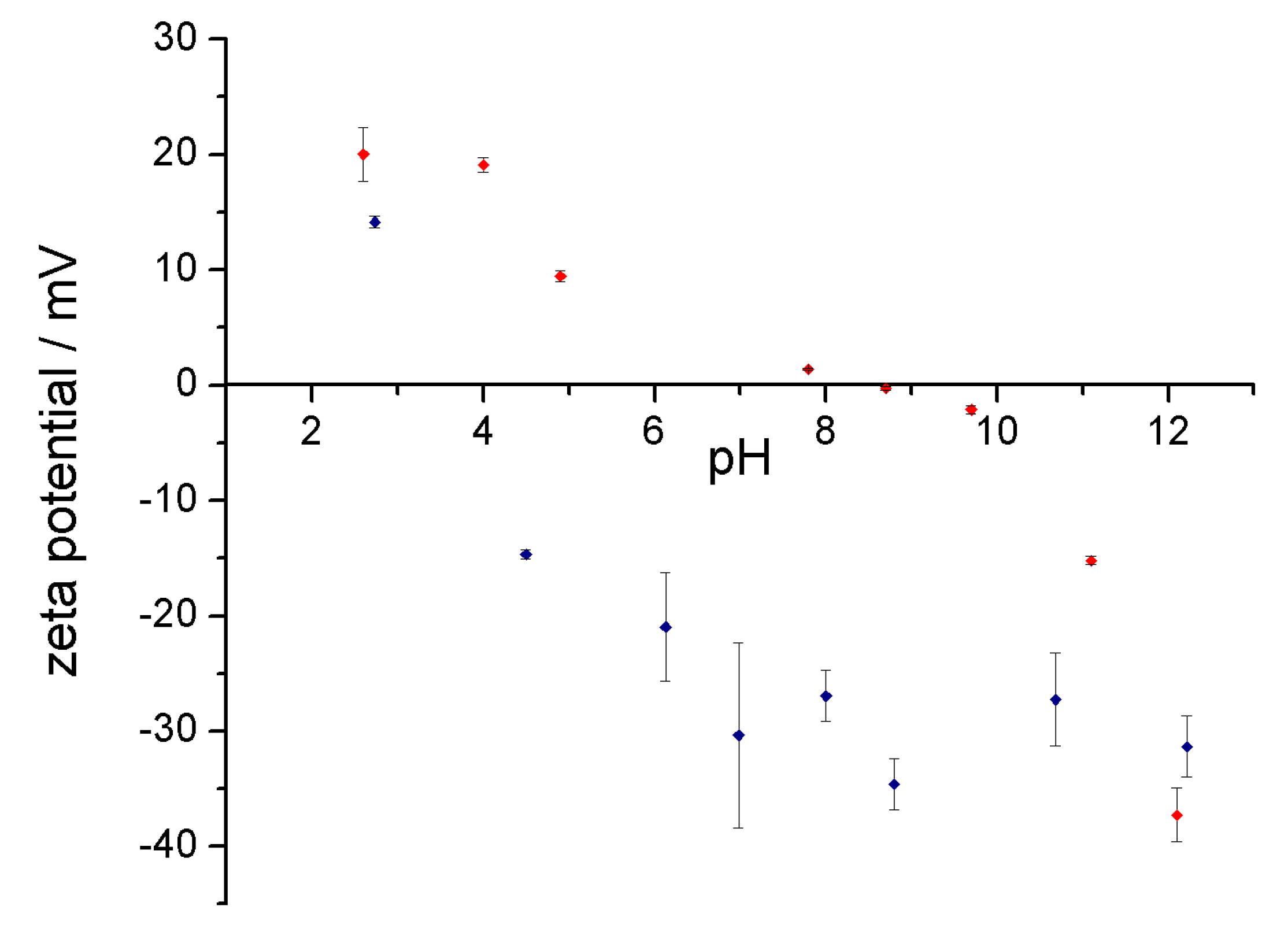

Figure 5. Zeta potential of C60@trypsin (in red) and C60@pepsin (in blue) hybrids as a function of the pH in aqueous solution. Standard deviations are shown in the error bars.
Figure 5. Zeta potential of C60@trypsin (in red) and C60@pepsin (in blue) hybrids as a function of the pH in aqueous solution. Standard deviations are shown in the error bars.
Materials 11 00691 g005

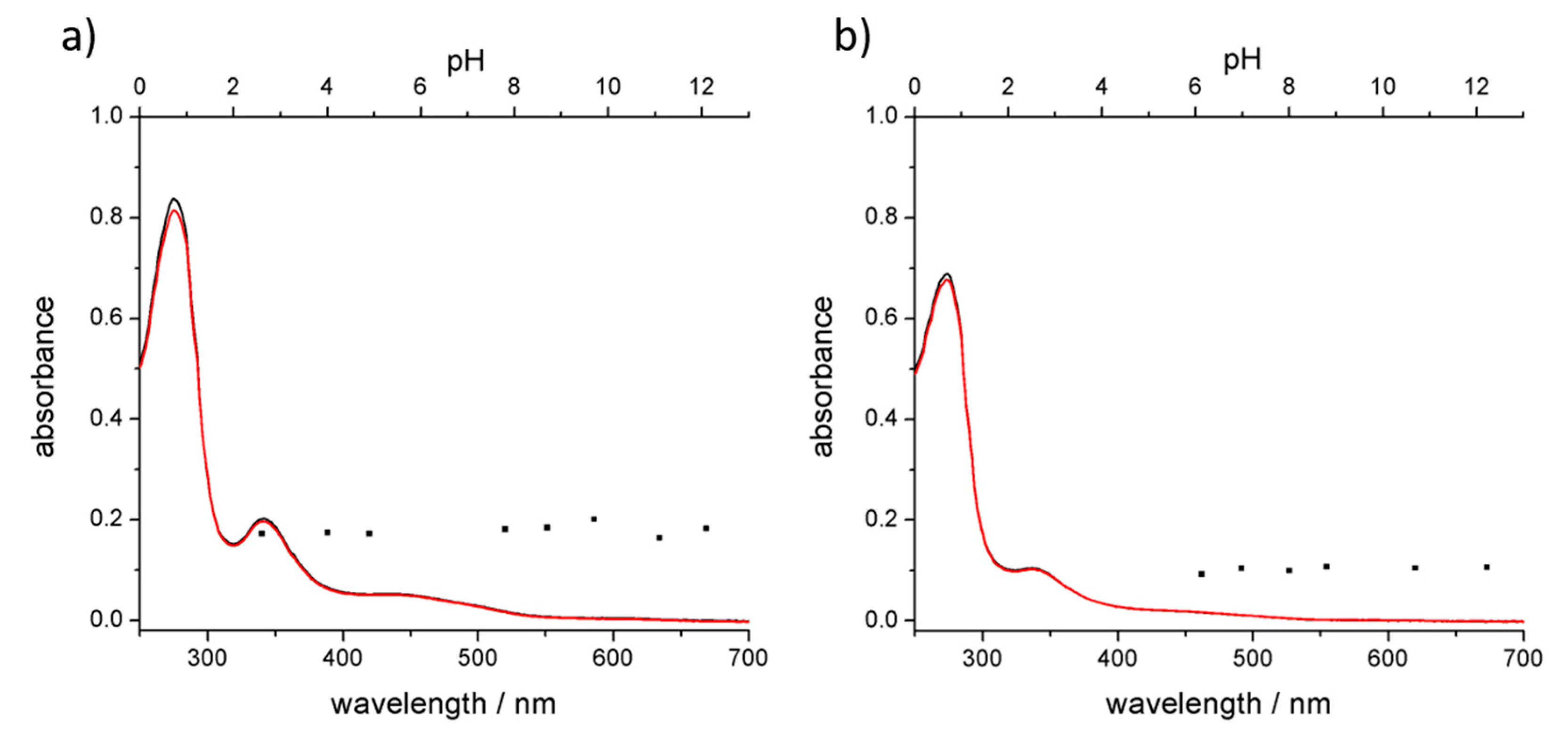

Figure 6. UV-Vis absorption spectra of (a) C60@trypsin and (b) C60@pepsin in water (black lines) and PBS (red lines). Black dots represent the absorbance of fullerene diagnostic band (341 nm) of the hybrids at different pH values (top axis).
Figure 6. UV-Vis absorption spectra of (a) C60@trypsin and (b) C60@pepsin in water (black lines) and PBS (red lines). Black dots represent the absorbance of fullerene diagnostic band (341 nm) of the hybrids at different pH values (top axis).
Materials 11 00691 g006
Table 1. Interaction energies (kcal mol−1) of the top 10 residues interacting with C60.
Table 1. Interaction energies (kcal mol−1) of the top 10 residues interacting with C60.
C60@protein ComplexTop 10 Residues Interacting with C60
C60@Pepsin-Binding pocket 1Phe 111 = −5.7Leu 112 = −3.1Thr 218 = −3.0Ser 219 = −2.9Thr 12 = −2.8
Glu 13 = −2.8Phe 117 = −2.6Ile 30 = −2.5Tyr 75 = −2.5Thr 77 = −2.2
C60@Pepsin-Binding pocket 2Val 291 = −4.9Thr 74 = −4.3Pro 292 = −3.7Tyr 75 = −3.4Gly 76 = −2.7
Met 289 = −1.4Thr 293 = −1.3Tyr 189 = −1.2Asp 290 = −1.0Leu 298 = −0.6
C60@TrypsinHis 57 = −4.9Phe 41 = −4.2Gln 192 = −3.5Cys 58 = −3.4Cys 42 = −2.7
Gly 193 = −1.8Ser 195 = −1.7Asp 194 = −0.8Tyr 151 = −0.6Leu 99 = −0.4
