Next Article in Journal
Surface Nanocrystallization and Amorphization of Dual-Phase TC11 Titanium Alloys under Laser Induced Ultrahigh Strain-Rate Plastic Deformation
Previous Article in Journal
Nanoscale Origins of the Size Effect in the Compression Response of Single Crystal Ni-Base Superalloy Micro-Pillars
Open AccessArticle

Chlamydomonas angulosa (Green Alga) and Nostoc commune (Blue-Green Alga) Microalgae-Cellulose Composite Aerogel Beads: Manufacture, Physicochemical Characterization, and Cd (II) Adsorption

1
Department of Biological and Environmental Science, Dongguk University-Ilsan, Biomedical Campus, Goyang-si, Ilsandong-gu 10326, Korea
2
Division of Wood Processing, Department of Forest Products, National Institute of Forest Science, 57 Hoegiro, Dongdaemun-gu, Seoul 02455, Korea
3
Division of Wood Chemistry & Microbiology, Department of Forest Products, National Institute of Forest Science, 57 Hoegiro, Dongdaemun-gu, Seoul 02455, Korea
*
Author to whom correspondence should be addressed.
Materials 2018, 11(4), 562; https://doi.org/10.3390/ma11040562
Received: 12 February 2018 / Revised: 3 April 2018 / Accepted: 5 April 2018 / Published: 5 April 2018
(This article belongs to the Section Porous Materials)

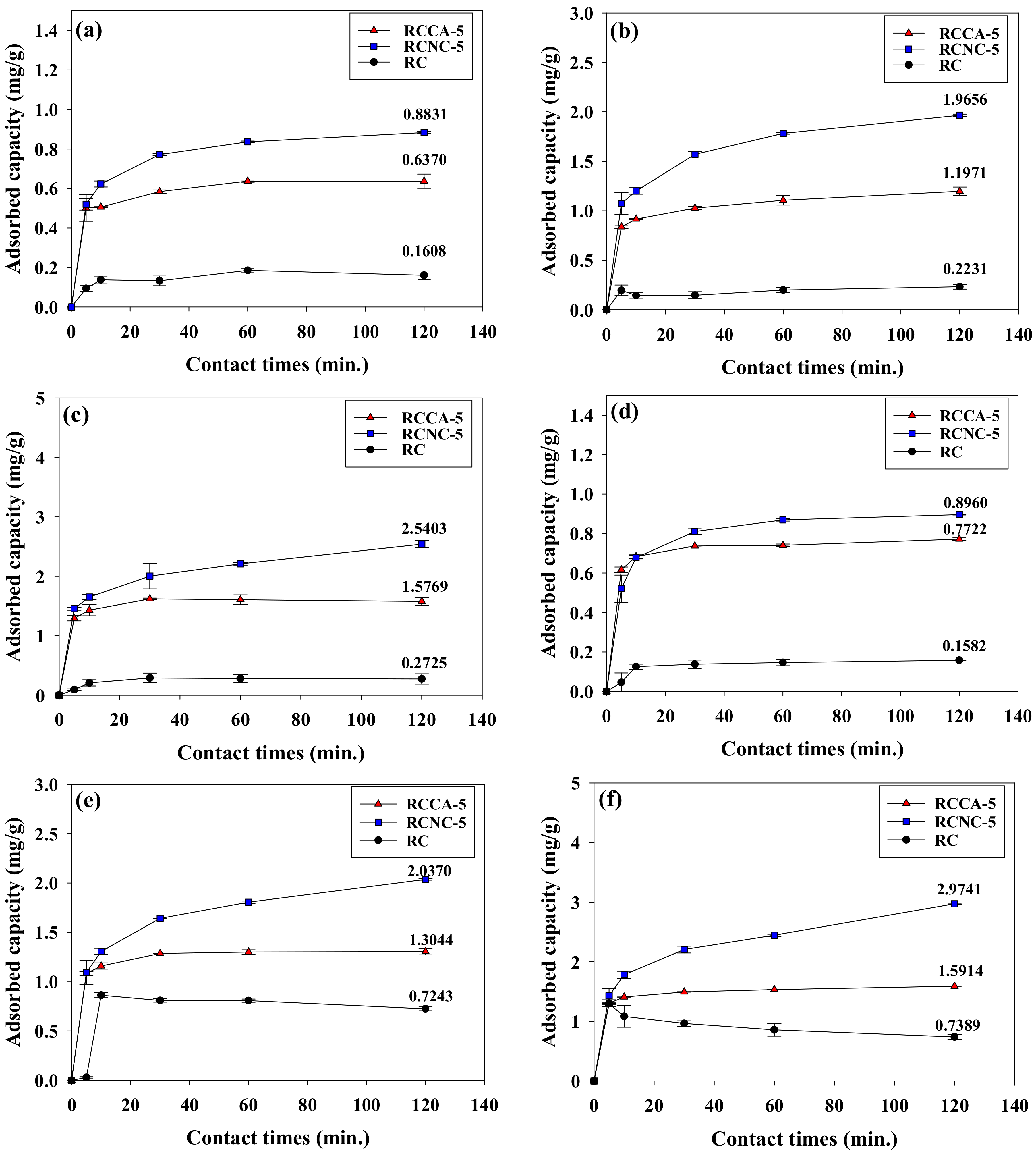

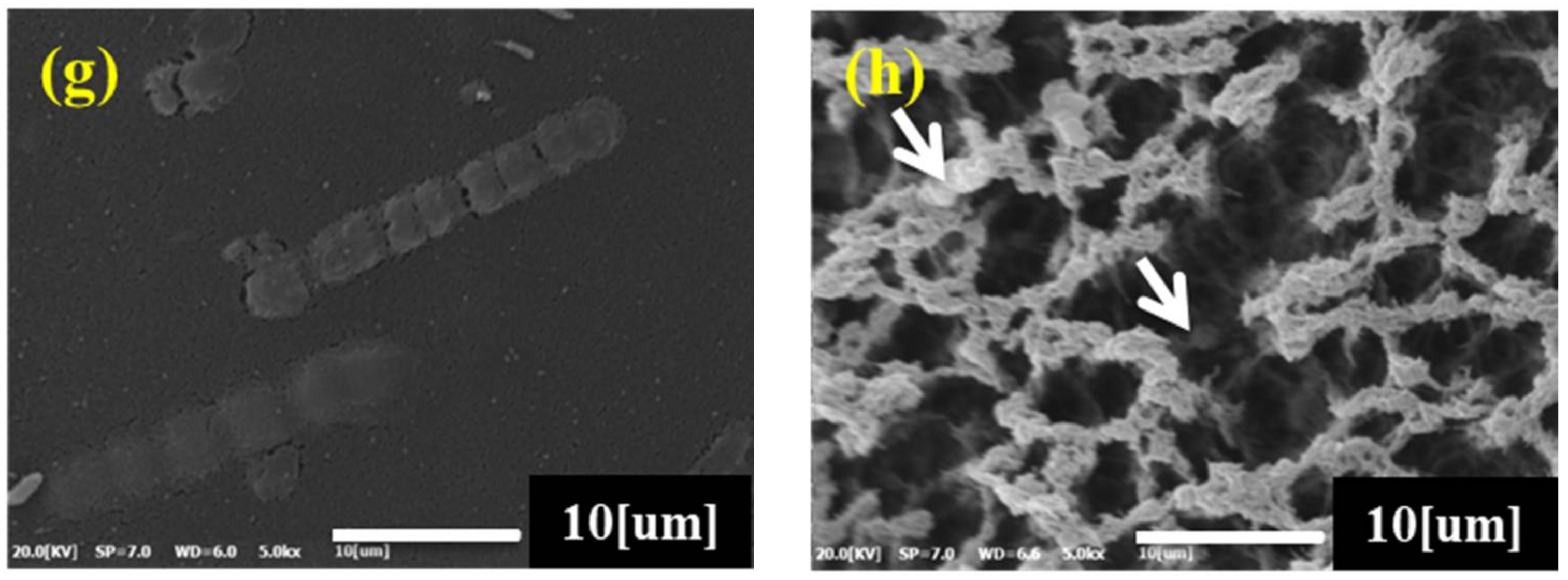

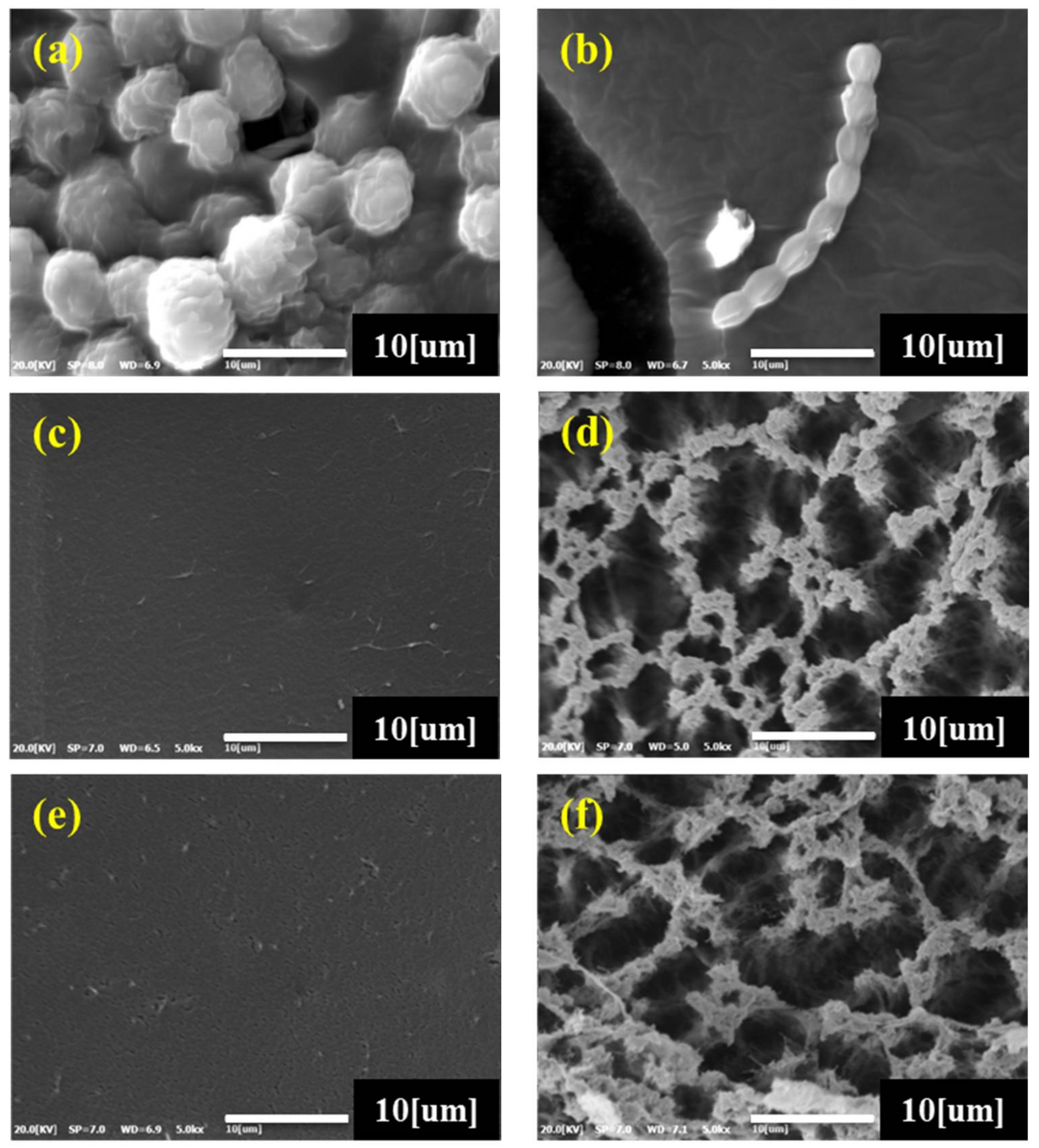

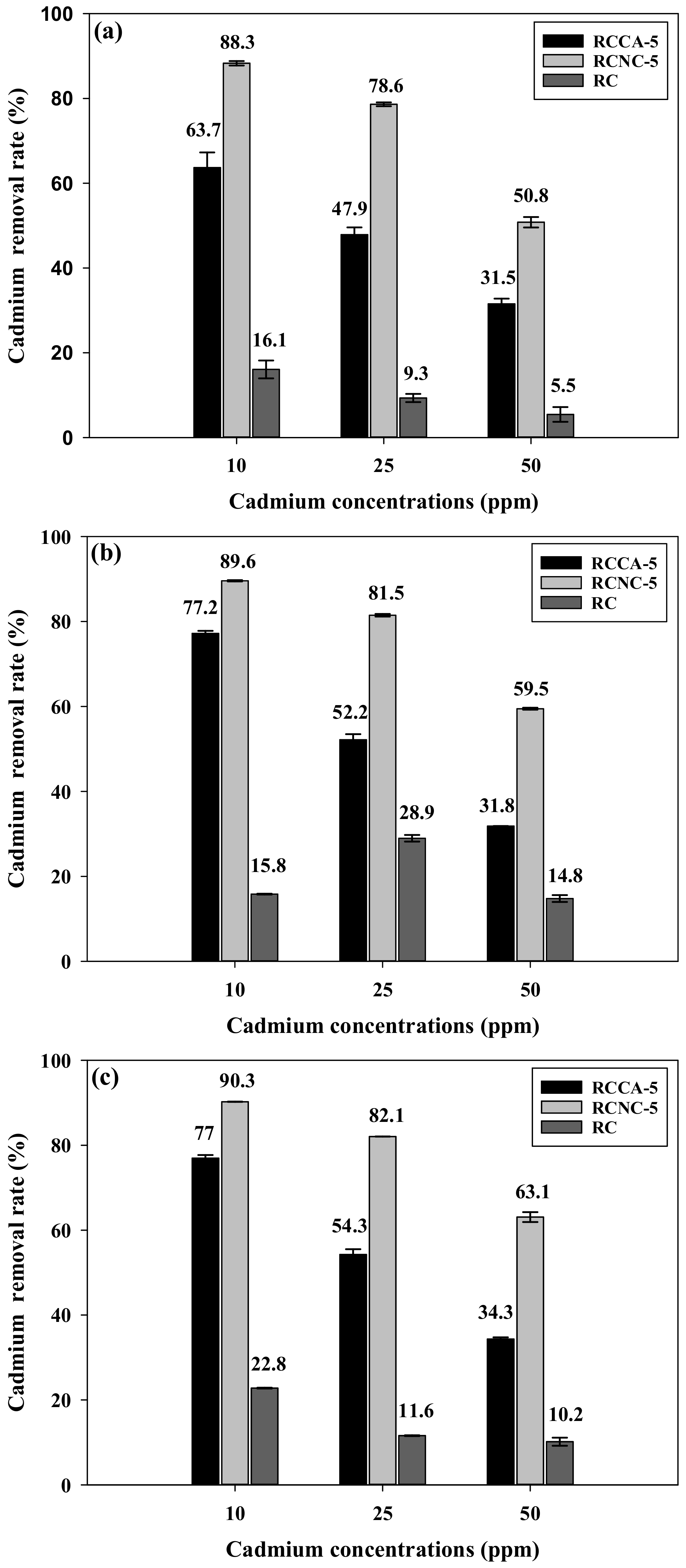

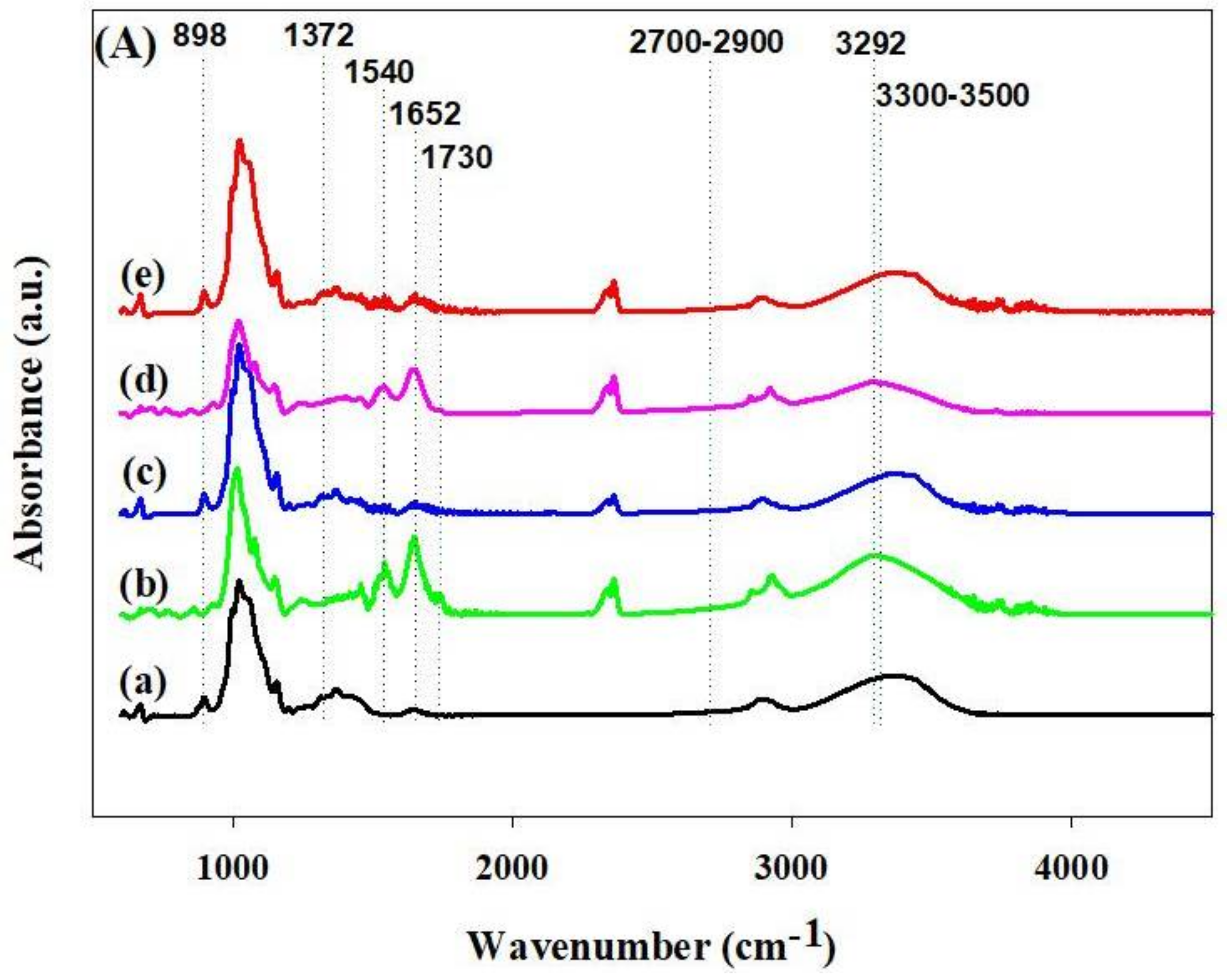

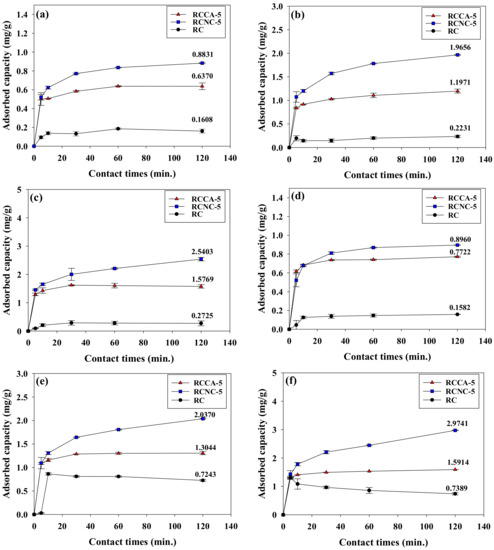

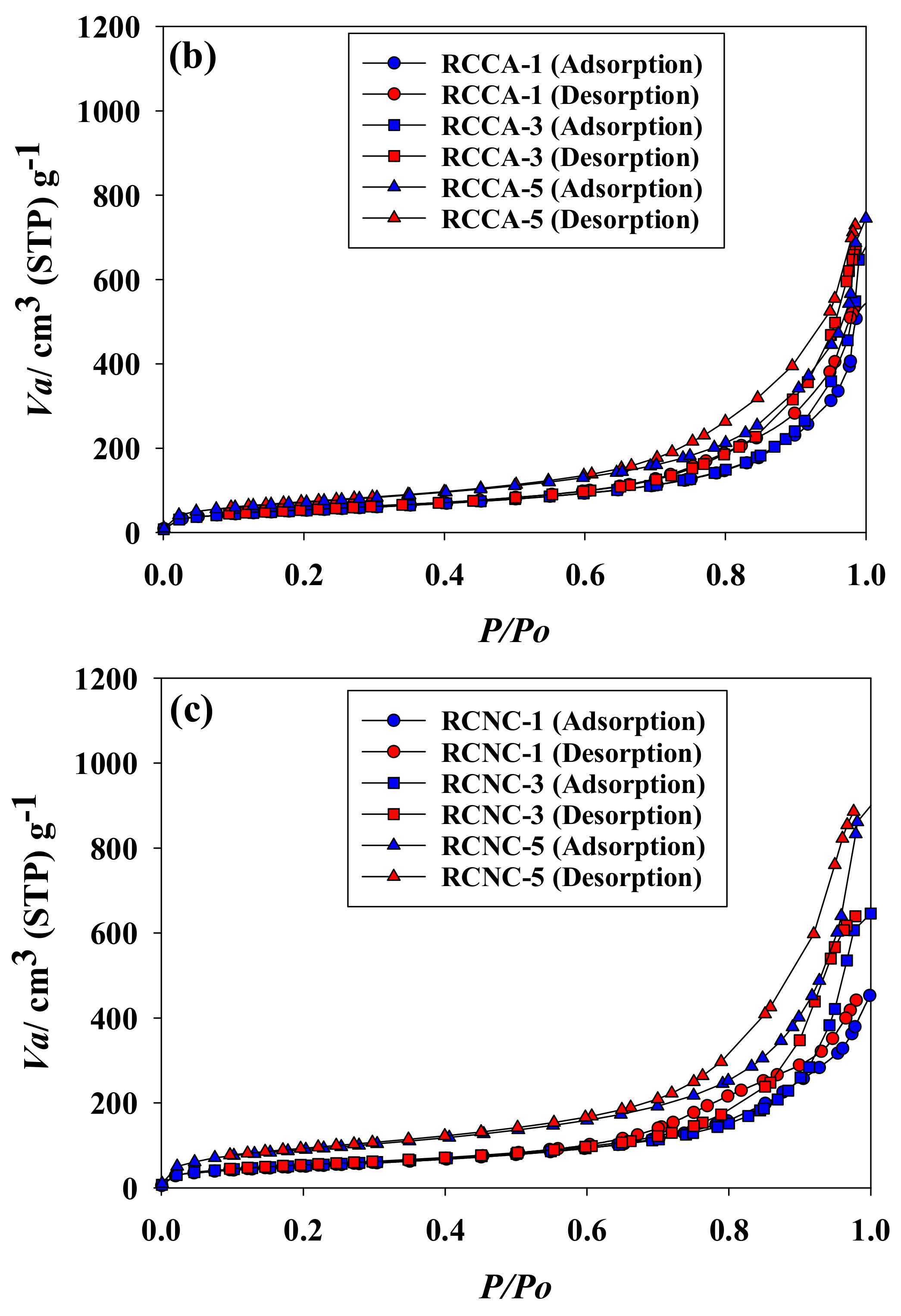

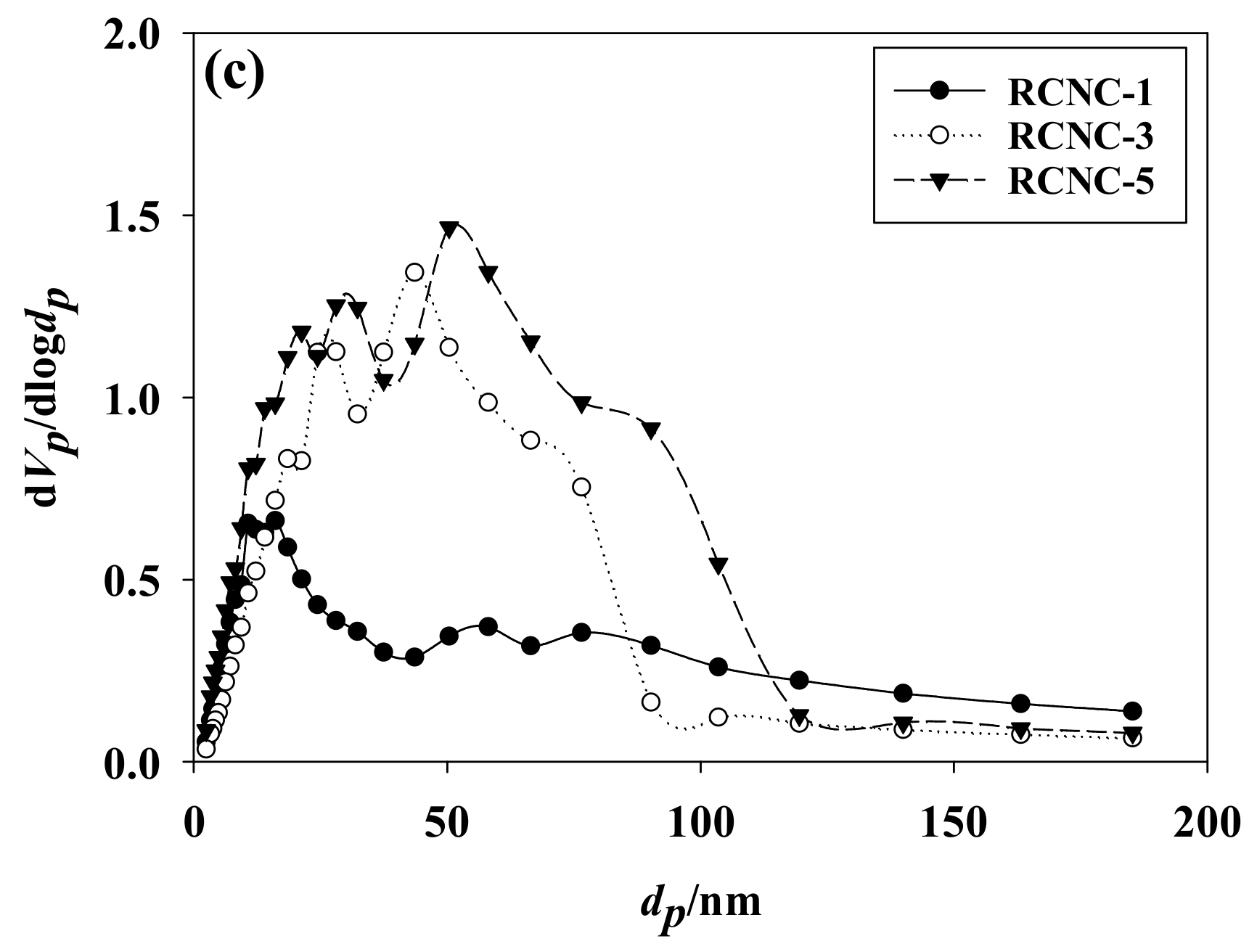

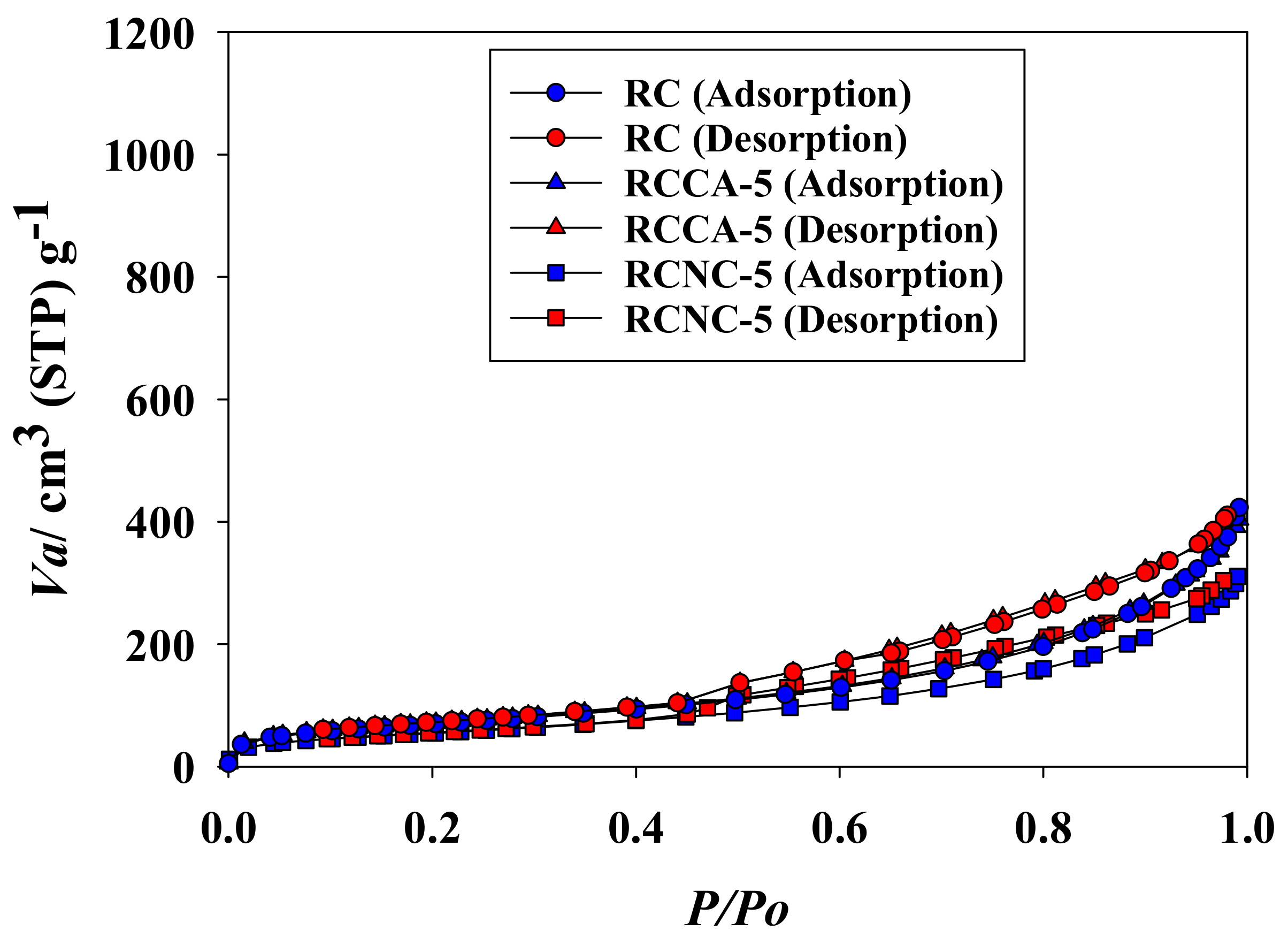

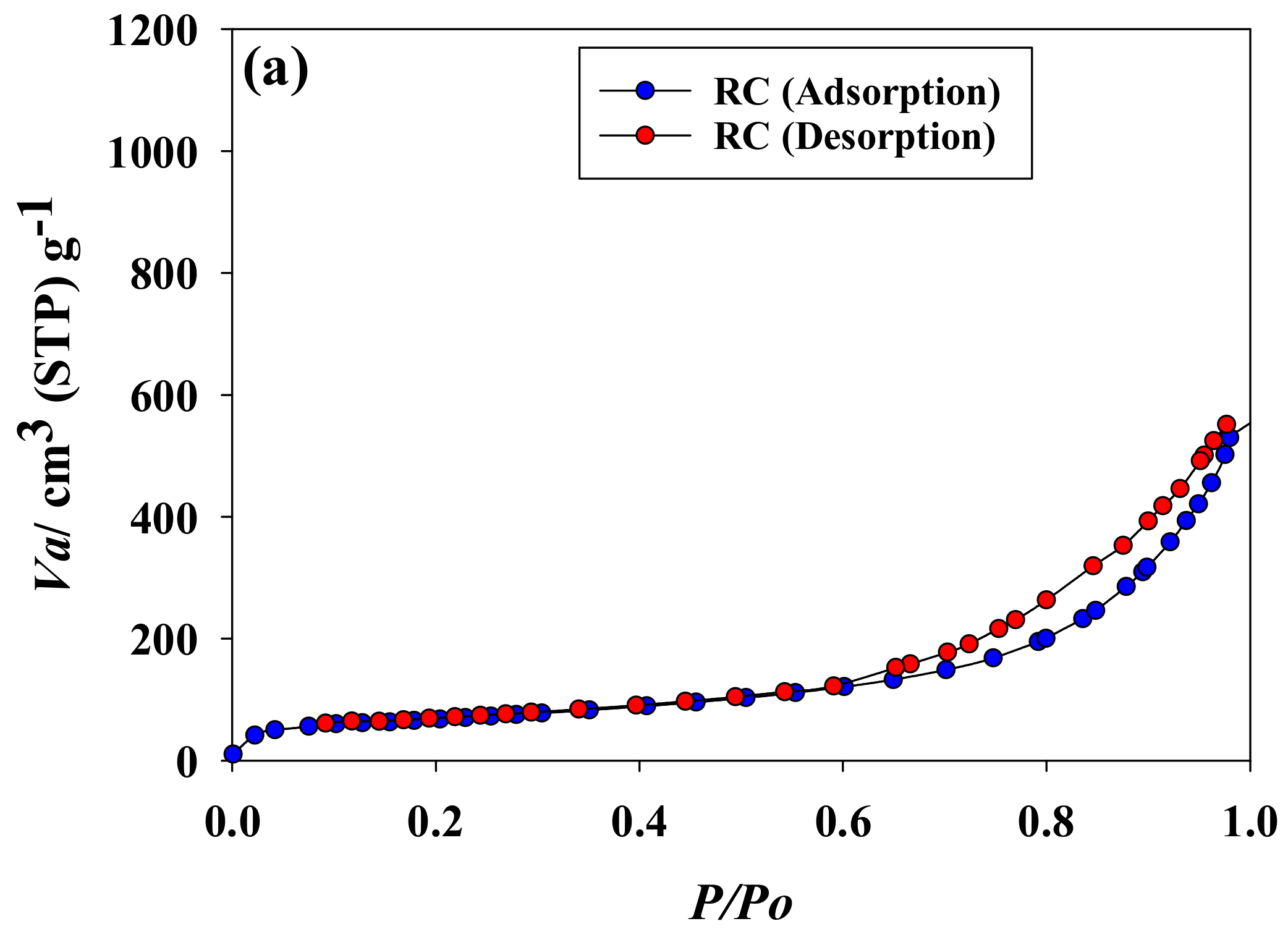

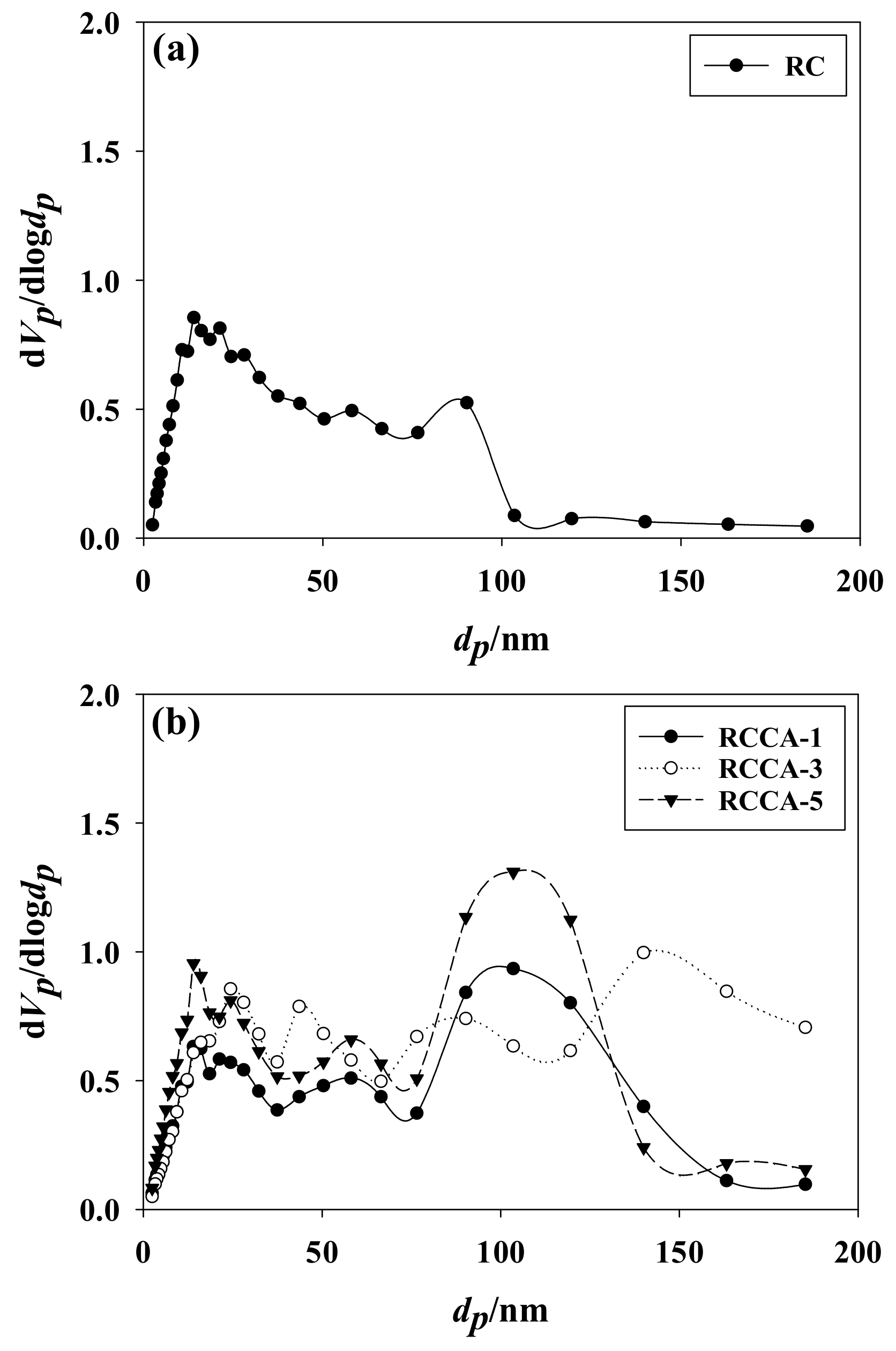

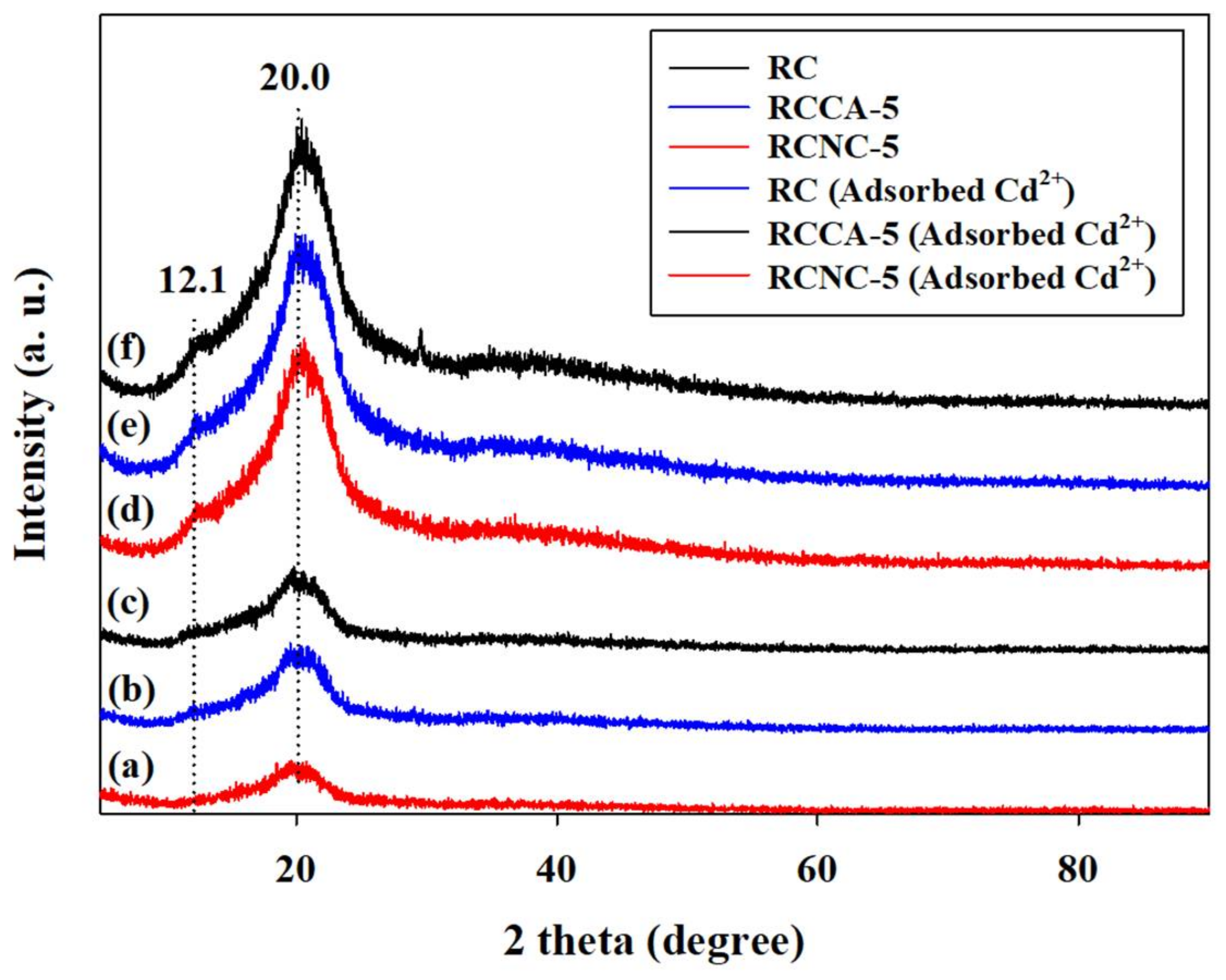

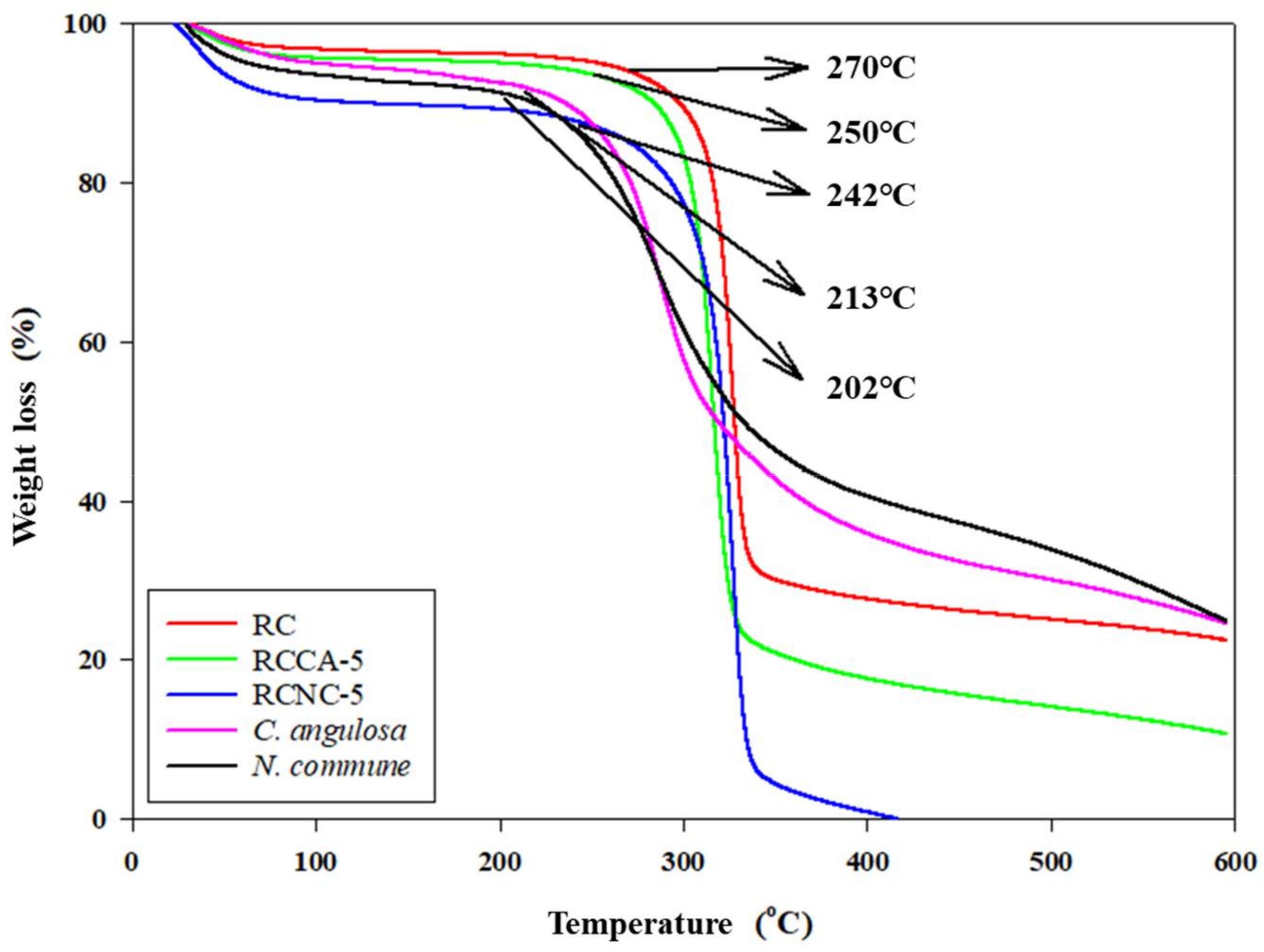

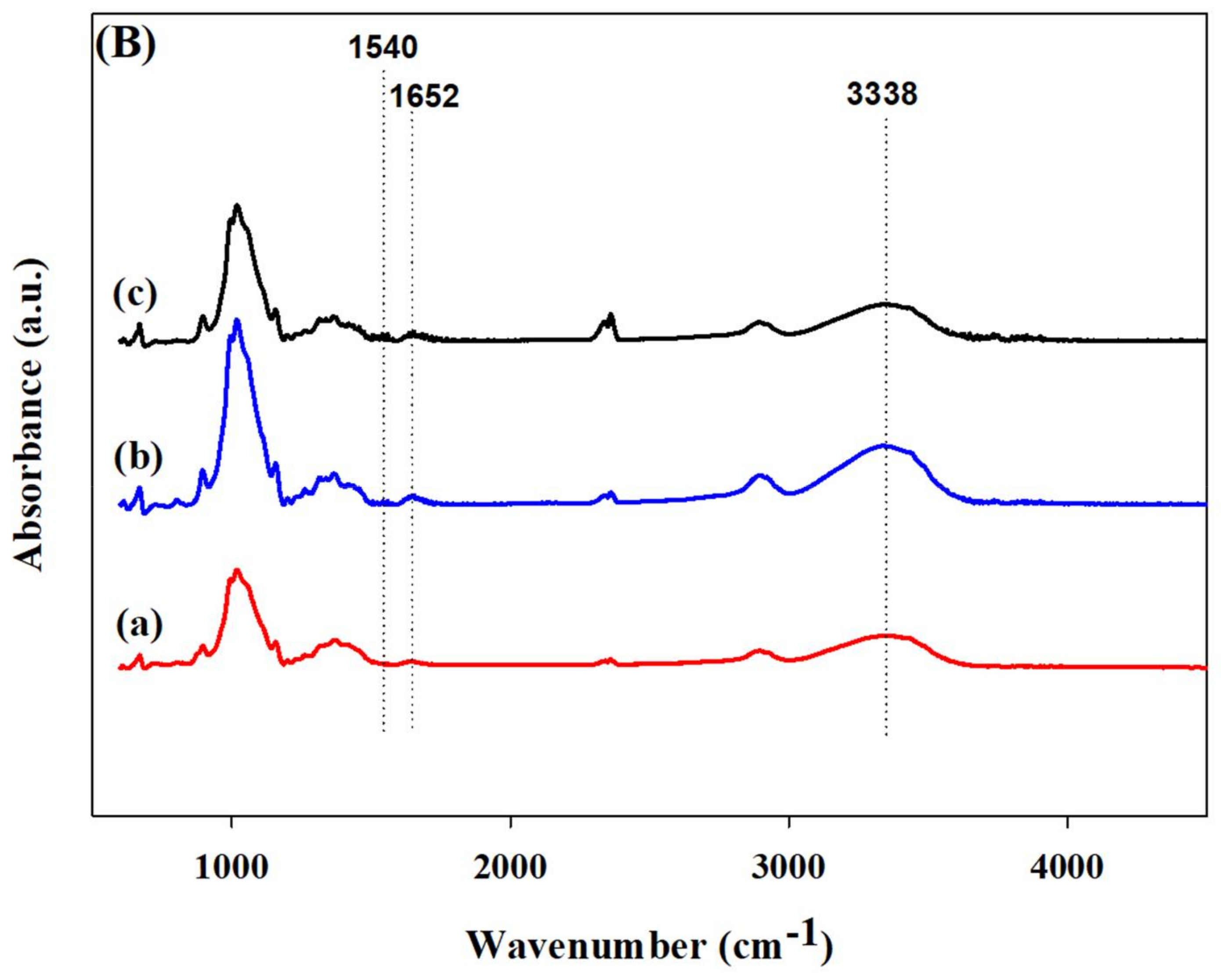

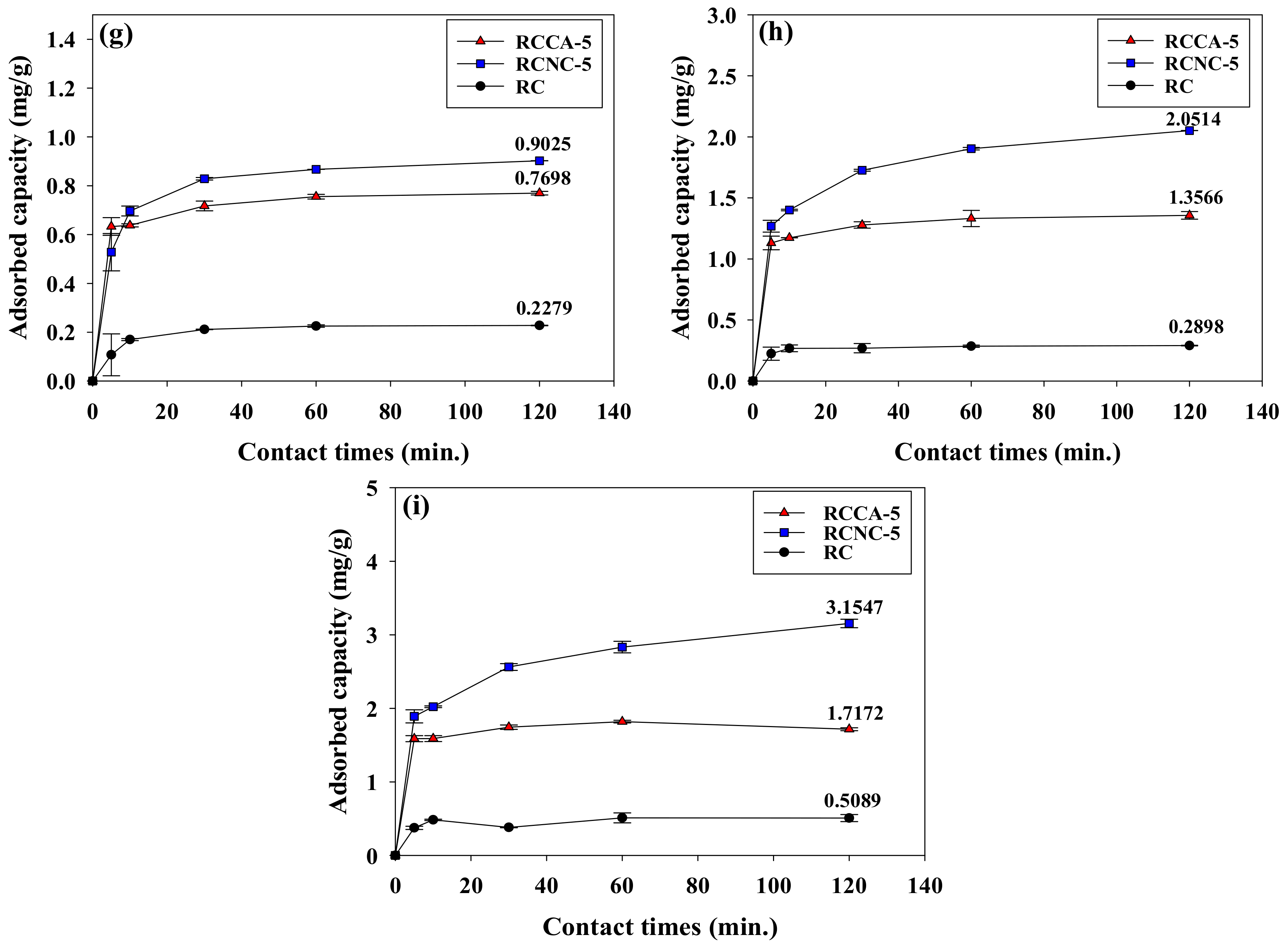

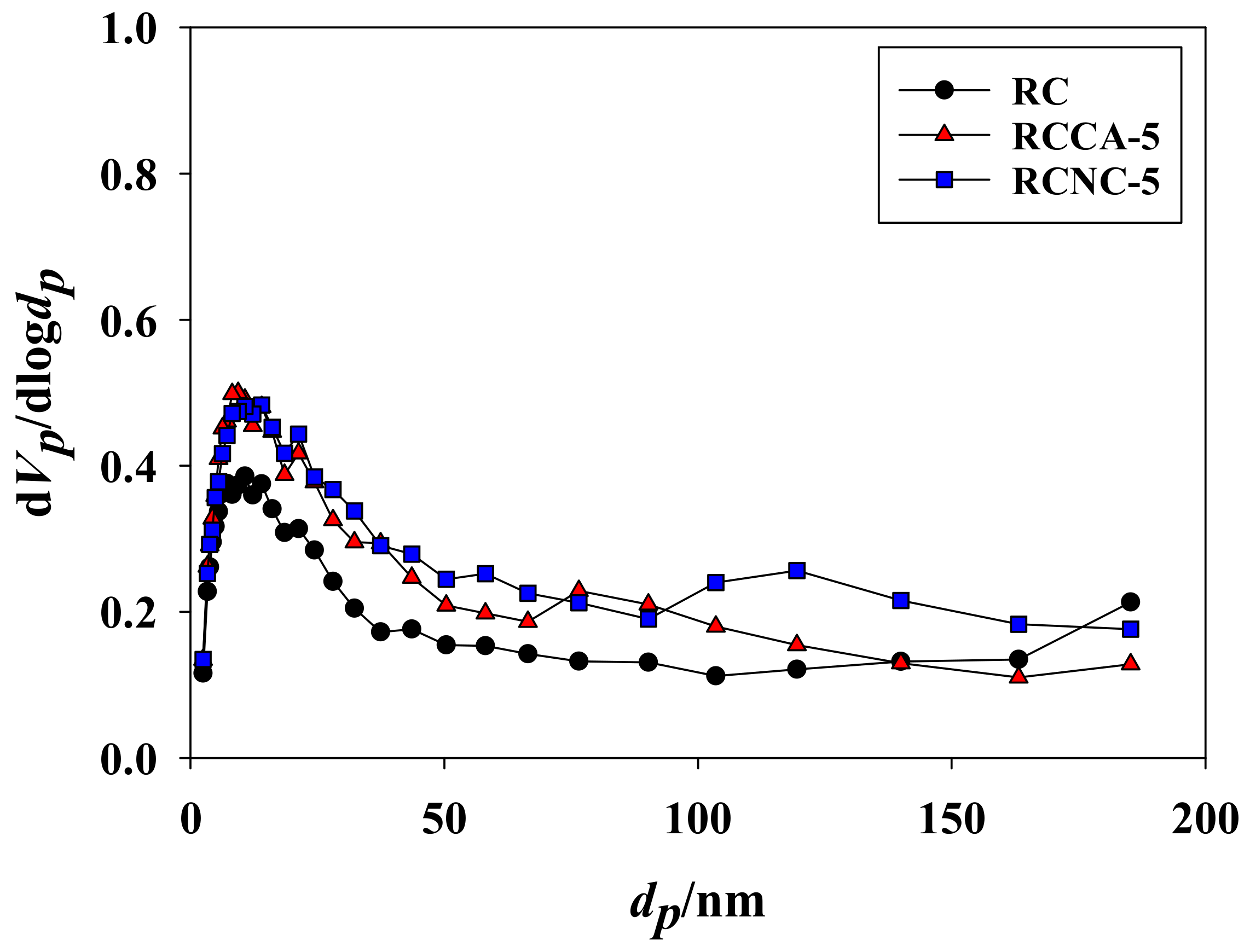

This study presents composite aerogel beads prepared by mixing dissolved cellulose with Chlamydomonas angulosa and Nostoc commune cells, respectively, at 0.1, 0.3, and 0.5% (w/w). The manufactured composites (termed regenerated cellulose (RC)), with C. angulosa (RCCA-(1, 3, and 5)), and with N. commune (RCNC-(1, 3, and 5)) were analyzed. Both RCCA-5 and RCNC-5 showed the high specific surface area to be about 261.3 and 332.8 m2·g−1. In the microstructure analysis, network structures were observed in the cross-sections of RC, RCCA-5, and RCNC-5. The pyrolysis temperature of the RCCA-5 and RCNC-5 composite aerogel beads was rapidly increased about 250 °C during the mixing of cellulose with C. angulosa and N. commune. The chemical analysis of RC, RCCA-5, and RCNC-5 showed peaks corresponding to various functional groups, such as amide, carboxyl, and hydroxyl groups from protein, lipid, and carbohydrate. RCNC-5 at pH 6 demonstrated highest Cd2+ removal rate about 90.3%, 82.1%, and 63.1% at 10, 25, and 50 ppm Cd2+, respectively. At pH 6, Cd2+ adsorption rates per unit weight of the RCNC-5 were about 0.9025, 2.0514, and 3.1547 mg/g at 10, 25, and 50 ppm, respectively. The peaks assigned to the amide, carboxyl, and hydroxyl groups in RCCA-5, RCNC-5, and RC were shifted or disappeared immediately after adsorption of Cd2+. The specific surface area, total pore volume, and mean pore diameter of composites was decreased due to adsorption of Cd2+ on the developed materials. As can be seen in the X-ray powder diffraction (XRD) spectrum, significant changes in the molecular structure of the composite aerogel beads were not observed even after adsorption of Cd2+. View Full-Text
Keywords: cellulose; microalgae; composite aerogel beads; Cd (II); adsorption cellulose; microalgae; composite aerogel beads; Cd (II); adsorption
Show Figures

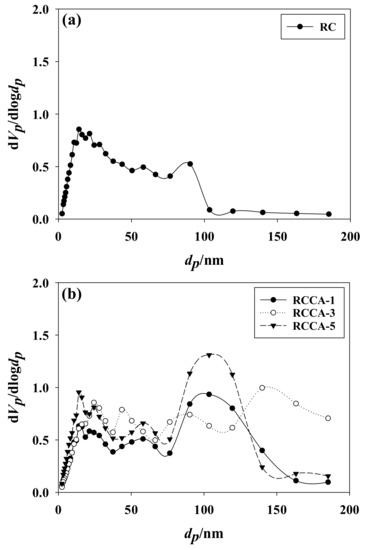

Figure 1

MDPI and ACS Style

Hwang, K.; Kwon, G.-J.; Yang, J.; Kim, M.; Hwang, W.J.; Youe, W.; Kim, D.-Y. Chlamydomonas angulosa (Green Alga) and Nostoc commune (Blue-Green Alga) Microalgae-Cellulose Composite Aerogel Beads: Manufacture, Physicochemical Characterization, and Cd (II) Adsorption. Materials 2018, 11, 562.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
