Materials 2018, 11(2), 212; https://doi.org/10.3390/ma11020212

Article
Transparent Glass-Ceramics Produced by Sol-Gel: A Suitable Alternative for Photonic Materials
1
Instituto de Cerámica y Vidrio (CSIC), 28049 Madrid, Spain
2
Departamento de Física Aplicada I, Escuela Superior de Ingeniería, Universidad del País Vasco UPV/EHU, 48940 Bilbao, Spain
3
Centro de Física de Materiales UPV/EHU-CSIC, 20018 San Sebastian, Spain
*
Authors to whom correspondence should be addressed.
Received: 11 January 2018 / Accepted: 27 January 2018 / Published: 30 January 2018

Abstract

:
Transparent glass-ceramics have shown interesting optical properties for several photonic applications. In particular, compositions based on oxide glass matrices with fluoride crystals embedded inside, known as oxyfluoride glass-ceramics, have gained increasing interest in the last few decades. Melt-quenching is still the most used method to prepare these materials but sol-gel has been indicated as a suitable alternative. Many papers have been published since the end of the 1990s, when these materials were prepared by sol-gel for the first time, thus a review of the achievements obtained so far is necessary. In the first part of this paper, a review of transparent sol-gel glass-ceramics is made focusing mainly on oxyfluoride compositions. Many interesting optical results have been obtained but very little innovation of synthesis and processing is found with respect to pioneering papers published 20 years ago. In the second part we describe the improvements in synthesis and processing obtained by the authors during the last five years. The main achievements are the preparation of oxyfluoride glass-ceramics with a much higher fluoride crystal fraction, at least double that reported up to now, and the first synthesis of NaGdF4 glass-ceramics. Moreover, a new SiO2 precursor was introduced in the synthesis, allowing for a reduction in the treatment temperature and favoring hydroxyl group removal. Interesting optical properties demonstrated the incorporation of dopant ions in the fluoride crystals, thus obtaining crystal-like spectra along with higher efficiencies with respect to xerogels, and hence demonstrating that these materials are a suitable alternative for photonic applications.
Keywords:
sol-gel; oxyfluoride glass-ceramics; nanocrystal; optical properties

1. Introduction

Phosphor materials emit light under exposure to external stimulation, such as an electron beam, light at different wavelengths, voltage or electric field, etc. These materials are widely applied in light-emitting diodes, solar cells, sensing, catalysis, integration in photovoltaic devices, and more recently in biosensing, bioimaging, or medical diagnosis [1,2,3,4,5,6].
The optical properties of these materials can change drastically depending on the processing parameters. Thus, in the past two decades, interest in studying the synthesis and processing of nanophosphors to develop luminescent materials with high efficiency has increased. The properties of existing devices can be improved by including luminescent phosphors and/or nanocrystalline oxyfluorides doped with lanthanide ions (Ln3+). Ln3+ ions are commonly used as active ions because they show emissions in a wide spectral range, from UV to NIR, and their use in telecom, lasers, lightening, etc. makes them indispensable nowadays. Moreover, their most stable oxidation state is 3+, consisting of partially filled inner 4f levels screened by outer 5s and 5p orbitals. This allows for maintaining emission energies centered near the same values even in different hosts, making them suitable for applications where certain wavelengths are required. Several studies and applications deal with nanoparticles doped with Ln3+ ions suspended in liquid phase or with phosphor powders. However, for many applications as laser materials, waveguides and optical fibers, lightening devices, etc., solid and easy-to-handle samples are required.
In particular, oxyfluoride nano-glass-ceramics (OxGCs) are attractive materials for photonic applications, because they combine the very low phonon energy of fluoride nanocrystals (NCs) (300–450 cm−1) with the high chemical and mechanical stability of oxide glass matrices, especially alumino-silicate ones [7,8,9]. Moreover, such materials can be cast in several forms to obtain the desired device. However, to maintain the transparency and avoid Rayleigh scattering produced by the quite big difference of refractive index between the oxide glass matrix and fluoride crystals, precise control of the crystal size is mandatory. Hence, to obtain materials with high transparency in the UV-Vis range, NCs with a size lower than 40–50 nm are required.
The pioneering work about OxGCs, published in 1993 by Wang and Ohwaki [10], in which PbxCd1−xF2 fluoride NCs doped with Er3+ and Yb3+ ions were precipitated in a silica-aluminate glass matrix after a proper heat treatment, showed an increase in the Up-Conversion (UC) emission of GCs with respect to precursor glass. Since that paper, the number of publications about transparent GCs has grown exponentially. In the last few decades, many compositions have been studied with the aim of obtaining different crystal phases and using different Ln3+ ions as dopants to obtain enhanced linear and nonlinear optical processes.
The usual method to prepare OxGCs is traditional glass melt-quenching (MQ). This method allows for obtaining several compositions; however, the most studied ones are those based on alumino-silicate matrices, even though there are also some studies of phosphate and fluoride GCs [11,12]. According to the definition of GCs [13], “Glass-ceramics are ceramic materials formed through the controlled nucleation and crystallization of glass”. In general, for MQ materials, the crystallization process is performed at temperatures slightly higher than Tg (Tg + 20–100 °C) to ensure the growth of crystals with a nanometric size that permits maintaining transparency. Moreover, phase separation commonly acts as a precursor for crystallization and the typical crystallization mechanism is a diffusion-controlled process.
The MQ method presents some drawbacks, most of them related to the high temperatures involved during the glass melting. In fact, high melting temperatures (1400–1700 °C) cause relevant fluorine loss, up to 30–40%, thus limiting the final content of crystal phase that can be obtained and resulting in uncontrollable compositions with respect to fluorine and Ln3+ ions. In addition, due to quite common phase separation of the precursor glass due to fluorine immiscibility in oxide glass matrices, it is a challenge to prepare high-quality samples for applications as laser devices or any other that requires high optical quality. Furthermore, heat treatments, in general, are quite long (from 3 h up to 120 h) and thin films cannot be directly obtained, thus limiting the possibility of application as integrated devices. Despite these disadvantages, the MQ method demonstrated the possibility of obtaining OxGCs as bulk materials with enhanced optical properties with respect to precursor glass, and in recent years, the preparation of novel OxGC optical fibers has also been achieved [14,15,16,17]. Therefore, MQ is still the most used processing method to obtain OxGCs and is also scalable to an industrial level. Indeed, transparent GC containing up to 75% of crystal fraction, with a crystal size below 40 nm, are extensively used in telescope mirrors [18].
To overcome previous limitations without giving up the field of OxGCs, many researchers tried different processing methods. In particular, the Sol-Gel (SG) route has been recognized and indicated as a promising alternative process to obtain transparent OxGCs. In fact, SG is a handy, flexible, and quite cheap method to fabricate novel and innovative materials at temperatures much lower than those used for MQ materials. Such low temperatures allow for introducing a higher amount of fluoride NCs with much better dispersion than in MQ compositions. Moreover, because SG is a chemical process using a bottom-up approach, high homogeneity can be obtained with no phase separation detected in SG glasses or GCs.
Another important feature of SG is the versatility of the processing method that permits obtaining thin films, powders, and bulk materials. However, many fewer papers about SG OxGCs are reported in the literature compared to those describing materials prepared by MQ [8]. This is mostly associated with the requirement of the optimization of the synthesis method, and in many cases the starting precursor can also affect the final crystal phase. Most of the materials studied have a simple composition that can be easily summarized with the formula:
(100 − x)SiO2-x M1F2/M1F3/M1M2F4/M1M2F5,
where M1 and M2 are alkaline, alkaline-earth metals, or lanthanide elements, respectively. More complex glass matrices, where SiO2 is partly substituted with Al2O3, are also reported in the literature but are quite rare, and even more complex structures have also been prepared but for different applications as biomaterials [19].
SG synthesis typically involves the hydrolysis and polycondensation of metal salts or metal-organic precursors, such as tetraethyl orthosilicate (TEOS), in an alcoholic medium. The active phase and Ln3+ ions are prepared separately using acetates, nitrates, or chlorates as precursors and dissolved using a fluorine acid. The mixing of both solutions, followed by a controlled crystallization, allows for obtaining transparent OxGCs.
Even though the SG method offers potential advantages, they have not been fully exploited, and all the papers published to date describe the preparation of similar compositions containing nominal small crystal fractions (5–10 mol %), with the real crystal content not being estimated. Furthermore, in many cases only slight changes are added to the already published compositions, the main modifications consisting of changing the dopants and/or their concentration.
In the following sections the most relevant results for several Ln3+ doped OxGCs for optical applications studied to date and prepared by SG are summarized. The results are separated into two sections depending on the crystal phase. A third section regarding oxides and oxychlorides GCs has also been added, while in the last sections we will present the results and improvements introduced by our group in the last five years.

1.1. Alkaline-Earth Oxyfluoride Glass-Ceramics, M1F2 (M1 = Mg, Pb, Sr, Ca, Ba), M1M2F4 (BaMgF4)

Alkaline-earth fluoride GCs, with the formula M1F2 (M = Mg, Pb, Sr, Ca, Ba), are useful for photonic applications due to their high optical transparency in a wide spectral range, from (UV) ultraviolet to infrared (IR). MgF2-based materials have been extensively studied for different applications, for example as protective coatings on glass optics due to their low chemical reactivity, low refractive index (1.38), and scratch- and weather-resistance. Even though this review is centered on materials with luminescence properties, MgF2 materials deserve special attention because they have been among the first fluorides produced by SG. Even more interesting is that the synthesis of MgF2 introduced important novelties in the synthesis of OxGCs.
One of the first works reported about MgF2 NCs and SiO2-MgF2 materials prepared by SG as bulk and thin films dates back to 1996 [20]. Mg(OCH3)2 and HF were used as Mg and F sources, respectively, to obtain MgF2 sol. SiO2-MgF2 sols were also prepared with ratios of (mol %) 20:80 and 40:60, using tetramethyl orthosilicate (TMOS) as the SiO2 precursor. X-ray diffraction (XRD) showed that MgF2 crystals precipitated in both sol and glass samples, but the crystal growth in SiO2-MgF2 samples was dramatically slowed (~15 nm) in comparison with that of pure MgF2 samples (~115 nm). For 20SiO2:80MgF2 samples, the crystal size maintained the same value. MgF2 NCs have been obtained after treatment at different temperatures following the procedure described in [21]. In 1997 Fujihara et al. [22] reported on MgF2 thin films using trifluoracetic acid (TFA) and Mg(OC2H5)2 as a fluorine or magnesium precursor, respectively, with a molar ratio 1:2.6. The most important innovation is the use of TFA as a fluorine precursor, together with an explanation of the fluoride NCs’ formation. It was assumed that Mg(OC2H5)2 complexes were formed in the xerogel and upon heat treatment, Mg2+ ions react with thermally activated fluorine in CF3COO ions to form MgF2 crystals. This decomposition reaction was accompanied by a huge weight loss, around 75%, as confirmed by Differential Thermal Analysis (DTA) (Figure 1). Some years later it was demonstrated that, thanks to the screening effect of CF3COO ions of TFA, metal cations with oxidation state 2+ or 3+ are prevented from being incorporated in the SiO2 matrix, making possible subsequent fluoride NCs’ precipitation upon heat treatment. Therefore, this work can be considered pioneering and a boost towards the preparation of OxGCs by SG.
Another phase extensively studied is PbF2. One of the first works associated with SiO2-PbF2 samples was reported in 2004 by Luo et al. [23]. Bulk materials of composition 90SiO2-10PbF2 doped with Er3+ were prepared using TEOS and TFA as the SiO2 or fluorine precursor, respectively. The molar ratio of precursors TEOS:CH3CH2OH:DMF:Pb(CH3COO)2:TFA:H2O:HNO3 was 1:2:2:0.1:0.6:4:0.4. Upon heat treatment at 300 °C and 480 °C β-PbF2 NCs precipitated in the glass matrix. Er3+ ions seemed to be segregated at the surface of the crystallites and hindered the growth of PbF2 NCs, thus delaying crystallization and reducing the crystal size from 20 to 9 nm. Other authors reported on UC measurements in bulk materials of the same composition doped with 0.1Er3+-0.3Yb3+ [24]. A TEOS:EtOH:H2O:CH3COOH ratio of 1:4:10:0.5 was used for the SiO2 sol, while the ratio Ln(CH3COO)3:TFA was 1:4. UC bands showed well-resolved Stark components indicating the incorporation of Ln3+ ions into PbF2 crystals. Results for the same composition doped with Tm3+-Yb3+-Er3+ and Tm3+-Yb3+-Ho3+ were also reported [25]. In both cases, the color tunability of UC luminescence was obtained, allowing white UC generation. Following the same synthesis and composition of Luo et al. described before, Szpikowska-Sroka et al. published some papers about OxGCs with different dopants [26,27,28]. After heat treatment, Eu3+ and Tb3+ ions showed an increase in the emission spectra in GC samples with respect to the xerogels due to the incorporation of these ions into the NCs. In fact, the asymmetry ratio, R, described as the ratio between the two visible emissions I(5D0-7F2)/I(5D0-7F1) of Eu3+, gives information about the nature of the environment surrounding the ion. Moreover, the effect of the TFA on the optical properties was also analyzed, showing the best result for a Pb/TFA ratio of 5 and corresponding to a crystal fraction of 3 wt %.
90SiO2-10SrF2 transparent GCs doped with ErF3 (1 mol %) were prepared by Yu et al. in 2006 [29]. Samples treated at 300 °C already showed the precipitation of SrF2 crystals with a size of 10 nm. The same crystal size is maintained for heat treatment up to 800 °C. However, upon excitation at 378 nm no Er3+ emission was detected unless for samples treated at 800 °C. The authors attributed this phenomenon to the presence of –OH groups that quench the luminescence. Two years later, the same authors prepared transparent bulk samples of composition 90SiO2-10SrF2-0.5ErF3 and 97.5(90SiO2-10SrF2)-2.5Al2O3-0.5ErF3 (mol %) [30]. Al2O3 was added as the nitrate, with Al3+ acting as a glass network former, replacing Si4+. The introduction of Al3+ to the SiO2 network causes a decrease in non-bridging oxygens, hindering the crystallization of fluoride NCs. The SiO2-Al2O3 glass matrix showed higher transparency in the UV region due to lower pore content and the final optical properties were better for this composition treated at 1000 °C. Very intense and visible UC luminescence was observed for GC based on SiO2-Al2O3 matrix, as compared to the one with only SiO2.
The first SiO2-CaF2 transparent GC prepared by SG was reported in 2007 by Zhou et al. [31]. 95SiO2-5CaF2 bulk samples doped with 1 mol % ErF3 were treated at 900 °C, allowing the precipitation of CaF2 crystals of 20 nm in size, homogeneously distributed in the amorphous SiO2 matrix. Er3+ incorporation in the crystal phase was tested by Energy-Dispersive X-ray Spectroscopy (EDXS). Only Red UC emission was detected upon 980 nm excitation. Georgescu et al. prepared 89SiO2-5CaF2-5YbF3-1ErF3 (mol %) GCs upon heat treatment at 800 °C [32]. A solid solution of (Ca1−xLnx)F2+x crystals was observed by XRD, and both red–green and Violet-UV UC were observed when exciting the samples at 973 nm. The process was described as a two-photon and three-photon absorption process for visible and UV emissions, respectively, upon IR excitation. On the other hand, a different approach was used to prepare 95SiO2-5CaF2 GCs [33]. Er3+-doped CaF2 crystals were previously synthesized by co-precipitation using Er(NO3)3, Ca(NO3)2, and ammonium bi-fluoride NH4HF2 as precursors. Then, NCs were mixed to SiO2 sol, dried at 50 °C during one month and heat-treated to obtain bulk materials. The authors considered that conventional SG route does not allow control of the size and quantity of crystals as well as the Ln3+ concentration into the NCs. The optical results showed that the UC emissions increased when passing from xerogels to GCs, the corresponding lifetimes of the 4F9/2-4I15/2 emission being 1.3 μs and 1.7 ms, respectively. This effect was ascribed to the incorporation of Er3+ into CaF2 NCs with phonon energy around 460 cm−1.
Another interesting host for Ln3+ ions is BaF2 due to its very low phonon energy, around 320 cm−1. The first SiO2-BaF2 SG material was reported in 2006 by Chen et al. [34]. 95SiO2-5BaF2 bulk materials were prepared and doped with 0.5 and 1 Er3+ (mol %). BaF2 crystals, 2–4 nm in size, precipitated in the glass matrix after heat treatment at 300 °C. Up to 700 °C, no relevant effects in the crystallization were observed. Over this temperature, the crystal grew up to 10 nm. However, treatment at higher temperature also caused the crystallization of the glass matrix in the form of cristobalite. The incorporation of Er3+ ions into the NCs was revealed due to the shift of the XRD peaks toward higher angles in Er3+-doped samples and by EDXS and Judd–Ofelt calculations. Photoluminescence (PL) emission was detected only for samples treated at 800 °C and green and red UC emissions were observed upon 980 nm excitation. The same composition and synthesis were used by Secu et al. when doping materials with Pr3+, Sm3+, Eu3+, Dy3+, and Ho3+ [35,36]. Small BaF2 crystals (∼7 nm) were precipitated upon heat treatment at 800 °C for 1 h. No Ln3+ emission was observed for xerogels except for Eu3+, while for all the GCs typical 4f-4f transitions were observed showing the Stark splitting of the bands (Figure 2). Moreover, the typical Eu3+ emissions in GCs indicated that these ions are effectively incorporated into NCs. The Eu3+ lifetime, measured at 620 nm, increased from 0.3 to 4.7 ms passing from xerogel to GC.
To conclude this first section, we mention the preparation of 90SiO2-10BaMgF4 films doped with Eu3+ prepared by Fujihara et al. [37]. Upon heat treatment at 750 °C for 10 min small BaMgF4 NCs 3 nm in size, were observed by High-Resolution Transmission Electron Microscopy (HRTEM). By N,N-dimethylformamide (DMF) addition a porous film was obtained, while, without DMF the film was dense. DMF addition also favors crystallization, reducing stresses in films [38]. The corresponding PL measurements only showed Eu2+ emission, meaning that Eu2+ ions are effectively incorporated in the crystal phase, substituting Ba2+ ions. Furthermore, Eu2+ emission was much stronger for porous films due to higher photon confinement, producing an increase in the absorption process.

1.2. Lanthanides Oxyfluoride Glass-Ceramics, M1F3 (M1 = La, Y, Gd) and M1M2F4, M1M2F5 (M1 = Na, K, Li; M2 = Gd, Y)

1.2.1. M1F3

Oxyfluoride GCs in which one element of the NCs former is a Ln3+ ion are the most studied compositions. In fact, Ln3+ ions are easily replaced by other ions used as dopants, due to their similar ionic radius and equal charge. Moreover, some ions as Gd3+ are known to act as sensitizers for other ions as Eu3+, Tb3+, and Dy3+ [39,40,41], making possible energy transfer (ET) processes and thus making this NC phase attractive for several photonic applications.
Among all the lanthanide crystals, LaF3 is the most studied. Several papers about LaF3 OxGCs have been published since 1998, when Fuhijara et al. described the preparation of LaF3 thin films on silica substrates [42]. In that work, the authors explained the importance of controlling the synthesis and heat treatment process to obtain high-purity LaF3 NCs, avoiding the precipitation of other phases as LaOF. In the following years, the same authors worked extensively in the preparation of SiO2–LaF3 bulk samples, observing the crystallization of LaF3 NCs with a size ranging from 10 to 30 nm [43]. They also studied the influence of TFA on the LaF3 NCs’ crystallization, proposing that such formation occurs by the following chemical reaction [44,45,46]:
La(CF3COO)3→LaF3 + (CF3CO)2O + CO + CO2.
However, the authors stated that it is not possible to raise the LaF3 content beyond 10 mol % without losing transparency. Therefore, all the papers published after this work concentrated on Fujihara’s synthesis and composition, just changing the active phase. TMOS was partially or totally replaced by TEOS but the same stoichiometric ratios of H2O and TFA were used, bringing little innovation to the synthesis and processing of OxGC materials.
The preparation of transparent Eu3+ doped SiO2-LaF3 and SiO2-LaOF OxGC films, in which Eu3+ ions were incorporated into the LaF3 crystals, resulted in interesting PL emissions [47]. Results showed important differences depending on the sintering temperature and, therefore, on the crystals phase. On the other hand, Ribeiro et al. [48] prepared films with the same composition, finding that for heat treatment between 600 and 900 °C both LaF3 and LaOF phases appeared. Eu3+ ions emissions mainly from the 5D0 excited state reflected the change in the environment of these ions. They used thin films as planar waveguides at Vis and IR wavelengths, reported losses ~1.8 dB/cm at 632.8 nm. However, the authors considered that the intensity of PL measurements depends on the nature of the crystal phase and the presence of –OH groups that are responsible for PL quenching. At such a high sintering temperature, –OH groups could be eliminated, but fluorine can be lost, producing a silica matrix rich of lanthanide ions and changing the emission spectra.
LaF3 OxGC bulk materials were also prepared by other authors. Biswas et al. [49] described the preparation of transparent 95SiO2-5LaF3 GC, after densification at 1000 °C, using TEOS instead of TMOS as the SiO2 precursor and a TEOS:H2O:CH3COOH molar ratio of 1:10:0.5. Optical results showed very good UC efficiency from the IR-to-UV region due to the Yb3+–Er3+ ET process, which is enhanced in GCs, suggesting the incorporation of Er3+ ions in the low-phonon environment of LaF3 NCs.
In order to optimize the optical properties, other authors have described the preparation of bulk GC materials with molar ratios (100 − x)SiO2-xLaF3 (x = 5 and 10 mol %), doped with (0.1–0.5) mol % of Ln3+ ions and heat treated at temperature up to 1000 °C [50,51,52,53,54,55] following a similar synthesis to Biswas et al. Optical results showed that Eu3+ ions could be selectively excited and, even more interesting, opened the way for the estimation of the percentage of ions that are incorporated in the NCs, concluding that at least 50% are effectively incorporated in LaF3. Another paper [53] described the preparation of transparent 95SiO2-5LaF3 bulk GC, co-doped and tri-doped with Ln3+ ions. Good UC properties after excitation at ~980 nm were observed due to the interionic distance reduction between Ln3+ ions, as a consequence of their incorporation into the NCs. Moreover, by increasing the pump power the emitting color was tuned, obtaining white light generation with potential applications in multicolor solid-state displays and optical integrated devices (Figure 3). The incorporation of a high amount of dopant ions, around 75%, in the precipitated LaF3 NCs was also reported by Velázquez et al. [54] for Tb3+-Dy3+ co-doped GCs, showing enhanced UV absorption band and allowing a shift in such emission to the Vis range.

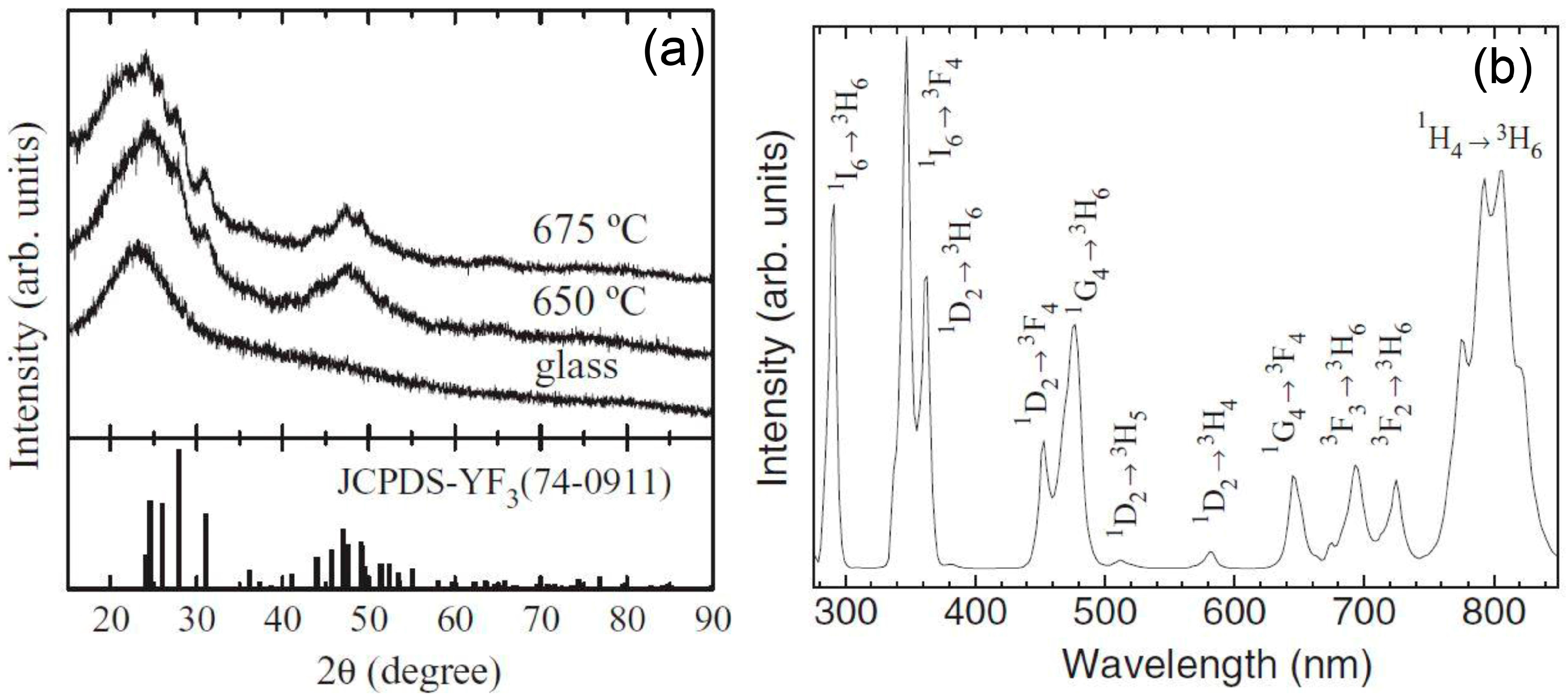

Other oxyfluoride GCs with special interest for photonics are those containing YF3 NCs. This crystal phase can act as a high quantum efficient host lattice for Ln3+ ions. Since 1998, when Dejneka published one of the first works on Eu3+-doped YF3 OxGCs by the MQ method [56], many authors started preparing materials containing this crystal phase. However, it was necessary to wait until 2006 to find one of the first works related to SG bulk materials based on the composition 90SiO2-10YF3 [57]. The authors precipitated YF3 crystallites with sizes around 5 nm from the silica matrix when the xerogel was treated at 400 °C. According to the authors, NCs aggregated to form larger particles. By increasing the temperature to 600 °C, YF3 NCs tended to separate without changing their size, finally resulting in a homogeneous distribution in the glass matrix. They proposed that the precipitation of these crystals in the glassy phase induces high stress in the local region, which was reduced when increasing the treatment temperature due to the separation of the NCs from the agglomerates. Méndez-Ramos and co-workers published results based on the same 90SiO2-10YF3 composition [58,59,60]. In these works, using Ln3+ as probe ions of the local environment, the authors found that a large fraction of optically active ions is efficiently embedded into the YF3 NCs, 11 nm in size (Figure 4a). When the samples were co-doped with Yb3+-Tm3+, bright and efficient UC was achieved (Figure 4b), along with intense high-energy emissions in the UV range, due to rare 4- and 5-infrared photon processes. Moreover, co-doping with Ho3+ or Er3+ ions showed white light generation.
Differently to LaF3 and YF3, GdF3 is considered a promising host because Gd3+ ions can act as s sensitizer for other Ln3+ ions and favor some ET processes [61], being suitable for application in Plasma Display Panels (PDPs) and mercury-free fluorescent lamps [62,63]. Only a few papers about SG GdF3 OxGCs have been published, with the nominal crystal phase content being less than 10 mol %. Fuhijara et al. reported the synthesis of 90SiO2-9GdF3 thin films doped with 1 mol % of EuF3 [64]. Results confirmed that GdF3 NCs, 5 nm in size, precipitated during heat treatment at 300 and 400 °C, Figure 5, but GdOF NCs appeared when the temperature was increased to 500 °C. More recently, Szpikowska-Sroka et al. studied the optical properties of Eu3+-doped SiO2-GdF3 GCs, with a very low composition of active media, around 3–6 mol %, based on Fuhijara’s synthesis [65,66,67]. The PL associated with Eu3+ ions in GdF3 phase was more efficient due to the low phonon energy of the crystal phase.

1.2.2. M1M2F4/F5

Complex fluoride structures became increasingly interesting in the last decade due to their good optical properties and capability of producing intense and efficient nonlinear optical processes as UC emission or other ET processes. In most cases phosphors were synthesized using SG, solvo-thermal, or co-precipitation methods and the final materials were used as powders. Other works concern the preparation of bulk materials and only few are about thin films.
Phosphors based on NaYF4 crystals have been known since the 1970s for their excellent UC properties when doped with Yb3+ and Er3+. In particular, NaYF4 phosphors’ UC emission was found to be 4–5 times higher than that of LaF3 crystals [68]. Kramer et al. proposed a route to synthesize only pure hexagonal NaYF4 phosphors [69]. Moreover, transparent NaYF4 OxGCs bulk materials have been obtained by the MQ method, showing interesting PL properties even more efficient than those of powder phosphors [70,71].
However, the first work on NaYF4 OxGCs prepared by SG was published in 2009 by Yanes et al. [72]. 95SiO2–5NaYF4 bulk materials doped with 0.1Er3+ and 0.3Yb3+ were obtained using acetates as precursor and the “Fujihara route”. The ratio between red and green UC emission bands varied as a function of temperature of heat treatment and pump power resulting in color-tunable UC phosphors. The same authors also prepared 95SiO2–5NaYF4 bulk materials doped with 0.1Eu3+ (mol %) [73]. NaYF4 face-centered cubic NCs precipitated upon heat treatment between 550 and 650 °C, their size increasing from 5 to 10 nm with the treatment temperature. PL measurements demonstrated the incorporation of Eu3+ into the NCs, due to changes of emission bands using a selective excitation, together with an increase in the lifetime. The authors also reported bright white light generation achieved in similar materials tri-doped with Yb3+-Ho3+-Tm3+ [74] and Yb3+-Er3+-Tm3+ [75].
To the best of our knowledge, no KYF4 GC or composite materials prepared by MQ have been reported in the literature. The first GC was prepared by Mendez-Ramos et al. using the SG method and co-doping with Yb3+-Er3+-Tm3+ [76]. The processing method was the same used by the authors for other phases such as NaYF4, LaF3, etc. K, Y, and Ln3+ acetates were dissolved using ethanol, TFA, and water, while hydrolyzed TEOS were used as the SiO2 precursor, employing the well-known TEOS:EtOH:H2O:CH3COOH ratio 1:4:10:0.5. KYF4 crystals, 14–20 nm in size, were observed treating 95SiO2-5KYF4 bulk materials between 650 and 700 °C. Very well-resolved PL Stark components were observed for Er3+ and Tm3+ ions, indicating their incorporation into low-phonon KYF4 crystals (Figure 6). UC was obtained upon Yb3+ excitation at 980 nm and tunable emission was achieved depending on the dopant concentration and excitation power, allowing white light generation. The same composition was also studied by doping the system with other Ln3+ ions [77,78,79]. In all cases, the incorporation of Ln3+ ions into cubic KYF4 crystals was proved by PL measurements that showed defined Stark components, a better DC and UC process, and an increased lifetime as compared to emissions of Ln3+ ions remaining in the glass matrix. The possibility of obtaining both UC and DC simultaneously had interesting applications for a photovoltaic silicon solar cell and white light-emitting diodes.
Despite some works based on LiYF4 OxGCs prepared by the MQ method appearing since 2009 [80], the first SG GCs containing LiYF4 crystals dates back to 2013 with the works of Kawamura et al. [81] and Secu et al. [82]. In both cases the authors used Fujihara’s synthesis, and Li and F were added in excess to avoid losses due to evaporation and guarantee LiYF4 formation. In fact, a stoichiometric Y:Li ratio favored the crystallization of YF3 instead of LiYF4. Gel powders were then treated between 500 and 600 °C. Kawamura et al. obtained a mix of LiYF4 and YF3 phases when the Li:Y molar ratio was lower than 3, while only pure LiYF4 phase was produced using this ratio. By EDXS analysis, Nd3+ incorporation into the fluoride NCs was proven even though observable amounts of F, Nd, and Y were also detected in the glass matrix. UC spectra were obtained when exciting the samples at 800 nm, showing crystal-like behavior. The Nd3+ lifetime in LiYF4 was longer than in YF3, suggesting a better Nd3+ distribution for the former. The same authors prepared the same materials with only LiYF4 crystals and treated the samples with HF to remove the SiO2 matrix [83]. However, relevant amounts of O and Si were detected after HF treatment and PL measurements did not show a significant difference after and before the HF treatment, thus ensuring the presence of Nd3+ ions in the fluoride NCs.
Secu et al. [82,84] prepared (100 − x)SiO2-xLiYF4 GC powders doped with Eu3+ and Er3+-Yb3+ and compared the results for LiYF4:Eu3+ and LiYF4:Er3+-Yb3+ crystal pellets. As compared to an untreated xerogel, Eu3+-doped GC samples showed 7–8-fold stronger emission, a much longer lifetime of the 5D0-7F2 red emission (613 nm), and better resolved bands due to the Stark splitting and reduced inhomogeneous broadening typical of amorphous environments. Crystal pellets and GCs showed similar PL spectra and lifetimes. For Er3+-Yb3+-doped samples, UC emission was detected in both GCs and crystal pellets. A saturation effect of the red UC emission was observed for GC samples, associated with the high Ln3+ ions concentration, which caused a back-ET from Er3+ to Yb3+.
BaYF5 and BaGdF5 are other interesting crystal phases suitable for photonic applications. The first 95SiO2-5BaYF5 GC obtained by SG was prepared recently using Eu3+ and Sm3+ as dopants [85]. After heat treatment at 750 °C cubic BaYF5 NCs, 11 nm in size, were detected by HRTEM and XRD. For comparison, BaYF5 NCs were synthesized by the solvo-thermal method and dispersed in toluene. Similar PL features and lifetimes were obtained for the GC and the dispersed NCs. The same authors also prepared 95SiO2-5BaGd(1−x)RExF5 (x = 0 or 0.02 mol %, where RE = Eu3+, Sm3+, Dy3+ and Tb3+) GC [86]. After heat treatment at 650 °C, BaGdF5 NCs, with a size around 10 nm, precipitated in the SiO2 matrix (Figure 7). Upon Gd3+ excitation at 272 nm or Eu3+ direct excitation at 393 nm, very similar Eu3+ emission spectra were obtained and the bands showed typical Stark components that were quite well resolved, thus confirming the incorporation of Eu3+ in the BaGdF5 NCs and the ET from Gd3+ to Eu3+.

1.3. Other Glass-Ceramics (Oxides and Oxyclorides)

In this section we resume work concerning GCs based on different compositions containing oxide and oxychloride NCs. Oxide GCs have received great attention because some oxide phases present interesting properties. For example, it is worth citing SnO2, which is a wide gap n-type semiconductor with strong UV absorption (energy gap ~3.6 eV at 300 K) and tunable emission spectra depending on the crystal size. In fact, SnO2 is known to act as a Quantum Dot (QD) when the crystal size is smaller than or comparable to the Bohr radius, thus showing properties between bulk semiconductor and discrete molecules that have many applications in several technological fields. Significant blue-energy shift of the intrinsic absorption edge can be obtained by strong quantum confinement of excitons inside the QDs [87,88]. The incorporation of SnO2 NCs in an SiO2 glass matrix using SG dates back to 2002 with the works of Chiodini et al. [87] and Nogami et al. [89] Chiodini et al. reported on 98SiO2-2SnO2 materials obtained by mixing TEOS and dibutyltin diacetate (Sn(CH2CH2CH2CH3)2(OOCCH3)2) in ethanol and using a TEOS:H2O molar ratio of 1:8. The samples were heated from 450 to 1050 °C in an O2 atmosphere and tetragonal SnO2 NCs with a size of 1.5–2 nm were observed by HRTEM between 950 and 1050 °C. However, the NCs’ size and distribution are strongly dependent on the atmosphere. NCs above 10 nm (clusters) were obtained for heat treatment at 1050 °C in reducing atmosphere. The near-UV absorption edge shifts to high energies by decreasing the synthesis temperature due to a decrease in the SnO2 NCs’ size. The author concluded that a possible application of these materials could be as all-optical switching devices. The authors also reported that an increase in the SnO2 content up to 15 mol % produces negative photorefractivity, activated by UV-Vis light [90]. A refractive index change of −4 and −6, measured at 980 nm, was obtained after sample irradiation at 266 and 532 nm, respectively.
Nogami et al. prepared materials with compositions (100 − x)SiO2-xSnO2 (x = 1, 3 and 5 mol %) doped with 1 mol % of Eu2O3 [89]. They used TEOS as the SiO2 precursor and SnCl2·2H2O together with EuCl3 as SnO2 and Eu3+ precursors, respectively. After a gelation period at room temperature for two weeks, bulk samples were treated from 500 to 1000 °C to ensure the densification of the glass matrix and allow SnO2 NCs’ precipitation. For compositions containing 3 and 5 mol % of SnO2, NCs with a size of 6.9 and 8.5 nm were obtained, while no NCs were observed for 99SiO2-1SnO2 composition. Absorption measurements showed a blue shift of the band-tail with respect to SnO2 bulk sample. Higher blue-shift and energy gap were obtained when decreasing the SnO2 content, related to a smaller NCs size. PL showed that Eu3+ emission intensity increases proportionally to the third power of SnO2 concentration: Eu3+ emission in a 95SiO2-5SnO2 sample was 150 times higher than in 99SiO2–1SnO2. PL excitation spectra revealed an ET process between Eu3+ and SnO2 NCs, thus indicating the incorporation of Eu3+ in the crystal phase and making possible its emission upon SnO2 excitation. Other authors studied (100 − x)SiO2-xSnO2 (x = 1–10 mol %) GCs doped with Eu3+ and Eu3+-Tb3+ following Nogami’s synthesis [91,92,93]. By increasing the SnO2 content up to 10 mol % (NCs size ~5 nm), a low quantum confinement effect was observed. Hence, most research was performed on GCs containing 5 mol % of SnO2 and the optical characterization showed that in strong confinement conditions the energy gap has a high dependence on the NCs’ size. Eu3+ ions incorporated in SnO2 NCs were excited in the range 340–394 nm and, considering the variation of the band gap with the crystal size, the use of a certain excitation wavelength allowed for exciting only NCs with a defined crystal size, thus producing remarkable variation in the PL emission spectra. ET from SnO2 NCs to Tb3+ ions was observed in Eu3+-Tb3+-doped GCs. It was observed that the ET depends on the crystal size, being favored for the smallest NCs. A relevant drawback related to SnO2 NCs is the low solubility of Ln3+ limited to ~0.05%, the remaining ions being segregated at grain boundaries, probably in the form of Ln2Sn2O7 crystals [94]. To overcome this limitation, Van Tran et al. [95,96] prepared SiO2-SnO2 GCs with a maximum nominal NCs concentration of 20 mol % to allow for higher Ln3+ amount incorporation in SnO2 NCs. The authors prepared Er3+-doped materials and PL measurements showed that an increase in SnO2 concentration promotes Er3+ ions’ incorporation in SnO2 NCs.
Among SiO2 glass matrices containing oxide NCs, those containing ZrO2 crystals deserve special attention because ZrO2 is a pretty cheap material, transparent over a wide range of wavelengths: from 300 nm to 8 μm, it has quite low phonon energy ~650 cm−1 and a high refractive index. Such properties have been exploited to develop Ln3+-activated planar waveguides at telecom wavelength [97,98]. (100 − x)SiO2-xZrO2 (x = 10–30 mol %) homogenous and crack-free thin films doped with Er3+ were prepared following a synthesis route similar to SnO2, using TEOS and ZrOCl2·8H2O as SiO2 and ZrO2 precursors, respectively. All waveguides showed the existence of one mode at 1550 nm with relatively low propagation losses; the refractive index increased from 1.492 to 1.609 for 10 and 30 mol % ZrO2, respectively. Narrow Er3+ emissions were observed in thin films with respect to glass materials, thus indicating Er3+ incorporation in ZrO2 NCs. Suhaimi et al. [99] prepared several (100 − x)SiO2-xZrO2 compositions (x = 30–70 mol %) doped with 0.58 mol % Er3+. The refractive index at 1550 nm changed linearly from 1.6931 to 1.7334 by increasing ZrO2 content. Much higher PL emission of Er3+ at 568 nm was observed for films containing 70 mol % of ZrO2, thus indicating that ZrO2 facilitates Er3+ to disperse homogeneously and the low phonon energy of the crystal phase reduces non-radiative losses. Other authors also studied SiO2-ZrO2 waveguides doped with Er3+-Yb3+ with ZrO2 contents up to a maximum of 25 mol % [100]. Low roughness, a crack-free surface, and a high confinement coefficient were observed for all the compositions. Er3+ NIR PL was enhanced when the waveguide was co-doped with Yb3+, denoting an efficient ET between these ions. The authors considered the possibility of applying these materials as EDWA and WDM. Many GCs containing other oxide NCs have also been developed as waveguides [101,102,103,104].
To conclude this section, we mention the work of Secu et al. on oxychloride GCs [105]. 95SiO2-5LaOCl GCs doped with 1 mol % Eu3+ were prepared following a similar synthesis to LaF3 GCs but replacing TFA with trichloacetic acid (CCl3COOH). LaOCl:Er3+ pellets have also been prepared using a conventional solid state reaction between lanthanum oxide and ammonium chloride. DTA analysis showed that several exothermic peaks appear for measurements performed in air, but these peaks disappear completely for measurements in Ar. However, XRD confirmed the formation of LaOCl NCs, 20–60 nm in size, during heat treatment at 450–750 °C in air. For heat treatment in Ar, smaller crystal size and fraction were obtained. Judd–Ofelt analysis along with PL measurements showed that, as the annealing temperature increases, a higher amount of Eu3+ ions is incorporated in LaOCl NCs, thus producing a better resolved Stark component and a much longer lifetime with respect to xerogel. Similar results were obtained for LaOCl:Eu3+ pellets, indicating the effective incorporation of Eu3+ in this crystal phase.

1.4. Prospects and Perspectives

In summary, most of the transparent SG OxGCs previously described are based on a unique synthesis developed by Fujihara et. al., using TMOS and/or TEOS as the SiO2 precursor, TFA as the fluorine source, and with an upper limit of nominal crystal phase around 10 mol %. The real crystal fraction in GCs was never estimated by a reliable method as Rietveld refinement and the few works that reported such information only used optical results to estimate the crystal content. Furthermore, many papers describe materials with 5 mol % of nominal active phase, this being even less than that achievable by classical MQ and requiring an extremely long time for bulk sample preparation, from several weeks up to months. Moreover, quite high treatment temperatures, up to 1000 °C, are used to crystallize the fluoride NCs when the crystallization of fluorides detected by DTA occurs at around 300 °C. For all these reasons, research in the SG OxGCs field shows good and enhanced optical properties but no improvement of the synthesis, and no new processing methods have been reported in the literature since the first papers published 20 years ago.
In recent years, the GlaSS group of CSIC has been working on the optimization of the synthesis for significantly increasing the crystal content of SG OxGCs. In fact, it is worth noting that synthesis parameters such as molar ratios between precursors, temperature, and time of reaction are strictly dependent on the crystal phases and their content. Moreover, a unique synthesis, in general, is not suitable to obtain different compositions for the same crystal phase, and modifications of the synthesis are necessary to obtain novel materials. In addition, we partially replaced TEOS with methyltriethoxysilane (MTES) in the SiO2 sol synthesis, reducing the sintering temperature to 550 °C and making it possible to obtain enhanced optical properties without a need for much higher treatment temperatures.

2. Experimental

2.1. Synthesis of (100 − x)SiO2-xLaF3

Our research started with LaF3 GC films prepared by dip-coating. The precursors used were TEOS, H2O (0.1 M HCl), EtOH, TFA, and La(CH3COO)3. Dopants were added as acetates. A first SiO2 sol was prepared using a molar ratio 1TEOS:2H2O (0.1 HCl):9.5EtOH stirred for 2 h at room temperature. Separately, 1La(CH3COO)3:5EtOH:5TFA:4H2O were mixed and stirred for 2 h at 40 °C in a glycerine bath. By mixing different volumes of SiO2 sol with the La solution, 90SiO2-10LaF3 and 80SiO2-20LaF3 compositions were obtained. To further increase the nominal LaF3 concentration to 30 mol %, the La solution was modified, adding more TFA (7 mol %) to favor acetate dissolution. The last composition we obtained is 60SiO2–40LaF3 and in this case a further increase of TFA up to 10 mol % was necessary to obtain transparent thin films. Thin films were deposited by dip-coating on silica or Si substrates using a withdrawal rate of 20–45 cm/min. The thickness and refractive index of thin films were measured by a 2000 U ellipsometer (J.A. Woollam Co., Inc., Lincoln, NE, USA), using a Cauchy dispersion relation as a model.
Self-supported layers (or bulk-like samples) were also prepared with compositions 90SiO2-10LaF3 and 80SiO2-20LaF3 using the modified ratio of SiO2 sol 1TEOS:7.5H2O (0.1 HCl):5EtOH while leaving unchanged the synthesis of La solution described before for thin films with the same composition. Samples were dried at 50 °C over two days and then the covering was removed, letting the solvent evaporate for seven days.
A further modification to obtain higher thickness of thin films and improve the mechanical resistance of self-supported layers was to partially replace TEOS with MTES in the ratio 40TEOS:60MTES [106]. A modification of the molar ratios was necessary for thin film preparation to obtain the highest film thickness along with good sol stability. In particular, for thin films the SiO2 sol was prepared using 0.4TEOS:0.6MTES:1H2O (0.1 HCl):2.5EtOH:0.2CH3COOH, while the La solution was left unchanged. For self-supported layers, the previous TEOS:H2O ratio was used, replacing TEOS with 0.4 TEOS + 0.6 MTES (mol %) to maintain the same ratio of SiO2 precursor and H2O, which is a crucial parameter for bulk-like samples.

2.2. Synthesis of (100 − x)SiO2−xGdF3/NaGdF4

90SiO2-10GdF3 and 80SiO2-20LaF3 self-supported layers were also obtained following the two-step process and using the aforementioned TEOS:MTES ratio for SiO2 sol. In this case Gd solution, using Gd(CH3COO)3 as precursor, was stirred for 24 h at 40 °C to obtain a homogeneous solution of the products, thus making possible the crystallization of GdF3.
Finally, we prepared for the first time SiO2-NaGdF4 materials as self-supported layers and thin films. A SiO2 sol was prepared using only TEOS as the SiO2 precursor with the same ratios used for SiO2-LaF3 compositions. Then, Na(CH3COO), Gd(CH3COO)3, EtOH, TFA, and H2O were mixed using similar ratios of TFA and EtOH and trying several Na:Gd ratios (1.125–0.80):1. The solution was stirred 24 h at 40 °C in a glycerin bath.
For all compositions, GCs were obtained after heat treatment at 550–750 °C from 1 min up to several hours using heating rates of 1–10 °C/min. In all cases, thermal quenching in air was performed to obtain good crystallization of the samples.

2.3. Thermal and Structural Characterization

DTA was performed in air and argon (inert) atmosphere on small pieces of 1–1.25 mm in size, with heating rates 10–40 °C using SDT Q600 (TA Instruments, New Castle, DE, USA) equipment. Measurements were performed in the range 25–800 °C using 15–30 mg of sample.
High-resolution XRD patterns were collected in the range 6–27° at the synchrotron SpLine BM25B of the ESRF (European Synchrotron Radiation Facility, Grenoble, France) using a wavelength of 0.619 Å and a step size of 0.02°.
HRTEM was performed using a JEOL 2100 microscope (Akishima, Tokyo, Japan). Samples were prepared using lacey formvar carbon film that had a small amount of scratched sample deposited on them.
Fourier Transform Infra-Red (FTIR) spectra in the range 2000–600 cm−1 were obtained, with a resolution of 4 cm−1, using a Perkin Elmer Spectrum 100 instrument (Waltham, MA, USA).
19F magic-angle spinning nuclear magnetic resonance (19F MAS/NMR) spectra of xerogel and GCs were recorded using a NMR Spectrometer AVANCE II (BRUKER, Billerica, MA, USA) equipped with a 9.4 Tesla magnet (400 MHz) and a 2.5 mm rotor spinning at 20 kHz.
X-ray Absorption Spectroscopy (XAS) was measured at the SpLine BM25A of the ESRF collecting the spectra in fluorescence mode using a 13-element Si (Li) solid-state detector with the sample surface placed at an angle of 45° to the incident beam. Six scans were acquired to obtain an average spectrum. XAS data were processed using ATHENA software [107]. Eu2O3 and EuF3 crystal powders were also measured as reference materials to compare their spectra with those of Eu3+-doped xerogel and GC samples.
Photoluminescence measurements were recorded using a FS5 fluorescence spectrometer (Edinburgh Instruments Ltd., Livingston, UK) equipped with a 150 W Xenon lamp or Ti:sapphire ring laser (0.4 cm−1 linewidth) in the 770–920 nm spectral range. The emission was detected by Hamamatsu H10330A-75 or Hamamatsu R928P photomultiplier (Hamamatsu City, Shizuoka, Japan).
Even though several compositions were prepared, most of the results shown in the next sections deal with 80SiO2-20LaF3/GdF3/NaGdF4 compositions, which have been studied in detail in recent years, all containing 20% of fluoride phases, at least double that reported by other authors.

3. Results and Discussion

3.1. Materials

Transparent and crack-free GC thin films were obtained for all compositions, even for those containing 30 or 40 mol % of active phase. For single deposition at 30 cm/min and heat treatment at 550 °C for 1 h, thicknesses around 500 nm and 1 μm were obtained for TEOS and TEOS/MTES compositions, respectively. Higher thicknesses up to 900 nm and 1.7 μm were obtained for TEOS and TEOS/MTES, respectively, depositing two films or increasing the withdrawal rate. Hence, the addition of MTES in the SiO2 sol allows a notable increase of the thickness, thus making this precursor attractive for application where a thin film of 1 μm or thicker is required. Transparent and high-quality films were obtained, as confirmed by a good agreement between ellipsometry measurements and fits.
Transparent and crack-free self-supported layers were also obtained after heat treatments. The addition of MTES allows increasing the heating rate up to 10 °C/min without the appearance of cracks.

3.2. Thermal and Structural Characterization

3.2.1. SiO2–LaF3

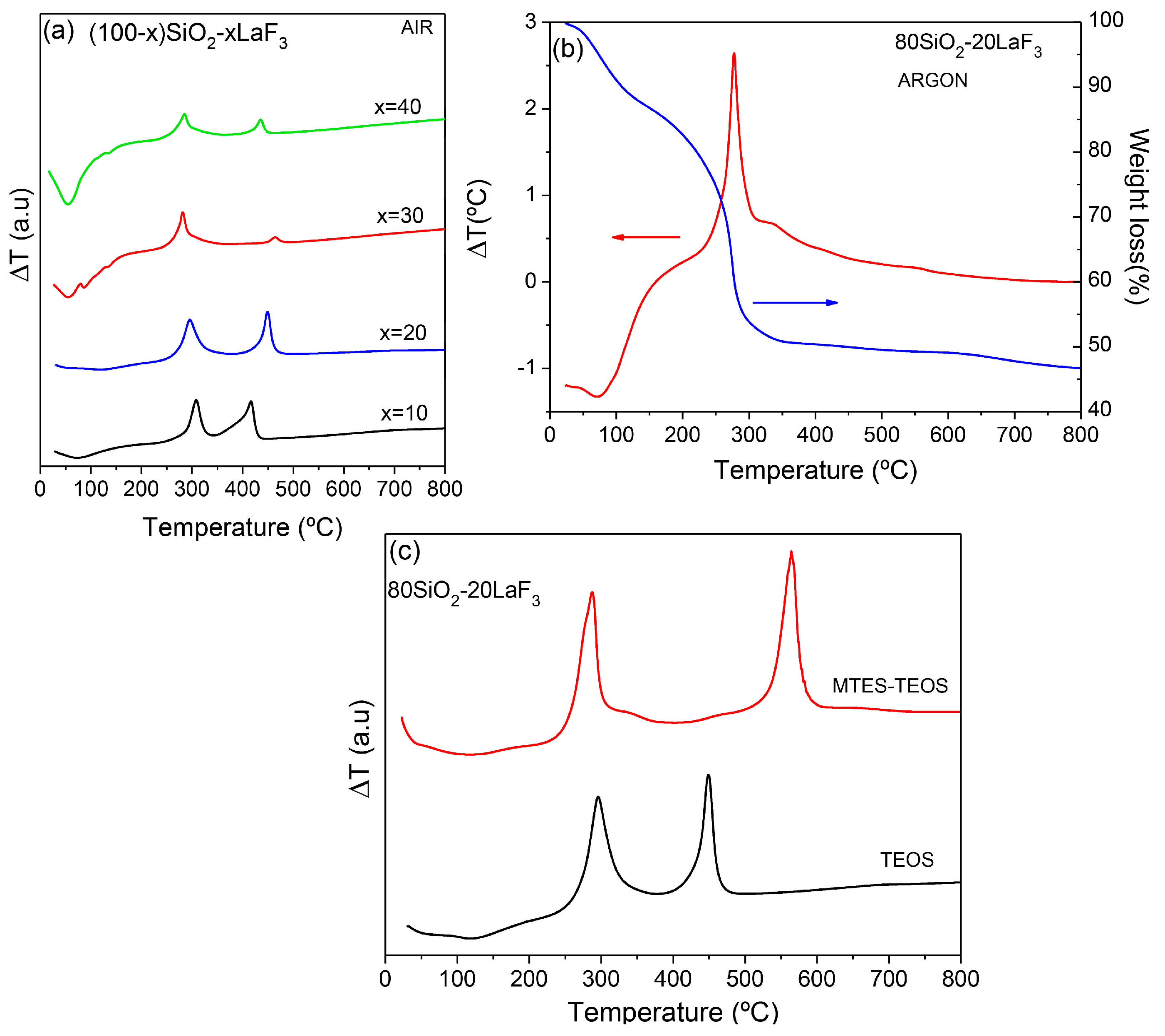

DTA measurements for (100 − x)SiO2-xLaF3 (x = 10–40 mol %) bulk samples obtained drying thin films sols are shown in Figure 8a. The curves show a first endothermic peak with a weight loss (not shown) associated with H2O and other solvent removal. Such an endothermic process is much more intense for a composition with a higher amount of La. This could be associated with the increasing water content passing from x = 10 to x = 40.
Then, a first exothermic peak appears around 300 °C, together with a big mass loss that increases passing from x = 10 to x = 40 mol %. The peak shifts towards lower temperatures when increasing the active phase content. As reported by other authors [43], such a peak is associated with the crystallization of LaF3, favored by increasing the La content. Such crystallization takes place after a chemical decomposition with gas release, which is responsible for the notable weight loss. The intensity of the endothermic and exothermic peaks is affected by the sample amount used for the analysis, and therefore it cannot be compared quantitatively. The second exothermic peak in the range 400–500 °C is assigned to organic combustion and was not detected in an argon atmosphere (Figure 8b). The effect of the SiO2 precursor on the DTA curve is shown in Figure 8c for 80SiO2-20LaF3 samples prepared using TEOS and TEOS/MTES in the ratio 40:60 as SiO2 precursor. The crystallization peak appears centered around the same value, near 300 °C, while the second exothermic peak is associated with organic combustion of different species. In fact, when MTES is used, CH3 groups are introduced in the system and released around 550–600 °C. Such release is associated with a contraction of thin films and self-supported layers. Therefore, when MTES is used, treatment temperatures no higher than 550 °C should be used to avoid sample cracking. However, and concerning the crystallization mechanism, no relevant effects are introduced by the partial replacement of TEOS with MTES. The introduction of MTES improved the mechanical resistance during the treatment process and MTES bulk-like samples can be treated using a 10 °C/min heating rate instead of 1–2 °C/min, as is commonly used for samples prepared using only TEOS. Moreover, MTES addition facilitates –OH group removal [108], without requiring extremely high treatment temperatures (900–1000 °C).

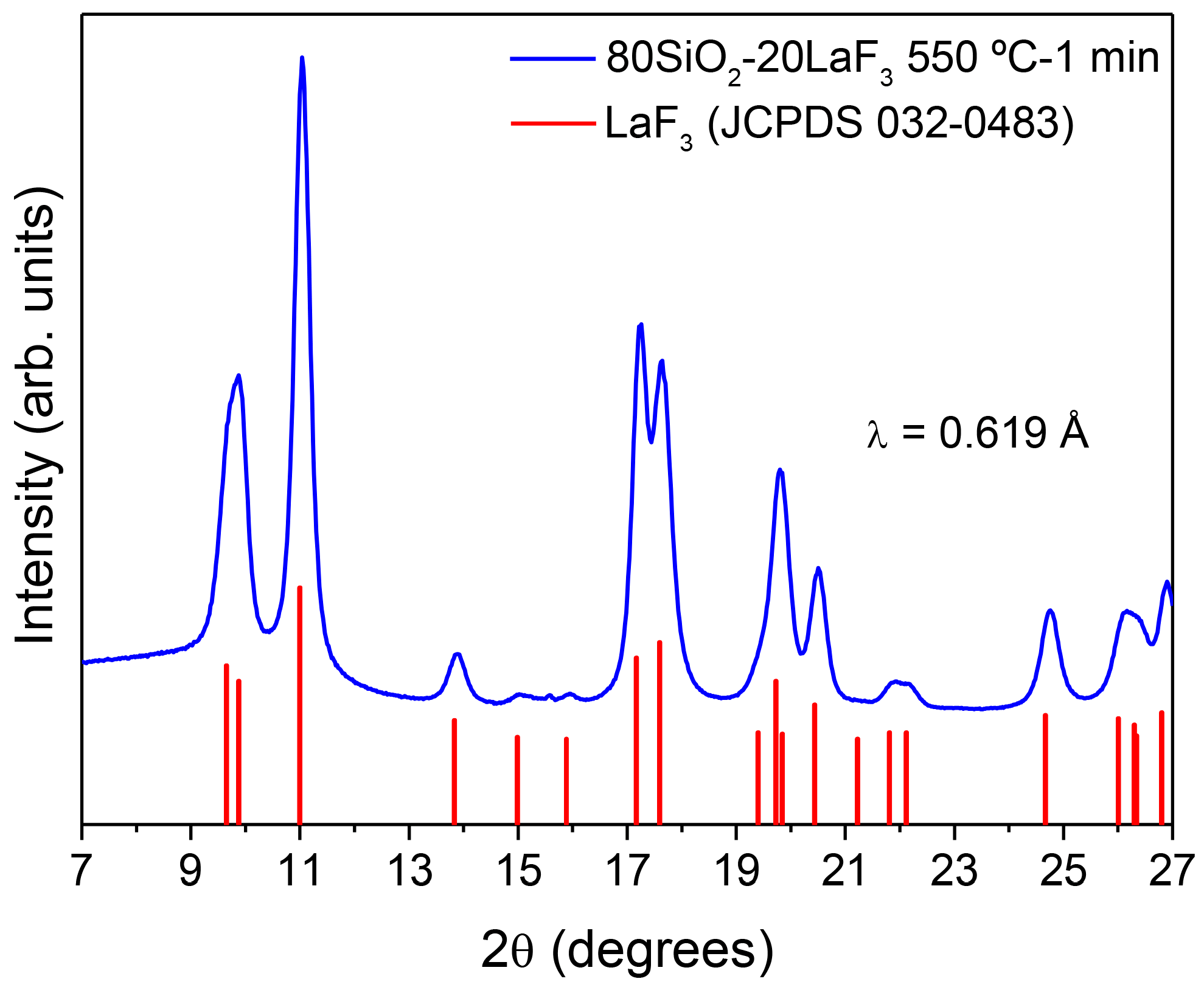

The XRD of 80SiO2-20LaF3 bulk sample prepared using TEOS/MTES and treated at 550 °C for 1 min is represented in Figure 9. Well-defined diffraction peaks are observed even for this fast treatment; the crystal size, estimated by Scherrer’s equation, is around 8.5 nm. No relevant SiO2 amorphous pattern is observed, different to the XRD results obtained by other authors [50,51,52,53,54,55,57], indicating a relevant increase of fluoride crystal fraction. Dopant incorporation, such as Er3+, was confirmed by an appreciable shift of the diffraction peaks towards higher angles, associated with a shrinking of the unit cell due to the lower size of Er3+ with respect to La3+ [109]. By Rietveld refinement (not shown), we obtained a LaF3 crystal fraction of 18 wt %, which is, to the best of our knowledge, the highest value of fluoride concentration ever reported in OxGCs. The crystallization mechanism of LaF3 in SG OxGCs has been studied in a previous paper [91]. It was shown that the LaF3 crystallization mechanism is very different to that for MQ GCs. In fact, for MQ GC a diffusion-controlled process is responsible for the crystallization of LaF3 and many other fluoride phases; phase separation acts as a precursor for crystallization. On the contrary, LaF3 crystallization in SG OxGCs is not a diffusion-controlled process but consists of a fast crystal precipitation taking place after a chemical decomposition. It was observed that LaF3 NCs are not stable for heat treatment at crystallization or higher temperatures and amorphization was observed for a long treatment time (5–80 h) at 550 °C.
HRTEM micrographs of 80SiO2-20LaF3 thin films and self-supported layers treated at 550 °C for 1 min are shown in Figure 10a,b, respectively. Very small LaF3 NCs around 2–3 nm are observed in thin film samples, as confirmed by the crystal size distribution shown in the inset. For self-supported layers the crystal size is much bigger, around 8 nm, in agreement with the XRD results in Figure 3. In both cases homogeneously distributed NCs are observed, without the formation of clusters, even for such a fast heat treatment at 550 °C for 1 min.

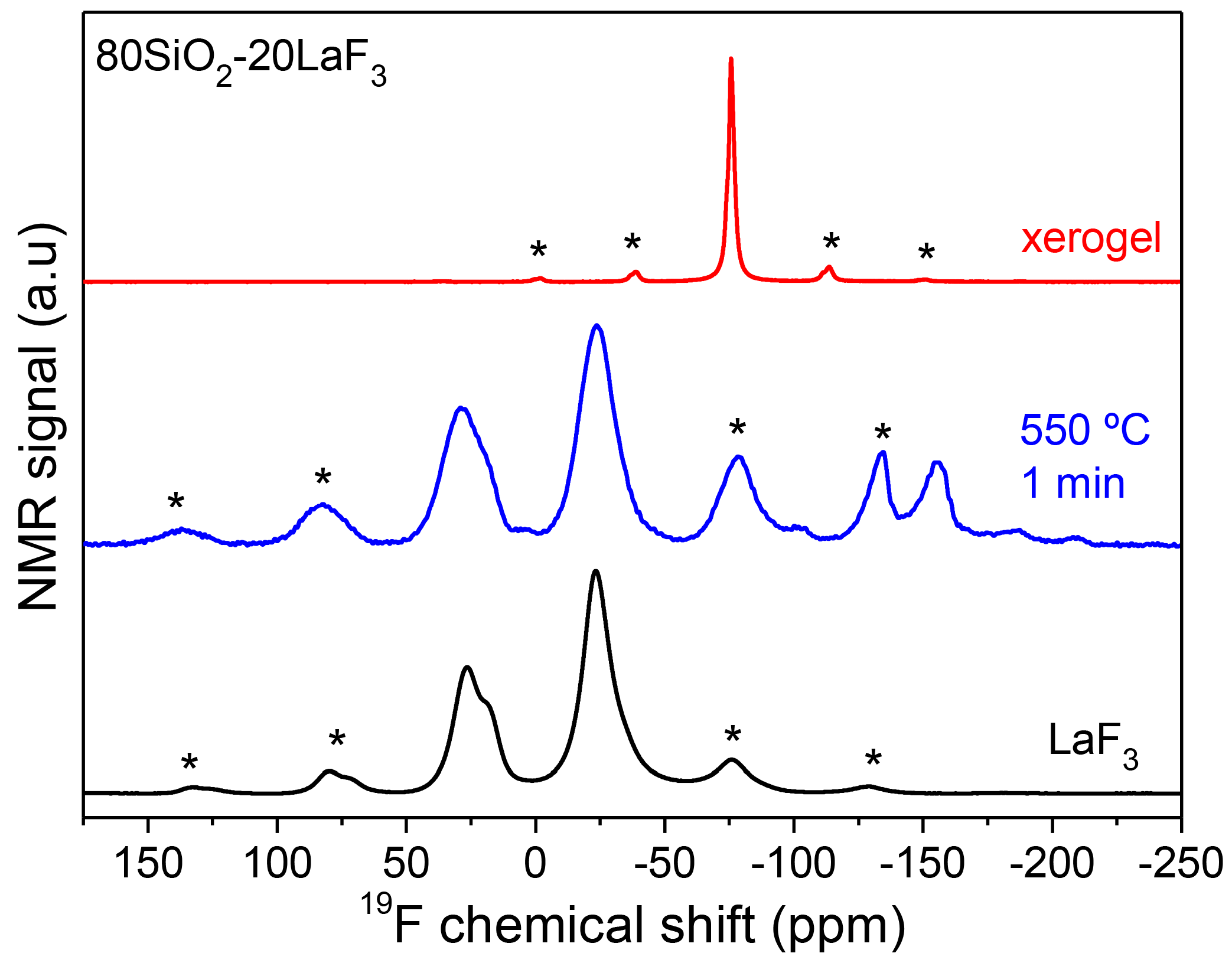

NMR spectra of SG OxGCs are rarely encountered in the literature but the information that can be extracted is of relevant importance. In particular, 19F NMR spectra allow for obtaining evidence about fluorine surrounding in the xerogel and how it changes after the crystallization process. Figure 11 shows 19F MAS NMR of 80SiO2-20LaF3 xerogel and GC treated at 550 °C for 1 min [110]. The spectrum of polycrystalline LaF3 was also acquired for comparison. In the xerogel sample the fluorine surrounding is as in the precursor TFA acid and no bonding with Si is observed. After heat treatment at 550 °C for 1 min, the spectrum of the GC sample is practically the same as that of the LaF3 polycrystalline powders. This further indicates that a chemical reaction accompanied by fast crystal precipitation is responsible for the LaF3 NCs’ formation.

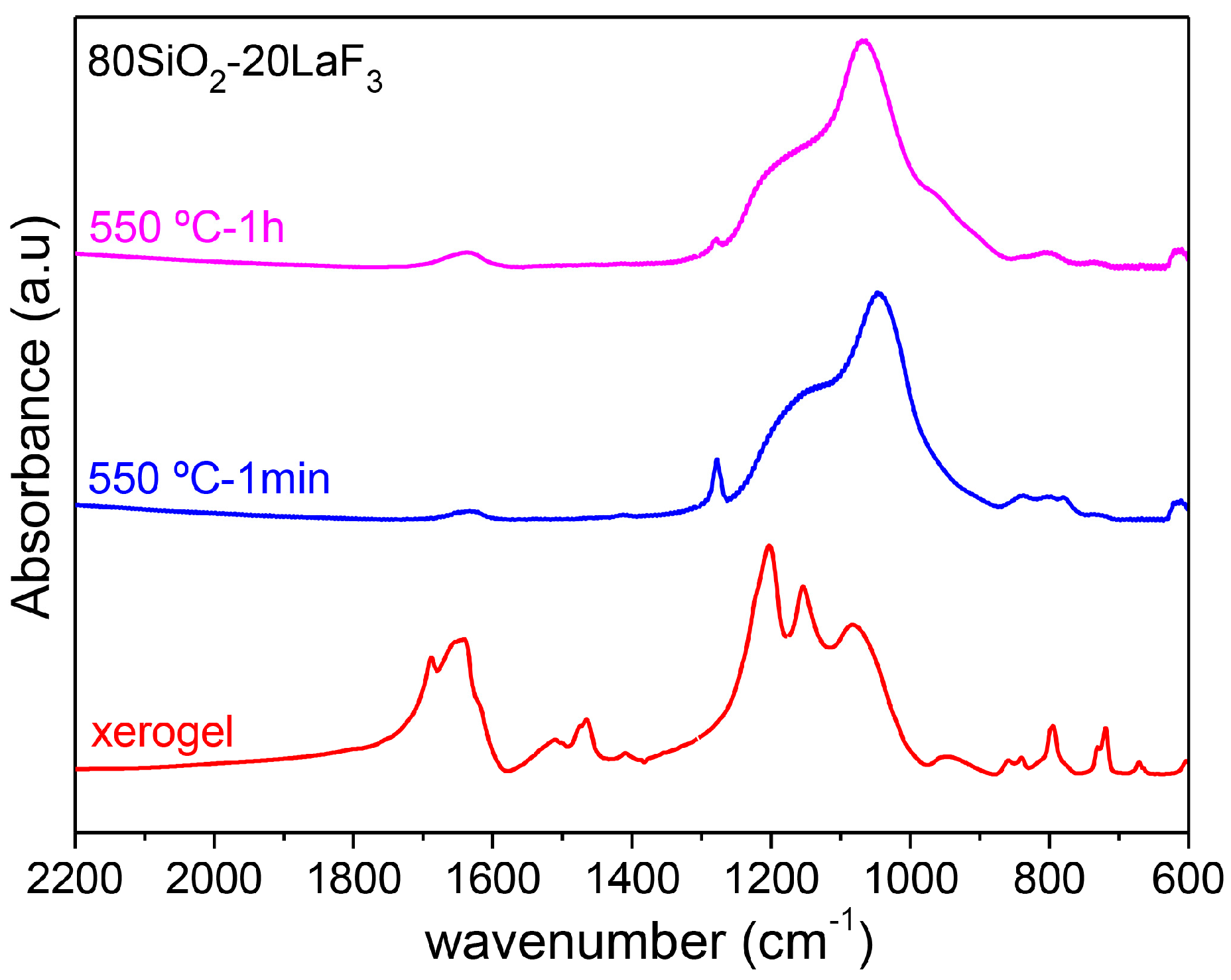

These results are further confirmed by FTIR spectra of 80SiO2-20LaF3 xerogel and GCs treated at 550 °C for 1 min and 1 h, as shown in Figure 12 [110]. In the xerogel, the bands centered at 1680 and 1650 cm−1 are associated with H-O-H bending and C=O stretching vibrations, respectively. In the range 1500–1400 cm−1 several absorption bands appear and are assigned to TFA, acetates, and/or derived ions [43]. A C-F stretching band is also identified between 1400 and 1000 cm−1. All of these bands disappear in the GC sample, accompanied by LaF3 NCs’ precipitation. In the GC the bands in the range 1100–800 cm−1 are associated with Si-O-Si asymmetric and symmetric stretching vibrations of [SiO4] units. A small band at 1279 cm−1, also present in the xerogel sample but much more intense, is assigned to C-O vibration and due to incompletely removed organic compounds. Such a band disappears over longer treatment times at 550 °C.

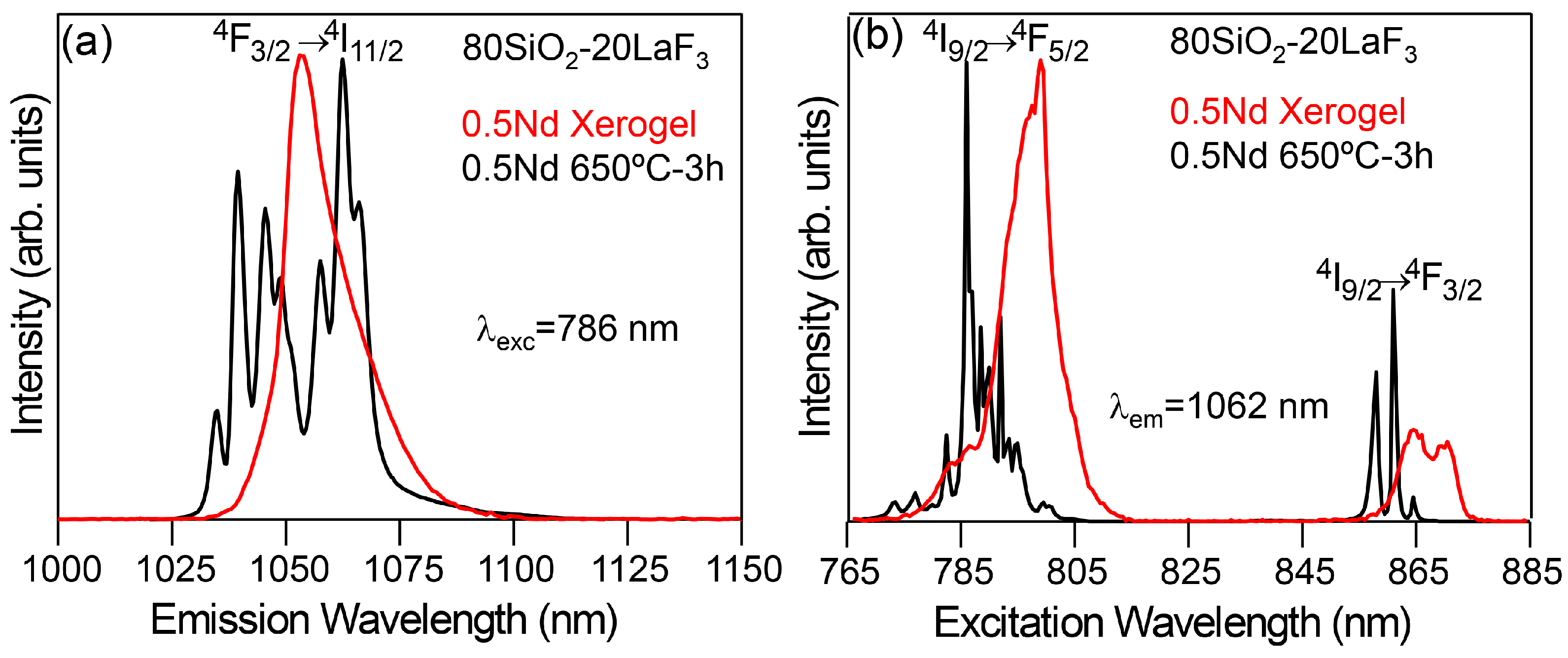

Photoluminescence (PL) measurements are of great importance in most papers about SG OxGCs; in particular, enhanced properties are obtained when dopants are embedded into the fluoride NCs with low phonon energy. As an example, low-temperature (9 K) PL emission and excitation spectra of 80SiO2-20LaF3 xerogel and GC treated at 650 °C for 3 h and doped with 0.5 Nd3+ are shown in Figure 13 [111]. Both the emission and excitation spectra of the xerogel show broad and less structured bands, indicating a predominant amorphous environment for Nd3+ ions. Instead, for the GC sample sharp peaks and well-resolved Stark components are observed and associated with Nd3+ emission in LaF3 NCs. Similar features are observed for the excitation spectrum, where well-resolved peaks are observed for the 4I9/24F5/2 band; moreover, the 4I9/24F3/2 doublet narrows and splits into two main single components, as expected for a well-defined crystal field site. Therefore, Nd3+ incorporation into LaF3 NCs was unambiguously confirmed.

3.2.2. SiO2–GdF3/NaGdF4

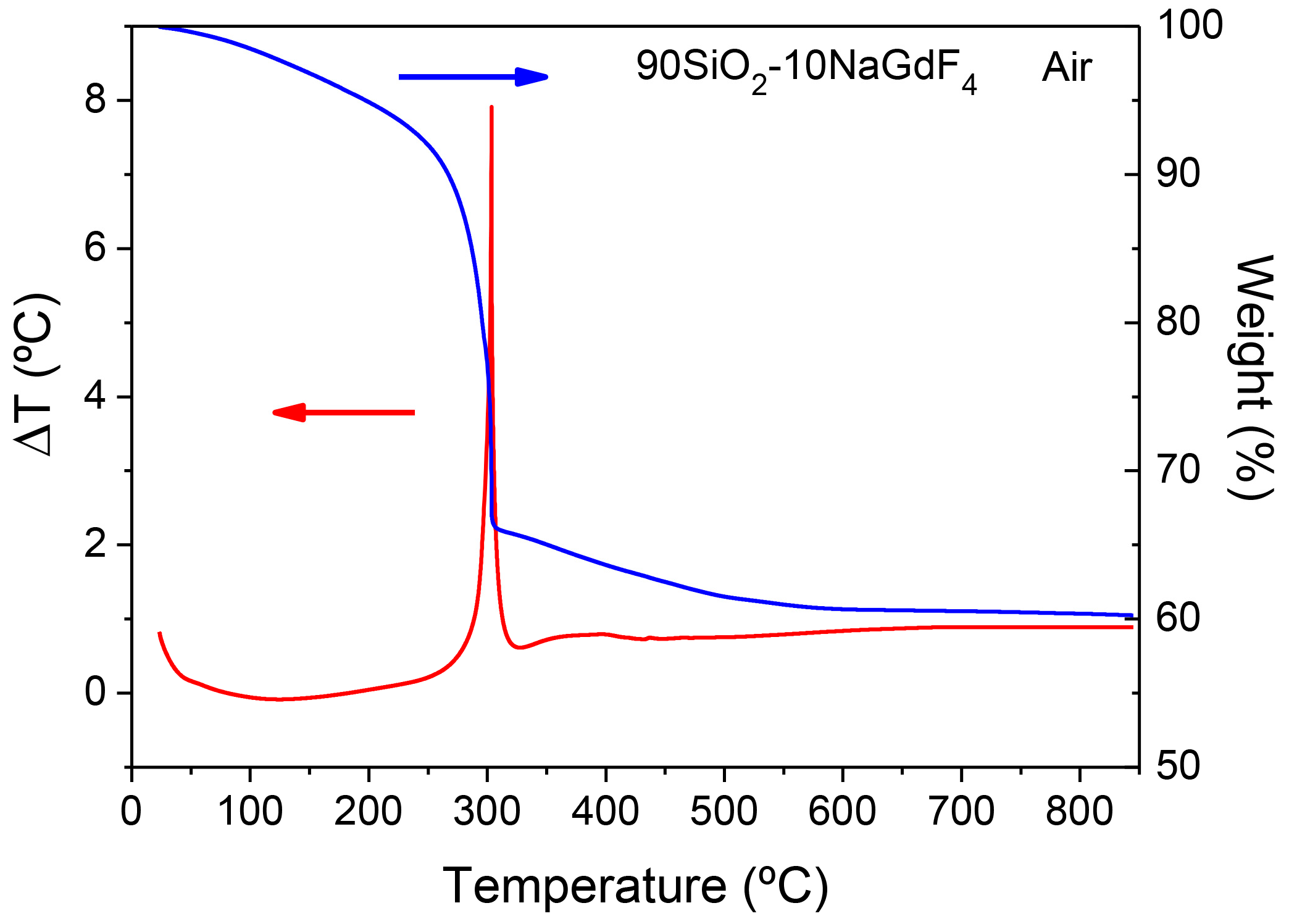

Figure 14 shows DTA curves of the 90SiO2-10NaGdF4 bulk-like sample. The weight loss between 70 and 200 °C, of less than 10%, is ascribed to solvent removal. Then, as usually occurs for SG oxyfluoride compositions, a strong and sharp exothermic peak appears around 300 °C along with a mass loss of 30%. Such an exothermic peak is associated with chemical decomposition with NaGdF4 precipitation, similar to that described by other authors for other fluoride crystal phases [43,57,82]. Further weight loss for heat treatment in the range 400–600 °C can be associated with the combustion of organic compounds. The same sample measured in an argon atmosphere showed similar characteristics; therefore, the exothermic peak is associated with NaGdF4 crystallization. Similar features are obtained for SiO2-GdF3 composition and described elsewhere [112].
Diffractograms of (100 − x)SiO2-xGdF3 (x = 10 and 20 mol %) treated at 550 °C for 1 min are shown in Figure 15. As observed, both phases of GdF3, orthorhombic and hexagonal, appear even for such fast heat treatment. It was shown that from LaF3 to EuF3, the hexagonal phase is preferred, while elements heavier than Gd are organized in orthorhombic structures [113]. Considering that Gd is right in the middle of a lanthanide series, it seems reasonable that a mixture of both phases appear. The relative intensity of hexagonal and orthorhombic structures is quite similar for all heat treatments, thus suggesting that there is no one preferential crystal structure but that both configurations coexist. Crystal size is around 8 and 9 nm for hexagonal and orthorhombic phases, respectively. Small changes in relative peak intensities can be associated with the deformation or preferential incorporation of Eu3+ ions at certain crystallographic sites. Moreover, the fact that similar sizes are obtained for both compositions suggests that NC formation is not related to the amount of the initial precursors, the mechanism being explained as fast crystal precipitation after a chemical reaction similar to that described by Fujihara for LaF3 [43]. However, the final crystal fraction should be affected by the initial content as observed for LaF3 compositions. Nevertheless, for GdF3 crystallization a quite different scenario is observed with respect to LaF3 crystallization, where an amorphization was observed over a long heat treatment time at 550 °C. In fact, no changes in the crystal size are observed for treatment times up to 8 h; the diffractograms of GCs treated for 1 min up to 8 h being practically the same. It seems that GdF3 NCs are more stable against decomposition as opposed to LaF3 ones. Further work is still necessary to clarify this point.
It is also worth noting that SiO2 precursors affect the final crystal phase and the crystal size. For example, for 80SiO2-20GdF3 samples prepared using TEOS, only hexagonal crystals are detected but it was necessary to raise the temperature to 750 °C to obtain GdF3 crystals. Instead, for TEOS/MTES samples, even for treatment temperature as low as 550 °C for 1 min, a good crystallization was obtained but in this case both a hexagonal and an orthorhombic phase appeared. Therefore, as was shown, the synthesis precursor and the different ratios between them can strongly affect the final crystal size, crystal fraction, and symmetry of the crystal phase. However, the influence of the SiO2 precursors and the synthesis route on the crystallization tendency of the systems has not yet been totally elucidated.

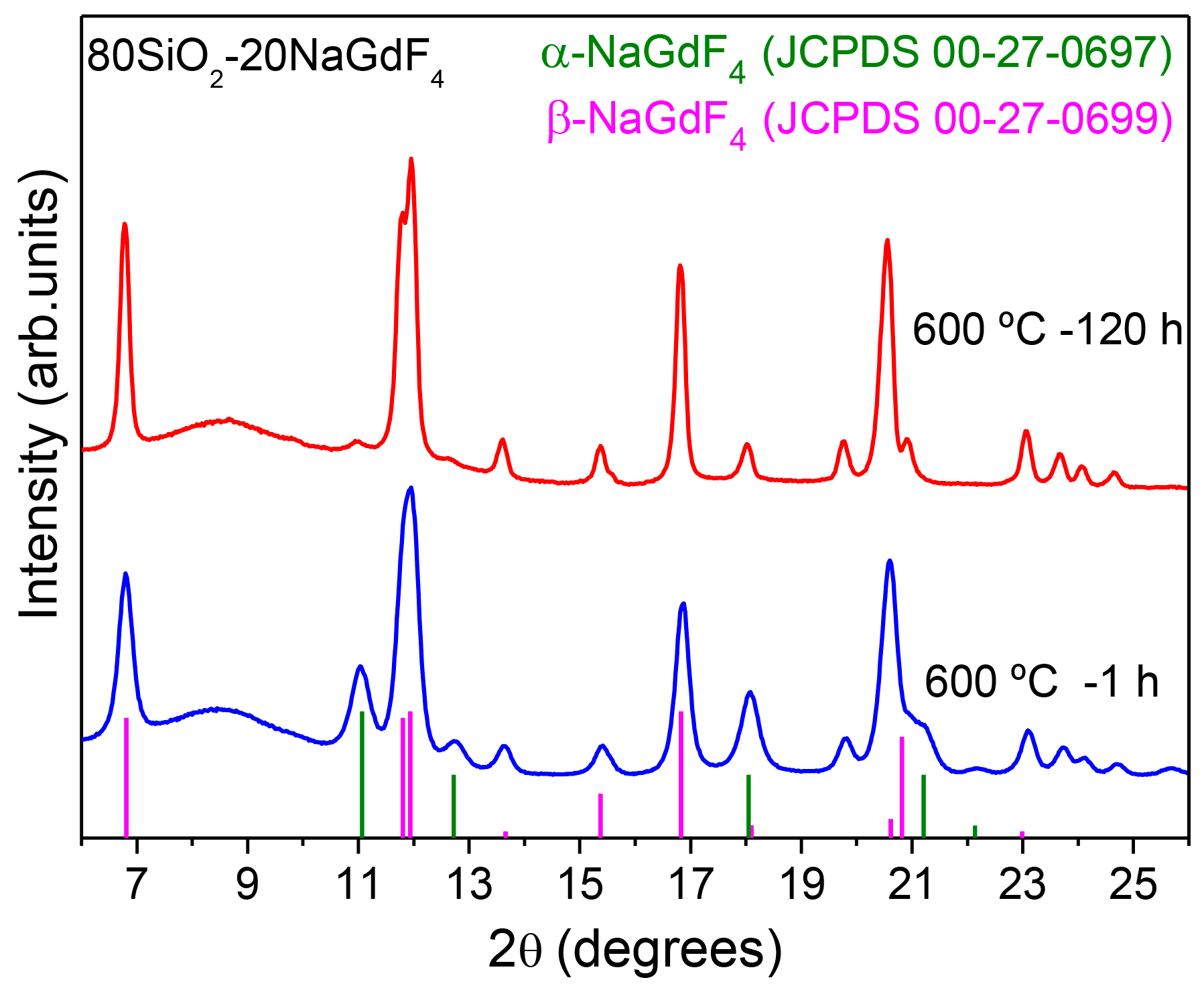

XRD of 80SiO2-20NaGdF4 are shown in Figure 16. This is the first time that NaGdF4 crystals have been obtained in SG OxGCs. Diffractograms obtained for super-stoichiometric Na:Gd ratios caused the crystallization of silicates, along with NaGdF4. Therefore, precise control of the Na:Gd ratio was necessary to avoid the formation of silicates during heat treatment and obtain only the precipitation of fluoride NCs. It is known that Na+ acts as a network modifier, producing more open glass structures. In fact, Na+ ions can break SiO4 units, thus producing non-bridging oxygens with subsequent softening of the glass network. Hence, a sub-stoichiometric ratio Na:Gd 0.95:1 was necessary to ensure the complete reaction of Na with Gd, avoiding the presence of free Na+ ions. As observed in Figure 16, both α and β-NaGdF4 phases precipitated upon heat treatment at 600 °C for 1 h with a size of 4 and 13 nm, respectively. However, for longer heat treatments, up to 120 h, a relative decrease of the α phase, indicated by stars, is observed with respect to GC treated for only 1 h. Moreover, sharper peaks are observed after increasing the treatment time, thus indicating the formation of bigger crystals (more than 30 nm in size). Such behavior is quite different to that described for LaF3, for which an increase of the treatment time increases neither the crystal size nor the crystal fraction. Therefore, it was suggested that LaF3 crystals formation occurs as a fast precipitation when certain energy is given to the system, instead being a diffusion-limited process, as proposed by other authors. However, for NaGdF4 OxGCs, a different crystallization mechanism occurs for polymorphous crystals; in particular, the addition of alkaline earth elements could be responsible for the better crystallinity obtained by increasing the treatment time. In fact, the time-dependent diffusion of Na+ ions could be relevant to achieve better crystallization.
Bartha et al. [114] studied NaYF4 phosphors and observed that for heat treatment at 300 °C, both cubic and hexagonal NaYF4 micro crystals appeared. However, by increasing the treatment temperature to 400–600 °C, only a pure hexagonal NaYF4 phase was observed. The authors explained such behavior as an autocatalytic process where the initial cubic NaYF4 phase played a catalytic role, causing its fast self-accelerated crystallization. The energy resulting from the disintegration process of the initial NaYF4 crystals contributed to the growth of hexagonal NaYF4 phase. This mechanism could also explain the crystallization of NaGdF4 NCs in OxGCs but further investigation has still to be done.
Figure 17 shows a micrograph of 80SiO2-20GdF3 self-supported layer doped with 0.5 Eu3+ treated at 550 °C for 1 min. As for SiO2-LaF3 GCs, homogeneously distributed NCs are observed and no agglomerates or clusters are observed, as suggested by other authors for YF3 NCs [57]. By a detailed analysis of the microstructures, both hexagonal and orthorhombic crystals were detected according to JCPDS. EDXS of Eu3+ doped 80SiO2-20GdF3 GC treated at 550 °C for 1 min revealed that Eu3+ ions are mostly concentrated into GdF3 NCs. Therefore, dopant incorporation is very fast because even for a heat treatment as short as 1 min, most Eu3+ ions are already embedded in the crystal phase. A better explanation of dopant incorporation is given later when the results about XAS will be discussed.
FTIR spectra of 80SiO2-20GdF3 xerogel and GC treated at 550 °C for 1 min are shown in Figure 18. Similar results are obtained with respect to the 80SiO2-20LaF3 composition given in Figure 12. For the xerogel sample TFA and acetate vibration bands are still present but disappear after heat treatment accompanied by LaF3 crystallization. Similar features are obtained for SiO2-NaGdF4 compositions, thus indicating that a chemical reaction followed by NC precipitation is a common feature of all the studied compositions. However, differences in crystallization behavior are also observed by XRD and therefore the crystal growth can be dependent on crystal phase and synthesis conditions.

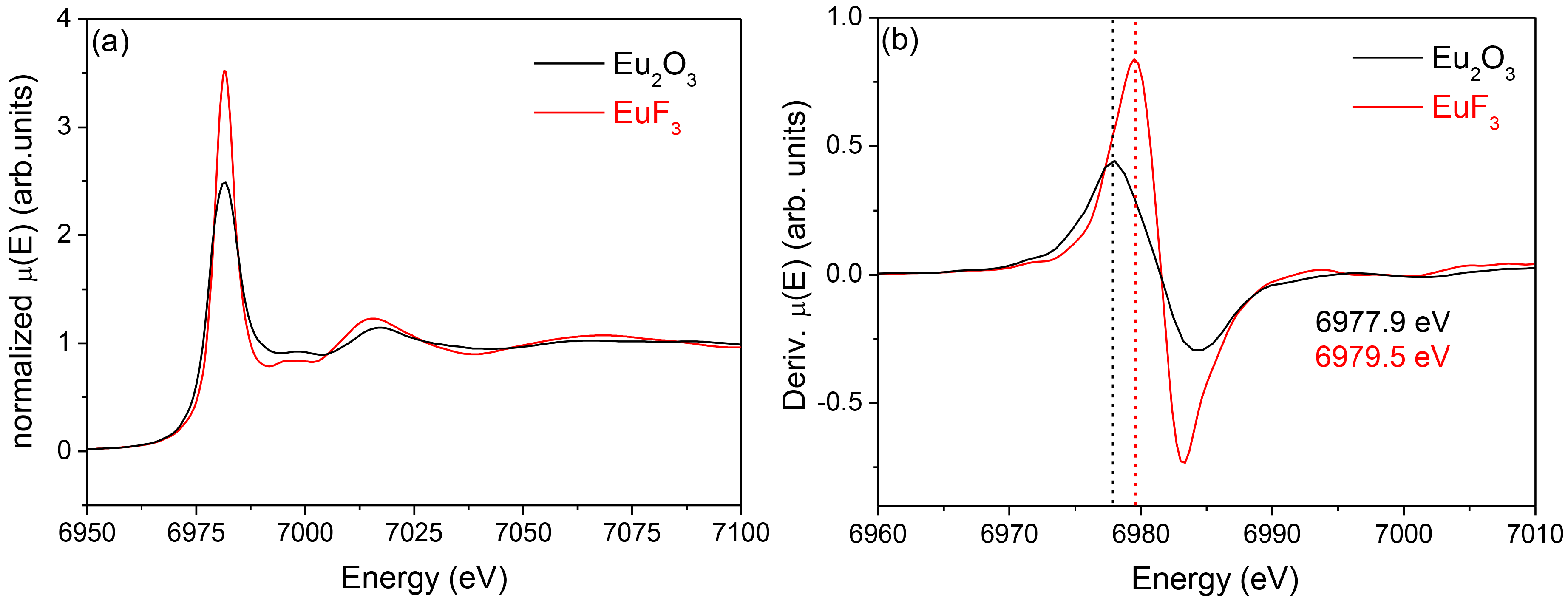

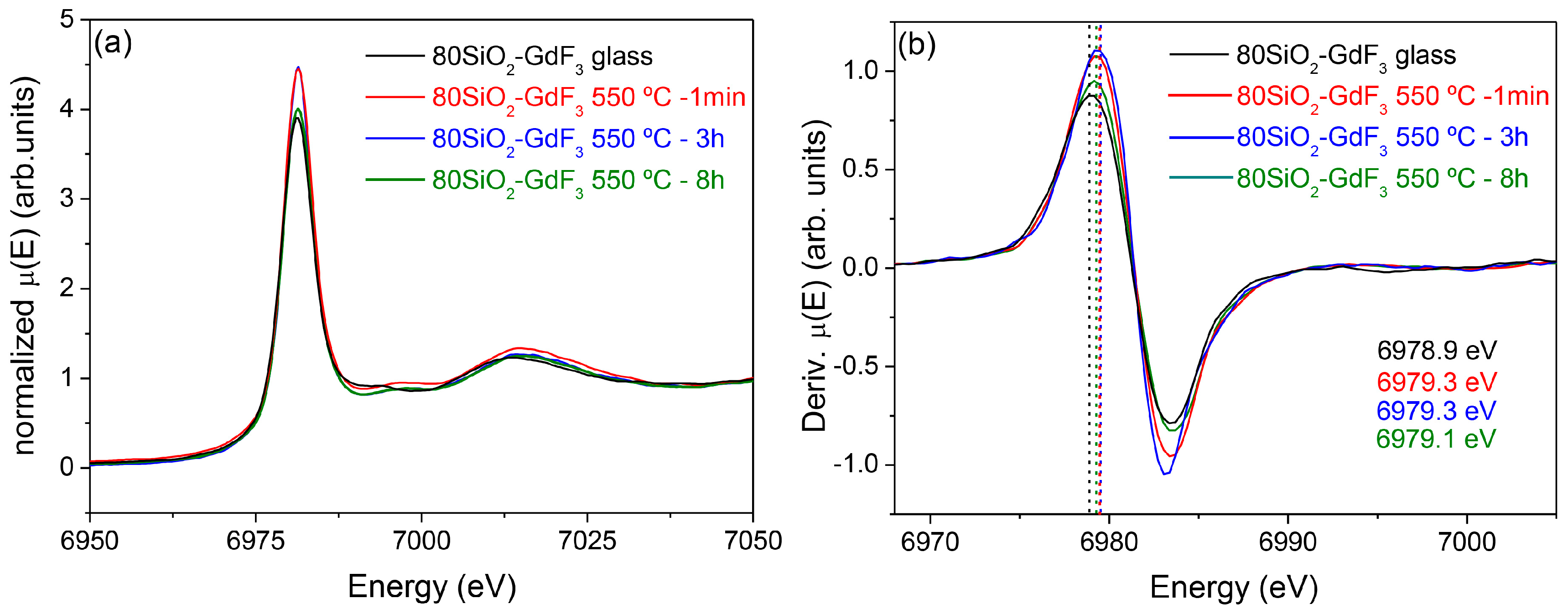

The last results that are shown in this paper deal with XAS spectra of 80SiO2-20GdF3 materials doped with Eu3+. In particular, the spectra of the xerogel and GC sample are compared with the aim of gaining more insight into the Eu3+ environment. Indeed, better optical efficiencies are obtained when dopants are embedded into the NCs and knowledge of the real dopants fraction incorporated into the NCs is crucial to improve and optimize the luminescence emission of these materials. Even though a certain nominal dopant concentration is used, the real concentration into the fluoride NCs is rarely estimated, the only results being extrapolated from optical measurements [54]. Moreover, to estimate the effective concentration into the NCs, even with 10–20% error, knowledge of the crystal fraction is necessary and such values are seldom or never reported for SG OxGCs. Last year our group started acquiring data to obtain this relevant information, but a lot of work has still to be done. However, some interesting conclusions can already be drawn from the results shown below. Eu2O3 and EuF3 spectra are shown in Figure 19a, together with their derivate curves in Figure 19b. The maximum of the derivate curves is 6977.9 and 6979.5 eV, for Eu2O3 and ErF3, respectively. A lower energy is associated with less electronegativity and a lower field strength of the Ln3+ ion [115]. The uncertainty of the energy values is around 0.8 eV. Therefore, it can be confirmed that the two maxima are well separated from each other. Figure 20a,b show the results for a 80SiO2-20GdF3 xerogel and GC samples treated at 550 °C for 1 min up to 8 h. In all cases, the absorption maximum is centered at ~6979 eV, practically the same value obtained for EuF3 reference. Hence, even though by these measurements it is not possible to distinguish between a crystalline or amorphous environment, the crucial point is that a fluorine-rich environment is observed for all GCs and even for the xerogel sample. Such behavior could be explained considering that Eu3+ ions are still coordinated to the surrounding TFA ions in the xerogel sample, and, after heat treatment, GdF3 crystals precipitate together with Eu3+ incorporation. These results are in agreement with Eu3+-rich GdF3 NCs observed by EDXS for 80SiO2-20GdF3 GC treated at 550 °C for 1 min.
Previous calculations performed for 80SiO2-20LaF3 samples doped with 0.5 Er3+ showed that almost 91% of Er3+ ions in GC samples are in a fluorine-rich environment, the effective concentration into the LaF3 NCs thus being almost one order of magnitude higher than the nominal one. Similar results were obtained for MQ samples containing LaF3 NCs and confirmed by PL results [116].

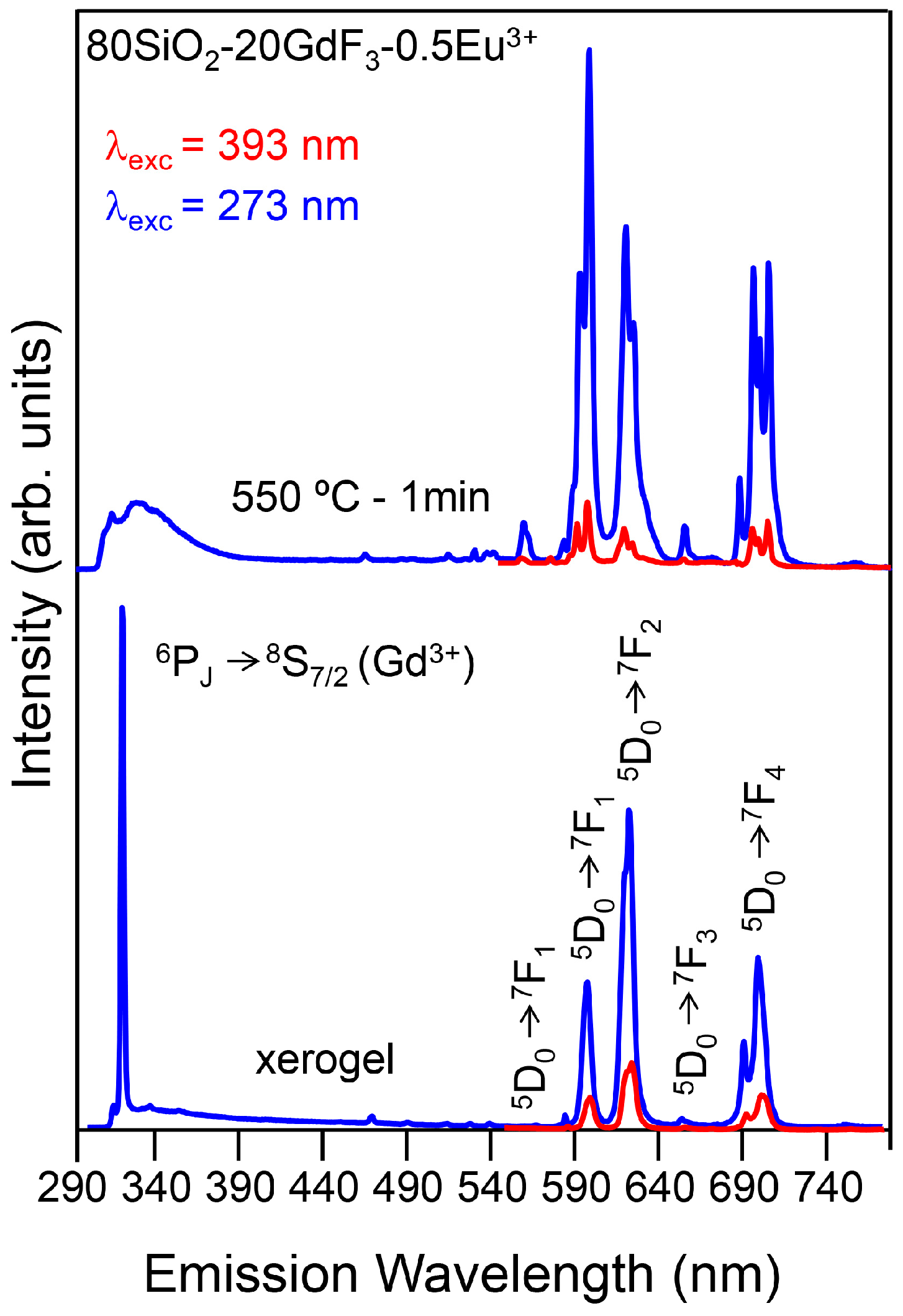

Finally, to conclude this section we show some optical results for 80SiO2-20GdF3 self-supported layers doped with 0.5 Eu3+. Photoluminescence measurements of GC treated at 550 °C for 1 min showed well-resolved structure together with a narrowing of the Eu3+ with respect to the xerogel sample (Figure 21). Moreover, the R asymmetry ratio between the electric dipole transition (5D0-7F2) and the magnetic dipole transition (5D0-7F1) is reduced in GCs, thus indicating that Eu3+ ions are incorporated in the GdF3 crystal phases. Moreover, the ET from Gd3+ to Eu3+ was observed in the GC sample and further supported by fluorescence decay lifetimes.

4. Conclusions

Different research groups have studied the preparation of transparent GC materials using the MQ process and suitable control of the synthesis and heat treatment conditions. However, SG appears as a promising alternative to obtain innovative GCs with high fluorine content and high homogeneity at a lower temperature.
Most of the materials studied by SG are related with compositions (100−x)SiO2-x M1F2/M1F3/M1M2F4/M1M2F5, containing a small nominal crystal fractions (x = 5–10 mol %), and are obtained using a similar synthesis procedure developed 20 years ago. Furthermore, the same SiO2 precursor, TEOS or TMOS, is used in most works, and the precursor ratio rarely changes with respect to the first papers.
There is scarce information about the structural characterization of bulk and thin films; typical characterization is performed by means of XRD, HRTEM, and FTIR. However, most of the authors never calculated the real crystal fraction. Just one or two papers estimated the real active crystal content and concluded that for a nominal composition of 5 mol % of active phase, a 3 wt % of crystal phase is obtained after heat treatment. However, photoluminescence measurements of SG GCs showed very promising results. Ln3+ incorporation in fluoride NCs was demonstrated by several authors and produced an improvement in the optical properties (linear or non-) due to the low phonon energy of the crystal hosts, thus opening the way to use SG materials for photonic applications.
On the other side, our group introduced an important modification to the SG synthesis of OxGCs. First of all, LaF3- and GdF3-based compositions with a much higher content of active phase (up to 40 mol %) have been prepared for the first time, together with NaGdF4 OxGCs. Moreover, new precursors and deep synthesis modification were performed by partial replacement of TEOS with MTES.
A chemical reaction followed by fast crystal precipitation was indicated as responsible for the crystallization mechanism of fluoride NCs, as opposed to conventional diffusion-controlled processes. LaF3 NCs were demonstrated to be unstable with aging at crystallization or higher temperatures for a long treatment time, while for NaGdF4 an increase in the crystal size was observed when the treatment time increased. Therefore, the evolution and behavior of the NCs depend on the synthesis and the crystal phase.
Rietveld refinement confirmed that a crystal fraction ~18 wt % is obtained for 80SiO2-20LaF3 GC treated at 550 °C for 1 min, such a value being the highest reported to date for SG OxGCs.
HRTEM showed that homogeneously distributed fluoride NCs precipitate in the SiO2 glass matrix after fast heat treatment at 550 °C for 1 min using TEOS/MTES as SiO2 precursors. Moreover, EDXS confirmed dopants’ incorporation in the fluoride NCs even after fast heat treatment at 550 °C for 1 min, suggesting that dopant incorporation occurs along with NC precipitation. Such results were also confirmed by XAS measurements, revealing a fluorine-rich environment even in the xerogel sample.
Optical measurements unambiguously showed dopant incorporation in low-phonon-energy fluoride NCs. Well-resolved Stark components and crystal-like spectra were obtained for GC samples, resulting in much higher emission intensities and more efficient ET process with respect to xerogel samples.
Considering all the results published up to now and the benefits offered by the SG method, we think that transparent SG OxGCs materials can be considered of great interest and promising for several photonic applications, but improvement of synthesis and processing is still necessary. In this sense, we hope that this paper will be useful for researchers working in this field.

Acknowledgments

This work was supported by MINECO under projects MAT2013-48246-C2-1-P, MAT2013-48246-C2-2-P, and MAT2017-87035-C2-1-P/-2-P (AEI/FEDER, UE) and Basque Country Government IT-943-16 and PPG17/07. The authors are grateful for access to the Spanish Beamline (SpLine) at the ESRF facilities in Grenoble to perform experiments MA-3350 and 25-01-1014. Jose Joaquín Velázquez also acknowledges MINECO for Grant FPDI-2013-16895.

Author Contributions

G.G., J.J.V., J.M., R.B., J.F., A.D. and Y.C. conceived and designed the experiments; G.G., J.J.V., R.B. and J.F. performed the experiments; G.G., J.J.V., R.B., J.F., A.D., Y.C. analyzed the data; G.G., J.J.V., J.M., R.B. and J.F. contributed reagents/materials/analysis tools; G.G., J.J.V., J.M., R.B., J.F., A.D. and Y.C. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Feldmann, C.; Jüstel, T.; Ronda, C.R.; Schmidt, P.J. Inorganic luminescent materials: 100 years of research and application. Adv. Funct. Mater. 2003, 13, 511–516. [Google Scholar] [CrossRef]
  2. George, N.C.; Denault, K.A.; Seshadri, R. Phosphors for solid-state white lightening. Annu. Rev. Mater. Res. 2013, 43, 481–501. [Google Scholar] [CrossRef]
  3. Huang, X. Solid-state lighting: Red phosphor converts white LEDs. Nat. Photonics 2014, 8, 748–749. [Google Scholar] [CrossRef]
  4. Huang, X.; Han, S.; Huang, W.; Liu, X. Enhancing solar cell efficiency: The search for luminescent materials as spectral converters. Chem. Soc. Rev. 2013, 42, 173–201. [Google Scholar] [CrossRef] [PubMed]
  5. Eliseeva, S.V.; Bunzli, J.C.G. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef] [PubMed]
  6. Lee, H.U.; Park, S.Y.; Lee, S.C.; Choi, S.; Seo, S.; Kim, H.; Won, J.; Choi, K.; Kang, K.S.; Park, H.G.; et al. Black Phosphorus (BP) nanodots for potential biomedical applications. Small 2016, 12, 214–219. [Google Scholar] [CrossRef] [PubMed]
  7. De Pablos-Martín, A.; Durán, A.; Pascual, M.J. Nanocrystallisation in oxyfluoride systems: Mechanisms of crystallisation and photonic properties. Int. Mater. Rev. 2012, 57, 165–186. [Google Scholar] [CrossRef]
  8. Fedorov, P.P.; Luginina, A.A.; Popov, A.I. Transparent oxyfluoride glass ceramics. J. Fluor. Chem. 2015, 172, 22–50. [Google Scholar] [CrossRef]
  9. De Pablos-Martín, A.; Ferrari, M.; Pascual, M.J.; Righini, G.C. Glass-ceramics: A class of nanostructured materials for photonics. La Rivista del Nuovo Cimento 2015, 38, 311–369. [Google Scholar] [CrossRef]
  10. Wang, Y.; Ohwaki, J. New transparent vitroceramics codoped with Er3+ and Yb3+ for efficient frequency upconversion. Appl. Phys. Lett. 1993, 63, 3268–3270. [Google Scholar] [CrossRef]
  11. Stevenson, A.J.; Serier-Brault, H.; Gredin, P.; Mortier, M. Fluoride materials for optical applications: Single crystals, ceramics, glasses, and glass–ceramics. J. Fluor. Chem. 2011, 132, 1165–1173. [Google Scholar] [CrossRef]
  12. Lopez-Iscoa, P.; Salminen, T.; Hakkarainen, T.; Petit, L.; Janner, D.; Boetti, N.; Lastusaari, M.; Pugliese, D.; Paturi, P.; Milanese, D. Effect of partial crystallization on the structural and luminescence properties of Er3+-doped phosphate glasses. Materials 2017, 10, 473. [Google Scholar] [CrossRef] [PubMed]
  13. Höland, W.; Beall, G. Glass-Ceramic Technology, 3rd ed.; The American ceramic society: Westerville, OH, USA, 2002; pp. 15–18. [Google Scholar]
  14. Augustyn, E.; Żelechower, M.; Stróż, D.; Chrapoński, J. The microstructure of erbium-ytterbium co-doped oxyfluoride glass-ceramic optical fibers. Opt. Mater. 2012, 34, 944–950. [Google Scholar] [CrossRef]
  15. Reben, M.; Dorosz, D.; Wasylak, J.; Burtan-Gwizdala, B.; Jaglarz, J.; Zontek, J. Nd3+-doped oxyfluoride glass ceramics optical fibre with SrF2 nanocrystals. Opt. Appl. 2012, 42, 353–364. [Google Scholar] [CrossRef]
  16. Krishnaiah, K.V.; Ledemi, Y.; Genevois, C.; Veron, E.; Sauvage, X.; Morency, S.; Soares de Lima Filho, E.; Nemova, G.; Allix, M.; Messaddeq, Y. Ytterbium-doped oxyfluoride nano-glass-ceramic fibers for laser cooling. Opt. Mater. Express 2017, 7, 1980–1994. [Google Scholar] [CrossRef]
  17. Gorni, G.; Balda, R.; Fernández, J.; Ipparraguirre, I.; Velázquez, J.J.; Castro, Y.; Chen, G.; Sundararayan, M.; Pascual, M.J.; Durán, A. Oxyfluoride glass-ceramic fibers doped with Nd3+: Structural and optical characterization. CrystEngComm 2017, 19, 6620–6629. [Google Scholar] [CrossRef]
  18. Roberts, R.B.; Tainsh, R.J.; White, G.K. Thermal properties of Zerodur at low temperatures. Cryogenics 1982, 22, 566–568. [Google Scholar] [CrossRef]
  19. Owens, G.J.; Singh, R.K.; Foroutan, F.; Alqaysi, M.; Han, C.M.; Mahapatra, C.; Kim, H.W.; Knowles, J.C. Sol-gel based materials for biomedical applications. Prog. Mater. Sci. 2016, 77, 1–79. [Google Scholar] [CrossRef]
  20. Rywak, A.A.; Burlitch, J.M. Sol-gel synthesis of nanocrystalline magnesium fluoride: Its use in the preparation of MgF2 films and MgF2-SiO2 composites. Chem. Mater. 1996, 8, 60–67. [Google Scholar] [CrossRef]
  21. Rywak, A.A.; Burlitch, J.M. The crystal chemistry and thermal stability of sol-gel prepared fluoride-substituted talc. Phys. Chem. Miner. 1996, 23, 418–431. [Google Scholar] [CrossRef]
  22. Fujihara, S.; Tada, M.; Kimura, T. Preparation and characterization of MgF2 thin film by a trifluoroacetic acid method. Thin Solid Films 1997, 304, 252–255. [Google Scholar] [CrossRef]
  23. Luo, W.; Wang, Y.; Bao, F.; Zhou, L.; Wang, X. Crystallization behavior of PbF2-SiO2 based bulk xerogels. J. Non-Cryst. Solids 2004, 347, 31–38. [Google Scholar] [CrossRef]
  24. Del-Castillo, J.; Yanes, A.C.; Méndez-Ramos, J.; Tikhomirov, V.K.; Rodríguez, V.D. Structure and up-conversion luminescence in sol–gel derived Er3+-Yb3+ co-doped SiO2:PbF2 nano-glass-ceramics. Opt. Mater. 2009, 32, 104–107. [Google Scholar] [CrossRef]
  25. Del-Castillo, J.; Yanes, A.C.; Méndez-Ramos, J.; Tikhomirov, V.K.; Moshchalkov, V.V.; Rodríguez, V.D. Sol-gel preparation and white up-conversion luminescence in rare-earth doped PbF2 nanocrystals dissolved in silica glass. J. Sol-Gel Sci. Technol. 2010, 53, 509–514. [Google Scholar] [CrossRef][Green Version]
  26. Szpikowska-Sroka, B.; Zur, L.; Czoik, R.; Goryczka, T.; Swinarew, A.S.; Żadło, M.; Pisarski, W.A. Long-lived emission from Eu3+:PbF2 nanocrystals distributed into sol-gel silica glass. J. Sol-Gel Sci. Technol. 2013, 68, 278–283. [Google Scholar] [CrossRef]
  27. Szpikowska-Sroka, B.; Pawlik, N.; Zur, L.; Czoik, R.; Goryczka, T.M.; Pisarski, W.A. Effect of fluoride ions on the optical properties of Eu3+:PbF2 nanocrystals embedded into sol-gel host materials. Mater. Chem. Phys. 2016, 174, 138–142. [Google Scholar] [CrossRef]
  28. Szpikowska-Sroka, B.; Pawlik, N.; Goryczka, T.; Pietrasik, E.; Bańczyk, M.; Pisarski, W.A. Lead fluoride β-PbF2 nanocrystals containing Eu3+ and Tb3+ ions embedded in sol-gel materials: Thermal, structural and optical investigations. Ceram. Int. 2017, 43, 8424–8432. [Google Scholar] [CrossRef]
  29. Yu, Y.; Chen, D.; Wang, Y.; Luo, W.; Zheng, Y.; Cheng, Y.; Zhou, L. Structural evolution and its influence on luminescence of SiO2-SrF2-ErF3 glass ceramics prepared by sol-gel method. Mater. Chem. Phys. 2006, 100, 241–245. [Google Scholar] [CrossRef]
  30. Yu, Y.; Wang, Y.; Chen, D.; Liu, F. Efficient upconversion luminescence of Er3+:SrF2-SiO2-Al2O3 sol-gel glass ceramics. Ceram. Int. 2008, 34, 2143–2146. [Google Scholar] [CrossRef]
  31. Zhou, L.; Chen, D.; Luo, W.; Wang, Y.; Yu, Y.; Liu, F. Transparent glass ceramic containing Er3+:CaF2 nano-crystals prepared by sol-gel method. Mater. Lett. 2007, 61, 3988–3990. [Google Scholar] [CrossRef]
  32. Georgescu, S.; Voiculescu, A.M.; Matei, C.; Secu, C.E.; Negre, R.F.; Secu, M. Ultraviolet and visible up-conversion luminescence of Er3+/Yb3+ co-doped CaF2 nanocrystals in sol-gel derived glass-ceramics. J. Lumin. 2013, 143, 150–156. [Google Scholar] [CrossRef]
  33. Jiang, Y.; Fan, J.; Jiang, B.; Mao, X.; Zhou, C.; Zhang, L. Structure and optical properties of transparent Er3+-doped CaF2-silica glass ceramic prepared by controllable sol-gel method. Ceram. Int. 2016, 42, 9571–9576. [Google Scholar] [CrossRef]
  34. Chen, D.; Wang, Y.; Yu, Y.; Ma, E.; Zhou, L. Microstructure and luminescence of transparent glass ceramic containing Er3+:BaF2 nano-crystals. J. Solid State Chem. 2006, 179, 532–537. [Google Scholar] [CrossRef]
  35. Secu, C.E.; Secu, M.; Ghica, C.; Mihut, L. Rare-earth doped sol-gel derived oxyfluoride glass-ceramics: Structural and optical characterization. Opt. Mater. 2011, 33, 1770–1774. [Google Scholar] [CrossRef]
  36. Secu, C.E.; Bartha, C.; Polosan, S.; Secu, M. Thermally activated conversion of a silicate gel to an oxyfluoride glass ceramic: Optical study using Eu3+ probe ion. J. Lumin. 2014, 146, 539–543. [Google Scholar] [CrossRef]
  37. Fujihara, S.; Kitta, S.; Kimura, T. Porous Phosphor thin films of oxyfluoride SiO2-BaMgF4: Eu2+ glass-ceramics prepared by sol-gel method. Chem. Lett. 2003, 32, 928–929. [Google Scholar] [CrossRef]
  38. Kitta, S.; Fujihara, S.; Kimura, T. Porous SiO2-BaMgF4:Eu(II) glass-ceramic thin films and their strong blue photoluminescence. J. Sol-Gel Sci. Technol. 2004, 32, 263–266. [Google Scholar] [CrossRef]
  39. Blasse, G.; van den Heuvel, G.P.M.; Van Dijk, T. Energy transfer from Gd3+ to Tb3+ and Eu3+. Chem. Phys. Lett. 1979, 62, 600–602. [Google Scholar] [CrossRef]
  40. Grzyb, T.; Runowski, M.; Lis, S. Facile synthesis, structural and spectroscopic properties of GdF3:Ce3+, Ln3+ (Ln3+ = Sm3+, Eu3+, Tb3+, Dy3+) nanocrystals with bright multicolor luminescence. J. Lumin. 2014, 154, 479–486. [Google Scholar] [CrossRef]
  41. Pokhrel, M.; Mimun, L.C.; Yust, B.; Kumar, G.A.; Dhanale, A.; Tang, L.; Sardara, D.K. Stokes emission in GdF3:Nd3+ nanoparticles for bioimaging probes. Nanoscale 2014, 6, 1667–1674. [Google Scholar] [CrossRef] [PubMed]
  42. Fujihara, S.; Tada, M.; Kimura, T. Sol-gel processing of LaF3 thin films. J. Ceram. Soc. JPN 1998, 106, 124–126. [Google Scholar] [CrossRef]
  43. Fujihara, S.; Tada, M.; Kimura, T. Formation of LaF3 microcrystals in sol-gel silica. J. Non-Cryst. Solids 1999, 244, 267–274. [Google Scholar] [CrossRef]
  44. Tada, M.; Fujihara, S.; Kimura, T. Sol-gel processing and characterization of alkaline earth and rare-earth fluoride thin films. J. Mater. Res. 1999, 14, 1610–1616. [Google Scholar] [CrossRef]
  45. Fujihara, S.; Kato, T.; Kimura, T. Influence of solution composition on the formation of SiO2/LaF3 composites in the sol-gel process. J. Mater. Sci. 2000, 35, 2763–2767. [Google Scholar] [CrossRef]
  46. Fujihara, S.; Tada, M.; Kimura, T. Controlling factors for the conversion of trifluoroacetate sols into thin metal fluoride coatings. J. Sol-Gel Sci. Technol. 2000, 19, 311–314. [Google Scholar] [CrossRef]
  47. Fujihara, S.; Kato, T.; Kimura, T. Sol-gel synthesis of silica-based oxyfluoride glass-ceramic thin films: incorporation of Eu3+ activators into crystallites. J. Am. Ceram. Soc. 2001, 84, 2716–2718. [Google Scholar] [CrossRef]
  48. Ribeiro, S.J.L.; Araújo, C.C.; Bueno, L.A.; Gonçalves, R.R.; Messaddeq, Y. Sol-gel Eu3+/Tm3+ doped transparent glass-ceramic waveguides. J. Non-Cryst. Solids 2004, 348, 180–184. [Google Scholar] [CrossRef]
  49. Biswas, A.; Maciel, G.S.; Friend, C.S.; Prasad, P.N. Upconversion properties of a transparent Er3+-Yb3+co-doped LaF3-SiO2 glass-ceramics prepared by sol-gel method. J. Non-Cryst. Solids 2003, 316, 393–397. [Google Scholar] [CrossRef]
  50. Yanes, A.C.; del-Castillo, J.; Méndez-Ramos, J.; Rodríguez, V.D.; Torres, M.E.; Arbiol, J. Luminescence and structural characterization of transparent nanostructured Eu3+-doped LaF3-SiO2 glass-ceramics prepared by sol-gel method. Opt. Mater. 2007, 9, 999–1003. [Google Scholar] [CrossRef]
  51. Velázquez, J.J.; Yanes, A.C.; del Castillo, J.; Méndez-Ramos, J.; Rodríguez, V.D. Optical properties of Ho3+-Yb3+ co-doped nanostructured SiO2-LaF3 glass-ceramics prepared by sol-gel method. Phys. Status Solidi A 2007, 204, 1762–1768. [Google Scholar] [CrossRef]
  52. Méndez-Ramos, J.; Velázquez, J.J.; Yanes, A.C.; del Castillo, J.; Rodríguez, V.D. Up-conversion in nanostructured Yb3+-Tm3+ co-doped sol-gel derived SiO2-LaF3 transparent glass-ceramics. Phys. Status Solidi A 2008, 205, 330–334. [Google Scholar] [CrossRef]
  53. Yanes, A.C.; Velázquez, J.J.; del Castillo, J.; Méndez-Ramos, J.; Rodríguez, V.D. Colour tuneability and white light generation in Yb3+-Ho3+-Tm3+ co-doped SiO2-LaF3 nano-glass-ceramics prepared by sol-gel method. J. Sol-Gel Sci. Technol. 2009, 51, 4–9. [Google Scholar] [CrossRef]
  54. Velázquez, J.J.; Rodríguez, V.D.; Yanes, A.C.; del Castillo, J.; Méndez-Ramos, J. Increase in the Tb3+ green emission in SiO2-LaF3 nano-glass-ceramics by codoping with Dy3+ ions. J. Appl. Phys. 2010, 108, 113530–113536. [Google Scholar] [CrossRef]
  55. Velázquez, J.J.; Rodríguez, V.D.; Yanes, A.C.; del Castillo, J.; Méndez-Ramos, J. Photon down-shifting by energy transfer from Sm3+ to Eu3+ ions in sol-gel SiO2-LaF3 nano-glass-ceramics for photovoltaics. Appl. Phys. B 2012, 108, 577–583. [Google Scholar] [CrossRef]
  56. Dejneka, M.J. The luminescence and structure of novel transparent oxyfuoride glass-ceramics. J. Non-Cryst. Solids 1998, 239, 149–155. [Google Scholar] [CrossRef]
  57. Luo, W.; Wang, Y.; Cheng, Y.; Bao, F.; Zhou, L. Crystallization and structural evolution of YF3-SiO2 xerogel. Mater. Sci. Eng. B 2006, 127, 218–223. [Google Scholar] [CrossRef]
  58. Méndez-Ramos, J.; Santana-Alonso, A.; Yanes, A.C.; del Castillo, J.; Rodríguez, V.D. Rare-earth doped YF3 nanocrystals embedded in sol-gel silica glass matrix for white light generation. J. Lumin. 2010, 130, 2508–2511. [Google Scholar] [CrossRef]
  59. Santana-Alonso, A.; Méndez-Ramos, J.; Yanes, A.C.; del Castillo, J.; Rodríguez, V.D. White light up-conversion in transparent sol-gel derived glass-ceramics containing Yb3+-Er3+-Tm3+ triply-doped YF3 nanocrystals. Mater. Chem. Phys. 2010, 124, 699–703. [Google Scholar] [CrossRef]
  60. Yanes, A.C.; Santana-Alonso, A.; Méndez-Ramos, J.; del Castillo, J.; Rodríguez, V.D. Novel sol-gel nano-glass-ceramics comprising Ln3+-Doped YF3 nanocrystals: structure and high efficient UV up-conversion. Adv. Funct. Mater. 2011, 21, 3136–3142. [Google Scholar] [CrossRef]
  61. Chen, D.; Wang, Y.; Yu, Y.; Huang, P. Structure and optical spectroscopy of Eu-doped glass ceramics containing GdF3 nanocrystals. J. Phys. Chem. C 2008, 112, 18943–18947. [Google Scholar] [CrossRef]
  62. Shan, Z.; Chen, D.; Yu, Y.; Huang, P.; Lin, H.; Wang, Y. Luminescence in rare earth-doped transparent glass ceramics containing GdF3 nanocrystals for lighting applications. J. Mater. Sci. 2010, 45, 2775–2779. [Google Scholar] [CrossRef]
  63. Yin, W.; Zhao, L.; Zhou, L.; Gu, Z.; Liu, X.; Tian, G.; Jin, S.; Yan, L.; Ren, W.; Xing, G.; Zhao, Y. Enhanced red emission from GdF3:Yb3+, Er3+ upconversion nanocrystals by Li+ doping and their application for bioimaging. Chem. Eur. J. 2012, 18, 9239–9245. [Google Scholar] [CrossRef] [PubMed]
  64. Fujihara, S.; Koji, S.; Kimura, T. Structure and optical properties of (Gd,Eu)F3-nanocrystallized sol-gel silica films. J. Mater. Chem. 2004, 14, 1331–1335. [Google Scholar] [CrossRef]
  65. Szpikowska-Sroka, B.; Zur, L.; Czoik, R.; Goryczka, T.; Żądło, M.; Pisarski, W.A. Ultraviolet-to-visible downconversion luminescence in solgel oxyfluoride glass ceramics containing Eu3+:GdF3 nanocrystals. Opt. Lett. 2014, 39, 3181–3184. [Google Scholar] [CrossRef] [PubMed]
  66. Szpikowska-Sroka, B.; Pawlik, N.; Goryczka, T.; Pisarski, W.A. Influence of silicate sol-gel host matrices and catalyst agents on the luminescent properties of Eu3+/Gd3+ under different excitation wavelengths. RSC Adv. 2015, 5, 98773–98782. [Google Scholar] [CrossRef]
  67. Pawlik, N.; Szpikowska-Sroka, B.; Sołtys, M.; Pisarski, W.A. Optical properties of silica sol-gel materials singly- and doubly-doped with Eu3+and Gd3+ ions. J. Rare Earth 2016, 34, 786–795. [Google Scholar] [CrossRef]
  68. Kano, T.; Yamamoto, H.; Otomo, Y. NaLnF4: Yb3+, Er3+ (Ln: Y, Gd, La): Efficient green-emitting infrared-excited phosphors. J. Electrochem. Soc. 1972, 119, 1561–1564. [Google Scholar] [CrossRef]
  69. Krämer, K.W.; Biner, D.; Frei, G.; Güdel, H.U.; Hehlen, M.P.; Lüthi, S.R. Hexagonal sodium yttrium fluoride based green and blue emitting upconversion phosphors. Chem. Mater. 2004, 16, 1244–1251. [Google Scholar] [CrossRef]
  70. Liu, F.; Ma, E.; Chen, D.; Yu, Y.; Wang, Y. Tunable red-green upconversion luminescence in novel transparent glass ceramics containing Er: NaYF4 nanocrystals. J. Phys. Chem. B 2006, 110, 20843–20846. [Google Scholar] [CrossRef] [PubMed]
  71. De Pablos-Martín, A.; Méndez-Ramos, J.; del Castillo, J.; Durán, A.; Rodríguez, V.D.; Pascual, M.J. Crystallization and up-conversion luminescence properties of Er3+/Yb3+-doped NaYF4-based nano-glass-ceramics. J. Eur. Ceram. Soc. 2015, 35, 1831–1840. [Google Scholar] [CrossRef]
  72. Yanes, A.C.; Santana-Alonso, A.; Méndez-Ramos, J.; del Castillo, J.; Rodríguez, V.D. Yb3+-Er3+ co-doped sol-gel transparent nano-glass-ceramics containing NaYF4 nanocrystals for tuneable up-conversion phosphors. J. Alloy. Compd. 2009, 480, 706–710. [Google Scholar] [CrossRef]
  73. Santana-Alonso, A.; Yanes, A.C.; Méndez-Ramos, J.; del Castillo, J.; Rodríguez, V.D. Sol-gel transparent nano-glass-ceramics containing Eu3+-doped NaYF4 nanocrystals. J. Non-Cryst. Solids 2010, 356, 933–936. [Google Scholar] [CrossRef]
  74. Santana-Alonso, A.; Méndez-Ramos, J.; Yanes, A.C.; del Castillo, J.; Rodríguez, V.D. Up-conversion in sol-gel derived nano-glass-ceramics comprising NaYF4 nano-crystals doped with Yb3+, Ho3+ and Tm3+. Opt. Mater. 2010, 32, 903–908. [Google Scholar] [CrossRef]
  75. Méndez-Ramos, J.; Yanes, A.C.; Santana-Alonso, A.; del Castillo, J.; Rodríguez, V.D. Colour tuneability in sol-gel nano-glass-ceramics comprising Yb3+-Er3+-Tm3+ Co-Doped NaYF4 nanocrystals. J. Nanosci. Nanotechno. 2010, 10, 1273–1277. [Google Scholar] [CrossRef]
  76. Méndez-Ramos, J.; Yanes, A.C.; Santana-Alonso, A.; del Castillo, J. Highly efficient up-conversion and bright white light in RE co-doped KYF4 nanocrystals in sol-gel silica matrix. Chem. Phys. Lett. 2013, 555, 196–201. [Google Scholar] [CrossRef]
  77. Yanes, A.C.; Santana-Alonso, A.; Méndez-Ramos, J.; del Castillo, J. Structure and intense UV up-conversion emissions in RE3+-doped sol-gel glass-ceramics containing KYF4 nanocrystals. Appl. Phys. B 2013, 113, 589–596. [Google Scholar] [CrossRef]
  78. Del Castillo, J.; Yanes, A.C.; Santana-Alonso, A.; Méndez-Ramos, J. Efficient dual-wavelength excitation of Tb3+ emission in rare-earth doped KYF4 cubic nanocrystals dispersed in silica sol-gel matrix. Opt. Mater. 2014, 37, 511–515. [Google Scholar] [CrossRef]
  79. Yanes, A.C.; del Castillo, J. Enhanced emission via energy transfer in RE co-doped SiO2-KYF4 nano-glass-ceramics for white LEDs. J. Alloy. Compd. 2016, 658, 170–178. [Google Scholar] [CrossRef]
  80. Deng, D.; Xu, S.; Zhao, S.; Li, C.; Wang, H.; Ju, H. Enhancement of upconversion luminescence in Tm3+/Er3+/Yb3+-codoped glass ceramic containing LiYF4 nanocrystals. J. Lumin. 2009, 129, 1266–1270. [Google Scholar] [CrossRef]
  81. Kawamura, G.; Yoshimura, R.; Ota, K.; Oh, S.Y.; Hakiri, N.; Muto, H.; Hayakawa, T.; Matsuda, A. A unique approach to characterization of sol-gel-derived rare-earth-doped oxyfluoride glass-ceramics. J. Am. Ceram. Soc. 2013, 96, 476–480. [Google Scholar] [CrossRef]
  82. Secu, C.E.; Negrea, R.F.; Secu, M. Eu3+ probe ion for rare-earth dopant site structure in sol-gel derived LiYF4 oxyfluoride glass-ceramic. Opt. Mater. 2013, 35, 2456–2460. [Google Scholar] [CrossRef]
  83. Kawamura, G.; Yoshimura, R.; Ota, K.; Oh, S.Y.; Muto, H.; Hayakawa, T.; Matsuda, A. Extraction of Nd3+-doped LiYF4 phosphor from sol-gel-derived oxyfluoride glass ceramics by hydrofluoric acid treatment. Opt. Mater. 2013, 45, 1879–1881. [Google Scholar] [CrossRef]
  84. Secu, M.; Secu, C.E. Up-conversion luminescence of Er3+/Yb3+ co-doped LiYF4 nanocrystals in sol-gel derived oxyfluoride glass-ceramics. J. Non-Cryst. Solids 2015, 426, 78–82. [Google Scholar] [CrossRef]
  85. Del Castillo, J.; Yanes, A.C.; Abe, S.; Smet, P.F. Site selective spectroscopy in BaYF5:RE3+ (RE = Eu, Sm) nano-glass-ceramics. J. Alloy. Compd. 2015, 635, 136–141. [Google Scholar] [CrossRef]
  86. Del Castillo, J.; Yanes, A.C. Bright luminescence of Gd3+ sensitized RE3+-doped SiO2-BaGdF5 glass-ceramics for UV-LEDs colour conversion. J. Alloy. Compd. 2017, 695, 3736–3743. [Google Scholar] [CrossRef]
  87. Chiodini, N.; Paleari, A.; DiMartino, D.; Spinolo, G. SnO2 nanocrystals in SiO2 : A wide-band-gap quantum-dot system. Appl. Phys. Lett. 2022, 81, 1702–1704. [Google Scholar] [CrossRef]
  88. Du, J.; Zhao, R.; Xie, Y.; Li, J. Size-controlled synthesis of SnO2 quantum dots and their gas-sensing performance. Appl Surf. Sci. 2015, 346, 256–262. [Google Scholar] [CrossRef]
  89. Nogami, M.; Enomoto, T.; Hayakawa, T. Enhanced fluorescence of Eu3+ induced by energy transfer from nanosized SnO2 crystals in glass. J. Lumin. 2002, 97, 147–152. [Google Scholar] [CrossRef]
  90. Chiodini, N.; Paleari, A.; Spinolo, G.; Crespi, P. Photorefractivity in SiO2:SnO2 glass-ceramics by visible light. J. Non-Cryst. Solids 2003, 322, 266–271. [Google Scholar] [CrossRef]
  91. Yanes, A.C.; del Castillo, J.; Torres, M.; Peraza, J.; Rodríguez, V.D.; Méndez-Ramos, J. Nanocrystal-size selective spectroscopy in SnO2: Eu3+ semiconductor quantum dots. Appl. Phys. Lett. 2004, 85, 2343–2345. [Google Scholar] [CrossRef]
  92. Del Castillo, J.; Rodríguez, V.D.; Yanes, A.C.; Méndez-Ramos, J.; Torres, M.E. Luminescent properties of transparent nanostructured Eu3+ doped SnO2–SiO2 glass-ceramics prepared by the sol-gel method. Nanotechnology 2005, 16, S300–S303. [Google Scholar] [CrossRef]
  93. Del Castillo, J.; Yanes, A.C.; Velázquez, J.J.; Méndez-Ramos, J.; Rodríguez, V.D. Luminescent properties of Eu3+-Tb3+-doped SiO2-SnO2-based nano-glass-ceramics prepared by sol-gel method. J. Alloy. Compd. 2009, 473, 571–575. [Google Scholar] [CrossRef]
  94. Morais, E.A.; Ribeiro, S.J.L.; Scalvi, L.V.A.; Santilli, C.V.; Ruggiero, L.O.; Pulcinelli, S.H.; Messadeq, Y. Optical characteristics of Er3+-Yb3+ doped SnO2 xerogels. J. Alloy. Compd. 2002, 344, 217–220. [Google Scholar] [CrossRef]
  95. Van Tran, T.T.; Si Bui, T.; Turrell, S.; Capoen, B.; Roussel, P.; Bouazaoui, M.; Ferrari, M.; Cristini, O.; Kinowski, C. Controlled SnO2 nanocrystal growth in SiO2-SnO2 glass-ceramic monoliths. J. Raman Spectrosc. 2012, 43, 869–875. [Google Scholar] [CrossRef]
  96. Van Tran, T.T.; Turrell, S.; Capoen, B.; Le Van, H.; Ferrari, M.; Ristic, D.; Boussekey, L.; Kinowski, C. Environment segregation of Er3+ emission in bulk sol-gel-derived SiO2-SnO2 glass ceramics. J. Mater. Sci. 2014, 49, 8226–8233. [Google Scholar] [CrossRef]
  97. Gonçalves, R.R.; Messaddeq, Y.; Chiasera, A.; Jestin, Y.; Ferrari, M.; Ribeiro, S.J.L. Erbium-activated silica-zirconia planar waveguides prepared by sol-gel route. Thin Solid Films 2008, 516, 3094–3097. [Google Scholar] [CrossRef]
  98. Gonçalves, R.R.; Guimarães, J.J.; Ferrari, J.L.; Maia, L.J.Q.; Ribeiro, S.J.L. Active planar waveguides based on sol-gel Er3+-doped SiO2-ZrO2 for photonic applications: Morphological, structural and optical properties. J. Non-Cryst. Solids 2008, 354, 4846–4851. [Google Scholar] [CrossRef]
  99. Suhaimi, N.F.M.; Rashid, S.N.M.; Junit, N.F.H.M.; Iznie Razakia, N.; Abd-Rahmana, M.K.; Ferrari, M. Effect of Zirconia in Er3+-doped SiO2-ZrO2 for planar waveguide laser. In Proceedings of the 2012 IEEE 3rd International Conference on Photonics (ICP), Penang, Malaysia, 1–3 October 2012. [Google Scholar]
  100. Dos Santos Cunha, C.; Ferrari, J.L.; de Oliveira, D.C.; Maia, L.J.Q.; Gomes, A.S.L.; Ribeiro, S.J.L.; Gonçalves, R.R. NIR luminescent Er3+/Yb3+ co-doped SiO2-ZrO2 nanostructured planar and channel waveguides: Optical and structural properties. Mater. Chem. Phys. 2012, 136, 120–129. [Google Scholar] [CrossRef]
  101. Ribeiro, S.J.L.; Messaddeq, Y.; Gonçalves, R.R.; Ferrari, M.; Montagna, M.; Aegerter, M.A. Low optical loss planar waveguides prepared in an organic-inorganic hybrid system. Appl. Phys. Lett. 2000, 77, 3502–3504. [Google Scholar] [CrossRef]
  102. Jestin, Y.; Armellini, C.; Chiappini, A.; Chiaser, A.; Ferrari, M.; Goyes, C.; Montagna, M.; Moser, E.; Nunzi Conti, G.; Pelli, S.; et al. Erbium activated HfO2 based glass-ceramics waveguides for photonics. J. Non-Cryst. Solids 2007, 353, 494–497. [Google Scholar] [CrossRef]
  103. Ferrari, J.L.; Lima, K.O.; Maia, L.J.Q.; Ribeiro, S.J.L.; Gonçalves, R.R. Structural and spectroscopic properties of luminescent Er3+-Doped SiO2-Ta2O5 nanocomposites. J. Am. Ceram. Soc. 2011, 94, 1230–1237. [Google Scholar] [CrossRef]
  104. Aquino, F.T.; Ferrari, J.L.; Ribeiro, S.J.L.; Ferrier, A.; Goldner, P.; Gonçalves, R.R. Broadband NIR emission in novel sol-gel Er3+-doped SiO2-Nb2O5 glass ceramic planar waveguides for photonic applications. Opt. Mater. 2013, 35, 387–396. [Google Scholar] [CrossRef]
  105. Secu, M.; Secu, C.E.; Bartha, C. Crystallization and luminescence properties of a new Eu3+-doped LaOCl nano-glass-ceramic. J. Eur. Ceram. Soc. 2016, 36, 203–207. [Google Scholar] [CrossRef]
  106. Innocenzi, P.; Abdirashid, M.O.; Guglielmi, M. Structure and properties of sol-gel coatings from methyltriethoxysilane and tetraethoxysilane. J. Sol-Gel Sci. Technol. 1994, 3, 47–55. [Google Scholar] [CrossRef]
  107. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef] [PubMed]
  108. Ma, Y.; Lee, H.R.; Tsuru, T. Study on preparation and hydrophobicity of MTES derived silica sol and gel. Adv. Mater. Res. 2012, 535–537, 2563–2566. [Google Scholar] [CrossRef]
  109. Jia, Y.Q. Crystal Radii and effective ionic radii of the rare earth ions. J. Sol. State Chem. 1991, 95, 184–187. [Google Scholar] [CrossRef]
  110. Gorni, G.; Pascual, M.J.; Caballero, A.; Velázquez, J.J.; Mosa, J.; Castro, Y.; Durán, A. Crystallization mechanism in sol-gel oxyfluoride glass-ceramics. J. Non-Cryst. Solids 2018. accepted. [Google Scholar]
  111. Gorni, G.; Balda, R.; Ferández, J.; Velázquez, J.J.; Pascual, L.; Mosa, J.; Durán, A.; Castro, Y. 80SiO2-20LaF3 oxyfluoride glass ceramic coatings doped with Nd3+ for optical applications. Int. J. Appl. Glass Sci. 2017, in press. [Google Scholar] [CrossRef]
  112. Velázquez, J.J.; Mosa, J.; Gorni, G.; Balda, R.; Ferández, J.; Pascual, L.; Durán, A.; Castro, Y. Transparent SiO2-GdF3 sol-gel nano-glass ceramics for optical applications. J. Sol-Gel Sci. Technol. 2018. under-review. [Google Scholar]
  113. Chen, D.; Yu, Y.; Huang, P.; Wang, Y. Nanocrystallization of lanthanide trifluoride in an aluminosilicate glass matrix: Dimorphism and rare earth partition. CrystEngComm 2009, 11, 1686–1690. [Google Scholar] [CrossRef]
  114. Bartha, C.; Secu, C.E.; Matei, E.; Secu, M. Crystallization kinetics mechanism investigation of sol-gel-derived NaYF4:(Yb,Er) up-converting phosphors. CrystEngComm 2017, 19, 4992–5000. [Google Scholar] [CrossRef]
  115. Agarwal, B.K.; Verma, L.P. A rule for chemical shifts of X-ray absorption edges. J. Phys. C Solid State 1970, 3, 535–537. [Google Scholar] [CrossRef]
  116. Gorni, G.; Velázquez, J.J.; Mather, G.C.; Durán, A.; Chen, G.; Sundararaja, M.; Balda, R.; Ferández, J.; Pascual, M.J. Selective excitation in transparent oxyfluoride glass-ceramics doped with Nd3+. J. Eur. Ceram. Soc. 2017, 37, 1695–1706. [Google Scholar] [CrossRef]
Figure 1. TGA/DTA curve of the MgF2 gel obtained by drying the sol at 80 °C. Figure modified from Figure 4 of [22].
Figure 1. TGA/DTA curve of the MgF2 gel obtained by drying the sol at 80 °C. Figure modified from Figure 4 of [22].
Materials 11 00212 g001

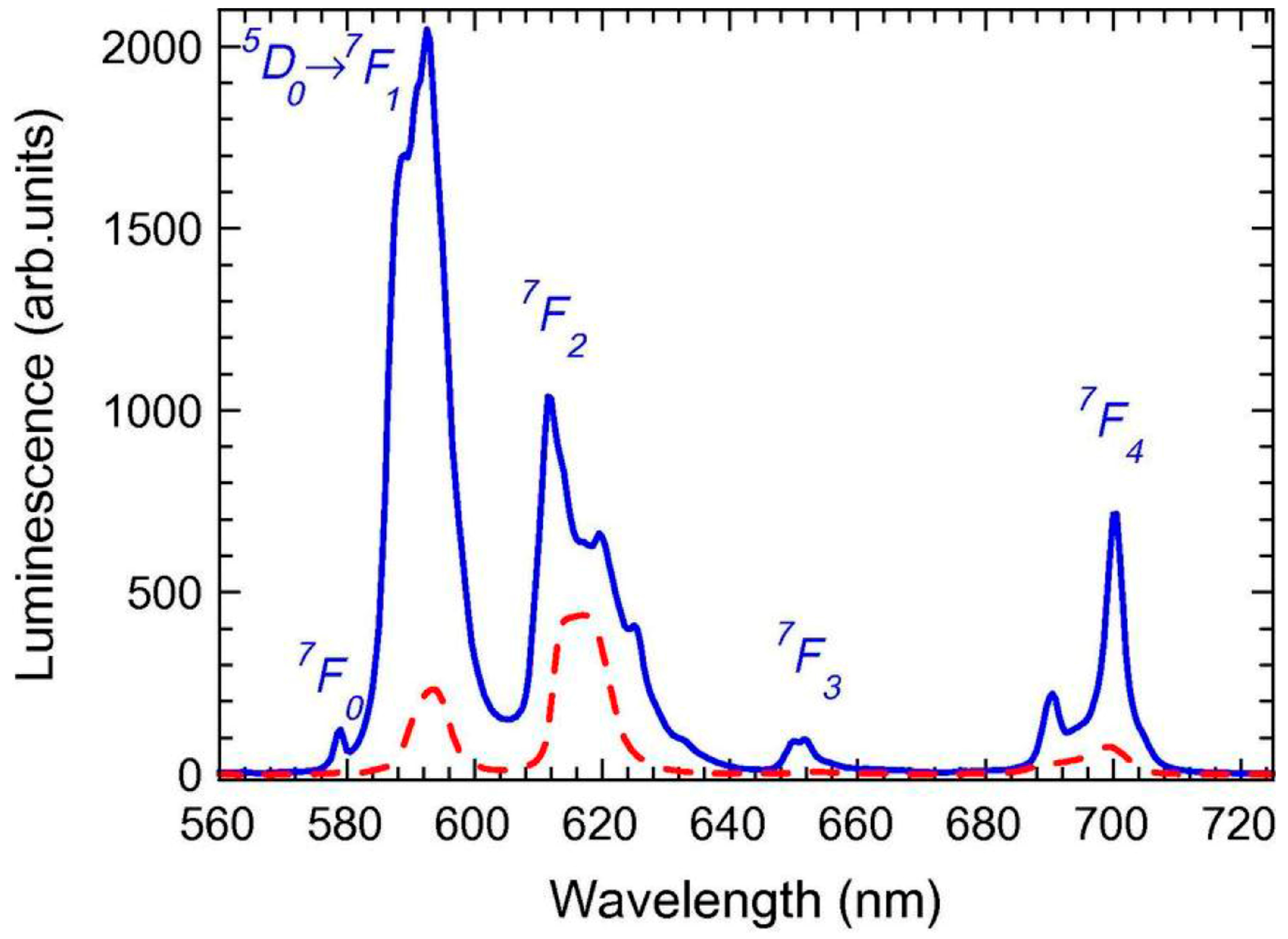

Figure 2. PL spectra recorded on Eu3+-doped xerogel (dotted curve) and GC (solid curve) using λex. = 394 nm [35].
Figure 2. PL spectra recorded on Eu3+-doped xerogel (dotted curve) and GC (solid curve) using λex. = 394 nm [35].
Materials 11 00212 g002
Figure 3. (a) XRD patterns of 95SiO2-5LaF3 GCs at different temperatures and (b) CIR standard chromaticity showing the up-conversion emission for GCs co-doped with 0.3Yb3+, 0.1Ho3+ and 0.1 Tm3+ [53].
Figure 3. (a) XRD patterns of 95SiO2-5LaF3 GCs at different temperatures and (b) CIR standard chromaticity showing the up-conversion emission for GCs co-doped with 0.3Yb3+, 0.1Ho3+ and 0.1 Tm3+ [53].
Materials 11 00212 g003
Figure 4. (a) XRD patterns of 90SiO2-10YF3 Ln3+-doped GCs heat treated at 650 and 675 °C together with the JCPDS-YF3 and (b) Up-conversion emission spectrum of GCs co-doped with 1.5 Yb3+ and 0.1 Tm3+ heat-treated at 675 °C [60].
Figure 4. (a) XRD patterns of 90SiO2-10YF3 Ln3+-doped GCs heat treated at 650 and 675 °C together with the JCPDS-YF3 and (b) Up-conversion emission spectrum of GCs co-doped with 1.5 Yb3+ and 0.1 Tm3+ heat-treated at 675 °C [60].
Materials 11 00212 g004
Figure 5. HRTEM image of Eu3+ doped SiO2-GdF3 GC film heat = treated at 400 °C [64].
Figure 5. HRTEM image of Eu3+ doped SiO2-GdF3 GC film heat = treated at 400 °C [64].
Materials 11 00212 g005

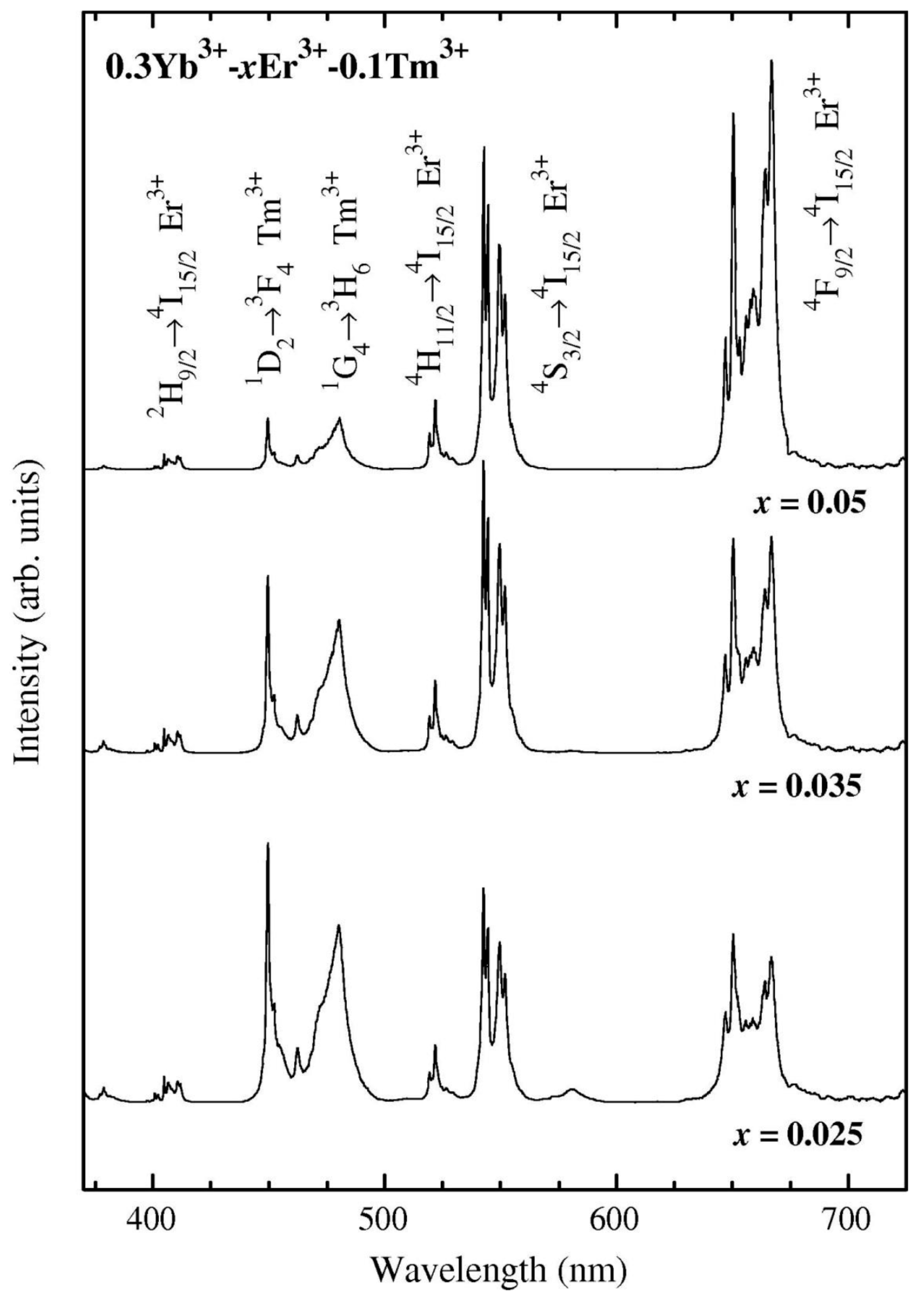

Figure 6. Up-conversion emission spectra of 95SiO2-5KYF4 GCs co-doped with Yb3+-Er3+-Tm3+ heat-treated at 700 °C [76].
Figure 6. Up-conversion emission spectra of 95SiO2-5KYF4 GCs co-doped with Yb3+-Er3+-Tm3+ heat-treated at 700 °C [76].
Materials 11 00212 g006
Figure 7. (a) TEM and (b) HRTEM images of 95SiO2-5BaGd(1−x)EuxF5. Inset show power spectrum (FFT pattern) and filtered higher-contrasted red and blue square nanoparticles [86].
Figure 7. (a) TEM and (b) HRTEM images of 95SiO2-5BaGd(1−x)EuxF5. Inset show power spectrum (FFT pattern) and filtered higher-contrasted red and blue square nanoparticles [86].
Materials 11 00212 g007
Figure 8. (a) DTA in air of (100 − x)SiO2-xLaF3 (x = 10–40 mol %) bulk samples prepared with TEOS; (b) DTA and TG in argon atmosphere of 80SiO2-20LaF3 bulk samples prepared with TEOS; (c) DTA in air of 80SiO2-20LaF3 bulk samples with TEOS and TEOS/MTES. All measurements were performed using a heating rate of 10 °C/min.
Figure 8. (a) DTA in air of (100 − x)SiO2-xLaF3 (x = 10–40 mol %) bulk samples prepared with TEOS; (b) DTA and TG in argon atmosphere of 80SiO2-20LaF3 bulk samples prepared with TEOS; (c) DTA in air of 80SiO2-20LaF3 bulk samples with TEOS and TEOS/MTES. All measurements were performed using a heating rate of 10 °C/min.
Materials 11 00212 g008
Figure 9. XRD of 80SiO2-20LaF3 GC treated at 550 °C for 1 min performed at the synchrotron SpLine BM25B of the ESRF.
Figure 9. XRD of 80SiO2-20LaF3 GC treated at 550 °C for 1 min performed at the synchrotron SpLine BM25B of the ESRF.
Materials 11 00212 g009
Figure 10. HRTEM of 80SiO2-20LaF3 (a) thin film and (b) self-supported layer prepared using TEOS/MTES and treated at 550 °C for 1 min. The corresponding crystal size distributions are also shown.
Figure 10. HRTEM of 80SiO2-20LaF3 (a) thin film and (b) self-supported layer prepared using TEOS/MTES and treated at 550 °C for 1 min. The corresponding crystal size distributions are also shown.
Materials 11 00212 g010
Figure 11. 19F MAS-NMR spectra of 80SiO2-20LaF3 xerogel and GC treated at 550 °C for 1 min. The spectrum of pure LaF3 crystal powder is also given for comparison. Stars indicate spinning sidebands.
Figure 11. 19F MAS-NMR spectra of 80SiO2-20LaF3 xerogel and GC treated at 550 °C for 1 min. The spectrum of pure LaF3 crystal powder is also given for comparison. Stars indicate spinning sidebands.
Materials 11 00212 g011
Figure 12. FTIR of 80SiO2-20LaF3 xerogel and GC self-supported layer treated at 550 °C for 1 min and 1 h.
Figure 12. FTIR of 80SiO2-20LaF3 xerogel and GC self-supported layer treated at 550 °C for 1 min and 1 h.
Materials 11 00212 g012
Figure 13. PL (a) emission and (b) excitation spectra of 80SiO2-20LaF3 bulk xerogel and GC treated at 650 °C for 3 h. All spectra were recorded at 9 K.
Figure 13. PL (a) emission and (b) excitation spectra of 80SiO2-20LaF3 bulk xerogel and GC treated at 650 °C for 3 h. All spectra were recorded at 9 K.
Materials 11 00212 g013
Figure 14. DTA (red) and TG (blue) curve of 90SiO2-10NaGdF4 bulk sample acquired in air using a heating rate of 10 °C/min.
Figure 14. DTA (red) and TG (blue) curve of 90SiO2-10NaGdF4 bulk sample acquired in air using a heating rate of 10 °C/min.
Materials 11 00212 g014
Figure 15. XRD of (100 − x)SiO2-xGdF3 (x = 10 and 20 mol %) GC treated at 550 °C for 1 min performed at the synchrotron SpLine BM25 of the ESRF.
Figure 15. XRD of (100 − x)SiO2-xGdF3 (x = 10 and 20 mol %) GC treated at 550 °C for 1 min performed at the synchrotron SpLine BM25 of the ESRF.
Materials 11 00212 g015
Figure 16. XRD of 80SiO2-20NaGdF4 GC treated at 600 °C for 1 and 120 h. The measurements were performed at the synchrotron SpLine BM25 of the ESRF.
Figure 16. XRD of 80SiO2-20NaGdF4 GC treated at 600 °C for 1 and 120 h. The measurements were performed at the synchrotron SpLine BM25 of the ESRF.
Materials 11 00212 g016
Figure 17. HRTEM of 80SiO2-20GdF3 self-supported layer treated at 550 °C for 1 min.
Figure 17. HRTEM of 80SiO2-20GdF3 self-supported layer treated at 550 °C for 1 min.
Materials 11 00212 g017
Figure 18. FTIR of 80SiO2-20GdF3 xerogel and GC treated at 550 °C for 1 min.
Figure 18. FTIR of 80SiO2-20GdF3 xerogel and GC treated at 550 °C for 1 min.
Materials 11 00212 g018
Figure 19. XAS (a) spectra and (b) derivate of Eu2O3 and EuF3 reference samples. The values shown in (b) refer to the maximum of the derivate curves.
Figure 19. XAS (a) spectra and (b) derivate of Eu2O3 and EuF3 reference samples. The values shown in (b) refer to the maximum of the derivate curves.
Materials 11 00212 g019
Figure 20. XAS (a) spectra and (b) derivate of 0.5Eu3+-doped 80SiO2-20LaF3 xerogel and GC samples treated at 550 °C for 1 min up to 8 h. The values shown in (b) refer to the maximum of the derivate curves.
Figure 20. XAS (a) spectra and (b) derivate of 0.5Eu3+-doped 80SiO2-20LaF3 xerogel and GC samples treated at 550 °C for 1 min up to 8 h. The values shown in (b) refer to the maximum of the derivate curves.
Materials 11 00212 g020
Figure 21. Emission spectra of Eu3+ and Gd3+ ions in xerogel (bottom) and GC (top) treated at 550 °C-1 min under excitation of Eu3+ at 393 nm (red spectra) and of Gd3+ at 273 nm (blue spectra).
Figure 21. Emission spectra of Eu3+ and Gd3+ ions in xerogel (bottom) and GC (top) treated at 550 °C-1 min under excitation of Eu3+ at 393 nm (red spectra) and of Gd3+ at 273 nm (blue spectra).
Materials 11 00212 g021

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
