A Fatigue Life Prediction Method Based on Strain Intensity Factor
Abstract
:1. Introduction
2. Methodology

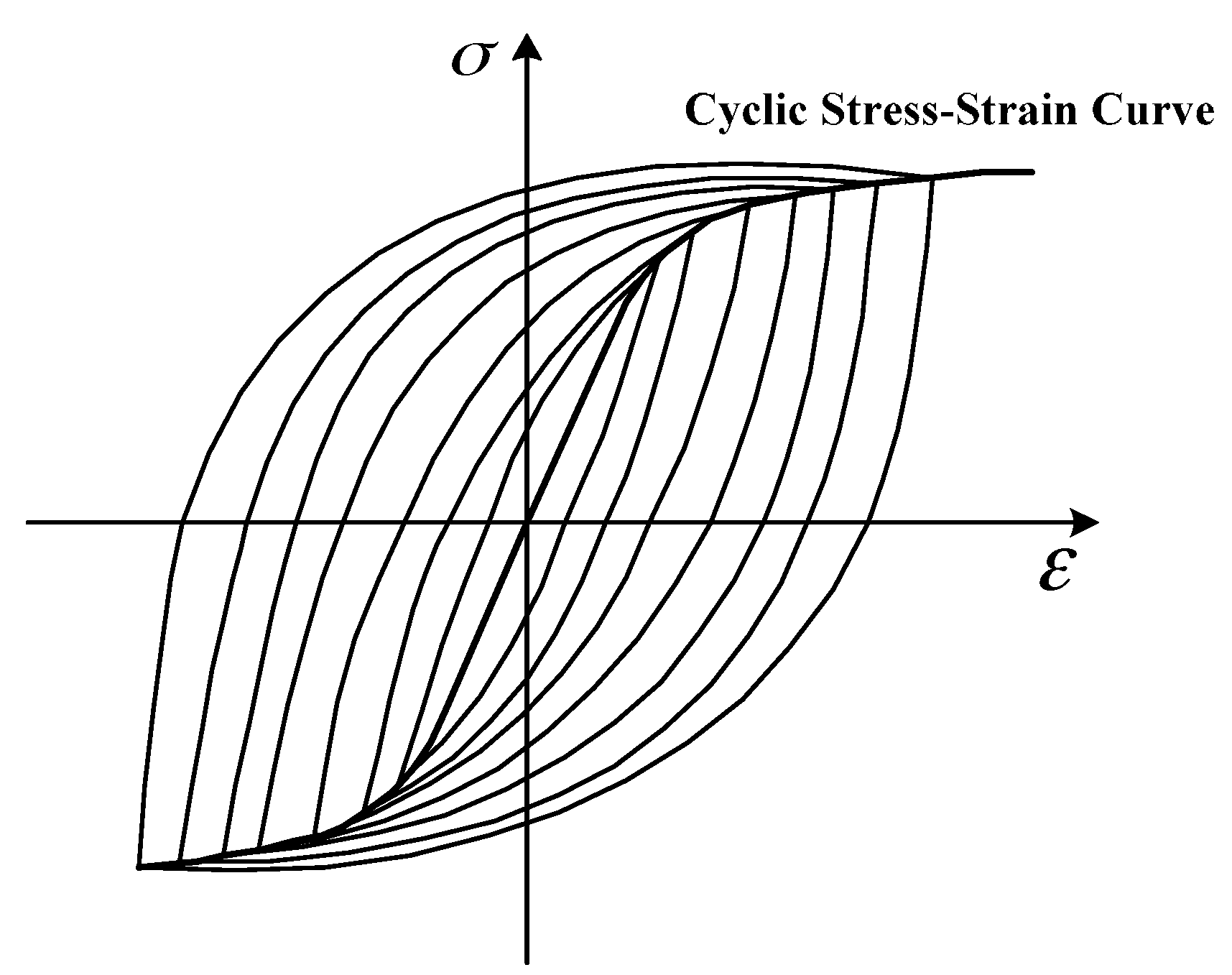

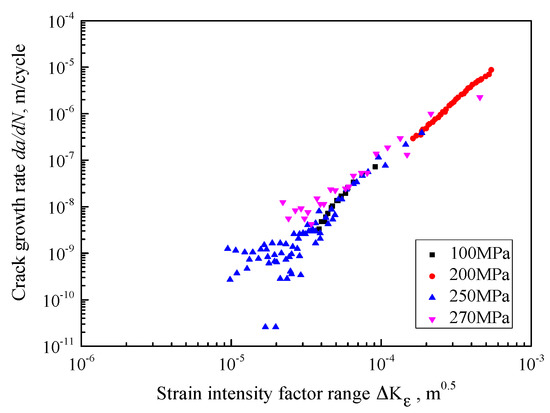

2.1. The Basic Concept of the Strain Intensity Factor

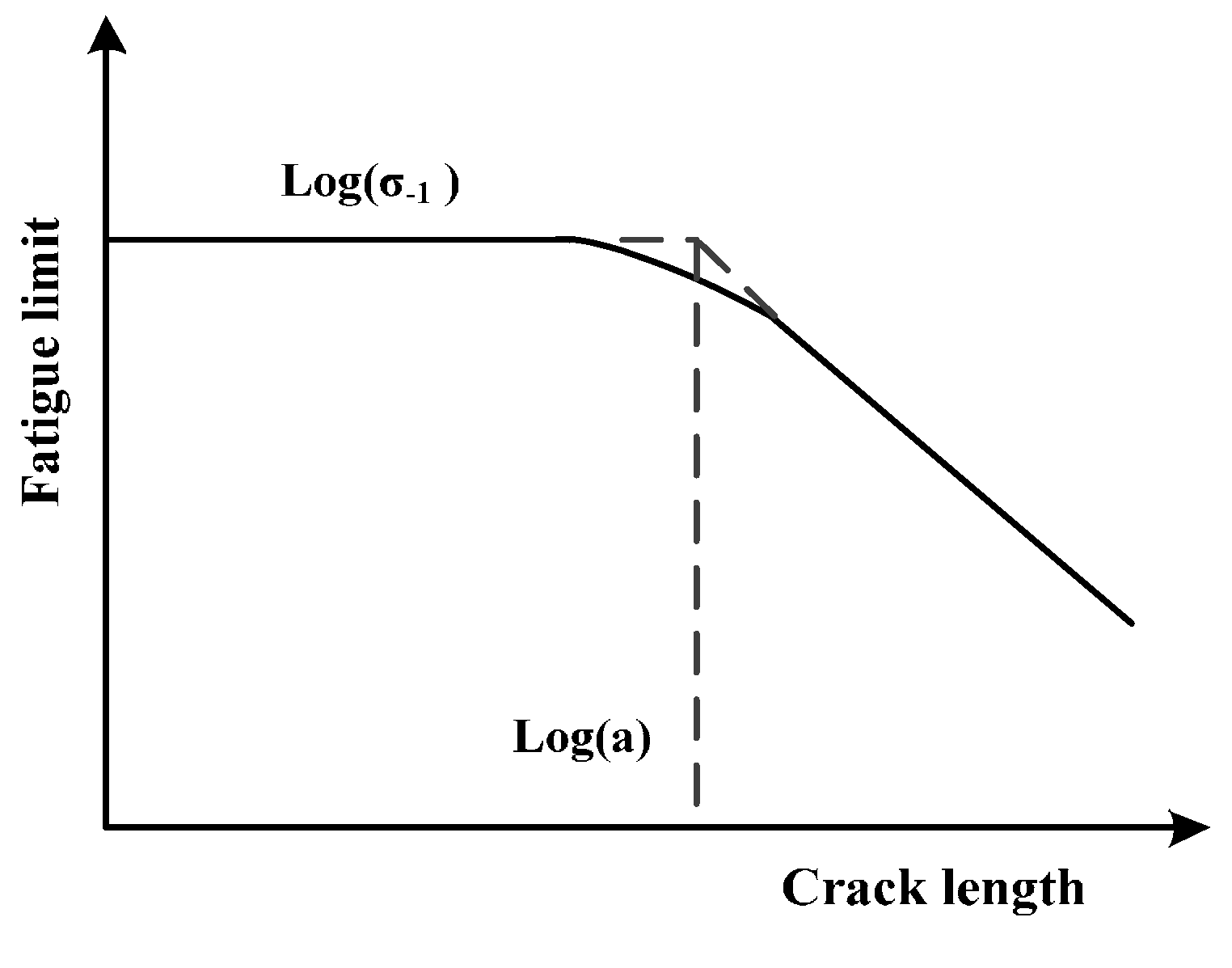

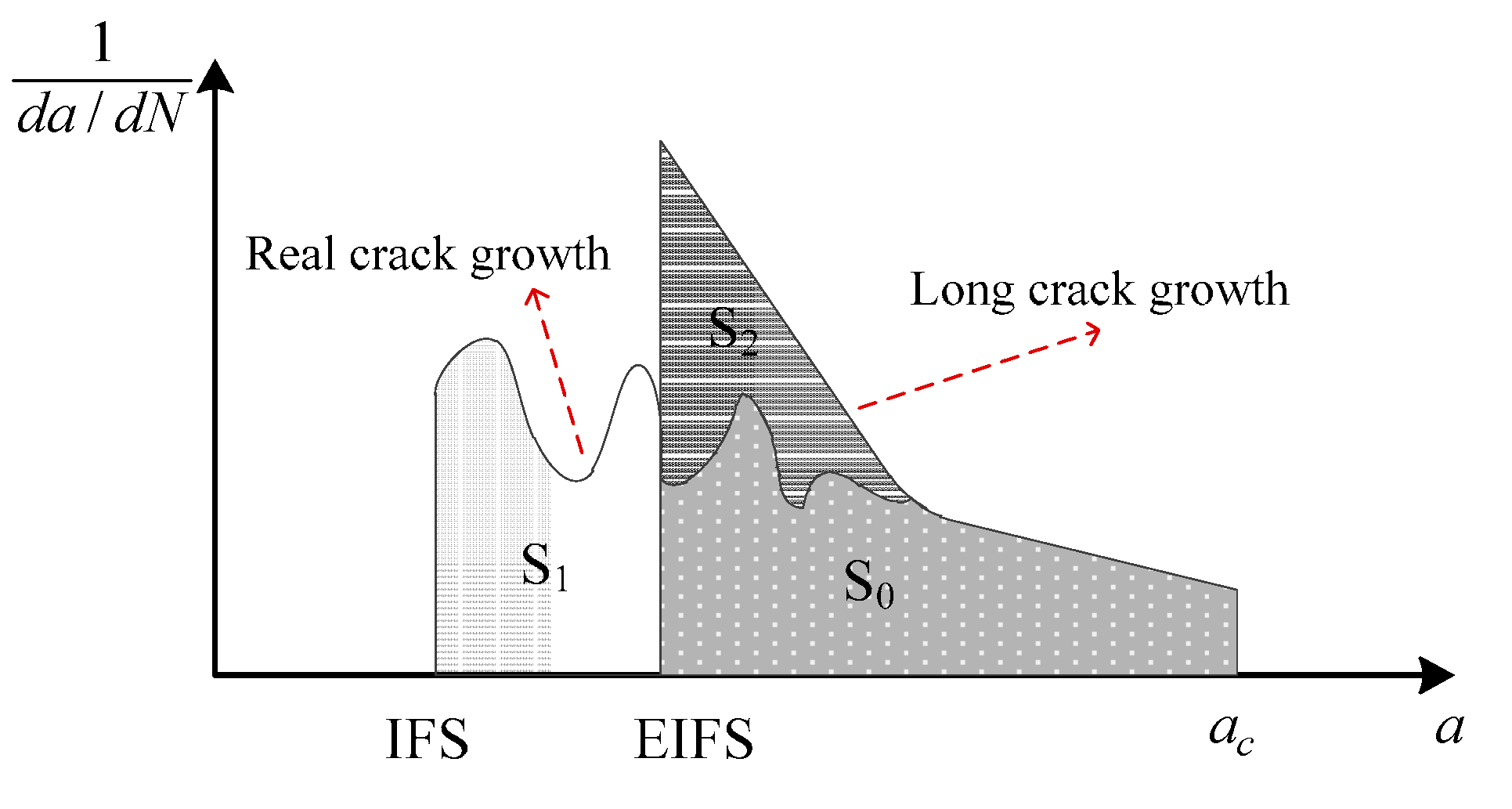

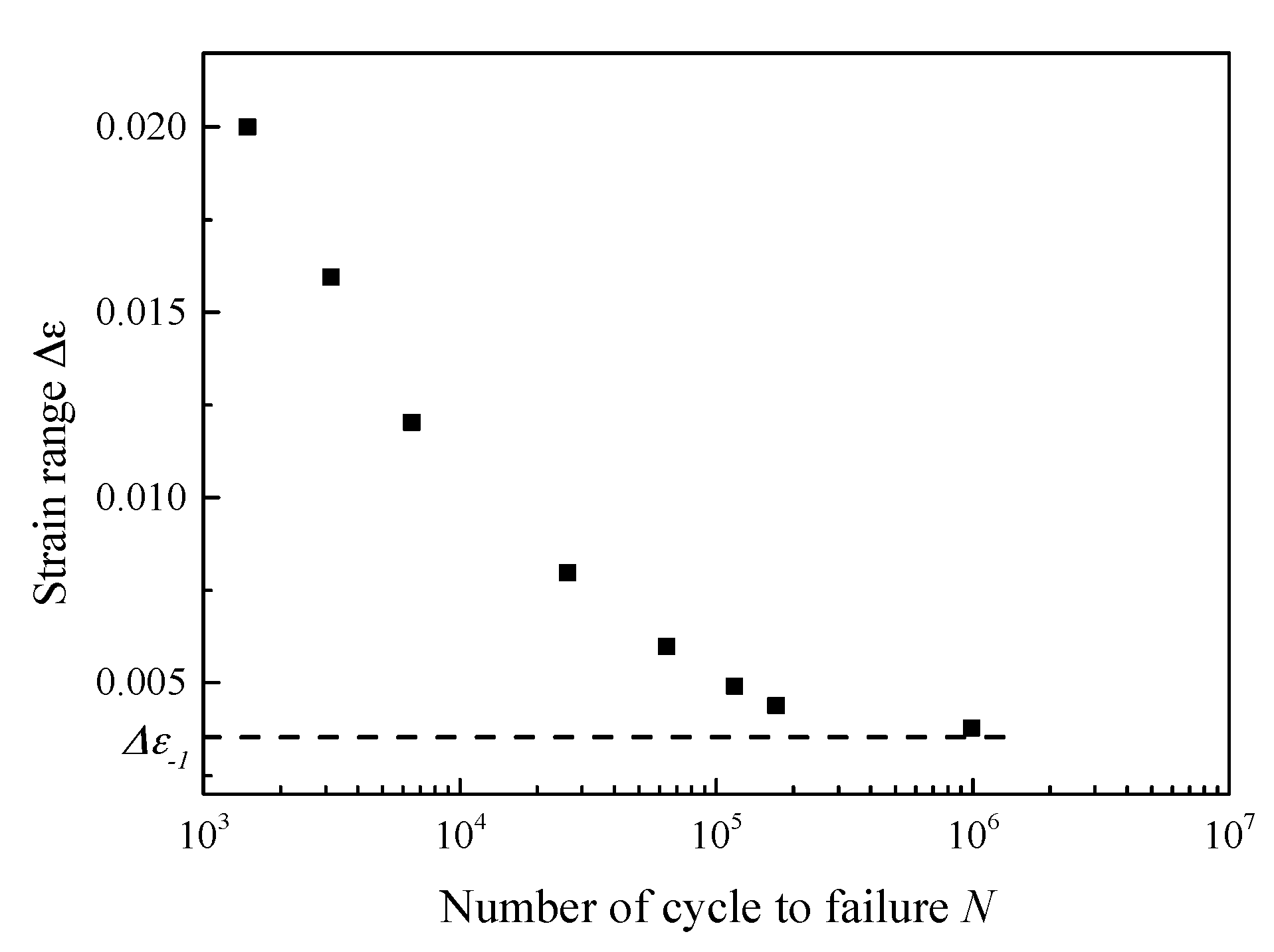

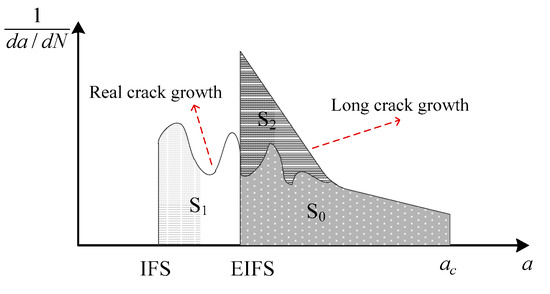

2.2. The Fatigue Life Prediction Model
3. Validation and Comparison

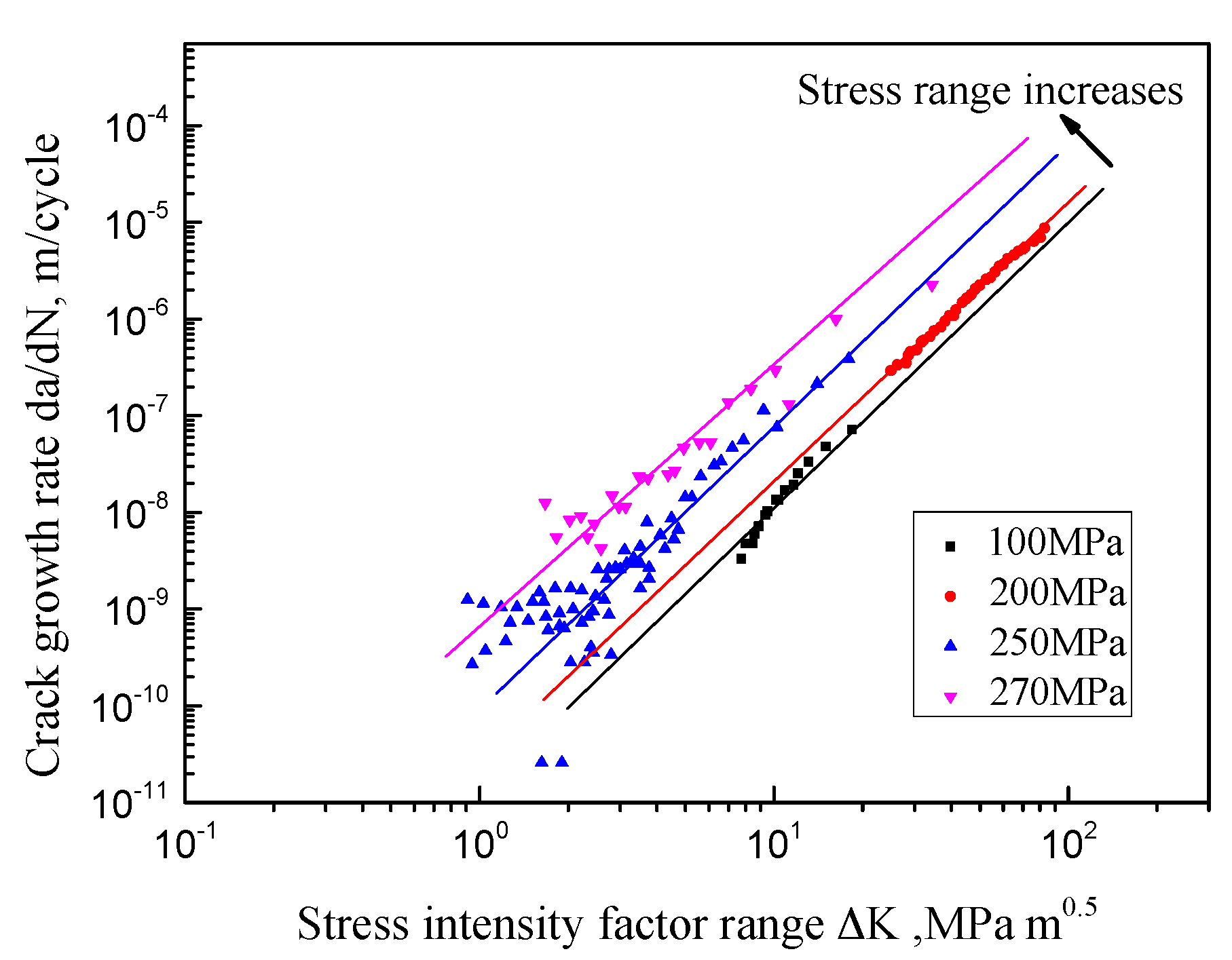

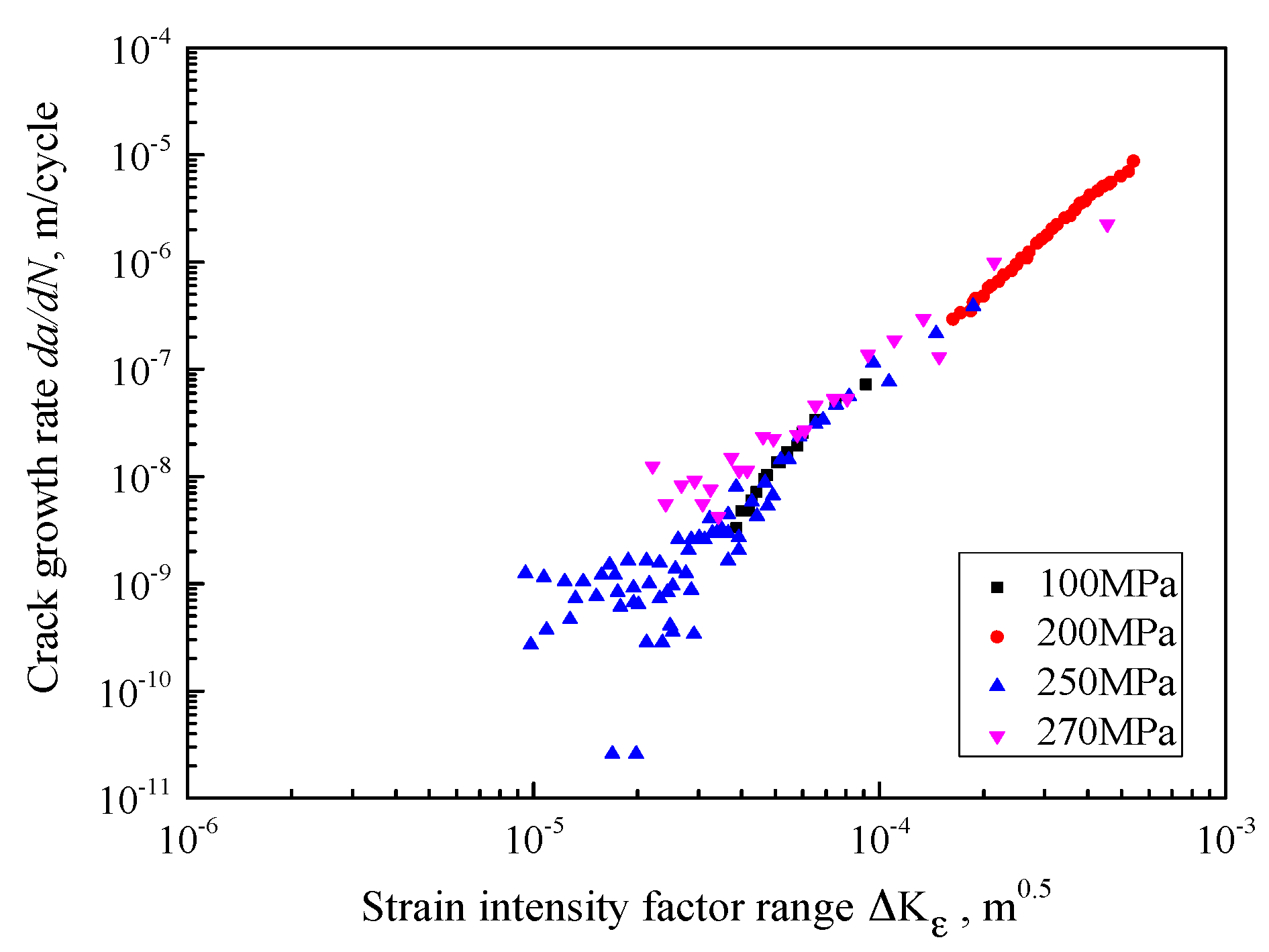

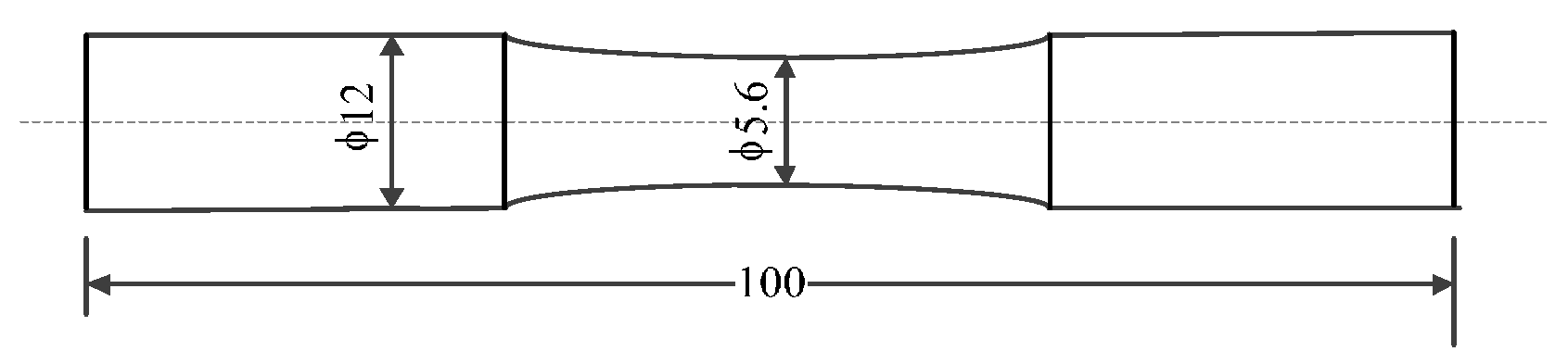

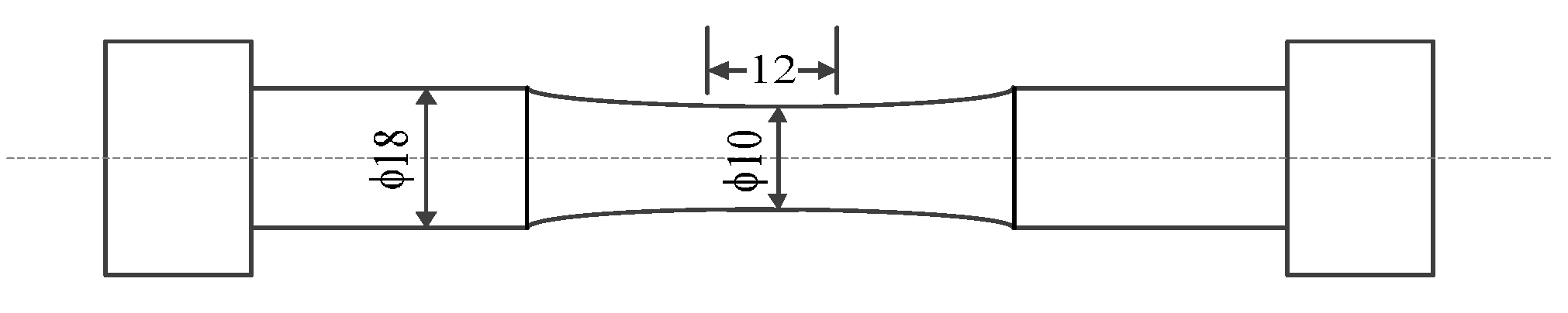

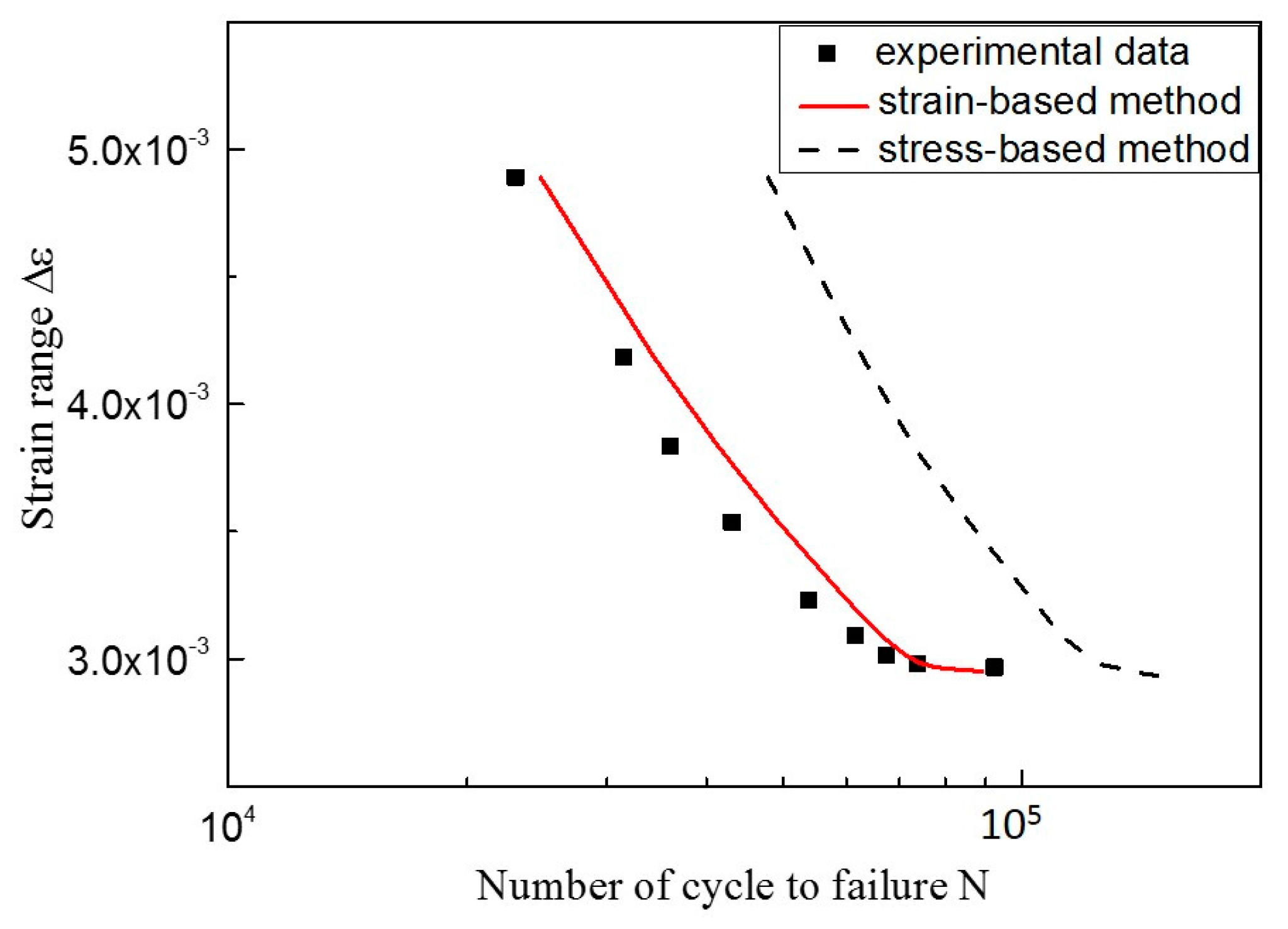

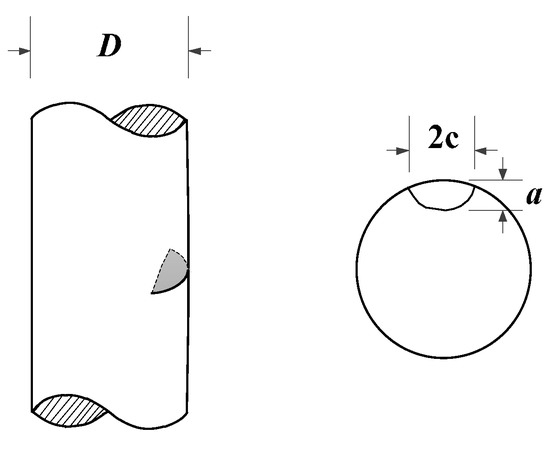

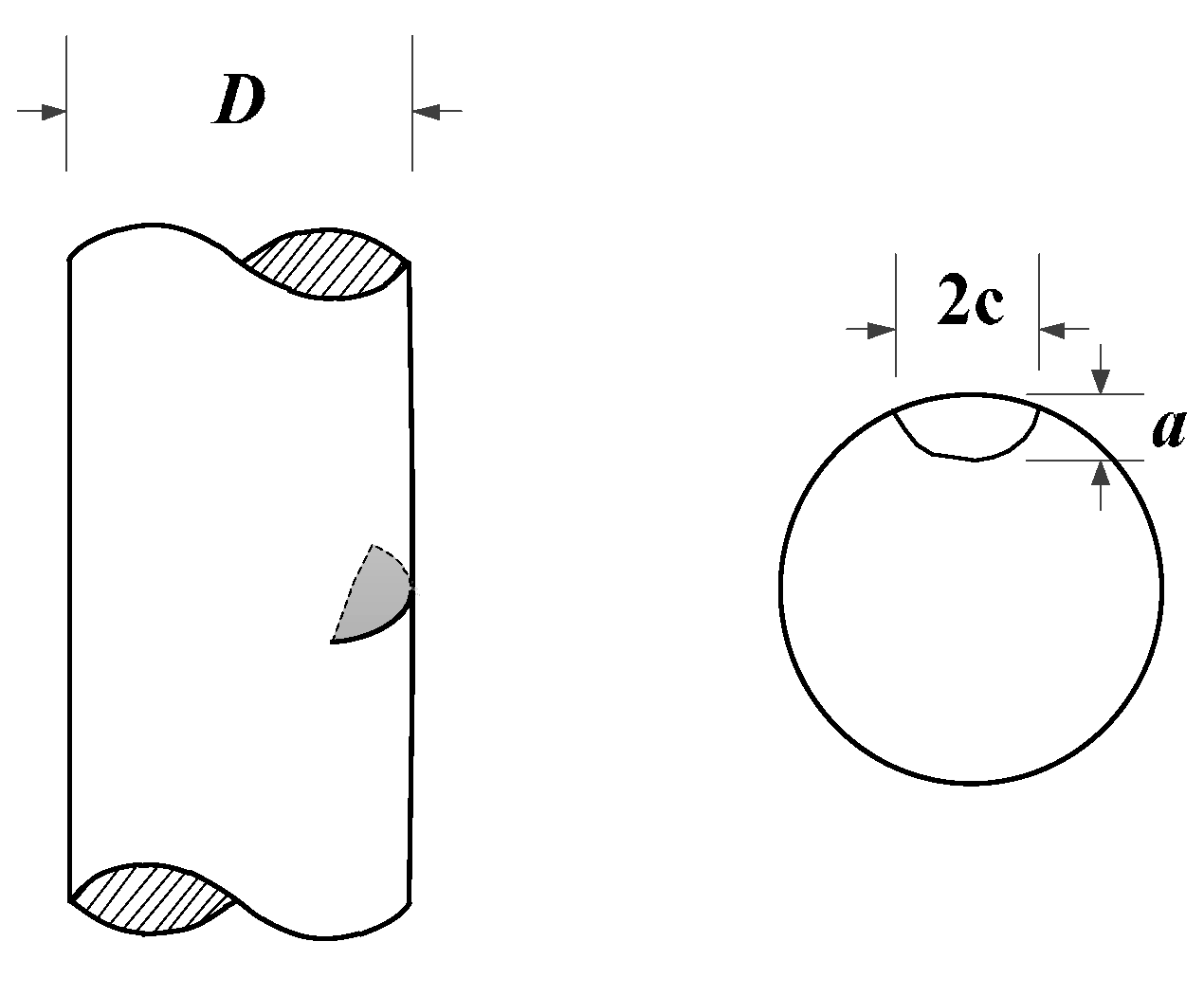

3.1. Life Prediction for the 316 Austenitic Stainless Steel Specimens

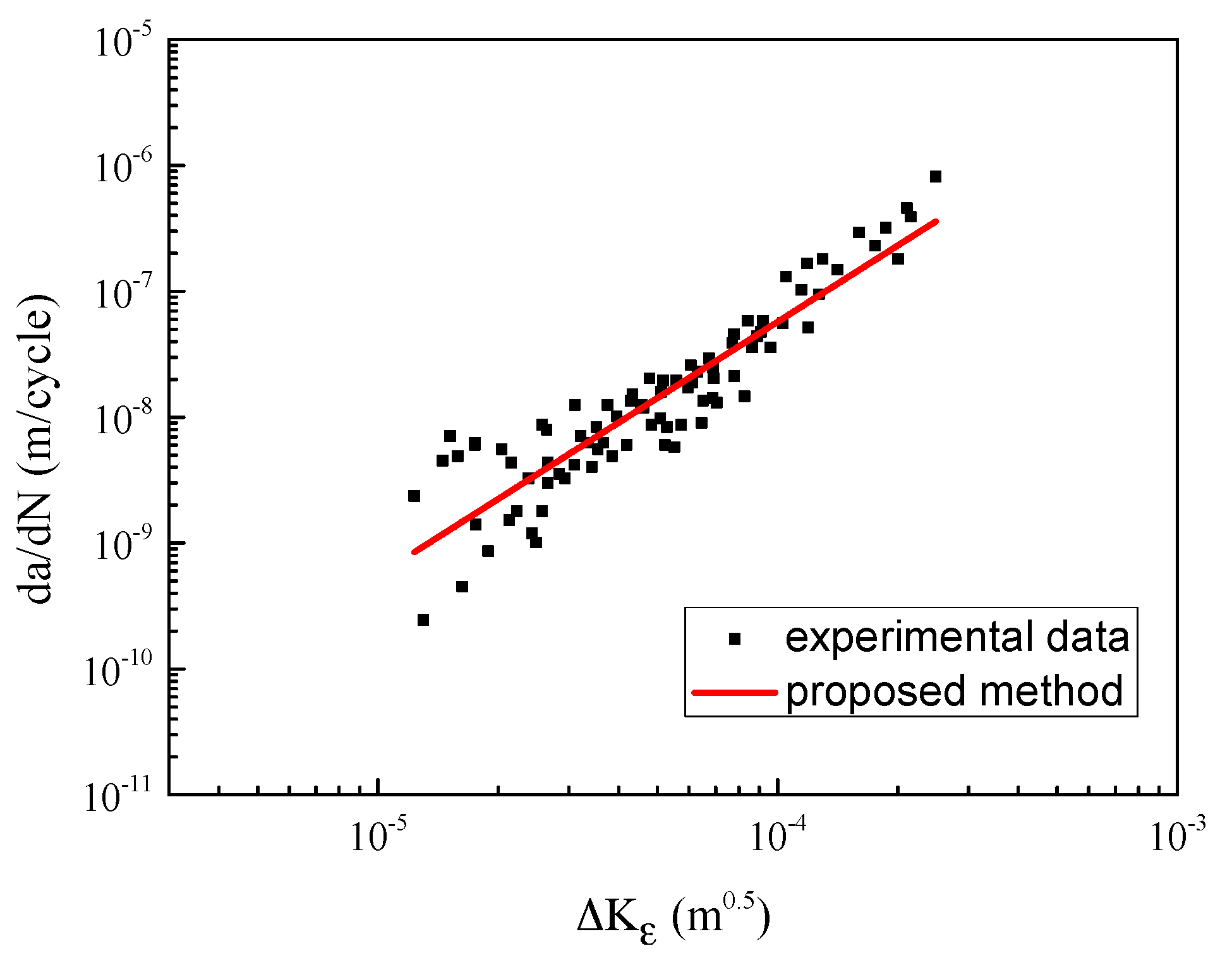

3.2. Life Prediction for Extruded AZ31 Magnesium Alloy Specimens
4. Conclusions
- (1)
- A strain-intensity-factor-based crack growth model is proposed in this paper and a theoretical analysis has been provided to explicate the strain intensity factor as a driving parameter under the symmetrical cyclic loading. The experimental data in 316 austenitic stainless steel and AZ31 magnesium alloy are used for model validation and good agreements are observed. The slight differences between our model predictions and the experimental data are probably induced by the fitting errors of the calibrated coefficients. Additionally, the SIF-based method is also adopted for comparison. Next, some conclusions are summarized: A transformation algorithm between the SIF and the strain intensity factor is developed and validated by the fatigue testing data of 316 austenitic stainless steel and AZ31 magnesium alloy. It is clear that the dispersity of the crack growth rate vs. the strain intensity factor is lower than that vs. the SIF for different load ranges, which reveals that the strain intensity factor could be a better parameter than the stress intensity factor under the fully reversed load condition.
- (2)
- Based on the strain intensity factor, a fatigue life prediction method is developed, in which the modified EIFS is employed. Then, the SIF-based method and experimental data are used in comparison with our model. It is clear that our proposed method matches the testing data much better than the SIF-based one.
- (3)
- The current study is performed under the fully reversed loading and for only two materials. In the future, the research will be extended to the asymmetric loading condition and other mental materials.
Acknowledgments
Author Contributions
Conflicts of Interest
Nomenclature
Crack size/length | |
Critical crack size/length | |
Initial crack size | |
Young’s modulus | |
Equivalent initial flaw size | |
LEFM | Linear elastic fracture mechanics |
ΔK | Stress intensity factor range |
Kc | Critical stress intensity factor |
Kmax | Maximum stress intensity factor |
ΔKth | Threshold stress intensity factor range |
ΔKε | Strain intensity factor range |
ΔKεth | Threshold strain intensity factor range |
Cyclic strength coefficient | |
Cyclic strain hardening coefficient | |
Stress ratio | |
SIF | Stress intensity factor |
The geometrical coefficient | |
ε | Strain |
ε−1 | Fatigue limit strain |
εe | Elastic strain |
εp | Plastic strain |
σ | Stress |
σ−1 | Fatigue limit |
References
- Newman, J.C.; Phillips, E.P.; Swain, M.H. Fatigue-life prediction methodology using small-crack theory. Int. J. Fatigue 1999, 21, 109–119. [Google Scholar] [CrossRef]
- Correia, J.A.F.O.; Blasón, S.; De Jesus, A.M.P.; Canteli, A.F.; Moreira, P.M.G.P.; Tavares, P.J. Fatigue life prediction based on an equivalent initial flaw size approach and a new normalized fatigue crack growth model. Eng. Fail. Anal. 2016, 69, 15–28. [Google Scholar] [CrossRef]
- Lim, J.-Y.; Hong, S.-G.; Lee, S.-B. Application of local stress–strain approaches in the prediction of fatigue crack initiation life for cyclically non-stabilized and non-Masing steel. Int. J. Fatigue 2005, 27, 1653–1660. [Google Scholar] [CrossRef]
- Correia, J.A.F.O.; Blasón, S.; Arcari, A.; Calvente, M.; Apetre, N.; Moreira, P.M.G.P.; De Jesus, A.M.P.; Canteli, A.F. Modified CCS fatigue crack growth model for the AA2019-T851 based on plasticity-induced crack-closure. Theor. Appl. Fract. Mech. 2016, 85, 26–36. [Google Scholar] [CrossRef]
- Liu, Y.; Mahadevan, S. Probabilistic fatigue life prediction using an equivalent initial flaw size distribution. Int. J. Fatigue 2009, 31, 476–487. [Google Scholar] [CrossRef]
- Pugno, N.; Ciavarella, M.; Cornetti, P.; Carpinteri, A. A generalized Paris’ law for fatigue crack growth. J. Mech. Phys. Solids 2006, 54, 1333–1349. [Google Scholar] [CrossRef]
- Sih, G.C.; Barthelemy, B.M. Mixed mode fatigue crack growth predictions. Eng. Fract. Mech. 1980, 13, 439–451. [Google Scholar] [CrossRef]
- Paris, P.C.; Erdogan, F. A critical analysis of crack propagation laws. Am. Soc. Mech. Eng. 1963, 85, 528–533. [Google Scholar] [CrossRef]
- Forman, R.G. Study of fatigue crack initiation from flaws using fracture mechanics theory. Eng. Fract. Mech. 1972, 4, 333–345. [Google Scholar] [CrossRef]
- Dowling, N.E.; Calhoun, C.A.; Arcari, A. Mean stress effects in stress–Life fatigue and the Walker equation. Fatigue Fract. Eng. Mater. Struct. 2009, 32, 163–179. [Google Scholar] [CrossRef]
- Neuber, H. Theory of Notch Stresses; Edwards, J.W: Ann Arbor, MI, USA, 1946. [Google Scholar]
- Kim, S.T.; Tadjiev, D.; Yang, H.T. Fatigue life prediction under random loading conditions in 7475-T7351 aluminum alloy using the RMS model. Int. J. Damage Mech. 2006, 15, 89–102. [Google Scholar] [CrossRef]
- Socie, D.F.; Morrow, J.D.; Chen, W.C. A procedure for estimating the total fatigue life of notched and cracked members. Eng. Fract. Mech. 1979, 11, 851–859. [Google Scholar] [CrossRef]
- Prawoto, Y. LEFM Based Analysis of the Effect of Tensile Residual Macrostress on Fatigue Crack Propagation. Ph.D. Thesis, University of Columbia, Missouri, MO, USA, October 2000. [Google Scholar]
- Wolf, E. Fatigue crack closure under cyclic tension. Eng. Fract. Mech. 1970, 2, 37–45. [Google Scholar] [CrossRef]
- Yang, J.; Zhang, W.; Liu, Y. Existence and insufficiency of the crack closure for fatigue crack growth analysis. Int. J. Fatigue 2014, 62, 144–153. [Google Scholar] [CrossRef]
- Correia, J.A.F.O.; De Jesus, A.M.P.; Moreira, P.M.G.P.; Tavares, P.J.S. Crack Closure Effects on Fatigue Crack Propagation Rates: Application of a Proposed Theoretical Model. Adv. Mater. Sci. Eng. 2016, 2016, 3026745. [Google Scholar] [CrossRef]
- Kujawski, D. A fatigue crack driving force parameter with load ratio effects. Int. J. Fatigue 2001, 23, 239–246. [Google Scholar] [CrossRef]
- Antunes, F.V.; Branco, R.; Prates, P.A.; Borrego, L. Fatigue crack growth modelling based on CTOD for the 7050-T6 alloy. Fatigue Fract. Eng. Mater. Struct. 2017. [Google Scholar] [CrossRef]
- Lopezcrespo, P.; Pommier, S. Numerical Analysis of Crack Tip Plasticity and History Effects under Mixed Mode Conditions. J. Solid Mech. Mater. Eng. 2008, 2, 1567–1576. [Google Scholar] [CrossRef]
- Shah, R.C.; Kobayashi, A.S. Stress intensity factor for an elliptical crack under arbitrary normal loading. Eng. Fract. Mech. 1971, 3, 71–96. [Google Scholar] [CrossRef]
- Kassir, M.K.; Bregman, A.M. The stress-intensity factor for a penny-shaped crack between two dissimilar materials. J. Appl. Mech. 1972, 39, 308–310. [Google Scholar] [CrossRef]
- Hiroshi, T. A note on the finite width corrections to the stress intensity factor. Eng. Fract. Mech. 1971, 3, 345–347. [Google Scholar] [CrossRef]
- Glinka, G. A notch stress-strain analysis approach to fatigue crack growth. Eng. Fract. Mech. 1985, 21, 245–261. [Google Scholar] [CrossRef]
- Hafezi, M.H.; Abdullah, N.N.; Correia, J.F.O.; De Jesus, A.M.P. An assessment of a strain-life approach for fatigue crack growth. Int. J. Struct. Integr. 2012, 3, 344–376. [Google Scholar] [CrossRef]
- Jesus, A.M.P.D.; Correia, J.A.F.O. Critical assessment of a local strain-based fatigue crack growth model using experimental data available for the P355NL1 steel. J. Press. Vessel. Technol. 2013, 135, 1–9. [Google Scholar] [CrossRef]
- Kaisand, L.R.; Mowbray, D.F. Relationships between low-cycle fatigue and fatigue crack growth rate properties. J. Test. Eval. 1979, 7, 270–280. [Google Scholar]
- Huffman, P.J. A strain energy based damage model for fatigue crack initiation and growth. Int. J. Fatigue 2016, 88, 197–204. [Google Scholar] [CrossRef]
- Joadder, B.; Shit, J.; Acharyya, S.; Dhar, S. Fatigue Failure of Notched Specimen—A Strain-Life Approach. Mater. Sci. Appl. 2011, 2, 1730. [Google Scholar] [CrossRef]
- Tomkins, B. Fatigue crack propagation—An analysis. Philos. Mag. 1968, 18, 1041–1066. [Google Scholar] [CrossRef]
- Chakrabortty, S.B. A model relating low cycle fatigue properties and microstructure to fatigue crack propagation rates. Fatigue Fract. Eng. Mater. Struct. 1979, 2, 331–344. [Google Scholar] [CrossRef]
- Jaske, C.E.; O’Donnell, W.J. Fatigue design criteria for pressure vessel alloys. Am. Soc. Mech. Eng. 1977, 99, 584–592. [Google Scholar] [CrossRef]
- Colin, J.; Fatemi, A. Variable amplitude cyclic deformation and fatigue behavior of stainless steel 304L including step, periodic, and random loading. Fatigue Fract. Eng. Mater. Struct. 2010, 33, 205–220. [Google Scholar] [CrossRef]
- Kawakubo, M.; Kamaya, M. Fatigue Life Prediction of Stainless Steel under Variable Loading (Damage Factors Determining Fatigue Life and Damage Evaluation for Two-Step Test). J. Soc. Mater. Sci. Jpn. 2011, 60, 871–878. [Google Scholar] [CrossRef]
- Lin, X.Z.; Chen, D.L. Strain controlled cyclic deformation behavior of an extruded magnesium alloy. Mater. Sci. Eng. A 2008, 496, 106–113. [Google Scholar] [CrossRef]
- Park, S.H.; Hong, S.G.; Lee, B.H.; Bang, W.; Lee, C.S. Low-cycle fatigue characteristics of rolled Mg–3Al–1Zn alloy. Int. J. Fatigue 2010, 32, 1835–1842. [Google Scholar] [CrossRef]
- Kamaya, M.; Kawakubo, M. Strain-based modeling of fatigue crack growth–An experimental approach for stainless steel. Int. J. Fatigue 2012, 44, 131–140. [Google Scholar] [CrossRef]
- Kamaya, M. Low-cycle fatigue crack growth prediction by strain intensity factor. Int. J. Fatigue 2015, 7, 80–89. [Google Scholar] [CrossRef]
- Tada, H.; Paris, P.C.; Irwin, G.R. The Stress Analysis of Cracks Handbook; Del Research Corporation: Geauga, OH, USA, 1973. [Google Scholar]
- Ramberg, W.; Osgood, W.R. Description of Stress-Strain Curves by Three Parameters; NACA Technical Note 902; National Advisory Committee for Aeronautics: Washington, DC, USA, 1943. [Google Scholar]
- Fe-Safe, 2014. Materials Database: Safe Technology Limited. Available online: https://www.3ds.com/products-services/simulia/products/fe-safe/ (accessed on 6 June 2017).
- NASGRO® Consortium. Fatigue Crack Growth Computer Program NASGRO® Version 3.0 User Manual, JSC-22267B. NASA Technical Report. 2001. Available online: http://www.nasgro.swri.org (accessed on 8 June 2016).
- Wang, Q.; Zhang, W.; Jiang, S. Fatigue life prediction based on crack closure and equivalent initial flaw size. Materials 2015, 8, 7145–7169. [Google Scholar] [CrossRef]
- Kitagawa, H.; Takahashi, S. Applicability of fracture mechanics to very small cracks or the cracks in the early stage. In Proceedings of the Second International Conference on Mechanical Behavior of Materials, Metals Park, OH, USA, 16–20 August 1976; pp. 627–631. [Google Scholar]
- El Haddad, M.H.; Topper, T.H.; Smith, K.N. Prediction of non propagating cracks. Eng. Fract. Mech. 1979, 11, 573–584. [Google Scholar] [CrossRef]
- Forman, R.G. Nasa/Flagro-Fatigue Crack Growth Computer Program; NASA Johnson Space Center: Houston, TX, USA, 1994. [Google Scholar]
- Newman, J.C.; Raju, I.S. Stress-intensity factor equations for cracks in three-dimensional finite bodies subjected to tension and bending loads. Comput. Methods Mech. Fract. 1986, 2, 311–334. [Google Scholar]
- Newman, J.C.; Raju, I.S. An empirical stress-intensity factor equation for the surface crack. Eng. Fract. Mech. 1981, 15, 185–192. [Google Scholar] [CrossRef]
- Gensheimer, V.M.; Packman, P.F. Variation in stress-intensity factor and back-surface displacement for surface cracks. Exp. Mech. 1988, 28, 182–187. [Google Scholar] [CrossRef]
- Wang, Q.; Zhang, W. Fatigue life prediction of smooth and circular-hole specimens based on equivalent initial flaw size. In Proceedings of the 2015 First International Conference on Reliability Systems Engineering (ICRSE), Beijing, China, 21–23 October 2015. [Google Scholar]
- Ishihara, S.; Nan, Z.; Goshima, T. Effect of microstructure on fatigue behavior of AZ31 magnesium alloy. Mater. Sci. Eng. A 2007, 468–470, 214–222. [Google Scholar] [CrossRef]
0.2% Proof Strength/Yield Stress | Young’s Modulus | Poisson’s Ratio | Cyclic Strength Coefficient | Cyclic Strain Hardening Coefficient | Applied Loading |
---|---|---|---|---|---|
297 MPa | 202.5 GPa | 0.3 | 691 | 0.154 | 200 MPa |

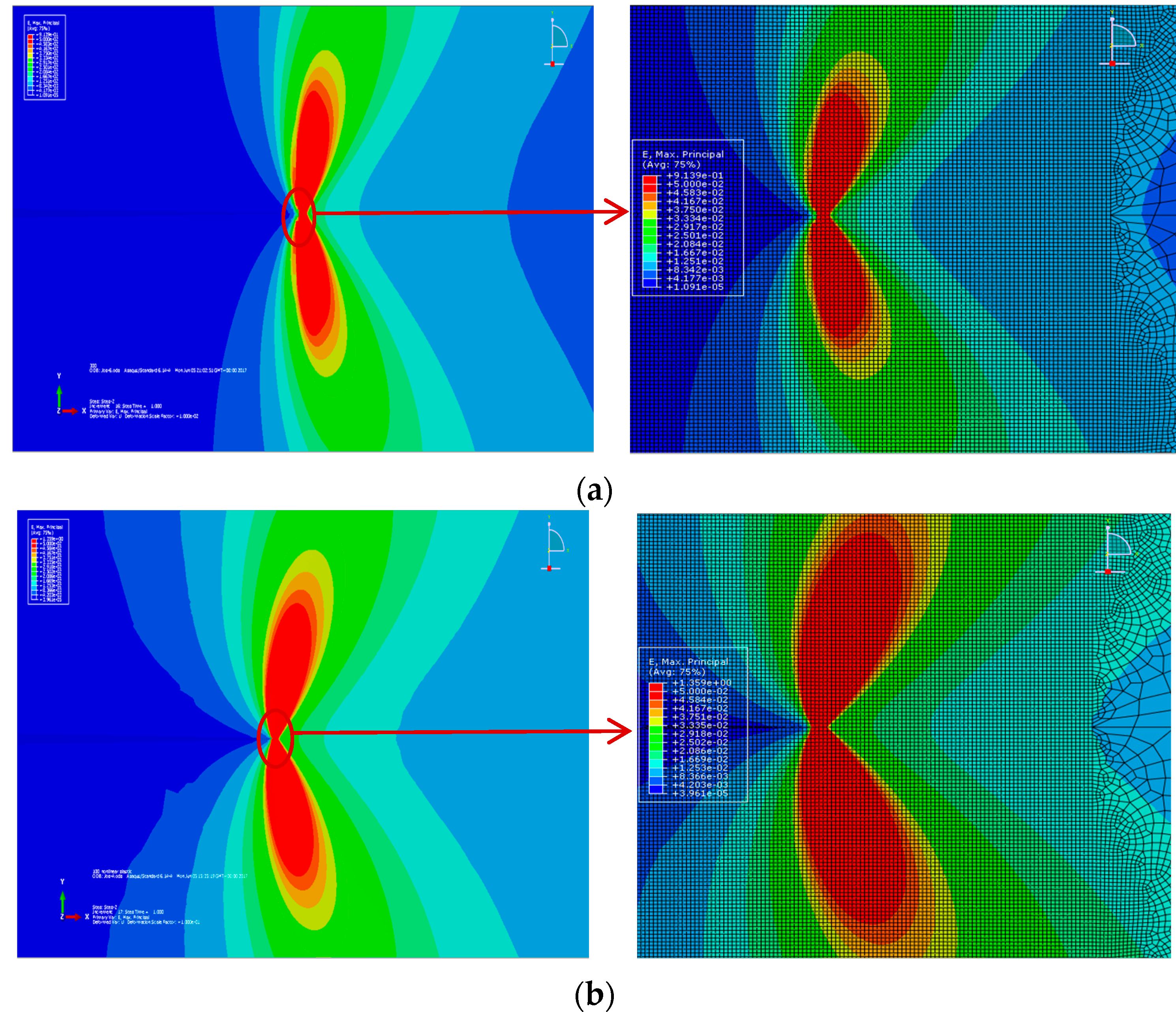

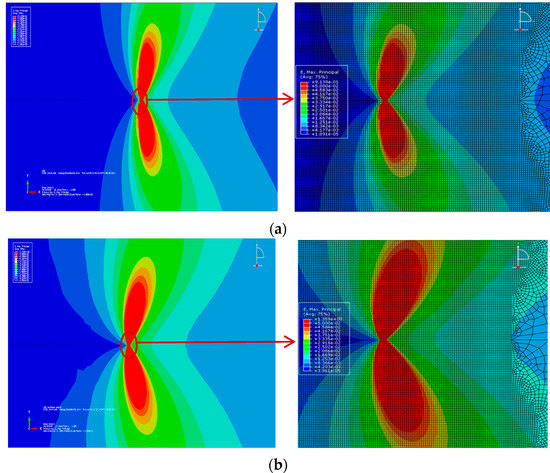

Constitutive Relationships | Linear Elastic and Perfect Plastic | Nonlinear Cyclic Stress-Strain Relationship | Relative Difference |
---|---|---|---|
Remote Strain (%) | 0.098 | 0.131 | 25.2% |
Maximum Local Strain at the Crack Tip | 0.1431 | 0.2100 | 31.9% |
C | Mn | P | S | Si | Cr | Mo | Ni | Fe |
---|---|---|---|---|---|---|---|---|
0.06 | 1.30 | 0.031 | 0.027 | 0.50 | 16.94 | 2.02 | 10.18 | Bal. |
Al | Zn | Mn | Fe | Ni | Cu | Si | Ca | Mg |
---|---|---|---|---|---|---|---|---|
2.98 | 0.97 | 0.004 | 0.007 | 0.005 | 0.002 | 0.02 | 0.05 | Bal. |
Yield Strength | Young’s Modulus | Cyclic Strength Coefficient | Cyclic Strain Hardening Coefficient |
---|---|---|---|
200 MPa | 45 GPa | 1976 | 0.34 |
