Article

Atmospheric Pressure Plasma Polymerization Synthesis and Characterization of Polyaniline Films Doped with and without Iodine

1
School of Electronics Engineering, College of IT Engineering, Kyungpook National University, Daegu 41566, Korea
2
ICT Materials and Components Research Laboratory, Electronics and Telecommunications Research Institute (ETRI), Daejeon 34129, Korea
3
Department of Electronics Engineering, Sejong University, Seoul 05006, Korea
*
Author to whom correspondence should be addressed.
Materials 2017, 10(11), 1272; https://doi.org/10.3390/ma10111272
Received: 28 September 2017 / Revised: 24 October 2017 / Accepted: 2 November 2017 / Published: 6 November 2017
(This article belongs to the Section Manufacturing Processes and Systems)

Abstract

:
Although polymerized aniline (polyaniline, PANI) with and without iodine (I2) doping has already been extensively studied, little work has been done on the synthesis of PANI films using atmospheric pressure plasma (APP) deposition. Therefore, this study characterized pure and I2-doped PANI films synthesized using an advanced APP polymerization system. The I2 doping was conducted ex-situ and using an I2 chamber method following the APP deposition. The pure and I2-doped PANI films were structurally analyzed using field emission scanning electron microscope (FE-SEM), atomic force microscope (AFM), X-ray Diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), X-ray photoelectron spectroscopy (XPS), and time of flight secondary ion mass spectrometry (ToF-SIMS) studies. When increasing the I2 doping time, the plane and cross-sectional SEM images showed a decrease in the width and thickness of the PANI nanofibers, while the AFM results showed an increase in the roughness and grain size of the PANI films. Moreover, the FT-IR, XPS, and ToF-SIMS results showed an increase in the content of oxygen-containing functional groups and C=C double bonds, yet decrease in the C–N and C–H bonds when increasing the I2 doping time due to the reduction of hydrogen in the PANI films via the I2. To check the suitability of the conductive layer for polymer display applications, the resistance variations of the PANI films grown on the interdigitated electrode substrates were also examined according to the I2 doping time.

1. Introduction

Low-pressure plasma polymerization is a well-established and extensively studied area [1,2,3]. Use of such system, however, is costly and requires routine maintenance, thereby limiting its application to batch processes. Therefore, an attractive alternative is the use of atmospheric pressure plasma (APP) polymerization for the synthesis of novel thin film materials [4,5,6,7,8,9,10,11,12,13,14,15,16]. With various advantages, including a low-temperature dry process and low-cost routine maintenance, APP polymerization is a promising growth system for the deposition of novel plasma polymer thin films with functional features that are well-suited for a wide range of applications and substrates. Among plasma polymers, polyaniline (PANI) is a conducting polymer and promising candidate for use in organic electronics due to its low production cost, good electrical conductivity, semi-flexibility, and bio stability. In the case of display applications, it is already established that PANI can be obtained using chemical or low-pressure plasma polymerization methods [17]. The application of APP polymerization for fabricating PANI thin films, however, is not well developed.
The current authors recently reported on an advanced APP jets (APPJs) method for synthesizing new polymers [13,14,15,16] using intense plasma with a high plasma density in monomer fragmentation (or nucleation or active) and recombination (or passive) regions. The intense and broad plasma is produced using a guide tube and substrate on a polytetrafluoroethylene (PTFE) bluff body installed at the end of the jet, which minimizes any quenching from ambient air and increases the charged particles and density of the plasma in the fragmentation and recombination regions. In a dry and low temperature environment the proposed APP method can achieve a uniform and stable glow-like plasma discharge with a large area deposition and produce high-quality polymer nanoparticles and nanofibers with an easily controllable morphology, deposition rate, and deposition size, making them well-suited for a wide range of substrates [13,14,15,16]. Furthermore, the proposed APP polymerization technique does not require a vacuum atmosphere or special equipment. The uniform and intensified glow-like discharge of the novel APPJs technique was also shown to improve the fragmentation and recombination of the aniline monomer to produce pure plasma-polymerized aniline (pPANI) nanofibers including nanoparticles with high molecular weights and poly-crystalline characteristics [16]. The creation of novel polymer materials requires novel technological developments. In a previous study, the application of advanced APPJs without proton donor doping resulted in pure PANI in an insulated state. To create conductive plasma polymerized structures, charge carriers need to be introduced using I2 doping, which means that further analysis is required for the formation of novel pure and I2-doped PANI materials using the novel APPJs technique. In other research, Fourier transform infrared spectroscopy (FT-IR) and gas chromatography-mass spectrometry (GC-MS) were used to determine the chemical changes to pure PANI introduced by advanced APP. While FT-IR and GC-MS were useful in monitoring changes in the surface composition of pure PANI, there was no distinction between the nitrogen and carbon species arising from pure and I2-doped PANI.
Accordingly, this study used atomic force microscopy (AFM), X-ray Diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and time of flight secondary ion mass spectrometry (ToF-SIMS) to analyze the surface and grain size of pure and I2-doped PANI films and an FT-IR analysis to investigate the composition of conducting composites in the same films. In particular, XPS and ToF-SIMS are used as complementary surface analytical techniques for researching conducting polymer composites, and revealed interesting structural differences between the pure and I2-doped PANI films prepared in this study using advanced APPJs. Furthermore, the variation in resistance of the PANI films with and without I2 doping was also examined to check the suitability of the conductive layer for future display technologies.

2. Experimental Methods

2.1. Atmospheric Pressure Plasma Polymer Synthesis Method

High purity argon (Ar) gas (99.999%, Linde Korea, Pohang, Korea) was used as the plasma discharge gas, and its flow rate was 1700 standard cubic centimeters per minute (sccm). The liquid aniline monomer (Sigma-Aldrich Co., St. Louis, MO, USA, Mw = 93 g·mol−1) was vaporized using a glass bubbler that supplied the Ar gas at a flow rate of 160 sccm. Sinusoidal power was applied to the powered electrode with a peak value of 8 kV and frequency of 26 kHz. The plasma polymerization method using an advanced APP source with a guide tube and bluff body was previously described in detail [13,16]. To measure the electrical resistance, the PANI films were synthesized on a substrate supplied with interdigitated Pt electrodes.

2.2. Iodine Doping Method

For ex-situ I2 doping, samples of the deposited PANI films were placed in a sealed glass container containing 2 g of solid I2 crystals (Sigma-Aldrich Co., St. Louis, MO, USA, 99.99%) for 30 s or 120 s. After doping, the color of the PANI films changed from light to dark brown.

2.3. Scanning Electron Microscopy

Plane and cross-sectional images of the plasma PANI films on the glass substrates were characterized using FE-SEM (Hitachi SU8220, Hitachi, Tokyo, Japan) with an accelerating voltage and current of 5 kV and 10 mA, respectively. A conductive platinum coating was used when imaging the samples to prevent any charging from the substrate.

2.4. Gel Permeation Chromatography

The gel permeation chromatography (GPC) was performed using an Alliance e2695 (Waters, Milford, MA, USA) GPC system. The polydispersity index (PDI) of the polymers was determined using Empower 2 software against polystyrene standards. Ultra-pure tetrahydrofuran (THF, 99.9% HPLC grade, Sigma-Aldrich Co., St. Louis, MO, USA) was used as an eluent, as well as a solvent to prepare the pure and I2-doped PANI solutions. To prevent any pressure fluctuation in the GPC system, the polymer solutions were filtered through a 25 mm polytetrafluoroethylene (PTFE) syringe filter prior to use.

2.5. Atomic Force Microscope

AFM (Park Systems NX20, Park Systems, Suwon, Korea) was used to monitor the surface roughness based on three-dimensional (3D) pure and I2-doped PANI surface images. The scan rate was set at 0.5 Hz and the scanning area was 20 μm × 20 μm.

2.6. X-Ray Diffraction

An XRD system (Bruker D6 Discover, Bruker, Billerica, MA, USA) was used to study the structural properties. The source of radiation was Cu-kα with wavelength λ = 1.5406 Å, voltage 40 kV, and current 40 mA. The scanning angle 2θ was varied in the range of 5–40°. The scan step size was set at 0.06° and the time per step was 5 s.

2.7. Fourier Transform Infrared Spectroscopy

FT-IR was used to determine the chemical changes in the pure and I2-doped PANI. The FT-IR was taken using a Perkin-Elmer Frontier spectrometer between 650 cm−1 and 4000 cm−1.

2.8. X-Ray Photoelectron Spectroscopy

The XPS was carried out using an ESCALAB 250Xi surface analysis system (Thermo Fisher Scientific, Waltham, MA, USA) with a monochromatic Al Kα X-ray source (hv = 1486.71 eV) operated at 15 kV and 20 mA. The pressure in the analyzing chamber was maintained at 10−7 Pa or lower, and the size of the analyzed area was 500 μm × 500 μm. The spectra were acquired using the angle between the direction of the emitted photoelectrons and the surface equal to 60°. The estimated analyzing depth of the XPS was 8 nm to 10 nm. The high-resolution spectra were acquired using the constant analyzer energy mode with 200 eV for the survey scan and 50 eV for the element scan. A C1s core level value of 285.8 eV was used for calibrating the energy scale.

2.9. Time of Flight Secondary Ion Mass Spectrometry

ToF-SIMS was used to investigate the surface composition of the polymers. The ToF-SIMS data were obtained using a ToF-SIMS V instrument (ION-TOF GmbH, Münster, Germany) equipped with a reflectron analyzer, bismuth primary-ion (Bi3+) source, and pulsed electron flood source for charge compensation. The pressure in the analysis chamber was maintained at less than 1 × 10−9 Torr. The negative-ion and positive-ion mass spectra were acquired from a 500 μm × 500 μm area using a Bi3+ (0.5 pA) primary-ion beam operating at 30 keV. The mass resolution was typically greater than 8000 at m/z = 29 Si. Secondary ions were detected in the negative-ion and positive-ion modes, and a full spectrum from 1 amu to 2000 amu was acquired.

3. Results and Discussion

Figure 1 shows a schematic diagram of the experimental set-up with the plasma image produced in the nucleation region of the intense and broad plasma, and a comparison of the cross-sectional area of the plasma when using proposed advanced APP polymerization system. As shown in Figure 1 and previous research, the guide tube and bluff body systems are included in the proposed advanced APP polymerization system to minimize quenching from ambient air and increase the charged particles and plasma energy in the nucleation region [13,14,16]. Using copper tape, the three glass jet tubes were wrapped together to create a compact triangular shape, where each jet was in physical contact with the adjacent jets. A critical component of the advanced APP polymerization system is the guide tube, constituting the nucleation region where the aniline monomers are cracked by the Ar plasma. Moreover, the position of the bluff body with respect to the guide tube has a significant influence on the production of intense and broad plasma in the nucleation region. In the case of conventional APPJs without a guide tube or bluff body, plasma is only generated within the area of the three array jets due to the directional property of the streamer-like discharge. In the case of advanced APPJs (APP system) with a guide tube and bluff body, however, the plasma generated in the nucleation region can be transited from a narrow streamer-like discharge into a broad glow-like discharge. It is noted that, when generating intense and broad glow-like plasma in the guide tube, the plasma area was significantly increased about 60-fold, as shown in Figure 1. As a result, the advanced APPJs produced intense and broad glow-like plasma in the nucleation region during the plasma polymerization [13,16].
Figure 2 shows the changes in the plane and cross-sectional SEM images of the PANI films grown on glass substrates when using the advanced APPJs device after 30 min deposition without I2 doping (pure), with 30 s I2 doping, and with 120 s I2 doping following deposition. As shown in Figure 2, the pure PANI films consisted of dense nanoparticles and nanofibers with irregularly cross-linked and porous networks with an excellent PDI of about 1.09 according to GPC, whereas the I2-doped PANI films showed irregularly low cross-linked and highly porous networks with a PDI of 1.11. In particular, after I2 doping, the plane SEM images showed narrower PANI nanofibers, while the cross-sectional SEM images showed thinner PANI nanofibers and films when increasing the I2 doping time. After 120 s of doping, some nanofibers snapped between adjacent nanofibers.
Figure 3 shows the changes in the 3D AFM images according to the roughness (Rrms) of the PANI film surface grown on a glass substrate and granularity cumulation distribution charts of the average grain diameter obtained from the AFM images when using the advanced APPJs device after 30 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. The pure PANI surface showed small-size protrusions, and the surface Rrms was 25.1 nm, whereas after I2 doping, lots of large protrusions appeared on the PANI surface, and the Rrms increased to 115.5 nm and 291.0 nm, respectively. The surface became rougher when increasing the doping time. In addition, as shown in the granularity cumulation distribution charts in Figure 3, the diameter range for the pure PANI sample was between 0.15 μm and 1.75 μm. After 120 s of I2 doping, however, the diameter range became much wider, between 0.55 μm and 2.95 μm, due to particle aggregation, thereby increasing the grain size [18,19,20]. As the grain sizes determine the number of grain boundaries, the increase in the average grain diameter from 0.5 μm to 1.8 μm means that increasing the I2 doping time increases the grain size and simultaneously decreases the number of grain boundaries. The 3D AFM images also indicated that the PANI film surfaces became rougher when increasing the I2 doping; this increased roughness was mainly due to particle aggregation and a higher porosity due to disconnected networks between adjacent nanofibers.
Figure 4 shows the changes in the XRD patterns of the PANI films surface grown on Si substrates when using the advanced APPJs device after 60 min deposition without I2 doping and with 120 s I2 doping following deposition. The PANI XRD patterns showed that the pure PANI was essentially amorphous in terms of a film [21,22]. There was only one broad diffraction peak at around 19.0°. After 120 s of I2 doping, however, a broad diffraction peak appeared at around 20.9°, and the intensity of the peak at around 20.9° increased.
Figure 5 shows the changes in the FT-IR spectra of the PANI films grown on glass substrates when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. The first broad band located at 3345 cm−1 corresponds to N–H bonds with hydrogen bonded secondary amino groups. A peak belonging to aliphatic C–H groups was also located at 2965 cm−1 [23,24,25]. When increasing the I2 doping time, the groups with multiple bonds C≡C in the peak at 2216 cm−1 were increased along with the C=C double bonds in the sharp peak at 1630 cm−1 [26,27,28,29], whereas the C–N bonds of the diphenyl amine group were decreased in the sharp peaks at 750 cm−1 and 696 cm−1. The presence of C=C (1630 cm−1) bonds can increase the removal of hydrogen from consecutive carbon atoms and the subsequent rearrangement of radicals. Therefore, as shown in Figure 5, the FT-IR results showed that the C≡C and C=C double bonds were increased and the C–N bonds decreased when increasing the I2 doping time, presumably due to the reduction of hydrogen in the PANI films via the iodine [26], which probably reacted with residual radicals in the PANI films during the ex-situ doping [30,31]. Iodine radicals can also be formed by the hemolytic dissociation of iodine [30]. As iodine radicals can extract hydrogen atoms from the PANI structure, this could change the bonding characteristics of plasma polymer films [30,31,32].
Figure 6 shows the XPS spectra and elemental composition percent (Figure 6a, insets) of the atomic distribution in the PANI films grown on glass substrates when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. The element content was calculated based on the ratio of the corresponding integral area of the peaks. The XPS survey spectra in Figure 6a show signals corresponding to C 1s (285.5 eV), N 1s (399.8 eV), O 1s (532.1 eV), I 3d3/2 (631.1 eV), I 3d5/2 (619.7 eV), and I 4d (53.0 eV) electronic orbitals [33,34,35]. These results suggest the presence of C, N, I, and O atoms in the pure and I2-doped PANI films. While the C, N, and I atoms belong to the aniline and iodine structures, the O atoms are likely to originate from the oxidation of particles from ambient air during the APP polymerization and I2 doping. For a further analysis of the types and ratios of the surface functional groups in the pure and I2-doped PANI, the curve fitting of the high-resolution C 1s and N 1s peaks was analyzed using the XPS peaks. As shown in Figure 6b, the C 1s peaks for the pure and I2-doped PANI could be divided into six component peaks, indicating the following six carbon-containing groups; C=C (284.0 eV), C–C/C–H (285.6 eV), C–N (286.5 eV), C–O (288.1 eV), C=O (289.4 eV), and O–C=O (291.1 eV) [5,26,27]. Meanwhile, the N 1s spectra under different conditions are shown in Figure 6c. In this case, the N 1s peaks for the pure and I2-doped PANI could be divided into three component peaks, indicating the following three nitrogen-containing groups; =N– (398.3 eV), –NH– (399.8 eV), and =NH+ (402.1 eV) [27,36,37]. The assignments of the fitted components and compositions of the C 1s and N 1s levels are summarized in Table 1 and Table 2, respectively. As shown in Figure 6a, in the case of pure PANI, the C 1s, N 1s, O 1s, and related I 3d peaks had an atom percent of 74.1%, 12.5%, 13.2%, and 0.2%, respectively. In the case of 120 s of I2 doping, however, the C 1s, N 1s, O 1s, and related I 3d peaks had an atom percent of 70.0%, 11.8%, 14.7%, and 3.5%, respectively, which meant that, when increasing the I2 doping time, the C 1s and N 1s decreased, but the O 1s and I 3d increased. As shown in Figure 6b and Table 1, when the I2 doping time was 30 s, the C=C content increased from 16.84% to 19.25%. When the I2 doping time reached 120 s, the C=C content increased from 16.84% to 22.47%. Furthermore, the content of oxygen-containing groups, such as C=O, O–C=O, increased when increasing the I2 doping time. When the I2 doping time was 120 s, however, the content of C–C/C–H and C–N decreased from 11.54% and 26.00% to 10.86% and 19.48%, respectively. As shown in Figure 6c and Table 2, when the I2 doping time was 120 s, the content of –NH– and NH2+ also decreased from 44.04% and 42.12% to 42.84% and 39.31%, respectively. As a result, when increasing the I2 doping time, the oxygen-containing functional groups and C=C double bonds all increased, while the C–N, C–H, –NH–, and =NH+ bonds all decreased. The primary carbon-containing bonds were decomposed by the APP, which helped to generate oxidation, carboxyl, and double bonds of carbon to oxygen under ambient air, thereby increasing the content of oxygen-containing functional groups and C=C double bonds. Meanwhile, since iodine could easily absorb hydrogen from materials, this reduced the C–H, C–N, –NH–, and =NH+ bonds. In addition, the C=C bonds were likely to be increased with the removal of hydrogen of consecutive carbon atoms [26].
To determine the specific structures with and without I2 doping after the APP polymerization process, the PANI films were characterized in both the positive and negative ion modes using ToF-SIMS. Figure 7 shows the negatively charged ions with wide range (0–200 amu) static mass spectra when using ToF-SIMS for the PANI films grown on glass substrates when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. The spectra were complex and showed distinct differences, attesting to substantial compositional differences between the pure and I2-doped PANI films. Two ion peaks were detected at m/z = 16 and 17 amu, corresponding to O and OH, respectively. In addition, PANI ions were detected at m/z = 26, 42, and 50 amu and attributed to CN, CNO, and C3N, respectively, which were characteristic of PANI fragments. The assignment of the selected peaks of PANI detected in the negative mode is shown in Table 3.
Figure 8 shows the positively charged ions with narrow range (0–100 amu) static mass spectra for the PANI films grown on a glass substrate when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. For the PANI features, several characteristic peaks from the polymer chain were detected. Table 4 lists the selected peak assignments for PANI detected in the positive ion mode, representing a series of hydrocarbon fragments arising from PANI, such as C2H5+, C3H5+, C3H7+, and C4H7+. These clusters of peaks at 39, 41, 43, 55, 57, 67, 69, 81, and 95 amu are typical aliphatic hydrocarbon fragments of the form CnH2n3, CnH2n1, and CnH2n+1, arising from the PANI chain.
Figure 9 shows the changes in the normalized intensities of the negative-ion and positive-ion ToF-SIMS on the surface of the PANI films when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. As shown in Figure 9a, increasing the I2 doping time produced a significant decrease in CN, CNO, and C3N, and slight decrease in OH, C2H, and C4H. In Figure 9b, all the aliphatic hydrocarbon fragment spectra, including C3H3+, C3H5+, C3H7+, C4H7+, C4H9+, C5H7+, C5H9+, C6H9+, and C7H11+, decreased when increasing the I2 doping time to 120 s. As a result, since both the nitrogen-containing groups and the hydrogen-containing groups were decreased, this reduced the C–H and C–N bonds. This result agreed well with the FT-IR and XPS analyses.
Figure 10 shows the changes in the resistance (R) of the PANI films on the substrates of interdigitated electrodes when using the advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition. The width and gap of the interdigitated electrodes were about 330 and 230 μm, respectively. The purpose of doping with iodine was to introduce charge carriers to the PANI structure to enhance the electrical conductive characteristics. The samples were doped by placing them in a sealed glass container containing solid I2 crystals (2 g) for a certain time period [30,31,32]. The resistance of the pure PANI film was over the measurement limit of 1.0 × 108 Ω. When increasing the doping time, the corresponding resistance decreased mainly due to the increased charge carriers and grain size. As shown in Figure 10, when the I2 doping time was 30 s, the corresponding resistance was remarkably decreased from infinity to 6.0 × 105 Ω. When the I2 doping time reached 120 s, the corresponding resistance was more slightly decreased from 6.0 × 105 Ω to 4.0 × 105 Ω. The corresponding resistance was saturated at about 1.0 × 103 Ω after 20 min. In most polymer materials, the presence of water in or on the polymer structure changes the resistance and conductivity [15,16,17,18]. In polymer display applications, however, the I2-doped PANI film would be encapsulated by sealing materials to prevent access by moisture and oxygen, thereby protecting the resistance and conductivity [38,39,40]. For polymer display applications, a future detailed parametric study will measure the electric conductivity characteristics of plasma polymers created using the proposed advanced APPJs device.

4. Conclusions

Pure and I2-doped PANI films were prepared using an advanced APP polymerization system to study the formation of thin films for potential application. The I2 doping was conducted ex-situ and using an I2 chamber method after APP polymerization deposition. FE-SEM and AFM studies revealed that the thickness of the PANI films decreased while the roughness increased when increasing the I2 doping time; this increased roughness was mainly due to a high porosity from disconnected networks between adjacent nanofibers. FT-IR, XPS, and ToF-SIMS revealed that increasing the I2 doping time increased the content of oxygen-containing functional groups and C=C double bonds, yet decreased the C–N, C–H, –NH–, and =NH+ bonds due to the reduction of hydrogen in the PANI films via the I2 doping. For polymer display applications, the resistance of PANI films can be easily controlled by varying the I2 doping time. It is also anticipated that new PANI films grown at room temperature (30 °C) using the proposed advanced APP system can offer versatile advantages as electrodes for future displays, flexible plasma thrusters, and polymer gas sensors.

Acknowledgments

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP) (No. 2016R1C1B1011918).

Author Contributions

Choon-Sang Park, Dong Ha Kim, and Heung-Sik Tae conceived and designed the study; Choon-Sang Park and Dong Ha Kim performed the experiments; Eun Young Jung contributed analysis tools; Choon-Sang Park, Eun Young Jung, Dong Ha Kim, Do Yeob Kim, Hyung-Kun Lee, Bhum Jae Shin, Dong Ho Lee, and Heung-Sik Tae analyzed the data; Choon-Sang Park and Heung-Sik Tae wrote the majority of the paper; and all authors reviewed and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Thiry, D.; Konstantinidis, S.; Cornil, J.; Snyders, R. Plasma diagnostics for the low-pressure plasma polymerization process: A critical review. Thin Solid Films 2016, 606, 19–44. [Google Scholar] [CrossRef]
  2. Zaitsev, A.; Poncin-epaillard, F.; Lacoste, A.; Debarnot, D. A Bottom-up and templateless process for the elaboration of plasma-polymer nanostructures. Plasma Process. Polym. 2015, 13, 1–9. [Google Scholar] [CrossRef]
  3. Hegemann, D.; Nisol, B.; Watson, S.; Wertheimer, M.R. Energy conversion efficiency in plasma polymerization–A comparison of low- and atmospheric-pressure processes. Plasma Process. Polym. 2016, 13, 834–842. [Google Scholar] [CrossRef]
  4. Phan, L.T.; Yoon, S.M.; Moon, M.-W. Plasma-based nanostructuring of polymers: A review. Polymers 2017, 9, 417. [Google Scholar] [CrossRef]
  5. Peng, M.; Li, L.; Xiong, J.; Hua, K.; Wang, S.; Shao, T. Study on surface properties of polyamide 66 using atmospheric glow-like discharge plasma treatment. Coatings 2017, 7, 123. [Google Scholar] [CrossRef]
  6. Poncin-Epaillard, F.; Legeay, G. Surface engineering of biomaterials with plasma techniques. J. Biomater. Sci. Polym. Ed. 2003, 14, 1005–1028. [Google Scholar] [CrossRef] [PubMed]
  7. Tatarova, E.; Bundaleska, N.; Sarrette, J.P.; Ferreira, C. Plasmas for environmental issues: From hydrogen production to 2D materials assembly. Plasma Sources Sci. Technol. 2014, 23, 63002. [Google Scholar] [CrossRef]
  8. Cheruthazhekatt, S.; Černák, M.; Slavíček, P.; Havel, J. Gas plasmas and plasma modified materials in medicine. J. Appl. Biomed. 2010, 8, 55–66. [Google Scholar] [CrossRef]
  9. Moreau, M.; Orange, N.; Feuilloley, M. Non-thermal plasma technologies: New tools for bio-decontamination. Biotechnol. Adv. 2008, 26, 610–617. [Google Scholar] [CrossRef] [PubMed]
  10. Lu, T.; Qiao, Y.; Liu, X. Surface modification of biomaterials using plasma immersion ion implantation and deposition. Interface Focus 2012, 2, 325–336. [Google Scholar] [CrossRef] [PubMed]
  11. Ehlbeck, J.; Schnabel, U.; Polak, M.; Winter, J.; Von Woedtke, T.; Brandenburg, R.; Von dem Hagen, T.; Weltmann, K. Low temperature atmospheric pressure plasma sources for microbial decontamination. J. Phys. D Appl. Phys. 2011, 44, 13002. [Google Scholar] [CrossRef]
  12. Kylián, O.; Choukourov, A.; Biederman, H. Nanostructured plasma polymers. Thin Solid Films 2013, 548, 1–17. [Google Scholar] [CrossRef]
  13. Park, C.-S.; Kim, D.H.; Shin, B.J.; Tae, H.-S. Synthesis and characterization of nanofibrous polyaniline thin film prepared by novel atmospheric pressure plasma polymerization technique. Materials 2016, 9, 39. [Google Scholar] [CrossRef] [PubMed]
  14. Park, C.-S.; Kim, D.H.; Shin, B.J.; Kim, D.; Lee, H.-K.; Tae, H.-S. Conductive polymer synthesis with single-crystallinity via a novel plasma polymerization technique for gas sensor applications. Materials 2016, 9, 812. [Google Scholar] [CrossRef] [PubMed]
  15. Park, C.-S.; Kim, D.Y.; Kim, D.H.; Lee, H.-K.; Shin, B.J.; Tae, H.-S. Humidity-independent conducting polyaniline films synthesized using advanced atmospheric pressure plasma polymerization with in-situ iodine doping. Appl. Phys. Lett. 2017, 110, 33502. [Google Scholar] [CrossRef]
  16. Kim, D.H.; Park, C.-S.; Kim, W.H.; Shin, B.J.; Hong, J.G.; Park, T.S.; Seo, J.H.; Tae, H.-S. Influences of guide-tube and bluff-body on advanced atmospheric pressure plasma source for single-crystalline polymer nanoparticle synthesis at low temperature. Phys. Plasmas 2017, 24, 23506. [Google Scholar] [CrossRef]
  17. Ameen, S.; Song, M.; Kim, D.-G.; Im, Y.-B.; Seo, H.-K.; Kim, Y.S.; Shin, H.-S. Iodine doped polyaniline thin film for heterostructure devices via PECVD technique: Morphological, structural, and electrical properties. Macromol. Res. 2012, 20, 30–36. [Google Scholar] [CrossRef]
  18. Mohammed, M.K.A.; Al-Mousoi, A.K.; Khalaf, H.A. Deposition of multi-layer graphene (MLG) film on glass slide by flame synthesis technique. Optik 2016, 127, 9848–9852. [Google Scholar] [CrossRef]
  19. Al-Fouadi, A.H.A.; Hussain, D.H.; Rahim, H.A. Surface topography study of CdS thin film nanostructure synthesized by CBD. Optik 2017, 131, 932–940. [Google Scholar] [CrossRef]
  20. Al-Mousoi, A.K.; Mohammed, M.K.A.; Khalaf, H.A. Preparing and characterization of indium arsenide (InAs) thin films by chemical spray pyrolysis (CSP) technique. Optik 2016, 127, 5834–5840. [Google Scholar] [CrossRef]
  21. Zeng, X.-R.; Ko, T.-M. Structure-conductivity relationships of iodine-doped polyaniline. J. Polym. Sci. Part B Polym. Phys. 1997, 35, 1993–2001. [Google Scholar] [CrossRef]
  22. Humud, H.R.; Abdullah, M.M.; Khundhair, D.M. Effect of iodine doping on the characteristics of polyaniline thin films prepared by aerosol assisted plasma jet polymerization at atmospheric pressure. Int. J. Curr. Eng. Technol. 2014, 4, 3405–3410. [Google Scholar]
  23. Goktas, H.; Ince, F.G.; Iscan, A.; Yildiz, I.; Kurt, M.; Kaya, I. The molecular structure of plasma polymerized thiophene and pyrrole thin films produced by double discharge technique. Synth. Met. 2009, 159, 2001–2008. [Google Scholar] [CrossRef]
  24. Vasquez-Ortega, M.; Ortega, M.; Morales, J.; Olayo, M.G.; Cruz, G.J.; Olayo, R. Core-shell polypyrrole nanoparticles obtained by atmospheric pressure plasma polymerization. Polym. Int. 2014, 63, 2023–2029. [Google Scholar] [CrossRef]
  25. Cruz, G.J.; Morales, J.; Castillo-Ortega, M.M.; Olayo, R. Synthesis of polyaniline films by plasma polymerization. Synth. Met. 1997, 88, 213–218. [Google Scholar] [CrossRef]
  26. Cruz, G.J.; Olayo, M.G.; López, O.G.; Gómez, L.M.; Morales, J.; Olayo, R. Nanospherical particles of polypyrrole synthesized and doped by plasma. Polymer 2010, 51, 4314–4318. [Google Scholar] [CrossRef]
  27. Elmas, S.; Beelders, W.; Nash, J.; Macdonald, T.J.; Jasieniak, M.; Griesser, H.J.; Nann, T. Photo-doping of plasma-deposited polyaniline (PAni). RSC Adv. 2016, 6, 70691–70699. [Google Scholar] [CrossRef]
  28. Mathai, C.J.; Saravanan, S.; Anantharaman, M.R.; Venkitacjalam, S.; Jayalekshimi, S. Effect of iodine doping on the bandgap of plasma polymerized aniline thin films. J. Phys. D Appl. Phys. 2002, 35, 2206. [Google Scholar] [CrossRef]
  29. Morales, J.; Olayo, M.G.; Cruz, G.J.; Olayo, R. Synthesis by plasma and characterization of bilayer aniline-pyrrole thin films doped with iodine. J. Polym. Sci. Part B Polym. Phys. 2002, 40, 1850–1856. [Google Scholar] [CrossRef]
  30. Zoromba, M.S.; El-Ghamaz, N.A.; El-Sonbati, A.Z.; El-Bindary, A.A.; Diab, M.A.; El-Shahat, O. Conducting polymers. VII. Effect of doping with iodine on the dielectrical and electrical conduction properties of polyaniline. Synth. React. Inorg. Met. Nano-Met. Chem. 2016, 46, 1179–1188. [Google Scholar] [CrossRef]
  31. Wang, J.; Neoh, K.G.; Kang, E.T. Comparative study of chemically synthesized and plasma polymerized pyrrole and thiophene thin films. Thin Solid Films 2004, 446, 205–217. [Google Scholar] [CrossRef]
  32. Groenewoud, L.M.H.; Engbers, G.H.M.; White, R.; Feijen, J. On the iodine doping process of plasma polymerised thiophene layers. Synth. Met. 2002, 125, 429–440. [Google Scholar] [CrossRef]
  33. Rastgoo-Lahrood, A.; Lischka, M.; Eichhorn, J.; Samanta, D.; Schmittel, M.; Heckl, W.M.; Lackinger, M. Reversible intercalation of iodine monolayers between on-surface synthesised covalent polyphenylene networks and Au(111). Nanoscale 2017, 9, 4995–5001. [Google Scholar] [CrossRef] [PubMed]
  34. Kuhudzai, R.J.; Malherbe, J.B.; Hlatshwayo, T.T.; Van Der Berg, N.G.; Devaraj, A.; Zhu, Z.; Nandasiri, M. Synergistic effects of iodine and silver ions co-implanted in 6H-SiC. J. Nucl. Mater. 2015, 467, 582–587. [Google Scholar] [CrossRef]
  35. Lim, I.; Yoon, S.J.; Lee, W.; Nah, Y.-C.; Shrestha, N.K.; Ahn, H.; Han, S.-H. Interfacially treated dye-sensitized solar cell with in situ photopolymerized iodine doped polythiophene. ACS Appl. Mater. Interfaces 2012, 4, 838–841. [Google Scholar] [CrossRef] [PubMed]
  36. Parveen, N.; Mahato, N.; Ansari, M.O.; Cho, M.H. Enhanced electrochemical behavior and hydrophobicity of crystalline [email protected] nanocomposite synthesized at elevated temperature. Compos. Part B 2016, 87, 281–290. [Google Scholar] [CrossRef]
  37. Mahat, M.M.; Mawad, D.; Nelson, G.W.; Fearn, S.; Palgrave, R.G.; Payne, D.J.; Stevens, M.M. Elucidating the deprotonation of polyaniline films by X-ray photoelectron spectroscopy. J. Mater. Chem. C 2015, 3, 7180–7186. [Google Scholar] [CrossRef]
  38. Choi, M.-C.; Kim, Y.; Ha, C.-S. Polymers for flexible displays: From material selection to device applications. Prog. Polym. Sci. 2008, 33, 581–630. [Google Scholar] [CrossRef]
  39. Dennler, G.; Lungenschmied, C.; Neugebauer, H.; Sariciftci, N.S.; Latrèche, M.; Czeremuszkin, G.; Wertheimer, M.R. A new encapsulation solution for flexible organic solar cells. Thin Solid Films 2006, 511–512, 349–353. [Google Scholar] [CrossRef]
  40. Liang, J.; Li, L.; Niu, X.; Yu, Z.; Pei, Q. Elastomeric polymer light-emitting devices and displays. Nat. Photonics 2013, 7, 817–824. [Google Scholar] [CrossRef]

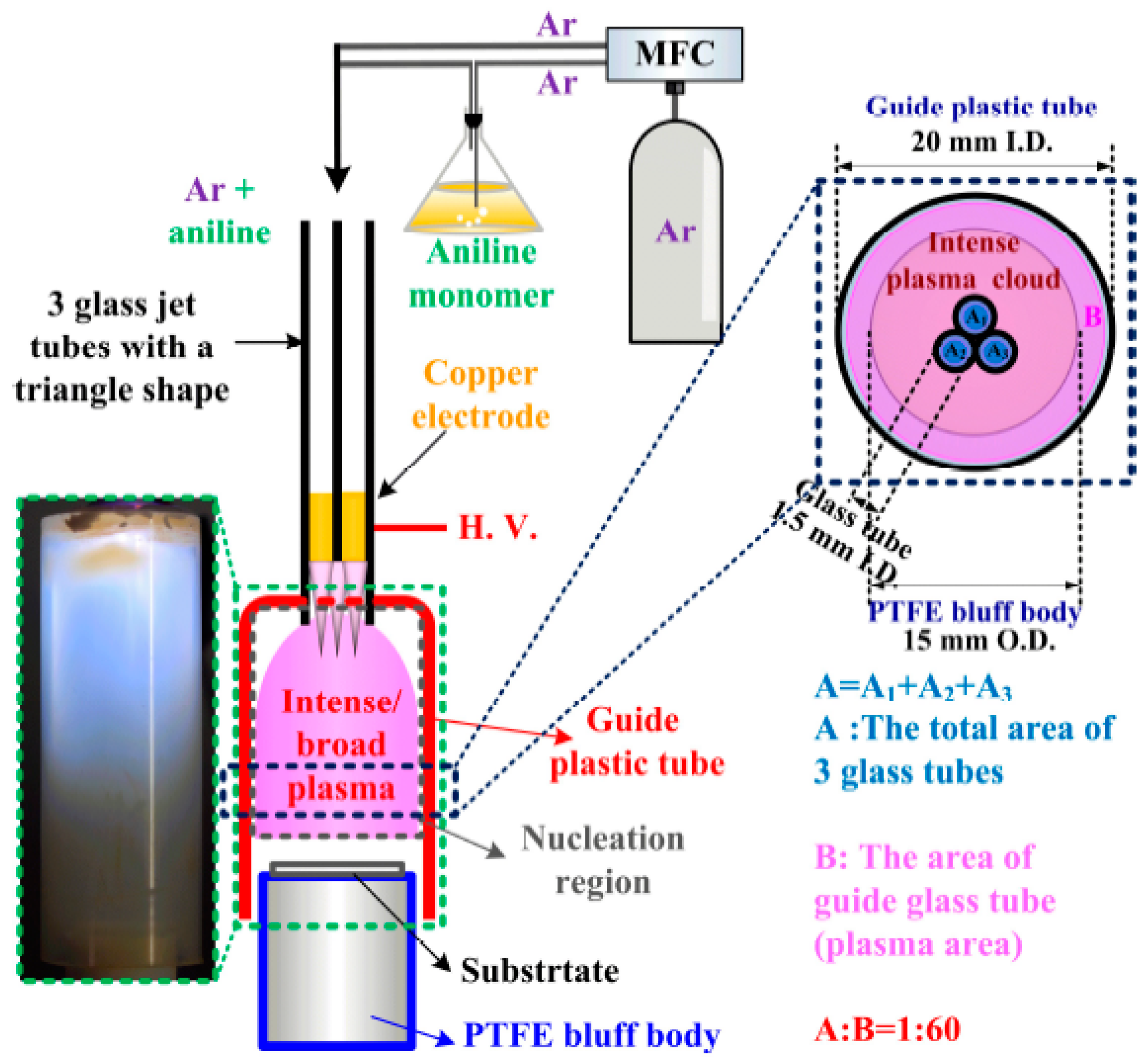

Figure 1. (Left) Schematic diagram of experimental set-up with plasma image produced in nucleation region of intense and broad plasma; and (Right) comparison of cross-sectional area of plasma, where A denotes restricted plasma area of three array jets and B denotes larger plasma area of intense and broad plasma region when using proposed advanced atmospheric pressure plasma (APP) polymerization system.
Figure 1. (Left) Schematic diagram of experimental set-up with plasma image produced in nucleation region of intense and broad plasma; and (Right) comparison of cross-sectional area of plasma, where A denotes restricted plasma area of three array jets and B denotes larger plasma area of intense and broad plasma region when using proposed advanced atmospheric pressure plasma (APP) polymerization system.
Materials 10 01272 g001
Figure 2. Plane (left and middle); and cross-sectional (right) scanning electron microscopy (SEM) images of polymerized aniline (PANI) films grown on glass substrates when using advanced APP jets (APPJs) device after 30 min deposition without iodine (I2), with 30 s I2 doping, and with 120 s I2 doping following deposition.
Figure 2. Plane (left and middle); and cross-sectional (right) scanning electron microscopy (SEM) images of polymerized aniline (PANI) films grown on glass substrates when using advanced APP jets (APPJs) device after 30 min deposition without iodine (I2), with 30 s I2 doping, and with 120 s I2 doping following deposition.
Materials 10 01272 g002
Figure 3. Three-dimensional (3D) atomic force microscope (AFM) images of roughness (Rrms) of PANI film surfaces grown on glass substrates and granularity cumulation distribution charts with average grain diameter obtained from AFM images when using advanced APPJs device after 30 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Figure 3. Three-dimensional (3D) atomic force microscope (AFM) images of roughness (Rrms) of PANI film surfaces grown on glass substrates and granularity cumulation distribution charts with average grain diameter obtained from AFM images when using advanced APPJs device after 30 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Materials 10 01272 g003

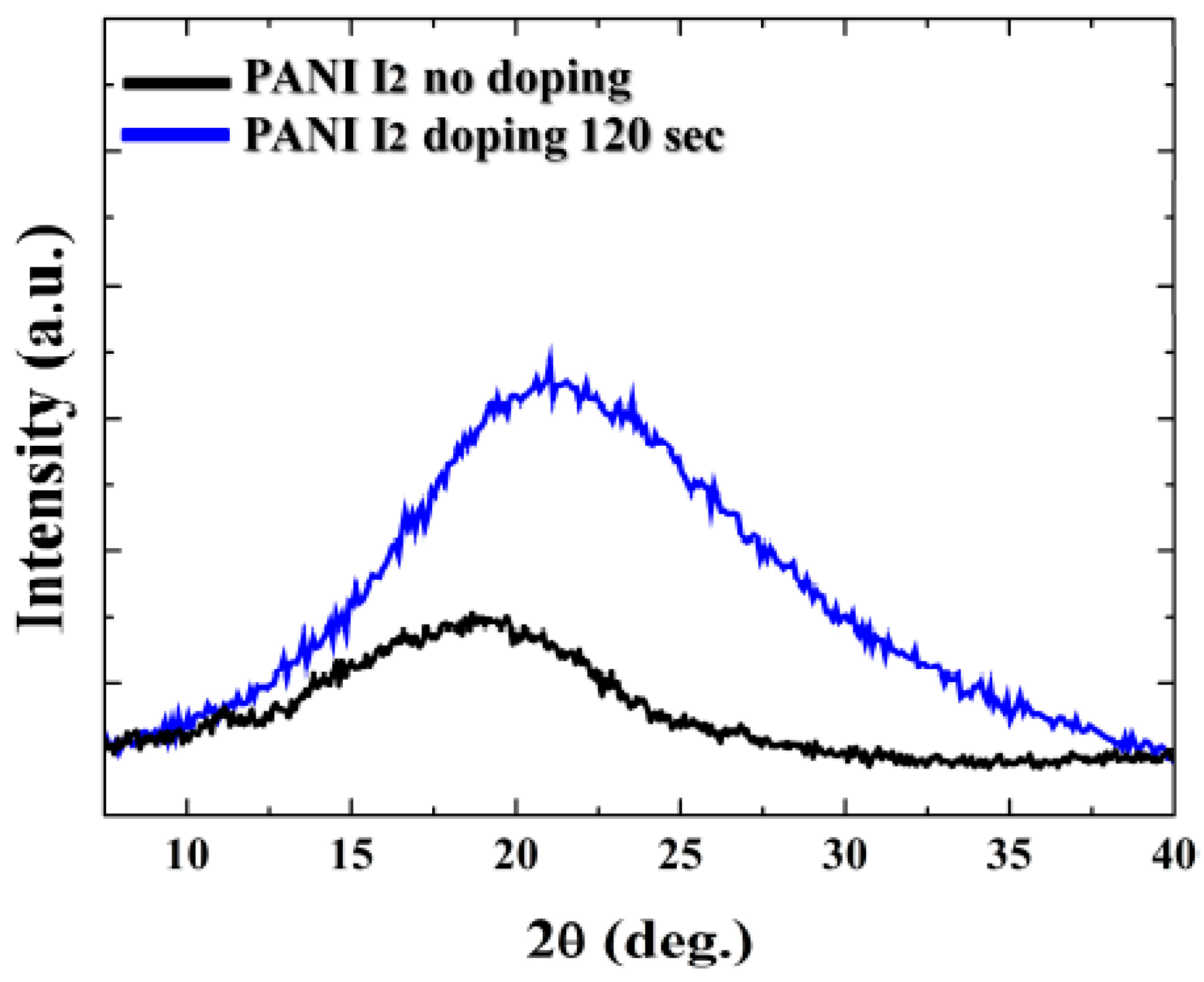

Figure 4. X-ray diffraction (XRD) patterns of PANI film surfaces grown on Si substrates using advanced APPJs device after 60 min deposition without I2 doping and with 120 s I2 doping following deposition.
Figure 4. X-ray diffraction (XRD) patterns of PANI film surfaces grown on Si substrates using advanced APPJs device after 60 min deposition without I2 doping and with 120 s I2 doping following deposition.
Materials 10 01272 g004
Figure 5. Fourier transform infrared spectroscopy (FT-IR) spectra of PANI films grown on glass substrates using advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Figure 5. Fourier transform infrared spectroscopy (FT-IR) spectra of PANI films grown on glass substrates using advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Materials 10 01272 g005

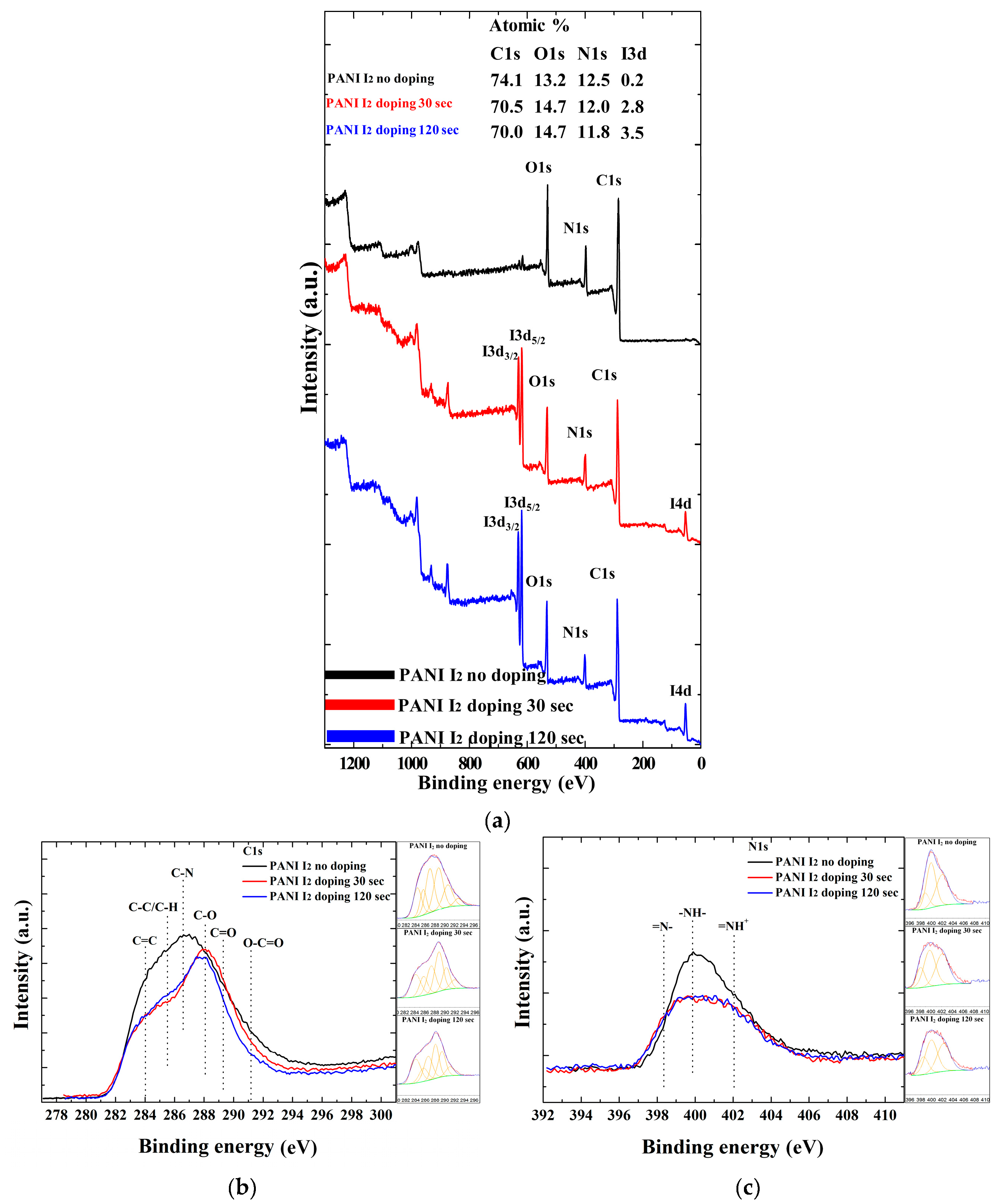

Figure 6. Differences in PANI film surfaces grown on glass substrates when using advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition: (a) X-ray photoelectron spectroscopy (XPS) survey spectra; and detailed (b) C 1s (high-resolution); (c) N 1s (high-resolution); (d) O 1s; and (e) I 3d spectra. Insets in (a) represent atom percent in PANI film.
Figure 6. Differences in PANI film surfaces grown on glass substrates when using advanced APPJs device after 60 min deposition without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition: (a) X-ray photoelectron spectroscopy (XPS) survey spectra; and detailed (b) C 1s (high-resolution); (c) N 1s (high-resolution); (d) O 1s; and (e) I 3d spectra. Insets in (a) represent atom percent in PANI film.
Materials 10 01272 g006aMaterials 10 01272 g006b

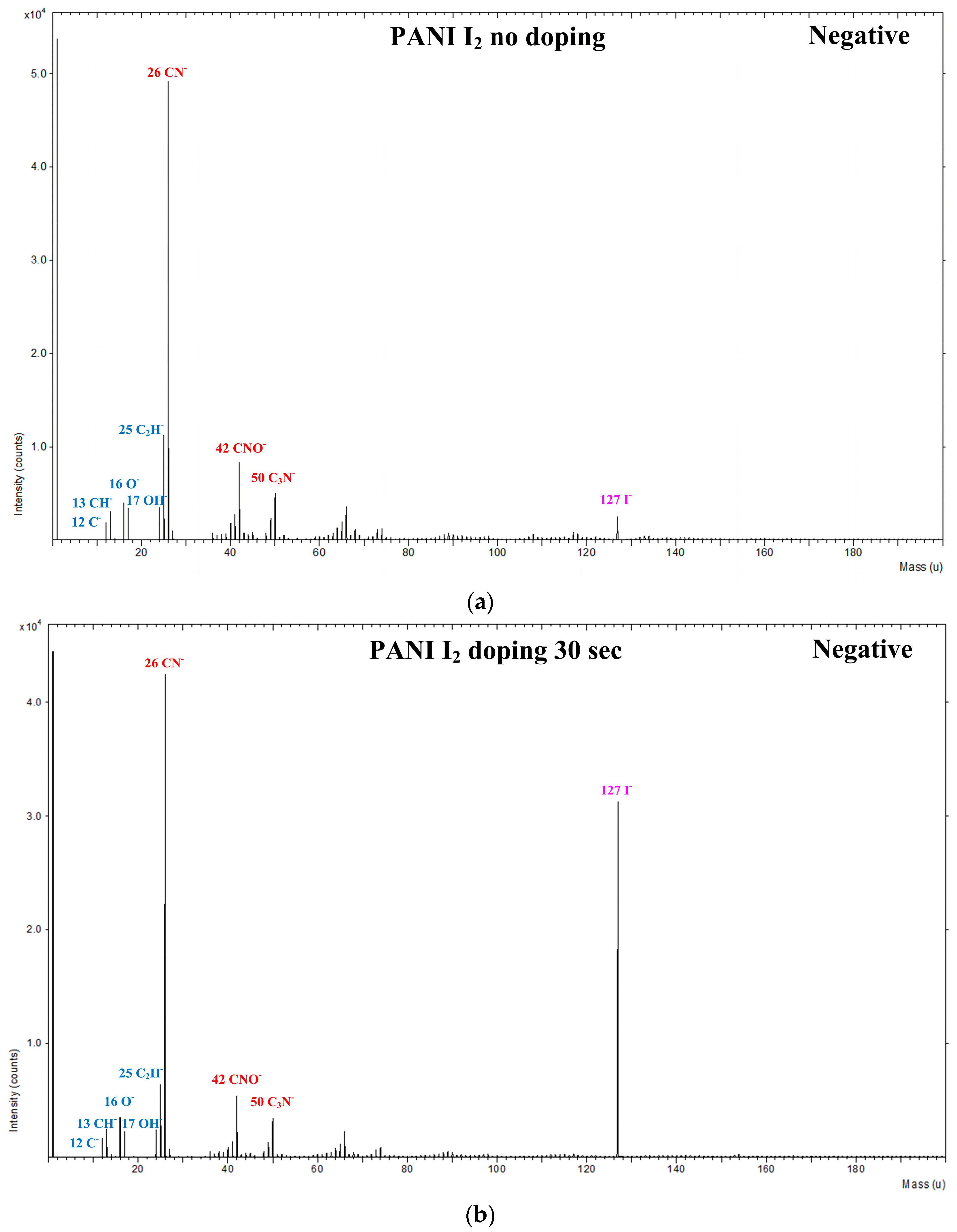

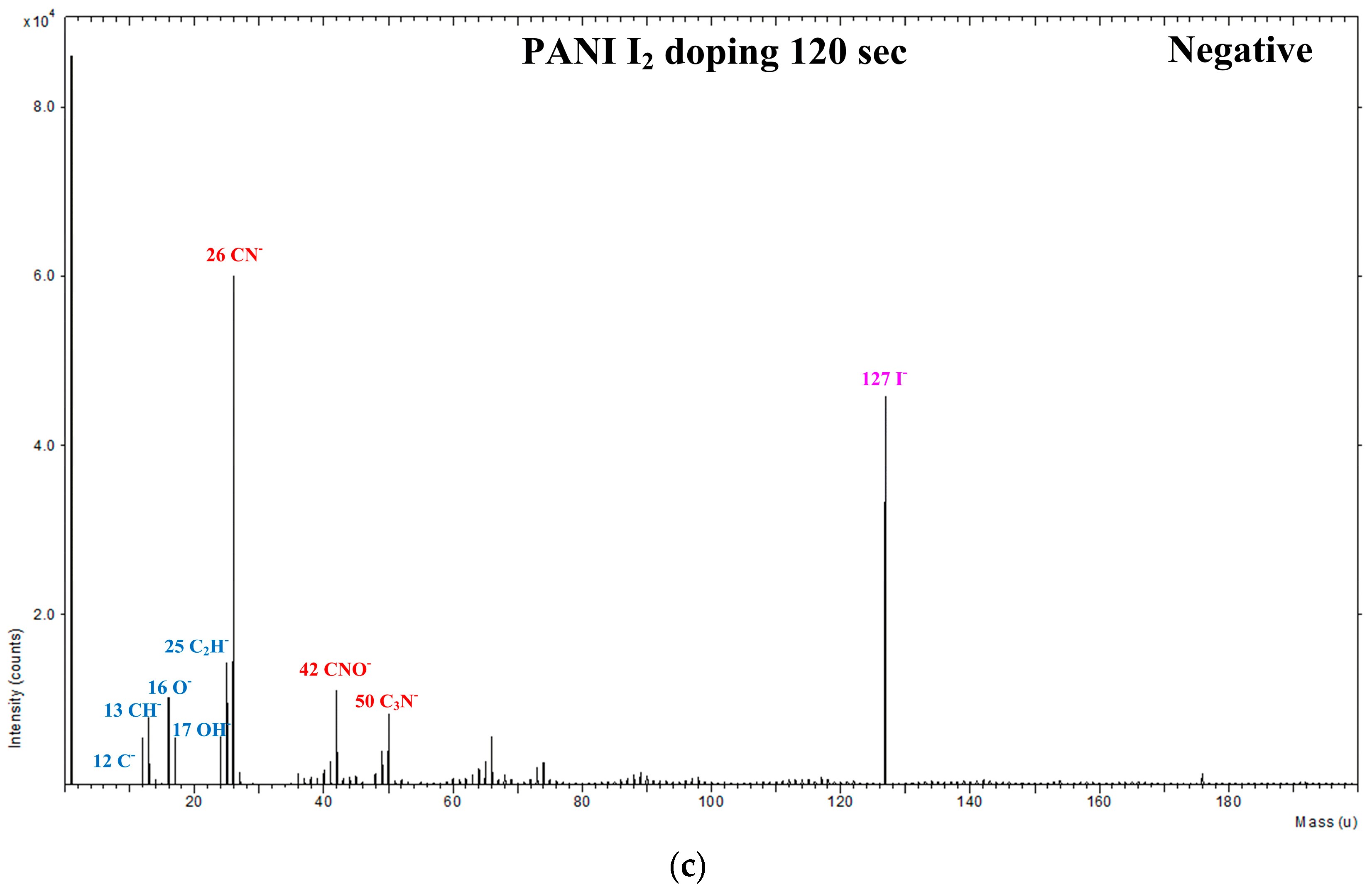

Figure 7. Negative-ion time of flight secondary ion mass spectrometry (ToF-SIMS) spectra (0–200 amu) of PANI film surfaces grown on glass substrates when using advanced APPJs device after 60 min deposition: (a) without I2 doping; (b) with 30 s I2 doping; and (c) with 120 s I2 doping following deposition.
Figure 7. Negative-ion time of flight secondary ion mass spectrometry (ToF-SIMS) spectra (0–200 amu) of PANI film surfaces grown on glass substrates when using advanced APPJs device after 60 min deposition: (a) without I2 doping; (b) with 30 s I2 doping; and (c) with 120 s I2 doping following deposition.
Materials 10 01272 g007aMaterials 10 01272 g007b

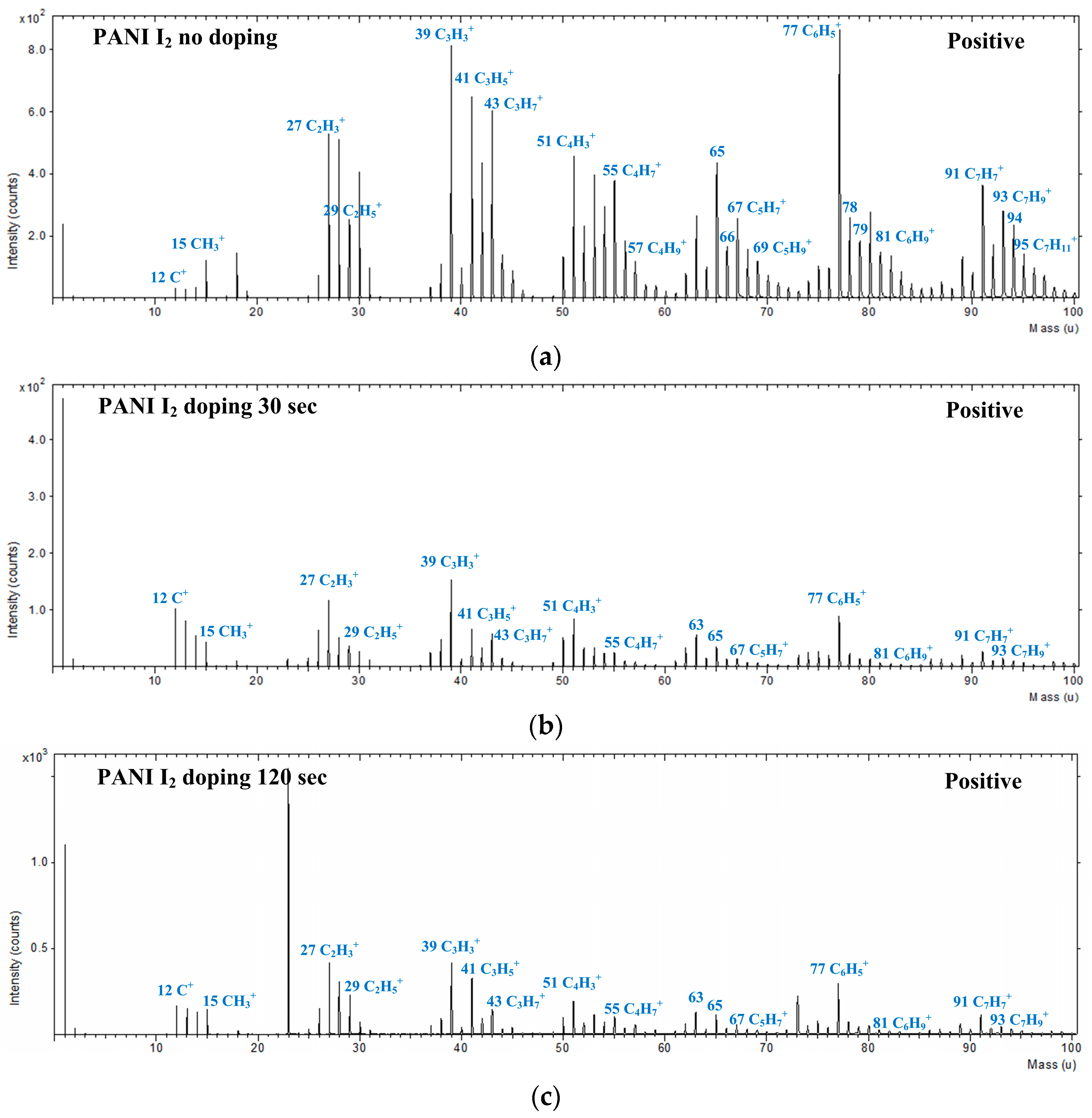

Figure 8. Positive-ion ToF-SIMS narrow range spectra (0–100 amu) of PANI film surfaces grown on glass substrates using advanced APPJs device after 60 min deposition: (a) without I2 doping; (b) with 30 s I2 doping; and (c) with 120 s I2 doping following deposition.
Figure 8. Positive-ion ToF-SIMS narrow range spectra (0–100 amu) of PANI film surfaces grown on glass substrates using advanced APPJs device after 60 min deposition: (a) without I2 doping; (b) with 30 s I2 doping; and (c) with 120 s I2 doping following deposition.
Materials 10 01272 g008

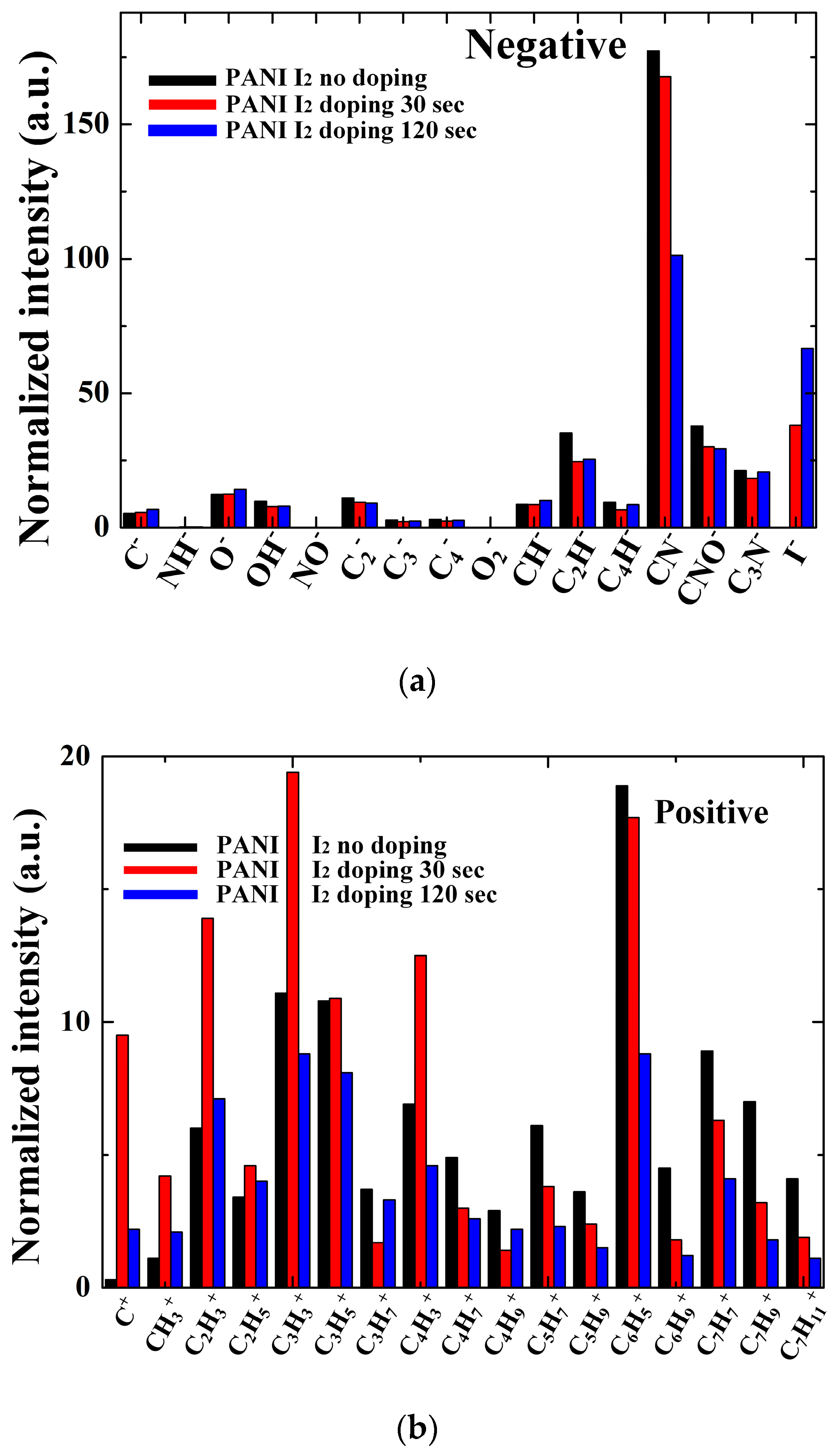

Figure 9. Comparison of normalized intensities of: (a) negative-ion ToF-SIMS; and (b) positive-ion ToF-SIMS on surface of PANI films when using advanced APPJs device without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Figure 9. Comparison of normalized intensities of: (a) negative-ion ToF-SIMS; and (b) positive-ion ToF-SIMS on surface of PANI films when using advanced APPJs device without I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Materials 10 01272 g009
Figure 10. Changes in resistance of PANI films grown on substrates of interdigitated electrodes when using advanced APPJs device after 60 min deposition with no I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Figure 10. Changes in resistance of PANI films grown on substrates of interdigitated electrodes when using advanced APPJs device after 60 min deposition with no I2 doping, with 30 s I2 doping, and with 120 s I2 doping following deposition.
Materials 10 01272 g010
Table 1. Peak assignment (BE, eV) and envelope composition (%, total = 100) of various C 1s core level spectra of polymerized aniline (PANI) observed in X-ray photoelectron spectroscopy (XPS) spectra in Figure 6b.
Table 1. Peak assignment (BE, eV) and envelope composition (%, total = 100) of various C 1s core level spectra of polymerized aniline (PANI) observed in X-ray photoelectron spectroscopy (XPS) spectra in Figure 6b.
SampleC 1s Peaks Assignment and Envelope Composition
284.0
C=C
285.6
C–C/C–H
286.5
C–N
288.1
C–O
289.4
C=O
291.1
O–C=O
PANI I2 no Doping16.8411.5426.0026.7914.734.10
PANI I2 Doping 30 s19.2512.7720.4827.2713.806.43
PANI I2 Doping 120 s22.4710.8619.4822.4617.976.76
Table 2. Peak assignment (BE, eV) and envelope composition (%, total = 100) of various N 1s core level spectra of PANI observed in XPS spectra in Figure 6c.
Table 2. Peak assignment (BE, eV) and envelope composition (%, total = 100) of various N 1s core level spectra of PANI observed in XPS spectra in Figure 6c.
SampleN 1s Peaks Assignment and Envelope Composition
398.3
=N–
399.8
–NH–
402.1
=NH+
PANI I2 no Doping13.8444.0442.12
PANI I2 Doping 30 s17.0242.1740.81
PANI I2 Doping 120 s17.8542.8439.31
Table 3. Selected peaks and their assignments observed in negative-ion time of flight secondary ion mass spectrometry (ToF-SIMS) spectra of PANI.
Table 3. Selected peaks and their assignments observed in negative-ion time of flight secondary ion mass spectrometry (ToF-SIMS) spectra of PANI.
Negative Ion Mass SpectrumPossible Ion Fragment/Possible Structure
m/z
12C-
13CH
15NH
16O
17OH
24C2
25C2H
26CN
30CNO
32O2
36C3
37C3H
42CNO
48C4
49C4H
50C3N
127I
Table 4. Selected peaks and their assignments observed in positive-ion ToF-SIMS spectra of PANI.
Table 4. Selected peaks and their assignments observed in positive-ion ToF-SIMS spectra of PANI.
Positive Ion Mass SpectrumPossible Ion Fragment/Possible Structure
m/z
12C+
15CH3+
27C2H3+/CH2–CH+
29C2H5+/CH3–CH2+
39C3H3+/CH2–C–CH+
41C3H5+/CH2–CH–CH2+
43C3H7+/CH3–CH2–CH2+
51C4H3+/CH2–C–C–CH+
55C4H7+/CH2–CH–CH2–CH2+
57C4H9+ or C3H7N+
67C5H7+
69C5H9+
77C6H5+
81C6H9+
91C7H7+
93C7H9+
95C7H11+
