Mineral Trioxide Aggregate—A Review of Properties and Testing Methodologies
Previous Article in Journal
Development of a Model for Dynamic Recrystallization Consistent with the Second Derivative Criterion

Materials 2017, 10(11), 1263; https://doi.org/10.3390/ma10111263

Communication
Preparation of Palladium/Silver-Coated Polyimide Nanotubes: Flexible, Electrically Conductive Fibers
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China
*
Correspondence: [email protected]; Tel.: +86-10-6442-4654
These authors contributed equally to this work.
Received: 21 September 2017 / Accepted: 2 November 2017 / Published: 2 November 2017

Abstract

:
A simple and practical method for coating palladium/silver nanoparticles on polyimide (PI) nanotubes is developed. The key steps involved in the process are silver ion exchange/reduction and displacement reactions between silver and palladium ions. With the addition of silver, the conductivity of the PI nanotubes is greatly enhanced. Further, the polyimide nanotubes with a dense, homogeneous coating of palladium nanoparticles remain flexible after heat treatment and show the possibility for use as highly efficient catalysts. The approach developed here is applicable for coating various noble metals on a wide range of polymer matrices, and can be used for obtaining polyimide nanotubes with metal loaded on both the inner and outer surface.
Keywords:
polyimide; palladium/silver; surface metallization; nanoparticle; nanotube

1. Introduction

Polyimides constitute an important class of polymers that possess excellent thermal stability, wear resistivity, and superior mechanical properties. These outstanding properties have enabled the application of pristine polyimide materials in various fields such as aerospace, defense, and transportation. Several efforts have been undertaken to functionalize or modify polyimide materials and thus extend their applicability into new areas [1,2,3,4,5,6,7,8,9,10]. Surface metallization has attracted great interest for its significant contribution to optics, electrical engineering, magnetism, and chemical catalysis [11,12,13]. Surface metallization is particularly attractive for PI materials as the precursor poly(amic acid) (PAA) contains active carboxyl sites and is highly reactive, thereby enabling facile functionalization [14,15,16,17,18,19,20,21].
Our group has made significant advances in the fabrication of surface-silvered polyimide materials, including films [22], nanocubes [23], and nanofibers [24]. In these studies, the attachment of palladium particles has received less attention because direct metallization with solution containing palladium ions corrode the surface of PAA nanofibers, resulting in a decrease in the number of attachment sites. The high concentration solution containing palladium ions even destroyed the PAA nanofibers (See Supplementary Materials, Figure S3). However, in our recent study on the reaction between silver ions and PAA [25], we have found and confirmed the formation of a cross-linking point among PAA polymer chains during the ion exchange step, which not only makes the attachment of palladium nanoparticles easier, but also strengthens the nanofibers (NF). Inspired by our recent discovery, we report a more efficient method for obtaining Pd/Ag polyimide nanotubes. The nanotube films display high flexibility and large specific surface areas. The addition of silver helps improve the conductivity of the insulating organic matter, and the palladium nanoparticles provide high catalytic activity. These organic-inorganic composite nanotubes may find potential application in catalysis.

2. Results and Discussion

Figure 1 depicts the steps involved in the fabrication of the palladium/silver-coated PAA/PEI nanofibers. The first step involved the synthesis of PAA in dimethyl formamide (DMF). This was followed by the fabrication of the coaxial nanofiber film by coaxial electrospinning. Polyetherimide (PEI) was selected as the core because it is compatible with PAA and easy to remove. During the electrospinning process, the intermolecular forces were sufficiently large for maintaining the nanostructure.

2.1. Ion Exchange and Reduction

The chemistry involved in the silver functionalization is detailed in previous studies [25]. Nevertheless, we note from Scheme 1 that, through the process of ion exchange, PAA and silver ions might promote intermolecular bonding. After the reduction of the silver ions, metallic silver is found to crosslink the polymers chains. Silver nitrate and dimethylamine borane (DMAB) solution are used as the silver ion source and reducing agent, respectively. As shown in Figure 2, the ion exchange was repeated 5 times until the film presented a black color.
Figure 3 shows the Fourier Transform infrared spectroscopy (FTIR) spectra of the pure PEI, pure PMDA/ODA-based PAA, and PAA/PEI film before and after ion exchange. The absorbance spectrum of the PAA/PEI film (Figure 3c) corresponds to a combination of the spectra of the pure PEI (Figure 3a) and pure PAA (Figure 3b). The reaction between PAA and metal ions is verified by comparing spectra c and d. The FTIR spectrum of PAA displays strong bands at 1410 cm−1 and 920 cm−1, owing to the –OH moiety in –COOH. However, after ion exchange, these bands are weakened, indicating the substitution of the H+ cation with silver.

2.2. Metal Displacement Reaction

Preliminary experiments were carried out to verify the importance of the silver nanoparticles in the palladium displacement reaction. The silver coated nanofiber film was immersed in palladium chloride solution for a short time (1 h). SEM images depicted in Figure 4 shows the process of palladium initially condenses onto the silver nanoparticle aggregates. Figure 4a,b shows the product we got in Section 2.1, and Figure 4c,d shows the change after pallidium condensinge. We believe the metallic bonds formed between palladium ions and silver are more stable than the ionic bonds between PAA and palladium [13]. We therefore surmise that the silver particles stabilize the attachment of palladium ions on the polymeric nanofiber surface.
Figure 2 records the change in the appearance change of the nanofiber film during metal loading. However, simply increasing the coating time does not produce a contiguous palladium coating. For this, the size and uniformity of the particles must be controlled strictly. Controlled trials were performed with varying Pd2+ concentrations and adding potassium bromide, and the results revealed the influence of ion concentration on the particle size. High Pd2+ concentrations (PdCl2 solution stronger than 4 g/L) led to larger but uneven palladium particles, while low concentrations (PdCl2 solution weaker than 0.5 g/L) led to smaller particle sizes and low dispersity. It is reported that potassium bromide controls the crystal morphology of the palladium particles [26]. Palladium nanoparticles barely adhere to the fiber surface in very strong potassium bromide solutions because KBr can disrupt the Pd crystal growth on the (100) crystalline surface. Hence, the maximum concentration of potassium bromide cannot exceed 0.05 M. The results of the abovementioned morphology control experiments are included in Tables S1 and S2 and Figure S5 of the Supplementary Materials.
Figure 5 shows SEM images of the polymer nanofibers with and without the nanoparticle coating. The average external diameter of the electrospun coaxial nanofibers is about 500 nm, as shown in Figure 5a. Nanofibers decorated with silver nanoparticles are presented in Figure 5b. The inset image in Figure 5c,d show the SEM images of nanofibers after palladium ion displacement, under high and low magnification, respectively.
The SEM images after the individual steps clearly reveal the entire polymer surface metallization process. During the ion exchange and reduction steps, the silver coating is densified, and the size of the Ag particles is sufficiently small for the growth of nano-palladium. This is confirmed by Figure 5c,d, which show that nano-palladium forms a dense layer on the surface of the silver nanoparticles. The low-magnification SEM image in Figure 5d also reveals that the surface metallization reaction is adequate, the entire film is homogeneously coated with a dense, smooth layer of palladium.
The Energy Dispersive Spectroscopy (EDS) result in Figure 6a shows that in addition to carbon, oxygen, which are typically found in polymers, there is also a high content of silver and palladium. An X-ray diffraction (XRD) pattern typical of palladium crystals is shown in Figure 6b, where diffraction peaks with 2θ values centered at around 46.7° and 68.1° are seen. These peaks correspond to the (200) and (220) crystallographic planes of the fcc structure of Pd, respectively. The XRD pattern also shows diffraction peaks of silver crystals at 55.1° (006) and 76.8° (202). Of equal note is the broad peak near 40.0°, arising from the overlap between the (101) plane of Ag and (111) plane of Pd. The position of several peaks is found to deviate slightly from known peak positions of the pure metals due to the impact of polymer matrix. Additionally, the (100) Pd crystal plane is not observed in the XRD, as it is suppressed by the use of potassium bromide.

2.3. Core Displacement and Imidze Reaction

To fabricate films with high flexibility and specific strength, further measures for removing the internal PEI core and imidization of the external layer (PAA) were adopted. The film was immersed in NMP (a selective solvent for PEI) at room temperature for 2 days, followed by heat treatment at 300 °C for 2 h for the imidization of PAA into PI. SEM was used to determine the changes in the film morphology after the PEI removal and heat treatment processes. The morphology of a palladium-nanoparticle coated polyimide nanotube film is shown in Figure 7a,d under different magnifications. Figure 7b,c show the detailed structure of a single nanotube. The SEM results indicate that the structure of the superficial nanoparticle coating remains intact after thermal treatment despite the successful removal of the inner layer.
In the coming future, we will carry on to load Pd and Ag nanoparticle on the inner surface of the tube wall using the same way we described in the communication, for which the double-tube-wall loadedd Pd/Ag polyimide which have specific surface area will be obtained.

2.4. Electrical Conductivity of Pd/Ag Polyimide Nanotubes

Here we demonstrate the electrical conductivity of the Pd/Ag polyimide nanotubes. Figure 8 shows the change in conductivity with Ag and Pd/Ag coating by using a four-probe resistivity tester. The conductivity of the pure PI film is extremely low (about 8 × 10−16 s/cm at room temperature) and cannot be detected by a four-probe resistivity tester and therefore indicated as zero in the figure. The conductivity is greatly improved after attaching the silver nanoparticles. Since the conductivity of metallic silver is greater than that of metallic pallidum, the Pd/Ag nanotube film has slightly lower conductivity as compared to the Ag nanotube film.

3. Conclusions

In summary, polyimide nanotubes with Pd/Ag nanoparticles were prepared via electrospinning and surface metallization. By coating silver nanoparticles onto the nanotubes, crosslinked sites with improved ability for Pd attachment were achieved. Our technique provides a new avenue for the coating of noble metals such as platinum and gold onto polymeric substrates. Owing to the light weight and flexibility of the polyimide matrix and the electrical conductivity imparted by the nanoparticles, our composite products hold potential for new applications in the field of catalysis. Moreover, the silver coating also led to improved structural stability, which will enable us to prepare polyimide nanotubes with metal loaded in both the inner and outer tube wall in the future.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/10/11/1263/s1, Figure S1: Synthetic scheme of poly(amic acid), Figure S2: Coaxial nanofibers film produced by electrospining, Figure S3: Corrosion of the nanofiber with the method of direct metallization with solution containing palladium ions, Figure S4: Synthesis scheme of palladium loading composite material, Figure S5: Preparation scheme of polyimide, Figure S6: SEM image of different treating methods corresponding to Tables S1 and S2: (a–c) different Pd2+ concentration setting separately as 0.5 g/L, 1 g/L and 2 g/L; (d–g): different KBr concentration setting separately as 0.25 M, 0.5 M, 1 M and 2 M, Figure S7: (a) Electrical conductivity of the various films as measured by a four-probe resistivity tester. (b) Cyclic voltammograms of the films in 4 × 10−5 M uric acid solution with 0.1 M H2SO4, obtained at a scan rate of 30 mV/s, Table S1: Treating method of state in Pd2+ concentration, Table S2: Treating method of state in different KBr concentration.

Acknowledgments

The authors thank the National Key Basic Research Program of China [973 Program, 2014CB643604]; the National Natural Science Foundation of China [51673017, 21404005]; the Natural Science Foundation of Jiangsu Province [BK20140006, BK20150273]; and Changzhou Sci & Tech Program [CZ20150001].

Author Contributions

Shengli Qi conceived and designed the experiments; Lushi Kong and Guanchun Rui performed the experiments and should be considered as co-first author; Guanchun Rui, Guangyu Wang, Ran Li and Jiajie Yu analyzed the data; Guanchun Rui and Rundong Huang wrote the paper. Lushi Kong and Guanchun Rui revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, D.; Miao, Y.E.; Liu, T. Electrically Conductive Polyaniline/Polyimide Nanofiber Membranes Prepared via a Combination of Electrospinning and Subsequent In situ Polymerization Growth. ACS Appl. Mater. Interfaces 2013, 5, 1206–1212. [Google Scholar] [CrossRef] [PubMed]
  2. Yen, H.J.; Chen, C.J.; Liou, G.S. Novel high-efficiency PL polyimide nanofiber containing aggregation-induced emission (AIE)-active cyanotriphenylamine luminogen. Chem. Commun. 2013, 49, 630–632. [Google Scholar] [CrossRef] [PubMed]
  3. Abdalla, S.; Al-Marzouki, F.; Obaid, A.; Gamal, S. Effect of Addition of Colloidal Silica to Films of Polyimide, Polyvinylpyridine, Polystyrene, and Polymethylmethacrylate Nano-Composites. Materials 2016, 9, 104. [Google Scholar] [CrossRef] [PubMed]
  4. Zope, I.S.; Dasari, A.; Yu, Z.Z. Influence of Polymer-Clay Interfacial Interactions on the Ignition Time of Polymer/Clay Nanocomposites. Materials 2017, 10, 935. [Google Scholar] [CrossRef] [PubMed]
  5. Ramakrishnanm, S.; Dhakshnamoorthy, M.; Jelmy, E.J.; Vasanthakumari, R.; Kothurkar, N.K. Synthesis and characterization of graphene oxide-polyimide nanofiber composites. RSC Adv. 2014, 4, 9743–9749. [Google Scholar] [CrossRef]
  6. Feng, T.; Mao, D.; Cui, X.; Li, M.; Song, K.; Jiang, B.; Lu, H.; Quan, W. A Filmy Black-Phosphorus Polyimide Saturable Absorber for Q-Switched Operation in an Erbium-Doped Fiber Laser. Materials 2016, 9, 917. [Google Scholar] [CrossRef] [PubMed]
  7. He, Y.; Han, D.; Chen, J.; Ding, Y.; Jiang, S.; Hu, C.; Chen, S.; Hou, H. Highly strong and highly tough electrospun polyimide/polyimide composite nanofibers from binary blend of polyamic acids. RSC Adv. 2014, 4, 59936–59942. [Google Scholar] [CrossRef]
  8. Gong, G.; Gao, K.; Wu, J.; Sun, N.; Zhou, C.; Zhao, Y.; Jiang, L. A highly durable silica/polyimide superhydrophobic nanocomposite film with excellent thermal stability and abrasion-resistant performance. J. Mater. Chem. A 2015, 3, 713–718. [Google Scholar] [CrossRef]
  9. Peng, X.; Xu, W.; Chen, L.; Ding, Y.; Chen, S.; Wang, X.; Hou, H. Polyimide complexes with high dielectric performance: Toward polymer film capacitor applications. J. Mater. Chem. C 2016, 4, 6452–6456. [Google Scholar] [CrossRef]
  10. Li, S.; Wu, D.; Yan, X.; Guan, Y. Acetone-activated polyimide electrospun nanofiber membrane for thin-film microextraction and thermal desorption-gas chromatography–mass spectrometric analysis of phenols in environmental water. J. Chromatogr. A 2015, 1411, 1–8. [Google Scholar] [CrossRef] [PubMed]
  11. Kumar, A.; Doradla, P.; Narkhede, M.; Li, L.; Samuelson, L.A.; Giles, R.H.; Kumar, J. A Simple method for fabricating silver nanotubes. RSC Adv. 2014, 4, 36671–36674. [Google Scholar] [CrossRef]
  12. Kalluri, S.; Seng, K.H.; Guo, Z.; Liu, H.K.; Dou, S.X. Electrospun lithium metal oxide cathode materials for lithium-ion batteries. RSC Adv. 2013, 3, 25576–25601. [Google Scholar] [CrossRef]
  13. Sun, Y.; Mayers, B.; Xia, Y. Metal Nanostructures with Hollow Interiors. Adv. Mater. 2003, 15, 641–646. [Google Scholar] [CrossRef]
  14. Cui, G.; Wu, D.; Qi, S.; Jin, S.; Wu, Z.; Jin, R. Preparation SnO2 Nanolayer on Flexible Polyimide Substrates via Direct Ion-Exchange and in situ Oxidation Process. ACS Appl. Mater. Interfaces 2011, 3, 789–794. [Google Scholar] [CrossRef] [PubMed]
  15. Ghosh, D.S.; Chen, T.L.; Mkhitaryan, V.; Pruneri, V. Ultrathin transparent conductive polyimide foil embedding silver nanowires. ACS Appl. Mater. Interfaces 2014, 6, 20943–20948. [Google Scholar] [CrossRef] [PubMed]
  16. Thompson, D.S.; Davis, L.M.; Thompson, D.W.; Southward, R.E. Reflective and Conductive Silver-Polyimide Films Prepared from Silver(I) Complexes with ODPA/4,4’-ODA. ACS Appl. Mater. Interfaces 2009, 1, 1457–1466. [Google Scholar] [CrossRef] [PubMed]
  17. Ikeda, S.; Yanagimoto, H.; Akamatsu, K.; Nawafune, H. Copper/Polyimide Heterojunctions: Controlling Interfacial Structures through an Additive-Based, All-Wet Chemical Process Using Ion-Doped Precursors. Adv. Funct. Mater. 2007, 17, 889–897. [Google Scholar] [CrossRef]
  18. Serbezeanu, D.; Popa, A.M.; Sava, I.; Carja, I.D.; Amberg, M.R.; Rossi, M.; Fortunato, G. Design and synthesis of polyimide-Gold nanofibers with tunable optical properties. Eur. Polym. J. 2015, 64, 10–20. [Google Scholar] [CrossRef]
  19. Zhu, J.; Wei, S.; Chen, X.; Karki, A.B.; Rutman, D.; Young, D.P.; Guo, Z. Electrospun Polyimide Nanocomposite Fibers Reinforced with Core-Shell Fe-FeO nanoparticles. J. Phys. Chem. C 2010, 114, 8844–8850. [Google Scholar] [CrossRef]
  20. Nabae, Y.; Nagata, S.; Hayakawa, T.; Niwa, H.; Harada, Y.; Oshima, M.; Isoda, A.; Matsunaga, A.; Tanaka, K.; Aoki, T. Pt-free carbon-based fuel cell catalyst prepared from spherical polyimide for enhanced oxygen diffusion. Sci. Rep. 2016, 6, 23276. [Google Scholar] [CrossRef] [PubMed]
  21. Shi, Y.; Nabae, Y.; Hayakawa, T.; Kakimoto, M. Hyperbranched aromatic poly(ether ketone) functionalized with TEMPO as a heterogeneous catalyst for aerobic oxidation of alcohols. RSC Adv. 2015, 5, 1923–1928. [Google Scholar] [CrossRef]
  22. Qi, S.; Shen, X.; Lin, Z.; Tian, G.; Wu, D.; Jin, R. Synthesis of silver nanocubes with controlled size using water-soluble poly(amic acid) salt as the intermediate via a novel ion-exchange self-assembly technique. Nanoscale 2013, 5, 12132–12135. [Google Scholar] [CrossRef] [PubMed]
  23. Han, E.; Wu, D.; Qi, S.; Tian, G.; Niu, H.; Shang, G.; Yan, X.; Yang, X. Incorporation of Silver Nanoparticles into the Bulk of the Electrospun Ultrafine Polyimide Nanofibers via a Direct Ion Exchange Self-Metallization Process. ACS Appl. Mater. Interfaces 2012, 4, 2583–2590. [Google Scholar] [CrossRef] [PubMed]
  24. Qi, S.; Wu, Z.; Wu, D.; Yang, W.; Jin, R. The chemistry involved in the loading of silver (I) into poly(amic acid) via ion exchange: A metal-ion-induced crosslinking behavior. Polymer 2009, 50, 845–854. [Google Scholar] [CrossRef]
  25. Yang, T.; Yu, Y.Z.; Zhu, L.S.; Wu, X.; Wang, X.H.; Zhang, J. Fabrication of silver interdigitated electrodes on polyimide films via surface modification and ion-exchange technique and its flexible humidity sensor application. Sens. Actuators B 2015, 208, 327–333. [Google Scholar] [CrossRef]
  26. Peng, H.C.; Xie, S.; Park, J.; Xia, X.; Xia, Y. Quantitative Analysis of the Coverage Density of Br Ions on Pd{100} Facets and Its Role in Controlling the Shape of Pd Nanocrystals. Chem. Soc. 2013, 135, 3780–3783. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic of the synthesis of our palladium-coated composite material.
Figure 1. Schematic of the synthesis of our palladium-coated composite material.
Materials 10 01263 g001
Scheme 1. Chemistry involved in the ion exchange of poly(amic acid) with metal ions.
Scheme 1. Chemistry involved in the ion exchange of poly(amic acid) with metal ions.
Materials 10 01263 sch001

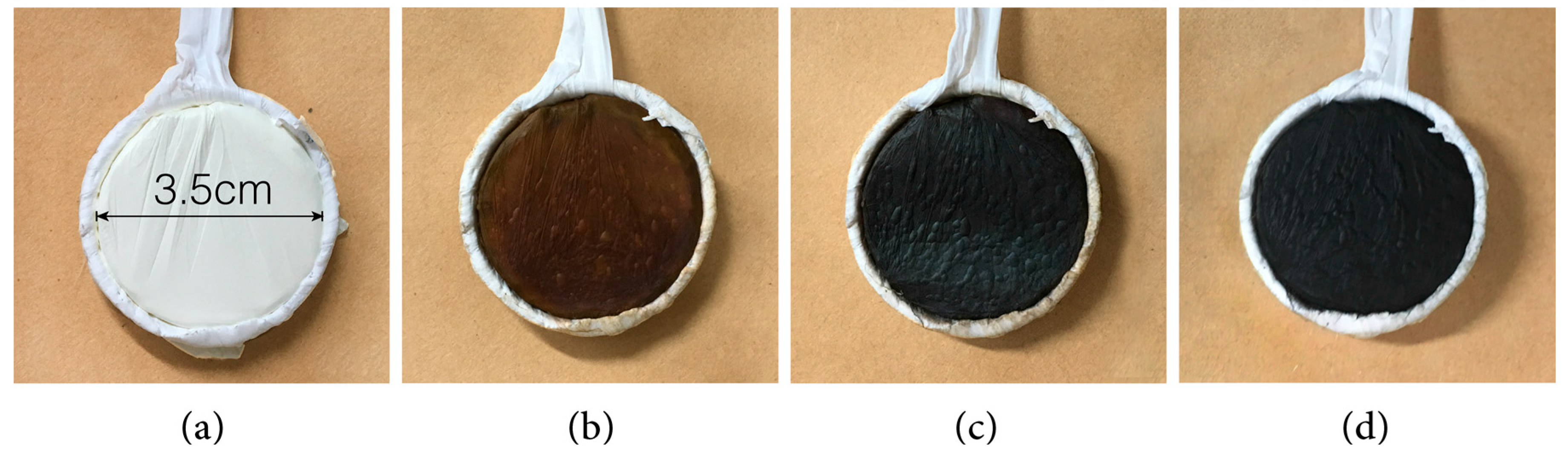

Figure 2. Change in the appearance of the nanofiber films during the metal loading process. (a) Untreated poly(amic acid) (PAA)/PEI film; (b) PAA/PEI film with AgNO3/dimethylamine borane (DMAB) ion exchanged once; (c) PAA/PEI film with AgNO3/DMAB ion exchanged 4 times; (d) metal displacement after 5 h.
Figure 2. Change in the appearance of the nanofiber films during the metal loading process. (a) Untreated poly(amic acid) (PAA)/PEI film; (b) PAA/PEI film with AgNO3/dimethylamine borane (DMAB) ion exchanged once; (c) PAA/PEI film with AgNO3/DMAB ion exchanged 4 times; (d) metal displacement after 5 h.
Materials 10 01263 g002

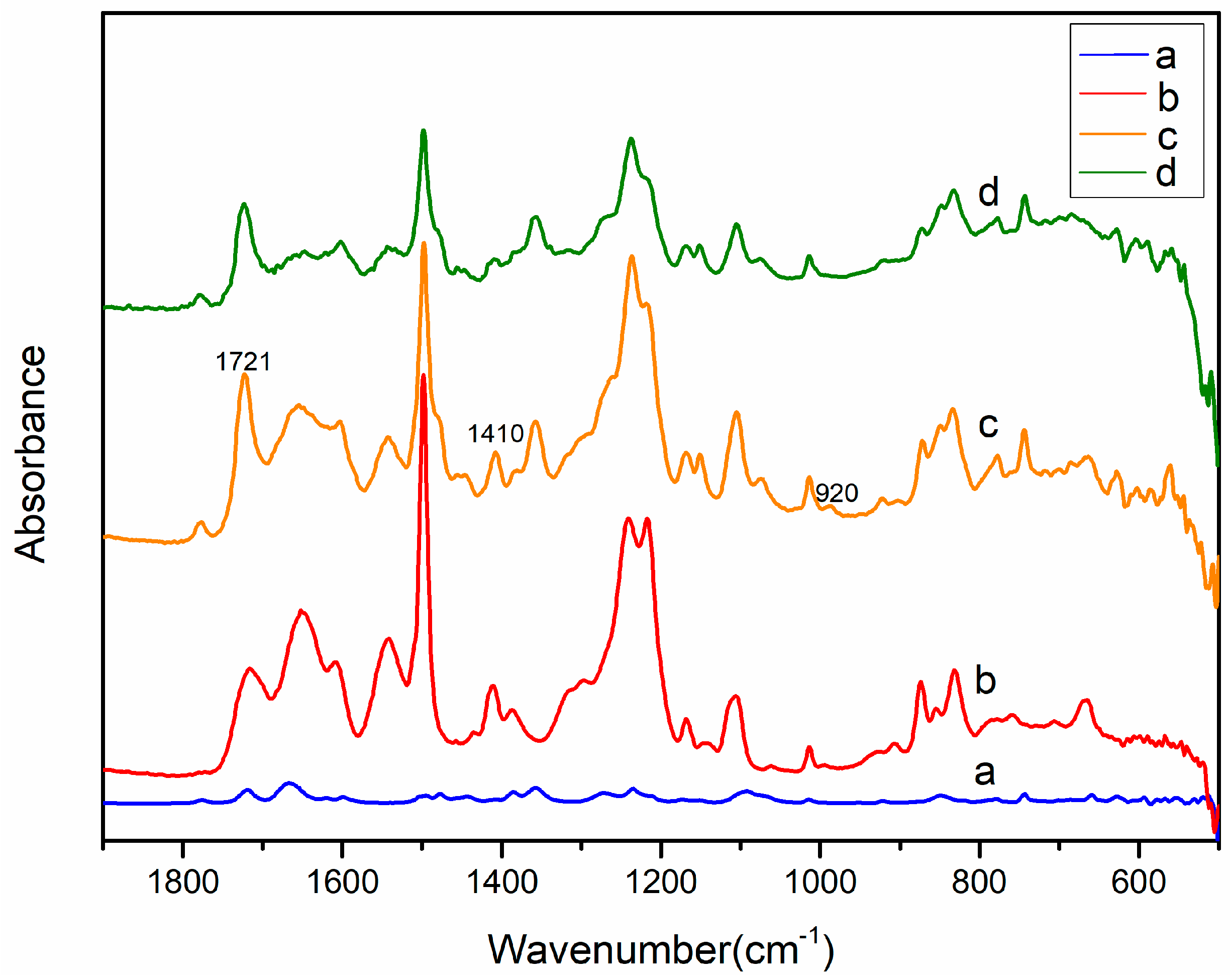

Figure 3. FTIR spectra of (a) pure PEI; (b) pure PMDA/ODA-based PAA; (c) PAA/PEI film; and (d) PAA/PEI film after silver ion exchange and DMAB reduction.
Figure 3. FTIR spectra of (a) pure PEI; (b) pure PMDA/ODA-based PAA; (c) PAA/PEI film; and (d) PAA/PEI film after silver ion exchange and DMAB reduction.
Materials 10 01263 g003

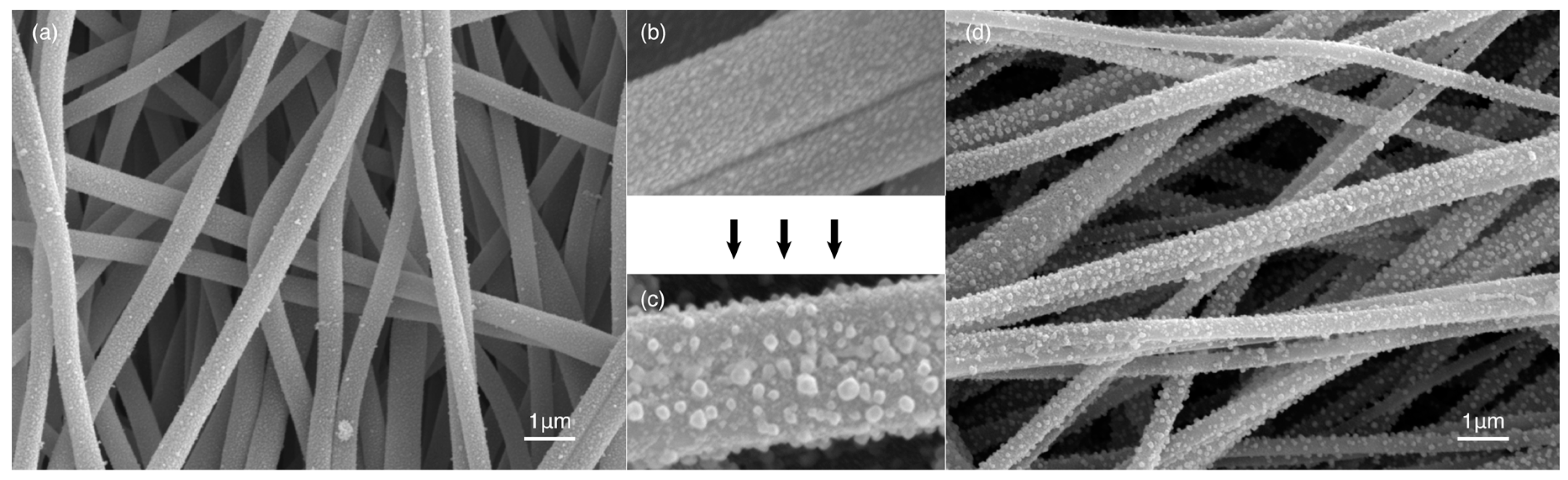

Figure 4. SEM image of nanofibers before and after immersion in 0.5 g/L PdCl2 aq. for 1 h. (a,b) Polyimide nanofibers with silver nanoparticle; (c,d) the appearance change after PdCl2 aq. Treating.
Figure 4. SEM image of nanofibers before and after immersion in 0.5 g/L PdCl2 aq. for 1 h. (a,b) Polyimide nanofibers with silver nanoparticle; (c,d) the appearance change after PdCl2 aq. Treating.
Materials 10 01263 g004

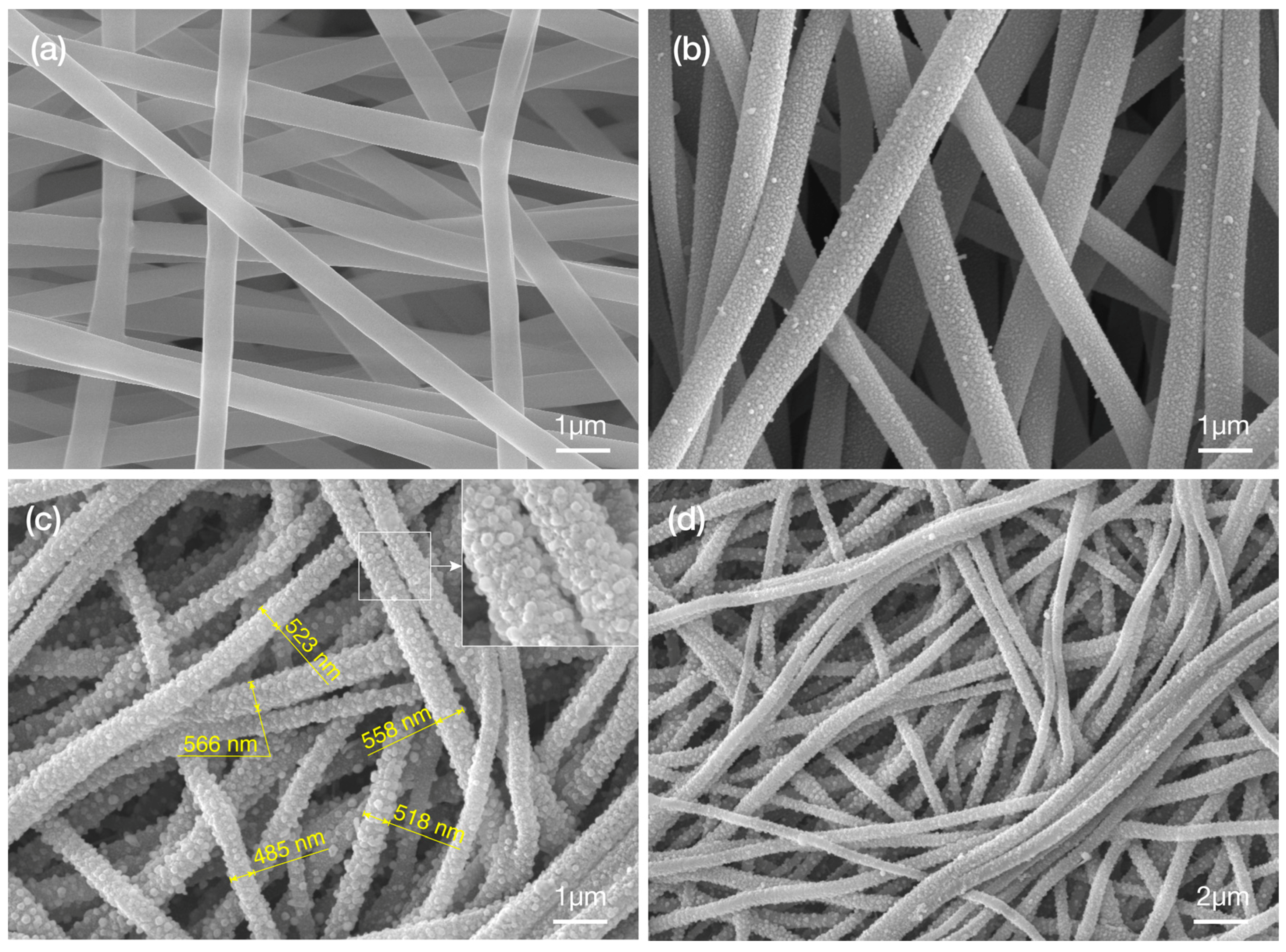

Figure 5. SEM images of (a) PAA/PEI nanofibers (b) silver-coated nanofibers (NFs), and palladium-coated NFs (c,d).
Figure 5. SEM images of (a) PAA/PEI nanofibers (b) silver-coated nanofibers (NFs), and palladium-coated NFs (c,d).
Materials 10 01263 g005
Figure 6. EDS (a) and XRD (b) analysis of a PAA film after ion exchange in 2 g/L PdCl2 aq. for 5 h.
Figure 6. EDS (a) and XRD (b) analysis of a PAA film after ion exchange in 2 g/L PdCl2 aq. for 5 h.
Materials 10 01263 g006
Figure 7. SEM images of palladium-coated PAA nanotubes (a,d) under different magnifications; (b,c) views of NTs under high magnification.
Figure 7. SEM images of palladium-coated PAA nanotubes (a,d) under different magnifications; (b,c) views of NTs under high magnification.
Materials 10 01263 g007

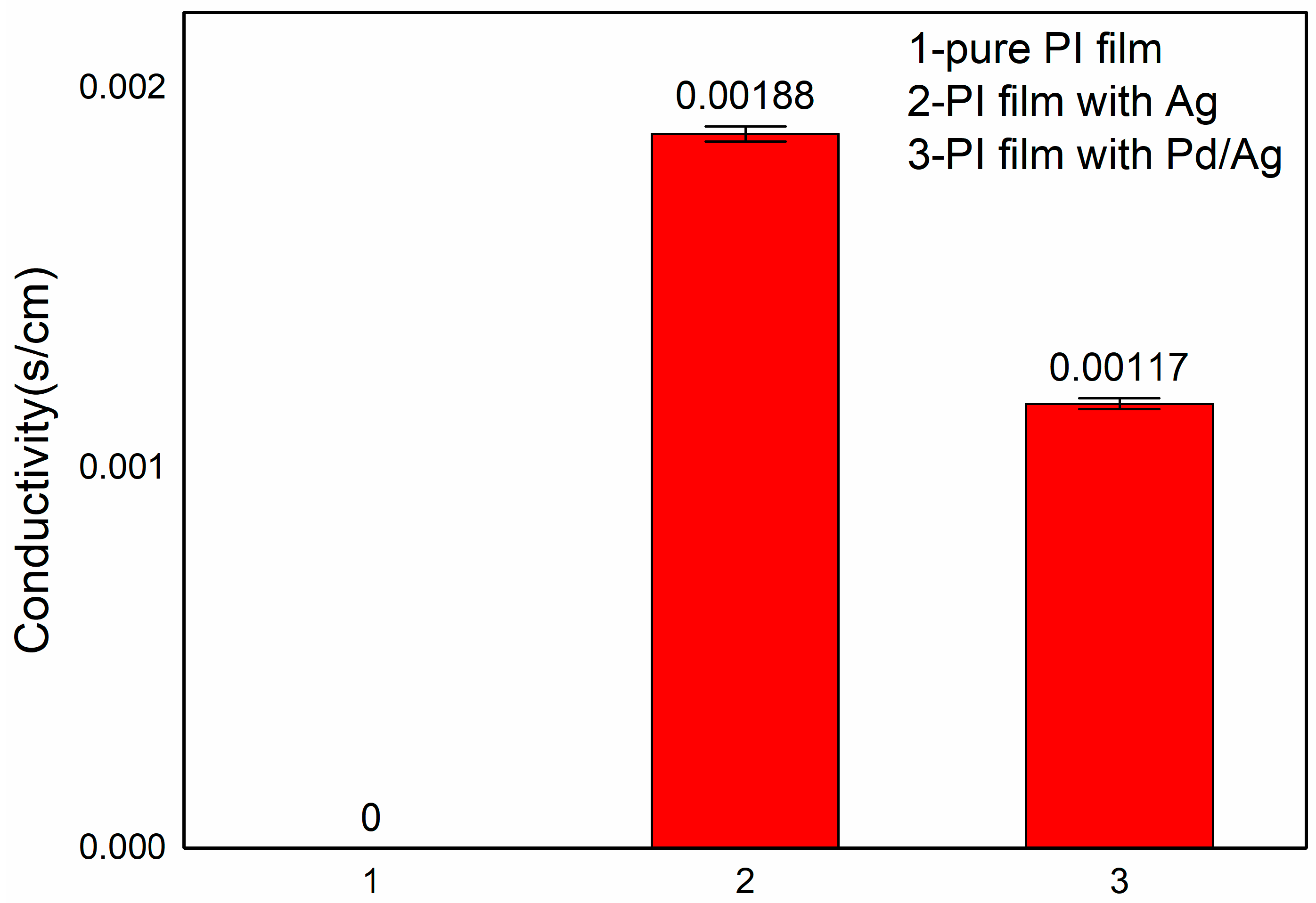

Figure 8. Electrical conductivity of the various films as measured by a four-probe resistivity tester.
Figure 8. Electrical conductivity of the various films as measured by a four-probe resistivity tester.
Materials 10 01263 g008
