Development of Programmable Digital Twin via IEC-61850 Communication for Smart Grid

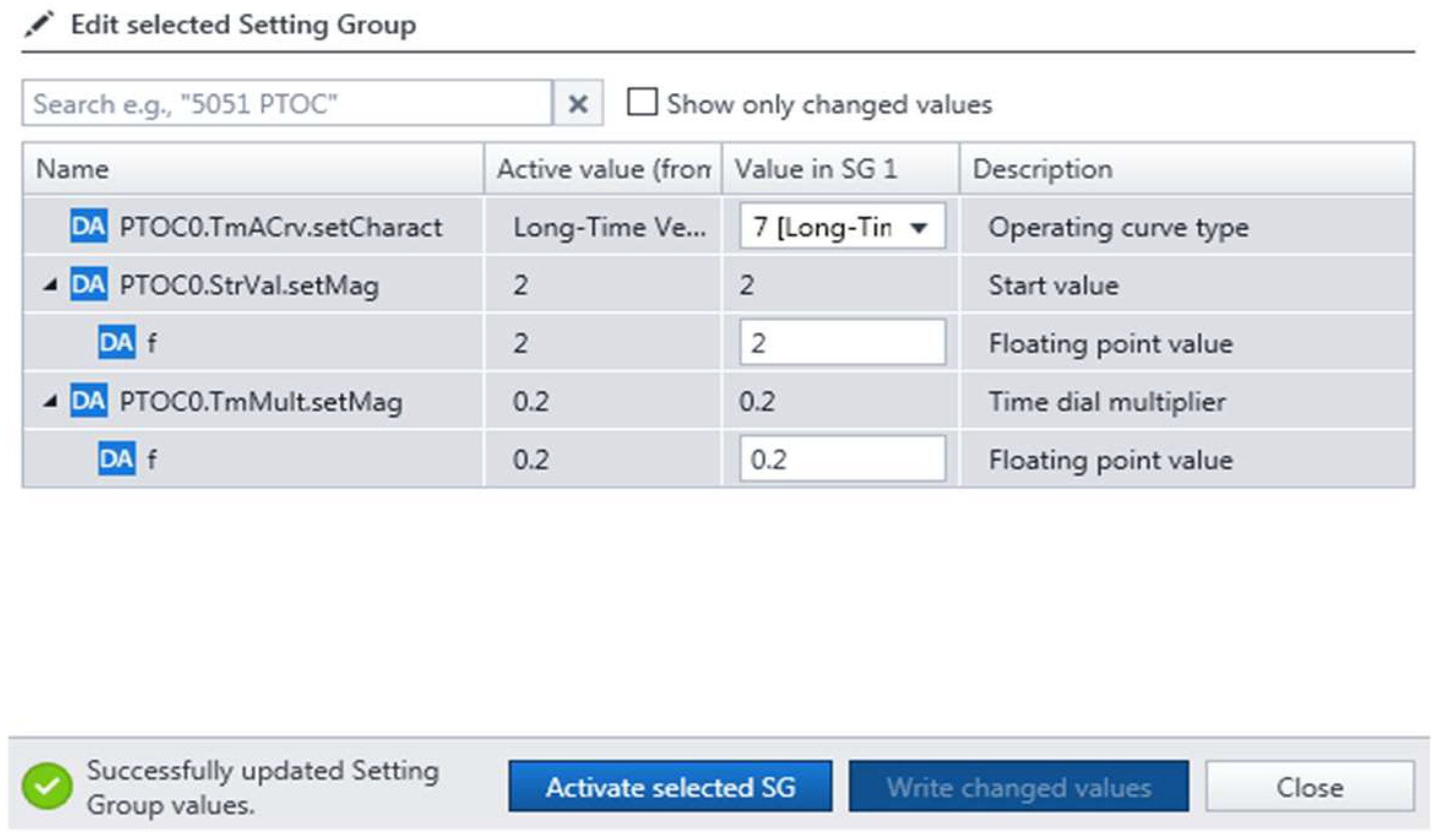

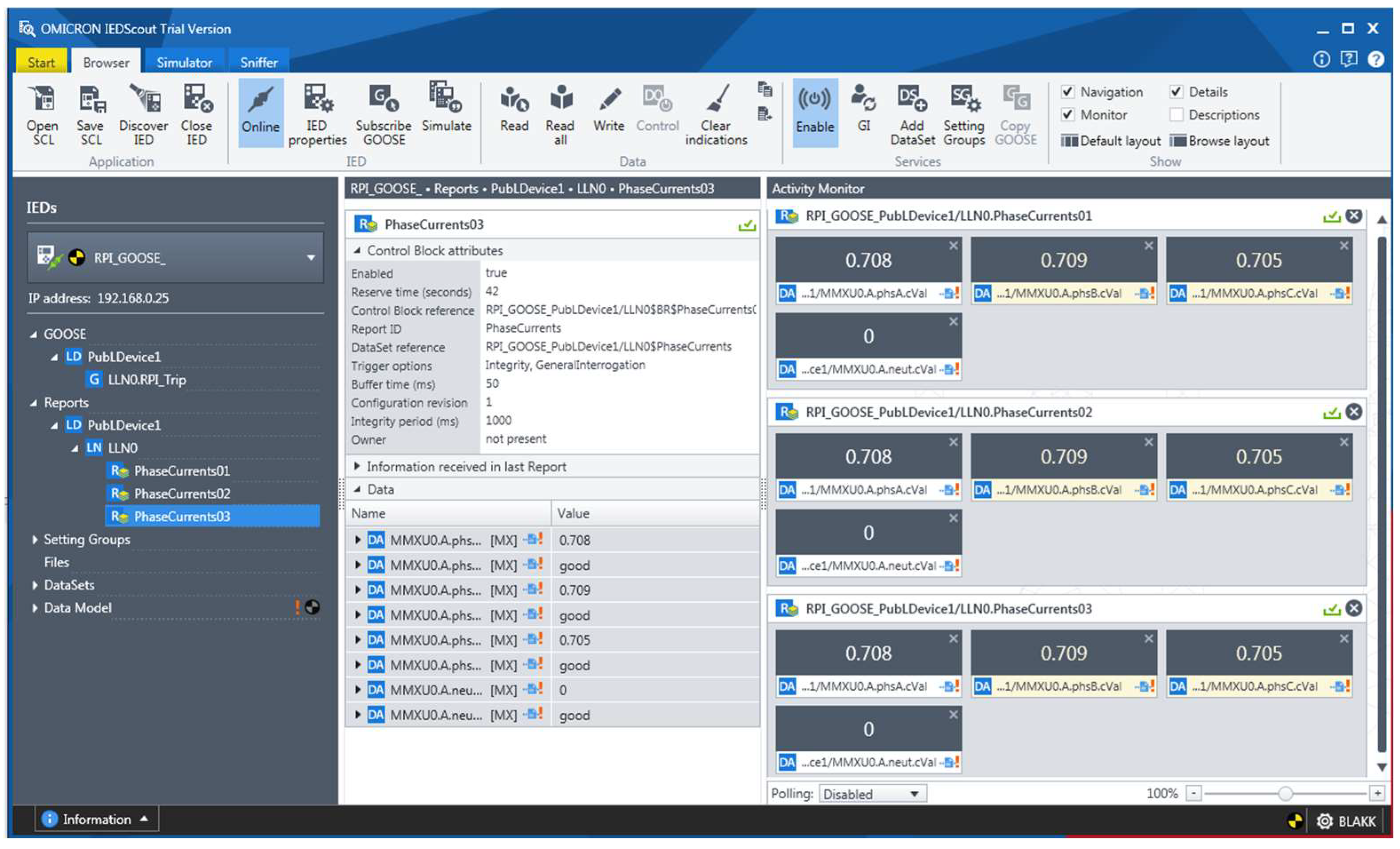

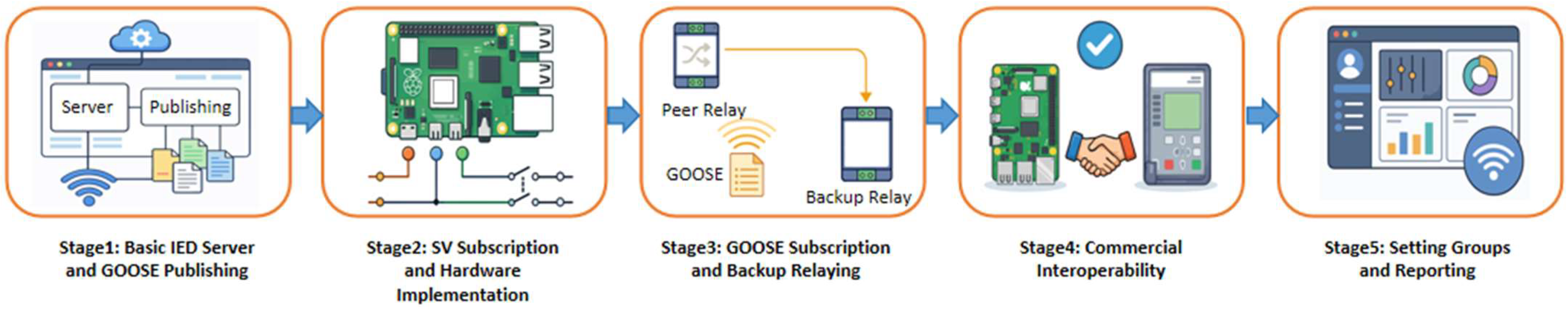

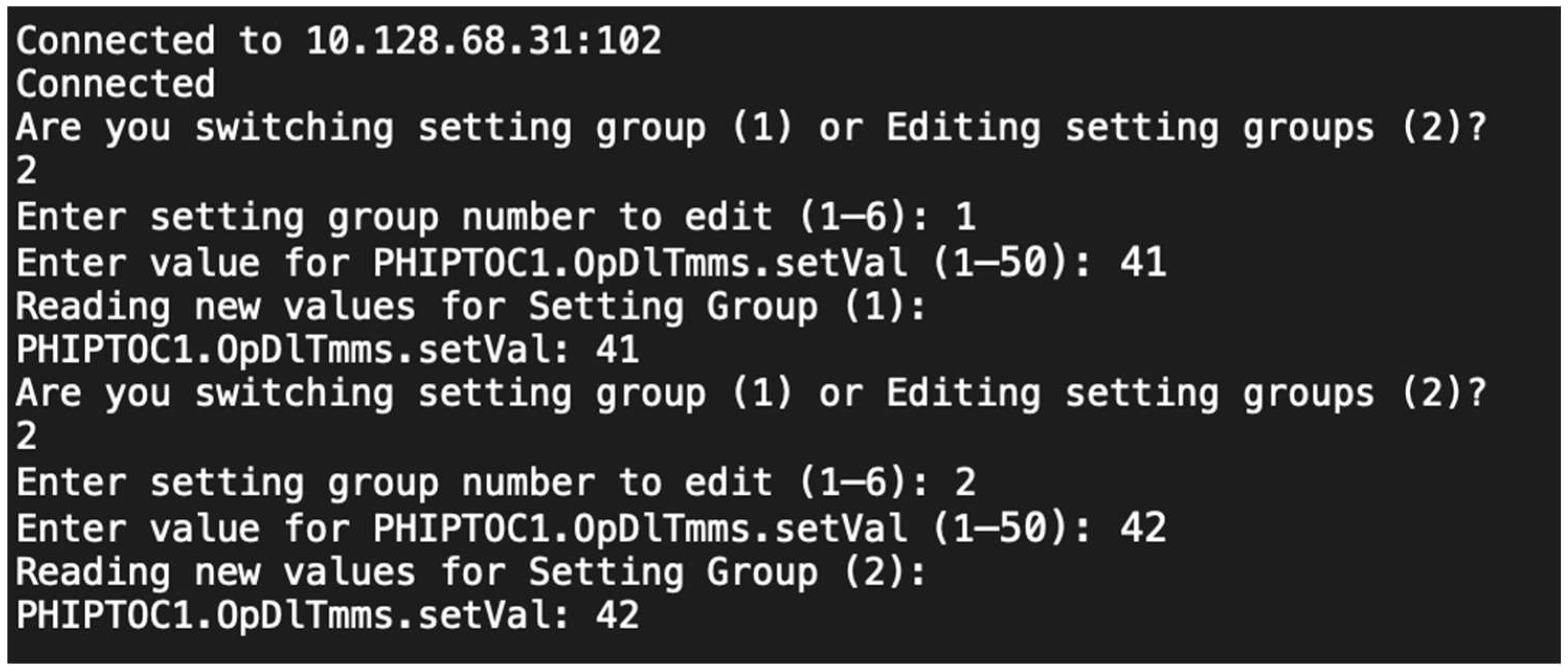

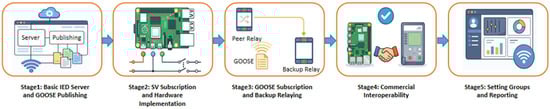

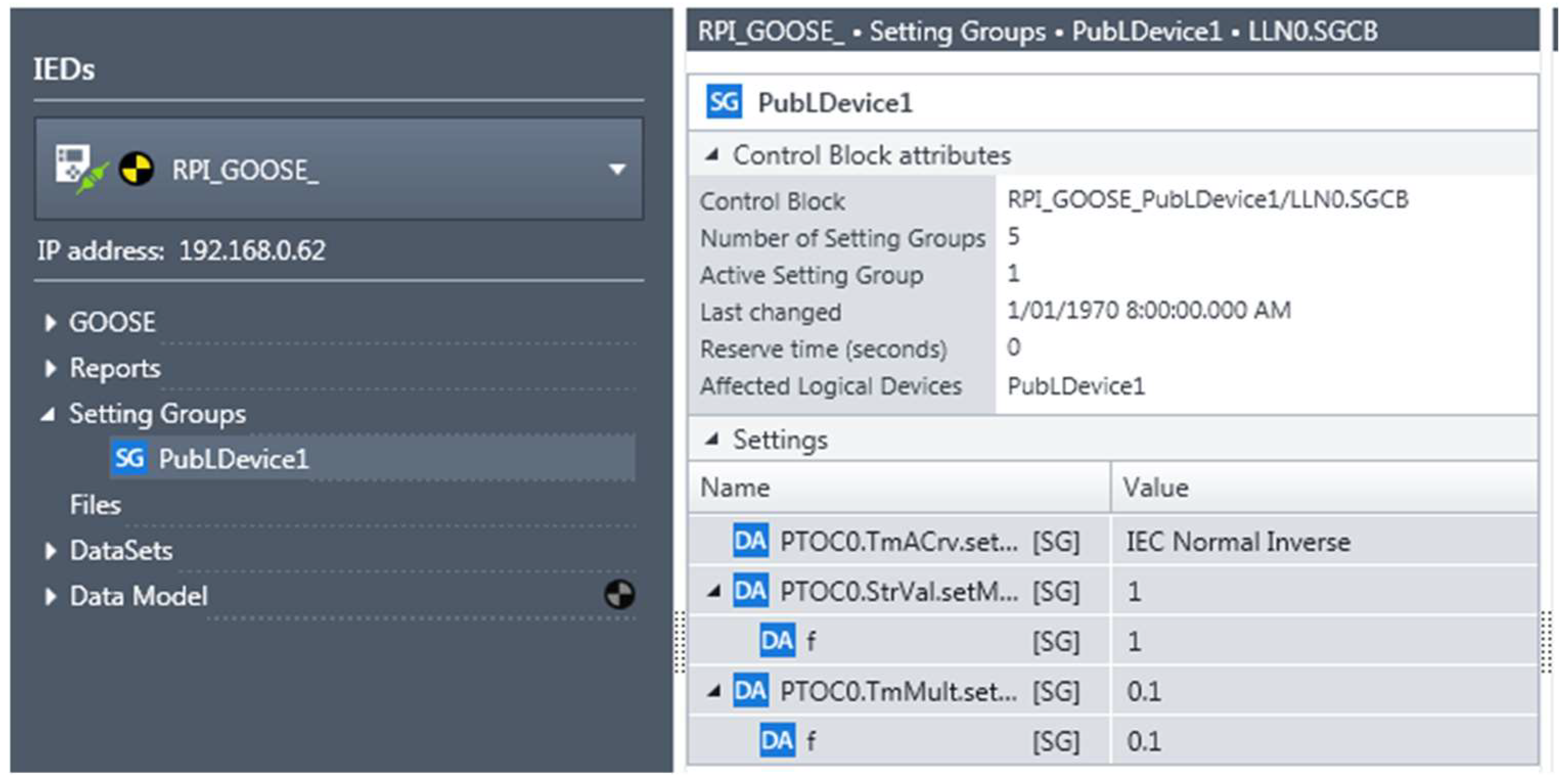

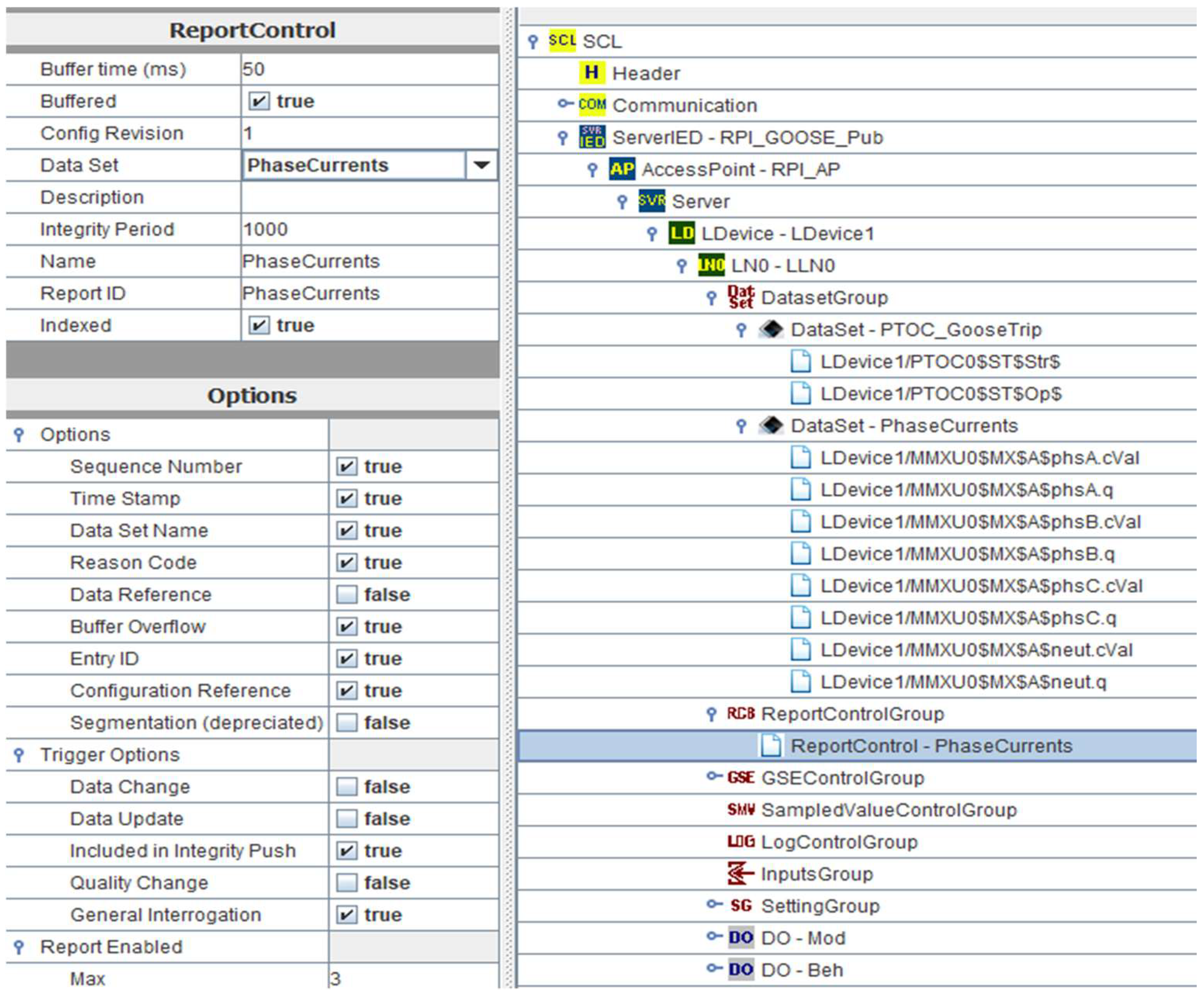

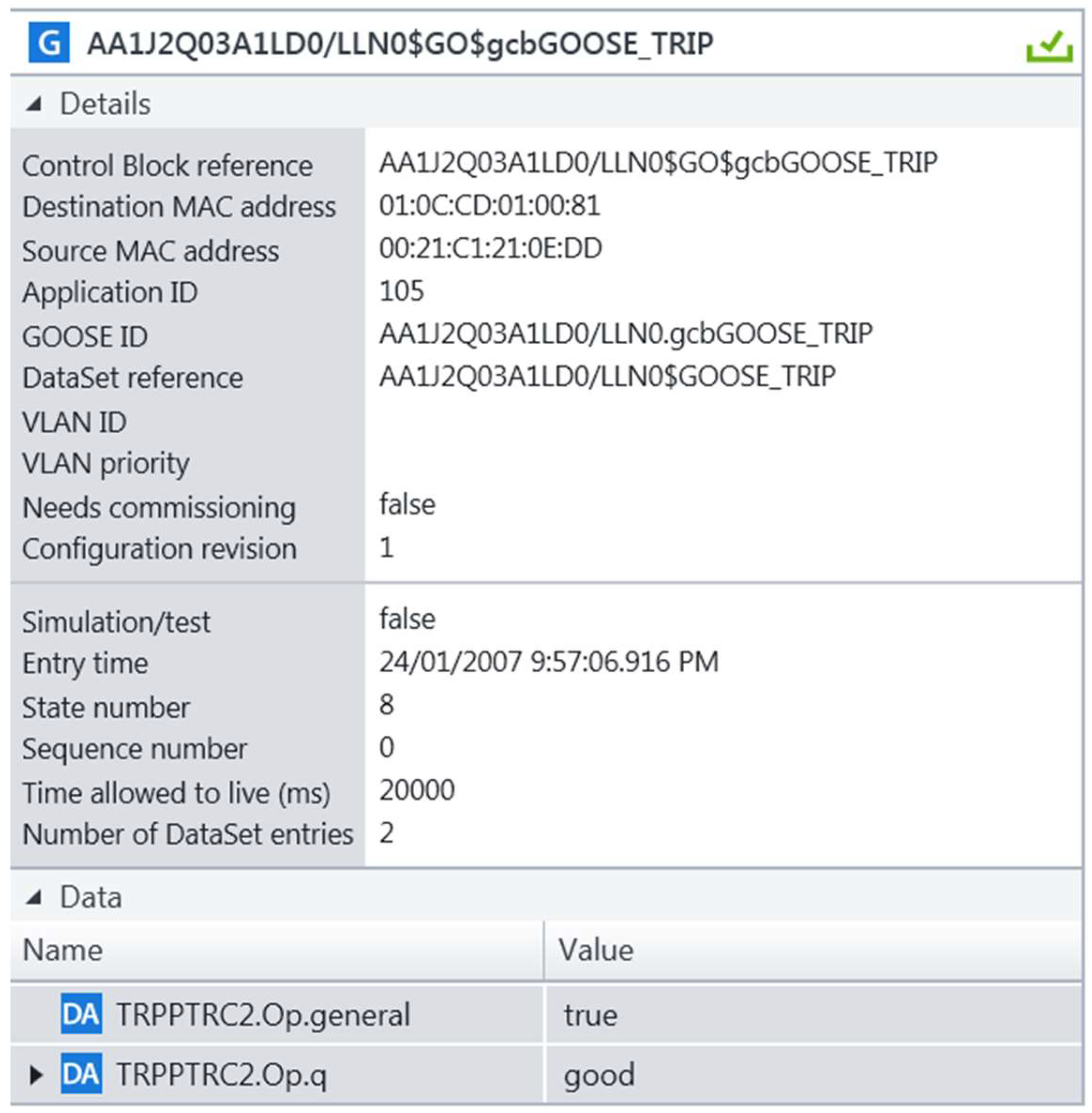

This paper proposes the development of an IEC 61850-compliant platform that is readily programmable and deployable for future digital twin applications. Given the compatibility between IEC-61850 and digital twin concepts, a focused case study was conducted involving the robust development of a Raspberry Pi platform with protection relay functionality using the open-source libIEC61850 library. Leveraging IEC-61850’s object-oriented data modelling, the relay can be represented by fully consistent virtual and physical models, providing an essential foundation for accurate digital twin instantiation. The relay implementation supports high-speed Sampled Value (SV) subscription, real-time RMS calculations, IEC Standard Inverse overcurrent trip behaviour according to IEC-60255, and Generic Object-Oriented Substation Event (GOOSE) publishing. Further integration includes setting group functionality for dynamic parameter switching, report control blocks for MMS client–server monitoring, and GOOSE subscription to simulate backup relay protection behaviour with peer trip messages. A staged development methodology was used to iteratively develop features from simple to complex. At the end of each stage, the functionality of the added features was verified before proceeding to the next stage. The integration of the Raspberry Pi into Curtin’s IEC = 61,850 digital substation was undertaken to verify interoperability between IEDs, a key outcome relevant to large-scale digital twin systems. The experimental results confirm GOOSE transmission times below 4 ms, tight adherence to trip-time curves, and performance under higher network traffic. Such measured RMS and trip-time errors fall well within industry and IEC limits, confirming the reliability of the relay logic. The takeaways from this case study establish a high-performing, standardised foundation for a digital twin system that requires fast, bidirectional communication between a virtual and a physical system.
