Application of PVDF Transducers for Piezoelectric Energy Harvesting in Unmanned Aerial Vehicles

by
Laís dos Santos Gonçalves
1,
Ricardo Morais Leal Pereira
2,
Rafael Salomão Tyszler
1,
Maria Clara A. M. Morais
1 and
Carlos Roberto Hall Barbosa
3,*
1
Department of Chemical and Materials Engineering, Pontifical Catholic University of Rio de Janeiro, Marquês de São Vicente Street, 225, Gávea, Rio de Janeiro 22541-041, Brazil
2
Department of Electrical Engineering, Pontifical Catholic University of Rio de Janeiro, Marquês de São Vicente Street, 225, Gávea, Rio de Janeiro 22541-041, Brazil
3
Postgraduate Metrology Programme, Pontifical Catholic University of Rio de Janeiro, Marquês de São Vicente Street, 225, Gávea, Rio de Janeiro 22541-041, Brazil
*
Author to whom correspondence should be addressed.
Energies 2025, 18(17), 4759; https://doi.org/10.3390/en18174759
Submission received: 19 July 2025 / Revised: 30 August 2025 / Accepted: 5 September 2025 / Published: 7 September 2025
(This article belongs to the Special Issue Emerging Trends in Energy Harvesting Materials and Technologies for Sustainable Energy)
Browse Figures
Versions Notes

Abstract

The demand for sustainable energy generation and storage methods has become inevitable. As a result, numerous sectors are investing in research focused on energy harvesting (EH) techniques. In this context, a promising area involves integrating piezoelectric materials into unmanned aerial vehicles (UAVs)—an application that enables electrical energy generation from the kinetic energies produced during flight. This article aims to use polyvinylidene fluoride (PVDF) piezoelectric transducers coupled to an EH power management unit (LTC3588-1) to convert and store electrical energy generated by wind from the propellers and motor vibration. Methodologically, the motor and transducers are characterized, a model is developed using LTSpice®, and experimental validation of the performance of this coupling is carried out for output voltages (Vout) of 1.8 V, 2.5 V, 3.3 V, and 3.6 V. With a motor rotation speed of 3975 rpm, the transducers generated a voltage amplitude of 17.3 V, enabling the capacitor coupled to the EH power management unit—adjusted to the highest Vout—to be charged in approximately 162 s. Thus, this study demonstrated the feasibility of using PVDF as a piezoelectric nanogenerator in UAVs, enabling onboard electronic circuits and sensors to be powered while reserving the battery solely for propulsion, thereby increasing flight autonomy.

1. Introduction

Since the advent of electrical machines and electronic devices, the demand for energy has increased substantially, stimulated by technological advancements and their increasing presence in society.
Many of these devices depend on a continuous power supply to operate, whether connected to the power grid via wires or through storage systems such as batteries. However, both during the generation and distribution processes and in the operation of these machines, significant energy losses occur, often dissipated in the form of heat, vibration, or electromagnetic radiation.
Given this scenario, the concept of EH emerges as an innovative solution to capture and convert small amounts of energy, commonly wasted, into electrical energy. This process can occur through different mechanisms, such as the conversion of residual thermal energy [1,2,3,4], the utilization of mechanical energy [5,6,7,8,9], or the capture of dispersed electromagnetic fields [7,10,11]. Additionally, the technology seeks ways to generate energy from its own environment, harnessing natural sources and human activities to power small devices.
The concept of low-power energy harvesting opens a vast field of research, encouraging the development of new technologies to increase energy efficiency and broaden the applicability of this technique across different sectors. Researchers around the world are exploring ways to integrate energy harvesting into areas such as wearable electronics [12,13,14,15], biomedical devices [16,17,18,19], and engineering systems [20,21,22,23,24,25,26,27,28,29,30,31], with the goal of enhancing the autonomy of electronic devices while reducing their reliance on conventional energy sources.
In this context, there are EH applications focused on unmanned aerial vehicles (UAVs), which are aircraft that operate without an onboard pilot and fly either autonomously or remotely, such as drones. In addition, according to the Drone Market Report 2025–2030 [32], the global drone market generated nearly USD 33.7 billion in revenue in 2023. Furthermore, revenue is expected to reach USD 40.6 billion by 2025 and USD 57.8 billion by 2030.
Thus, the versatility of drones, combined with high levels of investment, has attracted a wide range of sectors, contributing to significant growth in strategic domains such as the military, where UAVs are used for reconnaissance of hard-to-access areas [33,34], as well as in the delivery sector, replacing human drivers in delivery operations [35,36,37], wireless communication systems [38], maritime communication [39], animal [40,41,42,43,44] and fire [45,46] monitoring, and in agriculture, where they assist in crop surveillance and the application of pesticides and fertilizers [47,48,49,50,51].
On the other hand, the flight efficiency of UAVs is directly dependent on their energy consumption. Consequently, some studies have explored viable strategies to reduce power consumption and extend flight autonomy, such as minimizing the mass and size of the drone [52,53].
Therefore, due to their advantages in power density, the use of batteries is increasingly noteworthy in this scenario. However, the drone’s potential performance is strongly tied to its autonomy, which is limited by the battery’s capacity. Moreover, drone flight control systems depend on onboard electronic circuits and sensors that also require electrical power, thereby contributing to battery consumption and reducing flight duration. As a consequence, there is a constant need for recharging, which imposes unwanted time costs and limits UAVs’ operational autonomy.
So, it is necessary to find a balance to increase battery life without significantly affecting the drone’s mass. In this sense, energy harvesting is opening a promising approach to overcome these adversities and make UAVs more self-sufficient while also being a sustainable strategy due to the energy source used.
Among the possible energy sources for EH in UAVs, solar [54,55,56,57,58,59], mechanical [60,61,62,63], and electromagnetic radiation [64,65] stand out. Notably, the most developed and well-established approach is solar energy, with its first recorded implementation dating back to 1974 [54,55], when Roland Boucher demonstrated the feasibility of powering the Sunrise aircraft solely through solar energy. In contrast, the use of mechanical vibration as a source of energy harvesting in UAVs was reported only in 2008 [66], highlighting the growing interest in alternative and sustainable solutions for powering such systems.
In the context of mechanical EH, the conversion of kinetic energy into electrical energy is carried out through piezoelectric, electromagnetic, or triboelectric transducers, each relying on distinct physical principles to capture and convert the energy generated by motion or vibration. Regarding the piezoelectricity-based transducer, its operating principle is motivated by the intrinsic polarization of piezoelectric materials. That is, when subjected to mechanical stresses, they present an asymmetric displacement of charge of positive and negative ions [67,68].
Considering these aspects, several studies have investigated the aerodynamic behavior of wings and hydrofoils constructed from or integrated with piezoelectric materials, aiming to convert structural vibrations and deformations into electrical energy. Commonly, perovskite ceramics such as lead zirconate titanate (PZT), known for their high piezoelectric coefficient [67], are the most widely explored materials [60,66,69,70,71,72,73,74,75,76]. However, due to their low density and flexible nature, polymers like PVDF are gaining increasing attention in UAV energy harvesting applications.
Liu et al. [63] designed and fabricated a wing composed of carbon fiber and a PVDF membrane measuring 124 mm in length, capable of withstanding high flapping frequencies without breaking and generating a power output and voltage of 21 μW and 6 V, respectively, at a flapping frequency of 12 Hz—sufficient to power 14 LEDs.
Sharma et al. [77] proposed a sensor named Hermes to simultaneously measure the angle of attack and wind speed in UAVs. Additionally, the sensor is composed of five PVDF piezoelectric films from TE Connectivity, which generate voltage signals in response to aerodynamic vibrations in the airflow. The system can produce an average power output of 440 μW, thus enabling Hermes to operate as a self-powered device.
Astan et al. [78] developed a transducer based on a piezoelectric composite consisting of a polymeric matrix (PVDF) and zinc oxide–reduced graphene oxide (ZnO–rGO) nanoparticles, designed to harvest vibrational energy from the arm of a multirotor UAV. To achieve this, the transducer was bonded to the drone’s arm and tested during a 30 s flight, generating a maximum voltage of 64 mV at frequencies of 3.54 Hz, 49.8 Hz, and 0.48 Hz along the x-, y-, and z-axes, respectively.
Wei et al. [61] demonstrated the feasibility of fabricating a wing-shaped energy harvester by combining PVDF-based piezoelectric generators with triboelectric generators to power microelectronic devices. Regarding the piezoelectric device, the active area measured 15.4 cm2 and produced a maximum open-circuit voltage of 3.2 V and a short-circuit current of 2.8 nA at a flapping frequency of 14 Hz.
Gunasekaran and Ross [52], aiming to enable flight control and power onboard sensors, explored the dual use of a flexible inverted piezo-embedded PVDF structure as both a wake sensor and an energy harvester, generating an average voltage amplitude of 20 V at a distance of 5.08 cm downstream of the NACA 0012 airfoil.
As depicted above, different approaches have been proposed for energy harvesting in UAVs, exploring both the relative wind during flight and structural vibrations. Some of these studies have demonstrated the potential of using airfoils [52,77] and flapping wings [61,63] for energy conversion in UAVs, as such configurations favor greater energy availability from aerodynamic flow due to high flight speeds and from wing movement due to their structural characteristics. However, these solutions are limited to specific platforms, such as fixed-wing and flapping-wing drones, and are difficult to integrate into multirotors, in which the flow regime is mainly dominated by the propeller-induced wind, characterized by lower velocities.
In the case of multirotor UAVs, some works have explored exclusively the vibration induced by the motors [78], resulting in low-intensity electrical signals. The absence of an approach that simultaneously combines vibration and induced wind reduces the energy harvesting potential and restricts the scope of applications.
It is also important to highlight that multirotor drones operate at significantly lower velocities compared to fixed-wing aircraft. Depending on the configuration and mission profile, the typical flight regime is around 8 to 10 m/s [79], which aligns with common usage in civilian applications. These velocities are far below those reported in studies with fixed-wing drones (21 m/s) [77], but more accurately reflect the real operational behavior of multirotors employed in urban or agricultural environments.
In this context, the main contribution of this work is the proposition and experimental validation of a modular energy harvesting system based on commercial PVDF piezoelectric transducers, coupled with an LTC3588-1 power management integrated circuit (IC) (Analog Devices, Inc., Wilmington, MA, USA), directly integrated into the drone’s arm. Unlike previous approaches, the system developed here simultaneously exploits vibration and induced flow, demonstrating feasibility under low flight speed conditions. This configuration, in addition to supplying sufficient energy for ultra-low-power sensors, also shows scalability potential through the addition of transducers in series, constituting a practical alternative to reduce battery dependence and increase UAV autonomy in applications such as precision agriculture, environmental monitoring, and delivery services.
This article is structured to clearly and thoroughly present each stage of the study. Following this introduction, Section 2 describes the materials and methods used in the simulations and experiments, detailing the components and techniques employed. Next, Section 3 presents the results obtained through both computational simulations and experimental tests, allowing for a comparative analysis between theory and practice and discussing the project’s development. Finally, Section 4 outlines the study’s conclusions and provides suggestions for future work, indicating possible improvements and applications of this technology in further research.

2. Materials and Methods

2.1. PVDF Transducers

PVDF is a polymer composed of ordered regions, where the chains are aligned (crystalline phase), and disordered regions, where the chains are entangled (amorphous phase). Morphologically, the crystalline regions of this material can present five distinct crystalline phases—α, β, γ, δ and ε—which differ in their molecular conformations [80].
Regarding the α phase, its conformation is of the TGTG-type (trans-gauche), providing characteristics such as thermodynamic stability at ambient temperature and pressure. Furthermore, the packing of the chains within the unit cell is such that the molecular dipoles cancel each other out; that is, this phase does not exhibit piezoelectricity [80,81].
In turn, the β and γ phases are polar and exhibit piezoelectric properties; however, when compared, the piezoelectric effect of the γ phase is weaker than that of the β phase, due to the presence of one gauche (G) conformer in every fourth repeat unit along its chain conformation [82].
On the other hand, the β phase features chains that follow an all-trans planar zig-zag (TTT) conformation, allowing the induction of a significant dipole moment and consequently displaying better piezoelectric, ferroelectric and pyroelectric properties among the five PVDF polymorphs [80,82].
Considering the above-mentioned, it becomes clear that, for piezoelectric energy harvesting applications, the β phase must be predominant in PVDF. For this reason, the present study employed the LDT0-028K transducer (TE Connectivity, Berwyn, PA, USA) (Figure 1), which is a thin-film transducer optimized for piezoelectric applications manufactured by TE Connectivity [83].

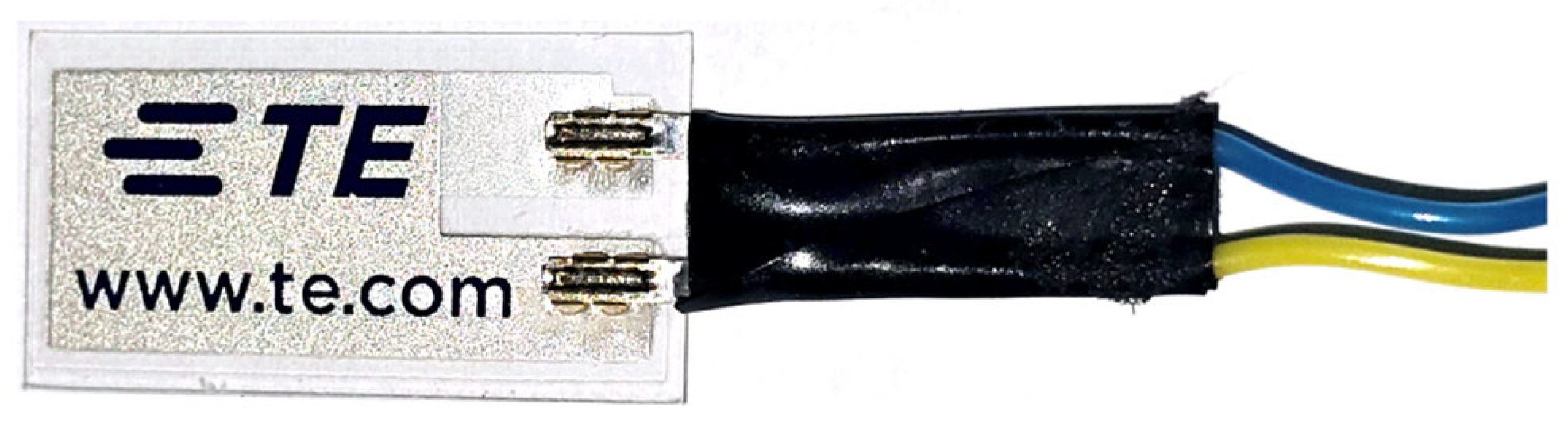

The transducer in focus consists of a 28 μm thick PVDF polymer film on which silver ink electrodes are deposited using the screen printing technique on a 125 μm thick polyester (mylar) substrate. The device also has two crimped contacts. Additionally, when configured as a cantilever beam—with one end fixed and the other free—the thin-film transducer functions as an accelerometer or vibration sensor. Thus, the mechanical deformation of the piezoelectric film, due to the deflection of the free end, generates an electrical charge in the PVDF material, which can be detected through an appropriate electronic circuit.
Moreover, this transducer is valued for its high sensitivity, flexibility, and low density, making it ideal for applications requiring lightweight and adaptable sensors. In addition, its polymeric composition allows it to withstand mechanical stress without fracturing, justifying its suitability for the proposed system.
Therefore, the main objective of using this transducer in the present research is to convert the mechanical energy generated by the drone during flight into electrical energy capable of powering some of its onboard sensors, such as cameras, distance sensors, and motion detectors, thus creating a self-sustaining energy source. This process allows the battery to be used solely for drone propulsion, consequently reducing the need for frequent recharging and extending the potential operational time of the vehicles.

2.2. Integrated Circuit for Energy Storage

In general, the electrical energy produced by piezoelectric materials is not immediately suitable for powering most electronic devices. It is necessary to use integrated circuits to properly condition the generated energy. In the case of vibrational energy harvesting, for example, the produced energy is in the form of alternating voltage or current, which needs to be rectified and then stored in a capacitor or battery.
With the development of research on energy harvesting from diverse forms and sources, albeit in smaller quantities—i.e., relatively low power levels (in the range of microwatts to milliwatts)—more complete and versatile techniques have been created for integrated circuits that condition the generated energy to achieve maximum energy transfer. This enables the charging of a battery or capacitor to extend the device’s autonomy or power an auxiliary component.
Typically, the techniques used in these ICs include rectifier circuits (such as a bridge rectifier), the addition of a switched inductor in series—or in parallel—with the transducer (Synchronized Switch Harvesting on Inductor, SSHI), and interface circuits such as Synchronous Electric Charge Extraction (SECE) and Pulsed Synchronous Charge Extractor (PSCE) [84].
In addition, boost, buck, and buck-boost converters are used for power management in ICs [85,86]. The Boost converter improves the input voltage to a higher output voltage. For that, an inductor stores energy while the switch is closed, and upon opening, the energy stored in the inductor is transferred to the load and the output capacitor, boosting the voltage above the input level.
In turn, the Buck converter works by reducing the input voltage to a lower output voltage, and its operating principle is the rapid switching of a switch that connects and disconnects the voltage to an inductor. The energy stored in the inductor is then transferred to the load, resulting in an output voltage lower than the input voltage. Regarding the Buck-Boost converter, it can either increase or decrease the input voltage to provide an output voltage, which can be higher or lower than the input voltage [85,86].
It is worth noting that, in all cases, the power is conserved between the input and output of the chip. However, some energy generated by the transducer is inevitably lost to the IC’s internal consumption. For this reason, a detailed study is necessary of which EH power management to use according to the needs of each project, based on the type of energy generation, input voltage magnitudes and limits, and the desired output voltage.
Given these considerations, the power-management IC used in this project is the model LTC3588-1 from Analog Devices [87]. This energy harvesting manager is designed for small-scale applications such as piezoelectric transducers. It can convert the alternating input voltage (generated by the transducers) to a direct voltage using a full-wave rectifier.

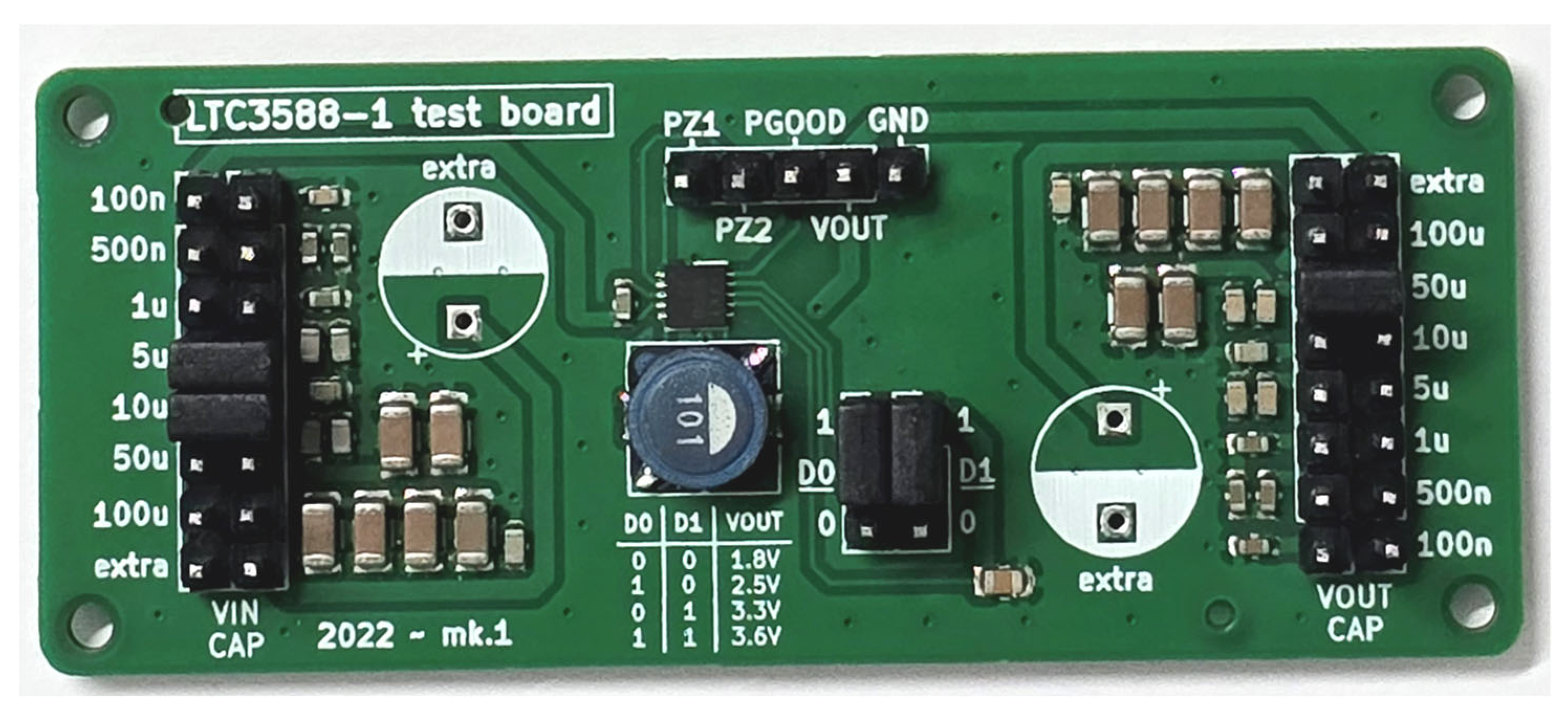

Figure 2 shows the printed circuit board (PCB) previously developed by our research group that implements a test board for the LTC3588-1 chip, allowing the user to configure several of its features via jumpers. The maximum input voltage is 20 V, and the maximum current is 50 mA. Its output voltages can be set to 1.8 V, 2.5 V, 3.3 V, or 3.6 V, depending on the D0 and D1 settings. After rectification, the energy is stored in the input capacitor (Cin, defined by the VIN CAP dip switches), and its voltage rises until reaching a threshold that enables the charging of the output capacitor (Cout, defined by the VOUT CAP dip switches). For the first two configurations, charging begins when the voltage across Cin reaches a range of 3.77 V to 4.30 V, while for the last two configurations, it occurs at a higher range of 4.73 V to 5.37 V [87]. When the voltage on the output capacitor (Vout) reaches 92% of the set output voltage, the output Pgood is triggered (e.g., Pgood is turned on when the voltage at Vout reaches 1.656 V and the set output voltage is 1.8 V), indicating that the stored energy is available to power other circuits.

2.3. Characterization of Motor and PVDF Transducer Performance

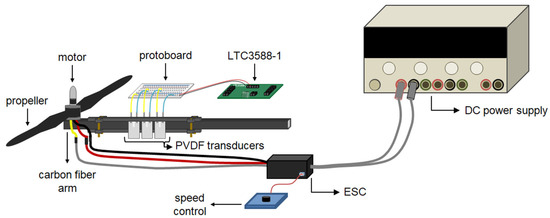

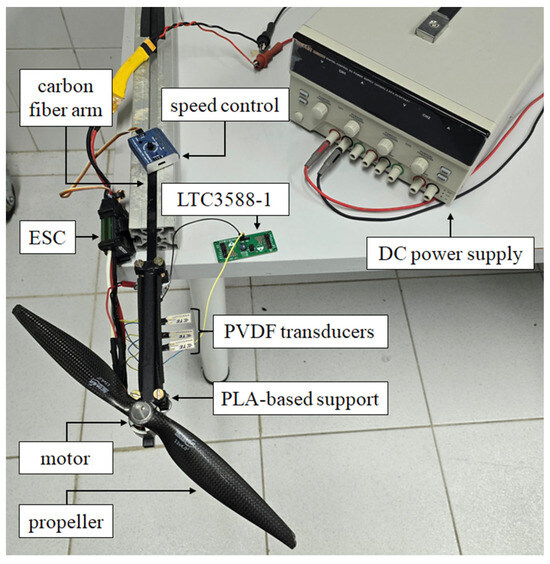

In order to experimentally simulate the arm of a UAV, a test bench (Figure 3 and Figure 4) similar to previous works [88,89,90] and using electromechanical components commonly found in quadcopter drones [88,90], was assembled using a 35 cm-long square carbon fiber profile, a motor (PROPDRIVE v2 2826s 1200 kV from HobbyKing, Hong Kong, China), a propeller with a diameter of 330 mm and a pitch of 102 mm (manufactured by RCTimer, Shenzhen, Guangdong, China), a speed controller (CCPM Servo Consistency Master from Turnigy, Hong Kong, China), a power supply (HIKARI HF 3205D, São Paulo, SP, Brazil), a power regulator connecting the supply to the motor (Castle Phoenix ESC 100, Castle Creations, Olathe, KS, USA), a tachometer (DT-2234C+ from Vectus, São Paulo, SP, Brazil), an oscilloscope (KEYSIGHT DSOX1204G, Keysight Technologies, Santa Rosa, CA, USA) with a 1 GHz sampling rate, 10:1 high-impedance passive probes with 10 MΩ input impedance, and LDT0-028K piezoelectric transducers connected to a breadboard and interfaced with the LTC3588-1 integrated circuit through its terminals, the electromagnetic disturbances were minimized by twisting the wires. Additionally, to secure the piezoelectric transducers to the arm, a 15 cm-long support was designed using OnShape® software (version 1.193.50202.2394) and fabricated using a 3D printer (GTMax3D Core H5, Americana, SP, Brazil) with polylactic acid (PLA) material. The clamping mechanism works like a sandwich, which holds the films by pressure between the arm and the PLA material at a distance of 8.5 cm from the motor.
Firstly, in order to understand the characteristics of the motor in relation to the power supplied to it and those of the transducers due to flexion at different motor rotation frequencies, two characterizations were conducted. The first focused on analyzing the motor’s rotational speed response as a function of increasing supplied power, while the second examined the electrical voltage generated by the PVDF transducers due to excitation from the propeller-induced airflow and the vibrations produced by the propeller/motor assembly. It is worth noting that all experimental tests were carried out under controlled environmental conditions—a laboratory at 20 °C with 50% relative humidity.
The motor characterization was conducted using the previously described test bench. However, the transducers, the support structure, and the integrated circuit were removed from the setup. Methodologically, the current supplied by the power source was varied from 0 A to 5.2 A, while the voltage was held constant at 12 V. As a result, the power delivered to the motor ranged from 0 W to 62.4 W. So, the motor was then activated via the ESC and the knob on the servo tester, and as the current was gradually increased, the rotational speed data were collected using the tachometer, establishing a relationship between the motor’s rotational speed and the supplied power. From this relationship, a regression equation and the coefficient of determination (R2) were obtained.
In turn, the characterization of the piezoelectric transducers in series was carried out using the test bench without the LTC3588-1 IC. The transducers were positioned on the support and fixed to the carbon fiber rod. Then, as in the first characterization, the motor was operated within a power range from 0 W to 62.4 W, and the measurement in terms of electrical signal amplitude was performed using the oscilloscope. This characterization made it possible to evaluate which configuration maximizes the generation of the electrical signal resulting from the deformation caused by the propeller/motor, enabling the operation of the IC. Moreover, it allowed verification that the maximum alternating voltage generated by the transducers did not exceed 20 V, ensuring the safe operation of the LTC3588-1 IC, which has a Zener diode that limits the input voltage to 20 V but whose maximum current is 50 mA.

2.4. Computational Simulation of EH Electronic Circuits

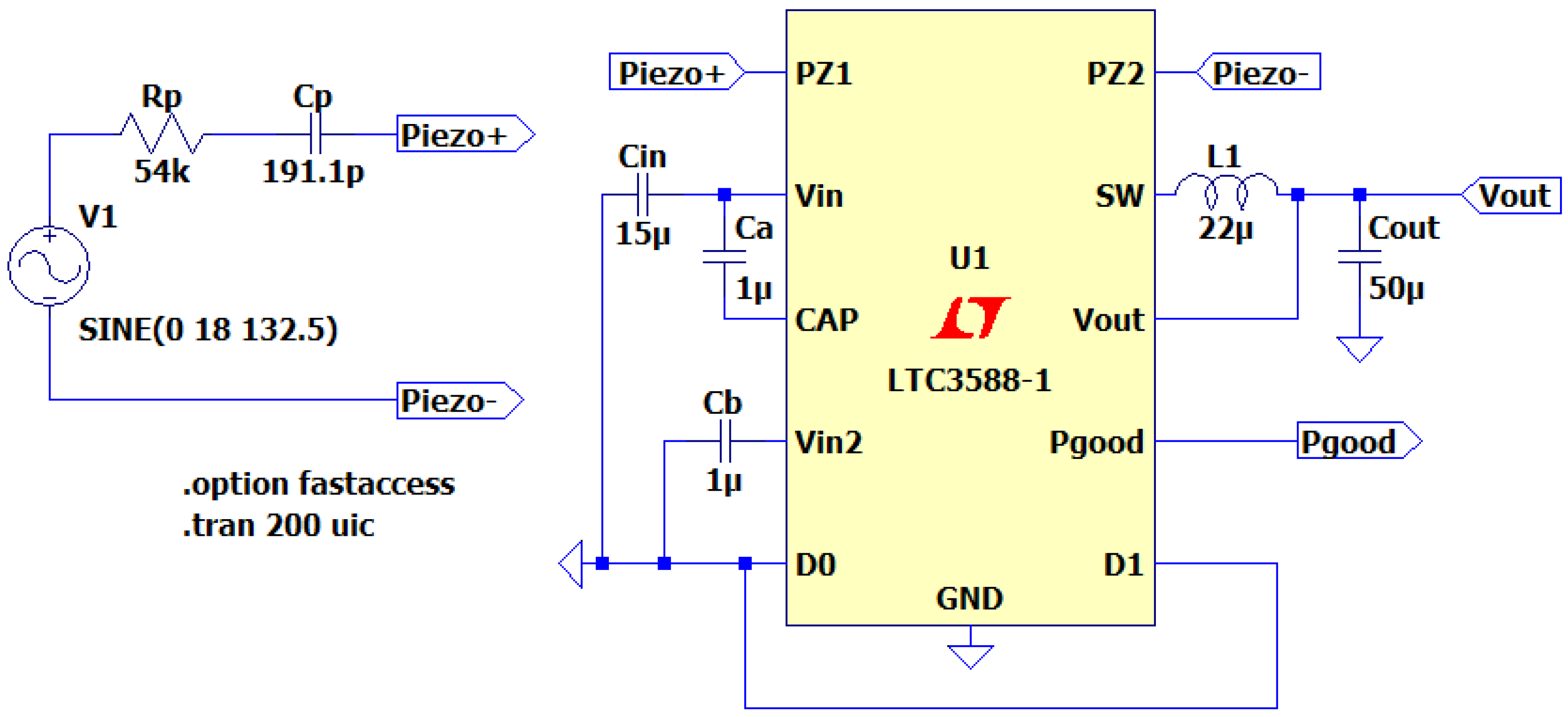

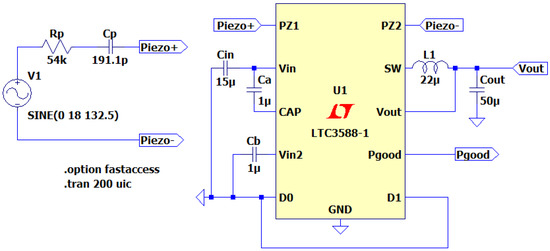

The LTspiceXVII® software (version 17.0.36.0) was used to simulate the behavior of the coupling between the three PVDF transducers connected in series and the LTC3588-1 integrated circuit, in order to predict the activation of the Pgood signal and the charging time of the input and output capacitors, as well as to properly select the values of their capacitances (Figure 2). To achieve this, two computational models were developed—one representing the piezoelectric transducer and the other the electronic circuit of the energy storage chip (Figure 5).
Regarding the modeling of the PVDF transducers, the simplified equivalent circuit method was used, which includes only an alternating voltage source (in this research, configured as a sinusoidal function) in series with a resistor and a capacitor. Additionally, to define the voltage source parameters, such as frequency and amplitude, the results of the characterizations described in Section 2.3 were used.
The operating frequency of the transducers was defined based on the system’s dynamics. Considering that the films are subjected to the wind action from the two propeller blades with each complete rotation of the motor, the frequency to which the transducers were subjected in the simulations was established as double the motor’s frequency.
To ensure the accuracy of the simulations, it was necessary to consider the impact of the instrumentation. The oscilloscope’s internal resistance (10 MΩ) was incorporated into the simulation model because it acts as a voltage divider, influencing the reading of the voltage generated by the films. Through a voltage divider simulation, the actual voltage generated by the films was determined by adjusting the model’s input voltage until the voltage measured at the simulated oscilloscope’s internal resistance terminal was equivalent to the experimental value.
Furthermore, the IC internal resistance was considered in the context of how the input voltage is limited and stabilized, which is fundamental for safe operation.
With the previously determined operating frequency of the transducers, the simulation aimed to identify an input voltage value that would allow for reproducing the experimentally observed Cout charging times and Pgood pin activation times. To achieve this, some simplifications were adopted, such as disregarding the reactive effect on the voltage observed at the oscilloscope and assuming an ideal sinusoidal behavior for the generated voltage.
Additionally, to determine the resistance and capacitance values, a handheld LCR meter (KEYSIGHT U1733C, Keysight Technologies, Santa Rosa, CA, USA) was used to measure these parameters from a single transducer. Based on the measurements, different combinations of PVDF film quantities and electrical arrangements were evaluated. Among the tested configurations, the series connection of three films proved to be the most effective, providing the best performance. Therefore, the equivalent values for three films connected in series were calculated. Consequently, the equivalent resistance and capacitance used in the simulation (Figure 5) were set to 54 kΩ and 191.1 pF, respectively.
In turn, the modeling of the EH power supply electronic circuit was based on the computational model provided by the manufacturer, Analog Devices [87]. As shown in Figure 2, the components D0 and D1, used as output voltage select bits, and Cin and Cout, can be configured for different output voltages and capacitance values, respectively.
Then, computational modeling was performed by testing the capacitance values of Cin and Cout with Vout fixed at 1.8 V, firstly, so that a large amount of energy generated by the transducers would not be necessary for the charging process of Cin and Cout. Finally, with the values of Cin (15 μF) and Cout (50 μF) defined, the four possible combinations of D0 and D1 were tested to determine the charging time of the input and output capacitors and subsequently compare the results with the behavior observed during experimental validation.

2.5. Experimental Evaluation of the EH System

Finally, an experimental validation was carried out with the aim of corroborating the simulations performed and demonstrating the applicability of the proposed system—generating electrical energy from the mechanical energy of the propeller–motor assembly using piezoelectric transducers and storing the harvested energy in an integrated circuit.
For this purpose, the experimental simulation was conducted using the setup shown in Figure 3, connected to an oscilloscope. Additionally, three probes were connected to the oscilloscope channels—the hook tip of the Pgood signal was connected to the Pgood pin of the integrated circuit, while the ground leads of the input and output capacitors, as well as that of the Pgood, were connected to the ground (GND) of the IC. The Cin and Cout probes were used to measure the voltage across the capacitors. Furthermore, as in the computational simulation, the capacitance values for the input and output capacitors were fixed according to the values defined in the tests of Section 2.4, and all four possible output voltage configurations were tested.
Methodologically, for the first three configurations (Vout = 1.8 V and 2.5 V), the probe was touched to the Vin and Vout pins every 5 s and every 10 s for the last two configurations (Vout = 3.3 V and 3.6 V). It is worth noting that, due to the oscilloscope’s input resistance being 10 MΩ, which is very close to the equivalent capacitive reactance of the PVDF films (approximately 6.3 MΩ); the probe contacts for voltage visualization were made quickly to prevent energy dissipation and possible alterations in the circuit charging time.

3. Results and Discussion

In this section, we present the motor behavior under variations in the power supplied by the source (motor characterization), the transducers’ behavior when subjected to variations in the motor’s rotation frequency (series transducers characterization), and, finally, a simulation in LTSpice® software aiming to predict the performance of the integrated circuit (LTC3588-1), along with experimental validation to corroborate the simulations and demonstrate the system’s applicability.

3.1. Results of the Motor and PVDF Transducer Characterizations

Figure 6 illustrates the relationship between the motor’s rotational speed and the power supplied to it by the source. We can observe that the higher the speed, the more difficult it becomes to increase it further. Beyond manufacturing considerations, one reason for this is that with a fixed voltage of 12 V, the current is responsible for increasing the power supplied to the motor, and higher current leads to greater losses. To establish a trend line from the collected data, a polynomial equation was generated: v = − 0.001476 p 4 + 0.21316 p 3 − 10.924 p 2   +   266.08 p   +   404.78 , with a coefficient of determination (R2) of 0.9865.
The transducers were subjected to bench tests, and it can be observed in Figure 7 that the generated voltage amplitude increased with the motor’s rotational speed, but exhibited a resonant behavior, associated with the first natural vibration frequency of the test bench, close to 2400 rpm (40 Hz), reaching a local peak of 11.8 V. From 5.2 V at 2500 rpm, the voltage gradually increased to 19.2 V at 3990 rpm. At speeds close to 4000 rpm, the films become very sensitive to increases in speed, thus exhibiting even higher growth rates than in the range of speeds around the natural vibration frequency.

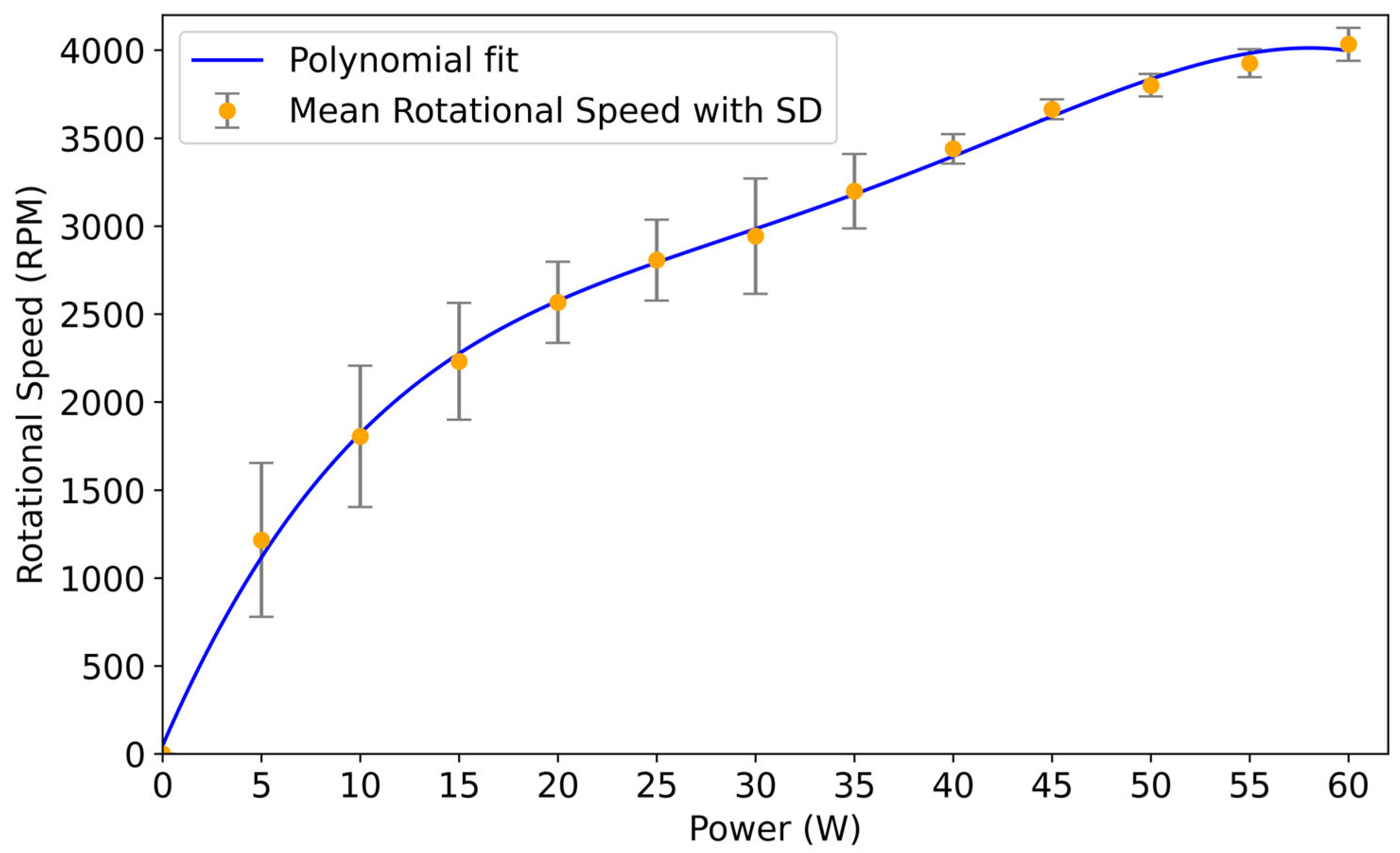

Throughout the project, the motor was characterized based on its speed as a function of increased power supply, which helped us understand its dynamic behavior. Following this characterization, various tests were conducted with piezoelectric films in different configurations and quantities to assess their efficiency in converting mechanical energy into electrical energy.
It was observed that new films exhibited greater resistance to the wind force generated by the motor’s propellers. However, with continuous use, the films became visually more pliable and noticeable by touch, probably indicating that their initial stiffness progressively decreased due to accumulated deformations during testing.
One of the primary analyses involved measuring the voltage generated by three films connected in series in the middle of the support when subjected to a rotational frequency of 3975 rpm (wind speed of 7.5 m/s generated by the propellers—measured specifically for that case using an anemometer), resulting in a voltage of 17.3 V. This value was crucial for selecting the power management integrated circuit, considering its maximum supported input voltage limits (20 V), without accounting for the IC’s internal resistance, and a maximum input current of 50 mA.
Another relevant point was identifying the primary sources of transducer deformation. Although the vibration generated by the test bench is significant when the motor operates at 2400 rpm, tests demonstrated that the predominant factor in film deformation is the wind force generated by the propellers.
Additionally, the choice of the transducer positions is based on the fact that the arm is the place where the influence of motor vibration and the wind generated by the propellers is strongest. The transducers could even be positioned on the skid, but in this case, the effect of vibration and wind would be weaker, and consequently, the transducers would generate less electrical energy.
Finally, when testing the same three films in parallel in the middle of the support, a significant reduction in generated voltage was observed, accompanied by an increase in current. This behavior aligns with the electrical characteristics of parallel connections, highlighting the need for an appropriate balance between voltage and current when choosing the connection topology to optimize energy harvesting.

3.2. Simulation and Experimental Results of the EH Electronic Circuits

As mentioned earlier, based on the results obtained from the motor and series transducers’ characterization, it was possible to determine the frequency and amplitude used in both the computational simulation and experimental validation.
First, for both tests, a power of 57 W was selected, resulting in a rotational speed of 3975 rpm (calculated using the regression equation derived from the motor characterization) and an output voltage of 17.3 V. However, regarding the adjustments of the computational simulation parameters, it was necessary to specify certain conditions.
Regarding frequency, the transducers coupled to the rod are subjected to the action of the wind from the propeller’s two blades with each full rotation of the motor. This means the frequency to which the transducers are exposed is twice the motor’s frequency—66.25 Hz—resulting in 132.5 Hz.
Additionally, it is important to note that the oscilloscope’s internal resistance of 10 MΩ acts as a voltage divider. This means the voltage read by the oscilloscope is not the actual voltage generated by the films. To find the true generated voltage, a voltage divider was simulated, and the film-generated voltage was increased until the voltage measured at the oscilloscope’s internal resistance’s first terminal equaled 17.3 V. This process yielded a result of 21 V. Although this value of 21 V exceeds the chip’s safety parameter of 20 V, the integrated circuit’s input resistance limits and stabilizes the voltage at the circuit input below 15 V, ensuring operational safety.
After this correction and considering the adopted simplifications—such as neglecting the reactive effect on the voltage observed in the oscilloscope, assuming an ideal sinusoidal behavior, and including the IC’s internal resistance—the simulation with a fixed frequency of 132.5 Hz aimed to find a voltage value that best replicated the experimentally observed charging times of Cout and the triggering of the Pgood pin. The value that showed the closest match was 18 V. Thus, for the computational simulation, the voltage source amplitude was set to 18 V, and the frequency to 132.5 Hz.

3.2.1. Output Voltage of 1.8 V

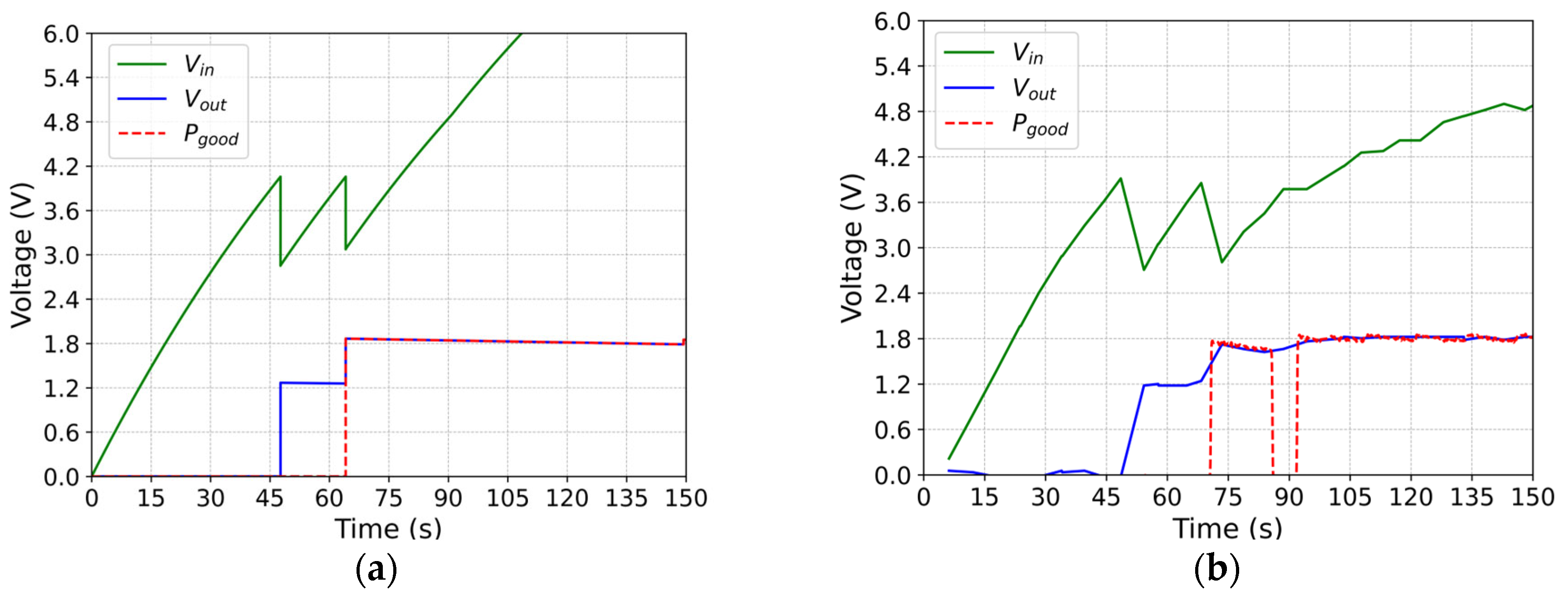

Figure 8a shows the LTspice simulation of the circuit operation when the IC is configured for a 1.8 V output (D0 = 0 and D1 = 0). In this case, Cin discharges twice to charge Cout before stabilization, and Pgood triggers at approximately 64 s. It is also observed that the first charging cycle occurs at 47.7 s, while the second happens close to the Pgood triggering moment. For this first configured output voltage, the IC begins charging Cout when Cin reaches 4.0575 V.
In bench tests with the IC set to a 1.8 V output, represented in Figure 8b, the charging mode is reached at 54 s. Here, just as in the simulation, there are two charging cycles before the target output voltage is achieved. Pgood triggers at around 71 s, after which the voltage at Cin continues to rise, acting as an energy reserve for Cout.
It is worth noting that the Pgood signal drops seen in this and subsequent graphs (which represent experiments for each output voltage case) are caused by voltage drops in Vout, as data acquisition losses occur during oscilloscope readings.

3.2.2. Output Voltage of 2.5 V

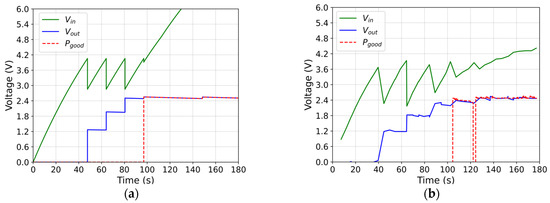

Figure 9a shows the LTspice simulation of the circuit operation when the IC is configured for a 2.5 V output (D0 = 1 and D1 = 0). Similarly to the 1.8 V output configuration, Cout receives energy from Cin when it reaches 4.0575 V. However, in this case, four charging cycles are required before the voltage across Cout stabilizes. It is worth noting that during the fourth charging cycle, Cin does not need to transfer significant energy to Cout for it to reach 2.5 V, which is why Pgood only triggers near the fourth charging event, at 97 s.
Consistent with the simulation, Figure 9b shows bench test results with the output voltage set to 2.5 V, demonstrating that four charging stages are required for Cout to reach the target 2.5 V. The first charging cycle occurs at 45 s, the second at 69 s, the third at 89 s, and the final one at 107 s—the exact moment when the Pgood pin triggers.

3.2.3. Output Voltage of 3.3 V

Figure 10a shows the LTspice simulation of the circuit operation when the IC is configured for a 3.3 V output (D0 = 0 and D1 = 1). The charging of Cout occurs in 5 stages until its voltage stabilizes. Similarly to the simulation with 2.5 V output, the fifth charging process involves less energy transfer. Near this fifth charging event, the Pgood pin triggers at approximately 133 s. Unlike the 1.8 V and 2.5 V output configurations, in this case, the IC initiates the charging process when Cin reaches 4.8319 V.
Figure 10b presents bench test results with the output voltage set to 3.3 V, now with a lower data sampling rate (every 10 s). As in the simulation, five charging cycles were required for Pgood to trigger, though the actual triggering time was about 165 s compared to 133 s in the simulation. The charging cycles occurred at 60 s, 80 s, 109 s, 139 s, and 165 s.

3.2.4. Output Voltage of 3.6 V

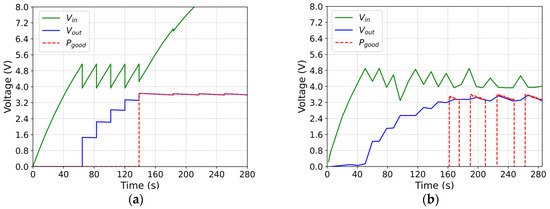

Figure 11a displays the LTspice simulation of the circuit operation when the IC is configured for a 3.6 V output (D0 = 1 and D1 = 1). In this configuration, Cin discharges five times to charge Cout before voltage stabilization, with each charging cycle initiated when Cin reaches 5.0428 V, as expected for this design. Notably, while both 3.3 V and 3.6 V output settings require the same number of charging cycles (5), the energy transfer during the fifth cycle is significantly greater for the 3.6 V configuration. Consequently, Pgood triggers at approximately 138.6 s during this final charging phase.
Figure 11b presents experimental results with the output voltage set to 3.6 V. The bench tests required six charging cycles for Pgood activation—one more than simulated. This discrepancy arises because the actual IC implementation experiences Cout discharging, possibly due to the oscilloscope’s internal resistance, transducer fatigue due to continuous deformation, ambient vibration interference, and capacitor self-discharge, affecting both the trigger timing and number of charging cycles.
Table 1 provides a detailed comparison between simulation and experimental results for the different output voltage configurations of the LTC3588-1 (1.8 V, 2.5 V, 3.3 V, and 3.6 V). The parameters analyzed include the number of Cout charging cycles and charging initiation time, and the Pgood activation time. In general, the simulated and experimental results show close alignment, with discrepancies in timing limited to just a few seconds. For higher output voltages (3.3 V and 3.6 V), the number of charging cycles increases, reflecting the greater energy required to stabilize the system. The additional charging cycle observed experimentally at 3.6 V is likely due to losses caused by the oscilloscope’s input resistance and capacitor discharge during the measurement process.
Considering the four previous tests, both simulated and experimental, it is observed that the internal circuit of the IC begins the charging process of Cout only when the voltage at Cin reaches a certain value, which varies depending on the selected output voltage. As expected, for Vout set to 1.8 V and 2.5 V, the values are between 3.77 V and 4.3 V, whereas for Vout of 3.3 V and 3.6 V, they range from 4.73 V to 5.37 V [87]. Afterward, the voltage at Cin drops sharply in order to charge Cout, and once the voltage at Cout reaches 92% of the set output voltage, the Pgood pin is activated. It is worth mentioning that the main objective of the comparisons made in the present section was a qualitative validation of the LTSpice simulation by comparing it with experimental data, which is influenced by numerous other aspects not considered in the simulation, such as capacitor discharge, finite input impedance of the oscilloscope, external vibrations, and electromagnetic interference, among others. Also, the piezoelectric generation was simplified to a single sinusoid of a given frequency and we used a simplified electrical model for the PVDF transducer. Even with all simplifications, a qualitative comparison was possible and allowed us to demonstrate the applicability of the proposed system.

3.3. Harvested Power Estimation

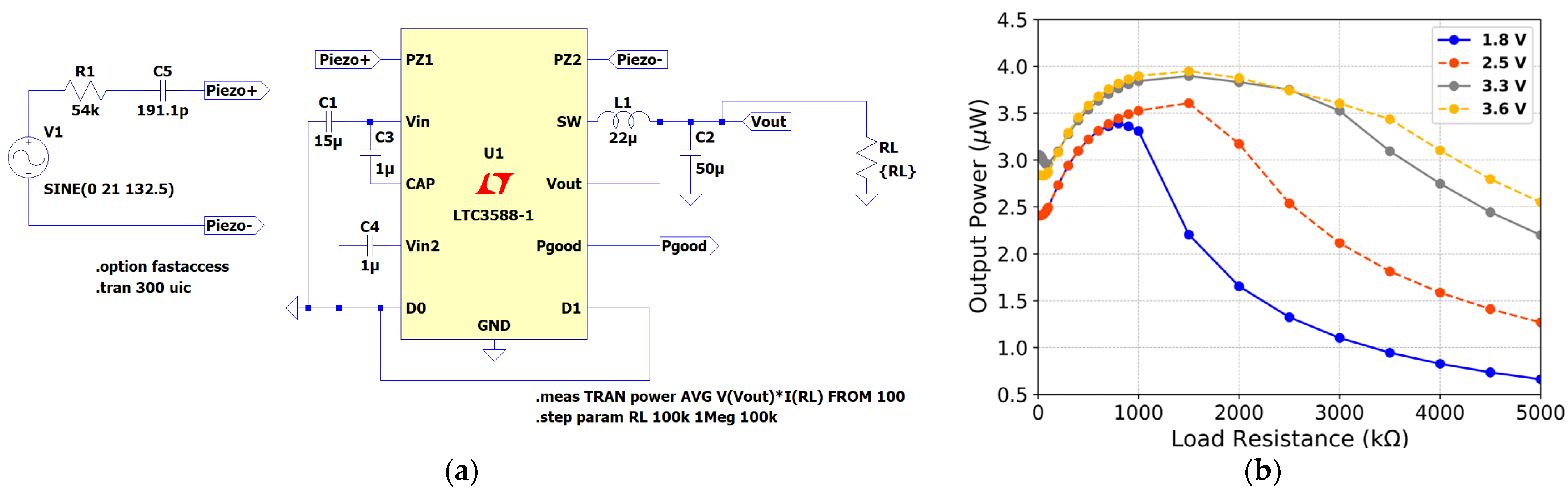

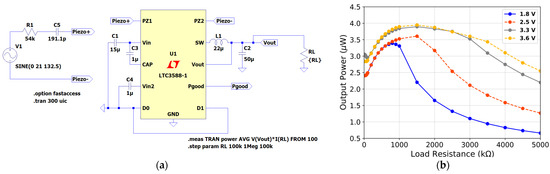

The feasibility of applying piezoelectric energy harvesters depends directly on how much power the device is capable of producing. For this reason, a resistive load ranging from 10 kΩ to 5 MΩ was added to the output of the LTC3588-1 in the LTSpice model, as shown in Figure 12a, and the average power values were simulated for the four different possible output voltages, as shown in Figure 12b.
The output power curve as a function of the load resistance highlights the typical behavior of energy harvesting (EH) devices, in which power exhibits an optimal point and subsequently decreases with increasing resistance. It is observed that the maximum power value directly depends on the regulated output voltage. For 1.8 V, the maximum power is approximately 3.4 µW around 1 kΩ, while for 2.5 V, this value increases to about 3.6 µW at 1500 kΩ. The output voltages of 3.3 V and 3.6 V result in the best performances, reaching maximum power values of 3.9 µW and 4.0 µW, respectively, at 1500 kΩ.
This result indicates that the efficiency of the energy conversion system is favored at higher output voltages, both due to the larger extracted power and the smaller drop in the high-resistance regime. Thus, for practical applications in low-power electronic devices, operating at 3.3 V and 3.6 V proves to be more advantageous. Moreover, based on these results, it becomes feasible to power low-consumption onboard sensors in UAVs. In this way, the integration of transducers with the IC demonstrates potential to enhance the energy autonomy of UAVs.
Finally, the applicability of energy harvesting systems in UAVs depends not only on conversion efficiency but also on the scalability to meet different power demands. Based on the results obtained and presented, the most efficient configuration, using the LDT0-028K transducer and the LTC3588-1 IC, consists of a module with three PVDF transducers connected in series to the integrated circuit. Under these conditions, operating at 132.5 Hz and with the output voltage set to 3.6 V, the system is capable of delivering approximately 4 µW of power. Consequently, it becomes possible to scale the available power in an almost linear manner: replicating one module (3 transducers + 1 IC) results in a proportional multiplication of power, so that three units could provide up to approximately 12 µW. This flexibility makes the system suitable for powering different types of onboard sensors, ranging from ultra-low-power devices to those requiring higher power levels.

4. Conclusions

This study successfully demonstrated the feasibility of using PVDF piezoelectric transducers coupled with an integrated power management circuit (LTC3588-1) for energy harvesting in UAVs. The results showed that the transducers, when exposed to the vibration and wind generated by the drone’s motor and propellers, were capable of producing a significant voltage (17.3 V at 3975 rpm). This allowed for the efficient charging of the LTC3588-1 chip to a 3.6 V output in 162 s. Furthermore, the computational modeling performed in LTspice® software corroborated the experimental data, validating the effectiveness of the proposed system.
When these results are compared with other approaches reported in the literature (Table 2), it becomes evident that the power generated by energy harvesting systems onboard UAVs is strongly dependent on operating conditions, particularly flight speed. Studies based on fixed-wing aircraft, operating at higher speeds, have reported significantly higher power outputs. This contrasts with the present work, in which the considered speed was only 7.5 m/s, which largely explains the lower power obtained (4 µW).
It is important to recognize that, in absolute terms, the power generated by the proposed system is low compared to the literature, which limits its immediate application in sensors with higher energy demands. However, the modular concept (three transducers in series coupled to the IC) allows for linear scaling of power and enables the proposed system to supply sensors that require higher power. The estimated cost for one module does not exceed USD 50, considering the cost of the sensors (around USD 6 per unit), the integrated circuit LTC3588-1, the PLA-based support, and other electronics components.
Furthermore, the direct dependence of power on flow speed suggests that, in more aggressive flight scenarios or in fixed-wing UAVs, the same setup could provide much higher values.
Thus, although the power performance is lower at low speeds, the present work contributes by demonstrating the feasibility of operation under realistic conditions for rotary-wing UAVs. Integrating this technology into UAVs offers promising potential for increasing flight autonomy. The harvested energy can power onboard sensors and electronic circuits, reducing the exclusive reliance on the battery for energy supply. This not only contributes to energy sustainability but also leads to reduced operational costs and expands drone applications in sectors such as agriculture, environmental monitoring, and deliveries.
As suggestions for future work, it is expected to improve the transducer support in order to mitigate the added mass. Additionally, analyses focused on the piezoelectric material are suggested, aiming to increase energy generation. For this purpose, a viable solution is to use energy harvesting devices based on piezoelectric composite materials, which combine the advantages of both ceramics and polymers. Therefore, a careful and detailed study of the possible materials to be used is necessary, as well as how the piezoelectric property of the composite may be affected by characteristics of the ceramic material, such as the presence of defects in its structure, for example, oxygen vacancies. In this context, the replacement of PVDF-based transducers with materials composed of two different piezoelectric phases, such as PVDF and lithium niobate (LiNbO3), is also suggested.
Finally, it is important to acknowledge certain limitations of the present study. The experiments were conducted primarily under bench-test conditions, using an oscilloscope probe for data acquisition, which, although reliable, does not fully replicate the dynamic and aerodynamic complexities of real flight. These aspects may constrain the direct extrapolation of results to more complex flight scenarios. Nevertheless, the adopted approach was appropriate for demonstrating the proof of concept and ensuring measurement reliability. So, future studies will focus on addressing these limitations through tests under real-world flight conditions, considering more complex environmental and aerodynamic variations.
In summary, this research underscores the role of energy harvesting as an efficient and sustainable solution to the limitations faced by UAVs, driving technological advancements that combine efficiency, autonomy, and environmental sustainability.
