Sensorless Detection of Mechanical Unbalance in Servodrive with Elastic Coupling

Abstract

The article focusses on detecting the unbalance of a mechanical component in the electric drive system of a two-mass servomechanism with a permanent magnet synchronous motor (PMSM), which is connected to the load via a long, flexible shaft. In the example analysed, the degree of unbalance was determined using the reference current signal from the speed controller of the field-orientated control (FOC) system. The authors presented a two-mass model with an unbalanced mechanical system. The short-time Fourier transform (STFT) transform was used to analyse the symptoms of unbalance, and an artificial neural network multi-layer perceptron (MLP) was used for system state inference. The effectiveness of the presented analysis, based on the reference current signal from the sensor embedded in the control system, was experimentally confirmed.

1. Introduction

Converter-based drive systems with PMSM are widely used in many industrial sectors. Consequently, issues related to the monitoring and diagnosis of electrical, magnetic, and mechanical faults are becoming increasingly important due to the growing use of these drives in various devices, including those critical to safety. Modern drive systems consist not only of the motor and magnets but also of a range of specialised devices, such as power supply systems, frequency converters with pulse width modulation (PWM), measurement and control systems, and complex mechanical systems that transmit mechanical torque (shafts, gears, and couplings) to drive the given actuator. Each of these components is susceptible to failures that can disrupt normal drive system operation and require appropriate actions, particularly from the control system, to detect anomalies in the drive system [1,2,3]. Modern diagnostic methods enable the detection of both electrical faults (including various types of short circuit, interphase faults, winding connection issues, etc.) and mechanical faults (such as the most common: bearing damage, eccentricity, misalignment of the drive system, unbalance of rotating elements, shaft deflection, etc.), as well as demagnetisation in permanent magnet motors [4]. Lack of proper diagnostics can lead to significant losses, including a substantial reduction in drive system efficiency, decreased positioning accuracy in servodrives and computerised numerical control (CNC) machines, increased energy consumption, and unplanned downtime. According to the ISO 17359 standard [5], the following signals are used for the proper evaluation of motor condition: current, voltage, input and output power, temperature, rotational speed, vibrations, torque, noise, and acoustic techniques. In advanced motor diagnostics, the most commonly used methods include [1,2,3,6]: motor current and voltage analysis, temperature measurement [7] vibration analysis, and noise analysis. The degradation of the motor and the torque transmission system, manifested by various anomalies or asymmetries, leads to unstable operation. This is typically observed through increased levels of vibration, noise, and temperature [2,4,7]. Since the electric drive is not fully symmetric [8,9], it is necessary to distinguish between asymmetry caused by drive system degradation and asymmetry resulting from power supply issues or inherent design characteristics. It is crucial to correctly identify, record, and classify the relevant signals for the proper operation of the drive system. Assessing characteristics, particularly those related to current, helps increase detection sensitivity, thereby eliminating design or power supply asymmetries. Analysis and estimation of these changes serve as criteria for effective operation and accurate detection. As highlighted in review studies [1,2,3,4,10] anomalies can occur in various parts of the drive system. In this article, the focus is on detecting the unbalance of a mechanical component in the electric drive system of a two-mass servomechanism with a PMSM, which is connected to the load via a long, flexible shaft. In the analysed system, no additional external sensors for current, acceleration [11], or acoustics were used; instead, sensors that are part of the drive system’s basic equipment (such as speed, position, and current measurement) were utilised. The unbalance is modelled by adding additional masses to a rotating disc that was rigidly attached to the motor shaft. The test mass was varied during the experiments. A review of the literature indicates that there are many methods to detect unbalances in drive systems, most of which pertain to single-mass systems using external sensors [2,3,4,7,10,11,12,13]. These include diagnostic signals such as mechanical vibrations (acceleration) [2], noise (acoustic waves) [2,4], current (stator current) [3,12,13], and temperature [7]. These signals allow for the assessment of the current condition of the electric drive system, particularly in the evaluation of the state of bearings, alignment, balancing, and the condition of the foundation. Thanks to modern measuring instruments (dedicated sensors, measurement cards, and microprocessors), it is possible to measure mechanical vibrations (which can have various causes, whether electrical, magnetic, or mechanical) that indicate the condition of the drive system. In industrial environments, fully symmetrical drive systems are rare or non-existent. Even if such a system was initially balanced at a particular workstation, over time, degradation of a component of the system (whether electrical, magnetic, or mechanical) may occur [14]. Therefore, this work focusses on detecting unbalance in the drive system of a two-mass setup with a PMSM using, among other things, the reference current signal from the speed controller and not from an additional acceleration sensor signal, such as in [11]. The two-mass model was investigated because it allows for analysing the impact of torsional vibrations on the drive system. One source of these vibrations is a sudden change in the motor rotational speed, which causes twisting in the flexible connection [15]. Vibrations in two-mass systems lead to energy loss, reduced efficiency, and dynamic stresses [16]. These vibrations are also problematic in precise position control, and the use of additional external sensors definitely complicates the system and reliability [2,3,4,7,10,11,12,13]. Therefore, diagnosing the unbalance in the system, which significantly exacerbates this issue, becomes crucial. When a mechanical fault occurs in an electric drive, particularly for a PMSM operating in a field-orientated control structure, changes in electrical, magnetic, and mechanical parameters lead to disturbances in current, voltage, and speed signals, affecting the proper functioning of the frequency control structure [3,10,17,18,19,20,21]. An uncontrolled increase in the level of damage leads to unstable drive operation [18]. Therefore, it is crucial to detect faults as quickly as possible. Depending on the type and power of the drive, this could range from a few to several seconds. As is demonstrated in [3,4,17], internal signals from the drive control structure, particularly current, can be utilised effectively for this purpose. Hence, the aim of this work is to develop a method for monitoring and diagnosing unbalance faults in a two-mass precision servodrive system using signals from the internal field-orientated control structure embedded within the control system. Many existing solutions, such as those described in [2,3,4,10,11,13,14,22,23,24,25,26,27,28,29,30], use additional sensors to monitor the condition of machines or equipment. Adding these elements to existing systems significantly increases costs during both installation and operation. This requires regular calibration, maintenance, and, in the case of failure, replacement, which introduces another potential source of problems within the system. It often requires modifications to existing infrastructure and integration with monitoring software. Furthermore, data from different sensors can be difficult to interpret, often requiring the use of advanced analysis algorithms and personnel with specialised qualifications. The use of non-invasive measurement methods in the drive system, as proposed in the article, reduces costs because utilising existing control signals does not incur additional expenses related to the purchase, installation, and maintenance of new sensors. The non-invasive approach does not require intervention in existing mechanical or electrical systems, thereby eliminating the risk of introducing new sources of failure. Signals used for control are typically already well validated and monitored, which enhances the system’s reliability. Since these signals are already part of the control system, using them for fault detection is much simpler and less risky. Fewer components in the system mean fewer potential points of failure, which increases the overall reliability of the system, not just the drive system. For example, in [21], an online diagnostic method for minor interturn short circuits (ISCFs) in low-speed PMSM uses a technique based on the decomposition of the zero-sequence voltage vector, which is measured within the internal system. Many studies measure voltage, current, or speed signals, such as in [13], where current and speed measurements, along with frequency analysis, are used to diagnose mechanical faults in synchronous machines with additional sensors used. In [31], a model-based scheme is proposed to detect and identify faults in a gear drive with a steady-state PMSM. A state-space model of the system is proposed, and the recursive least squares (RLSs) algorithm is used for parameter estimation. Fault detection is performed using a thresholding method on the residual current spectrum to assess the frequency characteristic of a particular fault. Both invasive and non-invasive methods are applied in this context. For example, in [12,32], the stator current, after Park’s transformation, is analysed for rotor unbalance using the discrete wavelet transform. This work focused on the latter method. From a diagnostic perspective, both invasive and non-invasive signals, as well as the methods for processing them, are of equal or similar importance. Thus, the effectiveness of the diagnostic process depends not only on the diagnostic signals analysed [7,8,9,13,15,16,31] but also on the processing methods applied. For example, in [19], although analysis of root mean square (RMS) vibration signals detects individual faults and helps to determine the technical condition of the machine, unfortunately it cannot specify the cause of its malfunction. In [20], the fast Fourier transform (FFT) algorithm is used to detect broken rotor cage bars, eccentricity, and damaged bearings in an induction machine based on mechanical vibration analysis. In [33], the potential for using average, maximum, and RMS signals, as well as cross-correlation coefficients, kurtosis, and peak values, for detecting rotor unbalance is presented, with an MLP neural network employed to differentiate these faults. In [34], phase currents and a vibration sensor are used to detect stator faults in a PMSM, where wavelet analysis of vibrations is able to identify up to 15% of turn-to-turn shorts in a single phase. Mechanical vibrations are a versatile and widely used diagnostic signal, as demonstrated in [35], where they are also used to detect electromagnetic faults. An example of applying vibroacoustics to identify misalignment in a drive system consisting of a motor, a cylindrical gear, and a worm gear is presented in [36]. To detect unbalance in a PMSM drive system, mechanical vibration signals can be analysed using FFT, bispectrum, full spectrum, and orbit shape analysis, as is described in [23]. In [22], mechanical vibrations are analysed with FFT to detect PMSM unbalance, with additional modelling of demagnetisation and dynamic eccentricity. In [24], FFT and bispectral analysis of mechanical vibrations and stator current are used to detect rotor unbalance in an induction motor powered by a frequency converter. FFT analysis has limitations because it does not account for changes in process over time [25,26,27,37,38], which is why the short-time Fourier transform (STFT) is used to detect faults in dynamic states, enabling the identification of both the type of fault and its timing. In [37], STFT is used to detect stator faults in a PMSM by analysing the stator current, its envelope, and the spatial vector module of the stator current, highlighting STFT’s advantages over traditional FFT analysis. In [25], the possibility of detecting the rotor unbalance in an induction motor is demonstrated using STFT analysis of the stator current vector, with results compared to an approach based on FFT analysis of the stator current. In [26], the application of STFT to detect mechanical faults, such as blade-to-stator friction in turbochargers, is demonstrated by analysing vibration signals during machine start-up and braking, showcasing the method’s superiority over traditional FFT analysis. In [27], STFT is used to analyse noise from both an undamaged motor and motors with unbalance, misalignment, and bearing damage, allowing for precise determination of the timing of the fault. In [38], the use of variable window STFT is proposed to detect winding faults in PMSM by analysing stator current signals and automating the detection process using a convolutional neural network. It should be noted that the presented literature review does not cover two-mass systems, nor does it analyse the reference current signal from the speed controller. In the existing literature, the unbalance is modelled in various types of electric machines and drives. Specifically, this phenomenon has been identified in induction motors [24,25,27], PMSMs [12,22,23,32,37], tidal turbines [14], commutator motors in impact drills and mixers [28], and washing machines [29,30]. The literature analysis indicates that the issue of unbalance affects all rotating machines. Consequently, this work focusses on detecting unbalance in a two-mass system with a long shaft consisting of two Alternating Current (AC) servodrives (PMSMs). The article is an alternative approach to the research on unbalance detection in a servo drive coupled to a two-mass system, shown in [11]. The fundamental difference between the current approach and that presented in [11] is the use of a reference current signal from the current controller in the control structure instead of vibration acceleration signals from additional external sensors. The non-invasive standard equipment in an automated control system, the reference current signal in the q axis of the speed controller, was analysed using STFT. The study investigated the impact of varying the test mass installed in single-mass and two-mass systems on the level of unbalance in the drive system, specifically examining how the moving average window affects this issue. The influence of different neural network architectures was also analysed, and the optimal solution for the given example was proposed, with experimental validation of this choice in relation to the single-mass system.

2. Unbalance Model

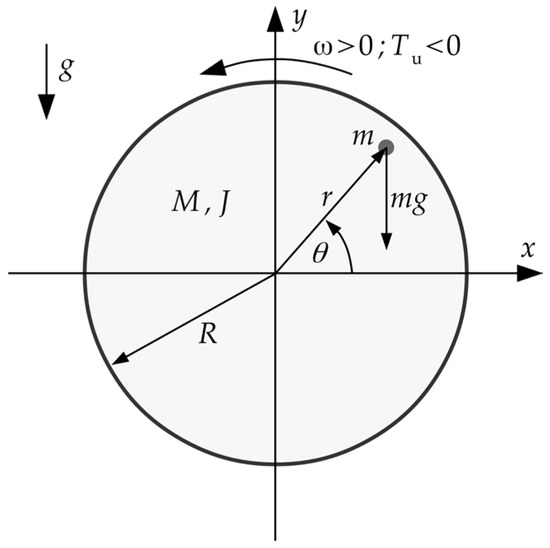

For the purposes of this publication, a simplified unbalance model was adopted, which focusses on taking into account the influence of the weight of the unbalance mass on the creation of the moment of force coming from the force of gravity [39]. This approach does not take into account the centrifugal force because the control system on which the method was developed does not have any information about the current value of this force. The idea is presented in Figure 1, which shows the action of the gravitational force mg on an unbalanced mass m, located at a distance r from the axis of rotation of a cylinder with mass M, moment of inertia J, and radius R. It was assumed that this cylinder rotates with constant angular velocity ω relative to the stationary x-y coordinate system. The acceleration due to gravity is set in the vertical direction, parallel to the y axis. The value of the torque acting on the mass m can be expressed by Formula (1), written as follows:

$$T_u=mgr\cos (\phi )$$

(1)

Most often it happens that $m\ll M$. During the operation of the system, the unbalance moment $T_u$ affects the rotational motion of the cylinder in accordance with Newton’s second law of dynamics (2)

$$J{\displaystyle \frac{d\omega }{dt}}=T_u=mgr\cos (\phi )$$

(2)

Assuming that the rotating mass has the shape of a cylinder with mass M and radius R (3), the following is obtained:

$$M{R}^2{\displaystyle \frac{d\omega }{dt}}=mgr\cos (\phi )$$

(3)

Hence, the angular acceleration resulting from unbalance is a cosine function of the angle and directly proportional to the amount of unbalance. This means that during operation there is an additional component of angular acceleration, closely related to the unbalanced mass and the instantaneous speed ω (4), calculated as follows:

$${\displaystyle \frac{d\omega }{dt}}={\displaystyle \frac{mgr}{M{R}^2}}\cos (\phi )={\displaystyle \frac{mgr}{M{R}^2}}\cos (\omega t)$$

(4)

In absolute terms, remembering that in general, $m\ll M$, it is expected that this acceleration will have a small amplitude, but the speed control system will compensate for the resulting disturbance, which should result in the appearance of an additional component with angular speed ω in the control signal. Therefore, it is reasonable to analyse the frequency of the control signal, which should be expected to contain an additional component of rotational frequency, which has its source in the unbalance.

The model of the mechanical part of the single-mass system was implemented in the Matlab Simulink environment to verify the concept for the single-mass object, which is presented in Section 7.1.

3. Model of the Two-Mass System

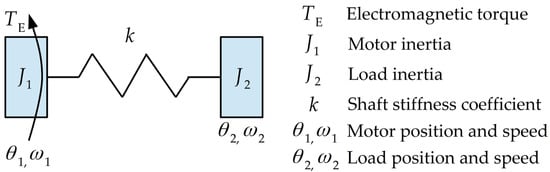

The two-mass object is a popular control object in drive automation [40,41,42], since it reflects the characteristics of typical connections found in the mind. The block diagram of the dual-mass system is shown in Figure 2. The description intentionally omits the loss factor inside the connection, as it is generally negligible.

The equations describing the dynamics of an undamped system are described by the relationships in the following (5):

$$\left\{\begin{array}{l}{J}_1{\displaystyle \frac{d{\omega }_1}{dt}}=T_E-k({\theta }_1-{\theta }_2)\\ J_2{\displaystyle \frac{d{\omega }_2}{dt}}=k({\theta }_1-{\theta }_2)\end{array}\right.$$

(5)

Such a system is characterised by two frequencies: resonant ω_R and anti-resonant ω_A, which result from the physical properties of the object calculated as follows (6):

$$\left\{\begin{array}{l}{\omega }_R=\sqrt{k{\displaystyle \frac{J_1+J_2}{J_1{J}_2}}}\\ {\omega }_A=\sqrt{{\displaystyle \frac{k}{J_2}}}\end{array}\right.$$

(6)

In the described drive system, after applying the Clarke and Park transform, the electromagnetic torque T_E is proportional to the current in the q-axis: T_E = k_φ i_q. Like any detection method, the one proposed in the article has its limitations. Assuming that the time constant of the current control system (τ_E) is negligible with respect to the resonance frequency (f_RES) of the two-mass system (τ_E = 290 µs -> f_E ≈ 549 Hz, f_RES = 22 Hz), it can be assumed to a good approximation that the current in the q-axis (i_q) is equal to the reference current (i_q ref), which is the output signal from the speed control system. In addition to the above, disturbance moments such as friction moment and external load, as well as moments resulting from mechanical defects such as misalignment, unbalance, and runout, can act on the two-mass object on both sides; these torques are denoted as T_D1 and T_D2 (total disturbance). Taking into account the aforementioned phenomena, the equation of motion of the dual-mass system subjected to interference moments is presented by Equation (7) as follows:

$$\left\{\begin{array}{l}{J}_1{\displaystyle \frac{d{\omega }_1}{dt}}=k_{\phi }{i}_{q \mathrm{ref}}-k({\theta }_1-{\theta }_2)-T_{\mathrm{D}1}\\ J_2{\displaystyle \frac{d{\omega }_2}{dt}}=k({\theta }_1-{\theta }_2)-T_{\mathrm{D}2}\end{array}\right.$$

(7)

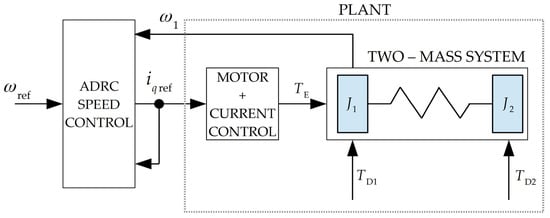

A block diagram of the control system is provided in Figure 3.

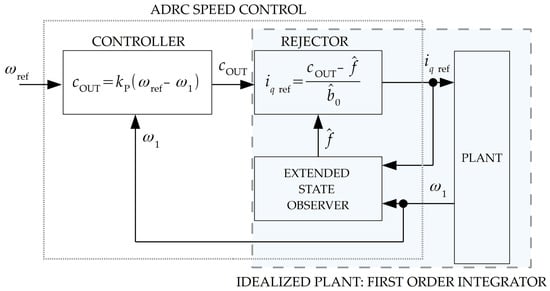

The speed control system is based on the active disturbance rejection control (ADRC) [43] method; the block diagram is shown in Figure 4. The essential part is the extended state observer, which estimates the disturbance $\widehat{f}$ affecting the object in real time, which is then decoupled in the REJECTOR block, so that from the controller’s point of view the control object is reduced to a first-order integrator. The ADRC method provides the possibility to shape the bandwidth for the regulator and the disturbance decoupling part independently, with the extended state observer (ESO) bandwidth generally exceeding the regulator bandwidth by at least four times [44,45]. This causes such a control system to respond quickly to the occurrence of a disturbance, while at the same time making it possible to limit the dynamic response to the setpoint, which is desirable for a vibrating system (the two-mass system described). Thus, the ADRC structure makes it possible to respond efficiently (thanks to an observer with a sufficiently wide bandwidth) to even small values of disturbance moments, a property desirable for unbalance detection.

4. Short-Time Fourier Transform (STFT)

Many proposed methods for diagnosing electrical motor faults, including rotor unbalance or misalignment issues in drive systems, are based on frequency domain analysis using FFT and searching for frequency components characteristic of specific faults [46,47]. The Fourier transform assumes that the analysed information is periodic and stationary. This function is then decomposed into a fixed number of sinusoidal signals with specified frequencies. Unfortunately, in practice, signals recorded from real-world objects often do not meet these key assumptions. This method relies on sinusoidal periodic functions that represent a single frequency, which results in a loss of important temporal information about the occurrence of individual frequency events. Additionally, the amplitude values of the signal in the frequency domain are averaged, which means that short-duration events present in the signal may be invisible in the FFT spectrum. In fault diagnosis, knowing the exact moment of a fault’s occurrence is crucial, as it can help determine the cause by analysing other system parameters from the period before the fault occurred. To overcome this limitation, alternative methods are used that perform time–frequency analysis, such as discrete and continuous wavelet transform (DWT) [48,49], Hilbert–Huang transform (HHT) [50,51], or STFT [11,52,53]. In this article, the STFT of the reference current signal I_{q ref} from the FOC system is proposed as a method for extracting symptoms of rotor unbalance and assessing its degree. The result of the STFT transformation is often presented in the form of a spectrogram, which is a three-dimensional plot of the spectral density function of the Fourier transform.

5. Laboratory Stand and Research Methodology

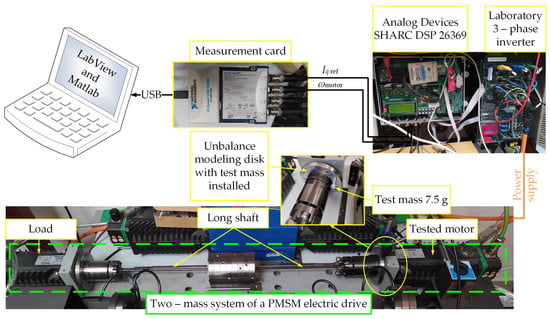

The object of the research was a two-mass drive system consisting of two permanent magnet synchronous motors with three pairs of poles, a rated power of 3 kW, and a rotational speed of 3000 rpm. The motors were connected to each other by a long shaft with a diameter of 6 mm. A disc was mounted on the drive side, to which a test mass was mounted at a radius of 42 mm. The drive system was attached to a concrete foundation, the purpose of which was to reduce the vibrations that occur during the operation. During the research, the set current I_{q ref} and the angular speed of the motor ω_motor were recorded using the NI USB-9162 card with a sampling frequency of 12.8 kS/s. Signals were measured for 10 s. The I_{q ref} current was generated from the vector control system implemented (Figure 5) in the Analog Devices SHARC DSP 26369 signal processor.

The motor was powered by a laboratory 3-phase converter. During laboratory testing, unbalance was modelled with additional test masses: 7.5 g, 15.9 g, 24 g, and 45 g mounted at a radius of 42 mm from the centre of rotation. The weight of the test masses was determined by the masses of the screws used and the masses of the available nuts. The drive system was operated unloaded with a constant angular velocity of 60 rad/s. The study checked the effect of the test mass on the operation of the engine itself (single-mass system) and the two-mass system with PMSMs. The purpose of the laboratory tests was to obtain the diagnostic patterns necessary for the process of training neural networks to detect rotor unbalance and determine its level. These patterns were to be obtained from the control system and not from additional external sensors (measurement systems).

6. Simulation Studies

The purpose of the simulation studies was to confirm the diagnostic symptoms indicative of rotor unbalance occurring in the reference current I_{q ref}. During these studies, the same masses that were also used during laboratory tests were used to model the unbalance. The effect of the test mass on the I_{q ref} current is shown in Figure 6, from which it can be seen that the additional test mass increases the amplitude of the rotational frequency f_r. Apart from the rotational frequency, there are no additional harmonics in the I_{q ref} current spectrum up to 45 Hz. Moreover, with simulation time, the value of the rotational frequency amplitude does not change. The restriction of the band to 45 Hz is due to the fact that a symptom of rotor unbalance is an increase in rotational frequency amplitude. In the case of the modelled motor, the set speed was about 60 rad/s, which is equivalent to a frequency f_r of about 9.6 Hz. The set spectrogram range allows observing up to a fourth multiple of the rotational frequency.

7. Experimental Research

The problem of detecting unbalance and determining its level was solved from the simplest case, which is relatively easy to model (single-mass system), to the complex case, in which the exact model of the mechanical part is so complex that it would go beyond the scope of the article (dual-mass system). Simulation studies of the single-mass system clearly showed a monotonic relationship between the level of unbalance and the level of the rotational component in the i_q current spectrum (Figure 6). This hypothesis was confirmed by experimental studies of the single-mass facility, further revealing that a third harmonic of the rotational frequency can be observed on the laboratory bench, the level of which does not depend on the size of the unbalance mass (Figure 7). This additional component can be treated as an unmodelled disturbance.

Supplementing the mechanical part with a flexible connection (containing various defects: material, design, manufacturing, workmanship (e.g., machining errors) and assembly defects) with a significant moment of inertia on the load side revealed additional rotational frequency harmonics in the i_q current spectrum. The source of these harmonics was not indicated and was treated as an additional distortion, which may or may not be related to the unbalancing and occur in experiments and was seen as an additional distortion.

7.1. Single-Mass System

The first experimental tests were performed for a single-mass system. For this purpose, the test motor was not coupled to a load (a second PMSM). During the tests, the effect of the test mass on the I_{q ref} current in the control system was also checked. A summary of the results obtained is shown in Figure 7.

From the summary shown in Figure 7, it can be seen that in the case of tests performed on a real motor, in addition to the visible changes in the amplitude of the rotational frequency f_r, the current spectrogram I_{q ref} also includes a 3f_r component. Increasing the test mass causes only an increase in the amplitude of the f_r frequency, the value of which assumes an approximately constant value during operation. Increasing the unbalance level does not change the amplitude of the 3f_r frequency, which assumes an approximately constant value of about 60 μA²/Hz with slight oscillations.

7.2. Two-Mass System

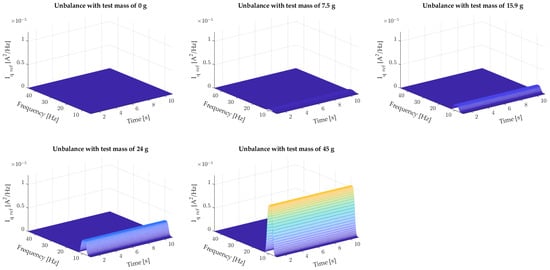

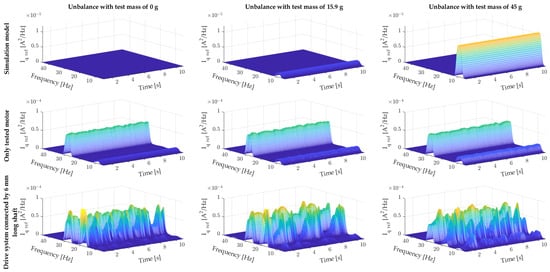

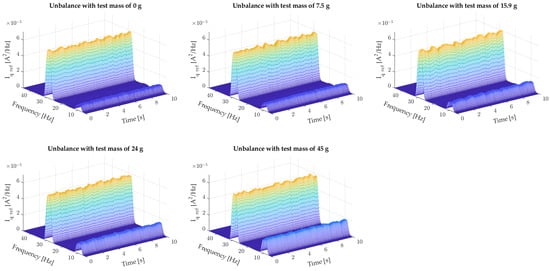

The final stage of the experimental study was to check the effect of the mounted test mass on the reference current I_{q ref} of the two-mass system. Figure 8 shows the spectrograms of this current from the vector control system for different values of the test mass. Figure 8 compares the results obtained from the simulation model with those obtained experimentally when modelling the unbalance of the motor itself (single-mass system) and the two-mass system consisting of two PMSMs. The analysis of the figure showed that the simulation model can be used for a preliminary analysis of diagnostic symptoms generated by a given failure (in this case, rotor unbalance). Experimental verification of the simulation model made it apparent that in the spectrogram, in addition to the f_r component indicating unbalance, an additional 3f_r component appears, approximately of constant amplitude. Coupling the test motor with a long, thin shaft (two-mass system) to a second PMSM clearly disturbs the control system. In the spectrogram, in addition to the f_r and 3f_r components, whose amplitudes take on an oscillatory character with high variability, a 2f_r component appears, which indicates that the two machines are not properly coupled (misalignment). In addition, a detailed visual inspection of the bench showed a slight bend in the shaft during operation of the tested two-mass system. It can be assumed that the object under study is a two-mass system with a strongly nonlinear character that we often encounter in real-world conditions. An attempt to detect unbalance based on the analysis of the rotational frequency f_r and its subsequent multiples is difficult due to the oscillatory nature of their amplitude changes during steady-state operation, which can be seen in Figure 8; therefore, the following part of the article presents an approach based on the use of artificial neural networks for the detection and classification of rotor unbalance in a two-mass system.

8. Application of Neural Networks for the Detection and Classification

8.1. Input Data Analysis

Before designing a neural network, it is necessary to select the signals that will be given to its inputs. A good diagnostic symptom indicating unbalance is the amplitude of the rotational frequency. The summaries presented in Section 6 and Section 7 showed that increasing the mass of unbalance causes an increase in the amplitude of f_r frequency. Figure 9 shows the change in the amplitude of the rotational frequency with increasing the value of the test mass observed during simulation and experimental tests for both single-mass and two-mass systems. It can be seen from the summary shown in Figure 9 that the f_r frequency amplitude is a good symptom of rotor unbalance, as shown by both simulation studies (Figure 9a) and experimental studies for the single-mass system (Figure 9b). In the cases discussed, the changes are so pronounced that the use of classical thresholding is sufficient to detect unbalance and to determine its level. In both cases, a neural network is not necessary. The differences in amplitude levels are due to the simplifications used in the simulation model. Unfortunately, in the case of a real dual-mass system, the situation is no longer so simple. The amplitude of the rotational frequency is not constant; its value is oscillatory (Figure 9c, blue line), which makes its analysis even more difficult. Additionally, an increase in amplitude is observed only from the unbalance caused by a test mass of 24 g. As shown in Figure 9c, the use of a smoothing filter (smooth) reduces the oscillations of the analysed symptom. Preparing a moving average of 20 samples (green in Figure 9c—smooth 20) smooths the oscillations, which should benefit the performance of the designed neural networks. The data preparation process for the artificial neural network is shown in Figure 10.

8.2. Methodology of Testing Neural Networks

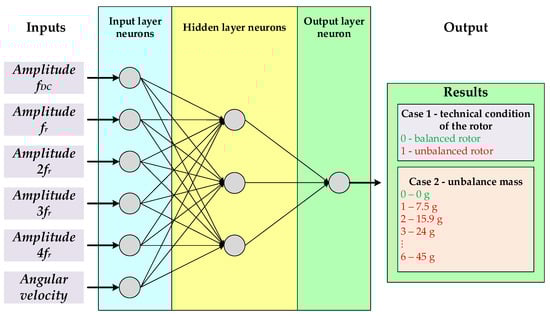

A unidirectional MLP neural network was used to detect the unbalance of the two-mass system and classify its level. MLP networks are characterised by a layered structure (Figure 11). Neurons in a layer are not connected to each other, moreover, the hidden layers and the output layer have no direct connection to external signals. In the input and output layers, the neuron activation functions are linear, while the hidden layer uses hyperbolic tangent-type functions. The neuron output signal of the MLP network is described by the following Equations (8) and (9) [54,55]:

$$y_i=f\left({\displaystyle \sum _{i=1}^N{w}_{ij}{x}_i\left(t\right)+w_{0j}}\right),$$

(8)

$$f\left(u\right)=tgh\left(\beta u\right)$$

(9)

where f is the example activation function, w_ij is the weighting coefficients, x_i is the input signals, β is the coefficient that corrects the shape of the activation function, u is the argument of the activation function, and w_0j is the bias value.

The weight connection coefficients were selected using the Levenberg–Marquardt algorithm.

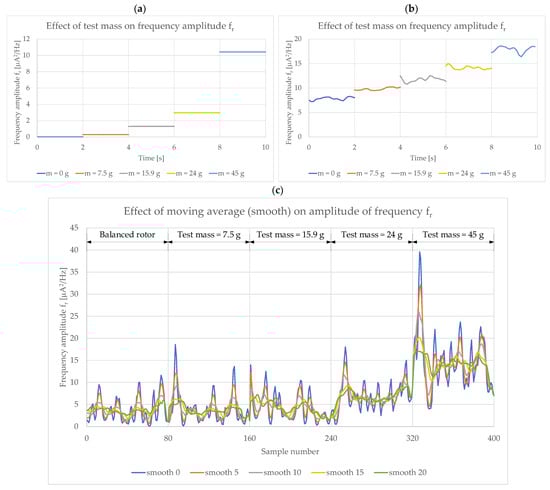

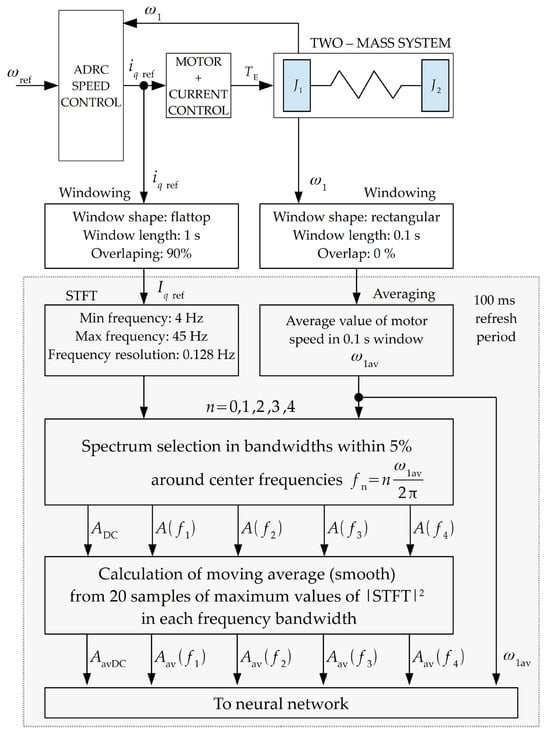

Neural detector tests were performed in the Matlab environment. The input signals were the maximum values in the +/–5% width of the kf_r frequency calculated from the current rotational speed. Additionally, as shown in Figure 9c, the amplitudes of the rotational frequency and its multiples were smooth filtered from 20 consecutive samples. In addition, the input vector was expanded to include the value of the rotational speed and the DC component to account for varying operating conditions. The input data was normalised to the range <0, 1>. Training and testing vectors consisted of 200 samples. The testing set did not contain the information used in the training process. The parameters regarding the method of obtaining the input data and the neural network training process are listed in

Table 1. Summary of parameters considering the method of obtaining input data and the process of learning neural networks.

	Parameter	Explanation
Input data	Analysed signal	Current Iq ref
	Input data	Amplitudes of: fDC (constant component of current Iq ref), fr, 2fr, 3fr, 4fr and current angular velocity
	Calculation of kfr amplitude	A maximum value within +/−5% of the kfr frequency width calculated from the current speed value
	Normalization of input data	Yes, in the range <0, 1>
	The number of elements of the training vector	200
	The number of elements of the testing vector	200
Neural network	Type of neural network	Feed-forward backpropagation network
	Transfer function of hidden layers	Hyperbolic tangent sigmoid transfer function (tansig)
	Transfer function of output layer	Linear transfer function (purelin)
	Network training function	Levenberg-Marquardt backpropagation (trainlm)
	Weight/bias learning function	Gradient descent with momentum weight and bias learning function (learngdm)
	Performance function	Mean squared normalised error performance function (mse)
	Maximum number of epochs to train	2000
	Performance goal	1 × 10−5

. In the study, two different neural detectors were tested. The task of the first was to detect unbalance, while the second was to determine its level. During the research, neural networks with one and two hidden layers were tested. To average the results of the effectiveness of the tested MLP network structures for detecting unbalance and determining its level, 20 successive training and testing series were performed. The results obtained for the change of neurons in the hidden layers are summarised graphically. Comparative tests for networks with one hidden layer were performed by changing the number of neurons in this layer from 3 to 10. The presented summaries were made on the basis of 160 series of training and testing of networks with one hidden layer. Comparative studies of networks with two hidden layers were also carried out by varying from 3 to 10 the number of neurons in these layers. The reports presented were made based on 1280 training and testing series of networks with two hidden layers.

8.3. Rotor Unbalance Detection

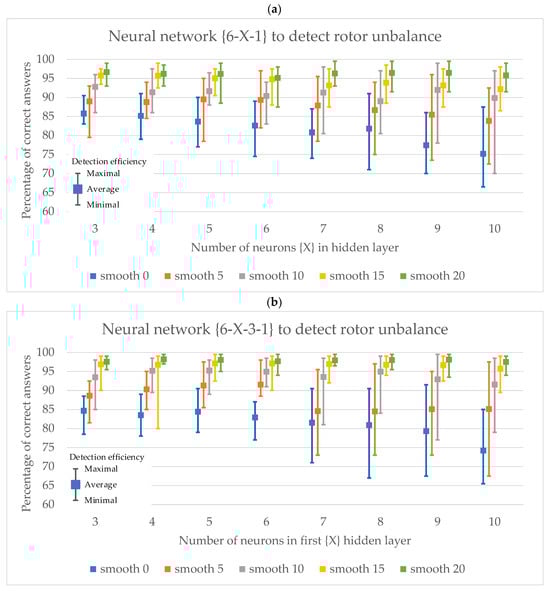

The task of the first neural networks was to detect rotor unbalance. Both networks with one hidden layer (Figure 12a) and with two (Figure 12b) were tested. In the case of networks with one hidden layer, the number of neurons in the hidden layer was changed from three to ten. The tests showed that from structures containing six neurons in the hidden layer, a decrease in the average efficiency of rotor unbalance detection is observed. In addition, from about five neurons in the hidden layer, large deviations of the minimum and maximum detection efficiency from the average value of 20 training and testing series are observed. This may be indicative of the increasing adaptation to the training vector. Figure 12a also shows a clear increase in average detection efficiency as the number of samples subjected to smooth filtering increases. Based on the study, it can be concluded that a neural network with a structure of 6-4-1 can be used to detect rotor unbalance in a two-mass system, with an average efficiency of about 96% using a moving average of 20 samples.

The use of two hidden layers only slightly improves the performance of the rotor unbalance detection of the two-mass system. The tests showed that there should be three neurons in the second hidden layer. Increasing the number of neurons in this layer causes a decrease in the effectiveness of the structures tested. In the case of a structure with two hidden layers, a neural network with a 6-5-3-1 structure is recommended to detect the unbalanced tested two-mass system, whose average detection efficiency was about 98%.

8.4. Classifying the Rotor Unbalance Level of a Two-Mass System

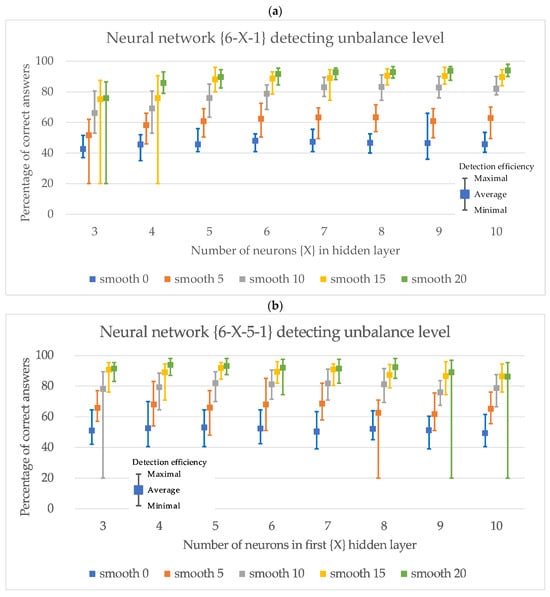

The purpose of subsequent analyses of the various neural network structures was to determine the level of rotor unbalance of the two-mass system. For this purpose, structures with one hidden layer (Figure 13a) and two hidden layers (Figure 13b) were again analysed.

Classifying the level of unbalance is a more difficult task. Neural networks with one hidden layer with three or four neurons were able to achieve a minimum efficiency of 20%, which was equivalent to learning only one level of unbalance. Figure 13 shows that in this case, too, it is necessary to use a filter that smooths the input data from 15 or 20 samples. Furthermore, the statement shows that for determining the rotor unbalance level of the two-mass system, it is recommended to use a neural network with a 6-8-1 structure, whose average efficiency of classifying the unbalance level using smooth 20 filtering was about 93%.

Studies have shown that the use of five neurons in the second hidden layer is recommended for networks with two hidden layers. The use of five neurons in the first hidden layer makes it possible to achieve an average efficiency of classification of the rotor unbalance level of the two-mass system of about 93% using a smooth 20. The use of at least nine neurons in the first hidden layer results in a minimum efficiency of 20%, which is equivalent to setting the output of such a network at one level.

The high efficiency of the detection of rotor unbalance in the two-mass system and classification of its level based on I_{q ref} current analysis is achieved with the use of a smoothing filter from at least 15 samples.

9. Summary

This article explores the detection of rotor unbalance in a two-mass system with a PMSM using the STFT applied to the reference current signal from the speed controller. The significance of monitoring and diagnosing faults in drive systems has increased with their widespread use in industrial sectors, particularly for safety-critical applications. Modern drive systems, which include motors, power supply systems, frequency converters, and mechanical components, are prone to various failures that can alter the operation. Diagnosing these faults is essential to prevent efficiency losses, reduced accuracy, increased energy consumption, and unplanned downtime. Effective diagnostic methods include analysing current, voltage, temperature, vibrations, and noise. In particular, the STFT method offers advantages over traditional Fourier transform techniques by providing better time–frequency resolution, which is crucial for identifying and diagnosing faults in dynamic conditions. This study uses the reference current signal and investigates how the varying test masses impact unbalance levels in both single-mass and two-mass systems. It also evaluates different neural network architectures to optimise fault detection. The noninvasive approach of using existing control signals (coming directly from the control system) rather than additional sensors reduces costs and simplifies the diagnostic process while enhancing system reliability.

The purpose of the article was not to create an accurate simulation model to serve as a diagnostic symptom generator. Using the simulation model, it was shown how rotor unbalance affects the q-axis reference current. The premise of the article is that the end user (e.g., the maintenance department) has a large amount of measurement data from the drive system being monitored but does not have a simulation model of the machines they own. The article provides guidance on what symptoms should be given to the inputs of the neural network, how to preprepare the input data, and which neural network structure has high efficiency in detecting and classifying the level of rotor unbalance.

The use of neural networks makes it possible to automate the process of detecting the rotor unbalance of a two-mass system, as well as determining its level. The simple MLP network structures used (networks with one and two hidden layers) were characterised by a high unbalance detection efficiency of over 95% and an unbalance level determination efficiency of approximately 93%. A prerequisite for such high efficiency is the use of a smoothing filter with at least 15 samples. The approach proposed in this paper for detecting rotor unbalance of a two-mass system can be implemented in a PMSM control system, which will be analysed by the authors in the future.
