Review

A Systematic Review of Expert Systems for Improving Energy Efficiency in the Manufacturing Industry

by
Borys Ioshchikhes
*,
Michael Frank
and
Matthias Weigold
Institute for Production Management, Technology and Machine Tools (PTW), Technical University of Darmstadt, Otto-Berndt-Str. 2, 64287 Darmstadt, Germany
*
Author to whom correspondence should be addressed.
Energies 2024, 17(19), 4780; https://doi.org/10.3390/en17194780
Submission received: 23 August 2024 / Revised: 15 September 2024 / Accepted: 20 September 2024 / Published: 24 September 2024
(This article belongs to the Special Issue Energy-Efficient Manufacturing System Management)

Abstract

:
Against the backdrop of the European Union’s commitment to achieve climate neutrality by 2050, efforts to improve energy efficiency are being intensified. The manufacturing industry is a key focal point of these endeavors due to its high final electrical energy demand while simultaneously facing a growing shortage of skilled workers crucial for meeting established goals. Expert systems (ESs) offer the chance to overcome this challenge by automatically identifying potential energy efficiency improvements, thereby playing a significant role in reducing electricity consumption. This paper systematically reviews state-of-the-art ES approaches aimed at improving energy efficiency in industry with a focus on manufacturing. The literature search yields 1668 results, of which 62 articles published between 1987 and 2024 are analyzed in depth. These publications are classified according to the system boundary, manufacturing type, application perspective, application purpose, ES type, and industry. Furthermore, we examine the structure, implementation, utilization, and development of ESs in this context. Through this analysis, this review reveals research gaps, pointing toward promising topics for future research.

1. Introduction

Climate change is one of the most imperative topics in modern times. The European Climate Law addresses this threat by setting a net greenhouse gas emissions reduction target of at least −55% by 2030, compared to 1990 levels [1]. Energy use plays a critical role in the pursuit of this objective, as it was the source for almost three-quarters of global emissions in 2016. The industry sector is responsible for about 30% of emissions, with energy use accounting for 24.2%, making it the main source of emissions [2]. To achieve decarbonization, efforts are being made to increase the share of electricity in all sectors, and its share of final energy consumption is projected to rise from 20% today to over 50% by 2050. Since the industry sector was already the largest consumer of final electric energy in 2019, representing 41.9%, there is an imperative urgency to take action [3].
In response to this challenge, companies are prioritizing energy efficiency improvements as a way to simultaneously achieve affordability, supply security, and climate goals [4]. Energy efficiency is a measure that quantifies the utilization of energy in relation to the output or yield of services, goods, commodities, or energy [5]. Increasing energy efficiency therefore means making better use of existing resources. According to a 2022 global survey conducted among over 2200 industrial companies in 13 countries, 97% of them had either already invested or were planning to invest in energy efficiency. Moreover, 89% of these companies anticipated increasing their energy efficiency investments over the next five years, while 52% had the ambitious goal of achieving net zero within the same timeframe [4]. However, despite the increase in energy efficiency in the manufacturing sector in recent years, there is still considerable potential for further improvement [6]. Energy submetering of individual industrial processes is especially low, showing a deficiency of monitoring and targeting systems that are crucial for effective energy management and energy efficiency efforts. The survey also found that a lack of specialized contractors, a lack of digital skills in the workforce, and uncertainty about how to improve energy efficiency are significant barriers to investment in energy efficiency improvements [4].
The conclusion of a study undertaken by the International Energy Agency suggests that this situation could be improved with digitalization [7]. Expert systems (ESs) are one type of the advanced computer technology has have emerged from research in the field of artificial intelligence (AI) and are designed specifically to assist in decision making [8]. They pose a chance to overcome mentioned barriers by combining expert knowledge and analyzing energy data to automatically identify energy efficiency potentials [9]. In general, ESs, also referred to as knowledge-based systems or inference-based programs, can be described as computer programs that leverage expertise to solve problems and provide advice [8]. Unlike conventional applications, these systems emulate human reasoning by representing human knowledge and employ heuristic or approximate methods to solve problems [10]. Within organizational knowledge management, ESs can thereby serve as knowledge carriers and knowledge mediators, thus contributing to the qualification of personnel and reducing the shortage of skilled workers [11]. This further distinguishes ESs from the inherent complexity and limited explainability of other AI applications for decision support, such as machine learning and deep learning models [12]. The intelligent activity that characterizes ESs is the use of knowledge for processing and not just information. Information exists by itself without context, whereas knowledge has the added dimension that something is performed to process the information [8]. Energy data from a machine would be information. Reading measurement data, determining which energy efficiency potentials are present, and drawing conclusions on how to exploit existing energy efficiency potentials is the use of knowledge about energy data. This knowledge must be provided by human experts to develop the ES.
There are several literature reviews covering ESs in general and ESs or AI to optimize industrial production. Ref. [13] presented an overview of the development of ESs based on a literature review and a classification of articles from 1995 to 2004 into eleven methods. The respective applications of ESs for the associated methods are also given. This publication thus provides an overview of the various applications and techniques of ESs. However, ref. [13] did not address the use of ESs to increase energy efficiency and did not analyze any publications in this area. Ref. [14] examined literature from 1983 to 2015 dealing with decision support models for energy-efficient production planning. For this purpose, procedures for production systems, energy price laws, and energy efficiency criteria are considered. Although this literature analysis focused on improving energy efficiency in production, it did not include ESs to achieve this objective. Similar to refs. [13,15] provided a broad overview of ESs and their applications from 1984 to 2016. In comparison to refs. [13,15] introduced an indicator to estimate and compare the success of ES applications. Among many other applications of ESs, this publication also dealt with those in production. Nevertheless, applications for increasing energy efficiency were not discussed. Ref. [16] focused their literature review on applications of ESs in production planning regarding the handling of different products, process planning, tool selection, welding, and product development between 1981 and 2016 but without considering energy efficiency.
Unlike the previously cited reviews, this work focuses on ESs to overcome environmental and economic challenges by improving energy efficiency in manufacturing. Production describes the combination of goods and services to create new goods, while manufacturing is understood as a sub-area of production that describes the actual process of creating goods [17]. Other industrial sectors are also considered to ensure that the scope of the study is not overly restricted and to allow possible conclusions to be drawn about manufacturing. This is performed through a systematic literature review (SLR) with a comprehensive overview. Starting from a total of 1668 publications, the 62 most relevant publications are extracted and categorized according to system boundary, manufacturing type, application perspective, application purpose, ES type, and industry.
The remainder of this paper is organized as follows: Section 2 describes the methodological approach of the SLR, which is then applied in Section 3. This involves all steps, from narrowing down the topic to identifying research gaps. Finally, Section 4 draws conclusions and presents proposals for future research.

2. Review Methodology

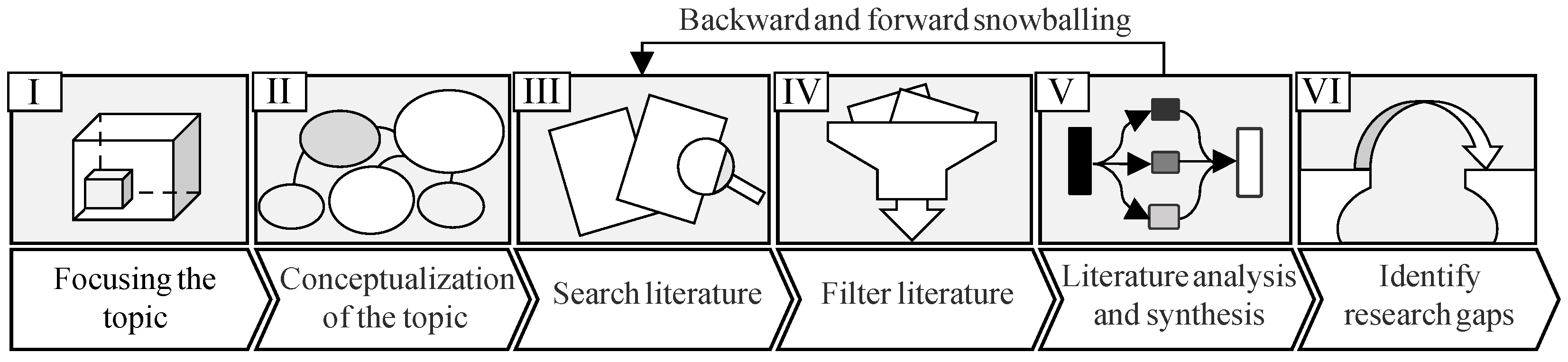

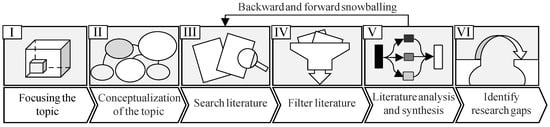

To identify relevant publications on ESs for improving energy efficiency in manufacturing, an SLR is conducted. An SLR is a formal approach that aims to reduce bias due to overly restrictive selection of the available literature and to ensure a rigorous process [18]. Moreover, an SLR can clarify the state of research on a topic and highlight gaps and areas requiring further research [19]. The SLR in this paper follows the approach of [20] as well as [21], which is complemented with elements of [18] and consists of seven consecutive steps shown in Figure 1. This aligns with the criteria of the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [22].
First, the topic is narrowed and conceptualized. When narrowing the topic (I), categories and their definitions are formulated, as consistent classifications help to ensure reliability when conducting content analyzes. In the conceptualization (II), research questions for the review itself as well as inclusion and exclusion criteria are formulated. Moreover, the keywords and the search query string are defined. Subsequently, databases suitable for the topic area are selected and searched (III). For this purpose, databases of previous literature analyses covering the same topic area or suggestions of university libraries for databases of individual research fields can be examined. For the literature search, we only consider metadata (title, abstract, keywords). Thereby it is prevented that the search terms are contained only in the bibliography of the found publications. After merging hits from different databases, literature is filtered (IV) by applying the defined inclusion and exclusion criteria. In the next step, the full texts of the remaining publications are thoroughly analyzed (V). This involves extracting and summarizing relevant information from the publications. By performing backward and forward snowballing, additional relevant publications are identified. Backward snowballing means using the reference list of selected literature to identify new publications to include. Forward snowballing, on the other hand, is carried out to find publications that cite the selected publication. The added publications pass through steps (III) to (V) again. During the synthesis (VI) of the literature, the essential characteristics are categorized. Finally, the findings are summarized, conclusions are derived with regard to the research questions, and research gaps are identified (VII).

3. Literature Review

3.1. Narrowing the Topic

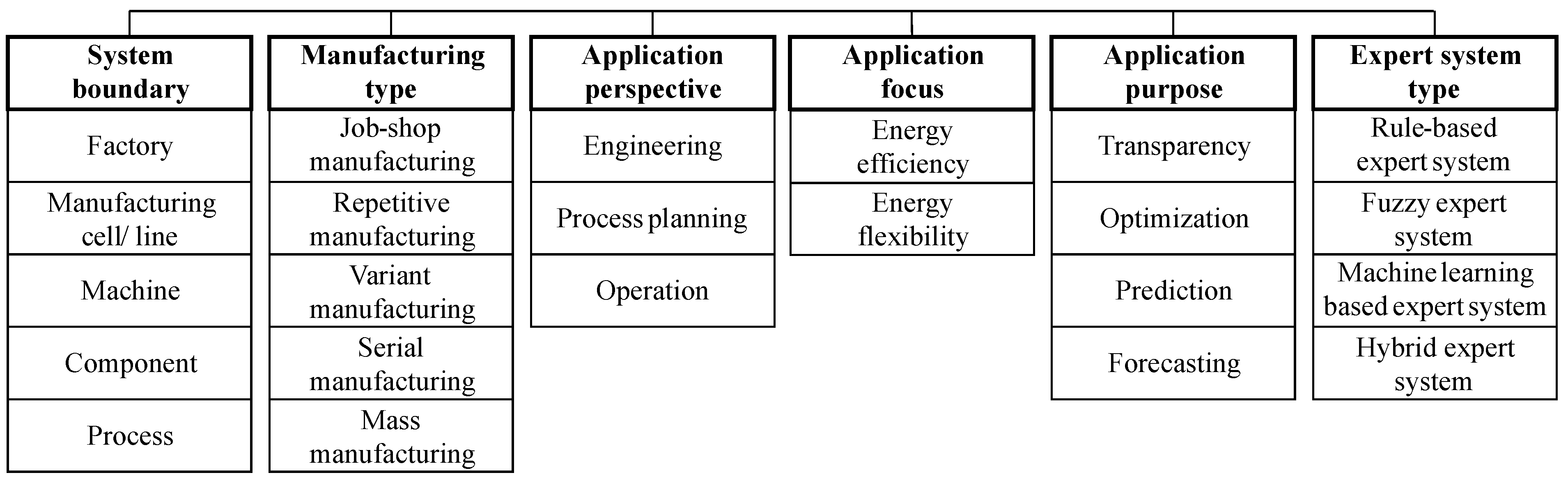

To narrow the topic, relevant categories and associated dimensions are identified as shown in Figure 2. The classification scheme is based on [25] for the field of energy modeling in the manufacturing industry. In addition to the narrowing of the topic, the classification supports defining keywords for the search query string and the literature analysis.

3.1.1. System Boundary

In the context of energy-related ES applications in industry, five dimensions are distinguished regarding the system boundary.
  • Factory: Distinct physical entity containing multiple devices [26].
  • Manufacturing cell/line: Logical organization of multiple machines to achieve a better division of labor [27].
  • Machine: Entity required to perform a specific production task [28].
  • Component: Individual parts or consumers of a machine which represent the lowest hierarchical level for energy metering [29].
  • Process: Value-adding and non-value-adding technical operations [27].

3.1.2. Manufacturing Type

Manufacturing systems can be characterized by their manufacturing type, which is determined by the frequency of repetition of a product or product group to be manufactured [27].
  • Job-shop manufacturing: Custom manufacturing, i.e., according to customer requirements, in which products are only manufactured once.
  • Repetitive manufacturing: Products are manufactured at irregular intervals. If orders are repeated, less preparation is required.
  • Variant manufacturing: Similar products of the same basic type, which generally involve similar manufacturing effort.
  • Serial manufacturing: Mostly contract manufacturing of standardized products in limited quantities.
  • Mass manufacturing: Manufacturing large quantities for an anonymous market. High initial investment costs, but low in relation to the sum of manufactured products.

3.1.3. Application Perspective

Adapted from [25], the application perspective subdivides the phases in which an ES is useful.
  • Engineering: ESs are used for energy-optimized design at a high level of abstraction, e.g., by supporting the selection of sustainable technologies.
  • Process planning: The objective of applying ESs in this phase is to plan and optimize manufacturing processes with regard to energy efficiency prior to actual operation, e.g., by optimizing parameters.
  • Operation: In the phase in which the actual manufacturing process takes place, ESs are utilized to improve the energy efficiency of the operation, e.g., by detecting inefficient operating points.

3.1.4. Application Focus

Two dimensions can be distinguished on which studies in the field of energy optimization focus.
  • Energy efficiency: Refers to the “relationship between the results achieved and the resources used, where resources are limited to energy” [30].
  • Energy flexibility: Describes the “ability of a production system to adapt quickly and in a process-efficient way to changes on the energy market” [31].

3.1.5. Expert System Type

ESs include a user interface, a knowledge base, and an inference engine. The interactions between humans and ESs happen via the user interface, e.g., to define a problem (input) or to read out the results (output). The knowledge base is the programmed knowledge of the expert and contains all pertinent facts and relationships as well as the rules or heuristics to solve problems. The inference engine is the “intelligent” part of an ES which can apply the knowledge from the knowledge base to solve the problem [8].
The way in which knowledge is represented within the knowledge base and how it is processed within the inference engine differs depending on the ES type. The typification of ESs in this paper is based on the categories in [13].
  • Rule-based expert system: A rule-based ES represents information in the form of IF–THEN rules. These rules are applied to perform operations on data in order to reach a conclusion [13].
  • Fuzzy expert system: Fuzzy ESs are characterized by dealing with uncertainties using fuzzy logic, while rule-based ESs only allow conditions or conclusions that are either true or false, fuzzy ESs also allow conditions or conclusions that are partly true or false. This approach is based on the premise that human experts often decide without precisely quantified information [13].
  • Machine learning (ML)-based expert system: This type of ES uses ML as its “intelligent” component to solve problems. Like ESs, ML belongs to the domain of AI and combines a collection of data-driven algorithms that can learn from data without being explicitly programmed. ML also includes deep learning and reinforcement learning [32].
  • Hybrid expert system: Hybrid ESs are a combination of several previously mentioned types or a previously mentioned type with a further approach. Further approaches can be mathematical optimization methods or physical simulation models.

3.1.6. Application Purpose

There are several reasons for the application of ESs that can contribute to energy efficiency improvements.
  • Transparency: To reduce the energy consumption in industry, stakeholders need a sufficient level of energy transparency to create a meaningful basis for decision-making [33].
  • Optimization: Optimization in the context of this work means improving energy efficiency as far as necessary and feasible.
  • Prediction: Prediction means determining unknown values from known inputs. For energy analysis, this means that the available observations at time t are used to predict the energy or energy efficiency at the same time t [25].
  • Forecasting: Statements are made about the future. In energy analyses, future values t + x for energy or energy efficiency are estimated based on current and/or past information at time t [34].

3.2. Conceptualization of the Topic

In the conceptualization, research questions are raised, inclusion and exclusion criteria are defined, and keywords as well as the search query string are formulated.

3.2.1. Research Questions

The following research questions (RQ) emerged for the SLR, which are intended to lead to the identification of research gaps:
RQ-1
Which industries deploy ESs to increase energy efficiency?
RQ-2
How have ESs been applied in the manufacturing industry to enhance energy efficiency?
RQ-3
How are ESs for improving energy efficiency in industry structured and implemented?
RQ-4
How are ESs for improving energy efficiency in industrial applications developed?

3.2.2. Inclusion and Exclusion Criteria

Inclusion (IC) and exclusion (EC) criteria are defined in advance to ensure consistent filtering within the literature search. Only those publications that pass this selection process are analyzed in depth.
IC-1
Studies written in English or German;
IC-2
Reviewed studies;
IC-3
Online full text availability;
IC-4
Empirical studies with a focus on ESs to improve energy efficiency in industry.
EC-1
Studies that do not meet the inclusion criteria;
EC-2
Duplicates;
EC-3
Excerpts from research results;
EC-4
Surveys or reviews (however, should they pertain to this review, they are integrated into Section 1 to address related work).

3.2.3. Keywords and Search Query String

The keywords and the search query string are determined based on the classification in Figure 2. We focus on industrial applications and do not restrict the search to a specific manufacturing type, application perspective, or application purpose. However, to find literature that is more relevant to the objective of this review, the search is limited by specifying the application focus and AI technique. For the search query, keywords and their synonyms are concatenated with “OR” operators to broaden the search. By using asterisks (*), words sharing a common root are included in the search as well. The search is restricted by using “AND” operators. The chosen keywords and their logical connections are presented in Table 1.

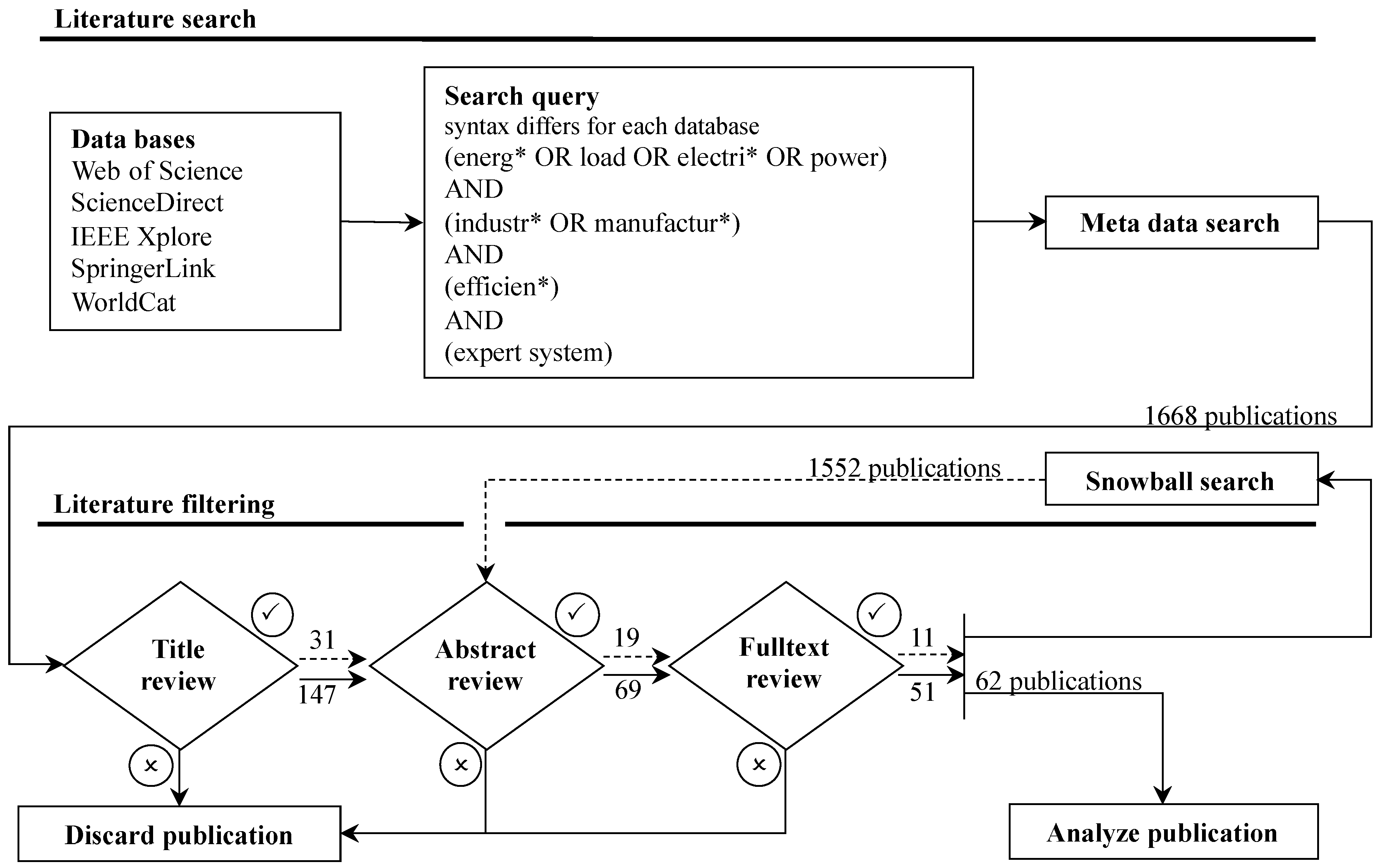

3.3. Search and Filter Literature

Literature databases were selected based on [23,35,36], which are literature reviews related to energy efficiency and flexibility in industry. Thus, the five electronic databases selected are Web of Science [37], ScienceDirect [38], IEEE Xplore [39], SpringerLink [40], and WorldCat [41]. The functionality and syntax of these databases differ slightly. ScienceDirect, for example, does not support wildcards such as asterisk (*), other databases including SpringerLink do not allow limiting the search to the abstract, so the search string has to be adjusted for a feasible filtering. The search queries used and the number of results found are listed in Table 1. Figure 3 provides an overview of the literature search and filtering process. A total of 1668 publications are found by entering the search query. When checking the titles, 1521 publications are filtered out according to the inclusion and exclusion criteria, so only 147 results remain. This number decreases to 69 articles after examining the abstract. By screening the full texts, another 18 publications are excluded. However, 11 publications are added through the snowball search. This results in a total of 62 publications for a detailed analysis.

3.4. Literature Analysis and Synthesis

Within the scope of the literature analysis and synthesis, initially descriptive information such as the publishing year, the document type, and the ES applications are extracted from the 62 selected publication. Each publication is assigned an identifier (ID) for subsequent analyses. The IDs are characterized by a number and an index, whereby the number is a consecutive sequence starting with the oldest and ending with the most recent publication. The index contains the relevance groups defined by the application areas of the ESs. Group A includes ESs within manufacturing and group B for other industries. Table 2 provides an overview of the analyzed publications.

3.4.1. Keyword Co-Occurrence Analysis

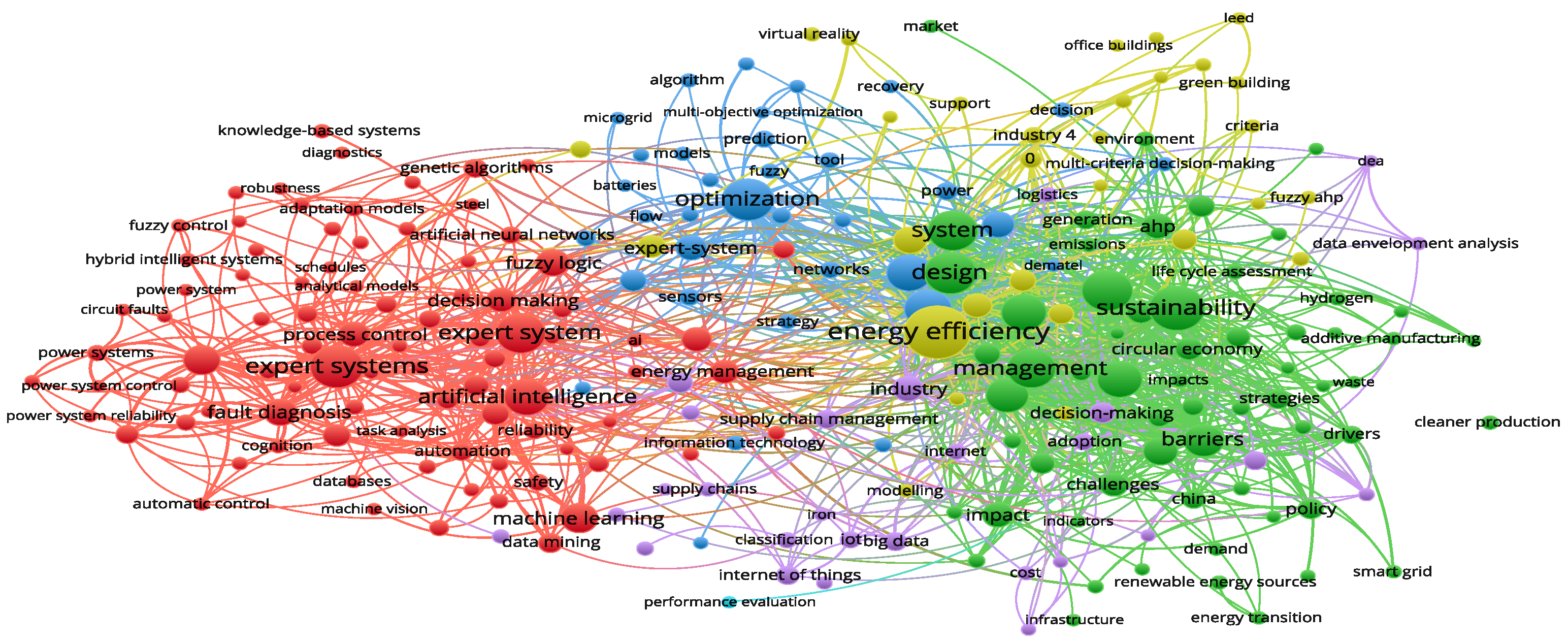

To explore the thematic structure of research based on our search queries defined in Table 1, we conduct a keyword co-occurrence analysis using VOSviewer [102]. This approach reveals relationships between keywords by analyzing their co-occurrence frequency in the literature. The keyword co-occurrence analysis thus helps to map the current state of research, highlighting the dominant areas of focus and uncovering potential gaps where further investigation may be needed.
For this analysis, results are exported from Web of Science [37], ScienceDirect [38], and IEEE Xplore [39] in Research Information System (RIS) format. SpringerLink [40] and WorldCat [41] are excluded due to the absence of export functions. Despite this limitation, the high number of included sources offers a comprehensive view of the research landscape. We apply the full counting method, giving equal weight to each co-occurrence with a threshold of five occurrences. Of the 4916 keywords, 242 meet this criterion. The association strength method is then used to normalize the strength of links between keywords. In the VOSviewer-generated graphic (see Figure 4), keywords are clustered based on their co-occurrence, grouping those that frequently appear together.
One of the largest and most significant clusters covers ESs and various other AI technologies (red). Other relevant clusters include sustainability (green), energy efficiency (yellow), and optimization (blue). The connections between clusters, depicted by lines, illustrate the interrelations among topics in the literature. Notably, the links between sustainability and ESs, as well as between energy efficiency and ESs, are less pronounced, indicating a potential gap in the literature. This suggests that further research should focus on the integration of ESs in these areas.

3.4.2. Data Sources and Publication Trend

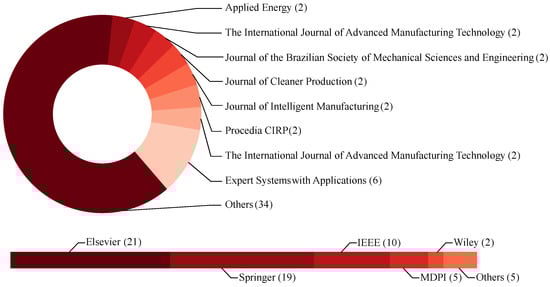

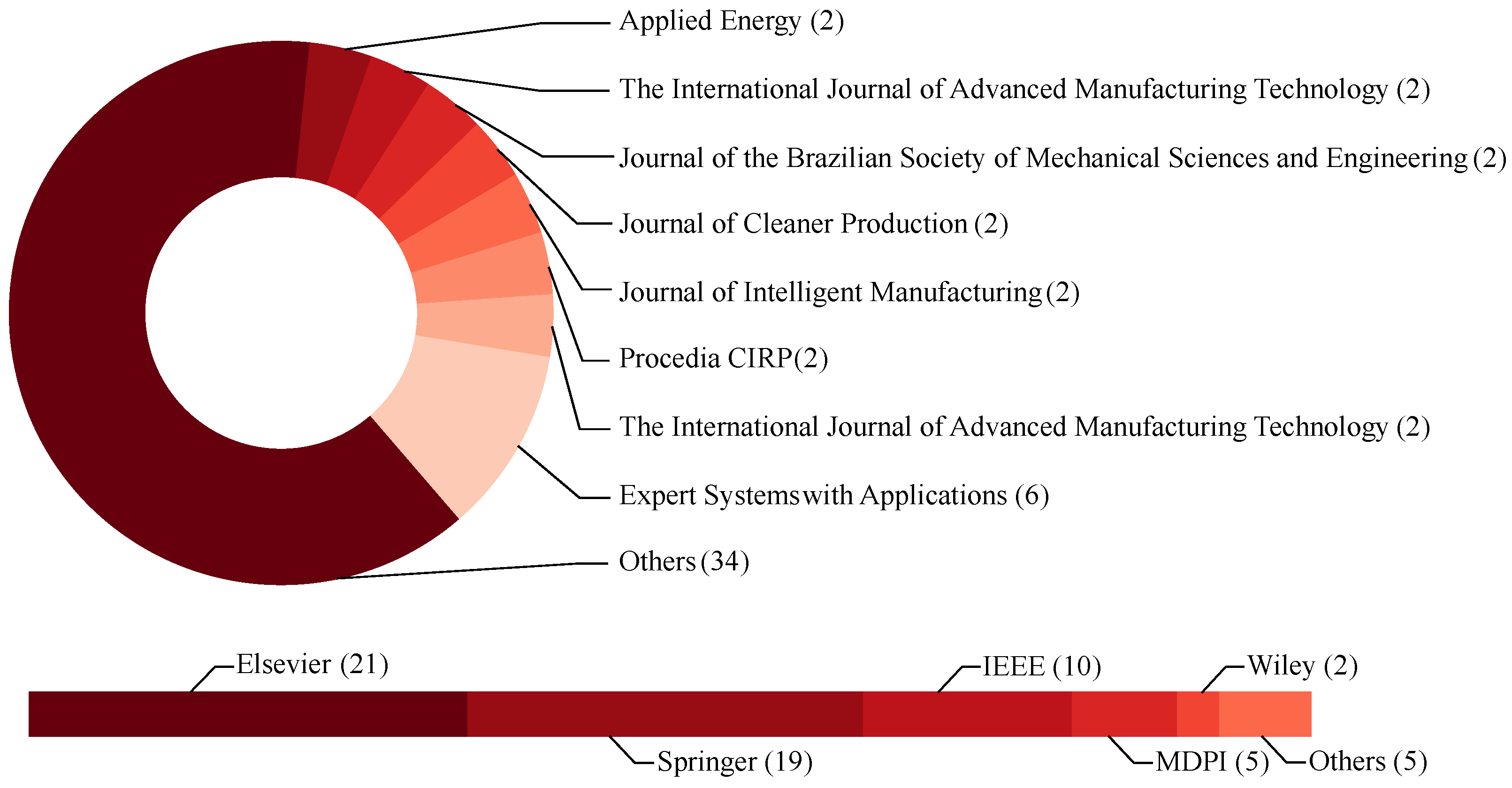

The 62 publications include a total of 49 journal articles and 13 proceedings papers, whereby both document types are distributed rather evenly throughout the years. As presented in Figure 5, the publications are not concentrated on a small number of journals or conference proceedings but are spread across a total of 48 sources. The highest concentration can be observed in Expert Systems and Application, with six publications. Other sources listed in Figure 5 are represented by two publications each. The remaining 38 journals and conference proceedings are each represented by a single publication.
Among the publishers, Elsevier leads with 21 publications, followed by Springer with 19, IEEE with 10, MDPI with 5, Wiley with 2, and five other publishers each contributing individually.

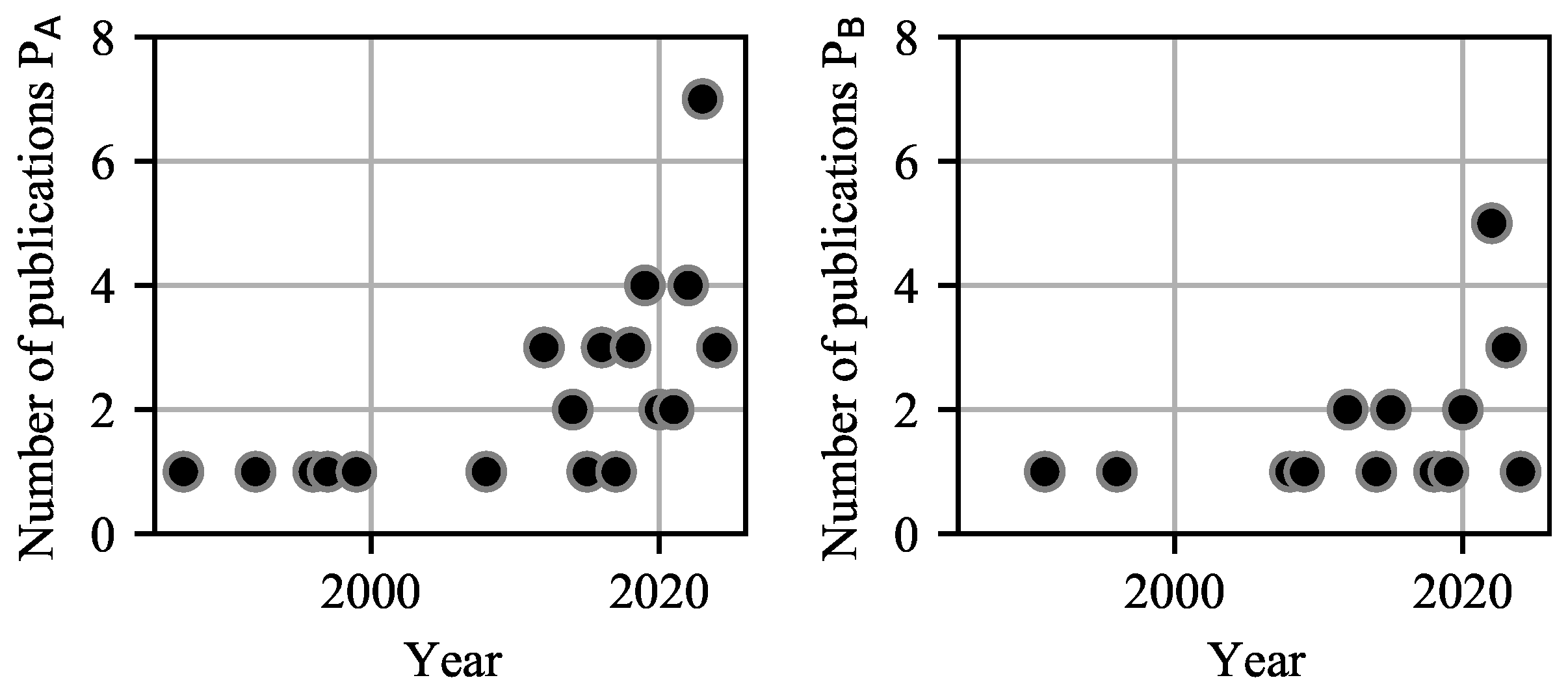

Figure 6 shows the number of analyzed publications throughout the years, separated by both relevance groups. No time restriction was set for the literature search, which means that publications from 1987 to 2024 could be reviewed. The year 2024 is not fully covered since the search was carried out in August 2024. Until 2009, studies were published only occasionally. From 2012 onward, an increase in the average number of publications over the years can be observed for both groups. Furthermore, it is noticeable that the average number of publications in Group A has increased significantly more than in Group B over the last ten years.

3.4.3. Authors Country Distribution

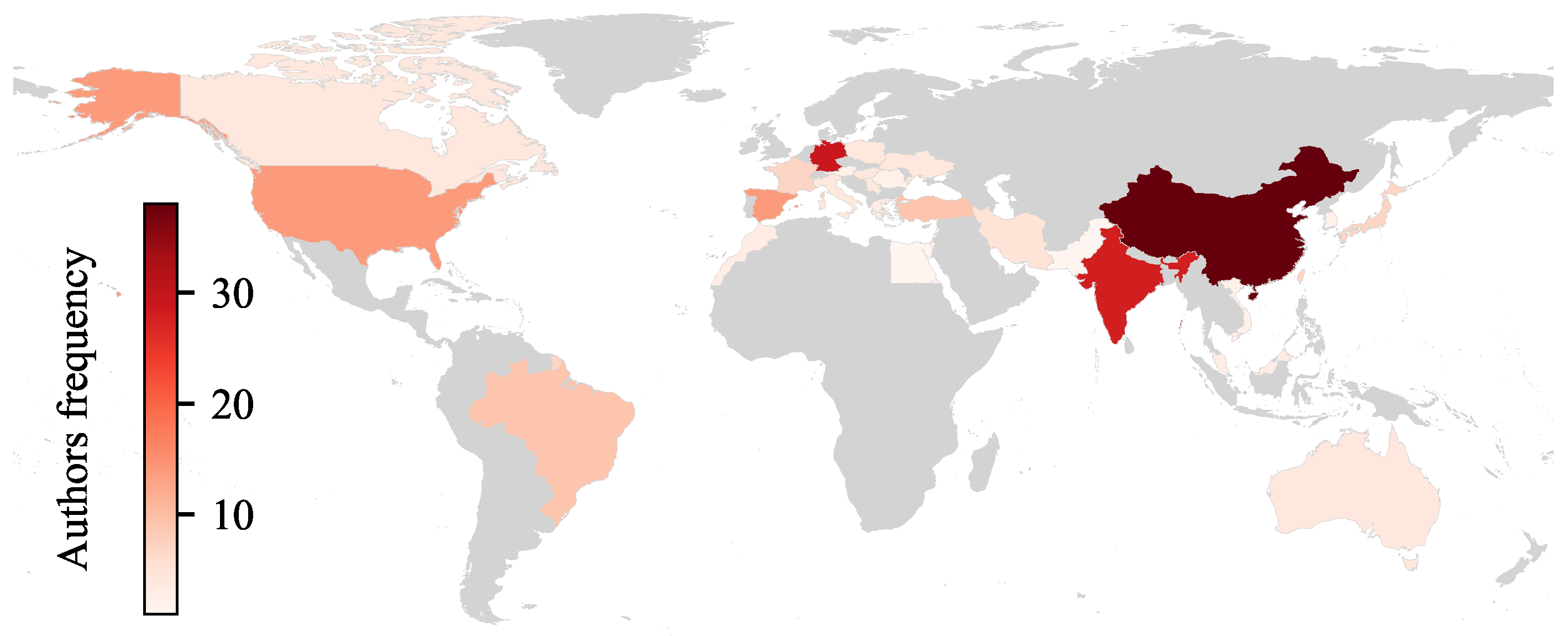

The authors’ affiliations are an additional source of information that is extracted from the metadata of the selected publications. Figure 7 visualizes the authors’ distribution across individual countries. Most authors are affiliated with China (38). This is followed by a double-digit number of authors from Germany (29), India (28), the United States (14), and Spain (14). The continents where most authors are concentrated are Asia (110), Europe (86), and North America (18). The remaining authors originate from South America (9), Africa (9), and Australia (4). There is no observable trend of a particular change in the frequency of publication from individual countries or continents over certain time periods.

3.4.4. Literature Categorization

In this section, publications in relevance group A are categorized in accordance with Figure 2 by system boundary, manufacturing type, application perspective, application purpose and ES type. Since publications in relevance group B do not address manufacturing, they are only categorized by application perspective, application purpose, and ES type.
Regarding the system boundary (Table 3), all dimensions are covered, whereby the actual manufacturing process predominates with over one-third of the publications in group A. In terms of the manufacturing type (Table 4), it can be observed that the use of ESs is concentrated on serial and mass manufacturing, i.e., on larger quantities. Concerning the application perspective (Table 5), most of the studies address process planning and operation. The application purpose of ESs (Table 6) is primarily to create energy transparency and optimization, but there are also some publications that predict or forecast information in the context of energy efficiency. Among the ES types (Table 7), pure ML-based ESs are the least common. The other three dimensions—rule-based ES, fuzzy ES, and hybrid ES—are approximately evenly represented. Hybrid ESs are combinations of rule-based and fuzzy ESs (PA16); rule-based and ML-based ESs (PA11, PA35, PA38, PA52); fuzzy and ML-based ESs (PA4, PB9, PB13, PB18, PB54, PB56, PA59); rule-based or fuzzy ESs using mathematical optimization algorithms (PA25, PA45, PA48, PA49); ML-based ESs combined with simulation models (PA41, PA57, PA58); and a rule-based ES coupled with simulation models (PB10).

3.5. Identification of Research Gaps

Answers to the research questions raised in Section 3.2.1 are provided in the following and discussed to identify research gaps.

3.5.1. Classification of ESs by Industries

To answer RQ1, in which industries ESs are used to increase energy efficiency, the classification of economic sectors of the Federal Statistical Office in Germany is considered. The classification is hierarchically structured and is divided into sections, which are separated into divisions [103].
Table 8 summarizes the analyzed publications according to this classification scheme. We can classify the publications into seven industries. Some publications cannot be assigned clearly because they deal with cross-sectional technologies or do not provide any information about the exact industry. There is a noticeable concentration of the use of ESs in the manufacturing of metal goods. Furthermore, Table 8 shows again that the majority of ESs (66%) for improving energy efficiency are deployed in manufacturing (relevance group A).

3.5.2. Utilizations of ESs in Industry

Regarding the question of how ESs are applied to enhance energy efficiency in manufacturing (RQ2), it can be observed that ESs with a wider system boundary are more transferable than others with a more restricted system boundary. Thus, Refs. [47,48,63,75,76,95] describe ESs with system boundaries covering entire factories but are rather utilized for preliminary or generic energy analyses. Some other publications with a more limited system boundary such as [9,52,57,62,79] are applicable for similar use cases with few or no adjustments. The remaining publications in relevance group A describe ESs that are largely limited to individual case studies and cannot be transferred to other machines, systems, or processes without further modification.
The classification in Table 5 also shows that the utilization of ESs is strongly focused on either planning manufacturing processes regarding energy efficiency before actual operation or optimization during operation. ESs are deployed less frequently for energy-efficient planning of new energy systems. Furthermore, according to Table 6, the primary purpose of ESs is to create energy transparency as a basis for subsequent improvement processes as well as to contribute directly to improving energy efficiency.

3.5.3. Structure and Implementations of ESs

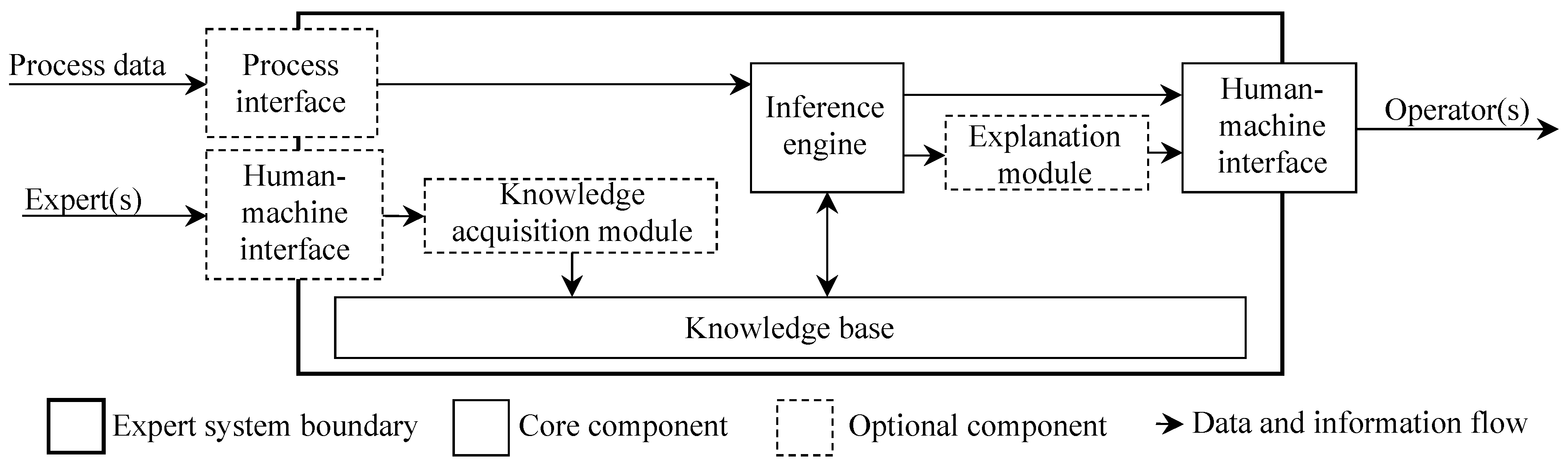

RQ3 addresses the structure and implementation of ESs. All ESs described within the analyzed 62 publications feature an implicit or explicit knowledge base, an inference engine, and a user interface, which are interconnected as shown in Figure 8. Some of the publications, for instance [75,76], additionally include distinct knowledge acquisition and explanation modules.
The expertise stored in the knowledge base can be represented in various forms. These include mathematical formulas [42], historical measurement data [43], physical and technical relationships [45], rules [49], and facts [57]. Furthermore, as outlined by [75], the knowledge base can be divided into short-term and long-term memory. The short-term memory stores information for particular use cases for which ESs are applied, whereas the long-term memory stores more general relationships, which correspond to the heuristic knowledge of human experts. Knowledge can be acquired using different techniques. Literature surveys are explicitly mentioned by [57,93] as well as expert consultations by [57,75,93]. The optional knowledge acquisition module enables the knowledge base to be enriched with new content while the ES is already deployed. Depending on the ES type (Table 7), there are variations in how the knowledge is represented in the knowledge base and how the inference engine utilizes the knowledge stored in the knowledge base to gain insights or solve problems.
The communication between humans and the ES (human–machine interface) can be realized by different means, including interactive questionnaires [42], dialog boxes [47], measurement data inputs [9], text outputs, and graphics [61]. The process interface enables the connection to other technical systems for the uni- or bidirectional transfer of data [104]. Other technical systems can be, for example, sensors or programmable logic controllers [11,82]. At least one of the two interface types is required to input information about the present situation. The optional explanation module clarifies the reasoning process in order to make it comprehensible and thus promote acceptance of the findings presented by the ES [75].
As the analyzed publications reveal, the software implementation of ES can be highly diverse. Ref. [42] use Fortran and Assembler as programming languages. More recent publications implement their ESs in Excel [57], C language [60], CLIPS [75], Python [79], and LabVIEW [92]. Refs. [11,66,82,84,97,98] use combinations of different programming languages to integrate simulation models or databases as part of the ESs.

3.5.4. Development of ESs for Industrial Applications

Many analyzed publications follow similar sequential and sometimes iterative steps in the development of their ES. These steps are as follows:
  • Situation analysis: Create an overview of the situation and examine the problem to be solved [48].
  • Parameter identification: Identify important and interactive parameters and factors, i.e., those that are both controllable and influential [55,84].
  • Data generation and acquisition: Data are generated and collected using simulation models [42] or experiments [60]. Experimental data generation is more common in the analyzed publications.
  • Data cleaning and preprocessing: Data filtering [55], scaling [71], and further preprocessing such as discriminant analysis [55] or feature extraction [92] is performed.
  • Creation of a knowledge base and knowledge representation: Knowledge is gathered and represented as described in Section 3.5.3.
  • Modeling: Build mathematical models [84], fuzzy models, or data-driven models such as neural networks [45]. The development steps of the modeling process depend on the respective model type.
  • Application and validation: The ES can be qualitatively validated via user interviews and quantitatively through case studies [84].
Refs. [11,75,84] specified corresponding development methods. Ref. [75] followed an incremental development model exclusively for the computational implementation, without providing a detailed description of the individual phases. Ref. [84] based the entire development of their ES on a design science method. The method described by [84] comprises three phases: conceptual design, tool development, and application and validation. During the conceptual design phase, influential factors are selected, and calculation rules are defined and iteratively refined. Subsequently, the computational implementation follows during the tool development phase. Finally, the ES is validated both qualitatively and quantitatively. Ref. [11] adopted the approach from [84] to manufacturing. This involves identifying relevant consumers and controllable parameters, acquiring measurement data, developing ML models and simulation models, defining energy performance indicators, formulating a rule base, and finally integrating all subsystems. References to practical implementation are provided for each step. Following [84], both application and validation were carried out, after which further refinements were possible. Additionally, in [11], personas with necessary capabilities were described for each development step.
To summarize, various development approaches for ESs can be found with some similarities in the context of improving industrial energy efficiency. Most development approaches, except for those described by [11,75,84], cannot be associated with a superior methodological approach. In the field of manufacturing, solely [11] offers a process model with a detailed description of the individual steps for developing ESs to increase energy efficiency. However, it is limited exclusively to the consideration of a single machine and requires the time-consuming development of an analytical simulation model as a core element [11].

4. Discussion and Conclusions

This paper presents an SLR that identifies, summarizes, and analyzes ESs aimed at improving energy efficiency in industry, with a particular focus on manufacturing. By following a formal six-step approach, we sought to minimize bias and enhance the reliability of the selected literature, resulting in a thorough analysis of 62 publications. The findings were organized by classifying the proposed ESs according to system boundary, manufacturing type, application perspective, application purpose, and ES type. The research questions raised were addressed, and several research gaps were identified.
Regarding existing literature concerning ESs, the main contribution of this work lies in the special focus on improving energy efficiency in manufacturing, although other industries were also considered, providing a comprehensive assessment. This study offers a structured classification of ESs across various dimensions, industries, and contexts, examining their structure, implementation, utilization, and development within the scope of energy efficiency. However, it is important to acknowledge the limitations of this study, including its reliance on digital sources and the exclusion of older publications, which may introduce a bias toward recent findings. Additionally, language restriction could have led to the exclusion of relevant studies published in other languages.
Despite these limitations, this study provides a detailed review of the current state of the art in the domain of ESs for energy efficiency in manufacturing. The analysis led to several noteworthy observations, while Figure 6 illustrates an increase in the number of publications, it remains unclear whether this trend reflects a growing interest in the topic or a broader expansion in research output. However, the comparison between relevance groups reveals a more pronounced growth in group A publications over the past decade, likely due to heightened attention to sustainability in manufacturing. Additionally, the analysis of authors’ country affiliations in Figure 7 suggests that countries with large populations, strong secondary economic sectors, and substantial research investments have contributed more significantly to this area of research. Moreover, the answer given to RQ1 (Table 8) combined with the categorization by manufacturing type (Table 4) indicates that ESs for improving energy efficiency are of particular interest to companies with high energy consumption and large output quantities. This could be related to the initial development effort arising from the lack of established process models (RQ4) and the low transferability of ESs to other use cases (RQ2).
The answers provided to the research questions revealed research gaps that can be addressed in future research. These include understanding why ESs are more prevalent in certain industries (RQ1) and the factors, such as energy consumption, output quantities, or digitalization, which influence this trend. Additionally, the low transferability of ESs (RQ2) suggests a need for research on developing more adaptable systems. Regarding the structure and implementation of ESs (RQ3), it has been revealed that although all described ESs have a knowledge base, an inference engine and a user interface, their implementation is highly diverse. Therefore, a tailored software tool (expert system shell [105]) could simplify the development process considerably. For the development of ESs to increase energy efficiency in manufacturing (RQ4), it was also pointed out that there is still no universally applicable methodology, which can lead to higher initial costs and may act as a barrier to the broader adoption of ESs. Hence, future research could aim to design a more broadly applicable methodology and streamlined software framework for the development of such ESs.

Author Contributions

Conceptualization, B.I.; methodology, B.I.; formal analysis, B.I.; investigation, B.I.; resources, M.W.; data curation, B.I.; writing—original draft preparation, B.I.; writing—review and editing, B.I., M.F. and M.W.; visualization, B.I.; supervision, M.W.; project administration, B.I.; funding acquisition, M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Federal Ministry of Economic Affairs and Climate Action (BMWK) within the project KI4ETA (grant number 03EN2053A).

Data Availability Statement

No data were used for the research described in the article.

Acknowledgments

The authors gratefully acknowledge financial support from the German Federal Ministry of Economic Affairs and Climate Action (BMWK) and project supervision by the project management Jülich (PtJ).

Conflicts of Interest

The authors declare no conflicts of interest.
