Additives Improving the Efficiency of Biogas Production as an Alternative Energy Source—A Review
Abstract
:1. Introduction

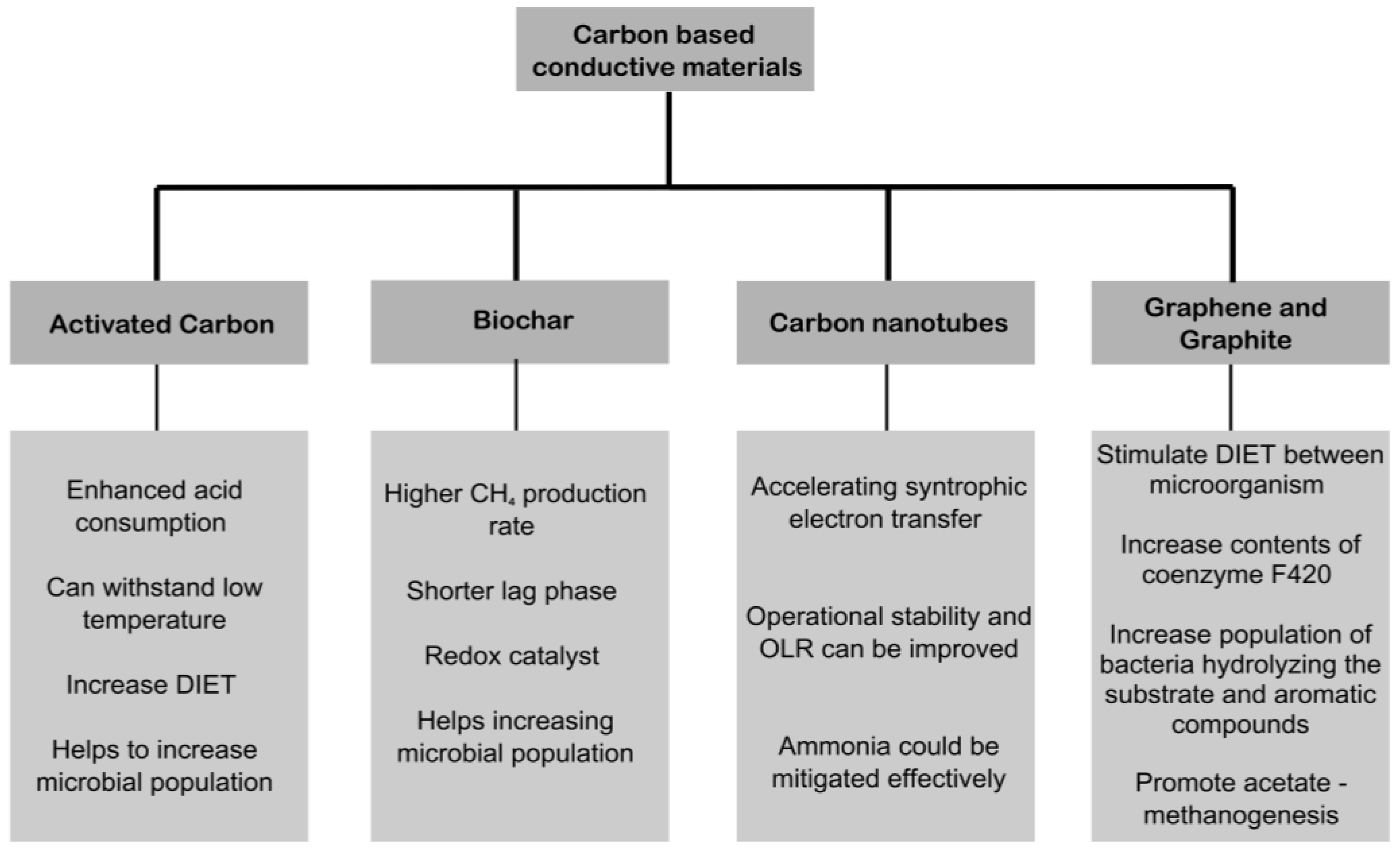

2. Carbon-Based Conductive Materials
2.1. GAC and PAC
2.2. Biochar
2.3. SWNTs and MWNTs
2.4. Graphite and Graphene

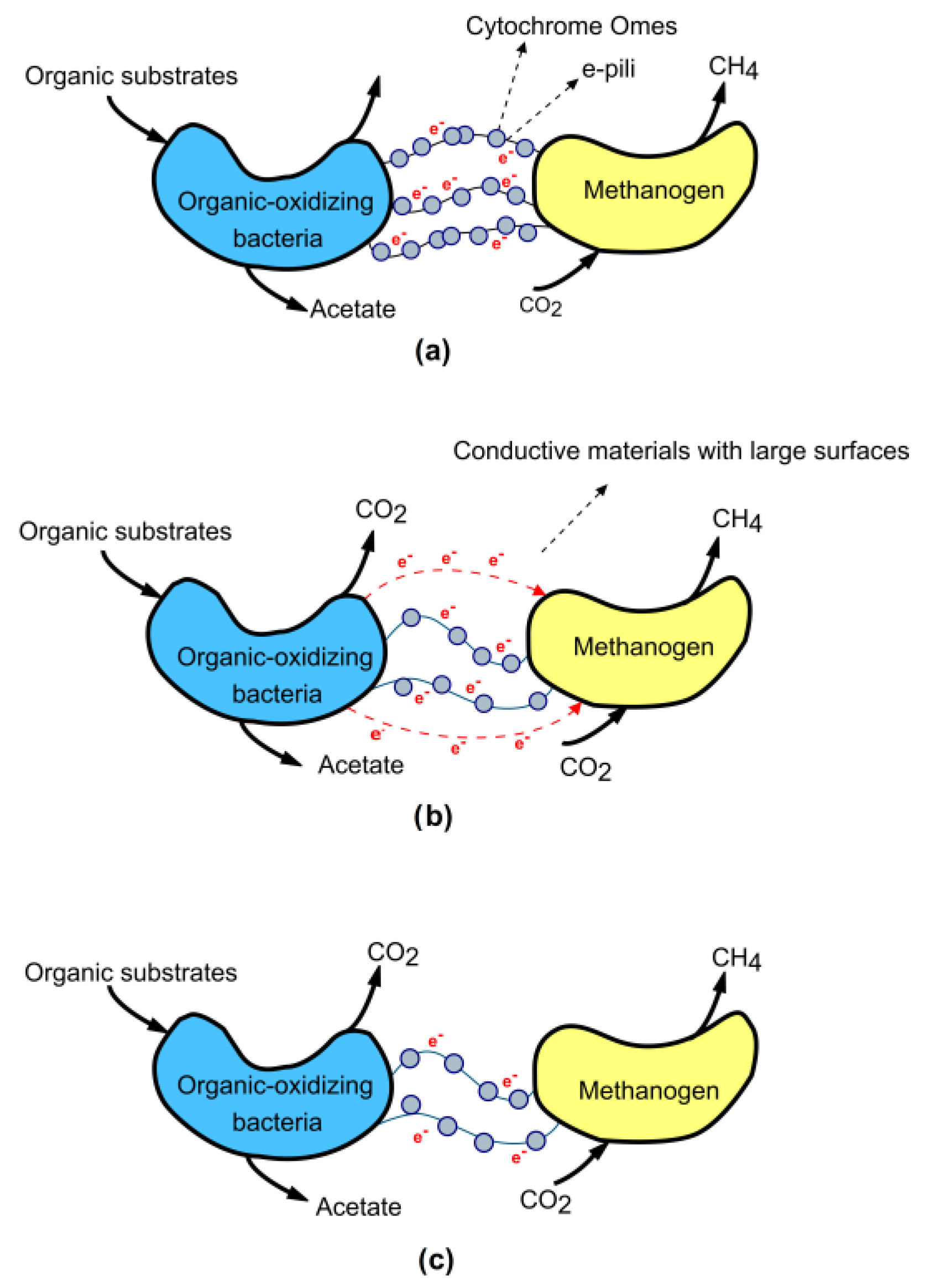

2.5. DIET Mechanism
3. Metal Oxide Nanomaterial
Type of Additive | Type of Substrate | Yield of Biogas/Biomethane | References |
---|---|---|---|
Al2O3 | animal fat | increase in biogas production by 285% | [75] |
Al2O3 | sewage sludge | increase in biogas production by 23.4% | [77] |
Al2O3 | waste-activated sludge | increase in methane production by 14.8% | [80] |
Fe2O3 | animal fat | increase in biogas production by 45.87% | [75] |
Fe2O3 | granular sludge | increase in methane production by 38% | [8] |
Fe2O3 | waste activated sludge | increase in methane production by 117% | [69] |
Fe3O4 | corn straw and sewage sludge | increase in methane production by 60.47% | [82] |
Fe3O4 | waste sludge | increase in methane yield by 58.7% | [86] |
Fe3O4 | wastewater sludge | increase in biogas production by 96% increase in methane production by 144% | [79] |
Fe3O4 | wastewater sludge | increase in biogas production by 107% increase in methane production by 153% | [79] |
Fe3O4 | municipal solid waste | increase in methane yield by 72.09% | [87] |
TiO2 | fresh dairy cattle manure | increase in methane yield by 121% | [78] |
TiO2 | anaerobic sludge | increase in methane yield by 14.9% | [80] |
CeO2 | waste-activated sludge | increase in methane production by 9.2% | [88] |
MnO2 | seed sludge | decrease in methane production by 93% | [83] |
MgO | waste activated sludge | decrease in methane production by 99% | [69] |
CoO | sewage sludge | decrease in biogas production by 60% | [80] |
CeO2 | sludge | decrease in biogas production by 35% | [69] |
CeO2 | cellulose | decrease in biogas production by 100% | [69] |
CuO | cattle manure | decrease in biogas production by 96% | [69] |
CuO | sewage sludge | decrease in biogas production by 17.3% | [77] |
ZnO | animal fat | decrease in biogas production by 17% | [75] |
ZnO | municipal solid waste | decrease in biogas production by 15% | [89] |
ZnO | waste-activated sludge | decrease in methane production by 50% | [84] |
ZnO | sewage sludge | decrease in biogas production by 90.2% | [77] |
4. Trace Elements
- Iron (Fe) is the most commonly studied element for the impact of supplementation on anaerobic digestion due to its high requirement based on fundamental knowledge. First and foremost, Park and Novak [100] demonstrated the direct addition of Fe (III) at 1.25% (by weight) into a sewage sludge digestion system to remove the odor-causing byproducts. They observed that the problematic and corrosive hydrogen sulfide (H2S) which had been reduced by more than 65%. H2S generation is reduced due to the FeS precipitation. Kegl [101] also proposed a BioModel based on modified Michaelis–Menten kinetics in the study of the activity of, among others, various forms of iron that increase the production of CH4 and reduce the content of H2S in the produced biogas. Based on the results obtained, the author concluded that the absence of additives (including iron) results in a substantially lower specific biogas production rate (by around 50%). Moreover, the H2S content in biogas is significantly higher (by around 80%).It should also be mentioned that Fe plays many roles in anaerobic processes, mainly due to its exceptionally high reduction potential. Because of its properties, it plays a special role in energy metabolism. Iron is crucial for the activity of various enzymes, including hydrogenases and ferredoxins, which are involved in electron transfer and hydrogen metabolism [93,102]. This metal is utilized in transporting methanogenic bacteria for converting CO2 to CH4 and serves as both an electron acceptor and donor [6]. Therefore, adequate iron levels can enhance biogas production and stabilize the AD process.
- Nickel (Ni) is essential for the function of several enzymes, such as methyl-coenzyme M reductase, which is key in the final step of methanogenesis. Anaerobic bacteria are heavily dependent on nickel, while carbon dioxide and hydrogen are the sole sources of energy. The nickel tetrapyrrole, coenzyme F430, is known to bind to methyl-S-CoM reductase, catalyzing methane formation from methyl-S-CoM in acetoclastic and hydrogenotrophic methanogens [103]. This coenzyme is part of the methyl-coenzyme M reductase enzyme, which reduces methyl-coenzyme M to methane [95,104]. Besides enhancing the acetate utilization rate, Ni stimulation has also been found to have a connection with the predominance of the genus Methanosarcina [90]. Nickel supplementation can improve methane production, especially in nickel-deficient substrates.
- Cobalt (Co) is a critical component of vitamin B12, which activates carboxypeptidase and is required for the metabolism of certain methanogens. Corrinoids, such as vitamin B12, containing a cobalt ion, bind to methyl-coenzyme M (CoM) reductase, catalyzing methane formation in acetoclastic methanogens and hydrogenotrophic bacteria [95]. The enzyme carbon monoxide dehydrogenase (CODH) also utilizes cobalt [105]. Therefore, cobalt can increase methane yield and improve the metabolic activities of acetoclastic methanogens. Besides stimulating the methanogenesis process, the addition of Co is believed to boost the acetogenesis at the initial stage of anaerobic digestion. This is because Co is one of the growing factors of acetogens [90].
- Molybdenum (Mo) is a cofactor for enzymes. Mo is closely involved in formylmethanofuran dehydrogenase (hydrogenotrophic methanogens) and formate dehydrogenase (syntrophic oxidizing bacteria and hydrogenotrophic methanogens), which participates in the conversion of formate to carbon dioxide [106]. Although Mo is considered to be chemically analogous with tungsten (W) in enzyme formation, Mo cannot be replaced by other trace elements for any methanogenic species. The Mo enzyme is synthesized only when Mo is present in the growth medium [93]. This metal can inhibit sulfate-reducing bacteria, limiting the formation of sulfides. Molybdenum can also stimulate methane production from corn silage and municipal waste substrates [95,107]. In summary, molybdenum enhances formate decomposition, thereby supporting the entire AD process.
- Selenium and tungsten (Se and W) are parts of several selenoproteins that protect cells from oxidative damage and participate in redox reactions [93]. Selenium, like tungsten, is a component of the enzyme formate dehydrogenase (FDH), which catalyzes formate production by propionate oxidizers. Certain methanogenic bacteria contain W and Mo enzymes for the same purpose [108]. Few studies have been conducted on the effects of Se and W on methanogenesis. One study conducted on a laboratory scale with food industry waste showed evidence of increased methane production under the influence of Se and W, and additionally in combination with Co [109]. A study also shows that supplementing Se reduced both the acetic and propionic acid concentrations in the batch incubation, thus enhancing biomethane production. It indicates that Se is involved in common hydrogenases and provides co-enzymes necessary for propionate oxidation and syntrophic hydrogenotrophic methanogenesis. Thus, a lack of Se can slow down the AD process [110].
- Zinc (Zn) is involved in enzyme function, stabilizing protein structures, and regulating gene expression. Zinc is a part of enzymes such as formate dehydrogenase (FDH), superoxide dismutase (SODM), and hydrogenase [93,94]. Zn has been found in remarkably high concentrations (50–630 ppm) in 10 methanogenic bacteria [111]. This metal is necessary for maintaining microbial activity and diversity in AD.
- Copper (Cu) functions in redox reactions and electron transport. In general, the role of copper in methanogenesis is contradictorily perceived. It has rarely been studied, making it difficult to understand the role of Cu in biogas production fully. However, it has not been found to have a noticeable stimulating effect on biogas production [93]. It is important to note that while Cu is essential in small amounts, its excess can be toxic to microorganisms [97].
5. Biological Additives
5.1. Enzyme Supplementation
5.2. Bioaugmentation
Type of Additive | Type of Substrate | Yield of Biogas/Biomethane | References |
---|---|---|---|
cellulases, xylanases, β-glucosidases | ensiled forage ley | increase in methane production by 19% | [126] |
lipase from Aspergillus | animal fat | increase in methane production by 80.8% | [125] |
arachis oil | increase in methane production by 26.9% | [125] | |
floatable grease | increase in methane production by 37% | [125] | |
lipase from Candida | animal fat | increase in methane production by 157.7% | [125] |
arachis oil | increase in methane production by 53.8% | [125] | |
floatable grease | increase in methane production by 40.7% | [125] | |
bio-additive Digest P3 (carbohydrases, pectinase, xylanase) | poultry litter | increase in biogas production by 59.7% increase in methane production by 91.4% | [151] |
bio-additive APD (Aerobacter, Pseudomonas, Alcaligenes, cellulase, lipase) | igniscum silage | increase in biogas production by 6% decrease in methane production by 7% | [19] |
maize silage | increase in biogas production by 53% increase in methane production by 74% | [19] | |
bio-additive PPT (Pseudomonas, Flavobacterium, Lactobacillus, cellulase, lipase) | igniscum silage | increase in biogas production by 16% increase in methane production by 26% | [19] |
maize silage | increase in biogas production by 62% increase in methane production by 79% | [19] | |
bio-additive HAP (Clostridium, Micrococcus, cellulase, lipase) | igniscum silage | increase in biogas production by 12% increase in methane production by 30% | [19] |
maize silage | increase in biogas production by 32% increase in methane production by 46% | [19] | |
bio-additive JENOR (Pichia, Trichoderma, cellulase, lipase) | igniscum silage | increase in biogas production by 13% increase in methane production by 16% | [19] |
maize silage | increase in biogas production by 17% increase in methane production by 26% | [19] | |
Orpinomyces sp. | barley, triticale, rye, wheat, cow manure | increase in methane production by 33% | [132] |
Ochrobactrum sp. | sewage sludge | increase in biogas production by 22.06% | [152] |
Caldicellulosiruptor bescii | birch wood chips | increase in methane production by 44% | [135] |
Clostridium thermocellum | wheat straw, cow manure | increase in methane production by 39% | [131] |
Clostridium cellulolyticum Clostridium cellulovorans Clostridium aceticum Mesotoga infera Methanosarcina barkeri Methanosaeta concilii | Axonopus compressus | increase in methane production by 20.7% | [141] |
Neocallimastix sp. Orpinomyces sp. fermentative bacteria | wheat straw | increase in methane production of 290% | [142] |
mushroom spent straw | increase in methane production by 330% | [142] | |
Aspergillus sp. Trichoderma viride | maize straw | increase in methane production by 31.7% | [143] |
Trichoderma atroviride | water hyacinth | increase in biogas production by 65% increase in methane production by 117% | [133] |
Trichoderma reesei | rice straw and soybean straw | increase in biogas production by 318% increase in methane production by 807% | [153] |
Orpinomyces sp. Piromyces sp. Anaeromyces sp. Neocallimastix frontalis | algal biomass | increase in methane production by 40.6% | [138] |
cow manure | increase in methane production by 60% | [139] |
6. AD Additives Research—Summary
7. Feasibility and Perspectives
8. Conclusions
Author Contributions
Funding
Conflicts of Interest
