Energy Management System for an Industrial Microgrid Using Optimization Algorithms-Based Reinforcement Learning Technique
Abstract
:1. Introduction
2. Microgrid Architecture
2.1. PV System
2.2. Battery Energy Storage System
3. Energy Management System
3.1. Data Acquisition and Processing
3.2. Data Analysis and Forecasting
- is the prediction function of the Random Forest.
- B is the number of trees.
- represents a single decision tree indexed by b, which is a function of the features, X, and random parameters, .
3.3. Logic-Based Optimization
3.4. Reinforcement Learning Algorithm
- is the probability ratio of the current policy, , to the old policy, .
- is an estimator of the advantage function at timestep t.
- is a small value (e.g., 0.1 or 0.2) that defines the clipping range to keep the updates stable [35].
3.5. Grid Pricing Scheme

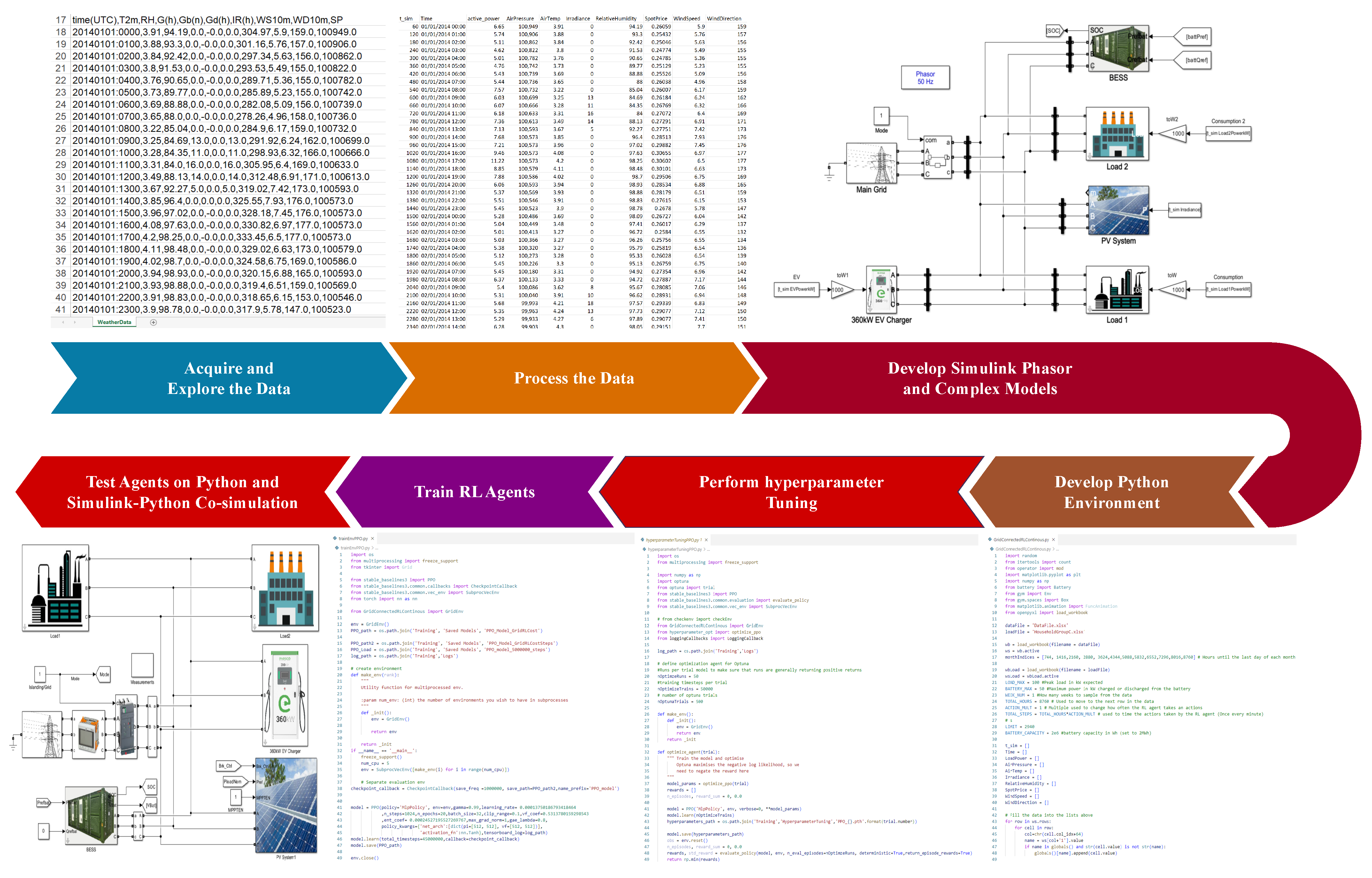

3.6. Simulation Approach
4. Results and Discussion

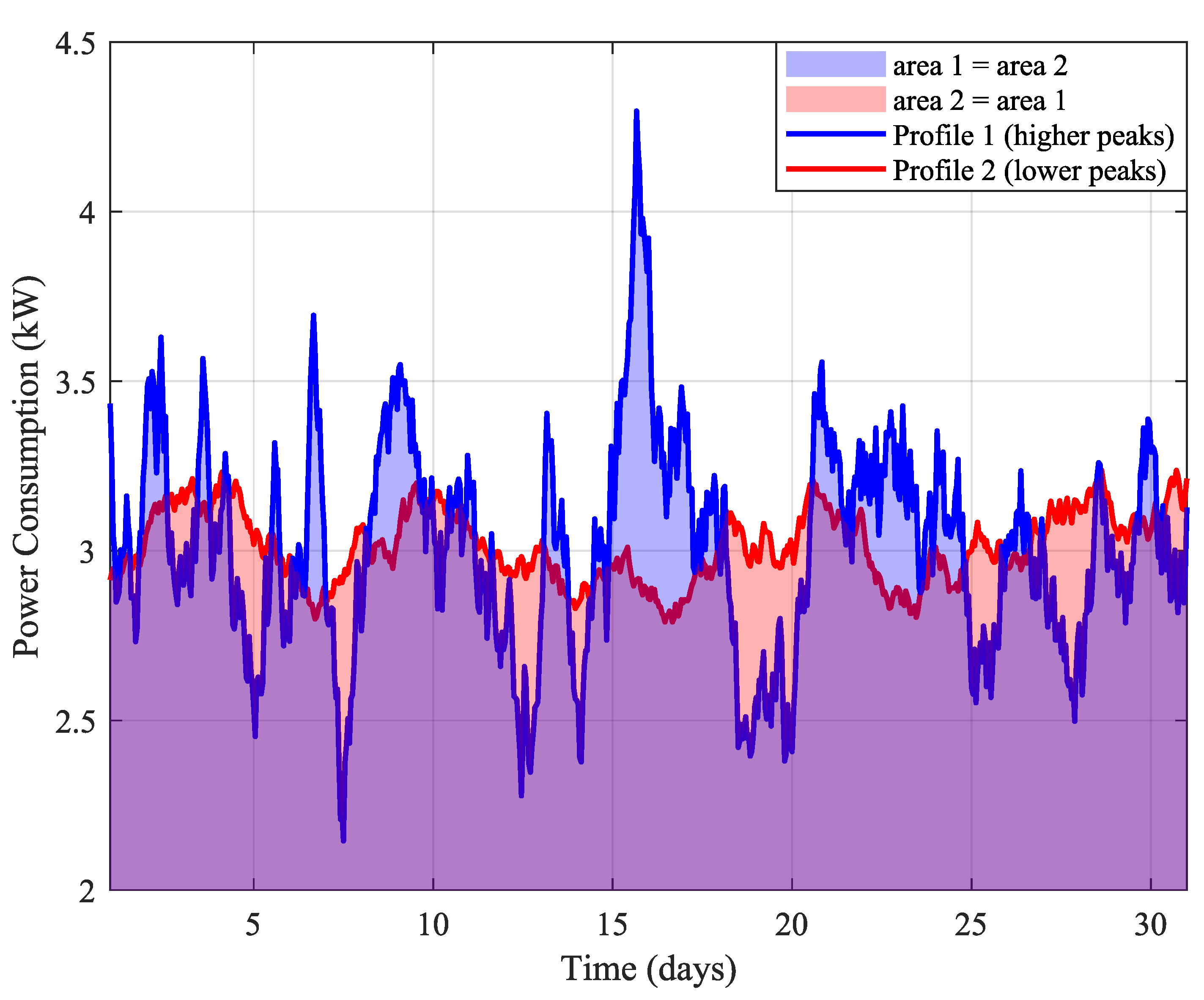

4.1. Battery Scheduling with Peak Shaving
4.2. Results Comparison from Algorithms
4.3. Economic Optimization Based on a Peak Pricing Scheme
- TD3 Algorithm:
- PPO Algorithm:
- Spot price trading: both algorithms attempt to capitalize on price differentials by charging when prices are low and discharging when prices are high.
- Peak penalty avoidance: TD3, in particular, appears to prioritize reducing peak power draw from the grid, which helps minimize the monthly peak penalty.
- Battery utilization: the algorithms must balance the costs of battery degradation against the potential savings from energy arbitrage and peak shaving.
- Long-term vs. short-term optimization: the agents must weigh immediate gains from spot price trading against long-term benefits of peak shaving.
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Abbreviations
BESS | Battery energy storage system |
EMS | Energy management system |
RES | Renewable energy sources |
PCS | Power Conversion System |
GPC | Grid Power Controller |
PPO | Proximal Policy Optimization |
TD3 | Twin-Delayed Deep Deterministic Policy Gradient |
DR | Demand response |
MG | Microgrid |
IMG | Industrial microgrid |
PV | Photovoltaics |
ESS | Energy Storage System |
DERs | Distributed energy resources |
RL | Reinforcement learning |
EV | Electric vehicle |
IoT | Internet of Things |
API | Application Programming Interface |
TCP | Transmission Control Protocol |
