Multi Criteria Decision Analysis to Optimise Siting of Electric Vehicle Charging Points—Case Study Winchester District, UK

Abstract

Achieving net-zero carbon in the UK by 2050 will necessitate the decarbonisation of the transportation systems. However, there are challenges to this, especially for vehicles in cities where the charging infrastructure is at its minimum. Overcoming these challenges will undoubtedly encourage electrical vehicle (EV) use, with commensurate reductions in emission coupled with better environmental conditions in cities, e.g., air quality. Drivers, on the whole, are reluctant to invest in an EV if they cannot access a convenient charging point within their living area. This research provides a methodology to support the planning for the optimum siting of charging infrastructure, so it is accessible to as many citizens as possible within a city. The work focuses on Winchester City and District in the UK. The multi-criteria decision approach is based on the Analytical Hierarchy Process (AHP) linked to site spatial assessment using Geographical Information System (GIS). The assessment considered key criteria such as road type, road access, on-road parking availability, road slope, proximity to fuel stations, current/planned charging points, car parks and population distributions. The process contains two suitability filters, namely, restricted road and suitability mask. In the first, all restricted roads were excluded from further analysis, which resulted in reducing the road segments from over 9000 to around 2000. When applying the second filter an overall result of 44 suitable EV charging point locations was achieved. These locations were validated using the Google Earth^® imaging platform to check actual locations against those predicted by the analysis. The presented methodology is accurate and is generalisable to other cities or regions.

1. Introduction

The UK was the first country and major economy to pass a Climate Change Act in 2008 committing the Government to an 80% reduction in emissions from 1990 levels by 2050 [1,2], which was augmented in 2019 to net-zero carbon emissions by the same date. Tracking the Act’s targets is the responsibility of the Committee on Climate Change (CCC), which produces annual progress reports to UK’s Parliament scrutinizing the Government’s actions and whether these are on target. In July 2019, the CCC progress report stated that current policy actions were “well short of those required for the net-zero targets” with the UK not even on track to meet their earlier targets based on the less challenging 80% target [3]. The benefits brought out by net-zero are vast, including improved air quality and enhanced natural environments, leading to improved health, potentially reducing hospital admissions and enhancing productivity [4].

Nationally, and to support the net-zero target, 74% of the UK’s local authorities have declared a climate emergency, with some setting quantifiable targets to net zero for their cities/districts by a certain date [5]. Winchester City Council (WCC) is one of these cities, and its District declared a Climate Emergency in June 2019 and is now committed to becoming a carbon-neutral Council by 2024 and a carbon-neutral District by 2030 [6]. The plan to achieve these targets focuses on Winchester’s three largest sources of carbon emissions—transport, property and energy, which will necessitate an understanding of various options that could provide a pathway to such a goal.

Over the past few years, the electric vehicle (EV) market has been growing considerably, and with the UK government recently announcing a revised 2-phase approach to the phasing-out of petrol and diesel cars, the EV market is expected to rise exponentially. The 2-phase strategy includes (i) the end of new petrol and diesel car sales brought forward to 2030 (previously 2040) and (ii) the requirement for all new cars and vans to be fully zero emissions by 2035 [7]. Data from the Office for National Statistics (ONS) shows that of the 38 million cars registered in the UK in 2020, 433,784 (1.12%) were registered as vehicles with an electrical plug-in (

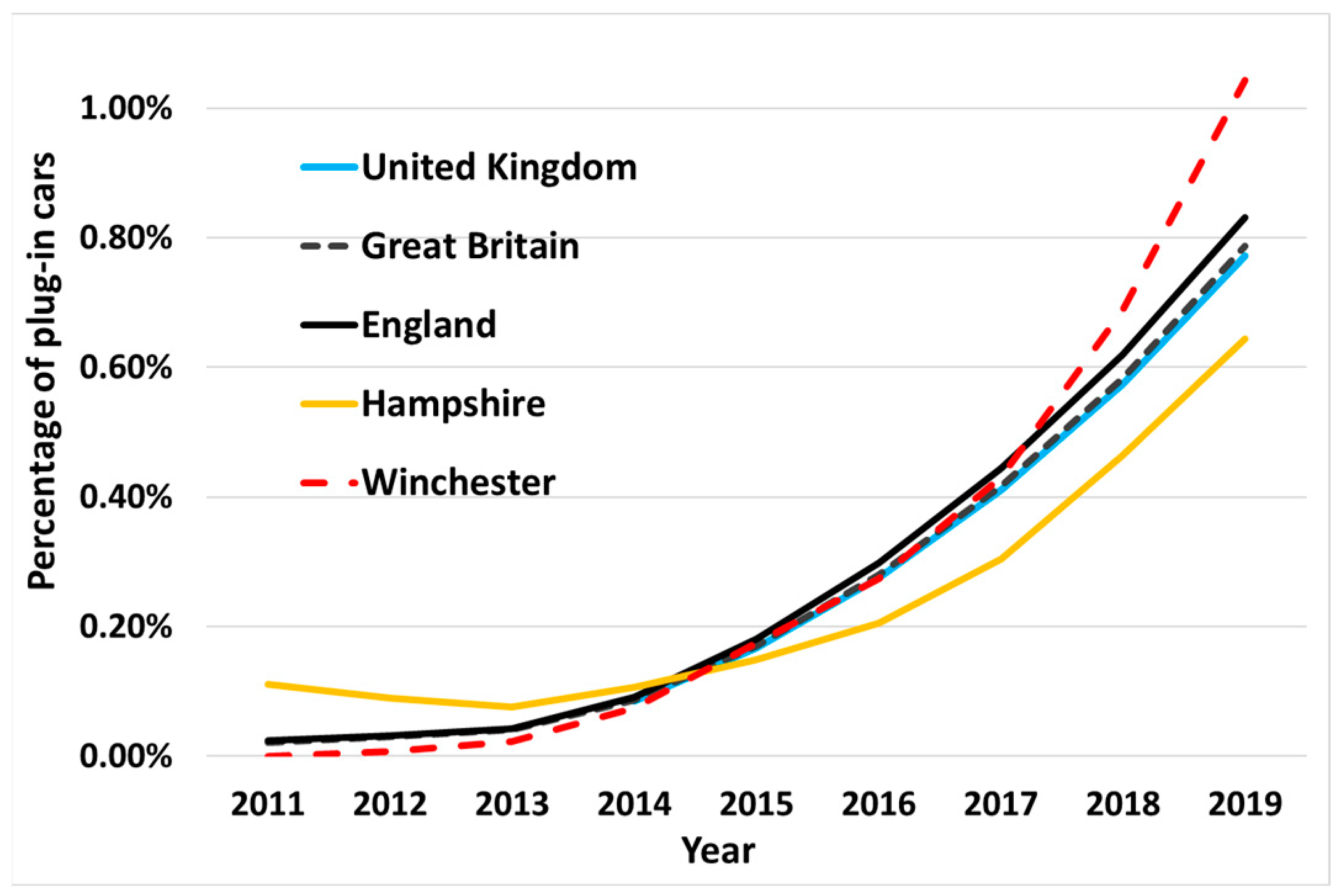

Table 1. Registered cars and plug in cars adopted from [8,9,10].

Region	Cars Registered (2020)	Plug Ins Registered (2020)	Percentage (2020)
UK	38,582,000	433,784	1.12%
England	32,408,880	394,743	1.22%
Hampshire	964,550	9977	1.03%
Winchester	88,739	1301	1.47%

). Vehicles with plug-ins include pure electric vehicles (PEV) and plug-in hybrid electric vehicles (PHEV). When looking at Winchester District data, this percentage increases to 1.47%, far higher than the UK and in particular Hampshire’s 1.03%, where the District and Winchester City are located [8,9].

While the total percentage of plug-in vehicles is still relatively low, the relative growth in electric vehicles, particularly in Winchester, is considerable, see Figure 1. In 2011, none of the 842 plug-in cars registered in Hampshire were from Winchester; however, it now has the highest percentage of plug-in cars in Hampshire. As stated, this growth in the EV market is expected to accelerate, with projections from the National Grid suggesting that the UK stock of EVs could rise to 10.6 million by 2030 and up to 36 million by 2040. These figures can be compared to growth of 16.6 million by 2030 and less than 3 million by 2040 of conventional petrol and diesel cars [11].

In response to the rollout of EVs, this research is supporting Winchester City Council (or Winchester for short) and the District in undertaking a mapping optimisation study for the needed infrastructure to allow both the City and the District to accommodate and encourage EV ownership. Currently, Winchester District has 32 fast (22 kWh) and one rapid (50 kWh) EV charge points, with 52% of these located in Winchester [12]. WCC’s Cabinet has endorsed the Electric Vehicle Charging Strategy, which recommends the installation of approximately 50 electric vehicle chargers across 58 parking bays, including 25 WCC car parks, one park (Park and Ride), 12 rural and town car parks and three on-street parking spaces [13]. With this in mind, the focus of this research is to identify suitable road locations for on-street charging points to support the above highlighted strategy.

The Winchester District, which contains Winchester City, covers approximately 250 square miles of rolling countryside and economic heartland, with Winchester City designated as a heritage city attracting an estimated 5.6 million visitors a year. The District is a rural area with the M3 motorway running through the middle, along with several busy ‘A’ roads, including the A34 and A3.

This research is a collaborative effort to support the aforementioned aspirations of WCC and the District. It concentrates on creating the required mapping of the optimum charging point infrastructure for EV rollout across the region. The outcomes will provide guidance for future policy in order to meet set aspirations.

2. Current State of Art Related to the Considered Problem

There is a paucity of information related to methodologies used for siting electrical charging points in cities. Only a few references used multi-criteria decision making (MCDM) or Analytical Hierarchy Process (AHP) to locate EV charging stations [14,15,16,17,18]. In addition, to our knowledge, available literature did not introduce a methodology to solve the on-road EV charging points spatial siting problem. When considering the following, it must be remembered that an EV charging station is an off-road site to charge multiple vehicles, while an EV charging point is on-road infrastructure around an on-road parking space with an EV charger installed at the curb side, some of which are integrated with light posts, etc.

Erbas et al. used the fuzzy analytical hierarchy process (AHP) technique to find the optimal EV charging station locations in Ankara, Turkey [14]. They had a four-stage spatial siting solution methodology: (i) criteria determination, (ii) EV charging stations site availability score, (iii) criteria weighting, and (iv) a proposed site ranking using AHP. For the first step, they used a panel of experts and academicians to create the criteria affecting the decision. The Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS) method [14] was utilised to rank the proposed sites. Erbas et al. methodology’ is only valid to determine EV charging stations and not for on-road EV charging points. However, the TOPSIS technique is limited and mainly designed to evaluate only a few numbers of alternatives, which make it unpractical to rank a large number of alternatives (n) that are encountered in a large study such as our work here, where (n > 9000).

Additionally, Sen Guo and Huiru Zhao used a similar methodology to select the optimal EV charging station sites in Beijing districts, China [16]. They built a new evaluation index system to locate EV charging stations. The new approach contains three main sustainability criteria: environment criteria, society criteria and economy criteria. They determine the main criteria and sub-criteria based on previous comprehended studies and reports. Again, Sen Guo’s study is limited to locating the EV charging stations, with limited alternative size, and there is no possibility to extend their methodology to be applied to our study aims. Dogus Guler and Tahsin Yomralioglu [15] used the same methodology introduced by Sen Guo and Huiru Zhao [16] to study the spatial site locations for fast EV charging stations inside the boundaries of Istanbul, Turkey. The paper did not offer a new solution to the spatial siting problem.

Grzegorz Sierpinski et al. [17] identified the most suitable locations to build EV charging stations within Upper Silesia and Dabrowa Basin in Poland based on the methodology first introduced by Yongqin Zhang and Kory Iman [18]. The methodology is much simpler than the two studies mentioned earlier as the chosen factors are only dedicated to assessing and siting a limited number of off-road charging stations, and the methodology is deemed unsuitable for on-road charging points. For instance, the approximation used for the roads factor could not be utilised in our case study as all the alternatives used in our methodology referred to locations already on road, so all of them had the same score.

The currently available literature related to the topic of our research reviewed above is to some extent similar and based on the same methodology, which was used to compare and evaluate only a few locations. This is unlike the problem faced in our research, where analyses are needed to deal with a very large area with thousands of locations and alternatives. Hence, a new approach is needed to address the siting of locations for EV charging whilst taking into account other criteria related to the physical conditions and infrastructure availability. The next section provides details of the proposed new methodology.

3. Methodology

The approach promoted here to determine the most suitable locations for EV charging points across Winchester District is based on the Analytical Hierarchy Process (AHP) [19,20,21,22] coupled to site spatial assessment in a Geographical Information System (GIS). This multi-criteria decision analysis of the AHP-GIS combination can, in our view, provide a robust approach when considering spatial siting optimisation as it has been shown to work well with special siting problems by the authors [19,20].

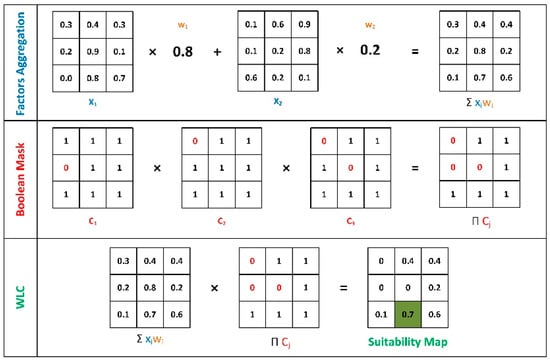

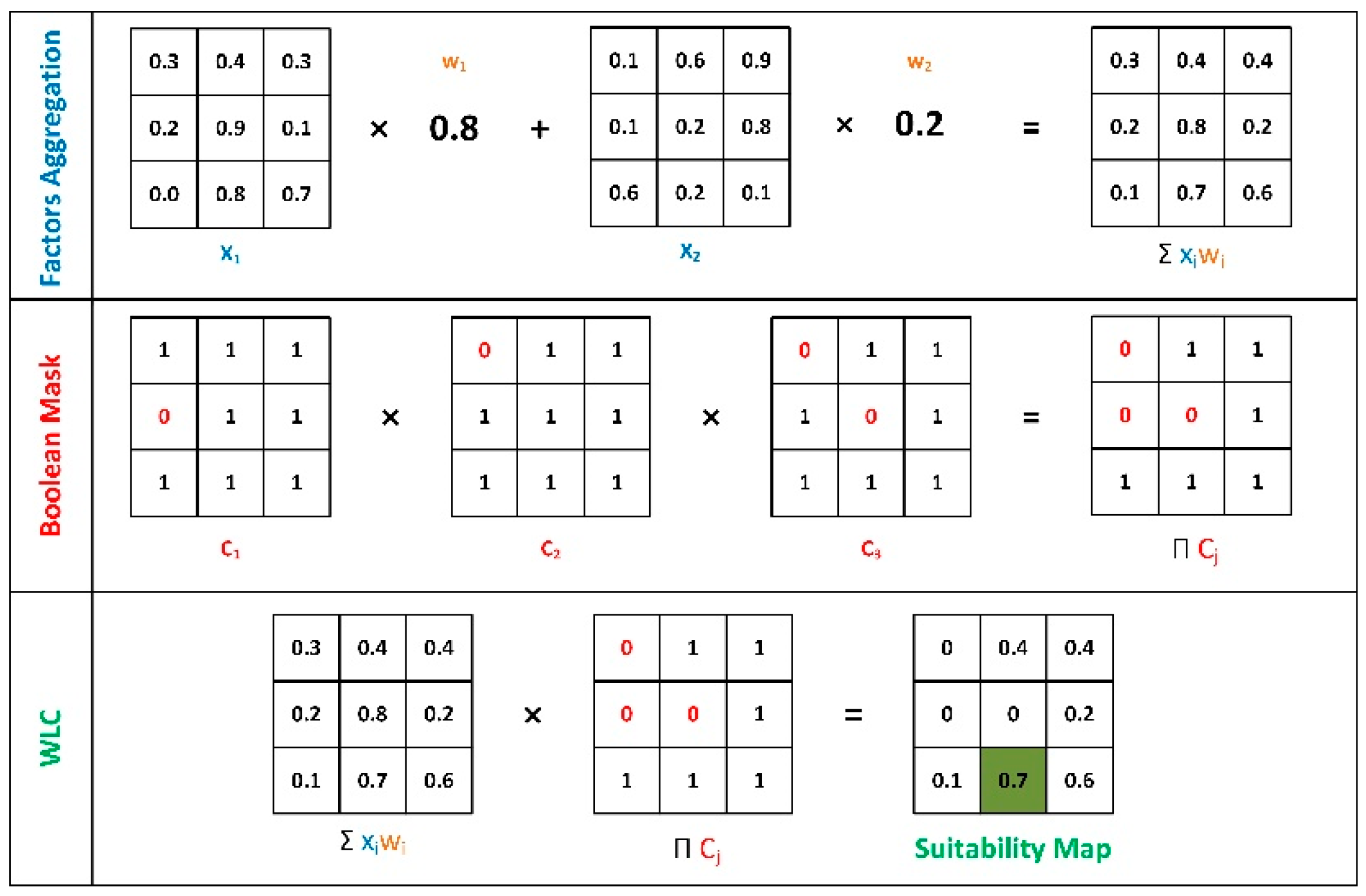

The mapped study area (Winchester District) is divided into equal size grids where each pixel within the grid is referred to as a ‘cell/alternative’. Each cell has location-specific data, including road infrastructure, geography and demographics. The process involves two stages, the Boolean Mask and the Factors Aggregation, in order to calculate the Weighted Linear Combination (WLC) aggregation [20]. An example for an idealised case is shown in Figure 2, where an example map consisting of nine cells (nine alternatives) has five criteria, which are divided into constraints and suitability factors. These combined are used to evaluate the most suitable cell locations, including three constraints (c₁, c₂ and c₃) and two suitability factors (x₁, x₂). For the constraints, cells are either rated as a 0 (constrained) or 1 (non-constrained) and are then multiplied together to create the Boolean Mask layer, revealing all non-constrained cells [23]. The Suitability Mask calculation then aggregates the suitability factor scores for each cell (scored with a value between 0 and 1) with a factor weighting (w₁, w₂) expressed through the formula ∑x_iw_i = factor aggregation [19,20]. These two masks are then multiplied together (WLC) to provide a final suitability decision, whereby in the example the most suitable cell was found to have a score of 0.7 (see the green coloured cell in Figure 2).

4. EV Charge Point Siting Criteria, Analysis and Suitability Maps

Winchester District as a whole has over 9000 road segments, ranging from motorways (highways) to restricted secondary-access roads, with 25% of these segments situated within Winchester City. The constraint/restriction criteria are listed and detailed in

Table 2. Table of constraint/restriction criteria.

Constraint	Description
1. Road type.	All roads with a speed limit greater than 30 mph, including motorways, dual carriageways and A-roads, were excluded for safety reasons and to comply with rule 249 of the Highway Code, where a vehicle must display parking lights when parked overnight on a road with a speed limit greater than 30 mph [24].
2. Road access.	All roads mapped as having Restricted Local Access, such as the road that provides alternate/secondary access to property or land not intended for through traffic, were excluded from the analysis in order to ensure equal access to all.
3. On-road parking.	Roads typically with limited or no on-road parking availability (B-roads, minor roads and secondary-access roads) were also excluded.
4. Road slope.	Roads with a slope of greater than 7% were excluded to (a) prevent potential breakdown hazards and (b) reduce electricity consumption from driving on the said slope [14].
5. EV charging points.	A buffer zone for current and future EV charging points or stations within the District was created to exclude nearby roads (within a 0.5-mile radius). It must be noted that all current and future EV charging points were located within or next to a car park; therefore, this criterion was merged with criterion 6.

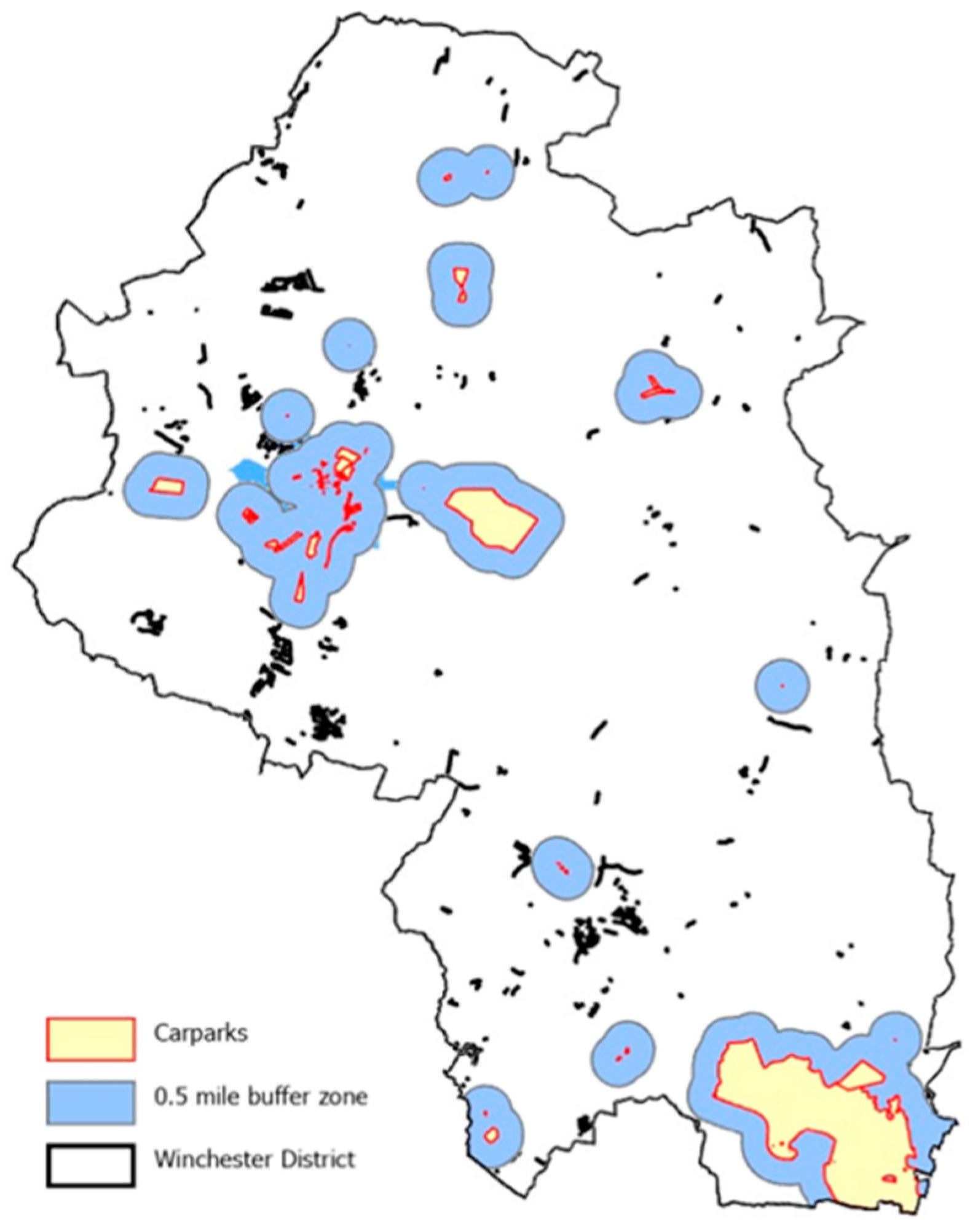

6. Car parks.	The literature recommends the installation of one charging point for each 25–50 car parking space [25]. Considering this and WCCs plans, as set out in the Electric Vehicle Charging Strategy [13], a buffer zone was created around all suitably sized car parks to exclude all streets within a 0.5-mile radius.

. The constraints are numbered in the order in which they were applied to the AHP- GIS model.

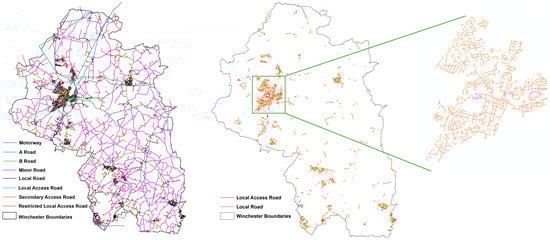

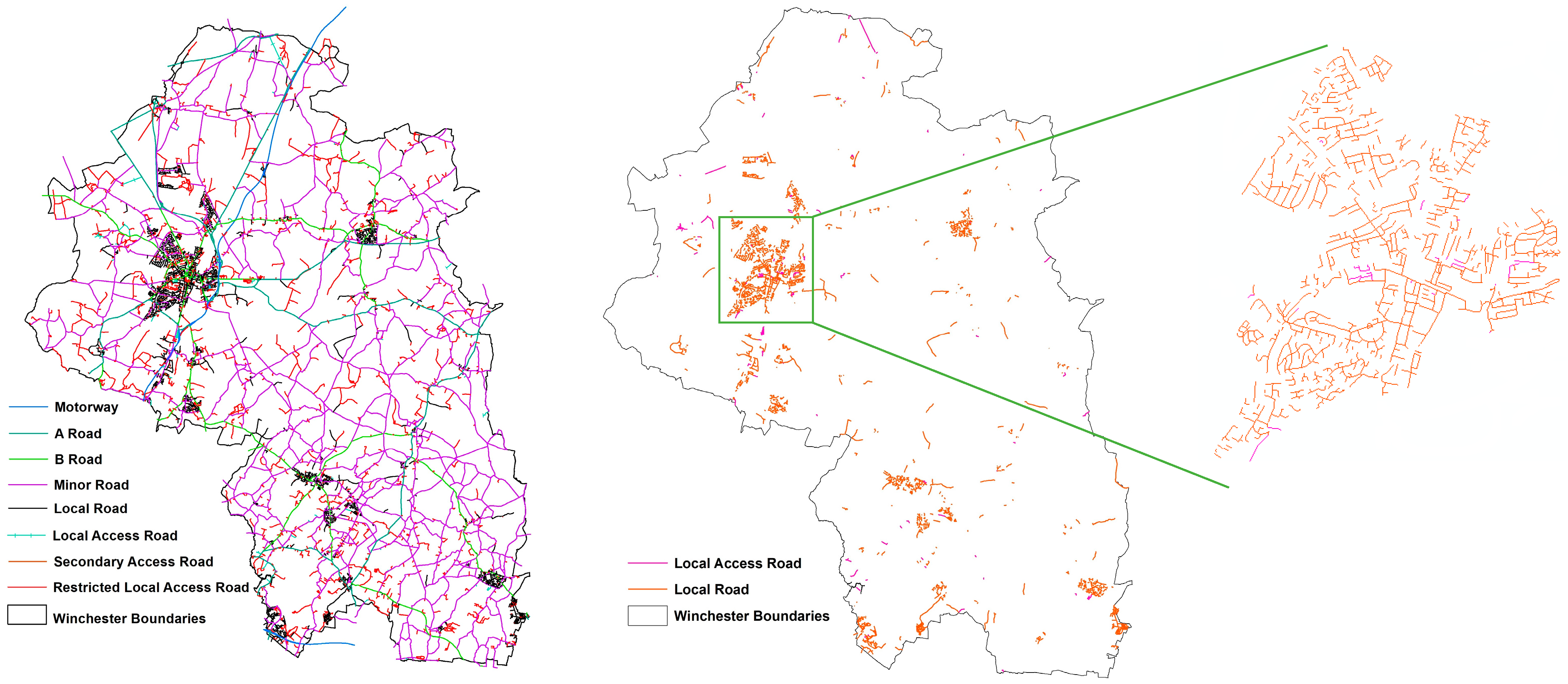

When applying the first three exclusion criteria (constraints) to Winchester District (WD) road types (Figure 3), a total of 6262 road segments (65%) were excluded, including segments totalling 2442 restricted secondary-access roads, 2424 minor roads, 108 secondary-access roads, 42 motorways, 28 dual carriageways and 461 A-roads. When reviewing all road types within WD, the most common was found to be local roads (33%), followed by minor roads and restricted access roads (each accounting for 26% of road segments), with B-roads and A-roads only accounting for 8% and 5%, respectively. Of the remaining roads (3361 road segments), more than a third were concentrated within the City, with the vast majority (94%) being classified as a local road, see Figure 3.

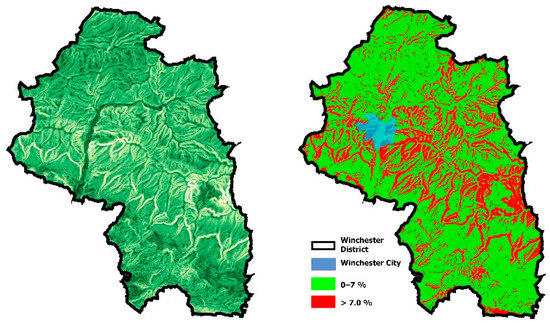

The road slope exclusion criterion concerns roads with a slope greater than 7%, which is applied to reduce the likelihood of breakdowns, and driving on an incline will result in excessive energy consumption [14]. In order to analyse the impact of this criterion, a Winchester District contour lines were extracted from the EDINA-Digimap Ordnance Survey Service [26] and converted into a slope map identifying any road segments on a slope greater than 7% (see the red areas on the right map in Figure 4). This process removed a further 35% of the remaining roads (1190), resulting in a reduced list of 2169 potential EV charging point locations.

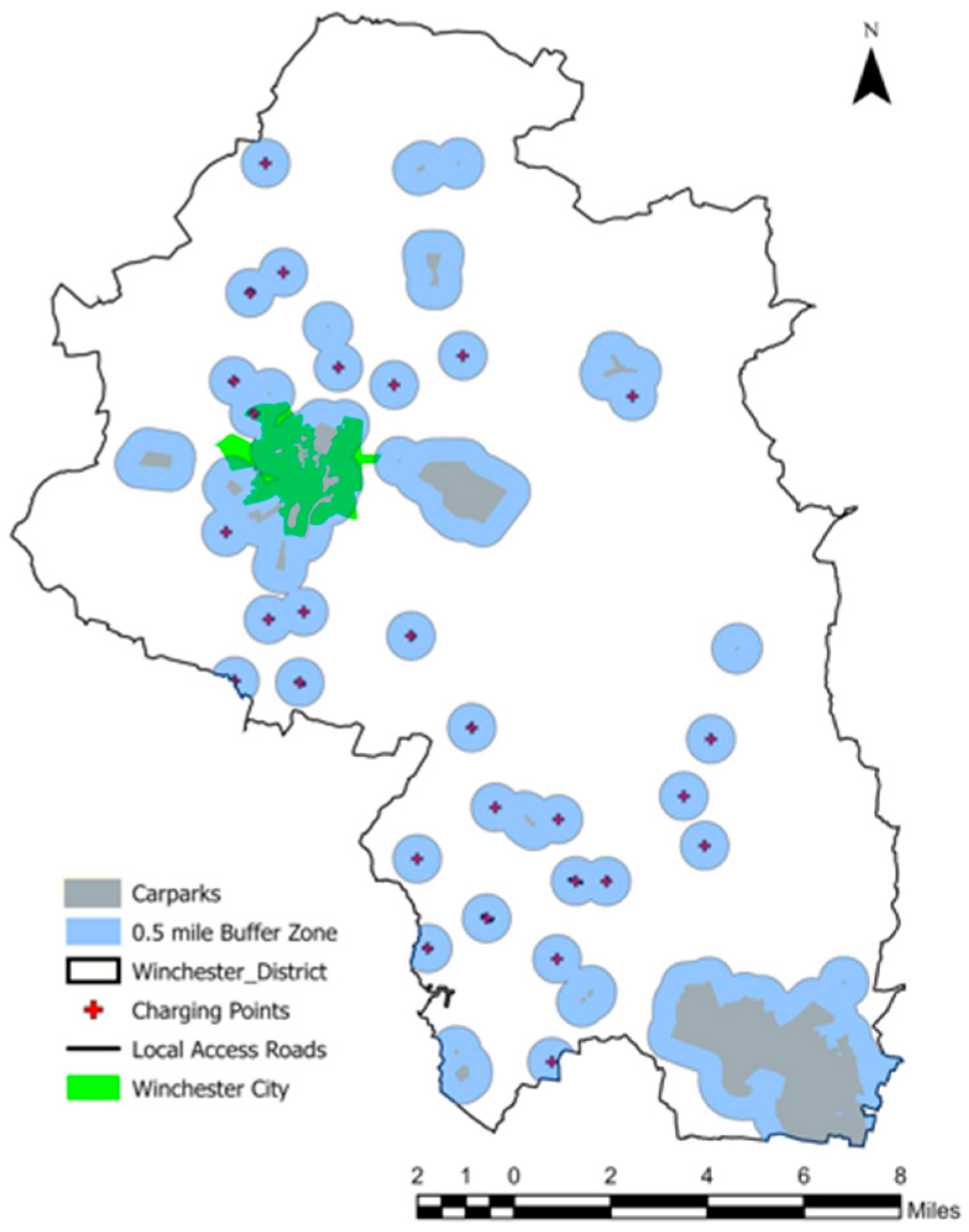

As previously mentioned, all 33 EV charge points within the Winchester District are located within or next to a car park, and WCC has aspirations, as set out in the Electric Vehicle Charging Strategy, for almost 50 additional EV charging sites across WD car parks [11]. Therefore, the fifth and sixth constraint criteria were considered in the same step of the analysis.

Walking distance is a critical concept within transportation and public health, and while such distance varies depending on the mode of transit, it is typically less for a slower local service (e.g., bus) than a faster service (e.g., train). Hence, a 0.5 miles distance or a 10 min walking time are considered the upper bound for an acceptable walking distance for a car owner [27,28]. Therefore, a 0.5-mile radius buffer zone was mapped around all suitably sized car parks—at least 25 parking bays (Figure 5)—excluding all roads within the buffer zone. This reduced the available road segments by a further 42%, down to 903, with relatively few remaining road segments within Winchester City as a result of the relatively high density of car parks within the city.

Table 3. Table of suitability factor criteria.

Suitability Factor	Description
1. Petrol stations	Roads with greater proximity to petrol stations are considered more suitable for EV charging points, in particular for hybrid EV drivers.
2. Population distribution	Roads in densely populated areas will be considered more suitable as each charge point will cater for a greater number of people.
3. Low-voltage electrical network	Provision of EV charge points will add additional electrical load to the local network; therefore, sites should be considered in terms of the relative resilience of the low-voltage electrical network.
4. Off-road parking	Houses with off-road parking facilities on own property are more likely to be able to install and operate a personal EV charging point.
5. EV ownership	Areas with relatively high levels of EV ownership are considered more suitable as they are likely to have higher usage.

shows the idealised list of suitability factor criteria considered in the analysis.

In the AHP analysis, only two suitability criteria (proximity to fuel stations and population distribution) were used to find the most suitable locations for the EV charging point within the district. The analyses were augmented by consideration of the other three suitability factors mentioned in Table 3 (low-voltage electrical network, off-road parking and EV ownership) through the utilisation of the Visual Validation methodology mentioned in Section 4.2.

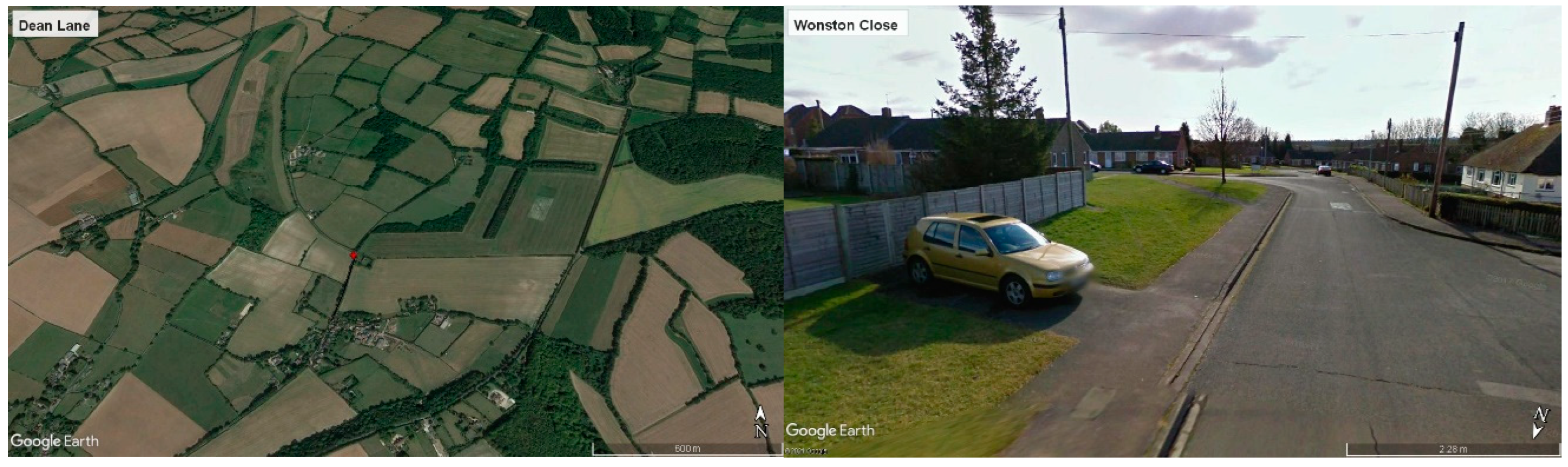

The visual imagery of Google Earth^® allowed for site inspection and is used to validate the selected road segments to ensure all suitability and exclusion criteria are met. For the final suitability factor, EV ownership distribution, the data were only available at the postcode district level [10] and has been omitted because while it may assist in ranking the likely short-term usage, the increasing growth in the EV market means this data are likely to become invalid. Additionally, if an area has a low concentration of EVs it could be argued that it is more suited for charging facilities in order to increase take-up.

Until recently, electric vehicles have been considered to be a relatively expensive choice compared to traditional petrol or diesel cars. By the end of 2022, however, it is expected that new EVs will have a similar price to an equivalent internal combustion vehicle [29], and this price gap is expected to shrink even further as a result of the ban on the sale of new petrol and diesel cars by 2030 [7]. The predicted reduction in price and likely increase in EV ownership leading to a larger pre-owned market should help remove the financial barrier for EV purchases, with them likely to become a reliable option for all buyers regardless of their standard of living [29].

With only the first two factors or criteria of Table 3 being considered, these factors were given equal weighting when considering the factors’ aggregation, with cells scored based upon their proximity to the nearest fuel station and on their population density. Figure 6 shows the process, with the final suitability map revealing an exclusion of roads within areas of low population density (<180 people/km²) and a considerable distance from a petrol station (>2.5 miles), as indicated by the yellow area within the combined suitability map.

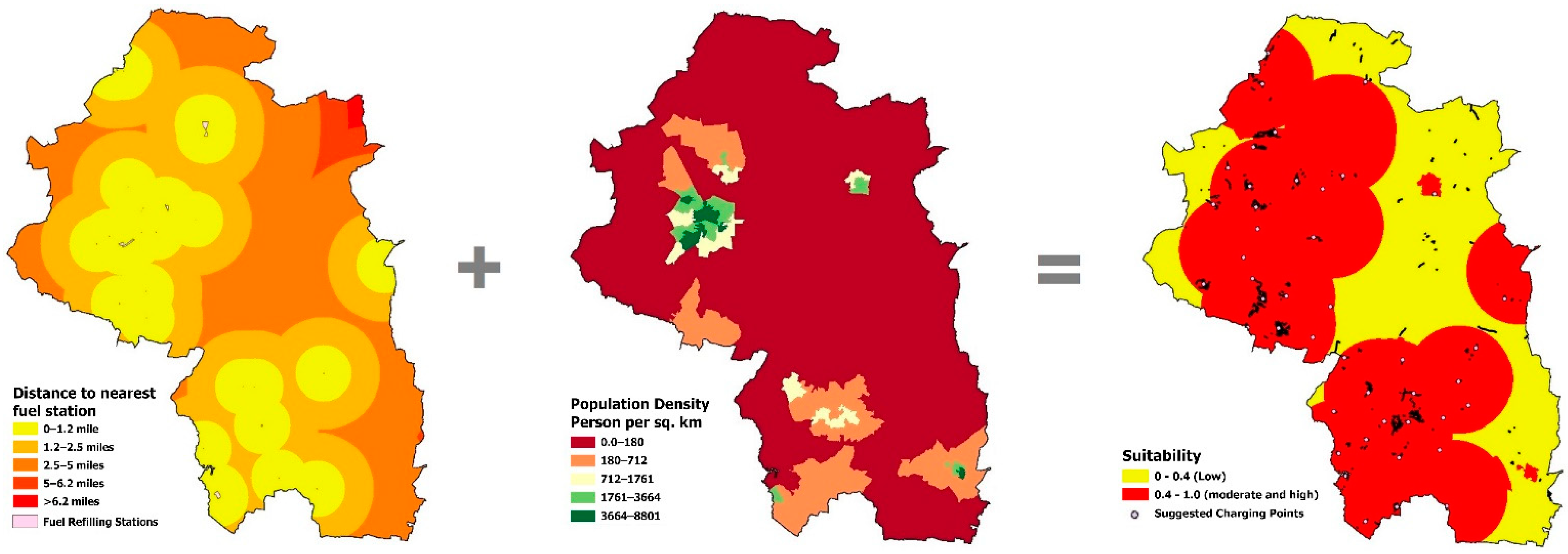

As can be seen from the combined suitability map in Figure 6, under the agreed constraints, our analysis determined that 44 road segments are suitable for on-road EV charging in Winchester District, with 4 of these located within the Winchester City boundaries.

4.1. Visual Validation and Final Results

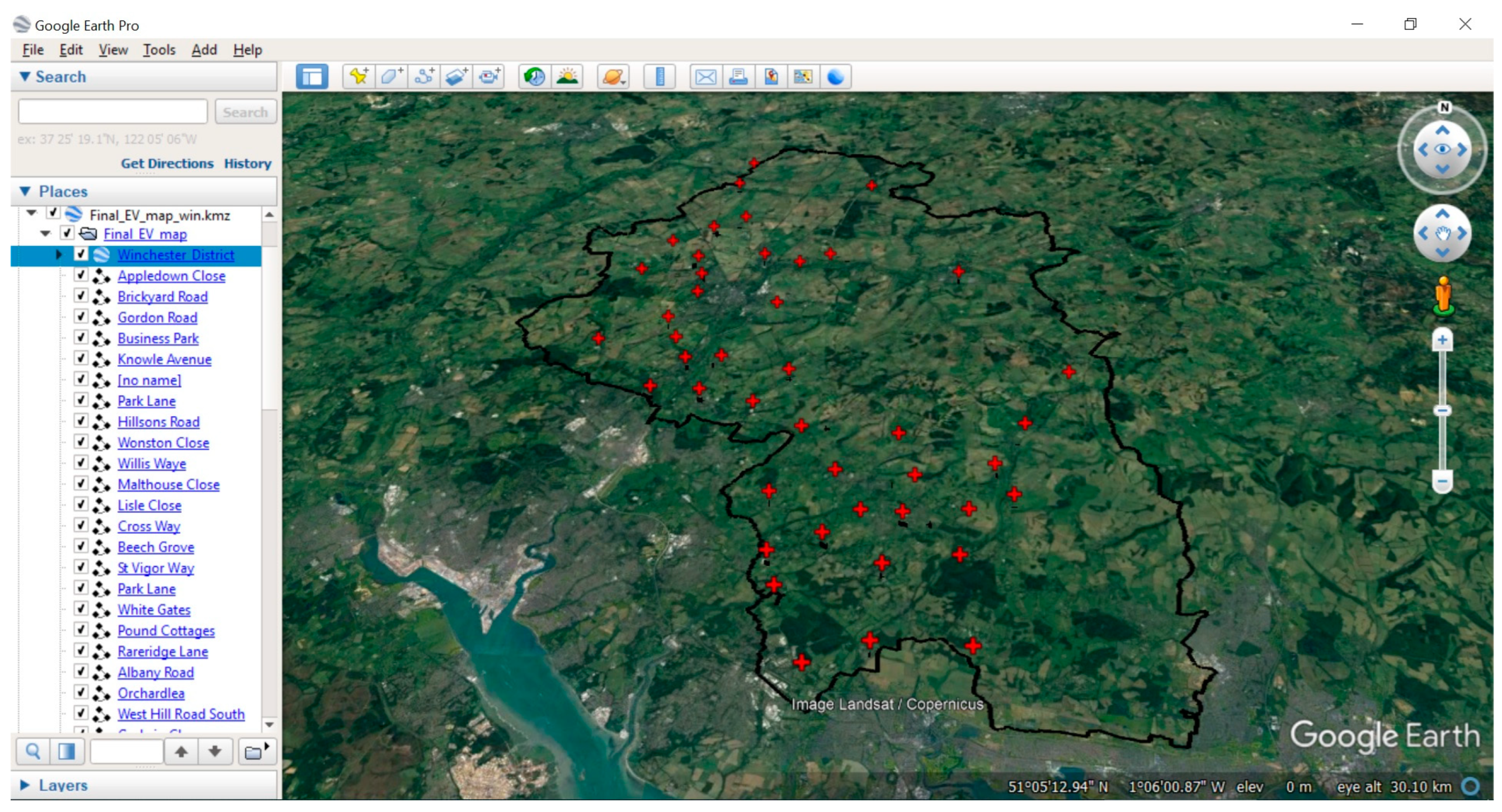

The last stage in the suitability process is to check on the accuracy of the modelling and analysis of the predicted charging points. Ordinarily, this would be conducted through a sample of site visits. However, due to COVID-19, this was conducted using Google Earth^® street imagery as follows. The research was conducted in the period of total lockdown in England, where only essential trips were allowed. The selected GIS street segments were converted to KLM (Keyhole Markup Language) files, compatible with Google Earth Pro^® (Figure 7), where the validation process was configured to check on the following three factors: (i) road slope, (ii) proximity to a populated area and (iii) availability to park on the road. The methods for establishing these are discussed below.

Road Slop visual check was accomplished by using the (Show Elevation Profile) tool available in Google Earth Pro^®. The Elevation tool can draw the elevation profile for a path of the potential road location. Proximity to a populated area visual check is accomplished by applying the Map Length Tool inside Google Earth Pro^® to ensure that the suggested charging point is in a range of 10 min walking (0.5 a mile) to at least 10 residential destinations. The availability to park on the road was established by visual check of parking places and securing the required minimum dimensions for the charging point layout. The minimum dimensions for the parking space are 2 m wide and 5 m long with a minimum of 1.5 m of pavement. Some assessed roads do not fill the requirements as they are narrow, but some have a small parking space, for example, Park Lane road (

Table 4. Optimal on-road EV charging points process. Green: No further action; Orange: Attempt to relocate; Red: Excluded.

No.	Segment Number	Street Name	Parking Availability	Slope < 7%	Proximity to Populated Area	Action	/New Suggested Road
1	158	Appledown Close	✓	✓	✓	No further action
2	336	Dean Lane	x	✓	x	Excluded
3	380	Floud Lane	x	✓	✓	Attempt to relocate	No suitable roads nearby
4	399	Shavard Lane	x	✓	✓	Attempt to relocate	Pound Cottages
5	531	Jervis Court Lane	x	✓	✓	Attempt to relocate	Rareridge Lane
6	557	Tangier Lane	x	✓	✓	Attempt to relocate	Albany Road
7	640	Brickyard Road	✓	✓	✓	No further action
8	654	No name	x	✓	x	Excluded
9	705	Gordon Road	✓	✓	✓	No further action
10	723	Business Park	✓	✓	✓	No further action
11	892	Knowle Avenue	✓	✓	✓	No further action
12	918	Lee Ground	x	✓	✓	Attempt to relocate	No suitable roads nearby
13	1319	No name	✓	✓	✓	No further action
14	1324	Park Lane	✓	✓	✓	No further action
15	1333	No name	x	✓	x	Excluded
16	1336	Bere Farm Lane	x	✓	x	Excluded
17	1346	Cott Street Lane	x	✓	✓	Attempt to relocate	Orchardlea
18	1355	No name	x	✓	✓	Attempt to relocate	No suitable roads nearby
19	1459	Hillsons Road	✓	✓	✓	No further action
20	1493	No name	x	✓	x	Excluded
21	1523	Wonston Close	✓	✓	✓	No further action
22	1570	No name	x	✓	✓	Attempt to relocate	West Hill Road South
23	1745	Willis Waye	✓	✓	✓	No further action
24	1754	Chilland Lane	x	✓	✓	Attempt to relocate	Old Station Road
25	2202	Malthouse Close	✓	✓	✓	No further action
26	2402	Sarum Close	x	✓	✓	Attempt to relocate	No suitable roads nearby
27	2488	Chilcomb Lane	x	✓	✓	Attempt to relocate	No suitable roads nearby
28	2799	Connaught Road	x	✓	✓	Attempt to relocate	Blackwell Road
29	2810	No name	x	✓	x	Excluded
30	2833	North Drive	x	✓	✓	Attempt to relocate	Valley Road
31	2915	Old Hillside Road	x	✓	✓	Attempt to relocate	Godwin Close
32	2966	No name	x	✓	x	Excluded	No suitable roads nearby
33	3031	Lisle Close	✓	✓	✓	No further action
34	3043	Hurdle Way	x	✓	✓	Attempt to relocate	No suitable roads nearby
35	3098	Park Lane	x	✓	✓	Attempt to relocate	Queen Street
36	3139	Cross Way	✓	✓	✓	No further action
37	3158	Beech Grove	✓	✓	✓	No further action
38	3259	St Vigor Way	✓	✓	✓	No further action
39	3289	No name	x	✓	✓	Attempt to relocate	No suitable roads nearby
40	3319	Park Lane	✓	✓	✓	No further action
41	3332	Popes Lane	x	✓	✓	Attempt to relocate	Widlers Lane
42	3339	White Gates	✓	✓	✓	No further action
43	3340	No name	x	✓	x	Excluded
44	3360	New Farm Road	x	✓	✓	Attempt to relocate	No suitable roads nearby

).

All 44 prospective sites were found to have a suitable incline of less than 7%, and eight road segments (charging points sites) were found to be at a substantial distance from populated areas and so were excluded from the site recommendation list. These roads were deemed unsuitable but were picked up due to the granularity of the population density data, which would ideally have been considered at the postcode level (which are not available for the analysis).

The availability to park was assessed for the remaining 36 road segments, from which 19 were found to be unsuitable requiring relocation. After considering the locations, of the 19 road segments, eight out of these were excluded due to the lack of suitable, nearby, available roads. Hence, after the visual validation, the total number of proposed on-road sites for EV charging was reduced to 28 (Figure 8). Examples of the visual verification process are shown in Figure 9, while Table 4 provides the full tabulated verification process. The final list of roads is given in

Table 5. Selected optimal EV on-road charging point locations for Winchester District and distance from nearest car park (A). The color intended to highlight the excluded streets due to lack of suitable grid cinnections.

Road	Parish	Postcode	A (Miles)	Parking Spaces	Available Lamp Columns	Required Charging Points for the Location
Appledown Close	New Alresford	SO24 9ND	0.6	17	2	2
Brickyard Road	Swanmore	SO32 2PJ	1.5	30	4	3
Gordon Road	Curdridge	SO32 2BE	2.2	82	9	7
Culverlands	Shedfield	SO32 2JF	1	23	0	Excluded
Knowle Avenue	Wickham	PO17 5LG	3.6	19	3	2
Long Road	Soberton	SO32 3PG	3.2	19	2	2
Park Lane	Droxford	SO32 3QR	3.2	18	0	Excluded
Hilsons Road	Curdridge	SO30 2DY	2.2	37	0	Excluded
Wonston Close	Wonston	SO21 3LQ	3.2	32	3	3
Willis Waye	Kings Worthy	SO23 7QT	0.9	27	3	3
Malthouse Close	Chilcomb	SO21 1ES	1.3	20	0	Excluded
Lisle Close	Olivers Battery	SO22 4JZ	0.7	15	2	2
Cross Way	Compton	SO21 2BZ	1.2	34	4	3
Beech Grove	Owslebury	SO21 1LS	3.1	35	4	3
St Vigor Way	Colden Common	SO21 1UU	1.5	66	14	5
Park Lane	Otterbourne	SO21 2HY	2.6	61	0	Excluded
White Gates	Durley	SO32 2AS	2.4	18	0	Excluded
Pound Cottages	Corhampton	SO32 3NP	2.0	37	3	3
Rareridge Lane	Bishops Waltham	SO32 1DX	0.6	26	3	2
Albany Road	Bishops Waltham	SO32 1BW	0.7	21	6	2
Orchardlea	Swanmore	SO32 2QZ	1.9	56	8	5
West Hill Road	South Wonston	SO21 3HP	3.1	17	2	2
Godwin Close	St Barnabas Ward	SO22 5JN	0.5	39	7	3
Widlers Lane	Upham	SO32 1JE	4.9	40	0	Excluded
Blackwell Road	South Wonston	SO21 2QX	1.8	98	9	8
Valley Road	Littleton	SO22 6QZ	0.8	38	4	4
Old Station Road	Itchen Abbas	SO21 1BA	1.7	15	0	Excluded
Queen Street	Twyford	SO21 1QG	1.1	25	2	2

; last column of the table showed that all of the remaining roads are sited at least 0.5 miles from a car park, which confirms the optimisation in terms of cost of investment.

4.2. Electrical Charging Infrastructure Characteristic

The driver for the research is to inform the local authority of the required infrastructure for EV charging based on the spatial and demographic analyses of their regions. In addition, the study aims to find where to install on-street charging points optimally. The outcome of the research is to arrive at an optimal distribution for these on-street charging points. In this section, we cover consideration of the electrical characteristics of the proposed charging points.

In the UK, most of the EV charging points consist of the following types: (i) AC standard (power transfer is less than 3.6 kW), (ii) AC fast (power transfer is less than 22 kW), (iii) AC rapid (power transfer is less than 47 kW) and (iv) DC rapid (power transfer is greater than 50 kW). Here, we address the provision of on-street public charging infrastructure under local authority-imposed cost-efficient criteria. According to the planning regulations, the recommended charging points output for on-street residential use should be less than 3.6 kW [30]. The average capital cost of this type of charging point is around £500 (~US $650) using grants provided by the “On-Street Residential Charge point Scheme” [31]. For this type of EV charger, the average vehicular charging time is around 8 h. Hence, to provide better availability for citizens, it is recommended that two charging points for each of the 25 identified on-street parking spaces (see Section 4.1) are installed. Following the planning recommendations [30], each charging location will have two separate 3 kW AC standard charging points (230 V AC ± 10% single-phase) to be installed to appropriately selected on-street electrical lighting poles. This will necessitate identifying these poles and their proximity to the charging points determined by the spatial analysis. In terms of the electrical charging characteristics, the 3 kW chargers at a low-voltage network of 250 V were recommended with specifications as per [30,31,32].

In order to identify the location of the required poles, additional visual verification was carried out to identify appropriate poles and the number of car parking spaces within Winchester. The latter determines the minimum required lamp post to deploy charging points. The final visual verification was completed using Google Street View to estimate the available on-street parking spaces and the number of lamp/electricity columns that exist in each street. This was done as follows: (a) virtually counting the number of car parking spaces around each of the identified 28 charging locations; (b) within the same location visually counting the electrical lamp poles; and (c) any location with less than the required number of lamp posts for the identified car parking spaces was excluded (Table 5). These visual considerations resulted in reducing the suggested charging locations from 28 to 20, as shown in Table 5. For example, “Knowle Avenue” street has 19 available parking spaces and needs two charging points, but there are no lamp/electricity columns on the street; therefore, the street was excluded.

In order to check the validity of the number of streetlamp posts within the considered geographical areas in Winchester District, the database of illuminated street furniture from the Hampshire County Council, which contains the District, [33], was imported into our GIS system. The results of the on-street visual investigations matched those of the said database.

As can be seen from Table 5, column 6 that the total number of charging points in the remaining streets is 94 in 20 different locations around Winchester district. In 2019 (the latest data available), the total number of EVs in Winchester is estimated to be around 3000 [10]. Assuming that each charging point will be utilised over 24 h and that each 3kW vehicle will require 8 h to be fully charged [30], the 94 charging points will service around 300 vehicles or 10% of the Winchester EVs.

5. Conclusions

The electric vehicle (EV) market is growing globally, and there is a need for providing a robust methodology for identifying charging infrastructure, particularly in cities. This work has at its core the development of such a methodology based on the multi-criteria Analytical Hierarchy Process (AHP) combined with GIS, to provide optimal spatial siting of EV points for real-world applications.

The case study selected represents one of the fastest-growing penetrations of EVs in cities in the UK. Winchester has, on average, 76.3% annual growth of cars registered as a plug-in, compared to the UK’s 31.3% and Hampshire County’s 37.9%. To identify appropriate EV charging point locations, the multi-criteria AHP assessment was based on applying the constraint and suitability criteria developed within the methodology supported by the Winchester City Council supplied data.

Applying the six constraint criteria reduced the potential road segments by 90% (down from over 9000 to 903). The derived combined suitability map (Figure 6) determined that 44 road segments are suitable for on-road EV charging points in Winchester District, and four of these are located within the Winchester City boundaries.

After site validation was undertaken visually on Google Earth maps; this process reduced the 44 locations to 28 optimal road segments (down from over 9000 analysed) listed in Table 5.

Planning regulation in the UK stipulates the use of 3 kW capacity charges for on-street charging installed on the street lighting posts infrastructure and evaluated the available alternatives based on the 3 kW charging point. In order to identify the location of the required poles, visual verification was carried out using Google Street View to estimate the available on-street parking spaces and the number of lamp/electricity columns that exist in each street. These considerations resulted in reducing the suggested charging locations from 25 to 20 as shown in Table 5. This was verified through the illuminated street furniture database of Hampshire County Council, which contains the District. The results of the on-street visual investigations matched those of the said database. The final number of lamp posts for the various streets and their associated car parking places was determined to be 94. For the 3 kW charger, these 94 charging points will service around 300 vehicles or 23.1% of the Winchester EVs.

The presented methodology is overarching and covers the identified gap in knowledge as previous literature lacks the ability to evaluate a large number of alternatives (road segments). The tested methodology addressed relevant key criteria such as road type, road access, on-road parking availability, road slope, proximity to fuel stations, current/planned charging points, car parks proximity and population distributions.

As emphasised earlier, the driver for the research was to inform the local authority of the required infrastructure for EV charging through the development of the appropriate and robust methodology to provide the need evidence. The multi-criteria decision approach based on the Analytical Hierarchy Process (AHP) linked to site spatial assessment using GIS was developed to address the evidence required. The methodology focus was based on the spatial and demographic analyses of Winchester District and how to optimally provide the required charging points for the identified demographics. The outcomes provided here also gave further considerations of the electrical infrastructure of the proposed charging points based on current UK regulations, as discussed in Section 4.2. Concerning the condition of the low-voltage electrical network, the data were not made available by the local distribution network operator (DNO) due to security issues. Nevertheless, as far as the publicly available information on substations around Winchester [8,34], there seem to be no constraints on grid capacity, and the considered charging points represents a small load on the infrastructure. Furthermore, the conducted visual verification method was employed to ensure that the suggested locations have a suitable connection to install the standard (3 kW) EVs charging points.

Future studies using the developed methodology will be aimed at expanding the charging points, with some being at enhanced capacity as the regulations allow. This will necessitate full consideration of the resilience of the low-voltage electrical network in such a way as to eliminate security concerns through discussion with the DNO. In addition, future research will also develop local-authority-led suitability factors, taking into account demographic factors such as age, income and understanding of distance to travel (gathered through surveys), which can have their own relative weights in an AHP analysis with surveyed expert input [2] to further optimise the siting of on-road EV charging stations for the specific needs and requirements of the many local authorities in the region.

Development of local-authority-led suitability factors and maps are important to create evidence-based policy and investment drivers, and this and future work is contributing to providing evidence for such policy needs. In addition, the methodology is now being applied to sites in Saudi Arabia and Kuwait. These two countries provide contrasting environments to those experienced in the UK, including a nascent proliferation of EVs, policy drivers and the general acceptability of EVs in an oil dominated region. Hence, this methodology, coupled with an expert input survey, is currently being planned to further optimise the siting of on-road EV charging stations in these countries and compare the results with our case study.
