Enhanced Hydrogen Storage Properties of Li-RHC System with In-House Synthesized AlTi₃ Nanoparticles

Abstract

In recent years, the use of selected additives for improving the kinetic behavior of the system 2LiH + MgB₂ (Li-RHC) has been investigated. As a result, it has been reported that some additives (e.g., 3TiCl₃·AlCl₃), by reacting with the Li-RHC components, form nanostructured phases (e.g., AlTi₃) possessing peculiar microstructural properties capable of enhancing the system’s kinetic behavior. The effect of in-house-produced AlTi₃ nanoparticles on the hydrogenation/dehydrogenation kinetics of the 2LiH + MgB₂ (Li-RHC) system is explored in this work, with the aim of reaching high hydrogen storage performance. Experimental results show that the AlTi₃ nanoparticles significantly improve the reaction rate of the Li-RHC system, mainly for the dehydrogenation process. The observed improvement is most likely due to the similar structural properties between AlTi₃ and MgB₂ phases which provide an energetically favored path for the nucleation of MgB₂. In comparison with the pristine material, the Li-RHC doped with AlTi₃ nanoparticles has about a nine times faster dehydrogenation rate. The results obtained from the kinetic modeling indicate a change in the Li-RHC hydrogenation reaction mechanism in the presence of AlTi₃ nanoparticles.

1. Introduction

Hydrogen plays a crucial role in the transition from a fossil-fuel-based to a renewable-energy-based society. In comparison with other energy carriers such as natural gas (13.9 kWh/kg) and liquid hydrocarbons (12.4 kWh/kg), hydrogen has the highest gravimetric energy density per mass (33.3 kWh/kg) [1,2]. As a result, in the context of a net-zero CO₂ strategy, using hydrogen as an energy vector to replace environmentally harmful fossil fuels will enable, on the one hand, a drastic reduction in CO₂ emissions and, on the other hand, a more efficient and synergic utilization of the intermittent and unevenly distributed renewable energy sources [3,4]. However, at standard conditions (0 °C and 1 bar), hydrogen has an extremely low volumetric density (0.089 kg/m³ at room temperature and under 1 bar) [5,6], which results in a low energy per unit volume (0.003 kWh/dm³) when compared with natural gas (0.008 kWh/dm³) and liquid hydrocarbons (10.5 kWh/dm³). In this scenario, the development of advanced storage methods is essential. Hydrogen is conventionally stored in liquid and gaseous form. However, these storage methods face cost and safety issues. For example, compressed gas storage systems need compressors to reach storage pressures of 350–700 bar. In fact, about 12% of the low heating volume (LHV) is necessary to reach a storage pressure of 350 bar (and 15% of the LHV for 700 bar) in the actual compression operation [7]. In comparison to hydrogen compression, the energy spent for hydrogen liquefaction is substantially higher (around 30% of the LHV) due to complex process steps that aim to achieve low temperatures (liquefaction temperature of H₂: −252.9 °C) and to avoid the boiling off effect. Such demanding constraints make these physical storage methods unsuitable, especially for long-term storage applications [8,9]. A potentially plausible storage solution for large quantities of hydrogen is geological storage in suitable geological formations (e.g., underground salt caverns, sub-sea reservoirs) [4]. However, a disadvantage is the localized availability of suitable geological formations.

The adsorption of hydrogen on high-surface-area materials has been studied in recent decades as one of the chemical approaches for storing hydrogen. Several materials, including zeolites, carbon-based compounds, and metal–organic frameworks (MOFs), have been studied. The fundamental disadvantage of this method is that, to absorb substantial amounts of hydrogen, cryogenic temperatures must be applied [10,11]. In fact, at room temperature (RT), none of the above-mentioned materials can reach the gravimetric storage capacity given in the targets of the Department of Energy for onboard hydrogen storage in light-duty fuel cell (FC) vehicles [12]. Hydrogen clathrate hydrate structures offer another option to store hydrogen in molecular form. However, this method requires extreme pressures (~3000 bar at 77 °C) or the employment of foreign molecules such as tetrahydrofuran (THF) [6,13,14]. Another chemical method to store hydrogen is in the atomic form in hydrides-based solid-state systems. The advantages of using such a storage approach are the possibility to achieve high volumetric density, low operating pressures, and high safety standards [9,15,16]. Metal hydride-based hydrogen storage solutions have been shown at a scale that is appropriate for effective deployment in the context of the energy transition [17,18,19]. These applications, however, are dependent on the usage of so-called “low-temperature metal hydrides” (i.e., TiFe, Ti_1.1CrMn, etc.) that have a poor gravimetric hydrogen capacity despite having excellent volumetric hydrogen density. Aiming at designing storage systems with high gravimetric capacity, complex metal hydrides and complex metal-hydride-based systems have attracted considerable attention. Among the complex metal hydrides, LiBH₄ has been considered a potential candidate for solid-state hydrogen storage due to a theoretical gravimetric capacity of 18.5 wt. % H₂ and a volumetric hydrogen storage capacity of 121 kg H₂/m³ [20,21,22,23,24,25,26,27]. This hydride, however, was initially not considered suitable for reversible hydrogen storage purposes due to the lack of reversibility under moderate temperature and hydrogen pressure [9,10,11,12,13,14]. At the beginning of the 2000s, by applying an approach similar to the one proposed in 1967 for tuning the thermodynamic properties of the MgH₂ [28], it was demonstrated that complex metal hydrides such as LiBH₄ could be used in combination with other hydrides to store hydrogen under moderate temperature and hydrogen pressure conditions reversibly. These systems are the so-called reactive hydride composites (RHCs) [29,30,31]. These composites consist of the combination of two or more hydrides to form new compounds that might reduce the overall reaction enthalpy of the system and encourage its reversibility while still maintaining the hydrogen storage capacity of the original materials. Examples of such hydride mixtures are 2LiBH₄ + MgH₂ [30,31], 2NaBH₄ + MgH₂ [32,33], 2Mg(NH₂)₂ + 4LiH [34,35], or 6Mg(NH₂)₂ + 9LiH + LiBH₄ [36]. However, RHCs often exhibit poor kinetic behaviors; thus, the dehydrogenation/hydrogen processes occur at temperatures higher than thermodynamically expected. The kinetic constraints are likely to be caused by the involvement of the system components in complex reaction steps taking place at their interfaces. In addition, the hydrogen desorption from a complex hydride such as a borohydride and amides requires high energy to break the strong bonds of anionic complexes (i.e., (BH₄)⁻ and (NH₂)⁻), to recombine the H atoms to form H₂ molecules and to promote the long-range diffusion of the reacting species.

Microstructure modifications via mechanical processes (ball milling [37,38,39,40,41], cold rolling [42], high-pressure torsion (HPT) [43], or equal channel angular pressing [44]) can improve the sorption properties of hydride materials. Nevertheless, this enhancement is only temporary due to the unavoidable growth and agglomeration phenomena occurring during dehydrogenation–rehydrogenation cycling. Long-lasting improvements of the kinetic properties of complex hydrides and RHCs can be achieved by using transition metals (TM)-based additives [36,45,46,47,48,49,50,51,52,53,54]. Several investigations on the effect of the addition of TM-based additives on the kinetic properties of the RHCs have been conducted [45,46,50,55,56,57,58,59,60,61]. In most cases, the added components reacted with the hydride system during milling, forming more stable TM compounds. These new compounds have a typical particle size in the nanometric range between 5–20 nm [45,46,50,57,60,61,62].

From metallurgical studies, it is well known that structural similarities between a newly forming phase and its parental phase, lower the interface energy due to the reduced interatomic and interface lattice misfit. In particular, the nucleation of a new phase on a parental one is promoted when their structural properties meet the so-called “Edge-to-Edge model’s criteria” [63], i.e., interatomic spacing of their most close-packed atom rows and their interplanar mismatch are lower than 10% and 6%, respectively.

For the 2LiH + MgB₂ (or 2LiBH₄ + MgH₂) system, it is known that the addition of selected additives leads to the improvement of hydrogenation–dehydrogenation properties via the formation of nano-dispersed TM compounds that act as energetically favored nucleation centers for the formation of MgB₂. In our previous work [50], we found that, in the 2LiH + 2MgB₂ system (Li-RHC), the nano-sized hexagonal-AlTi₃ particles formed in situ during high energy ball milling of 3TiCl₃·AlCl₃. The in situ formation of nano-sized hexagonal-AlTi₃ particles notably enhanced the kinetic dehydrogenation behavior of the Li-RHC composite by promoting the formation of a hexagonal-MgB₂ nucleus onto nano-sized hexagonal-AlTi₃ particles. Motivated by these outstanding results and aimed at minimizing the reduction of hydrogen storage capacity due to the additive-RHC side reactions, which usually lead to the formation of stable species, e.g., containing Cl⁻, in-house-synthesized AlTi₃ nanoparticles were used as a dopant in the Li-RHC system. In particular, the effect of adding the hexagonal AlTi₃ nanoparticles (hexa-AlTi₃) on the hydrogenation-dehydrogenation kinetic properties of 2LiH + MgB₂ was investigated. The obtained results are presented and discussed below.

2. Materials and Methods

Material preparation: lithium hydride (LiH, 95% purity, Sigma Aldrich, St. Louis, MO, USA), magnesium boride (MgB₂, 99% purity, Alfa Aesar, Haverhill, MA, USA), aluminum (III) chloride-titanium (III) chloride (3TiCl₃∙AlCl₃, ~76–78% TiCl₃ purity, Fisher Scientific, Waltham, MA, USA) and sodium hydride (NaH, 90% purity, Sigma-Aldrich) were purchased from commercial suppliers without further treatments. One of the most common methods for synthesizing of the Al-Ti system is ball milling [64], thus in this study, AlTi₃ nanoparticles were also synthesized via the mechanochemical driven reaction between NaH and 3TiCl₃·AlCl₃ in the molar ratio of 12:1. The reaction is expected to proceed as follows:

$$12\mathrm{NaH}\left(\mathrm{s}\right)+\left(3{\mathrm{TiCl}}_3·{\mathrm{AlCl}}_3\right)\left(\mathrm{s}\right)\to 12\mathrm{NaCl}\left(\mathrm{s}\right)+{\mathrm{AlTi}}_3\left(\mathrm{s}\right)+{\mathrm{H}}_2\left(\mathrm{g}\right)$$

(1)

Two grams of a NaH—3TiCl₃·AlCl₃ mixture were milled for 180 min in an argon atmosphere using a hardened stainless steel vial and milling balls (ball to powder (BTP) ratio of 20:1) in an 8000M Mixer/Mill High-Energy Ball Mill. After milling, the obtained powder was first washed with distilled water, and then the solid residues were separated from the liquid fraction via filtration. Washing and filtering were carried out under atmospheric conditions. The washing process might have led to the formation of some oxides. Applying Gibbs minimization equilibrium calculations, the most favorable reaction for the AlTi_3(s) and H₂O_(l) interaction at 25 °C and 1 atm was identified and the Gibbs free energy was calculated as a function of the temperature using the HSC Chemistry software [65]. The species considered for the calculation were: AlTi_3(s), H₂O_(l), H_2(g), Al₂O_3(s), TiH_2(s), Al_(s), TiO_(s), TiO_2(s), Ti₂O_3(s), O_2(g), and AlTi_(s). The thermodynamic data of the AlTi₃ added to the database of the software were referred to [66]. The solid residues were dried in a glass oven under a dynamic vacuum (~10⁻² bar) at 100 °C for 12 h and then characterized by X-ray diffraction (XRD), high-resolution transmission electron microscopy (HR-TEM).

The steps followed for preparing the system Li-RHC and the Li-RHC doped with the prepared AlTi₃ nanoparticles (denoted as Li-RHC + AlTi₃) are identical to those followed for the preparation of the system Li-RHC doped with 3TiCl₃∙AlCl₃ described in [50]. The amount of added AlTi₃ was calculated to be equal to the amount of Al-Ti contained in the Li-RHC doped with 7.5(3TiCl₃∙AlCl₃), that is, about 1.7 wt. % of AlTi₃ was added to the Li-RHC system. All materials were handled and prepared in MBraun Unilab glove boxes under a continuously purified air flow (O₂ and H₂O levels <2 ppm).

X-ray diffraction (XRD): the XRD characterization of the investigated specimens was carried out using a Bruker D8 Discover device. This diffractometer is equipped with a copper X-ray source (Cu Kα radiation, λ= 1.54184 Å) and a VANTEC general area detector from Bruker. The diffraction patterns were acquired in nine steps in the 2θ range from 10° to 90° with an exposure time of 300 s per step. The preparation of the specimens to be analyzed via XRD was carried out in an MBraun Unilab glove box under a continuously purified argon flow (O₂ and H₂O levels <2 ppm). For this purpose, a small amount of powder (≈5 mg) was placed onto a sample holder and sealed with an airtight transparent dome made of poly-methyl-methacrylate (PMMA) to avoid oxidation or hydrolysis phenomena during the pattern acquisition. For all the XRD patterns, the bump between 10° and ~25° comes from the PMMA dome.

Volumetric analysis: the dehydrogenation–hydrogenation behavior of the studied material was investigated using a Sieverts type apparatus designed by Hydro-Quebec/HERA Hydrogen Storage Systems Inc. (Longueuil, QC, Canada) or in a similar home-built volumetric device. Both machines operate in the same manner, in which a differential pressure gauge connects the sample volume and a reference volume, and thus all temperature-induced pressure changes are compensated and only differences due to sorption processes are recorded. By considering the exact sample mass, typically around 160 mg, the pressure changes are converted into changes of the gravimetric hydrogen content of the investigated samples, i.e., the results are given in the unit “wt. % H₂”. If not otherwise described in the text, the dehydrogenation–hydrogenation cycles of each sample were measured at a hydrogen pressure of 3 bar and 400 °C for the dehydrogenation and a hydrogen pressure of 50 bar and 350 °C for the hydrogenation. The chosen pressure and temperature conditions are based on the published thermodynamic data and previous studies for the Li-RHC system [30,31,67]. The dehydrogenation–hydrogenation measurements were carried out until the measured values reached a plateau region that met the criteria: ∆wt. % = 0.0002 and ∆t (min) = 1. To determine the activation energy, several experiments performed on the Li-RHC + AlTi₃ material were carried out in the range of temperature between 370 °C and 400 °C under 50 bar for hydrogenation and under 3 bar for dehydrogenation. These kinetic curves were fitted with a selected reaction model [68,69,70,71], and a kinetic constant rate (k) is acquired for each kinetic curve fitted. Then, the activation energy of the Li-RHC + AlTi₃ sample can be obtained using the Arrhenius equation:

$$k=A\ast e^{\raisebox{1ex}{$-E_a$}\!\left/ \!\raisebox{-1ex}{$RT$}\right.} \mathrm{or} \ln k=-\frac{E_a}{RT}+ \ln A$$

(2)

Plotting ln k versus the inverse of temperature 1/T (T = temperature) yields a straight line with a slope of $-\frac{E_a}{R}$ that allows calculating the activation energy E_a.

High-resolution transmission electron microscopy (HR-TEM): HR-TEM images were obtained using high-resolution transmission electron microscopy (HR-TEM). Observations were completed with a Tecnai F30 microscope (FEI Company, Hillsboro, OR, USA) with an information limit of 0.12 nm and Schottky field emission gun operating at 300 kV. The samples were exposed to air for a very short time. HR-TEM image processing was conducted with the following programs: Digital Micrograph (License n^o. 90294175), i-TEM (License n^o. A2382500), and JEMs (License n^o. IEb59yBDflUMh).

3. Results and Discussion

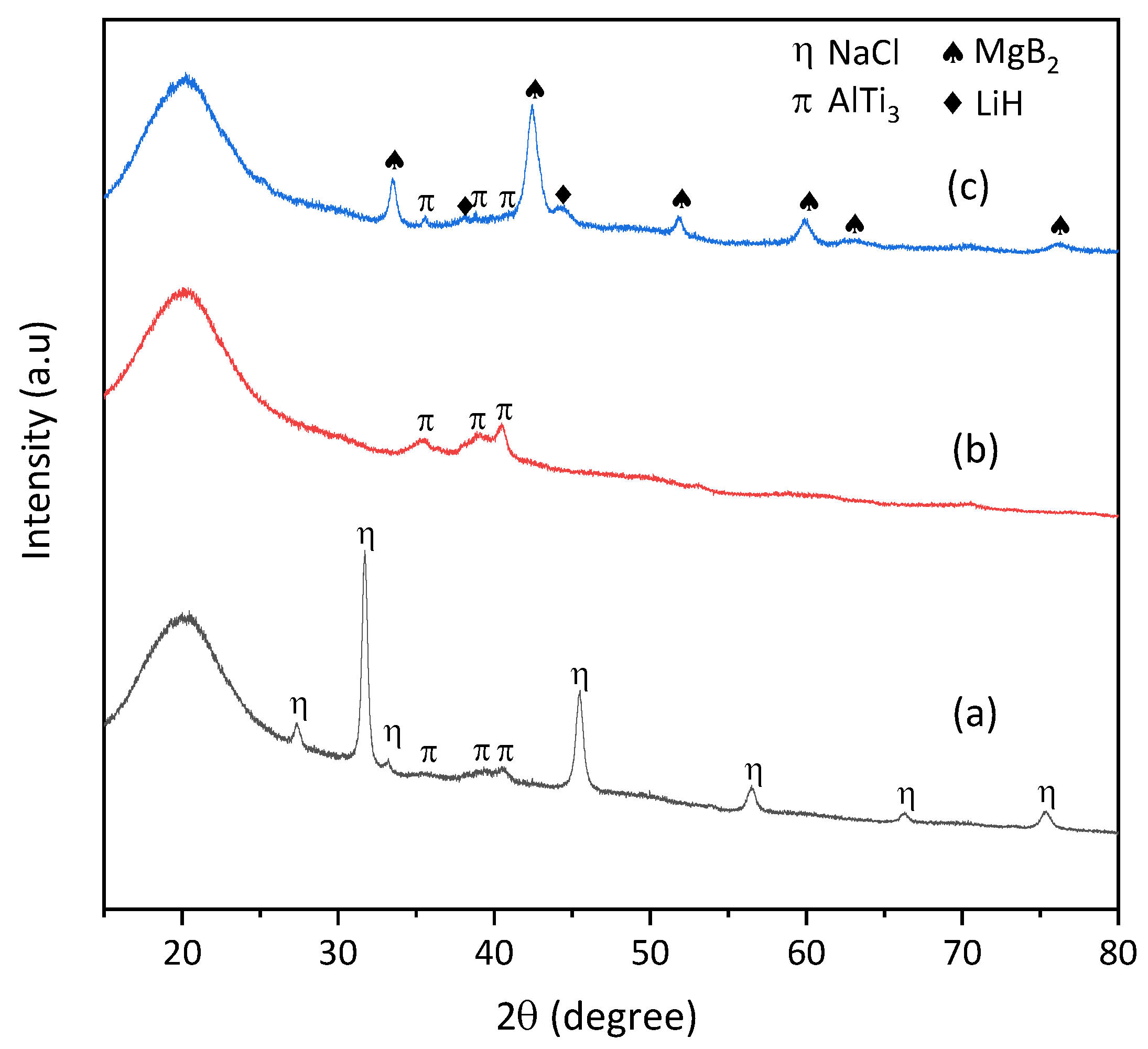

Figure 1 shows the XRD patterns of the in-house-prepared AlTi₃ nanoparticles and Li-RHC-doped AlTi₃. The XRD pattern of the mixture of NaH and 3TiCl₃·AlCl₃ after milling reported in Figure 1a mainly exhibits the presence of NaCl (η). Paying particular attention to the pattern background, in the 2θ range between 30° and 40°, it is possible to notice the presence of low-intensity reflections ascribed to AlTi₃ (π). The XRD pattern acquired for the material after washing and drying does not show the presence of the NaCl (Figure 1b). However, the broad diffraction peaks of hexagonal AlTi₃ are visible at 2θ = 35.7°, 38.9°, and 40.6°. This result indicates that NaCl was completely removed during the washing process. Moreover, the interaction with water might result in the formation of some oxides. In this regard, composition phase equilibrium calculations were performed to consider the possible formation of oxide species (Supplementary Materials ESI-Figure S1). Taking into account excess water, the most thermodynamically favorable reaction would lead to the formation of Al₂O_3(s), TiO_2(s), and hydrogen release as indicated by Equation (3):

2AlTi_3(s) + 15H₂O_(l) ⇆ Al₂O_3(s) + 6TiO_2(s) + 15H_2(g), ΔG⁰ = −3488.7 kJ/mol

(3)

None of the oxide species are seen in the XRD (Figure 1b) and this fact could be ascribed to their low amount or/and their nanometric nature. For the Li-RHC + AlTi₃ sample after milling (Figure 1c), the XRD diffraction patterns show the presence of the starting phases (e.g., LiH, MgB₂, and AlTi₃), indicating the AlTi₃ nanoparticles do not react with the other reactants during milling.

The existence of hexagonal AlTi₃ nanoparticles as well as possible oxide species in the washed material was verified by employing the HR-TEM technique. Supplementary Materials ESI-Figure S2 shows the TEM diffraction patterns and possible phases in the sample NaH + 3TiCl₃·AlCl₃ after washing and drying. As shown there, besides the hexagonal AlTi₃ phase (observed via XRD technique), other phases such as Al₃Ti (tetragonal/hexagonal), AlTi₂ (cubic), AlTi₃ (cubic), AlTi (tetragonal), and Al₂O₃ might be present as well. Further details of the TEM characterization are presented in Figure 2 and Figure 3 HR-TEM micrographs and their respective fast Fourier transform (FFT). Simulated diffraction patterns (DP) in the zone axis condition (ZA) for each possible phase were calculated and compared until the best match was found, thus determining to which phase the particles belonged. This type of analysis was performed on several particles. HR-TEM observations combined with the corresponding FFT + simulated DP analysis were performed on several particles. In zone A (Figure 2c) and zone B (Figure 2d), it is possible to observe the presence of hexagonal AlTi₃ particles of approximately 10 nm. In addition to the AlTi₃ hexagonal nanoparticles, Al₂O₃ particles were also found in the washed/dried mixture, as observed by HR-TEM (Figure 3). The formation of Al₂O₃ can be attributed to the partial oxidation of the Al-Ti particles during the washing in distilled water, though the presence of titanium oxides was not verified by HR-TEM.

The effect of the addition of the AlTi₃ nanoparticles on the dynamic hydrogen uptake and release properties of the Li-RHC system were examined via the volumetric technique. For comparison, the hydrogenation of the pristine Li-RHC sample is also shown. Figure 4 shows the first hydrogenation both of the pristine Li-RHC and the doped Li-RHC samples. As seen in Figure 4, the hydrogenation kinetic behavior of the Li-RHC material is improved with the presence of additive (i.e., AlTi₃ nanoparticles), compared with the pristine Li-RHC material. More specifically, for the pristine material seen in Figure 4B, the hydrogenation starts at approximately 230 °C and reaches an amount of hydrogen absorbed of roughly 2.4 wt. % at 350 °C. After 25 h of isothermal treatment at 350 °C, the hydrogen uptake reaches almost 10 wt. % (Figure 4A). This value is slightly lower than the theoretical hydrogen capacity found for this system (theoretical hydrogen storage capacity of Li-RHC: 11.45 wt. % H₂) [31]. The hydrogenation reaction of the doped materials, i.e., Li-RHC + AlTi₃ starts at about 260 °C (Figure 4B). The amount of hydrogen stored in the doped materials during the heating to 350 °C is higher than that of the pristine sample. For Li-RHC + AlTi₃, 3.7 wt. % H₂ was stored. Eventually, a total amount of hydrogen uptake of approx. 9.6 wt. % after 20 h of isothermal treatment at 350 °C is achieved for Li-RHC + AlTi₃, respectively (Figure 4A). As observed, the hydrogen storage capacities obtained experimentally are lower than the theoretical value. This is most likely due to the addition of AlTi₃ weight. Another possible reason for the loss in hydrogen storage capacity is attributed to the non-homogeneous dispersion of the additive over the host material (Li-RHC), as reported previously [50]. Particularly the hydrogenation kinetics of the Li-RHC + AlTi₃ is faster during the heating and the beginning of the isothermal period at 350 °C, compared with the neat Li-RHC, suggesting that the presence of AlTi₃ nanoparticles improves the hydrogenation rate of the material. The fact that the onset temperature of hydrogenation of the Li-RHC + AlTi₃ is higher than that of the pristine Li-RHC sample might be related to the experimental fluctuations during the acquisition of the initial points of the measurement.

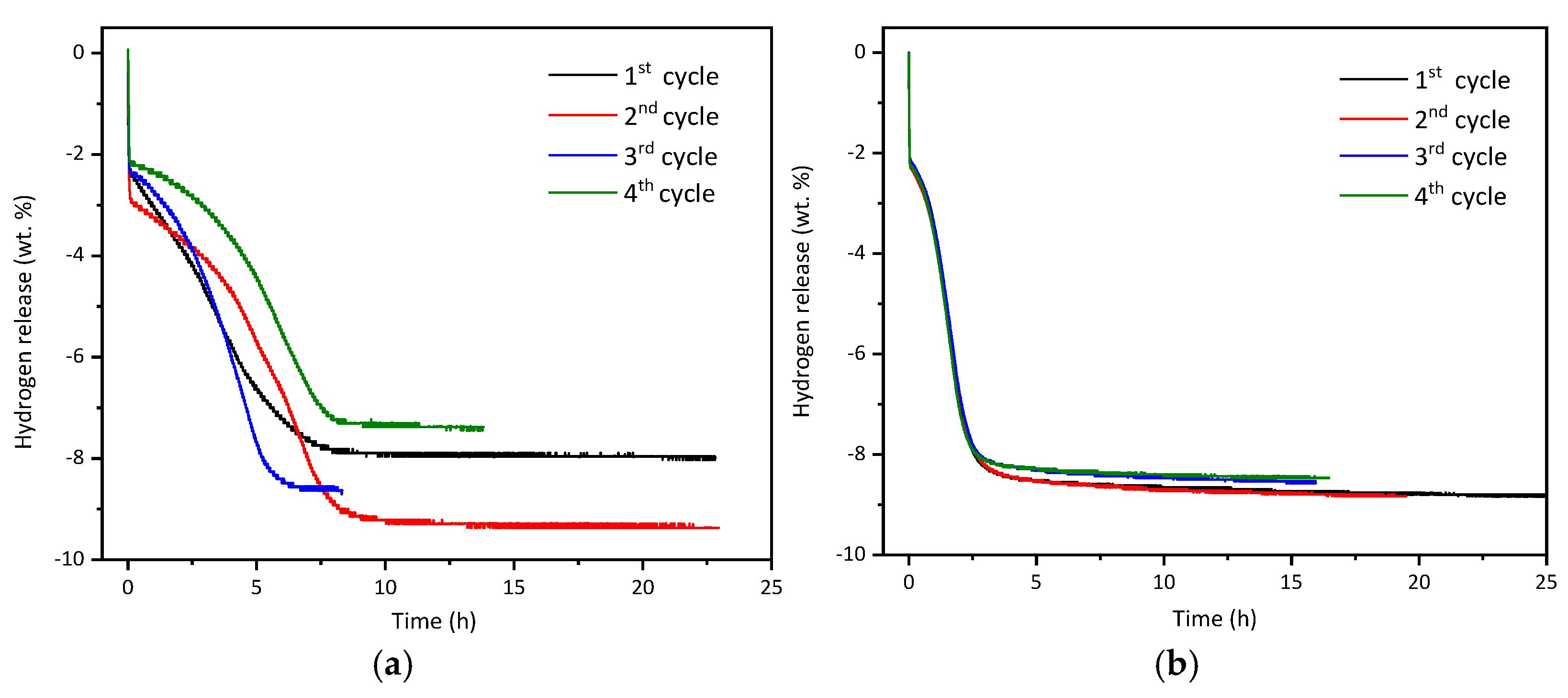

Similar to hydrogenation, the dehydrogenation kinetic behavior was also analyzed. Figure 5 presents the dehydrogenation properties of the Li-RHC + AlTi₃ sample over four cycles compared with the undoped Li-RHC sample. The dehydrogenation of the first reaction step, which relates to the decomposition of MgH₂, are almost the same for all samples and a corresponding amount of hydrogen release is about 2.2 wt. %. However, for the second dehydrogenation step, the dehydrogenation kinetic behavior of the Li-RHC composite is significantly improved and the dehydrogenation is more stable by the presence of the dopant (i.e., AlTi₃). The dehydrogenation kinetics of the Li-RHC + AlTi₃ sample (Figure 5b), for the investigated cycles, are faster than those of the pristine Li-RHC sample (Figure 5a). More specifically, the first dehydrogenation of the Li-RHC + AlTi₃ sample requires ~1 h, whereas almost 9 h are necessary for the neat Li-RHC sample. The following dehydrogenation cycles of the Li-RHC + AlTi₃ sample are faster than the first dehydrogenation and those of the Li-RHC sample. Furthermore, the stability upon the successive hydrogenation—dehydrogenation cycles also improves markedly for the added AlTi₃ material (Figure 5b).

Compared with the pristine material Li-RHC, the addition of AlTi₃ nanoparticles significantly improves the hydrogenation–dehydrogenation kinetics of the Li-RHC. However, compared with the material-doped 3TiCl₃·AlCl₃ [50], the kinetic performance of Li-RHC + AlTi₃ leads to similar capacities and slightly slower rates. In this regard, the effective amount of AlTi₃ added to the Li-RHC accounts for the observed kinetic performance of the Li-RHC + AlTi₃. In this study, the powder obtained after washing and drying contains a mixture of AlTi₃ and Al₂O₃ that appears to be the predominant phases (Figure 2 and Figure 3). Therefore, the used additives are not composed of 100% of AlTi₃. The presence of Al₂O₃ might lead to a reduced number of additional nucleation sites (i.e., AlTi₃) for the formation of MgB₂, resulting in a slower hydrogen kinetic behavior of the Li-RHC + AlTi₃ sample compared with the already reported Li-RHC + 3TiCl₃·AlCl₃ sample [39].

In the case of these kinds of materials, the crystallographic similarity between the newly forming phase and its parental phase can be evaluated by their interfacial energy. A minimized interfacial energy prompts a proper crystallographic matching between the newly grown phase and the parental phase. Therefore, the promoted nucleation of a product, such as MgB₂, results in faster dehydrogenation kinetic behavior.

According to the edge-to-edge matching model [63], the crystallographic matching is determined with small interplanar spacing mismatch f_d of close-packed planes (below 6%) and interatomic spacing misfit f_s along with the matching close-packed directions (less than 10%) between two phases. In addition, the matching directions have to lie in matching planes. The close-packed plane is commonly based on the structure factor (F_hkl) and the interplanar spacing d_hkl. The large values of F_hkl and d_hkl result in the smaller area per atom in the plane (hkl), leading to the nearer planes being close-packed [72]. These values (i.e., F_hkl and d_hkl) depend on the lattice parameters of the unit cell. In this study, MgB₂, AlTi_3, and Al₂O₃ are described in terms of the Miller–Bravais indices and crystal structures with different lattice parameters, leading to different close-packed planes observed on these phases. For MgB₂, three possible close-packed planes are $\left\{10\overline{1}1\right\}$ $\left\{10\overline{1}0\right\}$, and $\left\{0002\right\}$, while the possible close-packed planes for AlTi₃ are $\left\{20\overline{2}1\right\}$, $\left\{20\overline{2}2\right\}$, and $\left\{20\overline{2}0\right\}$, and the close-packed plane of Al₂O₃ is $\left\{11\overline{2}0\right\}$. Accordingly, there are a total of nine possible matching plane pairs between MgB₂ and AlTi₃ and three possible matching plane pairs between MgB₂ and Al₂O₃. The calculation of interplanar spacing mismatch (f_d) of these possible matching plane pairs between the MgB₂, AlTi_3, and Al₂O₃ are shown in Supplementary Materials ESI_Table S1. As seen there, two possible matching plane pairs for MgB₂ and AlTi₃ with a mismatch less than 6% are ${\left\{10\overline{1}1\right\}}_{{\mathrm{MgB}}_2}$//${\left\{20\overline{2}1\right\}}_{{\mathrm{AlTi}}_3}$ and ${\left\{0002\right\}}_{{\mathrm{MgB}}_2}$//${\left\{20\overline{2}0\right\}}_{{\mathrm{AlTi}}_3}$. In addition, the close-packed plane pair ${\left\{10\overline{1}0\right\}}_{{\mathrm{MgB}}_2}$// ${\left\{20\overline{2}0\right\}}_{{\mathrm{AlTi}}_3}$ has a d-value mismatch of 6.3%. This plane pair could also be considered a potential matching plane if the close-packed directions on these matching planes satisfy the interatomic spacing mismatch below 10% [63]. In addition, there are no matching planes between MgB₂ and Al₂O₃ associated with the lattice mismatches of close-packed planes over 6% between these phases. However, the low lattice mismatch of close-packed planes is insufficient to predict orientation relationships between the two MgB₂ and AlTi₃ phases, particularly for a structure system as complex as the hexagonal one. Within this regard, the close-packed atom directions in two phases have to be matched with an interatomic spacing misfit of less than 10%, and the matching directions must lie on the matching planes. MgB₂ and AlTi₃ are hexagonal close-packed structures (hcp) in which there are four possible close-packed directions: straight atom row $\langle 11\overline{2}0\rangle$ and zigzag atom rows $\langle 10\overline{1}0\rangle$, $\langle 11\overline{2}3\rangle$, and $\langle 0001\rangle$. These close-packed directions are also reported in literature [73,74,75], while Al₂O₃ has one close-packed direction $\langle 10\overline{1}0\rangle$ (straight row) [76]. As the result, the close-packed directions on the closed packed planes for MgB₂: $\langle 11\overline{2}0\rangle$, $\langle 11\overline{2}3\rangle$, and $\langle 0001\rangle$ on $\left\{10\overline{1}1\right\}$; $\langle 11\overline{2}0\rangle$, $\langle 10\overline{1}0\rangle$, and $\langle 0001\rangle$ on $\left\{10\overline{1}0\right\}$; and $\langle 11\overline{2}0\rangle$ and $\langle 10\overline{1}0\rangle$ on $\left\{0002\right\}$. Similarly, the close-packed directions for AlTi₃ can be found: $\langle 11\overline{2}0\rangle$, $\langle 11\overline{2}3\rangle$, and $\langle 0001\rangle$ on $\left\{20\overline{2}1\right\}$; $\langle 11\overline{2}0\rangle$, $\langle 10\overline{1}0\rangle$, and $\langle 11\overline{2}3\rangle$ on $\left\{20\overline{2}2\right\}$, and $\langle 11\overline{2}0\rangle$, $\langle 0001\rangle$, and $\langle 10\overline{1}0\rangle$ on $\left\{20\overline{2}0\right\}$. Following the rule of the edge-to-edge matching model [63], to maximize the matching of atoms across the interface, a straight atom row in one phase matches with straight atom rows in the other phase, and a zigzag row matches with zigzag rows. Considering AlTi₃ as a parental phase, the interatomic spacing misfit of direction matching pairs (f_s) was calculated, as shown in Supplementary Materials ESI-Table S2 and the mismatch with less than 10% belongs to the matching direction pair ${\langle 11\overline{2}3\rangle }_{{\mathrm{MgB}}_2}$//${\langle 1101\rangle }_{{\mathrm{AlTi}}_3}$ (f_s = 0.73%). As concluded, there is one matching direction pair ${\langle 11\overline{2}3\rangle }_{{\mathrm{MgB}}_2}$//${\langle 1101\rangle }_{{\mathrm{AlTi}}_3}$ on one matching plane ${\left\{10\overline{1}1\right\}}_{{\mathrm{MgB}}_2}$//${\left\{20\overline{2}1\right\}}_{{\mathrm{AlTi}}_3}$. This implies that AlTi₃ could act as heterogeneous nucleation sites for nucleating of MgB₂. The calculation also points out that Al₂O₃ does not have a good crystallographic matching with MgB₂. The large lattice mismatch between MgB₂ and Al₂O₃ is also found in [77,78]. Therefore, it is not expected that the presence of Al₂O₃ in the composite improves the reaction kinetics of the Li-RHC system. In addition, during the measurement at high temperature (i.e., 400 °C), Mg might have reacted with Al₂O₃ to form MgO and Al (3 Mg + Al₂O₃ = 3 MgO + 2 Al, ΔG_{400 °C}= −122.4 kJ) [79]. The formation of MgO confirmed by XRD, shown in Supplementary Materials ESI-Figure S3, can also negatively react to the hydrogen uptake-release kinetic behavior of the Li-RHC system. The location of nanostructured additives such as AlTi₃ at the grain boundaries is crucial for the nucleation of the phase that assured the reversibility of the system, i.e., MgB₂. In this regard, the in situ formation of AlTi₃ from the precursor 3TiCl₃∙AlCl₃ during ball milling leads to its better distribution at the grain boundaries. The addition of previously synthesized AlTi₃ nanoparticles to Li-RHC might result in an inhomogeneous distribution of this species and, hence, the weaker performance of the system.

To evaluate the rate-limiting step of the first hydrogen absorption process, the gas–solid models described in [70] were applied. Particular emphasis was placed on understanding whether the improved kinetic behavior of the Li-RHC material by the addition of AlTi₃ nanoparticles is related to a change in the rate-limiting step. The fitting procedure is based on Sharp’s and Jone’s method [69,71], in which it is assumed that the most suitable reaction model provides a linear fitting with the highest correlation coefficient R² and a straight line through the origin with a slope close to 1. In this investigation, different reaction kinetic equations (Supplementary Materials ESI-Table S3) [36] were applied to the experimental data of the hydrogenation for the Li-RHC + AlTi₃ sample measured at 400 °C and 50 bar of hydrogen. Then, when a good fit of the experimental data concerning a specific kinetic equation can be achieved, the rate-limiting step of the kinetics can be determined. For the fitting, only the converted fraction (α) between 0.1 and 0.9 is considered. This procedure is applied to prevent the uncertainty associated with the acquisition of the initial and final points of the reactions. As an example of the fitting process, the hydrogenation behavior of the Li-RHC + AlTi₃ is best described by the three-dimensional contracting volume reaction model (CV, n = 3) with the highest correlation coefficient R² of 0.997, the slope close to 1, and the intercept equal to 0, amongst others, as shown in Figure 6. Comparison of this result with the data for the pristine Li-RHC and Li-RHC + 3TiCl₃∙AlCl₃ samples given in [50] proves that the addition of AlTi₃ nanoparticles has changed the reaction mechanism for the hydrogenation of the Li-RHC system from a one-dimensional interface-controlled reaction to a three-dimensional interface-controlled reaction.

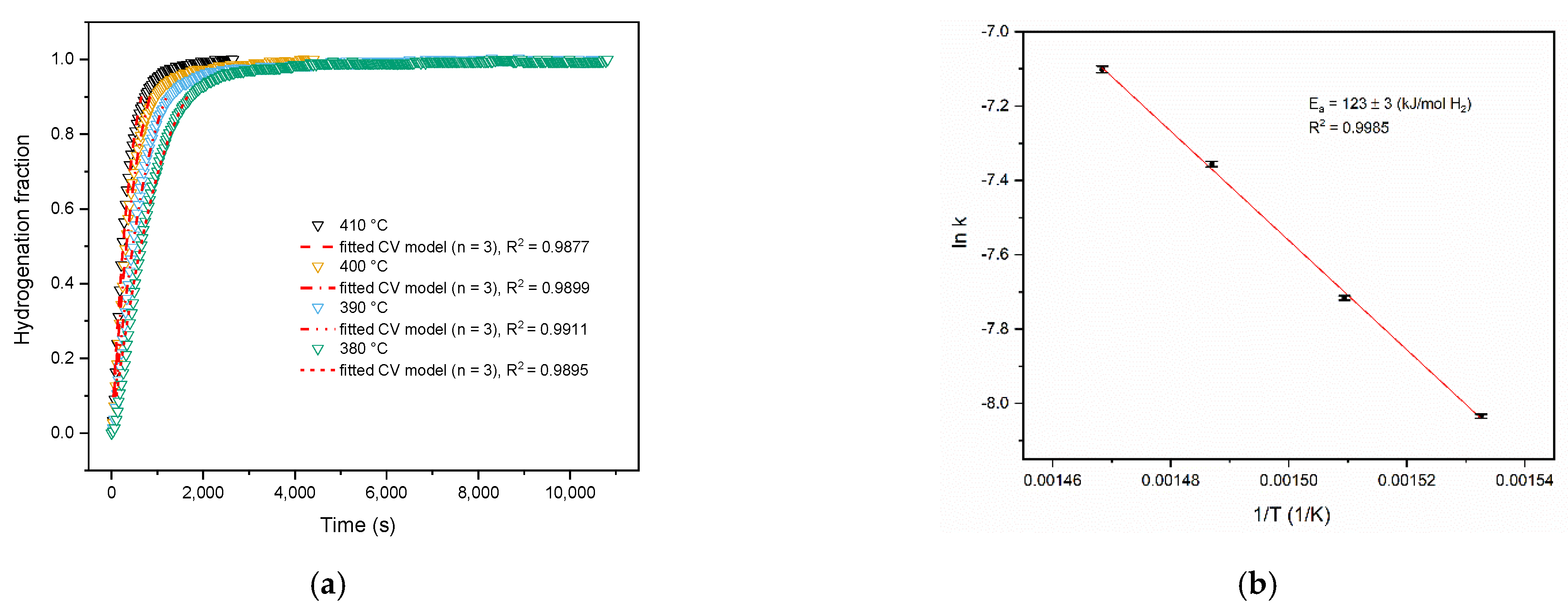

The activation energy for the hydrogenation process was determined by fitting the kinetic curves with the selected reaction model. The 2nd hydrogenation kinetic curves of the Li-RHC + AlTi₃ in the range of temperature between 380 °C and 410 °C were fitted with the CV (n = 3) model. The fitting results and the calculated activation energy for the hydrogenation are presented in Figure 7. As seen in Figure 7a, the measured and the fitted data of the Li-RHC + AlTi₃ sample show a good matching with correlation coefficients R² close to 1. A kinetic rate constant (k) is obtained from the fitting of each hydrogenation curve (Supplementary Materials ESI-Table S4) for each hydrogenation curve fitted. As seen in Figure 7b, the activation energy of the hydrogenation is about 123 ± 3 kJ/mol H₂. This value is significantly lower than that of the pristine Li-RHC (E_a = 184 ± 6 kJ/mol H₂), and similar to that of the Li-RHC + 3TiCl₃·AlCl₃ sample (E_a = 124 ± 6 kJ/mol H₂) given in [50]. This result indicates that the presence of AlTi₃ nanoparticles changed the rate-limiting step and reduced the activation energy of the hydrogenation process, leading to the faster kinetic properties of the Li-RHC + AlTi₃ compared with the neat Li-RHC system.

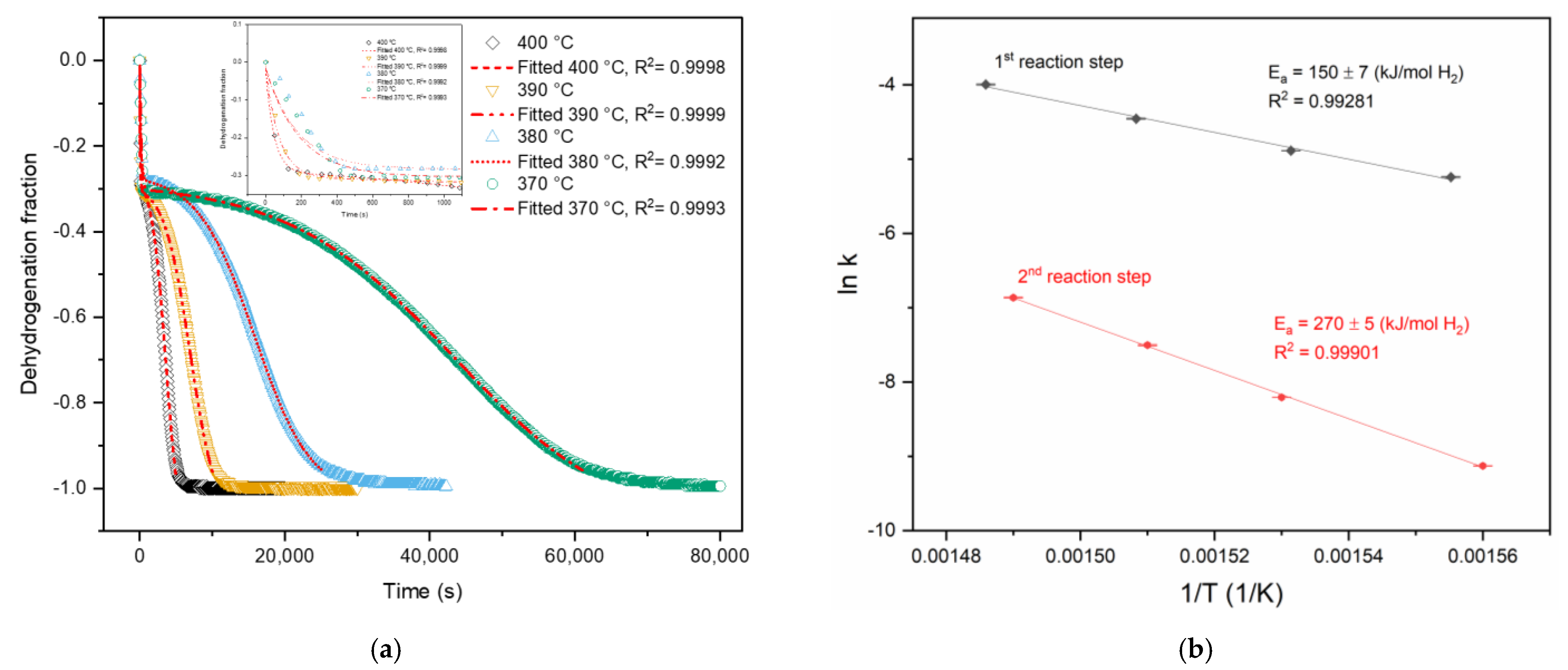

Similar to the hydrogenation process, the activation energy for the dehydrogenation was also determined. Since the dehydrogenation behavior of the Li-RHC + AlTi₃ material takes place in two consecutive steps, similar to the dehydrogenation of the Li-RHC and the Li-RHC + 3TiCl₃·AlCl₃, thus the fitting procedure of this material is equivalent to the ones described for the pristine Li-RHC and Li-RHC + 3TiCl₃·AlCl₃ materials, in which the combination of two kinetic reaction models are used [50,68]. The dehydrogenation kinetic curves of the Li-RHC + AlTi₃ sample measured in the range of 370 °C and 400 °C under three bar of hydrogen were then fitted. The results obtained from the fitting, as presented in Figure 8a, show a good agreement between the measured and fitted data with all correlation coefficients (R²) near 1 (Supplementary Materials ESI-Table S5). Figure 8b shows the plot of ln(k) versus 1/T where the activation energy of the 1st and the 2nd reaction step for the Li-RHC + AlTi₃ sample are determined about 150 ± 7 kJ/mol H₂ and 270 ± 5 kJ/mol H₂, respectively. These values are lower by ~20 (kJ/mol H₂) compared with the values of the neat Li-RHC sample (e.g., the 1st reaction step: 172 ± 19 kJ/mol H₂ and the 2nd reaction step: 293 ± 12 kJ/mol H₂) [50]. However, compared with the sample plus 3TiCl₃∙AlCl₃ additive also given in [51], the activation energies for dehydrogenation of the Li-RHC + AlTi₃ sample are slightly higher. These findings are in good accordance with the kinetic behavior reported above for the investigated materials [50].

Based on the results obtained in this work, the possibility of synthesizing nanometric AlTi₃ particles and using those as an additive for the system Li-RHC was investigated. AlTi₃ was synthesized via BM of a stoichiometric mixture of NaH and 3TiCl₃·AlCl₃. XRD and HR-TEM have verified the formation of hexagonal AlTi₃ nanoparticles (10 nm). Apart from the existence of a hexagonal AlTi₃ phase, nanoparticles of Al₂O₃ were also observed among the reaction products after the washing and drying procedures. The volumetric results show that upon cycling, the presence of AlTi₃ nanoparticles enhances the hydrogenation–dehydrogenation kinetics of the Li-RHC system significantly. However, in comparison with the Li-RHC + 3TiCl₃·AlCl₃ material specified in [50], the hydrogenation–dehydrogenation kinetic behaviors of the Li-RHC + AlTi₃ material are slightly slower. This behavior can be attributed to the lower number of nucleation sites (i.e., AlTi₃ species compared with the reference system doped with 3TiCl₃·AlCl₃) present in the added material.

4. Conclusions

The results reported in this study show that the synthesis and the use of nanoparticles (i.e., AlTi₃ nanoparticles) pave the way for a possible solution to improve the sorption kinetics of the RHC systems avoiding considerable hydrogen capacity loss (due to side reactions of additives with the hydride matrix). The synthesis performed in this work can be optimized by making the washing and drying processes in an inert atmosphere so that the formation of oxide compounds such as Al₂O₃ and MgO is minimized. Further investigations on possible synthetic pathways for producing nanostructured TM-based nanoparticle compounds are part of ongoing research. This approach can lead to an optimal tuning of the dynamic properties of hydride complex systems for efficient hydrogen storage.
