Valorization of Lignin Side-Streams into Polyols and Rigid Polyurethane Foams—A Contribution to the Pulp and Paper Industry Biorefinery

Centro de Investigação de Montanha (CIMO), Instituto Politécnico de Bragança, Campus de Santa Apolónia, 5300-253 Bragança, Portugal
Laboratory of Separation and Reaction Engineering (LSRE), Associate Laboratory LSRE-LCM, Department of Chemical Engineering, Faculty of Engineering of University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
RAIZ—Forest and Paper Research Institute, Rua José Estevão Nº 221, 3800-783 Eixo, Portugal
Institute for Sustainability and Innovation in Structural Engineering (ISISE), Polytechnic Institute of Bragança, Campus Santa Apolónia Ap. 1134, 5300-253 Bragança, Portugal
Associate Laboratory of Energy, Transports and Aeronautics—Institute of Science and Innovation in Mechanical and Industrial Engineering (LAETA-INEGI), Polytechnic Institute of Bragança, Campus Santa Apolónia, 5300-253 Bragança, Portugal
Author to whom correspondence should be addressed.
Energies 2021, 14(13), 3825;
Received: 13 May 2021 / Revised: 18 June 2021 / Accepted: 22 June 2021 / Published: 25 June 2021
(This article belongs to the Special Issue Biorefinery Based on Waste Biomass)


Valorization of industrial low-value side-streams are of great interest, contributing to boosts in the circular economy. In this context, lignin side-streams of the pulp and paper industry were oxypropylated to produce biobased polyols and tested in the synthesis of rigid polyurethane (RPU) foams. E. globulus lignins, namely a lignin isolated from an industrial Kraft black liquor and depolymerized lignins obtained as by-products of an oxidation process, were used. RPU foams, synthesized with 100% lignin-based polyols and using a 1.1 NCO/OH ratio, were characterized concerning apparent density, morphology, thermal conductivity, thermal stability, and heat release rate (HRR). Foams containing the lignin-based polyols presented densities varying from 44.7 to 112.2 kg/m3 and thermal conductivity in the range of 37.2–49.0 mW/mK. For the reference foam (sample produced with 100% wt. Daltofoam TP 32015 polyol), values of 70.9 kg/m3 and 41.1 mW/mK were obtained, respectively. The achieved results point out the viability of using the generated lignin-based polyols at 100% content in RPU foams, mainly when depolymerized lignins are used. Moreover, fire retardancy was favored when the lignin-based polyols were introduced. The proposed strategies can contribute to establishing the integrated pulp and paper biorefinery concept where material synthesis (polyols and RPU foams) can be combined with chemical production (vanillin and syringaldehyde).

Graphical Abstract

1. Introduction

Global policies are presently directing the chemical industry towards sustainable strategies, promoting the transition to greener raw materials based on the circular economy principles and the sustainability triangle built on economic, environmental, and social pillars. The European Union (EU) Chemicals Strategy for Sustainability emphasizes developing safer and sustainable products, from the source to production, until the end of life, with materials based on renewable resources being of utmost importance [1]. Resources available at an industrial scale, such as low value side-streams, are of great interest under the established strategies. In this context, lignin, which is readily available from the pulp and paper industry side-streams, has received boosted interest. Lignin is available in high quantities, can be the basis of a wide range of products, and scientific investment in lignin-based processes and products is increasing [2]. One important point to take into account is the social impact of the developed processes and products [3]. An appropriated approach should consider the analysis of stakeholders’ individual responses, together with their influence on the overall performance of the system [4]. In addition, this approach must be based on an appellative strategy, aiming at enhancing stakeholders’ knowledge on the general socio-economic and environmental benefits of a biorefinery structure, thus increasing their interest and recognition [5]. In this perspective, lignin valorization can contribute to the implementation of the pulp and paper biorefinery concept, highlighting the relevance of carrying out this study.
Lignin, a secondary by-product of the delignification stage, is a chemically rich material, presenting as primary building blocks the p-coumaryl, coniferyl, and sinapyl alcohols linked in the aromatic structure as phenylpropanoids, namely p-hydroxyphenyl (H), guaiacyl (G), and syringyl (S) units [6]. Traditionally, black liquor is recycled for energy production and chemicals recovering through combustion; nevertheless, valuable products can be produced from recovered lignins. This approach includes the work performed at the Laboratory of Separation and Reaction Engineering-Laboratory of Catalysis and Materials (LSRE-LCM), to produce vanillin and syringaldehyde from lignin. Briefly, the developed process comprises a first stage of lignin (or black liquor) oxidation, followed by separation and/or refining steps to obtain vanillin and syringaldehyde. From this process, a depolymerized lignin results, the valorization of which is crucial to achieve an integrated biorefinery concept [7]. This process, combined with the pulp and paper industry valorization strategy, leads to two lignin side-streams: lignin precipitated from the black liquor (isolated lignin) and depolymerized lignin derived from the oxidation process [7,8]. Depending on the oxidation process (batch or continuous reactor), two types of depolymerized lignins can be generated. The depolymerized lignins obtained from this process have lower molecular weight due to the imparted chemical degradation [9,10].
Due to their high hydroxyl content, one of the most studied applications for lignin is rigid polyurethane (RPU) foams. They are cellular materials with low density and thermal conductivity, being widely used as insulating products [11]. Some challenges considering this application are the high sulfur content imparting the material’s malodor, the low lignin solubility in the reactive mixture, the low reactivity, the high glass transition temperature (Tg), and the high polydispersity, which can be mitigated by lignin depolymerization [12]. The used strategies for lignin incorporation comprise lignin without and with chemical modification [7]. The first approach results in the incorporation of modest lignin contents [10,13]. For the second one, different alternatives are available, including fractionation [14]; functionalization through reaction, e.g., with diisocyanates [15]; liquefaction to produce polyols, e.g., by oxypropylation [16,17,18,19]; or depolymerization [10,19,20]. Furthermore, a few recent studies have used depolymerized lignins to produce liquid polyols by oxypropylation [10,21]. Oxypropylation makes the hydroxyl groups, particularly the phenolic ones that are sterically hindered inside the molecule, more available for reaction. Two side reactions can occur during this process; propylene oxide (PO) homopolymerization and isomerization, favored by the presence of water and high catalyst contents. The lignin to propylene oxide ratio strongly influences the obtained polyols’ characteristics, namely viscosity and hydroxyl index (IOH) [17]. To apply these products as monomers for RPU foams, their technical properties, i.e., IOH and viscosity, must be within 300–800 mg KOH/g and below 300 Pa·s, respectively [16].
Conventionally, lignin-based RPU foams have improved thermal and mechanical properties [17]. Particularly, for thermal properties, this improvement depends on the maximum amount of lignin present in the formulation [21]. Beyond the lignin effect on thermal stability, it can also act as a fire-retardant agent; once under combustion, a carbonaceous char coat resulting from its aromatic structure decomposition can be formed, acting as a charring layer retarding the material’s combustion progression [22]. In this context, several studies have been devoted to the evaluation of lignin fire-retardant properties in RPU foams, namely when fractionated [14], as a reactive filler [13], or functionalized [15]. Lignin has been studied, e.g., in intumescent systems, as a charring agent combined with an acidic source and a blowing agent [23], or as an intumescent agent alone in biopolymer formulations other than RPU [22]. As far as it was possible to verify, no studies focused on evaluating the flame-retardant properties of lignin-based RPU foams are available in the literature. Moreover, the use of 100% lignin-based polyols produced by oxypropylation has not been reported so far, which is advantageous considering the introduced lignin content.
In this context, the present work was devoted to lignin valorization as raw material to produce polymeric materials. Lignin-based polyols were first produced by oxypropylation, then used as monomers to synthesize rigid polyurethane foams. Here, two different E. globulus lignins were used to produce polyols by oxypropylation—lignin isolated from the industrial Kraft liquor and depolymerized lignins (by-products of the oxidation process applied to produce vanillin and syringaldehyde). After the polyols’ characterization (hydroxyl number, viscosity, and homopolymer content), the polyols were used to produce rigid polyurethane foams through a formulation comprising 100% lignin-based polyols. After that, the foams were characterized, considering morphology, density, thermal conductivity, heat release rate (HRR), and thermal stability.

2. Materials and Methods

2.1. Materials

In this work, E. globulus lignins were used. Namely, one lignin isolated from the industrial Kraft black liquor of a Portuguese pulp and paper industry (designated by L), and three depolymerized lignins obtained as by-products of the LSRE-LCM oxidation process to produce vanillin and syringaldehyde [7] (designated by OL). These included depolymerized lignins obtained in a batch and in a continuous mode (OL-B—batch and OL-C—continuous, respectively). Additionally, the depolymerized lignin obtained from the direct oxidation of the black liquor in a continuous mode was also tested (designated by OBL-C). The reactants for the oxypropylation were potassium hydroxide (KOH) from Panreac (Darmstadt, Germany) and propylene oxide (PO) from Aldrich (Steinheim, Germany), both p.a. grade. The reactants used for polyol’s characterization were of analytical grade and purchased from conventional suppliers. For the rigid polyurethane foam synthesis, the commercial polyol Daltofoam TP 32015 and the polymeric 4,4′-diphenylmethane diisocyanate (MDI) were obtained from Huntsman Polyurethanes (Pamplona, Spain). Glycerol was purchased from Scharlau (Barcelona, Spain), the NIAX Silicone SR-321, and the NIAX-A1 were supplied by Momentive Performance Materials, Inc. (La Rochette, France). The N,N-dimethyl cyclohexylamine (DMCA), and n-pentane were obtained from Sigma-Aldrich (Munich, Germany).

2.2. Oxypropylation Reaction Conditions and Procedure

The oxypropylation reaction was carried out in bulk using a pressure reactor Parr (model 4560) (IL, USA) of 450 mL capacity, equipped with a controller (model 4848) to monitor temperature, pressure, and stirring. This reactor is equipped with a reaction vessel, a heating mantle, mechanical stirrer, thermocouple, and a manometer. This enables it to work with temperatures ranging up to 350 °C and pressures up to 200 bar. To produce the polyols by oxypropylation, the desired lignin amount (dried overnight in a vacuum oven at 40 °C), propylene oxide (PO), and the catalyst (KOH) were placed into the reactor that was closed and heated under stirring until the set point temperature (160 °C). In a typical experiment, from this initial state, the pressure and temperature start to increase progressively until a maximum value, which depends on the used amount of the catalyst and the L/PO ratio. After reaching a maximum (Pmax), the pressure decreased rapidly, reflecting the propylene oxide consumption. When the relative pressure reached a plateau, the reactor was cooled while being stirred, open, and the ensuing polyols were recovered.
The formulations established for the isolated lignin oxypropylation comprised L/PO ratios (g/mL) of 20/80, 30/70, and 40/60, using three catalysts levels (1%, 3%, and 5%, lignin weight basis), e.g., the formulation 20/80/1 used a L/PO ratio of 20/80 with 1% catalyst. To produce the RPU foams, the polyols of the same series were mixed to give rise to the polyols designated by 20/80, 30/70, and 40/60 ratios (e.g., the polyol 20/80 was formed by the mixture of the 20/80/1, 20/80/3, and 20/80/5 polyols). For depolymerized lignins, only the formulation 30/70/2 was used. Figure 1 shows a schematic representation of the polyol synthesis considering as examples the 30/70 polyol produced from the isolated lignin (L 30/70) and the 30/70 polyol produced from the OL-B lignin (OL 30/70-B).

2.3. Lignin-Based Polyol Characterization

The polyols were characterized in terms of hydroxyl index (IOH), homopolymer content (POO), and viscosity, following typical methodologies adopted in the group [24].
The hydroxyl index (IOH) was determined according to the ASTM D4274 standard. Briefly, the polyol (1 g) was treated with 25 mL of a phthalate reagent solution (140 g of phthalic anhydride and 2 L of pyridine), being maintained under reflux for 1 h. Afterwards, the sample solution was left to cool to room temperature, then back-titrated with NaOH (0.5 N). The titrations were carried out using an automatic titrator, TitroLine 6000, from SI Analytics (Mainz, Germany), equipped with a glass pH electrode.
The homopolymer (POO) content was determined by extracting twice the polyol mixture with n-hexane under reflux, following the procedure described by Pavier and Gandini [25]. The recovered fractions (oxypropylated lignin and homopolymer) were then placed in an oven under reduced pressure until a constant weight was achieved. The obtained results are expressed in % (w/w).
The viscosity was measured at 20 °C using an Analogic Rheometer Malvern CVO 100 (Westborough, MA, USA) operating in stress-controlled mode, using a 40 mm diameter, 4° top-angle cone plate with a gap of 150 µm following a general procedure established in the group [16]. The data acquisition was made in the shear stress range of 15–3500 Pa by collecting 50 points.

2.4. RPU Foam Production

The RPU foams were synthesized using the one-shot free-rise method and an NCO/OH ratio of 1.1. All the produced lignin polyols were used at a content of 100% for the RPU foam synthesis. The required amount of polyol was firstly mixed with the following additives: 10% of glycerol, 2% of surfactant (SR-321 NIAX silicone), 2% of the catalyst system (DMCHA:NIAX-A1 (50:50)), 2% of water, and 20% of n-pentane (%, w/w, based on the polyol weight) in the synthesis reactor for 5 min to homogenize the mixture. Then, the diisocyanate was added and thoroughly mixed for 10 s. After that, the mechanical stirrer was stopped, and the foam was left to rise and cure. The foams nomenclature was established based on the used polyol name and their content, e.g., the sample 20/80/100 corresponds to the foam produced using 100% of the 20/80 lignin-based polyol. For comparison purposes, a reference RPU foam was also produced using the commercial chemical system. Figure 2 shows the used reactor and the various synthesis stages.

2.5. RPU Foams Characterization

2.5.1. Thermogravimetric Analysis

The thermogravimetric analysis (TGA) was used to evaluate RPU foams’ thermal stability. TGA analyses were carried out in a NETZSCH TG 209F3 (Selb, Germany) apparatus. The foam samples (8–15 mg) were placed in alumina pans and heated at a flow rate of 10 °C/min from ambient temperature to 700 °C. The analysis was performed under oxidative atmosphere (air).

2.5.2. SEM Analysis

The foams’ cellular morphologies were analyzed using a Phenom Pro Desktop scanning electron microscope (Eindhoven, The Netherlands) using two distinct acquisition modes, BSD TOPO A and BSD Full. The samples were cut perpendicularly to the foam rising direction. The average cell diameter was estimated using the Software Phenom ProSuite by measuring 5 cells per image and using three different images per sample, acquired in the BSD Topo A acquisition mode. Images were registered using a magnification of 320X.

2.5.3. Apparent Density Determination

Foam density was determined by cutting circular samples with a diameter of 1.9 cm and 2.0 cm height. The samples were weighted and the apparent density obtained by calculating the ratio between the weight and the volume of each sample.

2.5.4. Conductivity Measurements

The thermal conductivity values of the RPU foams were evaluated through the transient plane source technique (TPS) using a Hotdisk Thermal Analyzer 2500S (Göteborg, Sweden), operating at room temperature. The isotropic standard module mode was used with a Hot Disk 5501 sensor (6.403 mm radius Kapton sensor) placed between the plane surfaces of two sample pieces. For this analysis, the RPU samples were cut in cylinders with a diameter of 1.9 cm and a height of 1.0 cm. It is important to emphasize that this mode requires a perfect contact between the sensor and the sample’s surface to guarantee the absence of external interference during the analysis, being imperative that both samples used as duplicates have similar dimensions.

2.5.5. Cone Calorimeter

The analysis of the fire reaction behavior of the RPU foams was carried out using a mass loss cone calorimeter (Fire Testing Technology), following the general guidelines of the ISO 5660 standard. The tests were done using a radiant heat flux of 35 kW/m2 for 300 s, corresponding to 769 °C of the equipment’s electrical resistances. This apparatus is equipped with an exhaust chimney instrumented with thermocouples that, after calibration with methane gas, allows the determination of the sample’s heat release rate during the thermal decomposition, with this being the heat release rate peak (pHRR) recorded for each test. The tested foam samples had 17.5 mm of thickness and a surface area of 74 cm2. Moreover, the time to ignition and the time to flameout were also recorded for each assay.

3. Results and Discussion

3.1. Lignin-Based Polyols

The production of lignin-based polyols was made by oxypropylation. Through this process, propylene polyoxide grafts are formed from the lignin hydroxyl groups using propylene oxide successive addition. The resultant polyol was a mixture of oxypropylated lignin and homopolymer (propylene polyoxide oligomers), a secondary product of this reaction [26]. All the produced lignin-based polyols were characterized for their technical properties, IOH, and viscosity, having in view their suitability for the application as a monomer for RPU foam synthesis (IOH between 300 and 800 and a viscosity below 300 Pa·s) [16]. Besides, the homopolymer (POO) content was quantified once it remained in the polyol mixture, which were used as such, i.e., without any further purification.
Regarding the oxypropylation reaction, the maximum temperature varied from 164 to 234 °C, while the maximum pressure values ranged between 19.2 and 22.5 bar. In general, a rising trend of the maximum temperature and pressure with the incremental increase of the L/PO oxide ratio was identified. For the IOH, viscosity, and POO content, the results are presented in Table 1. Analyzing the POO content of the isolated lignin-based polyols, as the L/PO ratio increased from 20/80 to 40/60, the POO content decreased from 42.7% to 6.3%. In contrast, the opposite occurred with the viscosity, varying from 4.8 to 221.5 Pa·s, putting in evidence the effect of the POO presence on the viscosity reduction. In the case of IOH content, an increase from 302.4 to 387.7 mg KOH/g was noticed due to the L/PO ratio rise from 20/80 to 40/60, reflecting the effect of the lignin content increasing in the polyol formulation. For the depolymerized lignin-based polyols, the POO content varied from 10.9% to 15.9%, for polyols OBL 30/70-C and OL 30/70-B, with these being lower than those obtained for the isolated lignin-based polyol 30/70 (same L/PO ratio). This variation was accompanied by a viscosity variation from 134.3 to 456.5 Pa·s, with these values registered for OBL 30/70-C and OL 30/70-B polyols, respectively. In addition, the IOH content of the depolymerized lignin polyols varied from 297.1 mg KOH/g (OL 30/70-B) to 397.5 mg KOH (OBL 30/70-C), with the latter the highest IOH and viscosity amongst all the produced polyols, out of the viscosity limit suitable for RPU foam synthesis (300 Pa·s). Even though it was also tested in the foam production assays. Summarizing, the final viscosity of the resultant polyols was dependent on several factors, such as the amount of homopolymer, the amount of unreacted biomass, the extension of the grafting reaction, and the molecular structure of lignin itself, namely if it is a high-molecular-weight lignin or a depolymerized lignin (fragmented lignin). In some cases, a prevalent factor is easy to identify, but in other cases the resulting value is a combination of several factors. For the samples L 20/80, L 30/70, and L 40/60, the most prevalent factor was the homopolymer content, whereas for the samples OL 30/70-B and OL 30/70-C, several factors contributed. For OBL 30/70-C, the unreacted fractions perceived by naked eye inspection (not quantified) might have contributed to the observed extremely high viscosity.
When comparing the properties of the polyols produced from the isolated lignin with the ones produced from depolymerized lignins (formulation 30/70), the main observed differences could be associated with their chemical structure dissimilarities; namely, the latter ones were lignins formed of shorter molecular fragments (they suffered chemical cleavage), lower functionality (removal of functional groups occurred during oxidation), and also molecules resulting from repolymerization reactions that might occur during the oxidation process [10,27]. This fact leads to fewer available sites for the propylene oxide grafting per molecule in the depolymerized lignins, as schematically represented in Figure 3. Since the number of these shorter molecules are expected to be high, more hydroxyl groups are available in total for the propylene oxide grafting, resulting in polyols with higher IOH number and lower molecular weight [21]. Comparing the lignins from batch and continuous oxidation processes, no significant differences were observed for the OL 30/70-B and OL 30/70-C polyols’ properties. The OBL 30/70-C polyol (polyol obtained from the depolymerized lignin resulting from the black liquor) presented a higher IOH and viscosity. According to Fernandéz-Rodriguéz and coworkers [28], during the direct depolymerization of the back liquor, the extent of lignin repolymerization can reach 40%, depending on the used process conditions, with this content being substantially higher than that registered for the isolated lignin oxidation. These phenomena increase the amount of larger molecules and decrease the shorter molecular chain content, leading to an increase of the generated polyol viscosity and IOH.

3.2. RPU Foam Synthesis and Characterization

The generated polyols were successfully used to produce RPU foams at a content of 100% and the produced RPU from sample foams are shown in Figure 4.
The RPU foams were characterized by evaluating the thermal stability, morphology, apparent density, thermal conductivity, and heat release rate (HRR).
The TGA and respective derivative (DTGA) profiles, evaluated under oxidative atmosphere, are shown in Figure 5. For the reference foam, two degradation stages were registered. For the first one, the degradation process started at 97 °C, and the maximum degradation temperature was 302 °C, corresponding to a weight loss of 37%, which might be associated with allophanate, biuret, and urethane groups degradation, together with the polyether moieties, leading to the ultimate formation of CO2 and secondary amines [29]. For the second degradation stage, the maximum degradation temperature was 540 °C and the weight loss 59%, related to the degradation of the secondary amines and other previously generated oxidation products [30]. For the isolated lignin-based polyols, a similar degradation pattern was identified, as shown in Figure 5a. The main differences related to the displacement of the two maximum degradation temperatures to lower values. In the first stage, the identified displacement was related to the removal of short molecules from the lignin-based polyol and the oxidative cleavage of some chemical bonds. This phenomenon led to the char layer formation [31], which occured together with the hard segment degradation, corresponding to a weight loss of 36%, 32%, and 26%, respectively, for the 20/80/100, 30/70/100, and 40/60/100 foams. During the second stage, lignin condensation reactions, namely the ones involving aliphatic side-chains and phenolic hydroxyl groups, could occur in the presence of the O2, maintaining the formation of the char layer [32]. This char degradation happened in parallel with the oxidation of the groups generated during the hard segment decomposition and small molecule volatilization. In this stage, weight losses of 56.2%, 53.7%, and 61.8% were registered, respectively, for the 20/80/100, 30/70/100, and 40/60/100 foams. In addition, for the lignin-based foams, the appearance of a third degradation stage above 600 °C was observed, with this being related to the char layer decomposition. Analyzing the degradation profiles shown in Figure 5a, a displacement of this degradation peak from 613 °C to 632 °C, as the lignin content increased, was observed. The higher degradation temperature of this stage was observed for the 40/60/100 sample, evidencing the sample’s high thermal stability under oxidative atmosphere. This last degradation stage was associated with the decomposition of the char layer generated during the degradation of the lignin aromatic molecular structure [23,33]. This distinct feature highlights the positive effect of the lignin-based polyols on foam’s thermal properties, particularly for the case of the highest lignin content incorporation (40/60).
Regarding the thermograms of the depolymerized lignin-based foams (Figure 5b), the maximum degradation temperature of the first degradation stage was similar to those obtained from the isolated lignin-based foams, which indicates the occurrence of a decomposition pattern identical to that of the lignin-based polyols. The weight losses achieved were 27%, 30%, and 22%, respectively, for the foams OL 30/70/100-B, OL 30/70/100-C, and OBL 30/70/100-C. However, the degradation pattern at higher temperatures was different from those observed in the previous samples. For the sample OL 30/70/100-C, only a second degradation stage was registered, with a maximum degradation temperature of 514 °C and a weight loss of 65%. For the OL 30/70/100-B sample, a second stage with a maximum degradation temperature of 496 °C and a weight loss of 47% was observed, together with the third stage at 604 °C (20% weight loss). Lastly, for the OBL 30/70/100-C sample, a second degradation stage appeared at 532 °C, with a weight loss of 65%, while the third occured at 618 °C, where a weight loss of 7.15% was observed. These variations were related to the different fragments present in the depolymerized lignin molecular structure [34]. Nevertheless, looking at the depolymerized lignin-based polyols, the one obtained from the directly oxidized black liquor showed a higher capacity to generate the charring protective layer and, consequently, was a more thermally stable material. Comparatively, the isolated lignin-based polyols were closer to that observed for the 40/60 polyol, when considering the foams’ thermal stability increase.
Concerning the cellular morphology of the produced foams, the SEM images are shown in Figure 6, while the average cell diameter calculated from the SEM analysis is presented in Table 2. The cellular morphology plays an important role in foams’ physical and mechanical properties. In a general way, all the foams present the typical closed cellular structure. Inhomogeneous cell distribution was observed for the reference foam, characterized by large cells with some small cells distributed within. The measured average cellular diameter was 317 µm. In the case of the isolated lignin-based foams, the cellular distribution became more homogeneous as the lignin content increased, with a large number of small cells also noted compared with the reference sample. This observation was corroborated by the average cell diameter, which for the lignin-based foams decreased from 269 µm to 216 µm, as the lignin content increased (20/80 to 40/60 formulation). For the depolymerized lignin-based foams, a different pattern of the cellular structure was observed, particularly for the OL 30/70/100-B sample, where larger cells were observed, contributing to a more irregular cellular distribution with an average cell diameter of 291 µm. For the OBL 30/70/100-C sample, the presence of defective, distorted, and larger cells was observed, characterized by an irregular cellular distribution with an average cell diameter of 252 µm. These modifications can be attributed to the higher viscosity of the OBL 30/70 polyol (456.5 Pa·s), the highest among all the produced polyols, hindering the generation and growth of the gas bubbles, and thus contributing to heterogeneous cell formation. Oppositely, the sample OL 30/70/100-C presented a homogenous cellular structure, where small cells were predominant, reflected by the lower average cell diameter of 147 µm. Overall, when comparing the cellular morphology of the reference foam with one of the lignin-based foams, the differences can be related with two main characteristics: the lignin content of the base polyol, the increase of which led to the increase number of small cells and a more homogenous cellular structure, and the polyols’ viscosity, once viscous polyols hindered foam from rising (the generation and growth of the gas bubbles became more complex), thus leading to a distinct foam microstructure.
The obtained results of apparent density are presented in Table 2. The apparent density is closely related to the cellular structure of the foams [14]. The registered values for the lignin-based foams varied between 45 and 112.2 Kg/m3, while for the reference sample a density of 70.9 Kg/m3 was obtained. In general, increasing the lignin content in the foam formulation led to an increased foam density, namely to 44.7 and 54.0 Kg/m3 for the samples 20/80/100 and 30/70/100, respectively. The sample 40/60/100 had a density of 71.7 Kg/m3, closer to the reference foam. For the depolymerized lignin-based foams, the density values varied from 46.8 Kg/m3 (OL 30/70/100-C) to 112.2 Kg/m3 (OBL 30/70/100-C). This difference evidences the effect of the cellular structure once the OL 30/70/100-C foam had a homogenous cellular structure with a higher number of small-sized cells. In comparison, the OBL 30/10/100-C comprised larger cells and an irregular cell-size distribution.
Regarding the thermal conductivity, low values guarantee a low heat transfer capacity, thus diminishing the heat losses [15]. In addition, the thermal conductivity is strongly related to the foams’ cellular structure, and hence, with the foams’ apparent density [14]. Generally, the lignin-based foams presented lower thermal conductivity values than the reference (41.1 mW/mK) (Table 2). The main exceptions were the foams produced with depolymerized lignin polyols, OBL 30/70/100-C (49.0 mW/mK) and OL 30/70/100-B (44.6 mW/mK), which had higher densities but a more irregular cellular distribution. To highlight that, all the foams produced with lignin-based polyols had a thermal conductivity lower than the reference foam, providing evidence of the positive effect of these polyols on the foam’s thermal properties. The OL 30/70/100-C foam presented a thermal conductivity of 38.5 mW/mK, with this being the lowest value registered among the produced depolymerized lignin-based foams. In summary, for OL 30/70/100-B and OL 30/70/100-C, the most prevalent factor affecting density and thermal conductivity was the reactivity of the polyols, translated by the respective IOH number. For the OBL 30/70-100 foam, the sample produced with the OBL 30/70-C polyol, which presented the highest viscosity, this parameter dictated the foam’s properties. This analysis is in good agreement with the findings of Li and co-workers [15], who critically analyzed the different patterns of foams’ cellular structures based on the polyols’ properties.
The results obtained for the heat release rate (HHR) measured during the foams’ combustion are shown in Figure 7a for the isolated lignin-based foams and in Figure 7b for the depolymerized lignin-based foams. Regarding the properties described in Table 3, the ignition time was an important parameter to take into account. It corresponds to the time required for the sample surface to attain the flaming combustion, with this being considered an intrinsic material property, depending on both the sample thickness and the material characteristics [35]. Analyzing the time to ignition registered in cone calorimeter test, a variation between 2.0 (samples 20/80/100, 40/60/100, and OL 30/70/100-C) and 7.0 s (OLB 30/70/100 sample) was observed. The highest value was obtained for the OBL 30/70/100-C sample. For the reference foam, the time to ignition was 3.0 s. These results point out an improved behavior conferred by the depolymerized lignins, specifically for the OBL 30/70/100-C foam under the tested conditions once its combustion initiation was delayed compared with the reference foam.
The highest pHHR value amongst all the tested foams was 109.1 kW/m2, obtained for the reference sample. In addition, the fast ignition associated with the intense fire growth represented by the sharp peak of the heat release rate graphic (Figure 7) corresponded to the typical behavior of cellular materials when subjected to a combustion process [35]. After the pHHR of the reference, the highest values were 107.2 and 104.5 kW/m2, with these being registered for the OL-30/70/100-B and 20/80/100 samples, respectively. Oppositely, the lowest pHHR value was 84.8 kW/m2, obtained for the 40/60/100 sample. Thus, in general, the lignin-based foams had a lower heat release rate when compared with the reference sample.
The elapsed time between the ignition and the pHHR (maximum of the HHR curves), shown in Figure 7a,b, can be related to the flame propagation rate, meaning that more sharp peaks are associated with faster combustion processes when conjugated with lower flame out times [23]. This behavior was observed both on the HHR curves of the reference and the 20/80/100 foams (Figure 7a). An entirely different pattern was noticed for the 30/70/100 and 40/60/100 HRR profiles. A similar time interval between the ignition and the pHHR was registered, with the flame out times being longer, varying from 106 to 122 s, thus reflecting a slower combustion process. For the depolymerized lignin-based foams (Figure 7b), the longer time interval between the ignition and pHHR was observed for the OBL 30/70/100-C sample. In addition, this foam presented the highest flameout time amongst all the produced samples. This fact can be partially attributed to the higher apparent density of this foam [35].
For the cone calorimeter tests, and in comparison with the reference foam, the 40/60/100 foam presented the best performance under the used conditions. Besides, this lignin-based foam had values of apparent density and thermal conductivity closer to the reference. The low HRR points out a high fire resistance, which can be attributed to this polyol’s high lignin content, among all the produced ones. Lignin is widely referred to as presenting fire-retardant properties. Under combustion, it forms a carbonaceous char layer due to its aromatic structure decomposition, acting as an insulating layer and retarding the material’s combustion progression [22]. This fact is shown by different studies devoted to the production and characterization of RPU foams based on functionalized lignin [11,15] and lignin use as filler [13], with a similar role expected for foams produced using 100% of lignin-based polyols. Furthermore, the overall results show the decreasing of the HRR for the formulations incorporating lignin, especially for those based on the depolymerized fractions resulting from the continuous oxidation process.

4. Conclusions

The present study was focused on the synthesis of lignin-based polyols through oxypropylation. The main focus was to show the viability of using the produced lignin-based polyols, particularly the ones derived from depolymerized lignins, and their impact on conductivity (a relevant parameter for RPU foams that are mostly used as insulating materials), and fire retardancy (an added value for these materials that can be imparted by lignin itself). Complementary studies, namely mechanical characterization of the produced RPU foams are still needed and are foreseen as future work. Two types of E. globulus lignins were used. One addressed the isolated lignin from the black liquor, and the other depolymerized lignins, a by-product of an oxidative process. Thereafter, these polyols were successfully employed for RPU foam production at a content of 100%. The foams’ apparent densities varied from 45 to 112.2 kg/m3, with the foams containing the lignin-based polyols presenting a thermal conductivity lower than the one of the reference foam. In addition, the pHHR of the lignin-based foams decreased with the lignin content increase, with the best results achieved for the 40/60/100 foam. From an overall analysis, it can be concluded that the produced lignin-based polyols can be used at a content of 100%, results not reported so far, to produce RPU foams with properties similar to the ones of the reference sample. In addition, the obtained results of the cone calorimeter tests provided evidence of the positive effect of the lignin-based polyol incorporation. Higher lignin contents contribute to the improvement of the fire retardancy properties. Based on the overall results, it was proved that the depolymerized lignins generated during the oxidation process to produce vanillin and syringaldehyde, particularly the ones obtained in the continuous reactor, can be further valued for polymeric materials production. Overall, the valorization of the low value side-streams, in this case lignin, can bring added value to the implementation of the pulp and paper biorefinery concept to which this work was a contribution.

Author Contributions

Conceptualization, P.C.R.P., A.E.R. and M.-F.B. methodology, P.C.R.P., L.M.R.M., P.A.G.P., A.E.R. and M.-F.B.; investigation, J.A.P., V.D.P., I.P.F., E.G. and C.F.O.; writing—original draft preparation, J.A.P. and I.P.F.; writing—review and editing, L.M.R.M., P.A.G.P., A.E.R. and M.-F.B.; supervision, A.E.R. and M.-F.B.; funding acquisition, P.C.R.P., A.E.R. and M.-F.B. All authors have read and agreed to the published version of the manuscript.


Foundation for Science and Technology (FCT, Portugal) and FEDER under Program PT2020 for financial support to CIMO (UIDB/00690/2020), and to UIDB/50020/2020 of the Associate Laboratory LSRE-LCM—funded by national funds through FCT/MCTES (PIDDAC); national funding by FCT, PI, through the institutional scientific employment program contract for Isabel P. Fernandes. This work was carried out under the Project No. 33969 Bioblocks—Design of biobased products from renewable lignocellulosic sources as precursors for the bioindustry of chemical synthesis and biomaterials—financed by FEDER through the Operational Program for Competitiveness Factors (POFC) and QREN. To COST Action LignoCOST (CA17128) supported by COST (European Cooperation in Science and Technology).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. European Commission Green Deal: Commission Adopts New Chemicals Strategy towards a Toxic-Free Environment. 2020. Available online: (accessed on 8 January 2021).
  2. Garlapati, V.K.; Chandel, A.K.; Kumar, S.J.; Sharma, S.; Sevda, S.; Ingle, A.P.; Pant, D. Circular economy aspects of lignin: Towards a lignocellulose biorefinery. Renew. Sustain. Energy Rev. 2020, 130, 109977. [Google Scholar] [CrossRef]
  3. Cadena, E.; Rocca, F.; Gutierrez, J.A.; Carvalho, A. Social life cycle assessment methodology for evaluating production process design: Biorefinery case study. J. Clean. Prod. 2019, 238, 117718. [Google Scholar] [CrossRef]
  4. Leibensperger, C.; Yang, P.; Zhao, Q.; Wei, S.; Cai, X. The synergy between stakeholders for cellulosic biofuel development: Perspectives, opportunities, and barriers. Renew. Sustain. Energy Rev. 2021, 137, 110613. [Google Scholar] [CrossRef]
  5. Falcone, P.M. Analysing stakeholders’ perspectives towards a socio-technical change: The energy transition journey in Gela Municipality. AIMS Energy 2018, 6, 645–657. [Google Scholar] [CrossRef]
  6. Glasser, W.G. About Making Lignin Great Again—Some Lessons from the Past. Front. Chem. 2019, 7, 565. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Rodrigues, A.E.; Pinto, P.C.D.O.R.; Barreiro, M.F.; Da Costa, C.A.E.; Da Mota, M.I.F.; Fernandes, I. An Integrated Approach for Added-Value Products from Lignocellulosic Biorefineries. In An Integrated Approach for Added-Value Products from Lignocellulosic Biorefineries; Springer International Publishing: Cham, Switzerland, 2018. [Google Scholar]
  8. da Silva, E.B.; Zabkova, M.; Araújo, J.; Cateto, C.; Barreiro, M.; Belgacem, M.; Rodrigues, A. An integrated process to produce vanillin and lignin-based polyurethanes from Kraft lignin. Chem. Eng. Res. Des. 2009, 87, 1276–1292. [Google Scholar] [CrossRef]
  9. Ma, C.; Mei, X.; Fan, Y.; Zhang, Z. Oxidative Depolymerizaton of Kraft Lignin and its Application in the Synthesis of Lignin-phenol- formaldehyde Resin. Bioresources 2017, 13, 1223–1234. [Google Scholar] [CrossRef]
  10. Mahmood, N.; Yuan, Z.; Schmidt, J.; Tymchyshyn, M.; Xu, C.C. Hydrolytic liquefaction of hydrolysis lignin for the preparation of bio-based rigid polyurethane foam. Green Chem. 2016, 18, 2385–2398. [Google Scholar] [CrossRef]
  11. Zhang, X.; Kim, Y.; Eberhardt, T.L.; Shmulsky, R. Lab-scale structural insulated panels with lignin-incorporated rigid polyurethane foams as core. Ind. Crop. Prod. 2019, 132, 292–300. [Google Scholar] [CrossRef]
  12. Alinejad, M.; Henry, C.; Nikafshar, S.; Gondaliya, A.; Bagheri, S.; Chen, N.; Singh, S.K.; Hodge, D.B.; Nejad, M. Lignin-Based Polyurethanes: Opportunities for Bio-Based Foams, Elastomers, Coatings and Adhesives. Polymers 2019, 11, 1202. [Google Scholar] [CrossRef][Green Version]
  13. Luo, S.; Gao, L.; Guo, W. Effect of incorporation of lignin as bio-polyol on the performance of rigid lightweight wood–polyurethane composite foams. J. Wood Sci. 2020, 66, 66. [Google Scholar] [CrossRef][Green Version]
  14. Li, B.; Zhou, M.; Huo, W.; Cai, D.; Qin, P.; Cao, H.; Tan, T. Fractionation and oxypropylation of corn-stover lignin for the production of biobased rigid polyurethane foam. Ind. Crop. Prod. 2020, 143, 111887. [Google Scholar] [CrossRef]
  15. Zhang, X.; Jeremic, D.; Kim, Y.; Street, J.; Shmulsky, R. Effects of Surface Functionalization of Lignin on Synthesis and Properties of Rigid Bio-Based Polyurethanes Foams. Polymers 2018, 10, 706. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Cateto, C.A.; Barreiro, M.F.; Rodrigues, A.E.; Belgacem, M.N. Optimization Study of Lignin Oxypropylation in View of the Preparation of Polyurethane Rigid Foams. Ind. Eng. Chem. Res. 2009, 48, 2583–2589. [Google Scholar] [CrossRef]
  17. Li, Y.; Ragauskas, A. Kraft Lignin-Based Rigid Polyurethane Foam. J. Wood Chem. Technol. 2012, 32, 210–224. [Google Scholar] [CrossRef]
  18. Kurańska, M.; Pinto, J.; Salach, K.; Barreiro, M.; Prociak, A. Synthesis of thermal insulating polyurethane foams from lignin and rapeseed based polyols: A comparative study. Ind. Crop. Prod. 2020, 143, 111882. [Google Scholar] [CrossRef]
  19. Abid, A.; Brosse, N.; Ziegler-Devin, I.; Gabsi, S. Production and characterization of rigid polyurethane foam by oxypropylation of organosolv lignin extracted from exhausted olive pomace. J. Polym. Res. 2020, 27, 1–7. [Google Scholar] [CrossRef]
  20. Mahmood, N.; Yuan, Z.; Schmidt, J.; Xu, C.C. Preparation of bio-based rigid polyurethane foam using hydrolytically depolymerized Kraft lignin via direct replacement or oxypropylation. Eur. Polym. J. 2015, 68, 1–9. [Google Scholar] [CrossRef]
  21. Ihalainen, P.; Antunes, J.; Levée, T. Application of Enzymatically Treated Lignin Oligomers as Lignopolyols For A Full Replacement of Commercial Polyols in Polyurethane Foam Formulation. Biomed. J. Sci. Tech. Res. 2019, 24, 17898–17904. [Google Scholar] [CrossRef][Green Version]
  22. Mandlekar, N.; Cayla, A.; Rault, F.; Giraud, S.; Salaün, F.; Malucelli, G.; Guan, J.-P. An Overview on the Use of Lignin and Its Derivatives in Fire Retardant Polymer Systems. In Lignin-Trends and Applications; Poletto, M., Ed.; IntechOpen: London, UK, 2018; Volume 32, pp. 137–144. [Google Scholar]
  23. Lu, W.; Li, Q.; Zhang, Y.; Yu, H.; Hirose, S.; Hatakeyama, H.; Matsumoto, Y.; Jin, Z. Lignosulfonate/APP IFR and its flame retardancy in lignosulfonate-based rigid polyurethane foams. J. Wood Sci. 2018, 64, 287–293. [Google Scholar] [CrossRef][Green Version]
  24. De Rezende, S.C.; Jo, A.P.; Fernandes, I.P.; Barreiro, F.V.L.A.M.-F. Oxypropylation of Brazilian Pine-Fruit Shell Evaluated by Principal Component Analysis. J. Renew. Mater. 2018, 6, 715–723. [Google Scholar] [CrossRef][Green Version]
  25. Pavier, C.; Gandini, A. Oxypropylation of sugar beet pulp. 1. Optimisation of the reaction. Ind. Crop. Prod. 2000, 12, 1–8. [Google Scholar] [CrossRef]
  26. Pinto, J.A.; Prieto, M.A.; Ferreira, I.C.; Belgacem, M.N.; Rodrigues, A.E.; Barreiro, M.F. Analysis of the oxypropylation process of a lignocellulosic material, almond shell, using the response surface methodology (RSM). Ind. Crop. Prod. 2020, 153, 112542. [Google Scholar] [CrossRef]
  27. Klapiszewski, Ł.; Szalaty, T.J.; Jesionowski, T. Depolymerization and Activation of Lignin: Current State of Knowledge and Perspectives. In Lignin-Trends and Applications; IntechOpen: London, UK, 2018; pp. 1–27. [Google Scholar]
  28. Fernández-Rodríguez, J.; Erdocia, X.; De Hoyos, P.L.; Alriols, M.G.; Labidi, J. Small phenolic compounds production from Kraft black liquor by lignin depolymerization with different catalytic agents. Chem. Eng. Trans. 2017, 57, 133–138. [Google Scholar]
  29. Zia, K.M.; Bhatti, H.N.; Bhatti, I.A. Methods for polyurethane and polyurethane composites, recycling and recovery: A review. React. Funct. Polym. 2007, 67, 675–692. [Google Scholar] [CrossRef]
  30. He, J.-J.; Jiang, L.; Sun, J.-H.; Lo, S.M. Thermal degradation study of pure rigid polyurethane in oxidative and non-oxidative atmospheres. J. Anal. Appl. Pyrolysis 2016, 120, 269–283. [Google Scholar] [CrossRef]
  31. Brebu, M.; Vasile, C. Thermal degradation of lignin—A review. Cellul. Chem. Technol. 2010, 44, 353–363. [Google Scholar]
  32. Hirose, S.; Kobashigawa, K.; Izuta, Y.; Hatakeyama, H. Thermal degradation of polyurethanes containing lignin studied by TG-FTIR. Polym. Int. 1998, 47, 247–256. [Google Scholar] [CrossRef]
  33. Shen, D.; Hu, J.; Xiao, R.; Zhang, H.; Li, S.; Gu, S. Online evolved gas analysis by Thermogravimetric-Mass Spectroscopy for thermal decomposition of biomass and its components under different atmospheres: Part I. Lignin. Bioresour. Technol. 2013, 130, 449–456. [Google Scholar] [CrossRef]
  34. Ahmad, Z.; Al Dajani, W.W.; Paleologou, M.; Xu, C.C. Sustainable Process for the Depolymerization/Oxidation of Softwood and Hardwood Kraft Lignins Using Hydrogen Peroxide under Ambient Conditions. Molecules 2020, 25, 2329. [Google Scholar] [CrossRef]
  35. Schartel, B.; Hull, T.R. Development of fire-retarded materials—Interpretation of cone calorimeter data. Fire Mater. 2007, 31, 327–354. [Google Scholar] [CrossRef]

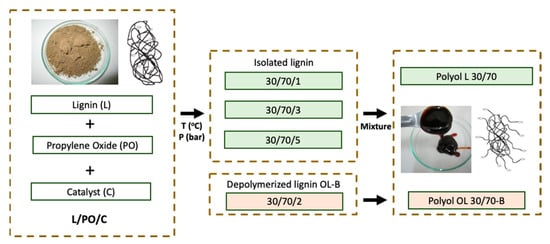

Figure 1. Schematic representation of the polyol synthesis, considering as examples the polyols L 30/70 and the OL 30/70-B.
Figure 1. Schematic representation of the polyol synthesis, considering as examples the polyols L 30/70 and the OL 30/70-B.
Energies 14 03825 g001

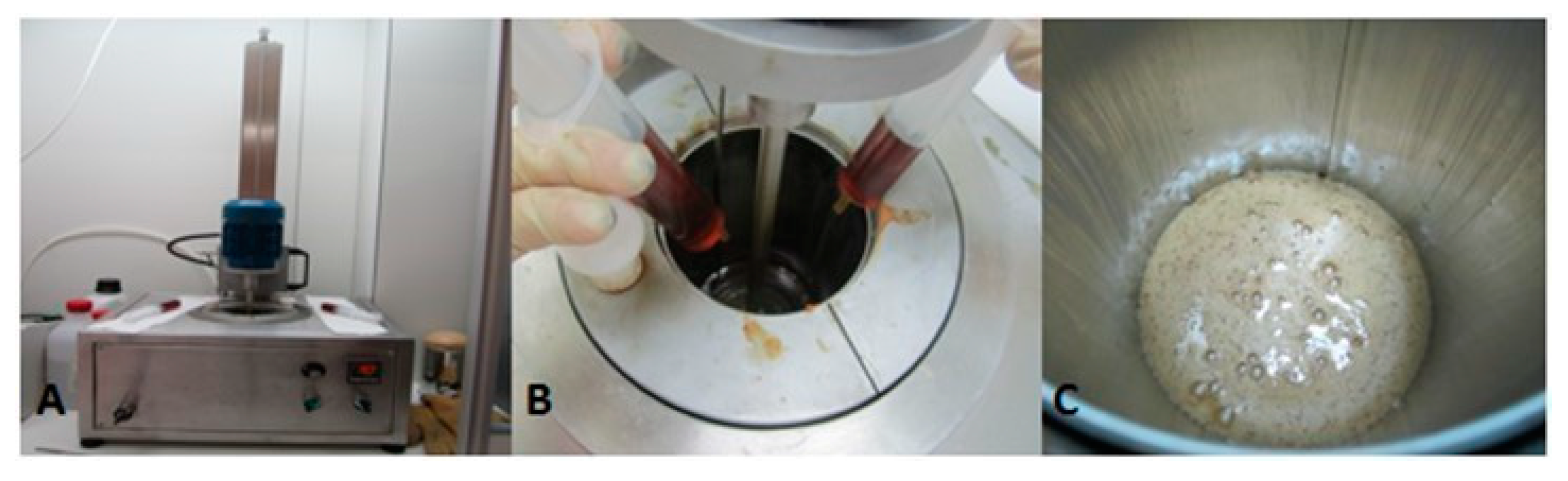

Figure 2. Stages of the RPU foam production: (A) synthesis reactor; (B) diisocyanate addition, and (C) foam rising.
Figure 2. Stages of the RPU foam production: (A) synthesis reactor; (B) diisocyanate addition, and (C) foam rising.
Energies 14 03825 g002

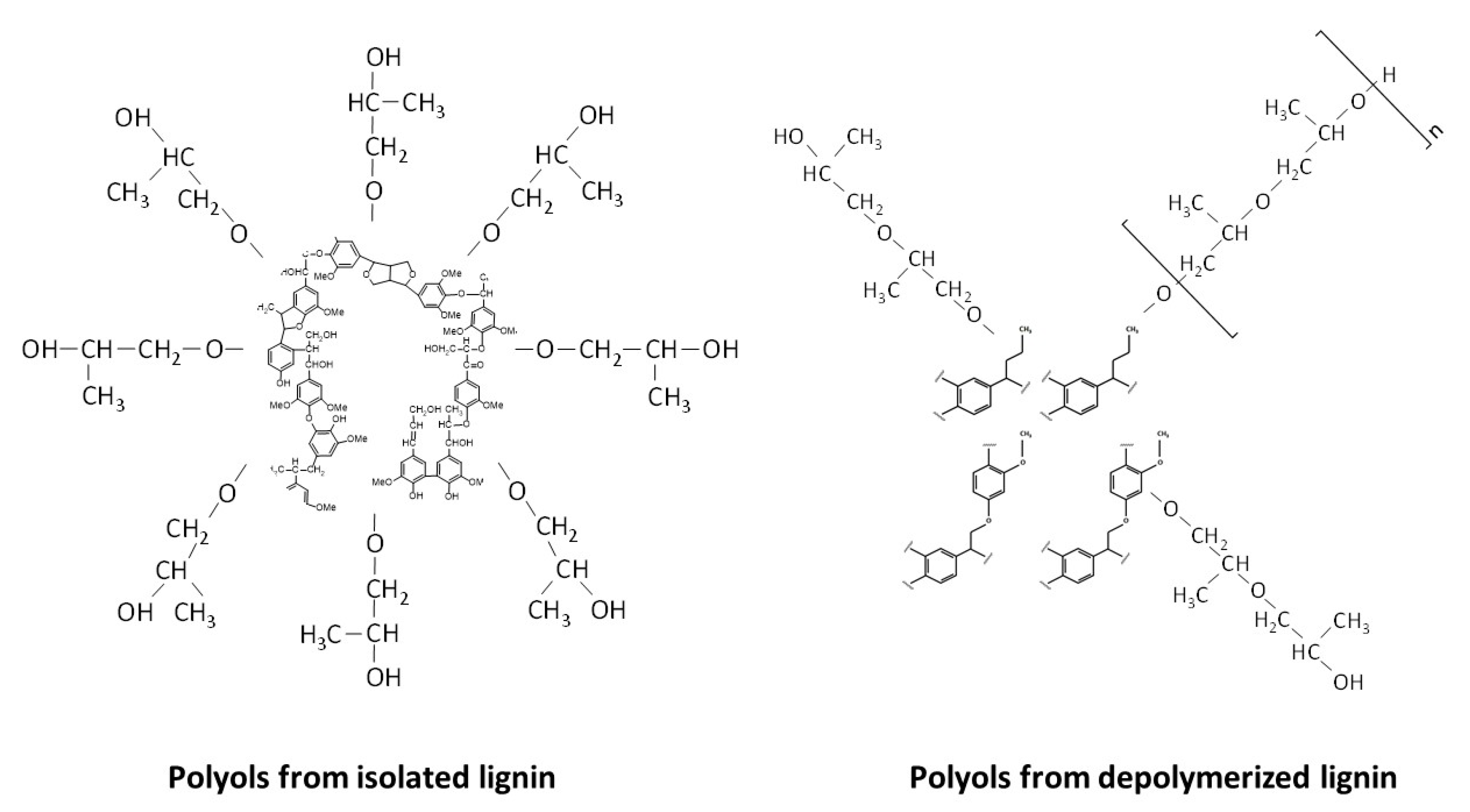

Figure 3. Schematic representation of the polyols’ molecular chains obtained from the isolated lignin and the depolymerized lignin.
Figure 3. Schematic representation of the polyols’ molecular chains obtained from the isolated lignin and the depolymerized lignin.
Energies 14 03825 g003

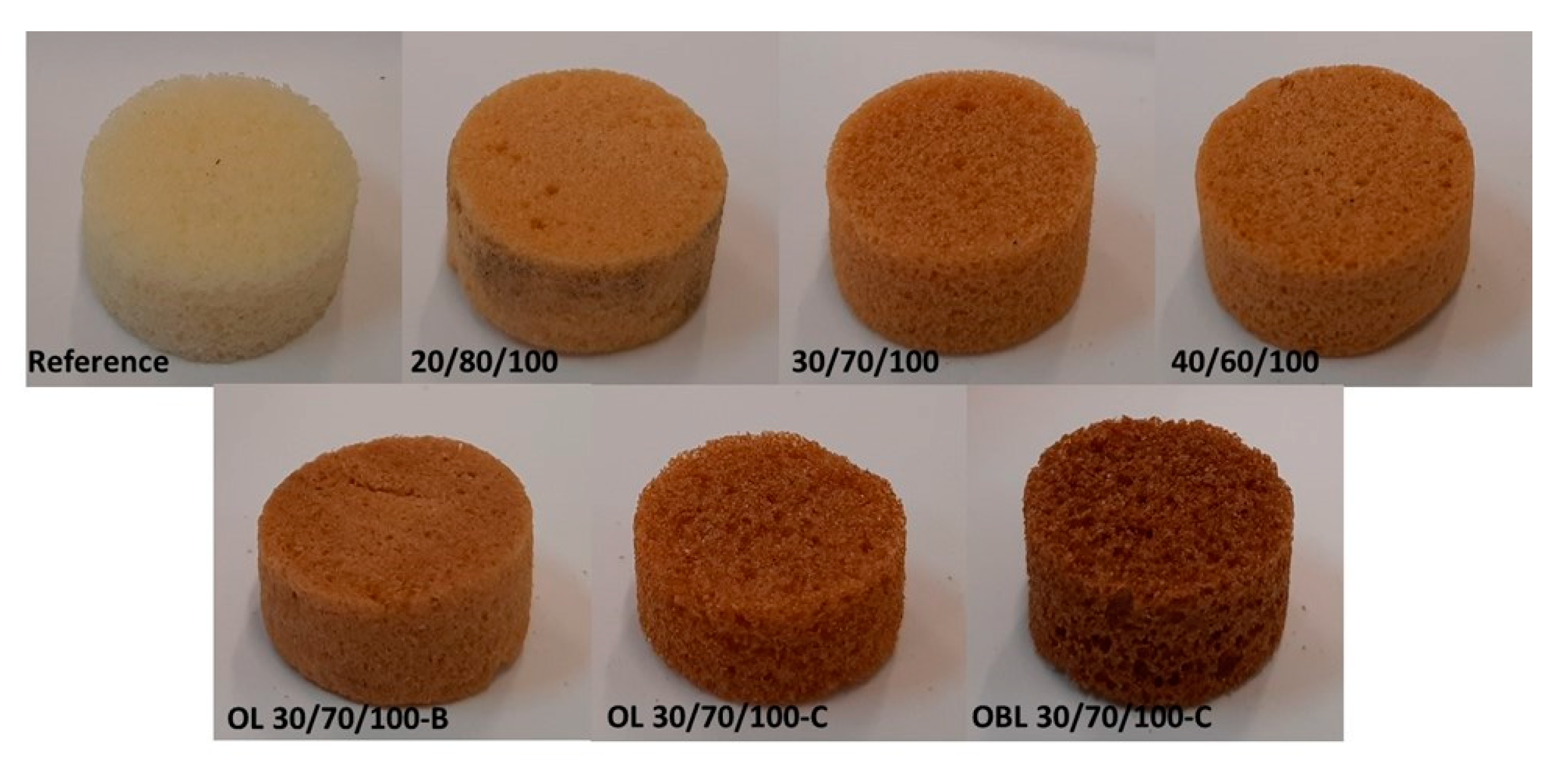

Figure 4. Samples of the produced RPU foams.
Figure 4. Samples of the produced RPU foams.
Energies 14 03825 g004

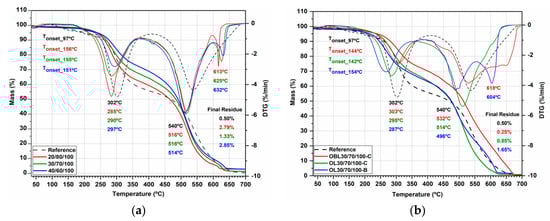

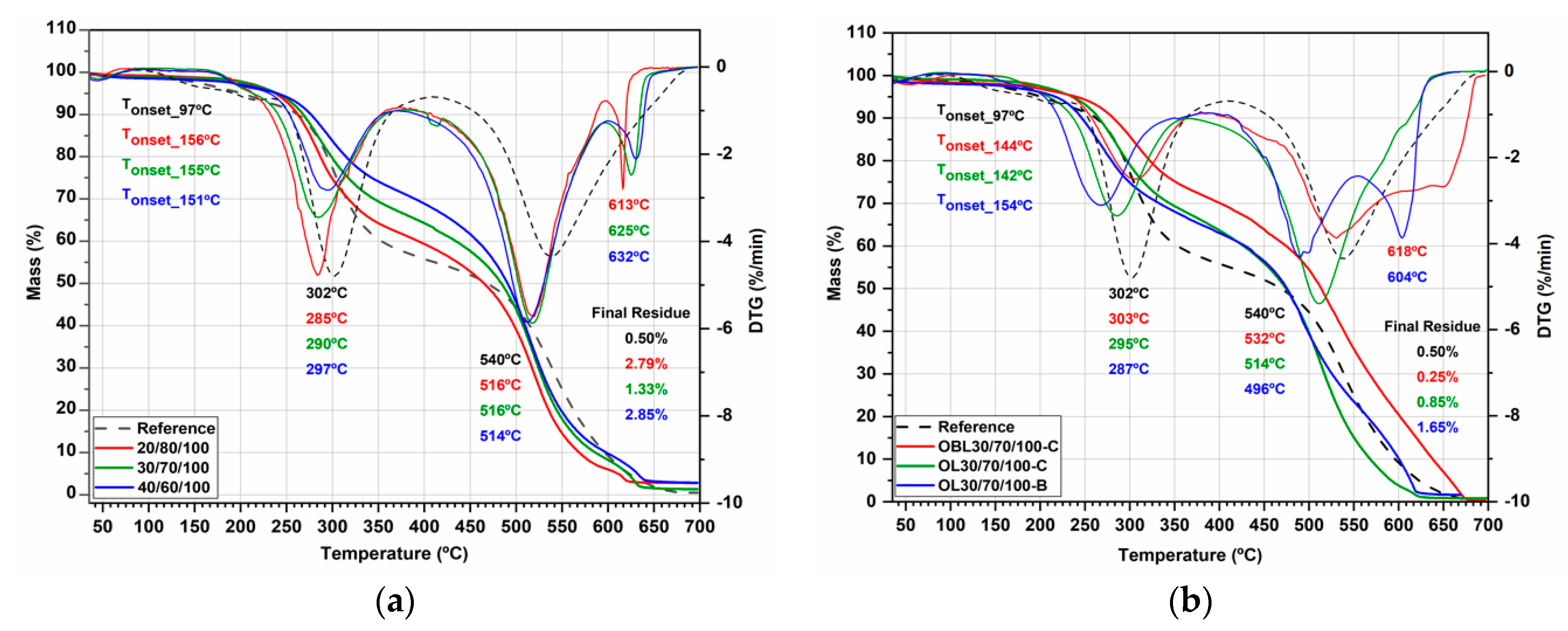

Figure 5. TGA and DTGA profiles obtained under oxidative atmosphere of: (a) reference foam and foams produced with polyols 20/80, 30/70, and 40/60; and (b) reference foam and foams produced with the depolymerized lignin polyols. (Tonset is the initial decomposition temperature).
Figure 5. TGA and DTGA profiles obtained under oxidative atmosphere of: (a) reference foam and foams produced with polyols 20/80, 30/70, and 40/60; and (b) reference foam and foams produced with the depolymerized lignin polyols. (Tonset is the initial decomposition temperature).
Energies 14 03825 g005
Figure 6. SEM images of the reference foam and foams produced with the lignin and depolymerized lignin polyols. For each sample, two distinct acquisition modes were used—the first image corresponds the BSD Topo A mode, while the second one corresponds to BSD Full mode.
Figure 6. SEM images of the reference foam and foams produced with the lignin and depolymerized lignin polyols. For each sample, two distinct acquisition modes were used—the first image corresponds the BSD Topo A mode, while the second one corresponds to BSD Full mode.
Energies 14 03825 g006

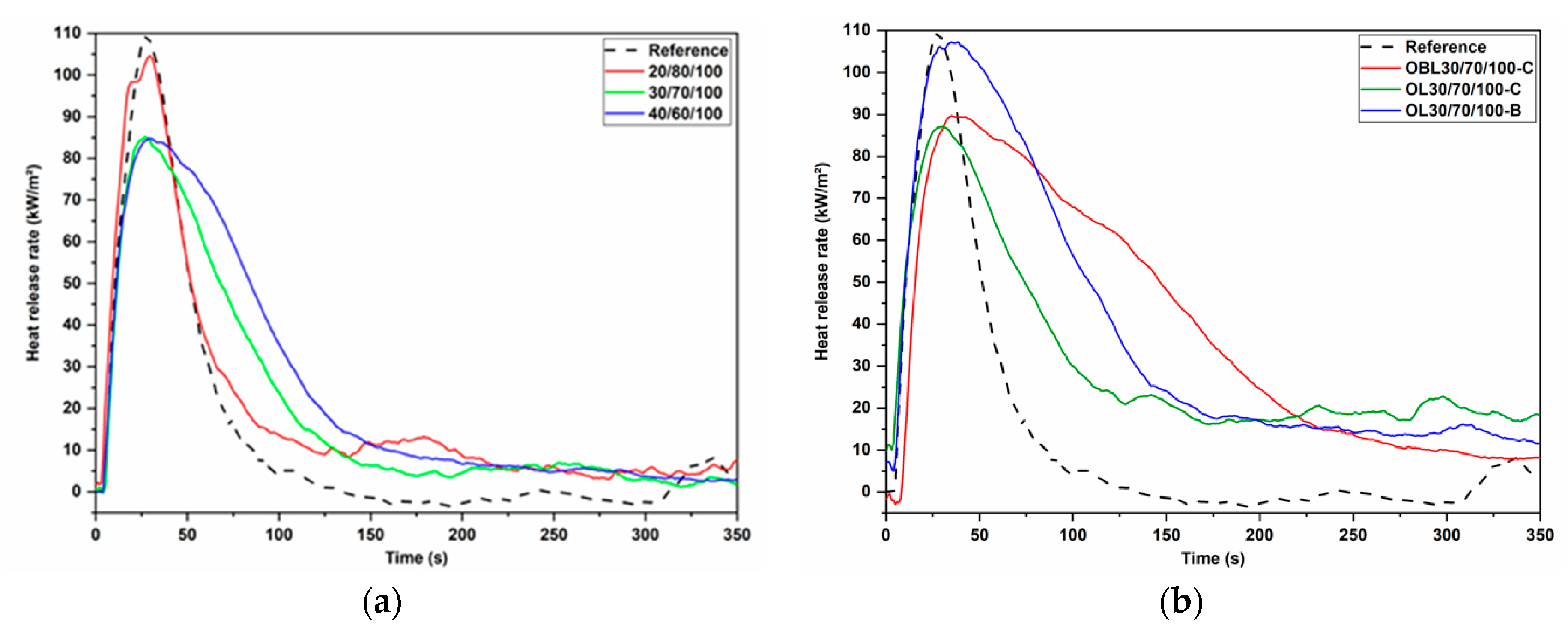

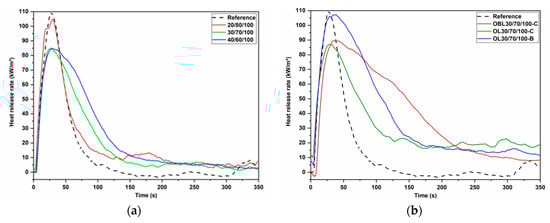

Figure 7. Heat release rate of (a) reference foam and foams produced with the lignin polyols, and (b) reference and foams produced with the depolymerized lignin polyols.
Figure 7. Heat release rate of (a) reference foam and foams produced with the lignin polyols, and (b) reference and foams produced with the depolymerized lignin polyols.
Energies 14 03825 g007
Table 1. Results of the lignin-based polyol characterization: POO, IOH content, and viscosity.
Table 1. Results of the lignin-based polyol characterization: POO, IOH content, and viscosity.
Formulation (L/PO/C, g/mL/%)POO (%, w/w)IOH (mg KOH/g)Viscosity (20 °C, Pa·s)
L 20/8042.7302.44.8
L 30/7024.4332.331.1
L 40/606.3387.7221.5
OL 30/70-B15.9297.1134.3
OL 30/70-C16.8349.8169.5
OBL 30/70-C10.9397.5456.5
Table 2. Results of the average cell diameter, apparent density, and thermal conductivity of the RPU foams.
Table 2. Results of the average cell diameter, apparent density, and thermal conductivity of the RPU foams.
FormulationAverage Cell Diameter (µm)Apparent Density (Kg/m3)Thermal Conductivity (mW/mK)
20/80/100269 ± 4944.737.2
30/70/100274 ± 5054.039.9
40/60/100216 ± 7571.740.1
OL 30/70/100-B291 ± 10781.344.6
OL 30/70/100-C147 ± 2846.838.5
OBL 30/70/100-C252 ± 92112.249.0
Reference foam317 ± 9870.941.1
Table 3. Values of the peak of heat release rate, time to ignition, and time to flameout of the tested RPU foams.
Table 3. Values of the peak of heat release rate, time to ignition, and time to flameout of the tested RPU foams.
FormulationTime to Ignition (s)Time to Flameout (s)pHRR (kW/m²)
OL 30/70/100-B3.0134.0107.2
OL 30/70/100-C2.0105.087.1
OLB 30/70/100-C7.0244.089.7
Reference foam3.060.0109.1
