Review

Methods of Stability Control of Perovskite Solar Cells for High Efficiency

1
Department of Solid State Physics and Nonlinear Physics, Al-Farabi Kazakh National University, IETP, Almaty 050040, Kazakhstan
2
Pediatric Faculty, Sechenov First Moscow State Medical University (Sechenov University), Moscow 119435, Russia
3
Department of Prosthetic Dentistry, Sechenov First Moscow State Medical University (Sechenov University), Moscow 119991, Russia
4
The Management Faculty, Czestochowa University of Technology, 42-201 Czestochowa, Poland
*
Author to whom correspondence should be addressed.
Energies 2021, 14(10), 2918; https://doi.org/10.3390/en14102918
Submission received: 13 April 2021 / Revised: 4 May 2021 / Accepted: 5 May 2021 / Published: 18 May 2021
(This article belongs to the Special Issue Solar Photovoltaics and Solar Thermal Energy Systems)

Abstract

:
The increasing demand for renewable energy devices over the past decade has motivated researchers to develop new and improve the existing fabrication techniques. One of the promising candidates for renewable energy technology is metal halide perovskite, owning to its high power conversion efficiency and low processing cost. This work analyzes the relationship between the structure of metal halide perovskites and their properties along with the effect of alloying and other factors on device stability, as well as causes and mechanisms of material degradation. The present work discusses the existing approaches for enhancing the stability of PSC devices through modifying functional layers. The advantages and disadvantages of different methods in boosting device efficiency and reducing fabrication cost are highlighted. In addition, the paper presents recommendations for the enhancement of interfaces in PSC structures.

1. Introduction

Halide perovskite solar cells (PSCs) are promising for practical use [1,2], due to high power conversion efficiency (PCE) of 25.5% [3,4]. Despite the variety of PSC research [5,6,7,8], PSC technology is seldom used for industrial applications, partially because of the instability of the perovskite structure layer and low reproducibility of PSCs [9,10]. The structural flaws and limited light absorption of the photoactive perovskite layer are the main factors that affect the PCE value in PSCs [11,12]. The characteristics of PSCs largely depend on the energy level alignment and carrier transport properties between the photoactive perovskite layer and carrier transport layer [11]. Therefore, most research effort is spent on surface morphology, crystallization control, energy level alignment, and conductivity of the perovskite photoactive and carrier transport layers [7]. High carrier mobility and equalization of conductivity levels promote the effective migration of photogenerated charge carriers, reducing their recombination at the interface [13,14,15]. In addition, solar modules based on PSCs are more practical and ergonomic, which inspires architects and designers to innovate when integrating these technologies into building architecture [16,17].
One way to improve the photoelectric performance and stability of perovskite devices is to enhance the quality of the perovskite light-absorbing layer by improving its structure, reducing the defects, and increasing grain sizes. This becomes possible thanks to the synergistic progress in interface modification, material synthesis, and device fabrication [18,19]. Because interfaces are decisive in charge transport and charge recombination, many studies have also focused on interface modification [20,21]. The aim of this paper is to provide an analytical review of the advances in the photovoltaics sector over the past 5 years that tackle the structure of the photoactive layer and its interfacial properties, resulting in higher stability and higher photovoltaic efficiency of PSCs.
The first section of the analytical review discusses the device architecture and work principles of PSCs. The second section looks at the latest methods for obtaining perovskite films and modifying the perovskite structure. The third section is devoted to the analysis of recent advances in the field of cathode and anode interface modification that help to improve PSC stability and efficiency. The main conclusions of the review analysis are presented in the fourth section.

1.1. The Structure of a PSC Device

Usually, a PSC includes a perovskite light-absorbing layer that is sandwiched between a hole transport layer (HTL) and an electron transport layer (ETL). The finishing layers of cell are the transparent conductive oxide (TCO) and the metal (Au, Al) electrodes (see Figure 1a) [22].

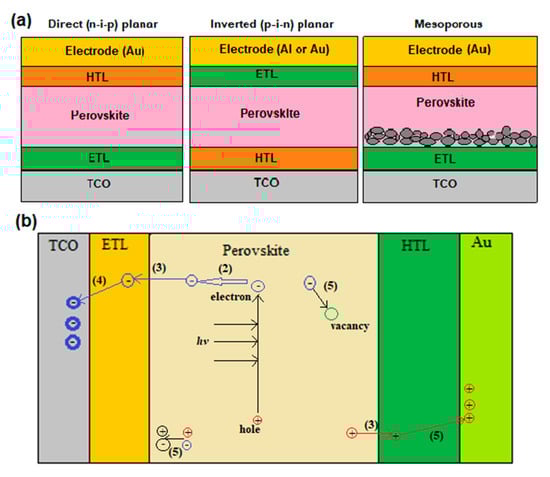

The PSCs come in two basic structures, as depicted in Figure 1a: the planar and the mesoporous. The mesoporous structure involves a porous ETL that is usually TiO2 [24]. The planar structure is separated into two types [23]:
(1)
n-i-p configuration, where ETL (n-type semiconductor) is deposited on the TCO substrate, and HTL (p-type semiconductor) is located above the perovskite layer;
(2)
p-i-n configuration, in which HTL is deposited at TCO surface and ETL on top of the perovskite layer.
From the configuration perspective, the planar structure is the most suitable for commercialization. Mesoporous structures require high annealing temperature and processing time, which leads to an increase in cost and complexity in the production of cells [24]. Planar structures are more simplified with lower annealing temperatures and, accordingly, lower material costs. Nevertheless, the presence of hysteresis in the current-voltage characteristics and insufficient stability of cells and their lower PCE as compared to a mesoporous structure inhibit the commercialization of planar PSCs. A solution to these problems requires, among other things, an understanding of the relation between a perovskite structure and ionic compositions, as well as interface engineering [25,26].
Direct and inverted configurations differ in the polarity of the solar cell. In the direct structure, electrons are collected in the TCO electrode (Figure 1b). For inverted structure, the TCO electrode collects holes. Both configurations have good photoelectric properties and high PCE [27]; however, greater degradation of ETL is registered in inverted configurations [28]. Therefore, a direct structure is more acceptable due to better structural stability and PSC efficiency.
The chemical structure of perovskite absorbers is represented by a basic formula ABX3, where A is an organic cation (methylammonium CH3NH3+, formamidinium NH2CHNH2+, etc.) or inorganic cation (Cs+, Rb+, K+, etc.); B is a metal cation with a larger ionic radius (Pb2+, Sn2+, etc.); and X is a halide anion with a smaller ionic radius (I, Br, Cl) [29]. Depending on the composition and stoichiometry, the perovskite material exhibits a variety of crystal structures, ranging from cubic, tetragonal, or hexagonal to rhombohedral or orthorhombic phases [28,29,30].
The alignment of energy levels of perovskite at the interface with other materials that make up the device, such as the photoactive layer (perovskite) and the electrodes (anode/cathode), is a prerequisite for effective charge separation (Figure 1b) and high performance of the PSCs. The most suitable ETLs for PSC devices are low work function (WF) metal oxides (TiO2, ZnO, Ta2O5, Al2O3, ZrO2), whereas the high-WF metal oxides (MoO3, NiO, CuO, V2O5) can act as HTLs [23]. These materials are easy and inexpensive to process as compared to pure metals. The most common method for adjusting energy levels is the introduction of a dipolar layer between the perovskite and the charge transfer layers, for example, by functionalizing the surface [31]. This concept is based on changing the WF of transparent conducting oxides and the position of the Fermi level of the oxides with respect to the charge transfer levels of the semiconductor. Organic substances and salts are also widely used as interfacial layers [32,33,34,35]. For example, p-type nickel oxide (NiO) was intercalated with cesium carbonate (Cs2CO3) to function as a hole and as an electron transport layers for planar PSCs [36]. The treatment with cesium carbonate increases the energy conversion efficiency of inverted and conventional planar PSCs. Functionalization of the electron layer of ZnO with dipolar molecules improves charge transport and decreases contact resistance [37]. In addition, surface treatment with polyethylene oxide (PEO) reduces the energy level mismatch at the carbon/perovskite interface [38].

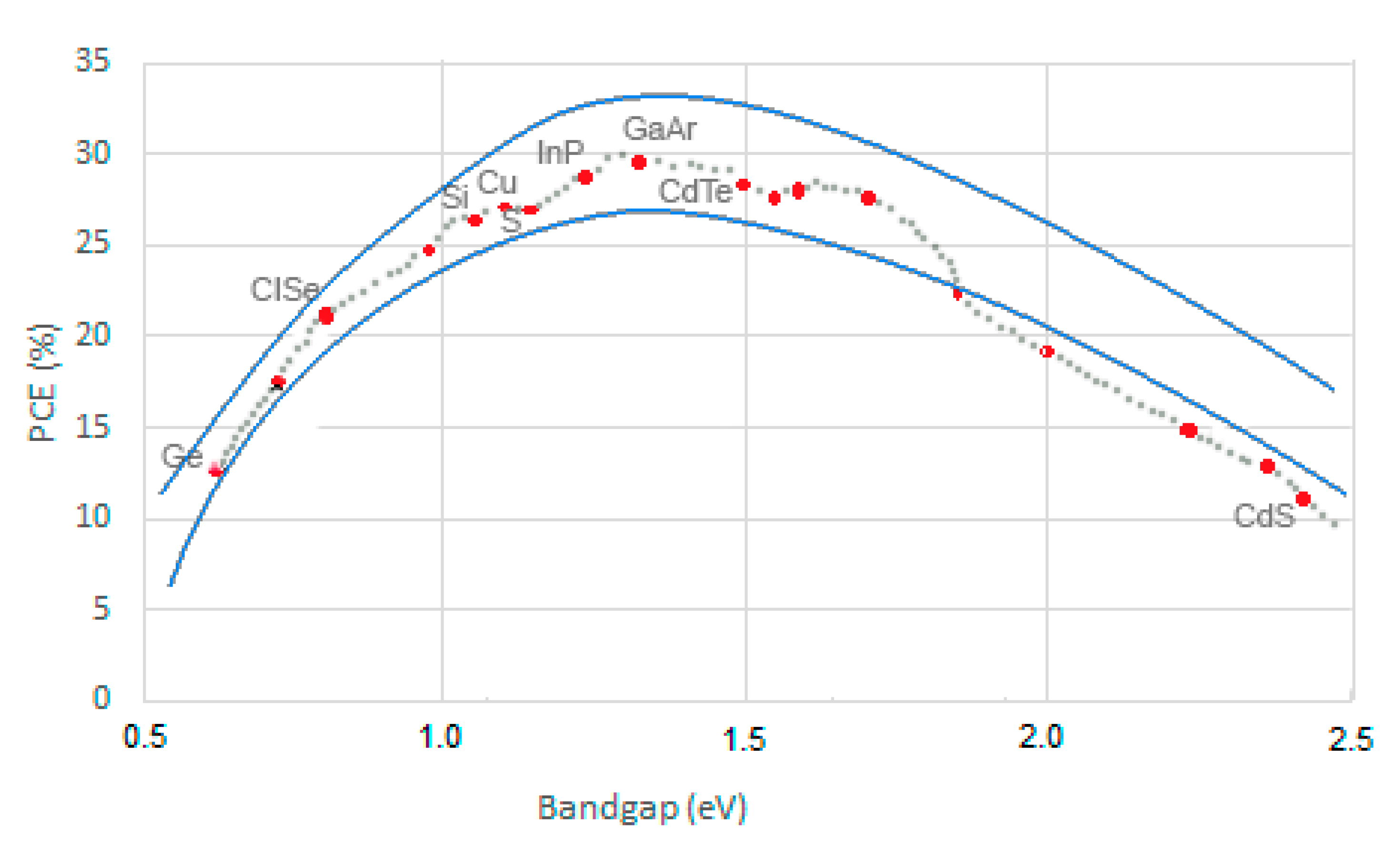

The theoretical efficiency limit of PSCs with a single-junction structure is established at 33% [39], whereas the silicon solar cells exhibit the maximum efficiency of 29.1% [40]. The certified efficiency record of PSCs is 25.5%, which is higher than that of thin film CdTe solar cells (22.1%) and polycrystalline silicon solar cells (22.3%) [41]. Due to the lower defect density, the MAPbI3 perovskite single crystals help in achieving efficient PSCs with PCE exceeding 21% [42], and the all-inorganic CsPbI3 perovskites were reported to reach a PCE over 18%. This makes them suitable for the fabrication of efficient device structures with a PCE of more than 12% [43]. The high performance of PSCs is achieved through various coating engineering approaches and the use of composite materials. Figure 2 shows the chronological progress of PCE PSCs over the last 5 years (2015–2020). Certified PCE values are compiled from data on PSC efficiency tables [44,45,46,47,48,49,50].

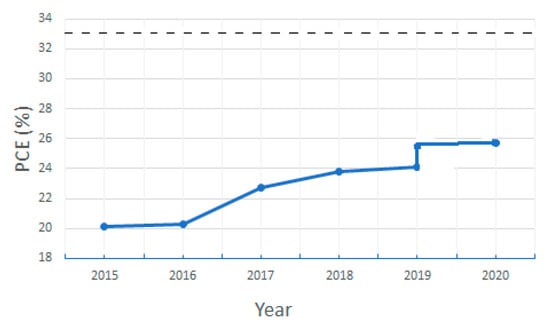

According to Figure 2, one can see that РСЕ value from 2015 to 2020 increased from 20.1% to 25.5%. Achievements of smooth growth of РСЕ are realized by changing the composition of the material from MAPbI3 to FAPbI3 and using their compositions to stabilize the α-phase of FAPbI3 at ambient temperature [44,45]. In addition to modifying the composition, the development of interfaces also contributes to improving PSC stability. Besides changing perovskite composition, film deposition methods play an important role in increasing PCE.
Lead-based PSCs are the most useable devices with high PCE [42,45]. However, lead toxicity and resultant chemical instability of perovskite materials are serious problems [51]. After reviewing recent studies [52], it was found that there are several scenarios for the recycling of lead from PSC waste, one of which allows the use of lead in PSCs with negligible environmental impact with others leading to a catastrophic negative impact of lead on the environment, including pollution of water and soil in landfills [53]. Currently, there are many studies [54] devoted to the search for perovskite materials based on low-toxicity elements (Sn, Bi, Sb, Ge, and Cu) or completely organic materials, which will provide alternative approaches to the implementation of high PCE and less harm to the environment in the near future.

1.2. PSC Working Principles

The capacity of PSCs to convert solar power into electricity is largely dependent on the photoactive materials properties and the device architecture. With a p-n junction photoactive material, the theoretical maximum limit of PCE approaches 33% at 1.4 eV bandgap, as shown in [55]. However, for real unijunction solar cells, the recorded efficiency is much lower than this upper limit (see Figure 3), which is explained by the influence of various factors (structural defects, impurities, etc.) [56]. As can be seen from Figure 3, the maximum PCE limit reduces as the energy bandgap shifts to 1.4 eV.
First, it was assumed that there were no losses, all photons with energy E > Eg were absorbed, and the material emitted as a black body with chemical potential μ > 0. Then it was decided to calculate the limits [55]. It was also assumed that each absorbed photon generates one electron in the external circuit, and therefore the efficiency of internal quantum equals 1. Hence, a solar cell can be considered as a body that emits blackbody radiation ϕbb and absorbs solar radiation ϕsun. The fluxes of absorbed and emitted photons are dependent on the absorbance (a(E)) that is equal to 1 for E > Eg and 0 for E < Eg. Knowing the absorbance, one can determine the short-circuit current density by solving the following equation [57]:
J s c = q E g a ( E ) ϕ s u n d E
where: E—the photon energy and q—the elementary charge.
The absorption efficiency η is defined as ratio of generated Frenkel excitons to the total number of incident photons:
η = J s c A J s c m a x
where: J s c m a x —the maximum current density that is extracted from a device. It depends on wavelength, as shown below:
J s c m a x = q h c λ 1 λ 2 P A M ( λ ) λ d λ
where: PAM—AM 1.5 G solar irradiance, h—Planck’s constant, c—the light speed in vacuum. J s c A —current density generated by the PSCs at short circuit when all the photons adsorbed within an active layer add to a photocurrent. It can be also expressed in terms of wavelength:
J s c A = q h c λ 1 λ 2 A a c t P A M ( λ ) λ d λ
where: Aact—the photoactive layer absorption.
In a real PSC, some of the absorbed solar energy is dissipated thanks to the resistance against the charge flow. Therefore, a PSC is modeled by equivalent circuit that takes this resistance into account. There are two types of resistance: series resistance, which can arise from the properties of the active layer and electrode, and contact resistance, which originates between electrodes and the active layer. It is widely accepted that for a single-junction PSC with a minimum leakage current, the current is expressed in terms of voltage:
J = J s ( exp ( q ( V J A R s ) n k B T ) ) J p h ,
where: Jph is the photogenerated current, Js—the reverse supersaturation current, n is the ideality factor determining the quality of device; and Rs is series resistance.
The first term of Equation (5) shows thermally generated currents and electrode injection current and the second term represents the photogenerated current. Using Equation (5) one can thus obtain all the necessary parameters of a solar cell [58], as well as the open circuit voltage, often expressed as:
V O C = n k B T q ln ( J p h J 0 + 1 )
When n = 1, the current recombination is insignificant in the depletion region, and diffusion current dominates in a device. When n = 2, a recombination current is prevailing. Because both the diffusion current and the recombination current within a device are known, the ideality factor will vary from 1 to 2.
The key parameters used to evaluate the quality and performance of a PSC are open circuit voltage (VOC), short-circuit current density (Jsc), fill factor (FF), and PCE. For example, in 2019, the highest recorded PCE of 24.2% was achieved with VOC = 1.1948 V, Jsc = 24.16 mA/cm2 and FF = 0.84 [49] compared to VOC = 1.059 V and FF = 0.77 and PCE value = 20.1% for 2014. Normally, the functional layers keep changing in real-life operating conditions, which leads to the emergence of various dynamic phenomena in the current–voltage curves, such as hysteresis and transient behavior [59,60].
As shown above, the energy levels of charge transport layers and crystal structure of the photoactive layer are some of the critical factors for efficient generation of photon-induced charges. The composition and morphology of the layers are also important factors. For example, the energy level alignment is sensitive to the layer thickness and can be tuned by incorporating various interface modifications of the perovskite film. The crystallinity of the perovskite layer can be controlled by using solvent additives [61]. A crucial role in thin-film solar cell fabrication is given to buffer layers or barrier layers that protect the active layers against the adverse effects of oxygen and humidity, align the energy level discrepancy between electrodes and active layers, and facilitate the charge transfer process [51]. The present review aims to study the recent modifications in the structure of the active layer and their effect on the photoelectric efficiency and PSC stability. The state-of-the-art report assesses advances in this field and can serve as a methodological guide to modifying the structure of perovskite solar cells.

2. Perovskite Structure Stability Methods

The main factor affecting the stability and efficiency of a photoelectric device is the crystallinity of the photoactive layer. It largely depends on the photoactive layer materials and methods for the preparation of the photoactive film. The alloying elements and solvent additives have been reported to improve the perovskite crystallinity [60]. This section provides a review of the novel approaches to perovskite film fabrication and improvement of the perovskite film crystallinity.

2.1. Methods for Making Perovskite Films

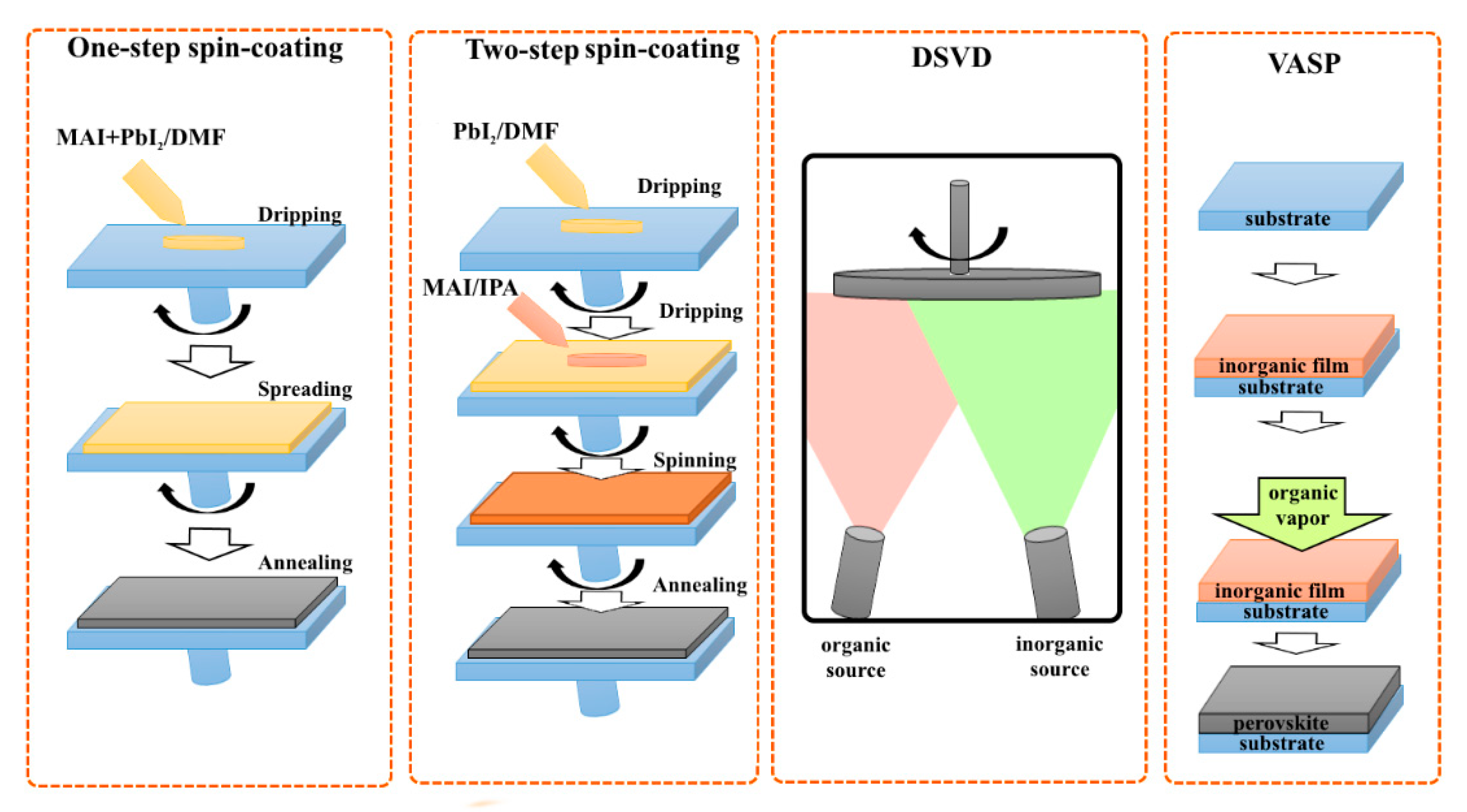

The core methods in perovskite film preparation are solution processing (SP) and vacuum deposition (VD). SP methods are better than VD as they are economical and compatible with the production of other active layers. To date, many options and stepwise procedures have been used in the fabrication of perovskite films, resulting in variation in both the film quality and PCE. The most commonly used VD procedures are sequential vapor deposition and dual-source VD processes. In SP, the most popular methods are single-step spin coating, two-step spin coating, vacuum deposition, and vapor-assisted solution processing (VASP) (Figure 4). Below is a description of the features of each of the popular methods for producing perovskite film with an assessment of the advantages and disadvantages of each.
The single-step spin-coating process involves the dissolving of organic halide molecules and metal halide for perovskite crystals. For this, CH3NH3I (MAI), CH3NH3Cl (MACl), or NH2CHNH2I (FAI) are mixed with PbI2 in C3H7NO (DMF), (CH3)2SO (DMSO), or C4H6O2 (GBL). Once the mixing is complete, it is deposited onto the substrate by spin coating and annealed at 90 °C (Figure 4) [61]. Using this method, however, film properties such as morphology and uniformity are difficult to control [6]. The perovskite films produced in such a way typically possess enlarged crystal grains and rough film morphologies, which can lead to the suppression of the carrier extraction processes in the PSC device. However, using an anti-solvent dripping technique during spin-coating, the perovskite precursor solution results in pure and stable crystal phases of polycrystalline perovskite films with highly reproducible efficiencies of more than 22% [62]. This method is quite simple and affordable, and the high quality of the film mainly depends on the purity of the precursors and the quality of the substrate [63].
In the two-step spin-coating process, PbI2 is deposited onto the substrate, then MAI undergoes spin coating on dried PbI2 film. The film color changes from yellow to brown. The film is then annealed at 90 °C for 10 min to enhance film morphology [64]. Sometimes, instead of the second step, the PbI2 film is immersed into the organic salt solution [65]. The two-step method was developed to improve and control the morphology of the film in MAI deposition. It involves the diffusion of cations (CH3NH3) into the PbI2 matrix with the formation of a perovskite film. The main disadvantage of this method is that it produces a dense film (MAPbI3) on the top PbI2 layer, preventing the perovskite formation within the PbI2 layer. To overcome this, one will need larger film thickness and more time [66]. The use of this technique also guarantees a high cell performance with high values of photovoltaic characteristics, namely Jsc, VOC, and FF.
The VD methods allow the precursor deposition in a vacuum at low temperatures. Multiple simultaneous precursor depositions or deposition of one precursor at a time is possible. The advantage of VD is that it improves the purity of the resulting material and reduces contamination from solvents, which makes it possible to control thickness and uniformity of a film. The low temperature of fabrication allows the use of various types of substrates, i.e., textiles and flexible substrates. DSVD produces high-density perovskite films of arbitrary thickness that can be controlled in real time [67,68]. However, this method is more expensive compared to other methods when obtaining similar cell performance metrics (Table 1).
The vapor-assisted solution processing (VASP) method is a stepwise procedure in which a PbI2 film is precipitated from the solution by centrifugation and then placed in a chamber filled with CH3NH3I vapor at 150 °C for two hours, which saturates the PbI2 matrix with CH3NH3 [69]. The perovskite film obtained by using this method is dense and shows no sign of current leakage. It also exhibits a uniform morphology, which helps to reduce the scattering of charge carriers, thereby improving device performance and charge recombination. The advantages of VASP are that high-purity films are highly reproducible and compatible with large areas; there is accurate control over film morphology and thickness and high PCE (>19%) [67,68,69] (Table 1).
Table 1. Photoelectric properties of perovskite-based devices fabricated using different deposition methods.
Table 1. Photoelectric properties of perovskite-based devices fabricated using different deposition methods.
PerovskiteDeposition MethodPCE, %Jsc, mA/cm2Voc, VFFReference
MAI-PbI2Single-step deposition19.5023.401.0877.00[61]
MAI-PbI2Single-step deposition24.8226.351.1680.90[6]
MAI-PbI2-DMSOSingle-step deposition19.7123.81.0876.20[70]
MAI-PbI2Two-step sequential deposition20.1323.811.1076.75[64]
MAI-PbI2Two-step sequential deposition19.2723.481.1273.66[65]
FA-PbI3Two-step sequential deposition22.424.41.1778.89[66]
MAI-PbI2Vacuum deposition19.423.111.0977[67]
MAI-PbI2Vacuum deposition19.124.31.1579.8[68]
FA1–xMAxPbI3Vacuum deposition18.822.51.175.1[71]
(FAPbI3xMACl)/DMF⋅NMPVapor-assisted solution processing19.7824.791.0774.60[72]
FA-PbI3Vapor-assisted solution processing21.425.21.1277.5[73]
MAI-PbI2Vapor-assisted solution processing19.4620.891.1680.4[74]
It seems that the one- and two-step depositions are the best ways to achieve the highest PCE (Table 1), and the vapor deposition creates better uniformity and density of the film in comparison with SP method. Vapor deposition produced films do not have holes that cause performance-reducing current leakage. Films produced by DSVD exhibit higher photocurrent and open circuit voltage due to better uniformity and fewer impurities. However, the two-step solution-based sequential deposition is more preferable in terms of device fabrication cost [66].
In addition to the above methods, there are other alternative technologies. For example, in recent years, the method of contactless inkjet printing has gained popularity. This technology offers the deposition of layers with simultaneous control of the structure of printed perovskite solar cells [75]. The results of [76] showed that the method of inkjet printing makes it possible to control the thickness of the perovskite layer in the range of 175 to 780 nm, which in turn makes it possible to control the morphology of the structure by adjusting the distance between the drops of the inkjet printer cartridge. In addition, according to the test results, printed solar cells based on Сs0,1(FA-MA)0.9Pb(IxBrx−1)3 demonstrate РСЕ 12.9%, which represents a significant improvement over similar formulations obtained by other methods (Table 1). One of the latest alternative technologies for the production of hybrid perovskite solar cells is blade-coating, which also makes it possible to control the layer thickness [77]. However, unlike the previous methods, the crystallization process of the perovskite film strongly depends on the method and conditions of coating. The results of studying the MAPbI3 perovskite obtained by the blade-coating method showed [78] that the morphology and composition of the coatings are determined by the rate of solvent removal. This, in turn, affects the РСЕ value, which reaches up to 15%. In another work, it was shown [79] that a PSC with an area of 1.96 cm2 obtained by this method is capable of reaching РСЕ of up to 18.3%, which is less than the efficiencies for films obtained by two-step sequential deposition (Table 1). Study of the features of film crystallization processes with alternative methods of preparation is ongoing, and understanding these processes can significantly expand their future possibilities for large-scale production of perovskite solar cells [80].

2.2. Additives for Enhanced Crystallinity

In addition to choosing deposition methods, it is possible to enhance the perovskite film crystallinity and morphology using a variety of additives. Dai et al. [81] hold that the incorporation of a few solvent additives to the perovskite precursor solution improves film crystallinity and device performance. Polar aprotic solvents are widely used when preparing MAI solutions and lead halides (see Section 1). Some organic solvents, such as C6H5Cl, C6H5, and C₈H₁₀, are an excellent choice for conducting organic polymers and buffer layer materials, even though they exhibit poor solubility [82].
The integration of acetonitrile (ACN) in the FAI/MABr/MACl precursor by sequential deposition for Cs/FA/MA perovskite films has been reported to reduce surface defects, improve the crystal grain size, and enhance device efficiency from 13.06% to 15.64% [83]. In addition, ACN-containing devices showed more stable behavior in air, thermal, and humidity stability tests.
The DMF additives were reported to positively affect the morphology of MAPbI3 perovskite films [84,85,86]. When introducing methyl ammonium chloride (MACl) and DMF as co-additives in a two-step sequential process, the polar solvent facilitates easy penetration of MAI into the PbI2 layer [85], and MAC1 induces MAPbI3 to crystallize in the pure α-phase. The result of the synergistic effect between these two additives is a pure α-phase perovskite film, with uniform morphology, enhanced VOC = 1.181 V, and PCE = 19.02%. Oseni et al. [87] show that the use of DMSO instead of DMF for the creation of the first PbI2 layer in a two-stage processing method provides smoother films with uniform sized grains and reduced PbI2 residue.
Arias-Ramos et al. [88] report that using a mixture of ethyl acetate (EA) and 4-tert-butylpyridine (tBP) as an anti-solvent in the preparation of CH3NH3PbI3 perovskite film at high relative humidity of approximately 60% contributes to the formation of perovskite surface with improved uniformity and higher hydrophobic capacity. The presence of tBP in EA enables the device to reach 18.04% of PCE and retain over 80% of its initial efficiency after 180 days of storage in high humidity conditions.
Perovskite films fabricated from the CH3NH3PbI3xClx perovskite precursor solution containing 1-chloronaphthalene (CN) additive were reported to be smoother and more uniform with fewer pinholes and voids and with better surface coverage as compared to conventional films [89]. Bis(trifluoromethane)sulfonimide lithium salt (Li-TFSI) is often used as a p-dopant to increase the concentration of holes in the Spiro-MeOTAD layer and gain higher PCE. PSCs fabricated with spiro(TFSI) 2 show enhanced stability in an inert atmosphere [89].
The above findings suggest that improvements to film deposition technology and the use of various additives enhance film morphology, resulting in better stability and efficiency of the device.

3. Impact of Interface Modification on PSC Performance

As noted in Section 1, another channel for PCE losses in PSCs is often found at the interface between the extracting layers and perovskite surface, which leads to charge carrier recombination. PSC surface recombination velocity depends on the surface state, which can be 2.9 cm/s for high-purity perovskite single crystals [90]. However, in polycrystalline perovskite films with inhomogeneous morphology and insignificant levels of traps, surface recombination is substantial in charge extraction and device efficiency [91]. Hence, the interfacial modifications in PSCs define the processes of charge extraction and transport, thereby determining the overall performance of the operational device. To this end, they mainly seek to achieve an effective passivation of surface traps with inhibited surface recombination. For this, it is important that the interfaces between the photoactive and charge transporting layers (ETL and HTL) allow for the passivation of surface traps and suppression of charge carrier recombination. The present review focuses on the new front-end approaches to the surface trap passivation from the past 5 years.
When fabricating PSCs by thermal annealing, sites may form near the film surface region, occupied by either halide or metal ions. The undersaturated surface ions originating as a result of this process are a trapping center and migrate under electric field action, resulting in a loss of charge carriers and VOC. So far, considerable work has been conducted to obtain an effective surface trap passivation through incorporating interlayers [92].

3.1. ETLs Interfacial Modifications

In PSCs with p-i-n device structure, the most common ETLs are those based on fullerene derivatives, such as PCBM, which can improve electron collection and passivate electron traps. However, fullerene’s passivation ability seems inefficient. Therefore, a polymer polymethyl methacrylate (PMMA) was integrated into the PCBM matrix to enhance film quality and trap passivation [93]. By optimizing concentration and molecular weight of PMMA, the PSCs can reach 30% efficiency. The incorporation of PMMA additives was reported to affect the surface potential of PCBM and reduce charge recombination losses, as well as space charge effects [94,95]. In addition, the PMAA additive promotes the formation of a dense and uniform morphology with fewer surface traps. Such features enhance the reliability and stability of the ETL, as well as the protection of the active perovskite layer. For example, a PMMA/PCBM mixture with a ratio of 1:2 promotes the effective defect passivation at the interface between the ETL and triple-cation perovskite (Cs0.05 (FA0.85MA0.15)0.95Pb (I0.85Br0.15)3), thereby increasing VOC to 1.17 V and PCE to 18.63%. This method improves the stability of PSCs and helps to retain 82% of its initial efficiency after 768 h of storage at room temperature [96].
Some research efforts were devoted to introducing a trace of NH4Cl to the sol–gel-derived ZnO precursor to reduce ZnO film WF, tune perovskite film surface morphology, and thus suppress trap state density in CsPbIBr2 films [97]. The resultant CsPbIBr2 films were characterized by the presence of high crystallinity and micron-size grains. For optimal NH4Cl-modified ZnO, a dramatic improvement in VOC from 1.08 to 1.27 V strengthened the efficiency of CsPbIBr2 PSC to 10.16%, the highest value among pure-CsPbIBr2 PSCs at a low fabrication temperature of 160 °C. Furthermore, NH4Cl-modified ZnO ETL was reported to significantly reduce hysteresis and improve device stability [97].
The introduction of sodium heparin (HS) at the MAPbI3/TiO2 interface was reported to increase trap passivation and device stability [98]. The incorporated HS layer also reduced the hydrophobicity of TiO2 and the number of pinholes within the TiO2 layer. These modifications lead to higher perovskite crystallinity. The HS interfacial layer enables the device to maintain 85% of its initial efficiency after 70 days of storage in ambient condition.

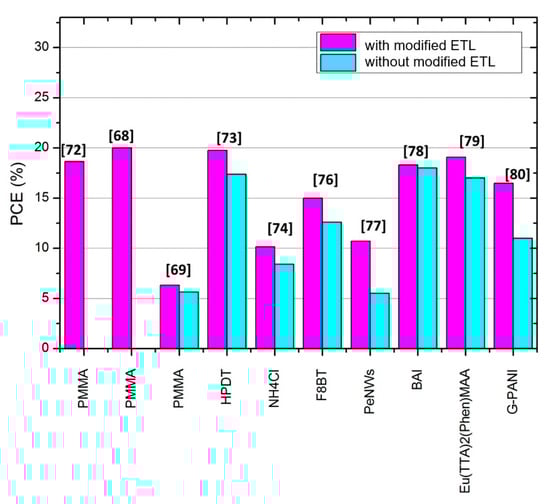

The interface modification of ETL improves the perovskite film morphology and increases trap passivation, resulting in higher PCE (Figure 5). The maximum efficiencies correspond to devices containing a PMMA-modified PCBM layer. PSCs modified with organic semiconductors, such as an n-type organic molecule, a homologous perylenediimide tetramer (HPDT), a n-butylamine iodide (BAI), or down conversion materials, for example Eu(TTA)2(Phen)MAA, also exhibit high performances.

3.2. Interfacial Modifications in НTLs

The commonly used materials for HTLs are small organic molecules and polymers with tailorable WFs and surface properties, such as poly (3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT:PSS) [104]. So far, considerable work has been conducted on strategies that facilitate charge extraction at the HTL/perovskite interface through the introduction of additives, buffer layers, etc. Various conductive polymers (PTAA, P3HT, PCBTDPP, etc.) and conjugated polyelectrolytes (PEDOT:PSS, P3CT, CPE-K, etc.) are used as HTLs in PSCs because of their benefits in reducing fabrication and processing costs [105]. However, the interface modification of HTL increases trap passivation. Typically, HTLs are both organic and inorganic materials.
Xu et al. [106] proposed a novel method for HTL modification that uses copper (I) thiocyanate (CuSCN) as a dopant for PEDOT:PSS. The resulting film had larger crystals, and the PCE increased to 15.3% with an open circuit voltage of more than 1.0 V. The long-term device stability also improved. This suggests that the doping of CuSCN in PEDOT:PSS HTLs is an effective way to obtain stable high-performance PSCs. The PEDOT:PSS layer can also be modified with vanadium pentoxide (V2O5) [107]. The V2O5 modified layer averts the acidic PEDOT:PSS film from etching the ITO electrode and maintains the PSC structure stability. The 4.7-diphenyl-1.10-phenanthroline (Bphen) modified layer was reported to prevent the photoactive layer film from direct connection with the Ag electrode, which improved the storage stability of the device. With this method, the PCE rose from 11.08% to 15.49%. Another widely used HTL in PSC structures is NiOx. Lian et al. [108] modified the NiOx layer with different polymers, namely polystyrene, poly (methyl methacrylate) (PMMA), and poly[bis(4-phenyl)(2,4,6-trimethylphenyl)amine] (PTAA) to optimize the NiOx/perovskite interface. As a result, PSCs with modified PMMA and PTAA films achieved high VOC values of up to 1.19 V and high conversion efficiencies of 21.56%, the highest values possible. In some cases, HTLs can be enhanced with the 3-(cyclohexylamino)-2-hydroxy-1-propanesulfonic acid (CAPSO) [109], NiOx nanoparticles [110], Cu1.8S nanoparticles [111], etc., leading to better performances and longer lifetime.

4. Conclusions

This paper presents a detailed report on the progress made in perovskite solar cells so far along with changes in device performances and the challenges of perovskite fabrication to create a better understanding of the problem and assist in the search for new fabrication techniques. It seems that the major challenges in the development of PSCs are currently associated with the insufficient stability of PSC devices, reproducibility of device fabrication, and fabrication costs, which hinder commercialization. Unstable interfaces between the active layers cause the degradation of photoactive materials and lower device performance. PSC structure can be stabilized by modifying the perovskite layers and interfaces. The photoelectric properties of the PSC device were found to be dependent on the film deposition technique, and the use of various additives improves film morphology and crystallinity. Another PSC research prospect is interfacial layer selection. The incorporation of inorganic and organic materials as interfacial layers promotes the effective passivation of surface traps and charges collection from a photoactive medium to relevant electrodes. The fullerene PCBM modified by depositing PMMA polymeric additives appears to be an excellent choice in the preparation of ETLs, while the modified PEDOT:PSS is the best fit for use as HTLs.

Author Contributions

Conceptualization, A.M. and D.F.; methodology, V.S. and G.Z.; formal analysis, A.M. and S.K.; investigation, D.F., V.S. and G.Z.; resources, V.S.; data curation, A.M.; writing—original draft preparation, D.F., V.S. and G.Z.; writing—review and editing, A.M. and S.K.; visualization, V.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data will be available on request.

Acknowledgments

This work was supported by Al-Farabi Kazakh National University, Institute of Experimental & Theoretical Physics, AP08855457 project “Development of an innovative technology for producing nanocrystalline composite coatings for fuel cell electrodes and hydrogen energy”.

Conflicts of Interest

The authors declare no conflict of interest.
