Optimal Asset Planning for Prosumers Considering Energy Storage and Photovoltaic (PV) Units: A Stochastic Approach
Abstract
:1. Introduction
1.1. State of the Art
1.2. Contributions
- A novel optimization algorithm for prosumer asset planning that determines optimal sizes for PV generation, BESS maximum power, and BESS storage capacity, based on a MILP formulation which minimizes costs associated with investment, maintenance, and operation of the system over a 25-year period.
- A deterministic and stochastic MILP model which guarantees that the optimal solution is obtained and can cope with uncertainties associated with PV generation.
2. Optimal Prosumer Asset Planning
2.1. Solar PV
2.2. Energy Storage
3. Mathematical Formulation
3.1. Deterministic Approach
3.1.1. Objective Function

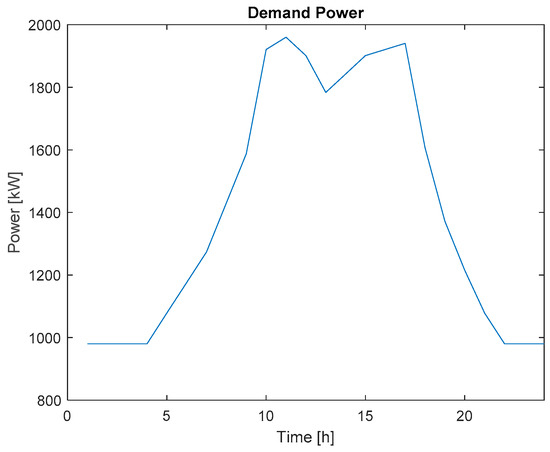

3.1.2. Load
3.1.3. Power Balance
3.1.4. PV Generators
3.1.5. Energy Storage
3.1.6. Electricity Cost
3.2. Stochastic Formulation
3.2.1. Objective Function
3.2.2. Load
3.2.3. Power Balance
3.2.4. PV Generators
3.2.5. Energy Storage
3.2.6. Electricity Cost
4. Test and Results
4.1. Deterministic Approach

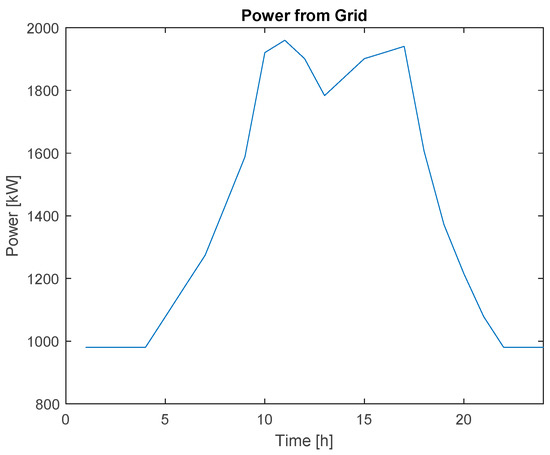

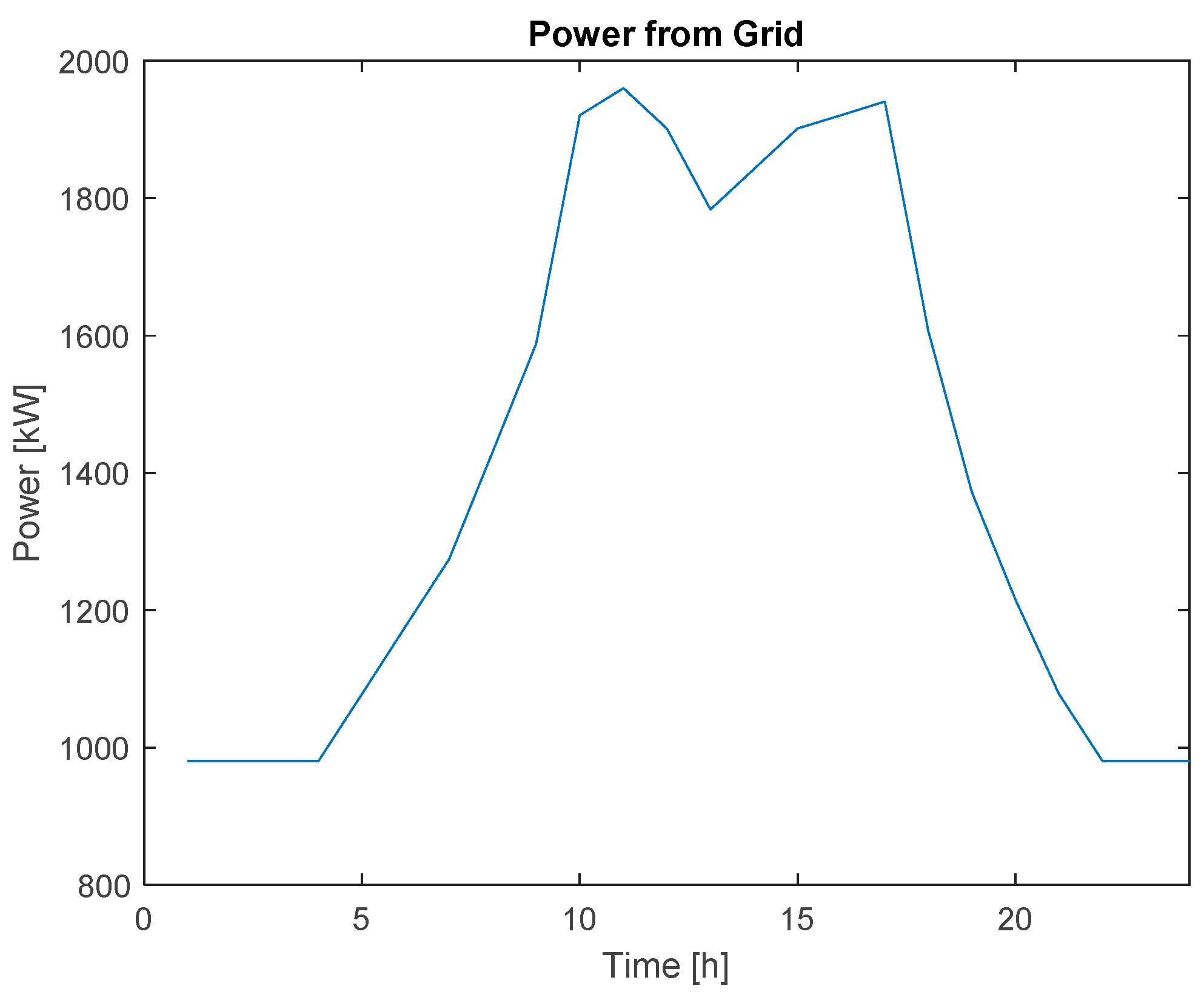

4.1.1. Case Study 1: Grid Exclusively

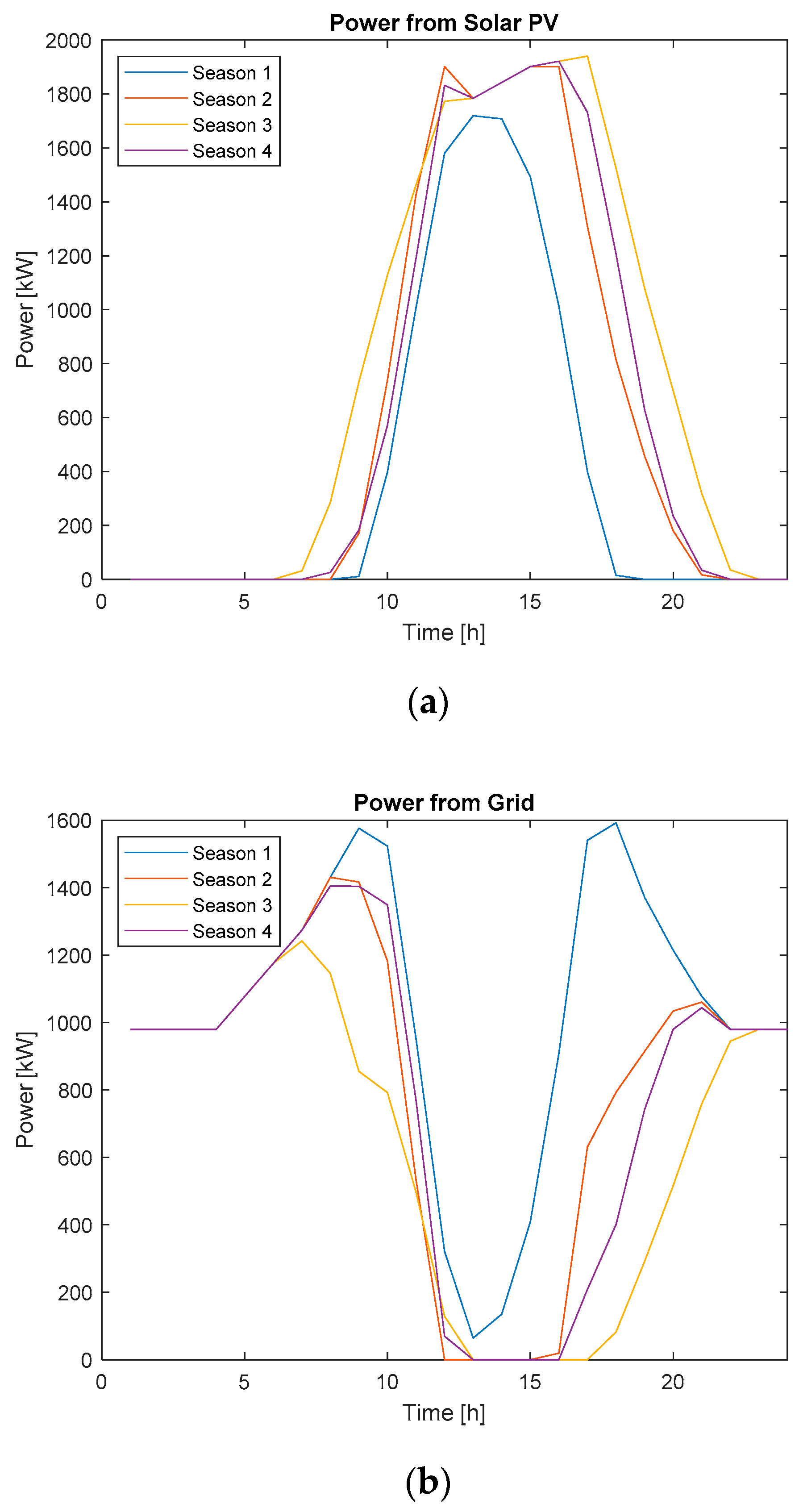

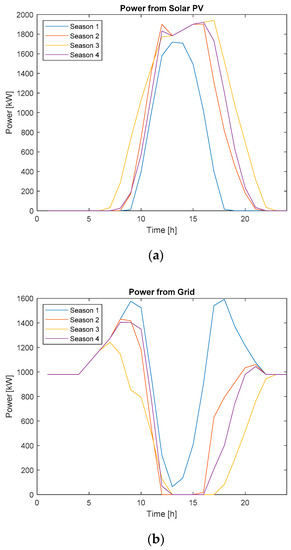

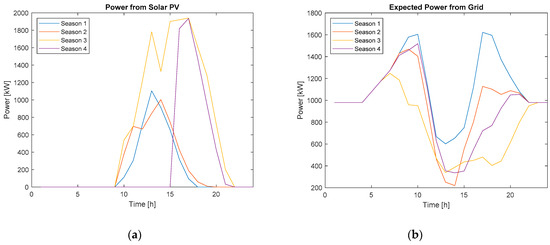

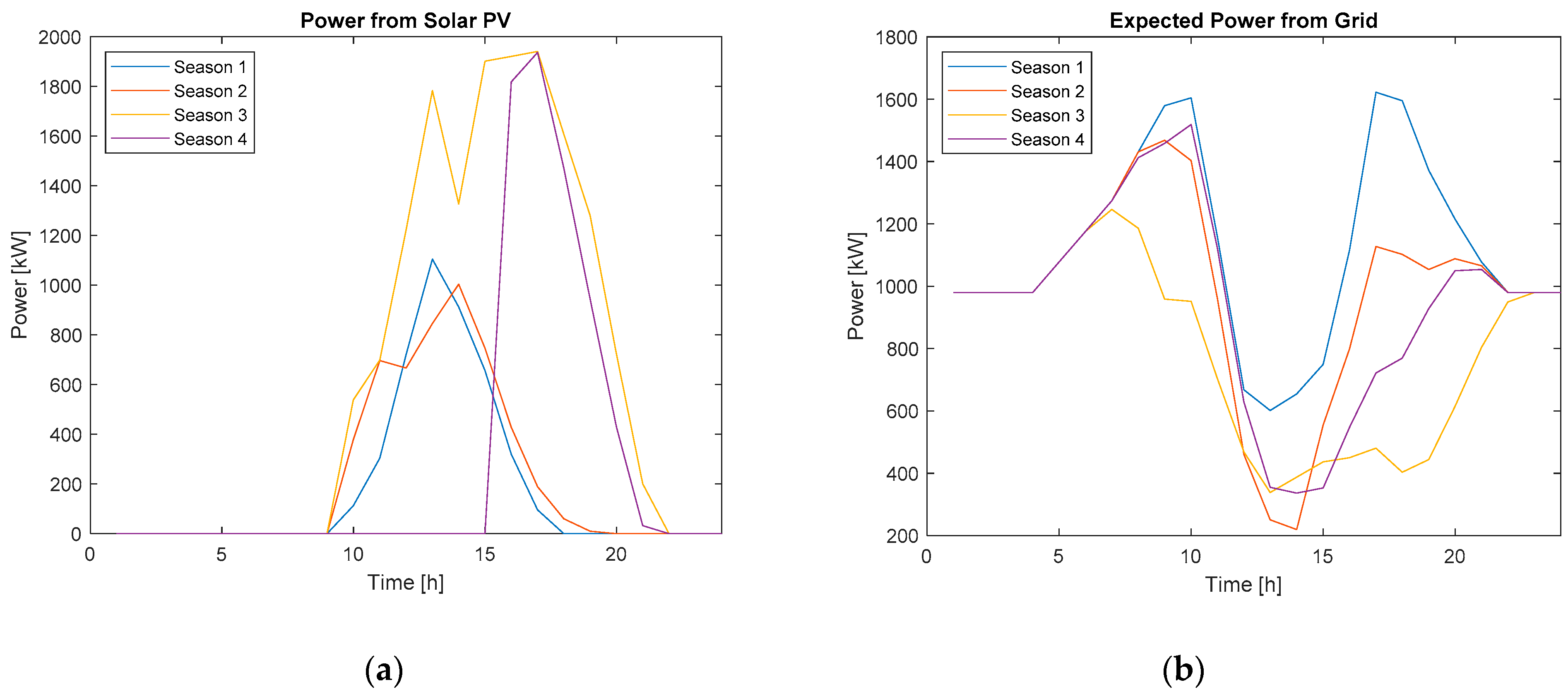

4.1.2. Case Study 2: Solar PV and Grid

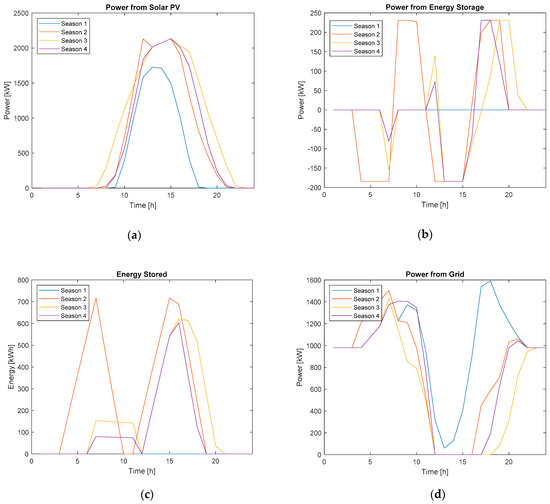

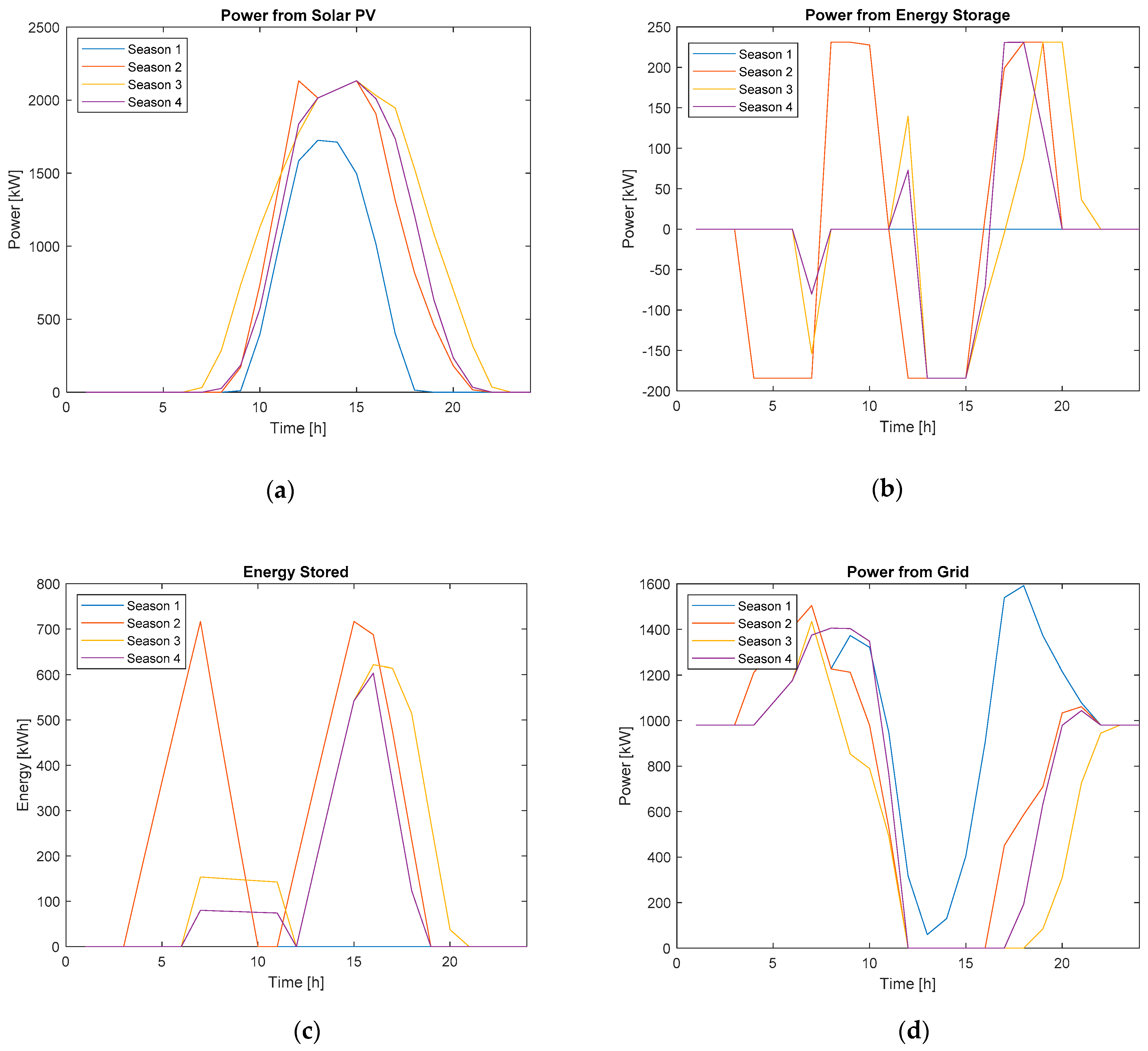

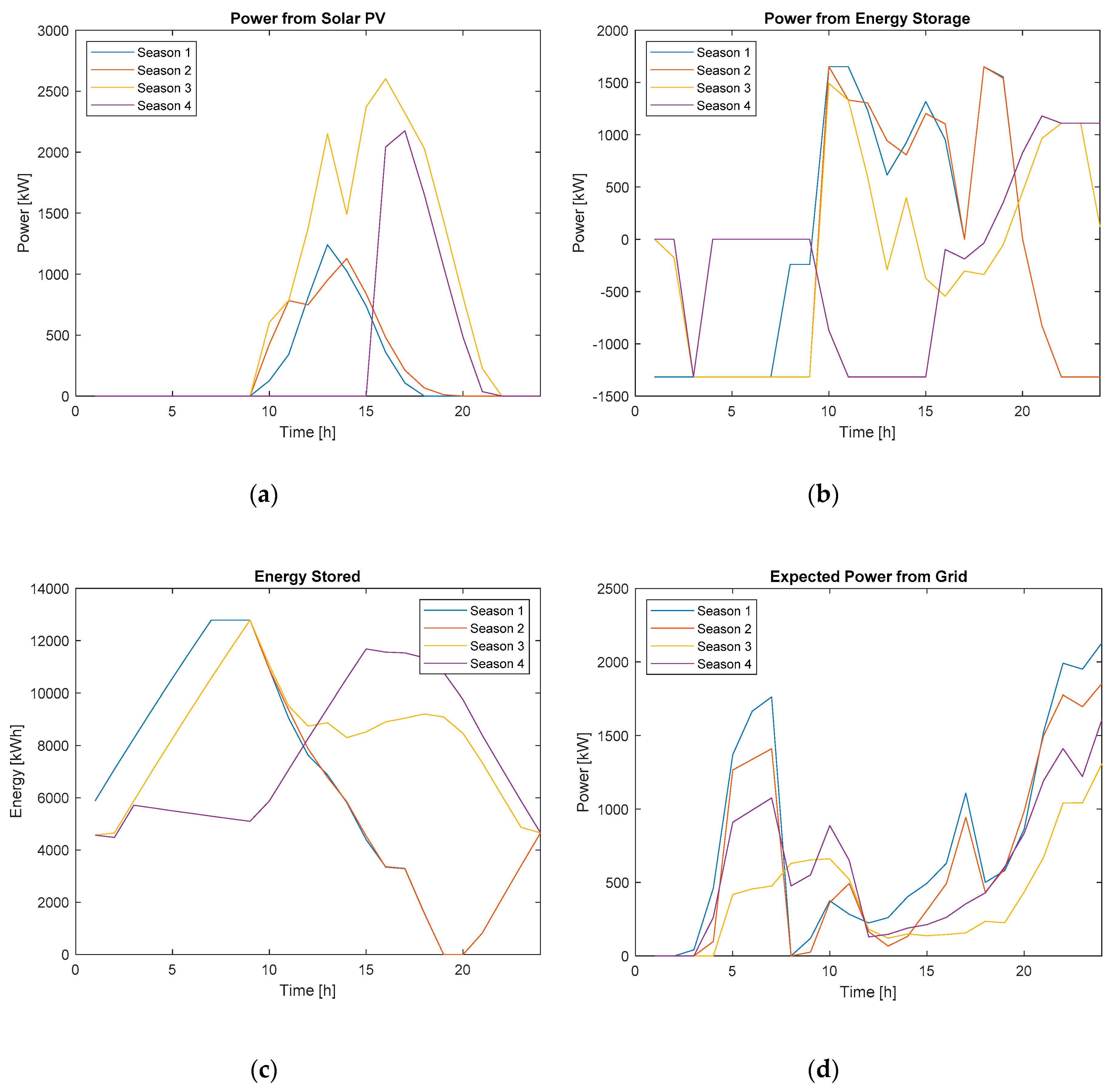

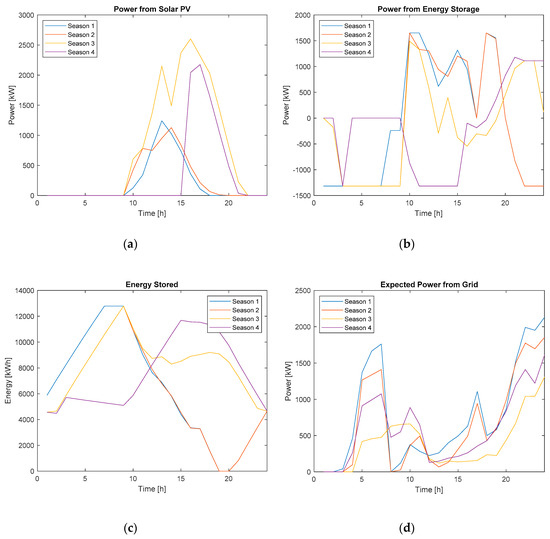

4.1.3. Case Study 3: Solar PV, Energy Storage, and Grid
4.2. Stochastic Approach
4.2.1. Case Study 2: Solar PV and Grid
4.2.2. Case Study 3: Solar PV, Energy Storage, and Grid

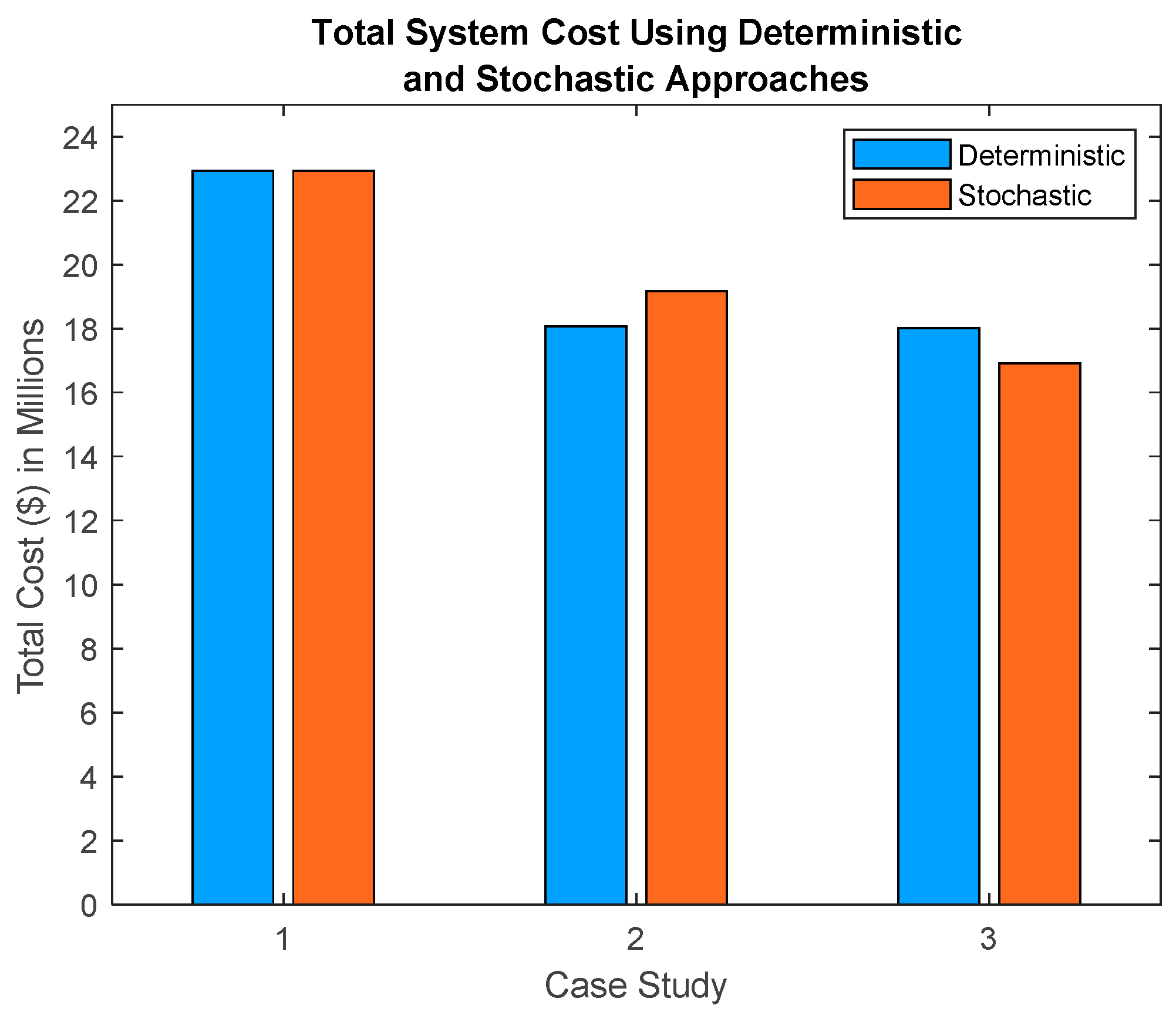

5. Discussion
6. Conclusions
Author Contributions
Funding
Conflicts of Interest
Nomenclature
, | Charging coefficient. |
Discharging coefficient. | |
Self-discharging of BESS, in %. | |
Electricity rates, in $/kWh. | |
Cost per panel, including cost of installation, in CAD. | |
Cost of electricity supplied by the grid over a period of analysis. | |
Cost of BESS over a period of analysis. | |
Cost of solar PV system over a period of analysis. | |
Total cost of the prosumer model. | |
Hourly demand, in %. | |
Initial energy stored, in kWh. | |
Energy capacity of the BESS, in kWh. | |
Expected energy from the grid, in kWh. | |
, | Energy stored in the BESS, in kWh. |
Present value maintenance costs of the BESS, in $, over a period of analysis. | |
Annual maintenance costs of the BESS, in $. | |
Rate of inflation. | |
Energy cost coefficient, in $/kWh. | |
Power cost coefficient, in $/kW. | |
Charging efficiency, in %. | |
Discharging efficiency, in %. | |
, | Charging power, in kW. |
, | Discharging power, in kW. |
Power capacity of the BESS, in kW. | |
, | Power supplied by the BESS, in kW. |
Power factor. | |
Load power, in kW. | |
Power supplied by the grid, in kW. | |
Peak-load requirement, in kW. | |

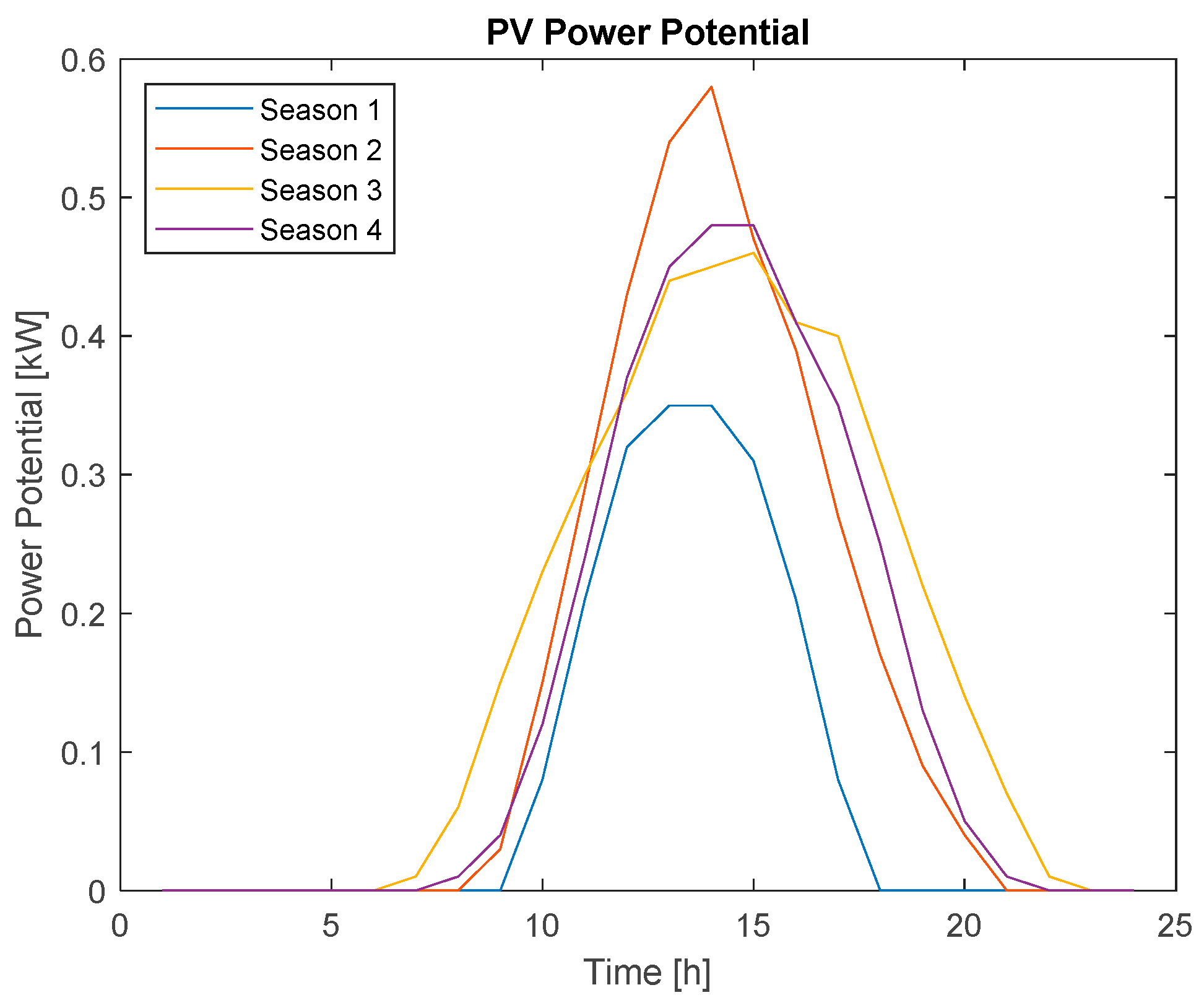

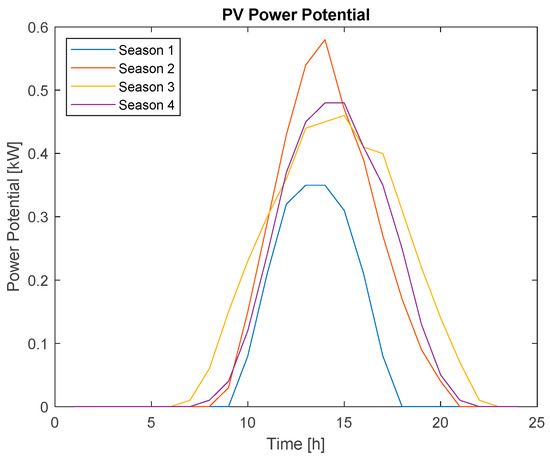

, | PV power potential, in kW. |
, | Power supplied by the PV units, in kW. |
Probability of each scenario, in %. | |
Present value maintenance costs of the solar PV system, in $, over a period of analysis. | |
Annual maintenance costs of the solar PV system, in $. | |
Index for seasons. | |
Peak-load requirement, in kVA. | |
Size of the solar panel, in kW. | |
PV size, in kW. | |
Index for time zones. | |
Index for scenarios. | |
Period of analysis, in years. |
References
- Zafar, R.; Mahmood, A.; Razzaq, S.; Ali, W.; Naeem, U.; Shehzad, K. Prosumer based energy management and sharing in smart grid. Renew. Sustain. Energy Rev. 2018, 82, 1675–1684. [Google Scholar] [CrossRef]
- Berglund, F.; Zaferanlouei, S.; Korpås, M.; Uhlen, K. Optimal operation of battery storage for a subscribed capacity-based power tariff Prosumer—A norwegian case study. Energies 2019, 12, 4450. [Google Scholar] [CrossRef] [Green Version]
- Nian, V.; Jindal, G.; Li, H. A feasibility study on integrating large-scale battery energy storage systems with combined cycle power generation—Setting the bottom line. Energy 2019, 185, 396–408. [Google Scholar] [CrossRef]
- Koskela, J.; Rautiainen, A.; Järventausta, P. Using electrical energy storage in residential buildings – sizing of battery and photovoltaic panels based on electricity cost optimization. Appl. Energy 2019, 239, 1175–1189. [Google Scholar] [CrossRef]
- Luna, A.C.; Diaz, N.L.; Graells, M.; Vasquez, J.C.; Guerrero, J.M. Mixed-integer-linear-programming-based energy management system for hybrid PV-wind-battery microgrids: Modeling, design, and experimental verification. IEEE Trans. Power Electron. 2017, 32, 2769–2783. [Google Scholar] [CrossRef] [Green Version]
- REopt Lite. Available online: https://reopt.nrel.gov/tool (accessed on 11 March 2020).
- Distributed Energy Resources—Customer Adoption Model (DER-CAM). Available online: https://building-microgrid.lbl.gov/projects/der-cam (accessed on 11 March 2020).
- Diaz, N.L.; Dragicevic, T.; Vasquez, J.C.; Guerrero, J.M. Intelligent distributed generation and storage units for DC microgrids-A new concept on cooperative control without communications beyond droop control. IEEE Trans. Smart Grid 2014, 5, 2476–2485. [Google Scholar] [CrossRef] [Green Version]
- Manditereza, P.T.; Bansal, R. Renewable distributed generation: The hidden challenges – A review from the protection perspective. Renew. Sustain. Energy Rev. 2016, 58, 1457–1465. [Google Scholar] [CrossRef]
- Ruiz-Cortes, M.; Gonzalez-Romera, E.; Amaral-Lopes, R.; Romero-Cadaval, E.; Martins, J.; Milanes-Montero, M.I.; Barrero-Gonzalez, F. Optimal Charge/Discharge Scheduling of Batteries in Microgrids of Prosumers. IEEE Trans. Energy Convers. 2019, 34, 468–477. [Google Scholar] [CrossRef]
- Sommerfeldt, N.; Madani, H. Tillämpad termodynamik och kylteknik, Skolan för industriell teknik och management (ITM), KTH; Energiteknik. Revisiting the techno-economic analysis process for building-mounted, grid-connected solar photovoltaic systems: Part one – review. Renew. Sustain. Energy Rev. 2017, 74, 1379–1393. [Google Scholar] [CrossRef]
- Chalk, S.G.; Miller, J.F. Key challenges and recent progress in batteries, fuel cells, and hydrogen storage for clean energy systems. J. Power Sources 2006, 159, 73–80. [Google Scholar] [CrossRef]
- Venkatasetty, H.V.; Jeong, Y.U. Recent advances in lithium-ion and lithium-polymer batteries. In Proceedings of the Seventeenth Annual Battery Conference on Applications and Advances, Long Beach, CA, USA, 18 January 2002. [Google Scholar]
- Tahir, M.F.; Haoyong, C.; Khan, A.; Javed, M.S.; Laraik, N.A.; Mehmood, K. Optimizing Size of Variable Renewable Energy Sources by Incorporating Energy Storage and Demand Response. IEEE Access 2019, 7, 103115–103126. [Google Scholar] [CrossRef]
- Sikorski, T.; Jasiński, M.; Ropuszyńska-Surma, E.; Węglarz, M.; Kaczorowska, D.; Kostyła, P.; Leonowicz, Z.; Lis, R.; Rezmer, J.; Rojewski, W.; et al. A case study on distributed energy resources and energy-storage systems in a virtual power plant concept: Economic aspects. Energies 2019, 12, 4447. [Google Scholar] [CrossRef] [Green Version]
- Kappner, K.; Letmathe, P.; Weidinger, P. Optimisation of photovoltaic and battery systems from the prosumer-oriented total cost of ownership perspective. EnergySustain. Soc. 2019, 9, 1–24. [Google Scholar] [CrossRef] [Green Version]
- Iqbal, Z.; Javaid, N.; Iqbal, S.; Aslam, S.; Khan, Z.; Abdul, W.; Almogren, A.; Alamri, A. A domestic microgrid with optimized home energy management system. Energies 2018, 11, 1002. [Google Scholar] [CrossRef] [Green Version]
- Fang, X.; Wang, J.; Song, G.; Han, Y.; Zhao, Q.; Cao, Z. Multi-agent reinforcement learning approach for residential microgrid energy scheduling. Energies 2019, 13, 123. [Google Scholar] [CrossRef] [Green Version]
- Bhamidi, L.; Sivasubramani, S. Optimal sizing of smart home renewable energy resources and battery under prosumer-based energy management. IEEE Syst. J. 2020, 1–9. [Google Scholar] [CrossRef]
- Hu, D.; Ryan, S.M. Stochastic vs. deterministic scheduling of a combined natural gas and power system with uncertain wind energy. Int. J. Electr. Power Energy Syst. 2019, 108, 303–313. [Google Scholar] [CrossRef]
- Kerdphol, T.; Fuji, K.; Mitani, Y.; Watanabe, M.; Qudaih, Y. Optimization of a battery energy storage system using particle swarm optimization for stand-alone microgrids. Int. J. Electr. Power Energy Syst. 2016, 81, 32–39. [Google Scholar] [CrossRef]
- Hong, Y.; Lai, Y.; Chang, Y.; Lee, Y.; Lin, C. Optimizing energy storage capacity in islanded microgrids using immunity-based multiobjective planning. Energies 2018, 11, 585. [Google Scholar] [CrossRef] [Green Version]
- Tenfen, D.; Finardi, E.C.; Delinchant, B.; Wurtz, F. Lithium-ion battery modelling for the energy management problem of microgrids. IET Gener. Transm. Distrib. 2016, 10, 576–584. [Google Scholar] [CrossRef]
- Qiu, X.; Nguyen, T.A.; Crow, M.L. Heterogeneous energy storage optimization for microgrids. IEEE Trans. Smart Grid 2016, 7, 1453–1461. [Google Scholar] [CrossRef]
- Moradi, H.; Esfahanian, M.; Abtahi, A.; Zilouchian, A. Modeling a hybrid microgrid using probabilistic reconfiguration under system uncertainties. Energies 2017, 10, 1430. [Google Scholar] [CrossRef] [Green Version]
- Kim, H.; Kim, M.; Kim, S. Multi-objective scheduling optimization based on a modified non-dominated sorting genetic algorithm-II in voltage source Converter−Multi-terminal high voltage DC grid-connected offshore wind farms with battery energy storage systems. Energies 2017, 10, 986. [Google Scholar] [CrossRef] [Green Version]
- Hussain, A.; Bui, V.; Kim, H. Fuzzy logic-based operation of battery energy storage systems (BESSs) for enhancing the resiliency of hybrid microgrids. Energies 2017, 10, 271. [Google Scholar] [CrossRef] [Green Version]
- Rana, M.J.; Abido, M.A. Energy management in DC microgrid with energy storage and model predictive controlled AC–DC converter. IET Gener. Transm. Distrib. 2017, 11, 3694–3702. [Google Scholar] [CrossRef]
- Alsaidan, I.; Khodaei, A.; Gao, W. A comprehensive battery energy storage optimal sizing model for microgrid applications. IEEE Trans. Power Syst. 2018, 33, 3968–3980. [Google Scholar] [CrossRef]
- Yun, P.; Ren, Y.; Xue, Y. Energy-storage optimization strategy for reducing wind power fluctuation via markov prediction and PSO method. Energies 2018, 11, 3393. [Google Scholar] [CrossRef] [Green Version]
- De Quevedo, P.M.; Munoz-Delgado, G.; Contreras, J. Impact of electric vehicles on the expansion planning of distribution systems considering renewable energy, storage, and charging stations. IEEE Trans. Smart Grid 2019, 10, 794–804. [Google Scholar] [CrossRef]
- Home-Ortiz, J.M.; Melgar-Dominguez, O.D.; Pourakbari-Kasmaei, M.; Mantovani, J.R.S. A stochastic mixed-integer convex programming model for long-term distribution system expansion planning considering greenhouse gas emission mitigation. Int. J. Electr. Power Energy Syst. 2019, 108, 86–95. [Google Scholar] [CrossRef]
- Perez, E.; Beltran, H.; Aparicio, N.; Rodriguez, P. Predictive Power Control for PV Plants with Energy Storage. IEEE Trans. Sustain. Energy 2013, 4, 482–490. [Google Scholar] [CrossRef] [Green Version]
- Sabillon, C.; Franco, J.F.; Rider, M.J.; Romero, R. Joint optimal operation of photovoltaic units and electric vehicles in residential networks with storage systems: A dynamic scheduling method. Int. J. Electr. Power Energy Syst. 2018, 103, 136–145. [Google Scholar] [CrossRef]
- McKenna, E.; Thomson, M. High-resolution stochastic integrated thermal–electrical domestic demand model. Appl. Energy 2016, 165, 445–461. [Google Scholar] [CrossRef] [Green Version]
- Renard, P.; Alcolea, A.; Ginsbourger, D. Stochastic versus Deterministic Approaches. In Environmental Modelling: Finding Simplicity in Complexity; Wiley: Hoboken, NJ, USA, 2013; pp. 133–149. [Google Scholar]
- Opathella, C.; Elkasrawy, A.; Mohamed, A.A.; Venkatesh, B. MILP formulation for generation and storage asset sizing and sitting for reliability constrained system planning. Int. J. Electr. Power Energy Syst. 2020, 116, 105529. [Google Scholar] [CrossRef]
- Marchi, B.; Zanoni, S.; Pasetti, M. A techno-economic analysis of Li-ion battery energy storage systems in support of PV distributed generation. In Proceedings of the 21st Summer School F. Turco of Industrial Systems Engineering, Naples, Italy, 13–15 September 2016; pp. 145–149. [Google Scholar]
- Marchi, B.; Pasetti, M.; Zanoni, S.; Zavanella, L.E. The Italian reform of electricity tariffs for non household customers: The impact on distributed generation and energy storage. In Proceedings of the 22nd Summer School F. Turco of Industrial Systems Engineering, Palermo, Italy, 13–15 September 2017; pp. 103–109. [Google Scholar]
- Canadian Solar CS6U-325P Poly Silver Solar Panel. Available online: https://www.wholesalesolar.com/1930006/canadian-solar/solar-panels/canadian-solar-cs6u-325p-poly-silver-solar-panel (accessed on 14 March 2019).
- Rinaldi, S.; Pasetti, M.; Flammini, A.; Ferrari, P.; Sisinni, E.; Simoncini, F. A Testing Framework for the Monitoring and Performance Analysis of Distributed Energy Systems. IEEE Trans. Instrum. Meas. 2019, 68, 3831–3840. [Google Scholar] [CrossRef]
- Masteri, K.; Venkatesh, B.; Freitas, W. A Fuzzy Optimization Model for Distribution System Asset Planning With Energy Storage. IEEE Trans. Power Syst. 2018, 33, 5114–5123. [Google Scholar] [CrossRef]
- Rahmann, C.; Mac-Clure, B.; Vittal, V.; Valencia, F. Break-Even Points of Battery Energy Storage Systems for Peak Shaving Applications. Energies 2017, 10, 833. [Google Scholar] [CrossRef]
- Time-of-Use (TOU) Pricing and Schedules. Available online: https://www.powerstream.ca/customers/rates-support-programs/time-of-use-pricing.html (accessed on 10 February 2019).
- Assessment of Industrial Load for Demand Response across U.S. Regions of the Western Interconnect. Available online: https://info.ornl.gov/sites/publications/Files/Pub45942.pdf (accessed on 27 March 2020).
- Solar Energy Maps Canada (Every Province). (10 February 2019). Available online: https://energyhub.org/solar-energy-maps-canada/ (accessed on 4 March 2019).
- Solar Radiation—Hourly data for Ottawa (Kanata—Orléans). (2019, January 02). Available online: https://ottawa.weatherstats.ca/charts/solar_radiation-hourly.html (accessed on 10 February 2019).
- Growe-Kuska, N.; Heitsch, H.; Romisch, W. Scenario reduction and scenario tree construction for power management problems. In Proceedings of the 2003 IEEE Bologna Power Tech Conference, Bologna, Italy, 23–26 June 2003. [Google Scholar]
- Li, J.; Wei, W.; Xiang, J. A simple sizing algorithm for stand-alone PV/Wind/Battery hybrid microgrids. Energies 2012, 5, 5307–5323. [Google Scholar] [CrossRef] [Green Version]
- Vazquez, M.J.V.; Marquez, J.M.A.; Manzano, F.S. A methodology for optimizing stand-alone PV-system size using parallel-connected DC/DC converters. IEEE Trans. Ind. Electron. 2008, 55, 2664–2673. [Google Scholar] [CrossRef]
Case Study | Solar PV | Energy Storage | Grid |
---|---|---|---|
1 | – | – | × |
2 | × | – | × |
3 | × | × | × |
Item | Value |
---|---|
Cost per panel, ($/panel) | 361.89 |
Size per panel, (kW/panel) | 0.325 |
Solar PV system maintenance percentage of capital cost (%) | 1 |
Rate of inflation (%/ year) | 2 |
Item | Value |
---|---|
Charging efficiency of BESS | 0.7975 |
Discharging efficiency of BESS | 1/0.8829 |
Self-Discharge of BESS | 0.0188 |
Power cost coefficient ($/kW) | 402 |
Energy cost coefficient ($/kWh) | 120.6 |
BESS maintenance cost ($/kW/year) | 33.5 |
Rate of inflation (%/year) | 2 |
Time Periods | Electricity Rates (¢/kWh) |
---|---|
off-peak | 6.5 |
mid-peak | 9.4 |
on-peak | 13.2 |
Season | Time Periods | ||
---|---|---|---|
off-peak | mid-peak | on-peak | |
1 | 7 pm–7 am | 11 am–5 pm | 7 am–11 am, 5 pm–7 pm |
2 | 7 pm–7 am | 11 am–5 pm | 7 am–11 am, 5 pm–7 pm |
3 | 7 pm–7 am | 7 am–11 am, 5 pm–7 pm | 11 am–5 pm |
4 | 7 pm–7 am | 7 am–11 am, 5pm–7 pm | 11 am–5 pm |
Case Study | PV Size (kW) | Power Capacity of BESS (kW) | Energy Capacity of BESS (kWh) | Initial Energy in BESS (kWh) | Total Cost ($) in Millions |
---|---|---|---|---|---|
1 | – | – | – | – | 22.9364 |
2 | 4888.98 | – | – | – | 18.0665 |
3 | 4903.28 | 231.04 | 716.49 | 0.0 | 18.0148 |
Case Study | PV Size (kW) | Power Capacity of BESS (kW) | Energy Capacity of BESS (kWh) | Initial Energy in BESS (kWh) | Total Cost ($) in Millions |
---|---|---|---|---|---|
1 | – | – | – | – | 22.9364 |
2 | 3671.53 | – | – | – | 19.1753 |
3 | 4124.57 | 1650.70 | 12,788.68 | 4656.70 | 16.9039 |
Case | Variation in Electricity Rates (%) | PV Size (kW) | Power Capacity of BESS (kW) | Energy Capacity of BESS (kWh) | Initial Energy in BESS (kWh) | Total Cost ($) in Millions |
---|---|---|---|---|---|---|
1 | –20 | 3153.15 | 1565.48 | 11,479.7 | 3675.43 | 15.1317 |
2 | –15 | 3451.83 | 1620.57 | 12,011.8 | 3951.07 | 15.6062 |
3 | –10 | 3687.12 | 1620.57 | 11,975.9 | 3910.09 | 16.0582 |
4 | −5 | 3931.20 | 1641.24 | 12,738.8 | 4656.70 | 16.4914 |
5 | 0 | 4124.57 | 1650.70 | 12,788.7 | 4656.70 | 16.9039 |
6 | +5 | 4420.00 | 1663.51 | 12,856.3 | 4656.70 | 17.2969 |
7 | +10 | 4508.07 | 1695.28 | 13,023.9 | 4656.70 | 17.6778 |
8 | +15 | 4765.80 | 1780.35 | 13,472.9 | 4656.70 | 18.0461 |
9 | +20 | 4802.20 | 1787.09 | 13,508.4 | 4,656.70 | 18.4006 |
