High-Temperature, Dry Scrubbing of Syngas with Use of Mineral Sorbents and Ceramic Rigid Filters

Institute for Chemical Processing of Coal, 41-803 Zabrze, Zamkowa 1, Poland
*
Author to whom correspondence should be addressed.
Energies 2020, 13(6), 1528; https://doi.org/10.3390/en13061528 (registering DOI)
Received: 28 February 2020 / Revised: 19 March 2020 / Accepted: 22 March 2020 / Published: 24 March 2020

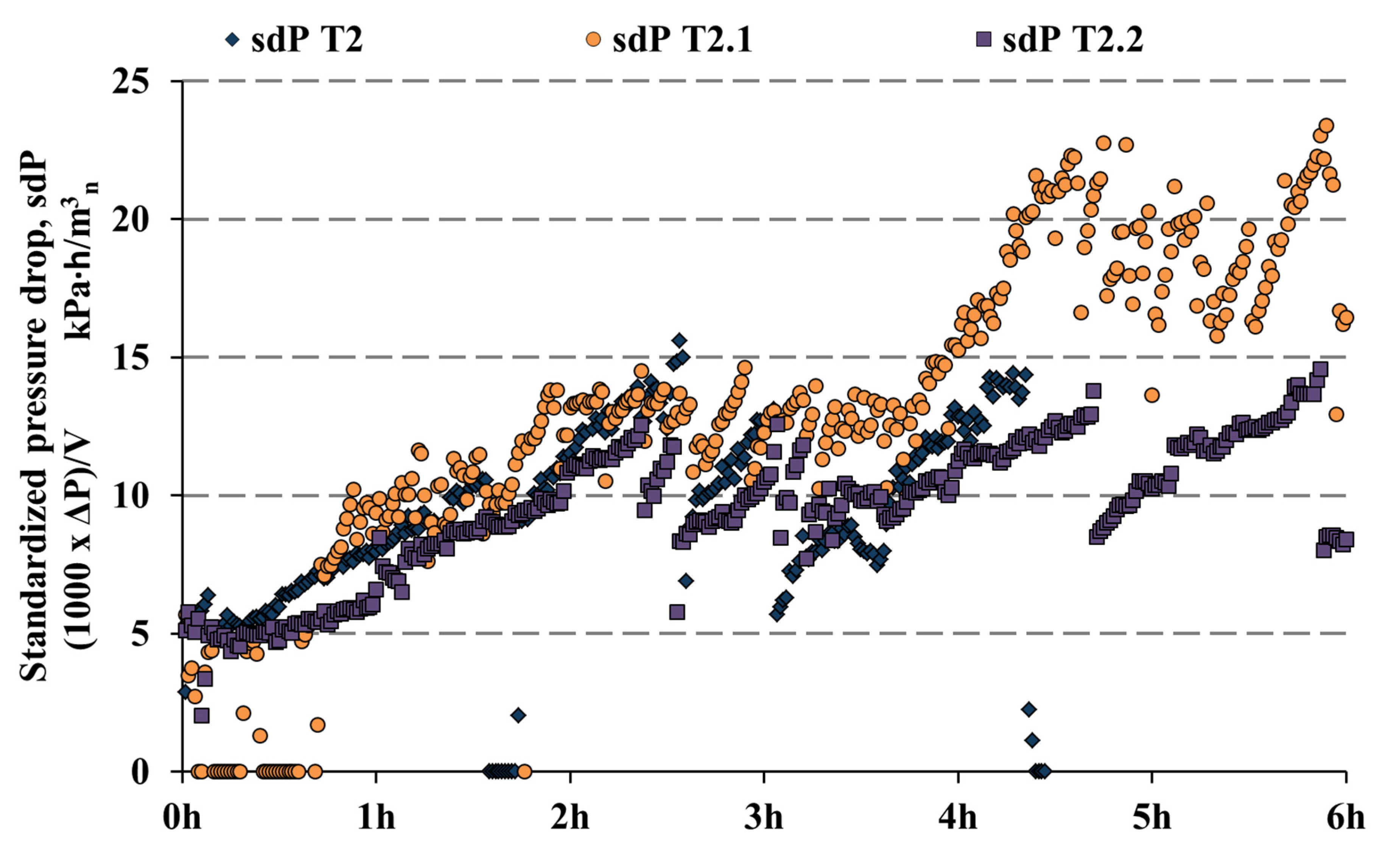

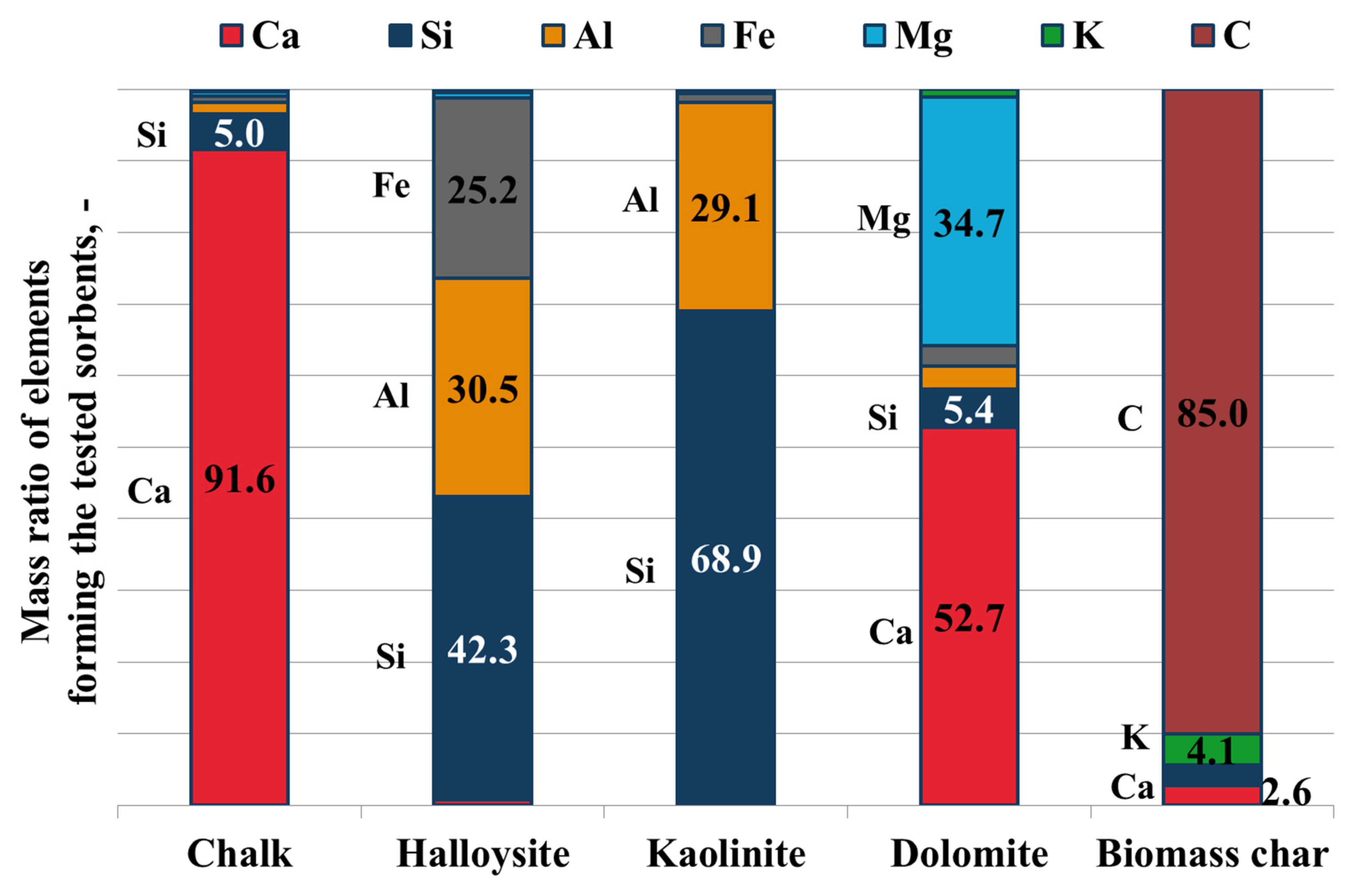

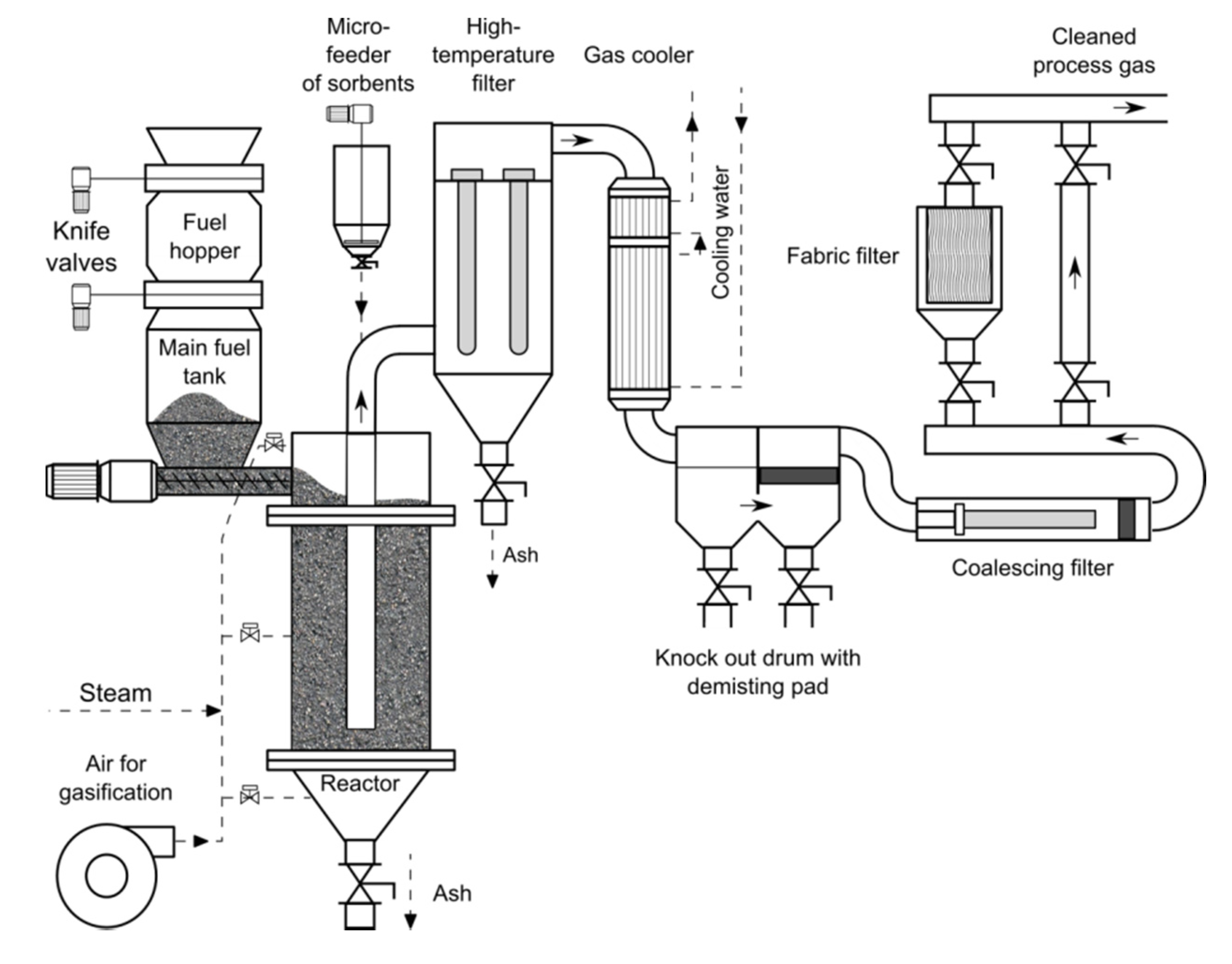

In this research, the idea of multicomponent, one-vessel cleaning of syngas through simultaneous dedusting and adsorption is described. Data presented were obtained with the use of a pilot-scale 60 kWth fixed-bed GazEla reactor, coupled with a dry gas cleaning unit where mineral sorbents are injected into raw syngas at 500–650 °C, before dedusting at ceramic filters. The research primarily presents results of the application of four calcined sorbents, i.e., chalk (CaO), dolomite (MgO–CaO), halloysite (AlO–MgO–FeO), and kaolinite (AlO–MgO) for high-temperature (HT) adsorption of impurities contained in syngas from gasification of biomass. An emphasis on data regarding the stability of the filtration process is provided since the addition of coating and co-filtering materials is often necessary for keeping the filtration of syngas stable, in industrial applications. View Full-Text
Keywords: adsorption; biomass; ceramic filter; gasification; hot-gas cleaning adsorption; biomass; ceramic filter; gasification; hot-gas cleaning
Show Figures

Figure 1

MDPI and ACS Style

Szul, M.; Iluk, T.; Sobolewski, A. High-Temperature, Dry Scrubbing of Syngas with Use of Mineral Sorbents and Ceramic Rigid Filters. Energies 2020, 13, 1528.
