Pseudocapacitive Effect of Carbons Doped with Different Functional Groups as Electrode Materials for Electrochemical Capacitors

by
Mojtaba Mirzaeian
1,2,*,
Qaisar Abbas
1,3,
Michael. R. C. Hunt
3 and
Peter Hall
1
1
School of Computing, Engineering and Physical Sciences, University of the West of Scotland, Paisley, Scotland PA1 2BE, UK
2
Faculty of Chemistry and Chemical Technology, Al-Farabi Kazakh National University, Al-Farabi Avenue, 71, Almaty 050012, Kazakhstan
3
Centre for Materials Physics, Department of Physics, Durham University, Durham DH1 3LE, UK
*
Author to whom correspondence should be addressed.
Energies 2020, 13(21), 5577; https://doi.org/10.3390/en13215577
Submission received: 25 September 2020 / Revised: 19 October 2020 / Accepted: 23 October 2020 / Published: 26 October 2020
(This article belongs to the Special Issue High Energy Electrochemical Capacitors)
Browse Figures
Versions Notes

Abstract

:
In this study, RF-based un-doped and nitrogen-doped aerogels were produced by polymerisation reaction between resorcinol and formaldehyde with sodium carbonate as catalyst and melamine as the nitrogen source. Carbon/activated carbon aerogels were obtained by carbonisation of the gels under inert atmosphere (Ar) followed by activation of the carbons under CO2 at 800 °C. The BET analysis of the samples showed a more than two-fold increase in the specific Surf. area and pore volume of carbon from 537 to 1333 m2g−1 and 0.242 to 0.671 cm3g−1 respectively after nitrogen doping and activation. SEM and XRD analysis of the samples revealed highly porous amorphous nanostructures with denser inter-particle cross-linked pathways for the activated nitrogen-doped carbon. The X-Ray Photoelectron Spectroscopy (XPS) results confirmed the presence of nitrogen and oxygen heteroatoms on the Surf. and within the carbon matrix where improvement in wettability with the drop in the contact angle from 123° to 80° was witnessed after oxygen and nitrogen doping. A steady drop in the equivalent series (RS) and charge transfer (RCT) resistances was observed by electrochemical measurements after the introduction of nitrogen and oxygen heteroatoms. The highest specific capacitance of 289 Fg−1 with the lowest values of 0.11 Ω and 0.02 Ω for RS and RCT was achieved for nitrogen and oxygen dual-doped activated carbon in line with its improved Surf. chemistry and wettability, and its enhanced conductivity due to denser inter-particle cross-linked pathways.

Graphical Abstract

1. Introduction

Power generation using renewable energy from wind, tidal and solar as sustainable sources of energy with low or even zero emissions requires efficient energy storage technologies to overcome their intermittent nature of energy supply for our future energy demands. Electrochemical energy storage technologies such as batteries and supercapacitors with suitable operational parameters (i.e., energy density, power density and cycle life) will play a key role with this by responding to the actual characteristics of energy supply through peak shaving and voltage regulation and also by fulfilling the energy requirements of upcoming systems when a long-term flat voltage energy supply or a short term power supply is required [1]. Among different energy storage technologies, electrochemical capacitors also known as supercapacitors or ultra-capacitors are considered a promising technology for applications needing high power densities, long cycle life and excellent reversibility [2,3]. However, the technology suffers from inferior energy densities when compared with electrochemical batteries [4,5]. This is mainly attributable to a limited Surf. charge storage at the electrode/electrolyte interface in comparison to bulk Faradaic charge accumulation occurring in electrochemical batteries [2,6]. The energy density of an electrochemical capacitor can be calculated by Equation (1).
E = 1 2 C V 2
where “E” is energy density, “C” is the specific capacitance and “V” is operating voltage.
The specific capacitance of an electrochemical capacitor is obtained by Equation (2).
C = S ε D
where “S” is the specific Surf. area of active material, “D” is double layer thickness and “ɛ” is the relative permittivity of the solution.
According to Equation (1), the energy density of an electrochemical capacitor can be improved by improving either its operating voltage or its specific capacitance. The former depends on the electrochemical window of the electrolyte used in the device and different electrolytes with wide electrochemical windows such as organic electrolyte and ionic liquids have been investigated to improve the energy density of the electrochemical capacitors but they limit the power density of the device due to their limited kinetic and diffusional effects [7,8,9]. The latter, given by Equation (2), can be improved either by introducing new electrode materials with higher charge storage capability through pseudocapacitive charge storage or by controlling and improving the porosity parameters (i.e., S and D) of the electroactive material [10]. Transition metal oxide-based active materials store energy pseudocapacitively and exhibit a higher specific capacitance and consequently a higher energy density when compared with traditional carbon-based electrode materials that store energy in the form of electric double-layer capacitance (EDLC) [10,11,12,13]. However, transition metal oxides suffer from higher equivalent series resistance (ESR) which results in their lower power density [6,14]. The energy density of an electrochemical capacitor can be improved without compromising its power density by introducing functional groups on the Surf. or within the matrix of highly porous carbon-based active material [4,15].
Numerous carbonaceous materials such as graphene [16], carbon nanotubes [17], carbon nanofibers [18] and activated carbon [19,20] have been widely used as electrodes in supercapacitors. However, activated carbon is the most commonly adopted electrode material in commercial applications due to its outstanding properties such as large specific Surf. area, controlled porosity, high electric conductivity, cost-effectiveness, chemical inertness and ease of process-ability [21]. Carbon-based materials have inferior specific capacitance since the entire capacitance is contributed through physical charge storage with the formation of an electric double layer associated with the porous structure of the active material [13]. Higher specific capacitance can be achieved by introducing functional groups on the Surf. [22] or within the core of the active material [23] where total capacitance is the sum of EDLC (through the formation of the electric double layer at electrode/electrolyte interface physically) and Faradaic pseudo-capacitance (contributed by heteroatoms capable of storing electric charge through fast and fully reversible Faradaic reactions at the electrode/electrolyte interface accompanied by electronic charge transfer) of carbon [4,23,24,25]. Specific Surf. area (SSA) and pore size distribution (PSD) are two fundamental parameters with a substantial effect on the EDLC of the cell [26]. For the maximum EDLC contribution, large SSA with optimised pore size is desirable since higher SSA results in a higher level of charge storage across the electrode/electrolyte interface whereas the optimized pore structure of active material can boost the electrolyte ions mobility [27,28]. Moreover, heteroatoms doping helps in improving the overall performance of the supercapacitor cell by contributing through pseudo-capacitance and by enhancing ion transfer kinetics (by improving electrode/electrolyte wettability) [21].
As discussed above capacitive performance of an aqueous supercapacitor can be maximised by adjusting the following electrode’s parameters: (a) by optimising its pore size to increase electrolyte ions mobility (b) by increasing its specific Surf. area to maximise the ability of charge storage (c) through heteroatoms doping for its improved pseudocapacitive effects, wettability and electron transfer. In this work, we report the synthesis of polymeric carbons with controlled porosity (SSA and PSD) through the synthesis of a polymeric gel by polycondensation reaction between resorcinol and formaldehyde its subsequent carbonization at 800 °C. The material was used as electroactive material for the fabrication of electrodes used in an electrochemical cell with 6 M KOH electrolyte where a specific capacitance of 136 Fg−1 obtained at the scan rate of 5 mVS−1. A further increase in the specific Surf. area of the carbon was achieved through its physical activation resulting in the improvement of specific capacitance to 197 Fg−1. Nitrogen and oxygen heteroatoms were introduced within the carbon matrix using melamine during the polymerization process and on the Surf. of the carbon during the activation process under CO2 respectively. Oxygen and nitrogen functional groups assisted in improving the wettability and capacitive performance of the material with the lowest contact angle of 80 degrees and the highest specific capacitance of 289 Fg−1 obtained at the scan rate of 5 mVS−1. Additionally, a significant drop in the equivalent series resistance RS and the charge transfer resistance RCT to the corresponding lowest values of 0.11Ω and 0.02 Ω was observed when the oxygen and nitrogen co-doped carbon sample was used as the electroactive material in the cell.

2. Materials and Methods

2.1. Materials

Formaldehyde (F)/CH2O purity: 37% wt. in H2O, Resorcinol (R)/C6H6O2 purity: 99%, Sodium Carbonate (C)/Na2CO3 purity: 99.5%, Melamine (M)/C3H6N6 purity: 99%, and Potassium hydroxide solution KOH (6 M) were purchased from Sigma Aldrich (UK).

2.2. Synthesis of Resorcinol/Formaldehyde (RF) and Nitrogen-Doped Resorcinol/Formaldehyde (MRF) Aerogels

RF aerogels were prepared by polycondensation reaction between resorcinol (R) and formaldehyde (F) where sodium carbonate (C) was used as the polycondensation catalyst with the molar ratios of R/F and R/C kept at 0.5 and 100 respectively with a ratio of resorcinol to water (W) of R/W = 0.1 g ml−1 according to the procedure explained elsewhere [19,28].
Nitrogen-doped resorcinol/formaldehyde aerogels (MRF) were synthesised using melamine (M) as the source of nitrogen with the same R/F, R/C and R/W ratios used for the synthesis of un-doped aerogel samples and a resorcinol to melamine (R/M) molar ratio of 80 according to a detailed synthesis procedure given in [23].

2.3. Carbonization of RF and MRF Aerogels

Both un-doped (RF) and nitrogen-doped (MRF) aerogel samples were carbonized at 800 °C for 3 h under Ar. In each experiment, a gel sample weighing 3 g was loaded into a ceramic boat, placed in the middle of a tubular furnace and purged with Ar for 30 min at 30 °C prior to the start of the carbonization program. The furnace temperature was initially raised to 150 °C at a heating rate of 5 °C min−1 and maintained at this temperature for 30 min followed by increasing it to 450 °C at the same heating rate and holding it for another 30 min. The furnace temperature was finally increased to the final carbonization temperature of 800 °C at 10 °C min−1 and the sample was kept at this temperature for 180 min. Subsequently, the furnace was cooled down naturally to room temperature. The entire carbonization programme was performed under Ar flowing at 240 mL min−1. The obtained carbon samples are called RFC 100–800 and MRFC100–800–80 where the numbers 100, 800, and 80 stand for the R/C ratio, carbonization temperature and R/M ratio respectively.

2.4. Activation of RFC and MRFC Carbon Aerogels

Samples of both un-doped (RFC) and nitrogen-doped (MRFC) carbon aerogels were activated by physical activation at 800 °C where CO2 was used as the activation agent. In each experiment, 3 g of a carbon aerogel sample was loaded into a ceramic boat, placed in the middle of a tubular furnace and purged with Ar for 30 min at 30 °C prior to the start of the heating programme. The temperature was raised to 800 °C at 10 °C min−1 and the sample was maintained at this temperature for 5min under Ar in order to stabilise its temperature. The gas was then immediately switched from Ar to CO2 and the sample was kept at 800 °C under CO2 flowing at 240 mL min−1 for 120 min. Finally, the gas was switched back to Ar and the sample was cooled down naturally to the room temperature under Ar flowing at 240 mL min−1. The obtained activated carbon samples are called RFCA100–800–800 and MRFCA100–800–800–80 where the numbers 100, 800, 800, and 80 stand for the R/C ratio, carbonization temperature, activation temperature and R/M ratio respectively.
Schematic representation procedures adopted for the synthesis of carbons and activated carbons for both un-doped and N–doped carbon aerogels samples are shown in Figure 1 and Figure 2 respectively.

3. Instrumentation

3.1. Physical/Chemical Characterization Techniques

The porous structure of the carbon/activated carbon aerogel samples was characterized by a Tristar adsorption/desorption analyser (Micromeritics) at 77 K. All samples were evacuated overnight in a vacuum oven at 80 °C followed by purging with nitrogen at 300 °C for 120 min using a Flow-prep system (Micromeritics) prior to the porosity measurements. The specific Surf. area of the samples was calculated by (BET) method whereas Barrett Joyner Herenda (BJH) and t-plot methods were used for the analysis of their mesoporosity and microporosity respectively [29]. The adsorption branch of the isotherms was used for determining pore size distributions by BJH method. The total pore volume was calculated from the adsorbed volume of N2 at P/P0 = 0.99 [30].
A CAM 200 goniometer system manufactured by KSV Ltd. was used for the determination of contact angle. In this system, video images are captured and analysed automatically by CAM software. All measurements were carried out using 6 M KOH as a probing liquid.
X-ray diffractometer (SIEMENS-D500) was used to perform X-ray diffraction measurements where the crystal structure of the samples was characterised using voltage and current of 40kV and 30mA respectively with Cu Kα radiation.
Structural properties and Surf. morphology of all samples were characterised using scanning electron microscopy (SEM). The SEM micrographs of the carbons were acquired at the magnifications of 100, 50, and 10 μm using a Hitachi S-4100 SEM.
X-Ray Photoelectron Spectroscopy (XPS) was used to quantify the elemental composition of both un-doped and N-doped samples. In XPS measurements a Specs Phoibos 100 MCD-5 (5 single channel electron multiplier) hemispherical analyser was used by employing a Specs XR-50 X-ray source with Mg Kα (1253.6 eV) beam. Casa XPS software was used to analyse the recoded measurements while all spectra were calibrated using the binding energy of adventitious C1s peak at 284.8 eV as the reference.

3.2. Electrochemical Measurement Techniques

Carbon electrodes with a thickness of 100–150 microns were fabricated by mixing a sample of carbons/or activated carbons (un-doped/or N-doped) as electroactive material with Kynar as a binder and Cabot carbon black as the conductivity enhancer in 80/10/10 wt% in acetone for 2 hours under a vigorous magnetic stirring followed by rolling the resultant paste into a thin sheet on an aluminium foil. The electrochemical performance of the electrodes was evaluated by a Voltalab40 radiometer analytical potentiostat (model-PGZ301) using a two-electrode sandwich-type symmetric electrochemical cell with a 6 M KOH solution as the electrolyte. The cell was stabilized under open circuit for 15 min prior to each electrochemical measurement. Cyclic voltammetry (CV) was used to assess the capacitive performance of active material in the potential range of 0.5 to 1 V at scan rates of 5, 10 and 15 mVs−1. Electrochemical impedance spectroscopy (EIS) measurements were performed to analyse the resistive behaviour of the samples at AC amplitude of 10 mV in the frequency range of 100 KHz to 50 Hz. All measurements were performed at room temperature.
The specific capacitance of the cell was calculated from the discharge CV curves by the following equation:
C = I dV dt
where “I” is the average discharge current in A and dV/dt is the scan rate in mVs−1.
The specific capacitance Csp of a single electrode in Fg−1 was calculated using Equation (4) where m is the mass of the carbon as the electroactive material used in the electrode formulation.
C sp = 2 × C m

4. Discussion

4.1. Physiochemical Characterization of RFC, RFCA, MRFC and MRFCA Carbon/Activated Carbon Aerogels

4.1.1. BET Analysis

Nitrogen adsorption–desorption isotherms of the samples are shown in Figure 3. BET curves of the samples mainly show combined type I and type IV isotherms, with high nitrogen intake at lower P/P0 (≤0.02) and hysteresis loops at higher relative pressures (0.4 ≤ P/P0 ≤ 1.0). This indicates the transformation from microporosity to mesoporosity within the carbon porous structure with nitrogen doping and activation since higher N2 intake at lower relative pressure represents the existence of microporosity whereas the appearance of the hysteresis loops at higher relative pressure indicates mesoporosity within the carbon samples [27]. The sample RFC100 possesses a typical type I isotherm with a sharp increase in the volume of N2 in the low-pressure region, without the presence of any significant hysteresis loop in higher pressure region. This is indicative of a predominantly microporous structure as confirmed by the data given in Table 1 which show a level of microporosity of 90% for the sample [31,32]. Physical activation of this sample under CO2 (RFCA100–800) results in the development of mesopososity within the sample structure with an increase in the level of mesoporosity to 28% and subsequent increase in its specific Surf. area (from 537 to 678 m2) and pore volume (from 0.242 to 0.371 cm3 g−1) presumably due to opening of closed pores and widening of the micropores during the activation process.
Nitrogen adsorption isotherm of the N-doped carbon (MRFC100–800–80) shows a significant increase in nitrogen intake by the sample at low relative pressures followed by the appearance of a hysteresis loop at a relative pressure of 0.4 ≤ P/P0 ≤ 0.6. The porous parameters of the carbons given in Table 1 show that nitrogen doping results in a significant increase in the specific Surf. area (from 537 to 841 m2) and pore volume (from 0.242 to 0.430 cm3 g−1) of the carbon with 34% mesoporosity for the sample. This might be due to an increase in the number of gelation nuclei by the addition of melamine into the gel solution [23]. Physical activation of the sample under CO2 results in the evolution of its porous structure with a significant increase in its Surf. area to 1333 m2 and its pore volume to 0.671 cm3 g−1 with 44% mesoporosity. Table 1 also shows a slight increase in average pore size from 1.80 nm to 2.21 nm after nitrogen doping which can be attributed to the diffusion of nitrogen functional groups within the gel structure [33].

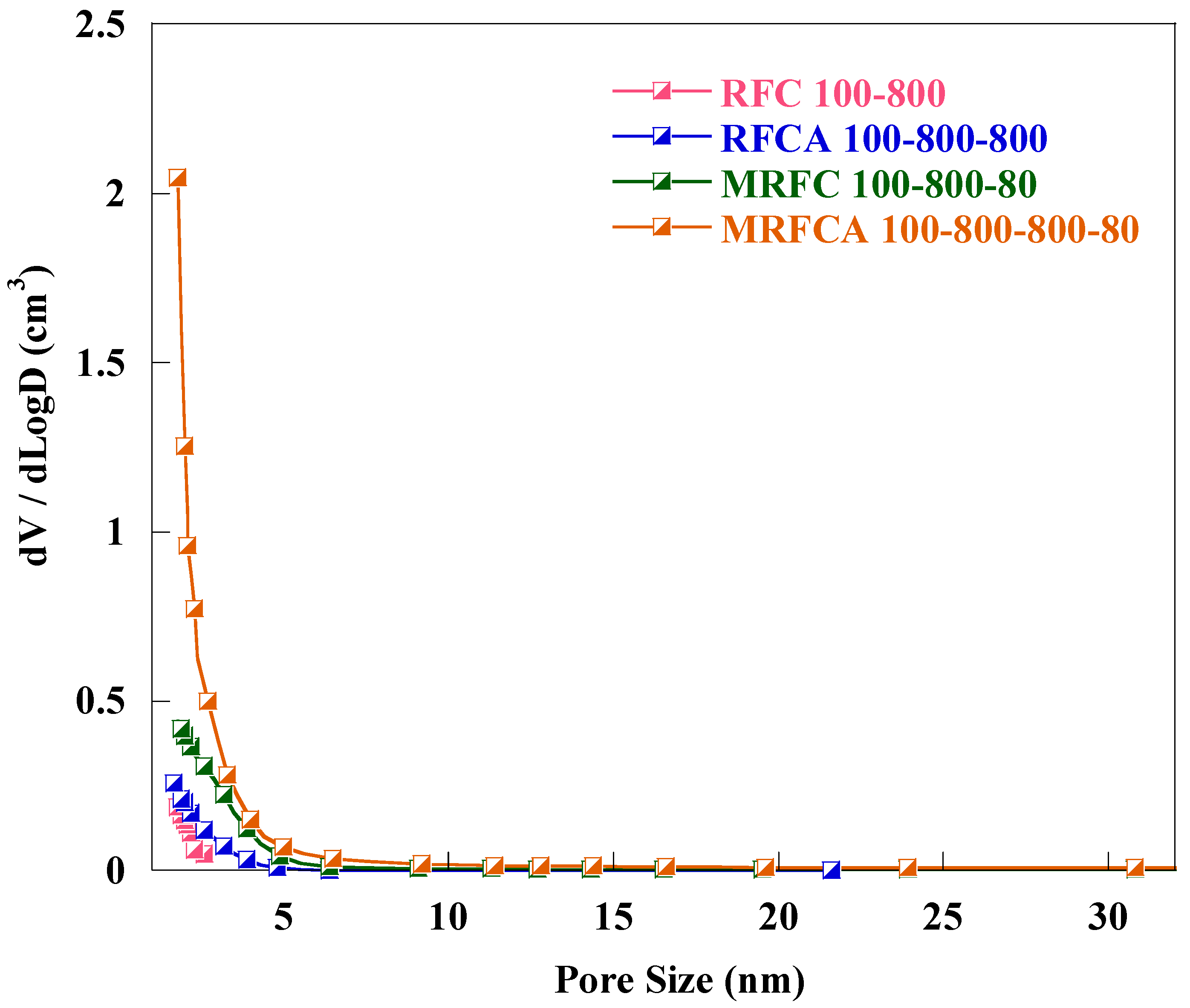

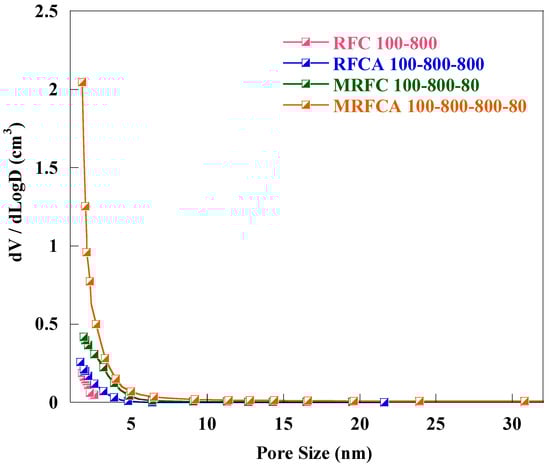

Pore size distribution (PSD) curves for un-doped and N-doped carbon/activated carbon samples are shown in Figure 4. Detailed analysis of pore size distribution (PSD) curves illustrates that all samples are mainly microporous with the pore size distribution centred around 2 nm and most of the distribution is in the microporous region.
Detailed porosity parameters consisting of specific Surf. area, total volume, micropore and mesopore volumes and their percentages, and average pore size of all samples are given in Table 1.

4.1.2. Scanning Electron Microscopy (SEM) Analysis

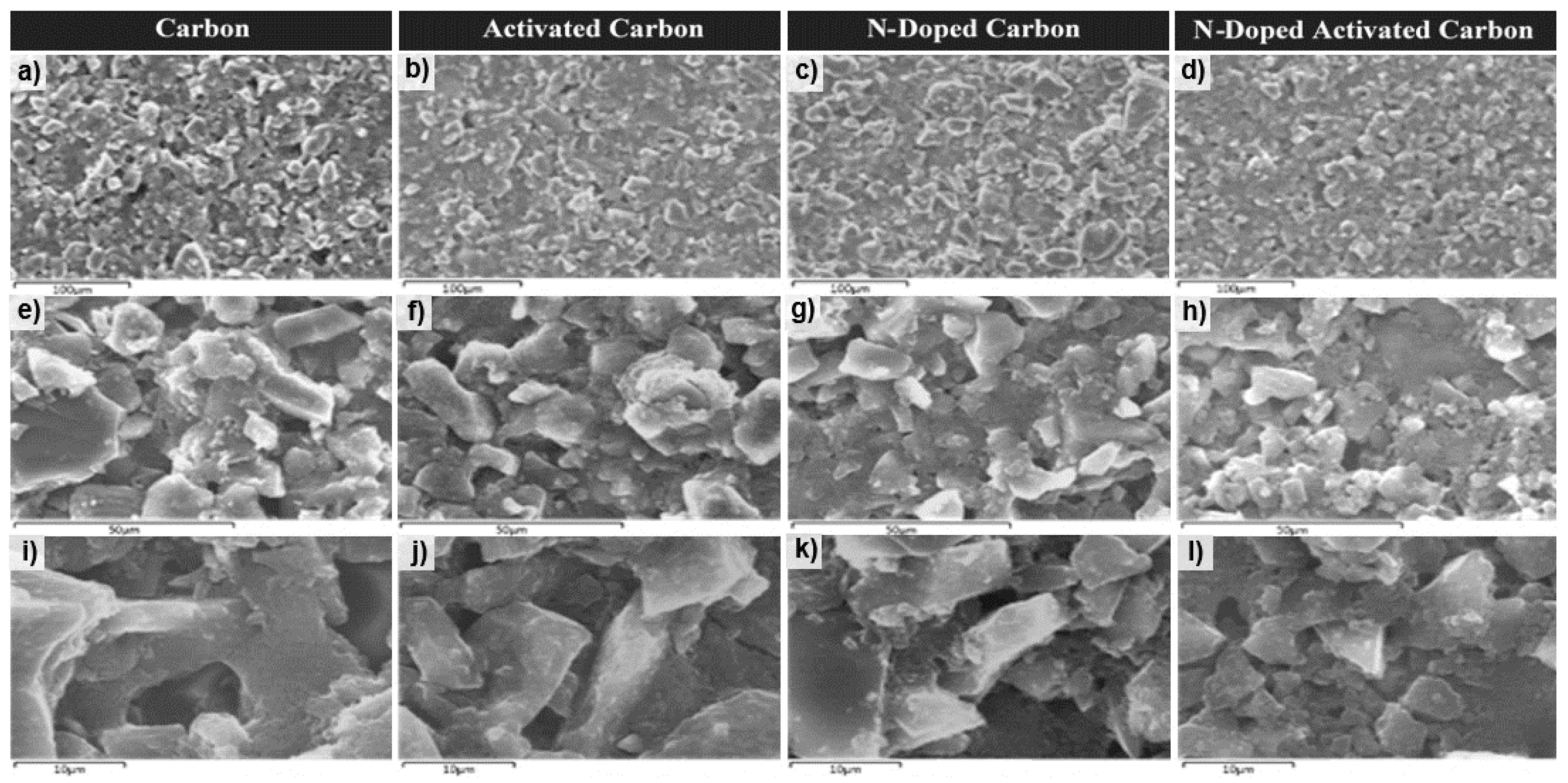

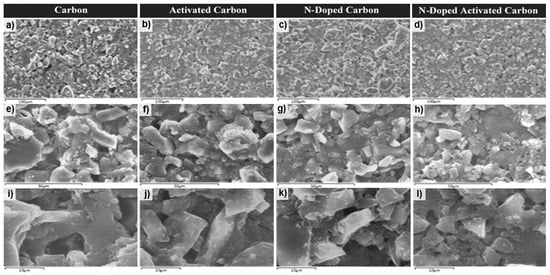

The microstructure of un-doped and N-doped carbon and activated carbon aerogel samples is characterized by SEM. SEM micrograms of samples at different magnifications are shown in Figure 5. Both un-doped and N-doped carbon/activated carbon aerogel samples show a highly amorphous structure with extremely irregular particle morphological architecture giving rise to high specific Surf. area and pore volume as shown by BET analysis.
The low-resolution micrographs of the carbon sample (a and e) show mostly homogeneous structure with the presence of microcavities whereas the Surf. of all activated carbon sample (b and f) display the formation of a spongy layer on the Surf. of carbon with the presence of micro-cavities leading to a high Surf. area. Additionally, the micrographs of nitrogen-doped carbon sample (c and g) exhibit a denser Surf. with filled inter-particle spaces in comparison to the more open structure of the un-doped sample. This can be credited to the smaller particle sizes formed with the introduction of melamine at the gelation stage which results in additional nucleation sites and can be the reason behind the higher specific Surf. area of the nitrogen-doped carbon sample given in Table 1. Activation of this sample results in the formation of further microcavities and a high level of porosity in its structure as indicated by the micrographs of d and h. The SEM images (i–l) with higher magnification reveals the expected granular structures in a random packing for the un-doped carbon attained through the carbonization of the aerogel sample and well developed porous structure indicative of a high level of porosity for N-doped carbon and further development of porosity in the structure of the N-doped carbon aerogel sample after activation.

4.1.3. Contact Angle Measurements

Application of carbon as electrode material for electrochemical capacitors rely on its wettability with electrolyte. Therefore, contact angle measurements were performed as a key characterization technique to characterize electrode/electrolyte interactions and to elucidate the intrinsic electrolyte wettability of the electrode Surf.. The contact angle directly provides information on the interaction energy between the Surf. and the liquid and determines the level of wettability of a solid with a probing liquid. The contact angle of flat Surf.s is determined from a drop of a suitable liquid resting on a Surf. using a high-resolution camera with software to capture and analyse the angle formed between the solid/liquid/vapor interfaces. Figure 6 shows the schematic diagram of measured contact angles at a three-phase boundary (solid to liquid to vapour) arisen from a thermodynamic equilibrium between the liquid phase of the droplet (L), the solid phase of the substrate(S), and the gas/vapor phase of the ambient atmosphere (V). In the case of a strong liquid/Surf., the droplet will completely spread out on the solid Surf. and the contact angle will be close to zero degrees. Weaker liquid/solid interactions lead to a contact angle up to 90° and for situations in which the liquid droplet simply rests on the Surf. without wetting it to any significant extent the contact angle will be larger than 90°. The degree of wetting described by the contact angle depends on the energies (or Surf. tensions) of the interface between phases involved where the total energy is minimized. Thus in addition to offering information about the type of solid Surf., i.e., hydrophilic or hydrophobic, interfacial contact angle also gives an estimation of Surf. energy [34].

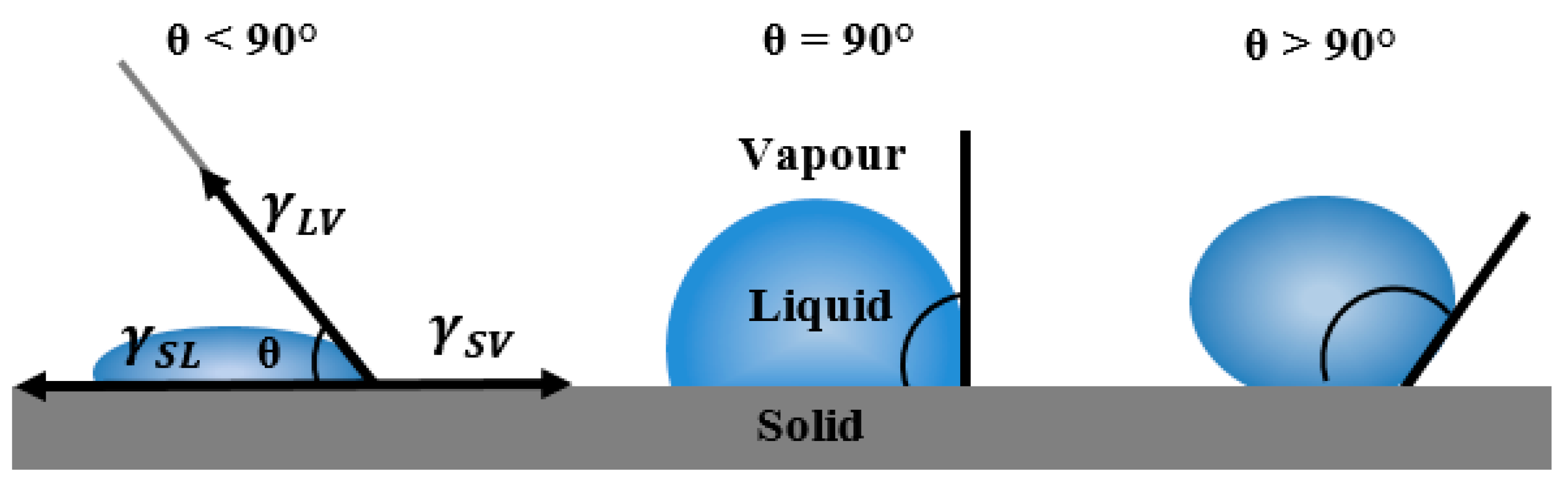

In this study, the wettability of the electrodes prepared by using a sample of un-doped/N-doped carbon/activated carbon in their formulation was investigated by contact angle measurements using 6 M KOH solution as the probing liquid since the same solution was used as the electrolyte in the electrochemical cell during electrochemical measurements. The measured values of the contact angles are given in Table 2. It can be seen that the wettability of the carbon by KOH solution improves immensely with the drop in the contact angle after the introduction of oxygen through the activation process and incorporation of nitrogen into the carbon structure through nitrogen doping [35,36]. A significant decrease in contact angle from 123° to 91° was observed for the sample RFCA100–800–800 after the introduction of oxygen functional groups on the carbon Surf. through the activation process. A further drop in contact angle to 80° was recorded for the carbon sample containing both oxygen and nitrogen functional groups obtained by the activation of nitrogen-doped carbon aerogel sample (MRFCA100–800–800–80) as given in Table 2. Wang et al. also observed the same effect of nitrogen and oxygen dual doping on the wettability of the carbons with aqueous electrolytes and argued that functional dopants such as oxygen and nitrogen modify and improve the hydrophilicity of carbon significantly [37].
Since all samples have similar average pore sizes around 2nm, the data given in Table 2 suggest that a positive effect on wettability (substantial drop in contact angle) and the transformation of carbon aerogel samples Surf. from hydrophobic to hydrophilic is due to the combined treatment of the electrode material with nitrogen and oxygen heteroatoms. Many pieces of literature have pointed out that improved wettability of nitrogen and oxygen functionalized Surf.s can be credited to heterogeneous polar species with an improved affinity towards KOH aqueous solution resulting in improved wettability and ion transportation leading to a lower equivalent series resistance [23,38,39]. Figure 7 shows the images of 6 M KOH droplets in contact with electrode Surf. using N-doped carbon MRFC100–800–80 and N-doped activated carbon MRFC100–800–800–80 as electroactive material where a considerable drop in contact angle from 103 to 80 degree was observed after the activation of nitrogen-doped carbon aerogel sample. This is mainly due to the introduction of oxygen functionalities in addition to nitrogen heteroatoms resulting in an increase of the hydrophilicity and polar character of the carbon Surf. [40]. This will be discussed in the XPS analysis of the electrodes below.

4.1.4. X-ray Photoelectron Spectroscopy (XPS) Analysis

The elemental composition of electrodes using the carbon samples as the electroactive material was determined by XPS to gain information on their chemical configurations and assess the role of oxygen and nitrogen on their electrochemical performance. The wide survey scan spectra of prepared carbon electrodes given in Figure 8 shows that all samples are composed of fluorine, carbon, oxygen and smaller quantities of nitrogen. Therefore, high-resolution spectra of all mentioned elements were additionally measured to assess the molar composition of the Surf. of the sample for the quantification of oxygen and nitrogen content. The appearance of fluorine on XPS spectra is related to the use of polyvinylidene fluoride in Kynar as a binding material for the fabrication of the electrodes.
The elemental composition with % molar concentration of oxygen and nitrogen heteroatoms in electrode made of un-doped and N-doped carbon/activated carbon aerogel samples is summarised in Table 3. The data shows the presence of both oxygen and nitrogen in the carbon where oxygen is introduced on the samples Surf.s through the activation process and nitrogen is introduced within the carbon structure using melamine as a nitrogen source during the gelation process. The low value of contact angle obtained for MRFCA100–800–800–80 carbon could be a result of the presence of both oxygen and nitrogen functional groups improving its wetting behaviour and ionic conduction which is in good agreement with other literature [39,41].

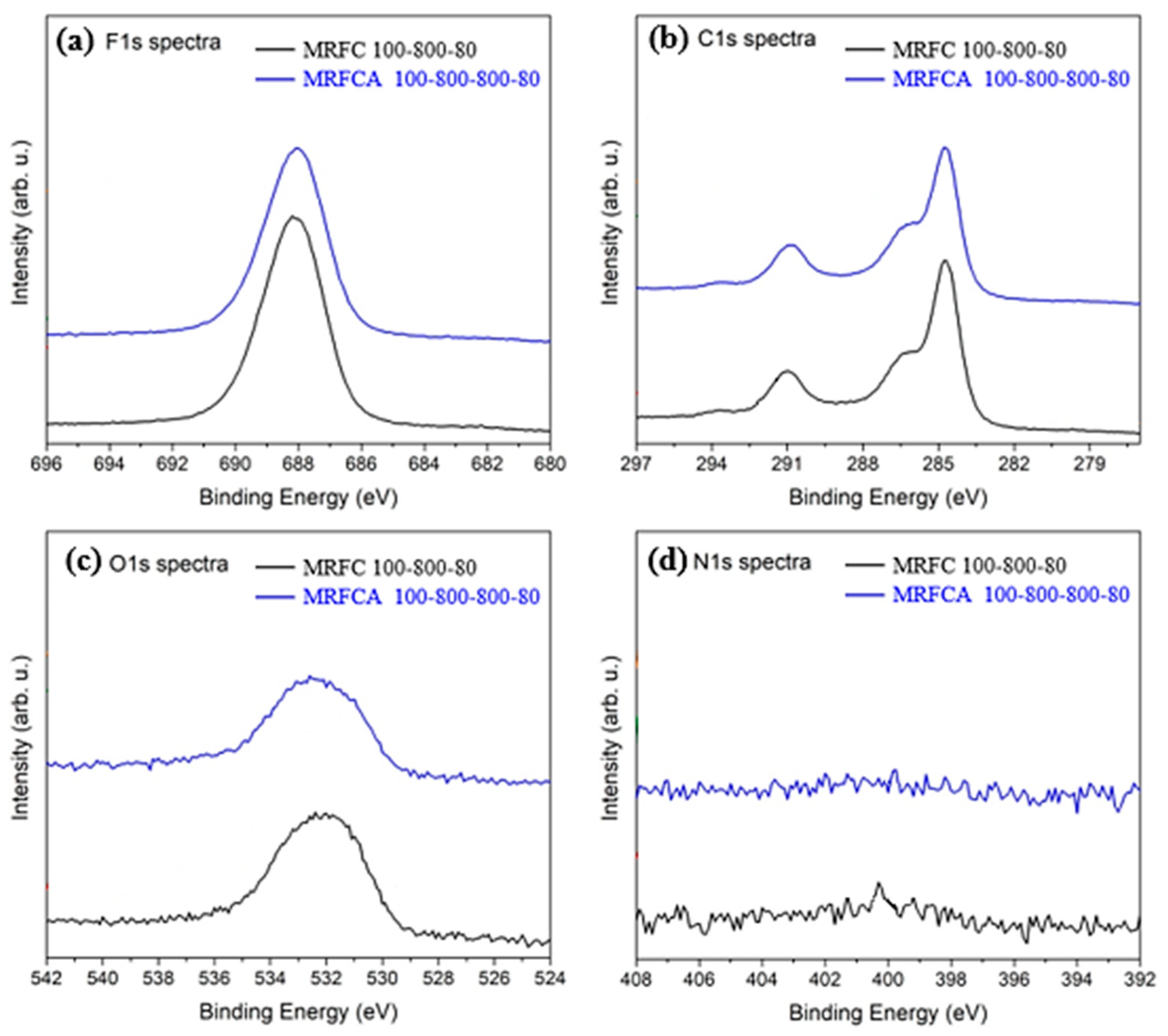

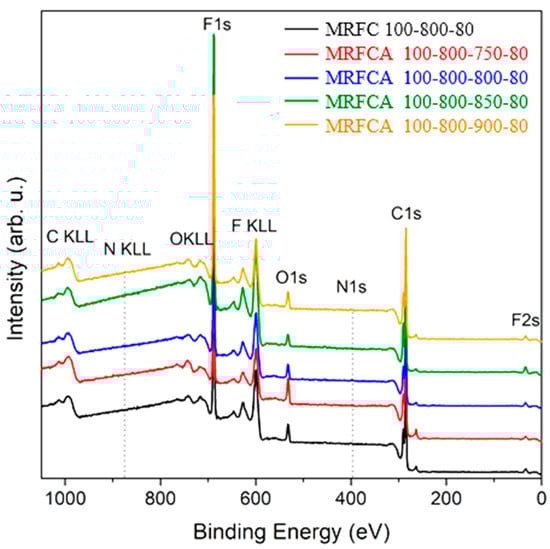

The high-resolution XPS F1s, C1s, O1s and N1s spectra for electrodes using nitrogen-doped carbon (MRFC 100–800–80) and activated nitrogen-doped carbon (MRFCA 100–800–800–80) as electroactive material are shown in Figure 9a–d respectively. The F1s spectra of the electrodes shown in Figure 9a depict peaks at a binding energy of 688 eV which corresponds to the fluorine from PVDF in Kynar used as the binder [42,43]. The peaks on C1s spectra shown in Figure 9b correspond to C-H/C-C at a binding energy of 285 eV, C=O/O-C-O at a binding energy of 287.2 eV, and also C-O-C, C=O and O-C=O contributions at a binding energy of 291 eV [43,44,45,46,47]. The O1s spectra in Figure 9c show Surf. oxygen peaks at 532 and 531.7 eV corresponding to the presence of Surf. oxygen groups and phenolic and carboxyl groups [40]. These groups are related to the activation of carbon and are polar in nature, thus they are responsible for the electrode’s hydrophilic behavior [48,49]. Figure 9d shows the low-intensity component of N1s spectra with weak peaks at a binding energy of 400 eV. These peaks are the characteristics of C–N and/or O = C–N types of functionalities in the carbon matrix [50]. Peaks at 401 eV could be related to different forms of quaternary nitrogen atoms including graphitic nitrogen, with nitrogen atom is attached to the carbon layer substituting a carbon atom [51]. All these peaks correspond to the low level of nitrogen in the carbon matrix below 1 mole% nitrogen.

4.1.5. XRD Analysis

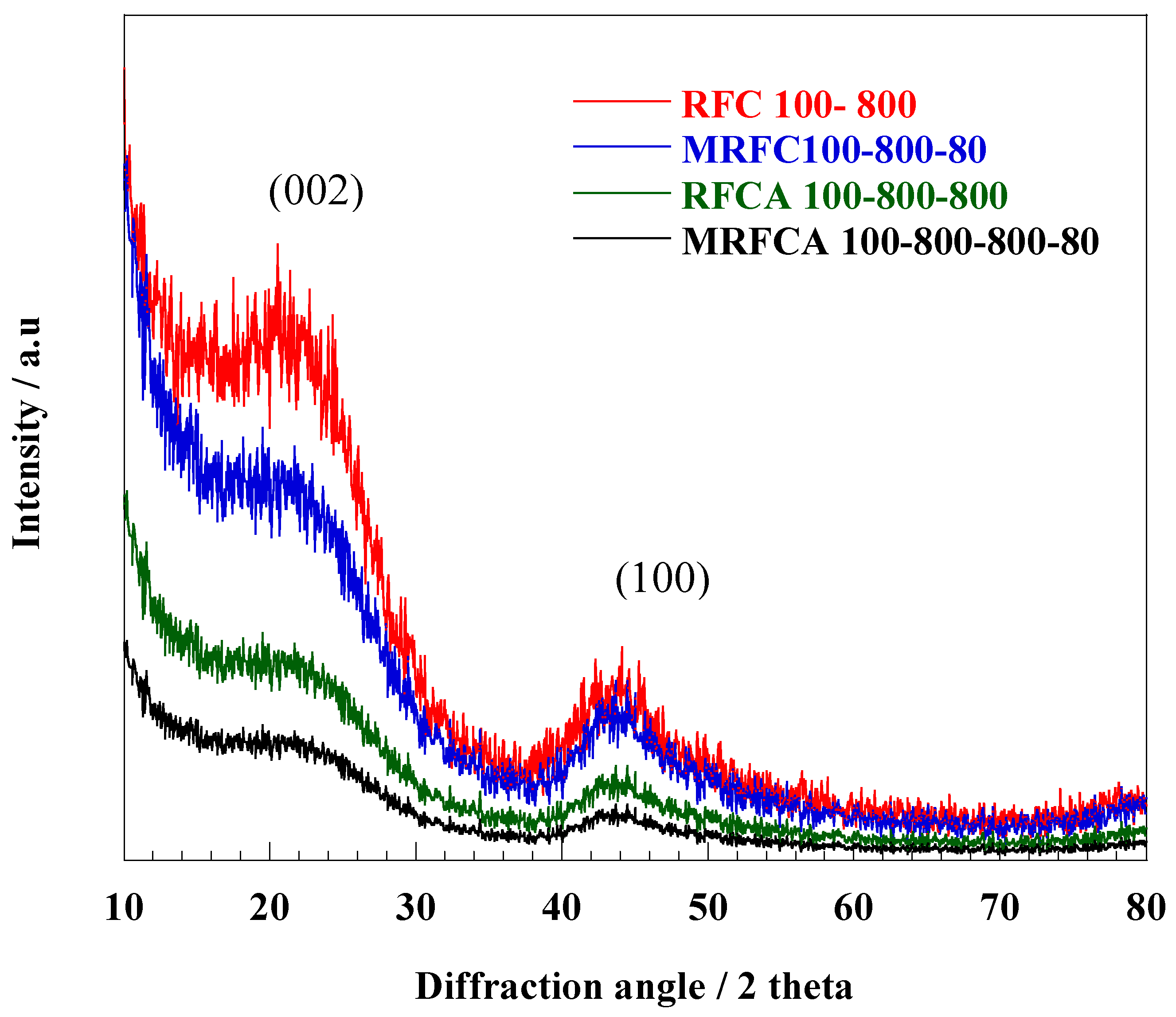

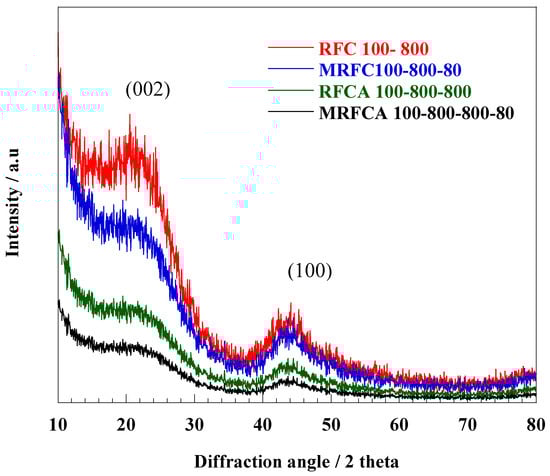

XRD spectra of un-doped and N-doped carbon/activated carbons are shown in Figure 10. All samples have two broader low-intensity peaks commonly assigned to phase planes (002) (2θ = 23°) and (100) (2θ = 43.7°) respectively representing highly amorphous structures for these types of carbons [23]. The un-doped carbon sample shows significantly stronger peaks around 2θ = 23° with a gradual drop in its intensity after N-doping and activation. A significant decrease in the intensity of (002) peaks can be probably due to an increased crystallite disorder with more defects in the carbon structure after the nitrogen doping and activation process [52].

4.2. Electrochemical Characterization of RFC, MRFC, RFCA and MRFCA Carbon/Activated Carbon Aerogels

4.2.1. Cyclic Voltammetry (CV)

Cyclic voltammetry is a commonly used technique for the calculation of capacitive value and also a useful tool for the estimation of electric double layer and pseudo-capacitive charging behaviour of electrode materials [53]. Figure 11a–d shows cyclic voltammograms of un-doped carbon (RFCA100–800), activated carbon (RFCA100–800–800), N-doped carbon (MRFC100–800–80) and N-doped activated carbon (MRFCA100–800–800–80) respectively used as electroactive material with 6 M KOH solution as an electrolyte in a two-electrode symmetrical cell, measured at scan rates of 5, 10 and 15 mV s−1. The specific capacitance of all samples calculated by Equations (3) and (4) are given in Table 4.
The porosity parameters of the samples given in Table 1 show that all samples have similar pore sizes with an average pore size (APS) of around 2nm. This was found to be the optimum pore size for achieving the highest capacitance of 136 Fg−1 for RFC100–800 carbon using a 6 M KOH solution as the electrolyte in our previous study [28]. It has been also demonstrated by other studies that the maximum specific capacitance of electrode material is achieved when its APS is in excellent fit with electrolyte ion size [27,54,55,56]. An increase in APS results in inferior specific capacitance due to a drop in dielectric constant “ε” (relative permittivity) and increase in “d” (distance between the centre of ion and carbon pore walls) as given by Equation (2) whereas, smaller pore size can result in issues such as electrolyte ions inaccessibility to the internal Surf. area of the carbon and also kinetic effects due to a limited ionic diffusion [27,57,58]. Improvement of the specific capacitance with activation from 136 to 197 Fg−1 for activated carbon RFCA100–800–800 (Table 4) was realised by enhancing the specific Surf. area and introducing oxygen functional groups as a result of the activation process while maintaining the average pore size around 2nm. Improved specific Surf. area “S” results in enhanced specific capacitance according to Equation (2) although the relationship between specific capacitance and the BET specific Surf. area of the electroactive material is not always linear since the total measured specific Surf. area of the electrode might not be fully accessed by electrolyte ions. The presence of oxygen functional groups on the Surf. of carbon is another contributor towards its improved capacitive performance due to the addition of pseudocapacitance through the Faradaic redox reaction originated from fully reversible oxidation/reduction of hydroquinone/quinone groups. Fan et al. has recently reported that the oxygen doubly bound to carbon groups might be responsible for redox reaction which can be a key contributor to pseudocapacitive element in the overall capacitive performance of activated carbon-based electrodes in an electrochemical capacitor since oxygen has electron acceptor characteristics [39].
Similarly, the capacitive performance of the electroactive material can be also improved by the introduction of nitrogen functional groups on the Surf. or within the carbon matrix [23,37,39]. Nitrogen is one of the most extensively investigated elements added to carbons to improve their capacitance in aqueous electrolytes since its incorporation into carbon is comparatively easier attributable to its similar size and the same number of valence electrons with carbon [59]. Data in Table 4 shows that further enhanced specific capacitance of 208 Fg−1 for N-doped carbon compared to the specific capacitance of 136 Fg−1 obtained for an un-doped carbon aerogel sample with similar porous structure is attained. This higher specific capacitance is the sum of both electric double-layer capacitance and the pseudocapacitance due to redox reactions of nitrogen heteroatoms where the former originates from the increased Surf. area of the active material (Table 1) and the later instigates from its nitrogen content (Table 2) [60]. A number of studies have shown increased capacitance of nitrogen-doped carbons in alkaline solutions [4,23,39]. In their study of the effects of nitrogen and oxygen functional groups on the electrochemical performance of activated carbon nanotubes in supercapacitors, Liu et al. proposed the Faradaic redox reactions shown in Figure 12 for nitrogen functional groups in alkaline medium [61].
The highest specific capacitance of 289 Fg−1 was obtained for nitrogen and oxygen dual-doped carbon (MRFCA100–800–800–80) synthesized by the activation of N-doped carbon as compared to the specific capacitance of 208 Fg−1 for non-activated N-doped carbon. This improved capacitive performance can be attributed to the electric double layer contribution of porous carbon and synergic effect of oxygen functional groups present on the Surf. of carbon as a result of the activation process and nitrogen functional groups introduced into its structure through the addition of melamine as a nitrogen source during the gelation process respectively.

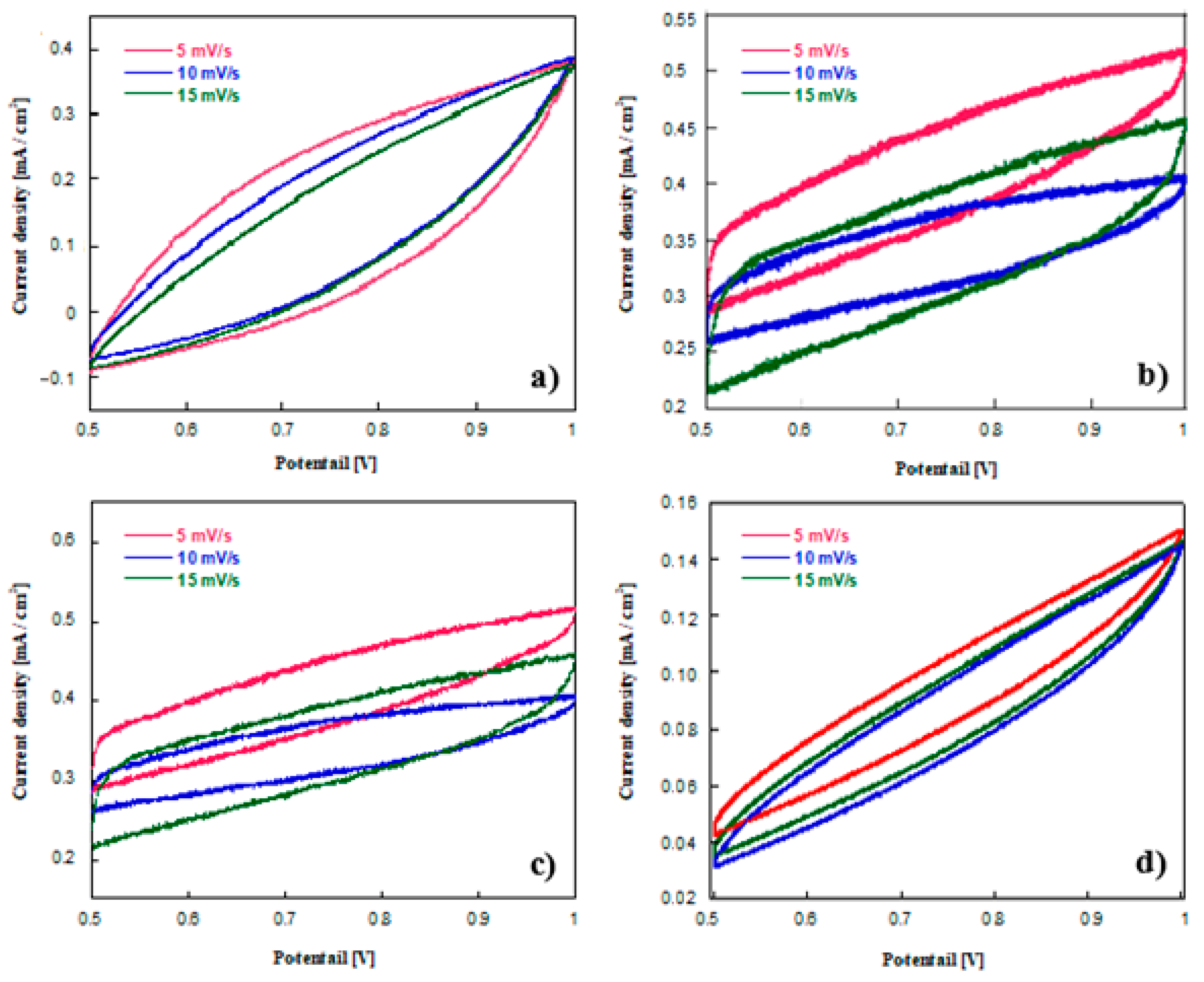

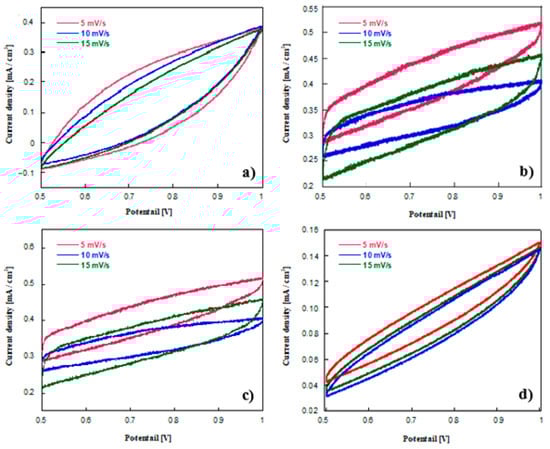

CV curves of un-doped and doped carbon/activated carbon aerogel samples in Figure 11 show largely symmetric and quasi-rectangular shapes. The moderate distortion of the CV curves from an ideal rectangular shape which is typically associated with electric double layer capacitive behaviour can be attributed to the pseudo-capacitance contribution arisen from Faradaic redox reactions involving both oxygen and nitrogen functional groups attached to the carbon Surf. and fused into its inner network respectively [62,63]. All carbon samples show a steady drop in specific capacitance with an increase in scan rate due to limited ion mobility at higher scan rates [64].

4.2.2. Electrochemical Impedance Spectroscopy (EIS)

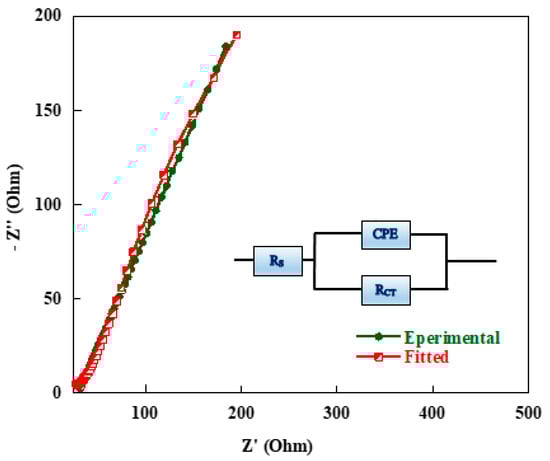

Electrochemical impedance spectroscopy (EIS) is a suitable technique to analyse capacitive/resistive behaviour and charge transfer kinetics of an electroactive material. Nyquist plots of the cell using un-doped and N-doped carbon/activated carbons as the electroactive material obtained in the frequency range of 100 KHz to 50 Hz with an AC wave amplitude of 10 mV are shown in Figure 13. All Nyquist plots show an incomplete semicircle in higher frequency region (inset) related to charge transfer and polarization resistance (RCT) where smaller diameters correspond to faster kinetics representing a faster transport process. The equivalent series resistance (Rs) as a combination of the current collector resistance, ionic resistance of the electrolyte, and the electrode/electrolyte interfacial resistance can be calculated from the high-frequency intercept of EIS spectra to the real axis [63,65] whereas, the nearly vertical line in low-frequency region (absence of semicircle) depicting Warburg like behaviour signifies mainly capacitive behaviour with low ion diffusion resistance within highly porous media [66,67].

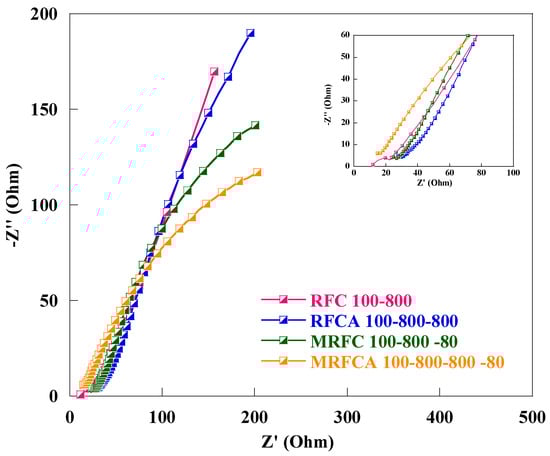

The resistive behaviour of the cell was further investigated in detail by fitting the experimental impedance data with the depicted equivalent circuit model given as an inset in Figure 14 for the quantitative analysis of the EIS spectra using “Zview” software. It can be seen that there is a good agreement between the experimental and fitted curves shown in Figure 14.
Numerical values of the equivalent series resistance, RS, and the charge transfer resistance, RCT, as the barrier between the anodic and cathodic current flows through the cell are given in Table 5. These elements are also shown in the equivalent circuit embedded as an inset in Figure 14.
A decline in the equivalent series resistances from 0.81 Ω to 0.30 Ω and a slight increase in charge transfer resistance from 0.29 Ω to 0.40 Ω were observed after activation of un-doped carbon aerogel sample RFC100–800. The drop in equivalent series resistance after activation can be credited to improved wettability and change in Surf. chemistry of the electrode due to the introduction of oxygen Surf. functional groups [39] for activated carbon aerogel (RFCA100–800–800) whereas a slight increase in charge transfer resistance after physical activation can be attributed to an increase in porosity of the carbon as shown in Table 1, affecting its electric conductivity [28]. Furthermore, a gradual drop in equivalent series and charge transfer resistances was witnessed after the introduction of both oxygen and nitrogen functional groups on the Surf. and within the carbon matrix with the lowest measured equivalent series and charge transfer resistances of 0.11 Ω and 0.02 Ω respectively for oxygen and nitrogen dual-doped sample as shown in Table 5. This decline in overall resistive behaviour of samples after oxygen and nitrogen doping can also be linked to the modification of Surf. chemistry resulting in enhanced conductivity and electron transfers due to improved wetting behaviour for oxygen and nitrogen co-doped activated carbon aerogel sample (MRFCA100–800–800–80) in contact with 6 M KOH electrolyte solution (with the lowest recorded contact angle of 80°) as shown in Table 2 [68]. All samples show excellent capacitive behaviour with very low solution and charge transfer resistances particularly the oxygen and nitrogen dual-doped sample MRFCA100–800–800–80 exhibiting the lowest equivalent series and charge transfer resistances can be adopted as a suitable electroactive material for aqueous electrolyte electrochemical capacitors.

5. Conclusions

Highly porous nanostructured un-doped/N-doped carbon and activated carbon aerogels were produced with an average pore size of ~2 nm. The carbons were used as electroactive material with a 6 M KOH solution as the electrolyte in an electrochemical cell. Cyclic voltammetry measurements of the cell showed a significant improvement in its specific capacitance after activation and nitrogen doping of the carbon used as electroactive material in its electrode formulation. It was shown that incorporation of nitrogen and oxygen functional groups witnessed by XPS analysis of the materials, transforms the Surf. of the electrode from a hydrophobic to hydrophilic Surf. with steady improvement in electrode/electrolyte wettability and decrease in contact angle from 123° obtained for un-doped carbon aerogel to 80° for nitrogen and oxygen co-doped carbon aerogel sample. This resulted in a significant increase in the specific capacitance of the cell, with the highest specific capacitance of 289 Fg−1 attained for nitrogen and oxygen dual-doped sample MRFCA100–800–800–80 which is attributed to both EDLC and pseudocapacitive contributions originated from the highest specific Surf. area of the carbon and also the presence of nitrogen/oxygen functional groups within the carbon matrix and on its Surf. respectively. EIS measurements also showed a strong relationship between Surf. chemistry and equivalent series/charge transfer resistances for un-doped and nitrogen-doped carbon/activated carbon aerogel samples. The Surf. modification of the carbons through activation and nitrogen doping resulted in the lowest equivalent series and charge transfer resistances obtained for the electrode fabricated by using N-doped activated carbon sample as electroactive material in electrochemical capacitor cell, making this sample an ideal and cost-effective candidate for aqueous-based electrochemical capacitors.

Author Contributions

Measurements and anslysis, Q.A., M.M.; validation, M.M., M.R.C.H., P.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by EPRSC/BEIS (EP/R021503/1, North East Centre for Energy Materials – NECEM).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hall, P.J.; Mirzaeian, M.; Fletcher, S.I.; Sillars, F.B.; Rennie, A.J.R.; Shitta-Bey, G.O.; Wilson, G.; Cruden, A.; Carter, R. Energy storage in electrochemical capacitors: Designing functional materials to improve performance. Energy Environ. Sci. 2010, 3, 1238–1251. [Google Scholar] [CrossRef]
  2. Mirzaeian, M.; Abbas, Q.; Ogwu, A.; Hall, P.; Goldin, M.; Mirzaeian, M.; Jirandehi, H.F. Electrode and electrolyte materials for electrochemical capacitors. Int. J. Hydrogen Energy 2017, 42, 25565–25587. [Google Scholar] [CrossRef] [Green Version]
  3. Fic, K.; Platek, A.; Piwek, J.; Frackowiak, E. Sustainable materials for electrochemical capacitors. Mater. Today 2018, 21, 437–454. [Google Scholar] [CrossRef]
  4. Abbas, Q.; Raza, R.; Shabbir, I.; Olabi, A. Heteroatom doped high porosity carbon nanomaterials as electrodes for energy storage in electrochemical capacitors: A review. J. Sci. Adv. Mater. Devices 2019, 4, 341–352. [Google Scholar] [CrossRef]
  5. Simon, P.; Brousse, T.; Favier, F. Supercapacitors Based on Carbon or Pseudocapacitive Materials; Wiley-ISTE: London, UK, 2017. [Google Scholar]
  6. Da Silva, L.M.; Cesar, R.; Moreira, C.M.; Santos, J.H.; De Souza, L.G.; Pires, B.M.; Vicentini, R.; Nunes, W.; Zanin, H. Reviewing the fundamentals of supercapacitors and the difficulties involving the analysis of the electrochemical findings obtained for porous electrode materials. Energy Storage Mater. 2020, 27, 555–590. [Google Scholar] [CrossRef]
  7. Pal, B.; Yang, S.; Ramesh, S.; Thangadurai, V.; Jose, R. Electrolyte selection for supercapacitive devices: A critical review. Nanoscale Adv. 2019, 1, 3807–3835. [Google Scholar] [CrossRef] [Green Version]
  8. Pan, S.; Yao, M.; Zhang, J.; Li, B.; Xing, C.; Song, X.; Su, P.; Zhang, H. Recognition of Ionic Liquids as High-Voltage Electrolytes for Supercapacitors. Front. Chem. 2020, 8, 261. [Google Scholar] [CrossRef] [PubMed]
  9. Deng, J.; Li, J.; Song, S.; Zhou, Y.; Li, L. Electrolyte-Dependent Supercapacitor Performance on Nitrogen-Doped Porous Bio-Carbon from Gelatin. Nanomaterials 2020, 10, 353. [Google Scholar] [CrossRef] [Green Version]
  10. Rashidi, S.; Esfahani, J.A.; Hormozi, F. Classifications of Porous Materials for Energy Applications. In Reference Module in Materials Science and Materials Engineering; Elsevier: Amsterdam, The Netherlands, 2020. [Google Scholar]
  11. Mirzaeian, M.; Akhanova, N.; Gabdullin, M.; Kalkozova, Z.; Tulegenova, A.; Nurbolat, S.; Abdullin, K. Improvement of the Pseudocapacitive Performance of Cobalt Oxide-Based Electrodes for Electrochemical Capacitors. Energies 2020, 13, 5228. [Google Scholar] [CrossRef]
  12. Lokhande, C.; Dubal, D.; Joo, O.-S. Metal oxide thin film-based supercapacitors. Curr. Appl. Phys. 2011, 11, 255–270. [Google Scholar] [CrossRef]
  13. Oje, A.I.; Ogwu, A.; Mirzaeian, M.; Tsendzughul, N. Silver thin film electrodes for supercapacitor application. Appl. Surf. Sci. 2019, 15, 142–150. [Google Scholar] [CrossRef]
  14. Tiwari, A.; Dixit, A. Rare Earth Oxides Based Composites for High Voltage Supercapacitors Applications: A Short Review. In Renewable Energy and Climate Change; Springer: Berlin, Germany, 2020; pp. 1–10. [Google Scholar]
  15. Sarno, M. Nanotechnology in energy storage: The supercapacitors. In Studies in Surf. Science and Catalysis; Elsevier: Amsterdam, The Netherlands, 2019; Volume 179, pp. 431–458. [Google Scholar]
  16. Wong, S.I.; Lin, H.; Sunarso, J.; Wong, B.T.; Jia, B. Tuning the properties of flash-reduced graphene oxide electrodes for supercapacitor applications. In SPIE Micro+ Nano Materials, Devices, and Applications 2019; International Society for Optics and Photonics: Bellingham, WA, USA, 2019; Volume 11201, p. 112010L. [Google Scholar]
  17. Picó, F.; Rojo, J.M.; Sanjuán, M.L.; Ansón, A.; Benito, A.M.; Callejas, M.A.; Maser, W.K.; Martinez, M.T. Single-walled carbon nanotubes as electrodes in supercapacitors. J. Electrochem. Soc. 2004, 151, A831–A837. [Google Scholar] [CrossRef]
  18. Barranco, V.; Lillo-Rodenas, M.A.; Linares-Solano, A.; Oya, A.; Pico, F.; Ibáñez, J.; Agullo-Rueda, F.; Amarilla, J.M.; Rojo, J.M. Amorphous carbon nanofibers and their activated carbon nanofibers as supercapacitor electrodes. J. Phys. Chem. C 2010, 114, 10302–10307. [Google Scholar] [CrossRef]
  19. Abbas, Q.; Mirzaeian, M.; Ogwu, A.A.; Mazur, M.; Gibson, D. Effect of physical activation/Surf. functional groups on wettability and electrochemical performance of carbon/activated carbon aerogels based electrode materials for electrochemical capacitors. Int. J. Hydrogen Energy 2018, 45, 13586–13595. [Google Scholar] [CrossRef] [Green Version]
  20. Hursthouse, A.; Menzies, B.; Kelly, S.; Mirzaeian, M.; McPherson, W.; Wood, D. WEEE collection and CRM recovery trials: Piloting a holistic approach for Scotland. Glob. NEST J. 2018, 20, 712–718. [Google Scholar]
  21. Obreja, V.V.; Dinescu, A.; Obreja, A.C. Activated carbon based electrodes in commercial supercapacitors and their performance. Int. Rev. Electr. Eng. 2010, 5, 272–281. [Google Scholar]
  22. Rennie, A.J.R.; Hall, P.J. Nitrogen-enriched carbon electrodes in electrochemical capacitors: Investigating accessible porosity using CM-SANS. Phys. Chem. Chem. Phys. 2013, 15, 16774–16778. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Mirzaeian, M.; Abbas, Q.; Gibson, D.; Mazur, M. Effect of nitrogen doping on the electrochemical performance of resorcinol-formaldehyde based carbon aerogels as electrode material for supercapacitor applications. Energy 2019, 173, 809–819. [Google Scholar] [CrossRef] [Green Version]
  24. Li, X.-R.; Jiang, Y.-H.; Wang, P.-Z.; Mo, Y.; Lai, W.-D.; Li, Z.-J.; Yu, R.-J.; Du, Y.-T.; Zhang, X.-R.; Chen, Y. Effect of the oxygen functional groups of activated carbon on its electrochemical performance for supercapacitors. New Carbon Mater. 2020, 35, 232–243. [Google Scholar] [CrossRef]
  25. Lufrano, F.; Staiti, P. Influence of the Surf.-chemistry of modified mesoporous carbon on the electrochemical behavior of solid-state supercapacitors. Energy Fuels 2010, 24, 3313–3320. [Google Scholar] [CrossRef]
  26. Beguin, F.; Frackowiak, E. Supercapacitors, Materials, Systems and Applications; Wiley-CCH: New York, NY, USA, 2013. [Google Scholar]
  27. Sillars, F.B.; Fletcher, S.I.; Mirzaeian, M.; Hall, P.J. Effect of activated carbon xerogel pore size on the capacitance performance of ionic liquid electrolytes. Energy Environ. Sci. 2011, 4, 695–706. [Google Scholar] [CrossRef]
  28. Abbas, Q.; Mirzaeian, M.; Ogwu, A.A. Electrochemical performance of controlled porosity resorcinol/formaldehyde based carbons as electrode materials for supercapacitor applications. Int. J. Hydrogen Energy 2017, 42, 25588–25597. [Google Scholar] [CrossRef] [Green Version]
  29. Condon, J.B. Surf. Area and Porosity Determinations by Physisorption: Measurement, Classical Theories and Quantum Theory; Elsevier: Amsterdam, The Netherlands, 2019. [Google Scholar]
  30. Bardestani, R.; Patience, G.S.; Kaliaguine, S. Experimental methods in chemical engineering: Specific Surf. area and pore size distribution measurements—BET, BJH, and DFT. Can. J. Chem. Eng. 2019, 97, 2781–2791. [Google Scholar] [CrossRef]
  31. Wang, Y.; Chang, B.; Guan, D.; Dong, X. Mesoporous activated carbon spheres derived from resorcinol-formaldehyde resin with high performance for supercapacitors. J. Solid State Electrochem. 2015, 19, 1783–1791. [Google Scholar] [CrossRef]
  32. Liu, X.; Li, S.; Mei, J.; Lau, W.-M.; Mi, R.; Li, Y.; Liu, H.; Liu, L.-M. From melamine–resorcinol–formaldehyde to nitrogen-doped carbon xerogels with micro-and meso-pores for lithium batteries. J. Mater. Chem. A 2014, 2, 14429–14438. [Google Scholar] [CrossRef]
  33. Le, H.; Jeong, H. Synthesis and characterization of nitrogen-doped activated carbon by using melamine. New Phys. 2015, 65, 86–89. [Google Scholar] [CrossRef]
  34. Mirzaeian, M.; Ogwu, A.A.; Jirandehi, H.F.; Aidarova, S.; Ospanova, Z.; Tsendzughul, N. Surf. characteristics of silver oxide thin film electrodes for supercapacitor applications. Colloids Surf.s A Physicochem. Eng. Asp. 2017, 519, 223–230. [Google Scholar] [CrossRef] [Green Version]
  35. Yang, P.; Huang, N.; Leng, Y.; Yao, Z.; Zhou, H.; Maitz, M.; Chu, P. Wettability and biocompatibility of nitrogen-doped hydrogenated amorphous carbon films: Effect of nitrogen. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 2006, 242, 22–25. [Google Scholar] [CrossRef]
  36. Abbas, Q.; Mirzaeian, M. Effect of nitrogen doping on physical and electrochemical properties of resorcinol/formaldehyde based carbons. In Proceedings of the 5th International Conference on Material Science and Smart Materials, Paisley, UK, 7–10 August 2018; pp. 430–436. [Google Scholar]
  37. Wang, X.; Lou, M.; Yuan, X.; Dong, W.; Dong, C.; Bi, H.; Huang, F. Nitrogen and oxygen dual-doped carbon nanohorn for electrochemical capacitors. Carbon 2017, 118, 511–516. [Google Scholar] [CrossRef]
  38. Yang, J.; Zhou, X.; Wu, D.; Zhao, X.; Zhou, Z. S-doped N-rich carbon nanosheets with expanded interlayer distance as anode materials for sodium-ion batteries. Adv. Mater. 2017, 29, 1604108. [Google Scholar] [CrossRef]
  39. Fan, L.-Z.; Qiao, S.; Song, W.; Wu, M.; He, X.; Qu, X.-H. Effects of the functional groups on the electrochemical properties of ordered porous carbon for supercapacitors. Electrochim. Acta 2013, 105, 299–304. [Google Scholar] [CrossRef]
  40. Haq, O.U.; Choi, D.-S.; Choi, J.-H.; Lee, Y.-S. Carbon electrodes with ionic functional groups for enhanced capacitive deionization performance. J. Ind. Eng. Chem. 2020, 83, 136–144. [Google Scholar] [CrossRef]
  41. Candelaria, S.L.; Garcia, B.B.; Liu, D.; Cao, G. Nitrogen modification of highly porous carbon for improved supercapacitor performance. J. Mater. Chem. 2012, 22, 9884–9889. [Google Scholar] [CrossRef]
  42. Sultana, T.; Georgiev, G.L.; Auner, G.; Newaz, G.; Herfurth, H.; Patwa, R. XPS analysis of laser transmission micro-joint between poly (vinylidene fluoride) and titanium. Appl. Surf. Sci. 2008, 255, 2569–2573. [Google Scholar] [CrossRef]
  43. Mandal, D.; Kim, K.J.; Lee, J.S. Simple Synthesis of Palladium Nanoparticles, β-Phase Formation, and the Control of Chain and Dipole Orientations in PalladiumDoped Poly(vinylidene fluoride) Thin Films. Langmuir 2012, 28, 10310–10317. [Google Scholar] [CrossRef]
  44. Zhao, Y.; Luo, G.; Zhang, L.; Gao, L.; Zhang, D.; Fan, Z. Nitrogen-doped porous carbon tubes composites derived from metalorganic framework for highly efficient capacitive deionization. Electrochim. Acta 2020, 331, 135420. [Google Scholar] [CrossRef]
  45. Tatara, R.; Karayaylali, P.; Yu, Y.; Zhang, Y.; Giordano, L.; Maglia, F.; Jung, R.; Schmidt, J.P.; Lund, I.; Shao-Horn, Y. The Effect of Electrode-Electrolyte Interface on the Electrochemical Impedance Spectra for Positive Electrode in Li-Ion Battery. J. Electrochem. Soc. 2019, 166, A5090–A5098. [Google Scholar] [CrossRef]
  46. Ganguly, A.; Sharma, S.; Papakonstantinou, P.; Hamilton, J. Probing the thermal deoxygenation of graphene oxide using high-resolution in situ X-ray-based spectroscopies. J. Phys. Chem. C 2011, 115, 17009–17019. [Google Scholar] [CrossRef] [Green Version]
  47. Fujimoto, A.; Yamada, Y.; Koinuma, M.; Sato, S. Origins of sp3 C peaks in C1s X-ray Photoelectron Spectra of Carbon Materials. Anal. Chem. 2016, 88, 6110–6114. [Google Scholar] [CrossRef] [Green Version]
  48. Lado, J.J.; Zornitta, R.L.; Calvi, F.A.; Tejedor-Tejedor, M.; Anderson, M.A.; Ruotolo, L.A.M. Study of sugar cane bagasse fly ash as electrode material for capacitive deionization. J. Anal. Appl. Pyrolysis 2016, 120, 389–398. [Google Scholar] [CrossRef]
  49. Bansal, R.C.; Goyal, M. Activated carbon Adsorption; CRC Press: Boca Raton, FL, USA, 2005; pp. 33–39. [Google Scholar]
  50. Wood, K.N.; Christensen, S.T.; Nordlund, D.; Dameron, A.A.; Ngo, C.; Dinh, H.; Gennett, T.; O’Hayrea, R.; Pylypenko, S. Spectroscopic investigation of nitrogen functionalized carbon materials. Surf. Interface Anal. 2016, 48, 283–292. [Google Scholar] [CrossRef]
  51. Kundu, S.; Xia, W.; Busser, W.; Becker, M.; Schmidt, D.A.; Havenith, M.; Muhler, M. The formation of nitrogen-containing functional groups on carbon nanotube Surf.s: A quantitative XPS and TPD study. Phys. Chem. Chem. Phys. 2010, 12, 4351–4359. [Google Scholar] [CrossRef] [PubMed]
  52. Sun, J.; Li, W.; Lei, E.; Xu, Z.; Ma, C.; Wu, Z.; Liu, S. Ultralight carbon aerogel with tubular structures and N-containing sandwich-like wall from kapok fibers for supercapacitor electrode materials. J. Power Sources 2019, 438, 227030. [Google Scholar] [CrossRef]
  53. Yang, I.; Kim, S.-G.; Kwon, S.H.; Kim, M.-S.; Jung, J.C. Relationships between pore size and charge transfer resistance of carbon aerogels for organic electric double-layer capacitor electrodes. Electrochim. Acta 2017, 223, 21–30. [Google Scholar] [CrossRef]
  54. Yambou, E.P.; Gorska, B.; Pavlenko, V.; Béguin, F. Fitting the porous texture of carbon electrodes to a binary ionic liquid electrolyte for the realization of low temperature EDLCs. Electrochim. Acta 2020, 350, 136416. [Google Scholar] [CrossRef]
  55. Young, C.; Lin, J.; Wang, J.; Ding, B.; Zhang, X.; AlShehri, S.M.; Ahamad, T.; Salunkhe, R.R.; Hossain, S.A.; Khan, J.H.; et al. Significant effect of pore sizes on energy storage in nanoporous carbon supercapacitors. Chem. A Eur. J. 2018, 24, 6127–6132. [Google Scholar] [CrossRef]
  56. Talreja, N.; Jung, S.; Kim, T. Phenol-formaldehyde-resin-based activated carbons with controlled pore size distribution for high-performance supercapacitors. Chem. Eng. J. 2020, 379, 122332. [Google Scholar] [CrossRef]
  57. Largeot, C.; Portet, C.; Chmiola, J.; Taberna, P.-L.; Gogotsi, Y.; Simon, P. Relation between the ion size and pore size for an electric double-layer capacitor. J. Am. Chem. Soc. 2008, 130, 2730–2731. [Google Scholar] [CrossRef]
  58. Chmiola, J.; Yushin, G.; Gogotsi, Y.; Portet, C.; Simon, P.; Taberna, P.-L. Anomalous increase in carbon capacitance at pore sizes less than 1 nanometer. Science 2006, 313, 1760–1763. [Google Scholar] [CrossRef] [Green Version]
  59. Zhao, X.; Dong, H.; Xiao, Y.; Hu, H.; Cai, Y.; Liang, Y.; Sun, L.; Liu, Y.; Zheng, M. Three-dimensional nitrogen-doped graphene as binder-free electrode materials for supercapacitors with high volumetric capacitance and the synergistic effect between nitrogen configuration and supercapacitive performance. Electrochim. Acta 2016, 218, 32–40. [Google Scholar] [CrossRef]
  60. Zhou, M.; Pu, F.; Wang, Z.; Guan, S. Nitrogen-doped porous carbons through KOH activation with superior performance in supercapacitors. Carbon 2014, 68, 185–194. [Google Scholar] [CrossRef]
  61. Liu, H.; Song, H.; Chen, X.; Zhang, S.; Zhou, J.; Ma, Z. Effects of nitrogen-and oxygen-containing functional groups of activated carbon nanotubes on the electrochemical performance in supercapacitors. J. Power Sources 2015, 285, 303–309. [Google Scholar] [CrossRef]
  62. Ye, Z.; Wang, F.; Jia, C.; Mu, K.; Yu, M.; Lv, Y.; Shao, Z. Nitrogen and oxygen-codoped carbon nanospheres for excellent specific capacitance and cyclic stability supercapacitor electrodes. Chem. Eng. J. 2017, 330, 1166–1173. [Google Scholar] [CrossRef]
  63. Zhang, X.; Yan, P.; Zhang, R.; Jin, J.; Xu, J.; Wu, C.; Liu, H. Fabrication of graphene and core–shell activated porous carbon-coated carbon nanotube hybrids with excellent electrochemical performance for supercapacitors. Int. J. Hydrogen Energy 2016, 41, 6394–6402. [Google Scholar] [CrossRef] [Green Version]
  64. He, X.; Ling, P.; Qiu, J.; Yu, M.; Zhang, X.; Yu, C.; Zheng, M. Efficient preparation of biomass-based mesoporous carbons for supercapacitors with both high energy density and high power density. J. Power Sources 2013, 240, 109–113. [Google Scholar] [CrossRef]
  65. Tang, C.; Liu, Y.; Yang, D.; Yang, M.; Li, H. Oxygen and nitrogen co-doped porous carbons with finely-layered schistose structure for high-rate-performance supercapacitors. Carbon 2017, 122, 538–546. [Google Scholar] [CrossRef]
  66. Sannasi, V.; Maheswari, K.U.; Karthikeyan, C.; Karuppuchamy, S. H2O2-assisted microwave synthesis of NiO/CNT nanocomposite material for supercapacitor applications. Ionics 2020, 26, 4067–4079. [Google Scholar] [CrossRef]
  67. Eskusson, J.; Jänes, A.; Kikas, A.; Matisen, L.; Lust, E. Physical and electrochemical characteristics of supercapacitors based on carbide derived carbon electrodes in aqueous electrolytes. J. Power Sources 2011, 196, 4109–4116. [Google Scholar] [CrossRef]
  68. Hu, Y.; Liu, H.; Ke, Q.; Wang, J. Effects of nitrogen doping on supercapacitor performance of a mesoporous carbon electrode produced by a hydrothermal soft-templating process. J. Mater. Chem. A 2014, 2, 11753–11758. [Google Scholar] [CrossRef]
Energies 13 05577 g001 550

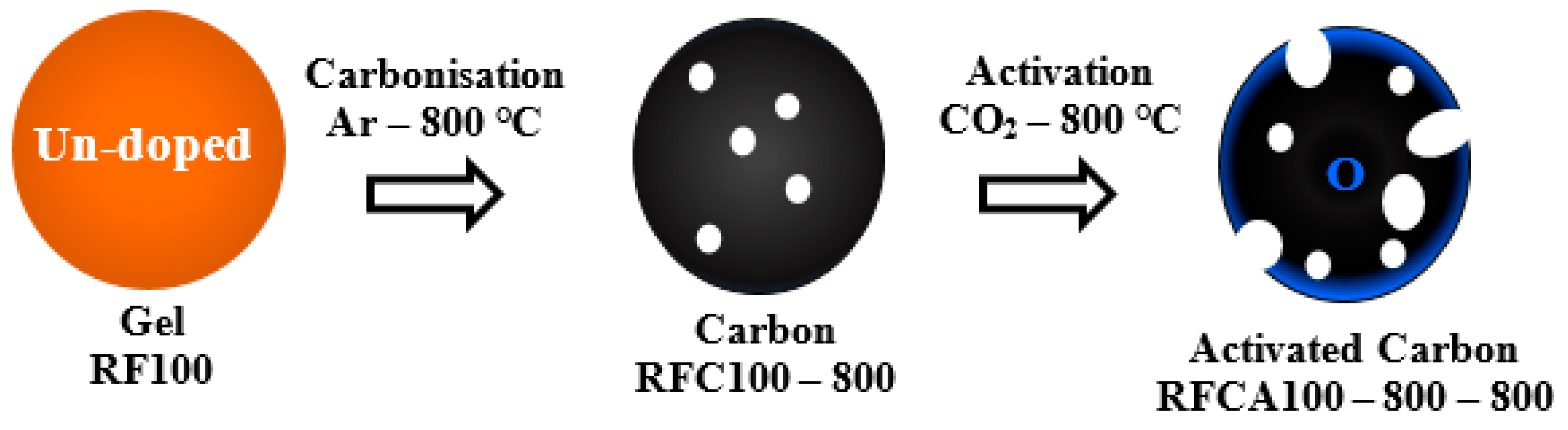

Figure 1. Synthesis route of un-doped active material (gelation–carbonization–activation stages).
Figure 1. Synthesis route of un-doped active material (gelation–carbonization–activation stages).
Energies 13 05577 g001
Energies 13 05577 g002 550

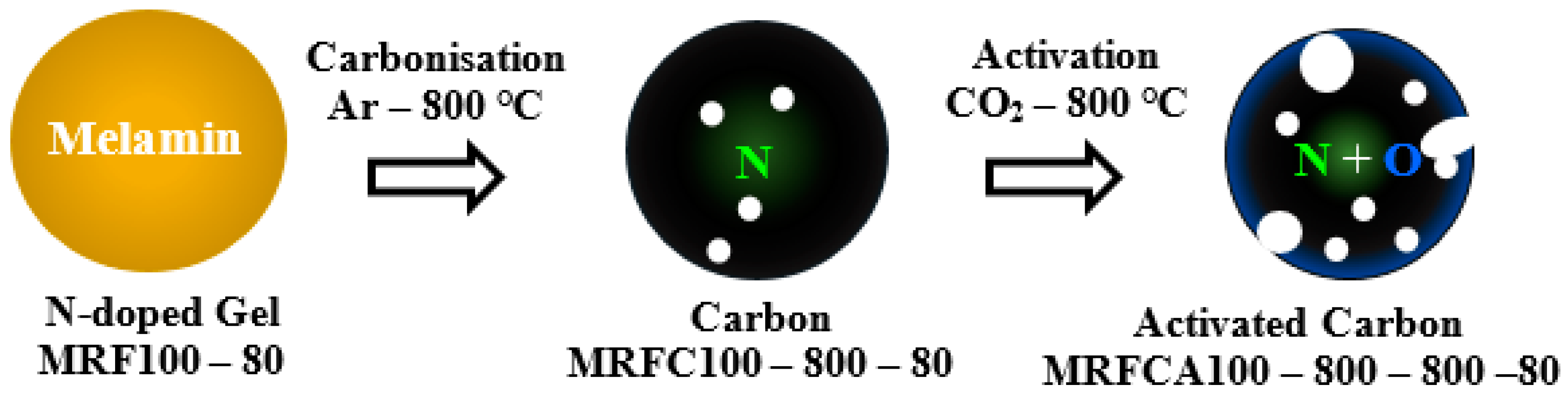

Figure 2. Synthesis route of N-doped active material (gelation-carbonization-activation stages).
Figure 2. Synthesis route of N-doped active material (gelation-carbonization-activation stages).
Energies 13 05577 g002
Energies 13 05577 g003 550

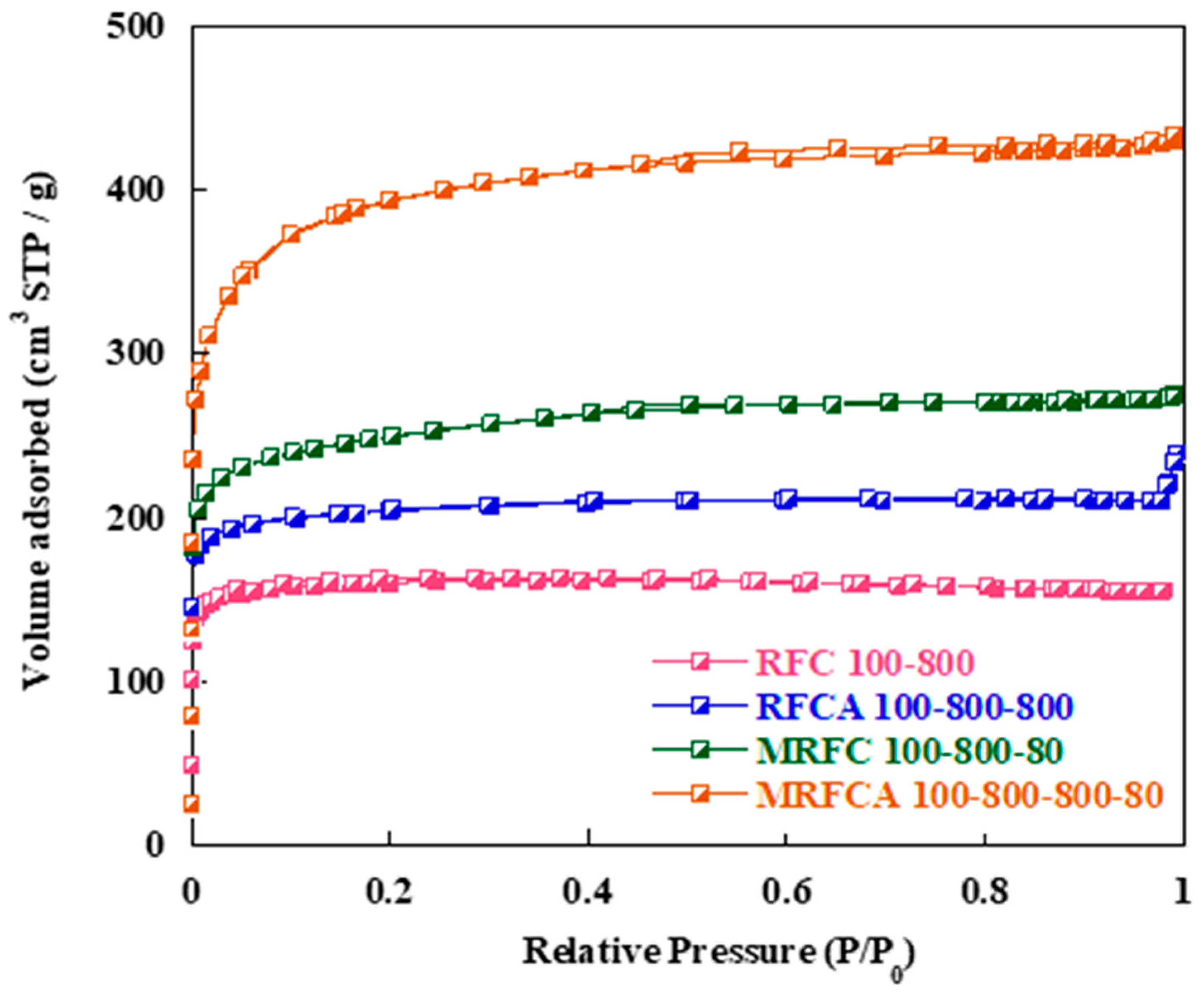

Figure 3. Nitrogen adsorption-desorption isotherms of un-doped and N-doped carbon/activated carbon aerogels.
Figure 3. Nitrogen adsorption-desorption isotherms of un-doped and N-doped carbon/activated carbon aerogels.
Energies 13 05577 g003
Energies 13 05577 g004 550
Figure 4. Pore size distribution of un-doped and N-doped carbon/activated carbon aerogels.
Figure 4. Pore size distribution of un-doped and N-doped carbon/activated carbon aerogels.
Energies 13 05577 g004
Energies 13 05577 g005 550
Figure 5. SEM images: (a,e,i) carbon aerogel (RFC100–800), (b,f,j) activated carbon aerogel (RFCA100–800–800), (c,g,k) N-doped carbon aerogel (MRFC100–800–80) and (d,h,l) N-doped activated carbon aerogel (MRFCA-100–800–800–80) at magnifications of 100, 50 and 10 μm.
Figure 5. SEM images: (a,e,i) carbon aerogel (RFC100–800), (b,f,j) activated carbon aerogel (RFCA100–800–800), (c,g,k) N-doped carbon aerogel (MRFC100–800–80) and (d,h,l) N-doped activated carbon aerogel (MRFCA-100–800–800–80) at magnifications of 100, 50 and 10 μm.
Energies 13 05577 g005
Energies 13 05577 g006 550
Figure 6. Schematic diagram of different measured contact angles at solid–liquid–vapour interfaces.
Figure 6. Schematic diagram of different measured contact angles at solid–liquid–vapour interfaces.
Energies 13 05577 g006
Energies 13 05577 g007 550
Figure 7. CAM 200-goniometer system’s images of the KOH solution droplets on the Surf. of electrodes using N-doped carbon and N-doped activated carbon aerogel samples as electroactive material.
Figure 7. CAM 200-goniometer system’s images of the KOH solution droplets on the Surf. of electrodes using N-doped carbon and N-doped activated carbon aerogel samples as electroactive material.
Energies 13 05577 g007
Energies 13 05577 g008 550
Figure 8. Wide survey X-Ray Photoelectron Spectroscopy (XPS) scan of electrodes prepared from nitrogen-doped carbon and nitrogen-doped activated carbons, activated at different temperatures.
Figure 8. Wide survey X-Ray Photoelectron Spectroscopy (XPS) scan of electrodes prepared from nitrogen-doped carbon and nitrogen-doped activated carbons, activated at different temperatures.
Energies 13 05577 g008
Energies 13 05577 g009 550
Figure 9. High-resolution XPS (a) F1s, (b) C1s, (c) O1s and (d) N1s spectra of electrodes prepared from nitrogen-doped carbon MRFC 100–800–80 and nitrogen-doped activated carbon MRFCA 100–800–800–80.
Figure 9. High-resolution XPS (a) F1s, (b) C1s, (c) O1s and (d) N1s spectra of electrodes prepared from nitrogen-doped carbon MRFC 100–800–80 and nitrogen-doped activated carbon MRFCA 100–800–800–80.
Energies 13 05577 g009
Energies 13 05577 g010 550
Figure 10. XRD spectra of un-doped and N-doped carbon/activated carbon aerogel samples.
Figure 10. XRD spectra of un-doped and N-doped carbon/activated carbon aerogel samples.
Energies 13 05577 g010
Energies 13 05577 g011 550
Figure 11. Cyclic voltammograms of (a) carbon aerogel (RFC100–800), (b) activated carbon aerogel (RFCA100–800–800), (c) N-doped carbon aerogel (MRFC100–800–80) and (d) N-doped activated carbon aerogel (MRFCA100–800–800–80) used as electroactive material with 6 M KOH electrolyte in a two-electrode symmetrical cell at different scan rates.
Figure 11. Cyclic voltammograms of (a) carbon aerogel (RFC100–800), (b) activated carbon aerogel (RFCA100–800–800), (c) N-doped carbon aerogel (MRFC100–800–80) and (d) N-doped activated carbon aerogel (MRFCA100–800–800–80) used as electroactive material with 6 M KOH electrolyte in a two-electrode symmetrical cell at different scan rates.
Energies 13 05577 g011
Energies 13 05577 g012 550

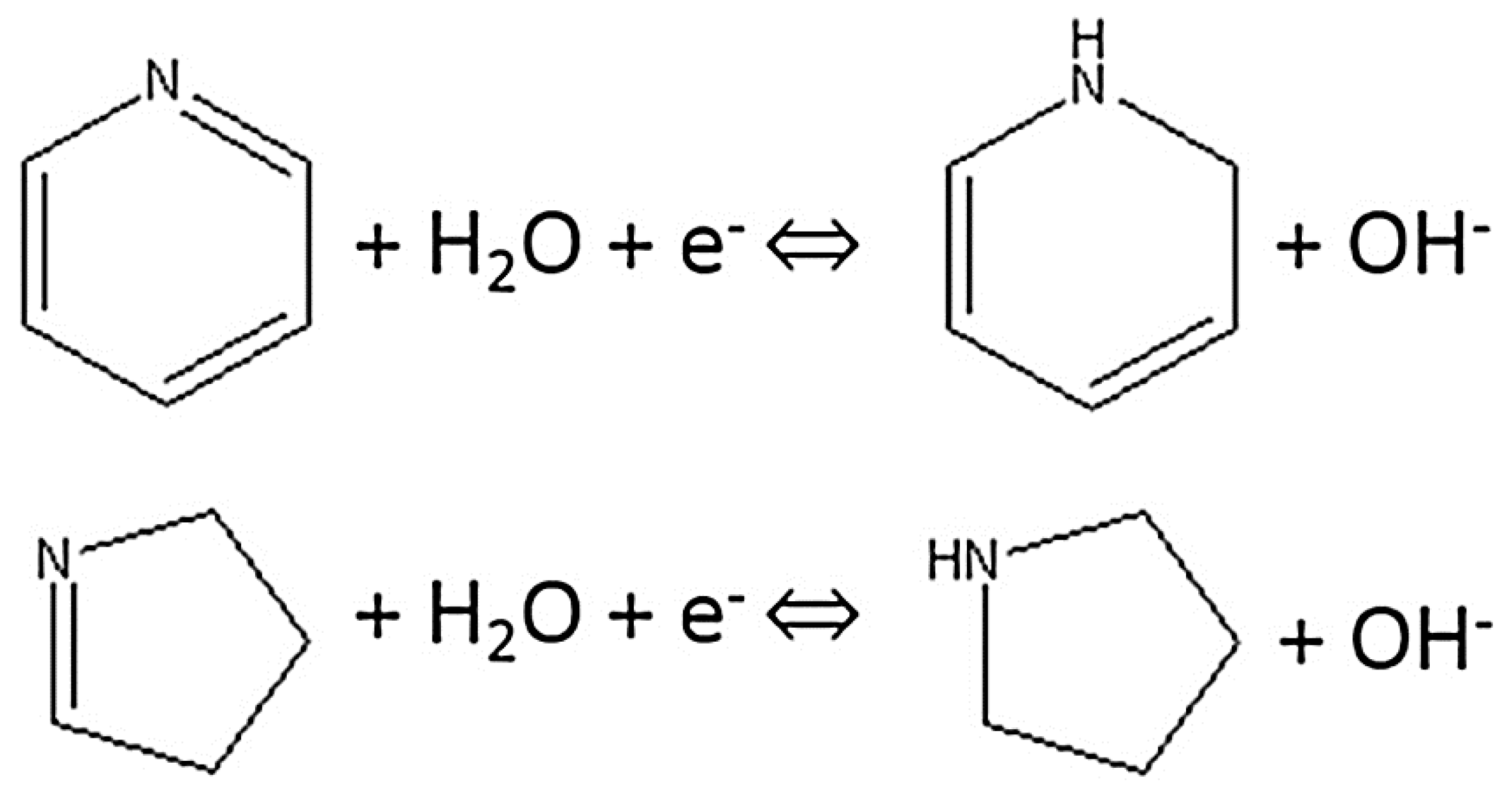

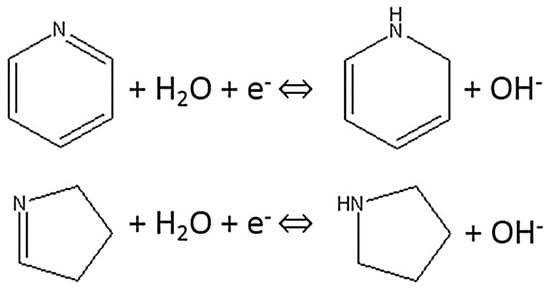

Figure 12. Schematic of electrochemical reaction of nitrogen functional groups [61].
Figure 12. Schematic of electrochemical reaction of nitrogen functional groups [61].
Energies 13 05577 g012
Energies 13 05577 g013 550
Figure 13. Nyquist plots of the EC cell using electrodes made of un-doped and N-doped carbon/activated carbons with 6 M KOH solution as electrolyte. A magnification of the high-frequency region of the Nyquist plots is shown ad inset.
Figure 13. Nyquist plots of the EC cell using electrodes made of un-doped and N-doped carbon/activated carbons with 6 M KOH solution as electrolyte. A magnification of the high-frequency region of the Nyquist plots is shown ad inset.
Energies 13 05577 g013
Energies 13 05577 g014 550
Figure 14. Typical measured and calculated Electrochemical Impedance Spectroscopy (EIS) spectra of carbon aerogel sample using the equivalent circuit given as insert.
Figure 14. Typical measured and calculated Electrochemical Impedance Spectroscopy (EIS) spectra of carbon aerogel sample using the equivalent circuit given as insert.
Energies 13 05577 g014
Table
Table 1. Porosity parameters of un-doped and nitrogen-doped carbon/activated carbon aerogels carbonized and activated at 800 °C.
Table 1. Porosity parameters of un-doped and nitrogen-doped carbon/activated carbon aerogels carbonized and activated at 800 °C.
SampleSBET
(m2g−1)		Vtotal
(cm3g−1)		Vmicro
(cm3g−1)		Vmeso
(cm3g−1)		Vmicro
%		Vmeso
%		Dave
(nm)
RFC100–8005370.2420.2170.02590101.80
RFCA100–800–8006780.3710.2670.10472282.21
MRFC100–800–808410.4300.2830.14766342.05
MRFCA100–800–800–8013330.6710.3760.29456442.01
Table
Table 2. Contact angle measurements of un-doped and nitrogen-doped carbon/activated carbon aerogels carbonized and activated at 800 °C.
Table 2. Contact angle measurements of un-doped and nitrogen-doped carbon/activated carbon aerogels carbonized and activated at 800 °C.
SamplesContact Angle (θ)
RFC100–800123
RFCA100–800–80091
MRFC100–800–80103
MRFCA100–800–800–8080
Table
Table 3. Chemical composition of the plain and N-doped carbons/activated carbon used as active materials in electrodes formulation in molar % obtained by XPS.
Table 3. Chemical composition of the plain and N-doped carbons/activated carbon used as active materials in electrodes formulation in molar % obtained by XPS.
SampleChemical Composition (molar %)
CarbonOxygenNitrogen
RFCA100–80094.775.200.03
MRFC100–800–8095.553.900.55
MRFCA100–800–800–8095.933.660.41
Table
Table 4. Specific capacitance of the electrodes at different scan rates in 6 M KOH electrolyte.
Table 4. Specific capacitance of the electrodes at different scan rates in 6 M KOH electrolyte.
SampleSBET
(m2g−1)		Davg
(nm)		Specific Capacitance
(Fg−1)
Scan Rate (mVs−1)
51015
RFC100–8005371.801367151
RFCA100–800–8006782.2119712042
MRFC100–800–808412.052087019
MRFCA100–800–800–8013332.012897531
Table
Table 5. Equivalent-circuit parameters for un-doped/N-doped carbon/activated carbon samples used in the electrode formulation.
Table 5. Equivalent-circuit parameters for un-doped/N-doped carbon/activated carbon samples used in the electrode formulation.
SampleEquivalent Series Resistance RS (Ω)Charge Transfer Resistance RCT (Ω)
RFC100–8000.810.29
RFCA100–800–8000.300.40
MRFC100–800–800.150.44
MRFCA100–800–800–800.110.02
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mirzaeian, M.; Abbas, Q.; Hunt, M.R.C.; Hall, P. Pseudocapacitive Effect of Carbons Doped with Different Functional Groups as Electrode Materials for Electrochemical Capacitors. Energies 2020, 13, 5577. https://doi.org/10.3390/en13215577

AMA Style

Mirzaeian M, Abbas Q, Hunt MRC, Hall P. Pseudocapacitive Effect of Carbons Doped with Different Functional Groups as Electrode Materials for Electrochemical Capacitors. Energies. 2020; 13(21):5577. https://doi.org/10.3390/en13215577

Chicago/Turabian Style

Mirzaeian, Mojtaba, Qaisar Abbas, Michael. R. C. Hunt, and Peter Hall. 2020. "Pseudocapacitive Effect of Carbons Doped with Different Functional Groups as Electrode Materials for Electrochemical Capacitors" Energies 13, no. 21: 5577. https://doi.org/10.3390/en13215577

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
