The Effect of ALD-Zn(O,S) Buffer Layer on the Performance of CIGSSe Thin Film Solar Cells
1
Energy Convergence Technology Center, Silla University, Busan 46958, Korea
2
Research Center, Advanced Vacuum and Clean Equipment Optimizer Co., Ltd., Daegu 42724, Korea
3
School of Materials Science and Engineering, Pusan National University, Busan 46241, Korea
4
Division of Materials Science and Engineering, Silla University, Busan 46958, Korea
*
Author to whom correspondence should be addressed.
Received: 16 December 2019 / Accepted: 11 January 2020 / Published: 15 January 2020

Abstract

:
In this paper, we report the development of Cd-free buffers using atomic layer deposition (ALD) for Cu(In,Ga)(S,Se)2-based solar cells. The ALD process gives good control of thickness and the S/S +O ratio content of the films. The influence of the growth per cycle (GPC) and the S/(S+O) ratio, and the glass temperature of the atomic layer deposited Zn(O,S) buffer layers on the efficiency of the Cu(In,Ga)(S,Se)2 solar cells were investigated. We present the first results from our work on cadmium-free CIGS solar cells on substrates with an aperture area of 0.4 cm2. These Zn(O,S) layers were deposited by atomic layer deposition at 120 °C with S/Zn ratios of 0.7, and layers of around 30 nm. The Zn(O,S) 20% (Pulse Ratio: H2S/H2O+H2S) process results in a S/Zn ratio of 0.7. We achieved independently certified aperture area efficiencies of 17.1% for 0.4 cm2 cells.
Keywords:
Cu(In,Ga)(S,Se)2 absorber layer; buffer layer; Zn(O,S) temperature window; Zn(O,S) ratio; Zn(O,S) thickness; atomic layer deposition; solar cell

1. Introduction

Energy is the driving force for development, economic growth, automation, and modernization. Energy usage and demand are increasing globally and researchers have taken this seriously to fulfill future energy demands. Most of the energy demand projections show that current and expected energy sources are not sustainable. Renewable energy can be a source of sustainable power generation. Renewable energy usage has increased in recent years but is not widespread. As an option for providing power, solar energy is gaining popularity [1]. As a result, there is a growing demand for manufacturing technology to produce low-cost, high-efficiency solar cells needed to achieve grid parity. Among various types, Cu(In,Ga)(S,Se)2 absorber layers are known to be cheaper to fabricate and provide high efficiency with fewer amounts of added In and Ga [2].
However, Cu(In,Ga)(S,Se)2 (CIGSSe)-based solar cells require a buffer layer to address problems related to the bandgap difference between the CIGS absorber layer and the transparent conductive oxide (TCO) layer, as well as the resulting lattice mismatch. Buffer layers intended for CIGS solar cell applications have mostly been CdS layers, which are fabricated using a chemical bath deposition (CBD) method. Since CdS is almost identical to CIGS in terms of lattice constant, it has been used as an essential material for fabricating high-efficiency CIGS solar cells, because it improves interfacial properties when used as a buffer layer. The material, however, inherently absorbs short-wavelength light and uses Cd, a highly toxic metallic element. Additionally, its fabrication process gives rise to large amounts of chemical substances, thus leading to serious environmental degradation.
Against this backdrop, Zn(O,S) has attracted significant attention as an eco-friendly buffer layer material that can overcome the problems of existing CdS buffer layers, and replace them. Due to its high transmittance in short wavelengths, various studies are currently underway to find ways to use the material as buffer layers for chalcopyrite solar cells with a wide bandgap [3,4].
The atomic layer deposition (ALD) method is considered a highly suitable manufacturing technique for the buffer layers of CIGS solar cells because the method allows for the uniform deposition of large-area thin films, which makes it easier to control the composition of the thin films. It also enables in-line processing and mass production lines [4,5].
In the present study, Zn(O,S) films were formed using the atomic layer deposition (ALD) technique under various experimental conditions and examined while varying the thickness and composition of the films and the substrate temperature. Based on the results, the effect of the Zn(O,S) film formation conditions on the efficiency of the CIGSSe solar cells was also examined [5,6].

2. Materials and Methods

The devices in this study had the structure SLG/Mo/CIGSSe/ buffer/ZnO:B, where the buffer is either CdS deposited by chemical bath deposition (CBD) or Zn(O,S) deposited by ALD. In this work, all of the CIGSSe absorber and CdS buffer layers were provided by STION in the USA.
ZnO:B window layers grown by metal-organic chemical vapor deposition (MOCVD) were deposited in a low-pressure MOCVD system. Prior to the deposition of the Zn(O,S) buffer layers, an absorber film was etched in a 10 wt% KCN solution for 10 min to eliminate Cu2-xSe at the film surface. A buffer layer was then deposited by atomic layer deposition.
The carrier and purging gas was nitrogen. An ALD cycle consisted of a 0.1-sec DEZn pulse, 2.3 sec purge, 0.2 sec H2S/H2O pulse, and a 2.4-sec purge. For the Zn(O,S) films, sequences with H2O and H2S pulses were alternated. The layer composition and thickness were controlled by the pulsing sequence of the precursor gases, and by the number of pulsing cycles, respectively. For example, a film with 20% H2S/DEZn pulses was obtained by alternating four sequences with H2O and one with H2S repeatedly. The Zn(O,S) 20% (Pulse Ratio: H2S/H2O+H2S) process gives a S/Zn ratio of 0.7. The performance of the CIGSSe solar cells was investigated using a solar simulator (McScience, Xe55) at AM 1.5G illumination.

3. Results

To begin, the process conditions for the unit layers, i.e., ZnO and ZnS, were determined, and the number of ALD cycles for each unit layer was accordingly adjusted to achieve the intended composition and thickness of Zn(O,S) thin films. As such, it was possible to precisely control the composition and thickness of the Zn(O,S) thin films [7].
The thickness of the deposited thin films was then analyzed based on SEM images, to verify whether the ALD process had been successfully implemented. In the ALD process, a film is deposited by the self-limiting surface reaction of gas molecules on the substrate surface. Thus, sufficient source exposure time is essential to enable the gas molecules to be uniformly deposited on the substrate as reaction sources. After this sufficient amount of time, the growth rate of thin films starts to saturate. Additionally, at low-temperatures, the deposition rate of thin films remains constant. This temperature window is where the ALD process takes place, i.e., 50–200 °C for ZnO and 90–130 °C for ZnS. These temperatures are highly suitable for process applications because only surface reactions occur in those ranges. As can be seen in Figure 1, the thin-film thickness linearly increases with the increasing number of ALD cycles, and this implies that the ZnO thin films were successfully deposited on the substrate in the temperature ranges mentioned above [4,8,9].
Figure 2 shows the cross-sectional TEM image of Zn(O,S) thin films grown after 100 cycles on CIGS absorber, using ALD at a substrate temperature of 120 °C. The thickness of the TEM sample is approximately 30 nm. In Figure 2, the good step coverage of the deposited ALD buffer layer can be seen in the cross-section TEM image. The average deposition rate was measured to be 0.29 nm/cycle. From the above observations, we believe that the stable self-limiting growth of Zn(O,S) films was successfully achieved by using ALD at a low substrate temperature of 120 °C [10].
The energy bandgap and photo-conversion efficiency of the CIGSSe solar cells were measured and analyzed with respect to the Zn(O,S) ratio, as shown in Figure 3. The composition, structure and optical properties of the Zn(O,S) films were determined using samples deposited with 100 cycles on SLG. The total S/Zn ratio in the Zn(O,S) films as a function of the H2S/DEZn pulse ratio is shown in Table 1. About S/Zn, we checked sulfur and zinc according to the Zn(O,S) ratio by XPS measuring equipment and also checked the efficiency difference. The sulfur concentration in the films was higher than the fraction of H2S-containing cycles in the process. For example, the Zn(O,S) 20% process produced a S/Zn ratio of 0.7. One possible explanation for the higher sulfur concentration is that the precursors reacted with the previously deposited film during a pulse. For example, H2S may adsorb on the surface and consume oxygen in the film by an exchange reaction where water is desorbed as a reaction product. In the case of H2S/(H2S+H2O), it explains the ratio that includes H2S from all the reactance gas. Additionally, we calculated the bandgap energy after measuring transmittance.
The bandgap energy was analyzed using the optical properties of the deposited Zn(O,S) thin-films. As shown in Figure 3, the bandgap energy was found to decrease from 3.2 eV to 2.8 eV with decreasing sulfur content in the Zn(O,S) thin-films. The results above demonstrate that it is possible to control the characteristics of Zn(O,S) thin-films by adjusting their composition. Additionally, the results indicate the potential to develop an optimal band structure between the CIGSSe absorber layer and the Zn(O,S) buffer layer using the variation in bandgap energy, depending on the composition [11,12,13].
The application of the ALD method in the deposition of a Zn(O,S) thin-film reduces the occurrence of defects inside the film because the film is formed monolayer by monolayer, and thus, electrons generated by the photovoltaic reaction are less likely to be trapped (or captured) when passing through the buffer layers. Figure 4 shows how the efficiency of the CIGSSe solar cells changed according to the thickness of the Zn(O,S). When the number of cycles was 100, and the thickness was about 29 nm, the efficiency was determined to be 16.9%, and the efficiency started to gradually decrease, exceeding the thickness threshold. As such, the application of the ALD method for Zn(O,S) deposition makes it possible to precisely control the thin-film thickness by pulse/purge time and vaporization control [14,15].
Substrate temperature is one of the very important process parameters of the ALD method when forming ZnO and ZnS thin films. At 110 °C or lower temperatures, the energy is not high enough to cause the reactants to reach each other on the substrate and thus, film growth is slow and it is difficult to achieve the required level of film quality. Additionally, when the temperature is 130 °C or higher for ZnS, and 200 °C or higher for ZnO and DEZn, the precursors are more likely to form multiatomic layers by absorbing substances of the same type, rather than forming monoatomic layers through surface reactions with substances of different types. Another possibility is that H2S and H2O precursors may be subjected to pyrolysis, thereby leading to a decrease in the deposition rate [16,17].
As mentioned above in Figure 1, the ALD process is characterized by a specific temperature range called the ALD window. In the present study, it was found that when Zn(O,S) thin films were formed at a constant thin-film deposition rate of 2.9 Å/cycle within the substrate temperature range of 110–130 °C through self-limiting surface reactions, the efficiency was also determined to be at similar levels, e.g., 17.1% and 16.9% as shown in Figure 5.

4. Conclusions

In the present study, Zn(O,S) thin films were deposited using an atomic layer deposition (ALD) method, and the deposited thin films were examined to investigate their use as buffer layers for high-efficiency CIGSSe solar cells. Additionally, DEZn, H2O, and H2S were used as ALD precursors. It was found that uniform thin films were deposited at a constant deposition rate of 2.9 Å/cycle within the substrate temperature range of 110–130 °C.
The Zn(O,S) layers were deposited by ALD at 120 °C with S/Zn ratios of 0.7 and layers of around 30 nm. The Zn(O,S) 20% (Pulse Ratio: H2S/H2O+H2S) process resulted in a S/Zn ratio of 0.7. As shown in Figure 6, we achieved independently certified aperture area efficiencies of 17.1% for 0.4 cm2 cells. The open-circuit voltage (Voc), short-circuit current density (Jsc), and fill factor (FF) were measured to be 0.64 V, 39.88mA/cm2, and 67.12%, respectively. The thinner than 30nm they are, the values of Jsc and F.F. tend to be reduced. In addition, Zn(O,S) Ratio 3:1, 4:1, 6:1 and 9:1 were all similar Voc, but we found that the Jsc, F.F. values in those Ratios except Ratio 4:1 were reduced.

Author Contributions

Conceptualization, W.-J.C., W.W.P. and D.H.; methodology, W.-J.C., W.W.P. and C.S.S.; software, W.-J.C. and W.W.P.; validation, Y.K. and C.S.S.; formal analysis, W.-J.C. and D.H.; investigation, W.-J.C. and C.S.S.; resources, Y.K. and C.S.S.; data curation, W.-J.C. and W.W.P.; writing—original draft preparation, W.-J.C.; writing—review and editing, C.S.S. and D.H.; visualization, W.-J.C.; supervision, Y.K., C.S.S. and D.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea (No. 20193010014850, No. 20183010014260 and No. 20173010013140) and supported by the National Research Foundation (NRF-2018R1A5A1025594) of the Ministry of Science and ICT.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hosenuzzaman, M.; Rahim, N.A.; Selvaraj, J.; Malek, A.B.M.A.; Nahar, A. Global prospects, progress, policies, and environmental impact of solar photovoltaic power generation. Renew. Sustain. Energy Rev. 2015, 41, 284–297. [Google Scholar] [CrossRef]
  2. Kaelin, M.; Rudmann, D.; Tiwari, A.N. Low cost processing of CIGS thin film solar cells. Sol. Energy 2004, 77, 749–756. [Google Scholar] [CrossRef]
  3. Merdes, S.; Malinen, V.; Ziem, F.; Lauermann, I.; Schüle, M.; Stober, F.; Hergert, F.; Papathanasiou, N.; Schlatmann, R. Zn(O,S) buffer prepared by atomic layer deposition for sequentially grown Cu(In,Ga)(Se,S)2 solar cells and modules. Sol. Energy Mater. Sol. Cells 2014, 126, 120–124. [Google Scholar] [CrossRef]
  4. Platzer-Björkman, C.; Törndahl, T.; Abou-Ras, D.; Malmström, J.; Kessler, J.; Stolt, L. Zn(O,S) buffer layers by atomic layer deposition in Cu(In,Ga)Se2 based thin film solar cells: Band alignment and sulfur gradient. J. Appl. Phys. 2006, 100, 044506. [Google Scholar] [CrossRef]
  5. Saadat, M.; Amiri, O.; Rahdar, A. Optimization of (Zn,Sn)O buffer layer in Cu(In,Ga)Se2 based solar cells. Sol. Energy 2019, 189, 464–470. [Google Scholar] [CrossRef]
  6. Jeong, S.H.; Matsushita, N.; Kim, K.H. Investigation of the effect of oxygen gas on properties of GAZO thin films fabricated by facing targets sputtering system. Semicond. Sci. Technol. 2014, 29, 075007. [Google Scholar]
  7. Burgess, C.H. Review of tailoring ZnO for optoelectronics through atomic layer deposition experimental variables. Mater. Sci. Technol. 2016, 33, 809–821. [Google Scholar] [CrossRef]
  8. Yousfi, E.B.; Asikainen, T.; Pietu, V.; Cowache, P.; Powalla, M.; Lincot, D. Cadmium-free buffer layers deposited by atomic later epitaxy for copper indium diselenide solar cells. Thin Solid Films 2000, 361–362, 183–186. [Google Scholar] [CrossRef]
  9. Hariskos, D.; Spiering, S.; Powalla, M. Buffer layers in Cu(In,Ga)Se2 solar cells and modules. Thin Solid Films 2005, 480–481, 99–109. [Google Scholar] [CrossRef]
  10. Siebentritt, S. Alternative buffers for chalcopyrite solar cells. Sol. Energy 2004, 77, 767–775. [Google Scholar] [CrossRef]
  11. Hong, H.K.; Kim, I.Y.; Shin, S.W.; Song, G.Y.; Cho, J.Y.; Gang, M.G.; Shin, J.C.; Kim, J.H.; Heo, J. Atomic layer deposited zinc oxysulfide n-type buffer layers for Cu2ZnSn(S,Se)4 thin film solar cells. Sol. Energy Mater. Sol. Cells 2016, 155, 43–50. [Google Scholar] [CrossRef]
  12. Hariskos, D.; Fuchs, B.; Menner, R.; Naghavi, N.; Hubert, C.; Lincot, D.; Powalla, M. The Zn(S,O,OH)/ZnMgO buffer in thin-film Cu(In,Ga)(Se,S)2-based solar cells part II: Magnetron sputtering of the ZnMgO buffer layer for in-line co-evaporated Cu(In,Ga)Se2 solar cells. Prog. Photovolt Res. Appl. 2009, 17, 479–488. [Google Scholar] [CrossRef]
  13. Malm, U.; Malmstrom, J.; Platzer-Bjorkman, C.; Stolt, L. Determination of dominant recombination paths in Cu(In,Ga)Se2 thin-film solar cells with ALD–ZnO buffer layers. Thin Solid Films 2005, 480–481, 208–212. [Google Scholar] [CrossRef]
  14. Platzer-Bjorkman, C.; Torndahl, T.; Hultqvist, A.; Kessler, J.; Edoff, M. Optimization of ALD-(Zn,Mg)O buffer layers and (Zn,Mg)O/Cu(In,Ga)Se2 interfaces for thin film solar cells. Thin Solid Films 2007, 515, 6024–6027. [Google Scholar] [CrossRef]
  15. Ennaoui, A.; Siebentritt, S.; Lux-Steiner, M.C.; Riedl, W.; Karg, F. High-efficiency Cd-free CIGSS thin-film solar cells with solution grown zinc compound buffer layers. Sol. Energy Mater. Sol. Cells 2001, 67, 31–40. [Google Scholar] [CrossRef]
  16. Nakada, T. 18% Efficiency Cd-Free Cu(In, Ga)Se2 Thin-Film Solar Cells Fabricated Using Chemical Bath Deposition (CBD)-ZnS Buffer Layers. Jpn. J. Appl. Phys. Part 2 2002, 41, L165–L167. [Google Scholar] [CrossRef]
  17. Kushiya, K.; Tachiyuki, M.; Nagoya, Y.; Fujimaki, A.; Sang, B.; Okumura, D.; Satoh, M.; Yamase, O. Progress in large-area Cu(InGa)Se2-based thin-film modules with a Zn(O,S,OH)x buffer layer. Sol. Energy Mater. Sol. Cells 2001, 67, 11–20. [Google Scholar] [CrossRef]

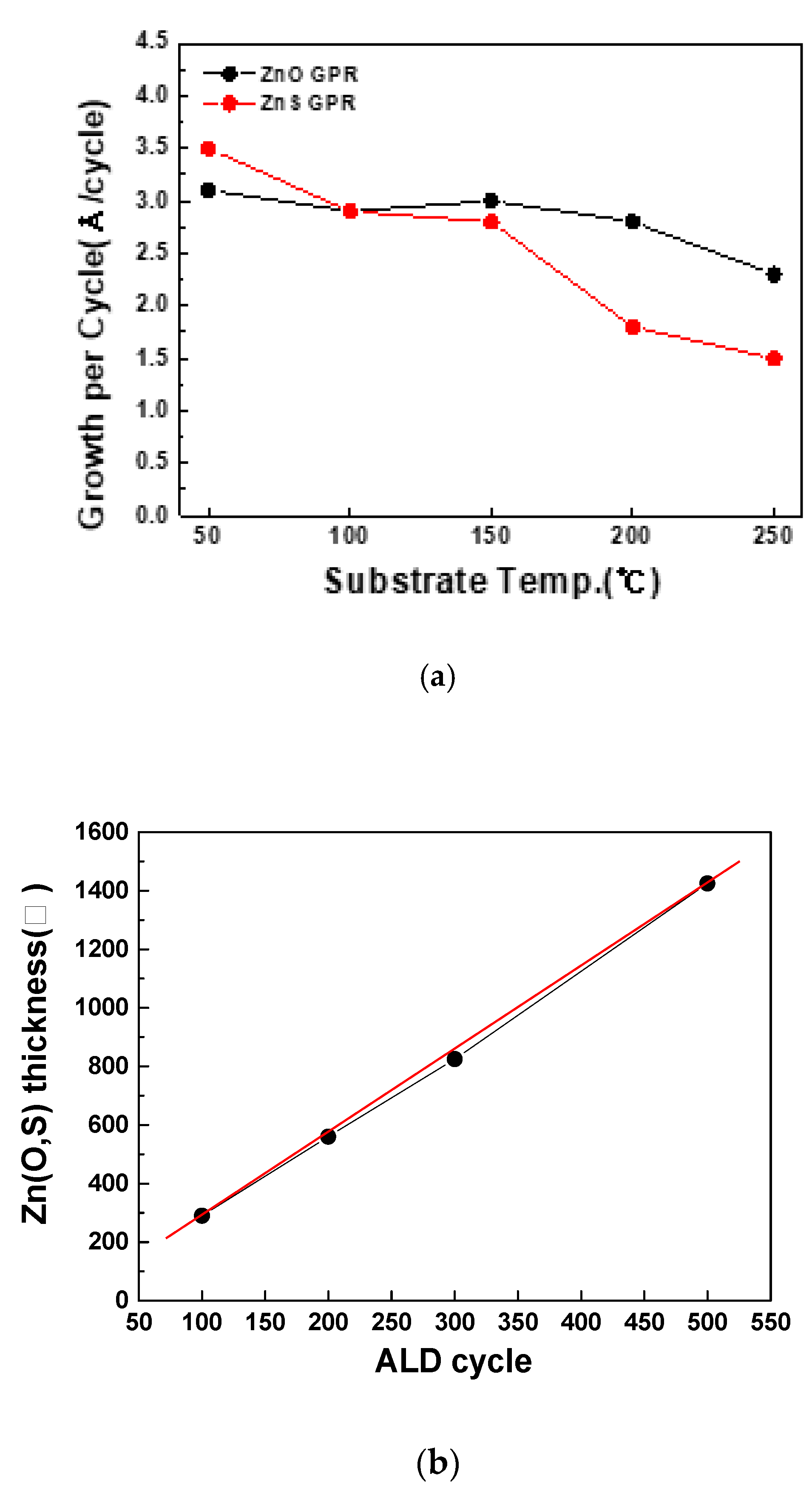

Figure 1. Growth characteristics; (a) Temperature window of ALD-ZnO,ZnS and (b) typical example showing the film thickness as a function of the number of ALD cycles.
Figure 1. Growth characteristics; (a) Temperature window of ALD-ZnO,ZnS and (b) typical example showing the film thickness as a function of the number of ALD cycles.
Energies 13 00412 g001

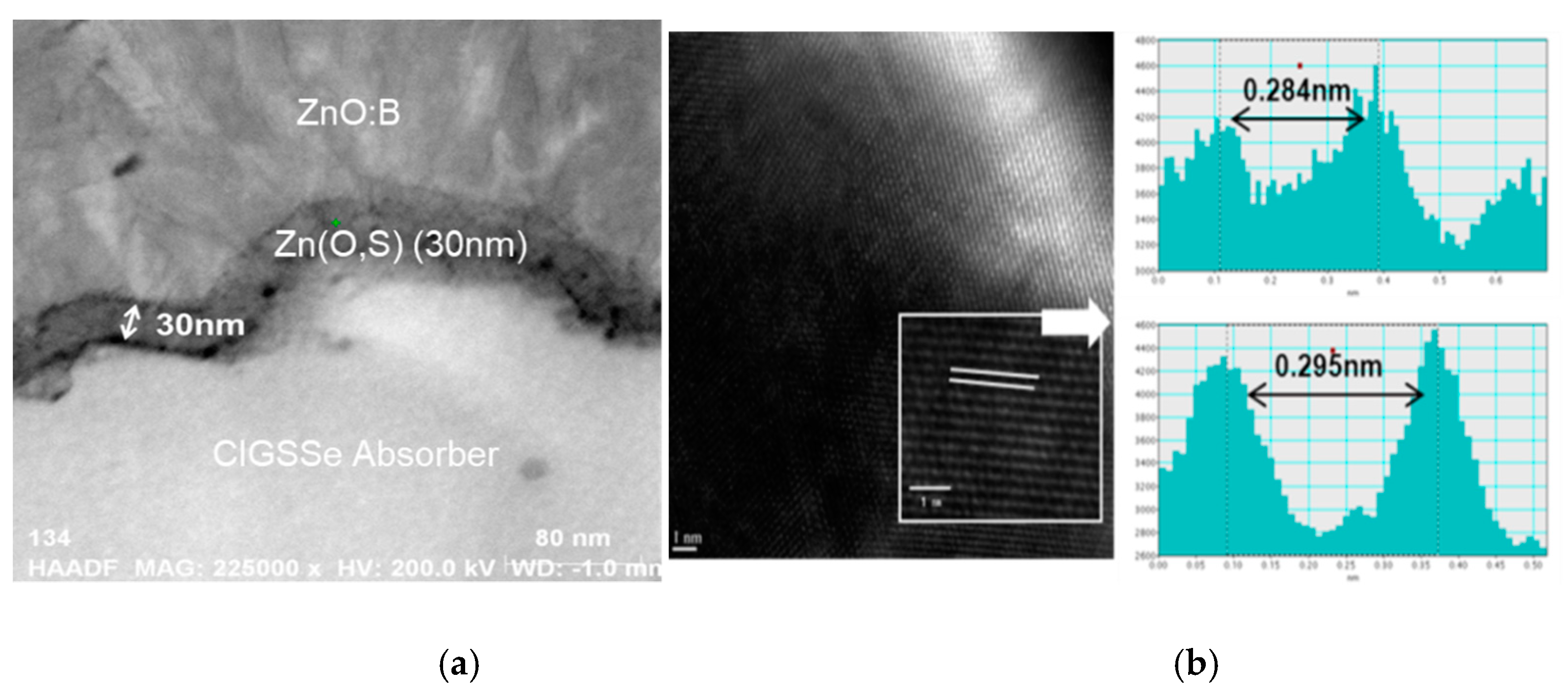

Figure 2. Cross-sectional TEM images of a CIGSSe solar cell with ALD grown Zn(O,S) buffer layer. (a) Magnified TEM image of the ZnO:B/Zn(O,S)/CIGS (b) image of grains lattice spacing
Figure 2. Cross-sectional TEM images of a CIGSSe solar cell with ALD grown Zn(O,S) buffer layer. (a) Magnified TEM image of the ZnO:B/Zn(O,S)/CIGS (b) image of grains lattice spacing
Energies 13 00412 g002

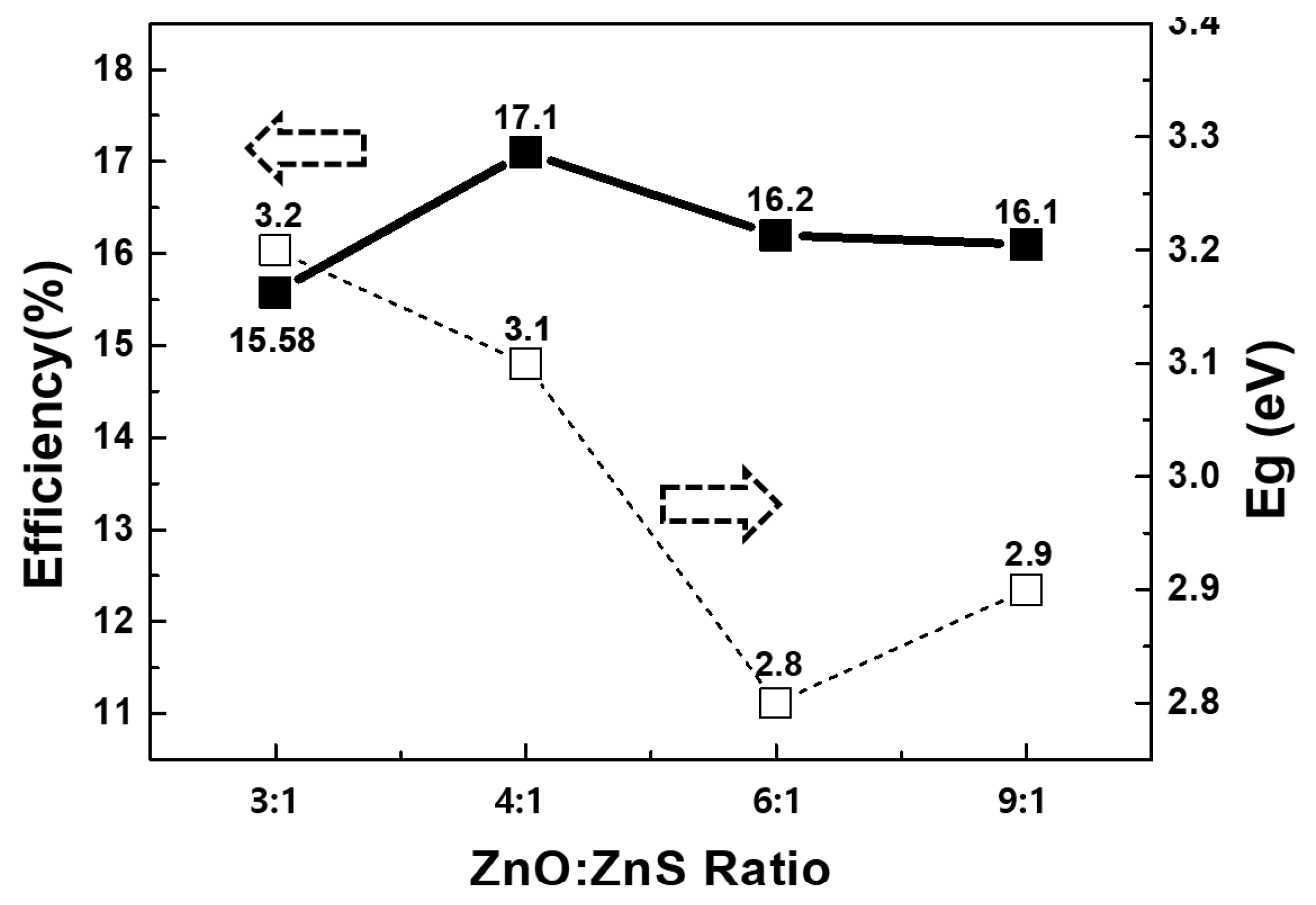

Figure 3. Efficiency and energy bandgap (Eg) of CIGSSe solar cell depending on the Zn(O,S) ratio.
Figure 3. Efficiency and energy bandgap (Eg) of CIGSSe solar cell depending on the Zn(O,S) ratio.
Energies 13 00412 g003
Figure 4. Efficiency of CIGSSe solar cells depending on the Zn(O,S) thickness. Other process conditions: ZnO:ZnS Ratio 4:1, Glass Temperature 120 °C.
Figure 4. Efficiency of CIGSSe solar cells depending on the Zn(O,S) thickness. Other process conditions: ZnO:ZnS Ratio 4:1, Glass Temperature 120 °C.
Energies 13 00412 g004

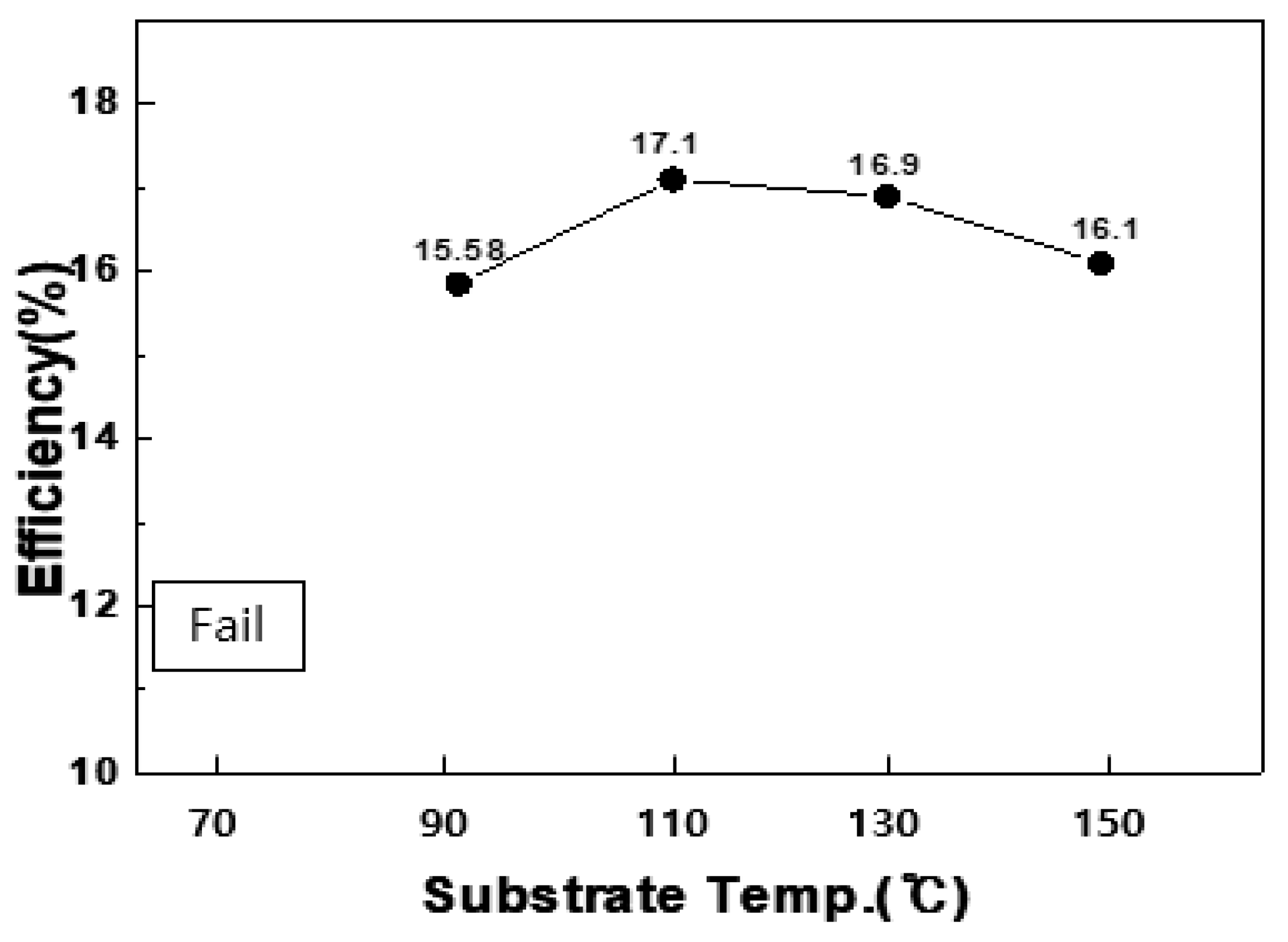

Figure 5. Efficiency of CIGSSe solar cells depending on the Zn(O,S) substrate temperatures. Other process conditions: ZnO:ZnS Ratio 4:1, thickness 30nm(cycle Number 100cycle).
