Hydrogen Generation from a Small-Scale Solar Photovoltaic Thermal (PV/T) Electrolyzer System: Numerical Model and Experimental Verification

Abstract

In this study, the electrical, electrochemical and thermodynamic performance of a PV/T electrolyzer system was investigated, and the experimental results were verified with a numerical model. The annual amounts of electrical and thermal energy from the PV/T electrolyzer system were calculated as 556.8 kWh and 1912 kWh, respectively. In addition, the hydrogen production performance for the PV/T electrolyzer was compared with that of a PV electrolyzer system. The amount of hydrogen was calculated as 3.96 kg annually for the PV system, while this value was calculated as 4.49 kg for the PV/T system. Furthermore, the amount of hydrogen production was calculated as 4.59 kg for a 65 °C operation temperature. The electrical, thermal and total energy efficiencies of the PV/T system, which were obtained hourly on a daily basis, were calculated and varied between 12–13.8%, 36.1–45.2% and 49.1–58.4%, respectively. The hourly exergy analyses were also carried out on a daily basis and the results showed that the exergy efficiencies changed between 13.8–14.32%. The change in the electrolysis voltage was investigated by changing the current and temperature in the ranges of 200–1600 mA/cm² A and 30–65 °C, respectively. While the current and the water temperature varied in the ranges of 400–2350 mA/cm² and 28.1–45.8 °C respectively, energy efficiency and exergy efficiency were in the ranges of 57.85–69.45% and 71.1–79.7%, respectively.

1. Introduction

Nowadays, global warming and energy crises have become a serious problem threatening our future. The utilization of sustainable energy sources instead of fossil energy sources can deal with a wide range of factors associated with these problems [1]. Renewable energy sources such as solar, hydro, wind, and geothermal, which utilize natural elements and renew faster compared to consumption, have become the best alternatives for fossil sources [2].

With the advantage of high availability, solar energy is one of the most promising energy sources among those available for achieving a considerable amount of energy-saving and carbon emission reduction [3,4]. In this respect, photovoltaic (PV), solar thermal (STC), and hybrid photovoltaic/thermal (PV/T) systems are widely used today [5]. Regarding PV systems, a small amount of absorbed solar radiation is converted into electrical energy, and the remaining large amount of energy is converted into heat, which causes PV cell temperature to increase and electrical efficiency to reduce. This problem can be reduced by extracting the excessive amount of heat by a natural or induced fluid circulation system. The PV/T hybrid energy systems which contain integrated PV modules and heat extraction devices are efficient alternatives to PV systems by providing electricity and thermal energy concurrently [6]. Therefore, the design and optimization of PV/T hybrid energy systems have attracted attention from many researchers who carried out analyses both experimentally and theoretically [7,8,9,10,11,12,13].

According to these studies evaluating the performance of PV/T systems under different operating conditions and with different components, the total efficiency of PV/T varies between 47.4% and 80% [14,15]. Additionally, there are also numerical and experimental researches on the performance analyses of PV/T systems in the literature. These studies mainly focus on building-integration [9], collectors with different coatings [16], improved laminated absorbers [17], low emissivity coatings [18], sheet and tubes [17,19], air PV/T [20,21] and commercial modules [22]. Some of the studies evaluating the efficiency of PV/T reported that the electrical efficiency of PV/T systems at appropriate fluid temperatures is higher than that of PV systems [23], and the total efficiency varies between 54.6% and 74.1% [23,24]. In addition, performance analyses of PV/T systems with different PV technologies were completed to be utilized in PV/T exergy analyses [25,26].

Guarracino et al. performed a techno-economic analysis of a PV/T system in two different climatic conditions, namely, Larnaca and London. The obtained electrical, thermal and total energy costs are 1.29 EUR/kWh, 0.34 EUR/kWh, 0.68 EUR/kWh, respectively, for Larnaca and 0.46 EUR/kWh, 0.76 EUR/kWh, 0.50 EUR/kWh, respectively, for London [27].

The storage of produced energy is important for both off-grid and on-grid systems due to the intermittent characteristic of renewable energy sources and the requirement of responding to an increase in instant energy [28]. Researchers have intensively studied the aforementioned systems concerning energy storage techniques such as batteries [29], storing heat with thermochemical heat storage materials [30] and phase-changing materials [31], capacitors [32], energy vectors and hydrogen [33]. By combining PV or PV/T systems with energy storage, such as hydrogen storage, it is possible to overcome these problems. It is a potential opportunity to produce hydrogen in an environmentally benign manner while producing electrical and thermal energy [34,35]. Despite existing as the most common element on Earth, hydrogen is found in compound forms, such as water, and can be produced from water with photo-catalysis, water electrolysis or thermo-chemical cycles [28,36,37].

Electrolysis, which uses electrical energy, was first discovered by W. Nicholson and Carlisle in 1800, and the first large-scale electrolysis unit, with a hydrogen production capacity of 10 000 Nm³/h, was produced in 1939. The first proton exchange membrane (PEM) electrolyzer was produced by General Electric in 1966 and it quickly gained interest from scientists due its compact system design and high voltage efficiency at current densities in comparison with traditional alkaline technology [38,39,40,41,42,43,44,45]. Apart from these features, a PEM electrolyzer can operate at up to 300 bar pressure and reach 95.1% efficiency at high temperatures [46].

Renewable energy sources have fluctuating and intermitting behavior, at this point PEM electrolyzers are more suitable options than alkaline electrolyzers due to their better dynamic behavior, since they have fast response time [1]. The utilization of solar radiation during the electrolysis process is a better alternative for storing energy, as it makes it cost-effective and environmentally friendly [47]. The feasibility and system performances of hybrid renewable energy systems for hydrogen production (mostly enhanced wind, solar, geothermal, and nuclear energy options) have been the focus of attention for many scientists [48].

PEM efficiency is affected by design and operating parameters. Parametric analyses were conducted to investigate the effect of such parameters on the efficiency of plant energy conversion. The results showed that energy efficiency of PEM electrolyzers increase with increasing temperature and decreases with current density. The impact of operating parameters of a PEM electrolyzer (such as current density and operating temperature) on energy efficiency was studied by Shekardasht et al. [28]. The operation temperature of the electrolyzer affects both the PEM energy and exergy efficiency. Several researchers have studied PV/T electrolyzer systems, supplying both low- and high-temperature hydrogen production. Corumlu et al. proposed a hybrid system, consisting of solar PV panels, solar heat pipe collectors, a heat exchanger, a separator and a PEM electrolyzer, and investigated the system thermodynamically. The research indicated that the solar collector, providing a higher PEM electrolyzer temperature with a higher supply of water, had a positive effect on the energy and exergy efficiency of the unit [49]. A similar system was studied by Aslan et al. using a compact PV/T collector. The system performance was investigated under different climatic conditions with the numerical model, and the positive effect of a higher operation temperature on the PEM efficiency was highlighted [50].

Zafar and Dincer analyzed a combined PV/T and fuel-cell system for thermodynamic hydrogen production. In addition to the energy and exergy analyses, economic benefit analyses were also conducted. The results showed that the utilization of the extracted heat from the PV/T system increase the overall system energy efficiency from 15% to 50% [51].

Oruc et al. conducted finite-element analysis simulations for a PV/T E system in order to maximize overall energetic efficiency and hydrogen production, and consequently the change of energy efficiency of the system was calculated in the range of 56–59% [52]. In addition, the performance of an integrated PV/T system for hydrogen production and cooling was analyzed by Ratlamwala et al. The impact of solar intensity, PV electrical output, electrolysis operating time, production of hydrogen and coefficient of performance (COP) were evaluated energetically and exergetically. The highest hydrogen production of the system was 9.7 kg and maximum energy and exergy efficiencies were 15.6% and 7.9%, respectively [53].

A PV/T-driven hydrogen production system from the PEM electrolyzer was modeled thermodynamically. The energy and exergy analyses were conducted on a daily basis. The average energetic and exergetic efficiencies of the overall PV/T were calculated as 29% and 14.11%, respectively, and 0.018 kg hydrogen was produced by the PEM electrolyzer in a day [54].

Wang et al. proposed a system which utilizes solar heat and electricity energy for hydrogen production. A PV panel, a water preheater, and a PEM electrolyzer were used in the analyses of the numerical model for appraising and optimizing the thermodynamic performance of the hydrogen generation system. The change in electrical efficiency and surface temperatures of PV cells, energy–exergy efficiency, and solar to hydrogen efficiency of the system were analyzed in terms of different water flow rates, solar irradiations, PV emissivity and concentration ratios [1]. Furthermore, a solar-concentrated PV/T-driven hydrogen production method was developed. Organic Rankine cycle (ORC) was also coupled to the system to assist hydrogen production [55].

Based on the literature regarding PV/T electrolyzer systems, it is observed that there is a limited number of comprehensive numerical studies which include energy, exergy, and economic analysis together with experimental validation. A majority of the numeric or experimental studies in the literature have considered only one or two aspects, such as energy, exergy, or economic analysis. Furthermore, studies using the life-cycle methodology, on the comparison of hydrogen cost of photovoltaic-electrolyzer (PV-E) and photovoltaic/thermal-electrolyzer (PV/T-E) systems are limited.

In this study, electrical-thermal energy and hydrogen production from a small-scale PV/T-E hybrid power system was investigated. A numerical model was developed in Matlab/Simulink environment to evaluate the thermodynamic performance of different input variables, and each numerical model of the system was validated experimentally. The electrical and thermal efficiency and energy–exergy efficiency of the system were analyzed for the varying value of solar radiation and ambient temperatures.

In addition, techno-economic analysis of the PV/T-E system was conducted, and the hydrogen production cost was calculated using the life-cycle cost (LCC) method. The hydrogen cost of systems driven by PV and PV/T were also calculated in order to compare the two different technologies.

2. Materials and Methods

2.1. System Design

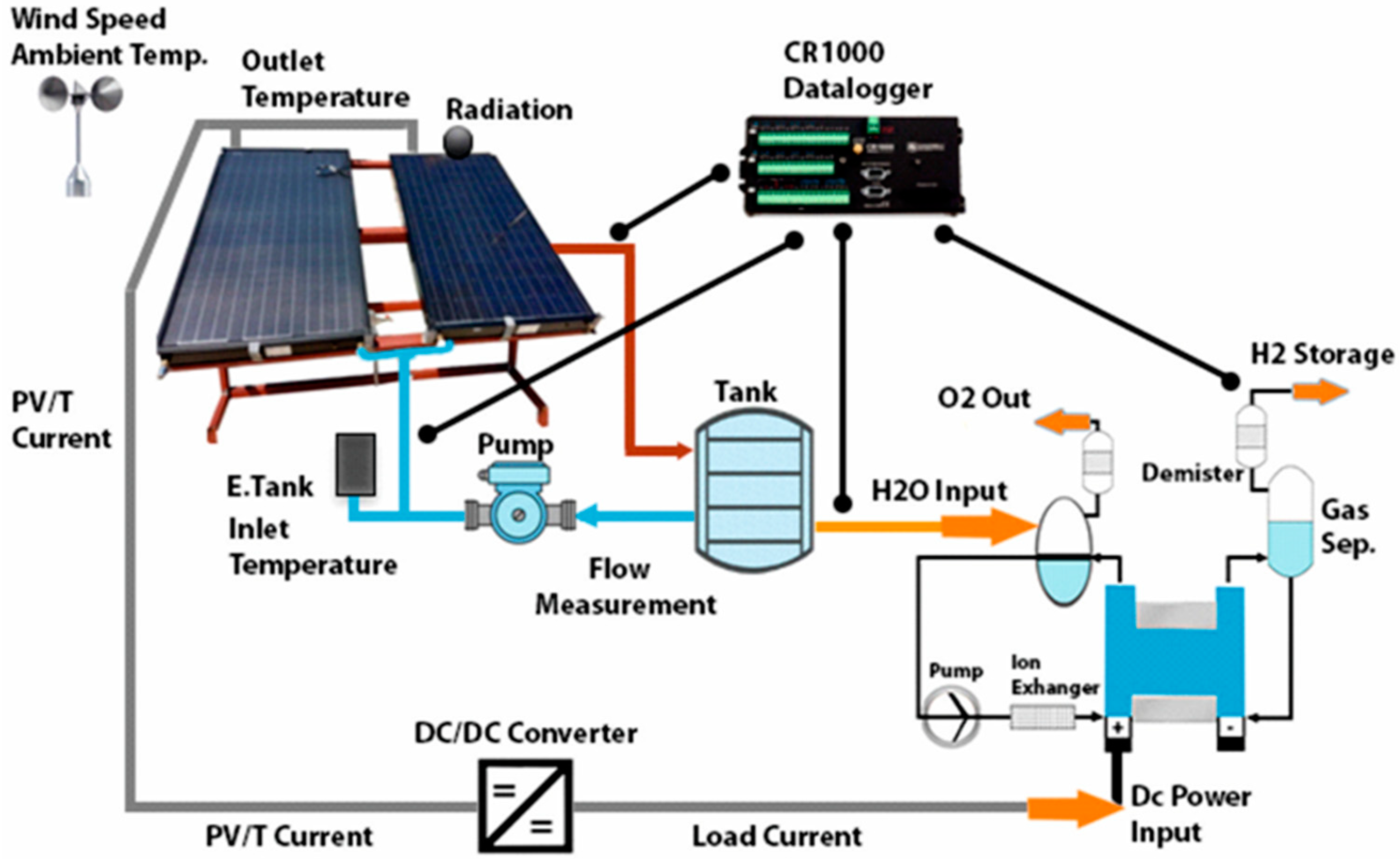

The experimental system built in Balikesir, Turkey (39°39′11.873″ N 27°53′25.231″ E), consisted of two flat-plate PV/T panels with a tilt angle of 30 degrees and a PEM electrolyzer. The experiment period included was between June 2017 and September 2018. The PV/T array (1.64 × 1.74) was composed of 72 cells and the output power of each PV/T was 200 W with a 36.8 maximum power point voltage and 5.43 maximum power point current. A water pump was used to circulate water to remove the heat from the panel and protect it from excessive heat. The commercial PEM electrolyzer system was used to produce hydrogen. The electrolyzer had a capacity of 18 Nm³/day of H₂ production at process pressure without a compressor. A step-down DC/DC converter was used to decrease the voltage level of the PV/T to provide the power input of the PEM electrolyzer. The higher voltage output achieved by the PV/T was reduced and applied to the electrolysis cell. The DC/DC converter had high efficiency and its efficiency was regarded as 98% in the numeric model. The simulation of the system was obtained using the Matlab/Simulink environment. The PV/T electrolyzer system consists of the following major components: a PV/T array, a DC/DC step-down converter, and a PEM electrolyzer system. The schematic diagram of the system is given in Figure 1.

A commercial PV/T (Solimpeks^® Powertherm) was used in the system and the features of the PV/T are given in the

Table 1. Features of photovoltaic/thermal (PV/T) panel.

Dimensions	1640 × 870 × 105 mm
Maximum current (A)	5.43
Short circuit current (A)	5.67
Maximum voltage (V)	36.8
Open circuit voltage (V)	45.43
Glass	Extra Solar Glass
Cell number	72
Type	Monocrystal
Thermal power (W)	680
Active cell area (m2)	1.222

.

A data logger (Campbell Scientific CR1000) was used to record the data with the desired time periods and accuracy. The CR1000 datalogger has 16 analog single-ended inputs (8 differentials), and the measurements were recorded at desired intervals with the help of connected sensors. The thermocouples (PT100 and J type) were used for measuring the ambient, cell, fluid inlet, and outlet temperatures. The cell temperature of the PV/T was measured from the front surface by a J type thermocouple. A pyranometer (Kipp and Zonen CMP11 model) was used to measure the incident solar radiation. The water flow rate was calculated with a flow meter (LZB 15 SL (0–250 L/h)). The output current was measured with a current sensor (ACS712). Each device in the measurement system is given in

Table 2. Properties of measuring components.

Material	Feature	Measured Variable	Accuracy
Pyranometer	Kipp and Zonen CMP11	Global irradiance	±2%
Anemometer	NRG 40	Wind speed	±1%
Temperature sensor	PT100, J type	Ambient & collector	±0.8%
Current Sensor	ASC712 (0–75 A)	Current	±0.15%
Flowmeter	LZB-15 SL (0–250 L/h)	Mass flow rate	±1.5%

.

2.2. Mathematical Model of the System

Hybrid power systems need to be analyzed using highly complex numerical models for each part of the system, separately. The meteorological input values such as hourly based temperature and solar radiation data are required in the calculations of solar energy systems. It is quite complicated and time-consuming to perform analyses such as energy and exergy efficiencies when they are processed annually (8760 h). Thus, the calculation and the implementation of each element were simulated in the Matlab/Simulink environment. Simulink is mostly used for the analysis and optimization of electrical circuits and the field of control systems; however, it is rarely used for the thermodynamical modeling of solar energy systems. Dynamic models can be simulated quickly and with great flexibility [56].

The Simulink model contains quantitative phrases of the PV/T hybrid system. The output variables such as thermal and electrical efficiency, energy–exergy amounts, etc., are computed based on meteorological input data. Several blocks are provided to compute variables such as the collector flow rate, the fin factor, and heat losses. Hence, output variables can be computed hourly, daily, monthly, and yearly.

The PV/T one-dimensional steady-state model was modeled using Hottel–Whillier equations. Heat losses are considered in the thermal performance calculations of the PV/T system, and they depend on variables such as solar radiation intensity, wind speed, ambient temperature, the structure of the collector, transparent covering properties, radiation emissions and absorption value of the absorber surface, thermal conductivity coefficient, thickness, and type of insulation material [57].

Steady state thermal efficiency of PV/T collectors (η_th):

$${\eta }_{th}=\frac{Q_u}{I_T}$$

(1)

$$Q_u=A_c{F}_R\left[S-U_L\left(T_{in}-T_a\right)\right]$$

(2)

Total heat losses including the bottom, top and edge surfaces of the collector are calculated with Equation (3).

$$U_L=U_t+U_b+U_e$$

(3)

The collector flow rate factor is $F_R$:

$$F_R=\frac{\dot{\mathrm{m}}{C}_p}{A_c{U}_L}\left[1-e^{-\frac{A_c{U}_{L}F{}^{\prime }}{\dot{\mathrm{m}}{C}_p}}\right]$$

(4)

The collector efficiency factor is F’:

$$F^{\prime }=\frac{\frac{1}{U_L}}{W\left[\frac{1}{U_L\left[D+\left(W-D\right)F\right]}+\frac{1}{W·h_{PVA}}+\frac{1}{\pi D{h}_{fi}}\right]}$$

(5)

F is the fin factor:

$$F=\frac{tanh\left(tanh \left(M\frac{W-D_0}{2}\right)\right) }{\left(M\frac{W-D_0}{2}\right)}$$

(6)

The thermal efficiency expression can be found with the equation given in Equation (7):

$${\eta }_{th}=F_R\left({\alpha }_g\tau \right)-F_R{U}_L\frac{T_a-T_{in}}{I_T}$$

(7)

T_pm is average temperature of the absorber plate. It is also used for the electrical output and efficiency calculation and is given in Equation (8).

$$T_{pm}=T_{in}+\left(\frac{Q_u/A_c}{U_L{F}_R}\right)\left(1-F_R\right)$$

(8)

The electrical efficiency changes with the PV temperature and is calculated with Equation (9). (β₀ = 0.0045) [58]:

$${ƞ}_e={ƞ}_0\left[1-{\beta }_0\left(T_{pm}-T_{ref}\right)\right]$$

(9)

The electrical output of the system is given in Equation (10):

$$P_e={ƞ}_e·A_c·I_T$$

(10)

Exergy analysis of the PV/T system is based on the second law of thermodynamics where the general exergy balance is expressed in mean form, neglecting the effects arising from potential and kinetic energy variations [24].

$$\sum E{x}_{in}-\sum E{x}_o=\sum E{x}_d$$

(11)

$$\sum E{x}_{in}-\sum \left(E{x}_{th}+E{x}_e\right)=\sum E{x}_d$$

(12)

The temperature of the sun (T_s) is taken as 5778 K and exergy input ($E{x}_{in}$) can be calculated by Equation (13):

$$E{x}_{in}=A_c·I_T·\left[1-\frac{4}{3}\left(\frac{T_a}{T_s}\right)+\frac{1}{3}{\left(\frac{T_a}{T_s}\right)}^4\right]$$

(13)

Thermal exergy is expressed with Equation (14):

$$E{x}_{th}=Q_u·\left[1-\left(\frac{T_a+273}{T_o+273}\right)\right]$$

(14)

Electrical exergy:

$$E{x}_e={ƞ}_e·A_c· I_T·\left[1-\frac{4}{3}\left(\frac{T_a}{T_s}\right)+\frac{1}{3}{\left(\frac{T_a}{T_s}\right)}^4\right]$$

(15)

The total PV/T exergy equals the sum of the electrical exergy and thermal exergy:

$$E{x}_t=E{x}_{th}+E{x}_e$$

(16)

The simulation parameters of PV/T, which were used in the numerical model, were given in the

Table 3. Simulation parameters for the PV/T used in the numeric model.

Symbols—Parameters	Values
Diameter of the copper tube (D)	0.01 m
Width of the tube spacing (W)	0.092 m
PV thermal conductivity (kpv)	149 W/m K
PV laminate thickness (lpv)	0.0002 m
Absorber thermal conductivity (kabs)	385 W/m K
Absorber laminate thickness (labs)	0.00012 m
Insulation material thermal conductivity (ki)	0.04 W/m K
Insulation material thickness (li)	0.05 m
Transmission–absorption coefficient (ταg)	0.8 W/m K

.

2.3. PEM Mathematical Model

The energy for the PEM electrolyzer is composed of two parts: the change of thermal energy (TΔS) and the change in Gibbs free energy (ΔG). At standard pressure and temperature, the Gibbs free energy value is defined as a zero-energy point and is used to calculate the change in the energy of a system. Equation (17) is given as:

ΔH = ΔG − T.ΔS

(17)

where ΔH is the enthalpy change of water splitting and T and ΔS stand for the water-splitting temperature and entropy change, respectively [59].

In order to model the dynamic behavior of a PEM electrolyzer precisely, it is necessary to understand the anode, cathode, membrane, voltage sections and their interactions with each other. The reversible potential of water splitting can be calculated with Equation (18) [60]:

$$E_0=-\frac{\Delta G^0}{zF}$$

(18)

where the F is the Faraday constant and z is the number of electrons transferred. The voltage of the electrolyzer (V_elc) can be calculated as follows:

$$V_{elc}=E_r+V_{act,a}+V_{act,c}+V_{ohm}$$

(19)

where E_r refers the ideal supplied electrical potential. V_{act a,c} and V_ohm are the anode–cathode, activation and ohmic losses, respectively.

The ideal electrical potential for water can be calculated by the Nernst equation which is as follows [61]:

$$E_r=1.482-0.000845·T+4.31\times {10}^{-5}·T·e^{(p_{H2}.\sqrt{p_{O2})}}$$

(20)

where T is the operating temperature of the PEM electrolyzer. p_H2 and p_O2 show the partial pressures of the hydrogen and oxygen, respectively.

Energy barriers that must react to reactive reactants are known as activation energy, which is a result of activation overvoltage. The activation overpotential represents the activity of the electrodes in the electrochemical reaction, and it is given with the Butler–Volmer equation:

$${\eta }_A=\frac{R·T}{{\alpha }_a·z·F}ln(\frac{i}{i_{o,a}})$$

(21)

$${\eta }_c=\frac{R·T}{{\alpha }_c·z·F}ln(\frac{i}{i_{o,c}})$$

(22)

${\alpha }_a$ and ${\alpha }_c$ are transfer coefficient of anode and cathode, i_a and i_c are the exchange current density of the anode and cathode, and i is current density.

Ohmic losses occur as a result of the movement of ions in the solid electrolyte and the flow of electrons through the electrodes. Ohmic overpotential across the PEM is inversely related to the local ionic conductivity and it is empirically given as

$$V_{ohm}=\frac{\varphi }{\sigma }·i$$

(23)

$$\sigma =\left(0.00514.{\lambda }_m-0.00326\right)·exp(1268.\left(\frac{1}{303}-\frac{1}{T}\right))$$

(24)

where i current density, σ conductivity and ${\lambda }_m$ the thickness of the membrane.

The efficiency of the PEM electrolyzer is given in Equation (25) [62]:

$${ƞ}_{en}=\frac{LHV·{\dot{\mathrm{m}}}_{H_{2}O}}{W_{elc}}$$

(25)

Exergy efficiency is calculated as the ratio of the exergy difference of reactants (H₂O) reacting with the exergy of the products exiting the reaction to the input electrical power of the PEM electrolyzer [63].

$${ƞ}_{ex}=\frac{{\left(Ex\right)}_P-{\left(Ex\right)}_r}{P_{e,in}}=\frac{\left({\dot{\mathrm{E}}}_{H_2,p}+{\dot{\mathrm{E}}}_{O_2,p}\right)-\left({\dot{\mathrm{E}}}_{H_{2}O,r}\right)}{P_{e,in}}$$

(26)

The total exergy transfer of reactants and products per unit mass is the sum of physical and chemical exergy:

$$\mathrm{Ex}={\mathrm{ex}}_{\mathrm{ph}}+{\mathrm{ex}}_{\mathrm{ch}}$$

(27)

where the chemical exergy of hydrogen is 159,138 kJ kg⁻¹, water is 2.5 kJ kg⁻¹ and oxygen is 0. The physical exergy calculation is given in Equation (28) [64]:

$$E{x}_{ph}=\left(h-h_o\right)-T_0·\left(s-s_0\right)$$

(28)

where C_p is specific heat and k is specific heat rate. The physical exergy is given in Equation (29) [63]:

$$E{x}_{ph}=C_p·T_0·[\frac{T}{T_0}-1-\ln (\frac{T}{T_0})+\ln {(\frac{P}{P_0})}^{\left(k-1\right)/k}]$$

(29)

The total exergy rate of products and reactants can be calculated individually as follows:

$${\dot{\mathrm{E}}}_{H_{2}O,r}={\dot{\mathrm{m}}}_{H_{2}O,r}·{\left(e{x}_{ch}+e{x}_{ph}\right)}_{H_{2}O,r}$$

(30)

$${\dot{\mathrm{E}}}_{H_2}={\dot{\mathrm{m}}}_{H_2,p}·{\left(e{x}_{ch}+e{x}_{ph}\right)}_{H_2,p}$$

(31)

$${\dot{\mathrm{E}}}_{O_2,p}={\dot{\mathrm{m}}}_{O_2,p}·{\left(e{x}_{ch}+e{x}_{ph}\right)}_{O_2,p}$$

(32)

The simulation parameters of PEM electrolyzer which are used in the numerical model, were given in the

Table 4. Simulation parameters for the PEM electrolyzer used in the numeric model.

Symbols—Parameters	Values
Transfer coefficient anode–cathode (αa, αc)	0.5
Anode–cathode electrode thickness (δa, δc)	5 × 10−6 m
Anode exchange current densities (i0,a)	0.0042 A/cm2
Cathode exchange current density (i0,c)	0.001 A/cm2
Current density (i)	1.6 A/cm2
Operating pressure (P)	1 bar
Faraday number (F)	96,485.3 A/mol
Operating temperature (T)	303 K
Degree of humidification (λ)	24

.

2.4. Economic Analysis

The LCC (life-cycle cost) method, which is used to compare the energy costs of technologies with different cost structures, is preferred for the economic analysis. The analysis attempts to calculate the cost of delivering a service during the whole period of the project, rather than comparing only the initial capital costs or operating costs. All of the costs (capital cost (CC), operating and maintenance costs (OMC), and repair and replacement costs (RRC)) that will occur during the system lifetime are considered based on the time value of money [65].

$$TPV=Initial cost+\sum O\&M+\sum Replacement$$

(33)

The real discount rate (R’) and the capital recovery factor (CRF) is defined as follows:

$$R{}^{\prime }=\frac{i^{\prime }-f}{1+f}$$

(34)

where i’ is the nominal discount rate and f is the inflation rate;

$$CRF=\frac{{\left(1+R{}^{\prime }\right)}^N·R{}^{\prime }}{{\left(1+R{}^{\prime }\right)}^N-1}$$

(35)

The final cost of hydrogen is defined as

$$Cost \left(\frac{\$}{kg{H}_2}\right)=\frac{TPV·CRF}{Annual H_2 production}$$

(36)

The major economic assumptions determining the costs are as follows:

• The economic evaluation (N) period is 25 years for the PV/T panels, the DC/DC converter, and the storage systems, and is 15 years for the PEM electrolyzer.
• The economic indicators of nominal discount rate and inflation rate were used as 9% and 12%, respectively, for 2017 [66].
• The installation, operation and maintenance are not included in cost calculation.
• The capital costs per watt for the PV, the PV/T, and the PEM electrolyzer were taken as 0.82, 2, and 0.9 USD/W, respectively.

3. Results

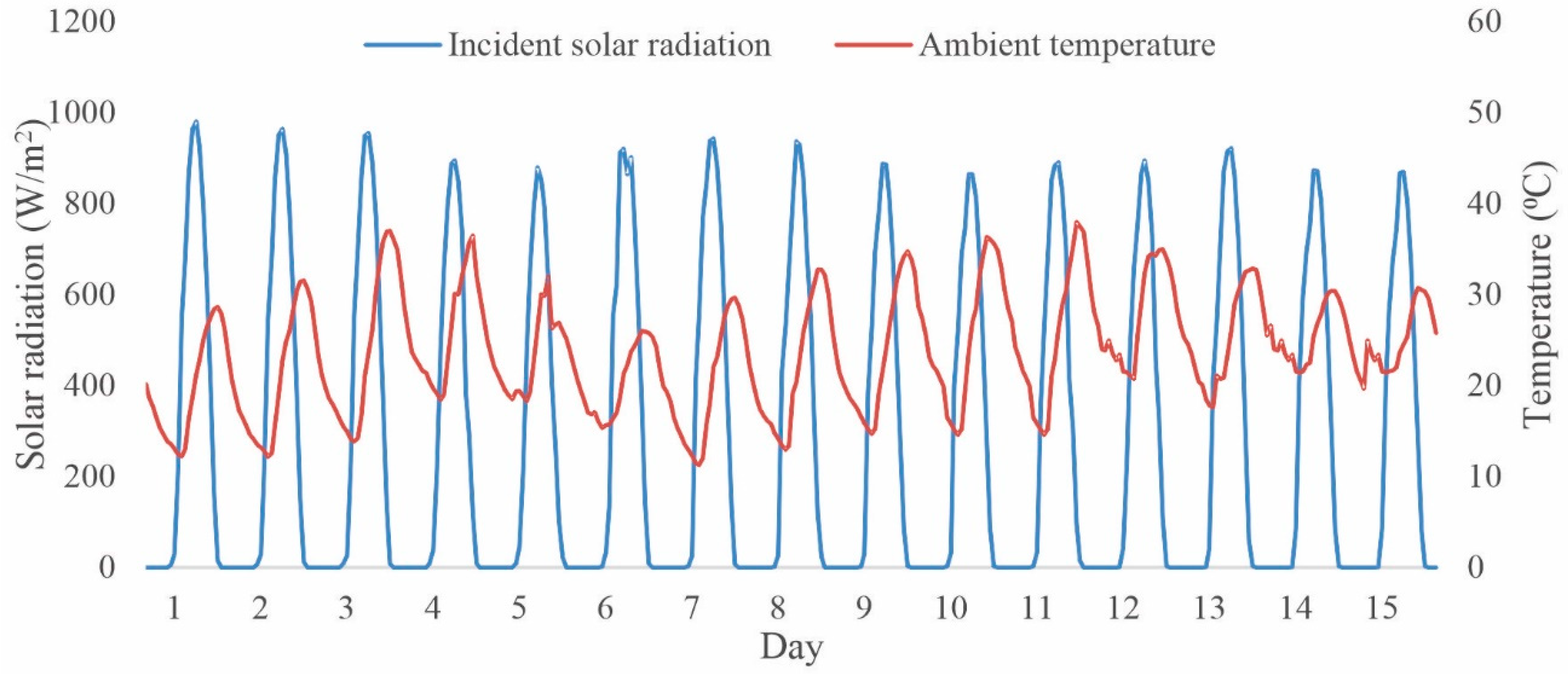

In this study, the hourly meteorological data used in the simulation such as ambient temperature and inclined solar radiation were measured and stored by the data logger between the dates of 10/08/2017 and 31/07/2018. In order to perform verification between the numerical model and experimental system, the electrical and thermal energy and exergy efficiencies and hydrogen production were calculated using actual hourly measurement data for the specified dates (01.09.2017–15.09.2017), which are given in Figure 2. The measured radiation and ambient temperature data changed between 0–980.2 W/m² and 11.2–37.9 °C, respectively.

The monthly average energy and exergy inputs are shown in Figure 3. The energy and exergy distributions have similar trends and vary between 2.72–8.38 kW/m² and 2.54–7.8 kW/m², respectively.

The annual amount of electrical, thermal, and hydrogen production by the PV/T-E hybrid system in Balikesir were calculated with the numerical model and the results were 556.8 kWh, 1912 kWh and 4.491 kg/year, respectively. The monthly amount of the electrical and thermal energy and produced hydrogen are given in Figure 4.

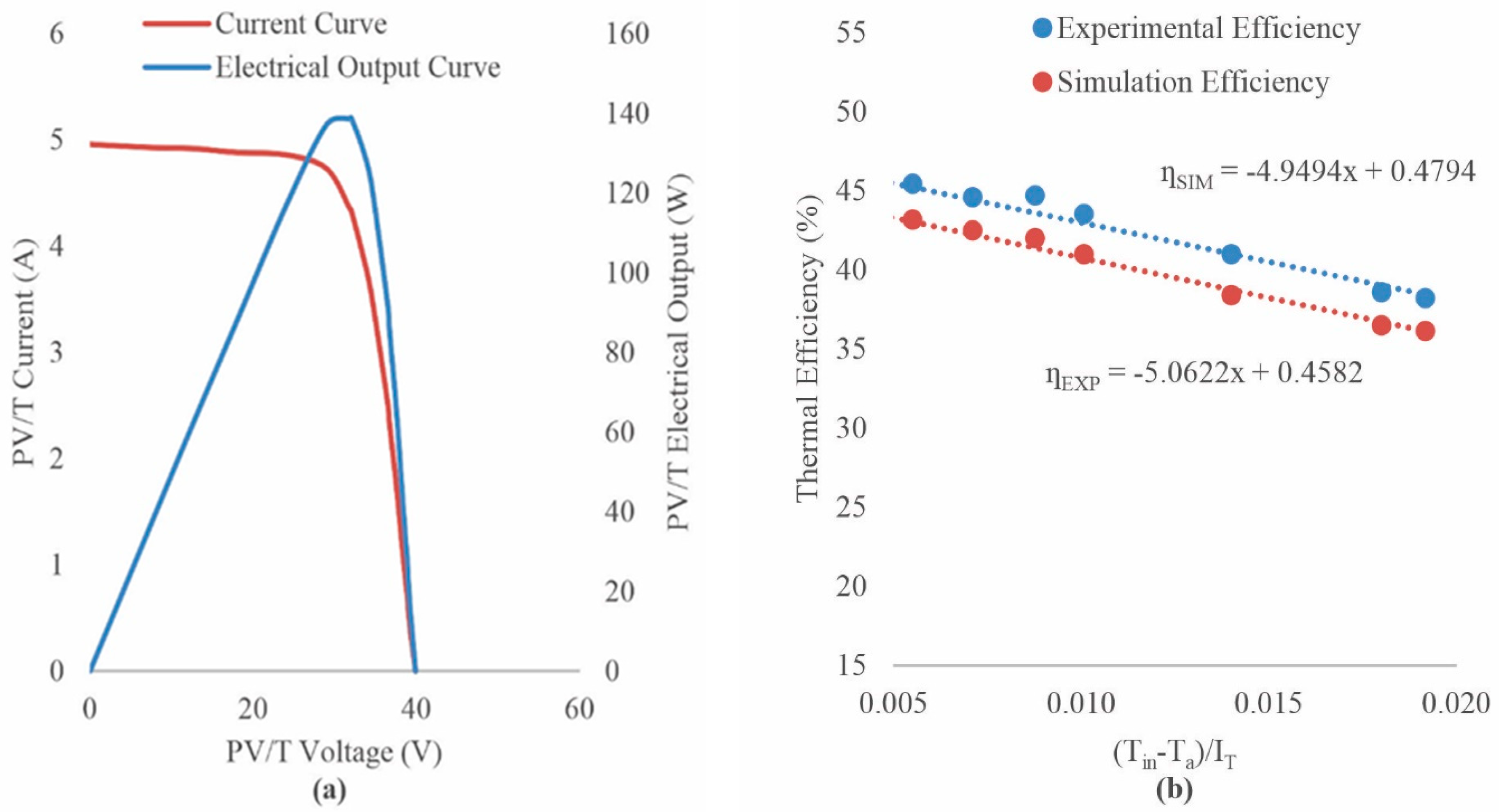

The experimental PV/T array current-voltage (I-V) and power-voltage (P-V) characteristic for 950 W/m² solar radiation and 33 °C ambient temperature is presented in Figure 5a. The short circuit current of the array and the open-circuit voltage were measured as 4.96 A and 39.9 V under these conditions, respectively. Hence, the maximum electrical output of the array was calculated as 139 W with 32 V. The characteristic experimental thermal efficiency depending on (T_in − T_a)/I_T was calculated on a daily basis and compared with the simulation data under the same climatic conditions (Figure 5b). The optical efficiency of the experimental system was obtained as 45.8%, and it was 47.9% for the simulation system.

The energy and exergy efficiencies of the PV/T system dependent on solar energy and exergy input, ambient and outlet temperatures were calculated between the hours of 09:00 and 19:00 on 2nd of September and are given in Figure 6. While the ambient temperatures, solar energy, and exergy inputs varied in the ranges of 12.8–31.4 °C, 187–1177 W, and 173–1097 W, respectively, the total energy and exergy efficiencies were calculated in the ranges of 35–60% and 13.7–15.8%, respectively. The exergetic efficiency was less than the energy efficiency due to losses and exergy destructions in the system.

The variations of the hourly electrical, thermal and total PV/T energy amounts depending on ambient temperature and inclined radiation on a daily basis are shown in Figure 7. While inclined radiation and ambient data varied in the respective ranges of 153–963 W/m² and 12.8–31.4 °C, the PV temperature changed between 26.3 °C and 50 °C, and the produced electrical, thermal and total energy amounts were calculated as varying in the ranges of 24.75–156.4 Wh, 41.5–558.7 Wh, and 66.25–713.6 Wh, respectively. The results showed that the increase in PV cell temperature led to a decrease in both PV efficiency and electrical output of the system.

In this study, the electrochemical model of the PEM electrolyzer was implemented and verified with experimental results. As shown in Figure 8a, the change in the electrolysis overpotentials (E_r, V_ohm, V_act, and V_elc) under the 30 °C operation temperature conditions correlated with the change in the current. The ohmic voltage increased proportionally to the current increase. The anode activation overpotential was calculated as 0.37 V, while the cathode overpotential was 0.25 V for 1600 mA/cm². The change in the electrolysis voltage depending on the current and temperature was also investigated by changing the current and temperature in the respective ranges of 200–1600 mA/cm² and 30–65 °C. The variations in the electrolyzer voltage in relation to different levels of the current and temperature correlated well with the experimental results (Figure 8b). As shown in Figure 8c, the change in electrolyzer voltage was also investigated in relation to the PV/T’s water supply and the current output between 12:00 and 18:00. The decrease in the current and increase in the water temperature caused the electrolyzer voltage to decrease.

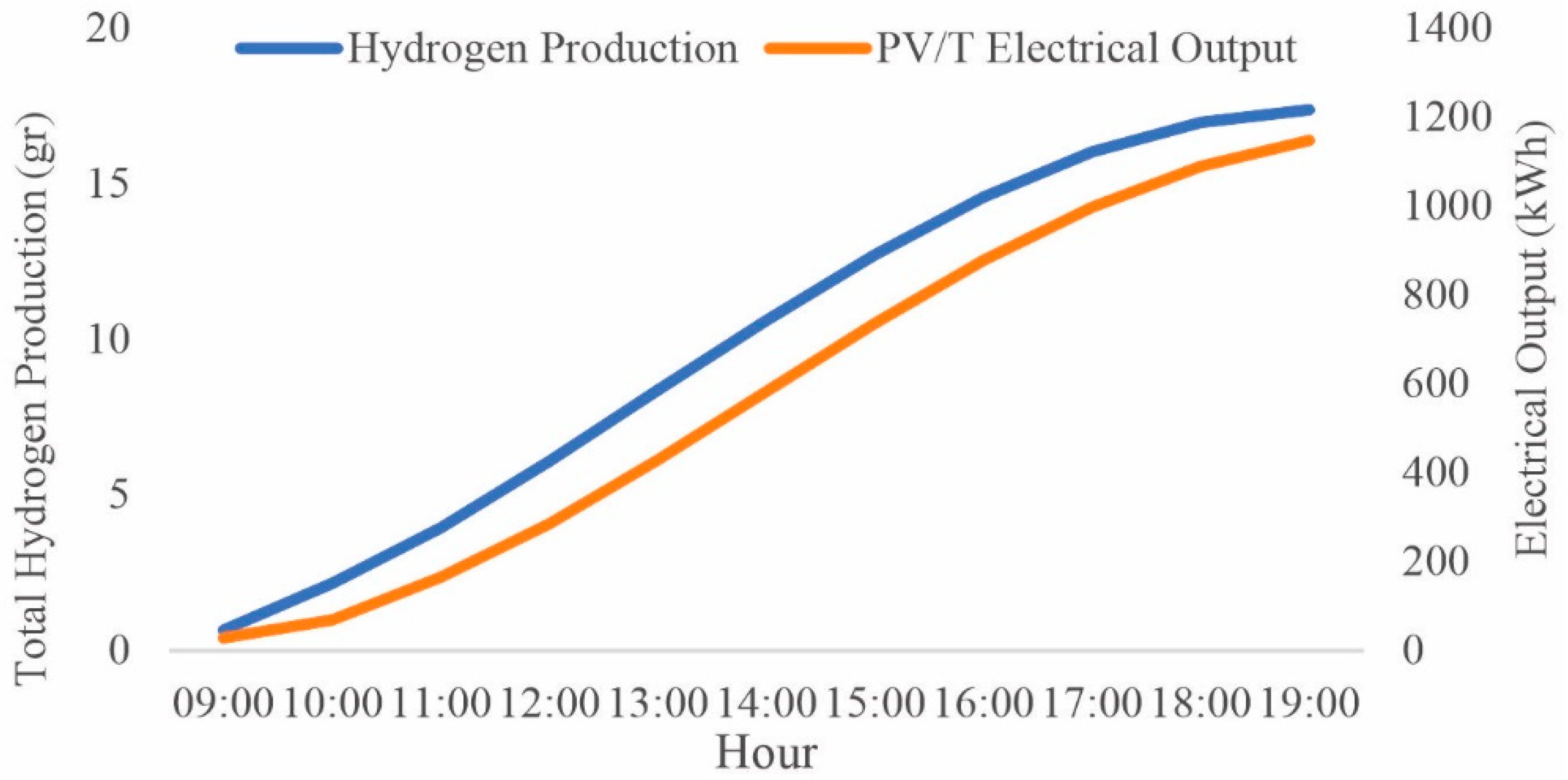

The hourly hydrogen production of the PEM electrolyzer and the electricity generation of the PV/T system were calculated on the 2nd September 2017. According to the calculations, 17.38 gr/day of H₂ and 1147 Wh/day of electricity were produced with the PV/T-E system (Figure 9).

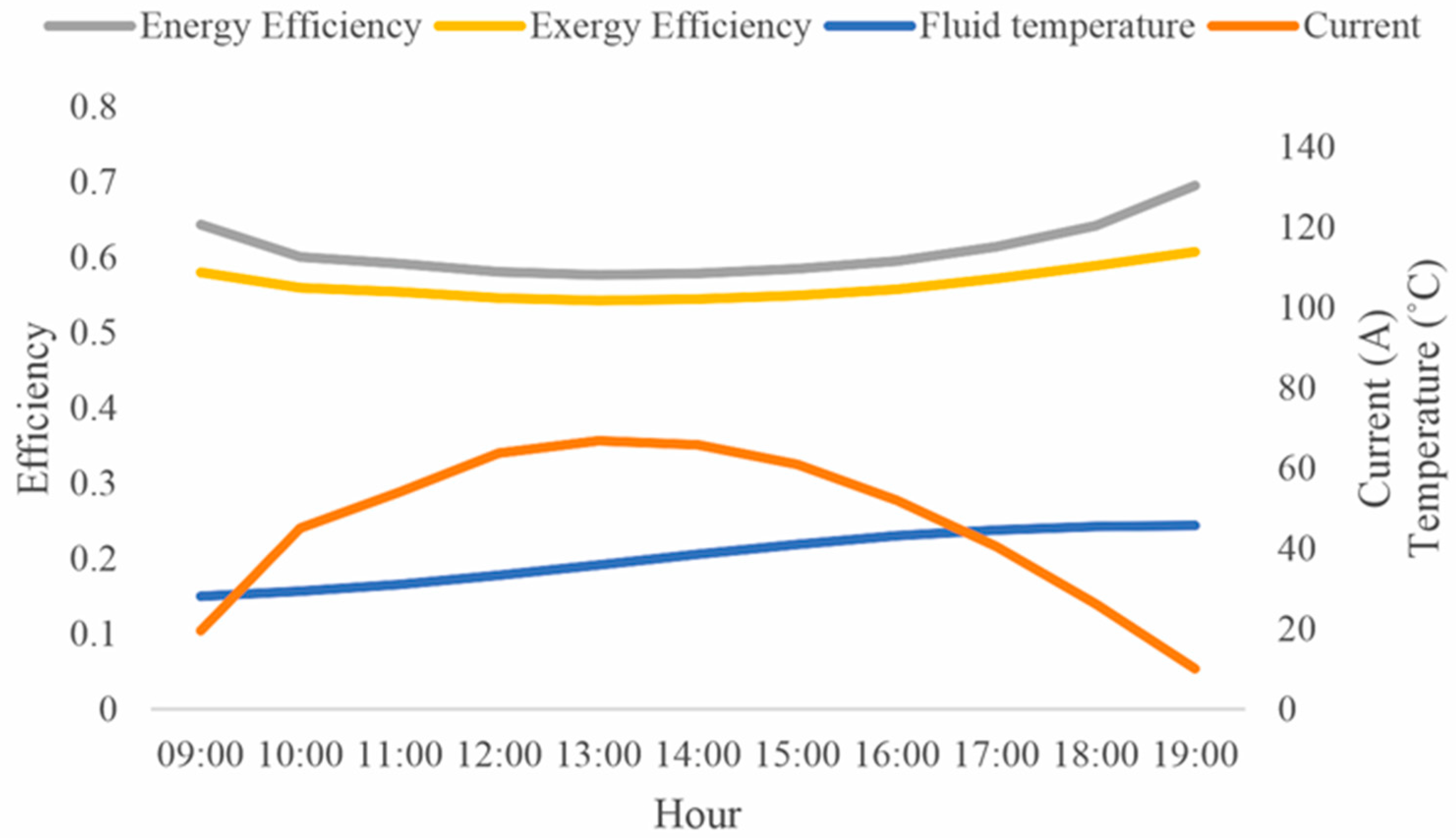

The daily variation in the energy and exergy efficiency of the PEM electrolyzer depending on the temperature of supplied water and the current from the PV/T system is shown in Figure 10. While the current density and the water temperature varied in the ranges of 400–2350 mA/cm² and 28.1–45.8 °C, respectively, the energy and exergy efficiency changed between 57.7 and 69.59% and 54.3–60.7%, respectively. The increase in the temperature of the supplied water and decrease in the current caused energy and exergy efficiencies to increase. It is clear that the exergy efficiency of the PEM electrolyzer is higher than the PV/T system’s exergy efficiency. The reason is that the solar radiation has a large capacity for useful work (exergy) due to the high temperature of the Sun. The higher loss of exergy in the PV/T system was caused by irreversibility of the process. In comparison, the PEM electrolyzer exergy losses are around 40–45%. This loss is the difference between the exergy entering the electrolyzer as an electrical energy, and the exergy exiting the electrolyzer in the form of the hydrogen produced in the process.

In order to determine the impact of a higher water temperature on annual hydrogen production, the monthly hydrogen production is calculated by examining a 65 °C operating temperature in comparison to the actual PV/T temperature under the same conditions (Figure 11). Thus, the annual hydrogen production amounts are 4.593 kg and 4.491 kg, respectively.

In addition, a comparison of the hydrogen production performance of the PV/T PEM electrolyzer system with the PV-E system was conducted. The amount of monthly hydrogen was calculated by modeling the PV-E power system in the Hybrid optimization model for electric renewable (HOMER) simulation program with the same performance and meteorological input values as those used for the PV/T-PEM electrolyzer system. The analysis was conducted with the same values and under the same conditions in the HOMER simulation. As a result of the simulation, 3.96 kg of hydrogen was calculated annually for the PV system, while this value was 4.49 kg in the Matlab/Simulink for the PV/T system (Figure 12).

The distribution of hydrogen generation based on the amount of solar radiation was calculated. Intervals of 100 W/m² of solar irradiation were used for the distribution of hydrogen production. The distribution of the annual hydrogen generation distribution with respect to the global solar radiation was studied and illustrated. It was calculated that the highest hydrogen production occurs in the range of 800–900 W/m², which accounts for 11.67% of the total amount of annual hydrogen generation (Figure 13).

Finally, in order to compare the cost of hydrogen production for both the PV and PV/T-E systems, economic analysis was carried out for each system. The total net present cost and hydrogen production costs were calculated as USD 638.62 and 4.87 USD/kg for the PV electrolyzer. These same values were calculated as 837.6$ and 5.61 USD/kg for the PV/T E system implemented in Balikesir, Turkey.

The calculated cost values for hydrogen vary quite dynamically. On a yearly basis, the cost was affected by economic indicators such as inflation and discount rate, showing a decrease in PV capital. At this point, since the PV/T capital cost value of the PV/T system is high, the cost of hydrogen value was calculated as higher than the PV capital cost.

4. Conclusions

In this study, thermodynamic and economic analysis of a small-scale PV/T E system were carried out, and the numerical model of the system was validated with the experimental results. The annual amounts of electrical-thermal energy and production of hydrogen were calculated.

Comprehensive energy and exergy analyses were carried out for both the PV/T and PEM electrolyzer. The total PV/T energy and exergy efficiencies were calculated in the ranges of 35–60% and 13.7–15.8%, respectively. When the current and operating temperature were in the respective ranges of 400–2350 mA/cm² and 28.1–45.8 °C, the PEM electrolyzer energy and the exergy efficiency were calculated in the ranges of 57.7–69.59% and 54.3–60.7%, respectively.

The annual amounts of electrical, thermal, and hydrogen production by the PV/T E hybrid system were calculated with the numeric model as 556.8 kWh, 1912 kWh, and 4.491 kg/year, respectively. It was observed that the highest hydrogen production occurs in the range of 800–900 W/m², which accounts for 11.67% of the total amount of annual hydrogen generation.

Furthermore, a comparison of the hydrogen production performance of the system with a PV-electrolyzer was conducted, and an annual amount of 3.96 kg of hydrogen production was calculated for the PV system, while it was 4.49 kg for the PV/T system. Due to its higher efficiency, the PV/T system produced 13% more hydrogen than the PV system.

The effect of a higher operation temperature on hydrogen production was also studied. The amount of hydrogen production using a 65 °C operation temperature was compared to that produced in the actual operation temperature under the same conditions. The annual hydrogen production amounts were 4.593 kg and 4.491 kg, respectively.

The levelized cost of hydrogen production for both the PV/E and PV/T E systems were calculated as 4.87 USD/kg and 5.61 USD/kg, respectively, for systems utilized in Balikesir, Turkey. The values of the calculated hydrogen kg cost values varied quite dynamically.
