Energies 2019, 12(6), 977; https://doi.org/10.3390/en12060977

A New Hybrid Multilevel Inverter Topology with Reduced Switch Count and dc Voltage Sources

1
Department of Electrical Engineering at Rabigh, King Abdulaziz University, Jeddah 25732, Saudi Arabia
2
Centre of Electrical Energy Systems, Department of Electrical Power Engineering, Universiti Teknologi Malaysia, 81310 Johor Bahru, Malaysia
*
Author to whom correspondence should be addressed.
Received: 22 January 2019 / Revised: 6 March 2019 / Accepted: 8 March 2019 / Published: 13 March 2019
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [4003 KB, uploaded 13 March 2019]   |

Abstract

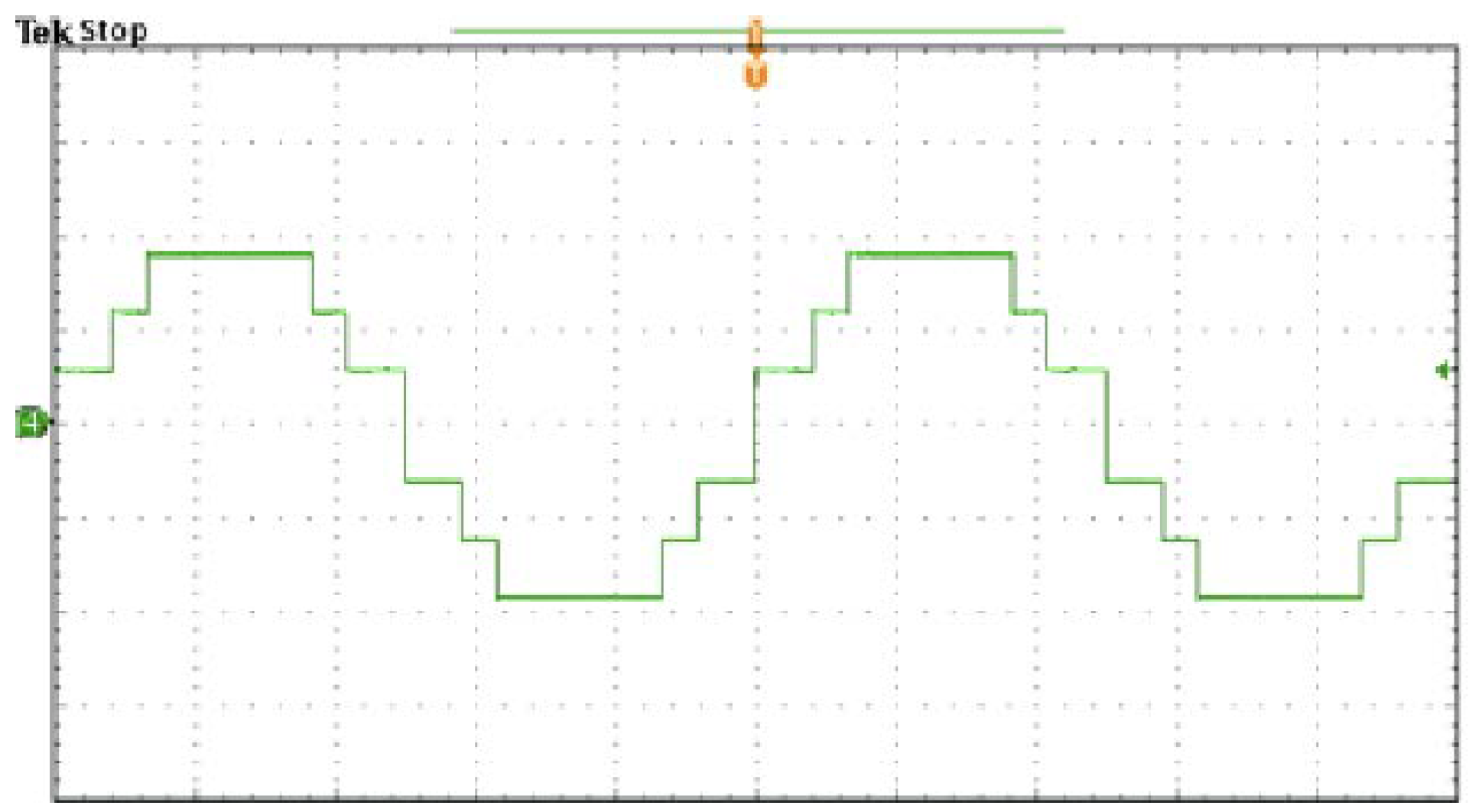

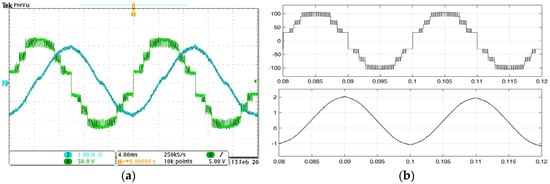

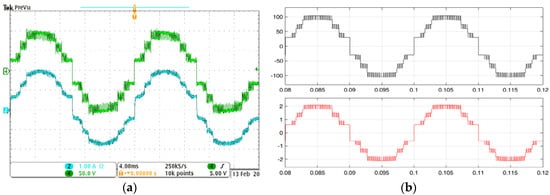

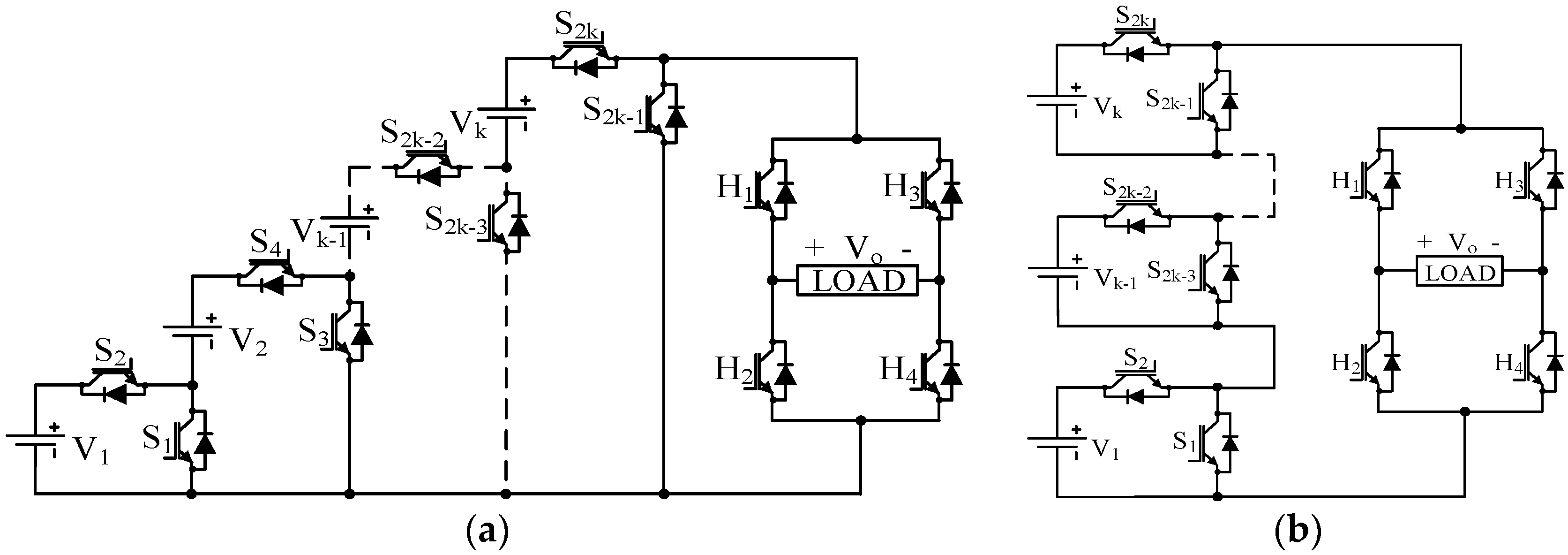

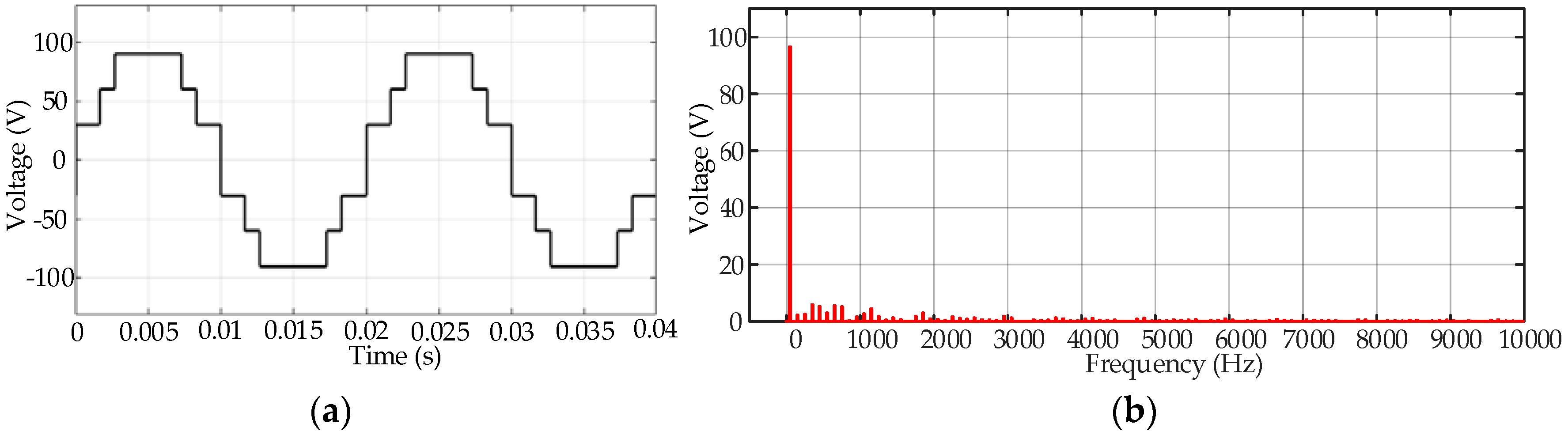

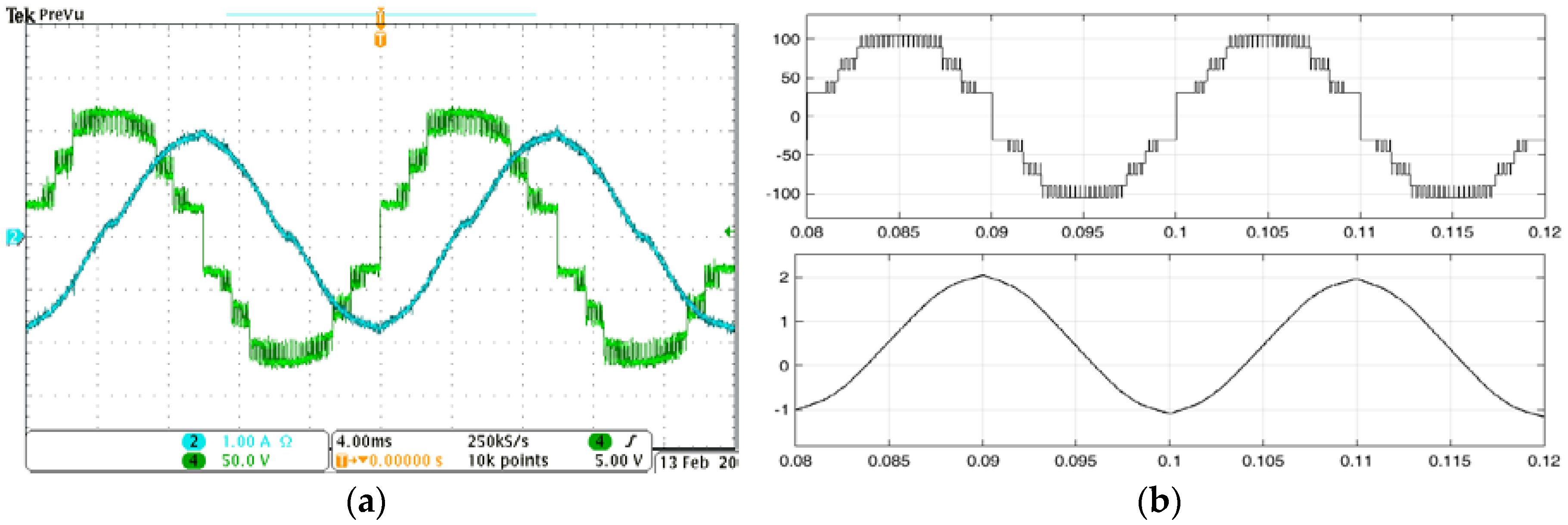

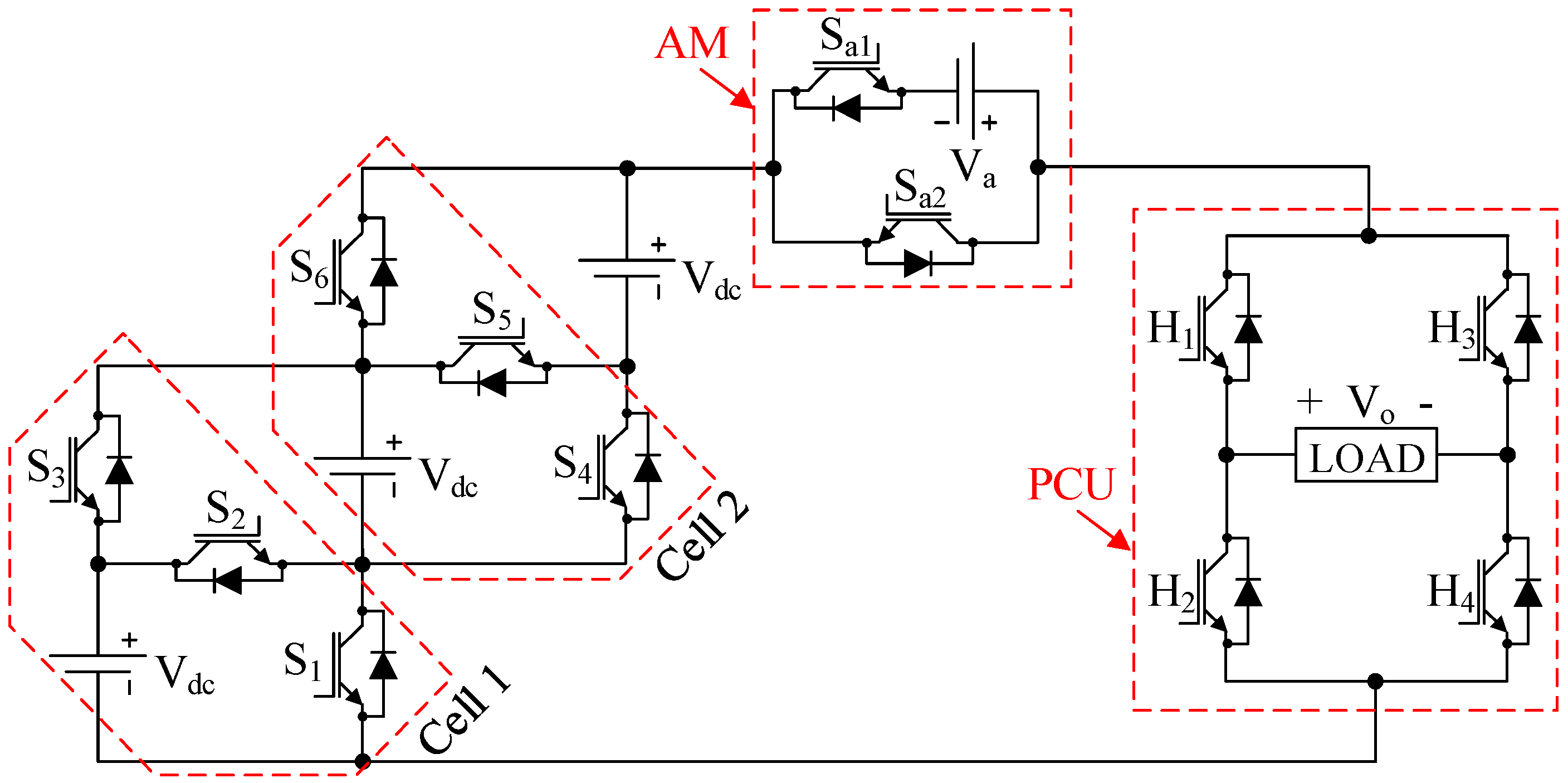

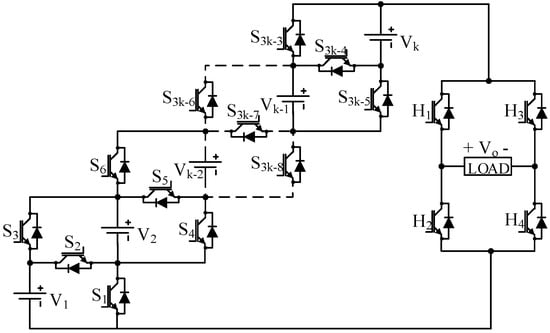

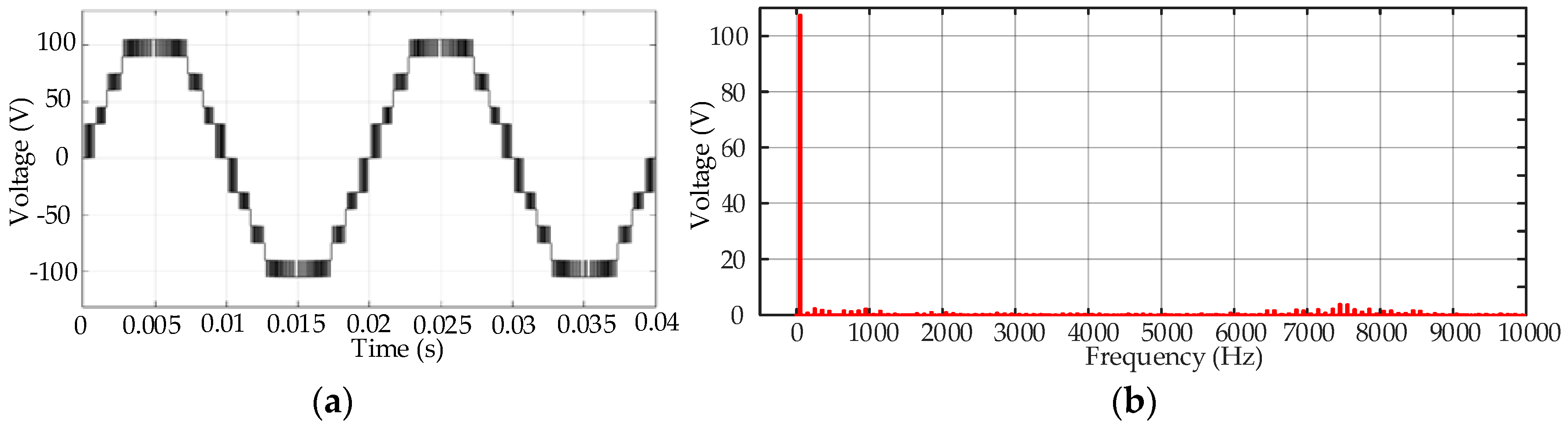

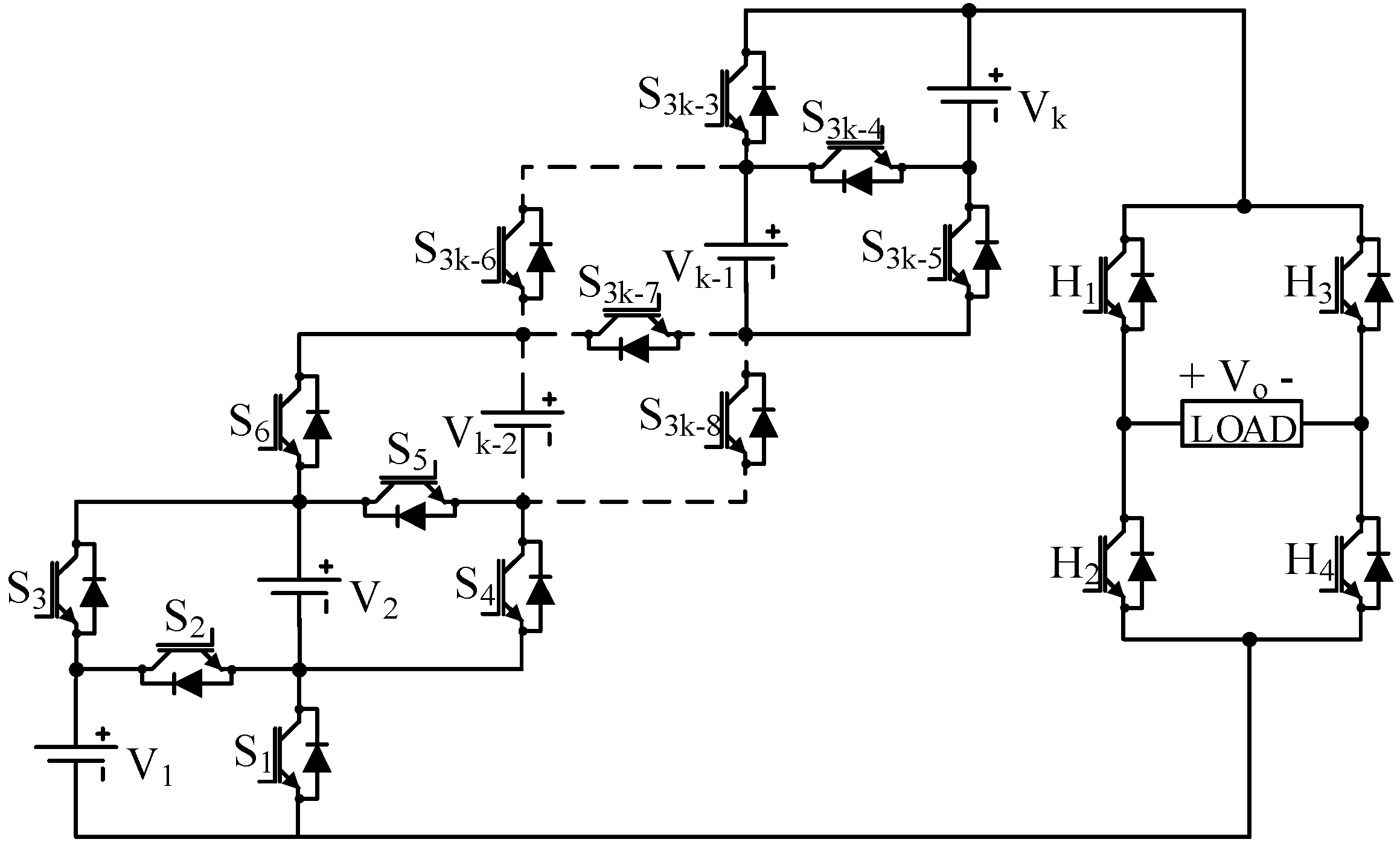

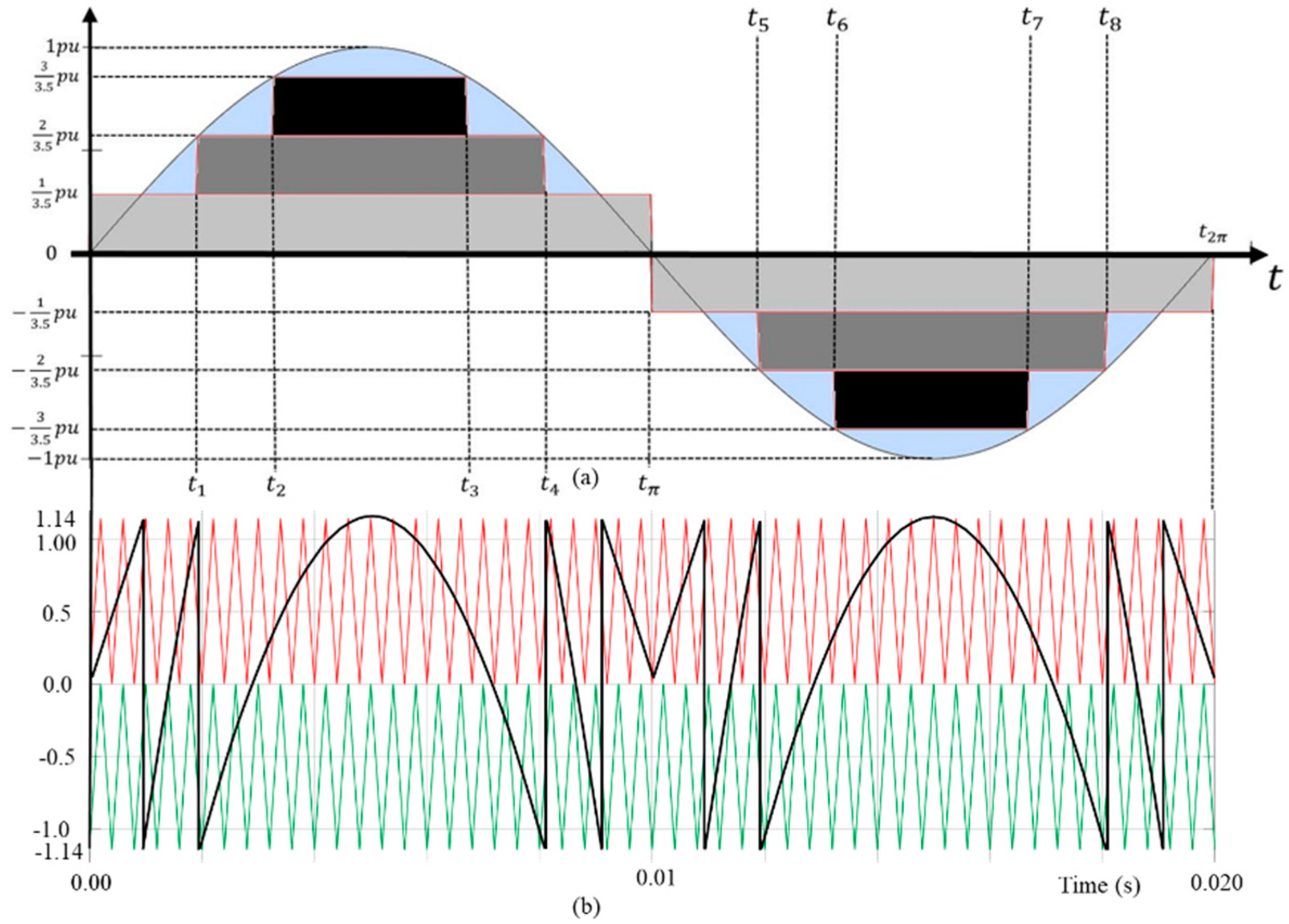

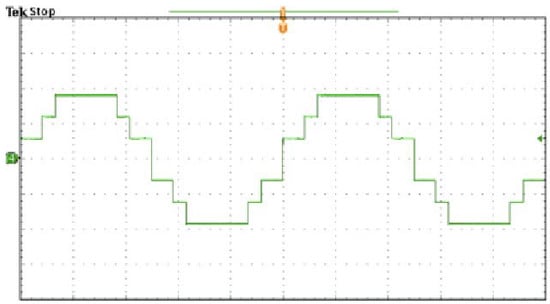

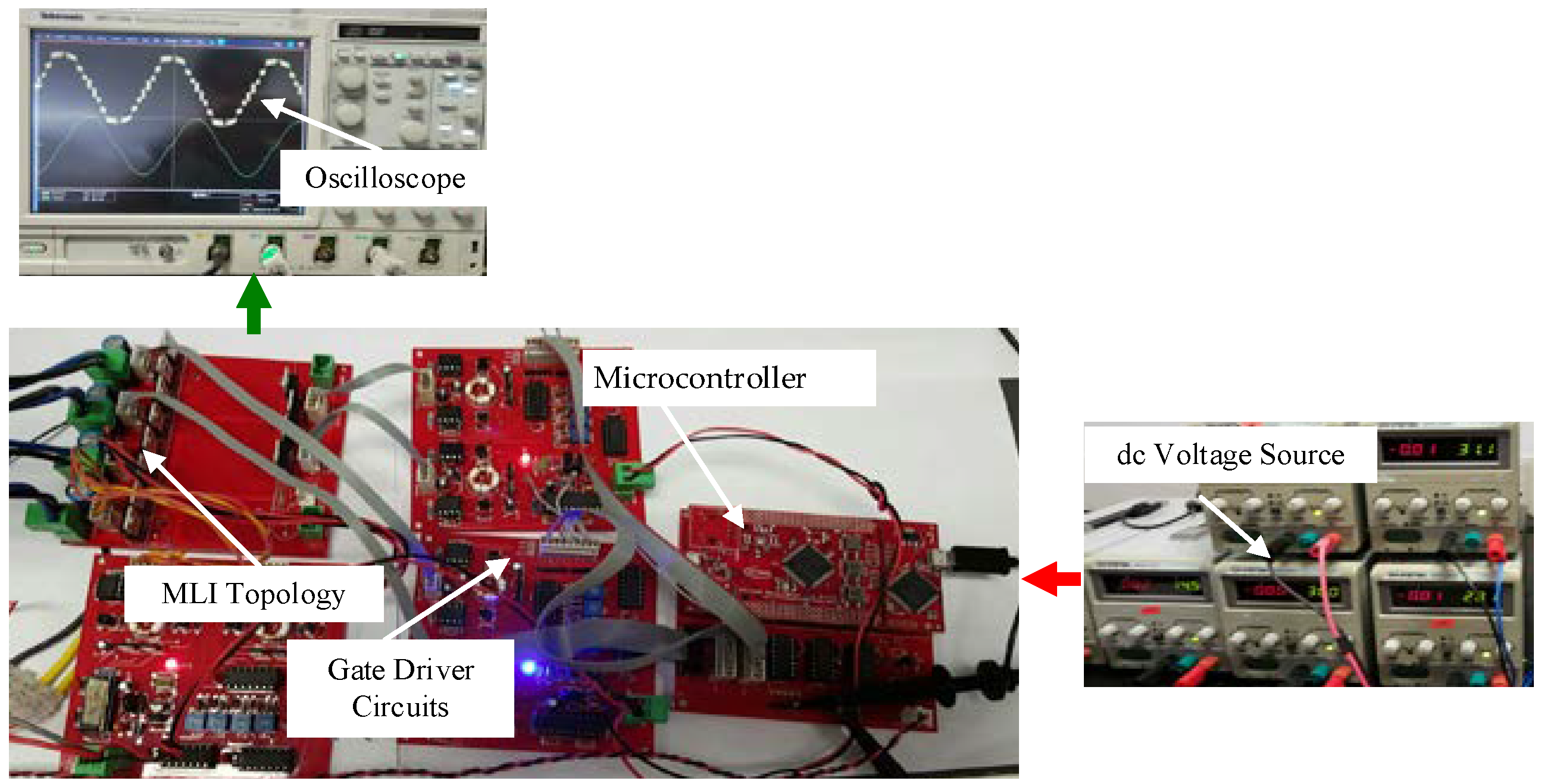

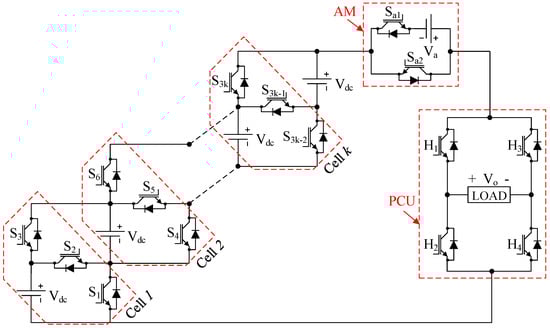

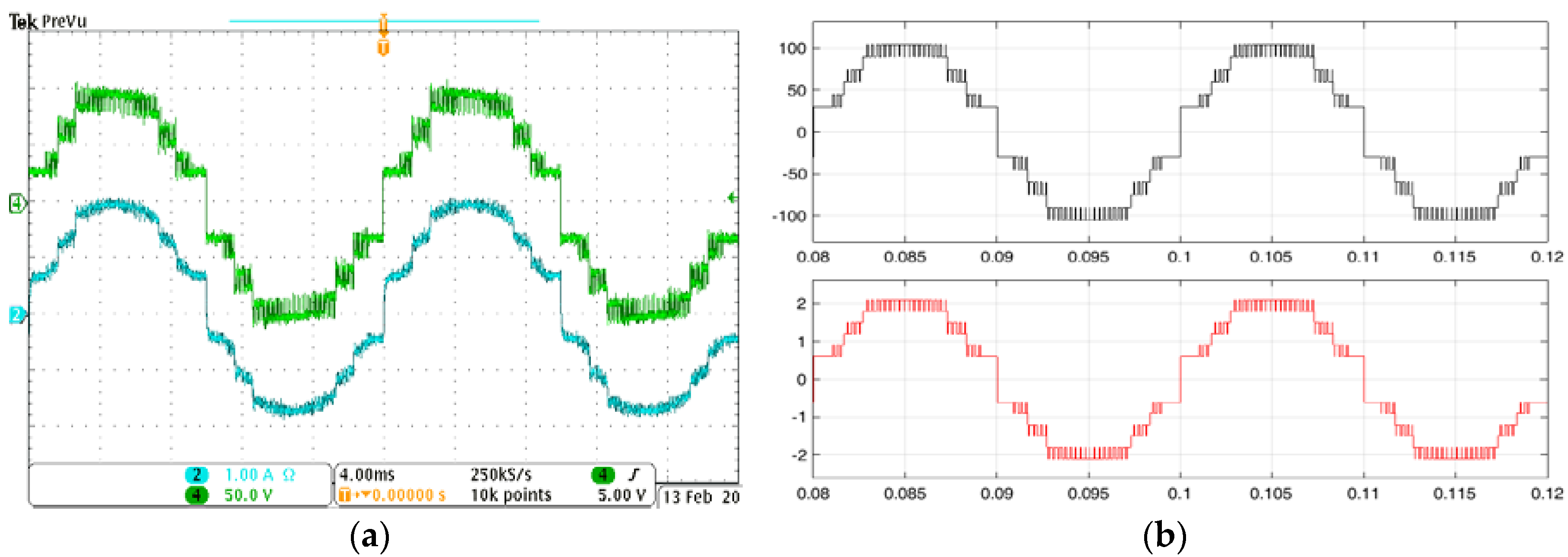

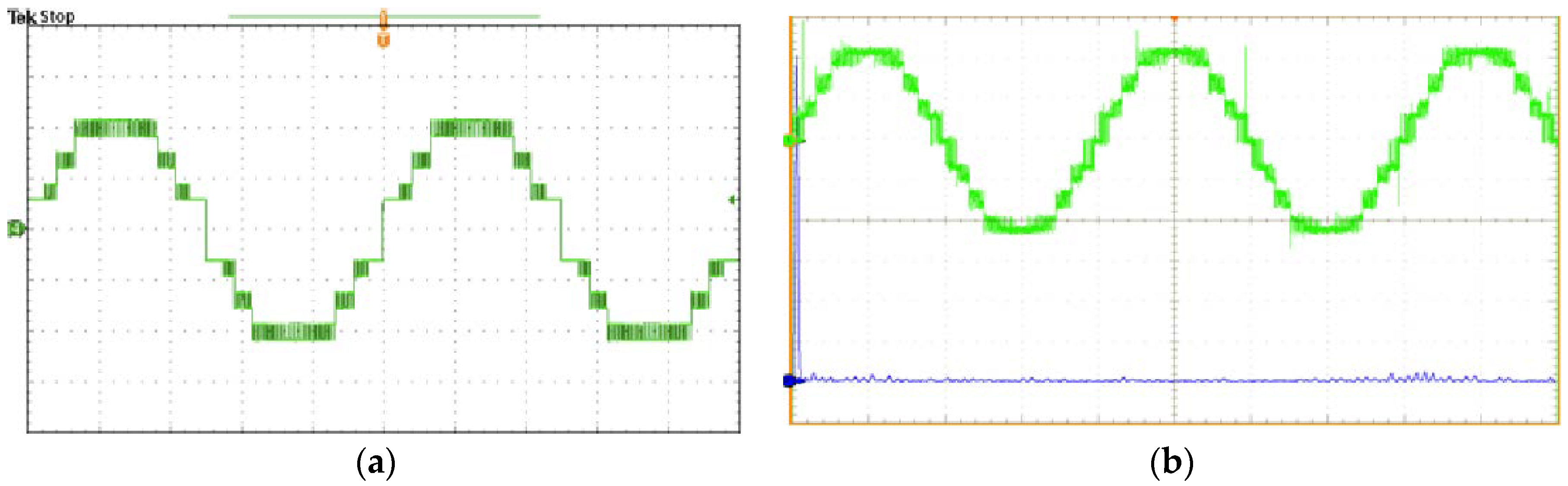

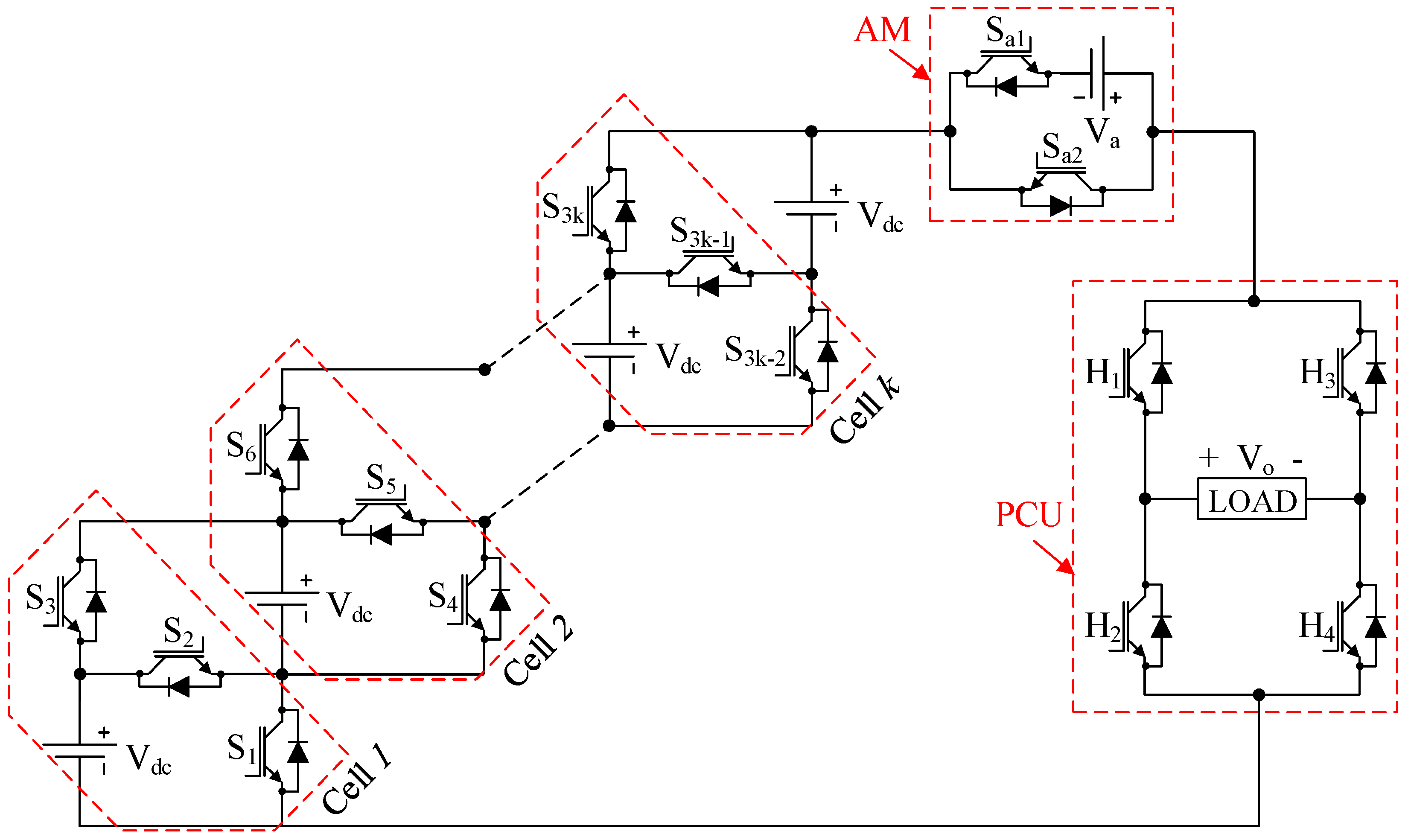

In this paper, a new single-phase hybrid multilevel inverter (MLI) is proposed. Compared to other existing MLI topologies, the proposed circuit is capable of producing a higher number of output voltage levels using fewer power switches and dc sources. The levels are synthesized by switching the dc voltage sources in series/parallel combinations. An auxiliary circuit is introduced to double the number of levels by creating an intermediate step in between two levels. In addition, a zero level is introduced to overcome the inherent absence of this level in the original circuit. To improve the total harmonic distortion, a hybrid modulation technique is utilized. The operation and performance of the circuit are analyzed and confirmed using MATLAB/Simulink simulation. To validate the workability of the proposed idea, a 300 W, a thirteen level MLI (including the zero level) is designed and constructed. The circuit is tested with a no-load, resistive load and resistive-inductive load. The experimental results match very closely with the simulation and mathematical analysis. View Full-Text
Keywords: multilevel inverter; dc-ac power converter; PWM technique; power conversion multilevel inverter; dc-ac power converter; PWM technique; power conversion
Figures

Figure 1
