Energy Performance Investigation of a Direct Expansion Ventilation Cooling System with a Heat Wheel

Abstract

Climate change is continuously bringing hotter summers and because of this fact, the use of air-conditioning systems is also extending in European countries. To reduce the energy demand and consumption of these systems, it is particularly significant to identify further technical solutions for direct cooling. In this research work, a field study is carried out on the cooling energy performance of an existing, operating ventilation system placed on the flat roof of a shopping center, located in the city of Eger in Hungary. The running system supplies cooled air to the back office and storage area of a shop and includes an air-to-air rotary heat wheel, a mixing box element, and a direct expansion cooling coil connected to a variable refrigerant volume outdoor unit. The objective of the study was to investigate the thermal behavior of each component separately, in order to make clear scientific conclusions from the point of view of energy consumption. Moreover, the carbon dioxide cross-contamination in the heat wheel was also analyzed, which is the major drawback of this type heat recovery unit. To achieve this, an electricity energy meter was installed in the outdoor unit and temperature, humidity, air velocity, and carbon dioxide sensors were placed in the inlet and outlet section of each element that has an effect on the cooling process. To provide continuous data recording and remote monitoring of air handling parameters and energy consumption of the system, a network monitor interface was developed by building management system-based software. The energy impact of the heat wheel resulted in a 624 kWh energy saving and 25.1% energy saving rate for the electric energy consumption of the outdoor unit during the whole cooling period, compared to the system without heat wheel operation. The scale of CO₂ cross-contamination in the heat wheel was evaluated as an average value of 16.4%, considering the whole cooling season.

1. Introduction

The use of environmental control systems has significantly increased in the building sector in order to reduce the energy consumption of heating, ventilation, and air-conditioning (HVAC) systems [1]. Air handling units (AHUs) are one of the most complex building service systems [2], and can include heating, cooling, humidifier, mixing element, and heat recovery units, in order to provide the required indoor air quality and thermal comfort in conditioned spaces [3].

In a typical AHU, chilled water in the cooling coils cools the air, and hot water (or steam) in the heating coils heats the air, in order to maintain the desired temperature of the supply [4]. The supply and return fans assist in moving the air for heat exchange, as well as circulating it in the HVAC system at the required flow rate [5]. Several components are part of a typical system, i.e., the chiller, the boiler, the supply and return fans, and the water pump that consumes a lot of energy [6].

Direct expansion ventilation units are becoming more commonly used central air-conditioning technical solutions, in which a refrigerant is directly delivered to the cooling (and heating) coil [7]. These systems have the potential to save cooling and heating energy use, since they do not require any water pumps for their operation, compared to water-based central air conditioning systems [8,9].

Developers are working really hard to minimalize the energy consumption of their developed devices; however, there are many imperfections in the actual available product catalogues, technical data, and technical support service systems, especially for the annual energy designing provided by the ventilation producers for building service and energy design engineers [10,11]. Therefore, it would be particularly significant to have measured and recorded data obtained from field studies [12,13], which may be utilized in the course of design work, and which would allow a proper estimation of the expected realizable annual energy consumption of air handling elements in the function of the temperature and relative humidity of ambient and indoor air and operating parameters [14].

Stamatescu et. al [15] presented the implementation and evaluation of a data mining methodology based on collected data from a more than one-year operation. The case study was carried out on four AHUs of a modern campus building for preliminary decision support for facility managers. The results are useful for deriving the behavior of each piece of equipment in various mode of operation and can be built upon for fault detection or energy efficiency applications. The imperfection of their work is the missing data for air condition parameters (temperature and humidity) between the coils and mixing box; before and after the fans, which cannot be neglected, since the electrical motor of the fans increases the air temperature and decreases the relative humidity; and the air volume flow rate, which changes during the operation. All these missing parameters have a significant effect on the energy efficiency of the ventilation system.

Hong et. al [16] conducted a case study on a running AHU for data-driven predictive model development. In order to develop the optimal model, input variables, the number of neurons and hidden layers, and the period of the training data set were considered. The results and conclusions presented for the one-year field study could have much better reflected the reality from the view point of energy performance, if further temperature and relative humidity sensors had been placed between the coils and humidifier element, before and after the fans. Only focusing on energy performance data recording is not enough, since the desired indoor air quality and thermal comfort are also significant parameters that need to be considered. To draw a more exact conclusion from this point of view, the CO₂ parameter should also have been monitored and recorded in the outdoor air inlet (OA) and supply air outlet (SA) sections in the investigated AHU.

Based on a literature review of the field, there are some case studies in which the heat recovery unit has also been considered in the ventilation system. Noussan et. al [17] presented results obtained from an operation data analysis of an AHU serving a large university classroom. The main drivers of energy consumption are highlighted, and the classroom occupancy is found to have a significant importance in the energy balance of the system. The availability of historical operation data allowed a comparison of the actual operation of the AHU and the expected performance from nominal parameters to be performed. Calculations were made considering the operation analysis of the heat recovery unit over different years; however, the existing system does not include any heat or energy recovery devices, so there are no exact measured data from this point of view.

Bareschino et. al [18] compared three alternative hygroscopic materials for desiccant wheels considering the operation of the air handling unit they are installed in. Their results demonstrated that a primary energy saving of about 20%, 29%, and 15% can be reached with silica-gel, milgo, and zeolite-rich tuff desiccant wheel-based air handling units, respectively. The results were given based on a simulation and there is no exact measured data, which would be significant for making precise and clear energetic conclusions.

In this work, a field study is carried out on an existing, operating ventilation system that includes an air-to-air rotary heat wheel, a mixing box element, and a direct expansion cooling coil connected to a variable refrigerant volume outdoor unit. One of the main objectives of the present paper is to investigate the cooling energy performance and thermal behavior of each air handling component separately. To achieve this, an advanced data recording and remote monitoring system was considerately developed by building management system-based software. The system includes an electricity energy meter installed in the outdoor unit, as well as temperature, humidity, air velocity, and CO₂ sensors placed in the inlet and outlet section of all the air handling elements that have an effect on the cooling process. The purpose of the CO₂ measurements was to investigate the CO₂ cross-contamination, which occurs from the exhaust air flow to the supply air flow in the air-to-air rotary heat wheel, resulting in indoor air quality degradation. The novelty of this research is the accurate determination of the seasonal effectiveness and the energy saving impact of the heat wheel on the electric energy consumption of the outdoor unit. Moreover, the relative average and maximum value of CO₂ cross-contamination in the rotary heat recovery using the developed measurement system in the cooling period are presented. A further innovation in this study is the analytical evaluation method developed, which shows a good agreement between the calculated and measured energy consumption.

2. Materials and Methods

The selected air handling unit (AHU) is located on the flat roof of a shopping center, located in the city of Eger in Hungary, which has supplied fresh air to the back-office and storage area of a shop since 2017.

2.1. Description of the Investigated Central Ventilation System

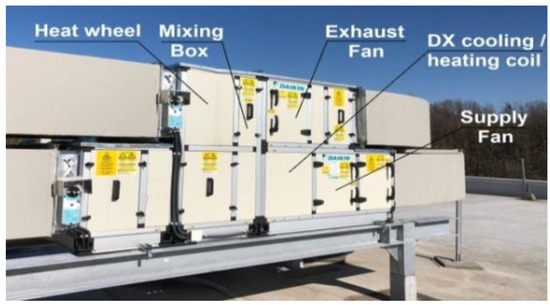

The main air handling components of the system are an air-to-air rotary heat wheel, a mixing box element, and direct expansion cooling/heating (DX) coil connected to a variable refrigerant volume outdoor unit. Figure 1 shows the elements of the investigated AHU.

The specification of the AHU can be seen in

Table 1. Specification of the investigated AHU [19].

Parameter	Value	Unit
Width × Height × Length	1450 × 1340 × 2897	mm
Air flow	1060	m3/h
External Pressure Drop	280	Pa
Weight	595	kg

.

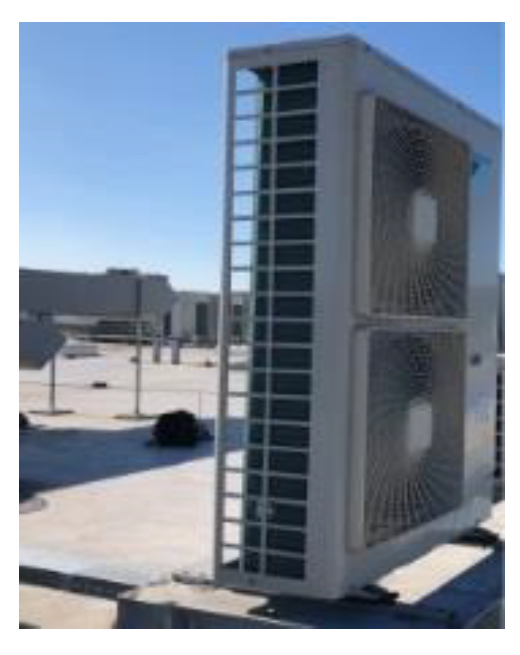

Figure 2 shows the outdoor unit which is connected with refrigerant pipes to the DX coil and is located in the AHU.

Technical data of the unit can be seen in

Table 2. Technical data of the outdoor unit [19].

Parameter	Value	Unit
Total Cooling Capacity	10.9	kW
Refrigerant	R410a	-
EER	3.99	-
Fin Material	Aluminium	-
Tube Material	Copper	-

.

Table 3. Specification of the investigated heat wheel [19].

Parameter	Value	Unit
Heat recovered	2	kW
Effectiveness	74.9	%
Diameter	600	mm

shows the specification of the air-to-air recovery heat wheel in the cooling period.

2.2. Description of the Developed Measurement System

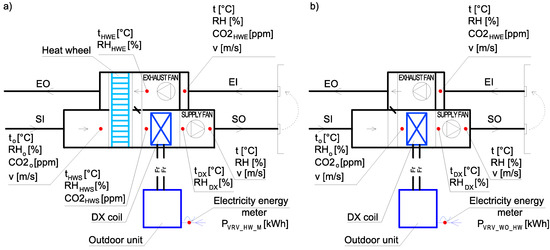

In total, six temperature and relative humidity sensors, three CO₂ sensors and three air velocity sensors were placed in the inlet and outlet section of each air handling element and an electricity energy meter was installed in the outdoor unit. The placement of the measurement points can be seen in Figure 3. The technical data of the installed sensors and instrument can be read in

Table 4. Specification of the sensors and instrument.

Model	Device	Working Range	Accuracy
Honeywell VF20-3B65NW	Temperature sensor	−40–150 °C	±0.4 °C
Honeywell LFH20-2B65	Humidity sensor	10–90%	±3%
Honeywell AQS-KAM-20	CO2 sensor	0–2000 ppm	±50 ppm
Honeywell AV-D-10	Air velocity sensor	2–20 m/s	±0.2 m/s
Inepro Metering Pro 380	Electricity energy meter	5–100 A	±1%

.

The recording of the measured data took place in an hourly period. With regards to the measurement accuracy, temperature sensors are normally used with a ±0.4 °C accuracy, humidity sensors with a ±3% accuracy, an air velocity sensor with a ±0.2 m/s accuracy, carbon dioxide sensors with a ±50 ppm accuracy, and an electric energy meter with a 1% of full scale accuracy. Among the monitoring air handling data, the air temperature and relative humidity data of the inlet and outlet sections of the DX cooling coil, energy recovery unit, and outdoor were used to investigate the energy performance and thermal behaviour of these air handling elements in the AHU in the cooling season.

The specification of the sensors and electricity energy meter used for monitoring of the investigated AHU can be seen in Table 4.

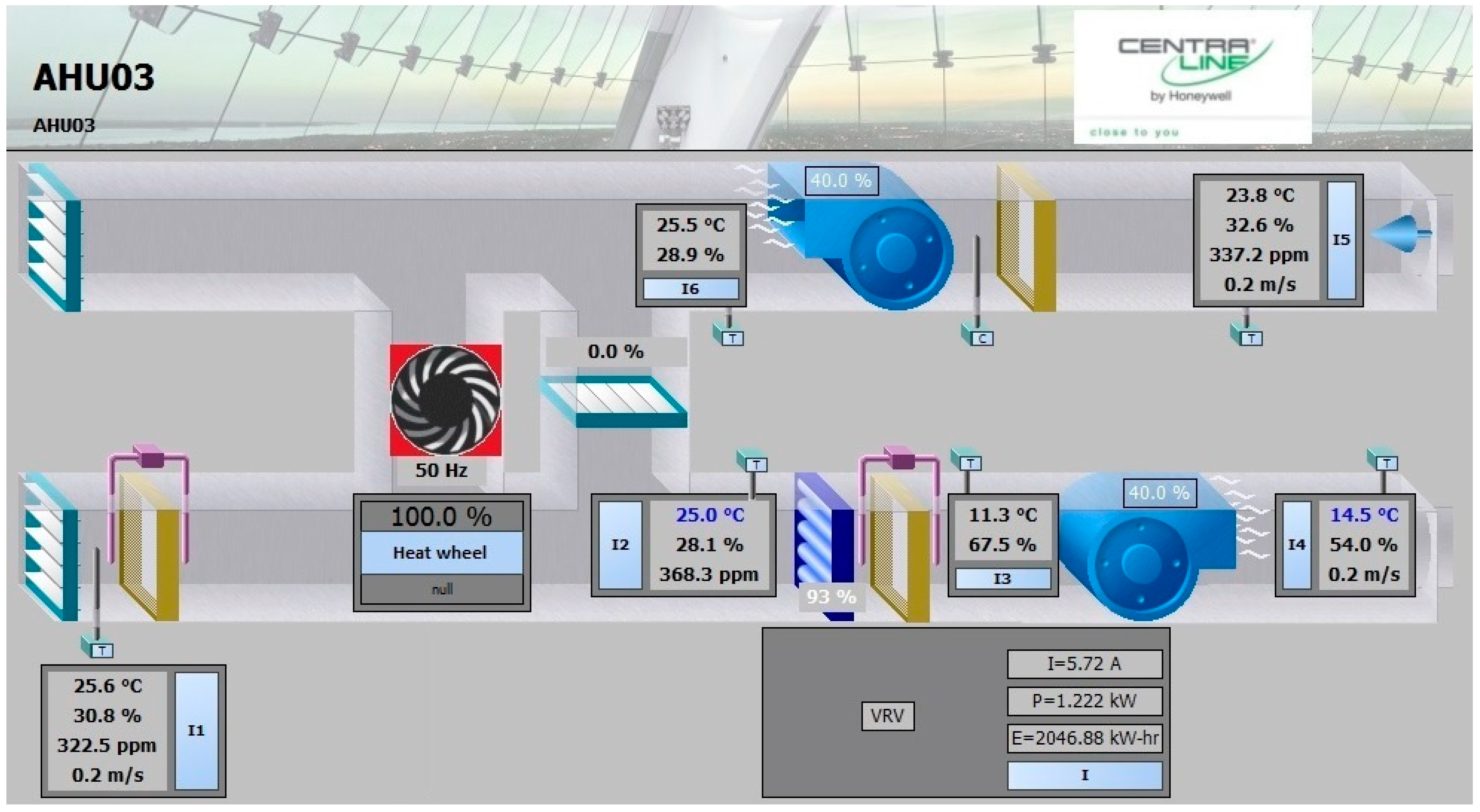

For the monitoring and recording of the various air condition parameters and the electrical energy consumption of the outdoor unit, the CentraLine Building Management System (BMS) software (version 2019) solution from Honeywell was implemented on a central server. Figure 4 shows a picture of the target building, along with a representative BMS screen for the investigated air handling unit.

Access to the BMS software was remotely enabled. Within this technical context, the necessary data were collected for this field study. Data were collected online at hourly intervals, saved, and stored on a computer from a distance.

3. Evaluation of the Data Recorded

To investigate the energy performance of the AHU, using the measurements, the following mathematical approaches were implemented.

3.1. Calculation Formulas for Measured Data Evaluation

Using the measured air temperature and relative humidity data, the specific humidity could be calculated to obtain the enthalpy of the air. To achieve this, the water vapor saturation pressure (P_ws) was first calculated with Equation (1) [20]:

$$P_{ws}=A·{10}^{\left(\frac{mt}{t+t_n}\right)}·100,$$

(1)

where P_ws is the saturation pressure of the water vapor in Pa; t is the air temperature in °C; and A, m, and t_n are constant values in -. Since the temperature range during the measurements was between −20 and +50 °C, the constant values (in 0.083% maximum error) were as follows: A = 6.116441; m = 7.591386; t_n = 240.7263 [20]. The constant value of 100 in Equation (1) represents the conversion of the saturation pressure of water vapor from hPa to Pa.

To obtain the moisture content, the partial pressure of water vapor in the air at a given relative humidity was also calculated with Equation (2) [20]:

$$P_w=P_{ws}·\frac{RH}{100},$$

(2)

where P_w is the partial pressure of water vapor in Pa and RH is the relative humidity of the air in %. The constant value of 100 in Equation (2) represents the conversion of relative humidity from % to -.

The moisture content was calculated with Equation (3) [21]:

$$x=0.622·\frac{P_w}{P_o-P_w,}$$

(3)

where x is the moisture content of the air in kg/kg, P_o is the barometric pressure in Pa, and the 0.622 constant value is the molecular weight ratio of water vapor to dry air.

The enthalpy was calculated with Equation (4) [21]:

$$h=c_{pa}·t+x·\left(c_{pw}·t+2500\right),$$

(4)

where h is the enthalpy of the air in kJ/kg, c_pa is the specific heat of air at constant pressure in kJ/(kg·°C), c_pw is the specific heat of water vapor at constant pressure in kJ/(kg·°C), and the constant value of 2500 represents the evaporation heat in kJ/(kg·°C).

3.2. Formulas for Energy Calculations

Considering the fact that there is balanced ventilation, the effectiveness values of the heat wheel were determined from the air temperature measured values using Equation (5) [22,23]:

$${\epsilon }_s=\frac{\left(t_{HWS}-t_o\right)}{\left(t_{HWE}-t_o\right)},$$

(5)

where ε_S is the real sensible effectiveness of the heat wheel given by the measured data in -, t_HWS is the air temperature in the supply outlet section of the heat wheel in °C, t_HWE is the air temperature in the exhaust inlet section of the heat wheel in °C, and t_o is the ambient air temperature which is equal to the air temperature in the supply inlet section of the heat wheel in °C.

To get information about the seasonal energy performance of the heat recovery during the cooling period, the average of the sensible effectiveness was calculated with Equation (6):

$${\overline{\epsilon }}_{s\_AV}=\frac{{{\displaystyle \sum }}_{i=1}^n{\epsilon }_{s\_i}}{n},$$

(6)

where ${\overline{\epsilon }}_{s\_AV}$ is the average of the sensible effectiveness of the heat wheel given by the measured data in the cooling season in - and n is the number of measurements.

The maximum value of the sensible effectiveness was also analyzed during the whole cooling season, which was calculated with Equation (7):

$${\epsilon }_{s\_MAX}=MAX ({\epsilon }_{s\_i}\dots {\epsilon }_{s\_n}),$$

(7)

where ${\overline{\epsilon }}_{s\_MAX}$ is the maximum value of the sensible effectiveness of the heat wheel given by the measured data in the cooling season in -.

To calculate the energy saving of the heat wheel in the cooling season, Equation (8) was used:

$$Q_{HW\_saved}={\dot{m}}_s·\left(h_o-h_{HWS}\right)·\tau ,$$

(8)

where Q_{HW_saved} is the energy saving of the heat wheel in kWh; ${\dot{m}}_s$ is the air mass flow rate delivered by the fans in kg/s, which is calculated by the multiplication of the measured air velocity in m/s and the internal cross-section of air duct in 0.7398 m² and approached a 1.2 kg/m³ constant air density; h_o is the ambient air enthalpy which is equal to the air enthalpy in the supply inlet section of the heat wheel in kJ/kg; h_HWS is the air enthalpy in the supply outlet section of the heat wheel in kJ/kg; and τ is the time in hours. The average air volume flow rate was evaluated as 1060 m³/h during the cooling season.

To calculate the cooling energy consumption of the DX coil, Equation (9) was used:

$$Q_{DX\_HW}={\dot{m}}_s·\left(h_{HWS}-h_{DX}\right)·\tau ,$$

(9)

where Q_{DX_HW} is the cooling energy consumption of the DX coil in kWh, and h_DX is the air enthalpy in the supply outlet section of the DX coil in kJ/kg, which is equal to the supply air condition.

In order to investigate more the energy saving impact of the heat wheel on the DX coil, the cooling energy consumption of DX coil was also determined by Equation (10), neglecting the air-to-air rotary heat wheel operation, when the DX coil directly cools the hot ambient air to the supply air conditions.

$$Q_{DX\_WO\_HW}={\dot{m}}_s·\left(h_o-h_{DX}\right)·\tau ,$$

(10)

where Q_{DX_WO_HW} is the cooling energy consumption of the DX coil without the heat wheel operation in kWh.

The calculated electric energy consumption of the outdoor unit was calculated with Equation (11):

$$P_{VRV\_HW}=\frac{Q_{DX\_HW}}{EER},$$

(11)

where P_{VRV_HW} is the calculated electric energy consumption of the outdoor unit with the heat wheel operation in kWh, and EER is the energy efficiency ratio, given by the producer in -.

Moreover, the real electric energy consumption of the outdoor unit (P_{VRV_HW_M}) was also measured during the cooling season, in order to see the agreement between values of the measured data and calculations using the recorded air condition parameters (P_{VRV_HW}). The difference between the measured and calculated electric energy consumption was determined with Equation (12):

$$\Delta P_{VRV\_HW}=P_{VRV\_HW\_M}-P_{VRV\_HW},$$

(12)

where ΔP_{VRV_HW} is the difference between the measured and calculated electric energy consumption of the outdoor unit with the heat wheel operation in kWh.

The rate of deviation of the measured and calculated electric energy consumption of the outdoor unit related to the measured data was calculated with Equation (13):

$$\Delta P_{VRV\_HW\_REL}=\frac{\Delta P_{VRV\_HW}}{P_{VRV\_HW}}·100,$$

(13)

where ΔP_{VRV_HW_REL} is the rate of deviation of the measured and calculated electric energy consumption of the outdoor unit in %.

The electric energy consumption of the outdoor unit without the heat wheel operation was calculated with Equation (14):

$$P_{VRV\_WO\_HW}=\frac{Q_{DX\_WO\_HW}}{EER},$$

(14)

where P_{VRV_WO_HW} is the electrical energy consumption of the outdoor unit without the heat wheel operation in kWh when it directly cools the hot ambient air to the supply air conditions via the DX coil during the cooling season.

The energy saving of the heat wheel in terms of the electric energy consumption of the outdoor unit was calculated with Equation (15):

$$\Delta P_{VRV\_HW\_saved}=P_{VRV\_WO\_HW}-P_{VRV\_HW},$$

(15)

where ΔP_{VRV_HW_saved} is the amount of energy saved by the heat wheel in terms of the calculated electric energy consumption of the outdoor unit compared to that without the heat recovery operation in kWh.

The energy saving impact of the heat wheel on the electric energy consumption of the outdoor unit, compared to the system without the heat wheel operation, was calculated with Equation (16):

$$\Delta P_{VRV\_HW\_saved\_REL}=\frac{\Delta P_{VRV\_HW\_saved}}{P_{VRV\_WO\_HW}}·100,$$

(16)

where ΔP_{VRV_HW_saved_REL} is the energy saving rate of the heat wheel for the electric energy consumption of the outdoor unit, compared to the system without heat the wheel operation, in %.

The value of the actual energy efficiency ratio of the outdoor unit given obtained the field study was determined with Equation (17) for the investigated cooling season to compare the data provided by the producer:

$$EE{R}_M=\frac{Q_{DX\_HW}}{P_{VRV\_HW\_M}}·100,$$

(17)

where EER_M is the evaluated energy efficiency ratio (-) based on the measurement during the whole investigated cooling season.

3.3. Formulas for Carbon Dioxode Cross-Contamination in the Heat Wheel

The scale of carbon dioxide (CO₂) cross-contamination in the air-to-air rotary heat recovery wheel was also investigated by measurements in the heat wheel during the operation of the air handling unit in the cooling period. To achieve this, the CO₂ concentration difference between the supply inlet and outlet sections of the heat wheel was first determined with Equation (18):

$$\Delta C_{CO2\_cross}=C_{CO2\_HWS}-C_{CO2\_o},$$

(18)

where ΔC_{CO2_cross} is the scale of the CO₂ cross-contamination in the heat wheel in a given hour in ppm; C_{CO2_HWS} is the CO₂ concentration in the supply outlet section of the heat wheel in ppm; and C_{CO2_o} is the CO₂ concentration of the ambient air in ppm, which is equal to the CO₂ concentration in the supply inlet section of the heat wheel in ppm.

Having completed the measurements, the average of the CO₂ cross-contamination values was taken, and the ratio of the result and the supplied average CO₂ concentration was calculated by Equation (19):

$${\overline{\Delta C}}_{CO2\_cross\_AV}=\frac{{{\displaystyle \sum }}_{i=1}^n\Delta C_{CO2\_cross\_i}}{n},$$

(19)

where ΔC_{CO2_cross_AV} is the average of the CO₂ cross-contamination values in ppm and n is the number of measurements.

Since CO₂ cross-contamination occurs from the exhaust section to the supply section in the heat wheel, the average of the measured CO₂ values in the exhaust inlet section of the heat wheel was also calculated with Equation (20) using the data measured:

$${\overline{C}}_{CO2\_HWE\_AV}=\frac{{{\displaystyle \sum }}_{i=1}^n{C}_{CO2\_HWE\_i}}{n},$$

(20)

where C_{CO2_HWE_AV} is the average value of the CO₂ concentration in the exhaust inlet section of the heat wheel in ppm and n is the number of measurements.

Equation (21) was used to obtain the relative average of differences:

$${\overline{\Delta C}}_{CO2\_REL}=\frac{{\overline{\Delta C}}_{CO2\_cross\_AV}}{{\overline{C}}_{CO2\_HWE\_AV}}·100,$$

(21)

where ΔC_{CO2_REL} is the relative average of CO₂ cross-contamination in %, considering the CO₂ concentration content in the exhaust inlet section of the heat wheel in ppm.

The maximum value of CO₂ cross-contamination was also analyzed during the whole cooling season, which was calculated with Equation (22):

$$C_{CO2\_REL\_MAX}=\left[MAX \left(\frac{C_{CO2\_cross\_i}}{C_{CO2\_HWE\_i}}\dots \frac{C_{CO2\_cross\_n}}{C_{CO2\_HWE\_n}}\right)\right]·100,$$

(22)

where C_{CO2_REL_MAX} is the maximum value of CO₂ cross-contamination in the heat wheel in the cooling season given by the measured data in %.

4. Results and Discussion

The reference period of the study is the year 2019, more specifically, the cooling period from June 1st to August 31st for a total of 92 days and 25,296 data samples for each of the used measurement points. The AHU is intermittently operated 12 h/day from 8:00 till 20:00 7 days/week. Since this research work focused on the ventilation energy saving of the heat recovery unit’s DX cooling coil, the mixing box was shut off during the data recording.

The air handling parameters obtained from the field study for the investigated AHU are illustrated in Figure 5, Figure 6 and Figure 7 with a monthly timescale. Since the ambient air temperature was the highest in June during the whole cooling season, this relevant month was selected to present the measured data resulting from the data collection.

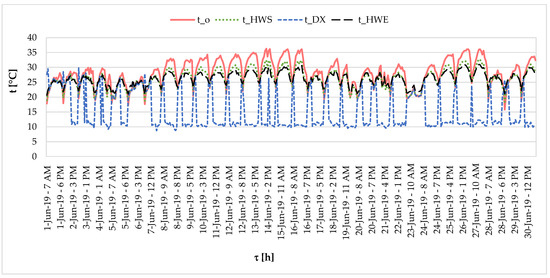

Figure 5 shows the temperature of the outdoor air (t_o), the air in the supply outlet sections of the heat wheel (t_HWS) and DX coil (t_DX), and the exhaust inlet section of the heat wheel (t_HWE) over time at hourly intervals in June.

Considering the hottest periods in the cooling season, the ambient air temperature decreased by about 4–5 °C due to the pre-cooling effect of the heat wheel, and by an additional 18–20 °C, provided by air cooling of the DX coil.

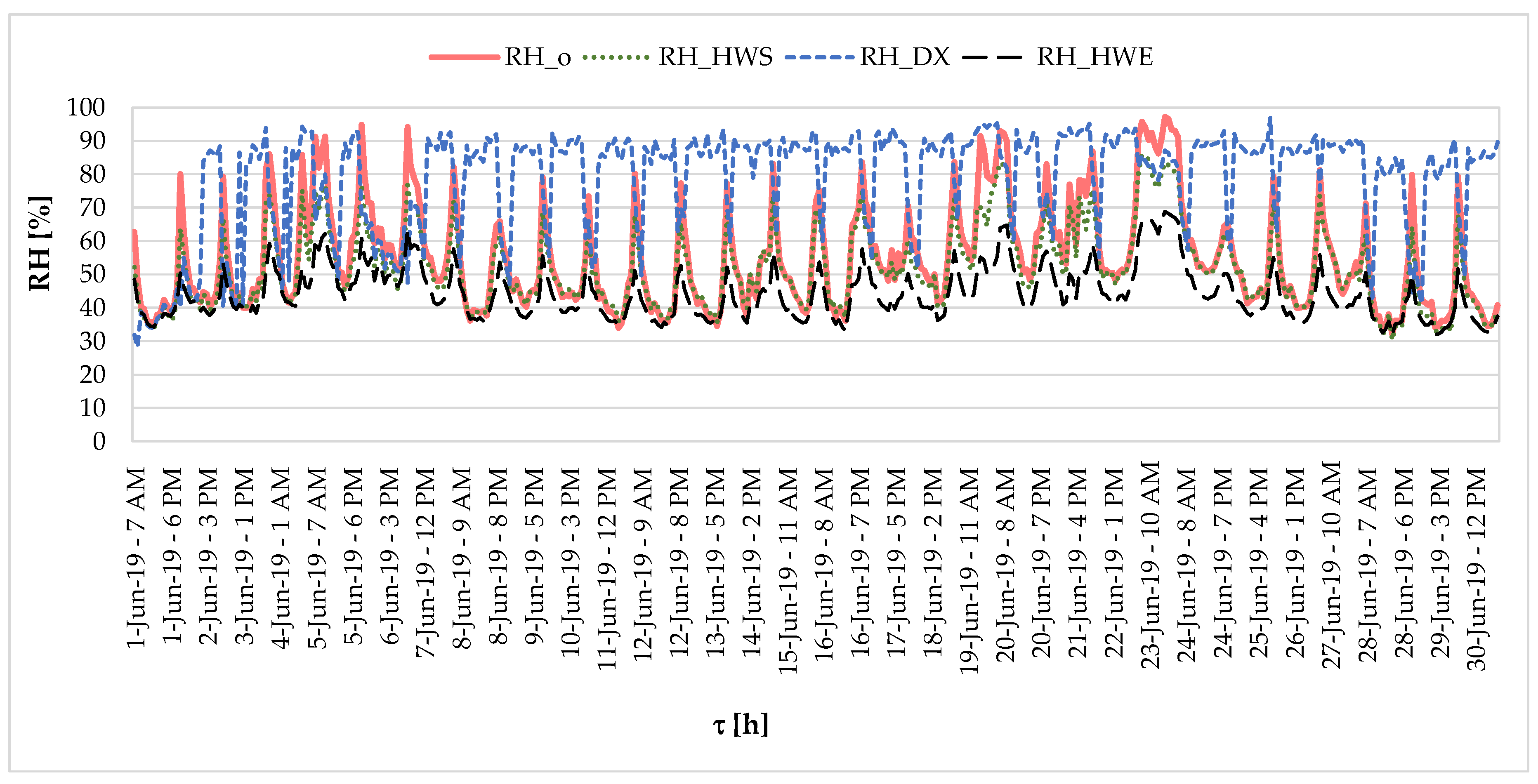

Figure 6 shows the measured relative humidity of the outdoor air (RH_o), the air in the supply outlet sections of the heat wheel (RH_HWS) and DX coil (RH_DX), and the exhaust inlet section of the heat wheel (RH_HWE) over time at hourly intervals in June.

The ambient air relative humidity decreased by about 60% due to the air cooling process. In this way, the supplied air relative humidity was around 90%.

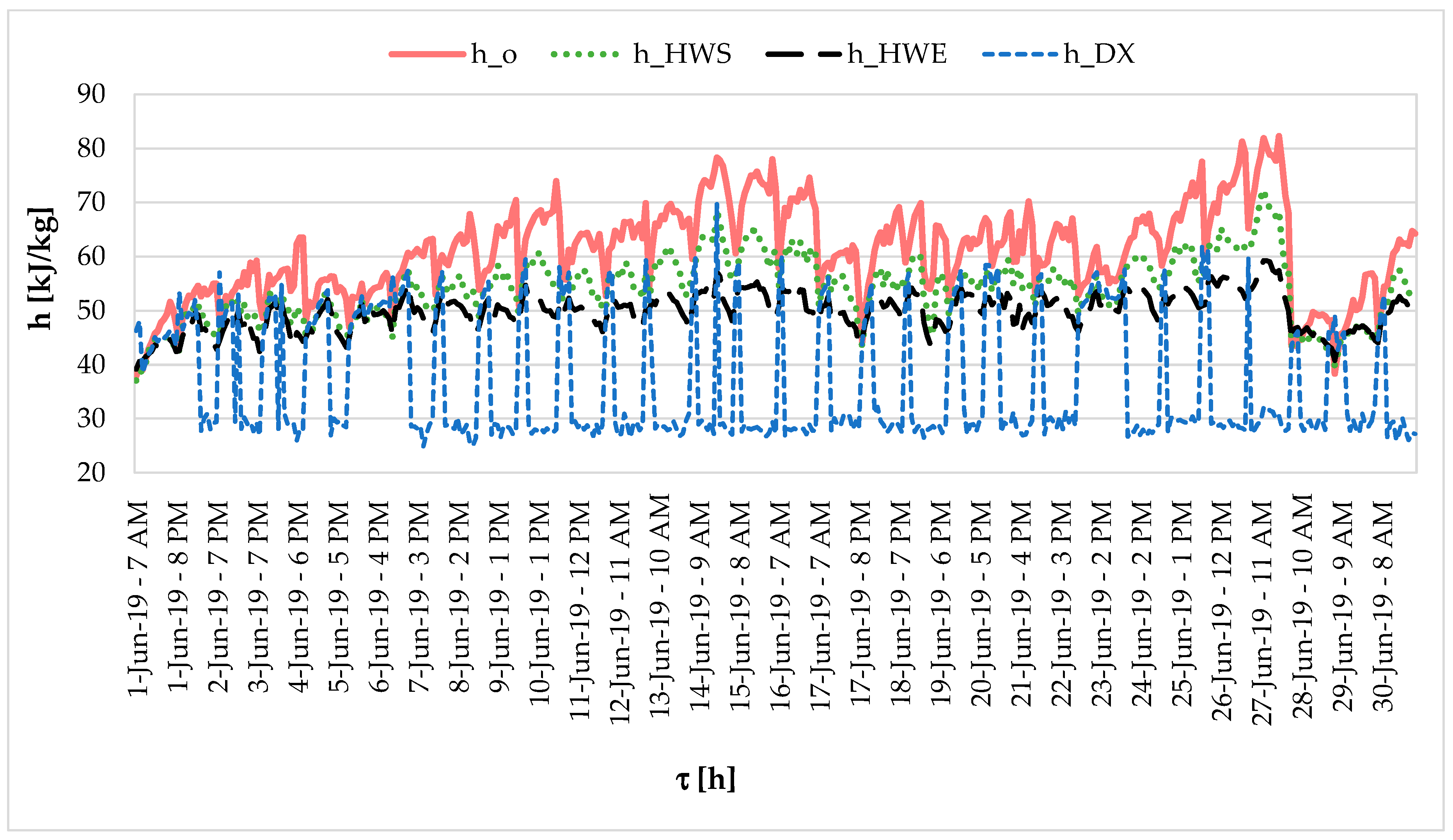

Figure 7 shows the enthalpy of the outdoor air (h_o), the air in the supply outlet sections of the heat wheel (h_HWS) and DX coil (h_DX), and the exhaust inlet section of the heat wheel (h_HWE) over time at hourly intervals in June.

Considering the hottest periods in the cooling season, the ambient air enthalpy decreased by about 8–10 kJ/kg due to the pre-cooling effect of the heat wheel, and by an additional 30–35 kJ/kg, provided by air cooling of the DX coil.

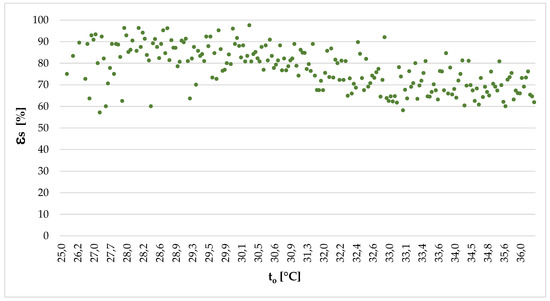

Figure 8 shows the sensible effectiveness data (ε_s) for the outdoor air temperature in June.

Based on the results, the average sensible effectiveness of the heat wheel was 79.6% during the whole cooling season and the maximum value of 97.6% was recorded in June.

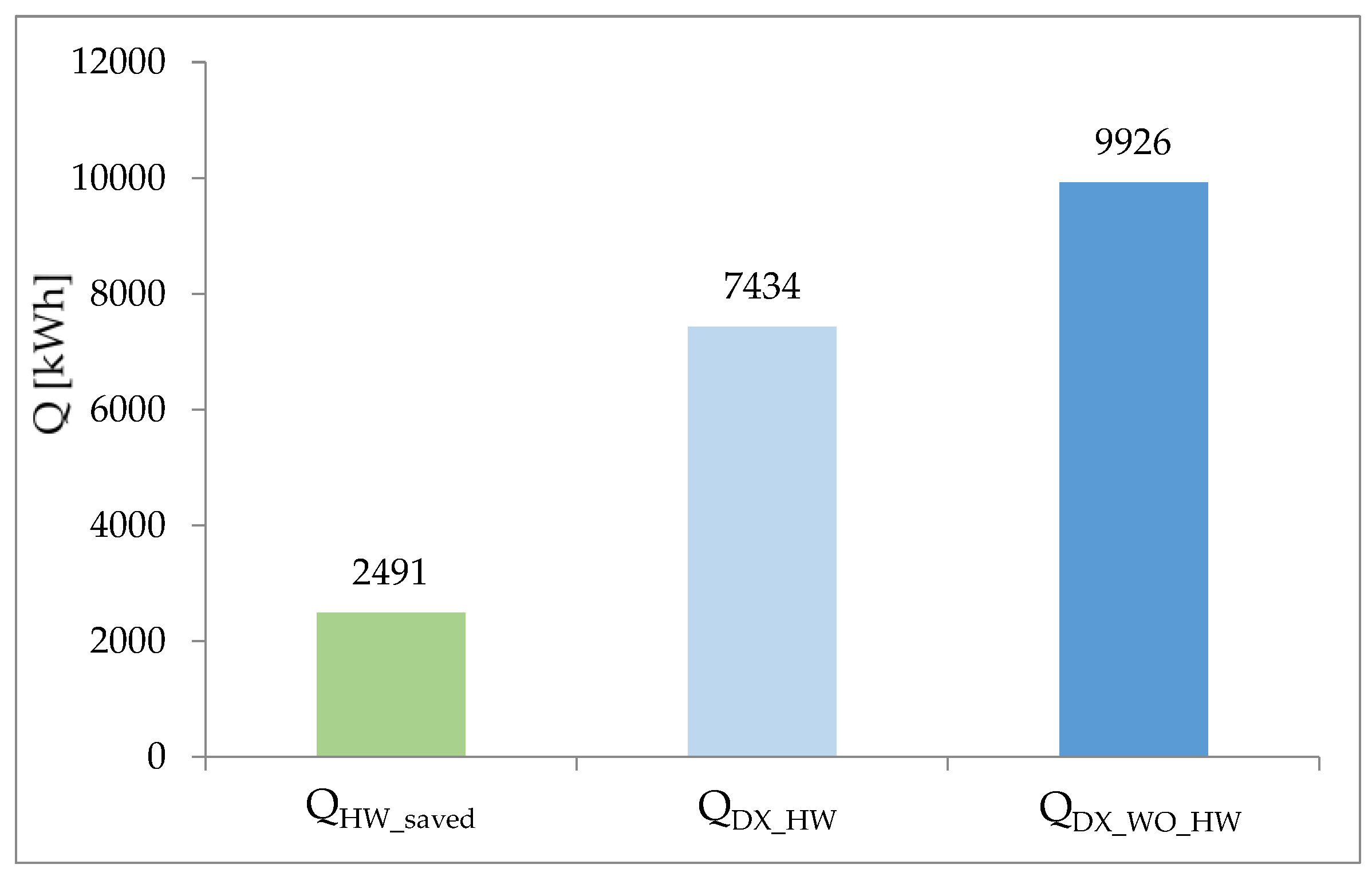

Figure 9 shows the energy saving of the air-to-air rotary heat wheel (Q_{HW_saved}) in terms of the energy consumption of the DX coil, and the cooling energy consumption of the DX coil with the heat wheel operation (Q_{DX_HW}) and without the heat wheel operation (Q_{DX_WO_HW}), when the DX coil directly cools the hot ambient outdoor air to the supply air conditions during the cooling season.

Based on the results, the energy saving of the heat wheel was 2491 kWh in terms of the energy consumption of the DX coil, the cooling energy consumption of the DX coil with the heat wheel operation was 7434 kWh, and that without the heat wheel operation was 9926 kWh.

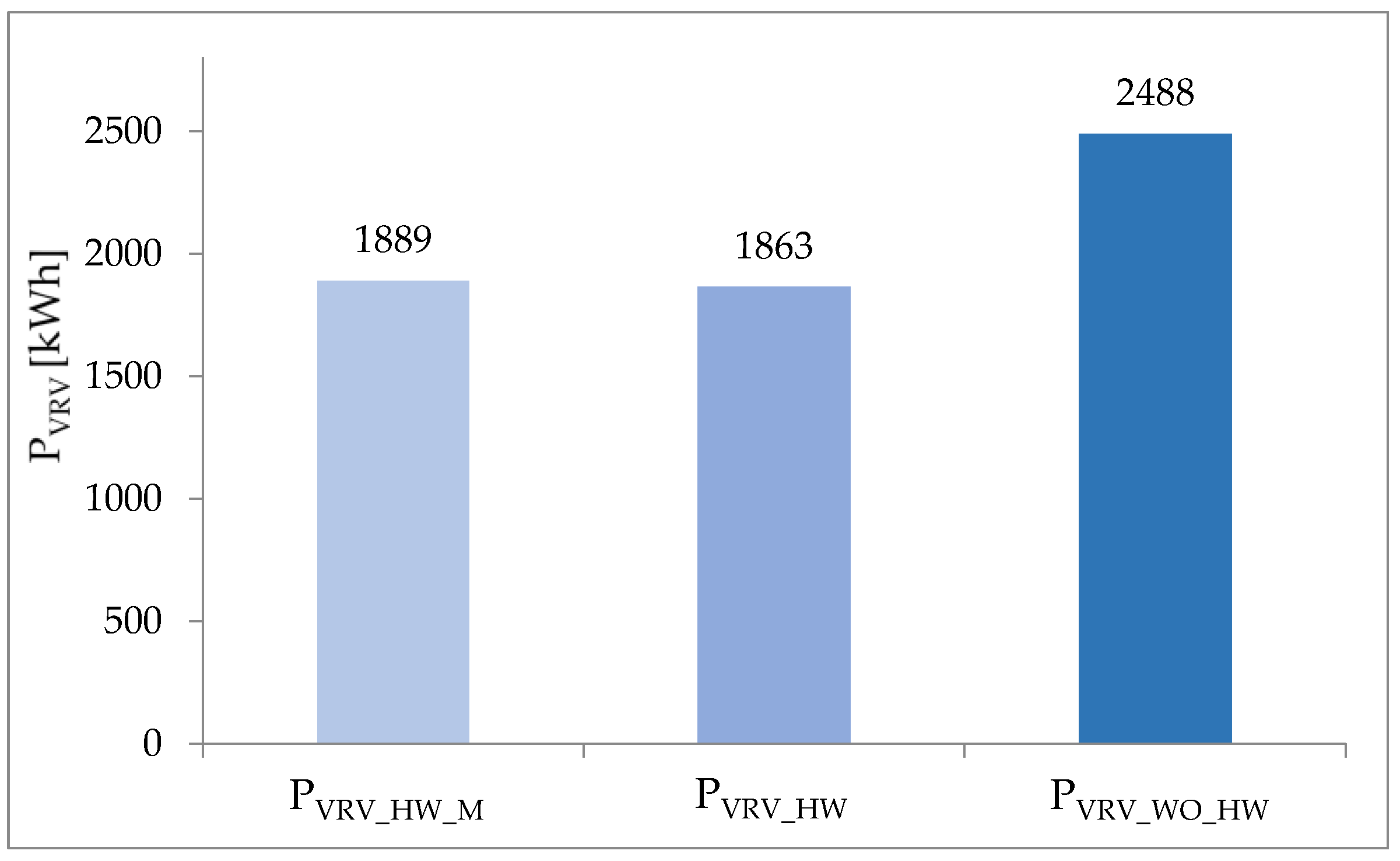

Figure 10 shows the electric energy consumption of the outdoor unit based on the direct real electric energy consumption measurements (P_{VRV_HW_M}) and the calculations made using the recorded air condition parameters with (P_{VRV_HW}) and without the heat wheel operation (P_{VRV_WO_HW}) for the whole cooling period.

The real electric energy consumption of the outdoor unit based on the measurements was 1889 kWh and the calculations resulted in 1863 kWh consumption with and 2488 kWh consumption without the heat wheel operation for the whole cooling period.

Since the difference (ΔP_{VRV_HW}) is only 26 kWh and rate of deviation (ΔP_{VRV_HW_REL}) is 1.36% between the values of the measured and calculated electric energy consumption of the variable refrigerant volume (VRV) outdoor unit with the heat wheel operation, Figure 10 shows very good agreement between the experimental and numerical results. The evaluated energy efficiency ratio is 3.94 based on the measurements (EER_M) conducted for the whole investigated cooling season, which is only 0.05 less than the value of 3.99 given by the producer. The energy impact of the heat wheel results in 624 kWh energy being saved (ΔP_{VRV_HW_saved}), which is equivalent to a 25.1% energy saving rate (ΔP_{VRV_HW_saved_REL}) in terms of the electric energy consumption of the outdoor unit for the whole cooling period, compared to the system without the heat wheel operation.

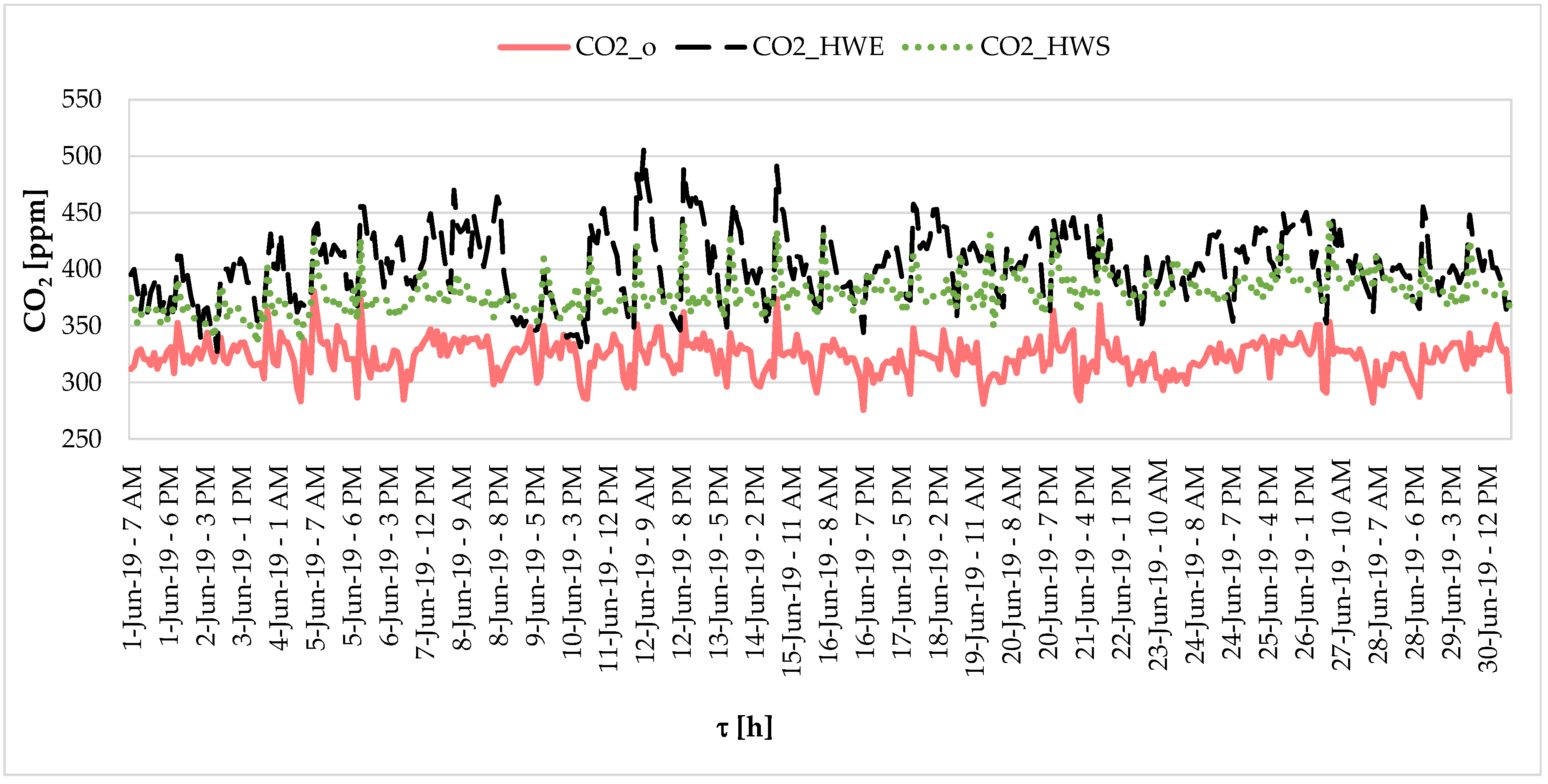

Figure 11 shows the measured CO₂ concentration of the outdoor air (C_{CO2_o}), the air in the supply outlet section of the heat wheel (C_{CO2_HWS}), and the exhaust inlet section of the heat wheel (C_{CO2_HWE}) over time at hourly intervals in June. There are a few hours in Figure 11 when the recorded CO₂ values of the air were lower in the supply outlet section than in the exhaust inlet section of the heat wheel, probably due to the uncertainties and transient response characteristics of the CO₂ sensors.

Having completed the measurements of the whole cooling period, the average CO₂ cross-contamination value (${\overline{\Delta C}}_{CO2\_cross\_AV}$) was 63.9 ppm. The average value of the CO₂ concentration in the exhaust inlet section of the heat wheel (${\overline{C}}_{CO2\_HWE\_AV}$) was 390.1 ppm. Based on the results, the relative average of CO₂ cross-contamination (${\overline{\Delta C}}_{CO2\_REL}$) was 16.4% and the maximum value ($C_{CO2\_REL\_MAX}$) was recorded as 30.1%, considering the whole cooling season. To determine how the obtained values influence the indoor air quality inside of the conditioned spaces, further indoor air quality measurements are necessary (with the use of further measurement devices and questionnaires), which can act as a continuation of this research work, but exceed the limitation of this recent ongoing research project.

5. Conclusions

In this research work, a field study was carried out on the cooling energy performance of an existing, operating ventilation system under the operation of an air-to-air rotary heat wheel and direct expansion cooling coil, connected to a variable refrigerant volume outdoor unit. The major findings obtained from the study can be summarized as follows:

1. The operation of the heat wheel has a significant cooling energy saving impact on the electric energy consumption of the outdoor unit. Comparing the measured ventilation system with an air handling unit without a heat wheel operation, the cooling energy consumption is 25.1% higher;

2. Based on the measurements, the real sensible effectiveness and the CO₂ cross-contamination of the heat wheel are not in accordance with the design assumptions for the cooling period;

3. The sensible effectiveness of the heat wheel performed 4.7% higher than the data (74.9%) given in the technical data book of the producer;

4. Having completed the measurements for the whole cooling period, the amount of CO₂ cross-contamination in the heat wheel was much higher (with 16.4% relative average and 30.1% maximum values) than predicted during the designing phase.

Future work will focus on heating and annual energy performance investigations by conducting further field studies on the system. Moreover, simulation model development will also be considered for an annual energy consumption investigation of the existing ventilation system and model validation is planned based on data given by an annual field study. The long-term goal is to develop a simulation model which is suitable for determination of the energy consumption of ventilation systems in the design phase with a high accuracy.
