A Comprehensive Method for Subsidence Prediction on Two-Seam Longwall Mining

1
School of Engineering and Technology, China University of Geosciences (Beijing), Beijing 100083, China
2
Key Laboratory of Deep Geodrilling Technology, Ministry of Natural Resources, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3139; https://doi.org/10.3390/en12163139
Received: 14 July 2019 / Revised: 31 July 2019 / Accepted: 12 August 2019 / Published: 15 August 2019
(This article belongs to the Section Energy and Environment)
  |
PDF [9639 KB, uploaded 15 August 2019]
  |

Abstract

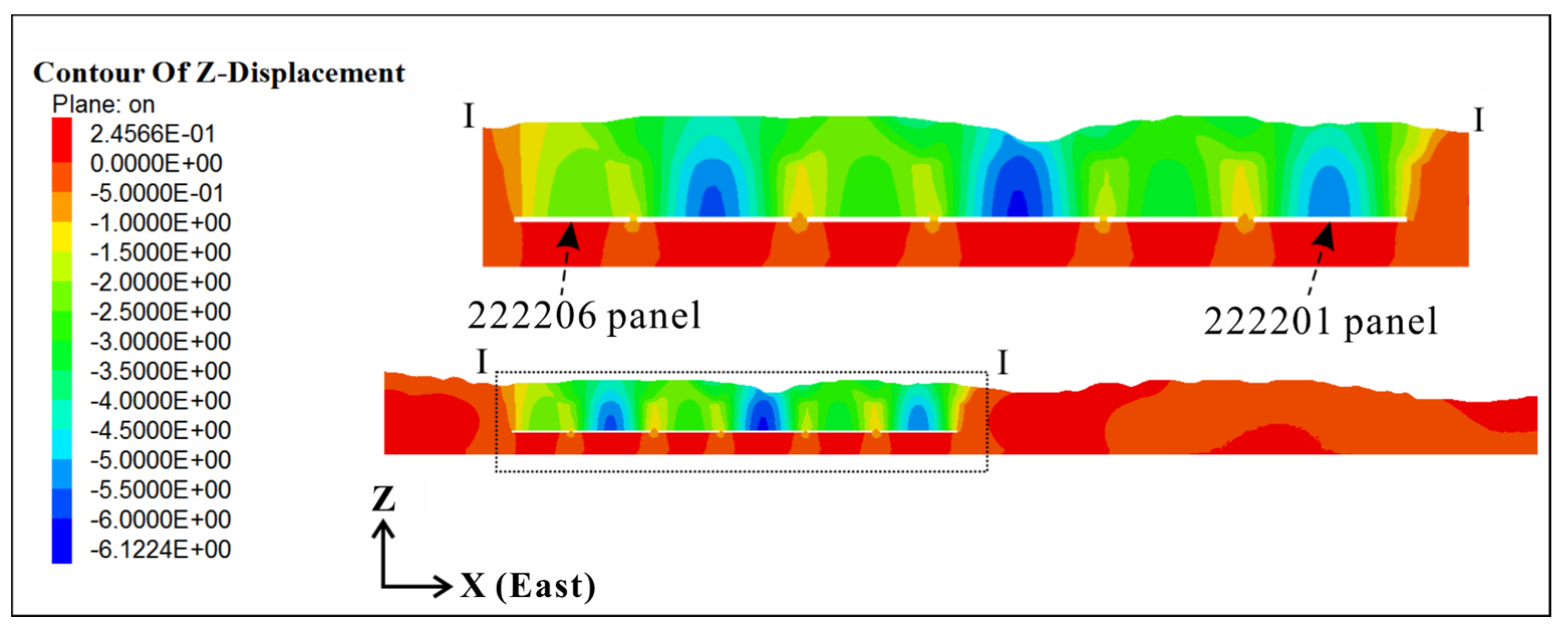

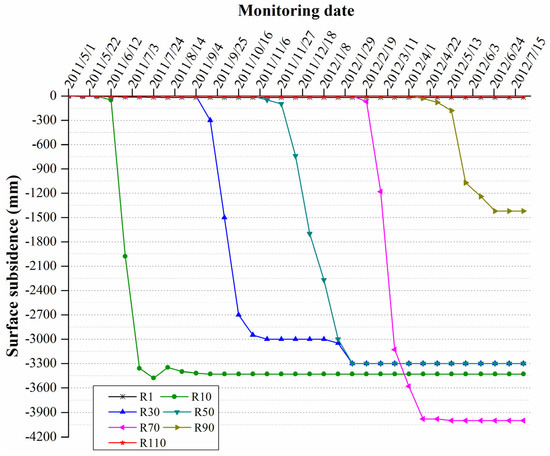

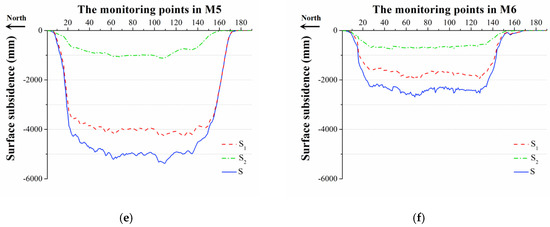

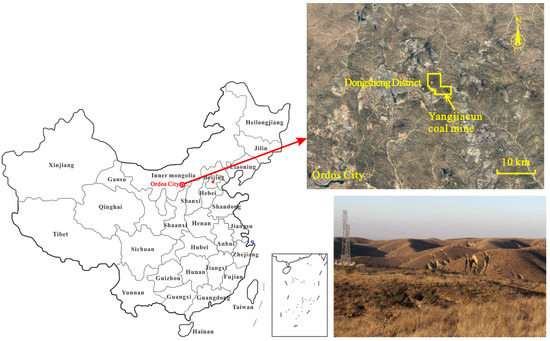

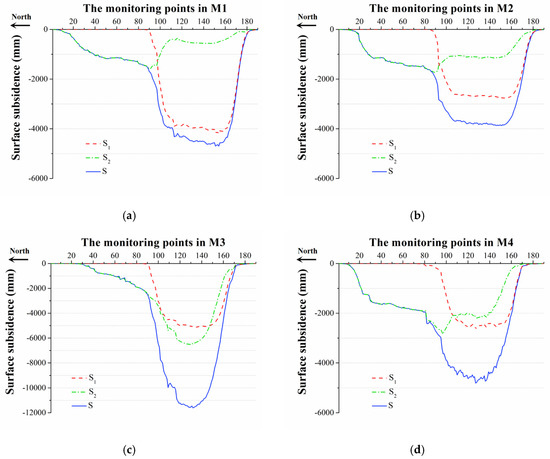

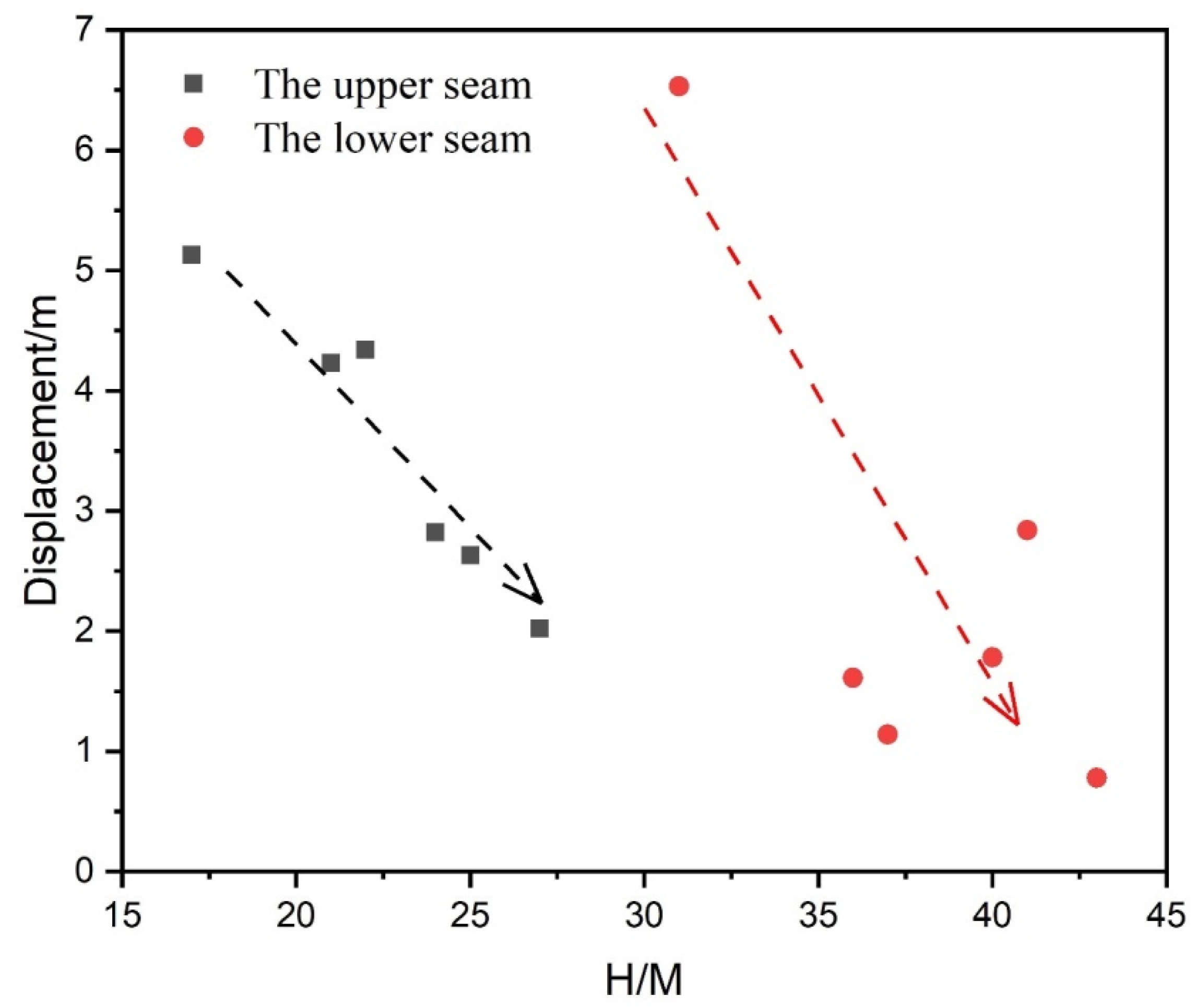

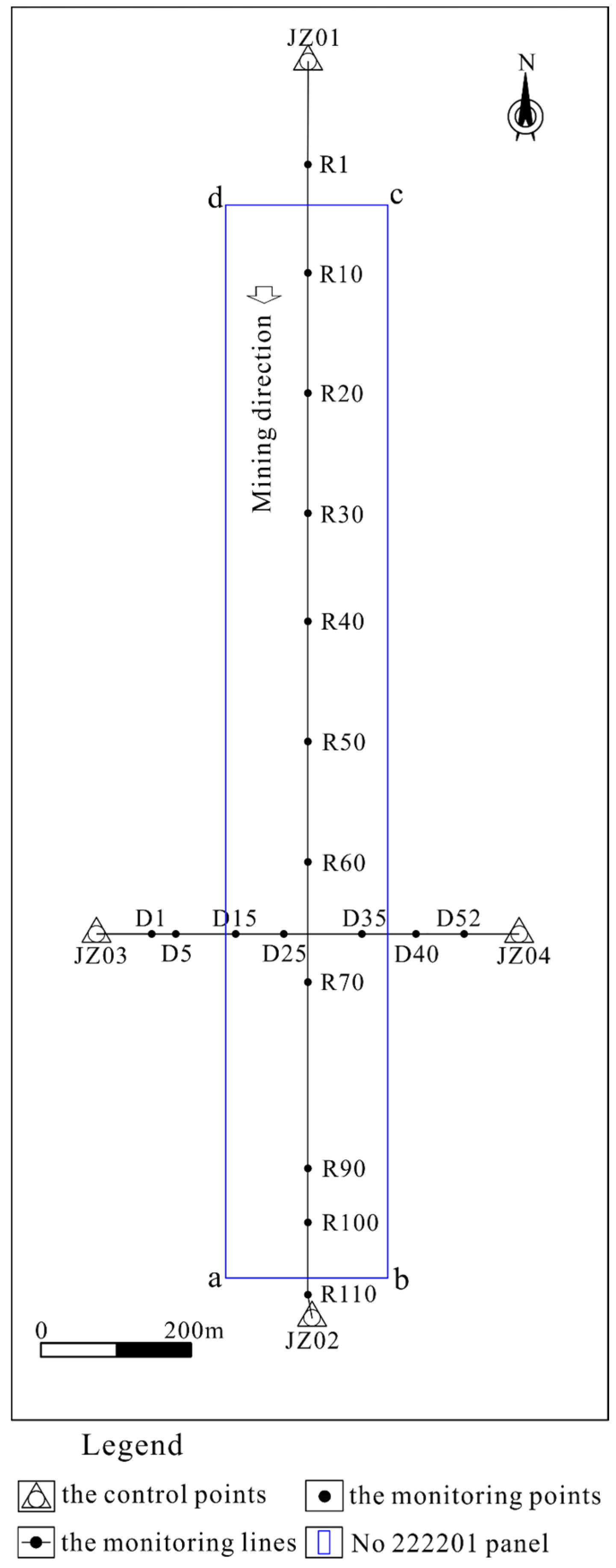

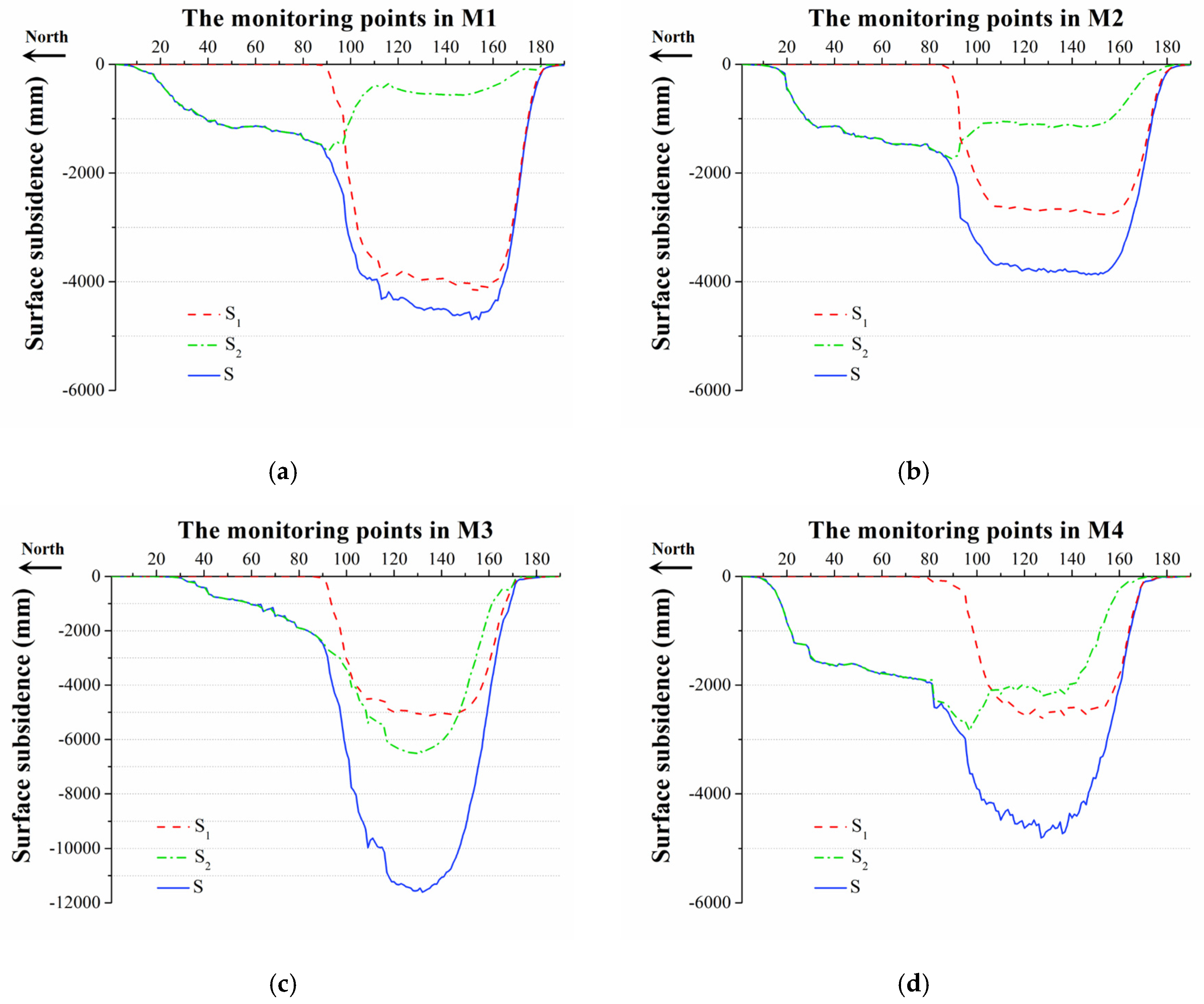

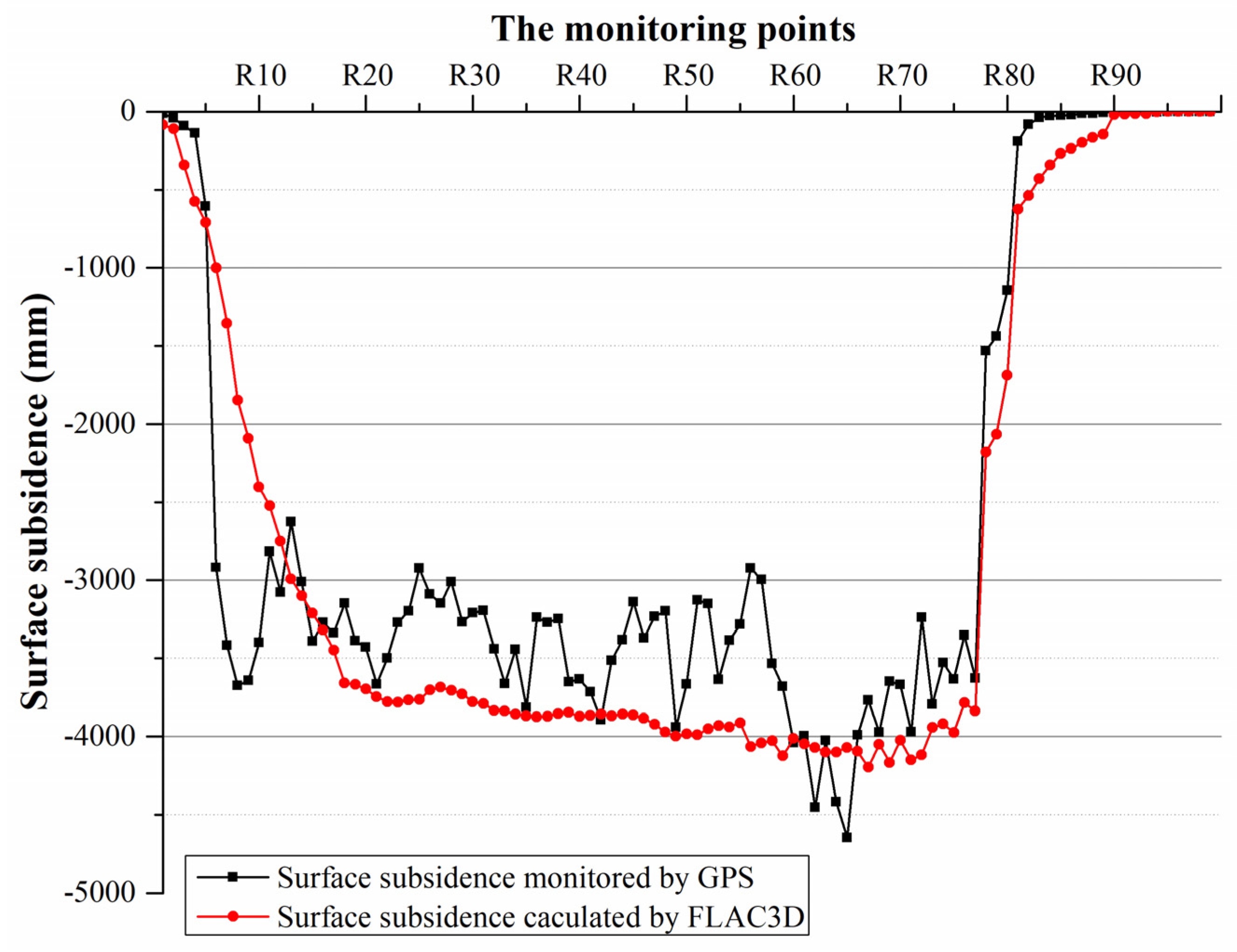

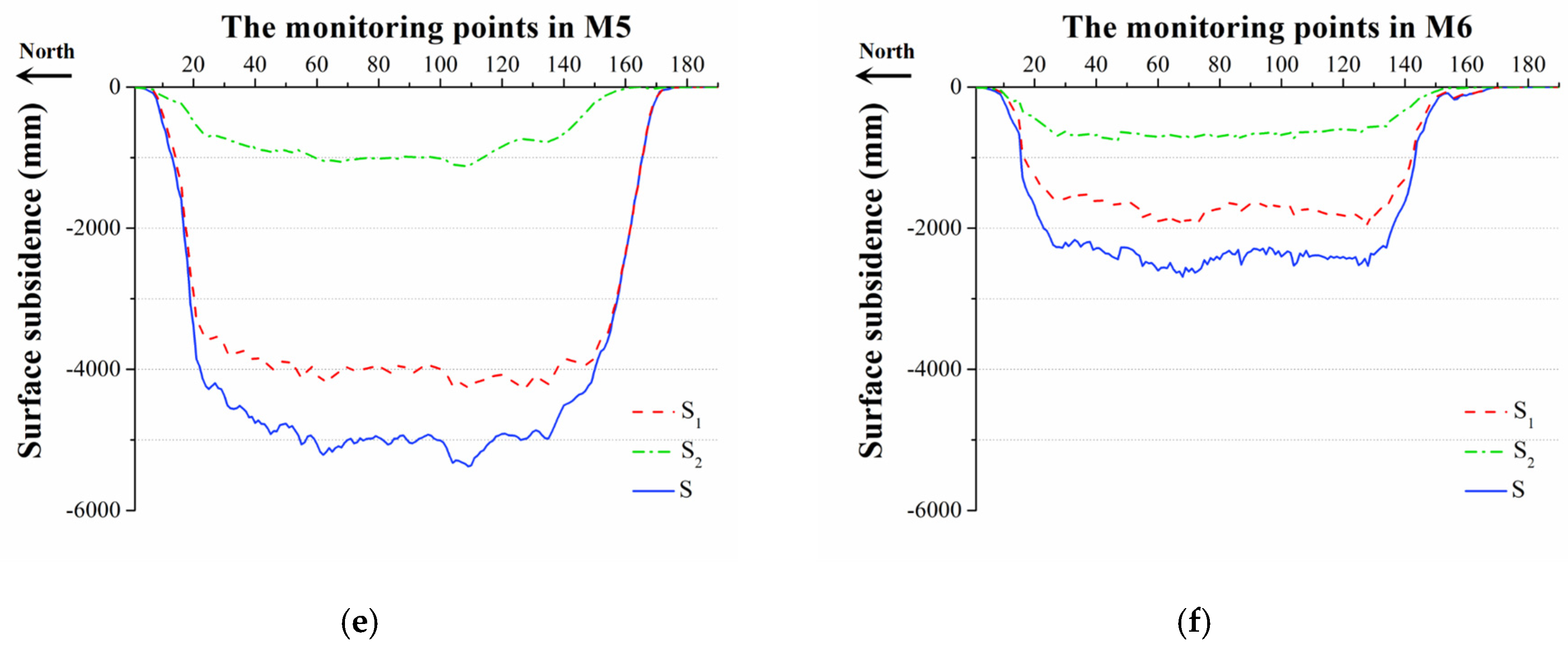

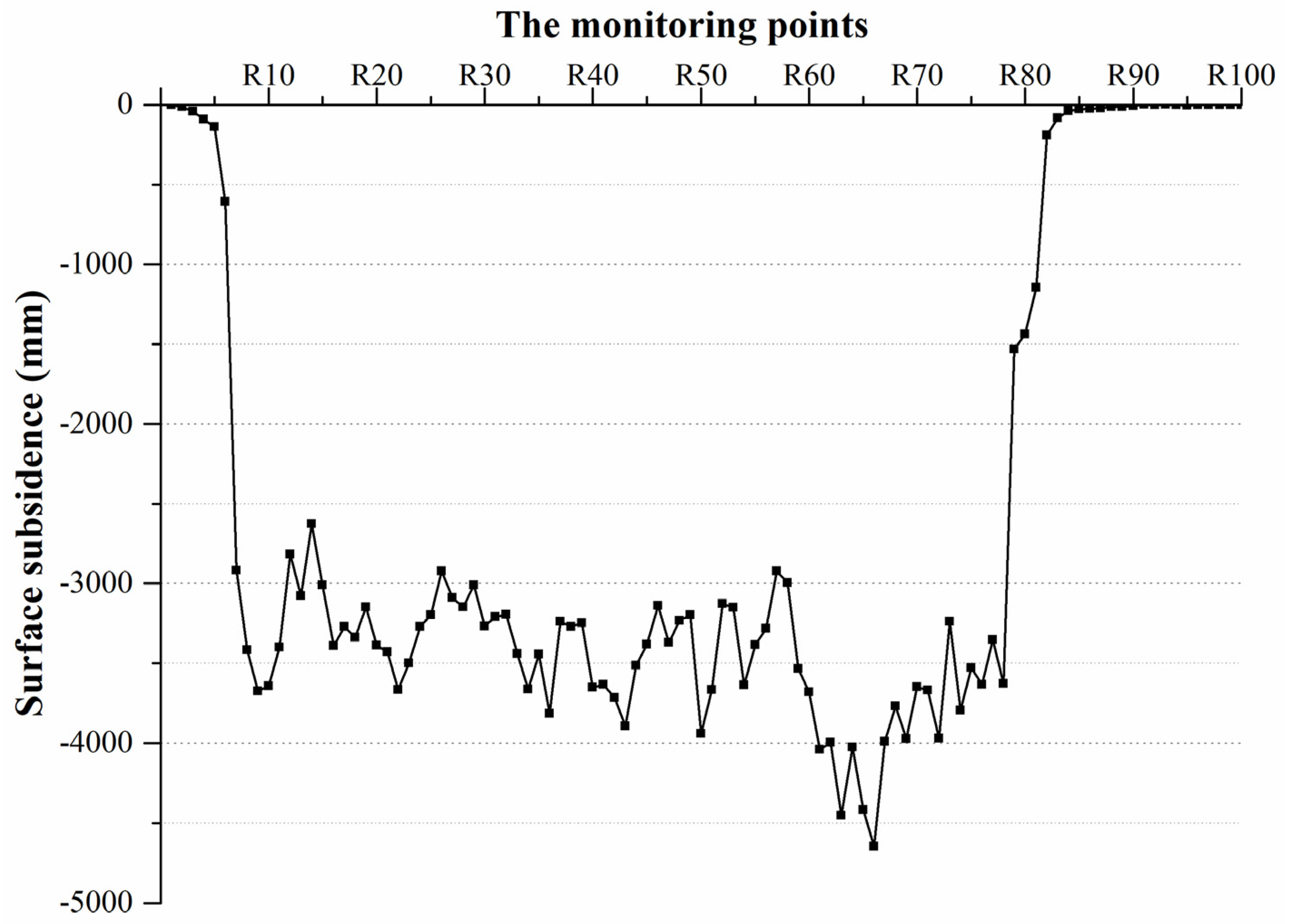

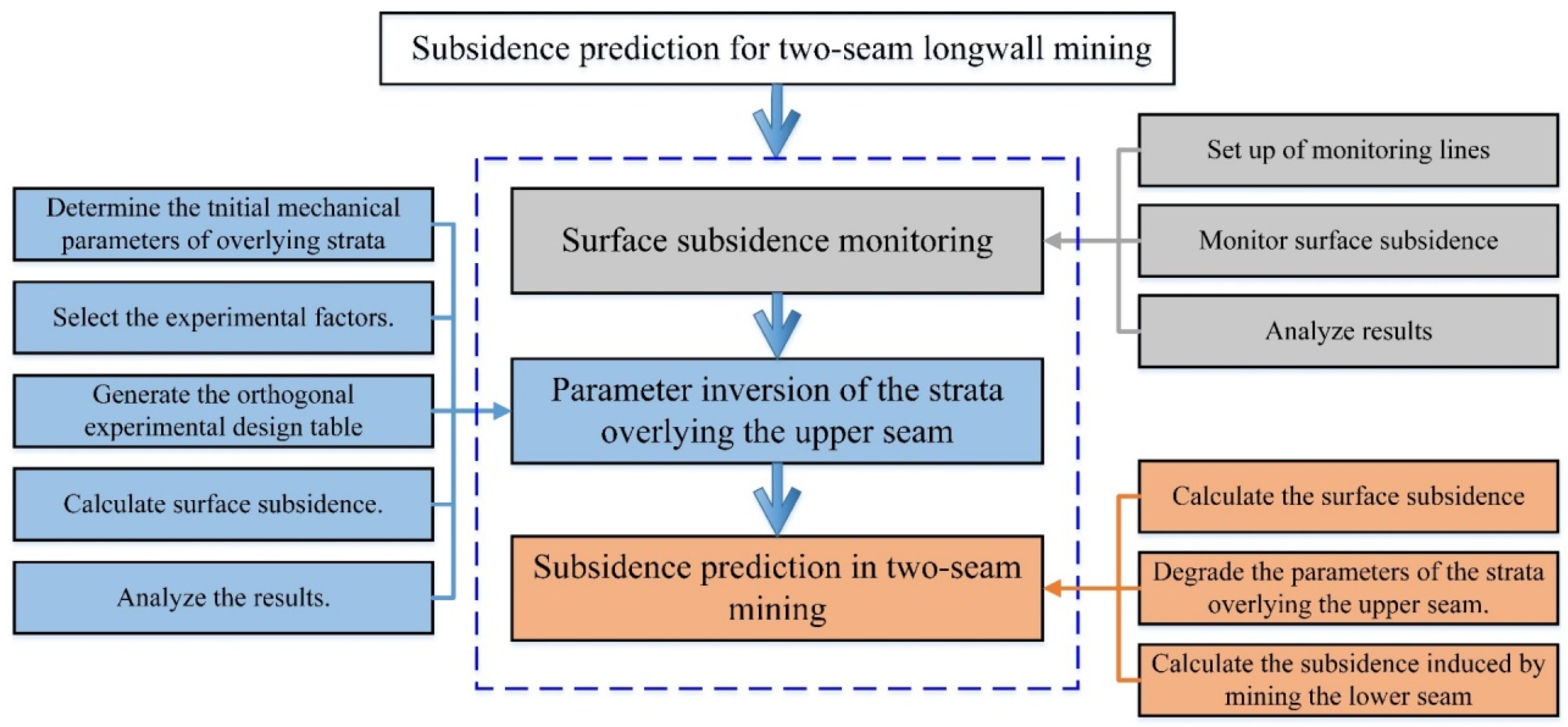

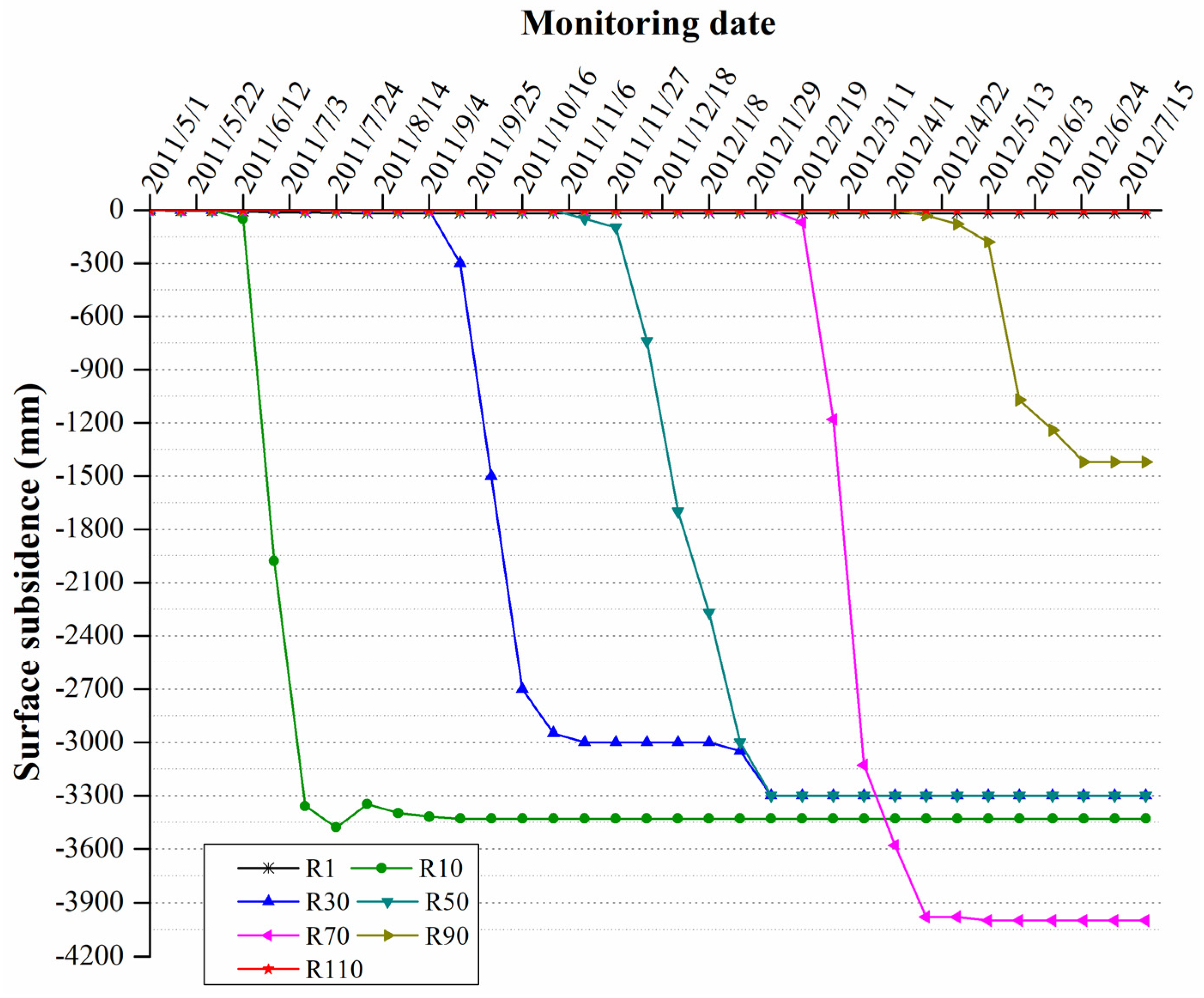

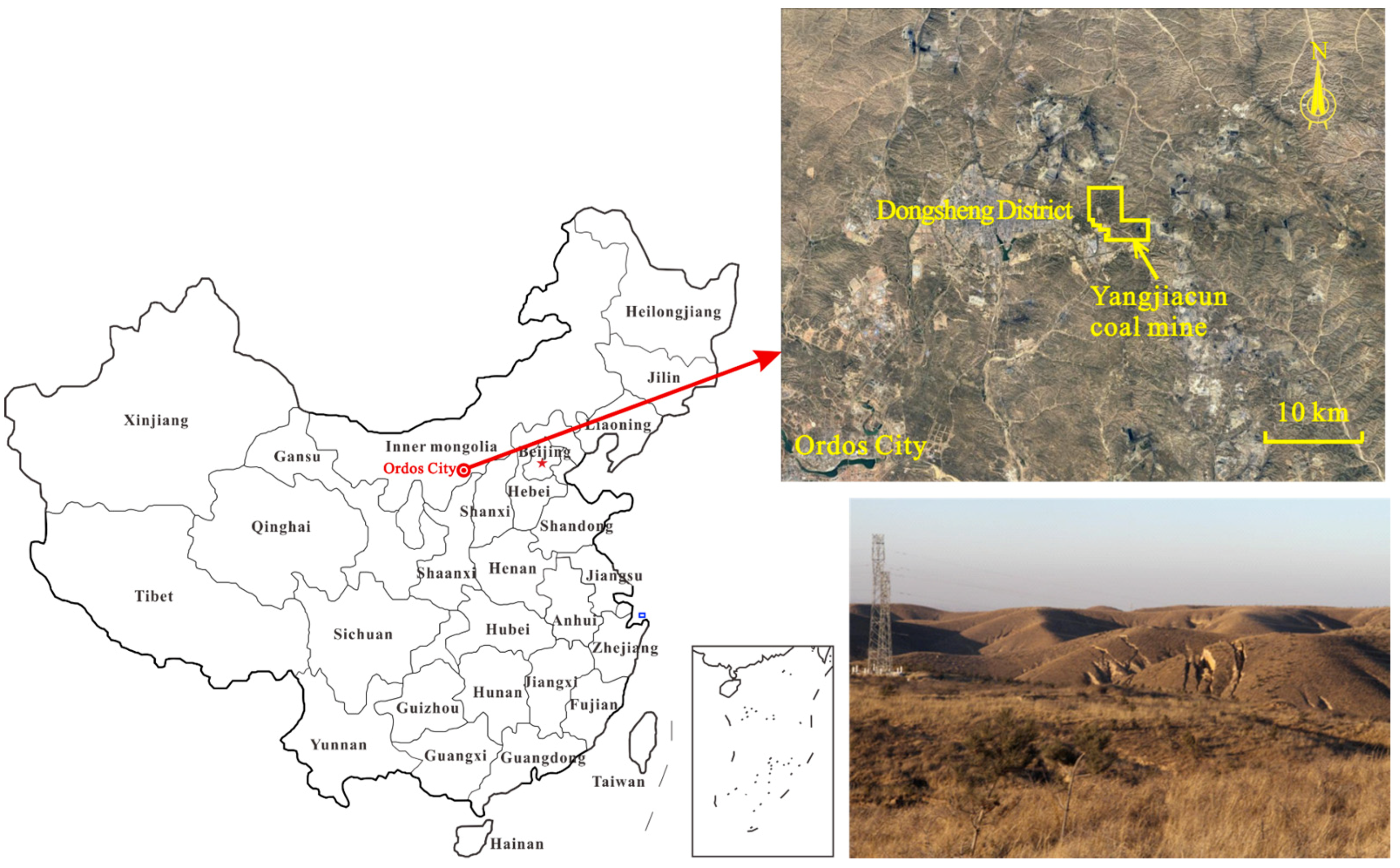

The purpose of mining subsidence prediction is to establish a reliable assessment for surface subsidence resulting from underground mining. In this study, a new method for predicting subsidence in two-seam mining is proposed. First, the surface subsidence due to mining the upper seam is monitored. Then, taking the subsidence data as indicators, the optimal mechanical parameters of overlying strata can be obtained by orthogonal experimental design and inverse analysis of numerical simulation. Finally, further subsidence is calculated and predicted by the numerical model. A case of two-seam underground mining is studied using this methodology. This coal mine is located in the Dongsheng coal field in Inner Mongolia, China. Based on GPS surface subsidence monitoring and parameter inversion, the subsidence induced by two-seam mining is estimated and predicted. This study shows that the ratio of the height of overlying strata to mining thickness (H/M), mining configuration and adjacent mining have a significant effect on the surface subsidence caused by two-seam mining. By parameter inversion, the proposed optimal parameters can be applied to predict the subsidence of a nearby mine with similar stratigraphic conditions. Furthermore, this methodology can also be used to predict the subsidence caused by mining of more than two seams. View Full-Text
Keywords: underground mining; two-seam mining; surface subsidence; orthogonal experimental design; parameter inversion underground mining; two-seam mining; surface subsidence; orthogonal experimental design; parameter inversion
