Fiber-Shaped Supercapacitors Fabricated Using Hierarchical Nanostructures of NiCo2O4 Nanoneedles and MnO2 Nanoflakes on Roughened Ni Wire

by
Jing Zhang
,
Prashant S. Shewale
and
Kwang-Seok Yun
*
Department of Electronic Engineering, Sogang University, 35 Baekbeom-ro, Mapo-gu, Seoul 04107, Korea
*
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3127; https://doi.org/10.3390/en12163127
Submission received: 8 June 2019 / Revised: 18 July 2019 / Accepted: 9 August 2019 / Published: 14 August 2019
(This article belongs to the Section D: Energy Storage and Application)
Browse Figures
Versions Notes

Abstract

:
Electrostatic capacitors have high power density but low energy density. In contrast, batteries and fuel cells have high energy density but low power density. However, supercapacitors can simultaneously achieve both high power density and energy density. Herein, we propose a supercapacitor, in which etched nickel wire was used as a current collector due to its high conductivity. Two redox reactive materials, MnO2 nanoflakes and NiCo2O4 nanoneedles, were used in a hierarchical structure to cover the roughened surface of the Ni wire to maximize the effective surface area. Thus, a specific capacitance, energy density, and power density of 14.4 F/cm3, 2 mWh/cm3, and 0.1 W/cm3, respectively, was obtained via single-electrode experiments. A fiber-shaped supercapacitor was prepared by twisting two electrodes with solid electrolytes made of KOH and polyvinyl alcohol. Although the solid electrolyte had a low ionic conductivity, the energy density and power density were determined to be 0.97 mWh/cm3 and 49.8 mW/cm3, respectively.

Graphical Abstract

1. Introduction

Supercapacitors comprise two current collectors, electrodes, and electrolytes. Supercapacitors can overcome the limitations of energy density in electrostatic capacitors and of power density in Li-ion batteries [1,2,3]. Supercapacitors can be divided into two categories, electrical double layer capacitors (EDLCs) and pseudo-capacitors.
Significant research has been performed to understand the mechanism of EDLC supercapacitors, using carbon materials such as carbon nanotubes (CNTs), active carbon, and graphene. EDLCs are based on non-faradaic processes where the ions are adsorbed and desorbed physically on the electrode surface without any electron transfer between the electrode and electrolyte. EDLCs are similar to electrostatic capacitors, except that the charges are stored on the electrical double layer, composed of an inner Helmholtz plane (IHP) and the diffuse layer in the bulk electrolyte. Thus, the total capacitance of EDLCs is the sum of the capacitance of the IHP and diffuse layers. The thickness of the adsorbed ions on the electrodes is typically less than 1 nm [1]. When porous, carbon-based materials are used as electrodes for ELDCs, 0.17 to 0.20 electrons can be stored per carbon atom on the surface. Although there is no ion transfer between the electrode and electrolyte interface, electron transfer still occurs from the current collector to the electrode material. Therefore, the conductivity of the electrode and current collector are also important factors in determining the performance. EDLCs have the advantages of high instantaneous output power and long life, but have low energy density [4].
To solve the problems arising from the physical adsorption mechanism and to improve energy density, pseudo-capacitors based on faradaic processes have been proposed. Faradaic processes involve electron transfer at the interface of the electrode and electrolyte via oxidation and reduction (redox) reactions. In this case, materials with high redox reactivity are used to form electrodes. For example, transition metal oxides, such as RuO2, Co3O4, NiO [5,6,7], and high conductivity polymers [8,9] are used as electrodes. The reactivity of redox reactions is measured by the number and rate of electrons that can be transferred during the redox reaction. Pseudo-capacitors can have 10 to 100 times higher capacitance than EDLCs. However, the poor conductivity of metal oxides, slow redox reaction processes, and the resultant low power density are the major limitations of pseudo-capacitors [10].
Recently, NiCo2O4, a mixed transition metal, was reported to show good performance as an electrode for supercapacitors because of its high conductivity, and high redox activity with hydroxide ions (OH−) in comparison to other transition metal oxides such as RuO2, Co3O4, and NiO. Liang et al. synthesized yolk-shelled NiCo2O4 spheres and demonstrated a specific capacitance of 835.7 F g−1 [11]. In addition, Wang et al. successfully synthesized three-dimensional hierarchical structures of NiCo2O4/NiCo2O4 core–shell nanocones, which delivered a specific capacitance of 2045.2 F g−1 [12]. Manganese dioxide (MnO2) has also been considered as an electrode material owing to its high theoretical specific capacitance of 1370 F g−1 [13]. The reactive redox reaction, easy synthesis from potassium permanganate (KMnO4), low cost, and environmental compatibility are some additional advantages of MnO2. However, due to poor electric conductivity (10−5–10−6 S cm−1), MnO2 exhibits much lower specific capacitance than the theoretical value [14]. Metal foams such as nickel foam have been widely used in the formation of current collectors to increase the effective surface area. However, metal foam is difficult to utilize in microfabrication [13,15,16,17].
Microfabrication of energy storage devices is important for micro-scale wearable device applications. These applications require mechanical flexibility and elasticity. To meet these requirements, nanostructured electrodes as thin films have been reported [18,19,20,21]. These electrodes were synthesized using materials with high redox activity and exhibited improved energy density and power density. These fiber-shaped supercapacitors provided machinability, breathability, and manufacturing flexibility to woven fabrics for application in textiles [22,23,24]. In fiber-shaped supercapacitors, the mechanical and electrical properties of current collectors are important in determining the overall performance. Generally, good conductivity, high effective surface area, and mechanical flexibility are required for an efficient current collector. Since carbon nanotubes (CNTs) exhibit high specific capacitance, good conductivity, and large surface areas [25], macro CNT fibers obtained from a CNT cluster can be used to form current collectors [26]. Natural cotton yarn and polymer fibers have also been selected as current collectors for fiber-shaped supercapacitors because of their excellent flexibility. However, additional processes are required to generate conductivity of these materials [27,28]. Recently, Wu et al. synthesized NiCo2O4/MnO2 core–shell nanobrush arrays on carbon fiber to manufacture electrodes for fiber-shaped supercapacitors [29]. The stability and flexibility of this device were shown to be superior, but the device exhibited a moderate specific capacitance of 1.55 F cm−2, as the energy density and power density were limited by the small surface area of the electrode and the poor conductivity of the carbon fiber current collector.
On the basis of previous work, we propose a fiber-shaped supercapacitor with micro-fabricated nanostructures for use as electrodes. In order to increase the surface area of the electrode, hierarchical nanostructures—NiCo2O4 nanoneedles covered with MnO2 nanoflakes—were built on etched nickel (Ni) wire. The performance of the NiCo2O4/MnO2 hierarchical nanostructured electrode (HNE) and its super-capacitive performance was thoroughly investigated, and its performance was attributed to a large increase in surface area and the excellent conductivity of the etched Ni current collector.

2. Experimental Section

2.1. Synthesis of NiCo2O4/MnO2 Hierarchical Nanostructures

Figure 1 shows the fabrication processes for NiCo2O4 nanoneedles on the Ni wire, followed by the growth of MnO2 nanoflakes by the formation of hierarchical nanostructures via two separate hydrothermal processes.
Prior to the synthesis of the nanostructures, the surface of the Ni wire (diameter: 300 μm) was cleaned and etched with a mixture of hydrochloric acid (HCl) and nitric acid (HNO3) in the ratio of 4:1 for 20 min. Thereafter, to synthesize NiCo2O4 nanoneedles on the etched Ni wire surface, 3 mmol nickel (II) nitrate hexahydrate (Ni(NO3)2.6H2O), 6 mmol cobalt (II) nitrate (Co(NO3)2.6H2O) and 18 mmol urea (CH4N2O) were dissolved in 60 mL deionized (DI) water. The etched Ni wire was immersed in a pre-mixed solution and heated for 12 h at 100 °C in a Teflon-lined, stainless steel autoclave. After allowing the solution to cool to room temperature, the sample was cleaned and dried using DI water and an air gun, respectively.
MnO2 nanoflakes were grown on the NiCo2O4 nanoneedles. Potassium manganate (VII) (KMnO4; 1 mmol) was dissolved in 60 mL DI water for the hydrothermal process. Thereafter, the sample was immersed in the solution and was subsequently heated for 6 h at 150 °C. After cleaning with DI water, the sample was annealed for 3 h at 350 °C.

2.2. Fabrication of Fiber-Shaped Supercapacitor

In order to construct a fiber-shaped supercapacitor using the etched Ni wires with NiCo2O4/MnO2 hierarchical nanostructures, an electrolyte was first prepared by mixing 10 mL of 2 M potassium hydroxide (KOH), 10 g of polyvinyl alcohol (PVA, Sigma Aldrich), and 100 mL DI water, which were heated for 3 h at 90 °C. Thereafter, the fiber-shaped supercapacitor was fabricated by twisting together the two etched, nanostructure-modified Ni wires after using PVA/KOH gel as an electrolyte as shown in Figure 2.

2.3. Characterization

The crystal structure and purity of the substrates and the NiCo2O4/MnO2 hierarchical nanostructure were examined by X-ray powder diffraction (XRD) performed on a Bruker D8 Advance X-ray powder diffractometer with Cu-Kα radiation. Fourier transform infrared (FTIR) spectra were recorded using a spectrophotometer (FTIR-4100, JASCO) at room temperature by KBr pellet technique. X-ray photoelectron spectra (XPS) were used to investigate the element composition through ESCALAB 250 (Thermo Scientific), using an Al-Kα source. The morphological characteristics of the nanostructures were determined using field emission scanning electron microscopy (FE-SEM, JEM-7100F) at an accelerating voltage of 30 kV. To characterize the electrochemical properties of the samples, cyclic voltammetry (CV) was performed at scan rates from 0.1 V s−1 to 2 V s−1, galvanostatic charging/discharging (GCD) was performed at currents from 200 μA to 1 mA, and electrochemical impedance spectroscopy (EIS) was performed in the frequency range of 100 kHz to 0.01 Hz using a potentiostat (VersaSTAT 300, Princeton Applied Research, USA) at room temperature. In this work, a single electrode with hierarchical nanostructures was characterized in a three-electrode configuration, as shown in Figure 3a. An Ag/AgCl (in 3M KCl) reference electrode and Pt wire as a counter electrode in a 2 M KOH solution were utilized to measure the electrochemical performance. The performance of a fiber-shaped supercapacitor was measured via a two-electrode configuration, as shown in Figure 3b.
The specific capacitance Cv was calculated by the equation Cv = (I × t) ÷ (v × ∆V) (F/cm3); energy density (E) was calculated by the equation E = Cv × ∆V2 ÷ 7200 (Wh/cm3); power density (P) was calculated by the equation P = (E × 3600) ÷ t (W/cm3), where I is the discharging current, t is the discharging time, v is the volume of the electrode, and ∆V is the voltage window [30].

3. Results and Discussion

3.1. Structure and Elemental Composition of the Material

Figure 4 shows the X-ray diffraction patterns corresponding to the Ni substrate, etched Ni substrate, and NiCo2O4/MnO2 hierarchical nanostructure on etched Ni substrate. Notably, it appears that two of the strongest peaks at 2θ = 44.62° and 52° for both un-etched and etched Ni substrate were the characteristic (111) and (200) peaks of nickel, and they also appeared in the XRD pattern of the NiCo2O4/MnO2 hierarchical nanostructure. Further, the figure also shows the typical XRD pattern of the as-prepared NiCo2O4/MnO2 hierarchical nanostructure on etched Ni substrate, in which all diffraction peaks can be assigned to the spinal-structured NiCo2O4 (JCPDS No. 20-0781) and the crystalline birnessite-type MnO2 (JCPDS card no. 18-0802). The peaks at 2θ values of 31°, 36.8°, 44.5°, 58.92°, and 65° corresponded to the (220), (311), (400), (511), and (440) crystal faces of NiCo2O4 in its cubic phase. No other impurity peaks appeared, indicating the high purity of the samples. Further, the peak at 18.7° belonged to the (101) plane of the MnO2 phase, while the peaks at about 36.8° and 65° simultaneously corresponded to both MnO2 and NiCo2O4. Moreover, the low and broad diffraction peaks of the NiCo2O4/MnO2 hierarchical nanostructure indicated its poor crystallinity, and hence the size of crystallites should be reasonably small [31,32,33]. Further, Figure 5 shows the FTIR spectrum of NiCo2O4/MnO2 hierarchical nanostructure samples within the wavenumber range of 400 to 4000 cm−1. From this result, the weak band at 613 cm−1 matched the metal–oxygen vibrations of the NiCo2O4 nanoneedles. In addition, two broad bands at 422 cm−1 and 1191 cm−1 were observed, corresponding to the characteristic Mn–O stretching vibrations in the MnO2 crystals. This fact also proves the coexistence of both NiCo2O4 and MnO2 phases in the NiCo2O4/MnO2 hierarchical nanostructure.
To obtain additional surface information regarding the elemental composition and oxidation states, XPS study on NiCo2O4/MnO2 hierarchical nanostructured sample was carried out and the results are shown in Figure 6 and Figure 7. The binding energies of the photoemission peaks in the full XPS survey scan spectrum of the NiCo2O4/MnO2 hierarchical nanostructure, shown in Figure 6, confirmed the presence of Mn, Ni, Co, C, and O elements in the synthesized electrodes. Herein, the C1s peak at 285.06 eV originates from experimental contamination from the pump oil in vacuum system of the XPS instrument. Figure 7a shows the Ni 2p emission spectrum well fitted with two spin-orbit doublets and two shakeup satellites (designated as Sat.), containing a low energy band (Ni 2p3/2) and a high energy band (Ni 2p1/2) at a binding energy of 855.09 and 872.59 eV, respectively [34,35]. To determine the different oxidation states of the Ni ions, the Mn 2p peak was deconvoluted by Gaussian–Lorentzian function. In the de-convoluted Ni 2p region, the binding energy located at 853.9 and 872.49 eV in Ni 2p3/2 and Ni 2p1/2, respectively, matched the characteristics of Ni2+. Additionally, peaks at 857.79 eV in Ni 2p3/2 and 874.99 eV in Ni 2p1/2 are ascribed to Ni3+ oxidation state. The peaks at 861.39 and 880.09 eV, alongside the high binding energy side of the Ni 2p3/2 and Ni 2p1/2 edge, are two shakeup satellites. These satellite peaks confirmed that Ni existed largely in Ni2+ form [36]. Figure 7b shows the Co 2p spectrum fitted into two spin-orbit doublets and satellite peaks, including a low energy band (Co 2p3/2) and a high energy band (Co 2p1/2) at a binding energy of 780.19 and 795.19 eV, respectively [37]. Furthermore, the deconvolution of the doublet peaks led to the fitting peaks at 780.09 and 795.19 eV, which were attributed to Co3+, while the fitted peaks at 781.89 and 797.09 eV were ascribed to Co2+. Here, the existence of the majority of Co in the form of the Co3+ state was exposed by the observed weak satellite peaks [38]. Further, the Mn 2p spectrum in Figure 7c was best fitted with two major peaks, in which the Mn 2p3/2 peak was centered at 642.19 eV and Mn 2p1/2 peak at 653.69 eV, indicating that the oxidation state was Mn4+, which agrees well with the previous report [39]. The spin–orbit coupling of each peak indicated the presence of Mn3+ and Mn4+, separated by a spin energy of 11.5 eV, and was in good accordance with previous data observed in MnO2 [40]. The high-resolution spectrum of the O 1s region is shown in Figure 7d, which was distributed into four oxygen contributions (assigned O1, O2, O3, and O4). The O1 component observed at 529.64 eV can be ascribed to a characteristic metal–oxygen bond [41]. The O2 component apparent at 531.0 eV was related to defects, occurrence of surface species comprising hydroxyls, chemisorbed oxygen, or species intrinsic to the surface of the spinel [42]. The large number of defect sites with low oxygen coordination typically seen in materials with small particles relates to the O3 component seen at 532.0 eV [43]. Additionally, the O4 component at 533.04 eV can be accredited to different types of physically and chemically bonded water molecules on top of and inside the electrode material surface [44].

3.2. Fabrication Results

The Ni sample was monitored at each step throughout the synthesis process using scanning electron microscopy (SEM); the images are shown in Figure 8. As shown in Figure 8a, a smooth surface was observed for the Ni wire with a diameter of 300 μm. However, after etching the surface with a mixture of HCl and HNO3 for 20 min, the surface became rough and the average diameter was reduced to ~290 μm (Figure 8b). The irregular bumps on the surface effectively increased the reactive surface area. Figure 8c,d shows the Ni wire and a magnified view of the surface after the growth of NiCo2O4 nanoneedles via the first hydrothermal synthesis. We confirmed that the nanoneedles covered the entire surface of the Ni wire, including the extremely rough microbump structures. The height of the nanoneedles was approximately 1 μm. Figure 8e,f shows the SEM images after the second hydrothermal synthesis. In the magnified view, NiCo2O4/MnO2 hierarchical nanostructures can be observed, in which the entire surface of the NiCo2O4 nanoneedles was covered with MnO2 nanoflakes.

3.3. Electrochemical Analysis of Single Electrode

In this work, NiCo2O4 nanoneedles were synthesized on both smooth and rough Ni wires with bumps on the surface to examine the effect of surface roughness. The materials were tested by CV at a 0.1 V s−1 scan rate, and GCD at 200 μA charging and discharging current using a three-electrode configuration. As shown in Figure 9, when the NiCo2O4 nanoneedles were grown on the etched Ni wire surface, the electrochemical performance was better, with large peak current and a long discharging time. These results show that roughening the surface of the electrodes is an efficient way to increase the effective reactive area and subsequently improve the performance. In our experiments, the reduction current increased from 0.14 mA to 0.43 mA in magnitude (Figure 9a), and the discharging time increased from 1.5 s to 4 s (Figure 9b).
The electrochemical performance of the electrode with NiCo2O4/MnO2 hierarchical nanostructures that were formed via the growth of MnO2 nanoflakes on the sample, with NiCo2O4 nanoneedles on the etched Ni wire, was also measured as shown in Figure 10. The measurement parameters included 0.1 V s−1 scan rate and 200 μA charging and discharging currents for CV and GCD analysis, respectively. In addition, EIS was performed at a frequency range of 100 kHz to 0.01 Hz under 0.5 V AC voltage in a three-electrode configuration.
Compared to the NiCo2O4 nanoneedle electrode (NE) without the MnO2 nanoflakes, as shown in the CV experiment in Figure 10a, the NiCo2O4/MnO2 hierarchical nanostructured electrode (HNE) provided a much larger effective surface area to adsorb the OH− ions and react with the NiCo2O4/MnO2. This structure generated a high peak current via a reversible reaction of Co3+/Co4+, Ni2+/Ni3+, and MnO2/Mn2+ [45]. The NiCo2O4/MnO2 hierarchical nanostructures showed a much higher electric double layer capacitance in the cyclic voltammetry experiments. By using the NiCo2O4/MnO2 HNE, the peak current improved from 0.43 to 3.97 mA and the voltage window increased by almost a factor of two, from −0.5 V to 0.5 V at a 0.1 V s−1 scan rate. Figure 10b demonstrates that the NiCo2O4/MnO2 HNE possessed a discharge time of 72 s, which was 18 times longer than that of the NiCo2O4 NE. This extended discharging time was caused not only by the large electric double layer capacitance, but also by an increased redox reaction at the surface. In addition, in this experiment, almost no voltage drop (IR drop) was detected during the current inversion, which implies that the internal resistance was very low [46,47]. The volumetric specific capacitance, energy density, and power density of the NiCo2O4 NE were 0.8 F/cm3 (5.93 mF/cm2), 0.055 mWh/cm3 (0.0004 mWh/cm2) and 2.75 mW/cm3 (0.02 mW/cm2), respectively. When the results were calculated using the surface area of the electrode, the areal specific capacitance, energy density, and power density became 5.93 mF/cm2, 0.0004 mWh/cm2, and 0.02 mW/cm2, respectively. For the NiCo2O4/MnO2 HNE, the volumetric specific capacitance, energy density, and power density were 14.4 F/cm3, 2 mWh/cm3, and 0.1 W/cm3, respectively. The corresponding areal values were 105.4 mF/cm2, 0.015 mWh/cm2, and 0.73 mW/cm2, respectively.
EIS analysis was used to study the equivalent resistance while supplying 0.5 V AC voltage at different frequencies. The Nyquist plot in Figure 10c displays the relationship between the imaginary part (Zim) and the real part (Zre) of the electrode impedance. The initial data point in the high frequency (Figure 10d) measurements shows the initial resistance of the electrode/electrolyte interface, because the effects of mass transfer of the OH− ions on the impedance can be ignored at high frequency [12]. As shown in the magnified view of Figure 10c, the initial resistance was measured as 5.1 Ω and 3.87 Ω for the NiCo2O4 NE and NiCo2O4/MnO2 HNE, respectively. Furthermore, the low frequency measurements reflect that the impedance from mass transfer or ion diffusion was also lower in the NiCo2O4/MnO2 HNE than in the NiCo2O4 NE.

3.4. Performance of Fiber-Shaped Supercapacitor

The fiber-shaped supercapacitor comprising the symmetric assembly of two NiCo2O4/MnO2 HNEs, made of etched Ni wires, was characterized as shown in Figure 3b. The experimental setup and fabricated device is shown in Figure 11. The inset of Figure 11b shows a magnified view of the twisted fiber-shaped supercapacitor. The CV curve of the fiber-shaped supercapacitor exhibited a pure capacitive behavior with a rectangular-shaped curve at 0.1 V s−1 scan rate, as shown in Figure 12a. As the scan rate increased up to 2 V s−1, the CV plot became more eye-shaped, since the mobility of OH− ions in the PVA/KOH gel electrolyte was limited and could not match the fast voltage variation at high scan rate. The supercapacitor showed a 7.58 mA discharging current at 2 V s−1. The GCD was measured at charging and discharging currents ranging from 200 μA to 1 mA, and is depicted in Figure 12b. The longest discharging time of 70 s was obtained at 200 μA, with a voltage drop of 0.08 V. Figure 12c shows the Nyquist plot of the supercapacitor, measured at a frequency from a high value of 100 kHz to low value of 0.01 Hz at 2 V AC voltage. A 61.4 Ω initial interface resistance was observed between the electrode and electrolyte at high frequency, and the smaller radius of the semicircular plot in the magnified view represents the electron transfer ability, which was slightly decreased during the redox reaction. Additionally, in the low frequency region, the gentle slope shows that ion diffusion is not remarkable. These poor charge transfer characteristics are a limitation of solid-type electrolytes. Nevertheless, compared to previous reports on all solid-state fiber-shaped supercapacitors, our device showed comparable performance for energy density and power density, as shown in Table 1 and in the Ragone plot in Figure 13. In addition, in this work, the GCD was used to check the repeatability of the cycling performance of the device. After 3000 cycles under a large charging and discharging current of 1 mA, the capacitance retention was kept at 84%, as shown in Figure 14.

4. Conclusions

In summary, NiCo2O4/MnO2 hierarchical nanostructures were successfully synthesized on etched Ni wire to create fiber-shaped electrodes for supercapacitors. The phase formation and elemental composition of NiCo2O4/MnO2 hierarchical nanostructures were confirmed using XRD, FTIR, and XPS techniques. The samples containing NiCo2O4 nanoneedles covered with MnO2 nanoflakes had large surface areas. Thus, NiCo2O4/MnO2 HNE exhibited a high volumetric specific capacitance of 14.4 F/cm3, and areal specific capacitance of 105.4 mF/cm2, with an improved volumetric energy density and power density of 2 mWh/cm3 and 0.1 W/cm3, and areal energy density and power density of 0.015 mWh/cm2 and 0.73 mW/cm2, respectively. A fiber-shaped supercapacitor was assembled using two NiCo2O4/MnO2 HNEs with a KOH/PVA gel electrolyte, and its performance was demonstrated. Although the supercapacitor suffered from poor ionic conductivity due to the gel electrolyte, our device still showed significantly higher energy density compared to that reported in other recent studies.

Author Contributions

The ideas and concept was carried out in collaboration with all authors. J.Z. fabricated this device, carried out the experiments, and wrote this paper; P.S.S. contributed the characterization of materials and prepared the manuscript; K.-S.Y. contributed to the data analysis, the verification of the approach, and reviewed the paper.

Funding

This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT (2019R1A2B5B01070298) and Korea Electric Power Corporation (R18XA06-53).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, X.; Sánchez, B.M.; Dobson, P.J.; Grant, P.S. The role of nanomaterials in redox-based supercapacitors for next generation energy storage devices. Nanoscale 2011, 3, 839–855. [Google Scholar] [CrossRef] [PubMed]
  2. Tarascon, J.M. Key challenges in future Li-battery research. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci. 2010, 368, 3227–3241. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Etacheri, V.; Marom, R.; Elazari, R.; Salitra, G.; Aurbach, D. Challenges in the development of advanced Li-ion batteries: A review. Energy Environ. Sci. 2011, 4, 3243–3262. [Google Scholar] [CrossRef]
  4. Yang, P.; Mai, W. Flexible solid-state electrochemical supercapacitors. Nano Energy 2014, 8, 274–290. [Google Scholar] [CrossRef]
  5. Xia, H.; Meng, Y.S.; Yuan, G.; Cui, C.; Lu, L. A symmetric RuO2/RuO2 supercapacitor operating at 1.6 V by using a neutral aqueous electrolyte. Electrochem. Solid-State Lett. 2012, 15, A60–A63. [Google Scholar] [CrossRef]
  6. Xia, X.H.; Tu, J.P.; Mai, Y.J.; Wang, X.L.; Gu, C.D.; Zhao, X.B. Self-supported hydrothermal synthesized hollow Co3O4 nanowire arrays with high supercapacitor capacitance. J. Mater. Chem. 2011, 21, 9319–9325. [Google Scholar] [CrossRef]
  7. Lang, J.W.; Kong, L.B.; Wu, W.J.; Luo, Y.C.; Kang, L. Facile approach to prepare loose-packed NiO nano-flakes materials for supercapacitors. Chem. Commun. 2008, 35, 4213–4215. [Google Scholar] [CrossRef]
  8. Snook, G.A.; Kao, P.; Best, A.S. Conducting-polymer-based supercapacitor devices and electrodes. J. Power Sources 2011, 196, 1–12. [Google Scholar] [CrossRef]
  9. Ryu, K.S.; Kim, K.M.; Park, N.G.; Park, Y.J.; Chang, S.H. Symmetric redox supercapacitor with conducting polyaniline electrodes. J. Power Sources 2002, 103, 305–309. [Google Scholar] [CrossRef]
  10. Wang, G.; Zhang, L.; Zhang, J. A review of electrode materials for electrochemical supercapacitors. Chem. Soc. Rev. 2012, 41, 797–828. [Google Scholar] [CrossRef] [Green Version]
  11. Wang, L.; Jiao, X.; Liu, P.; Ouyang, Y.; Xia, X.; Lei, W.; Hao, Q. Self-template synthesis of yolk-shelled NiCo2O4 spheres for enhanced hybrid supercapacitors. Appl. Surf. Sci. 2018, 427, 174–181. [Google Scholar] [CrossRef]
  12. Wang, X.; Fang, Y.; Shi, B.; Huang, F.; Rong, F.; Que, R. Three-dimensional NiCo2O4@NiCo2O4 core–shell nanocones arrays for high-performance supercapacitors. Chem. Eng. J. 2018, 344, 311–319. [Google Scholar] [CrossRef]
  13. Xu, J.; Sun, Y.; Lu, M.; Wang, L.; Zhang, J.; Qian, J.; Liu, X. Fabrication of hierarchical MnMoO4· H2O@MnO2 core-shell nanosheet arrays on nickel foam as an advanced electrode for asymmetric supercapacitors. Chem. Eng. J. 2018, 334, 1466–1476. [Google Scholar] [CrossRef]
  14. Xu, K.; Ren, Q.; Liu, Q.; Li, W.; Zou, R.; Hu, J. Design and synthesis of 3D hierarchical NiCo2S4@MnO2 core–shell nanosheet arrays for high-performance pseudocapacitors. Rsc Adv. 2015, 5, 44642–44647. [Google Scholar] [CrossRef]
  15. Yang, Z.; Zhu, X.; Wang, K.; Ma, G.; Cheng, H.; Xu, F. Preparation of NiCo2S4 flaky arrays on Ni foam as binder-free supercapacitor electrode. Appl. Surf. Sci. 2015, 347, 690–695. [Google Scholar] [CrossRef]
  16. Gao, Y.; Chen, S.; Cao, D.; Wang, G.; Yin, J. Electrochemical capacitance of Co3O4 nanowire arrays supported on nickel foam. J. Power Sources 2010, 195, 1757–1760. [Google Scholar] [CrossRef]
  17. Xu, J.; Sun, Y.; Lu, M.; Wang, L.; Zhang, J.; Qian, J.; Kim, E.J. Fabrication of porous Mn2O3 microsheet arrays on nickel foam as high–rate electrodes for supercapacitors. J. Alloy. Compd. 2017, 717, 108–115. [Google Scholar] [CrossRef]
  18. Kong, W.; Lu, C.; Zhang, W.; Pu, J.; Wang, Z. Homogeneous core–shell NiCo2S4 nanostructures supported on nickel foam for supercapacitors. J. Mater. Chem. A 2015, 3, 12452–12460. [Google Scholar] [CrossRef]
  19. Yang, P.; Chao, D.; Zhu, C.; Xia, X.; Zhang, Y.; Wang, X.; Sun, P.; Tay, B.K.; Shen, Z.X.; Mai, W.; et al. Ultrafast-charging supercapacitors based on corn-like titanium nitride nanostructures. Adv. Sci. 2016, 3, 1500299. [Google Scholar] [CrossRef]
  20. Zhang, C.; Geng, X.; Tang, S.; Deng, M.; Du, Y. NiCo2O4@rGO hybrid nanostructures on Ni foam as high-performance supercapacitor electrodes. J. Mater. Chem. A 2017, 5, 5912–5919. [Google Scholar] [CrossRef]
  21. Li, J.; Shi, Q.; Shao, Y.; Hou, C.; Li, Y.; Zhang, Q.; Wang, H. Cladding nanostructured AgNWs-MoS2 electrode material for high-rate and long-life transparent in-plane micro-supercapacitor. Energy Storage Mater. 2019, 16, 212–219. [Google Scholar] [CrossRef]
  22. Meng, Y.; Zhao, Y.; Hu, C.; Cheng, H.; Hu, Y.; Zhang, Z.; Shi, G.; Qu, L. All-graphene core-sheath microfibers for all-solid-state, stretchable fibriform supercapacitors and wearable electronic textiles. Adv. Mater. 2013, 25, 2326–2331. [Google Scholar] [CrossRef] [PubMed]
  23. Yang, Y.; Xie, L.; Wen, Z.; Chen, C.; Chen, X.; Wei, A.; Cheng, P.; Xie, X.; Sun, X. Coaxial triboelectric nanogenerator and supercapacitor fiber-based self-charging power fabric. ACS Appl. Mater. Interfaces 2018, 10, 42356–42362. [Google Scholar] [CrossRef] [PubMed]
  24. Cho, S.; Patil, B.; Yu, S.; Ahn, S.; Hwang, J.; Park, C.; Do, K.; Ahn, H. Flexible, Swiss roll, fiber-shaped, asymmetric supercapacitor using MnO2 and Fe2O3 on carbon fibers. Electrochim. Acta 2018, 269, 499–508. [Google Scholar] [CrossRef]
  25. An, K.H.; Kim, W.S.; Park, Y.S.; Choi, Y.C.; Lee, S.M.; Chung, D.C.; Bae, D.J.; Lim, S.C.; Lee, Y.H. Supercapacitors using single-walled carbon nanotube electrodes. Adv. Mater. 2001, 13, 497–500. [Google Scholar] [CrossRef]
  26. Xu, P.; Wei, B.; Cao, Z.; Zheng, J.; Gong, K.; Li, F.; Yu, J.; Li, Q.; Lu, W.; Byun, J.H.; et al. Stretchable wire-shaped asymmetric supercapacitors based on pristine and MnO2 coated carbon nanotube fibers. ACS Nano 2015, 9, 6088–6096. [Google Scholar] [CrossRef]
  27. Zhou, Q.; Jia, C.; Ye, X.; Tang, Z.; Wan, Z. A knittable fiber-shaped supercapacitor based on natural cotton thread for wearable electronics. J. Power Sources 2016, 327, 365–373. [Google Scholar] [CrossRef]
  28. Qu, G.; Cheng, J.; Li, X.; Yuan, D.; Chen, P.; Chen, X.; Wang, B.; Peng, H. A fiber supercapacitor with high energy density based on hollow graphene/conducting polymer fiber electrode. Adv. Mater. 2016, 28, 3646–3652. [Google Scholar] [CrossRef]
  29. Wu, X.; Meng, L.; Wang, Q.; Zhang, W.; Wang, Y. High flexibility and large energy density asymmetric fibered-supercapacitor based on unique NiCo2O4@MnO2 core-shell nanobrush arrays electrode. Electrochim. Acta 2019, 295, 532–539. [Google Scholar] [CrossRef]
  30. Zhang, Q.; Sun, J.; Pan, Z.; Zhang, J.; Zhao, J.; Wang, X.; Zhang, C.; Yao, Y.; Lu, W.; Li, Q.; et al. Stretchable fiber-shaped asymmetric supercapacitors with ultrahigh energy density. Nano Energy 2017, 39, 219–228. [Google Scholar] [CrossRef]
  31. Wu, Z.; Huang, X.-L.; Wang, Z.-L.; Xu, J.-J.; Wang, H.-G.; Zhang, X.-B. Electrostatic Induced Stretch Growth of Homogeneous β-Ni (OH) 2 on Graphene with Enhanced High-Rate Cycling for Supercapacitors. Sci. Rep. 2014, 4, 1–8. [Google Scholar] [CrossRef]
  32. Ding, R.; Qi, L.; Wang, H. Porous NiCo2O4 as an anode material for 4.5 V hybrid Li-ion capacitors. Rsc Adv. 2013, 3, 12581–12584. [Google Scholar] [CrossRef]
  33. Liu, J.; Liu, C.; Wan, Y.; Liu, W.; Ma, Z.; Ji, S.; Wang, J.; Zhou, Y.; Hodgson, P.; Li, Y. Facile synthesis of NiCo2O4 nanorod arrays on Cu conductive substrates as superior anode materials for high-rate Li-ion batteries. Cryst. Eng. Commun. 2013, 15, 1578–1585. [Google Scholar] [CrossRef]
  34. Cui, B.; Lin, H.; Li, Y.Z.; Li, J.B.; Sun, P.; Zhao, X.C.; Liu, C.J. Photophysical and Photocatalytic properties of core-ring structured NiCo2O4 nanoparticles. J. Phys. Chem. C 2009, 113, 14083–14087. [Google Scholar] [CrossRef]
  35. Wu, P.; Cheng, S.; Yao, M.H.; Yang, L.F.; Zhu, Y.Y.; Liu, P.P.; Xing, O.; Zhou, J.; Wang, M.K.; Luo, H.W.; et al. Low-Cost, Self-Standing NiCo2O4@CNT/CNT Multilayer Electrode for Flexible Asymmetric Solid-State Supercapacitors. Adv. Funct. Mater. 2017, 27, 1702160. [Google Scholar] [CrossRef]
  36. Zhao, B.; Ke, X.K.; Bao, J.H.; Wang, C.L.; Dong, L.; Chen, Y.W.; Chen, H.L. Synthesis of Flower-Like NiO and Effects of Morphology on Its Catalytic Properties. J. Phys. Chem. C 2009, 113, 14440–14447. [Google Scholar] [CrossRef]
  37. Xu, K.; Li, W.; Liu, Q.; Li, B.; Liu, X.; An, L.; Chen, Z.; Zou, R.; Hu, J. Hierarchical mesoporous NiCo2O4@MnO2 core-shell nanowire arrays on nickel foam for aqueous asymmetric supercapacitors. J. Mater. Chem. A 2014, 2, 4795–4802. [Google Scholar] [CrossRef]
  38. Fang, C.; Zhang, D.; Cai, S.; Zhang, L.; Huang, L.; Li, H.; Maitarad, P.; Shi, L.; Gao, R.; Zhang, J. Low-temperature selective catalytic reduction of NO with NH3 over nanoflaky MnOx on carbon nanotubes in situ prepared via a chemical bath deposition route. Nanoscale 2013, 5, 9199–9207. [Google Scholar] [CrossRef]
  39. Toupin, M.; Brousse, T.; Bélanger, D. Charge Storage Mechanism of MnO2 Electrode Used in Aqueous Electrochemical Capacitor. Chem. Mater. 2004, 16, 3184–3190. [Google Scholar] [CrossRef]
  40. Li, D.; Du, G.; Wang, J.; Guo, Z.; Chen, Z.; Liu, H. Microwave-assisted Synthesis of Flower-like Structure ε-MnO2 as Cathode for Lithium Ion Batteries. J. Chin. Chem. Soc. 2012, 59, 1211–1215. [Google Scholar] [CrossRef]
  41. Bi, Y.; Nautiyal, A.; Zhang, H.; Luo, J.; Zhang, X. One-pot microwave synthesis of NiO/MnO2 composite as a high-performance electrode material for supercapacitors. Electrochim. Acta 2018, 260, 952–958. [Google Scholar] [CrossRef]
  42. Yuan, C.; Li, J.; Hou, L.; Zhang, X.; Shen, L.; Lou, X.W.D. Ultrathin Mesoporous NiCo2O4 Nanosheets Supported on Ni Foam as Advanced Electrodes for Supercapacitors. Adv. Funct. Mater. 2012, 22, 4592–4597. [Google Scholar] [CrossRef]
  43. Jimenez, V.M.; Fernandez, A.; Espinos, J.P.; Gonzalez-Elipe, A.R. The state of the oxygen at the surface of polycrystalline cobalt oxide. J. Electron Spectrosc. Relat. Phenom. 1995, 71, 61–71. [Google Scholar] [CrossRef]
  44. Marco, J.F.; Gancedo, J.R.; Gracia, M.; Gautier, J.L.; Ríos, E.; Berry, F.J. Characterization of the Nickel Cobaltite, NiCo2O4, Prepared by Several Methods: An XRD, XANES, EXAFS, and XPS Study. J. Solid State Chem. 2000, 153, 74–81. [Google Scholar] [CrossRef]
  45. Li, Y.; Hasin, P.; Wu, Y. NixCo3−xO4 nanowire arrays for electrocatalytic oxygen evolution. Adv. Mater. 2010, 22, 1926–1929. [Google Scholar] [CrossRef] [PubMed]
  46. Kim, S.K.; Koo, H.J.; Lee, A.; Braun, P.V. Selective Wetting-Induced Micro-Electrode Patterning for Flexible Micro-Supercapacitors. Adv. Mater. 2014, 26, 5108–5112. [Google Scholar] [CrossRef] [PubMed]
  47. Paleo, A.J.; Staiti, P.; Brigandì, A.; Ferreira, F.N.; Rocha, A.M.; Lufrano, F. Supercapacitors based on AC/MnO2 deposited onto dip-coated carbon nanofiber cotton fabric electrodes. Energy Storage Mater. 2018, 12, 204–215. [Google Scholar] [CrossRef]
  48. Zhang, Y.; Lin, R.; Fu, Y.; Wang, X.; Yu, X.; Li, J.; Zhu, Y.; Tan, S.; Wang, Z. Metal-organic framework derived Fe2O3 nanocubes on intertwined N-doped carbon nanowires for fiber-shaped supercapacitor. Mater. Lett. 2018, 228, 9–12. [Google Scholar] [CrossRef]
  49. Patil, B.; Ahn, S.; Yu, S.; Song, H.; Jeong, Y.; Kim, J.H.; Ahn, H. Electrochemical performance of a coaxial fiber-shaped asymmetric supercapacitor based on nanostructured MnO2/CNT-web paper and Fe2O3/carbon fiber electrodes. Carbon 2018, 134, 366–375. [Google Scholar] [CrossRef]
  50. Qi, J.; Liu, X.; Sui, Y.; He, Y.; Ren, Y.; Meng, Q.; Wei, F.; Zhang, X. High performance fiber-shaped all-solid-state symmetric supercapacitor based on mesoporous CuCo2S4 nanosheets. J. Mater. Sci. Mater. Electron. 2019, 30, 667–676. [Google Scholar] [CrossRef]
  51. Zhou, J.; Chen, N.; Ge, Y.; Zhu, H.; Feng, X.; Liu, R.; Ma, Y.; Wang, L.; Hou, W. Flexible all-solid-state micro-supercapacitor based on Ni fiber electrode coated with MnO2 and reduced graphene oxide via electrochemical deposition. Sci. China Mater. 2018, 61, 243–253. [Google Scholar] [CrossRef]
  52. Wang, X.; Liu, B.; Liu, R.; Wang, Q.; Hou, X.; Chen, D.; Wang, R.; Shen, G. Fiber-based flexible all-solid-state asymmetric supercapacitors for integrated photodetecting system. Angew. Chem. Int. Ed. 2014, 53, 1849–1853. [Google Scholar] [CrossRef] [PubMed]
  53. Gao, L.; Fan, R.; Xiao, R.; Cao, K.; Li, P.; Wang, W.; Lu, Y. NiO-bridged MnCo-hydroxides for flexible high-performance fiber-shaped energy storage device. Appl. Surf. Sci. 2019, 475, 1058–1064. [Google Scholar] [CrossRef]
Energies 12 03127 g001 550

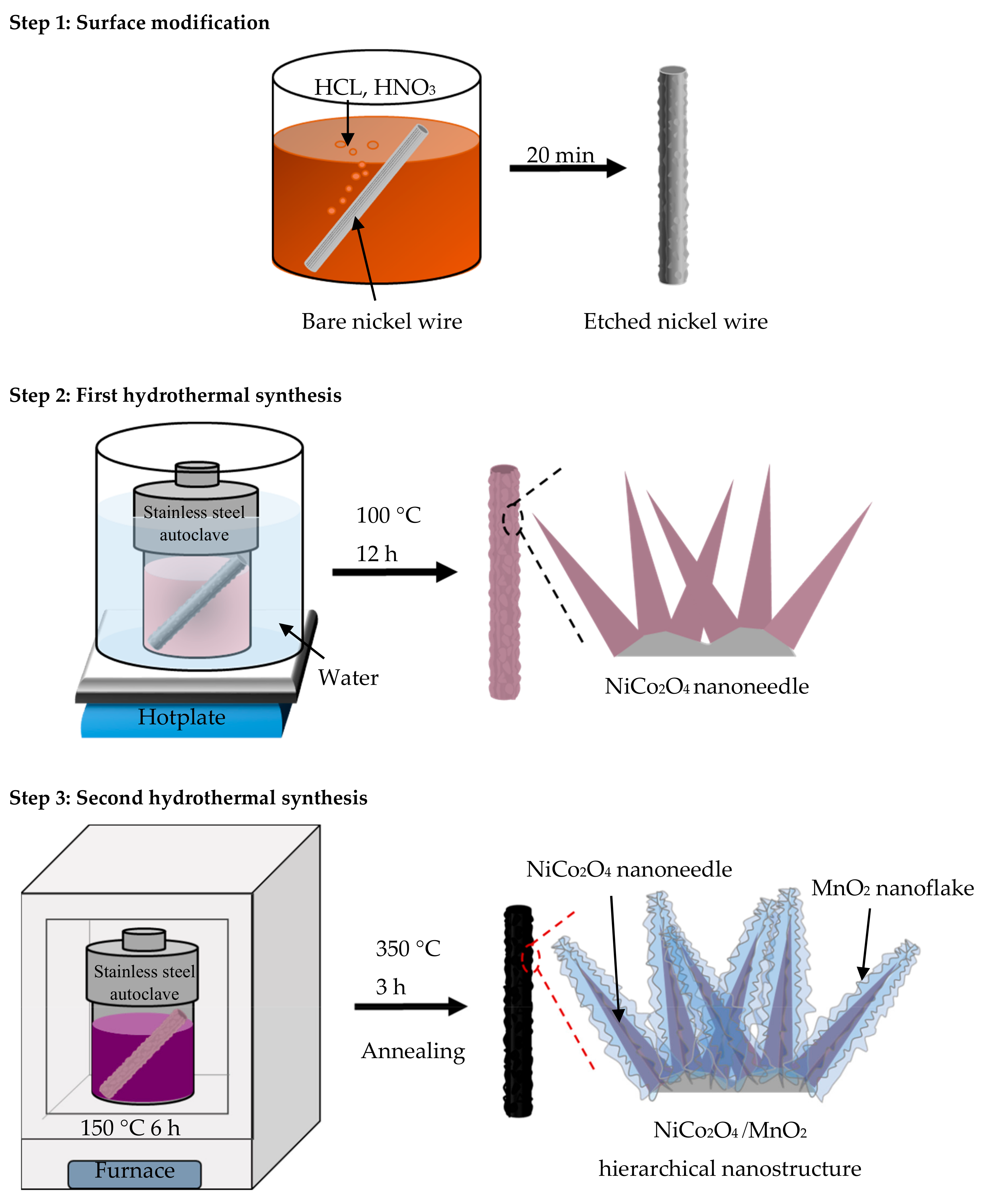

Figure 1. Synthesis of NiCo2O4/MnO2 hierarchical nanostructures on etched Ni wire via a two-step hydrothermal method.
Figure 1. Synthesis of NiCo2O4/MnO2 hierarchical nanostructures on etched Ni wire via a two-step hydrothermal method.
Energies 12 03127 g001
Energies 12 03127 g002 550

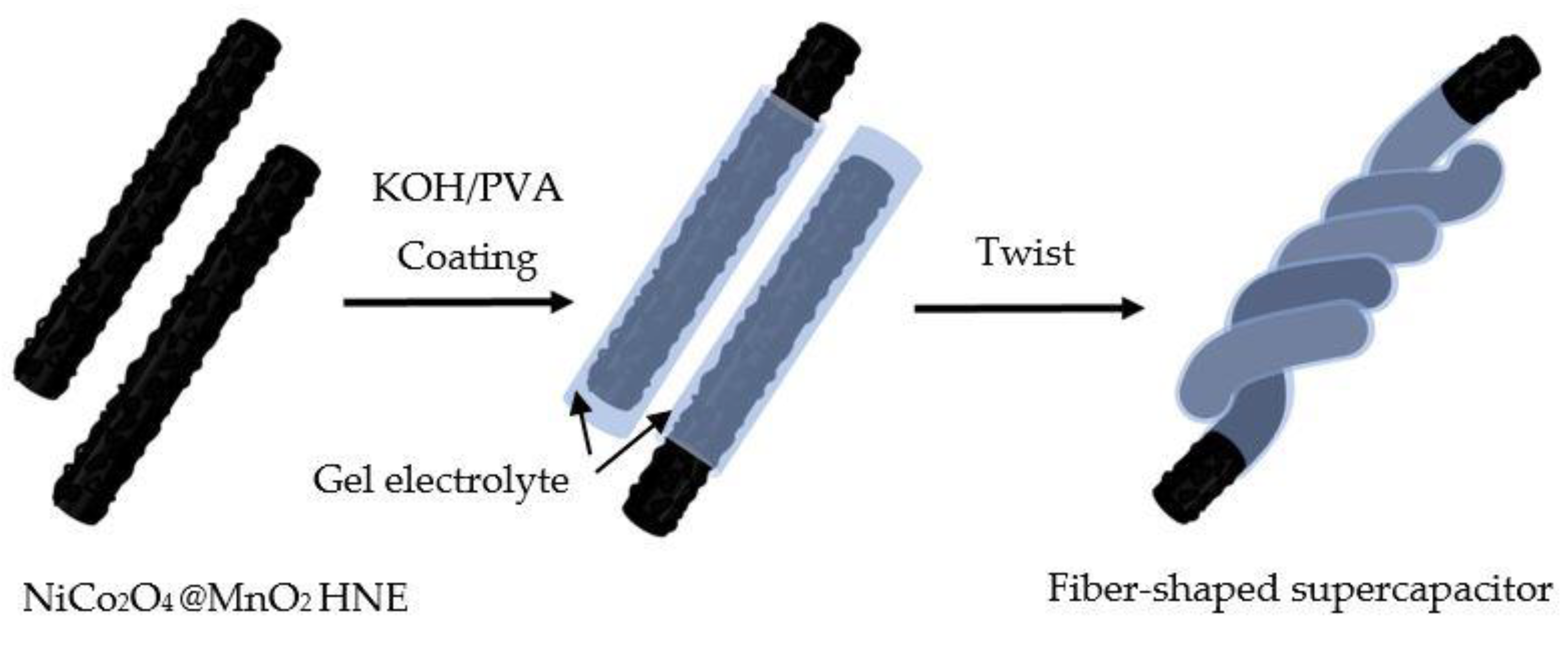

Figure 2. The assembly process of the fiber-shaped supercapacitor using KOH/PVA (polyvinyl alcohol) gel electrolyte. HNE: hierarchical nanostructured electrode.
Figure 2. The assembly process of the fiber-shaped supercapacitor using KOH/PVA (polyvinyl alcohol) gel electrolyte. HNE: hierarchical nanostructured electrode.
Energies 12 03127 g002
Energies 12 03127 g003 550

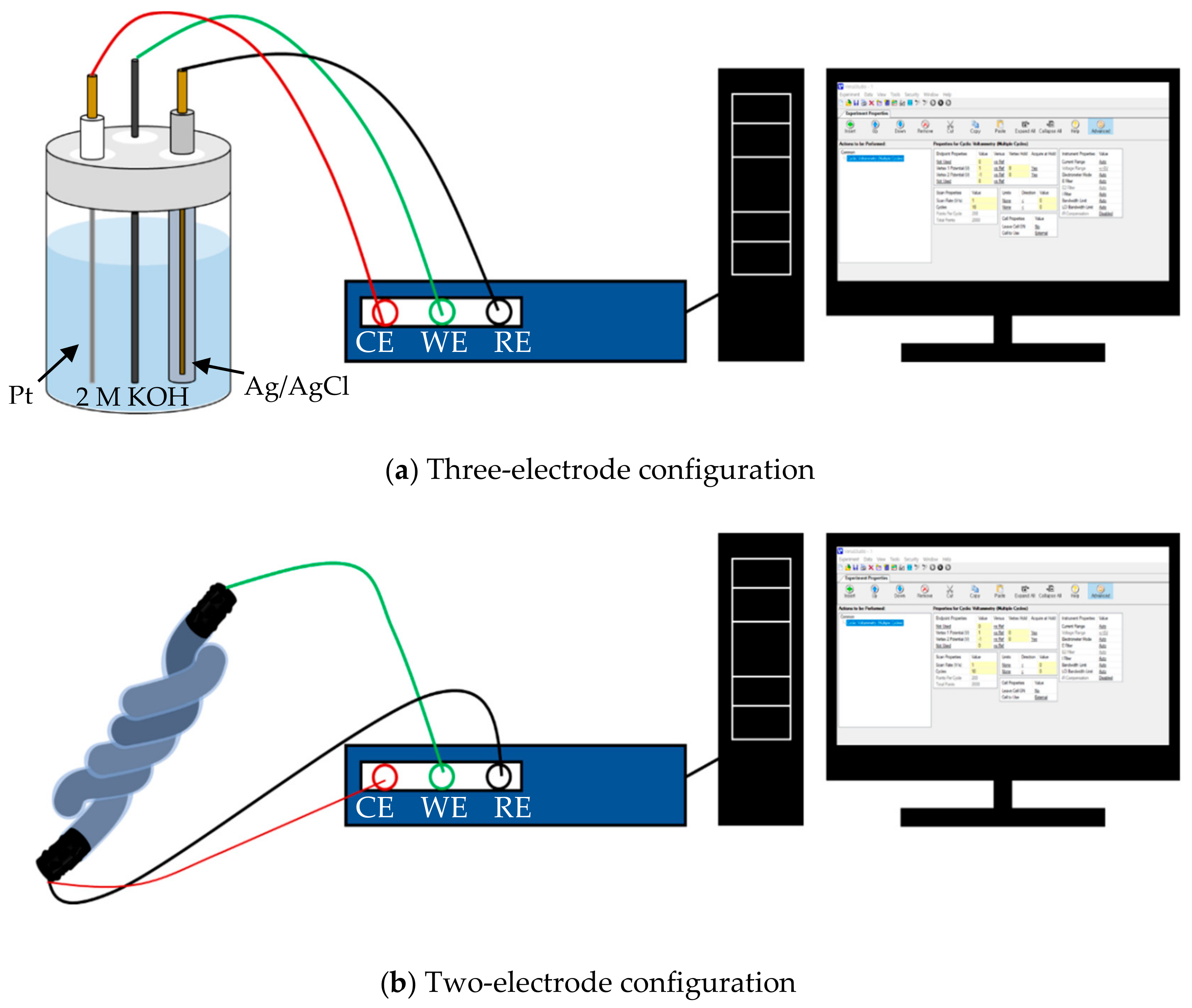

Figure 3. Electrochemical set-up of (a) three-electrode and (b) two-electrode configurations.
Figure 3. Electrochemical set-up of (a) three-electrode and (b) two-electrode configurations.
Energies 12 03127 g003
Energies 12 03127 g004 550

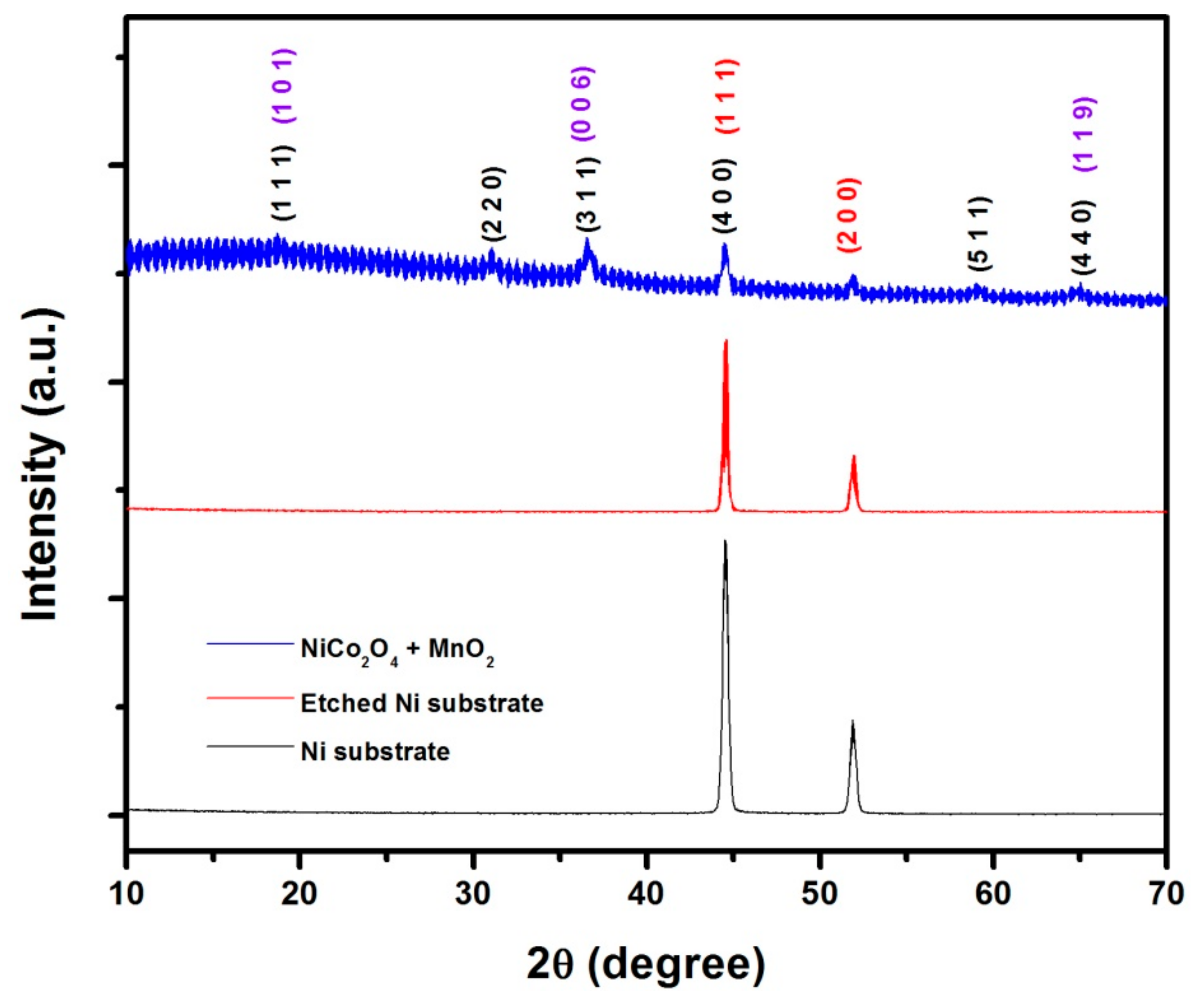

Figure 4. X-ray diffraction (XRD) patterns of Ni substrate, etched Ni substrate, and the synthesized NiCo2O4/MnO2 hierarchical nanostructure.
Figure 4. X-ray diffraction (XRD) patterns of Ni substrate, etched Ni substrate, and the synthesized NiCo2O4/MnO2 hierarchical nanostructure.
Energies 12 03127 g004
Energies 12 03127 g005 550

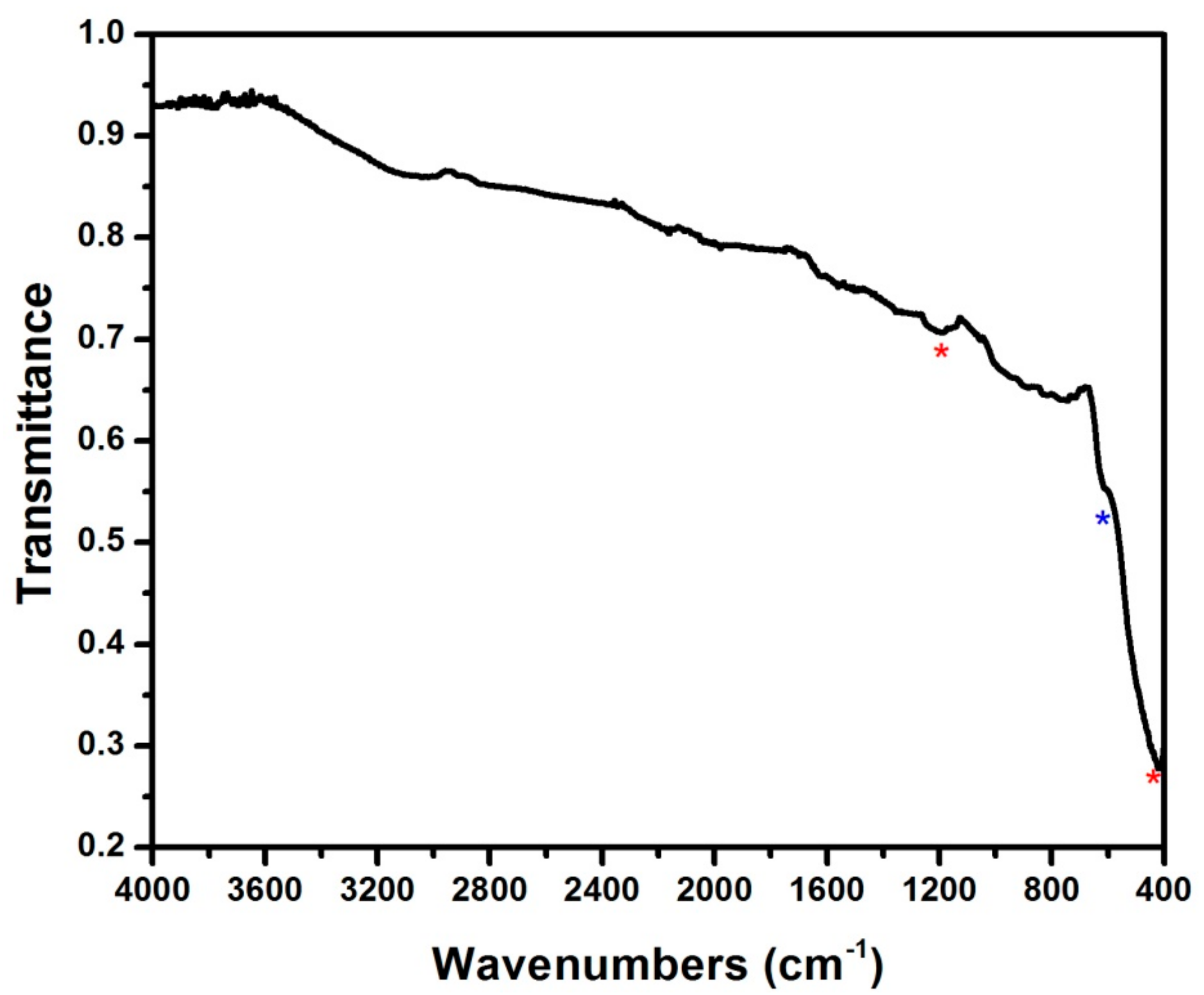

Figure 5. Fourier transform infrared (FTIR) spectrum of the NiCo2O4/MnO2 hierarchical nanostructure.
Figure 5. Fourier transform infrared (FTIR) spectrum of the NiCo2O4/MnO2 hierarchical nanostructure.
Energies 12 03127 g005
Energies 12 03127 g006 550

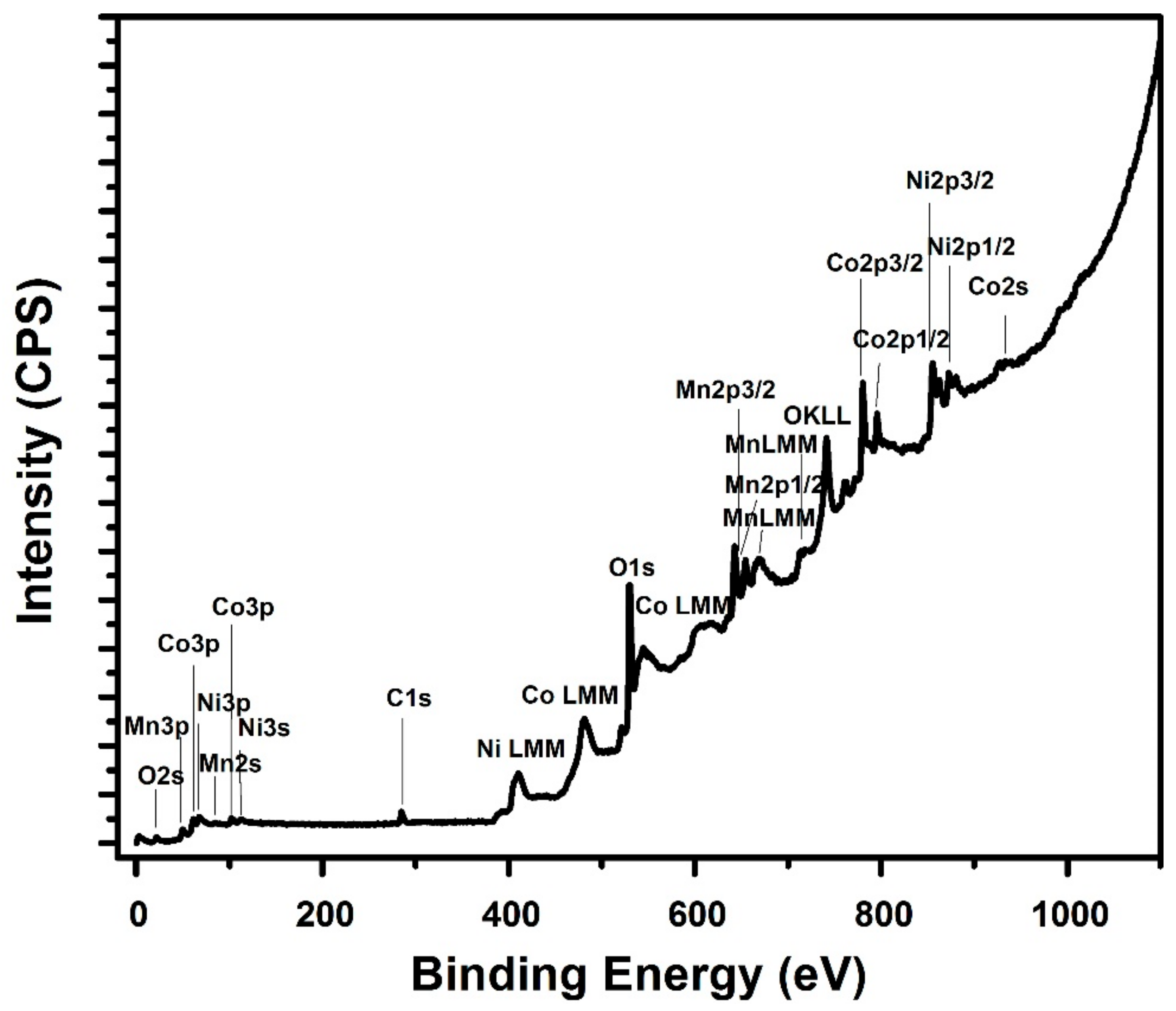

Figure 6. X-ray photoelectron spectroscopy (XPS) survey scan spectra of NiCo2O4/MnO2 hierarchical nanostructure on etched Ni substrate.
Figure 6. X-ray photoelectron spectroscopy (XPS) survey scan spectra of NiCo2O4/MnO2 hierarchical nanostructure on etched Ni substrate.
Energies 12 03127 g006
Energies 12 03127 g007 550

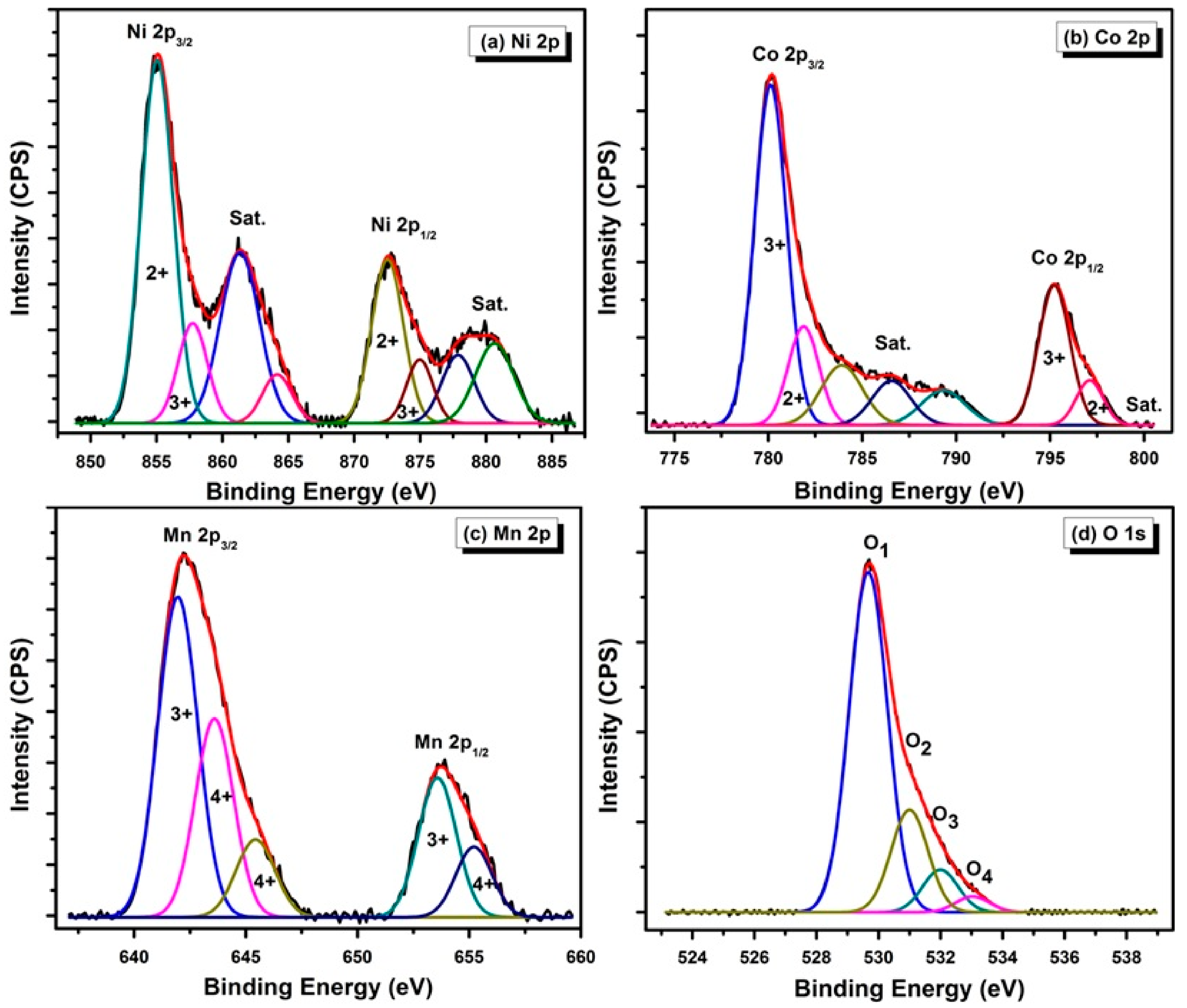

Figure 7. (a) High-resolution Ni 2p spectrum; (b) high-resolution Co 2p spectrum; (c) high-resolution Mn 2p spectrum and (d) high-resolution O 1s spectrum.
Figure 7. (a) High-resolution Ni 2p spectrum; (b) high-resolution Co 2p spectrum; (c) high-resolution Mn 2p spectrum and (d) high-resolution O 1s spectrum.
Energies 12 03127 g007
Energies 12 03127 g008 550

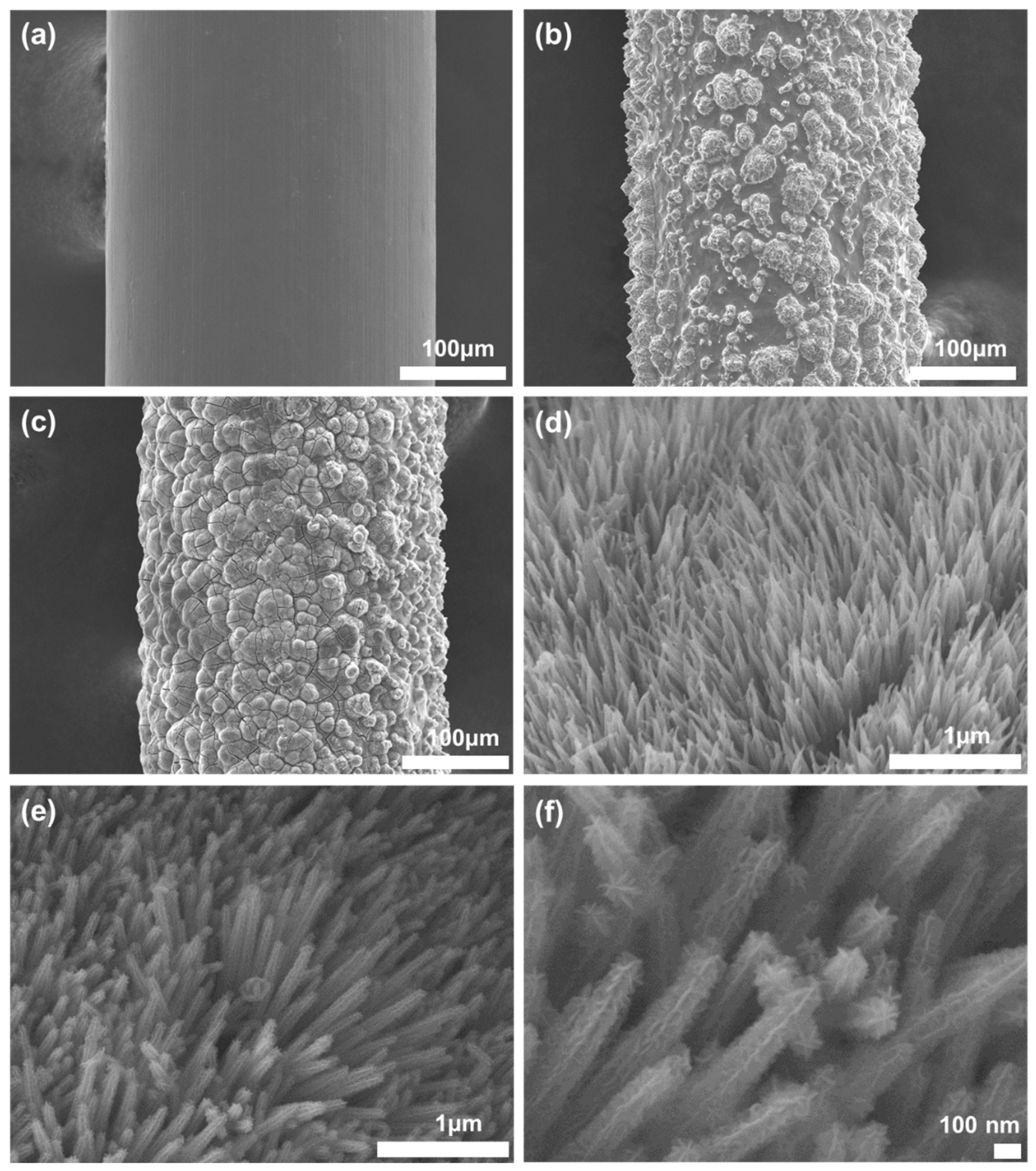

Figure 8. (a) Bare Ni wire; (b) etched Ni wire; (c) NiCo2O4/MnO2 hierarchical nanostructures grown on etched Ni wire; (d) magnified view of NiCo2O4 nanoneedles; (e) and (f) magnified views of NiCo2O4/MnO2 hierarchical nanostructures.
Figure 8. (a) Bare Ni wire; (b) etched Ni wire; (c) NiCo2O4/MnO2 hierarchical nanostructures grown on etched Ni wire; (d) magnified view of NiCo2O4 nanoneedles; (e) and (f) magnified views of NiCo2O4/MnO2 hierarchical nanostructures.
Energies 12 03127 g008
Energies 12 03127 g009 550

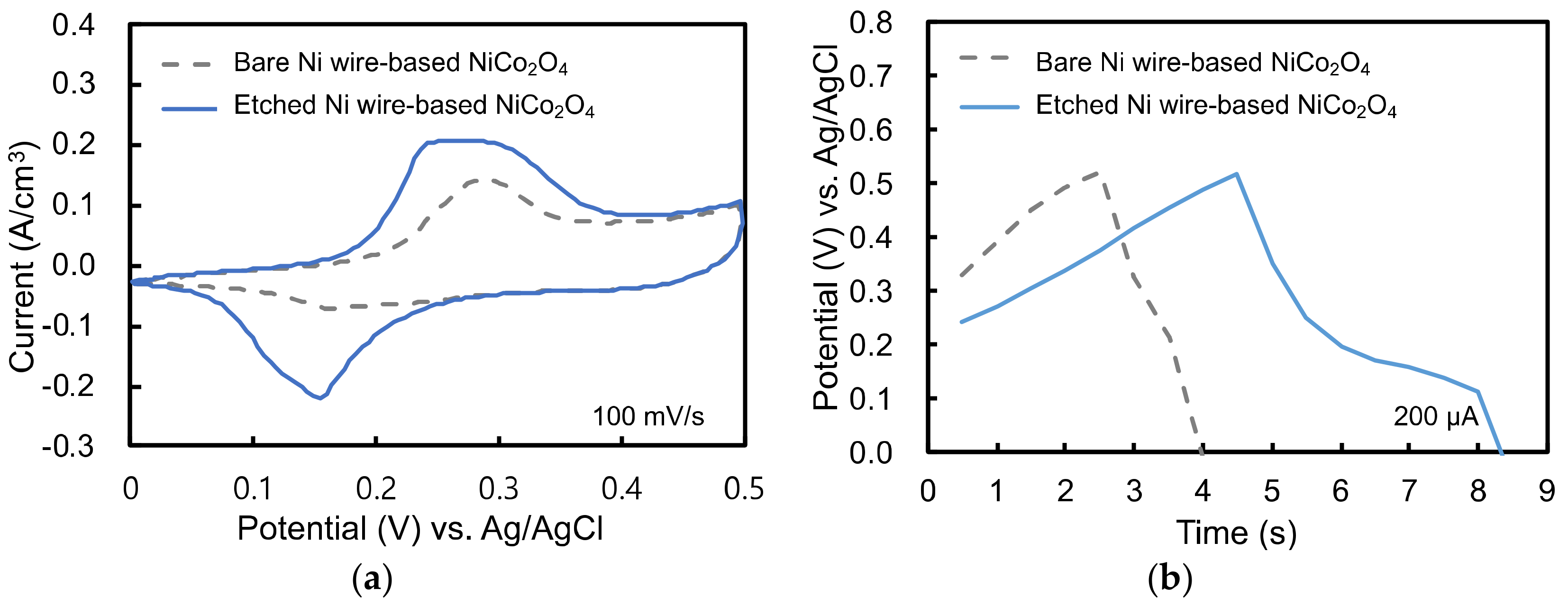

Figure 9. (a) Cyclic voltammetry (CV) curve of a bare-Ni-wire-based NiCo2O4 nanoneedle electrode and an etched-Ni-wire-based NiCo2O4 nanoneedle electrode at a 0.1 V s−1 scan rate; (b) galvanostatic charging/discharging (GCD) curve of the two electrodes at 200 μA charging and discharging current.
Figure 9. (a) Cyclic voltammetry (CV) curve of a bare-Ni-wire-based NiCo2O4 nanoneedle electrode and an etched-Ni-wire-based NiCo2O4 nanoneedle electrode at a 0.1 V s−1 scan rate; (b) galvanostatic charging/discharging (GCD) curve of the two electrodes at 200 μA charging and discharging current.
Energies 12 03127 g009
Energies 12 03127 g010 550

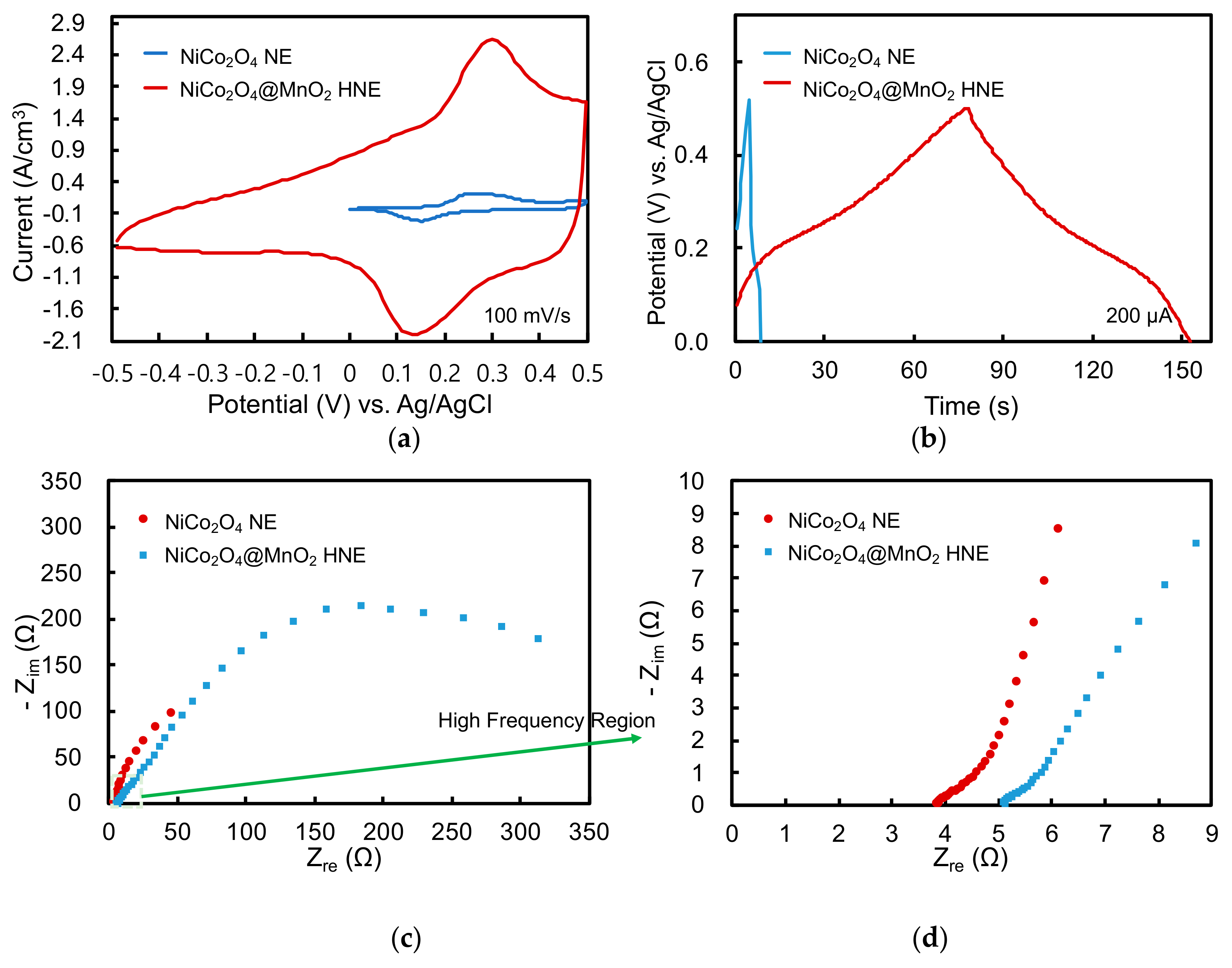

Figure 10. (a) The CV curve of an etched-Ni-wire-based NiCo2O4 nanoneedle electrode (NE) and an etched-Ni-wire-based NiCo2O4/MnO2 hierarchical nanostructured electrode (HNE) at a 0.1 V s−1 scan rate; (b) GCD curve of the nanostructured electrodes at 200 µA charging and discharging current; electrochemical impedance spectroscopy (EIS) of the nanostructured electrodes at 100 kHz and 0.01 Hz under 0.5 V in the (c) full frequency and (d) high frequency regions.
Figure 10. (a) The CV curve of an etched-Ni-wire-based NiCo2O4 nanoneedle electrode (NE) and an etched-Ni-wire-based NiCo2O4/MnO2 hierarchical nanostructured electrode (HNE) at a 0.1 V s−1 scan rate; (b) GCD curve of the nanostructured electrodes at 200 µA charging and discharging current; electrochemical impedance spectroscopy (EIS) of the nanostructured electrodes at 100 kHz and 0.01 Hz under 0.5 V in the (c) full frequency and (d) high frequency regions.
Energies 12 03127 g010
Energies 12 03127 g011 550

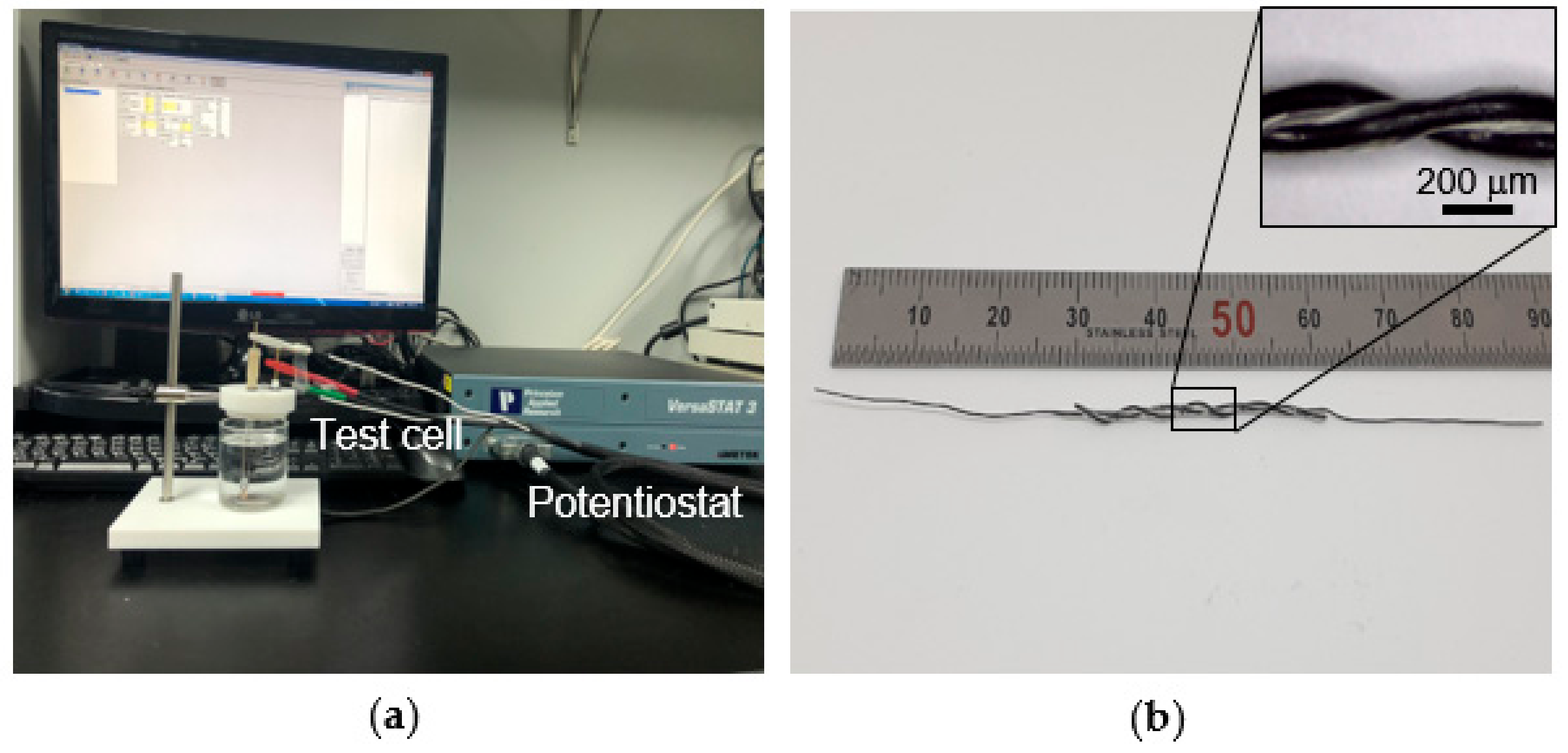

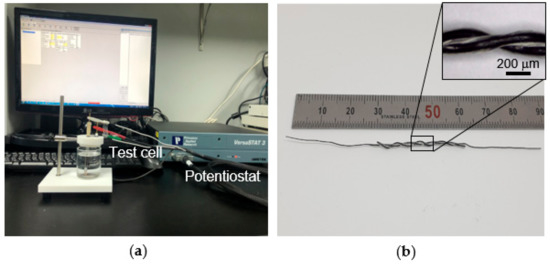

Figure 11. (a) Experiment set up with potentiostat and (b) photograph of fabricated fiber-shaped supercapacitor. Inset shows the magnified view.
Figure 11. (a) Experiment set up with potentiostat and (b) photograph of fabricated fiber-shaped supercapacitor. Inset shows the magnified view.
Energies 12 03127 g011
Energies 12 03127 g012 550

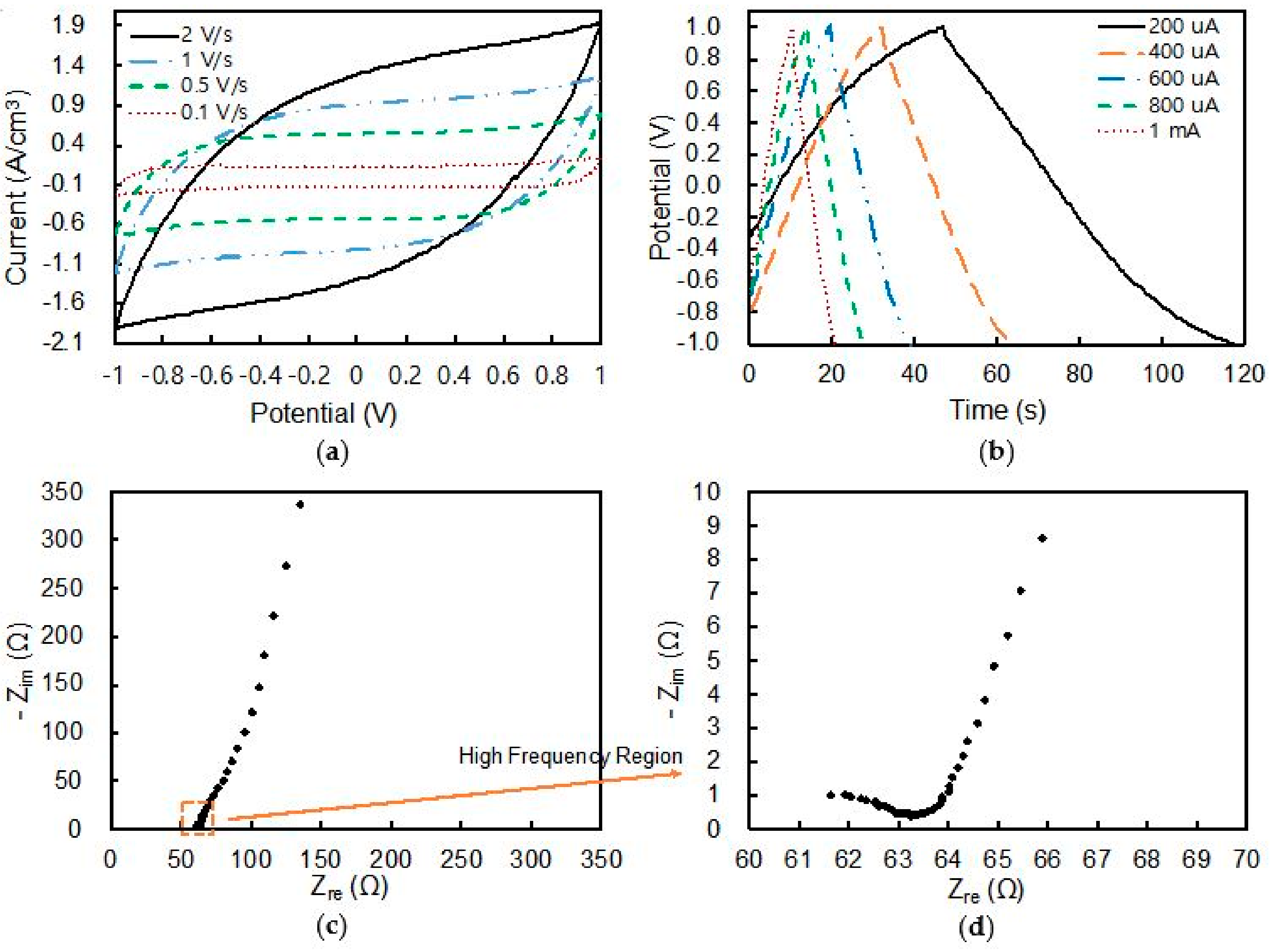

Figure 12. (a) CV curve of fiber-shaped supercapacitor at 0.1 V s−1–2 V s−1 scan rate; (b) GCD curve of the nanostructured electrodes at 200 μA–2 mA charging and discharging currents; (c) and (d) EIS of the nanostructured electrodes at 100 kHz–0.01 Hz under 2 V.
Figure 12. (a) CV curve of fiber-shaped supercapacitor at 0.1 V s−1–2 V s−1 scan rate; (b) GCD curve of the nanostructured electrodes at 200 μA–2 mA charging and discharging currents; (c) and (d) EIS of the nanostructured electrodes at 100 kHz–0.01 Hz under 2 V.
Energies 12 03127 g012
Energies 12 03127 g013 550

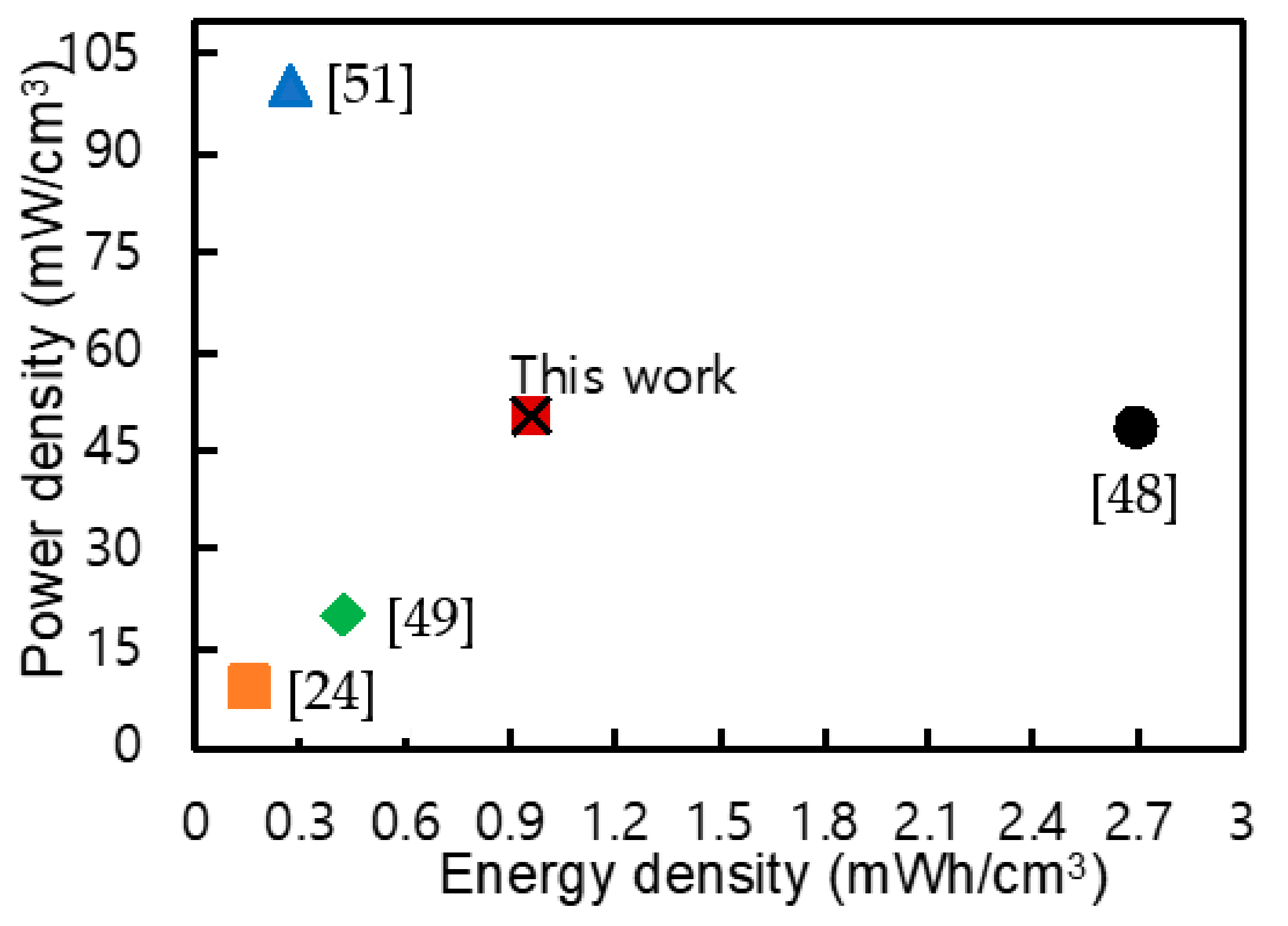

Figure 13. Ragone plot of supercapacitors in recent publications.
Figure 13. Ragone plot of supercapacitors in recent publications.
Energies 12 03127 g013
Energies 12 03127 g014 550

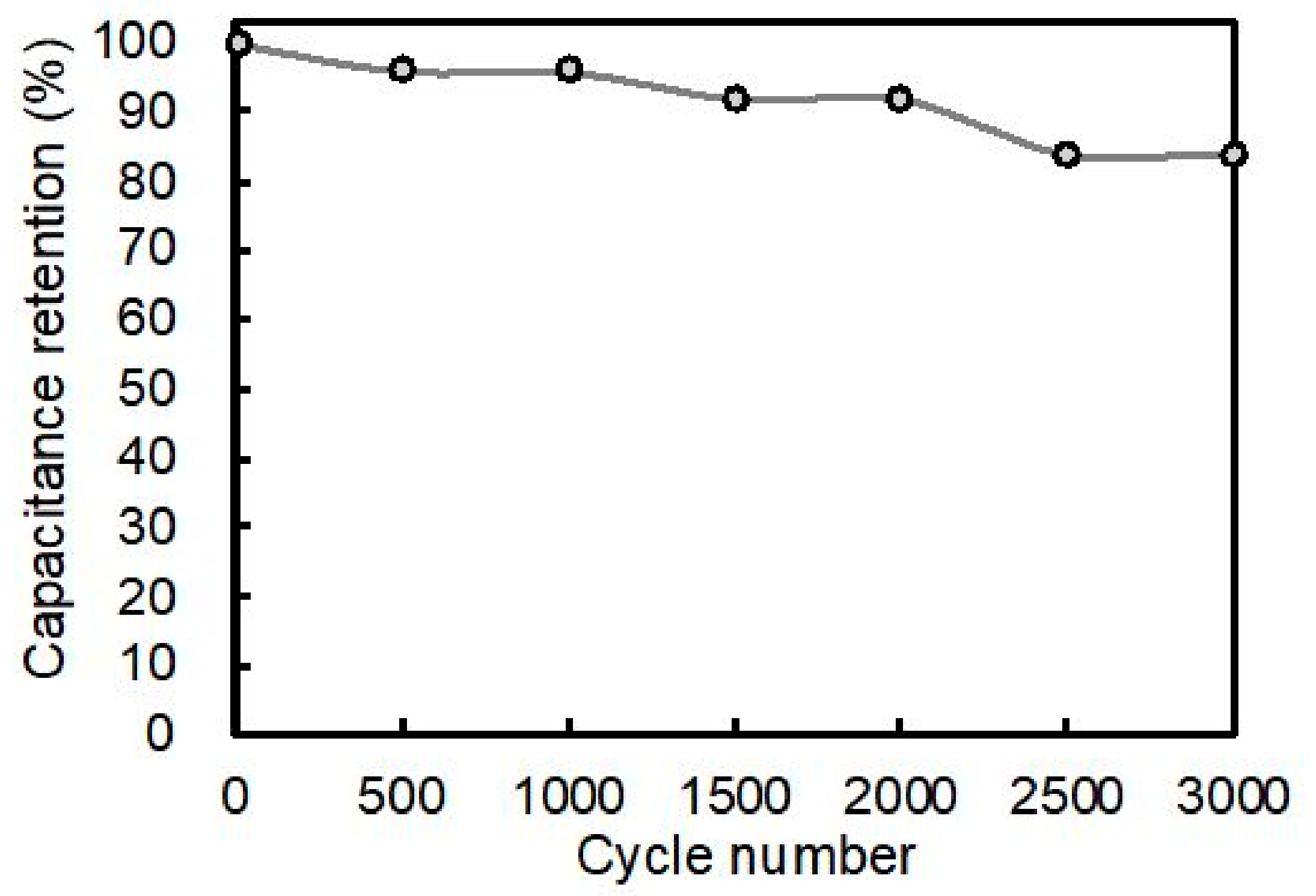

Figure 14. Cycling performance of device at charging and discharging current of 1 mA.
