Article

A Study on the Thermal Performance of Air-Type BIPVT Collectors Applied to Demonstration Building

1
Zero Energy Building Laboratory, Graduate School of Energy Systems Engineering, Kongju National University, Cheonan 31080, Korea
2
Green Energy Technology Research Center, Kongju National University, Cheonan 31080, Korea
3
Department of Architectural Engineering, Kongju National University, Cheonan 31080, Korea
*
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3120; https://doi.org/10.3390/en12163120
Received: 15 July 2019 / Revised: 9 August 2019 / Accepted: 9 August 2019 / Published: 14 August 2019
(This article belongs to the Section A2: Solar Energy and Photovoltaic Systems)

Abstract

:
Research on existing air-type PVT (photovoltaic/thermal) collectors has mainly focused on improving the efficiency of the collector itself and on using the energy produced by the collector in heating and cooling facilities and building energy. The first consideration in an air-type PVT system applied to a building facade is the collector arrangement and the flow path considering the collector performance. It is necessary to design the flow inside the air-type BIPVT (building integrated photovoltaic/thermal) collector so that it runs smoothly so as not to cause a dead space and a pressure drop inside the collector, which deteriorate the thermal performance. This study analyzed the thermal characteristics of an air-type BIPVT collector applied to a demonstration building (educational buildings) according to the air flow path and inlet opening ratio. For this purpose, the uniformity of the airflow in the collector was compared through the NX computational fluid dynamics (CFD) program, and the acquired thermal calories and thermal efficiency of the BIPVT collector were compared and analyzed. Based on the simulation results, the temperature and thermal characteristics of the BIPVT collector were compared.

1. Introduction

Photovoltaic (PV) systems use solar radiation to convert solar radiation into electricity, but untransformed absorbed solar radiation increases the PV cell temperature and reduces the electrical efficiency of the system. Therefore, photovoltaic/thermal (PVT) collectors have been developed that circulate air and liquid behind the PV panel. The PVT system integrates the solar cell and space through which the heat transfer medium flows, thereby efficiently utilizing the heat generated from the rear air gap of the PV simultaneously with electricity production at the front PV module. PVT systems are classified as air-type and liquid-type based on the thermal medium. Among these, the air-type PVT system has advantages in that it does not cause problems of leakage or freezing because air is used as the heating medium. In addition, unlike liquid type PVT, air-type PVT is easy to apply to buildings because there are few additional facilities to be installed, and when an air-type building integrated photovoltaic/thermal (BIPVT) is applied as a finishing material on a facade of a building, there is an advantage that building energy can be covered at the same time.
The electrical and thermal efficiencies of air-type PVT collectors have been analyzed and found to 9%–12% and 40%–60%, respectively [1]. To increase the efficiency of air-type PVT, numerical analysis modeling and research experiments to evaluate the performance of collectors have been carried out steadily. Calise et al. developed software that analyzes the quantitative performance of collectors as a function of key design/environmental variables through sensitivity analysis of the PVT collector; they also analyzed the experimental performance [2]. Ooshaksaraei et al. evaluated the energy and exergy performance of four air-based bifacial photovoltaic thermal collectors with four flow paths in the collector. Collector model with two (double-path parallel flow) had the highest total energy efficiency (51%–67%), followed by model three (double-path counter flow; 47%–62%), model four (single-path returning flow; 42%–56%), and model one (single-path; 28%–49%) [3]. Based on theoretical and experimental investigations on exergy of a PVT/TE (photovoltaic thermal/thermoelectric) system, Nazri et al. confirmed that the thermal exergy decreased while the PV exergy increased according to an increasing flow rate. Therefore, it was concluded that the temperature was an important factor affecting the conversion efficiency of the system. The results of this simulation showed that an increase in the overall power output and conversion efficiency may be achieved by incorporating TE to harvest heat from the PV cell. The exergy efficiency of the PVT collector of previous studies was 4%–18%, but the exergy efficiency of PVT/TE increased to 38% [4]. An air-type PVT system uses a method of changing the air flow inside the collector to increase the collection efficiency. In a study by Mohamed et al., four solar collectors—a PV module, air-type PVT, glazed PVT, and double pass glazed PVT –were compared. The resulting values of the daily average total energy efficiency were 26.6%, 51.0%, 69.5%, and 74.0%, respectively [5].
In other papers, a baffle was installed in the collector to prolong the air retention time and generate turbulence, contributing to efficiency improvement. Hu et al. analyzed the effects on collector performance of the number of baffles installed in the collector, the thickness of the air layer, and the operating conditions [6]. Mojumder et al. also analyzed the thermal and electrical performance of the PVT system to improve the PV electrical efficiency by 0.81% and the thermal efficiency by up to 56% depending on the presence or absence of fins in the collector under various conditions [7]. Yadav et al., using a computational fluid dynamics (CFD) program, studied air heat transfer inside a collector of a triangular baffle mounted on an absorber; they found that the Nusselt number increased 1.4 to 2.7 times compared to that of a collector without a baffle [8], Kumar et al. investigated the thermal performance when using a V-shaped baffle and various parameters (baffle width, width, height, and Reynolds number) [9].
Other studies have combined air-type PVT collectors and building facility systems have evaluated the performance of the preheated air source and the electrical energy obtained from the power generation for building energy. Hailu et al. used the TRNSYS program to compare the performance of the existing ASHP (air source heat pump) and air-type BIPVT with ASHP. They found a COP (coefficient of performance) improvement that was confirmed when the ambient temperature was above −3 °C [10]. Barone et al. designed a low-cost air-based PVT collector and developed a dynamic simulation model to analyze energy performance and economics under various operating conditions. The developed simulation model was implemented in Matlab code, and the collector was connected to an air-to-air heat pump for indoor heating of a sample building. The results depicted the effectiveness of the proposed system, namely; estimated primary energy savings were 11.0–19.7 MWh/year corresponding to 52%–80%, reduction in carbon dioxide emissions was 4.64–10.4 tCO2/year, and the simple pay-back period of 3.2–4.8 years was estimated [11].
Li et al. studied an efficient integration approach of a BIPVT system combined with HVAC (heating, ventilation, and air conditioning) and storage systems. On a sunny day, the heat pump operates to meet the heating requirements of the building and charges the energy produced by the BIPVT system into the thermal energy storage (TES) tank during the day. The total electrical energy consumption for three days was 84 kWh, the heating load for four days was 690.3 kW, and the total energy savings was 17.4% [12]. In the study of Kim et al., a 1 kWp collector was installed to evaluate the performance of an air-type PVT system combined with an HRV (heat recovery ventilator). The overall efficiency (heat and electricity efficiency) during the heating period was 38%, and thermal energy was reduced by 10% compared to that of the existing HRV-only system [13]. Sukamongkol et al. designed a model with a pneumatic PVT collector and a condenser heat recovery system. At the same time as electricity was produced by PV, the air source, preheated from the back of the PV module, and the heat source of the condenser were mixed and air (gas refrigerant) for inducing high temperature in the compressor was completely dehumidified. Consequently, the energy used in the air conditioner was reduced by about 18% [14].
Existing research on air-type PVT collectors has mainly focused on improving the efficiency of the collector itself and on performance using energy produced by collectors in building cooling and heating facilities, as well as building energy. However, the first thing to consider when actually applying such a system to a building is the method of connecting the collector and the connection path. It is necessary to design the flow inside the air-type BIPVT collector smoothly because there is a dead space that deteriorates the thermal performance of the collector and a pressure drop that occurs inside the collector if these factors are not taken into consideration.
Therefore, through a simulation program (NX CFD), this study analyzed the air flow characteristics of an air-type BIPVT collector installed in a demonstration building and analyzed the thermal characteristics of the air-type BIPVT collector through demonstration experiments.

2. Demonstration and Air-type BIPVT models

2.1. Demonstration Site

In this study, an air-type BIPVT collector was installed in an extension building of an elementary school (educational research facility) in Cheonan, Korea (36.84° N, 127.11° E). The target building had an air-type BIPVT collector installed on the southern side of the building, and had been expanded from a four-story building to a five-story building. The floor area of the enlarged building was 768.02 m2, mainly used as classrooms. An electric heat pump (EHP) and HRV were combined with the air conditioning system, and the operation schedule of the system was from Monday to Friday from 9:00 a.m. to 4:00 p.m. (Figure 1 and Figure 2).
Air-type BIPVT collectors were installed on the south side of the building, with an area of about 123 m2 in total, at the elevation of the four classrooms. The PV generation capacity of the 72 collectors installed was 10 kWp. The electricity generated was directly used in the building, and the preheated air was used as a heat source for the building load. Two classrooms were linked to an air handling unit (AHU) that used preheated air as a heat source for ventilation and heating from the collector (Figure 3). The air supply temperature was determined by controlling the flow rate of the air supplied from the outside to the BIPVT by controlling the sensible heat of the outside temperature and the set indoor temperature. Proportional control was performed using a damper to adjust the set indoor air temperature. In the other two classrooms, the method of operation was to use the air heat source directly or to exhaust it (Figure 4).
In Figure 3, the AHU acts as a fan (500 m3/h) in the air-type BIPVT system. Therefore, the preheated air can flow into the classroom and can mix with outdoor air by the open ratio of dampers trough PID (Proportional-Integral-Differential)-control. The BIPVT system in Figure 4 was equipped with a supply fan (SF, 500 m3/h) to allow preheated air to enter the room.
Air-type BIPVT collectors of five types were installed on the facades of the demonstration buildings.

2.2. Air-type BIPVT Collector

The air-type BIPVT collector designed for this study is shown in Figure 5. Unlike existing commercial modules, which are covered with PV cells, this model had PV cells and glass alternately arranged in the module. Each module consisted of about 36 monocrystalline silicon solar cells between two glass layers (glass to glass). A thermal absorber made of a thin sheet of metal coated with blue inside the collector is installed at the intersection of the PV cell. Thus, solar radiation can reach the thermal absorber directly through the glass. The absorber is designed in the form of a curved surface so that solar energy can be incident at any angle. These plates act as baffles and help ensure smooth airflow inside the collector. This feature allows solar energy to enter and flow well even if the air-type BIPVT collector is installed vertically on the building’s facade. Thus, the thermal performance of the collector can be increased.

2.3. Simulation Modeling of Air-Type BIPVT

To analyze the internal flow and thermal characteristics of the coupled air-type BIPVT collector, it was modeled through a flow analysis simulation program, the NX program, and the collector performance was compared and analyzed by CFD analysis after dividing the mesh. NX is a program that simulates fluid flow effects; it can rapidly generate flow regions of complex geometry and perform computational fluid dynamics [15].
Figure 6 shows the internal flow path of an air-type BIPVT collector integrated to the facade of one classroom with three flow paths. In the figure, the flow path marked in bold provides a connection between the air-type BIPVT collectors and forms a “⊥” type flow path. In the figure, the flow path marked in bold provides a connection path between the pneumatic BIPVT collector and the collector and forms a “⊥” type flow path. This flow path can be disadvantageous to the internal flow characteristics of the fan at the outlet. Therefore, the air flow was analyzed by setting the inlet opening ratio for each collector so that the air would flow smoothly. Ambient air is introduced at the lower BIPVT 1–6 (six collectors) and the fluid is discharged through connected collectors to the upper outlet (D 150 mm).
For the simulation analysis, four cases were designed with different opening ratios of air-type BIPVT 1–6. When the collector’s inlet opening ratio was 100%, the inlet area was 0.0755 m2; in all cases, BIPVT 1 and BIPVT 6 were the same, when the opening ratio was 100%. The opening ratios of BIPVT 2 and 5 were reduced to 100%, 50%, 25%, and 10% depending on cases (Table 1), and the opening ratios of BIPVT 3 and 4 were reduced by half (100%, 25%, 13%%, and 5%) compared to those of BIPVT 2 and 5. The opening ratio of the inlet near the outlet was reduced so that the air flow could be evenly distributed from the outlet to the far collector.
In order to set up four cases according to the inlet opening ratio, the inlet area was reduced and modeled. For simulation of the air-type BIPVT collector, the collector area was set at 14.28 m2, and thermal energy of 500 W per unit area was equally supplied to each case. In order to consider the surface heat loss of the collector, the outside temperature value was used as the input. The air density to be applied according to the temperature was specified at 1.225 kg/m3 (when the temperature was 25 °C). The gravity acceleration value was 9.81 m/s2 and buoyancy was applied. The computational domain and simulation conditions of the air-type BIPVT collector connection are showed Figure 7 and Table 2.
For the meshing strategy, the automatic meshing method was selected, which is a combination of the tetrahedron (patch matching) and sweep method. The sweep mesh of the collector not only reduces the count, but also provides a mesh that fits well with the flow. To capture the boundary layer, an expansion layer of the collector wall was used.
Mostly for the heat transfer fluid problems, the grid independence test was performed by considering average outlet temperature of the air-type BIPVT collector. Similarly, the simulation results were considered as grid independent as far as the temperature of BIPVT collector is concerned. The grid independence test was performed using four different grids having different number of elements such as 479,353, 643,112, 1,103,630, and 3,416,589, respectively. Averaging the temperature values obtained 43.13, 41.55, 41.87, and 41.59. It can be seen that the last three grids had an insignificant percentage difference between them that was approximately less than one percent. Therefore, the adequate grid of 643,112 elements was selected for computation.
The turbulence model used was the K-Epsilon model, the most common turbulence model, where k is the turbulent kinetic energy and ε is the dissipation rate of turbulent energy. This model is based on the time-averaged Navier–Stokes equations, which assumes that the time-varying velocities of turbulence can be divided into time-averaged velocities and velocity-dependent velocities. Therefore, the model itself is simple, which is advantageous in terms of calculation convergence [16].

2.4. Analysis of Simulation Results

2.4.1. Heat Transfer Performance

Figure 8 shows the distribution of the velocity inside the connected air-type BIPVT collector according to the opening ratio. The velocity in the collector was different for each of the four cases, and the air flow in case 4 was more uniform than those of the other cases.
Accordingly, the temperature distributions within the collectors were different from each other, as shown in Figure 9. In case 1, high temperatures were concentrated in the middle of the connected collector. On the other hand, in cases 2, 3, and 4, as the air inflow increased in BIPVT 1 and 6, the portions where the central high-temperature was concentrated gradually become uniform. As it passed through the collector, air flowed more smoothly in case 4 than in case 1, and the air flow became longer.
Therefore, the inlet opening ratios of BIPVT 1 and 6 were fixed at 100%, and as the opening ratio of BIPVTs 2, 3, 4, and 5 decreased, the air inflow of each BIPVT collector increased and the air flow became smooth.
Figure 10 is a graph showing the inlet velocity according to inlet opening ratio. In case 1, for all BIPVTs with the same inlet opening ratio of 100%, the inlet velocity slowed to 0.0113–0.214 m/s. The inlet velocities of cases 2, 3, and 4 were higher than that of case 1; especially, the inlet velocities of BIPVT 3 and 4 were higher than those of the other inlets. Case 4 shows that the flow velocities (about 3.8 m/s) of BIPVT 3 and 4 (opening ratio 5%) were higher than those of the other cases. This was because the inlet velocity increased as the inlet opening ratio decreased for the flow (500 m3/h) discharged to the outlet.
Figure 11 is a graph showing the inlet flow rate distribution according to the opening ratio. In cases 1 and 2, the inlet flow rates of BIPVT 3 and 4 were two times higher than those of the other inlets. On the other hand, case 4 had more uniform flow distribution than the other cases. Therefore, it was thought that BIPVT 3 and 4 should have small opening ratios and high flow rates in order to maintain uniform air inflow amount for each BIPVT collector.
Figure 12 is a graph of the heat gain according to the outlet velocity. When the flow velocity of the air-type PVT collector’s outlet is high, air flowing inside the collector passes through with little heat gain. The outlet velocities of cases 3 and 4 were 4.65 m/s and 4.69 m/s, respectively, which were relatively slow. Accordingly, the heat gains of Cases 3 and 4 were high at 1433.8 W and 1552.3 W, respectively.
Therefore, the flow velocity and temperature distribution in the BIPVT 1–6 collector for case 4 were relatively uniform. In addition, each inlet flow rate of BIPVT 1–6 was uniformly supplied and the amount of heat gained by air passing through the collector was confirmed to be high. As a result, it was thought that the BIPVT collector performance in case 4 was relatively favorable in terms of heat transfer.

2.4.2. Pressure Drop and Thermal Efficiency

The pressure drop inside the air-type BIPVT collector is as important as the heat transfer performance because it is related to the blowing (fan) power. As the pressure drop in the collector increases, the power required for flow increases and the heat transfer performance decreases. The Reynolds number is the ratio of the force due to inertia to the force due to viscosity (Equation (1)) and is a factor determining laminar flow and turbulence. If the Reynolds number is high, the flow is classified as turbulent. The characteristics of this flow (turbulent flow) are fast and turbulent, such as when a vortex occurs. Thus, the heat transfer and heat diffusion effects in the BIPVT collector are strong.
R e = ρ   V   L μ = V   L ν = I n e r t i a l   f o r c e s V i s o u s   f o r c e s .
ρ : Density of the fluid (kg/m3); V: Average velocity of the air (m/s); L: Characteristic linear dimension (m); μ : Dynamic viscosity of the fluid (kg/ms); and ν : Kinematic viscosity of the fluid (m2/s).
Figure 13 is a graph showing the pressure drop in a pneumatic BIPVT collector according to the Reynolds number. The pressure drop was the lowest in case 1 (372 Pa); order of case 4, case 3, and case 2 was shown.
The Reynolds numbers of all cases were the turbulence values; case 4 had the largest value of 110,400. It was found that for the larger BIPVT inlet opening ratios in case 3, case 2, and case 1, the Reynolds numbers were smaller. Therefore, the heat transfer performances of the case 3 and 4 collectors with large Reynolds numbers and relatively low-pressure drops were more favorable.
Generally, the thermal efficiency of air-type BIPVT collector can be calculated using Equation (2). Table 3 shows the thermal efficiency of the air-type BIPVT collectors. The inlet/outlet temperatures of the collectors were obtained by simulation. Based on this analysis, the thermal efficiency of the air-type PVT collector was found to be highest in case 4 (39.5%), approximately 20% higher than that in case 1.
In case 1, a lot of air was introduced into BIPVT collectors 3 and 4 while, in case 4, the amount of air flowing in each inlet was uniform. This leads to an increase in the outlet temperature of the connected BIPVT because the flow path, which can be preheated, becomes longer as more of the externally introduced air passes through each of the collectors. Consequently, it was found that the thermal efficiency of case 4 was the highest. It was confirmed that a smaller opening ratio of the inlet near the outlet led to higher thermal performance of the air-type BIPVT collector.
η t h = Q 2 Q 1 = m ˙   C p   ( T o u t l e t T i n l e t ) A B I P V T   G .
ABIPVT: Surface area of the collector (m2); G: Solar radiation (W/m2); m ˙ : Mass flow rate (kg/h); Cp: Specific heat of air at a constant pressure (J/kg °C); Toutlet: Outlet air temperature of BIPVT (°C); Tinlet: Inlet air temperature of BIPVT (°C); and η t h : Thermal efficiency (–).

3. Analysis of Experiment Results

The meteorological data elements measured for the demonstration experiment were vertical irradiation, outside temperature, outside humidity, wind direction, wind speed, and atmospheric pressure (Table 4). A meteorological data measuring device was installed on the roof of the building, without shadows. To measure the performance of the air-type BIPVT collector, the cell temperature of the PV module, the outlet temperature, and the humidity of the BIPVT collector were measured. A flowmeter, thermo/humidity meter at the outlet of the BIPVT collector was installed in the duct, and a T-type thermocouple sensor to measure the cell temperature was attached to the back of the PV module.
Based on the simulation results, the performance of the air-type BIPVT collector applied to the south side facade of the demonstration building was analyzed. Figure 14 is a graph showing the ambient conditions of a clear day (22 March 2018) and the flow rate and cell temperature of the air-type BIPVT collector. Preheated air from the collector applied to the facade enters the building’s AHU (air handling unit) system. The flow rate of the collector was kept at 500 m3/h when the AHU system fan was operated.
In the experiment, it was found that the outside temperature was up to 20 °C, and this outdoor air flowed into the collector inlet. The cell temperature at the back of the PV module of the connected collector rose to a maximum of 47 °C, and the outlet temperature of the air-type BIPVT rose to a maximum of 40 °C. The backside cell temperature of the PV module and the outlet temperature of collector were also similar to the solar radiation trend. Outside air at 17–18 °C flowed into the collector inlet and preheated air with a temperature of 20 °C or higher was used in the AHU system, combined with the heat of the building; as such, the energy used in the building could be reduced.
Figure 15 is a graph showing the temperature characteristics of the connected air-type BIPVT collectors. The temperature characteristics of the collector confirm the backside temperature of the PV module and the temperature difference between the inlet and outlet of the collector. First, the temperature of the backside of the PV module was measured at two bottom points and at one top center point of the connected collector (Figure 6); the temperature of the backside of the module increased as the solar radiation increased. The temperature of the upper PV module of the collector was also consistently about 7 °C higher than the temperature of the lower module. Next, the inlet/outlet temperature difference of the collector was found to increase with the increase of the irradiation amount and reached 20 °C or more.
Figure 16 is a graph showing the daily hourly thermal performance of the air-type BIPVT collector. The amount of solar radiation per day was 650–800 W/m2; the amount of solar radiation input into the collector was an average of 6 kW/h. As a result, the thermal energy produced by the BIPVT collector was an average of 4.4 kW/h. The thermal efficiency of the coupled air-type BIPVT collector was calculated by substituting the actual measured solar irradiance and the collector inlet/outlet temperature difference into Equation (2). The thermal efficiency on the day of the experiment was analyzed and found to be 33.4% on the average; this value showed a difference of about 6% p from the simulation result of 39.5%.

4. Conclusions

An air-type BIPVT collector is important to keep air flow inside the collector uniform to obtain a high-temperature air heat source. In this study, the inlet opening ratio of the collector was adjusted for smooth and long air flow through connected several collectors; the air flow characteristics inside the collector were analyzed through CFD simulation.
As a result of the simulation analysis, it was found that the temperature and flow velocity distribution became smooth as the opening ratio of the air-type BIPVT collector became smaller in terms of heat transfer; also, the flow distribution of air flowing into the inlet became uniform. Accordingly, the thermal efficiency of case 4 was 20% higher than that of case 1. Based on the analysis of the CFD results, case 4, which had the most favorable air flow, was applied to the demonstration. As a result, the temperature difference between inlet and outlet of the connected BIPVT collector showed values of up to 20 °C or more; average thermal energy produced per hour was 4.4 kW (thermal efficiency was approximately 33.4%).
When installing an air-type BIPVT collector according to the design of the building facade, the internal path and the connecting method of the inlet/outlet with collectors should be considered. The collector airflow should be designed to flow uniformly. In the future, based on demonstration experiment results, it will be necessary to analyze the energy performance of the AHU system using an air heat source from an air-type BIPVT collector.

Author Contributions

Conceptualization, J.-T.K., and J.-H.K.; methodology, J.-H.K., and J.-S.Y.; software, J.-S.Y.; validation, J.-T.K., J.-H.K. and J.-S.Y.; formal analysis, J.-S.Y.; investigation, J.-H.K. and J.-S.Y.; resources, J.-T.K.; data curation, J.-H.K. and J.-S.Y.; writing—original draft preparation, J.-S.Y.; writing—review and editing, J.-T.K., J.-H.K. and J.-S.Y.; visualization, J.-H.K. and J.-S.Y.; supervision, J.-T.K.; project administration, J.-S.Y.; funding acquisition, J.-T.K. and J.-H.K.

Funding

This research was funded by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry and Energy (MOTIE) of the Republic of Korea, grant number 20188550000480 and 20173010013420.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

A B I P V T Surface area of the collectorm2
CpSpecific heat of air at a constant pressureJ/kg°C
GSolar radiationW/m2
LCharacteristic linear dimensionm
m ˙ Mass flow ratekg/h
ToutletOutlet air temperature of BIPVT°C
TinletInlet air temperature of BIPVT°C
VAverage velocity of the airm/s
η t h Thermal efficiency-
μ Dynamic viscosity of the fluidkg/ms
ν Kinematic viscosity of the fluidm2/s
ρ Density of the fluidkg/m3

Abbreviations

PVPhotovoltaic
PVTPhotovoltaic thermal
BIPVTBuilding integrated photovoltaic thermal
CFDComputational fluid dynamics
BIPVTBuilding integrated photovoltaic thermal
PVT/TEPhotovoltaic thermal/Thermoelectric
ASHPAir source heat pump
COPCoefficient of performance
TESThermal energy storage
HAVCHeating, Ventilation, and Air conditioning
HRVHeat recovery ventilator
EHPElectric heat pump
AHUAir Handling Unit
SFSupply fan
OAOutdoor air
EAExhaust air
RAReturn air
SASupply air
PIDProportional-Integral-Differential
G/GGlass to Glass
T.C.Temperature center
T.B.L.Temperature bottom left
T.B.R.Temperature bottom right

References

  1. Sandeep, S.J.; Ashwinkumar, S.D. Photovoltaic-Thermal systems (PVT): Technology review and future trends. Renew. Sustain. Energy Rev. 2018, 92, 848–882. [Google Scholar] [CrossRef]
  2. Calise, F.; Figaj, R.D.; Vanoli, L. Experimental and Numerical Analyses of a Flat Plate photovoltaic/Thermal Solar Collector. Energies 2017, 10, 491. [Google Scholar] [CrossRef]
  3. Ooshaksaraei, P.; Sopian, K.; Zaidi, S.H.; Zulkifli, R. Performance of four air-based photovoltaic thermal collectors configurations with bifacial solar cells. Renew. Energy 2017, 102, 279–293. [Google Scholar] [CrossRef]
  4. Nazri, N.S.; Fudholi, A.; Mustafa, W.; Yen, C.H.; Mohammad, M.; Ruslan, M.H.; Sopian, K. Exergy and improvement potential of hybrid photovoltaic thermal/thermoelectric (PVT/TE) air collector. Renew. Sustain. Energy Rev. 2019, 111, 132–144. [Google Scholar] [CrossRef]
  5. Mohamed, E.A.S.; Amirat, M.; Kuruca, I.; Bahria, S.; Hamidat, A.; Chaouch, W.B. A detailed thermal electrical model of three photovoltaic thermal (PVT) hybrid air collectors and photovoltaic (PV) module: Comparative study under Algiers climatic conditions. Energy Convers. Manag. 2017, 133, 458–476. [Google Scholar] [CrossRef]
  6. Hu, J.; Sun, X.; Xu, J.; Li, Z. Numerical analysis of mechanical ventilation solar air collector with internal baffles. Energy Build. 2013, 62, 230–238. [Google Scholar] [CrossRef]
  7. Mojumder, J.C.; Chong, W.T.; Ong, H.C.; Leong, K.Y.; Mamoon, A.A. An experimental investigation on performance analysis of air type photovoltaic thermal collector system integrated with cooling fins design. Energy Build. 2016, 130, 272–285. [Google Scholar] [CrossRef]
  8. Yadav, A.S.; Bhagoria, J.L. A CFD Analysis of A Solar Air Heater Having Triangular Rib Roughness On The Absorber Plate. Int. J. ChemTech Res. 2013, 5, 964–971. [Google Scholar]
  9. Kumar, R.; Kumar, A.; Chauhan, R.; Sethi, M. Heat transfer enhancement in solar air channel with broken multiple V-type baffle. Case Stud. Therm. Eng. 2016, 8, 187–197. [Google Scholar] [CrossRef][Green Version]
  10. Hailu, G.; Dash, P.; Fung, A.S. Performance evaluation of an air source heat pump coupled with a Building-Integrated Photovoltaic/Thermal(BIPV/T) system under cold climatic conditions. Energ. Procedia 2015, 78, 1913–1918. [Google Scholar] [CrossRef]
  11. Barone, G.; Buonomano, A.; Forzano, C.; Palombe, A.; Panagopoulos, O. Experimentation, modelling and applications of a novel low-cost air-based photovoltaic thermal collector prototype. Energy Convers. Manag. 2019, 195, 1079–1097. [Google Scholar] [CrossRef]
  12. Li, S.; Joe, J.W.; Hu, J.; Karava, P. System identification and model-predictive control of office buildings with integrated PVT collectors. Sol. Energy 2015, 113, 139–157. [Google Scholar] [CrossRef]
  13. Kim, J.H.; Ahn, J.G.; Kim, J.T. Demonstration of the Performance of an Air-Type photovoltaic Thermal (PVT) System Coupled with a Heat-Recovery Ventilator. Energies 2016, 9, 728. [Google Scholar] [CrossRef]
  14. Sukamongkol, Y.; Chungpaobulpatana, S.; Limmeechokchai, B.; Sripadungtham, P. Condenser heat recovery with a PV/T air heating collector to regenerate desiccant for reducing energy use of an air conditioning room. Energy Build. 2010, 42, 315–325. [Google Scholar] [CrossRef]
  15. Siemens PLM Software. Available online: http://www.plm.automation.siemens.com/products/nx/about-nx-software.shtml (accessed on 1 December 2016).
  16. Launder, B.E.; Spalding, D.B. The numerical computation of turbulent flows. Comput. Methods Appl. Mech. Eng. 1974, 3, 269–289. [Google Scholar] [CrossRef]

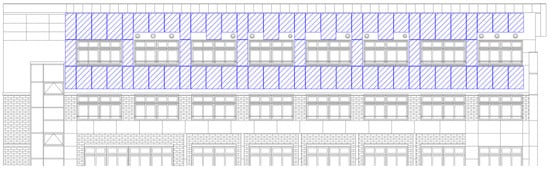

Figure 1. Air-type building integrated photovoltaic/thermal (BIPVT) collector on the demonstration building.
Figure 1. Air-type building integrated photovoltaic/thermal (BIPVT) collector on the demonstration building.
Energies 12 03120 g001

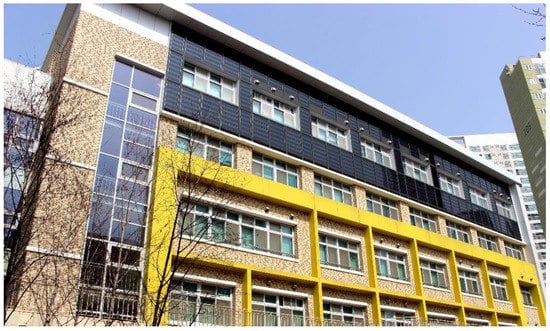

Figure 2. Demonstration building with air-type BIPVT collectors.
Figure 2. Demonstration building with air-type BIPVT collectors.
Energies 12 03120 g002

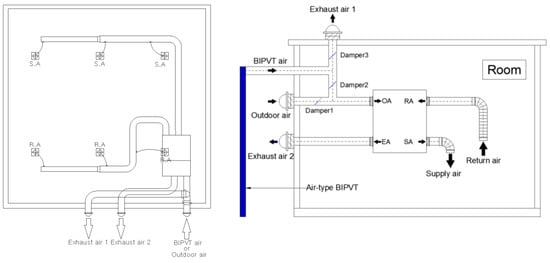

Figure 3. Classrooms installed air handling units with air-type BIPVT collectors.
Figure 3. Classrooms installed air handling units with air-type BIPVT collectors.
Energies 12 03120 g003

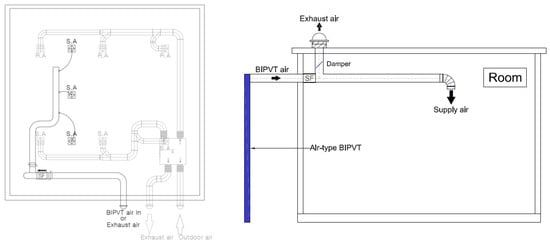

Figure 4. Classrooms using directly preheating air of air-type BIPVT collectors.
Figure 4. Classrooms using directly preheating air of air-type BIPVT collectors.
Energies 12 03120 g004

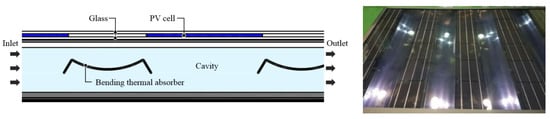

Figure 5. Applied air-type BIPVT collector.
Figure 5. Applied air-type BIPVT collector.
Energies 12 03120 g005

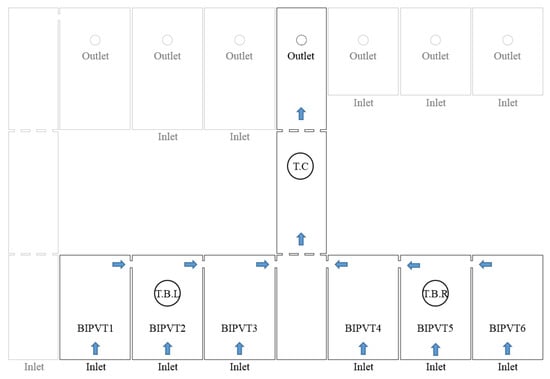

Figure 6. Air-type BIPVT collector connection air flow concept.
Figure 6. Air-type BIPVT collector connection air flow concept.
Energies 12 03120 g006

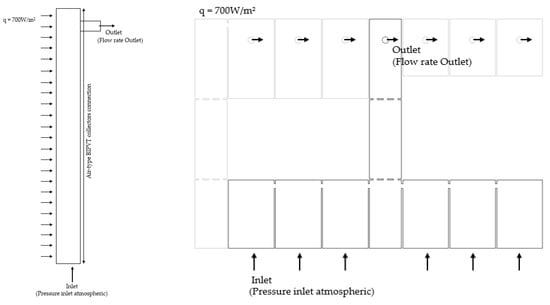

Figure 7. The computational domain of the air-type BIPVT collector connection.
Figure 7. The computational domain of the air-type BIPVT collector connection.
Energies 12 03120 g007

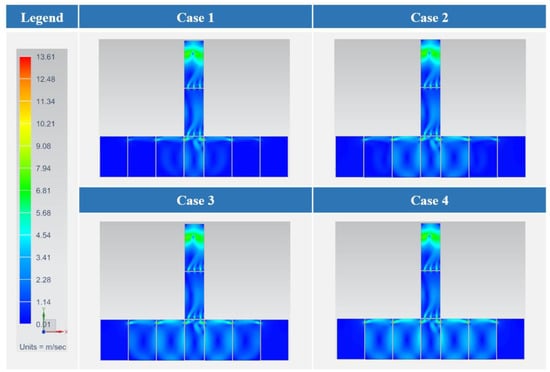

Figure 8. Velocity distribution in an air-type BIPVT collector.
Figure 8. Velocity distribution in an air-type BIPVT collector.
Energies 12 03120 g008

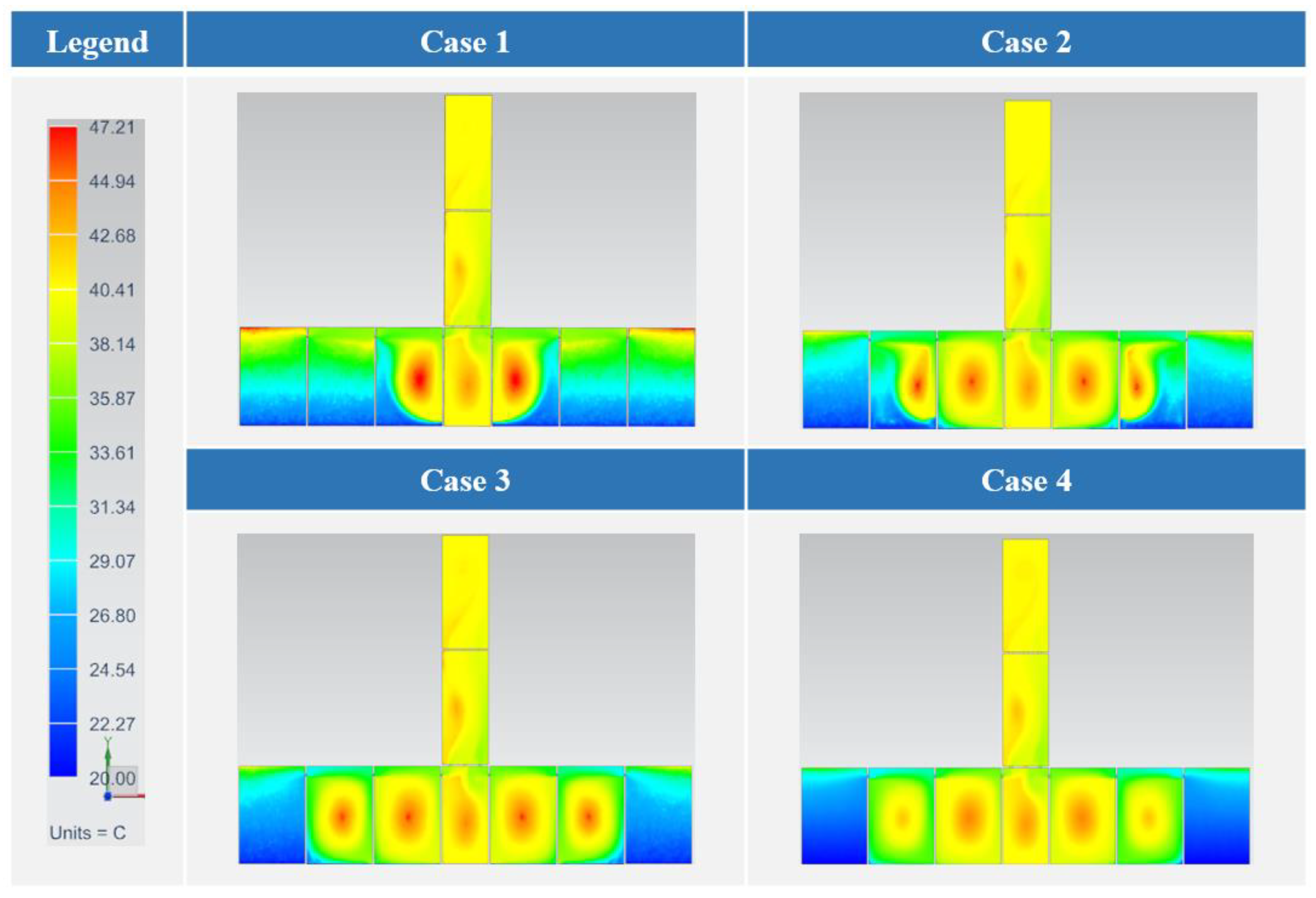

Figure 9. Temperature distribution in an air-type BIPVT collector.
Figure 9. Temperature distribution in an air-type BIPVT collector.
Energies 12 03120 g009

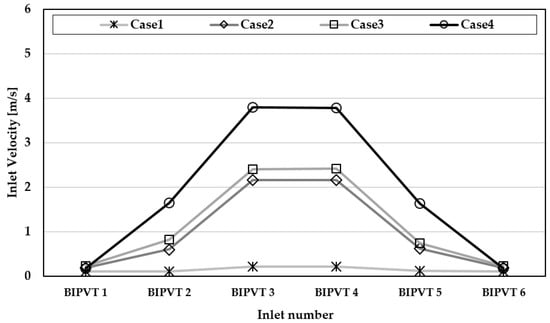

Figure 10. Inlet velocity according to the inlet opening ratio.
Figure 10. Inlet velocity according to the inlet opening ratio.
Energies 12 03120 g010

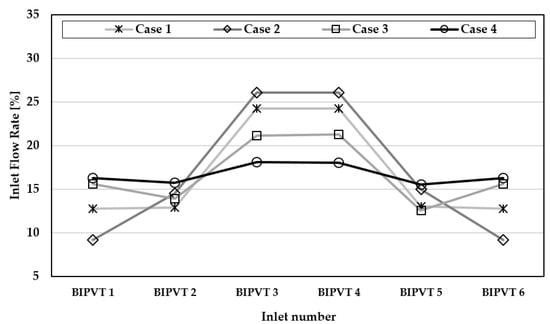

Figure 11. Inlet flow rate according to the inlet opening ratio.
Figure 11. Inlet flow rate according to the inlet opening ratio.
Energies 12 03120 g011

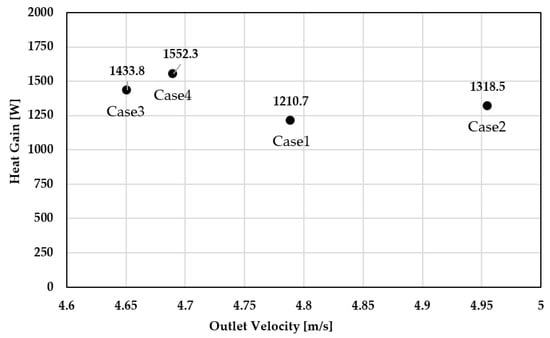

Figure 12. Heat gain according to the outlet velocity.
Figure 12. Heat gain according to the outlet velocity.
Energies 12 03120 g012

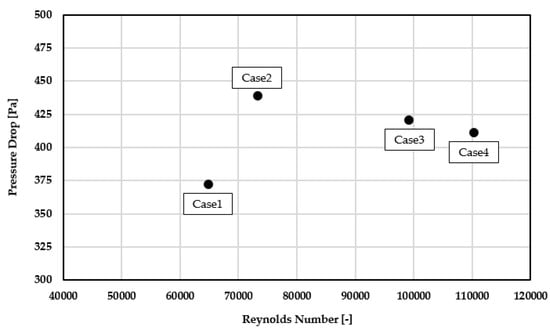

Figure 13. Pressure drop in an air-type BIPVT collector.
Figure 13. Pressure drop in an air-type BIPVT collector.
Energies 12 03120 g013

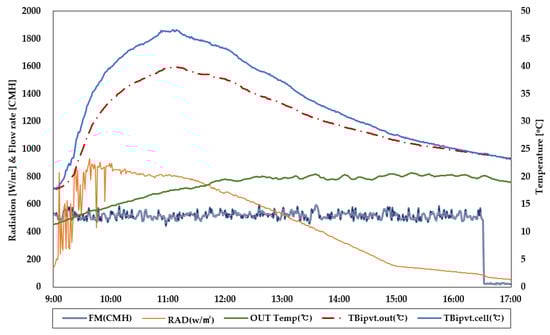

Figure 14. Daily ambient condition of an air-type BIPVT collector.
Figure 14. Daily ambient condition of an air-type BIPVT collector.
Energies 12 03120 g014

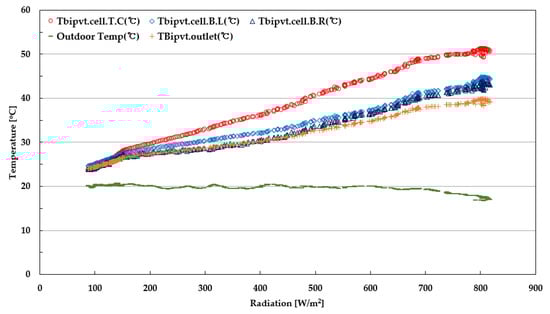

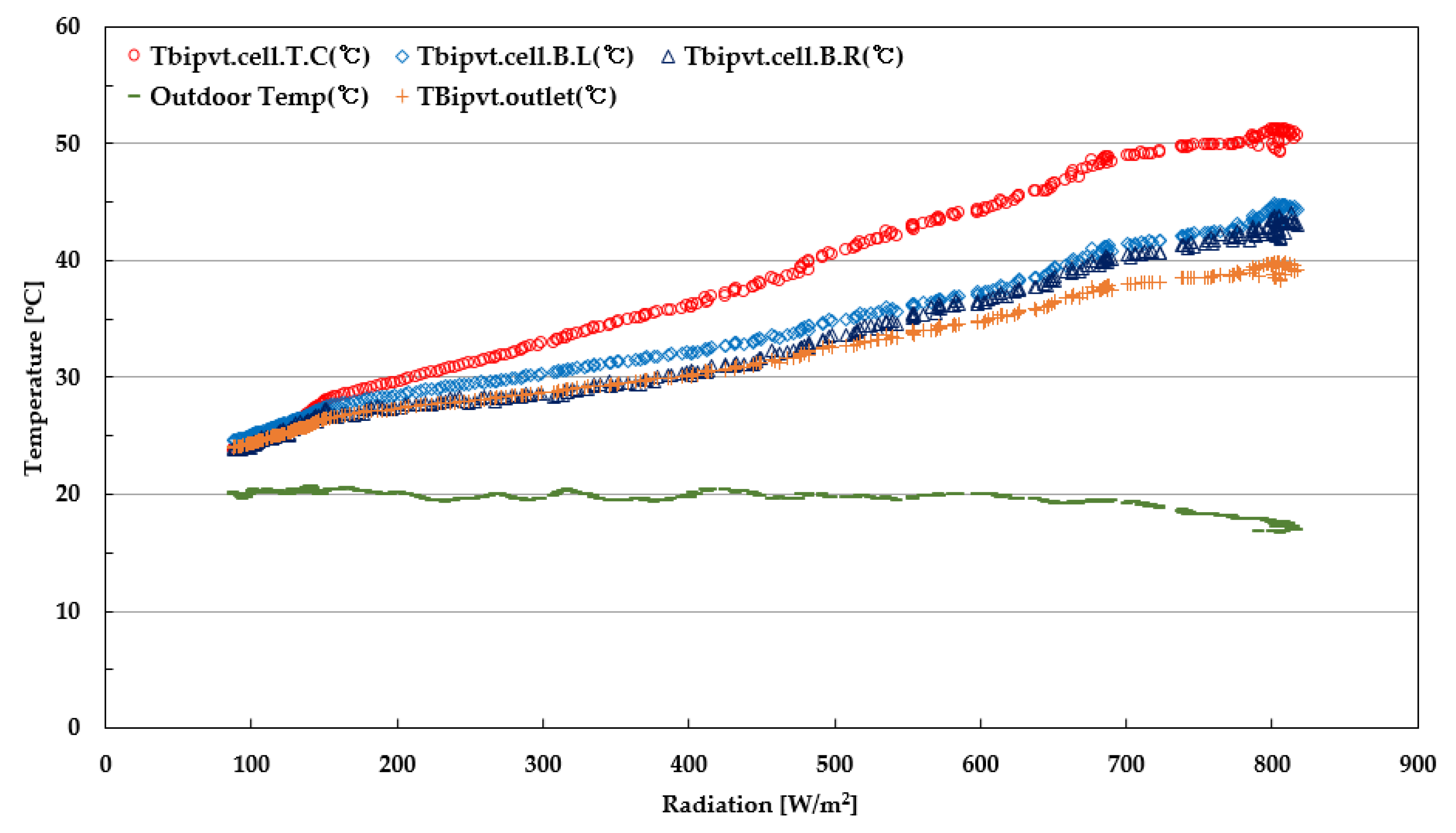

Figure 15. Temperature characteristics according to solar radiation.
Figure 15. Temperature characteristics according to solar radiation.
Energies 12 03120 g015

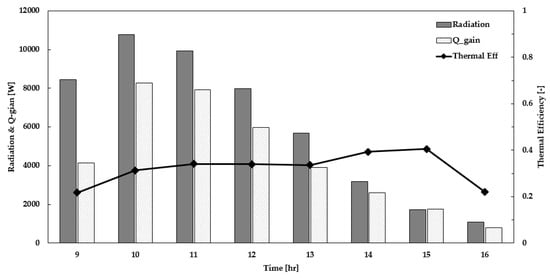

Figure 16. Daily thermal performance of the air-type BIPVT collector.
Figure 16. Daily thermal performance of the air-type BIPVT collector.
Energies 12 03120 g016
Table 1. Inlet open rate of air-type BIPVT collector.
Table 1. Inlet open rate of air-type BIPVT collector.
Inlet Area (m2)BIPVT 1 (%)BIPVT 2 (%)BIPVT 3 (%)BIPVT 4 (%)BIPVT 5 (%)BIPVT 6 (%)
Case 10.0755100100100100100100
Case 210050252550100
Case 310025131325100
Case 4100105510100
Table 2. Computational fluid dynamics (CFD) simulation conditions.
Table 2. Computational fluid dynamics (CFD) simulation conditions.
ParametersValue
Turbulent modelk-ε model
Total air-type PVT area14.28 m2
Outlet duct diameterD150
Heat flux700 W/m2 on the PV surface
Inlet temperature5 °C
Inlet conditionPressure inlet atmospheric
Outlet conditionOutlet flow
(Flow rate 500 m3/h)
Outdoor temperature5 °C
Outdoor velocityNatural convection
Gravity9.81 m/s2
Buoyancyapplication
Table 3. The thermal efficiency of an air-type BIPVT collector.
Table 3. The thermal efficiency of an air-type BIPVT collector.
Case 1Case 2Case 3Case 4
Thermal efficiency (–)0.3110.3390.3650.395
Table 4. Specifications of the measuring equipment.
Table 4. Specifications of the measuring equipment.
Type (Model)Specification
Pyrgeometer (Kipp&Zonen)Operating temperature: −40 °C to +80 °C
Spectral range: 4.4 to 50 µm
Accuracy: <1% (−20 °C to +50 °C)
Mass flow meter (KMSG-8000MI)Operating temperature: −40 °C to +220 °C
Measurement range: 0.1 to 100 Nm/s
Accuracy: ±0.5%
Air temperature/relative humidity (EE210)Operating temperature: −40 °C to +60 °C
Measurement range: −40 °C to +60 °C/0% RH to 100% RH
Accuracy: ±0.2 °C/±1.6% RH
T-type thermocouple (Omega)Operating temperature: −60 °C to +100 °C
Measurement range: −250 °C to +350 °C
Accuracy: 1 °C or 0.75%
Weather station (Davis)Operating temperature: −40 °C to +65 °C
Measurement range: −40 °C to +65 °C (temperature), 1 to 100% RH (humidity), 1 to 360° (wind direction), 0 to 89 m/s (wind speed), 410 to 820 mmHg (atmospheric pressure)
Accuracy: ±0.3 °C (temperature), ±2%(humidity), ±0.3°(wind direction), ±5% (wind speed), ±0.8 mmHg (atmospheric pressure)

Share and Cite

MDPI and ACS Style

Yu, J.-S.; Kim, J.-H.; Kim, J.-T. A Study on the Thermal Performance of Air-Type BIPVT Collectors Applied to Demonstration Building. Energies 2019, 12, 3120. https://doi.org/10.3390/en12163120

AMA Style

Yu J-S, Kim J-H, Kim J-T. A Study on the Thermal Performance of Air-Type BIPVT Collectors Applied to Demonstration Building. Energies. 2019; 12(16):3120. https://doi.org/10.3390/en12163120

Chicago/Turabian Style

Yu, Ji-Suk, Jin-Hee Kim, and Jun-Tae Kim. 2019. "A Study on the Thermal Performance of Air-Type BIPVT Collectors Applied to Demonstration Building" Energies 12, no. 16: 3120. https://doi.org/10.3390/en12163120

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
