Metal/Semiconductor Barrier Properties of Non-Recessed Ti/Al/Ti and Ta/Al/Ta Ohmic Contacts on AlGaN/GaN Heterostructures
1
Consiglio Nazionale delle Ricerche—Istituto per la Microelettronica e Microsistemi (CNR-IMM), Strada VIII, n. 5, Zona Industriale, 95121 Catania, Italy
2
Department of Physics and Astronomy, University of Catania, Via Santa Sofia, 64, 95123 Catania, Italy
3
Department of Physics and Chemistry, University of Palermo, Via Archirafi, 36, 90123 Palermo, Italy
*
Authors to whom correspondence should be addressed.
Received: 16 May 2019 / Accepted: 3 July 2019 / Published: 10 July 2019

Abstract

:
This paper compares the metal/semiconductor barrier height properties of non-recessed Ti/Al/Ti and Ta/Al/Ta contacts on AlGaN/GaN heterostructures. Both contacts exhibited a rectifying behavior after deposition and after annealing at temperatures up to 550 °C. The ohmic behavior was reached after annealing at 600 °C. High-resolution morphological and electrical mapping by conductive atomic force microscopy showed a flat surface for both contacts, with the presence of isolated hillocks, which had no significant impact on the contact resistance. Structural analyses indicated the formation of the Al3Ti and Al3Ta phases upon annealing. Furthermore, a thin interfacial TiN layer was observed in the Ti/Al/Ti samples, which is likely responsible for a lower barrier and a better specific contact resistance (ρc = 1.6 × 10−4 Ωcm2) with respect to the Ta/Al/Ta samples (ρc = 4.0 × 10−4 Ωcm2). The temperature dependence of the specific contact resistance was described by a thermionic field emission mechanism, determining barrier height values in the range of 0.58–0.63 eV. These results were discussed in terms of the different microstructures of the interfaces in the two systems.
Keywords:
AlGaN/GaN; ohmic contacts; barrier height; Ti/Al/Ti; Ta/Al/Ta

1. Introduction

Gallium Nitride (GaN) and relative alloys have been considered as very good materials for modern high-power and high-frequency devices to replace existing silicon (Si) technology [1,2]. In particular, the existence of a two-dimensional electron gas (2DEG) in AlGaN/GaN heterostructures is the key feature for the fabrication of high electron mobility transistors (HEMTs) [3]. For these devices, a low resistance of the source and drain ohmic contacts is mandatory to reduce the total device on-resistance.
The formation mechanisms of ohmic contacts on AlGaN/GaN heterostructures have been widely studied in recent decades [4]. Generally, Ti/Al/γ/Au metal multilayers (where γ = Ni, Mo, Ti…) can be used to achieve an ohmic behavior upon annealing at 800–850 °C [4,5,6], in which the single layers play a specific role. Specifically, the uppermost Au layer is aimed at preventing surface oxidation [7], but it also forms highly conductive phases upon annealing, which improve the overall electrical conduction of the reacted stack and its contact resistance [8]. At the same time, however, the presence of Au induces a high surface roughness in the reacted contacts [8,9] and, hence, a poor edge acuity of the lithographically defined electrodes that can be detrimental for the final device reliability.
Recently, GaN-on-Si epitaxial wafers up to 200 mm in diameter, of adequate electronic quality, for HEMT fabrication have been demonstrated [10]. Hence, the possibility to integrate GaN HEMT technology on the existing Si Complementary Metal-Oxide Semiconductor (CMOS) platforms opened a series of manufacturing challenges [11]. As an example, in order to have GaN devices processing to be adaptable to a Si CMOS environment, the traditional Ti/Al/γ/Au schemes must be replaced by “Au-free” ohmic contacts.
The easiest approach to fabricate ohmic contacts without gold (“Au-free”), is to remove the uppermost Au layer in the stack. In particular, to this aim, many authors proposed the use of low work-function Ti-based or Ta-based systems (Ti/Al, Ta/Al, Ti/Al/TiN) [12,13,14,15,16,17,18], to obtain a low Schottky barrier height ΦB with AlGaN and, hence, a low value of specific contact resistance ρc [Ωcm2]. All these works revealed the importance of several parameters, such as the thermal annealing processes, the metal’s thickness or the GaN material quality [15,16,19,20].
In this context, although many papers have reported on Ti- or Ta- based ohmic contact [4,13,14,16,18,19,21], these systems deserve further investigations for a better comprehension of their electrical behavior. Indeed, in the literature, there is a lack of information on the barrier height properties and on the carrier transport mechanisms at these interfaces.
In this study, the electrical, structural and morphological properties of Ti/Al/Ti and Ta/Al/Ta contacts on AlGaN/GaN heterostructures have been monitored as a function of the annealing temperature. The temperature behavior of the specific contact resistance ρc(T) enabled us to identify the dominant transport mechanism at the metal/AlGaN interface and to determine the barrier height values in the two systems. The electrical results have been linked to the structural and morphological modifications occurring after the annealing process.

2. Materials and Methods

Our experiments were performed on Al0.26Ga0.74N/GaN heterostructures grown onto Si wafers. The AlGaN barrier layer was 16 nm thick, while the two dimensional electron gas (2DEG) exhibited a sheet carrier density of 7.45 × 1012 cm−2. First, the sample’s surface was subjected to a cleaning process in diluted HF:HCl solution. Two Ti- and Ta-based metal stacks deposited by sputtering were compared, i.e., Ti(10nm)/Al(300nm)/Ti(20nm) and Ta(10nm)/Al(300nm)/Ta(20nm). For the electrical characterization, linear Transmission Line Model (TLM) structures were defined by optical lithography and lift-off. The TLM geometry consisted of rectangular pads (100 µm × 200 µm), at distances d varying between 20 and 100 µm. The lateral isolation of the TLM patterns was obtained by a plasma etch. Then, rapid thermal annealing (RTA) processes of the samples were performed in Ar atmosphere in the temperature range 400–600 °C, using a Jipelec JetFirst 150 furnace. The electrical properties of the contacts were monitored after each annealing step, and the specific contact resistance ρc was determined using the standard TLM method [22]. The current–voltage (I–V) measurements on the TLM structures were performed on a Karl Suss Microtec probe station equipped with a HP 4156B parameter analyzer, in a four-point probe configuration. X-ray diffraction (XRD) was used in order to monitor the microstructure of the annealed contacts. The measurements were performed in grazing mode, using a Bruker-AXS D5005 θ-θ diffractometer operating with a Cu Ka radiation at 40 kV and 30 mA. A correlation between the surface morphological properties and the local electrical response of the material was made by Atomic Force Microscopy (AFM) and Conductive Atomic Force Microscopy (C-AFM), using a Veeco Dimension 3100 microscope with a Nanoscope V controller. A 200 kV JEOL 2010 F microscope was used to perform cross-sectional Transmission Electron Microscopy (TEM) analyses of the samples and to look at the metal/semiconductor interface.

3. Results

The I–V characteristics of the contacts showed a non-linear behavior after deposition. Figure 1 shows the I–V curves acquired on Ta/Al/Ta (Figure 1a) and Ti/Al/Ti (Figure 1b) TLM structures at different annealing temperatures. The curves are measured between contact pads placed at a distance of 20 µm. As can be seen, both contacts exhibit a rectifying behavior after deposition and after annealing at temperatures up to 550 °C. The ohmic behavior is reached after annealing at 600 °C.
While in the case of Ti-based contact an annealing process of 60 s at 600 °C already leads to ohmic behavior, a longer annealing duration (180 s) was needed for the Ta-based contact. Then, for our study we selected the contacts at the onset of their ohmic behavior, i.e., the Ta/Al/Ta contacts annealed at 600 °C for 180 s and the Ti/Al/Ti contacts annealed at 600 °C for 60 s.
The I–V curves acquired on TLM structures in both Ta/Al/Ta (600 °C, 180 s) and Ti/Al/Ti (600 °C, 60 s) are shown in Figure 2a,b, respectively. As can be seen, linear characteristics are observed in both cases, with the current decreases with increasing TLM pad distance. Moreover, Ti/Al/Ti contacts show a higher current level. From the slope of these curves, it was possible to extract the total resistance RTOT. In particular, Figure 2c reports the plot of the total resistance RTOT measured as a function of the distance d between adjacent TLM pads, showing a linear increase in the resistance.
From the analysis of several TLM patterns, similar values of sheet resistance RSH were extracted for the two samples, i.e., RSH = 472 ± 10 Ω/□ for the Ti/Al/Ti sample and RSH = 475 ± 9 Ω/□ for the Ta/Al/Ta sample. The value of the specific contact resistance ρc extracted for the Ti/Al/Ti contacts was ρc(Ti/Al/Ti) = 1.6 ± 0.6 × 10−4 Ωcm2, i.e., more than a factor of two lower than the value extracted in Ta/Al/Ta (ρc (Ta/Al/Ta) = 4.0 ± 1.1 × 10−4 Ωcm2).
In order to explain these differences and to understand the mechanism of ohmic contact formation in the two systems, a morphological and structural characterization of the samples was carried out. Figure 3a,b show the morphologies of the Ti/Al/Ti and Ta/Al/Ta contacts annealed at 600 °C, acquired on a 40 µm × 40 µm region. In both cases, the surface is characterized by flat areas with some isolated hillocks, leading to root mean square (RMS) roughness values of 48 nm and 79 nm for Ta- and Ti-based contacts, respectively. These hillocks are more pronounced in the case of the Ti/Al/Ti system, thus justifying the higher RMS value. Figure 3c,d show the AFM images acquired on the flat areas on a 5 µm × 5 µm region. Interestingly, also in the flatter areas the Ta/Al/Ta contacts exhibited a lower roughness (RMS = 14.2 nm) with respect to the Ti/Al/Ti samples (RMS = 18.5 nm).
It is noteworthy that, besides the contribution of the isolated hillocks, the two Au-free systems exhibited a flatter surface compared with that of the standard Ti/Al/Ni/Au contacts, which showed an ohmic behavior at 800 °C [23], thus representing a major advantage for device fabrication, from a technological point of view. However, the nature of these hillocks must be further investigated in order to pave the route to avoid their formation and to further optimize the morphology of the contacts.
To electrically characterize the nature of these hillocks, the surface morphology and local current maps were acquired on the Ti/Al/Ti and Ta/Al/Ta samples by C-AFM. During surface scanning with a conductive diamond-coated tip, a positive bias of +5 V was applied to the samples’ backside, and the current flowing to the tip across the metal/semiconductors interface was collected by a current amplifier connected to the tip. A representative morphological image and the corresponding current map on a 20 µm × 20 µm scan area for the Ta/Al/Ta sample are shown in Figure 4a,b, respectively. The morphological and electrical analyses performed under the same conditions on the Ti/Al/Ti sample are reported in Figure 4c,d. A clear correlation between the surface features and the current maps is visible on both samples. In particular, a uniform current level is detected in the flat areas of the samples. Furthermore, the hillocks in the Ta-based contacts display a higher conductivity with respect to the uniform background of the surrounding metal surface, whereas a lower conductivity has been observed over the hillocks in the Ti-based contacts. The different composition (e.g., the phase or the Al content present in the core of the hillocks) can be responsible for the different conductivity detected by C-AFM analyses. However, the area occupied by the hillocks is only ~1% and ~5% of the overall contact area in Ta- and Ti-based systems, respectively. Hence, the contribution to the increase or the decrease in the total current flowing across the overall contact area is in the order of 1–2% in both cases. Then, we can conclude that the presence of these hillocks on the surface does not significantly impact the specific contact resistance.
XRD analysis, shown in Figure 5, was carried out to identify the phases formed in the layer after the annealing process at 600 °C. The XRD patterns of the Ti/Al/Ti contact are associated to the presence of the Al3Ti phase and unreacted Al. Indeed, for annealing temperatures higher than 450 °C, Ti typically reacts with Al and forms the Al3Ti phase [16,24]. However, the segregation of unreacted Al from the Al3Ti phase can occur at higher annealing temperatures [14], which is consistent with our experimental observation. An analogous behavior has been observed in the annealed Ta/Al/Ta contact, where the Al3Ta was the main phase detected by XRD, with unreacted Al still present in the system. In fact, the formation of the Al3Ta phase is expected in a temperature range between 600 and 1500 °C [14,16]. For the annealing temperature considered in our case, Al3Ta and Al3Ti are the most thermodynamically favored phases [25].
An analytical description of the carrier’s transport mechanism through the metal/semiconductor interfaces was obtained by monitoring the temperature dependence of the electrical parameters. For this purpose, the TLM measurements were performed at temperatures between 25 °C and 175 °C, and the RSH and ρc values were determined at each measurement temperature T.
Figure 6 shows the values of RSH of the two samples as a function of the measurement temperature T. As can be seen, the values of RSH are very similar in both cases and increase with the temperature. The sheet resistance RSH depends on the 2DEG density ns and on mobility µ following the expression
R S H = 1 q n s μ
In our case, according to Hall measurements, the 2DEG density ns did not show significant variations with temperature, as commonly reported in literature for AlGaN/GaN heterostructures [26]. Hence, the temperature dependence of RSH is mostly related to the carrier mobility. Accordingly, RSH could be fitted using a power-law expression, like R S H T β , typically used for the temperature dependence of 2DEG mobility ( μ T β ) [27,28]. The fit of the experimental data, reported as a continuous line in Figure 6, returned a value of β = 2.87, which is consistent with the dominance of the optical phonon scattering mechanism [6,26].
Figure 7 reports the values of ρc versus the measurement temperature T for the two contacts. Evidently, a similar trend of the ρc(T) is noticed in both samples. The measured values of ρc become lower by increasing the measurement temperature T.
The experimental values of ρc were well fitted by the thermionic field emission (TFE) mechanism, using the following expression [29]:
ρ C = ( 1 q A * ) k 2 π ( Φ B + V n ) E 00 cosh ( E 00 k T ) coth ( E 00 k T ) exp ( Φ B + V n E 0 V n k T )
where
E 0 = E 00 coth ( E 00 k T )
and A* is the Richardson constant, Vn is the distance of the Fermi level from the conduction band minimum, k is the Boltzmann constant, T is the absolute temperature and E00 is the characteristic energy described by
E 00 = q h 4 π ( N D m * ε )
where h is the Planck constant, ND is the carrier concentration, m* is the tunneling effective mass and ε is the dielectric constant of the AlGaN.
The values of the Schottky barrier height extrapolated from the fit of the experimental data were ΦB = 0.58 eV for Ti/Al/Ti and ΦB = 0.63 eV for Ta/Al/Ta, with a carrier concentration of ND = 1.25 × 1019 cm−3 for both contacts. This high value of ND determined from the fit is consistent with the presence of 2DEG. For that reason, in the following this value will be regarded as ND_2DEG.
In the case of AlGaN/GaN heterostructures, the presence of 2DEG influences the mechanism of current transport at the interface [27,30]. Many literature works used the TFE model to describe the current transport in annealed ohmic contacts on AlGaN/GaN heterostructures [6,27,31,32]. In this case, the carrier concentration ND_2DEG can be expressed as a function of the 2DEG sheet carrier density ns and of the AlGaN thickness dAlGaN [33]:
N D _ 2 D E G = n s ( d A l G a N ) d A l G a N
However, the 2DEG carrier density depends on the AlGaN/GaN heterostructure’s properties [34]. In particular, the 2DEG carrier density decreases with decreasing dAlGaN, until it is completely depleted for values lower than a critical thickness [35]. This behavior strongly influences the characteristic energy E00, which depends on ND_2DEG in AlGaN/GaN heterostructures, and then ultimately on the dAlGaN. Hence, the transparency of the barrier will be expressed by:
E 00 _ 2 D E G = q h 4 π n s ( d A l G a N ) d A l G a N     m *   ε
Similarly to the classical TFE mechanism, where ρc depends on the Schottky barrier height and on the characteristic energy, in the presence of 2DEG the proportionality between the specific contact resistance (ρcC(TFE-2DEG)) and ΦB and E00_2DEG will become:
ρ C ( T F E 2 D E G ) e x p ( Φ B E 00 _ 2 D E G ( d A l G a N ) c o t h ( E 00 _ 2 D E G ( d A l G a N ) k T ) )
Figure 8 reports the specific contact resistance ρc versus the AlGaN thickness (dAlGaN) for Ta/Al/Ta and Ti/Al/Ti ohmic contacts on AlGaN/GaN heterostructures, calculated using the TFE-2DEG model.
An AlGaN/GaN heterostructure with an Al concentration of 26% was considered in this calculation. The values ΦB = 0.63 eV and ΦB = 0.58 eV were used to calculate the specific contact resistance in annealed Ta/Al/Ta and Ti/Al/Ti contacts, respectively. As can be seen, the experimental values of ρc are in agreement with those predicted by the model. The calculated ρc curves suggest that a further lowering of the specific contact resistance could be obtained by a reduction of the AlGaN barrier layer thickness dAlGaN down to 5–10 nm. However, an additional reduction of dAlGaN leads to a further depletion of the 2DEG, which results in a decrease in E00_2DEG. This behavior ultimately results in an increase in ρc(TFE-2DEG) for a very thin AlGaN barrier layer. To further explain the different electrical properties of the interfaces in the annealed Ti/Al/Ti and Ta/Al/Ta stacks, a structural inspection of the reacted layers was carried out by means of cross-sectional TEM analyses together with high angle annular dark field (HAADF) acquisition in scanning mode, more sensitive to heavy atoms. Figure 9 shows TEM (Figure 9a,b) and Scanning Transmission Electron Microscopy (STEM) (Figure 9c,d) pictures of the two samples after the annealing at 600 °C.
Clearly, the annealing treatment induced an interaction of the metal layers and a modification of the interfacial region close to the AlGaN. In fact, two different interface structures were observed. In the Ti/Al/Ti contact, the titanium atoms are mainly detected at the interface, in the form of a continuous TiN layer of a few nanometers with a mixed Al-Ti layer above it. The rest of the film is composed of pure Al (Figure 9b,d). In the Ta/Al/Ta system, all the tantalum atoms reacted with Al, generating large Al3Ta grains coexisting with pure unreacted Al. These Al3Ta grains are often very large, entirely covering a region from the AlGaN/GaN interface to the contact surface (see Figure 9a,c). However, low-resolution TEM images (not reported) showed that the Al3Ta grains are still covered by a Ta layer at the sample surface.
Many works in literature [36,37,38,39] described the reaction between Ti and GaN (or AlGaN), leading to TiN formation at the interface. In bulk material, the release of nitrogen vacancies acting as donors typically raises the net carrier concentration below the metal close to the interface [9,40]. However, while the temperature dependence of ρc in n-type doped (~ 1018 cm−3) bulk materials can reveal an increase in the carrier concentration [9], this is much more difficult in the presence of 2DEG, i.e., where a higher density of carriers (~1019–1020 cm−3) is already present close to the interface [6,27,30,41]. On the other hand, TiN formation can be a key factor for the reduction of the barrier height in annealed Ti/Al/Ti ohmic contacts.
Such a kind of structural interaction of the metal with the substrate was not observed in the case of Ta-based contacts, which in fact required a longer annealing time to reach the ohmic behavior and exhibited a higher ρc. The ease of reaction of Ti with respect to Ta can be explained by the larger negative heat of the formation of TiN (−336 kJ/mol) with respect to TaN (−247 kJ/mol) [7]. Hence, it can be argued that the different interfacial microstructures are responsible for the different values of ΦB extrapolated from the temperature dependence of ρc.

4. Conclusions

In summary, the morphological, structural and electrical properties of non-recessed Ti- and Ta-based contacts were comparatively investigated. Both contacts show an ohmic behavior after an annealing temperature of 600 °C, with specific contact resistance values of 1.6 × 10−4 Ωcm2 for Ti/Al/Ti contacts and 4.0 × 10−4 Ωcm2 for Ta/Al/Ta contacts. The temperature dependence of ρc(T) was explained by the TFE mechanism, determining Schottky barrier height values of 0.58 eV for Ti/Al/Ti and 0.63 eV for Ta/Al/Ta. These results were correlated to the different microstructures of the reacted stacks. In particular, the creation of a TiN layer at the interface in the Ti/Al/Ti sample is likely the key factor for the lower barrier height and better specific contact resistance. Both samples showed a flat surface morphology after annealing, besides some isolated hillocks which had no significant impact on the overall contact resistance. However, as the presence of these morphological features can be detrimental for a device’s reliability, further work is still required to optimize the contact composition and to obtain a further improvement of the contact surface.
Beyond their fundamental importance from a materials science point of view, these results can have also relevant implications for GaN-on-Si device technology.

Author Contributions

The authors contributed to this work as follows: electrical measurements and manuscript writing M.S., G.G.; structural analyses R.L.N., S.S., C.B.; C-AFM analyses and manuscript writing F.G.; supervision M.C.; scientific coordination, manuscript writing and review F.R.

Funding

This work was carried out within the National Project PON EleGaNTe (Electronics on GaN-based Technologies), ARS01_01007, funded by the Italian Ministry for Education, University and Research (MIUR).

Acknowledgments

The authors would like to thank S. Di Franco (CNR-IMM) for his technical support during clean room sample processing. Moreover, F. Iucolano (STMicroelectronics) and his team are recognized for the productive discussions on the results and support during the electrical characterization.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meneghini, M.; Meneghesso, G.; Zanoni, E. Power GaN Devices Materials, Applications and Reliability; Springer International Publishing: Basel, Switzerland, 2017. [Google Scholar]
  2. Roccaforte, F.; Fiorenza, P.; Greco, G.; Nigro, R.L.; Giannazzo, F.; Iucolano, F.; Saggio, M. Emerging trends in wide band gap semiconductors (SiC and GaN) technology for power devices. Microelectron. Eng. 2018, 187–188, 66–77. [Google Scholar] [CrossRef]
  3. Roccaforte, F.; Fiorenza, P.; Nigro, R.L.; Giannazzo, F.; Riv, G.G. Physics and technology of gallium nitride materials for power electronics. Nuovo Cimento 2018, 41, 625–681. [Google Scholar]
  4. Greco, G.; Iucolano, F.; Roccaforte, F. Ohmic contacts to Gallium Nitride materials. Appl. Surf. Sci. 2016, 383, 324. [Google Scholar] [CrossRef]
  5. Wang, L.; Mohammed, F.M.; Adesida, I. Differences in the reaction kinetics and contact formation mechanisms of annealed Ti∕Al∕Mo∕Au Ohmic contacts on n-GaN and AlGaN∕GaN epilayers. Appl. Phys. 2007, 101, 013702. [Google Scholar] [CrossRef]
  6. Iucolano, F.; Greco, G.; Roccaforte, F. Correlation between microstructure and temperature dependent electrical behavior of annealed Ti/Al/Ni/Au Ohmic contacts to AlGaN/GaN heterostructures. Appl. Phys. Lett. 2013, 103, 201604. [Google Scholar] [CrossRef]
  7. Mohammad, S.N. Contact mechanisms and design principles for alloyed ohmic contacts to n-GaN. J. Appl. Phys. 2004, 95, 7940. [Google Scholar] [CrossRef]
  8. Roccaforte, F.; Iucolano, F.; Giannazzo, F.; Alberti, A.; Raineri, V. Nanoscale carrier transport in Ti∕Al∕Ni∕Au Ohmic contacts on AlGaN epilayers grown on Si(111). Appl. Phys. Lett. 2006, 89, 022103. [Google Scholar] [CrossRef]
  9. Iucolano, F.; Roccaforte, F.; Alberti, A.; Bongiorno, C.; di Franco, S.; Raineri, V. Temperature dependence of the specific resistance in Ti∕Al∕Ni∕Au contacts on n-type GaN. J. Appl. Phys. 2006, 100, 123706. [Google Scholar] [CrossRef]
  10. Tripathy, S.; Lin, V.K.X.; Dolmanan, S.B.; Tan, J.P.Y.; Kajen, R.S.; Bera, L.K.; Teo, S.L.; Kumar, M.K.; Arulkuumanaran, S.; Ng, G.I.; et al. AlGaN/GaN two-dimensional-electron gas heterostructures on 200 mm diameter Si(111). Appl. Phys. Lett. 2012, 101, 082110. [Google Scholar] [CrossRef]
  11. Marcon, D.; de Jaeger, B.; Halder, S.; Vranckx, N.; Mannaert, G.; van Hove, M.; Decoutere, S. Manufacturing Challenges of GaN-on-Si HEMTs in a 200 mm CMOS Fab. IEEE Trans. Semicond. Manufact. 2013, 26, 361. [Google Scholar] [CrossRef]
  12. Liu, X.; Zhan, C.; Chan, K.W.; Liu, W.; Tan, L.S.; Chen, K.J.; Yeo, Y.C. AlGaN/GaN-on-Silicon Metal–Oxide–Semiconductor High-Electron-Mobility Transistor with Breakdown Voltage of 800 V and On-State Resistance of 3 mΩcm2 Using a Complementary Metal–Oxide–Semiconductor Compatible Gold-Free Process. Appl. Phys. Express 2012, 5, 066501. [Google Scholar] [CrossRef]
  13. Malmros, A.; Blanck, H.; Rorsman, N. Electrical properties, microstructure, and thermal stability of Ta-based ohmic contacts annealed at low temperature for GaN HEMTs. Semicond. Sci. Technol. 2011, 26, 075006. [Google Scholar] [CrossRef]
  14. Costant, A.; Baele, J.; Coppens, P.; Qin, W.; Ziad, H.; de Backer, E.; Moens, P.; Tack, M. Impact of Ti/Al atomic ratio on the formation mechanism of non-recessed Au-free Ohmic contacts on AlGaN/GaN heterostructures. J. Appl. Phys. 2016, 120, 104502. [Google Scholar] [CrossRef]
  15. Pooth, A.; Bergsten, J.; Rorsman, N.; Hirshy, H.; Perks, R.; Tasker, P.; Martin, T.; Webster, R.F.; Cherns, D.; Uren, M.J.; et al. Morphological and electrical comparison of Ti and Ta based ohmic contacts for AlGaN/GaN-on-SiC HFETs. Microelectron. Reliab. 2017, 68, 2–4. [Google Scholar] [CrossRef]
  16. Greco, G.; Giannazzo, G.; Iucolano, F.; Nigro, R.L.; Roccaforte, F. Nanoscale structural and electrical evolution of Ta-and Ti-based contacts on AlGaN/GaN heterostructures. J. Appl. Phys. 2013, 114, 083717. [Google Scholar] [CrossRef]
  17. Van Daele, B.; van Tendeloo, G.; Ruythooren, W.; Derluyn, J.; Leys, M.R.; Germain, M. The role of Al on Ohmic contact formation on n-type GaN and AlGaN∕GaN. Appl. Phys. Lett. 2005, 87, 061905. [Google Scholar] [CrossRef]
  18. Firrincielli, A.; de Jaeger, B.; You, S.; Wellekens, D.; van Hove, M.; Decoutere, S. Au-free low temperature ohmic contacts for AlGaN/GaN power devices on 200 mm Si substrates. Jpn. J. Appl. Phys. 2014, 53, 04EF01. [Google Scholar] [CrossRef]
  19. Greco, G.; Iucolano, F.; Bongiorno, C.; Giannazzo, F.; Krysko, M.; Leszczynski, M.; Roccaforte, F. Ti/Al ohmic contacts on AlGaN/GaN heterostructures with different defect density. Appl. Surf. Sci. 2014, 314, 546–551. [Google Scholar] [CrossRef]
  20. Greco, G.; Iucolano, F.; Bongiorno, C.; di Franco, S.; Nigro, R.L.; Giannazzo, F.; Prystawko, P.; Kruszewski, P.; Krysko, M.; Grzanka, E.; et al. Electrical and structural properties of Ti/Al-based contacts on AlGaN/GaN heterostructures with different quality. Phys. Status Solidi 2015, 212, 1091–1098. [Google Scholar] [CrossRef]
  21. E-Zammar, G.; Yvon, A.; Khalfaoui, W.; Nafouti, M.; Cayrel, F.; Collard, E.; Alquier, D. A simple non-recessed and Au-free high quality Ohmic contacts on AlGaN/GaN: The case of Ti/Al alloy. Mater. Sci. Semicond. Proc. 2018, 78, 107–110. [Google Scholar] [CrossRef]
  22. Berger, H.H. Models for contacts to planar devices. Solid State Electron. 1972, 15, 145–158. [Google Scholar] [CrossRef]
  23. Spera, M.; Miccoli, C.; Nigro, R.L.; Bongiorno, C.; Corso, D.; di Franco, S.; Iucolano, F.; Roccaforte, F.; Mater, G.G. Modification of the sheet resistance under Ti/Al/Ni/Au Ohmic contacts on AlGaN/GaN heterostructures. Sci. Semicond. Process. 2018, 78, 111. [Google Scholar] [CrossRef]
  24. Sujata, M.; Bhargava, S.; Sangal, S. On the formation of TiAl3 during reaction between solid Ti and liquid Al. J. Mater. Sci. Lett. 1997, 16, 1175. [Google Scholar] [CrossRef]
  25. Pretorius, R.; Vredenberg, A.M.; Saris, F.W.; de Reus, R. Silicide formation by concentration controlled phase selection. J. Appl. Phys. 1991, 70, 3636. [Google Scholar] [CrossRef]
  26. Hofman, T.; Kühne, P.; Schöche, S.; Chen, J.T.; Forsberg, U.; Janzén, E.; Sedrine, N.B.; Herzinger, C.M.; Woollam, J.A.; Schubert, M.; et al. Temperature dependent effective mass in AlGaN/GaN high electron mobility transistor structures. Appl. Phys. Lett. 2012, 101, 192102. [Google Scholar] [CrossRef]
  27. Liu, Z.H.; Arulkumaran, S.; Ng, G.I. Temperature dependence of Ohmic contact characteristics in AlGaN/GaN high electron mobility transistors from −50 to 200 °C. Appl. Phys. Lett. 2009, 94, 142105. [Google Scholar] [CrossRef]
  28. Gaska, R.; Yang, J.W.; Osinsky, A.; Chen, Q.; Khan, M.A.; Orlov, A.O.; Snider, G.L.; Shur, M.S. Electron mobility in modulation-doped AlGaN–GaN heterostructures. Appl. Phys. Lett. 1998, 72, 707. [Google Scholar] [CrossRef]
  29. Padovani, F.A.; Stratton, R. Field and thermionic-field emission in Schottky barriers. Solid-State Electron. 1966, 9, 695. [Google Scholar] [CrossRef]
  30. Takei, Y.; Kamiya, M.; Tsutsui, K.; Saito, W.; Kakushima, K.; Wakabayashi, H.; Kataoka, Y.; Iwai, H. Ohmic Contact Properties Depending on AlGaN Layer Thickness for AlGaN/GaN High Electron Mobility Transistor Structures. ECS Trans. 2014, 61, 265. [Google Scholar] [CrossRef]
  31. Yoshida, T.; Egawa, T. Dynamic variation of carrier transport properties of recessed Au-free ohmic contacts to InAlN/AlN/GaN on Si-wafer. Jpn. J. Appl. Phys. 2018, 57, 110302. [Google Scholar]
  32. Liu, Y.; Singh, S.P.; Kyaw, L.M.; Bera, M.K.; Ngoo, Y.J.; Tan, H.R.; Tripathy, S.; Lo, G.Q.; Chor, E.F. A Mechanisms of ohmic contact formation and carrier transport of low temperature annealed Hf/Al/Ta on In 0.18 Al 0.82 N/GaN-on-Si. ECS J. Solid. State Sci. Technol. 2015, 4, 30. [Google Scholar] [CrossRef]
  33. Nam, T.C.; Jang, J.S.; Seong, T.Y. Carrier transport mechanism of strained AlGaN/GaN Schottky contacts. Cur. Appl. Phys. 2012, 12, 1081. [Google Scholar] [CrossRef]
  34. Ambacher, O.; Smart, J.; Shealy, J.R.; Weimann, N.G.; Chu, K.; Murphy, M.; Schaff, W.J.; Eastman, L.F.; Dimitrov, R.; Wittmer, L.; et al. Two-dimensional electron gases induced by spontaneous and piezoelectric polarization charges in N- and Ga-face AlGaN/GaN heterostructures. J. Appl. Phys. 1999, 85, 3222. [Google Scholar] [CrossRef]
  35. Ibbetson, J.P.; Fini, P.T.; Ness, K.D.; DenBaars, S.P.; Speck, J.S.; Mishra, U.K. Polarization effects, surface states, and the source of electrons in AlGaN/GaN heterostructure field effect transistors. Appl. Phys. Lett. 2000, 77, 250. [Google Scholar] [CrossRef]
  36. Lin, Y.J.; Chen, Y.M.; Cheng, T.J.; Ker, Q. Schottky barrier height and nitrogen–vacancy-related defects in Ti alloyed Ohmic contacts to n-GaN. J. Appl. Phys. 2004, 95, 571. [Google Scholar] [CrossRef]
  37. Luther, B.P.; Mohney, S.E.; Jackson, T.N.; Khan, M.A.; Chen, Q.; Yang, J.W. Investigation of the mechanism for Ohmic contact formation in Al and Ti/Al contacts to n-type GaN. Appl. Phys. Lett. 1997, 70, 57. [Google Scholar] [CrossRef]
  38. Motayed, A.; Bathe, R.; Wood, M.C.; Diouf, O.S.; Vispute, R.D.; Mohammad, S.N. Electrical, thermal, and microstructural characteristics of Ti/Al/Ti/Au multilayer Ohmic contacts to n-type GaN. J. Appl. Phys. 2003, 93, 1087. [Google Scholar] [CrossRef]
  39. Hajlasz, M.; Donkers, J.J.T.M.; Sque, S.J.; Heil, S.B.S.; Gravesteijn, D.J.; Rietveld, F.J.R.; Schmitz, J. Sheet resistance under Ohmic contacts to AlGaN/GaN heterostructures. J. Schmitz Appl. Phys. Lett. 2014, 104, 242109. [Google Scholar] [CrossRef]
  40. Lu, C.; Chen, H.; Lv, X.; Xie, X.; Mohammad, S.N. Temperature and doping-dependent resistivity of Ti/Au/Pd/Au multilayer ohmic contact to n-GaN. J. Appl. Phys. 2002, 91, 9218. [Google Scholar] [CrossRef]
  41. Kim, H.; Ryou, K.J.; Dupuis, R.D.; Lee, S.-N.; Park, Y.; Jeon, J.-W.; Seong, T.-Y. Electrical characteristics of contacts to thin film N-polar n-type GaN. Appl. Phys. Lett. 2013, 102, 052107. [Google Scholar]
Figure 1. Current–voltage (I–V) curves acquired on pads of Transmission Line Model (TLM) structures at a distance of 20 µm in (a) Ta/Al/Ta and (b) Ti/Al/Ti treated at different annealing temperatures (as deposited, 550 °C and 600 °C).
Figure 1. Current–voltage (I–V) curves acquired on pads of Transmission Line Model (TLM) structures at a distance of 20 µm in (a) Ta/Al/Ta and (b) Ti/Al/Ti treated at different annealing temperatures (as deposited, 550 °C and 600 °C).
Energies 12 02655 g001

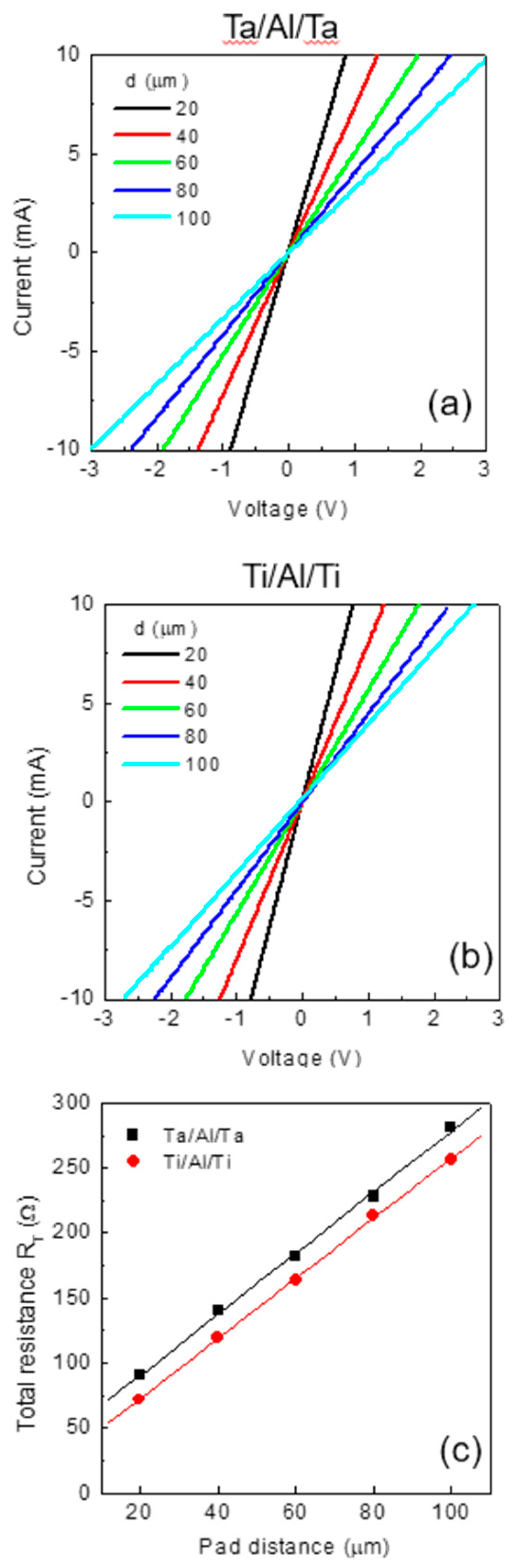

Figure 2. I–V curves acquired on TLM structures in (a) Ta/Al/Ta and (b) Ti/Al/Ti contacts annealed at 600 °C. (c) Characteristic plot of the total resistance RTOT measured as a function of the adjacent TLM pads’ distance d for Ta/Al/Ta (squares) and Ti/Al/Ti (circles).
Figure 2. I–V curves acquired on TLM structures in (a) Ta/Al/Ta and (b) Ti/Al/Ti contacts annealed at 600 °C. (c) Characteristic plot of the total resistance RTOT measured as a function of the adjacent TLM pads’ distance d for Ta/Al/Ta (squares) and Ti/Al/Ti (circles).
Energies 12 02655 g002

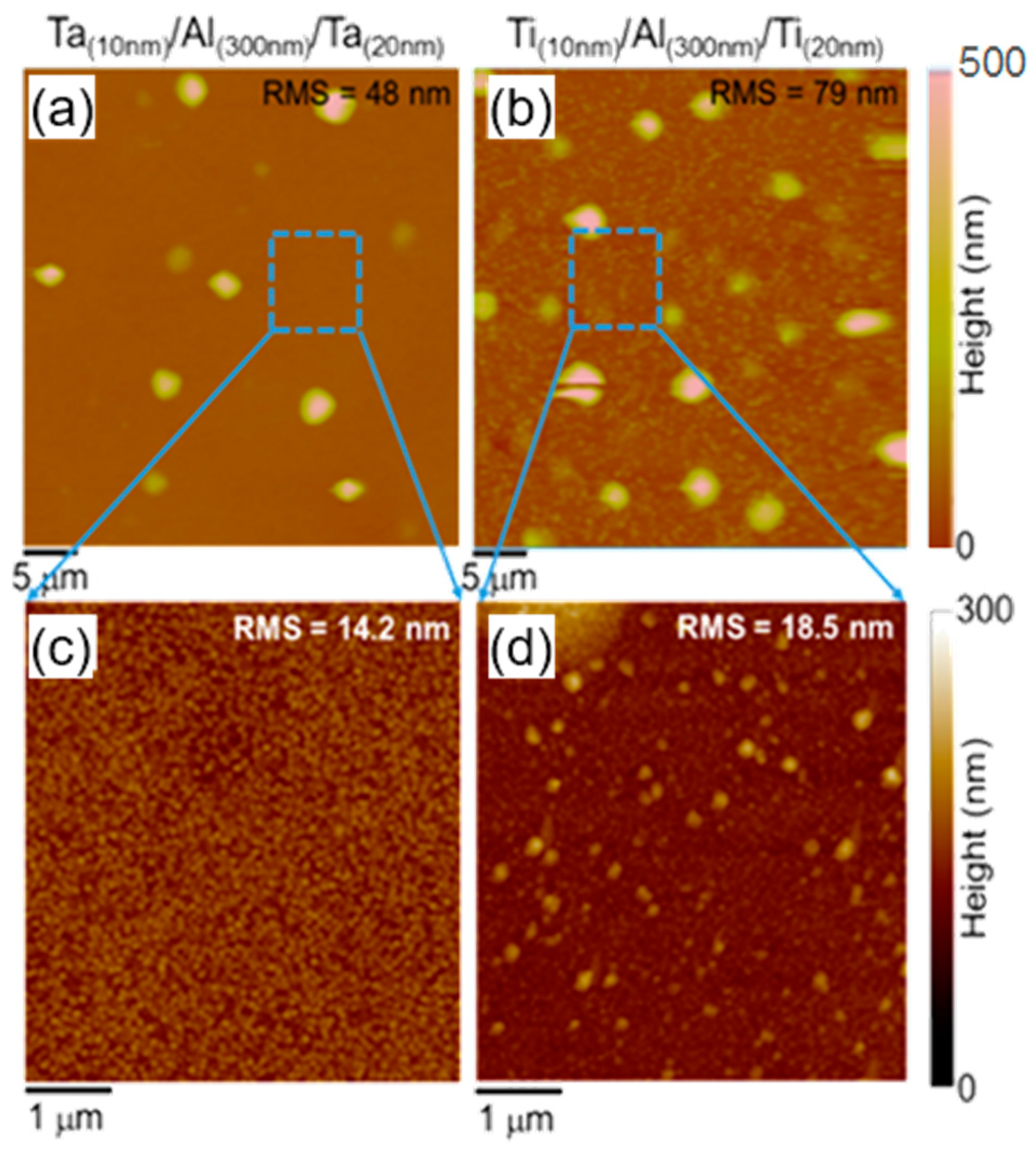

Figure 3. Atomic Force Microscopy (AFM) images of contacts on AlGaN/GaN heterostructure: (a) AFM images of Ta/Al/Ta contact on 40 µm × 40 µm and (b) 5 µm × 5 µm scan areas, and (c) AFM images of Ti/Al/Ti contact on 40 µm × 40 µm and (d) 5 µm × 5 µm scan areas, after annealing at 600 °C.
Figure 3. Atomic Force Microscopy (AFM) images of contacts on AlGaN/GaN heterostructure: (a) AFM images of Ta/Al/Ta contact on 40 µm × 40 µm and (b) 5 µm × 5 µm scan areas, and (c) AFM images of Ti/Al/Ti contact on 40 µm × 40 µm and (d) 5 µm × 5 µm scan areas, after annealing at 600 °C.
Energies 12 02655 g003

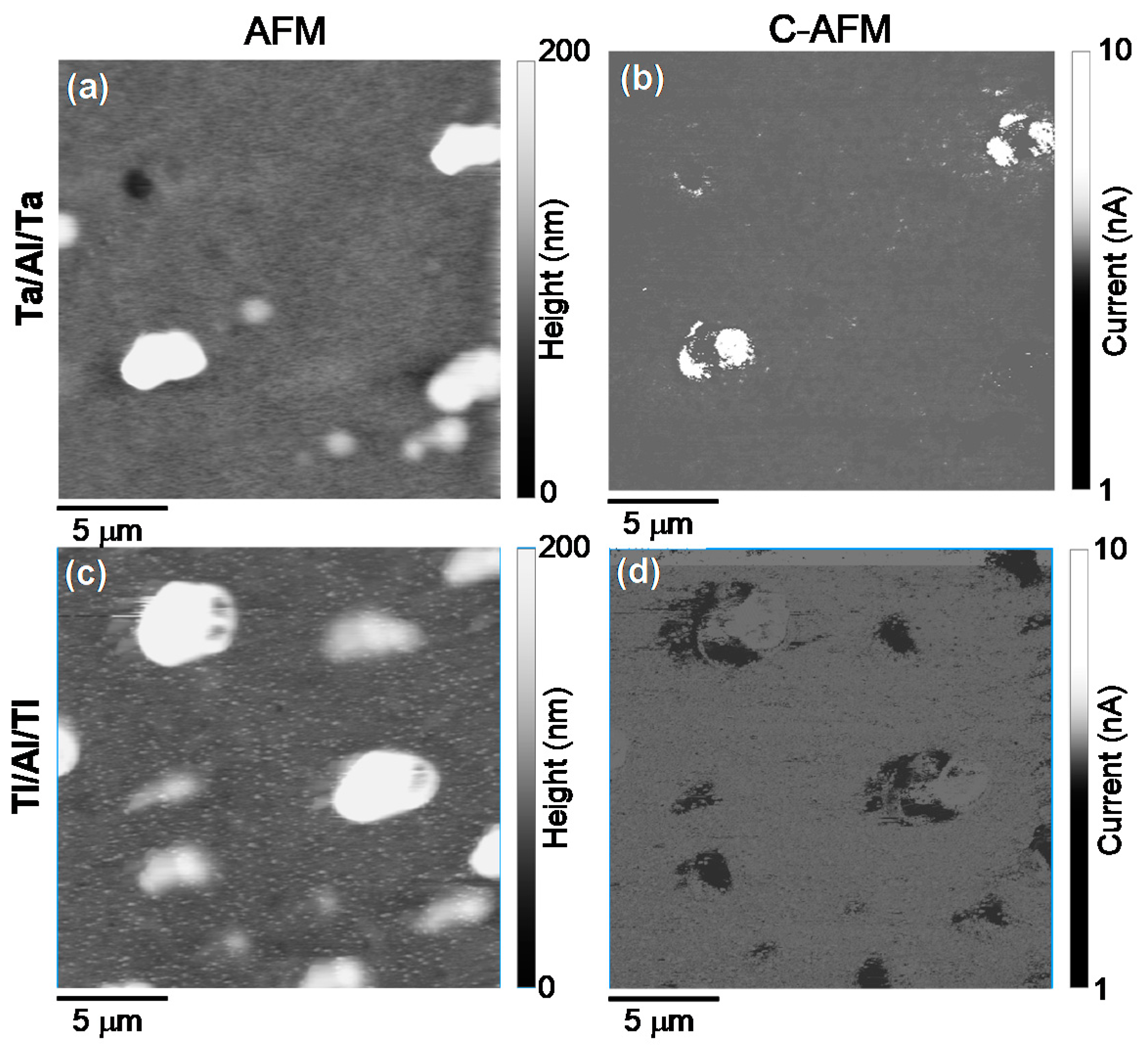

Figure 4. AFM image and Conductive Atomic Force Microscopy (C-AFM) map acquired on contacts: (a) AFM image and (b) associated C-AFM map acquired on Ta/Al/Ta contact. (c) AFM image and (d) associated C-AFM map acquired on Ti/Al/Ti contact. The images were acquired on 20 µm × 20 µm scan areas.
Figure 4. AFM image and Conductive Atomic Force Microscopy (C-AFM) map acquired on contacts: (a) AFM image and (b) associated C-AFM map acquired on Ta/Al/Ta contact. (c) AFM image and (d) associated C-AFM map acquired on Ti/Al/Ti contact. The images were acquired on 20 µm × 20 µm scan areas.
Energies 12 02655 g004

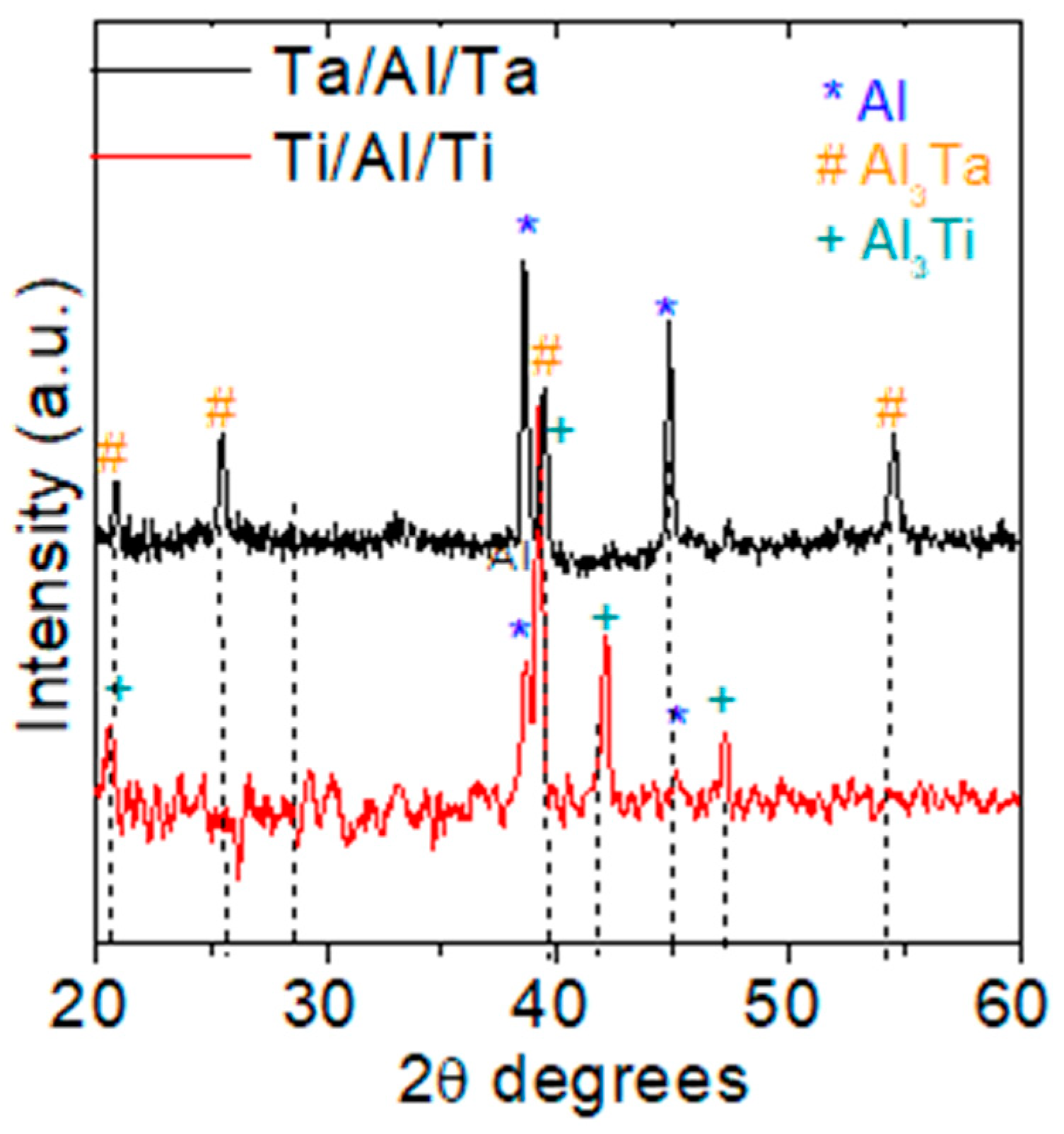

Figure 5. X-ray diffraction (XRD) patterns for Ta/Al/Ta and Ti/Al/Ti contacts annealed at 600 °C, showing the appearance of the Al3Ta and Al3Ti phases.
Figure 5. X-ray diffraction (XRD) patterns for Ta/Al/Ta and Ti/Al/Ti contacts annealed at 600 °C, showing the appearance of the Al3Ta and Al3Ti phases.
Energies 12 02655 g005

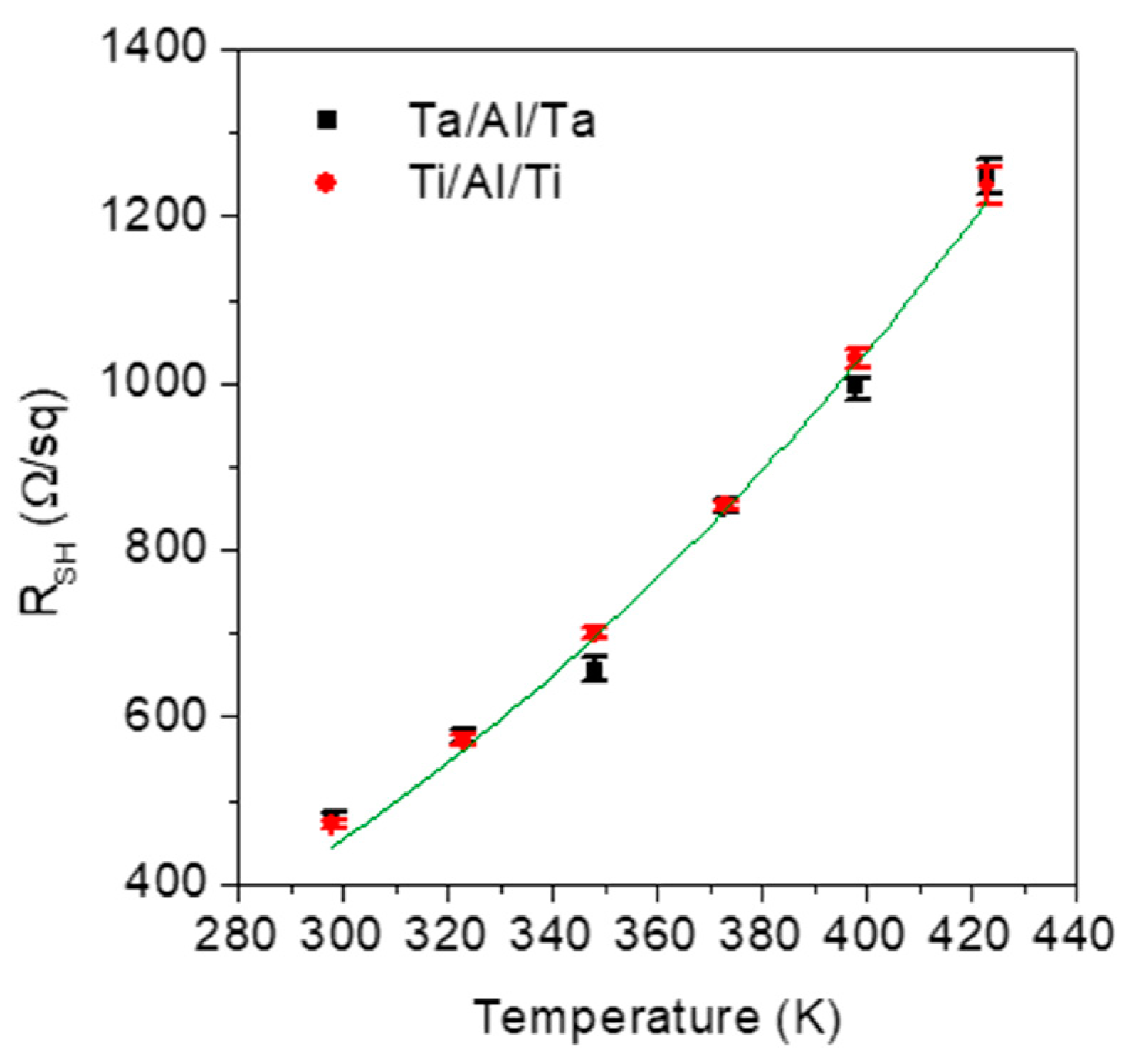

Figure 6. Sheet resistance RSH versus temperature T for the AlGaN/GaN heterostructures with Ta/Al/Ta (squares) and Ti/Al/Ti (circles) contacts. The continuous lines represent the fits of the experimental data obtained assuming R S H T β , with β = 2.87.
Figure 6. Sheet resistance RSH versus temperature T for the AlGaN/GaN heterostructures with Ta/Al/Ta (squares) and Ti/Al/Ti (circles) contacts. The continuous lines represent the fits of the experimental data obtained assuming R S H T β , with β = 2.87.
Energies 12 02655 g006

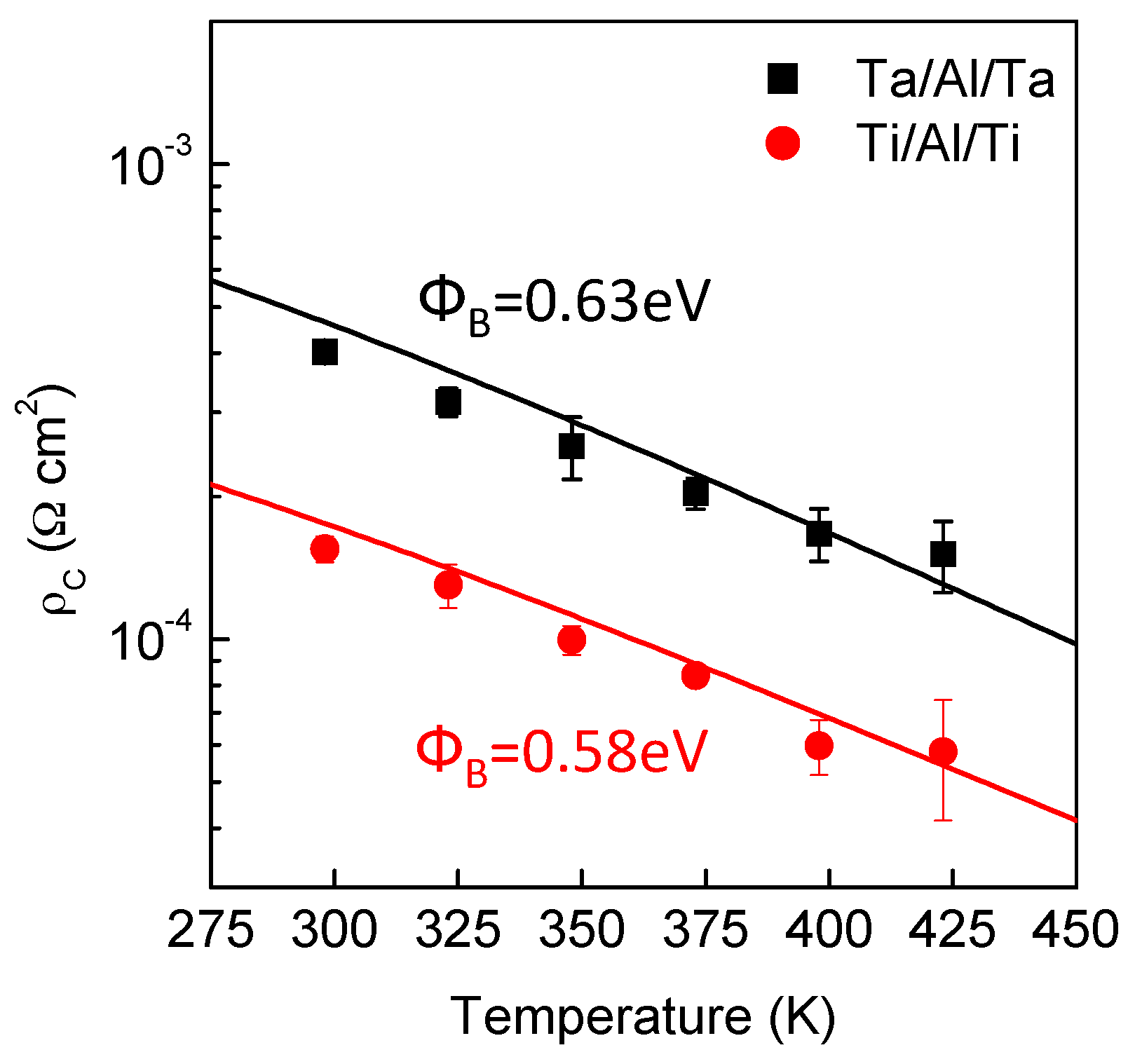

Figure 7. Temperature dependence of specific contact resistance ρC for the Ta/Al/Ta (squares) and Ti/Al/Ti (circles) contacts annealed at 600 °C. The lines represent the fits of the experimental data with the thermionic field emission (TFE) model (Equation (2)).
Figure 7. Temperature dependence of specific contact resistance ρC for the Ta/Al/Ta (squares) and Ti/Al/Ti (circles) contacts annealed at 600 °C. The lines represent the fits of the experimental data with the thermionic field emission (TFE) model (Equation (2)).
Energies 12 02655 g007

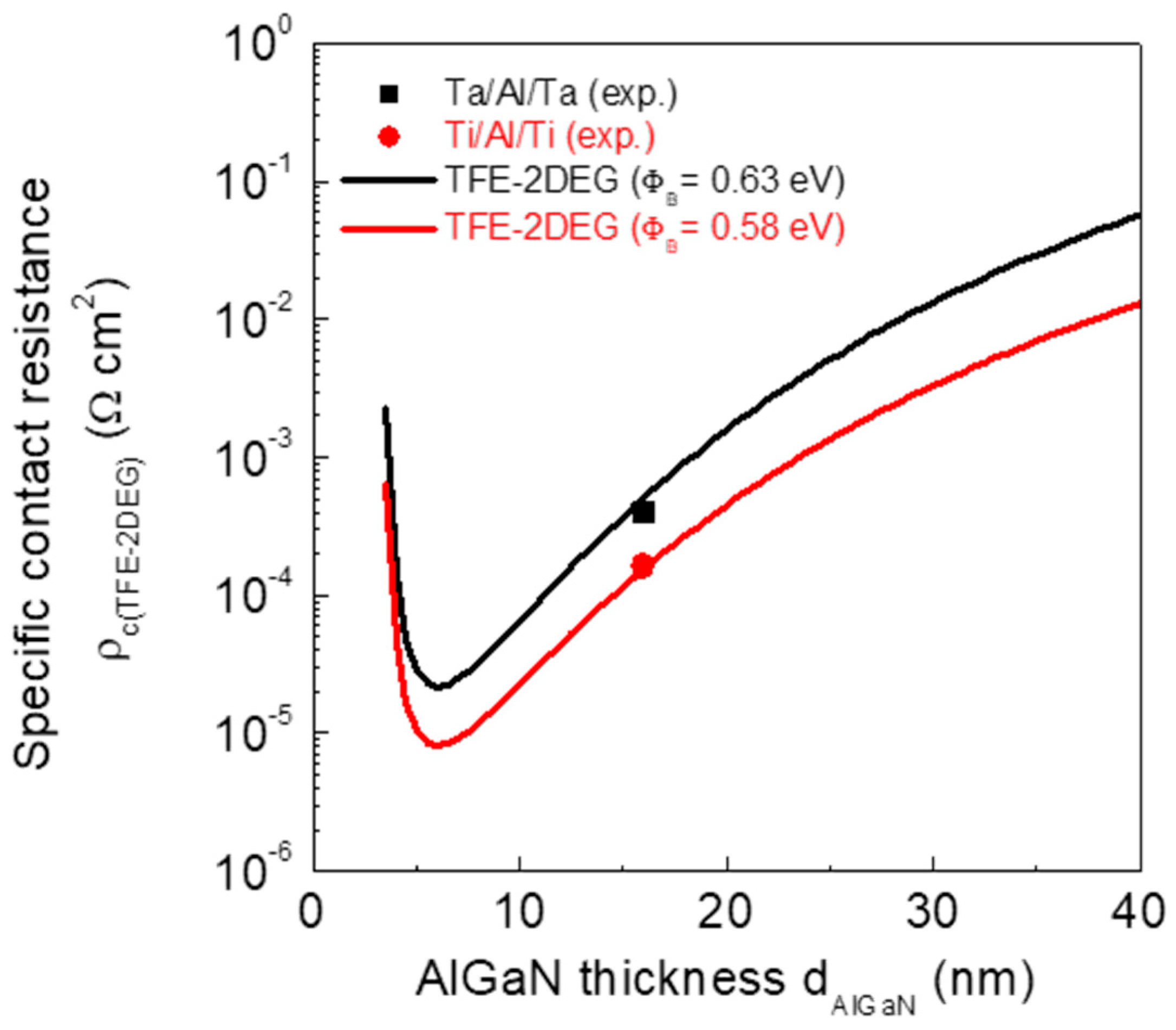

Figure 8. Specific contact resistance ρC(TFE-2DEG) versus the AlGaN thickness (dAlGaN) for Ta/Al/Ta and Ti/Al/Ti Ohmic contacts on AlGaN/GaN heterostructures, calculated using the TFE-2DEG model (Al concentration of 26%). The experimental data points are also reported.
Figure 8. Specific contact resistance ρC(TFE-2DEG) versus the AlGaN thickness (dAlGaN) for Ta/Al/Ta and Ti/Al/Ti Ohmic contacts on AlGaN/GaN heterostructures, calculated using the TFE-2DEG model (Al concentration of 26%). The experimental data points are also reported.
Energies 12 02655 g008
Figure 9. Cross-section Transmission Electron Microscopy (TEM) images of Ta/Al/Ta (a) and Ti/Al/Ti (b) contacts, and Scanning Transmission Electron Microscopy (STEM) images of Ta/Al/Ta (c) and Ti/Al/Ti (d) annealed at 600 °C.
Figure 9. Cross-section Transmission Electron Microscopy (TEM) images of Ta/Al/Ta (a) and Ti/Al/Ti (b) contacts, and Scanning Transmission Electron Microscopy (STEM) images of Ta/Al/Ta (c) and Ti/Al/Ti (d) annealed at 600 °C.
Energies 12 02655 g009
