Adapting the MgO-CO₂ Working Pair for Thermochemical Energy Storage by Doping with Salts: Effect of the (LiK)NO₃ Content ^†

Abstract

The MgO-CO₂ working pair has been regarded as prospective for thermochemical energy storage (TCES) due to its relatively high heat storage capacity, low cost, and wide availability. This study is aimed at the optimization of the molar salt content, α, for the MgO modified with the eutectic mixture of LiNO₃ and KNO₃ (Li_0.42K_0.58NO₃) which was earlier shown to provide high conversion, Δx, in heat-storage/release processes at 300–400 °C. The composites that have different salt content were prepared and carbonation kinetics was investigated under various conditions (carbonation temperature, T_carb., is 290–360 °C and CO₂ pressure, P(CO₂), is 50–101 kPa). Significant accelerating effect was revealed at α ≥ 0.05, and the Δx value was maximized at α = 0.10–0.20. The largest conversion of 0.70 was detected at α = 0.10 and T_carb. = 350 °C that corresponds to the specific useful heat (Q_comp.) is 1.63 MJ/kg-composite. However, the salt content of 0.20 ensures the high conversion, Δx = 0.63–0.67 and Q_comp. = 1.18–1.25 MJ/kg-composite in the whole temperature range between 290 and 350 °C. The (LiK)NO₃/MgO composite with an optimal salt content of 0.20 exhibits reasonable durability through cyclic experiment at 330 °C, namely, the stabilized reacted conversion Δx = 0.34 (Q_comp. = 0.64 MJ/kg-composite). The studied (Li_0.42K_0.58)NO₃ promoted MgO-CO₂ working pair has good potential as thermochemical storage material of middle temperature heat (300–400 °C).

1. Introduction

Storage of thermal energy by means of chemical reactions with high heat effect, or thermochemical energy storage (TCES), is a promising approach to convert primary energy source due to high thermal energy storage capacity and long-term storage at ambient temperature without insulation [1,2,3]. To the date, chemical reactions that can be neatly applied to TCES at medium temperatures (200–500 °C) to store heat from industrial and renewable (e.g., solar energy) sources are not numerous. Aside from large-scale industrial processes such as ammonia production [4] there are only a few solid-gas reactions that were extensively studied specifically for TCES at medium temperatures. They are dehydration of Mg(OH)₂ [5], Ca(OH)₂ [6], dehydrogenation of MgH₂ and some other hydrides [7].

The carbonation of MgO, Equation (1), that has the high reaction enthalpy, 116.4 kJ/mol, and suitable equilibrium temperature, T_eq = 388 °C (at P(CO₂) = 101 kPa), was considered for TCES since the late 70s [8].

$${\mathrm{MgO}}_{\left(\mathrm{s}\right)}+{\mathrm{CO}}_{2\left(\mathrm{g}\right)}\leftrightarrow {\mathrm{MgCO}}_{3\left(\mathrm{s}\right)},\hspace{1em}{\Delta }_r^{0}H=-116.4\mathrm{kJ}/\mathrm{mol},$$

(1)

Figure 1 shows the principle of a MgO/CO₂/sorbent TCES system. For heat storage, MgCO₃ is decomposed by supplied heat energy, Q_dec., at temperature, T_dec., of 300–350 °C (the backward reaction in Equation (1)). The products (MgO and CO₂) are separated and decomposed CO₂ moves into the sorbent reactor with generating heat of sorption, Q_s; the heat is stored in a chemical form for theoretically infinite time (Figure 1a). In the heat release process, the CO₂ desorbed by desorption heat, Q_des., is supplied to MgO reactor then generates heat energy, Q_carb., (the forward reaction in Equation (1)) at temperature, T_carb., of ~400 °C (Figure 1b). Usually, carbonation pressure, P_carb., and desorption temperature, T_des., are higher than decarbonation pressure, P_dec., and temperature of sorption heat, T_s, respectively.

Although there are many thermodynamic advantages to MgO carbonation, TCES systems using this reaction have rarely been reported in reviews dedicated to TCES [9,10,11,12]. The reason is a strong irreversibility of reaction as the interaction of MgO with CO₂ is kinetically hindered [13,14] that makes a return of the stored heat practically impossible. Due to this, the first detailed study of the MgO-CO₂ working pair has appeared only recently [15]. The authors made a brief screening of salt additives to pure MgO with the aim to find a salt which increases the oxide reactivity towards carbonation. They used a powerful salt modification approach earlier suggested and tested for TCES at middle temperatures in many papers such as LiCl for hydration of MgO [16], metal nitrates for doping of MgO [17,18], and Li for hydration of CaO [19,20]. This approach was also successfully applied to synthesize MgO-based sorbents for intermediate-temperature CO₂ capture [21] and high-temperature heat storage systems [9].

In total, eight salts with MgO (salt content 10 mol%) were prepared and investigated in [15]. It was found that CH₃COOLi and Li_0.42K_0.58NO₃ considerably promote the MgO carbonation. The eutectic mixture Li_0.42K_0.58NO₃ of LiNO₃ and KNO₃ was chosen for further study as the most efficient and thermally stable additive. It allowed the decarbonation process to be efficiently carried out at T > 330 °C and the specific useful heat of 1.6 MJ/kg-MgO in composite to be reached at 360 °C for 300 min of carbonation.

This paper addresses a detailed investigation of the (Li_0.42K_0.58NO₃)/MgO composites (referred to as (LiK)NO₃/MgO). The composites that have different salt content are prepared and their feasibility was evaluated under various conditions: T_carb. = 290–360 °C and P(CO₂) = 50–101 kPa. Additionally, the specific useful heat was estimated to find an optimal salt content and cyclic experiments were also conducted to confirm the durability of material.

2. Experimental

2.1. Materials Preparation

The composite materials of lithium nitrate (LiNO₃, ≥ 99.0% Reakhim), potassium nitrate (KNO₃, ≥ 99.5%, Reakhim), magnesium hydroxide (Mg(OH)₂, ≥ 99.0% Reakhim) with different mixing molar ratio between Li_0.42K_0.58NO₃ salt and Mg(OH)₂ were prepared as follows. Certain amounts of dried (160 °C) KNO₃ and LiNO₃ were mixed with 1.0 g of Mg(OH)₂. After this, some water was added to dissolve the salts and to form slurry. This slurry was dried at 65–70 °C by using a rotary evaporator under reduced pressure and vigorous stirring to ensure uniform distribution of the salt throughout the material. The (LiK)NO₃/MgO material was prepared by dehydration of (LiK)NO₃/Mg(OH)₂ in situ. The molar salt content in the composites, α [-], was defined by the following equation, Equation (2).

$$\alpha =\frac{n\left({\mathrm{Li}}_{0.42}{\mathrm{K}}_{0.58}{\mathrm{NO}}_3\right)}{n\left({\mathrm{Li}}_{0.42}{\mathrm{K}}_{0.58}{\mathrm{NO}}_3\right)+n\left(\mathrm{Mg}{\left(\mathrm{OH}\right)}_2\right)}=\frac{n\left({\mathrm{Li}}_{0.42}{\mathrm{K}}_{0.58}{\mathrm{NO}}_3\right)}{n\left({\mathrm{Li}}_{0.42}{\mathrm{K}}_{0.58}{\mathrm{NO}}_3\right)+n\left(\mathrm{MgO}\right)}$$

(2)

where n [mol] is the amount of a component. The (LiK)NO₃/MgO composites were prepared with the salt content of 2, 5, 10, 20, and 30 mol% (α = 0.02, 0.05, 0.10, 0.20, and 0.30).

2.2. Materials Characterization

The dynamic study of carbonation of the (LiK)NO₃/MgO composites was carried out by using a TG analysis system TGD-9600 (Advance RIKO, Inc.) equipped with a flow gas control system which allowed measurements in CO₂ or Ar atmosphere (Figure 2); total gas flow rate is 100 CCM for 101 kPa of total pressure. For the kinetic study of carbonation, (LiK)NO₃/Mg(OH)₂ composites powder was loaded into the platinum cell (D:8 mm, H:10 mm) in order to secure same amount of MgO in composites (~30.6 mg of MgO), then heated to 350 °C (5 K/min) and completely dehydrated at this temperature for 30 min. Then, the measuring cell was heated or cooled to the desired temperature T_carb. in Ar flow and switched to the flow of CO₂ which initiated carbonation. Carbon dioxide was supplied to the reaction chamber for 300 min. To evaluate the carbonation reactivity of (LiK)NO₃/MgO composite, reacted mole fraction, x [-], was calculated from the balance-measured sample mass change:

$$x=\frac{\Delta m}{n_0+M_{{\mathrm{CO}}_2}}$$

(3)

where Δm is the sample mass change [kg], n₀ is the initial amount of MgO in the sample [mol], and M_CO2 is the molecular weight of CO₂ [kg/mol].

The heat output performance, Q_comp. [kJ/kg-composite] and W_comp. [kW/kg-composite], of LiK(NO)₃/MgO composites were also as:

$$Q_{\mathrm{comp}.}=\frac{{\Delta }_r^{0}H\cdot x}{M_{\mathrm{comp}.}}\cdot \left(1-\alpha \right)$$

(4)

$$W_{\mathrm{comp}.}=\frac{\mathrm{d}{Q}_{\mathrm{comp}.}}{\mathrm{d}t}$$

(5)

where the reaction enthalpy ${\Delta }_r^{0}H$ = 116.4 kJ/mol, M_comp. [kg/mol] is the molar weight of (LiK)NO₃/MgO composite, and t [s] is the process time.

3. Results and Discussion

The interaction of pure MgO with CO₂ is kinetically hindered; therefore, namely the MgO carbonation has to be accelerated to make a return of the stored heat feasible. In this work, we have optimized the salt content keeping in mind, first of all, dynamic features of the MgO carbonation reaction.

3.1. Carbonation Kinetics for Various Salt Contents

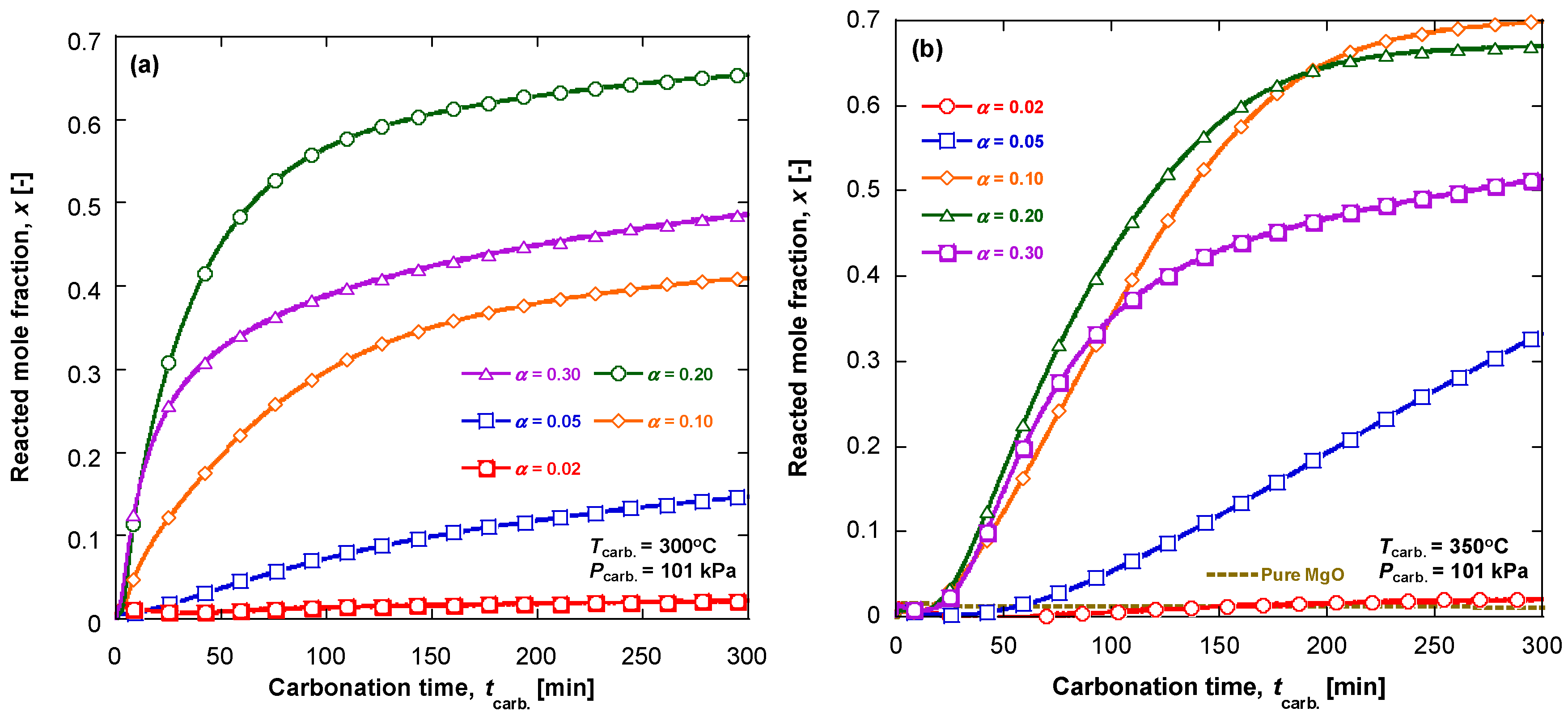

For a general comparison of the new (LiK)NO₃/MgO composites, for which salt content changes between 2 and 30 mol%, the isothermal carbonation was studied at 300 °C and 350 °C and P(CO₂) = 101 kPa. The pure MgO undergoes no carbonation at T_carb. ≤ 350 °C (Figure 3b) and only little effect was observed at α = 0.02; however, significant acceleration of carbonation was revealed at α ≥ 0.05. The carbonation conversion, Δx, reaches 0.15–0.66 and 0.33–0.70 at 300 °C and 350 °C, respectively. It demonstrates a high sensitivity of the composite reactivity to the content of doping salt at low contents. At t_carb. < 180 min, faster and reliable carbonation performance is observed for α = 0.20 compared with other materials. In contrast, for α = 0.10, good performance is observed at 350 °C which significantly reduced at lower reaction temperature. For α = 0.30, the carbonation performance is always lower.

Carbonation performance for composites with α = 0.10 and 0.20 at various CO₂ partial pressure and temperature was also investigated (T_carb. = 300 °C and 350 °C, P_CO2 = 50 kPa, 70 kPa, and 101 kPa). At T_carb. = 300 °C, the composite with α = 0.20 exhibits superior carbonation performance than that with α = 0.10 (Figure 4a). The carbonation reactivity at α = 0.20 and partial CO₂ pressure of 50 kPa is even higher than that of α = 0.10 at 101 kPa (Figure 4b). At 350 °C, the composites with α = 0.10 and 0.20 exhibit similar carbonation reactivity at any CO₂ partial pressure (Figure 4b).

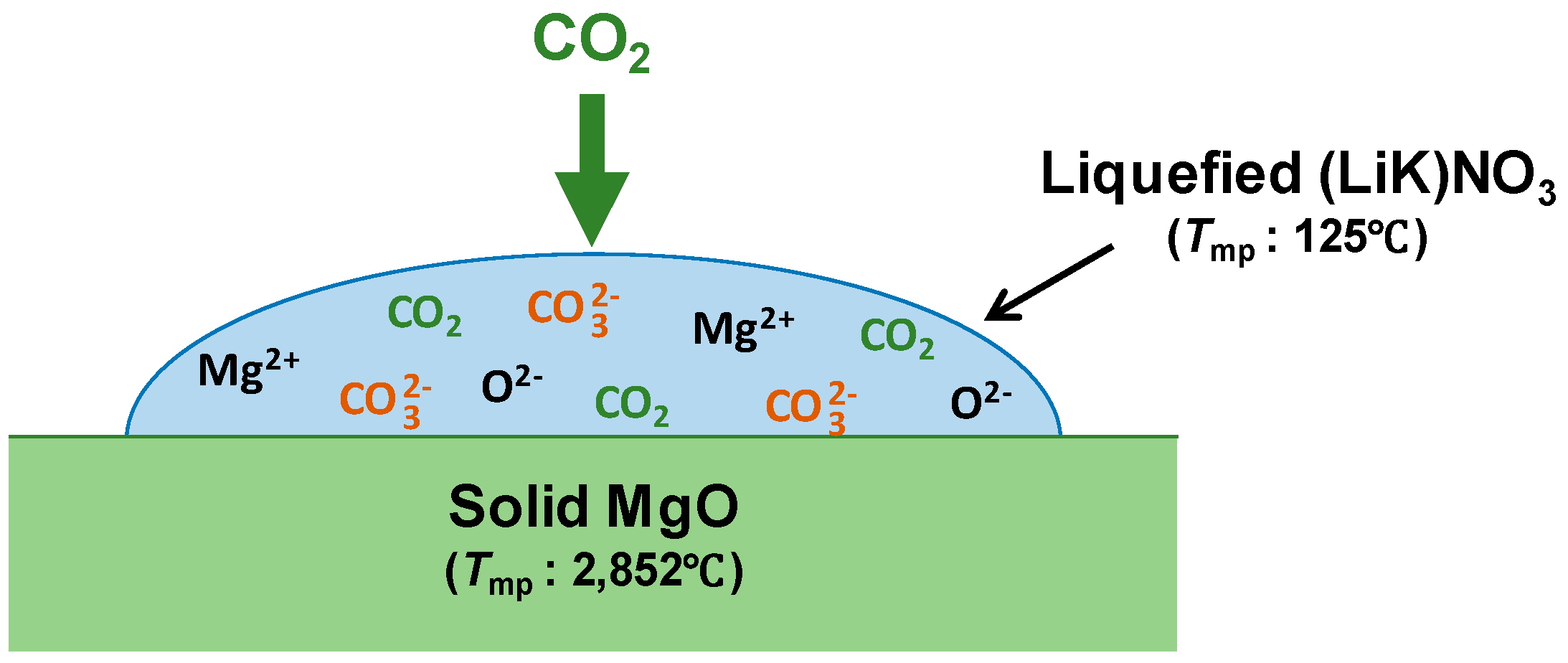

The acceleration of carbonation is observed because the eutectic salt melts at 125 °C [22] and acts as a reaction medium in which both CO₂ and MgO are dissolved [21]. The dissolution of solid MgO in the molten salt and its dissociation MgO → Mg²⁺ + O²⁻ (Figure 5) helps to overcome the high energy of the MgO lattice re-construction that results in the effective activation of the MgO toward reaction with CO₂ [23]. At α = 0.02, volume of the liquid phase is small and the promotion effect is negligible; the carbonation of MgO was activated when α is greater than 0.05 and the reactivity was maximized at α = 0.10–0.20. The reactivity decreases at larger α, probably, because the liquid salt film on the MgO surface becomes thicker that makes the path for diffusion of CO₂, Mg²⁺ and O²⁻ longer. Also, more melting salt surrounding MgO promotes ionization before crystallization of MgCO₃.

At 350 °C, all the kinetic curves are S-shaped with the induction period which significantly reduces if the salt content increases to 10 mol% and then remains almost constant (Figure 3b). According to the mentioned mechanism of the salt melting, the induction period may be attributed to the low solubility of CO₂ in the liquid salt film. Alternatively, this period may indicate a slow formation of critical nuclei of MgCO₃ phase formed in the molten salt because of insufficient super-saturation. Indeed, the duration of this period strongly depends on the system deviation from the equilibrium (see the next Section).

3.2. Carbonation Kinetics under Various Reaction Temperatures

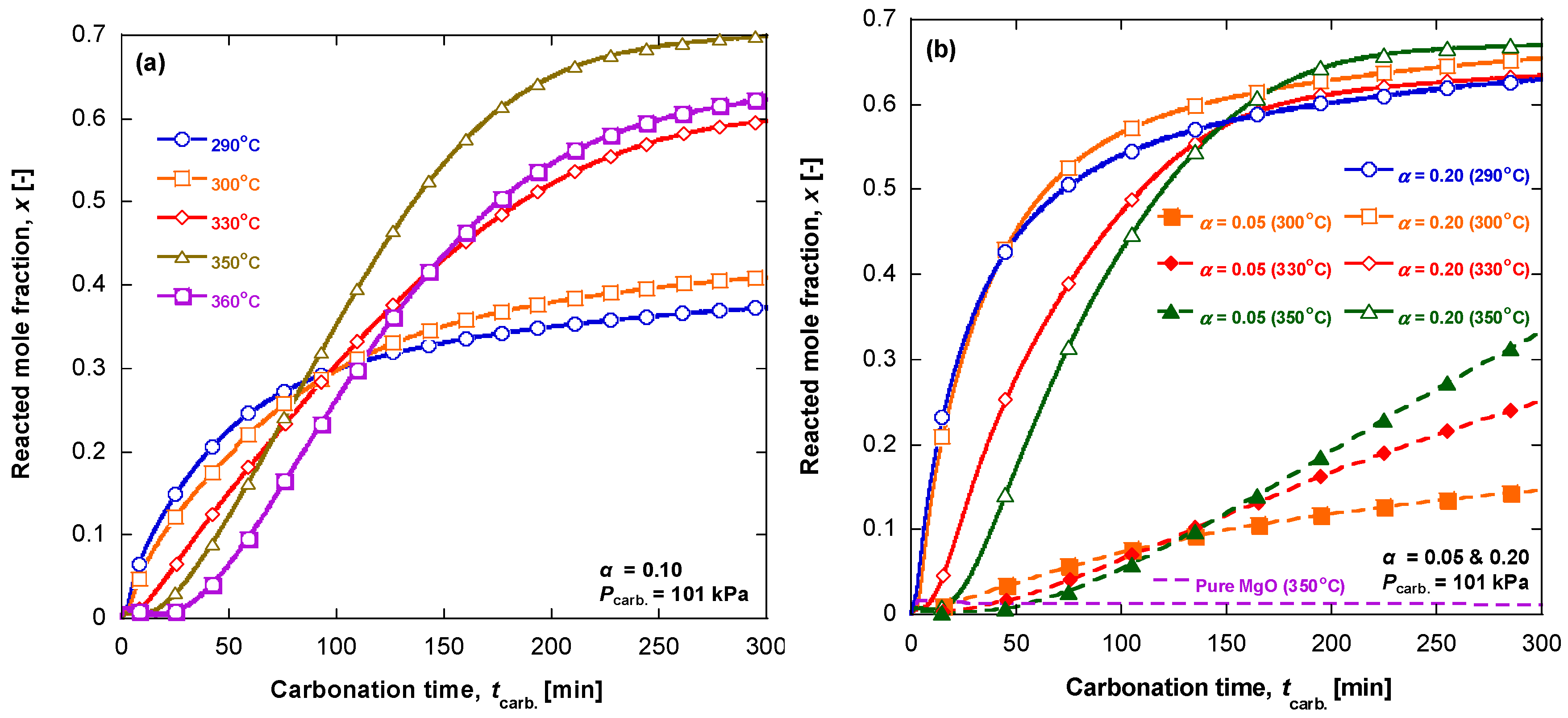

To elucidate the effect of temperature on the carbonation dynamics, composites with α = 0.05–0.20 were examined under isothermal conditions at T_carb. = 290–360 °C, P(CO₂) = 101 kPa and t_carb = 300 min (Figure 6).

For all tested materials, the kinetics at low temperature (290–300 °C) are convex curves, so that the synthesis rate is maximal at t = 0 and gradually decreases in time. It is quite different from the carbonation at 350 °C (Figure 3b and Figure 4b), which initial rate is zero and the process starts after a certain induction period. This fact may denote changing carbonation mechanism or its rate-limiting step with temperature. Kinetic curves at 330 °C are intermediate between the two boundary cases. The appearance and prolongation of the induction period are accompanied with the significant increase in the final conversion Δx (300 min): from 0.15 to 0.33 for α = 0.05, and from 0.37 to 0.70 at α = 0.10. For the latter material, further enlargement of the induction period is observed at 360 °C along with the Δx-reduction to 0.62 (Figure 6a). Thus, the closer the carbonation temperature to the equilibrium temperature at P(CO₂) = 101 kPa (388 °C) [14], the longer the induction period. Besides this factor, the complex temperature dependence of the carbonation dynamics can be due to the interplay between other influencing factors, such as

-

the temperature effect on the CO₂ and MgO solubilities in the melt. It is known that the CO₂ solubility in a KNO₃ melt passes a maximum at 375 °C and reduces at the higher temperature, whereas the CO₂ solubility in a LiNO₃ melt gradually increases with temperature [24];

-

the dependence of the CO₂, Mg²⁺ and O²⁻ diffusivities on temperature, as their diffusion can be responsible for very slow approaching the equilibrium.

For the material with α = 0.20, the final conversion is almost constant at 290 °C ≤ T_carb. ≤ 350 °C, whereas the synthesis rate remarkably enhances at low temperature (Figure 6b). This material provides the high conversion (0.63–0.67) together with the good carbonation dynamics and can be recommended for TCES in this temperature range. It is worthy to mention that the carbonation conversion of 0.65–0.70, reported in this paper, is close to the maximal one’s ever reported for MgO-base materials doped with salts: e.g., the CO₂ uptake 15.7 mmol/g at 340 °C and 16.8 mmol/g at 300 °C was reported for MgO doped with LiNO₃-(NaK)NO₃ [25] and (LiNaK)NO₃ [26], respectively.

3.3. Characterization of the Materials by SEM

The morphology of the composites was observed through scanning electron microscopy (SM-200, TOPCON Inc.) with an acceleration voltage of 7 kV. The SEM images taken at 5000 magnification indicate the hexagonal morphology of MgO crystals (0.5–1.5 μm size) before carbonation. At increasing salt content, the crystal border becomes fuzzier due to a thick salt layer surrounding MgO (Figure 7a,c,e,g). This fact could support the reason why too much salt decreases the reactivity. After carbonation, the particles of the product, that is a mixture (MgCO₃ + MgO + salt), are smaller and poorly crystallized with respect to the initial (MgO + salt) mixture (Figure 7b,d,f,h). This can be caused by the salt melting and coating of the (MgCO₃ + MgO) crystals surface. The morphology of composite with α = 0.20 certainly differs from the other materials due to larger structural features formed by the salt coating (Figure 7f). This can create a better network for CO₂ diffusion and facilitate reaction of CO₂ with the dissolved MgO, and, therefore, to be a reason for the good dynamic performance of this material.

3.4. Evaluation of the Specific Useful Heat

The specific useful heat and power related to unit mass of composite, Q_comp. and W_comp., are estimated from the measured reacted mole fraction by Equations (4) and (5). At 300 °C, the (LiK)NO₃/MgO composite with α = 0.20 exhibits larger specific useful heat Q_comp. = 1.23 MJ/kg-composite than the composite with α = 0.10 (Figure 8a), even if it contains less MgO. At 350 °C, the latter material, α = 0.10, has higher Q_comp. value of 1.63 MJ/kg-composite (Figure 8b). Both values are superior to those earlier measured for other salt/MgO composite for TCES system, namely, 1.04 MJ/kg-composite and 1.17 MJ/kg-composite for the CaCl₂ and LiBr modified MgO-H₂O TCES material respectively [27,28].

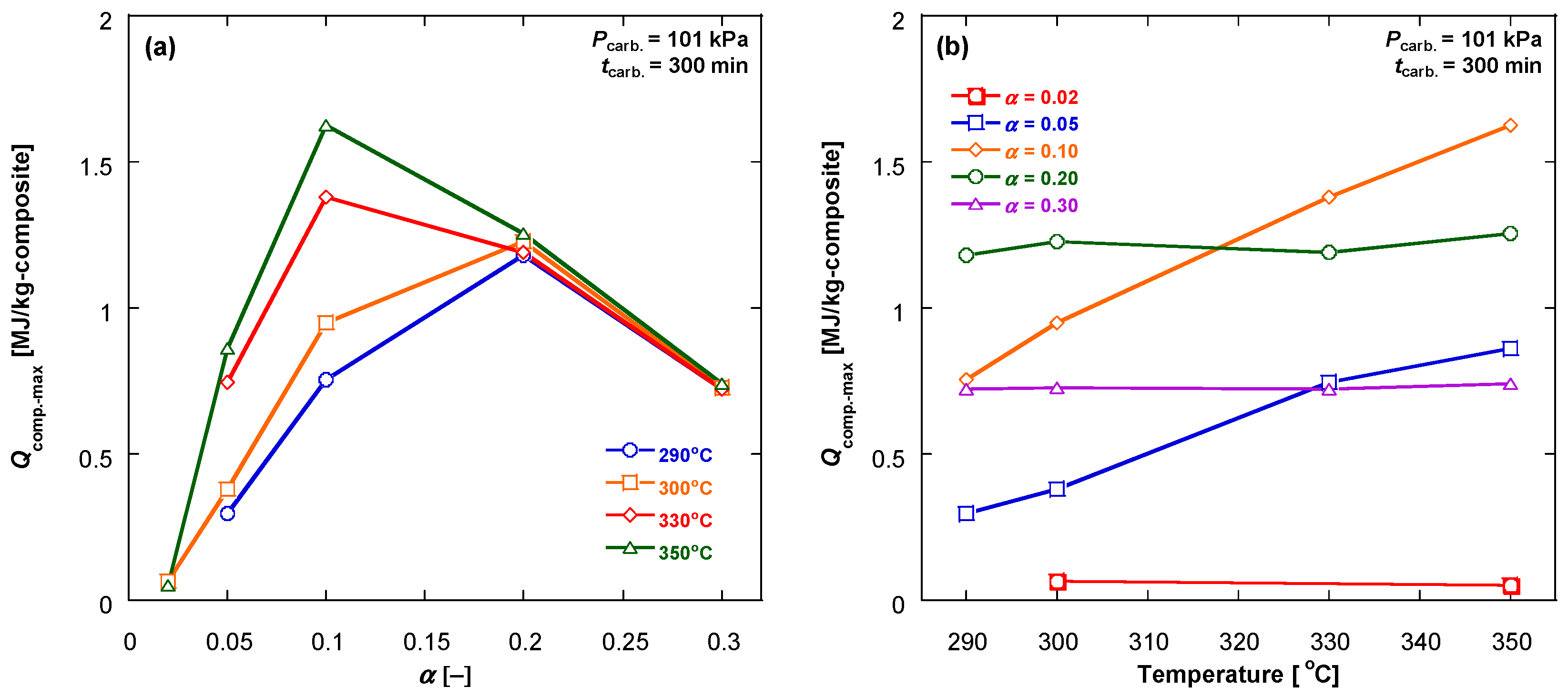

The change of maximum specific useful heat, Q_comp.-max, according to mixing mole ratio is displayed in Figure 9. All mixing mole ratio of (LiK)NO₃/MgO composite exhibits similar reaction tendency under every temperature; the overall Q_comp.-max value has increased with the increasing reaction temperature, Figure 9a. It is also confirmed that α of 0.05 and 0.10 (LiK)NO₃/MgO composites are sensitive to reaction temperature change, on the other hand, α of 0.20 and 0.30 composites, show stable results, Figure 9b.

3.5. Evaluation of the Specific Power of Heat Release

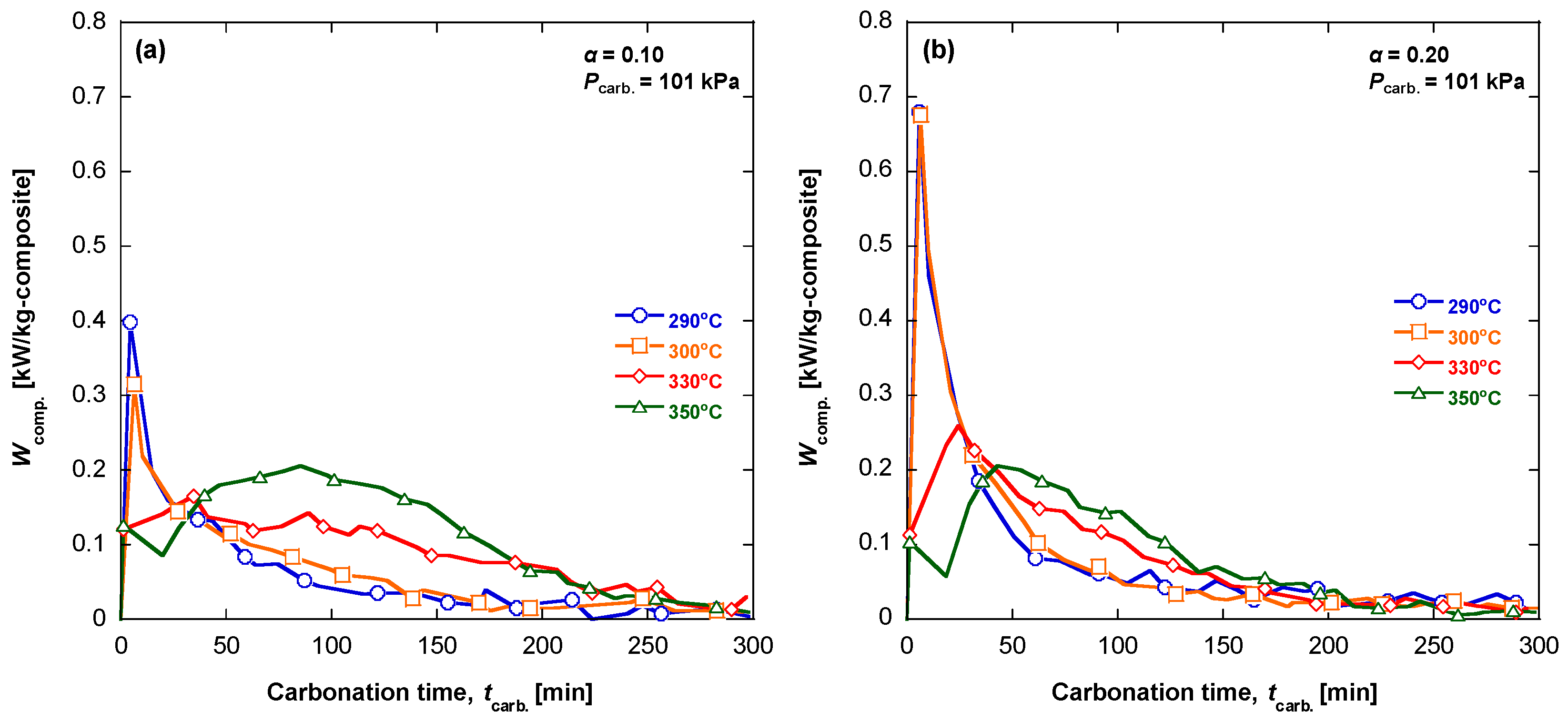

Figure 10 shows the heat output rate, W_comp., of α = 0.10 and 0.20 composites under various reaction temperature. At initial time of carbonation, both composites show high W_comp. values that are increased as reaction temperature decreased, but this order is changed after 50 min; carbonation under high temperature exhibits better W_comp. values. The highest W_comp. value of α = 0.20, 0.68 kW/kg-composite, is higher by a factor of ~2 than that of α = 0.10 composite, 0.40 kW/kg-composite, at 290 °C. The composite with α = 0.20 shows generally higher W_comp. performance than α = 0.10 composite at low temperatures (≤ 330 °C). Since its high specific useful heat capacity, Q_comp., and output rate, W_comp., under various reaction conditions, α = 0.20 is suggested as optimized mixing mole ratio for (LiK)NO₃/MgO composite.

4. Material Durability on Cyclic Experiment

The durability of the (LiK)NO₃/MgO (α = 0.20) is investigated through a cyclic experiment (Figure 11). The reacted conversion value, Δx, is increased for 2 cycles and becomes stabilized with increasing number of cycles; Δx is converged to 0.34 and that value is equivalent to 0.64 MJ/kg-composite. It is also found that decarbonation for 150 min is not enough to completely decarbonize the (LiK)NO₃/MgO (α = 0.20) composite. The difference of reacted mole fraction, x, during cyclic experiment are shown in Figure 12. Carbonation reactivity is significantly increased after 1st cycle by gas diffusivity enhancement. Then carbonation reactivity and reacted conversion values are gradually getting stabilized during initial 5 cycles (Figure 12a); Δx value was changed from 0.58 to 0.44. However, there is no particular change in Δx values after 10th cycle (Figure 12b), especially 18th cycle and 20th cycle showed same reacted conversion values (Δx = 0.34).

5. Conclusions

The carbonation dynamics of (LiK)NO₃/MgO composites, that have various molar salt content (α = 0.02, 0.05, 0.10, 0.20, and 0.30) was investigated for effective utilizing of the medium temperature heat (300–400 °C). A set of carbonation dynamic experiments were conducted under various reaction temperature T = 290 °C–360 °C and CO₂ partial pressure P(CO₂) = 50–101 kPa to find the optimal salt content.

The carbonation reactivity is revealed at α > 0.05 and reached a maximum at α = 0.10–0.20. The carbonation mechanisms are suggested and SEM measurements are also conducted for understanding carbonation behavior of the (LiK)NO₃/MgO composites. The specific useful heat, Q_comp., was calculated from the measured reacted mole fraction, Δx. Despite the largest Q_comp. = 1.63 MJ/kg-composite was detected at α = 0.10 and T_carb. = 350 °C, α = 0.20 was suggested as the optimal salt content because it ensures high and stable Q_comp. values of 1.18–1.25 MJ/kg-composite in the whole temperature range between 290 °C and 350 °C. To confirm the durability of the optimized (LiK)NO₃/MgO composite (α = 0.20), cyclic experiments are conducted at 330 °C. The reacted conversion became stabilized at Δx = 0.34 (Q_comp. = 0.64 MJ/kg-composite). The studied (Li_0.42K_0.58)NO₃ promoted MgO-CO₂ working pair has good potential for thermochemical storage of middle temperature heat (300–400 °C).
