Regulation of Voltage and Frequency in Solid Oxide Fuel Cell-Based Autonomous Microgrids Using the Whales Optimisation Algorithm

1
Faculty of Electrical Engineering, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia
2
Department of Electrical Engineering, Mehran UET SZAB Campus, Khairpur Mir’s 66020, Pakistan
3
Department of Electrical Engineering, NED UET, Karachi 75270, Pakistan
4
Department of Electrical Engineering, Mehran UET, 76062 Jamshoro, Pakistan
5
Department of Computer Systems Engineering, University College of Engineering and Technology (UCE&T), The Islamia University of Bahawalpur, Bahawalpur 61300, Pakistan
*
Author to whom correspondence should be addressed.
Received: 18 April 2018 / Revised: 10 May 2018 / Accepted: 18 May 2018 / Published: 22 May 2018
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [12048 KB, uploaded 23 May 2018]   |

Abstract

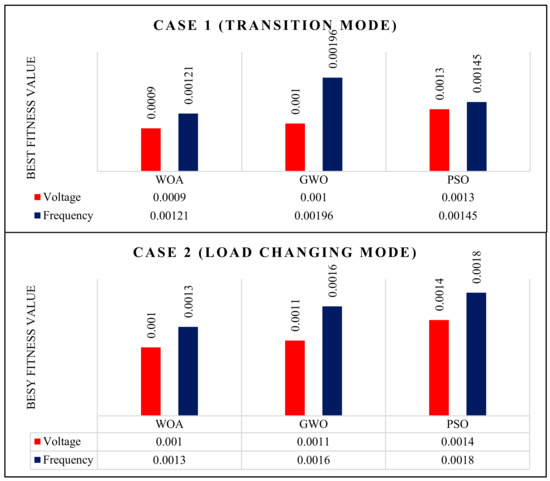

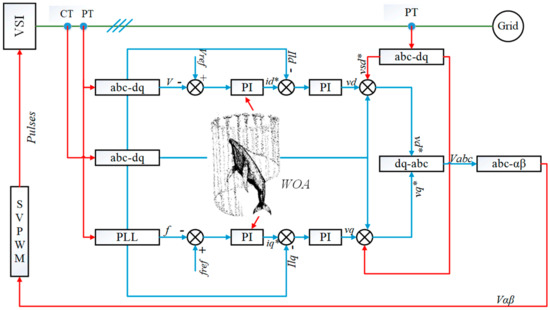

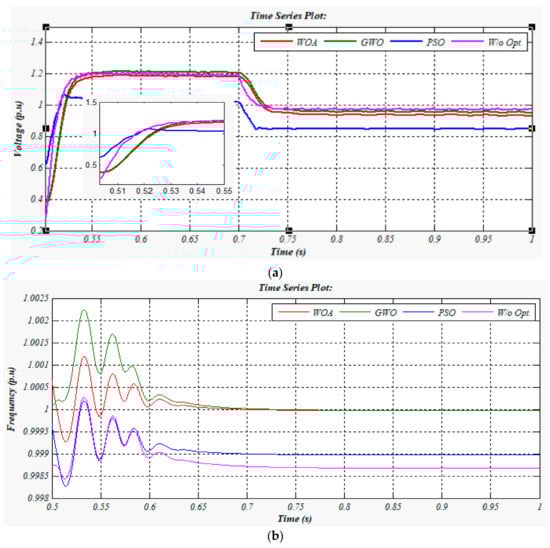

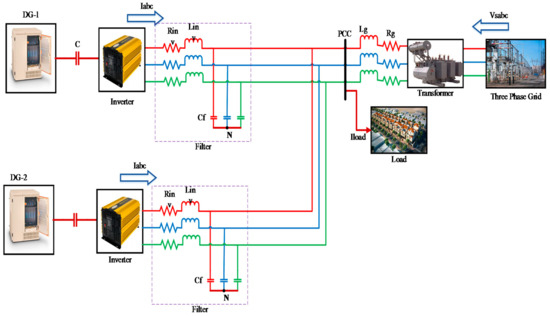

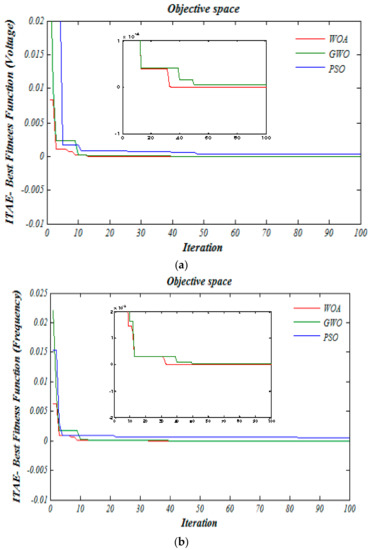

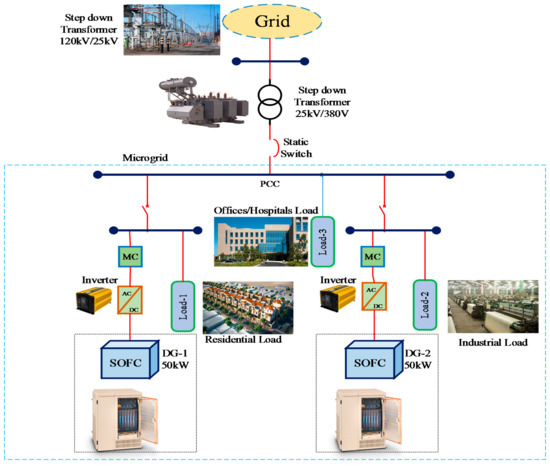

This study explores the Whales Optimization Algorithm (WOA)-based PI controller for regulating the voltage and frequency of an inverter-based autonomous microgrid (MG). The MG comprises two 50 kW DGs (solid oxide fuel cells, SOFCs) interfaced using a power electronics-based voltage source inverter (VSI) with a 120-kV conventional grid. Four PI controller schemes for the MG are implemented: (i) stationary PI controller with fixed gain values (Kp and Ki), (ii) PSO tuned PI controller, (iii) GWO tuned PI controller, and (iv) WOA tuned PI controller. The performance of these controllers is evaluated by monitoring the system voltage and frequency during the transition of MG operation mode and changes in the load. The MATLAB/SIMULINK tool is utilised to design the proposed model of grid-tied MG alongside the MATLAB m-file to apply an optimisation technique. The simulation results show that the WOA-based PI controller which optimises the control parameters, achieve 62.7% and 59% better results for voltage and frequency regulation, respectively. The eigenvalue analysis is also provided to check the stability of the proposed controller. Furthermore, the proposed system also satisfies the limits specified in IEEE-1547-2003 for voltage and frequency. View Full-Text
Keywords: microgrid; SOFC; WOA; GWO; PSO; PI controller microgrid; SOFC; WOA; GWO; PSO; PI controller
Figures

Figure 1
