Effect of Nano Al₂O₃ Doping on Thermal Aging Properties of Oil-Paper Insulation

Abstract

The thermal aging property of oil-paper insulation is a key factor affecting the service life of transformers. In this study, nano-Al₂O₃ was added to insulating paper to improve its anti-thermal aging property and delay the aging rate of the insulating oil. The composite paper containing 2% nano-Al₂O₃ had the highest tensile strength and therefore was selected for the thermal aging test. The composite and normal papers were treated with an accelerated thermal aging experiment at the temperature of 130 °C for 56 days. The variations of the degree of polymerization (DP) and tensile strength of the insulating papers with aging time were obtained. The characteristics of the insulating oil, including color, acid content, breakdown voltage, and dielectric loss were analyzed. The results revealed that compared with a plain paper, the composite paper maintained a higher DP, and its tensile strength decreased more slowly during the aging process. The oil-impregnated composite paper presented a lighter-colored oil, less viscosity changes, and a considerably lower quantity of thermal aging products. In addition, nano-Al₂O₃ can effectively adsorb copper compounds and keep part of the acid products and water away from the thermal aging process. This characteristic restrained the catalysis of copper compounds and H⁺ in the thermal aging reaction and reduced the thermal aging speed of both the insulating paper and the insulating oil.

1. Introduction

The power transformer is the core of power transmission and is one of the key units of equipment for power systems [1]. Oil-paper insulation is an insulating structure widely used in large power transformers. During long-term operation, aging and operation failures diminish the insulation performance of oil-paper insulation systems. The insulation performance of the insulating oil can be recovered by changing the oil, whereas the insulating paper cannot be replaced during the operation. Therefore, the performance of the insulating paper mainly determines the service life of a transformer [2].

Cellulose-insulating paper is subjected to thermal degradation, oxidation degradation, and hydrolysis during the operation of a transformer [3,4,5,6], during which its insulation performance gradually deteriorates, thus endangering the safe operation of the power system. To extend the service life of power transformers, scholars have studied the performance of cellulose-insulated paper for a long time. The following two methods have been recognized and successfully applied to industrial production [7,8]: (1) the introduction of more stable chemical groups to replace hydrophilic groups in cellulose, including cyanoethylation, and acetylation [4] and (2) the addition of thermal stabilizers, primarily amine compounds, including dicyandiamide, urea, and polyacrylamide [9], which can consume the water and acid produced in the aging process to delay the thermal aging.

Nanoparticles have various special effects because of their small size, large specific surface area, and so on [10]. Therefore, the use of inorganic nanoparticles in nanocomposite dielectrics to enhance the properties of insulating materials has been extensively studied in recent years [11,12]. J.K. Nelson first introduced nano-TiO₂-doped epoxy resin (EP) [13]. The results showed that compared with the traditional micrometer doped composite dielectric, the dielectric constant of the nano-TiO₂/EP composite was reduced, and its space charge was suppressed. The addition of nano-MgO to low-density polyethylene improved the breakdown voltage, volume resistivity, and space charge distribution under DC voltage [14]. The addition of ZnO and TiO₂ to LDPE and epoxy resin, respectively, effectively improved the volume resistivity, breakdown, and dielectric properties of composites [15,16,17]. Several reports have shown that adding Al₂O₃ to polyimide can improve the breakdown electric field strength and corona resistance of composites, and that Al₂O₃ exerts a thermal stability effect [18,19,20]. The doping of inorganic nanomaterials during polymer modification can significantly improve the electrical properties of the polymer dielectric. It is also confirmed that the nanoparticles improve the dielectric properties of the mineral oil [21].

At present, few studies have explored the modification of cellulose-insulating paper by inorganic nanoparticles. Our previous study on nano-Al₂O₃ doping on the insulating paper focused on the mechanical, dielectric, and breakdown properties [19].

Expanding on our previous work, this paper examined the thermal aging properties of composite insulating paper doped with nano-Al₂O₃. Accelerated thermal aging tests revealed that the doping of nano-Al₂O₃ can effectively delay the degradation of the degree of polymerization (DP) and mechanical properties of the insulating paper in the aging process and delay the thermal aging rate of the insulating oil [22]. In this paper, nano-Al₂O₃ modified papers and plain papers were prepared for 56 days thermal aging experiment. The DP and tensile strength of the insulating paper were tested, since they are widely regarded as the parameters to evaluate the aging level. As there is no judging standard for the degree of aging of the insulating oil, the parameters of the insulating oil such as color, acid value, breakdown voltage, and dielectric loss with aging will be tested to reflect the change of deterioration of the insulating oil. Finally, the mechanism of the influence of nanoparticle doping on retarding the aging rate of oil-paper insulation was put forward, and verified by the test result of content of copper in oil during the aging.

2. Thermal Aging Experiment of Oil-Paper Insulation

2.1. Preparation of the Nano-Al₂O₃ Modified Paper

The experiment used paper made in the laboratory, and the raw material was unbleached Kraft softwood pulp imported from Russia. The nanoparticle used in the experiment was nano-Al₂O₃ which had a purity of ≥99.99%, an average particle size of 20 nm, and a specific surface area of 200 m²/g. Walley beater (XYTEST Co.,Ltd., Xianyang, Shanxi, China) was used to beat the pulping board to the specific beating degree (45° SR)to obtain the pulp. After filtration and dissociation, the slurry was poured into a fast paper sheet former (XYTEST Co.,Ltd., Xianyang, Shanxi, China), as shown as Figure 1a, to make the insulating paper sheet with a basis weight of 120 g/m².

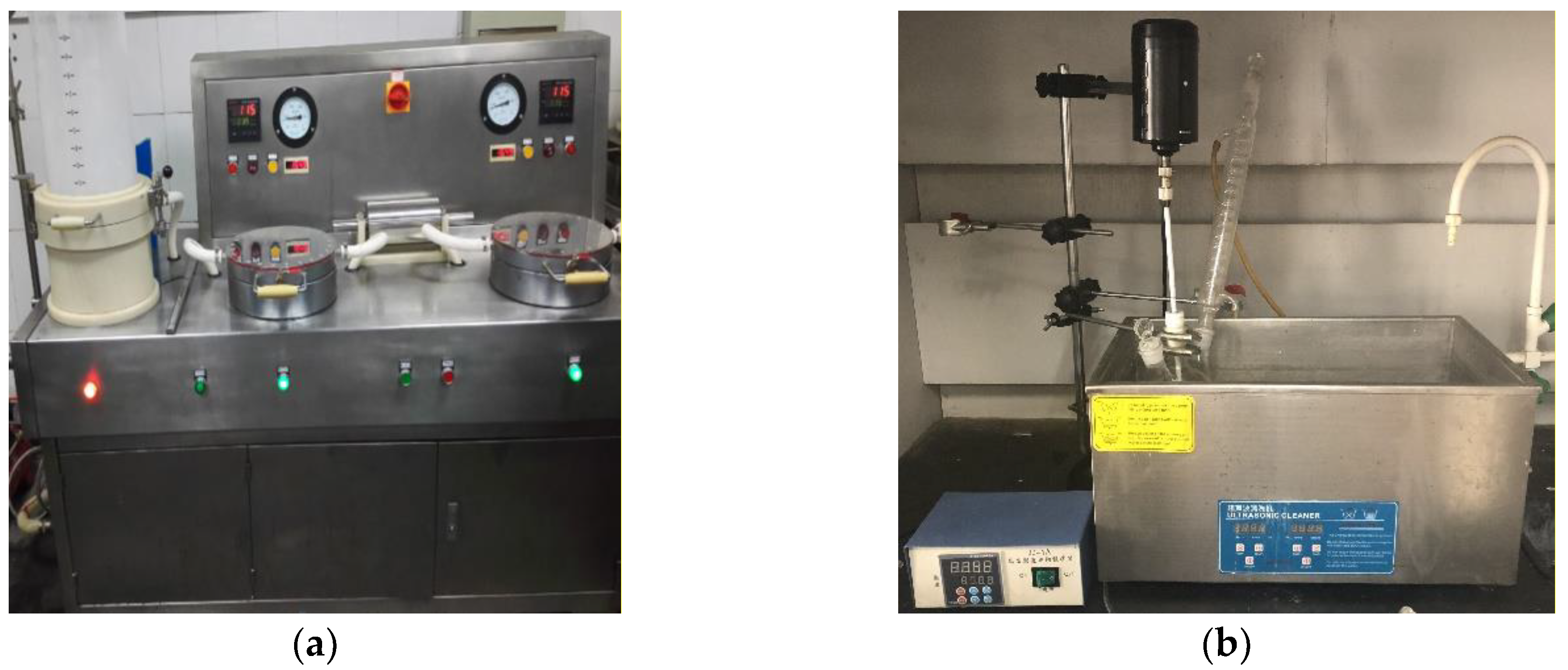

To increase the adhesion of inorganic nano-Al₂O₃ on the cellulose chains of the organic matrix and reduce the agglomeration of nanoparticles, the surface treatment of nano-Al₂O₃ was conducted using a silane coupling agent KH550. Five grams of nano-Al₂O₃ and 0.5 mL of KH550 were added to 500 mL of the dispersion medium (V(C₂H₅OH):V(H₂O) = 19:1), and the surface-treated nano-Al₂O₃ solution was obtained by stirring and sonicating for 6 h at 40 °C, as shown in Figure 1b. The surface-treated nano-Al₂O₃ was doped into the slurry, and the mixture was evenly mixed. Then, the same procedure was used to prepare the composite insulating paper sheet.

2.2. Determination of Doping Amount

Studies have found that due to the interface effect of nanoparticles, doping with an appropriate amount of nanoparticles, normally 1 wt% to 3 wt%, depends on the kinds of matrix and nano-particles, and can effectively improve the electrical strength of the composite insulating paper [19]. However, many nanoparticles tend to agglomerate into larger-particle-sized inorganic particles during the papermaking of the insulating paper, such as Al₂O₃, MgO, SiO₂, ZnO, and so on, thereby reducing the tensile strength of the composite insulating paper [20]. In this study, the nano-Al₂O₃ doping amount that can maximize the nano-effect was determined by testing the tensile strength of the composite insulating paper with different nano-doping amounts (as shown in Figure 1).

In this study, the AT-L-1 tensile testing machine (Annimat Instrument Co., Ltd., Jinan, Shandong, China) was used to measure the tensile strength of the insulating paper in accordance with the constant speed tensile method (ISO 1924-2-2008).

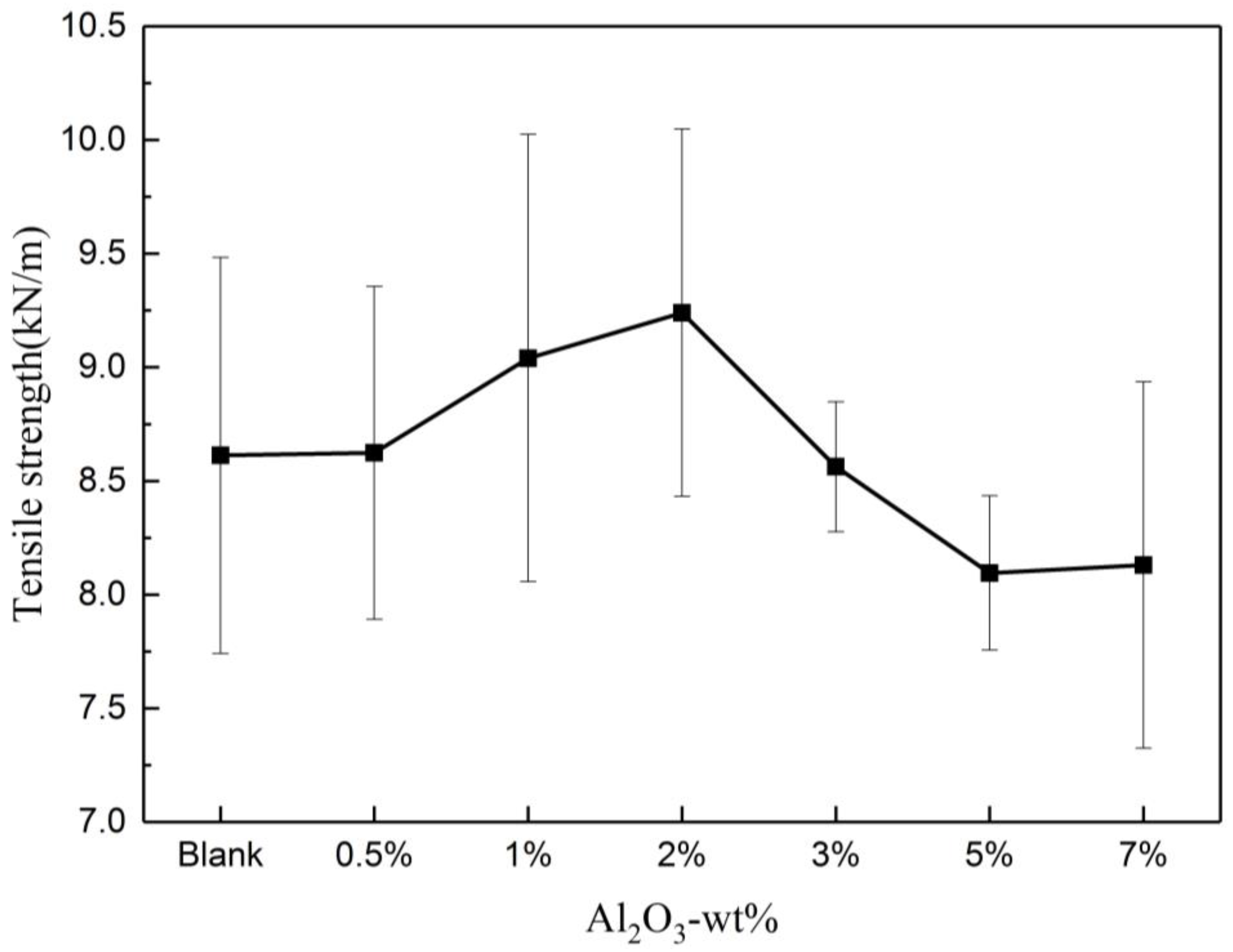

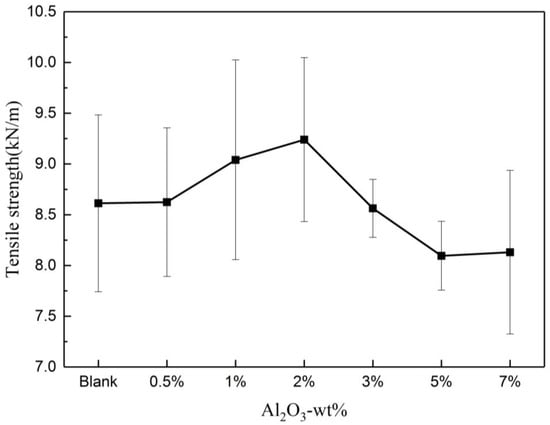

Figure 2 shows that the tensile strength of the composite insulating paper initially increased and subsequently decreased with the increase in the nano-Al₂O₃ doping content, reaching the highest when the doping amount was 2 wt%. Nano-Al₂O₃ can exert the best nano-effect when the doping amount was 2 wt% in the papermaking process, which means the minimal reunion. Therefore, a doping amount of 2 wt% composite insulating paper was adopted for the subsequent thermal aging test.

2.3. Thermal Aging Properties of Paper and Oil

To study the effect of nano-particles on the thermal aging performance of the oil-paper insulation, this paper tested and analyzed the thermal aging characteristics of the oil-impregnated insulating paper and oil through an accelerated thermal aging test. First, an ordinary insulating paper and a composite insulating paper were dried at 50 Pa and 90 °C for 48 h. Then, the dried paper was impregnated with 25^# Xinjiang Karamay mineral insulating oil, which was degassed at 50 Pa and 40 °C for 24 h. The oil and the paper were placed in a ground glass jar under a nitrogen atmosphere to maintain the oil-paper mass ratio of 20:1. An appropriate amount of copper strip was added before the jar was sealed.

The samples were placed in a 130 °C aging chamber for accelerated thermal aging. Samples were collected at 0, 7, 14, 28, and 56 days to test the thermal aging parameters of the paper and the oil. The DP and tensile strength of the paper, and the color, acid content, breakdown voltage, and dielectric loss of the oil were chosen to characterize the degree of aging.

In order to facilitate the subsequent comparison and analysis, the ordinary insulating paper and nano-Al₂O₃ modified insulating paper were defend as P₀ and P₁, while the insulating oil with ordinary insulating paper and the insulating oil with modified insulating paper were defined as O₀ and O₁.

2.3.1. Degree of Polymerization of Insulating Paper

The DP is one of the most commonly used parameters for the characterization of insulating paper. The DP refers to the number of glucose repeating units constituting the long chain of fibers in the insulating paper. This paper used the NCY-2 automatic viscometer (Srida Scientific Instrument Co., Ltd., Shanghai, China) to measure the DP of the insulating paper in accordance with ASTM D4243-99. Figure 4 shows the variation of the DP with time for P₀ and P₁ at 130 °C.

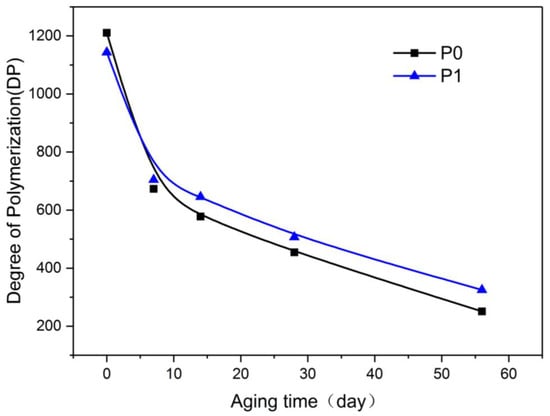

Figure 3 shows that at the beginning of aging, the DP of P₁ was approximately 5.5% lower than that of P₀. With prolonged aging time, the DP of P₁ started to surpass that of P₀. At the end of the aging test, the difference in the DP of P₁ and P₀ increased. After 56 days of aging, the DP of P₀ was reduced to 251, suggesting that the aging was nearly over, whereas the DP of P₁ was approximately 29.4% higher than that of P₀. These findings demonstrated that the aging rate of P₁ was lower than that of P₀.

2.3.2. Tensile Strength of the Insulating Paper

The tensile strength is the ability of a material or component to resist damage when pulled, and can act as an indicator of paper’s mechanical performance. The effect of the aging of oil-paper insulation on the mechanical properties of the insulating paper was mainly reflected in the change in the tensile strength. Figure 3 shows the variation of the tensile strength of insulating the paper, in which the tensile strength was retained during aging. On day 0 of aging, the tensile strength of P₁ was higher than that of P₀. The doping of nano-Al₂O₃ effectively improved the mechanical strength of the insulating paper, and this property was not provided by the chemical modification and the addition of the heat stabilizer.

As the thermal aging time progressed, both the modified paper and the plain paper gradually deteriorated, and the cellulose chain broke and cleaved. Therefore, the tensile strength of both kinds of insulating papers tended to decrease continuously. As shown in Figure 4, the tensile strength of the modified paper was always higher than that of the plain paper throughout the thermal aging process. Nano-Al₂O₃ doping can maintain the high mechanical strength of the insulating paper during the thermal aging process.

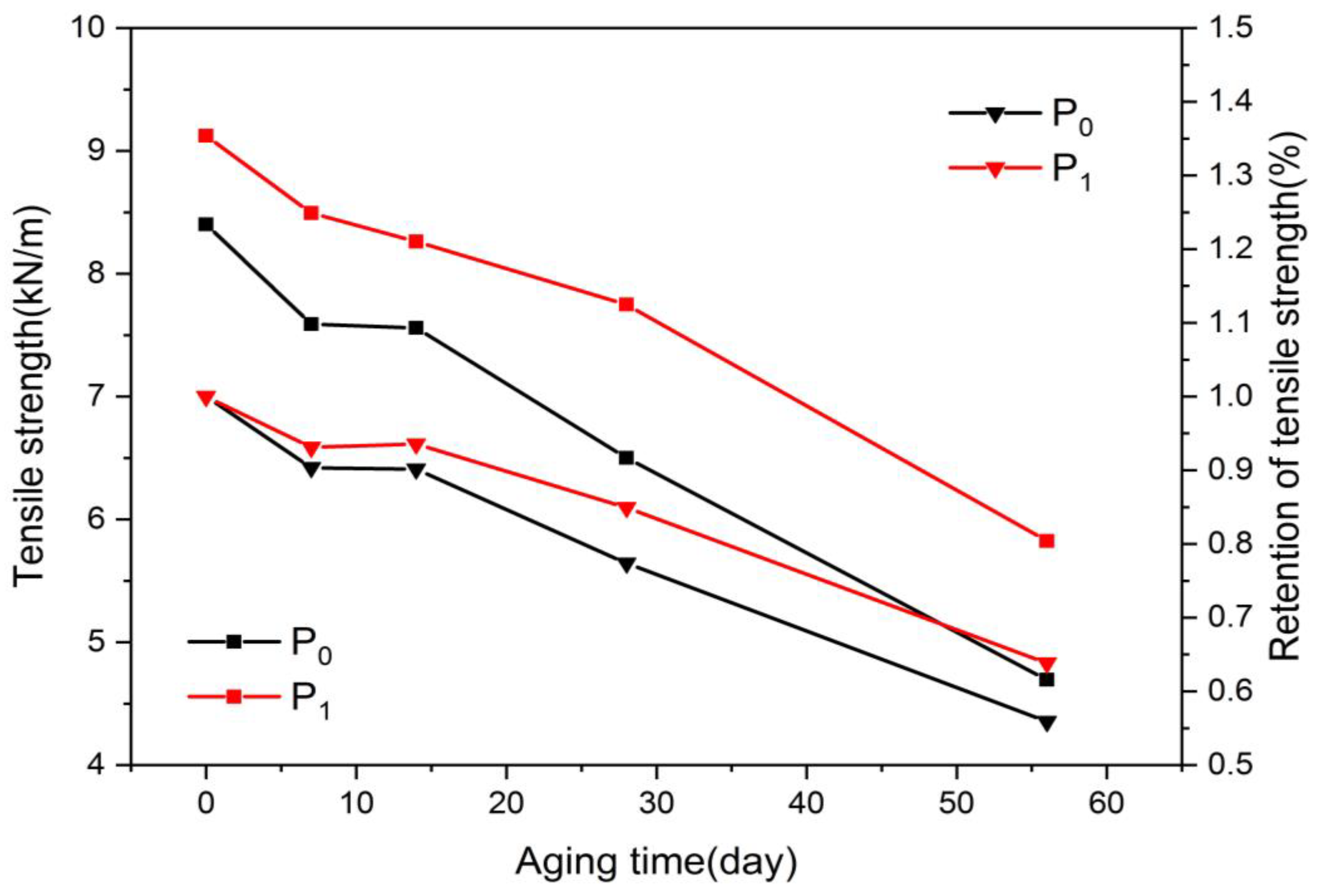

The tensile strength retention rate of the insulating paper is considered an important indicator of the remaining thermal life of the insulating paper in the thermal aging process. Figure 4 shows that the retention rate of the tensile strength of the modified paper was higher than that of the plain paper throughout the aging process. After 56 days of aging, the tensile strength retention rates of the modified paper and the plain paper were approximately 56% and 64%, respectively, indicating that the modified paper had a higher residual heat life and better heat aging resistance.

2.3.3. Color of Insulating Oil

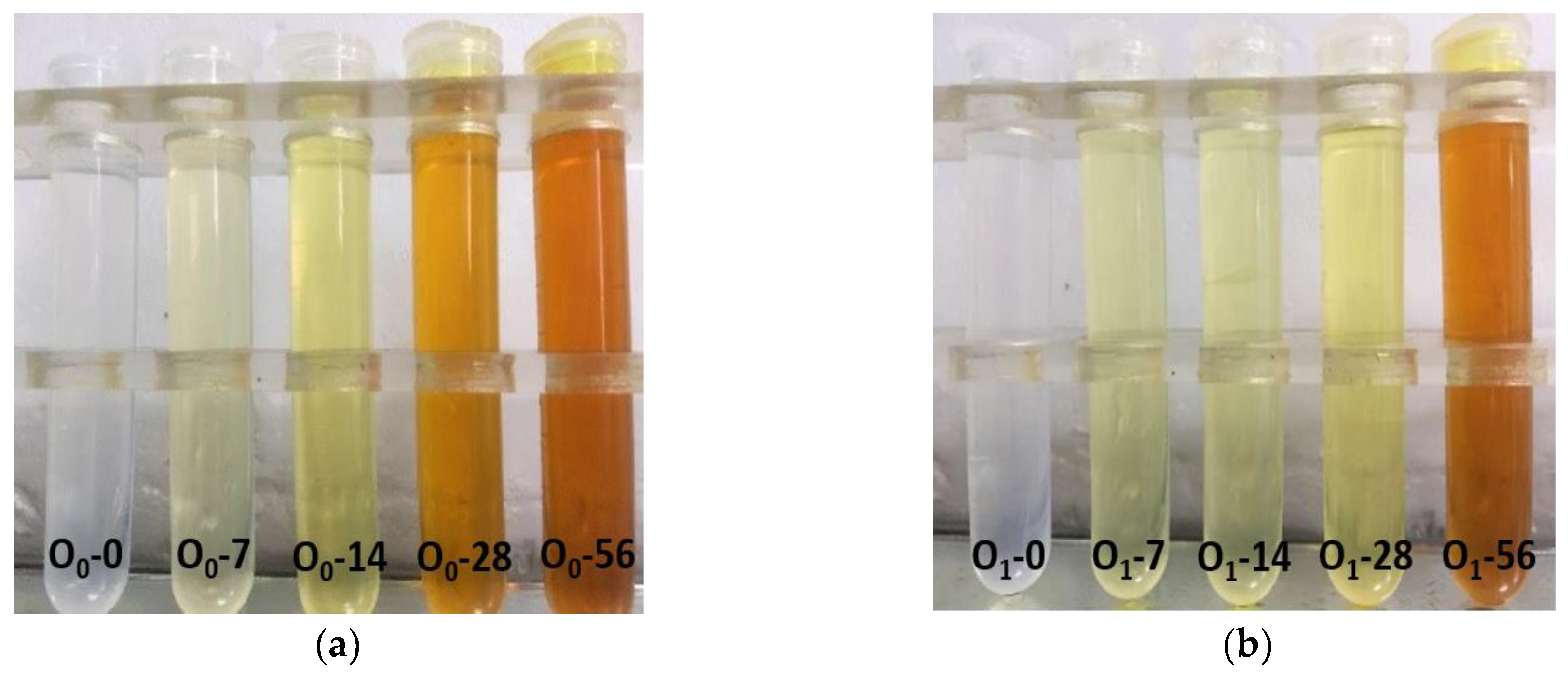

In general, as the aging of the oil-paper insulation progressed, the accumulation of aging products of the insulating paper and the insulating oil increased, and the color of the insulating oil gradually deepened. Figure 4 shows the trend of the color of O₀ and O₁ with aging time. Figure 5a,b show the O₀ and O₁ on five different thermal aging period, 0, 7, 14, 28, and 56 days from left to right. As shown in Figure 4, as the degree of aging increased, the color of the two kinds of insulating oil gradually changed from colorless and transparent to yellow. The color of O₁ was obviously lighter than that of O₀ during the latter period of the aging test, indicating to some extent that the accumulation of aging products in O₁ was less than that in O₀.

2.3.4. Acid Content in Oil

Among the acid substances produced by the thermal aging and decomposition of oil-paper insulation, small-molecule acids were mainly produced by the aging decomposition of insulating paper. The strong hydrophilicity was mainly adsorbed in the insulating paper, whereas the macromolecular acid was mainly decomposed by the aging of the insulating oil. The distribution of the acid in the insulating oil can reflect the aging of the oil [21]. Therefore, the acid content in oil is important for measuring the aging of the insulating oil. This article used the Metrohm 907 Titrino automatic potentiometric titrator (Metrohm Co., Ltd., Herisau, Swiss) to measure the acid content in the oil in accordance with IEC 62021-1-2003. Figure 6 shows the measurement of the acid content in the oil during the aging test.

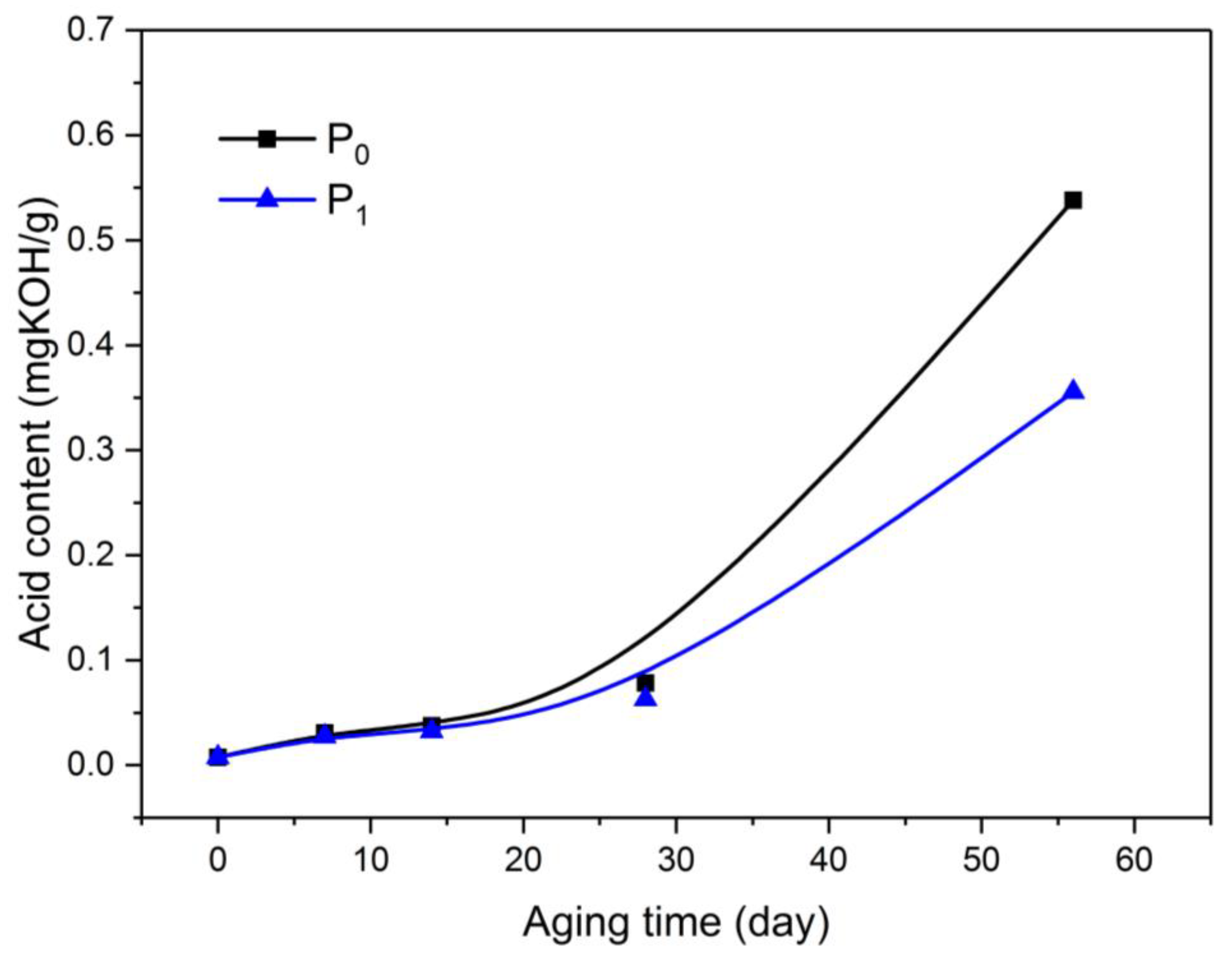

At the initial stage of aging, the acid content in the insulating oil was low, and the two kinds of oil displayed no difference in acid content. As the aging progressed, the acid content in O₁ was lower than that in O₀ during the early aging period. In the middle of aging, the acidification rate of O₀ was higher than that of O₁. By the end of the aging test, the acid content in O₁ was lower than that in O₀ by 33.92%.

2.3.5. Breakdown Voltage of Oil

The power frequency breakdown voltage of the insulating oil, as the most direct electrical strength parameter of oil-paper insulation, is an important parameter for characterizing the electrical performance of liquid dielectric insulation. The breakdown voltage of insulating oil is measured according to IEC60156, using IJJD-80 automatic insulating oil dielectric strength tester (Ruixin Electrical Test Equipment Co., Ltd., Wuhan, Huibei, China). The breakdown voltage of two insulation oils at different aging stages was tested. The test results are shown in Figure 7.

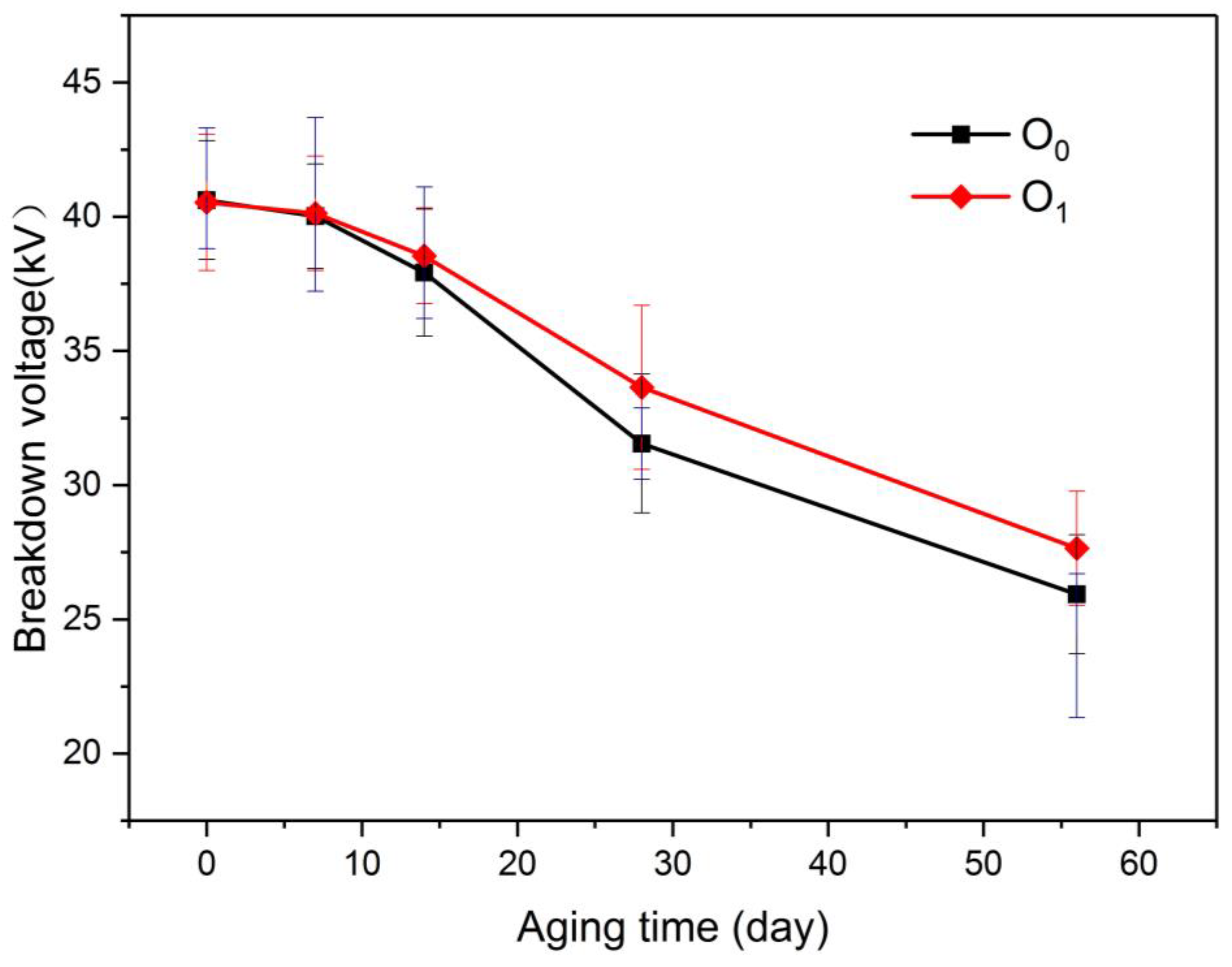

As depicted in the diagram, the power breakdown voltages of O₀ and O₁ were reduced as the degree of aging increased. During the entire aging process, the breakdown voltage of O₁ was always higher than the power frequency breakdown voltage of O₀, indicating that the insulation degree of aging of the oil-paper insulation with the modified paper was lower than that of the ordinary oil-paper insulation, although the gap between O₁ and O₀ at the same aging stage was insignificant.

2.3.6. Dielectric Loss of Oil

A DTL C dielectric instrument (BAUR GmbH Co., Ltd., Sulz, Vorarlberg, Austria) was applied to measure dielectric properties of immersed insulating paper and insulating oil. The test temperature is 90°C and the test frequency is 50 Hz, according to IEC 60156:1995.

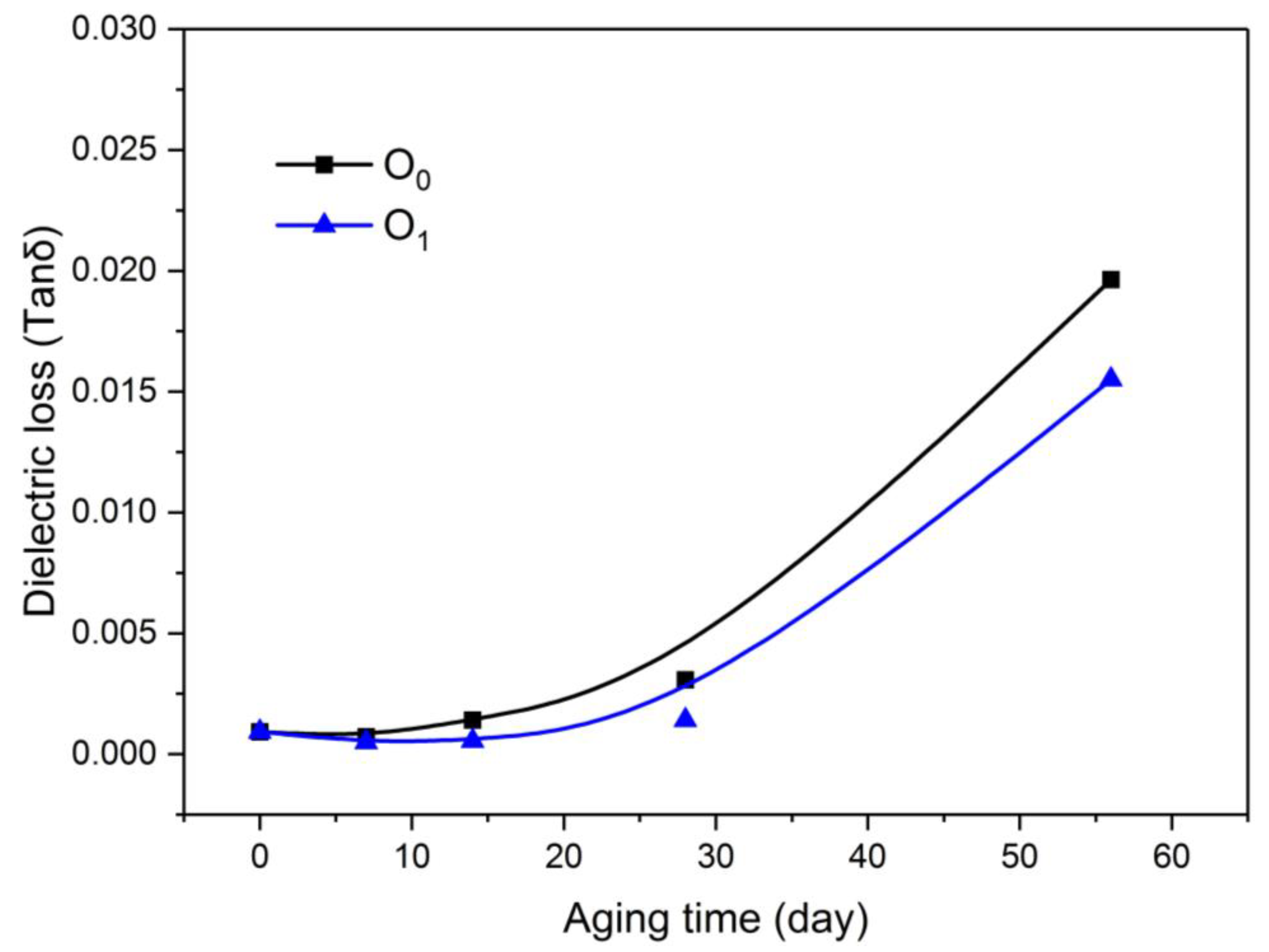

As shown in Figure 8, the dielectric loss factor (tanδ) of the two insulating oils increased with increasing aging time, and the dielectric loss factor of the insulating oil with the modified paper was lower than that of the oil with the unmodified paper.

In addition, various impurities, such as paper fibers that have been aged, diffused into the oil and increased the conductance loss of the insulating oil, causing the loss factor of the dielectric oil to increase rapidly with the aging time.

3. Discussion

The test and analysis of the thermal aging parameters of the oil-paper insulation at various aging stages revealed the doping of nano-Al₂O₃ reduced the degree of deterioration of the oil-immersed composite insulating paper in the thermal aging process. Therefore, the doping of nano-Al₂O₃ with different crystal forms effectively retarded and inhibited the thermal aging of both the insulating paper and the insulating oil.

During the aging process of oil-paper insulation, the insulating paper and the insulating oil were hydrolyzed to produce water under the action of thermal stress. The insulating paper produced small molecular acids, such as formic acid and acetic acid [21], in the cracking reaction. The small molecular acids were dissolved in water to produce H⁺, which further catalyzed the hydrolysis process. This “positive feedback” effect implied that water and small molecular acids play important roles in the thermal aging reaction [10]. In view of the strong hydrophilicity of the insulating paper, most of the moisture of the oil-paper insulation was adsorbed on insulating paper. As the degree of aging increased, the moisture in the insulating paper gradually accumulated, and the catalytic activity was enhanced.

In addition, copper bars were added to simulate the actual condition of the transformer with a copper compound, thereby accelerating the aging of the insulating oil [23]. Copper compounds generate peroxide radicals by decomposing hydrogen peroxide, which promotes the oxidation of oil products. Therefore, an increase in the content of copper compound increased the aging rate of the transformer oil. At the same time, copper compound was produced during the aging process of the oil-paper insulation, and acidic aging products further accelerated the corrosion of copper and generated copper compounds. In the aging process of a transformer, in addition to the residual oxygen inside and the small amount of oxygen infiltrated from the outside, the aging products of the insulating oil also contained oxidants, which would accelerate the aging of the insulating paper and thus cannot be ignored [24].

Therefore, suppressing the small molecule acid in the oil-paper insulation and suppressing the copper element content in the oil are effective measures to delay the aging of the oil-paper insulation.

To further analyze the mechanism of the influence of nano-Al₂O₃ on the thermal stability of the oil-paper insulation, inductively coupled plasma mass spectrometry (ICAP-QC, Thermo Scientific Co., Ltd., Waltham, MA, USA) was used to quantitatively measure the copper content of the insulating paper and the insulating oil.

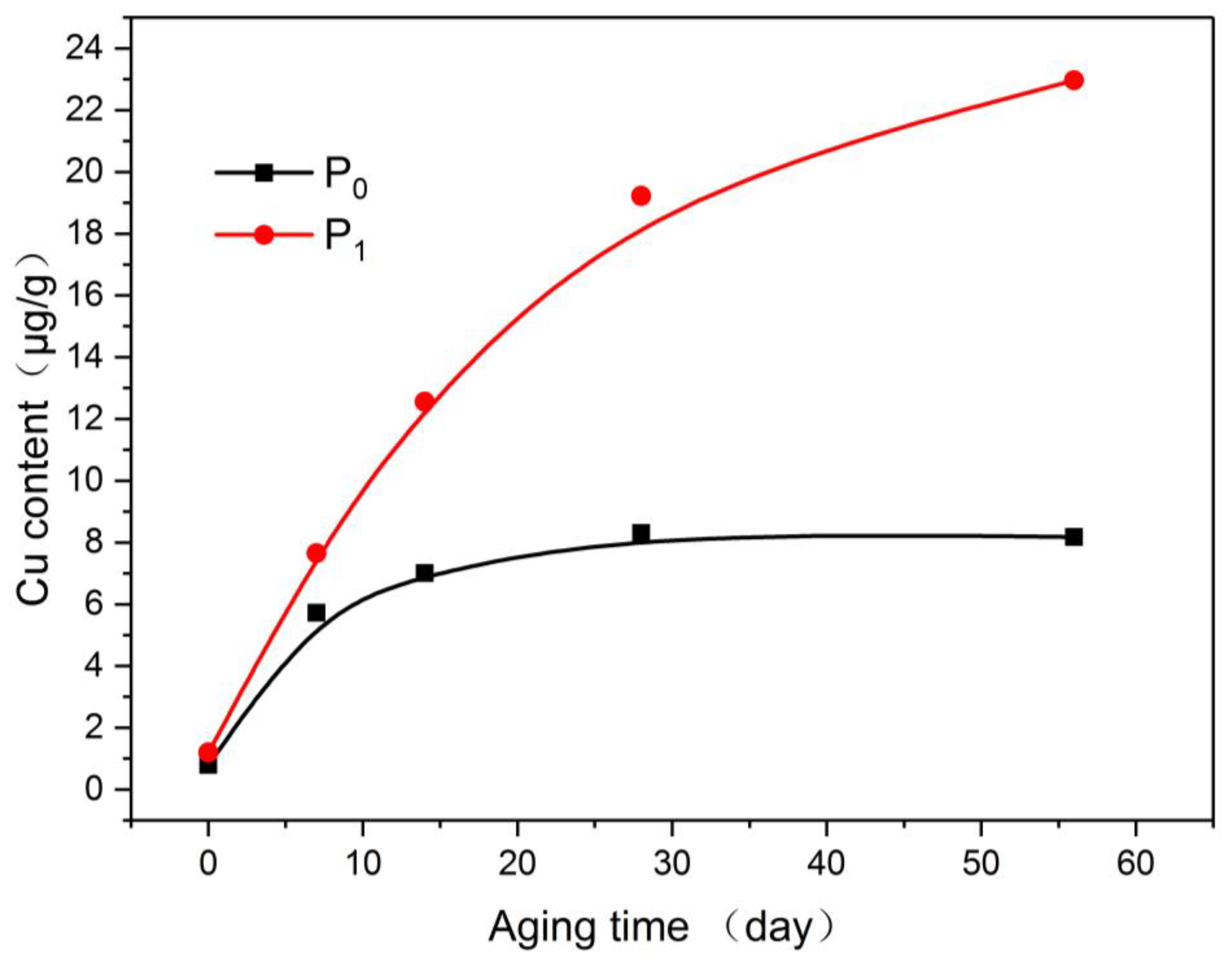

As shown in Figure 9, the plain paper can also adsorb part of the copper compound during the aging process, but it gradually became saturated as the aging process progressed. In comparison, the insulating paper doped with nano-Al₂O₃ displayed a stronger ability to adsorb copper, and the copper compounds absorbed by the modified paper at the early stage of aging were significantly greater than that by the plain paper. At the end of aging, the adsorption of copper compounds by the nano-Al₂O₃ modified paper was thrice that of the plain paper.

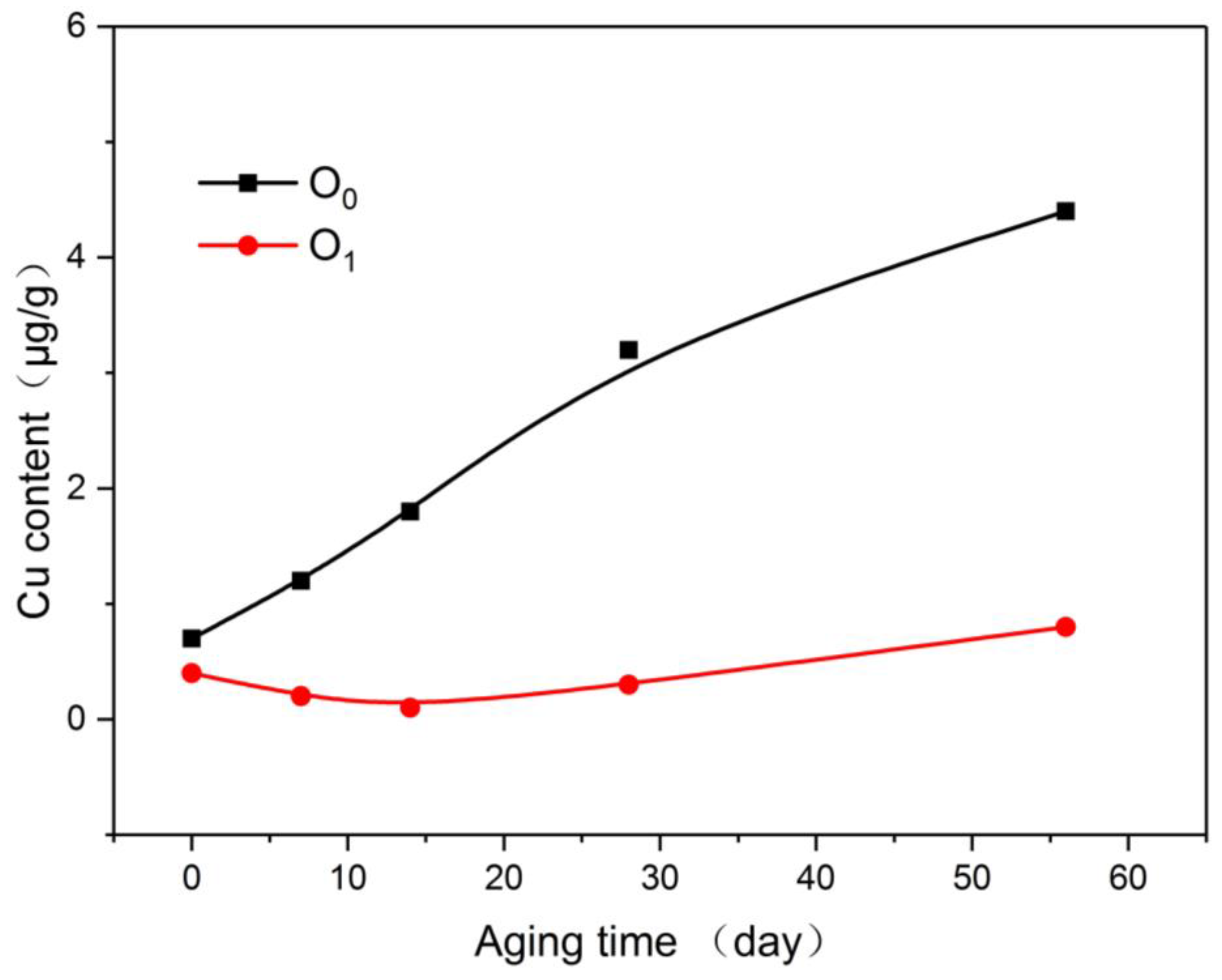

In Figure 10, the copper content in the insulating oil was consistent with the copper content in the insulating paper. The copper content of O0 increased throughout the aging period. The copper in O1 was at a very low levels during the initial period of aging and gradually increased after the middle of aging, although it was still much smaller than that of O0.

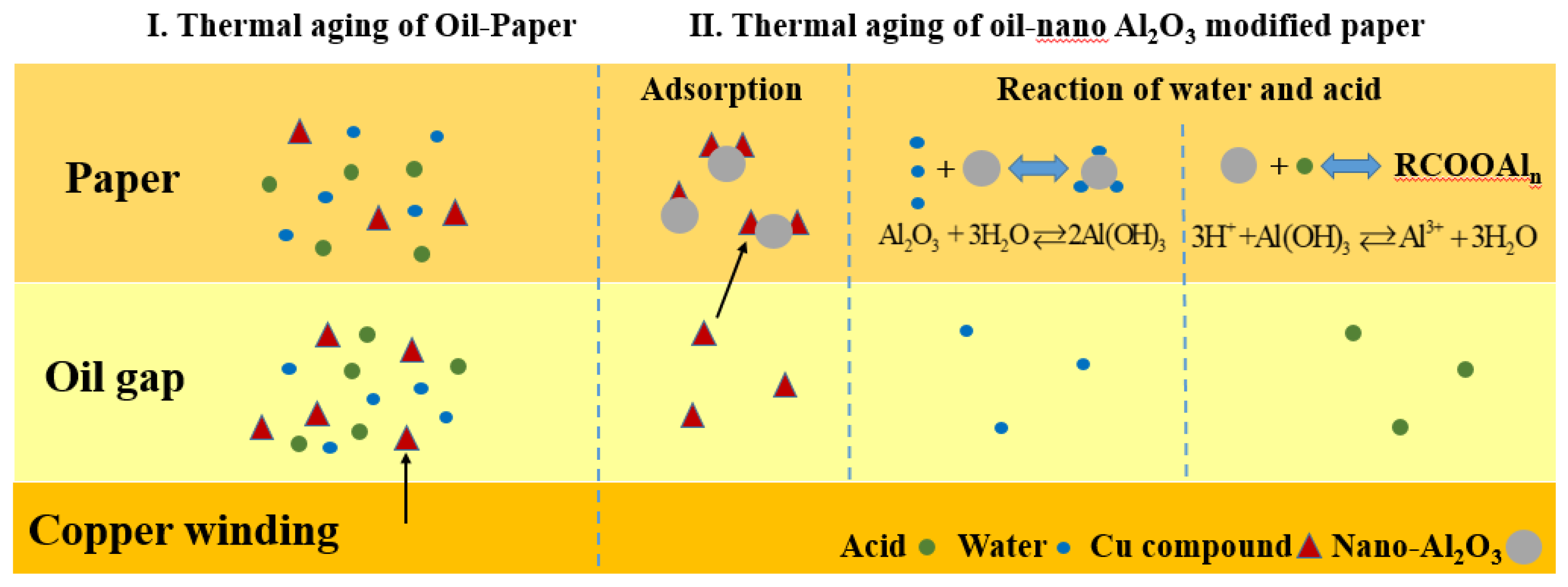

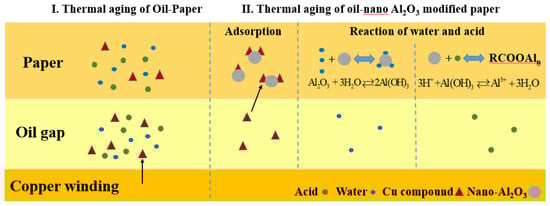

The delaying mechanism of the thermal aging rate of the oil-paper insulation is shown in Figure 11. First, the nano-Al₂O₃ surface atoms can be combined with other metal ions by electrostatic interaction, which means nano-Al₂O₃ has a strong adsorption capacity for many transition metal ions, and it can achieve adsorption equilibrium in a short time. Different temperatures and pH value pairs had an insignificant effect on the nano-Al₂O₃ copper ion adsorption capacity [25]. In the aging process, the small molecule acid produced by the aging of the insulating paper, and the peroxide generated from the aging of the insulating oil promoted the formation of copper compounds and the aging of the insulating oil. The insulating paper doped with nano-Al₂O₃ adsorbed more copper compounds, delayed the aging of the insulating oil, reduced the aging products of the insulating oil, and neutralized small molecular acids, thereby retarding the aging of the insulating paper and the insulating oil.

Moreover, through nano-Al₂O₃ doping, the voids of the composite insulating paper fibers were filled with nano-Al₂O₃ containing hydroxyl groups. The hydroxyl group on the surface of nano-Al₂O₃ had a strong ability to adsorb water and neutralize the consumption of small molecules, such as formic acid, as defined in Equations (1) and (2):

$${\mathrm{Al}}_2{\mathrm{O}}_3{+3\mathrm{H}}_2\mathrm{O}\rightleftarrows {2\mathrm{Al}\left(\mathrm{OH}\right)}_3$$

(1)

$$3{\mathrm{H}}^{+}+\mathrm{Al}{(\mathrm{OH})}_3\rightleftarrows {\mathrm{Al}}^{3+}+3{\mathrm{H}}_2\mathrm{O}$$

(2)

In view of the two reversible reactions, some water and acidic products did not participate in the aging reaction of insulating paper and the insulating oil, thereby reducing their aging rates.

Therefore, the nano-Al₂O₃, filled in the insulating paper, can adsorb copper compounds and keep part of the water and acid products away from the thermal aging process. Under such double action, the aging of the oil-paper insulation can be delayed.

4. Conclusions

This work investigated the thermal aging characteristics of oil-impregnated composite insulating paper and oil-impregnated general insulating paper at 130 °C. The DP, tensile strength, and copper of the insulating paper were measured, whereas various parameters, such as color, acid value, breakdown voltage, dielectric loss, and copper content in the oil were compared and analyzed to arrive at the following conclusions:

• In the papermaking process, 2 wt% nano-Al₂O₃ was doped into the insulating paper to prepare composite insulating paper. Its DP and tensile strength were always superior to those of the plain paper in the thermal aging process, indicating that the aging decomposition rate of the nano-Al₂O₃ modified insulating paper was significantly lower than that of the plain paper.
• The testing of the insulating oil revealed the color, acidity value, moisture, breakdown voltage, and dielectric loss of the insulating oil of the modified paper were better than those of the oil with the plain paper, indicating that the nano-Al₂O₃ modified insulating paper can significantly slow down the aging rate of the insulating oil.
• Nano-Al₂O₃ in the modified paper can effectively absorb copper compounds in the insulating oil to delay the aging of the oil and reduction of the aging product will also decrease the aging rate of the insulating paper. Simultaneously, Nano-Al₂O₃ in the modified paper can adsorb water molecules and small molecule acids, and inhibit the dissolution of the small molecules of acid in the composite insulating paper to delay the aging of the insulating paper and the insulating oil. In summary, the Al₂O₃-modified insulating paper has a good thermal stability and can delay the aging rate of the insulating oil.
