The Influence of the Use of Windrowers in Baler Machinery on the Energy Balance during Pruned Biomass Harvesting in the Apple Orchard
Abstract
:1. Introduction
2. Materials and Methods

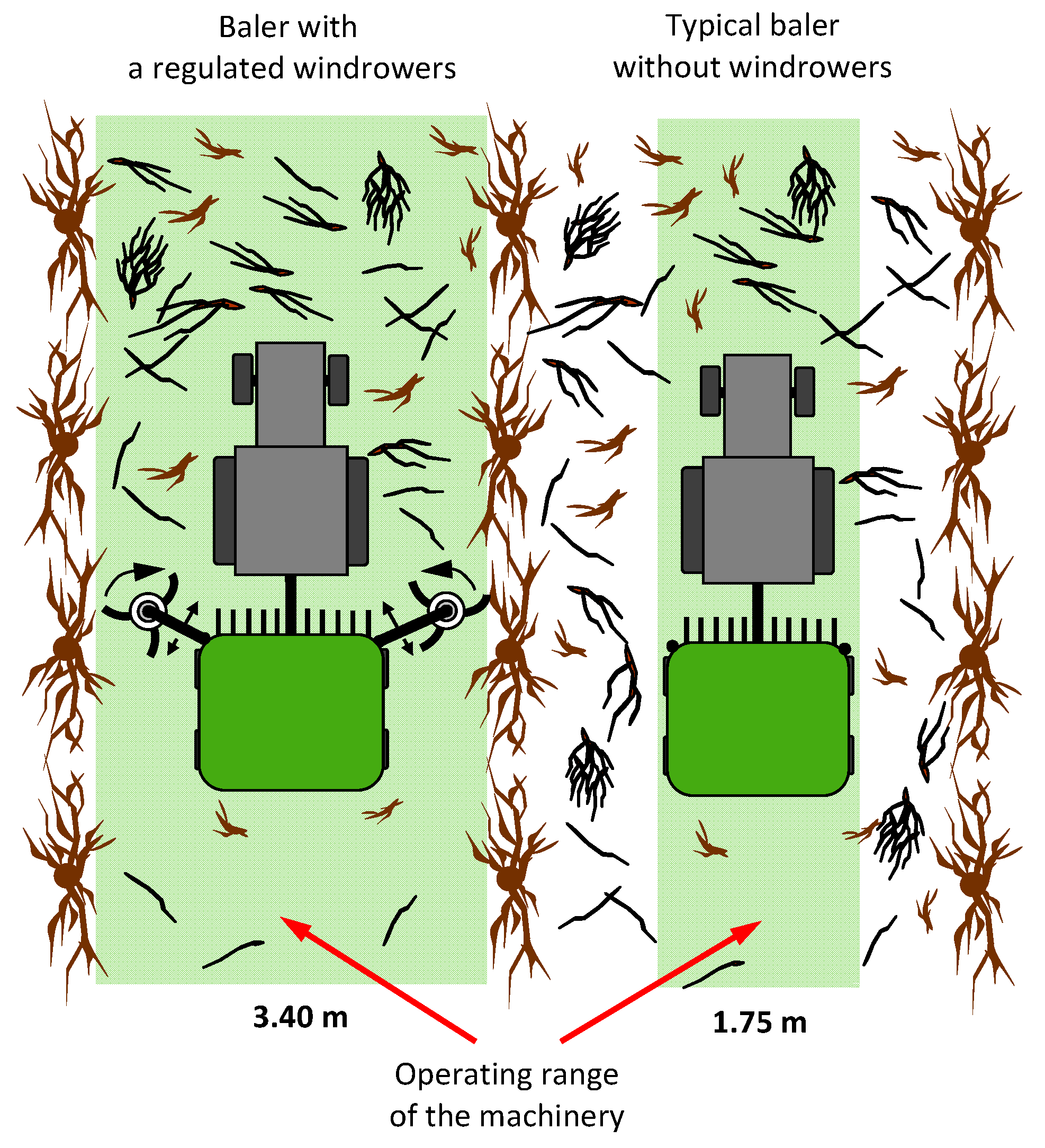

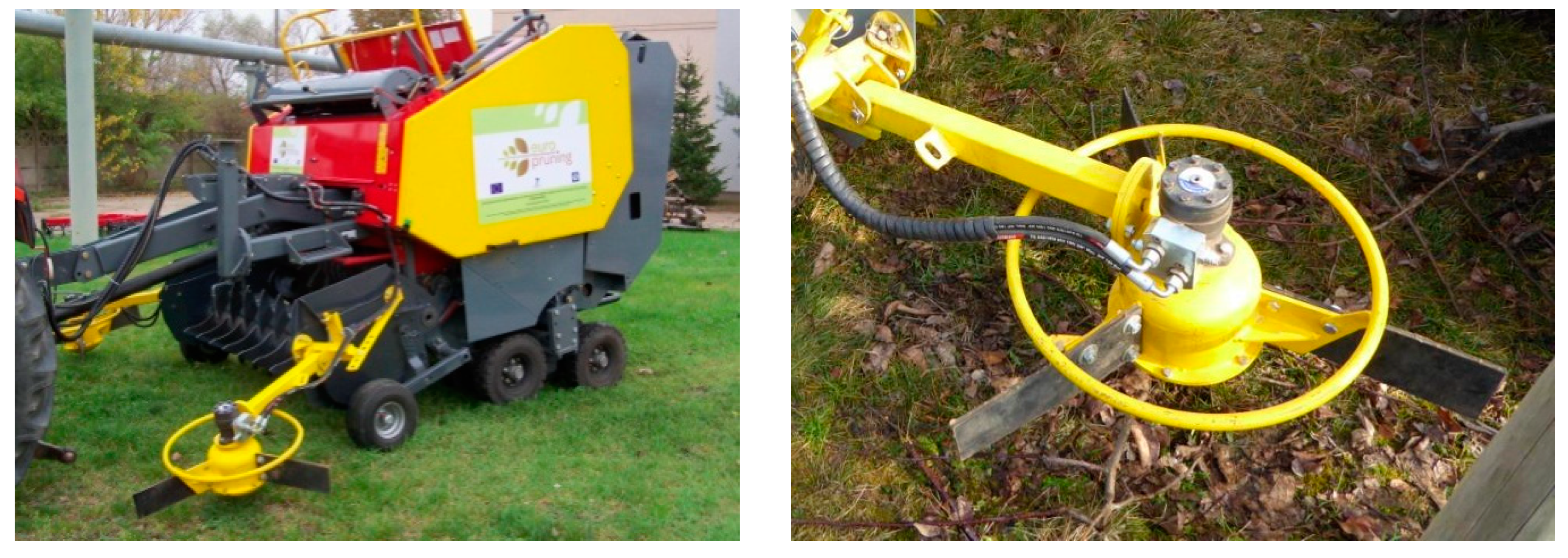

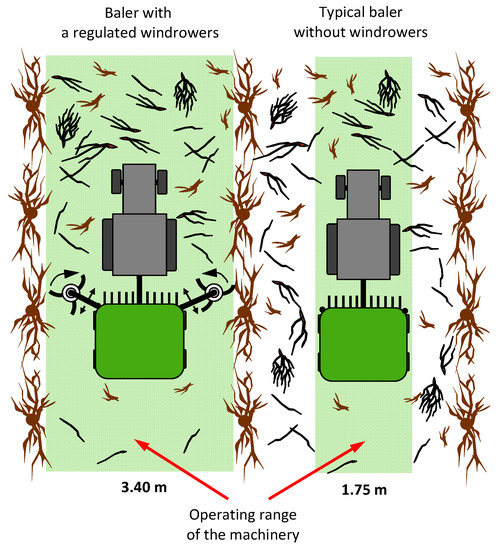

2.1. Study Site, Experimental Design, and Data Collection
2.2. Pruned Biomass Characterisation and Productivity

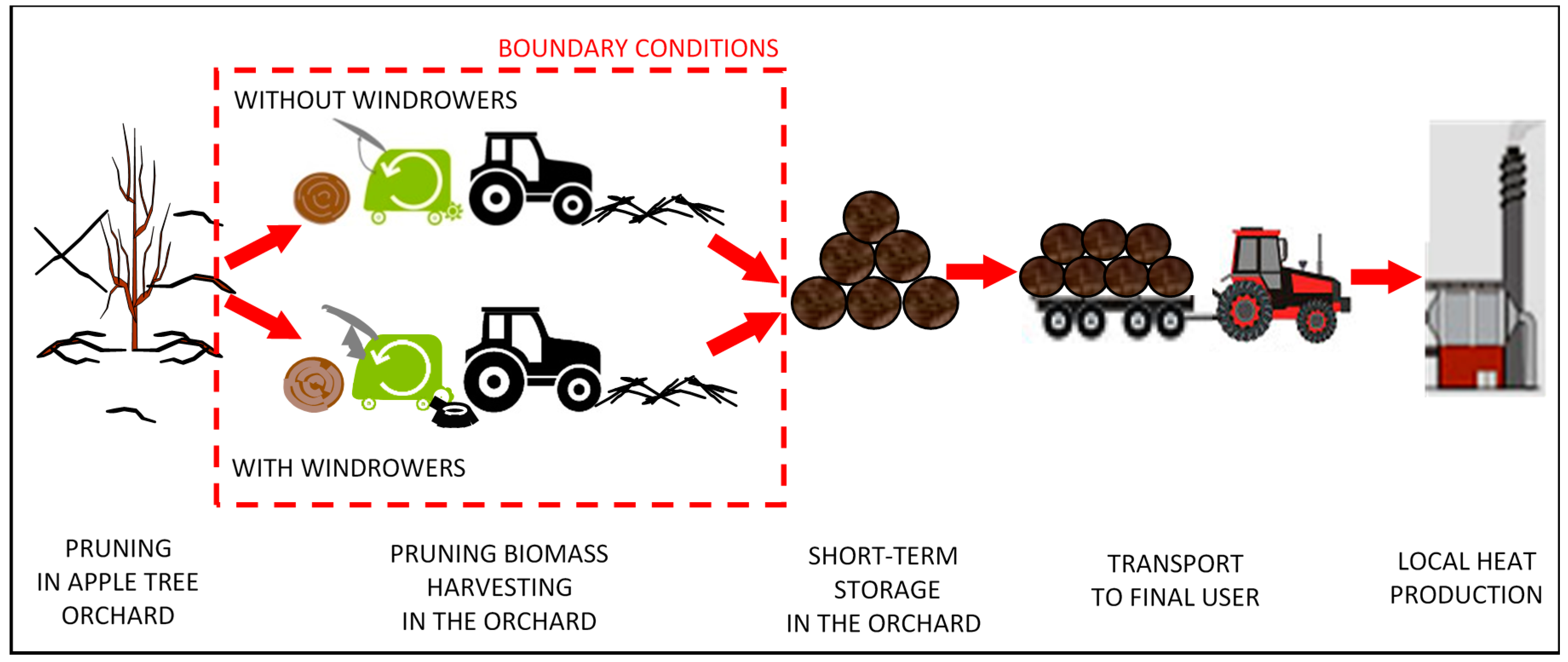

2.3. Energy Analysis
2.4. Cost Analysis
3. Results
3.1. Pruned Biomass Characterisation and Productivity

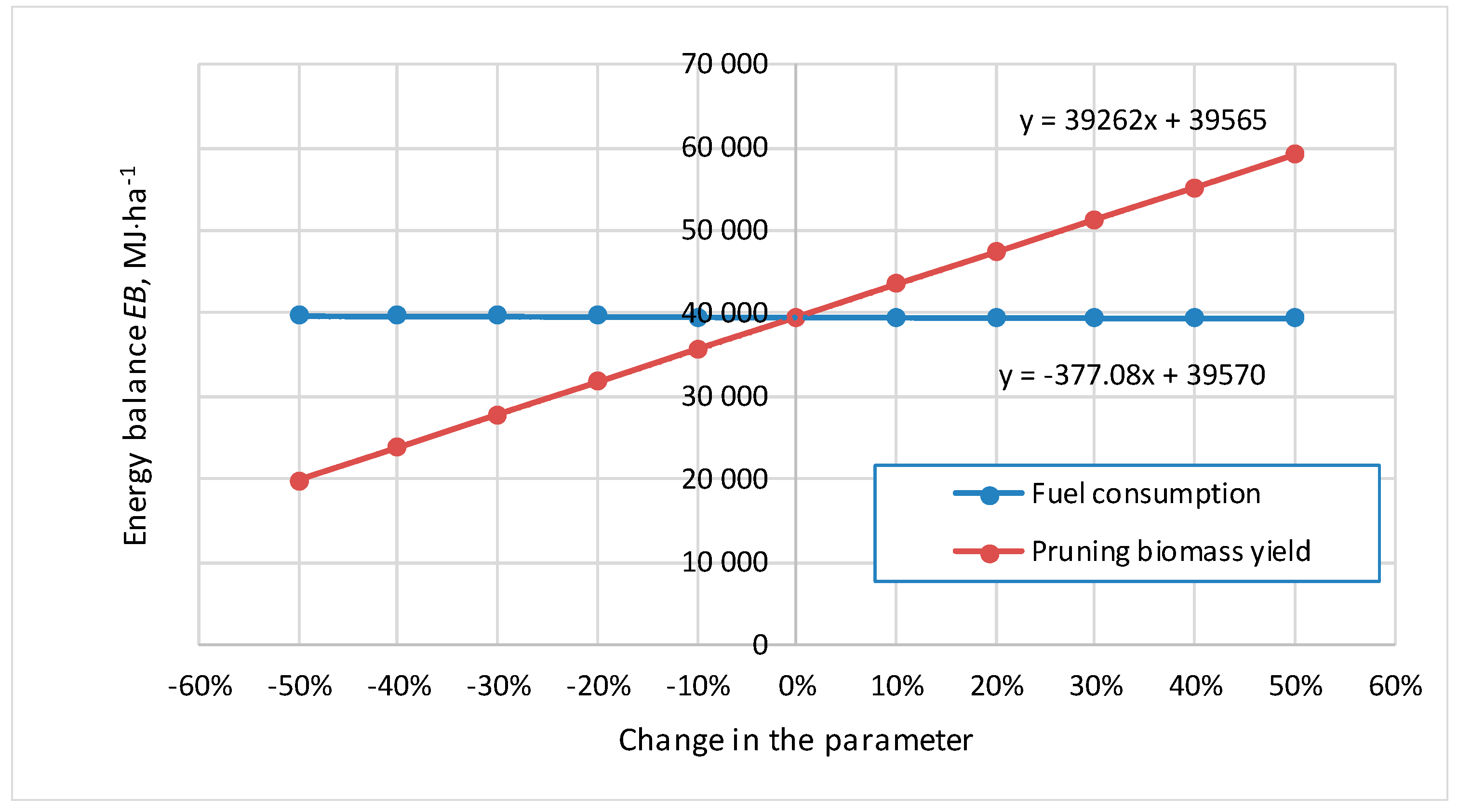

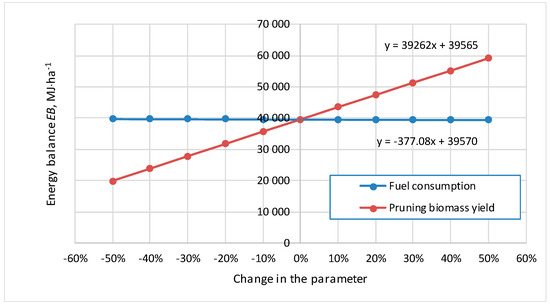

3.2. Energy Analysis
3.3. Cost Analysis
4. Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
DM | dry mass |
DE | direct energy |
EB | energy balance |
EI | energy intensity |
EIF | energy input flow |
EIS | energy input share |
EOF | energy output flow |
EP | energy productivity |
EROI | energy return on investment |
EU-28 | 28 member states that belong to the European Union |
FM | fresh mass |
HHV | higher heating value |
IDE | indirect energy |
LHV | lower heating value |
MC | moisture content |
O&M | operation and maintenance |
PtE | pruning to energy |
PTO | power take-off |
PB | pruning biomass yield |
SMH | scheduled machine hours |
References
- EUROSTAT, (nrg_110a). 2016. Available online: https://ec.europa.eu/eurostat/statistics-explained/index.php?title=Energy_statistics_-_an_overview#Final_energy_consumption (accessed on 1 October 2018).
- EEA Report. Annual European Union Greenhouse Gas Inventory 1990–2015 and Inventory Report 2017. Available online: https://www.eea.europa.eu/publications/european-union-greenhouse-gas-inventory-2018 (accessed on 5 October 2018).
- EUROSTAT, 2017: Energy, transport and environment indicators, 2017 Edition. Available online: https://ec.europa.eu/eurostat/documents/3217494/8435375/KS-DK-17-001-FACTSHEETS.pdf (accessed on 12 September 2018).
- Asadullah, M. Barriers of commercial power generation using biomass gasification gas: A review. Renew. Sustain. Energy Rev. 2014, 29, 201–215. [Google Scholar] [CrossRef]
- Sustainable and Optimal Use of Biomass for Energy in the EU Beyond 2020, Final Report. Available online: https://ec.europa.eu/energy/sites/ener/files/documents/biosustain_report_final.pdf (accessed on 8 October 2018).
- Mola-Yudego, B.; Arevalo, J.; Díaz-Yáñez, O.; Dimitriou, I.; Freshwater, E.; Haapala, A.; Khanam, T.; Mari, S. Reviewing wood biomass potentials for energy in Europe: the role of forests and fast growing plantations. Biofuels 2017, 8, 401–410. [Google Scholar] [CrossRef]
- Kluts, I.N.; Brinkman, M.L.J.; de Jong, S.A.; Junginger, H.M. Biomass resources: Agriculture. Adv. Biochem. Eng. Biotechnol. 2017. [Google Scholar] [CrossRef]
- Pari, L.; Suardi, A.; Scarfone, A.; Acampora, A.; Frackowiak, P.; Adamczyk, F.; Santangelo, E. Harvesting of almond (Prunus dulcis, Mill.) pruning in Spain using a new chipper prototype. In Proceedings of the 24th European Biomass Conference and Exhibition, Amsterdam, The Netherlands, 6–9 June 2016. [Google Scholar]
- Frąckowiak, P.; Adamczyk, F.; Wąchalski, G.; Szaroleta, M.; Dyjakon, A.; Pari, L.; Suardi, A. A prototype machine for harvesting and baling of pruning residues in orchards: First test on apple orchard (MALUS MILL.) in Poland. J. Res. Appl. Agric. Eng. 2016, 61, 88–93. [Google Scholar]
- Pari, L.; Suardi, A.; Santangelo, E.; García-Galindo, D.; Scarfone, A.; Alfano, V. Current and innovative technologies for pruning harvesting: A review. Biomass Bioenergy 2017, 107, 398–410. [Google Scholar] [CrossRef]
- Bosona, T.; Gebresenbet, G. Evaluating Logistics Performances of agricultural prunings for energy production: A logistics audit analysis approach. Logistics 2018, 2, 19. [Google Scholar] [CrossRef]
- Akhtari, S.; Sowlati, T.; Day, K. Optimal flow of regional forest biomass to a district heating system. Int. J. Energy Res. 2014, 38, 954–964. [Google Scholar] [CrossRef]
- Rentizelas, A.A.; Tolis, A.J.; Tatsipoulos, I.P. Logistics issues of biomass: The storage problem and the multi-biomass supply chain. Renew. Sustain. Energy Rev. 2009, 13, 887–894. [Google Scholar] [CrossRef] [Green Version]
- Spinelli, R.; Lombardini, C.; Pari, L.; Sadauskiene, L. An alternative to field burning of pruning residues in mountain vineyards. Ecol. Eng. 2014, 70, 212–216. [Google Scholar] [CrossRef]
- Spinelli, R.; Nati, C.; Pari, L.; Mescalchin, E.; Magagnotti, N. Production and quality of biomass fuels from mechanized collection and processing of vineyard pruning residues. Appl. Energy 2012, 89, 374–379. [Google Scholar] [CrossRef]
- Forest Fuels. Available online: https://www.forestfuels.co.uk/wood-fuel-price-comparison/ (accessed on 5 October 2018).
- Adamczyk, F.; Dyjakon, A.; Frąckowiak, P.; Romański, L. Conception of machine for pressing branches with pruning fruit tree. J. Res. Appl. Agr. Eng. 2014, 59, 5–9. [Google Scholar]
- ISO 18134-1. Solid Biofuels. Determination of Moisture Content. Oven Dry Method-Part 1. Total Moisture. Reference Method. Available online: https://www.iso.org/standard/61538.html (accessed on 10 August 2018).
- ISO 18125:2017. Solid Biofuels—Determination of Calorific Value. Available online: https://www.iso.org/standard/61517.html (accessed on 10 August 2018).
- FAO. Wood Fuels Handbook; FAO: Rome, Italy, 2013; Available online: http://dx.doi.org/10.1017/CBO9781107415324.004 (accessed on 26 August 2018).
- Miyata, E.S. Determining fixed and operating costs of logging equipment. Available online: https://www.nrs.fs.fed.us/pubs/gtr/gtr_nc055.pdf (accessed on 3 September 2018).
- Dyjakon, A.; Adamczyk, F.; Szaroleta, M.; Pari, L.; Suardi, A.; Germer, S. Harvesting of agricultural wood residues from apple orchards using a pruning round baler. Wood 2018. [Google Scholar] [CrossRef]
- Stanhill, G. Energy and Agriculture. Advanced Series in Agricultural Sciences; Springer: Berlin/Heidelberg, NY, USA, 1984. [Google Scholar]
- Lockeretz, W. Agriculture and Energy; Washington University through Academic Press: New York, NY, USA, 1977. [Google Scholar]
- Hulsbergen, K.-J.; Feil, B.; Biermann, S.; Rathke, G.-W.; Kalk, W.-D.; Diepenbrock, W. A method of energy balancing in crop production and its application in a long-term fertilizer trial. Agric. Ecosyst. Environ. 2001, 86, 303–321. [Google Scholar] [CrossRef]
- Jorgensen, S.E. Thermodynamics and Ecological Modelling, 1st Edition; CRC Press: London, UK, 2000; ISBN 9781482278613. [Google Scholar]
- Giampietro, M.; Mayumi, K.; Sorman, A.H. Energy Analysis for a Sustainable Future: Multi-scale Integrated Analysis of Societal and Ecosystem Metabolism; Routledge: London, UK, 2013. [Google Scholar]
- Pandur, Z.; Susnjar, M.; Zoric, M.; Nevecerel, H.; Horvat, D. Energy return on investment (EROI) of different wood products. In Precious Forests: Precious Earth; Zlatic, M., Ed.; InTech: London, UK, 2015. [Google Scholar]
- Baldi, F.; Spugnoli, P.; Zoli, M. Energy efficiency in the Vineyard. J. Agr. Eng. Res. 1989, 44, 301–310. [Google Scholar] [CrossRef]
- Veiga, J.P.S.; Romanelli, T.L.; Gimenez, L.M.; Busato, P.; Milan, M. Energy embodiment in Brazilian agriculture: An overview of 23 crops. Sci. Agric. 2015, 72, 471–477. [Google Scholar] [CrossRef]
- Canakci, M.; Topakci, M.; Akinci, I.; Ozmerzi, A. Energy use pattern of some field crops and vegetable production: Case study for Antalya Region, Turkey. Energy Convers. Manag. 2005, 46, 655–666. [Google Scholar] [CrossRef]
- Dyjakon, A. Harvesting and baling of pruned biomass in apple orchards for energy production. Energies 2018, 11, 1680. [Google Scholar] [CrossRef]
- Singh, M.K.; Pal, S.K.; Thakur, R.; Verma, U.N. Energy input–output relationship of cropping systems. Indian J. Agr. Sci. 1997, 67, 262–264. [Google Scholar]
- Mandal, K.G.; Saha, K.P.; Ghosh, P.K.; Hati, K.M.; Bandyopadhyay, K.K. Bioenergy and economic analysis of soybean-based crop production system in central India. Biomass Bioenergy 2002, 23, 337–345. [Google Scholar] [CrossRef]
- Hussain, Z.; Khan, M.A.; Irfan, M. Water energy and economic analysis of wheat production under raised bed and conventional irrigation systems: A case study from a semi-arid area of Pakistan. Soil Tillage Res. 2010, 109, 61–67. [Google Scholar] [CrossRef]
- Schulter, R.T.; Frank, G.G. Estimating Agricultural Field Machinery Costs. Available online: https://columbia.uwex.edu/files/2014/03/Estimating-Ag-Field-Machinery-Costs-A3510.pdf (accessed on 18 September 2018).
- Edwards, W. Estimating Farm Machinery Costs. Available online: https://aae.wisc.edu/aae320/Budgets/IA%20Farm%20Machinery%20Cost%20PM710.pdf (accessed on 18 September 2018).
- Nati, C.; Boschiero, M.; Picchi, G.; Mastrolonardo, G.; Kelderer, M.; Zerbe, S. Energy performance of a new biomass harvester for recovery of orchard wood wastes as alternative to mulching. Renew. Energy 2018, 124, 121–128. [Google Scholar] [CrossRef] [Green Version]
- Global Petrol Prices. Available online: https://www.globalpetrolprices.com/Germany/diesel_prices/ (accessed on 5 October 2018).
- Pandikumar, M.P. Management Accounting: Theory and Practice; Excel Books India: New Delhi, India, 2007. [Google Scholar]
- Fasaei, F.; Bitter, J.H.; Slegers, P.M.; van Boxtel, A.J.B. Techno-economic evaluation of microalgae harvesting and dewatering systems. Algal Res. 2018, 31, 347–362. [Google Scholar] [CrossRef]
- Wood Chain Manager. Available online: http://wcm.gozdis.si/en/wood-fuel-prices (accessed on 5 October 2018).
- Acampora, A.; Croce, S.; Assirelli, A.; Del Giudice, A.; Spinelli, R.; Suardi, A.; Pari, L. Product contamination and harvesting losses from mechanized recovery of olive tree pruning residues for energy use. Renew. Energy 2013, 53, 350–353. [Google Scholar] [CrossRef]
- Dyjakon, A.; Den Boer, J.; Bukowski, P.; Adamczyk, F.; Frąckowiak, P. Wooden biomass potential from apple orchards in Poland. Wood 2016, 59, 73–86. [Google Scholar]
- Pari, L.; Suardi, A.; Longo, L.; Carnevale, M.; Gallucci, F. Jatropha curcas, L. Pruning residues for energy: Characteristics of an untapped by-product. Energies 2018, 11, 1622. [Google Scholar] [CrossRef]
- Mathanker, S.K.; Hansen, A.C. Impact of miscanthus yield on harvesting cost and fuel consumption. Biomass Bioenergy 2015, 81, 162–166. [Google Scholar] [CrossRef]
- Bilandzija, N.; Voca, N.; Kricka, T.; Matin, A.; Jurisic, V. Energy potential of fruit tree pruned biomass in Croatia. Spanish J. Agr. Res. 2012, 10, 292–298. [Google Scholar]
- Velázquez-Martí, B.; Fernández-González, E.; Callejón-Ferre, A.J.; Estornell-Cremades, J. Mechanized methods for harvesting residual biomass from Mediterranean fruit tree cultivations. Sci. Agric. 2012, 69, 180–188. [Google Scholar] [CrossRef] [Green Version]
- Manzone, M.; Gioelli, F.; Balsari, P. Kiwi clear-cut: First evaluation of recovered biomass for energy production. Energies 2017, 10, 1837. [Google Scholar] [CrossRef]
- Boschiero, M.; Cherubini, F.; Nati, C.; Zerbe, S. Life cycle assessment of bioenergy production from orchards woody residues in Northern Italy. J. Clean. Prod. 2016, 112, 2569–2580. [Google Scholar] [CrossRef]
- Boschiero, M.; Kelderer, M.; Schmitt, A.O.; Andreotti, C.; Zerbe, S. Influence of agricultural residues interpretation and allocation procedures on the environmental performance of bioelectricity production—A case study on woodchips from apple orchards. Appl. Energy 2015, 147, 235–245. [Google Scholar] [CrossRef]
- Boschiero, M.; Zerbe, S. (2014): Woody Biomass from Apple Orchards in South Tyrol: Quantification, Quality Assessment and Environmental Sustainability. Available online: http://tis.bz.it/de/cluster/holz-technik/doc/pdf/doks-foropa/3_Apfelholz_Boschiero.pdf (accessed on 17 June 2018).
- Perea-Moreno, A.-J.; Perea-Moreno, M.-A.; Dorado, M.P.; Manzano-Agugliaro, F. Mango stone properties as biofuel and its potential for reducing CO2 emissions. J. Clean. Prod. 2018, 190, 53–62. [Google Scholar] [CrossRef]
Operation/Action | Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | |||||||
---|---|---|---|---|---|---|---|---|---|
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | ||||||
Machine | Tractor | Baler | Tractor | Baler | Tractor | Baler | Tractor | Baler | |
Unit | MF4270 | PRB1.75 | MF4270 | PRB1.75 | MF4270 | PRB1.75 | MF4270 | PRB1.75 | |
Investment | € | 30,000 | 27,000 | 30,000 | 28,500 | 30,000 | 27,000 | 30,000 | 28,500 |
Power | kW | 84.0 | 0 | 84.0 | 0 | 84.0 | 0 | 84.0 | 0 |
Service life | years | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Crew | no. | 1 | 0 | 1 | 0 | 1 | 0 | 1 | 0 |
Labor cost | €·SMH−1 | 19 | 0 | 19 | 0 | 19 | 0 | 19 | 0 |
Usage | SMH·year−1 | 1500 | 550 | 1500 | 550 | 1500 | 550 | 1500 | 550 |
Fixed cost | €·SMH−1 | 2.4 | 5.6 | 2.4 | 5.6 | 2.4 | 5.9 | 2.4 | 5.9 |
Variable cost | €·SMH−1 | 26.68 | 2.90 | 27.22 | 3.04 | 26.81 | 2.90 | 27.49 | 3.04 |
Overheads (20%) | €·SMH−1 | 5.82 | 1.70 | 5.92 | 1.79 | 5.84 | 1.70 | 5.98 | 1.79 |
Unit cost | €·SMH−1 | 34.89 | 10.20 | 35.54 | 10.74 | 35.05 | 10.20 | 35.86 | 10.74 |
Total cost | €·SMH−1 | 45.09 | 46.28 | 45.25 | 46.60 |
Parameter | Unit | Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | ||
---|---|---|---|---|---|
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | ||
Productivity | tFM·SMH−1 | 3.05 | 3.15 | 3.15 | 3.27 |
tDM·SMH−1 | 1.64 | 1.69 | 1.76 | 1.82 | |
Pruning biomass yield (PB) | tFM·ha−1 | 3.31 | 4.15 | 2.89 | 3.85 |
tDM·ha−1 | 1.78 | 2.23 | 1.61 | 2.15 | |
Pruning capacity | SMH·ha−1 | 1.09 | 1.32 | 0.92 | 1.18 |
ha·SMH−1 | 0.92 | 0.76 | 1.09 | 0.85 | |
Harvesting losses | % | 37.3 | 22.1 | 41.3 | 20.9 |
tFM·ha−1 | 1.97 | 1.18 | 2.03 | 1.02 | |
Theoretical potential | tFM·ha−1 | 5.28 | 5.33 | 4.92 | 4.87 |
Theoretical productivity | tFM·SMH−1 | 4.86 | 4.04 | 5.37 | 4.13 |
Moisture content, MC | % | 46.30 | 44.25 | ||
Lower heating value, LHV | MJ·kg−1FM | 8.53 | 9.02 | ||
MJ·kg−1DM | 17.98 | 18.12 |
Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Tractor | Baler | Tractor | Baler | Tractor | Baler | Tractor | Baler | |||
MF4270 | PRB1.75 | MF4270 | PRB1.75 | MF4270 | PRB1.75 | MF4270 | PRB1.75 | |||
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | |||||||
Direct Input | Fossil product (diesel) | kg | 2146 | 0 | 2837 | 0 | 1854 | 0 | 2638 | 0 |
Energetic value (diesel) | MJ·kg−1 | 51.5 | 51.5 | 51.5 | 51.5 | 51.5 | 51.5 | 51.5 | 51.5 | |
Energy input (diesel) | MJ | 110512 | 0 | 146083 | 0 | 95502 | 0 | 135878 | 0 | |
Fossil product (lubricant) | kg | 42.9 | 42.9 | 56.7 | 52.1 | 37.1 | 36.3 | 52.8 | 46.6 | |
Energetic value (lubricant) | MJ·kg−1 | 83.7 | 83.7 | 83.7 | 83.7 | 83.7 | 83.7 | 83.7 | 83.7 | |
Energy input (lubricant) | MJ | 3592 | 3592 | 4748 | 4361 | 3104 | 3037 | 4417 | 3897 | |
Indirect Input | Mass | kg | 3880 | 3300 | 3880 | 3300 | 3880 | 3300 | 3880 | 3300 |
Energetic value | MJ·kg−1 | 92 | 69 | 92 | 69 | 92 | 69 | 92 | 69 | |
Total energy input | MJ | 356960 | 227700 | 356960 | 227700 | 356960 | 227700 | 356960 | 227700 | |
Service life | SMH | 15000 | 5500 | 15000 | 5500 | 15000 | 5500 | 15000 | 5500 | |
Harvesting time | SMH | 564 | 564 | 685 | 685 | 477 | 477 | 612 | 612 | |
Energy input | MJ | 13429 | 23363 | 16303 | 28362 | 11353 | 19751 | 14569 | 25346 |
Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | |||||
---|---|---|---|---|---|---|
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | |||
Direct Output | Pruning biomass yield | tDM | 712 | 892 | 644 | 860 |
LHV (dry mass) | MJ·kg−1 | 17.98 | 17.98 | 18.12 | 18.12 | |
Energy output | GJ | 12 783 | 16 028 | 11 678 | 15 557 |
Parameter | Unit | Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | |||
---|---|---|---|---|---|---|
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | |||
Total Energy Input (direct + indirect) | GJ·ha−1 | 0.39 | 0.50 | 0.33 | 0.46 | |
Pruning energy output | GJ·ha−1 | 31.96 | 40.07 | 29.19 | 38.89 | |
EB | Energy balance (net energy) | GJ·ha−1 | 31.57 | 39.57 | 28.86 | 38.43 |
EIS | Energy input share | % | 1.21 | 1.25 | 1.14 | 1.18 |
EROI | Energy return on investment (energy ratio) | - | 82.75 | 80.20 | 87.97 | 84.50 |
EP | Energy production (productivity) | kgFM·MJ−1 | 8.57 | 8.31 | 8.71 | 8.36 |
kgDM·MJ−1 | 4.60 | 4.46 | 4.85 | 4.66 | ||
EI | Energy Intensity (energy specific) | MJ·t−1FM | 116.7 | 120.4 | 114.8 | 119.6 |
MJ·t−1DM | 217.3 | 224.2 | 206.0 | 214.4 |
Biomass Harvesting in Orchard 1 | Biomass Harvesting in Orchard 2 | ||||
---|---|---|---|---|---|
Without Windrowers | With Windrowers | Without Windrowers | With Windrowers | ||
Harvesting and Baling | €·SMH−1 | 45.09 | 46.28 | 45.25 | 46.60 |
€·ha−1 | 48.93 | 60.97 | 41.52 | 54.87 | |
€·t−1FM | 14.78 | 14.69 | 14.37 | 14.25 | |
€·t−1DM | 27.53 | 27.36 | 25.77 | 25.56 | |
Bale (pruning) price | €·t−1DM | 90.0 | 90.0 | 90.0 | 90.0 |
Income (prunings residues selling) | €·ha−1 | 160.0 | 200.6 | 145.0 | 193.2 |
Profit net | €·ha−1 | 111.0 | 139.6 | 103.5 | 138.3 |
