Energies 2018, 11(11), 3099; https://doi.org/10.3390/en11113099 (registering DOI)

Designing Incidence-Angle-Targeted Anti-Cavitation Foil Profiles Using a Combination Optimization Strategy

1,2
,
1,2,* , 2,3
and
1,2
1
College of Water Resources and Civil Engineering, China Agricultural University, Beijing 100083, China
2
Beijing Engineering Research Center of Safety and Energy Saving Technology for Water Supply Network System, China Agricultural University, Beijing 100083, China
3
Department of Energy and Power Engineering, Tsinghua University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 15 October 2018 / Revised: 2 November 2018 / Accepted: 5 November 2018 / Published: 9 November 2018
(This article belongs to the Special Issue Engineering Fluid Dynamics 2018)
Full-Text   |   PDF [3675 KB, uploaded 9 November 2018]   |
  |   Review Reports

Abstract

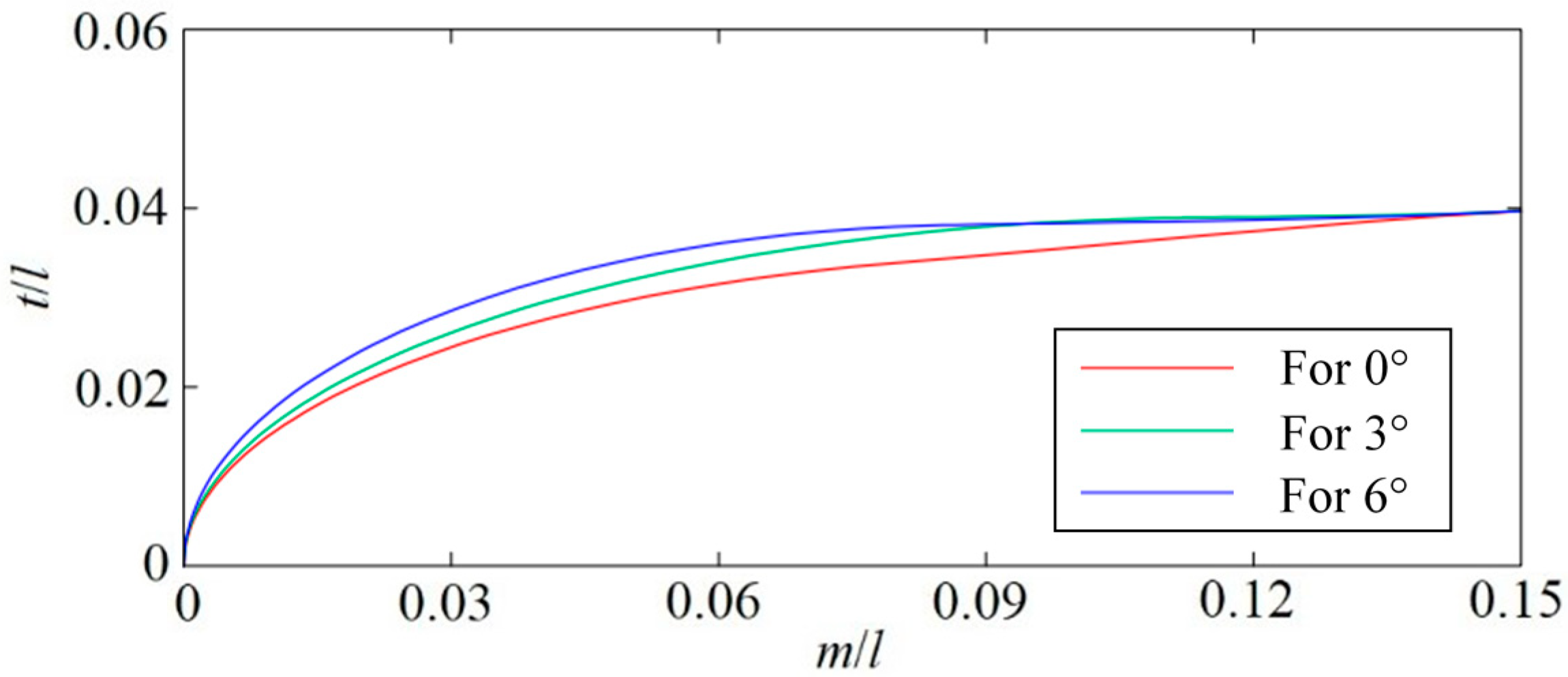

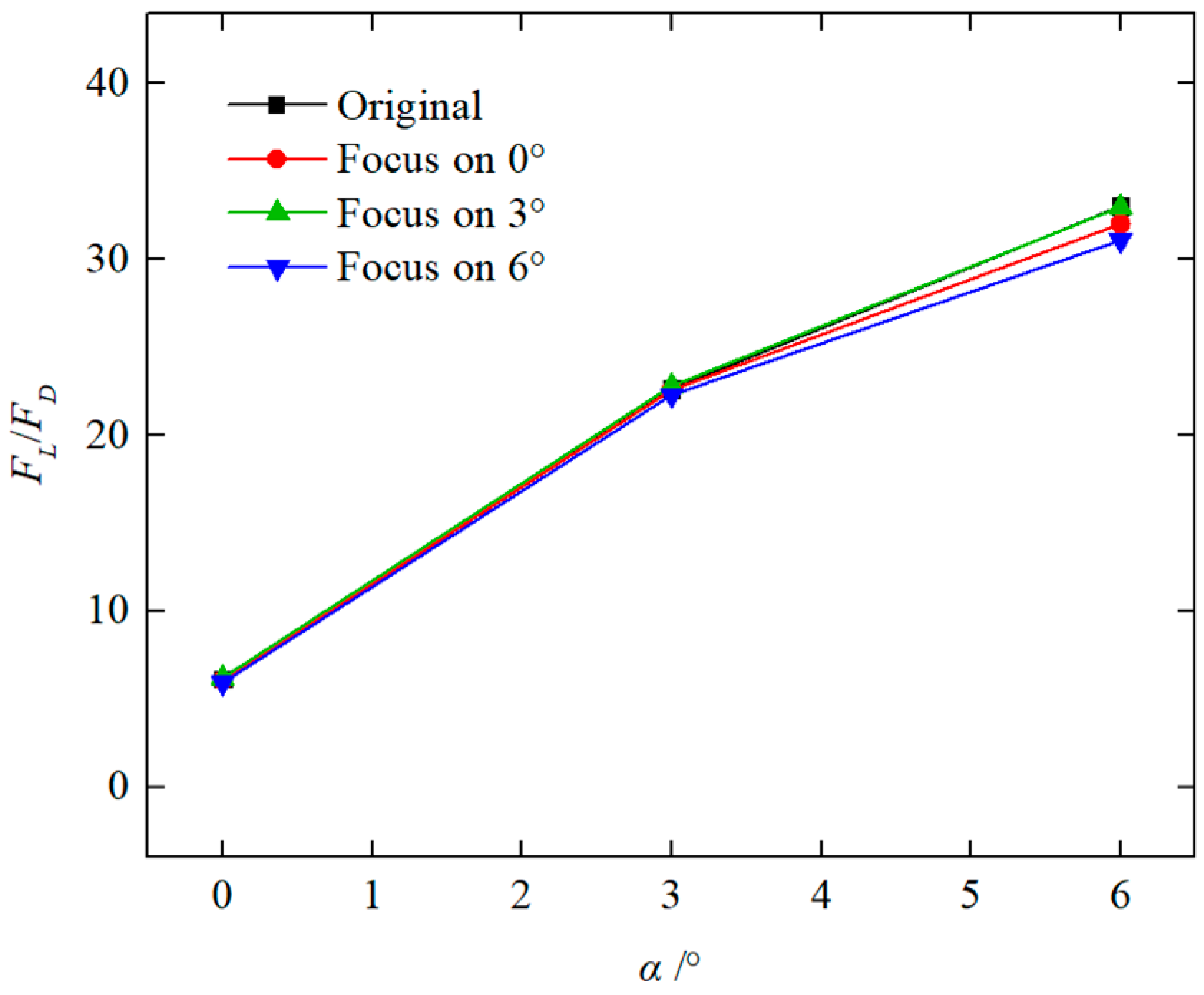

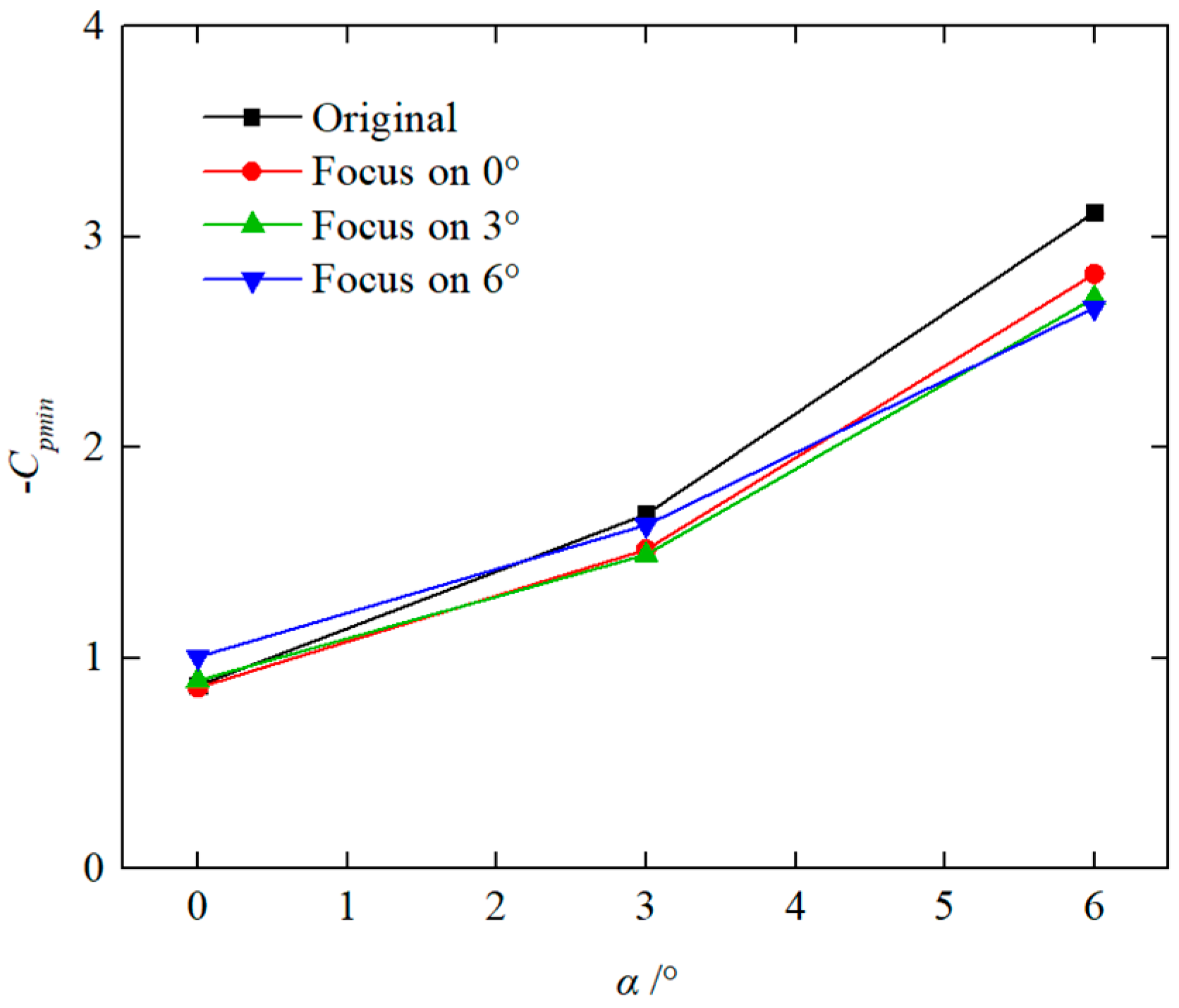

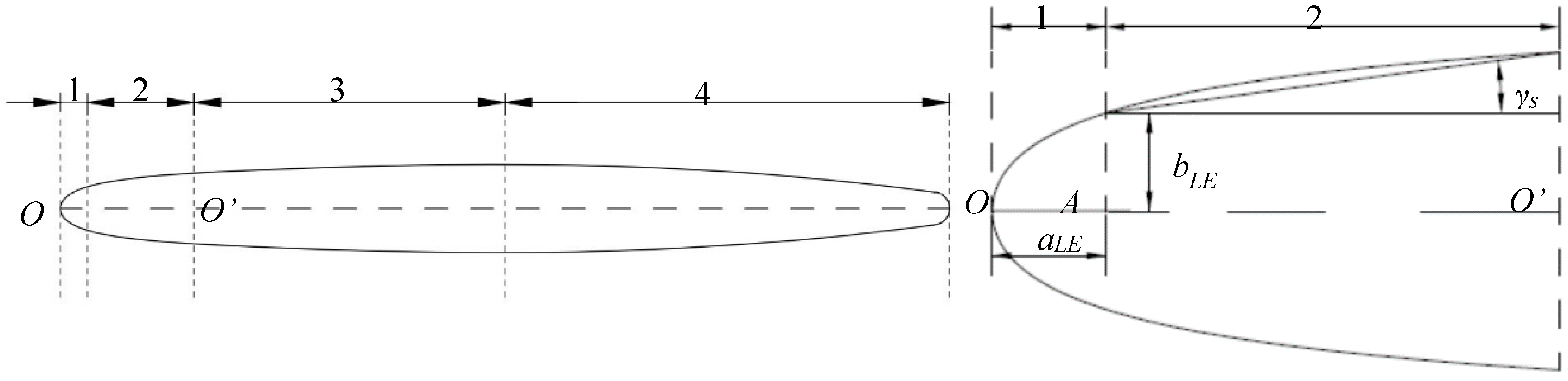

In hydraulic machinery, the surface of the blade can get damaged by the cavitation of the leading-edge. In order to improve the cavitation performance, the anti-cavitation optimization design of blade leading-edge is conducted. A heuristic-parallel locally-terminated improved hill-climbing algorithm, which is named as the global dynamic-criterion (GDC) algorithm was proposed in this study. The leading-edge shape of NACA 0009-mod foil profile was optimized by combining the GDC algorithm, CFD prediction, Diffusion-angle Integral (DI) design method and orthogonal test. Three different optimal foil geometries were obtained for specific incidence angles that 0, 3, and 6 degrees. According to the flow field analyses, it was found that the geometric variation of the optimized foil fits the incoming flow better at the respective optimal incidence angles due to a slighter leading-edge flow separation. The pressure drops become gentler so that the cavitation performance get improved. Results show that the GDC algorithm quickly and successfully fits the target condition by parallel running with the ability against falling into local-best tarps. The −Cpmin of the optimal foils was improved especially by +11.4% and +14.5% at 3 and 6 degrees comparing with the original foil. This study provided a reference for the anti-cavitation design of hydraulic machinery blades. View Full-Text
Keywords: leading edge; global optimization; cavitation inception; orthogonal test; CFD simulation leading edge; global optimization; cavitation inception; orthogonal test; CFD simulation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Zhu, D.; Xiao, R.; Tao, R.; Wang, F. Designing Incidence-Angle-Targeted Anti-Cavitation Foil Profiles Using a Combination Optimization Strategy. Energies 2018, 11, 3099.
