Energies 2018, 11(10), 2678; https://doi.org/10.3390/en11102678

Analysis of the Icing Accretion Performance of Conductors and Its Normalized Characterization Method of Icing Degree for Various Ice Types in Natural Environments

State Key Laboratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, Shapingba District, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
Received: 17 September 2018 / Revised: 1 October 2018 / Accepted: 7 October 2018 / Published: 9 October 2018
Full-Text   |   PDF [3570 KB, uploaded 9 October 2018]   |

Abstract

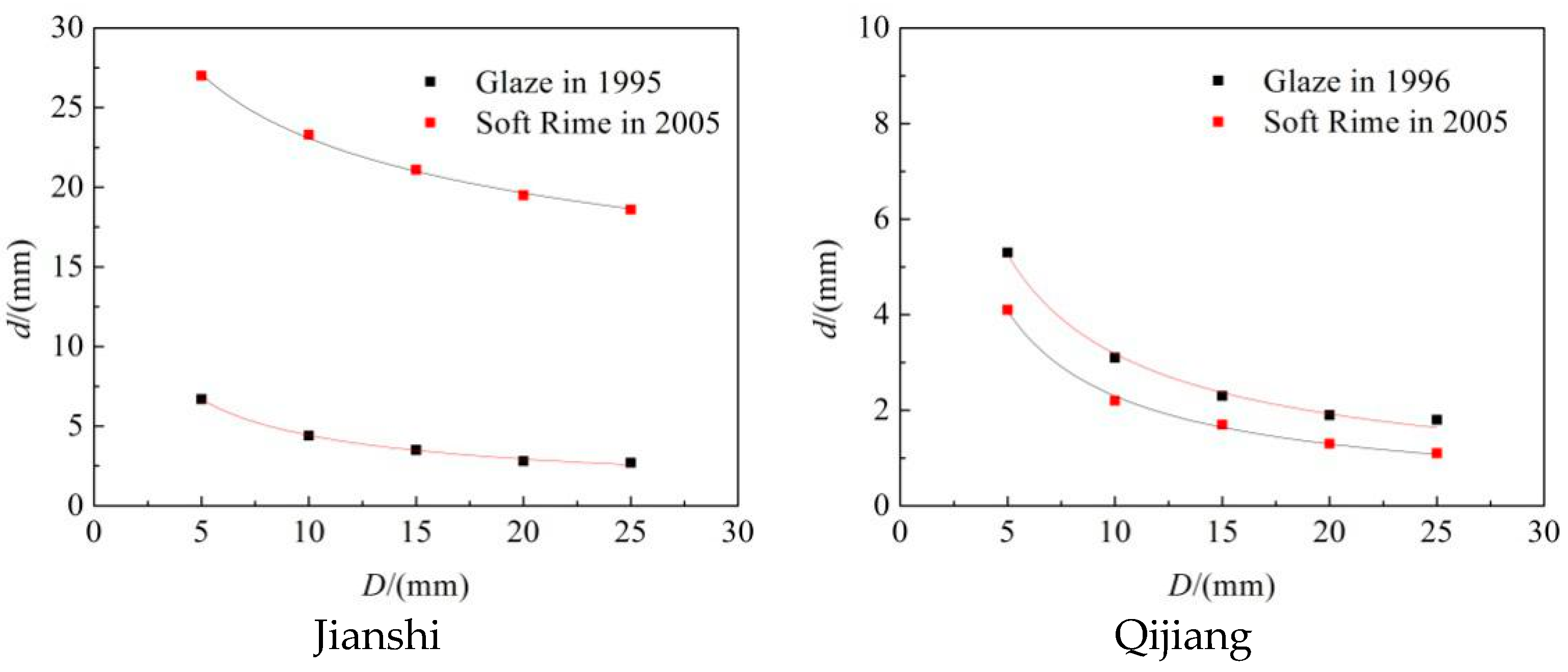

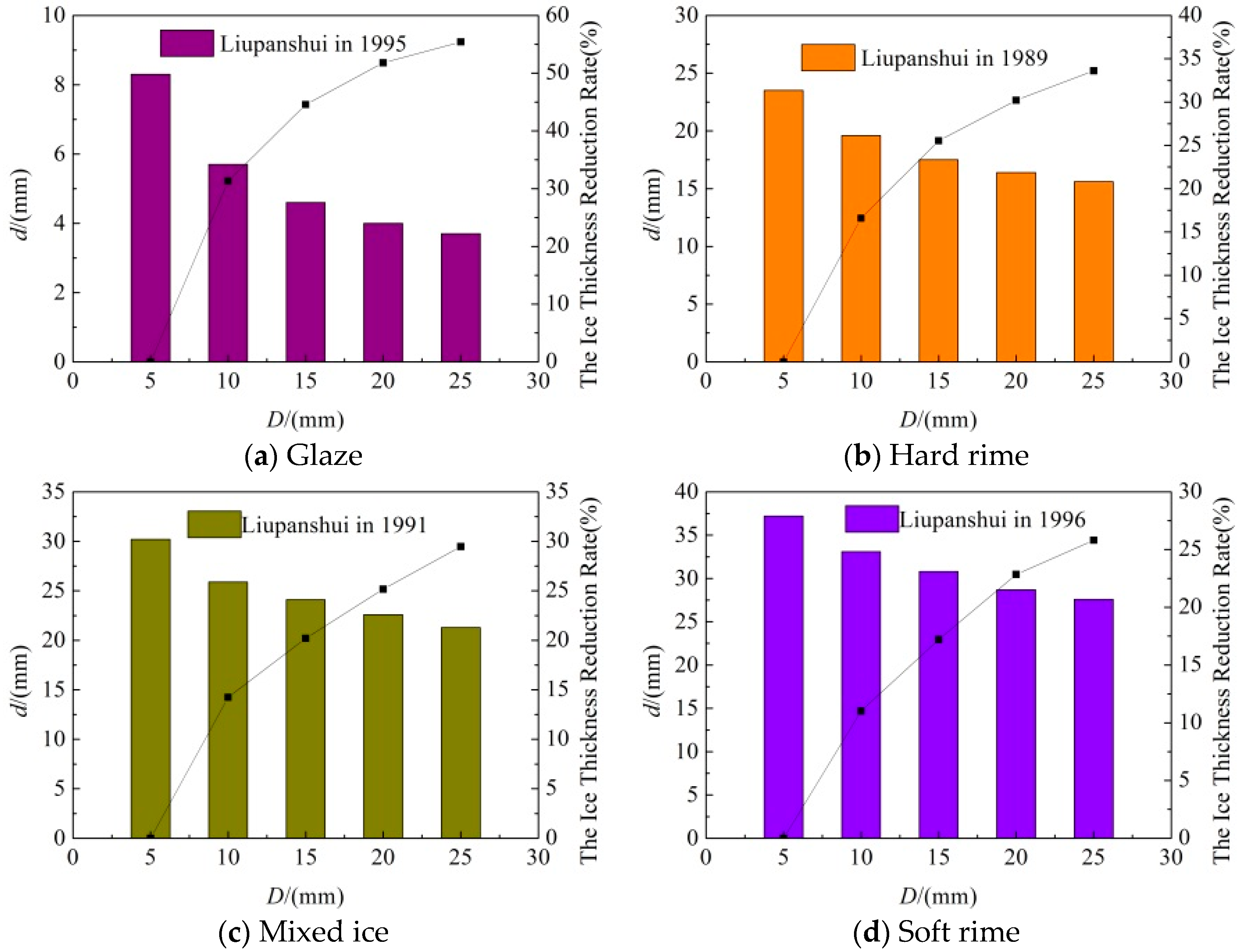

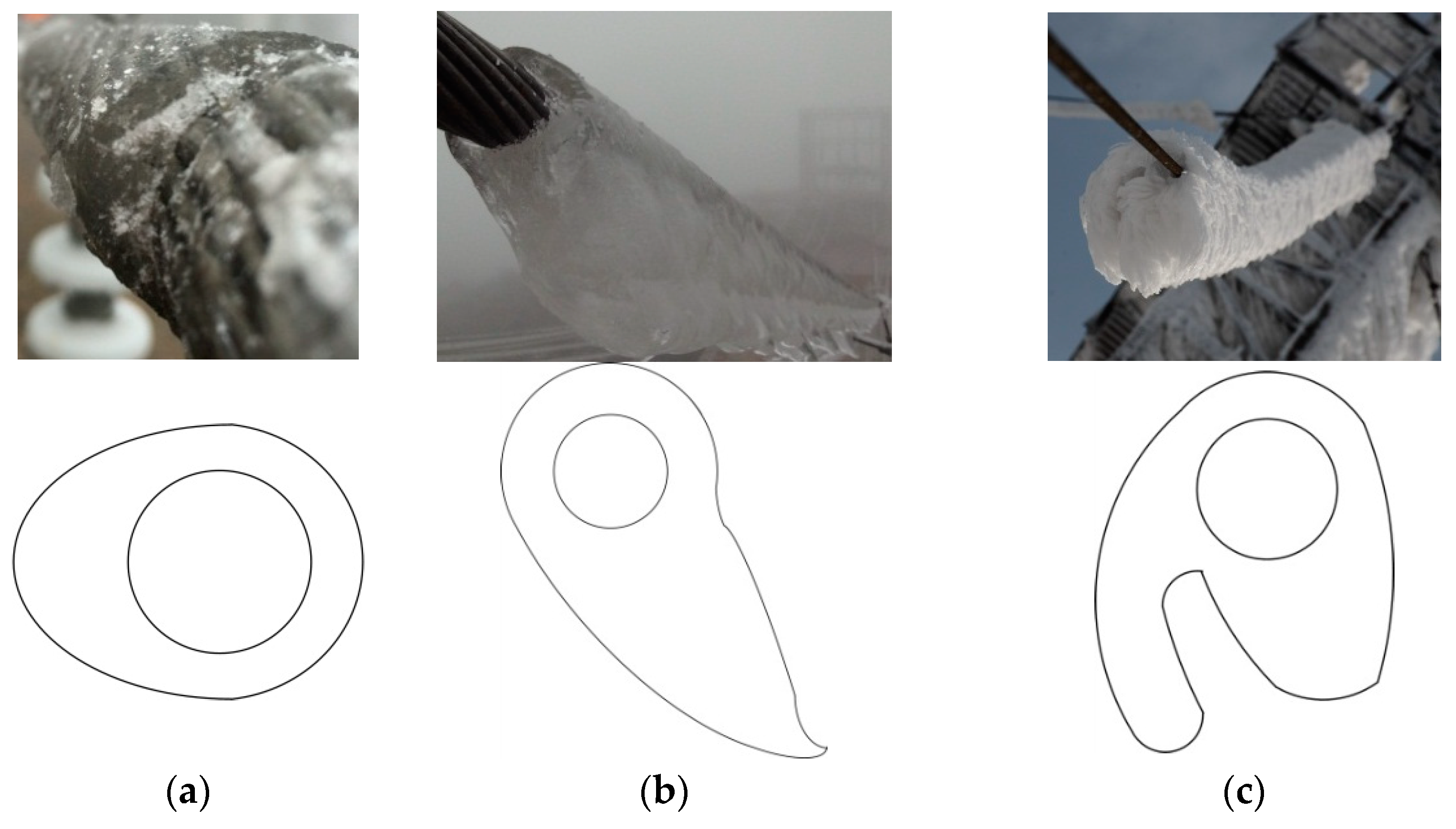

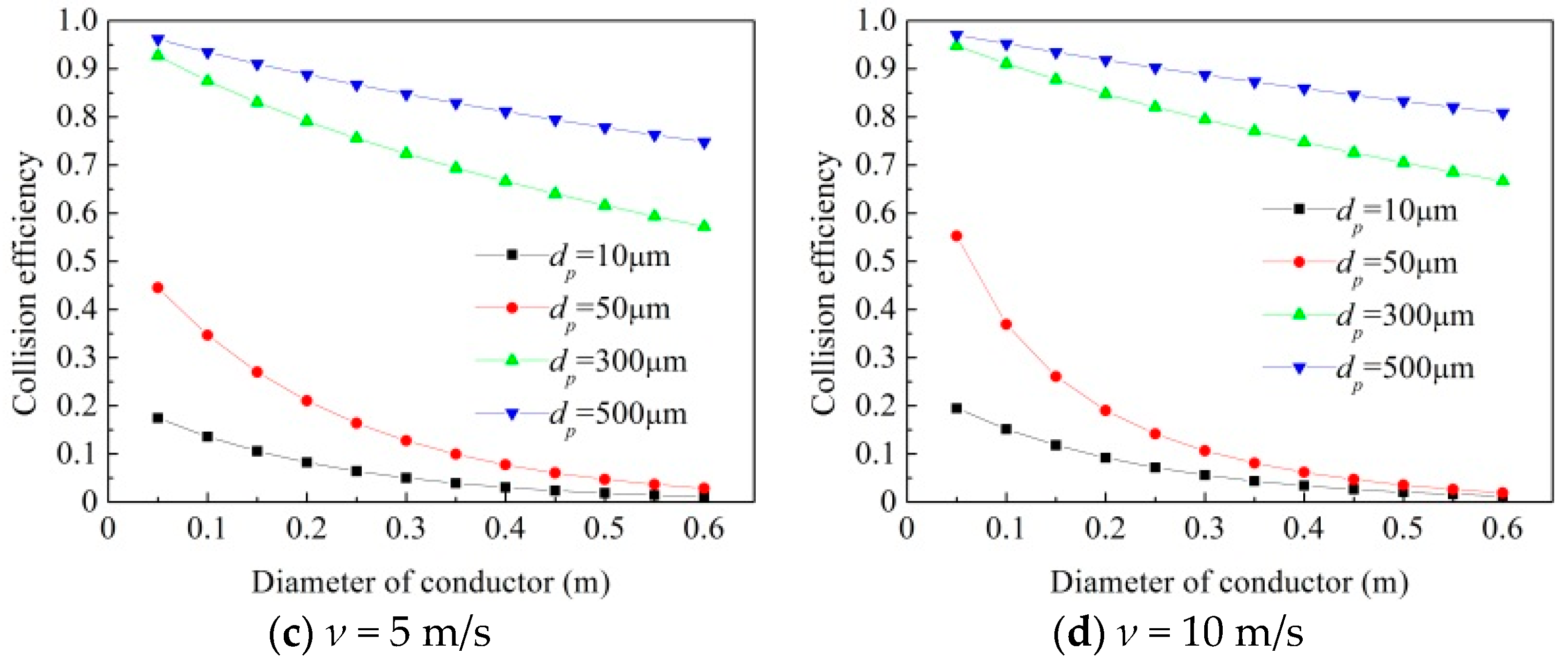

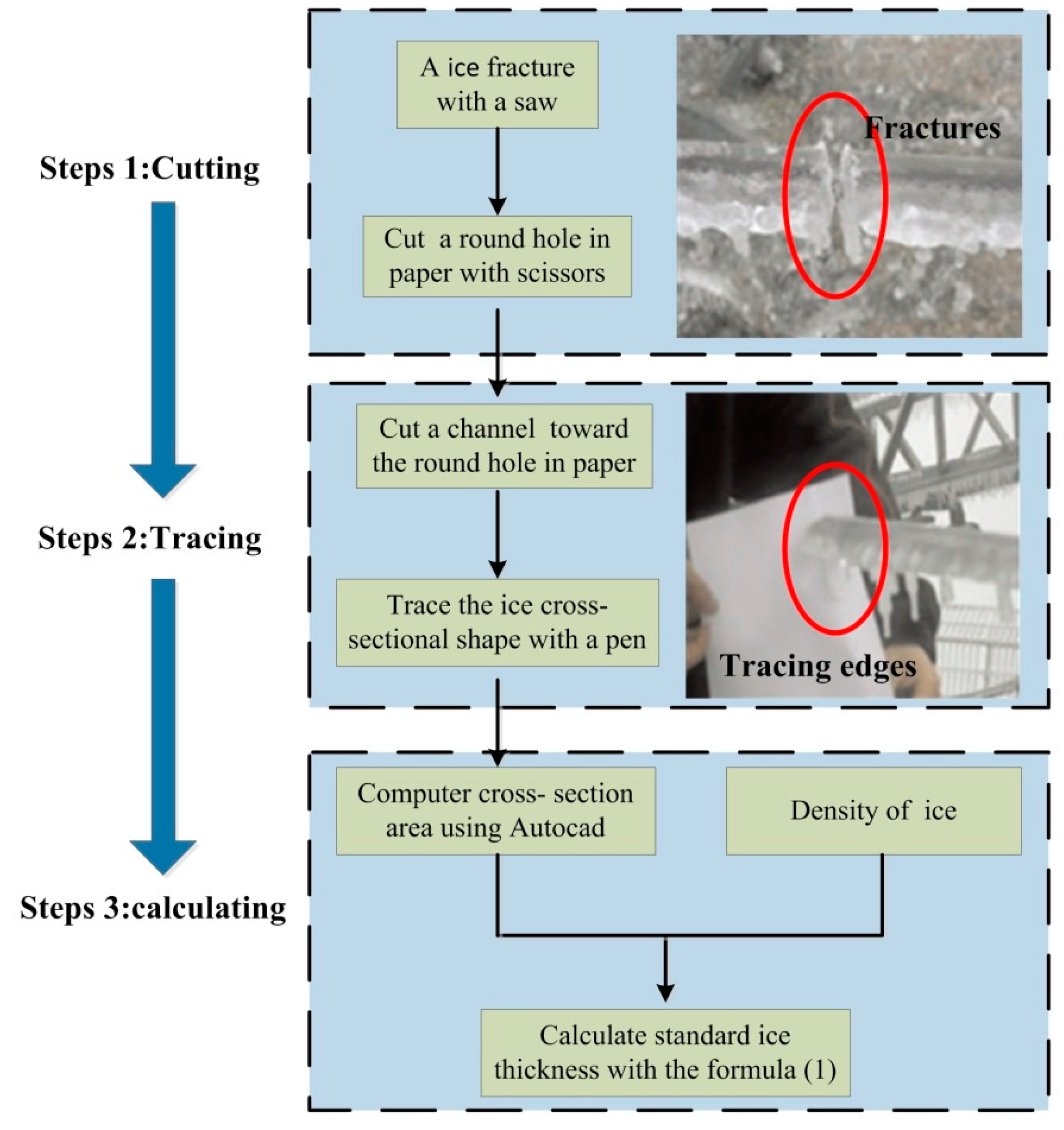

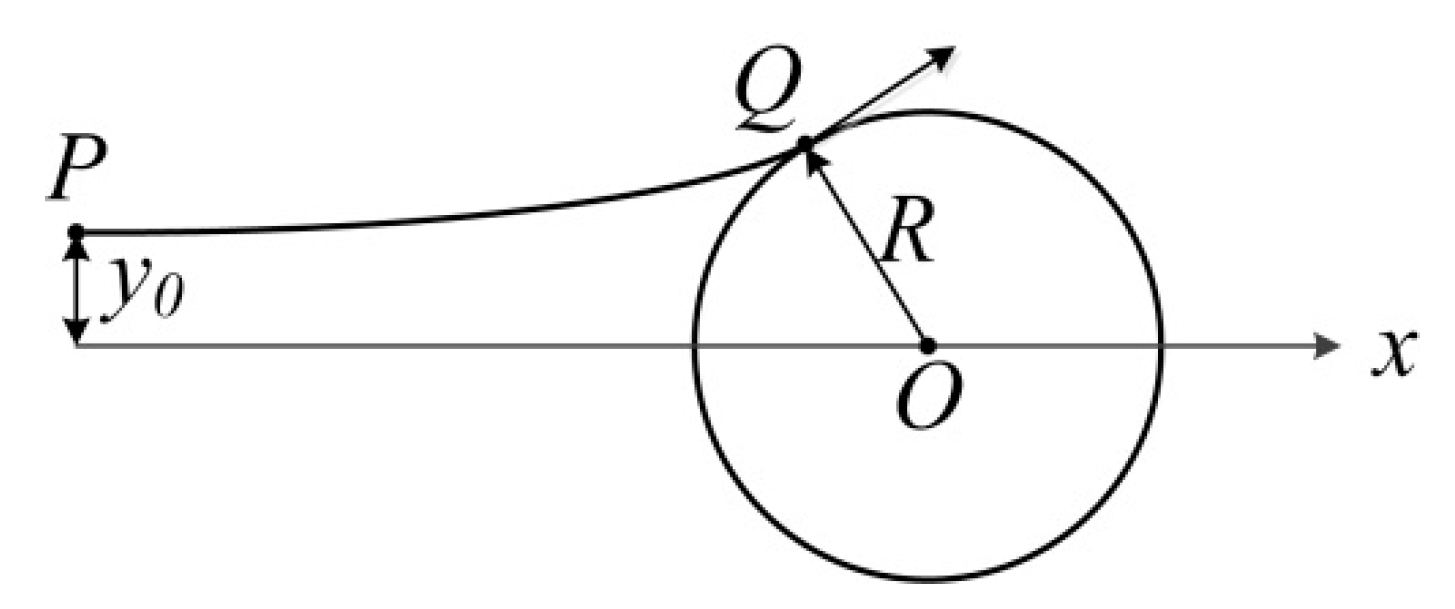

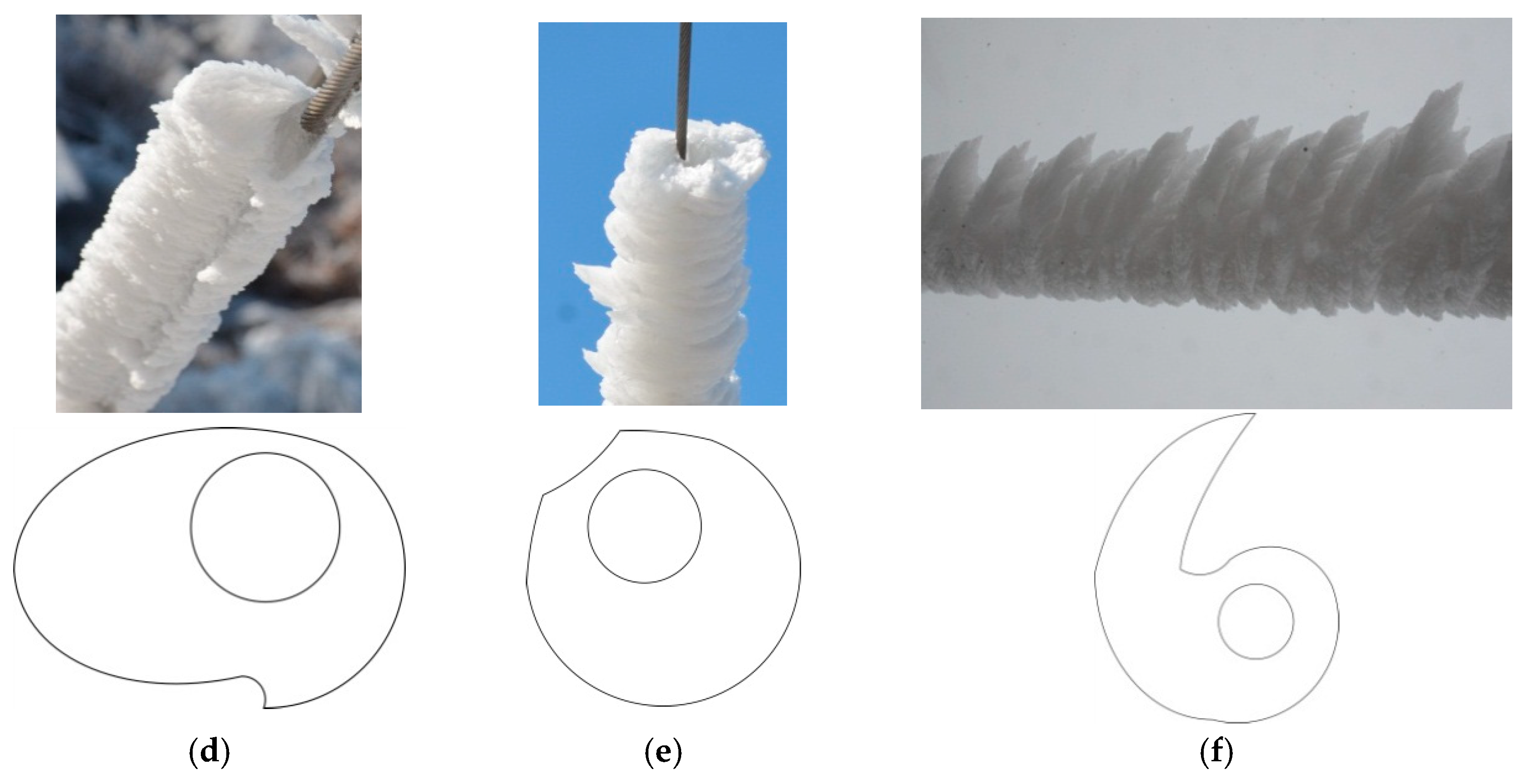

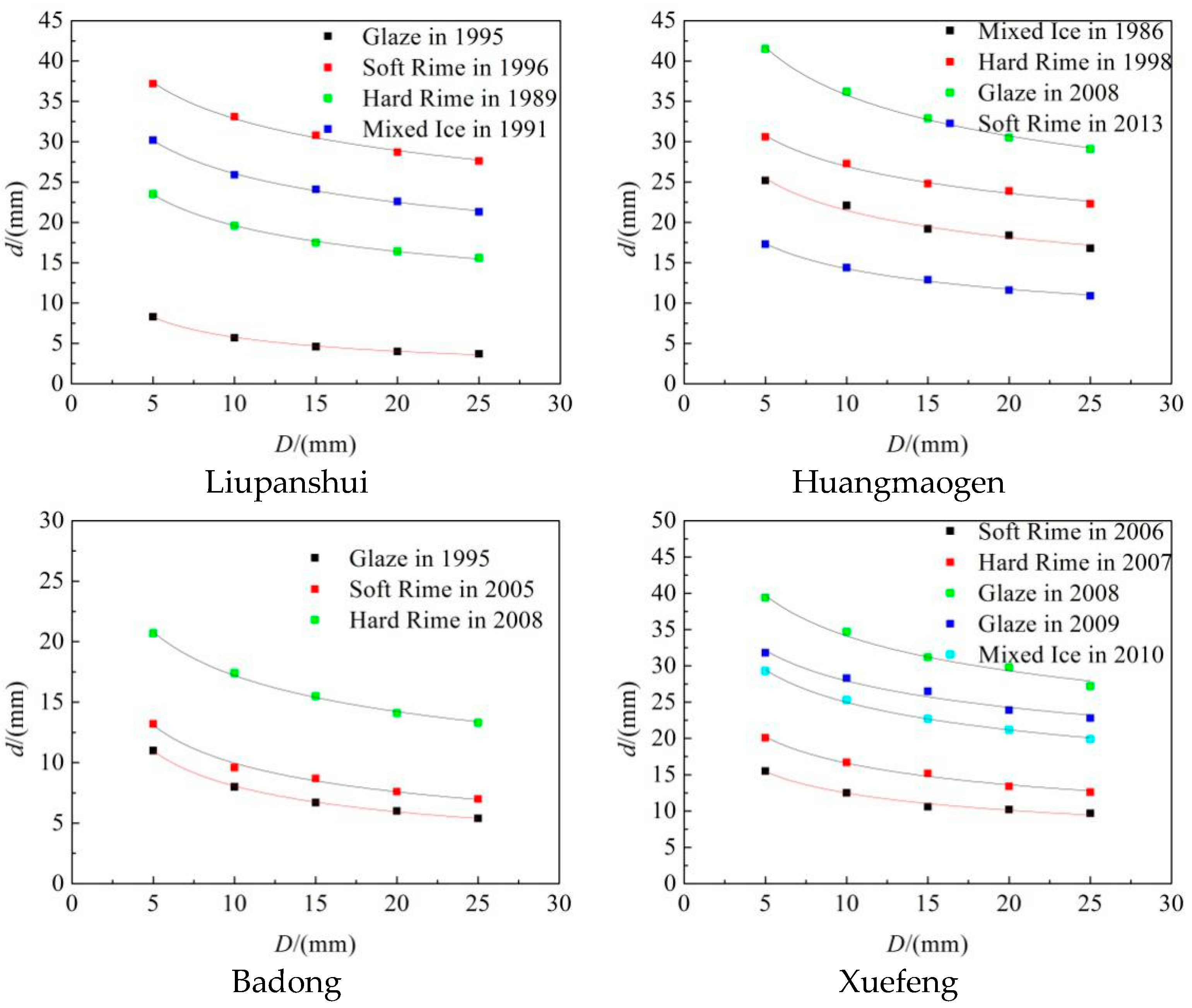

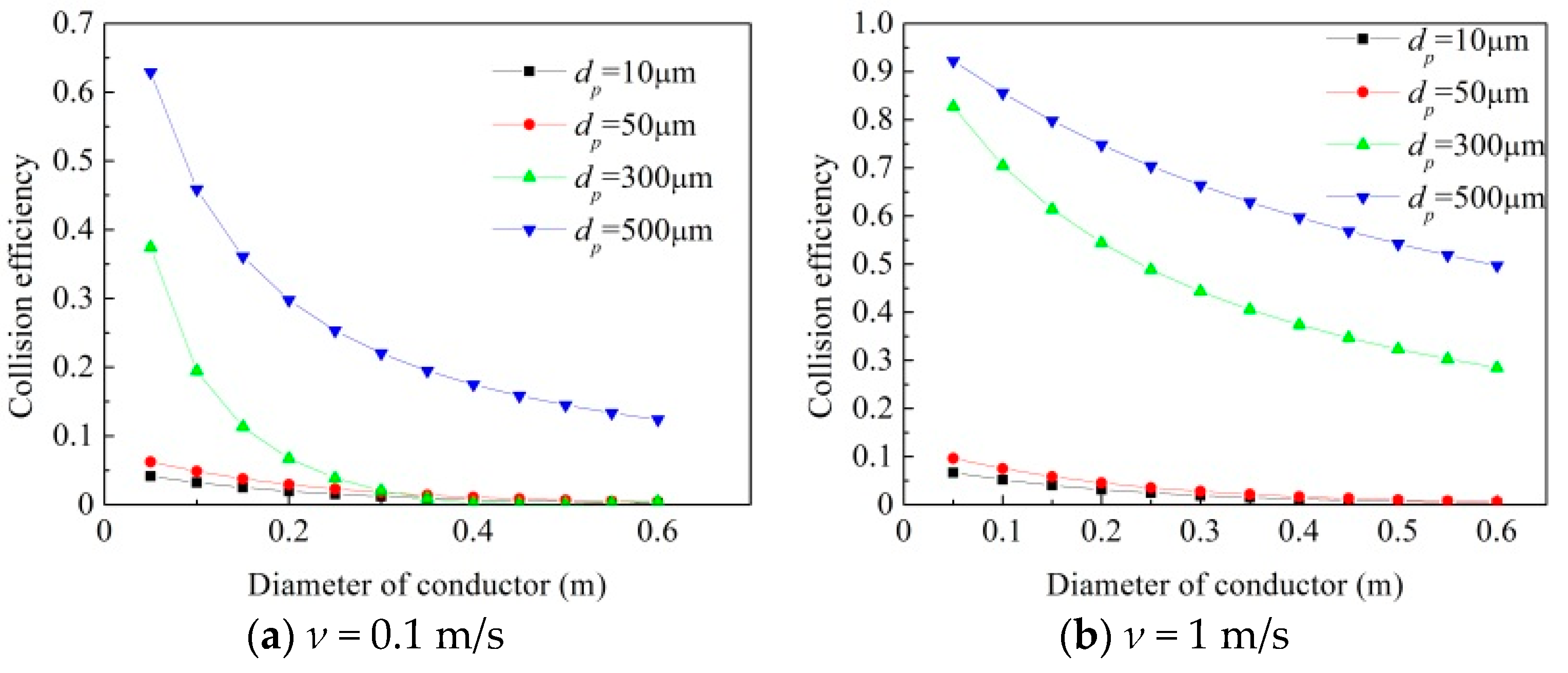

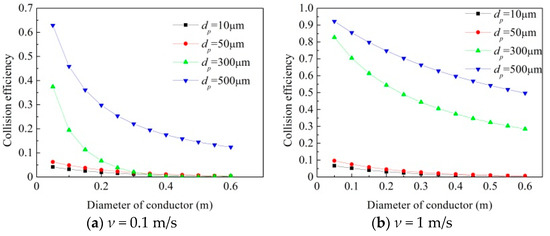

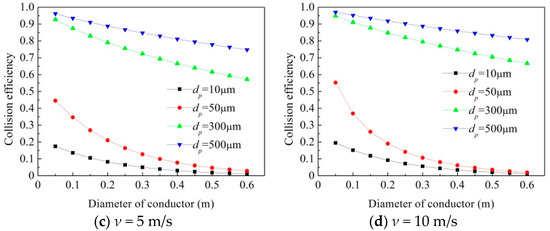

Icing degree in the severe icing regions for years is an important factor considered in the anti-icing design of transmission lines. However, there is currently no normalized characterization method for the icing degree of transmission lines, which can be used to record the severity of icing at icing areas over the years and guide the design of transmission lines. This study analyzes collision efficiency of water droplets with various diameters of conductors and investigates the ice accretion law of transmission lines with various diameters under four natural ice types. Therefore, the normalized method of standard ice thickness instead of various ice morphologies is creatively used to characterize icing degree of transmission lines and a lot of field tests which have been done at six natural ice observation stations have verified the effective of the method. The results have shown that: The diameters of conductor and the droplet significantly affect collision efficiency; the relation of standard ice thickness with diameter of conductors for four typical ice types complied with the law of power function. The results can provide important references for the design and external insulation selection of transmission lines in ice region. View Full-Text
Keywords: normalized characterization method; natural icing tests; ice types; collision efficiency; transmission lines normalized characterization method; natural icing tests; ice types; collision efficiency; transmission lines
Figures

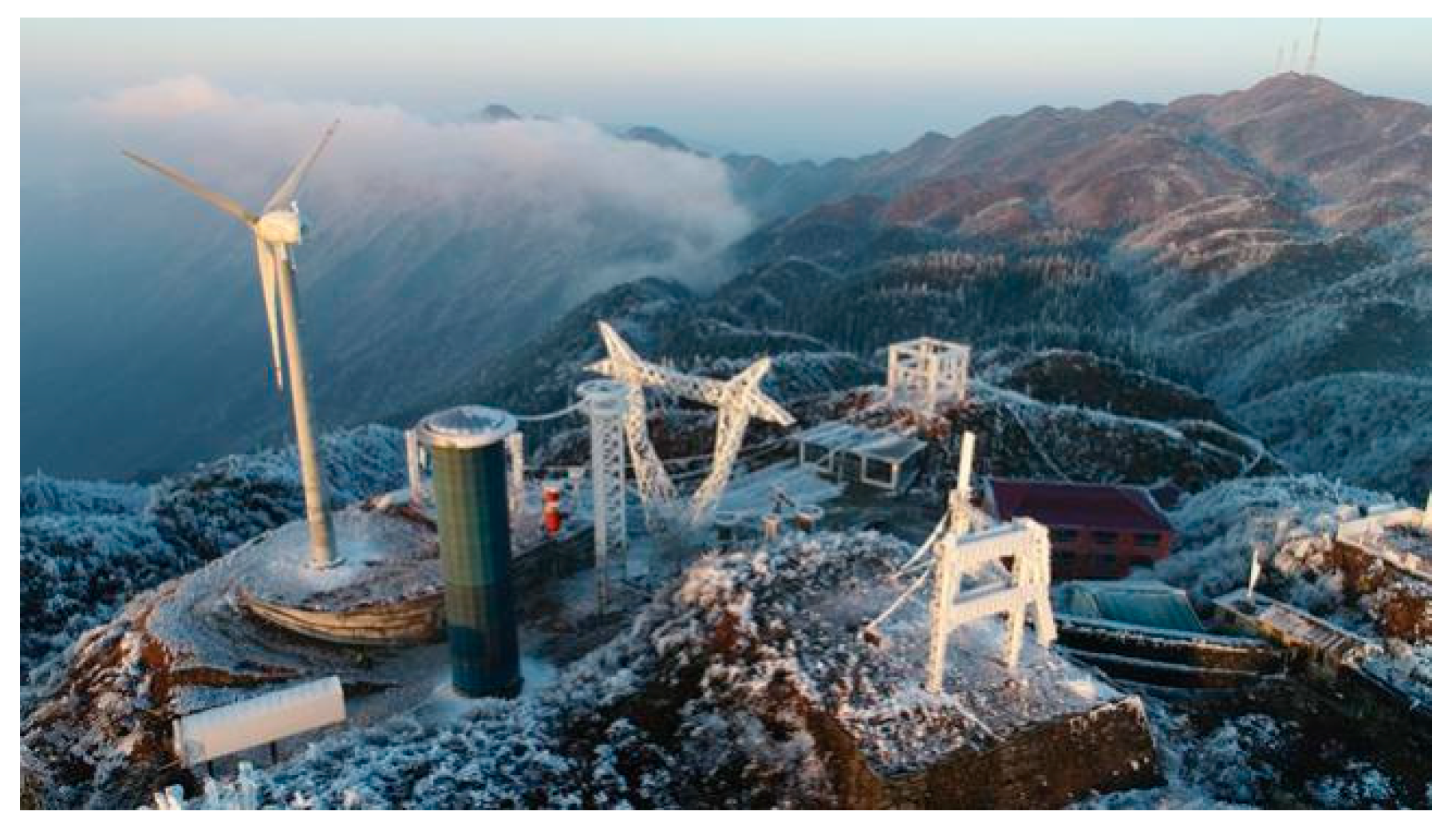

Figure 1
