Review

A Roadmap for Achieving Sustainable Energy Conversion and Storage: Graphene-Based Composites Used Both as an Electrocatalyst for Oxygen Reduction Reactions and an Electrode Material for a Supercapacitor

1
Laboratory of Functional Molecules and Materials, School of Physics and Optoelectronic Engineering, Shandong University of Technology, Xincun West Road 266, Zibo 255000, China
2
School of Materials Science and Engineering, Shandong University of Technology, Xincun West Road 266, Zibo 255000, China
3
Interdisciplinary Nanoscience Center (iNANO), Aarhus University, DK-8000 Aarhus C, Denmark
*
Authors to whom correspondence should be addressed.
Energies 2018, 11(1), 167; https://doi.org/10.3390/en11010167
Received: 27 November 2017 / Revised: 30 December 2017 / Accepted: 5 January 2018 / Published: 10 January 2018

Abstract

:
Based on its unique features including 2D planar geometry, high specific surface area and electron conductivity, graphene has been intensively studied as oxygen reduction reaction (ORR) electrocatalyst and supercapacitor material. On the one hand, graphene possesses standalone electrocatalytic activity. It can also provide a good support for combining with other materials to generate graphene-based electrocatalysts, where the catalyst-support structure improves the stability and performance of electrocatalysts for ORR. On the other hand, graphene itself and its derivatives demonstrate a promising electrochemical capability as supercapacitors including electric double-layer capacitors (EDLCs) and pseudosupercapacitors. A hybrid supercapacitor (HS) is underlined and the advantages are elaborated. Graphene endows many materials that are capable of faradaic redox reactions with an outstanding pseudocapacitance behavior. In addition, the characteristics of graphene-based composite are also utilized in many respects to provide a porous 3D structure, formulate a novel supercapacitor with innovative design, and construct a flexible and tailorable device. In this review, we will present an overview of the use of graphene-based composites for sustainable energy conversion and storage.

1. Introduction

Total energy consumption is increasing with the rapid growth of the global population and the accelerating development of the economy. In existing energy systems, 80% of energy consumption depends on fossil fuels such as oil, natural gas, and coal. Fossil fuels are not renewable, and their endless exploitation and consumption will inevitably lead to the depletion of resources. At the same time, emissions of toxic substances during the process of utilizing fossil fuels constitutes a serious threat to the environment [1]. The exploitation and utilization of conventional fossil fuels also varies strongly with natural conditions, such as the climate and geographic location. Innovation to convert from fossil fuels to sustainable energy, such as solar, wind, and biomass energy, is a high priority. It is urgent to use new technology to replace conventional energy conversion stereotypes [2]. Among them, fuel cells are excellent green solutions for next-generation energy conversion [3]. Besides, high power density energy storage devices are in pressing demand to meet challenges of solving the future energy crisis. Supercapacitors, with high power density, emerge as good candidates for energy storage [4,5].
A fuel cell is a device that converts chemical energy directly into electrical energy in an electrochemical manner [6,7]. It enjoys many advantages. Firstly, since the electrochemical reaction process does not involve any combustion, its energy conversion efficiency is not limited by the Carnot cycle. In addition, when hydrogen is used as a fuel in a fuel cell, its only byproduct is water; even when small organic molecules such as methanol are used as a fuel, there are no emissions other than water and carbon dioxide. The amount of carbon dioxide emissions of fuel cells is far lower than those of the ordinary heat engine. As a result, fuel cells not only possess high energy conversion efficiency, but also produce much lower gas emissions, both in quantity and variety, compared with the most stringent present standards [8,9,10].
The electrochemical performance of a fuel cell depends largely on the cathodic ORR [11,12,13,14]. It is reasonable to assume that detailed study on ORR naturally leads to improvement of fuel cells’ performance. The ORR is substantially determined by the catalytic activities of the cathode catalysts because of the sluggish reaction kinetics of ORR. In acidic electrolytes, the ORR occurs via the four-electron transfer (Equation (1)), or the two-electron transfer (Equation (2)) pathway. The overall four-electron transfer pathway is favorable due to its efficient utilization on electrons. In addition, it obviates the formation of any H2O2 species in the electrolyte that can cause degradation of membrane and ionomer:
O2 + 4H+ + 4e → 2H2O
O2 + 2H+ + 2e → H2O2
Likewise, in alkaline conditions the ORR can occur via a four-electron transfer (Equation (3)) or a two-electron transfer (Equation (4)) reduction:
O2 + 2H2O + 4e → 4OH
O2 + H2O + 2e → HO2 + OH
The ORR kinetics are dramatically more efficient in alkaline conditions, providing an opportunity to use non-platinum (non-Pt) metal catalysts, including metal-oxides, nitrogen-doped carbon nanostructures and so on [15,16]. Compared with Pt catalysts, these high cost-effective non-Pt catalysts that are mostly inclined to four-electron process would be better candidates for further industrial production if possible; while graphene-based composites dominate a large part among these catalytic species as well. Quite a few graphene and graphene-composite catalysts have been reported to provide an excellent activity and stability in alkaline conditions [17,18,19,20,21,22,23].
Supercapacitors, which combine the advantages of conventional dielectric capacitors (high power output) and batteries (high energy storage), have been recognized as some of the most important energy storage devices [24,25,26]. They have excellent power characteristics and cycle stability. The power density (103–105 W/kg) is much higher than that of the lithium-ion battery (102–103 W/kg). The charging time is so short that the charge-discharge of a large current can be carried out rapidly. The number of cycles can reach more than 500,000 times, leading to a service life for more than 10 years. They are widely used in new energy vehicles, consumer electronics products, new power generation systems, power grid systems and other fields. They can be generally categorized into two groups according to the charge storage patterns: EDLCs and pseudocapacitors [27,28,29]. EDLCs store charges in the double layer of the electrode-electrolyte interface, while pseudocapacitors store charges through rapid faradaic redox reactions.
The basic settings of supercapacitors include two electrodes, an ion-permeable membrane and an electrolyte. The characteristics of their electrode materials play a key role in influencing the performance of supercapacitors such as specific capacitance value, long term stability, and so on [30,31,32]. There are three main groups of electrode materials for supercapacitors: metal oxides/hydroxides, conducting polymers and carbon-based materials. The first two are not favorable for the kinetics but have high energy density, while carbon-based materials such as graphene, possess a higher power density and longer cycle lifes [33,34,35,36,37,38]. Recently, a novel electrochemical device, the hybrid supercapacitor (HS), has caught researchers’ attention with its bifunctional (high power and energy densities) features stemming from combination of supercapacitor and Li-ion batteries (LIBs).
The discovery of graphene opened a new era of fundamental 2-dimensional (2D) science technology [39]. Graphene has a lot of distinctive features, including high aspect ratio, large specific surface, excellent electron conductivity, and good mechanical properties. The single-atom-thick graphene sheets with a 2D planar geometry will further facilitate electron transport that results in a good candidate for the more effective electrode materials in cathodic ORR [40]. As a result, graphene has been regarded as a promising electrode material for supercapacitors and HS as well [41].
A wide range of capabilities can be achieved by careful designing and integrating graphene-based materials. The application potential of fuel cells and supercapacitors that rely on ORR and electrode material is undergoing the substantial development with a pronounced progress. Understanding and modulating the characteristics of graphene and its composites may be the key to revolutionizing the performance of sustainable energy technologies and would be also the theme of this review. The current review will outline recent research on the role of graphene and its related application in ORR electrocatalysis (Table 1) as well as electrode materials for supercapacitors (Table 2). It will be divided into two main sections (Section 2 for ORR and Section 3 for supercapacitors, respectively), each with two or three sub-sections, based on the types of graphene-based materials being developed. In Section 2.1, the development of graphene-supported metal catalysts will be reviewed and discussed. In Section 2.2, the unique properties of graphene and its derivatives as standalone ORR electrocatalysts will be reviewed. Based on differences in mechanism, Section 3.1 will focus on graphene-based EDLCs. In this subsection, features of anti-restacking porous or 3D structure, novel design, synthesis methods and tailorable and flexible devices will be highlighted respectively. Section 3.2 will center around the graphene-based pseudocapacitance supercapacitor. MnO2, the star in this area, will be presented several times. Section 3.3 underlines the concept of HS and its advantages. Graphene greatly improves the electrochemical properties of HS devices as both cathodes and anodes.

2. ORR Activity of Graphene-Based Catalysts

2.1. Graphene as Metal Support

2.1.1. Graphene as Pt-Based Electrocatalyst Support

Fuel cells are believed to be the greener solutions for next generation power sources, whereas the pace of industrialization of fuel cells has been slowed down significantly by the sluggish kinetics of the cathodic ORR. Consequently, it is of high priority to investigate electrocatalysts for ORR at the cathode in fuel cells. In recent years, platinum (Pt) metal has been used as an electrocatalyst to avoid high overpotential and provide a significant ORR activity. On the other hand, the high quantity of catalyst loading is essential for electrode fabrication, which currently limits the Pt usage in practical applications because of its high price and scarcity. Moreover, in some cases, direct methanol fuel cell (DMFC) requires ORR catalysts with high methanol tolerance. Hence, there is an urgent demand for novel alternatives with lower cost, higher efficiency and excellent methanol-tolerance effect [42].
Ideal catalyst supports should possess features such as large surface areas, electronic conductivity, cycle stability and the quality to disperse nanoparticles (NPs) with uniform size. Graphene and its derivatives have recently emerged as a qualified candidates in this regard, with more and more reports on graphene-supported Pt NPs that demonstrate enhanced ORR activity and stability.
However, it often faces a big issue that the basal planes of graphene surfaces are not beneficial for connection with Pt NPs. This can make it harsh to load homogeneously dispersed NPs of uniform size, resulting in agglomeration or NPs deposition restricted to edge sites. Fortunately, it can be overcome by covalent or noncovalent functionalization procedures that render a uniform dispersion of NPs. Yang et al. functionalized the surface of graphene oxide (GO) with polydiallyldimethyl-ammonium chloride (PDDA) [81]. This approach displayed uniform dispersion of ca. 2–3 nm NPs that possess excellent electrochemical stability.

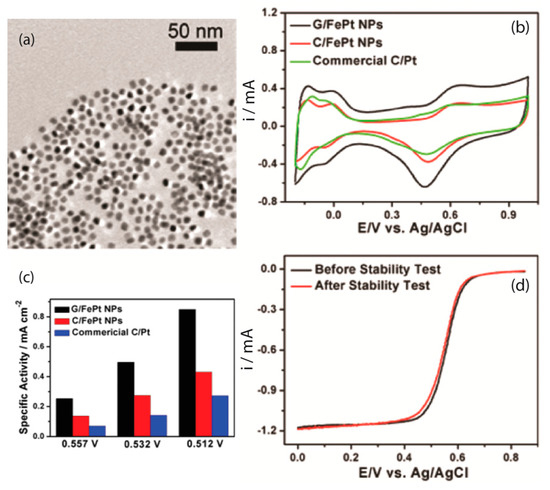

One solution to Pt loading reduction could be accomplished by structuring Pt-bimetallic alloy surfaces [82]. However, in these binary PtM (M = Co, Ni, Fe, Mn) studies, the catalyst NPs prepared from the in situ growth method are not sufficient to meet the requirements of uniform size and controllable morphology. Meanwhile, with the progress made in solution-phase synthesis of monodisperse NPs, the integration of NPs on the graphene nanosheets has been considered as a better way for the promotion of catalytic activity than that of only NPs as catalysts. Sun et al. demonstrated (Figure 1) that FePt NPs with uniform size self-assembled on graphene. Higher ORR activity was achieved by these graphene/FePt NPs, compared with commercial carbon/Pt NPs. Regarding the stability, the graphene/FePt NPs barely displayed any performance deterioration after 10,000 potential sweeps [43].

2.1.2. Graphene as Pt-Free Metal Electrocatalyst Support

Pt-based cathode electrocatalysts easily to suffer from the crossover effect and CO poisoning. Another factor that cannot be overlooked is that the high cost and scarcity of Pt and its alloys slow down the pace for further development. A further improvement for replacement of Pt-based ORR catalyst is Pt-free, non-precious metal supported by an appropriate material. This can be referred to as the ultimate goal of ORR electrocatalysis research field as it would allow the elimination of Pt from the cathode electrode entirely. Inspired by this motivation, a variety of alternatives composed of non-Pt metals or metal oxides have been intensively investigated. Graphene-based materials have naturally been an essential part in the non-Pt catalyst investigations, where graphene nanosheets can act as the support for sintering systems by utilizing the beneficial characteristics of graphene sheets, namely macroporosity and multidimensional electron shuttling routes. Müllen et al. reported three-dimensional (3D) N-doped graphene aerogel-supported Fe3O4 NPs (Fe3O4/N-GAs) which can work as cathode electrocatalysts for ORR. The Fe3O4/N-GAs displayed a hierarchical structure with macroporous graphene sheets as support and monodisperse Fe3O4 NPs as active sites. A more positive onset potential for ORR and higher cathodic current density are strong evidence for the excellent ORR activity. The linear sweep voltammograms (LSVs) of Fe3O4/N-GAs disclosed a favorable four-electron reaction pathway. In addition, Fe3O4/N-GAs surpassed commercial Pt/C catalyst in stability test [44].
The problem with the above research is that the activity of ORR catalysts is still inferior to Pt. To search for non-Pt alternative electrocatalysts with equal or even higher activity, Regier et al. synthesized a MnCo2O4/graphene hybrid with a spinel structure for high ORR performance. Since MnCo2O4 has higher activity than pure Co3O4 and stronger coupling with N-doped graphene, the MnCo2O4/graphene displayed a better activity than the Co3O4/graphene hybrid. In the electrochemical performance tests, it showed a more positive peak potential for ORR and a higher electron transfer number than the counterparts as physical blending of N-doped graphene sheets and MnCo2O4 NPs [45].
Except got the usage of transition metal complexes mentioned above, there have been reports on using macrocyclic rings with nitrogen pockets with either Co or Fe as active catalysts for ORR. Ghosh et al. synthesized a Co (III) amido-macrocyclic complex along with graphene which displayed an ORR performance comparable with previous non-precious metal catalysts supported on graphene. Not only a four-electron ORR process but also a more positive peak potential occurred due to the synergistic effect between graphene and the complexes. The main reason for enhanced electrocatalytic activity is the higher electron conductivity introduced by graphene as a support material [46].
Fe-porphyrins have been attracting attention based on their ORR performance in biological systems. The epoxy and hydroxyl functional groups on both sides of the GO sheet can act as structural nodes. A meaningful question one may consider would be whether metal porphyrin supported on graphene can work as a candidate for replacement of Pt-based electrode. Therefore Loh et al. utilized reduced graphene oxide (rGO) sheets with functional groups on the basal plane; they can work as struts to connect metalloporphyrin nodes to construct the hybrid as graphene/metal organic framework. In the meanwhile, the oxygenated functional groups on rGO can catalyze ORR because these are an excellent electron transfer intermediator [47].

2.2. Graphene as Standalone ORR Catalyst

2.2.1. Nitrogen-Doped Graphene

Given that graphene-based material has intrinsic advantages, there is a large amount of research on such materials and their applications as standalone electrocatalysts for ORR. Particularly, graphene has a very limited activity, often displaying selectivity to the unfavorable two electron reduction mechanism. In this regard, heteroatom-doped graphenes like nitrogen-doped ones in most cases are actively investigated.
In nitrogen-doped graphene (NDG), nitrogen atoms can generate a net positive charge on adjacent carbon atoms in the graphene sheets so as to accept electrons from the anode for facilitating the ORR. Efforts have been made to introduce nitrogen into graphene sheets by utilizing electron accepting features of nitrogen atoms, which render an improved electrocatalytic activity. For example, Dai et al. investigated the chemical vapor deposition (CVD)-deposited NDG sheets for ORR at the cathode in alkaline solution. The N-graphene film consists of only one or a few layers of the graphene sheets with smooth surface. The layer thickness was analyzed to be in the range of 0.9–1.1 nm. The NDG displayed a much higher electrocatalytic activity, cycle stability, and tolerance to poison effects than the commercial Pt-based electrodes for ORR [48].
In addition to nitrogen dopant, these authors further developed carbon-based ORR catalysts by PDDA to produce positive sites to attract oxygen in the nitrogen-free graphene plane. The main principle is that the positively charged PDDA is capable of electron attracting that allows to create a positive charge on adjacent atoms in the basal planes of graphene via the intermolecular charge transfer. The PDDA-functionalized graphene was proved to possess significantly improved electrocatalytic activities toward ORR [49].
Self-assembly technology is also applied to synthesis of NDGs. A bottom-up approach assembling from small precursor molecules was recently introduced to synthesize graphene or NDG. Zhu et al. fabricated NDG using a natural and harmless fruit acid, α-hydroxyacids (AHAs), as carbon sources and melamine as nitrogen source by this bottom-up approach. The acid groups in fruit acids can react with amino groups of melamine to strengthen the bonding between carbon source and nitrogen source (Figure 2). The pronounced ORR catalytic activity and high durability were exhibited by the as-prepared NDGs due to their high specific surface areas, high nitrogen contents, and mesoporous architectures [50].

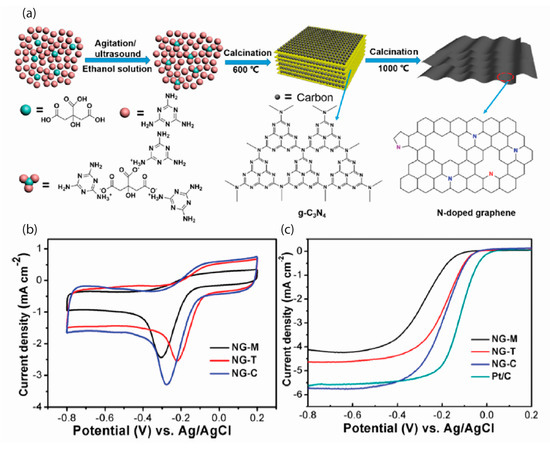

Another approach to producing NDG is thermal treatment of nitrogen-rich metal-organic frameworks. Nitrogen-containing metal-organic frameworks especially can act as both a precursor for carbon and a source of nitrogen. Zeolitic imidazolate frameworks (ZIFs) are good options compared with other metal-organic frameworks for the preparation of catalyst due to their high thermal and chemical stability. Finally they are able to form microporous carbon frameworks through heat treatment. For example, Zong et al. demonstrated ZIF-GO composites with 2D sandwich-like structures by growing ZIF-8 on GO in situ to generate NDC nanosheets [51]. Hareesh et al. further demonstrated that an interconnected porous network with a better ORR activity and cyclic stability can be fabricated by GO wrapping ZIF-8 microcrystals as efficient precursors. The formation of porous carbon network was attributed to the GO sheets that were surrounding ZIF-8 crystals, acting as a protection layer in order to reduce the loss of nitrogen upon heat treatment. Importantly, this precursor can be simply obtained by one-pot synthesis at room temperature. An additional advantage of precursor network is structural heteroporosity to favorably provide active sites for ORR [52].
There is a change in density of states when modulation of graphene happens by heteroatom doping or fictionalization. In the meanwhile, it would also generate distinct chemical sites at the hybrid surface so as to provide the physisorption or chemisorption opportunities to redox species in the electrolyte. Besides, the carbon morphology may be changed as well. For example, density of edges usually has an impact on electrochemical behavior in catalysis. Testing the electrochemical behavior of graphitic edges (GEs) is thus of interest. Colavita et al. revealed that it is feasible to tune ORR activity and obtain higher onset potentials by modifying the carbon matrix exclusively without heteroatom dopants. Catalytic activity is closely associated with carbon matrix structure that has a possibility to have the effect of chemical doping simulated or screened [53].

2.2.2. Dual-Doped Graphene as ORR Catalyst

NDGs have played an important role in electrocatalysis of ORR. However, their performance was largely hindered by the small loading of nitrogen dopants. However, increasing doping percentage and simultaneous co-doping carbon with nitrogen and other heteroatoms would be an alternative to get rid of drawbacks of nitrogen dopants. In fact, there have been some studies showing the existence of synergistic effects between the co-doped heteroatoms. Based on these findings, it is reasonable to speculate that binary or ternary element-doped nanocarbons could lead to performance improvement. Gou et al. reported the graphene/carbon nanosheets with nitrogen and phosphorus codoping (N,P-GCNS). N,P-GCNS was produced through the process of pyrolysis of a hydrogel that consists of GO, polyaniline (PANi) and phytic acid (PA). GO nanosheets played a dominant role in these three factors. The conformal coating of PANi and PA was structurally directed by GO nanosheets that acted as the precursor of graphene as well. As a consequence, the N,P-GCNS showed a much better electrocatalytic performance compared with the only single N-doped or P-doped counterparts respectively, owing to the synergetic effects of N and P dopants, good conductivity, high active surface area, and porous structure for mass transportation [54].
In the dual-heteroatom doping of nitrogen (N) and sulfur (S), density functional theory (DFT) analysis indicates that it demands less formation energy to codope N and S into graphene at the same time than the total energy for separate doping of the respective atoms. As a result, there is an increase in charge densities because of the synergy between N and S that can influence electronic properties. It is also the reason why oxygen adsorption and reactivity can be improved. From the structural perspective, graphene frameworks are porous with a relatively high surface area. Interconnected pores in this 3D architecture facilitate mass transportation. High electrical conductivity and low density can also significantly enhance catalytic activity. In addition, most doped heteroatoms synthesis would involve in toxic reagents via complicated routes, preparation of such porous frameworks is no exception, also involving a sacrificial templates elimination process by strong chemical etching. Fortunately, a facile and environmentally benign strategy has been developed without template for the synthesis of 3D porous graphene architecture. Along the edges of graphene sheets, the in situ stimulation can expand and self-assemble by the linkage between different sheets. Mu et al. reported this kind of non-template strategy to introduce N and S into 3D porous graphene simultaneously. A single-row pyrolysis was used to prepare the catalyst, blending GO and biomass. The biomass not only provided both sources of N and S, but also influenced the ORR as well as structural formation. The catalyst demonstrated ORR kinetic activity comparable to Pt/C. Additionally, its cycle stability and resistance to CO poisoning and fuel oxidation intermediates were both superior to Pt/C [55].

2.2.3. Graphene/Carbon Nanostructure Composite

In respect of exploring the electrocatalytic activity of other forms of graphene, Qu et al. have reported that N-doped graphene quantum dots (GQDs) functionalized with oxygen-rich groups displayed outstanding ORR activities [56]. More recently, mixing GQDs with heteroatom-doped graphene has been reported to show synergistic effects to improve the electrocatalytic activity for ORR [57]. Dai et al. developed a new type of ORR catalysts based on GQDs supported on graphene nanoribbons (GNRs). The catalysts were simply synthesized by a one-step reduction pathway. Oxygen was reduced through a highly selective 4-electron ORR process, leading to excellent electrochemical performance in limiting current density and low overpotential together with stability in alkaline media. To be specific, LSVs for GQD-GNR hybrid electrodes shows that the onset potential of ORR is even more positive than that of Pt/C. The half-wave potential of the GQD-GNR electrode is comparable to that of Pt/C catalyst but much better than the separated GQD and GNR. In fact, the contact between GQD and GNR plays an important role in efficient charge transfer, leading to the enhanced ORR performance [58].
Both graphene and carbon nanotubes (CNTs) can function as suitable supports for anchoring surface active moieties for ORR, with increased dynamics generally rendered by doping with heteroatoms such as nitrogen, phosphorus, and sulfur. Chen et al. reported the synthesis of nitrogen and sulfur codoped graphene/CNT nanocomposites that lead to enhanced activity and excellent stability toward the ORR. The combination of these two “platforms” was investigated to increase a great number of surface areas for the beneficial ORR catalysis, where CNTs increases conductivity in the resultant 3D architectures with surface chemistry of graphene. Meanwhile, synergistic effect between heteroatom-doped graphene and CNTs also makes a contribution. They demonstrated promising ORR enhancements provided by co-doping effect as well as optimized nanocomposite configuration [59].

3. Graphene-Based Materials in Supercapacitor Applications

3.1. Graphene-Based EDL Supercapacitor

3.1.1. Anti-Restacking Porous or 3D Architecture

Double-layer supercapacitors store energy by forming double layer charges on the interface of a porous electrode material with high surface area and an electrolyte. Therefore, the specific surface area, pore size distribution, electrical conductivity and electrochemical stability of the electrode material will directly affect the device performance. However, the strong Van der Waals force between neighboring layers makes it easy for separated graphene layers to restack, leading to aggregated structures. This on the large scale hinders electrolyte transfer and ion accessibility, especially in ion liquids with a high viscosity. A potential solution to this aggregation is to synthesize graphene with porous or 3D structure [60]. EDL storage depends on the charge accumulation at electrode surface. Consequently, large surface area materials, such as aerogels with curved morphology and solvated stacking-free feature, are produced.
In most cases graphene electrode material obtained by chemical reduction method or thermal reduction method can show good performance of the capacitor. But its structure is still too tight to provide enough channels for conducting electrolyte ions in the electrodes. To a large extent it will limit the material capacitor performance and the rate performance. Han et al. prepared the nitrogen-doped graphene aerogels (NGA), which has an interconnected porous structure with a high surface area (830 m2/g). The NGA displayed excellent capacitance value (223 F/g at 0.2 A/g) and long-term cycling performance. The promising electrochemical performance can be attributed to the beneficial porous network, favorable electron transport, high nitrogen content and the uniform distribution of functional groups bonded covalently on the basal sheets of graphene [60].
Unfortunately, there are still some challenges that graphene aerogel faces. Besides self-aggregation of graphene sheets, contact resistance between graphene and the metal current collector could also become the main factor, limiting the capacitive performance. By introducing nickel foam, freeze-drying and the following heat treatment of GO hydrogel-nickel foam hybrid precursor, 3D graphene aerogels with high loading, high porosity and high conductivity were deposited on the nickel foam. High rate capability, long-term cyclic stability, and a specific capacitance allow the final graphene aerogel/nickel foam electrode to have a significant EDL capacitive behavior [61].
The key to high energy density in graphene-based supercapacitors is to fully utilize the high intrinsic surface capacitance and specific surface area of each single layer of graphene, which can be achieved by curved graphene. The curved graphene structure could be prepared by using a fluidized bed technique with GO aqueous solution as raw material. The as-made material is hard to stack and has a pore size of 2–25 nm. The curved graphene sheets have a large specific surface area and more mesopores which are beneficial to ion transport of ionic liquids. With a mesoporous curved graphene material as electrode material, excellent electrochemical performance was obtained in ionic liquids, especially for capacitance values and energy densities [62].
After oxidation, GO can disperse in electrolyte as separate single layers, but the subsequent reduction of GO in electrolyte will cause the dispersed single layer to restack forming aggregated structures, which on a large scale makes the specific surface area of graphene shrink. Instead of aqueous solution reduction, Chen et al. used a gas-solid reduction. Although a certain level of aggregation and an overlap of rGO sheets remained, the degree of aggregation was much less than the aqueous reduction pathway. The as-prepared electrode material can increase the adsorption of electrolyte ions, leading to a larger specific capacitance value. As a result, this electrode material could achieve the highest specific capacitance as 205 F/g at 1.0 V in aqueous solution and remained 90% of its initial value through 1200 cycles [63].
In aqueous solution synthesis, graphene layers are susceptible to a high degree of aggregation and thus make it difficult to maintain the material characteristics and advantages. Choi et al. considered that the interbedded water molecules between the dried GO plays a critical role as a mediator for the restacking, while melamine resin (MR) monomers can provide a good opportunity to treat GO so that hydrogen bonding involved in such interbedded water could be removed. Porous restacking-inhibited GO sheets precipitated after MR monomers were added, forming a graphene-based composite with an outstanding specific surface area of 1040 m2/g. Owing to such high surface area, the resultant graphene-based composite can achieve a specific capacitance of 210 F/g, remaining ~100% capacitance after 20,000 cycles [64].
The main challenge in employing GO as a component in supercapacitors is to eliminate the oxygenated groups from GO sheets. Graphitizing in the process of reduction is another limitation that needs to be considered as well. The liquid crystals (LCs) of graphene oxide are developed to deal with it. Due to alignment of GO nanosheets at a high concentration, LCs could be generated in a form of viscous solution that is called LC-GO solution. Liu et al. used such viscous LC-GO solution along with the blade-coating technique to make a LC-GO film by a standard procedure. The viscous LC-GO film is directly attached to the substrate without using polymer binder, while the reduction of GO in water is also environmentally benign. The blade-rGO film achieved a specific capacitance of 250 F/g, significantly higher than the maximum capacitance of the spray-rGO film (~125 F/g). The higher specific capacitance of blade-rGO film suggests that large LCs assist positively with higher capacitance. On the one hand, water trapped in LC-GO domains helps to get rid of oxygen during the hydrothermal reduction process. More ions adsorption would happen under a higher degree of reduction in rGO sheets. On the other hand, the LC formation leads to a rumpled morphology of rGO sheets, preventing rGO sheets from restacking and increasing the specific surface area [65].

3.1.2. Novel Design and Synthesis Methods

In respect of innovative design, Ajayan et al. fabricated a novel type of ultrathin planar supercapacitors. This planar supercapacitor stands out with the following three advantages: (1) The electrolyte ions can get full access to all graphene sheets, thereby fully utilizing the high surface area provided by graphene; (2) More edges and basal plane surface area of the graphene are exposed in this structure; (3) This planar design reduces the thickness of the devices, such as single-layer graphene supercapacitors. This new type of graphene-based two-dimensional planar capacitor has a mass specific capacitance as 250 F/g, areal specific capacitance as 394 F/cm2 [66].
Jang et al. fabricated mesoporous graphene nanoballs (MGBs) with large surface area and excellent conductivity through a CVD process on a basis of metal precursors as a catalyst. Polystyrene beads were functionalized with –COOH and –SO3H groups, which were subsequently coated with metal precursor. Such a hybrid offers 3D metal frames and correlates favorably with the graphene growth. MGB was immersed in H2SO4 solution to further improve the conductivity, which is a key factor in influencing the capacitance value. The CV displayed a relatively rectangular shape even at a high voltage scan rate, indicating EDL capacitance behavior without pseudocapacitance property. The MGB-based supercapacitor showed an excellent performance with a high specific capacitance as 206 F/g and a slight decrease (4%) in capacitance value after 10,000 cycles. The great performance of MGBs can be ascribed to the large accessible and effective surface area [67].

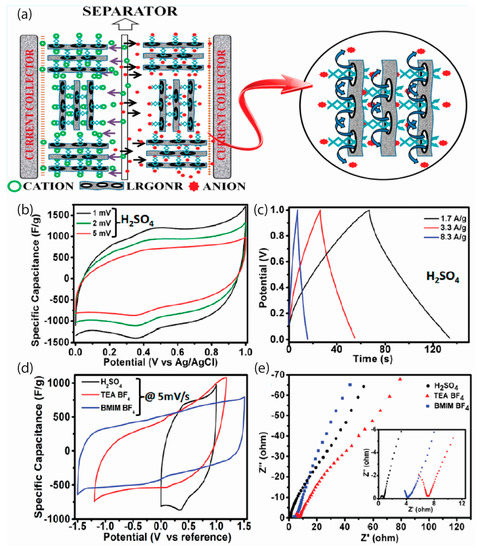

Besides the above two novel planar and nanoball catalyst designs, graphene nanoribbons (GNRs) appear as another novel form of graphene-based supercapacitor design. Given that GNR sheets also suffers from agglomeration and restacking due to Van der Waals force, it still remains quite a challenge to synthesize low stacking GNR sheets that is highly accessible to electrolyte. Singh et al. reported that novel lacey reduced graphene oxide nanoribbon (LRGONR) was synthesized (Figure 3) by chemically unzipping the multiwalled carbon nanotubes (MWCNTs) in the presence of strong oxidizing agent. The same set of oxidizers but with varied component portions continued to treat the opened MWCNTs for 8 h in order to maximize the defects in LRGONR. Extended oxidation created dispersion of defects/holes randomly in LRGONR, and thus increased the edge sites.
The CV curve in Figure 3b displayed a redox behavior characteristic of mixed EDL and pseudocapacitance, leading to a specific capacitance as 1042 F/g at 1 mV/s. This high value is ascribed to the contribution of both EDL capacitance from basal planes of individual LRGONR and the pseudocapacitance from associated surface groups at edge planes [68].
Heteroatom doping is an effective way to manipulate the electronic states of graphene-based materials and it worked with supercapacitor electrode material as well. Graphene-based materials with N or B doping have exhibited improved electrical properties as compared to undoped materials. The electronic states of electrode materials hold the key to determining capacitor performance. In Park et al.’s study, B-doped graphene nanoplatelets were synthesized by reduction of GO with the assistance of borane (BH3)-tetrahydrofuran (THF). In the CV testing, a two-electrode symmetrical supercapacitor cell was applied to show a specific capacitance value of 200 F/g, while the areal specific capacitance is even high up to 43 µF/cm2 at a low current density of 0.1 A/g. It has exceeded the capacitance limit that could be achieved purely from EDL with carbonaceous material.
In principle, B-doping functionalizing graphene networks with some hydroxyl and carboxylic acid groups enables the capacitance value to surpass EDL capacitance. Anodic and cathodic wide humps in the CVs provide an evidence for reversible faradaic reactions that result from both B- and/or O-functional groups on the graphene surface. Under the synergistic effect of pseudocapacitance and EDL capacitance, capacitive response in CVs has been showed as a form of rectangular shape curves along with a pair of redox humps [69].
Besides the N- and B-doping, theoretic approach also reveals that the silicon (Si) doping can significantly modulate the electronic state and improve the electrochemical properties of reduced graphene oxide (rGO). As shown in Figure 4c, the CV of Si-rGO exhibits no pronounced peak at various scan rates, and the rectangular shape suggests an ideal EDL capacitance behavior. The specific capacitance value of Si-rGO is 184.4 F/g, which is 48.5% superior to that of rGO (124.2 F/g) [70].
Microwave synthesis is an effective method to create new materials. It has better reaction kinetics, higher selectivity, and shorter reaction time. Mitlin et al. utilized microwave heating synthesis of CoPc to create 3D sponge-like graphene nanostructures that are capable of delivering an energy density of 7.1 Wh/kg at high power density of 48,000 W/kg. As a matter of fact, the whole synthesis process just spent less than 20 min [71].

3.1.3. Tailorable and Flexible Device

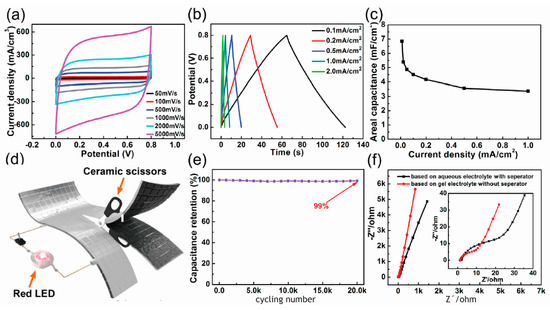

The popularization of wearable electronic and miniaturized devices requires that the supercapacitors should be shaped arbitrarily to meet a much more complicated integration in order to cater for utilization on different occasions. In this regard, tailorable supercapacitors that can be shaped or cut at the device level more flexibly need to be investigated. In addition, these tailorable supercapacitors could be applied for reliable power suppliers as well even if they are damaged. Yang et al. reported (Figure 4) a tailorable ultra-high-rate supercapacitor synthesized by electrochemically reduced graphene oxide (ErGO). Only through a one-step electrochemical deposition, the ErGO was evenly dispersed on nickel nanocone arrays. The material showed leading areal specific capacitance as 57.1 mF/cm2 at 2 mV/s and remarkable cycle stability (20,000 cycles with only 3.5% loss) [72].
In practice, mechanical deformation often destroys the reliability and stability of supercapacitors, so it is necessary to develop supercapacitors with a certain degree of stretchability and self-healability. Liu et al. fabricated rGO based fiber springs as electrodes for stretchable and self-healable supercapacitor. The diameter of fiber springs is so big enough that self-healable linking between broken electrode pieces could be observed. The stretchability and self-healability is realized by wrapping fiber springs with a self-healing polymer outer shell. The effect is outstanding. 82.4% capacitance is remained through a 100% stretch, while it still can remain 54.2% capacitance retention after the third healing [73].

3.2. Graphene-Based Pseudocapacitive Supercapacitor

3.2.1. MnO2/Graphene Network

Manganese dioxide (MnO2) have been investigated intensively as a pseudocapacitive electrode material because of its high energy density and outstanding charge transfer ability based on rapid redox reactions on the electrode surface, leading to a much higher specific capacitance surpassing the limit of pure EDL charge storage. Additionally MnO2 has many favorable features including low price, environmental compatibility, sufficient resources, and ultra-high theoretical specific capacitance value. However, the MnO2 material still faces many disadvantages. The low specific surface area caused by the conventional co-precipitation method leads to a low specific capacitance value. In some cases the nanometer-sized MnO2 can provide large surface area and high specific capacitance, but during cycles of charge and discharge, the micro structure of MnO2 was deformed. Furthermore, the poor conductivity is another inevitable drawback of MnO2 when it comes to capacitance performance. Large-scale applications have a demand of high energy storage, the high loading of MnO2 materials which means an increase in electrode resistance. For these reasons, the feasible strategy is to combine the graphene material with high surface area and conductivity with MnO2 to improve its electrochemical performance.
In this regard, Bao et al. used 3D wrapping material such as CNTs or conducting polymer to wrap graphene/MnO2. The function of the conducting wrapping material is two-fold. Firstly, it provides an additional electron transfer channel, not just relying on the graphene layer. Secondly, it can take part in the charge storage, because graphene and MnO2 got involved in the energy storage through EDL capacitance and pseudocapacitance, respectively. The specific wrapping structure with conductive CNTs or polymer renders a substantial rise in the specific capacitance by ~20% and ~45%, respectively. The maximum specific capacitance value is as high as ~380 F/g. As for the long-term cycle stability, this ternary hybrid displayed a >95% capacitance retention after 3000 sweepings [74]. To supplement MnO2 related pseudocapacitance observation, Norouzi et al. investigated the electrochemical properties of N-rGO/MnO2 nanostructure. The CV curves of the N-rGO/MnO2 exhibited a quasi-rectangular shape and symmetric I–V responses, which proved the ideal pseudocapacitive behavior of the materials. The specific capacitance for the N-rGO/MnO2 electrodes is 453 F/g [75].
Wu et al. further fabricated a highly porous ternary hybrid spheres consisting of Ni(OH)2, MnO2 and rGO via a hydrothermal codeposition pathway. The hierarchical spherical structure results from a series of individual steps including primary particle formation, primary particle aggregation into chains, subsequent crystallization, and nanosheet formation. The Ni(OH)2-MnO2-rGO nanosheets tend to self-assemble into a spherical shape. This ternary hybrid exhibited an outstanding specific capacitance of 1985 F/g at 2 A/g and energy density of 54.0 Wh/kg [76].
The concept of flexible supercapacitor can also be achieved in graphene-based pseudosupercapacitor. Xie et al. have designed a freestanding flexible 3D graphene/MnO2 composite network as electrode material for supercapacitors. The freestanding, lightweight 3D graphene networks showed excellent mechanical properties, which allows it to be an ideal support for MnO2 and permit a mass loading high up to 9.8 mg/cm2, resulting in a high areal specific capacitance as 1.42 F/cm2. The outstanding electrochemical performance including high specific capacitance and long term cycling stability can be attributed to the following reasons: (1) Electron transfer and electrolyte ions easy access to electrode surfaces can be guaranteed by the high conductivity and porous structure of 3D graphene networks; (2) Electrochemical deposition induces a tight contact between the graphene and MnO2 nanomaterials which reduces the contact resistance and keeps adhesion stable. That’s why it can tolerate a certain degree of deformation; (3) The high specific surface area of the 3D graphene networks ensures a dispersive distribution of MnO2 among graphene nanopores, which leads to a large active surface area and full accessibility for the electrolyte to the MnO2 [77].

3.2.2. Other Metal Oxide/Graphene Network

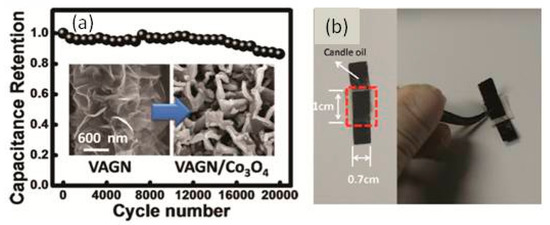

Among transition metal oxide candidates, Co3O4 possesses some intrinsic properties that enable it to be an ideal supercapacitive material, such as high theoretical specific capacitance value (3560 F/g), environmental friendliness, and good electrochemical performance. However, the large-scale application is hindered by the observed low specific capacitances in practice and low electronic conductivity of Co3O4. Graphene nanosheets (GNSs) are an excellent support to host Co3O4, because of their outstanding feature of high conductivity and specific surface. Even though GNSs have its intrinsic drawback of restacking because of π-π interactions and the van der Waals force, it could be solved by employing a vertically aligned graphene nanosheet (VAGN) with its bottom fixed to the surface of the substrate, maintaining the space between graphene nanosheets. Furthermore, more space in the GNS makes the internal resistance lower and electrolyte is easier to reach the inner part of electrode. Wang et al. used Co3O4 NPs deposited on the VAGN to make a novel supercapacitor (Figure 5). The VAGN is used for the backbone working with carbon fabric. In electrochemical performance testing, Co3O4 achieved a high specific capacitance of up to 3482 F/g as well as the highest energy density up to 80 Wh/kg. The highest power density was also recorded up to 20 kW/kg. Even though the device was bent to 150°, it still showed a good electrochemical performance with excellent flexibility. 86.3% of the capacitance retention was recorded when 20,000 cycles at 20 A/g are done [78].
Ceria (CeO2) has been considered as one of the active redox materials for supercapacitors due to its low price, abundant reserves, and particularly outstanding redox features. The CeO2/N-rGO nanocomposite was prepared through a sonochemical method. The CV curve of the CeO2/N-rGO displayed a non-rectangular shape of faradaic redox peaks from −0.2 to 0.5 V in potential scale, indicating an obvious pseudocapacitative behavior. Compared with individual N-rGO and CeO2, the synergistic effect of N-rGO and CeO2 is reflected in the form of larger area enclosed by the CV curve [79].
Decorating hematite (α-Fe2O3) with a conductive material such as graphene is an effective method to enhance its electrochemical properties. Furthermore, Fe2O3 on graphene can minimize the aggregation or restacking of graphene. Li et al. reported a specific capacitance of 240 F/g at 1 A/g for solvothermal synthesis of Fe2O3 loaded activated carbon materials [83]. Cheng et al. prepared a α-Fe2O3/rGO nanocomposite. The ion transport is favorably based on the conductive 2D nanoplate-shaped structure. Besides, 2D structure is effective to make full use of the active materials. The final product showed a high special capacitance of 903 F/g at a current density of 1 A/g. It has exceeded most of other reported α-Fe2O3 nanostructures before [80].

3.3. Graphene-Based Hybrid Supercapacitors

HSs, with a supercapacitor-battery hybrid system, are electrochemical energy storage devices that integrate the advantages of high power density from a supercapacitor and high energy density from a LIB. In most cases, a HS is composed of a LIB-type anode and an EDLC-type cathode in organic electrolytes. By combining two types of electrodes in one HS system, the electrochemical performance is improved in both the power and energy densities, which stem from the fast charging/discharging rate of the cathode and the high specific capacity of the anode. Last but not least, the organic electrolytes can provide a much wider working voltage window. However, for most reported HS so far, due to the imbalance of charge-storage capacity and electrode kinetics between capacitor-type cathode and battery-type anode, both appropriate electrodes materials are not coupled. In addition, the rate capability and the long-term stability are still challenging. Conventionally for capacitor-type electrodes (cathode), the conductivity and specific surface area of most commonly used activated carbon (AC) is relatively low; for battery-type electrodes (anode) the conductivity and Li-diffusivity of Li4Ti5O12 (LTO), metal oxides and graphite are sluggish. Graphene, with its extraordinary properties, has emerged as an outstanding electrochemical active material individually or appealing conductive carbon matrices for nanostructure hybrid electrodes in electrochemical energy storage devices. Thus, with rational design, the graphene-based material exhibited greatly improved electrochemical performance as cathode or anode material for HSs.

3.3.1. As Cathode Materials

Due to the high theoretical specific surface area and capacitance, graphene offers great potential to ultimately replace the conventional AC in EDLCs. Aravindan et al. reported a trigol-reduced graphene oxide (TRGO) cathode material with a reversible capacity of ca. 58 mAh/g, which is about twice as high as commercial AC cathode. When employing LTO as anode material, the LTO//TRGO HSs delivered maximum energy, power densities and cycle ability of ca. 45 Wh/kg, 3.3 kW/kg and 5000 cycles, respectively [84].
The application of porous 3D graphene network has been demonstrated to be an effective way to improve the electronic performance of graphene containing composites. For example, 3D porous graphene sucrose (G-SU) is another excellent material for cathode electrode in HS. When employing the Fe3O4/graphene (Fe3O4/G) as the anode material, the Fe3O4/G//G-SU demonstrated an ultrahigh energy density of 147 Wh/kg [85]. Wang et al. employed the 3D porous graphene hydrogels as the cathode and TiO2 nanobelt arrays grown directly on Ti foil as the anode. The energy density of such prepared HS can be high up to 82 Wh/kg at 570 W/kg. Especially at an extremely fast (8.4 s) charge/discharge rate, the HS delivered an energy density of 21 Wh/kg [86]. LiMnPO4 (LMP) suffers from inferior ionic diffusivity and electroconductivity. To solve this problem, the 3D rGO aerogel supporting LMP NPs was synthesized by solvothermal treatment and subsequent a restacking process. The introduction of rGO significantly improves the electronic conductivity, as well as enlarges the electrode/electrolyte interface area and increases electrochemical properties of LMP/rGO composites. The HS assembled as rGO//LMP/rGO achieved a specific energy density of 16.46 Wh/kg at the power density of 0.38 kW/kg, and retained 91.2% of the initial capacity after 10,000 cycles at a current density of 2 A/g [87].

3.3.2. As Anode Material

Graphene can act as the anode material for LIBs individually due to its high theoretical lithium storage capacity of 744 mAh/g assuming Li ions are attached to both sides of the graphene. Ragupathy et al. reported the HS comprising nitrogen-doped graphene (NDG) and electrospun- derived LiNi0.5Mn1.5O4 as anode and cathode, respectively. The NDG//LiNi0.5Mn1.5O4 demonstrated a maximum energy density of 15 Wh/kg at a power density of 110 W/kg [88].
Most of the conventionally utilized anode materials suffer from the poor electrical conductivity and low lithium ion diffusivity. Graphene can act as a substrate for nanostructured anode materials, so as to increase the specific area and provide shorter ion diffusion pathway. Lai et al. synthesized a free-standing LTO/graphene foam (GF) compound via a hydrothermal process. Owing to the synergistic effect of the nanostructured LTO and the GF with a hierarchical structure and high electrical conductivity, the HSs based on the LTO/GF anode and AC cathode achieved energy density values of 46, and 26 Wh/kg at power densities of 625, and 2500 W/kg, respectively [89]. With its large pseudocapacitive Li-ion intercalation capacity, orthorhombic Nb2O5 is a good anode material in HSs. Huo et al. synthesized anode material consisting of long Nb2O5 nanowires and graphene (L-Nb2O5 NWs/rGO). The hybrid electrode showed a high reversible specific capacity of 160 mAh/g at a current density of 0.2 A/g, superior rate capability and excellent cycle stability. The HSs device with L-Nb2O5/rGO as anodes and biomass-derived carbon nanosheets as cathodes delivered energy density values of 106, and 32 Wh/kg at power densities of 0.58, and 14 kW/kg, respectively. In addition, the HSs device demonstrated little capacitance decay after 1000 cycles [90]. Molybdenum disulfide (MoS2) is a promising anode material for lithium-ion batteries based on its high theoretical specific capacity, layered structure facilitating Li intercalation/deintercalation, and a wide lithiation potential. Lee et al. incorporated MoS2 flocculent onto 3D GF (MoS2@3DGF) via a simple solution-based process. When employed as the anode for HSs, MoS2@3DGF exhibited a high energy density of 156 Wh/kg at 197 W/kg, and remained an energy density of 97 Wh/kg at a large power density of 8314 W/kg [91].

4. Conclusions

In summary, the many cases shown in this review demonstrate the crucial role that graphene plays in the field of electrocatalysts for ORR and electrode materials for supercapacitors. In the first role, graphene not only acts as a good support for other active catalysts but also possesses electrocatalytic activity for ORR itself. Graphene-based materials can induce favourable catalyst-support interactions to provide stability and activity enhancements. In addition, graphene itself and its different morphologies or forms including nanosheets, nanoribbons, quantum dots, doped with heteroatoms or modified with functional groups display pronounced electrocatalytic capability. In the latter aspect, the characteristics of graphene-based composites are utilized in many respects to provide a porous 3D structure, formulate novel supercapacitors with innovative designs, and construct flexible and tailorable devices. Furthermore, many materials hybridized with graphene present an outstanding pseudocapacitance behavior. Graphene is an effective electrochemical material, which can work as both cathodes and anodes in HSs.
