# An Efficient Energy Saving Scheme for Base Stations in 5G Networks with Separated Data and Control Planes Using Particle Swarm Optimization

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- -
- The proposed energy saving scheme is further elaborated and detailed algorithms from the aspects of state management of BSs and session management of UEs are proposed.
- -
- A thorough optimization problem for the proposed energy saving scheme is formulated for the performance analysis.
- -
- Particle swarm optimization is applied to practically solve the formulated optimization problem.
- -
- Extensive numerical examples are obtained through simulations developed by the authors and analyzed in detail.

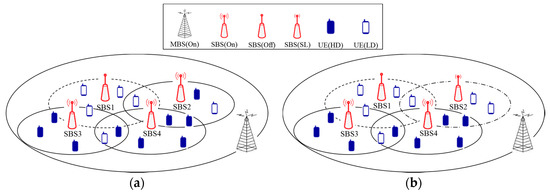

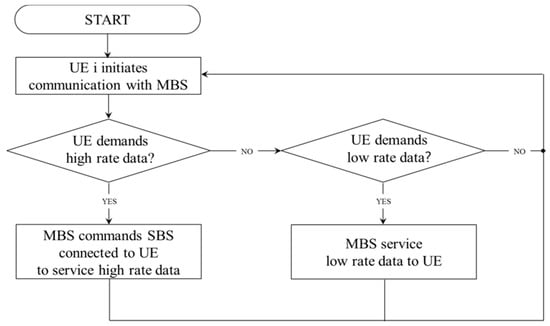

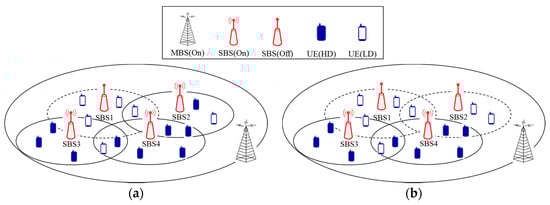

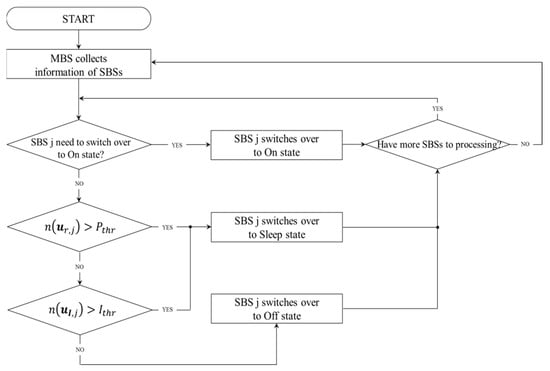

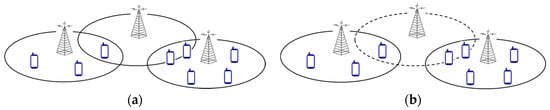

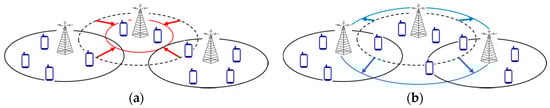

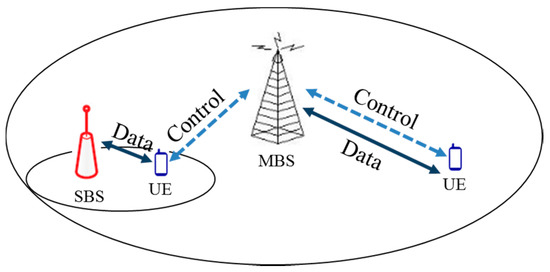

## 2. Proposed Energy Saving Scheme

_{r,j}) is the number of UEs that request high rate data traffic and n(u

_{I,j}) is the number of UEs that exist in the overlapping areas commonly covered by the BS and the neighbor BSs. An MBS manages all of the related information about SBSs within the coverage of the MBS. If n(u

_{r,j}) of SBS j is larger than a threshold value of P

_{thr}, or n(u

_{I,j}) of SBS j is larger than a threshold value of I

_{thr}, SBS j switches to sleep state to save energy. Otherwise, SBS j switches to off state.

## 3. Performance Analysis

_{macro}and power consumption by SBSs under the coverage of an MBS, ${{\displaystyle \sum}}_{j=0}^{m-1}P{\left(j\right)}_{small}$, and power consumption due to switching between different states, P

_{switching}and it is denoted as P

_{total}as in Equation (1):

_{j,i}, and the value of it is defined as in Equation (2), where we note that BS

_{m}corresponds to an MBS and BSj ($0\le j\le m-1)$ corresponds to an SBS. We assume that all UEs under the coverage area of an MBS are associated with the MBS.

_{i}, and the value of it is defined as in Equation (3):

_{i}and the value of it is defined as in Equation (4):

_{j}is related with whether the BS j is in on state or not and e

_{j}is related with whether the BS j is in sleep state or not in Equation (6):

_{j}and s

_{j}, and the values of them are defined as in Equations (7) and (8):

_{small}, is obtained as in Equation (9):

_{macro}, is obtained as in Equation (11) as the sum of fixed power consumption and load-dependent power consumption.

_{switching}, is obtained as in Equation (13):

_{aggregate}, which is defined as the time needed to get service from a BS by a UE, is additionally introduced as a performance measure as in Equation (23), where the T

_{switching}is defined as average time needed to make a transition between states of an SBS and the T

_{connect}is defined as average connection initiation time between a UE and a BS.

_{switching}can be obtained as in Equation (24), where the T

_{on-off}is the time needed to make a transition from off state to on state by an SBS and the T

_{on-sleep}is the time needed to make a transition from sleep state to on state.

_{connect}is obtained as in Equation (25), where T

_{c}is defined as the time needed to initiate a connection between a UE and a BS.

**Pb**and the value of the objective function applying

**Pb**is defined as P

_{best}. In each P

_{best}, the next P

_{best}is obtained by using velocity ${\mathit{V}}_{\mathit{i}}=\left({\mathit{v}}_{\mathit{i}\mathbf{1}},{\mathit{v}}_{\mathit{i}\mathbf{2}},{\mathit{v}}_{\mathit{i}\mathbf{3}},\cdots ,{\mathit{v}}_{\mathit{i}\mathit{D}}\right),$ and the value of P

_{best}is updated and stored at

**Pb**. In each swarm, the best value of P

_{best}is defined as G

_{best}, and it is stored in Gb. Equation (26) shows the update of velocity.

**Pb**, the values of ${\mathit{v}}_{k}^{nm}\left(t+1\right)$ are normalized using Equation (27):

Algorithm 1. PSO Process | |

1: | Initialize a, z, v, p, Pb, Gb, Pbest, Gbest, d, r, w, e, f, s |

2: | // a is n $\times $ m + 1 matrix of current association between UE and BS. |

3: | // z is swarm size. |

4: | // v is z $\times $ n $\times $ m + 1 matrix of velocity of particle. |

5: | // p is z $\times $ n $\times $ m + 1 matrix of particle of selected association between UE and BS. |

6: | // Pb is z $\times $ n $\times $ m + 1 of local optimum. |

7: | // Gb is n $\times $ m + 1 matrix of global optimum. |

8: | // Pbest is 1 $\times $ z matrix of fitness value of Pb. |

9: | // Gbest is the best fitness value of Pbest. |

10: | // d is 1 $\times $ n matrix of the data traffic demand of UE. |

11: | // r is 1 $\times $ n matrix of the type of required data traffic of UE. |

12: | // w is 1 $\times $ m + 1 matrix of on state of BS. |

13: | // e is 1 $\times $ m matrix of sleep state of BS. |

14: | // f is 1 $\times $ m matrix of state transition of SBS between on and off. |

15: | // s is 1 $\times $ m matrix of state transition of SBS between on(off) and sleep. |

16: | for iteration < PSO_iteration do |

17: | for p_index < z do |

18: | // Calculate velocity using the Equations (26) and (27). |

19: | v‘ = 1/(1 + exp(wg $\times $ v [p_index,:,:] + c1 $\times $ r1 $\times $ (Pb[p_index,:,:] − a) + c2 $\times $ r2 $\times $ (Gb − a))); |

20: | // Algorithm 2: Find particle |

21: | [p[p_index,:,:], w‘] = FindParticle(v‘, d, r); |

22: | // Algorithm 3: Find state information of BS |

23: | [e‘, f, s] = FindBSStateInformation(w, e, w‘); |

24: | // Calculate power consumption |

25: | Psmall = 0, SumPsmall = 0, Pmacro = 0, Pswitching = 0, Pprocessing = 0; |

26: | for j < m+1 do |

27: | // Calculate power consumption of BS due to traffic processing. |

28: | if j == m |

29: | // Calculate the traffic load dependent power consumption of MBS |

30: | // using the Equation (12). |

31: | for i < n do |

32: | Pmacro += Ptx_m $\times $ d[i] $\times $ p[p_index,i,j] $\times $ (r[i] $\times $ Ch + (1 − r[i]) $\times $ Cl)/Cmax_m; |

33: | end |

34: | // Calculate the power consumption of MBS using the Equation (11). |

35: | Pmacro = Pf_m + rho_m$\times $Pmacro |

36: | else |

37: | // Calculate the traffic load dependent power consumption of SBS |

38: | // using the Equation (10). |

39: | Psmall = 0; |

40: | for i < n do |

41: | Psmall += Ptx_s$\times $d[i]$\times $p[p_index,i,j]$\times $(r[i]$\times $Ch+(1-r[i])$\times $Cl)/Cmax_s; |

42: | end |

43: | // Calculate the power consumption of SBS using the Equation (9). |

44: | Psmall = w‘[j] $\times $ (1 − e‘[j]) $\times $ (Pf_s + rho_s $\times $ Psmall)+(1 − w‘[j]) + e‘[j] $\times $ Pe; |

45: | SumPsmall += Psmall; |

46: | end |

47: | // Calculate power consumption due to state switching using the Equation (13). |

48: | Pswitching += f[j] $\times $ (1 − s[j]) $\times $ Pon_off + (1 − f[j]) $\times $ s[j] $\times $ Pon_sleep |

49: | end |

50: | // Calculate total power consumption using the Equation (1). |

51: | Ptotal = Pmacro + SumPsmall + Pswitching; |

52: | // Set Pb and Pbest if the fitness value is lower than the Pbest and update v. |

53: | if Ptotal < Pbest |

54: | Pb[p_index,:,:] = p[p_index,:,:]; |

55: | Pbest[p_index] = Ptotal; |

56: | v[p_index,:,:] = v‘; |

57: | end |

58: | // Choose the Pb with the best Pbest of all the particles as the Gbest. |

59: | // Update BS state information. |

60: | if Pbest < Gbest |

61: | Gb = Pb[p_index]; |

62: | Gbest = Pbest[p_index]; |

63: | BSstate = [w‘, e‘]; |

64: | end |

65: | end |

66: | end |

67: | [w, e] = BSstate; |

68: | a = Gb; |

Algorithm 2. Find Particle | |

1: | FindParticle(v‘, d, r) |

2: | Initialize w, p |

3: | // Apply the Equations (16)–(18). |

4: | for i < n do |

5: | // Set association if a UE demands low rate data service. |

6: | if d[i] == 1 and r[i] == 0 |

7: | p[i, m] = 1; |

8: | w[m] = 1; |

9: | continue; |

10: | end |

11: | for j < m + 1 do |

12: | // Set association if a UE demands high rate data service. |

13: | if d[i] == 1 and r[i] == 1 |

14: | // Extract the k of the best index of BS using the Equation (29). |

15: | extract k |

16: | end |

17: | end |

18: | // Serve UE’s demand using MBS. |

19: | if k does not exist or does not meet the condition of the Equation (14). |

20: | p[i, m] = 1; |

21: | w[m] = 1; |

22: | // Serve UE’s demand using SBS. |

23: | else |

24: | p[i, k] = 1; |

25: | w[k] = 1; |

26: | end |

27: | end |

28: | return [p, w]; |

Algorithm 3. Find State Information of BS | |

1: | FindBSStateInformation(w, e, w‘) |

2: | Initialize e, f, s |

3: | // Apply the Equations (19) and (20). |

4: | for j < m do |

5: | // u_r is the number of UEs that request high rate data traffic. |

6: | // u_I is the number of UEs that exist in the overlapping areas commonly covered |

7: | // by the BS and the neighbor BSs. |

8: | if u_r[j] > Pthr and u_I[j] > Ithr and w‘[j] != 1 |

9: | e[j] = 1; |

10: | end |

11: | // Find state switching of BS. |

12: | if w[j] != w‘[j] and e[j] == e[j] |

13: | f[j] = 1; |

14: | continue; |

15: | end |

16: | if w[j] == w‘[j] and e[j] != e[j] |

17: | s[j] = 1; |

18: | continue; |

19: | end |

20: | end |

21: | return [e, f, s]; |

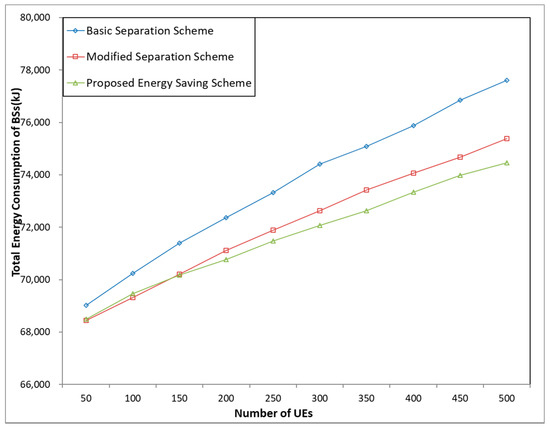

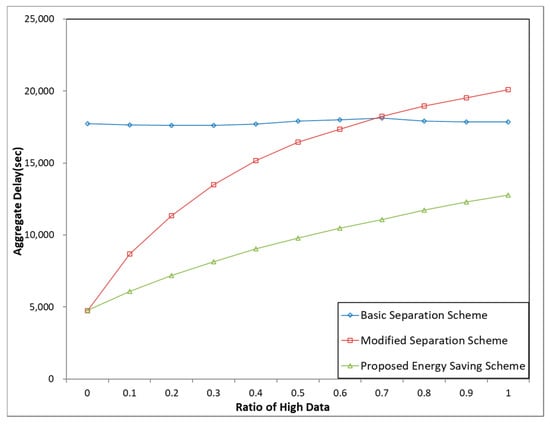

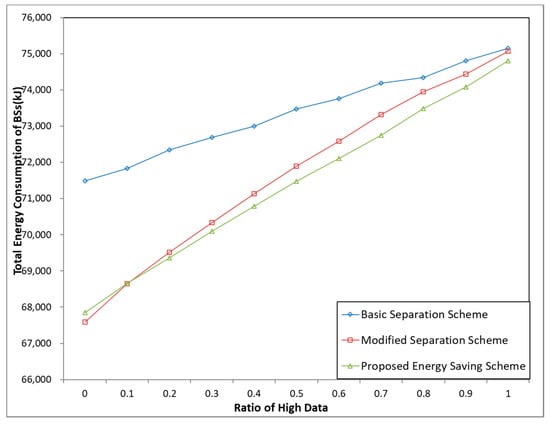

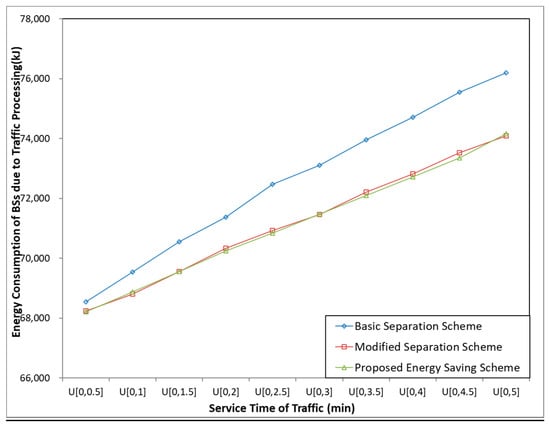

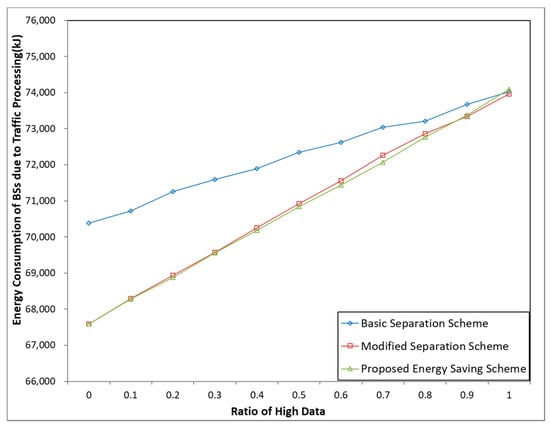

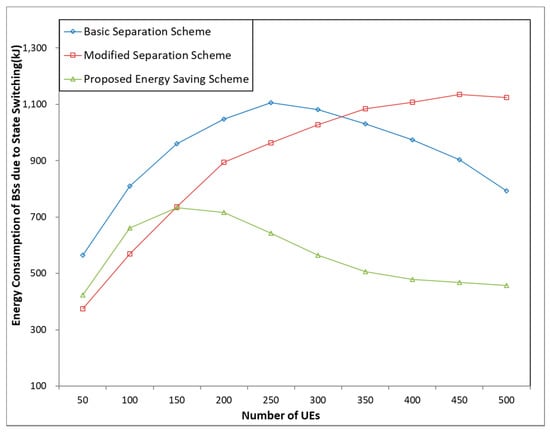

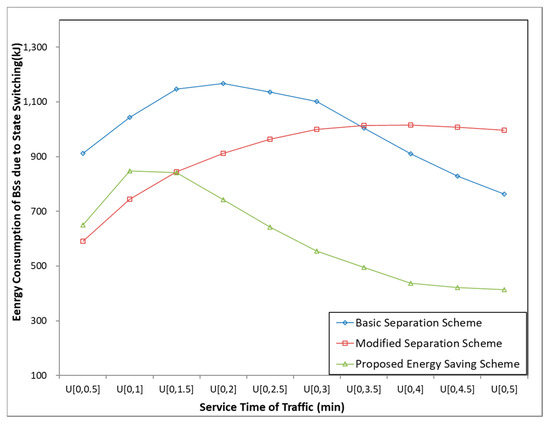

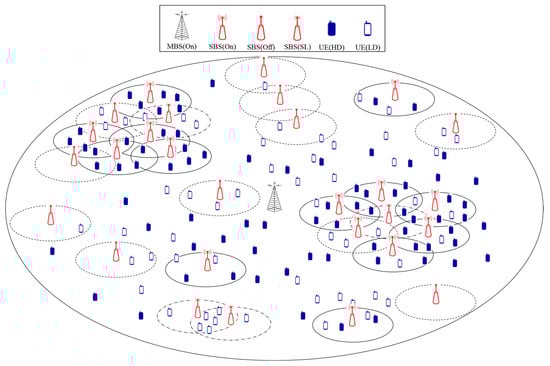

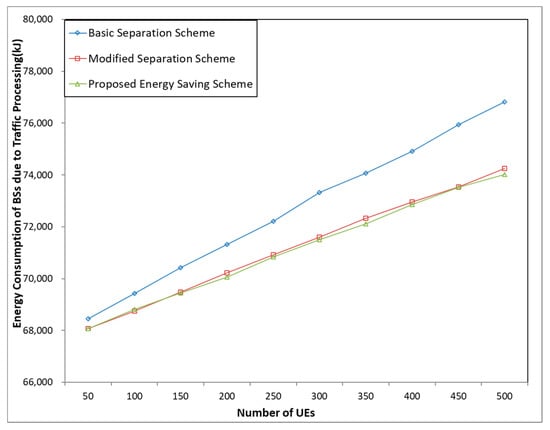

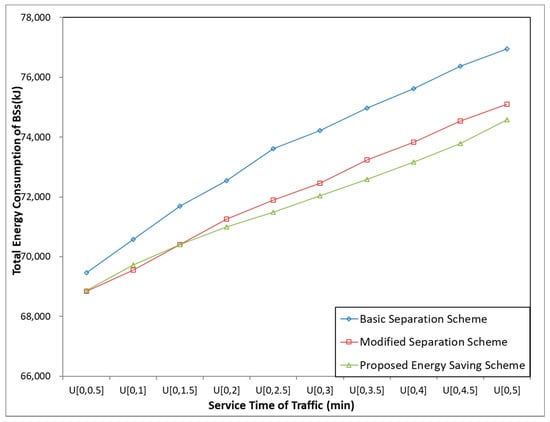

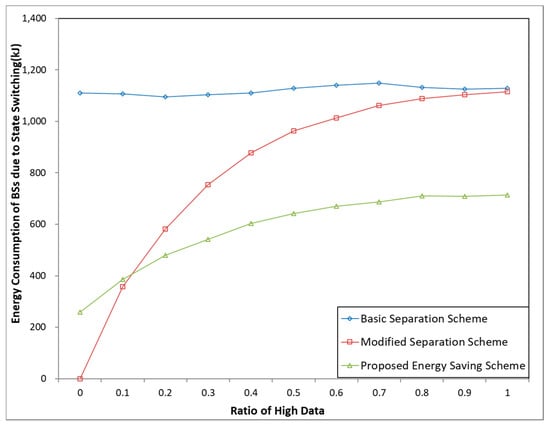

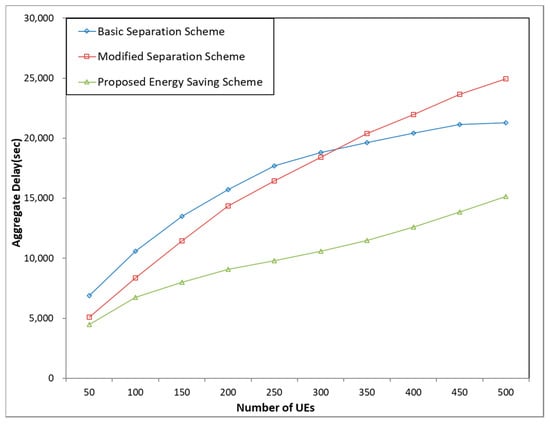

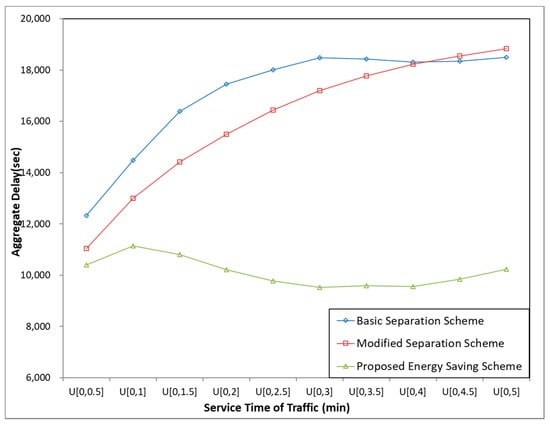

## 4. Numerical Results

## 5. Conclusions and Future Work

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Wu, J.; Zhang, Y.; Zukerman, M. Energy-efficient base-station sleep-mode techniques in green cellular networks: A survey. IEEE Commun. Surv. Tutor.
**2015**, 17, 803–826. [Google Scholar] [CrossRef] - Webb, M.; GeSI (Global e-Sustainability Initiative). SMART 2020: Enabling the Low Carbon Economy in the Information Age; The Climate Group: Lambeth, London, 2008; Available online: http://gesi.org/files/Reports/Smart%202020%20report%20in%20English.pdf (accessed on 12 February 2017).
- Fehske, A.; Fettweis, G.; Malmodin, J.; Biczok, G. The global footprint of mobile communications: The ecological and economic perspective. IEEE Commun. Mag.
**2011**, 49, 55–62. [Google Scholar] [CrossRef] - Hasan, Z.; Boostanimehr, H.; Bhargava, V.K. Green cellular networks: A survey, some research issues and challenges. IEEE Commun. Surv. Tutor.
**2011**, 13, 524–540. [Google Scholar] [CrossRef] - Oh, E.; Son, K.; Krishnamachari, B. Dynamic base station switching-on/off strategies for green cellular networks. IEEE Trans. Wirel. Commun.
**2013**, 12, 2126–2136. [Google Scholar] [CrossRef] - Son, K.; Kim, H.; Yi, Y.; Krishnamachari, B. Base station operation and user association mechanisms for energy-delay tradeoffs in green cellular networks. IEEE J. Sel. Areas Commun.
**2011**, 29, 1525–1536. [Google Scholar] [CrossRef] - Han, T.; Ansari, N. On greening cellular networks via multicell cooperation. IEEE Wirel. Commun.
**2013**, 20, 82–89. [Google Scholar] [CrossRef] - Niu, Z.; Wu, Y.; Gong, J.; Yang, Z. Cell zooming for cost-efficient green cellular networks. IEEE Commun. Mag.
**2010**, 48, 74–79. [Google Scholar] [CrossRef] - Chang, C.Y.; Liao, W.; Hsieh, H.Y.; Shiu, D.S. On optimal cell activation for coverage preservation in green cellular networks. IEEE Trans. Mob. Comput.
**2014**, 13, 2580–2591. [Google Scholar] [CrossRef] - Niu, Z. Tango: Traffic-aware network planning and green operation. IEEE Wirel. Commun. Mag.
**2011**, 18, 25–29. [Google Scholar] [CrossRef] - Balasubramaniam, R.; Nagaraj, S.; Sarkar, M.; Paolini, C.; Khaitan, P. Cell zooming for power efficient base station operation. In Proceedings of the IEEE 9th International Wireless Communications and Mobile Computing Conference, Sardinia, Italy, 1–5 July 2013. [Google Scholar]
- Chung, Y.L. An energy-saving small-cell zooming scheme for two-tier hybrid cellular networks. In Proceedings of the International Conference on Information Networking, Siem Reap, Cambodia, 12–14 January 2015. [Google Scholar]
- Liu, C.; Natarajan, B.; Xia, H. Small cell base station sleep strategies for energy efficiency. IEEE Trans. Veh. Technol.
**2016**, 65, 1652–1661. [Google Scholar] [CrossRef] - Ashraf, I.; Boccardi, F.; Ho, L. SLEEP mode techniques for small cell deployments. IEEE Commun. Mag.
**2011**, 49, 72–79. [Google Scholar] [CrossRef] - Ghosh, P.; Das, S.S.; Naravaram, S.; Chandhar, P. Energy saving in OFDMA cellular systems using base-station sleep mode: 3GPP-LTE a case study. In Proceedings of the National Conference on Communications (NCC), Kharagpur, India, 3–5 February 2012; pp. 1–5. [Google Scholar]
- Dini, P.; Miozzo, M.; Bui, N.; Baldo, N. A model to analyze the energy savings of base station sleep mode in LTE HetNets. In Proceedings of the IEEE International Conference on Green Computing and Communications and IEEE Internet of Things and IEEE Cyber, Physical and Social Computing, Beijing, China, 20–23 August 2013; pp. 1375–1380. [Google Scholar]
- Darnnjanovic, A.; Montojo, J.; Wei, Y.; Ji, T.; Luo, T.; Vajapeyam, M.; Yoo, T.; Song, O.; MaUadi, D. A survey on 3GPP heterogeneous networks. IEEE Wirel. Commun. Mag.
**2011**, 18, 10–21. [Google Scholar] [CrossRef] - Saker, L.; Elayoubi, S.E.; Combes, R.; Chahed, T. Optimal control of wake up mechanisms of femtocells in heterogeneous networks. IEEE J. Sel. Areas Commun.
**2012**, 30, 664–672. [Google Scholar] [CrossRef] - Wildemeersch, M.; Quek, T.Q.S.; Slump, C.H.; Rabbachin, A. Cognitive small cell networks: Energy efficiency and trade-offs. IEEE Trans. Commun.
**2013**, 61, 4016–4029. [Google Scholar] [CrossRef] - Lee, K.S.; Kim, H.S.; Kim, Y.T.; Kim, B.H. DANCE: Small AP on/off algorithms in ultra dense wireless network. J. Korean Inst. Commun. Inf. Sci.
**2013**, 38, 1135–1144. [Google Scholar] [CrossRef] - Feng, M.; Mao, S.; Jiang, T. BOOST: Base station on-off switching strategy for energy efficient massive mimo hetnets. In Proceedings of the 35th Annual International Conference on Computer Communications, IEEE INFOCOM 2016, San Francisco, CA, USA, 10–14 April 2016; pp. 1395–1403. [Google Scholar]
- Cai, S.; Che, Y.; Duan, L.; Wang, J.; Zhou, S.; Zhang, R. Green 5G heterogeneous networks through dynamic small-cell operation. IEEE J. Sel. Areas Commun.
**2016**, 34, 1103–1115. [Google Scholar] [CrossRef] - Antonopoulos, A.; Kartsakli, E.; Bousia, A.; Alonso, L.; Verikoukis, C. Energy-efficient infrastructure sharing in multi-operator mobile networks. IEEE Commun. Mag.
**2015**, 53, 242–249. [Google Scholar] [CrossRef] [Green Version] - Oikonomakou, M.; Antonopoulos, A.; Alonso, L.; Verikoukis, C. Cooperative base station switching off in multi-operator shared heterogeneous network. In Proceedings of the 2015 IEEE Global Communications Conference, San Diego, CA, USA, 6–10 December 2015; pp. 1–6. [Google Scholar]
- Lee, S.; Moon, S.; Yi, Y. On greening cellular networks by sharing base stations: A game-theoretic approach. In Proceedings of the 9th EAI International Conference on Performance Evaluation Methodologies and Tools, Berlin, Germany, 14–16 December 2015; pp. 87–94. [Google Scholar]
- Ishii, H.; Kishiyama, Y.; Takahashi, H. A novel architecture for LTE-B: C-plane/U-plane split and phantom cell concept. In Proceedings of the IEEE GLOBECOM Workshops, Anaheim, CA, USA, 3–7 December 2012; pp. 624–630. [Google Scholar]
- Astely, D.; Dahlman, E.; Fodor, G.; Parkvall, S.; Sachs, J. LTE release 12 and beyond. IEEE Commun. Mag.
**2013**, 51, 154–160. [Google Scholar] [CrossRef] - Mukherjee, S.; Ishii, H. Energy efficiency in the phantom cell enhanced local area architecture. In Proceedings of the 2013 IEEE Wireless Communications and Networking Conference (WCNC), Shanghai, China, 7–10 April 2013; pp. 1267–1272. [Google Scholar]
- Xu, X.; He, G.; Zhang, S.; Chen, Y.; Xu, S. On functionality separation for green mobile networks: Concept study over LTE. IEEE Commun. Mag.
**2013**, 51, 82–90. [Google Scholar] [CrossRef] - Sakaguchi, K.; Sampei, S.; Shimodaira, H.; Rezagah, R.; Tran, G.K.; Araki, K. Cloud cooperated heterogeneous cellular networks. In Proceedings of the 2013 International Symposium on Intelligent Signal Processing and Communication Systems, Naha, Japan, 12–15 November 2013; pp. 787–791. [Google Scholar]
- Feng, M.; Mao, S.; Jiang, T. Base station on-off switching in 5G wireless networks: Approaches and challenges. IEEE Wirel. Commun.
**2017**, 24, 46–54. [Google Scholar] [CrossRef] - Wang, Z.; Zhang, W. A separation architecture for achieving energy-efficient cellular networking. IEEE Trans. Wirel. Commun.
**2014**, 13, 3113–3123. [Google Scholar] [CrossRef] - Zhang, S.; Gong, J.; Zhou, S.; Niu, Z. How many small cells can be turned off via vertical offloading under a separation architecture? IEEE Trans. Wirel. Commun.
**2015**, 14, 5440–5453. [Google Scholar] [CrossRef] - Chiaraviglio, L.; Amorosi, L.; Cartolano, S.; Blefari-Melazzi, N.; Dell’Olmo, P.; Shojafar, M.; Salsano, S. Optimal superfluid management of 5G networks. In Proceedings of the 3rd IEEE Conference on Network Softwarization, Bologna, Italy, 3–7 July 2017. [Google Scholar]
- Marotta, A.; Zola, E.; D’Andreagiovanni, F.; Kassler, A. A fast robust optimization-based heuristic for the deployment of green virtual network functions. J. Netw. Comput. Appl.
**2017**, 95, 42–53. [Google Scholar] [CrossRef] - Marotta, A.; D’Andreagiovanni, F.; Kassler, A.; Zola, E. On the energy cost of robustness for green virtual network function placement in 5G virtualized infrastructures. Comput. Netw. (in press). [CrossRef]
- Salsano, S.; Chiaraviglio, L.; Blefari-Melazzi, N.; Parada, C.; Fontes, F.; Mekuria, R.; Griffioen, D. Toward superfluid deployment of virtual functions: Exploiting mobile edge computing for video streaming. In Proceedings of the First International Workshop on Softwarized Infrastructures for 5G and Fog Computing, Genoa, Italy, 4–8 September 2017. [Google Scholar]
- Shojafar, M.; Chiaraviglio, L.; Blefari-Melazzi, N.; Salsano, S. P5G: A bio-inspired algorithm for the superfluid management of 5G Networks. In Proceedings of the 18th IEEE GLOBECOM, Singapore, 4–8 December 2017. [Google Scholar]
- Amaldi, E.; Capone, A.; Malucelli, F.; Mannino, C. Optimization problems and models for planning cellular networks. In Handbook of Optimization in Telecommunication; Resende, M., Pardalos, P., Eds.; Springer: New York, NY, USA, 2006; Volume 31, pp. 917–939. [Google Scholar]
- Amaldi, E.; Capone, A.; Malucelli, F.; Mannino, C. Optimization Problems and Models for Planning Cellular Networks; Springer: New York, NY, USA, 2006; Volume 31, pp. 879–901. [Google Scholar]
- Kennington, J.; Olinick, E.; Rajan, D. Wireless Network Design: Optimization Models and Solution Procedures; Springer: New York, NY, USA, 2010. [Google Scholar]
- D’Andreagiovanni, F. Pure 0–1 programming approaches to wireless network design. 4OR Q. J. Oper. Res.
**2012**, 10, 211–212. [Google Scholar] [CrossRef] - D’Andreagiovanni, F.; Gleixner, A. Towards an accurate solution of wireless network design problems. In Proceedings of the International Symposium on Combinatorial Optimization, LNCS, Vietri sul Mare, Italy, 16–18 May 2016; Volume 9849, pp. 135–147. [Google Scholar]
- D’Andreagiovanni, F.; Mannino, C.; Sassano, A. Negative cycle separation in wireless network design. In Proceedings of the 5th International Conference on Network Optimization, LNCS, Hamburg, Germany, 13–16 June 2011; Volume 6701, pp. 51–56. [Google Scholar]
- D’Andreagiovanni, F.; Mannino, C.; Sassano, A. GUB covers and power-indexed formulations for wireless network design. Manag. Sci.
**2012**, 59, 142–156. [Google Scholar] [CrossRef] - D’Andreagiovanni, F. On improving the capacity of solving large-scale wireless network design problems by genetic algorithms. In Proceedings of the Applications of Evolutionary Computation, LNCS, Torine, Italy, 27–29 April 2011; Volume 6625, pp. 11–20. [Google Scholar]
- D’Andreagiovanni, F.; Mett, F.; Nardin, A.; Pulaj, J. Integrating LP-guided variable fixing with MIP heuristics in the robust design of hybrid wired-wireless FTTx access networks. Appl. Soft Comput.
**2017**. [Google Scholar] [CrossRef] - Dely, P.; D’Andreagiovanni, F.; Kassler, A. Fair optimization of mesh-connected wlan hotspots. Wirel. Commun. Mob. Comput.
**2013**, 15, 924–946. [Google Scholar] [CrossRef] - Eisenblatter, A.; Geerdes, H. Capacity optimization for UMTS: Bounds and benchmarks for interference reduction. In Proceedings of the IEEE 19th International Symposium on Personal, Indoor and Mobile Radio Communications, Cannes, France, 15–18 September 2008. [Google Scholar]
- Gendron, B.; Scutellà, M.G.; Garroppo, R.G.; Nencioni, G.; Tavanti, L. A branch-and-Benders-cut method for nonlinear power design in green wireless local area networks. Eur. J. Oper. Res.
**2016**, 255, 151–162. [Google Scholar] [CrossRef] - Mannino, C.; Rossi, F.; Smriglio, S. The network packing problem in terrestrial broadcasting. Oper. Res.
**2016**, 54, 611–626. [Google Scholar] [CrossRef] - Sawaya, N.J.; Elhedhli, S. A nested benders decomposition approach for optimal W-CDMA telecommunication network planning. Nav. Res. Logist.
**2010**, 57, 519–539. [Google Scholar] [CrossRef] - Gu, F.; Liu, L.H.; Cheung, M.Y.; Xie, S. Optimal WCDMA network planning by multi objective evolutionary algorithm with problem-specific genetic operation. Knowl. Inf. Syst.
**2015**, 45, 679–703. [Google Scholar] [CrossRef] - Koutitas, G. Green network planning of single frequency networks. IEEE Trans. Broadcast.
**2010**, 56, 541–550. [Google Scholar] [CrossRef] - Zakrzewska, A.; D’Andreagiovanni, F.; Ruepp, S.; Berger, M.S. Biobjective optimization of radio access technology selection and resource allocation in heterogeneous wireless networks. In Proceedings of the 2013 11th International Symposium on Modeling & Optimization in Mobile, Ad Hoc & Wireless Networks, Tsukuba Science City, Japan, 13–17 May 2013. [Google Scholar]
- Bauschert, T.; Büsing, C.; D’Andreagiovanni, F. Network planning under demand uncertainty with robust optimization. IEEE Commun. Mag.
**2014**, 52, 178–185. [Google Scholar] [CrossRef] - Büsing, C.; D’Andreagiovanni, F. New results about multi-band uncertainty in robust optimization. In Proceedings of the SEA 2012, Springer Lecture Notes in Computer Science 7276, Bordeaux, France, 7–9 June 2012. [Google Scholar]
- D’Andreagiovanni, F. Revisiting wireless network jamming by SIR-based considerations and multiband robust optimization. Optim. Lett.
**2015**, 9, 1495–1510. [Google Scholar] [CrossRef] - D’Andreagiovanni, F.; Krolikowski, J.; Pulaj, J. A fast hybrid primal heuristic for multiband robust capacitated network design with multiple time periods. Appl. Soft Comput.
**2015**, 26, 497–507. [Google Scholar] [CrossRef] - Garroppo, R.G.; Nencioni, G.; Scutellá, M.G.; Tavanti, L. Robust optimisation of green wireless LANs under rate uncertainty and user mobility. Electr. Notes Discret. Math.
**2016**, 52, 221–228. [Google Scholar] [CrossRef] - Heikkinen, T.; Prekopa, A. Optimal power control in a wireless network using stochastic link coefficients. Nav. Res. Logist.
**2004**, 52, 178–192. [Google Scholar] [CrossRef] - Olinick, E.; Rosenberger, J. Optimizing revenue in CDMA networks under demand uncertainty. Eur. J. Oper. Res.
**2008**, 186, 812–825. [Google Scholar] [CrossRef] - Kang, M.W.; Chung, Y.W. A novel power saving scheme for base stations in 5G network. Int. J. Mob. Device Eng.
**2017**, 1, 29–36. [Google Scholar] [CrossRef] - Shahid, A.; Aslam, S.; Lee, L.G. A decentralized heuristic approach towards resource allocation in femtocell networks. Entropy
**2013**, 15, 2524–2547. [Google Scholar] [CrossRef] - Hu, W.; Liang, H.; Peng, C.; Du, B.; Hu, Q. A hybrid chaos-particle swarm optimization algorithm for the vehicle routing problem with time window. Entropy
**2013**, 15, 1247–1270. [Google Scholar] [CrossRef] - Conforti, M.; Cornuejols, G.; Zambelli, G. Integer Programming; Springer: New York, NY, USA, 2014. [Google Scholar]
- Garey, M.R.; Johnson, D.S. Computers and Intractability: A Guide to the Theory of NP-Completeness; W.H. Freeman and Co.: London, UK, 1979. [Google Scholar]
- Papadimitriou, C.H.; Steiglitz, K. Combinatorial Optimization: Algorithms and Complexity; Dover Publications: New York, NY, USA, 1998. [Google Scholar]
- Campbell, S.E. Multi-Scale Path Planning for Reduced Environmental Impact of Aviation. Ph.D. Thesis, University of Illinois at Urbana-Champaign, Champaign, IL, USA, 2010. [Google Scholar]
- Melo, G. Not quite the same: Identity constraints for the web of linked data. In Proceedings of the Twenty-Seventh AAAI Conference on Artificial Intelligence, Berkeley, CA, USA, 14–18 July 2013. [Google Scholar]
- Gavanelli, M.; Milano, M.; Bragaglia, S.; Chesani, F.; Marengo, E.; Cagnoli, P. Multi-criteria optimal planning for energy policies in CLP. In Proceedings of the 29th Italian Conference on Computational Logic, Torino, Italy, 16–18 June 2014. [Google Scholar]
- Zhang, W.; Kwak, K.S.; Feng, C. Network selection algorithm for heterogeneous wireless networks based on multi-objective discrete particle swarm optimization. KSII Trans. Internet Inf. Syst.
**2012**, 6, 1802–1814. [Google Scholar] [CrossRef] - Wu, J.; Wong, E.W.M.; Guo, J.; Zukerman, M. Performance analysis of green cellular networks with selective base-station sleeping. Perform. Eval.
**2017**, 111, 17–36. [Google Scholar] [CrossRef] - Auer, G.; Giannini, V.; Desset, C.; Godor, I.; Skillermark, P.; Olsson, M.; Imran, M.; Sabella, D.; Gonzalez, M.; Blume, O.; et al. How much energy is needed to run a wireless network? IEEE Wirel. Commun.
**2011**, 18, 40–49. [Google Scholar] [CrossRef] - Guo, X.; Niu, Z.; Zhou, S.; Kumar, P.R. Delay-constrained energy-optimal base station sleeping control. IEEE J. Sel. Areas Commun.
**2016**, 34, 1073–1085. [Google Scholar] [CrossRef]

**Figure 4.**Conventional energy saving operation of BSs in the modified separation architecture (

**a**) before energy saving; (

**b**) after energy saving.

**Figure 5.**Proposed energy saving operation of BSs in the modified separation architecture (

**a**) before energy saving; (

**b**) after energy saving.

Type | Basic Separation Architecture | Modified Separation Architecture | |
---|---|---|---|

Control Signal | Macro Cell Base Station | Macro cell Base Station | |

Data Traffic | Low Rate Data | Small Cell Base Station | Macro cell Base Station |

High Rate Data | Small Cell Base Station | Small cell Base Station |

Parameter | Description |
---|---|

$n$ | number of UEs |

$m$ | number of SBSs |

${u}_{i}$ | a UE i |

${B}_{j}$ | a BS j |

${C}_{h}$ | capacity needed to serve a high rate data traffic service |

${C}_{l}$ | capacity needed to serve a low rate data traffic service |

${C}_{S}^{max}$ | maximum capacity of an SBS |

${C}_{M}^{max}$ | maximum capacity of an MBS |

${\rho}_{S}$ | slope of the load-dependent power consumption in an SBS |

${\rho}_{M}$ | slope of the load-dependent power consumption in an MBS |

${P}_{S}^{f}$ | fixed power consumption of an SBS in on state |

${P}_{S}^{e}$ | fixed power consumption of an SBS in sleep state |

${P}_{M}^{f}$ | fixed power consumption of an MBS in on state |

${P}_{S}^{max}$ | maximum power consumption of an SBS |

${P}_{M}^{max}$ | maximum power consumption of an MBS |

${P}_{on-off}$ | power consumption for a switching between on and off states in an SBS |

${P}_{on-sleep}$ | power consumption for a switching between on and sleep states in an SBS |

${T}_{on-off}$ | delay for a switching between on state and off state in an SBS |

${T}_{on-sleep}$ | delay for a switching between on state and sleep state in an SBS |

${T}_{c}$ | delay for a new connection initiation between a UE and a BS |

Parameter | Value |
---|---|

simulation time | 24 h |

number of SBSs | 50 |

number of UEs | 250 |

service time of traffic | U[0, 2.5] min |

inter-arrival time of traffic | U[5, 10] min |

ratio of high data | 0.5 |

speed of UE | U[0, 100] km/h |

${P}_{S}^{f}$ | 21.6 W |

${P}_{S}^{e}$ | 5.4 W |

${P}_{S}^{max}$ | 27 W |

${P}_{M}^{f}$ | 780 W |

${P}_{M}^{max}$ | 1350 W |

${P}_{on-off}$ | 54 W |

${P}_{on-sleep}$ | 13.5 W |

${C}_{h}$ | 1 Mbps |

${C}_{l}$ | 0.01 Mbps |

${C}_{S}^{max}$ | 25 Mbps |

${C}_{M}^{max}$ | 500 Mbps |

${P}_{S}^{tx,max}$ | 1.3 W |

${P}_{M}^{tx,max}$ | 120 W |

${\rho}_{S}$ | 4.15 W/Mbps |

${\rho}_{M}$ | 4.5 W/Mbps |

${T}_{on-off}$ | 0.532 s |

${T}_{on-sleep}$ | 0.00216 s |

${T}_{c}$ | 0.05 s |

Parameter | Value |
---|---|

PSO iteration | 200 |

number of swarm | 5 |

${v}_{max}$ | 4 |

${v}_{min}$ | −4 |

${c}_{1}$ | 0.5 |

${c}_{2}$ | 0.5 |

${r}_{1}$ | 0.5 |

${r}_{2}$ | 0.5 |

$wg$ | 0.25 |
