Energies 2017, 10(9), 1284; https://doi.org/10.3390/en10091284

Article
Online Lithium-Ion Battery Internal Resistance Measurement Application in State-of-Charge Estimation Using the Extended Kalman Filter
Department of Physics, Donghua University, Shanghai 201620, China
*
Author to whom correspondence should be addressed.
Received: 2 August 2017 / Accepted: 24 August 2017 / Published: 29 August 2017

Abstract

:
The lithium-ion battery is a viable power source for hybrid electric vehicles (HEVs) and, more recently, electric vehicles (EVs). Its performance, especially in terms of state of charge (SOC), plays a significant role in the energy management of these vehicles. The extended Kalman filter (EKF) is widely used to estimate online SOC as an efficient estimation algorithm. However, conventional EKF algorithms cannot accurately estimate the difference between individual batteries, which should not be ignored. However, the internal resistance of a battery can represent this difference. Therefore, this work proposes using an EKF with internal resistance measurement based on the conventional algorithm. Lithium-ion battery real-time resistances can help the Kalman filter overcome defects from simplistic battery models. In addition, experimental results show that it is useful to introduce online internal resistance to the estimation of SOC.
Keywords:
online internal resistance; state-of-charge; extended Kalman filter; lithium-ion battery

1. Introduction

Efficient energy management is crucial for the performance [1], in terms of power consumption and security, of hybrid electric vehicles (HEVs) and electric vehicles (EVs). As the most popular form of energy storage, the lithium-ion battery needs a high-performing energy management system to extend its life [2,3]. A battery management system (BMS) is used to provide accurate battery information and ensure reliable operation. The key function of the BMS is to monitor the online battery package statement, especially the state of charge (SOC) [4], which is the most critical element for the charge-discharge strategy and battery safety. Unfortunately, the state of charge is an indirectly measured variable and can only be estimated through relative quantities, such as battery voltage, current, temperature, etc. [5,6].
Several methods have been proposed for estimating SOC. The first method is the Coulomb counting method, which measures the current constantly and counts the Coulomb charge/discharge in order to estimate SOC [7,8]. This method is simple and easy to implement but it is sensitive to an initial value and accumulation errors. The second method is the open-circuit voltage (OCV) method, which measures the voltage of a lithium-ion battery after a long rest time [9,10], which is not suitable for HEVs or EVs. In order to overcome the defects of these methods, the extended Kalman filter (EKF) has been proposed as an optimum adaptive algorithm for SOC. However, this method depends strongly on the accuracy of a model parameter that is not consistent [11]. For instance, the battery internal resistance, as a significant parameter of the battery model, varies according to different SOC, temperature and state of health (SOH).
In order to obtain the online parameter of a lithium-ion cell, such as the internal resistance of the battery, some researchers have proposed electrochemical impedance spectroscopy (EIS) to study the impedance of the battery [12], which is incompatible with the constraints of EV or HEV applications. Others have improved existing battery models and algorithms to estimate the online internal resistance [13]. However, this approach inevitably increases the complexity and uncertainty of SOC estimation.
In this paper, we present an effort to use the online measurement of internal resistance to estimate battery SOC that employs the traditional extended Kalman filter. This work is useful for studying the effect of internal resistance on SOC evaluation. Firstly, based on an equivalent circuit model (ECM), the internal resistance of a lithium-ion battery is measured by a device that can generate a controllable direct current short-pulse (DCSP) current source. Then, this real-time internal resistance is used as parameter of EKF algorithms to estimate the battery SOC. Finally, the improvement to the SOC evaluation error that comes from using online internal resistance is demonstrated by comparing this with the simple EKF operation error.

2. Internal Resistance Measurement

2.1. Equivalent Circuit Model

The battery equivalent circuit model (ECM) is one of fundamentals of SOC estimation, which is achieved using EKF algorithms. This usually comprises the basic electrical element, such as a DC source, resistor and capacitor. By analyzing the voltage and current information of the battery, the model’s corresponding parameters can be obtained [14]. In this study, Figure 1 displays the ECM which is comprised of one Ohmic resistor (Ri), one RC network (Rp & Cp), and a DC source (ε), in series. Here, ε represents the cell equilibrium potential and the RC network refers to charge diffusion and transfer. The Ohmic resistor (Ri) provides cell internal resistance, which is affected by SOC, temperature and the degree of aging. Obtaining accurate real-time internal resistance not only distinguishes the characteristics of each single cell of the same type of battery model, but also improves the accuracy of SOC and SOH estimation.

2.2. Online Internal Resistance Measurement

Unlike the method of measuring the battery impedance through EIS, the battery’s internal resistance can be detected online using a simple device, which does so by triggering the current step and measuring the corresponding voltage variation of the battery. Since the absolute and relative changes in the internal resistance of the battery are small quantities of mOhm, it is through precise control that the accurate real-time monitoring of internal resistance can be achieved.
The internal resistance test device is depicted in Figure 2. The entire apparatus consists of a voltage meter (V), a DC current source (I), a pulse control switch (K), and a microcontroller unit (MCU). The cell used in the experiment was a Panasonic NCR18650B (Panasonic, Japan) with a nominal capacity of 3200 mAh. The MCU is responsible for controlling testing, including the value of the controllable DC current source, switching time and voltage measurement. In order to achieve the accuracy requirements of an internal resistance monitor, voltage detection precision must be less than 1 mV. In addition, the duration of the pulse current is controlled by the switch (K) and is limited to hundreds of microseconds in total. In this short period of time, the ECM low-frequency characteristics caused by the RC network can be ignored. The change in voltage depends mainly on the cell internal resistance. Moreover, in order to overcome the problem of a small signal-to-noise ratio, the current step magnitude should be sufficiently larger.
Figure 3 shows the pulse width, current and voltage variations during the internal resistance measurement. The discharge pulse width is 400 us with three steps, including the first stage of the discharge current of 0 A; the second stage of the discharge current of 5 A; and the third stage of the discharge current of 10 A. In the experiment, the voltage differences in the second and third stages are caused by the voltage change on the battery’s internal resistance. Differential voltage can not only improve the detection accuracy of the equipment, but also effectively overcome the electrochemical hysteresis influence of the battery and react with the characterization of battery internal resistance.

3. Internal Resistance Characterization

First, Figure 4 shows the relationship curves between internal resistance and SOC. The experiment samples were four new 18650 batteries operating at room temperature. The experimental results showed that the internal resistance of the battery varied with the battery’s SOC. Internal resistance was at maximum value when the battery capacity was empty. However, the minimum value of the internal resistance was not noticeable at the time of SOC 100%, but at a point between 80% and 90% of SOC. This phenomenon is consistent with the internal resistance characteristics of the hybrid pulse power characterization test [15] and the real part of the impedance detection characteristics by EIS [7]. In addition, the experimental results showed that the difference between the individual cells can be distinguished by internal resistance even if these lithium-ion batteries are fabricated with the same structures and materials. Since the internal resistance is an important parameter in the battery model, this individual difference can eventually be reflected in efforts to estimate the battery’s SOC.
Second, the internal resistance of the battery at different temperatures was studied. Figure 5 shows the relationship curves between internal resistance and SOC. The experiment sample was the same brand new battery used at different temperatures. In the experiment, data were collected at −10 °C, 10 °C, 30 °C and 50 °C. The data curves show that the temperature has a greater effect on the internal resistance than that from SOC only. At low temperature, such as −10 °C, the value of internal resistance of the battery increased significantly. Therefore, for accurate SOC evaluation, temperature must be considered a factor, and this can be partially characterized by changes in real-time internal resistance.
Finally, this research studied the change in internal resistance caused by the aging of the battery. In the experiment, eight 18650 lithium-ion battery samples were studied through a charging and discharging cycle. Each cycle includes a 1600 mA charging process and a 3200 mA discharging process. A cycle includes the process of charging the battery to 100% of SOC and discharging it to 0% of SOC. In order to determine the experimental data range, in this study battery voltage of 4.2V UL within 0.1 A charge current was defined as battery 100% SOC; and battery voltage of 2.5 V UL was defined as battery 0% SOC. As can be seen in Figure 6, the average internal resistance of the sample batteries increased with the number of cycles. In other words, at a selected SOC point, the battery internal resistance increases as the battery ages. In addition, this change occurred at almost every SOC point. This result provides an experimental basis for studying the SOC and SOH of the battery through real-time internal resistance.

4. EKF with Internal Resistance Measurement

The Kalman filter is a state observer that is randomly adjusted based on the correction gain. As a recursive algorithm, the Kalman filter is suitable for real-time linear applications. In order to apply the Kalman filter to a non-linear system, such as lithium-ion battery SOC estimation, an extended Kalman filter [16,17] linearizes the non-linear system equations by using Taylor series expansion and partial derivatives. Since the second-order Taylor series will greatly increase the computational complexity of the algorithm, first order Taylor expansion is widely used. The EKF equations are illustrated in Table 1.
However, due to the estimation error caused by the linearization process, EKF cannot handle highly non-linear systems. In order to improve the accuracy of EKF estimation, some researchers have proposed absorbing battery non-linear factors, such as the hysteresis effect, the relaxation effect and the temperature effect, through the modified SOC-OCV relationship [7,18]. However, this process ignores variations in battery internal resistance, which is a significant parameter of the model. Some other scholars are aware of the importance of internal resistance in the evaluation of battery status parameters and measure the cell internal resistance using various techniques. For instance, the hybrid pulse power characterization (HPPC) technique and the direct current internal resistance (DCIR) technique are widely used to measure battery resistance [19,20,21]. However, these techniques tend to measure the battery's lumped resistance rather than the pure internal resistance because of the unavoidable hysteresis effect in the measurement. In addition, due to a series of complex trigger conditions, these techniques are not suitable for EV and HEV online measurement applications.
This work has studied the consequence of battery internal resistance on the estimation of SOC by EKF. In order to highlight the impact of real-time internal resistance, the study used the simplest EKF equations in which all parameters in the battery model are constrained as fresh battery parameters, which is given in Table 2. As a result, the value of matrix A and B in Table 1 remains unchanged in this study.
In EKF equations, system inputs are R i and U L ; system output is SOC. x ^ k is the state variable, which contains the voltage of the capacitance and battery SOC. Matrix A and matrix B are system matrices and input control matrices, respectively. T s is the sampling interval. C N is the rated capacity.
x ^ k = [ U p [ k ] SOC [ k ] ]
A = [ 1 T s C p R p 0 0 1 ]
B = [ T s C p η k T s C N ]
H k is the observation matrix that contains the internal resistance.
H k = U L X = [ U L U p U L SOC ]
Here,
U L U p = 1
U L SOC = U ocv SOC + I t R i SOC
In this study, R i was the experimental value rather than the function value of battery SOC.
So,
R i SOC = 0
Therefore, the real-time internal resistance simplified observation matrix was:
H k = [ 1 U ocv SOC ]

5. Simulation and Experimental Results

In order to observe the effect of real-time internal resistance on SOC estimation under the EKF algorithm, a simulation and an experiment were performed. The experiment equipment included a constant temperature chamber, internal resistance testing equipment, a power supply, an electronic load, and a computer, as shown in Figure 7. The experimental data was collected and maintained by the equipment and computer. At the same time, these data were used as input data for the simulation system. In this study, the simulation tool used was Matlab 2016b.
The lithium-ion batteries used in the experiment were type 18650 with the capacity of 3200 mAh. Here, the electronic load was used to keep a constant current discharge at 1600 mA. The internal resistance of the battery was continuously sampled during the whole discharge process by the internal resistance testing equipment. The internal resistance sampling interval was every 2 s. Considering that the actual discharge pulse width did not exceed 250 us in each detection period (Figure 3), SOC variation due to the detection discharge pulse could largely be ignored.
Here, the effect of SOC estimation by internal resistance changes induced by aging was studied at room temperatures. The internal resistances of batteries of different ages were used as a parameter of battery model for the EKF evaluation. In the experiment, the battery samples with different aging degree were obtained by repeated constant current-constant voltage (CC-CV) charge and discharge cycles. As mentioned earlier, each cycle contained a 3200 mA discharge and a 1600 mA charge process. The battery SOC, in completing each cycle, was varied from 100% to 0%, and then back to 100%. Here, the study focused on the battery with 0 cycles, 200 cycles, 600 cycles and 900 cycles respectively. In the experiment, we found that the battery capacity declined significantly with the increase in the number of cycles. In this case, the battery capacity was not only the most effective indicator of battery SOH, but also the reference for a modified SOC-OCV curve [18].
With reference to the modified SOC-OCV relationship, Figure 8 shows the SOC estimation error with different EKF evaluations. These two evaluations used exactly the same SOC-OCV curve and battery model parameters, except for internal resistance. The first one used the new battery internal resistance Ri (in Table 2) at 25 °C while the other was the real-time battery internal resistance measured during discharge. It can be seen from Figure 8 that the SOC estimation with real-time internal resistance yielded a better evaluation result than the fixed internal resistance, although the absolute error of SOC varied during the whole estimation process. Since the real-time internal resistance is more accurate than the preset fixed internal resistance, the value of this alternative in terms of improved accuracy is self-evident.
In order to further quantify the improvement of real-time resistance to SOC evaluation, we compared the error rates of the two types of internal resistance under the same experimental conditions. Figure 9 shows this improvement with battery samples of various ages. The experimental results showed that the optimization rate of SOC estimation increases with the number of battery cycles. In addition, this degree of optimization increased linearly with the degree of battery aging. The SOC optimization strategy can be included in battery cycles by integrating the following from the trendline of Figure 9.
P = ( 2.238 × 10 2   ×   Cycles + 6.118 )   %
Considering the entire battery life in Figure 9, the SOC estimation with EKF can yield more than 15% average optimization with real-time resistance measurement.
Based on the above experimental and simulation results, it can be seen that real-time internal resistance is helpful in improving SOC accuracy using EKF algorithms. This improvement will become more obvious as the battery ages. Previous research [7,18] has shown that the change in the OCV-SOC relationship due to battery capacity variation may be the most significant factor for estimating SOC with EKF. For example, SOC evaluation results can be improved significantly by the effectively modified SOC-OCV relationship [7]. However, as a measurable physical quantity, the effect of internal resistance on battery SOC evaluation optimization is obvious in this work. In addition, as a constructive parameter, real-time internal resistance can also be easily used for battery SOC estimation using the EKF algorithm. Moreover, compared with other impedance monitoring methods, the DCSP internal resistance detection method in this work can be achieved at very low cost and with high accuracy in hybrid electric vehicles and electric vehicles.

6. Conclusions

In this paper we have studied the real-time internal resistance of the lithium-ion battery during high-speed pulsed discharge. This measurement system can observe changes in internal resistance caused by either external temperature or internal aging. Thanks to this online internal resistance, individual battery SOC differences can be distinguished. In addition, real-time internal resistance can improve SOC estimation with the EKF algorithm. The advantage of real-time internal resistance can not only simplify the process in a particular algorithm operation, but can also optimize the accuracy of SOC estimation under the same conditions.
The experimental results also show that deviation of an aging battery’s SOC evaluation may be improved through real-time internal resistance methods. This correction cannot be achieved by the modified SOC-OCV curve using capacity correction only.

Acknowledgments

This research was supported by a research fund from Donghua University, 2016.

Author Contributions

D.W. performed the experiments and evaluated the data. Y.B. developed the concept, conceived the experiments, designed the measurement set-ups, and wrote the manuscript. D.W. and J.S. built the model. All authors contributed to the manuscript and to the results discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Armand, M.; Tarascon, J.-M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  2. Plett, G.L. Extended Kalman filtering for battery management systems of LiPB-based HEV battery packs. J. Power Sources 2004, 134, 252–261. [Google Scholar] [CrossRef]
  3. Waag, W.; Käbitz, S.; Sauer, D.U. Experimental investigation of the lithium-ion battery impedance characteristic at various conditions and aging states and its influence on the application. Appl. Energy 2013, 102, 885–897. [Google Scholar] [CrossRef]
  4. Cheng, K.W.E.; Divakar, B.P.; Wu, H.; Ding, K.; Ho, H.F. Battery-management system (BMS) and SOC development for electrical vehicles. IEEE Trans. Veh. Technol. 2011, 60, 76–88. [Google Scholar] [CrossRef]
  5. Sepasi, S.; Ghorbani, R.; Liaw, B.Y. A novel on-board state-of-charge estimation method for aged Li-ion batteries based on model adaptive extended Kalman filter. J. Power Sources 2014, 245, 337–344. [Google Scholar] [CrossRef]
  6. Sepasi, S.; Roose, L.R.; Matsuura, M.M. Extended Kalman filter with a fuzzy method for accurate battery pack state of charge estimation. Energies 2015, 8, 5217–5233. [Google Scholar] [CrossRef]
  7. Piller, S.; Perrin, M.; Jossen, A. Methods for state-of-charge determination and their applications. J. Power Sources 2001, 96, 113–120. [Google Scholar] [CrossRef]
  8. Ng, K.S.; Moo, C.S.; Chen, Y.P.; Hsieh, Y.C. Enhanced coulomb counting method for estimating state-of-charge and state-of-health of lithium-ion batteries. Appl. Energy 2009, 86, 1506–1511. [Google Scholar] [CrossRef]
  9. Lee, S.; Kim, J.; Lee, J.; Cho, B.H. State-of-charge and capacity estimation of lithium-ion battery using a new open-circuit voltage versus state-of-charge. J. Power Sources 2008, 185, 1367–1373. [Google Scholar] [CrossRef]
  10. Roscher, M.A.; Sauer, D.U. Dynamic electric behavior and open-circuit-voltage modeling of LiFePO4-based lithium ion secondary batteries. J. Power Sources 2011, 196, 331–336. [Google Scholar] [CrossRef]
  11. Sepasi, S.; Ghorbani, R.; Liaw, B.Y. Inline state of health estimation of lithium-ion batteries using state of charge calculation. J. Power Sources 2015, 299, 246–254. [Google Scholar] [CrossRef]
  12. Xu, J.; Mi, C.C.; Cao, B.; Cao, J. A new method to estimate the state of charge of lithium-ion batteries based on the battery impedance model. J. Power Sources 2013, 233, 277–284. [Google Scholar] [CrossRef]
  13. Chiang, Y.H.; Sean, W.Y.; Ke, J.C. Online estimation of internal resistance and open-circuit voltage of lithium-ion batteries in electric vehicles. J. Power Sources 2011, 196, 3921–3932. [Google Scholar] [CrossRef]
  14. He, H.; Xiong, R.; Fan, J. Evaluation of lithium-ion battery equivalent circuit models for state of charge estimation by an experimental approach. Energies 2011, 4, 582–598. [Google Scholar] [CrossRef]
  15. Lu, L.; Han, X.; Li, J.; Hua, J.; Ouyang, M. A review on the key issues for lithium-ion battery management in electric vehicles. J. Power Sources 2013, 226, 272–288. [Google Scholar] [CrossRef]
  16. Zou, C.; Manzie, C.; Nešić, D.; Kallapur, A.G. Multi-time-scale observer design for state-of-charge and state-of-health of a lithium-ion battery. J. Power Sources 2016, 335, 121–130. [Google Scholar] [CrossRef]
  17. Zou, C.; Manzie, C.; Nešić, D. A framework for simplification of PDE-based lithium-ion battery models. IEEE Trans. Control Syst. Technol. 2016, 24, 1594–1609. [Google Scholar] [CrossRef]
  18. Zhang, J.; Lee, J. A review on prognostics and health monitoring of Li-ion battery. J. Power Sources 2011, 196, 6007–6014. [Google Scholar] [CrossRef]
  19. Smith, K.; Wang, C.Y. Solid-state diffusion limitations on pulse operation of a lithium ion cell for hybrid electric vehicles. J. Power Sources 2006, 161, 628–639. [Google Scholar] [CrossRef]
  20. Lee, S.; Kim, J.; Cho, B.H. Maximum pulse current estimation for high accuracy power capability prediction of a Li-ion battery. Microelectron. Reliab. 2015, 55, 572–581. [Google Scholar] [CrossRef]
  21. Panchal, S.; Mcgrory, J.; Kong, J.; Fraser, R.; Fowler, M.; Dincer, I.; Agelin-Chaab, M. Cycling degradation testing and analysis of a LiFePO4 battery at actual conditions. Int. J. Energy Res. 2017. [Google Scholar] [CrossRef]
Figure 1. A battery equivalent circuit model (ECM).
Figure 1. A battery equivalent circuit model (ECM).
Energies 10 01284 g001

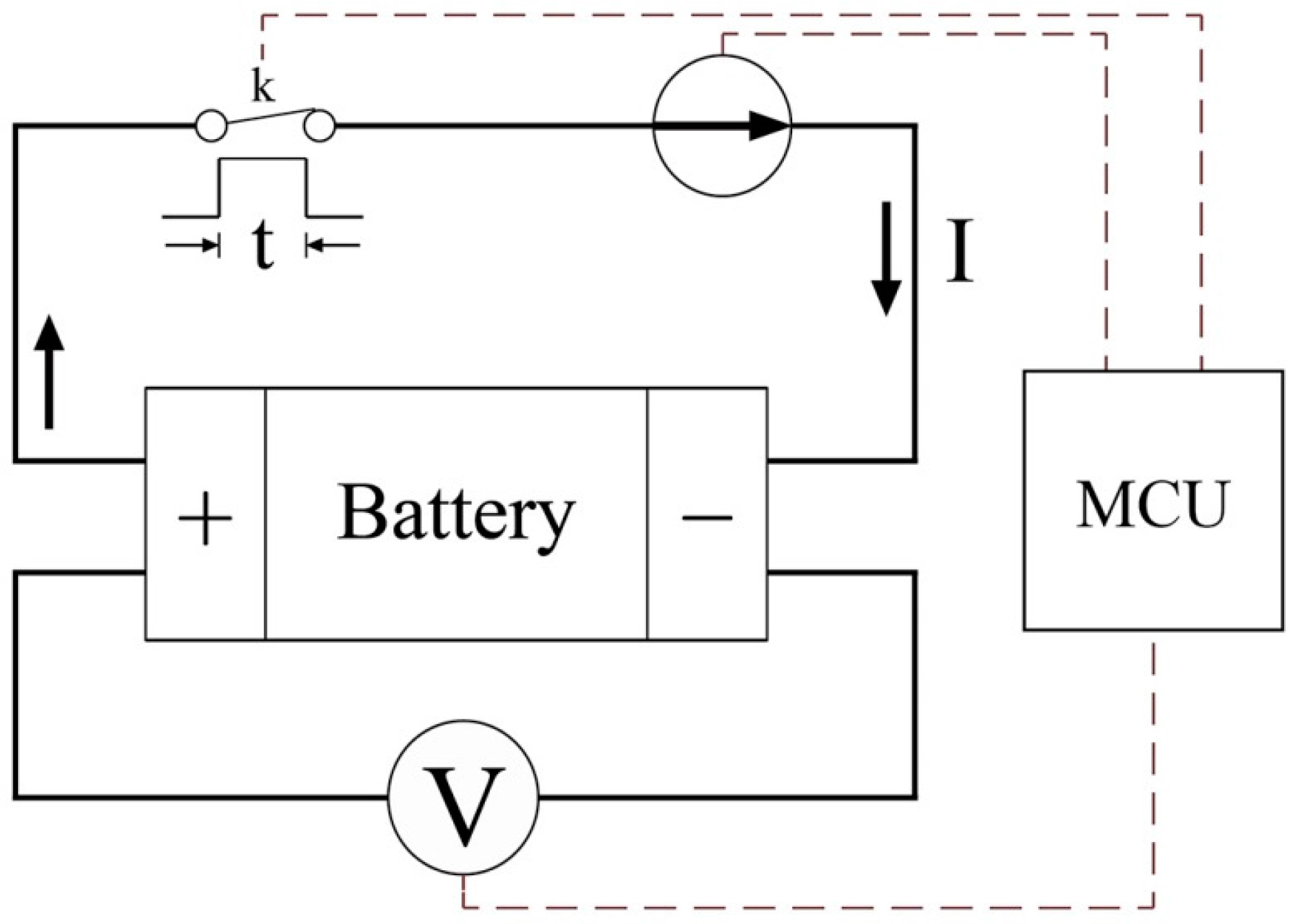

Figure 2. Internal resistance detection schematic.
Figure 2. Internal resistance detection schematic.
Energies 10 01284 g002

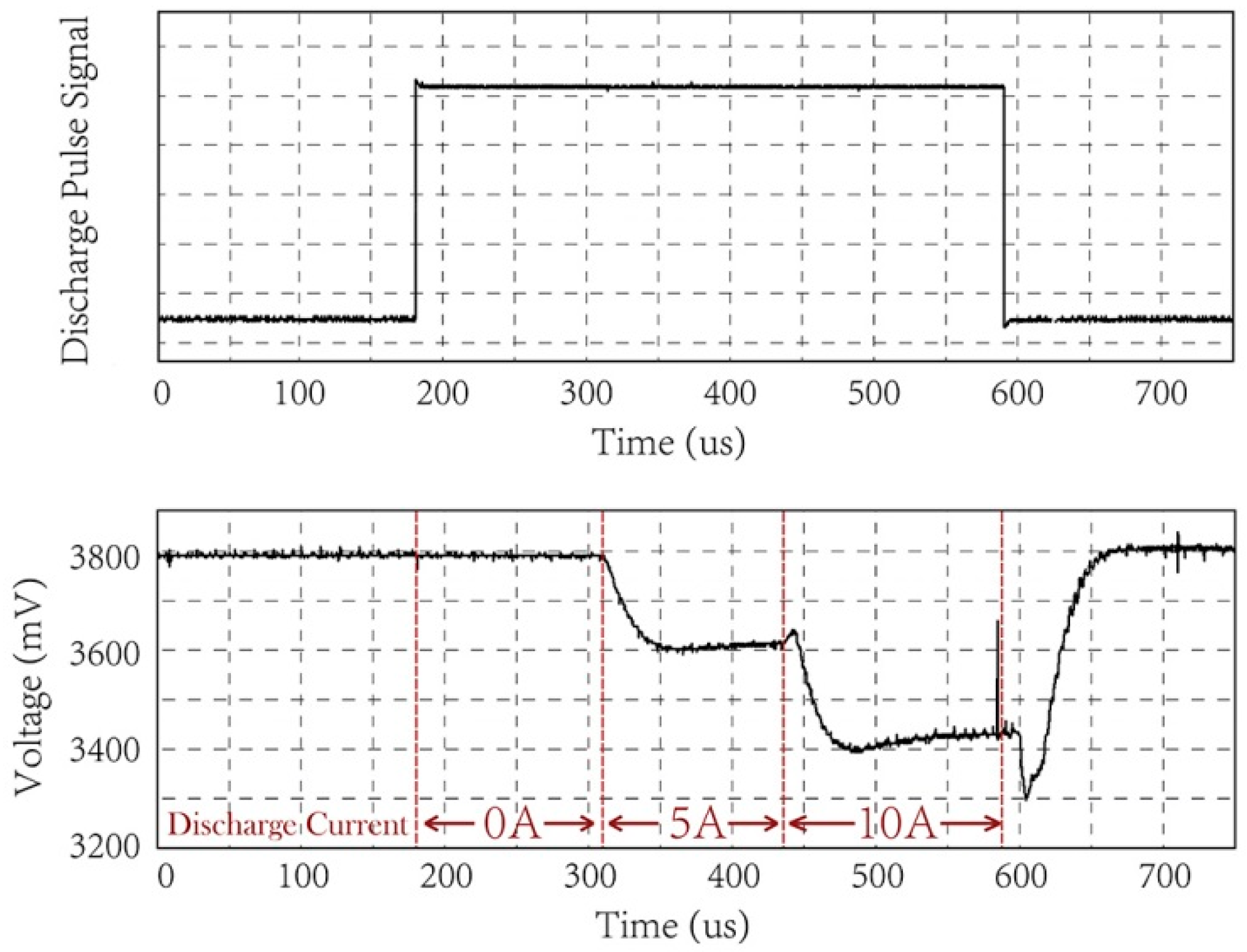

Figure 3. Internal resistance detection oscilloscope diagram.
Figure 3. Internal resistance detection oscilloscope diagram.
Energies 10 01284 g003

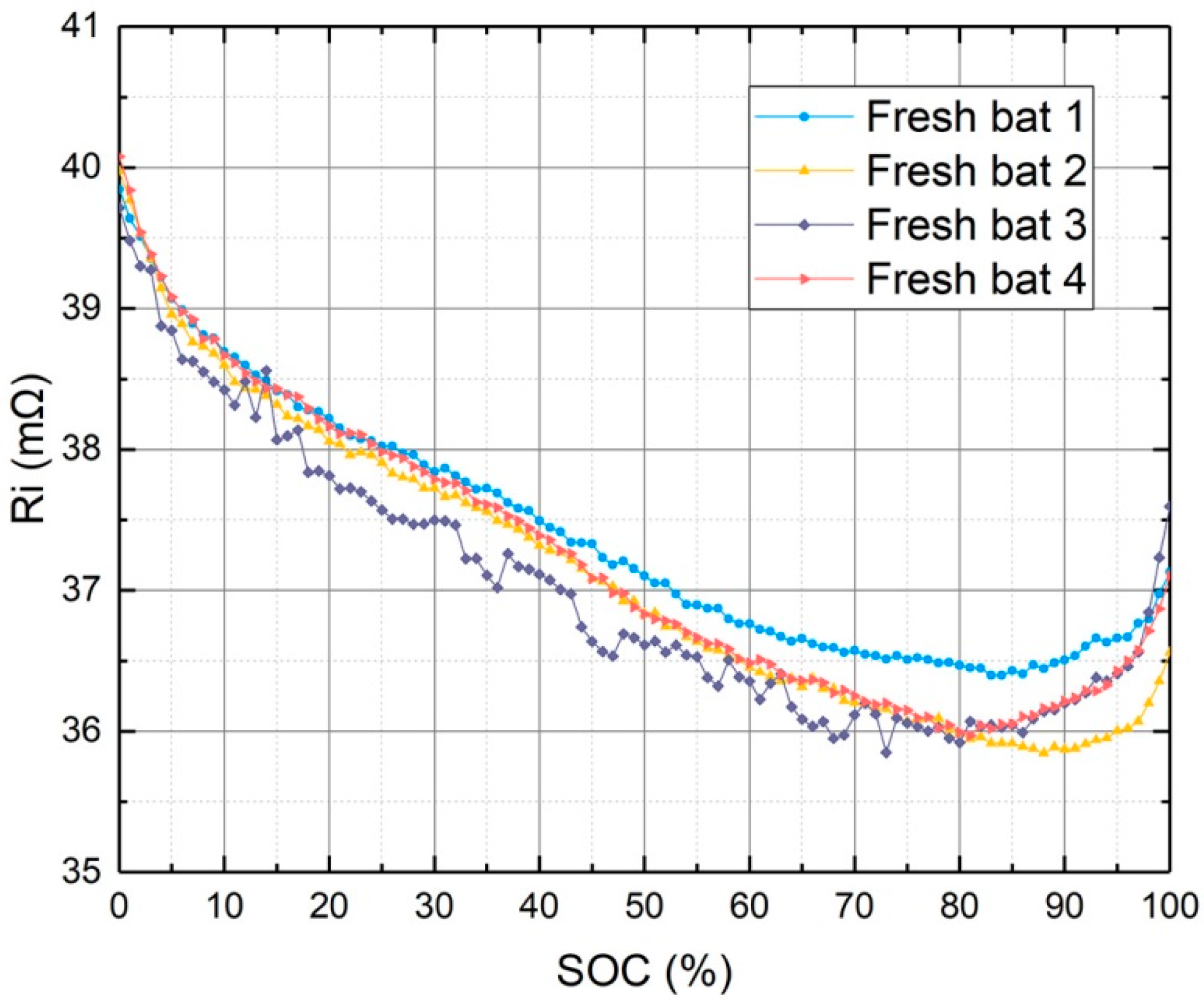

Figure 4. Ri-SOC plot for different batteries.
Figure 4. Ri-SOC plot for different batteries.
Energies 10 01284 g004

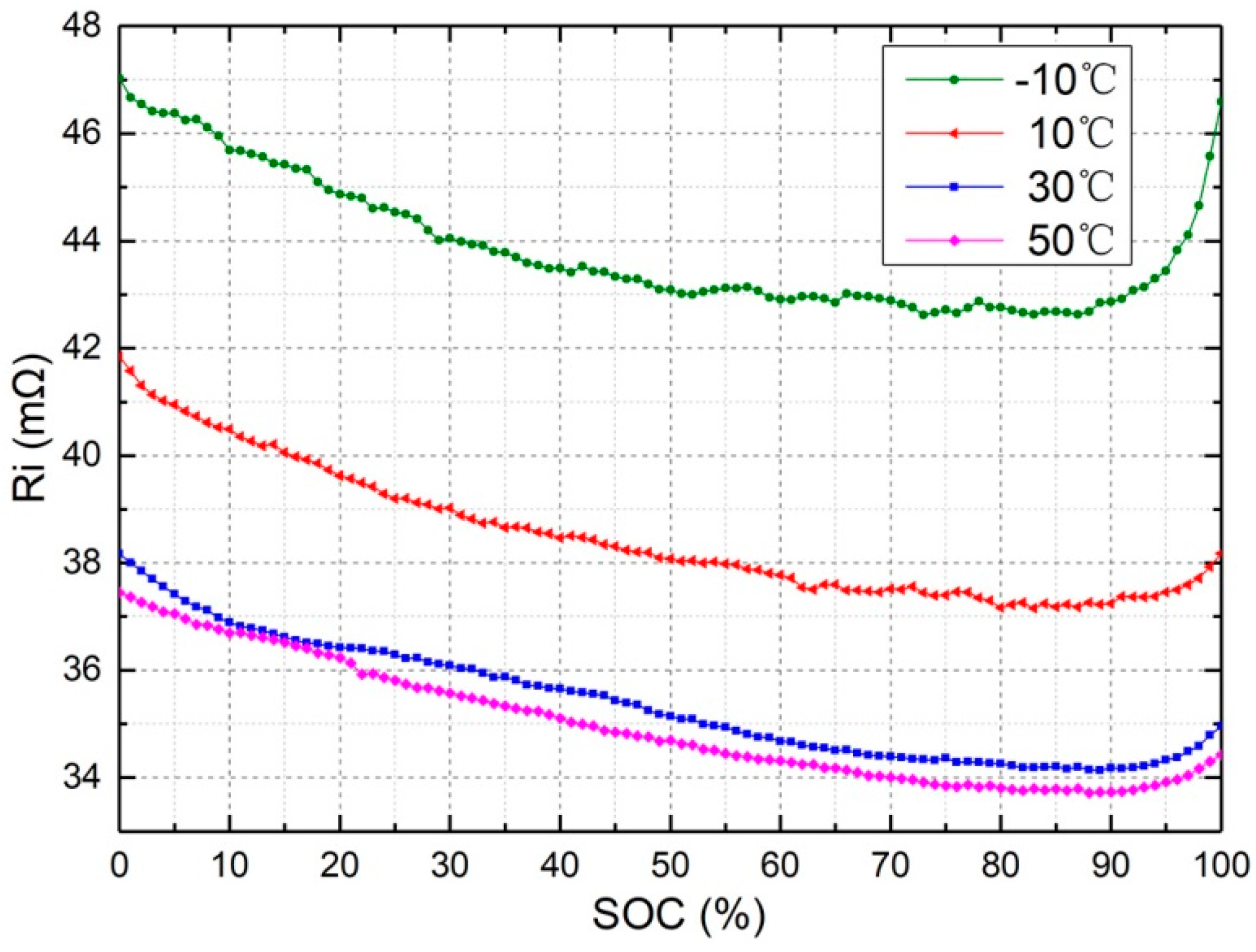

Figure 5. Ri-SOC plot with different temperatures.
Figure 5. Ri-SOC plot with different temperatures.
Energies 10 01284 g005

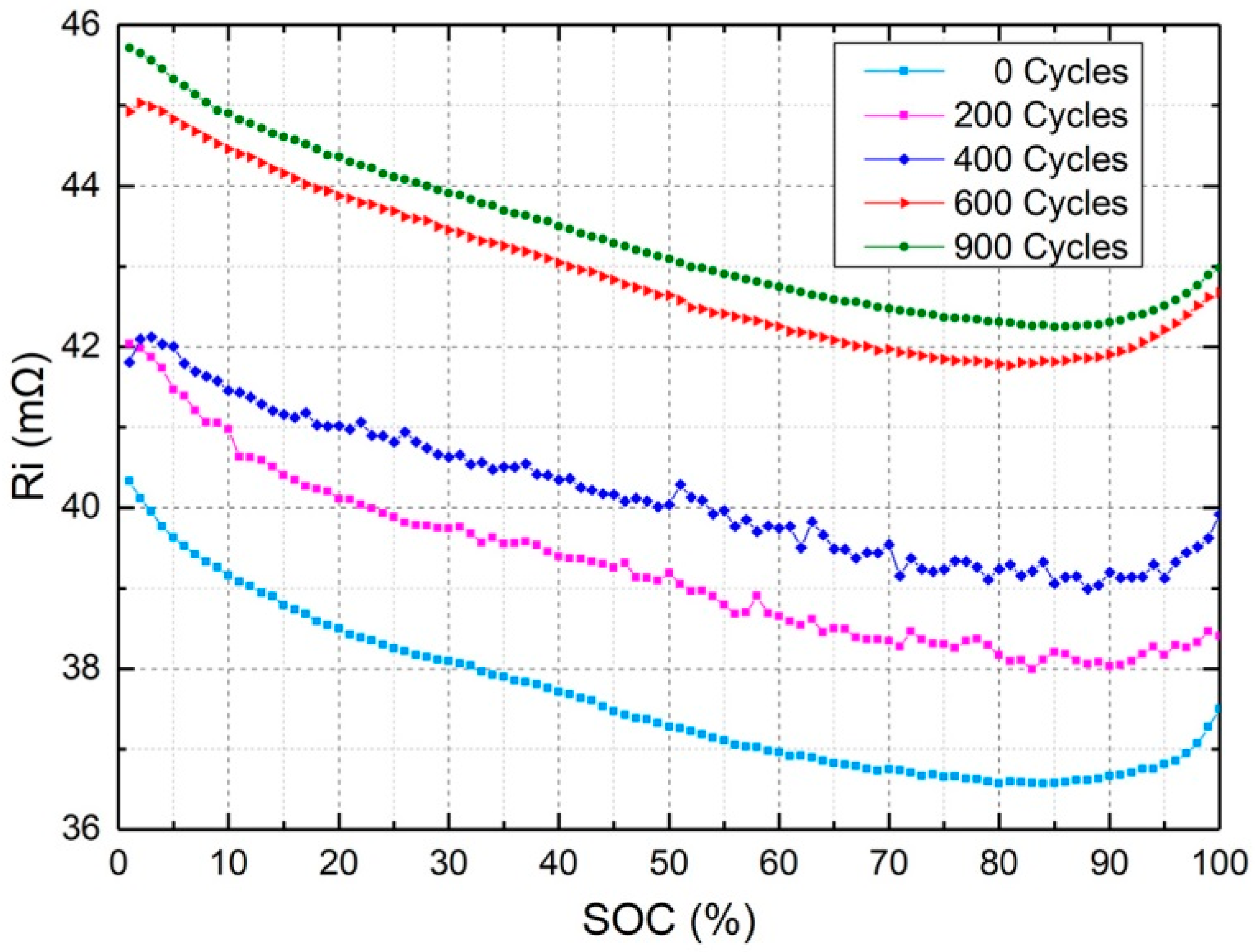

Figure 6. Ri-SOC plot with different cycles.
Figure 6. Ri-SOC plot with different cycles.
Energies 10 01284 g006

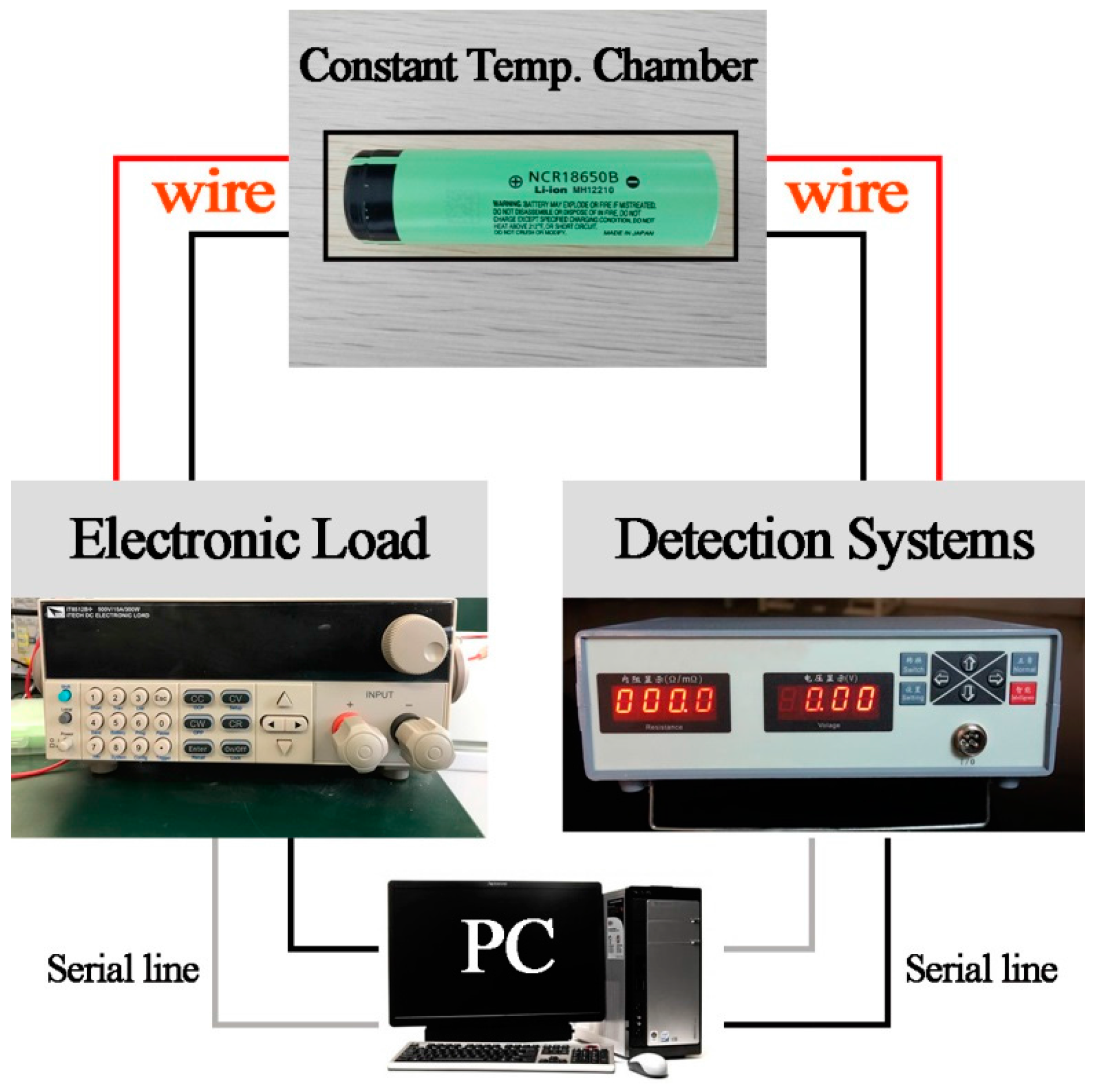

Figure 7. Experimental set-up.
Figure 7. Experimental set-up.
Energies 10 01284 g007

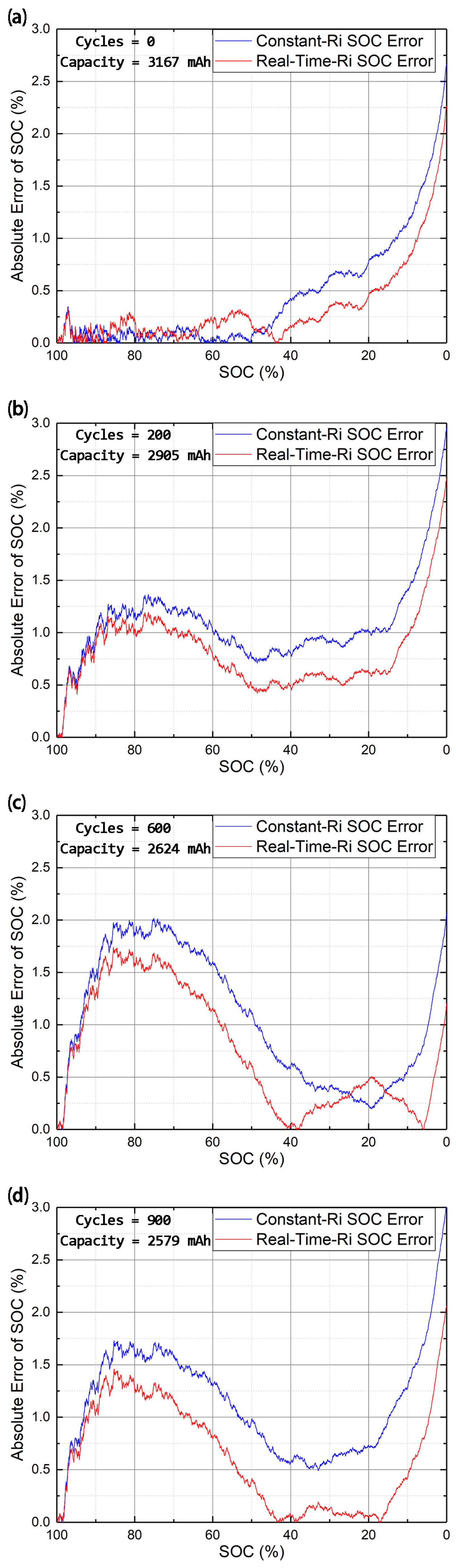

Figure 8. SOC estimation results using online Ri and fixed Ri with aging variations. (a) the battery with 0 cycles; (b) the battery with 200 cycles; (c) the battery with 600 cycles; (d) the battery with 900 cycles.
Figure 8. SOC estimation results using online Ri and fixed Ri with aging variations. (a) the battery with 0 cycles; (b) the battery with 200 cycles; (c) the battery with 600 cycles; (d) the battery with 900 cycles.
Energies 10 01284 g008

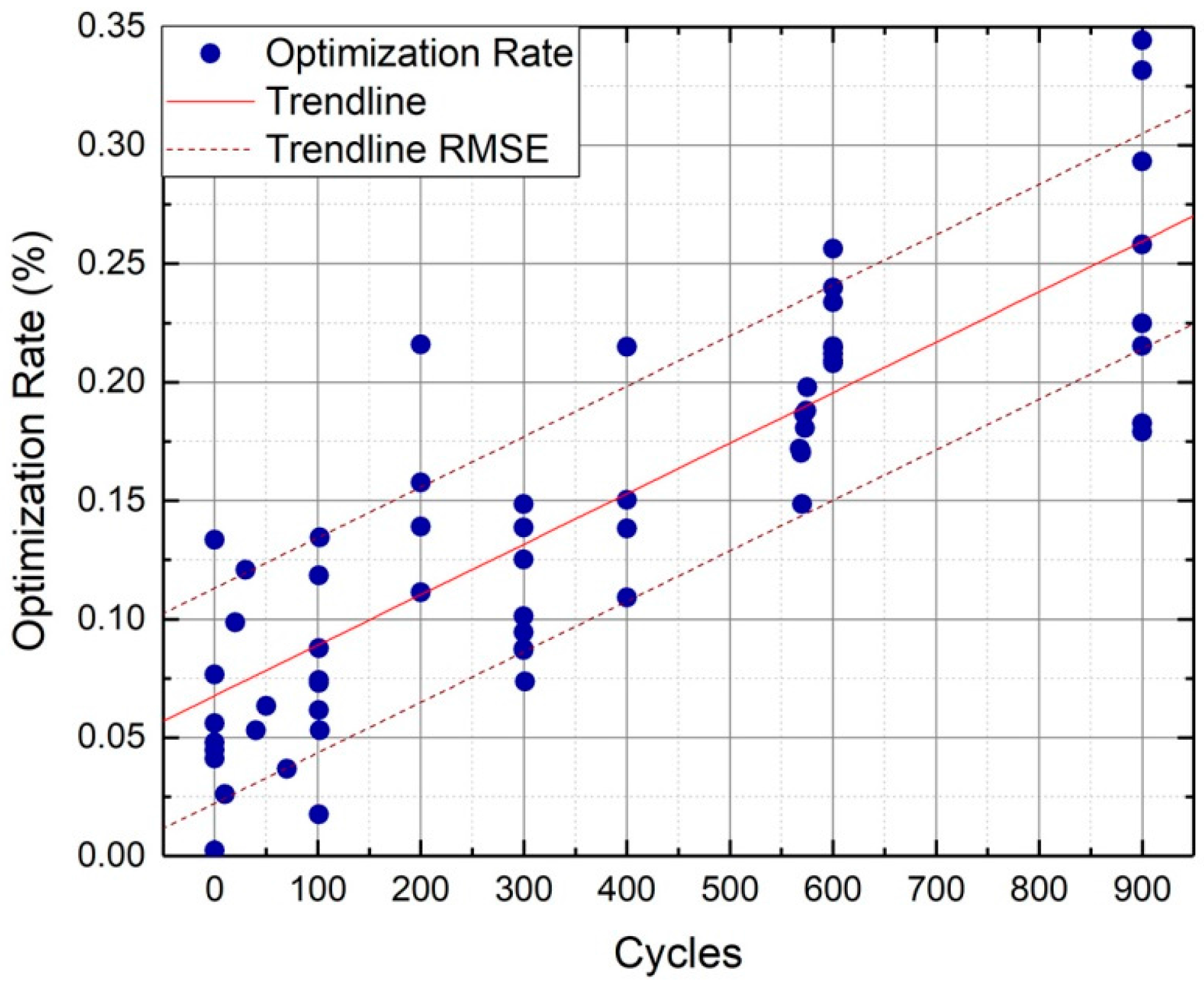

Figure 9. The optimization rate of SOC estimation with online internal resistance.
Figure 9. The optimization rate of SOC estimation with online internal resistance.
Energies 10 01284 g009
Table 1. Extended Kalman filter (EKF) equations.
Table 1. Extended Kalman filter (EKF) equations.
UpdateEKF Equations
Time update x ^ k / ( k 1 ) = A x ^ k 1 / ( k 1 ) + B I k
P k / ( k 1 )   = A P k 1 / ( k 1 )   A T + Γ k 1 Q k 1 Γ k 1 T
Measurement update K k   = P k / ( k 1 )   H k T ( H k P k / ( k 1 )   H k T + R k ) 1
x ^ k / k = x ^ k / ( k 1 ) + K k [ U m k g ( x ^ k / ( k 1 ) , u k ) ]
P k / k = ( I K k H k ) P k / ( k 1 )
Table 2. Parameters of simplified battery model.
Table 2. Parameters of simplified battery model.
ParameterBattery Model Parameters at 25 °C
R i 37   m Ω
C p 1058   F
R p 39   m Ω
