Design and Implementation of a STATCOM Based on a Multilevel FHB Converter with Delta-Connected Configuration for Unbalanced Load Compensation

1
Department of Electrical Engineering, Chang Gung University, 259 Wen-Hwa 1st Road, Kwei-Shan Dist., 333 Tao-Yuan City, Taiwan
2
National Chung-Shan Institute of Science and Technology, 486, 6th Neighborhood, Sec. Jia’an, Zhongzheng Road, Longtan Dist., 325 Tao-Yuan City, Taiwan
*
Author to whom correspondence should be addressed.
Energies 2017, 10(7), 921; https://doi.org/10.3390/en10070921
Received: 9 January 2017 / Revised: 5 June 2017 / Accepted: 28 June 2017 / Published: 4 July 2017
(This article belongs to the Special Issue Power Electronics in Power Quality)

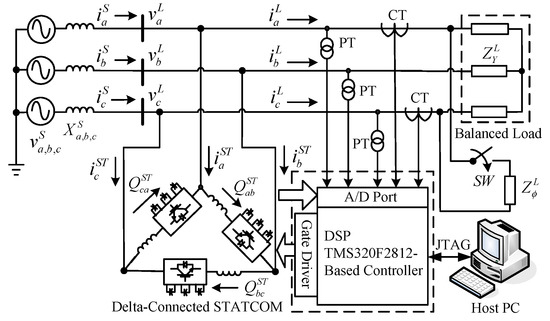

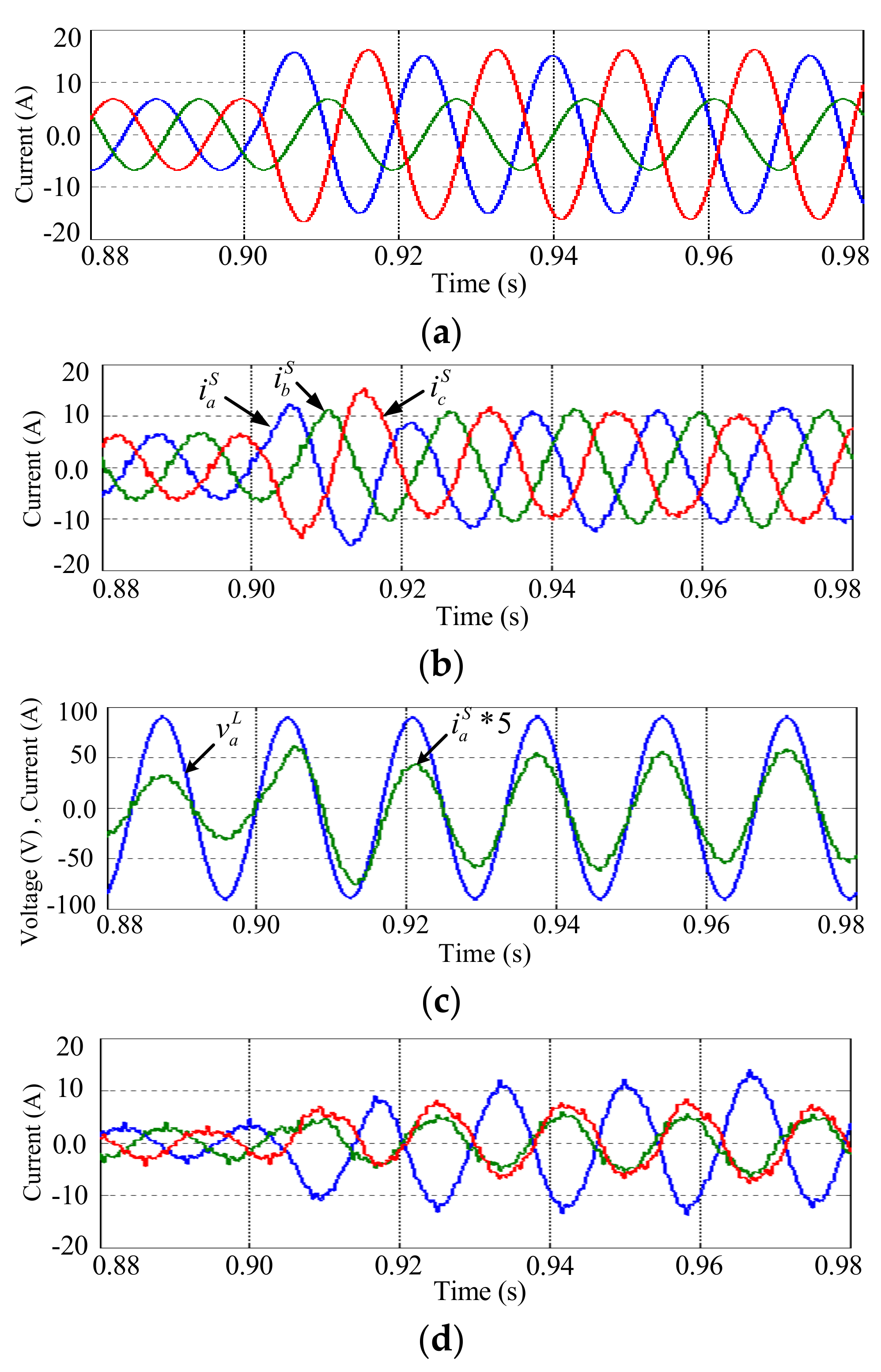

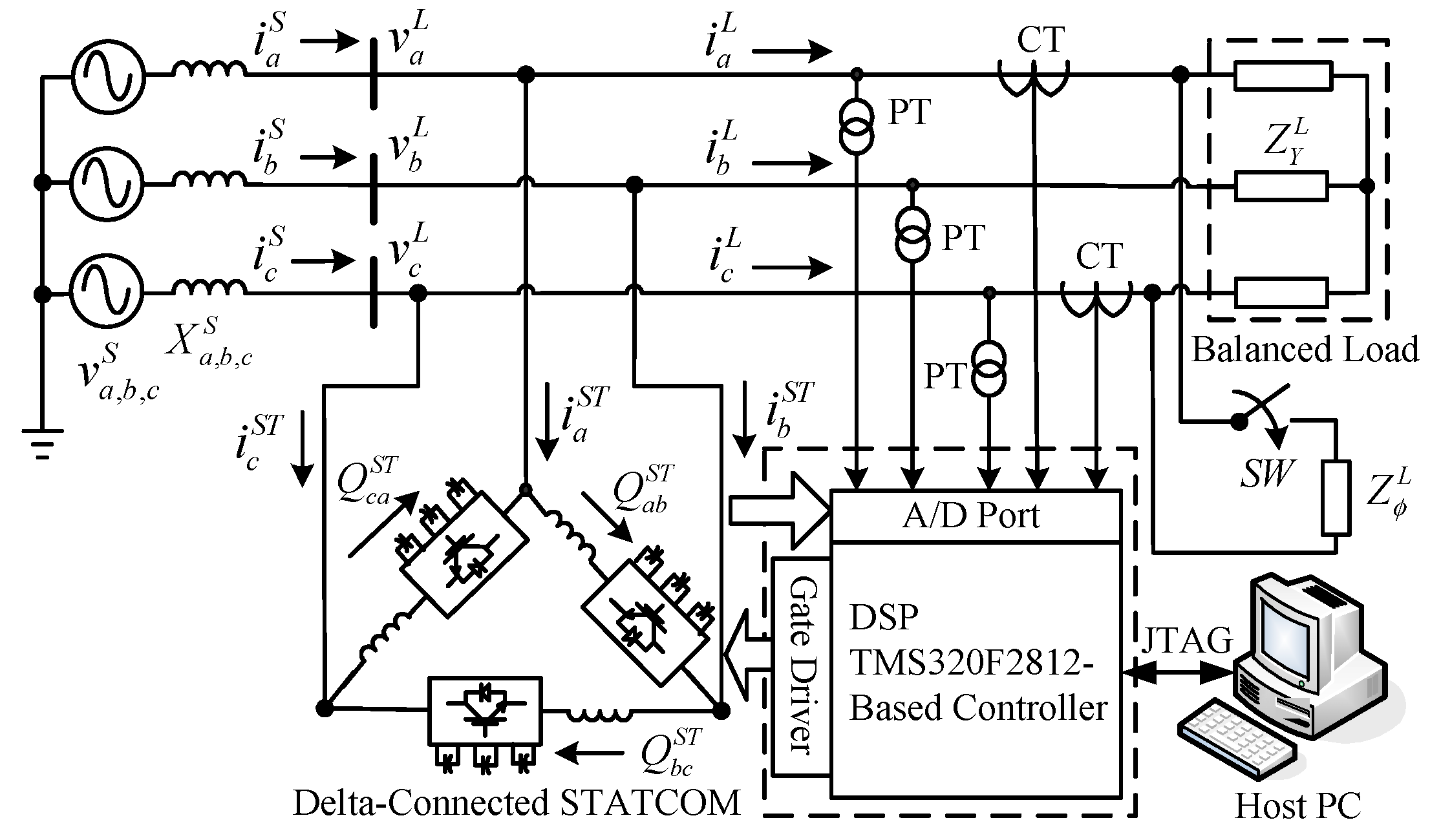

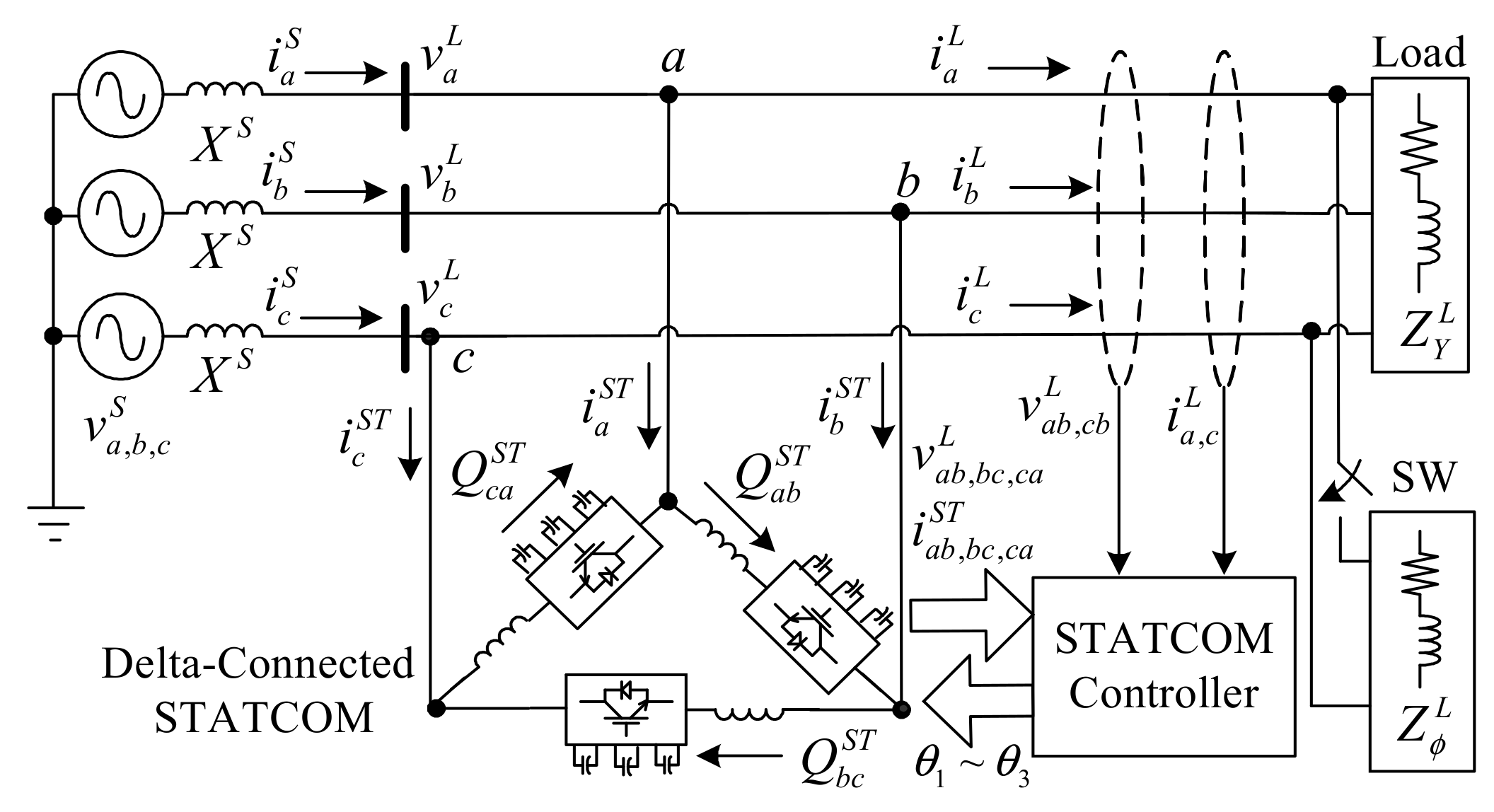

A delta-connected STATCOM with cascade multilevel full H-bridge (FHB) converter has been applied for phase balancing and power factor correction of unbalanced load in a three-phase, three-wire power distribution system. In this paper, a feedforward compensation formula is presented for the STATCOM by using the symmetrical components method to compensate unbalanced load. Computer simulation is performed for preliminary verification. Accordingly, a hardware prototype employing a TMS320F2812 DSP-based system is built for final verification test. Experimental results show that the proposed STATCOM is very effective for real-time unbalanced load compensation. View Full-Text
Keywords: FHB; hardware test; load compensation; STATCOM; symmetrical components method FHB; hardware test; load compensation; STATCOM; symmetrical components method
