Salt Effect on the Antioxidant Activity of Red Microalgal Sulfated Polysaccharides in Soy-Bean Formula

by *,† and *,†
Department of Chemical Engineering, Sami Shamoon College of Engineering, Basel/Bialik sts., Beer-Sheva 8410001, Israel
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2015, 13(10), 6425-6439;
Received: 13 August 2015 / Revised: 3 October 2015 / Accepted: 8 October 2015 / Published: 20 October 2015
(This article belongs to the Collection Marine Polysaccharides)


Sulfated polysaccharides produced by microalgae, which are known to exhibit various biological activities, may potentially serve as natural antioxidant sources. To date, only a few studies have examined the antioxidant bioactivity of red microalgal polysaccharides. In this research, the effect of different salts on the antioxidant activities of two red microalgal sulfated polysaccharides derived from Porphyridium sp. and Porphyridium aerugineum were studied in a soy bean-based infant milk formula. Salt composition and concentration were both shown to affect the polysaccharides’ antioxidant activity. It can be postulated that the salt ions intefer with the polysaccharide chains’ interactions and alter their structure, leading to a new three-dimensional structure that better exposes antiooxidant sites in comparison to the polysaccharide without salt supplement. Among the cations that were studied, Ca2+ had the strongest enhancement effect on antioxidant activities of both polysaccharides. Understanding the effect of salts on polysaccharides’ stucture, in addition to furthering knowledge on polysaccharide bioactivities, may also shed light on the position of the antioxidant active sites.

1. Introduction

Antioxidants have a positive effect on human health as they can slow down oxidative stress processes caused by reactive oxygen species (ROS), e.g., OH, H2O2 and O2 [1,2,3]. These ROS attack macromolecules such as membrane lipids, proteins and DNA [1,4], leading to many health disorders with severe tissue injuries such as cancer, diabetes mellitus, neurodegenerative and inflammatory diseases [5,6,7,8]. In the food industry, oxidation of lipids can lead to food product deterioration (e.g., in nutritional value, safety and appearance) due to formation of undesirable secondary lipid peroxidation products. Therefore, many synthetic commercial antioxidants such as butylated hydroxytoluene (BHT), butylated hydroxyanisole (BHA), tert-butylhydroquinone (TBHQ) and propyl gallate (PG) are used to retard the oxidation and peroxidation processes [9]. However, the use of these synthetic antioxidants must be under strict regulation due to potential health hazards [10,11,12], hence there is an ongoing search for safe, natural alternatives [13,14].
Recently, both the food and pharmaceutical industries have become interested in the development of antioxidants from natural sources. Sulfated polysaccharides derived from marine algae, which are known to exhibit many biological activities, may be a potential natural antioxidant source for these industries [15]. Among the scant studies conducted regarding the antioxidant potential of sulfated polysaccharides, most efforts were focused on those derived from seaweeds [16,17,18,19,20,21,22], whereas very little is known regarding red microalgal sulfated polysaccharides [23,24,25]. The mechanism of these sulfated polysaccharides’ antioxidant activity is not certain. It is also known that various residues which could bind to these polysaccharides, such as pigments, flavones, peptides, proteins, and polyphenols can improve their antioxidant activities [26].
Our research is focused on two soluble-sulfated polysaccharide fractions produced by red microalgal species—the seawater Porphyridium sp. (hereafter—PS1) and the freshwater Porphyridium aerugineum (hereafter—PS2). These microalgae, in contrast to seaweeds, are encapsulated by a thick layer of mucilaginous sulfated polysaccharides that lack the rigid microfibrillar component typical in most of alga species [27]. During growth, the external fraction of these polysaccharides is released to the surrounding aqueous medium, where it accumulates and increases medium viscosity [28,29,30]. The precise structures of the soluble-sulfated polysaccharide fractions are not fully understood due to their complexity and the lack of known carbohydrolases that degrade them [30,31,32]. The soluble-sulfated polysaccharide fractions are of high molecular weight (~1–7 × 106 g·mol−1), and due to the presence of glucuronic acid residues and sulfates they are anionic heteropolymers, containing approximately 10 different mono sugars, mainly glucose and galactose [33,34,35,36]. In addition, both are built from the same disaccharide building block [37]. PS1 was found to contain several proteins, which are non-covalently bound to it [38]. The most prominent protein detected was a 66-kDa glycoprotein; This protein consists of a polypeptide of approximately 58 kDa and glycan moieties of approximately 8 kDa [38,39]. Sequencing of a cDNA clone encoding the 66-kDa glycoprotein revealed that this is a novel protein, which lacks similarity to any protein in the public domain databases. However, in the SCOP databases, some structural similarities were found between the carbohydrate-binding domain (CBD) and protein superfamilies, such as glycosyltransferases, pectin lyase-like proteins, sialidases, and conA-like lectins/glucanases, indicating a possible role for this 66-kDa glycoprotein in synthesis/modification of the cell-wall polysaccharide [38]. In addition, the glycoprotein was shown to play a role in biorecognition [40].
Physicochemical analysis conducted on these soluble-sulfated polysaccharide fractions indicate that even at low concentrations they create highly viscous polymer solutions, compared to the viscosity of aqueous solutions containing polysaccharides such as xanthans or carrageenans [41]. It is believed that red microalgal polysaccharide layers protect the cells against drought, solar irradiation and maintain the humidity required by the cells [30].
PS1 is stable over a wide range of temperatures (30–160 °C), pH values (2–9), light and salinities [31,41,42,43,44,45,46,47,48,49]. Rheological studies have demonstrated that it is comprised of an oriented, single two-fold helical structure with a pitch of 1.6 nm, i.e., a single chain helix with a regular chemical repeat [49]. The stiffness of PS1 was reported to be in the same rigid helical range as that of xanthan gum and DNA [43]. A conformational transition state in the PS1 chain was observed at low ionic strength (<0.01 M), most likely reflecting a contraction of the polymer chain from a highly stretched to a stiff, wormlike chain [43]. Furthermore, rheological studies have also indicated that the nature of PS1 is affected by ionic strength, valence, type and concentration of cations, pH, polymer concentration, and temperature [43]. For example, in a salt-free solution, PS1 favors a stretched chain conformation, the result of long-range electrostatic effects, but the addition of an electrolyte such as NaCl, masks the electrostatic interactions and allows a more flexible configuration resulting in lower intrinsic viscosities [43].
To our knowledge, only a few reports have evaluated the antioxidant activity of PS1 and PS2 [23,24]. These fractions were shown to exhibit dose-dependent antioxidant activity, and were found to serve as better inhibitors of linoleic acid auto-oxidation compared to carrageenan and cellulose [24]. In addition, PS1 inhibited the oxidative damage to 3T3 cells caused by FeSO4 in a dose-dependent manner [24]. A search for the active antioxidant component was also conducted; PS1 polysaccharide fragments created by microwave and sonication exerted an inhibitory effect on oxidative damage in dependence on the fraction received following fragmentation [23]. Thus, it seems that a significant part of the polysaccharide is not required for its antioxidant activity. The 66-kDa glycoprotein within PS1 may also play role in the polysaccharide’s antioxidant activity [24]. It was suggested that the antioxidant activity helps the cells cope with the ROS to which they are exposed under stress such as drought, extreme temperature, solar irradiation, etc. [24]. Taking together these findings, together with the fact that they are safe to use in food, are stable over a wide range of temperatures/environmental conditions, and have favorable rheological and chemical properties, the PS1 and PS2 polysaccharides may be used as antioxidant additives in food or/and biomedical products. Despite this potential of PS1 and PS2, knowledge on their antioxidant activity is still lacking, and the effect of salt on this activity has not been studied to date.
Herein, the effect of salt on the antioxidant activity of PS1 and PS2 in the presence of soy bean-based infant milk formula was studied. Infant milk formula based on soy bean was chosen as a good platform for oxidative stress because of its composition; it is rich in polyunsaturated fatty acids (PUFA) (Table S1 in supplementary information) which are sensitive to oxidative stress. The results of this study contribute to our understanding of red microalgal polysaccharide structure and function, especially as antioxidants, under various salt conditions.

2. Results and Discussion

The antioxidant activity of red microalgal soluble-sulfated polysaccharide fractions in infant milk formula was evaluated by measuring the Malondialdehyde (MDA)-oxidant product after adding KO2 as an oxidative reagent. MDA levels were significantly reduced in oxidant-damaged formulas containing either of the polysaccharides, in comparison to the control, see Figure 1. MDA levels were also measured in pure PS solutions with and without KO2; in both cases MDA levels were negligible; thus it can be assumed that the polysaccharides are probably not affected by KO2—induced oxidant damage.

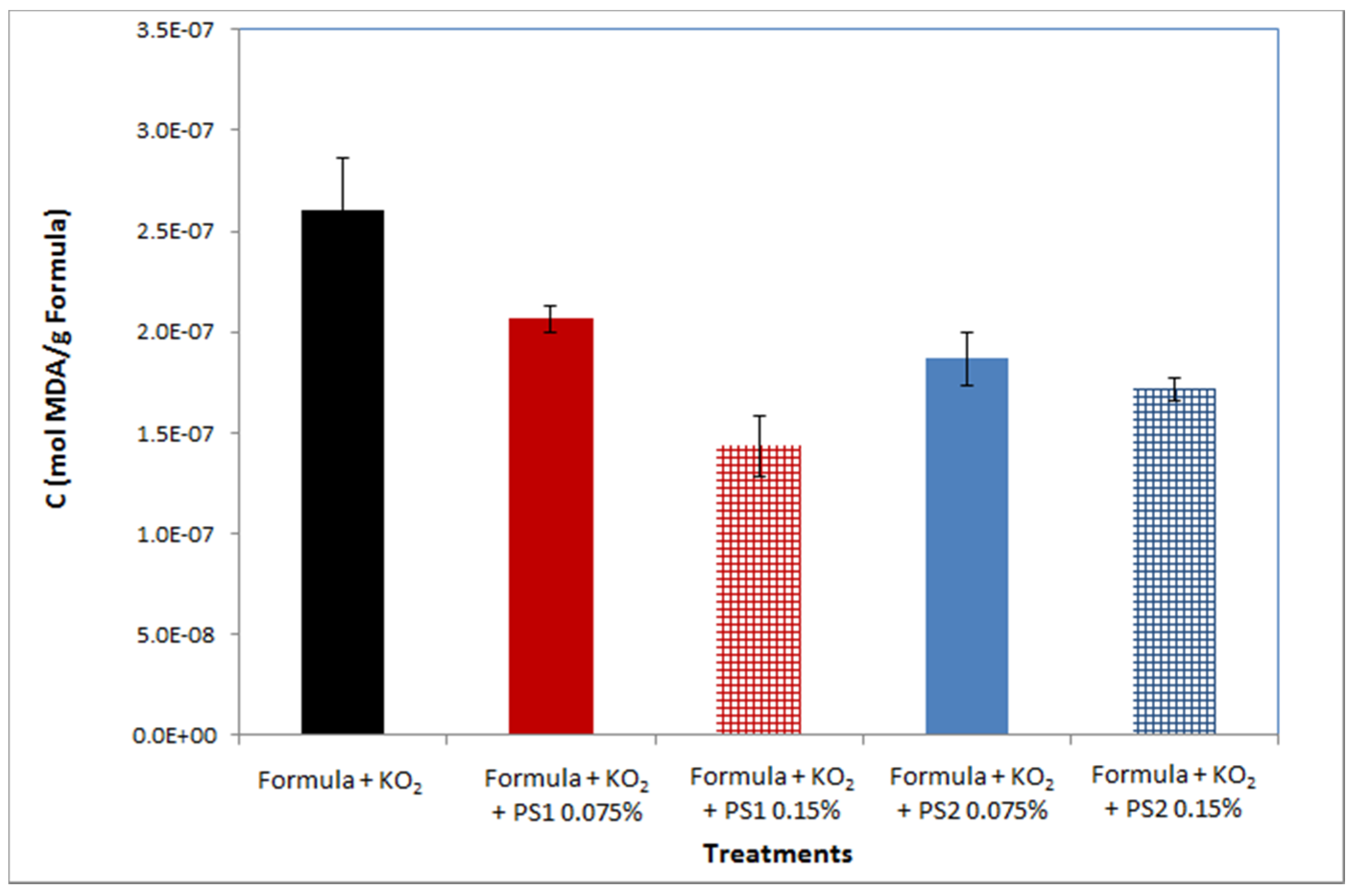

Figure 1. Antioxidant activity of PS1 and PS2 in soy bean milk formula following addition of KO2. CMDA was measured by thiobarbitoric acid (TBA) method. All treatments contained 0.5 g formula, 0.35 mM KO2, with or without 0.075/0.15% w/v of either PS1 or PS2 polysaccharides. Values are expressed as mean ± SD, n = 3.
Figure 1. Antioxidant activity of PS1 and PS2 in soy bean milk formula following addition of KO2. CMDA was measured by thiobarbitoric acid (TBA) method. All treatments contained 0.5 g formula, 0.35 mM KO2, with or without 0.075/0.15% w/v of either PS1 or PS2 polysaccharides. Values are expressed as mean ± SD, n = 3.
Marinedrugs 13 06425 g001
The effective antioxidant activity of polysaccharides derived from red microalgae that was demonstrated in infant milk formula (Figure 1) is in accordance with previous reports demonstrating the antioxidant activity of red microlagal polysaccharides [23,24,25]. The antioxidant activity of both soluble-sulfated polysaccharide fractions seems to be similar with a slight advantage to PS1. The increase in the polysaccharide concentration (PS1/PS2) also improved their antioxidant activity, but it seems that PS1 has a better dose-concentration effect than that of PS2 (Figure 1). The similarity in the antioxidant capability of these polysaccharides is not surprising since it is known that the structure and the physical behavior of the polysaccharides are similar; they are composed of the same building block with the same predominant monosaccharides and are both negatively charged. The relative advantage of PS1 may be attributed to differences between the polysaccharides, such as sulfate content, ratio of monosaccharides, etc. [41].
In order to expand our knowledge on the antioxidant activity of the polysaccharides, it is important to study their activities under different conditions. Ionic strength and cation type were found to influence the intrinsic viscosity of PS1, probably by varying the electrostatic forces and leading to conformational changes [43]. Herein, the effect of potassium, sodium and divalent cation salts with different anions on the antioxidant ability of polysaccharides was tested in an oxidant-damaged infant formula. Salts were added to the polysaccharides prior to their exposure to the oxidant-damaged infant formula, and MDA concentrations were measured as will be explained in the experimental section, to assess the effect of salts on the antioxidant activity of the polysaccharides. All results are displayed as MDA reduction percentages, relative to each experimental setup without the salt.
All types of salts tested, regardless of their anion/cation composition and their concentrations, positively induced the antioxidant activity of both polysaccharides in comparison to the native polysaccharide (control-without salt supplement). We were thus interested in elucidating the effect of different cations and anions, as well as different salt concentrations, on this induction.
Monovalent cation type effect: In order to elucidate the effect of different monovalent cations on the polysaccharides’ antioxidant bioactivity, a comparison was performed between NaCl and KCl, between Na2SO4 and K2SO4 and between Na3PO4 and K3PO4. Generally, regardless of the anion present, the K+ cations were found to have a stronger influence on the antioxidant activity of the polysaccharides, inducing a marked improvement in MDA level reduction, in comparison to the Na+—formula treatments, as seen by comparing Figure 2 and Figure 3.

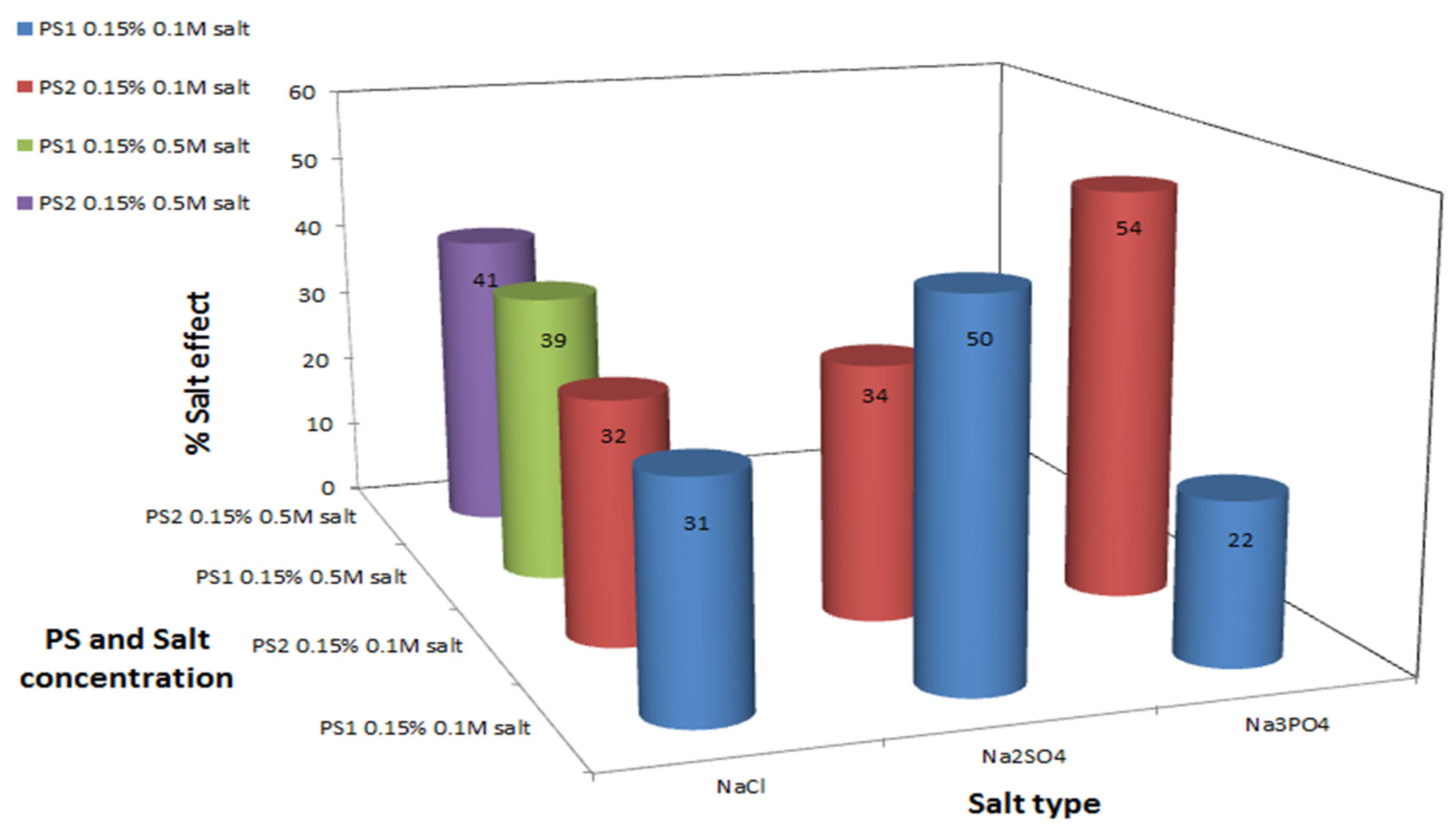

Figure 2. Polysaccharide antioxidant activity induction by sodium salts. CMDA was measured by TBA method. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide and various sodium salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats; Maximum standard deviation equals 5%.
Figure 2. Polysaccharide antioxidant activity induction by sodium salts. CMDA was measured by TBA method. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide and various sodium salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats; Maximum standard deviation equals 5%.
Marinedrugs 13 06425 g002
The cation antioxidant enhancement effect can be explained: cations derived from the salts bind to negatively charged residues in the polysaccharide, such as sulfate and glucuronic acid residues. This interaction with the polysaccharide, depending on the cation type, may change the polysaccharide’s three-dimensional structure due to conformational or structural changes in the solution, by masking the electrostatic repulsions between the polysaccharide chain molecules (which decreases association between the polysaccharide chains). The newly formed structure probably better exposes the potential antioxidant sites in comparison to a reduced-salt native polysaccharide. This postulation is based on a former viscometry study, which indicated that salts can change the polysaccharide conformational structure [43]. In our case, the potassium ions probably induced a change in the intermolecular bonds in the polysaccharide—leading to better exposure of the antioxidant sites in comparison to the three dimensional structure that was formed in the presence of sodium salts. It was expected that an incease in cation concentration will lead to stronger reduction of MDA levels. However, this is not always the case, as seen by comparing the results obtained for Na2SO4 with those obtained for Na3PO4 (Figure 2), and K2SO4 with those obtained for K3PO4 (Figure 3)—where an increase in the cation concentration did not lead to an increase in MDA reduction rates by the polysaccharide. This phenomenon can be explained by the anion effect detailed below.

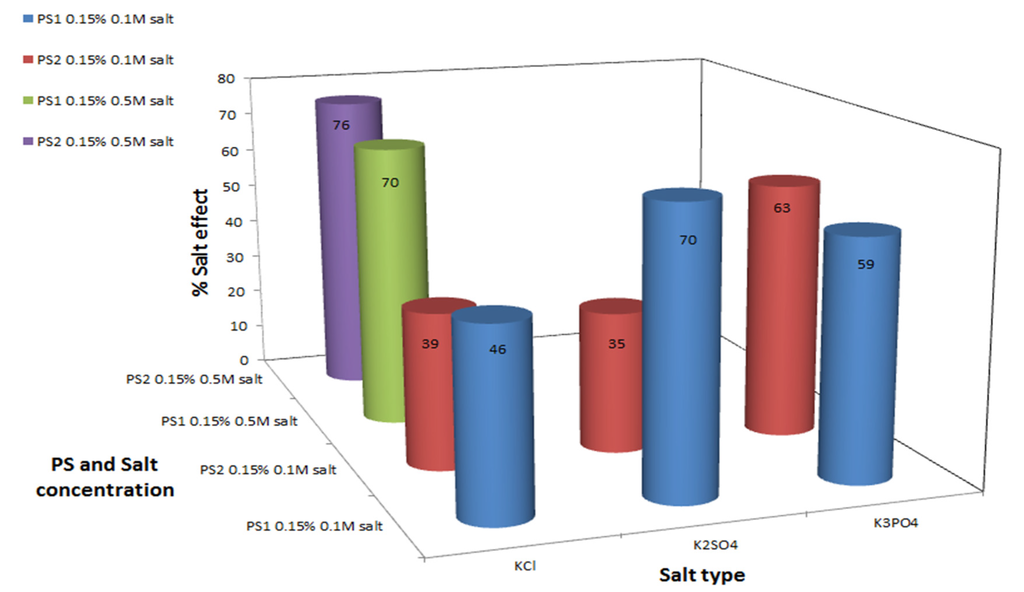

Figure 3. Polysaccharide antioxidant activity induction by potassium salts. CMDA was measured by TBA method. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide and various potassium salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats; Maximum standard deviation equals 8%.
Figure 3. Polysaccharide antioxidant activity induction by potassium salts. CMDA was measured by TBA method. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide and various potassium salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats; Maximum standard deviation equals 8%.
Marinedrugs 13 06425 g003
Based on former reports which suggested that proteoglycans and proteins which are arrayed with carbohydrate polymers contribute to induction of polysaccharide antioxidant activities and therefore are probably involved in the polysccharide antioxidative protective activities [24,50,51,52,53,54], another possible explanation for the cation antioxidant effect can be postulated; a specific interaction of cations with the cell-wall proteins, which are part of the polysaccharides, probably through specific amino acid residues (most likely negatively charged) may occur. The interaction may cause conformational or structural changes, leading to better exposure of the antioxidant sites.
Divalent cation type effect: Comparing the divalent cation treatments indicats that Ca2+ had the strongest influence on the reduction of MDA levels: 0.5M CaCl2 reduced MDA level by 75% and 81% in PS1 and PS2 formula-treatments, respectively (Figure 4). This finding is not surprising, since Ca2+ ions are known to be effective molecules that stabilize polysaccharides by creating a cross-linked network [55]; for example, Ca2+ ions are used for alginate gel formation, which is commonly explained by the egg-box model [56]. According to this model, the structural features of the glucoronic acid allow strong complexation with Ca2+ ions, which are embodied in cavities of stiff alginate chains like eggs in a cardboard egg box. Since PS1 and PS2 also contain anionic glucuronic acid blocks and sulfate groups, Ca2+ ions probably create a strong complexation with the anions, stabilizing the interactions between polysaccharide chains. The Ca2+ ions induced a significantly stronger enhancement in the antioxidant activity of both polysaccharides, in comparison to other divalent ions (Mg2+/Sr2+), see Figure 4. This enhancement is attributed to the conformational change of the polysaccharide which occurs due to the masking of its negative charges by the cation. It is likely that the cation’s charge density and radius play an important role in this sense—thus, we suggest that, of the three divalent cations tested, Ca2+ is best suited for rendering stability to the polysaccharide, due to the suitability of its charge density and radius.

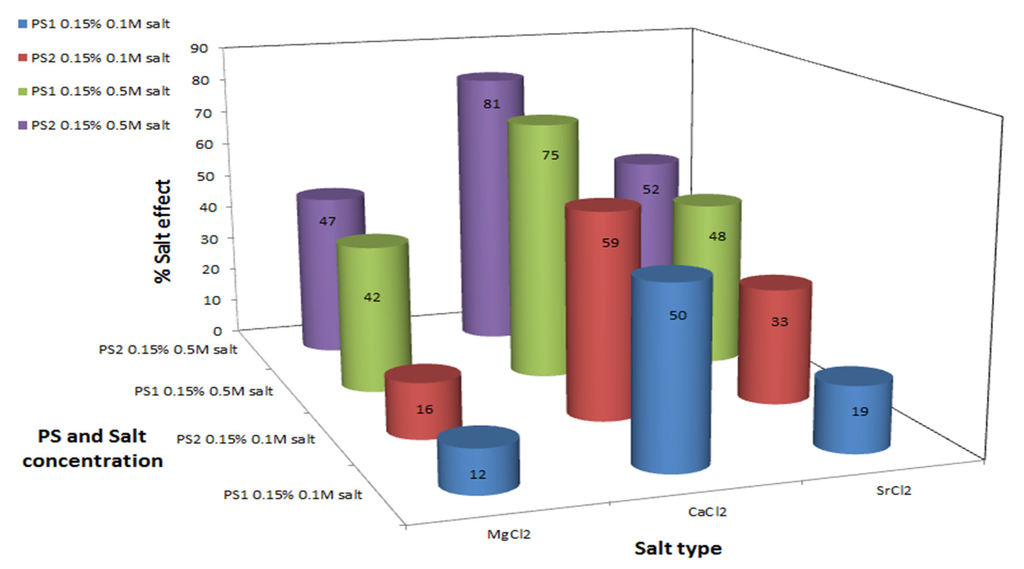

Figure 4. Polysaccharide antioxidant activity induction by divalent cation salts. CMDA was measured by TBA test. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide, and various divalent salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats. Maximum standard deviation equals 8%.
Figure 4. Polysaccharide antioxidant activity induction by divalent cation salts. CMDA was measured by TBA test. Experimental setup included 0.5 g formula with 0.35 mM KO2, 0.15% w/v polysaccharide, and various divalent salts at two different concentrations, in a final volume of 10 mL. Values represent the mean of at least 3 repeats. Maximum standard deviation equals 8%.
Marinedrugs 13 06425 g004
The weakest antioxidant effect among the divalent ion treatments was observed in the low concentration MgCl2-polysaccharide treatments: 0.1 M MgCl2 reduced the MDA level by 12% and 16% in the PS1- and PS2-formula treatments respectively, compared to the same treatment without salt (Figure 4). This is also not suprising, since alginate hydrogels have been obtained with various divalent ions except for Mg2+ [57,58].
Anion type effect: It can be postulated that anion type also influence the polysaccharide antioxidant activity. A comparison between the effects of potassium and sodium sulfate salts (Na2SO4 and K2SO4), and between the potassium and sodium phosphate salts (Na3PO4 and K3PO4) point out that the type of anion does not only play a role in the induction of the polysaccharides’ antioxidant activity, but also differs between the two polysaccharides examined. For PS1 % salt effect values were much higher in the presence of SO42− in comparison to PO43− ions, the opposite effect was apparent in PS2 system, % salt effect values were higher in the presence of phosphate ions in comparison to sulfate ions, see Figure 2 and Figure 3.
The counter anion (e.g., PO43− in the presence of PS1-formula or SO4−2 in the presence of PS2-formula), can cause the salt and/or the polysacchride to aggregate. In the case of salt aggregation the actual concentration of the free cations which could bind to the PS is not the analytical concentration. In the case of polysaccharide aggregation, the concentration of available polysaccharide chains is reduced, leading to less interactions between the cations and the negatively charged residues within the polysaccharide chains. The different effect that the anions have on the two polysaccharides is probably due to their chemical structure difference.
Salt concentration effect: Salt concentration affects the antioxidant activity of both polysaccharides. High concentration of each salt (including NaCl/KCl/MgCl2/CaCl2/SrCl2), 0.5 M, was resulted in higher % salt effect, indicating that the polysaccharides act as better antioxidants in comparison to the low salt concentrations, 0.1 M (Figure 2, Figure 3 and Figure 4). The antioxidant activity is not linearly dose-dependent and differs in correspondence to the salt type, e.g., formula-polysaccharide treatments that contained 0.5 M KCl reduced the MDA levels up to two fold in comparison to treatments that contained 0.1 M KCl, see Figure 3. Increasing the salt concentration in the PS1-MgCl2/SrCl2 formula-treatments, Figure 4, also led to an increase in the antioxidant activity (up to three fold of MDA reduction). Noticeably, increasing the NaCl concentration had only a slight effect on the MDA levels in comparison to the other salts studied (Figure 2). The nonlinear effect of the salt concentration could be explained by the same explanation as was explained above in the anions effect. High concentration could cause to salt aggregation which reduced the actual free cation concentration in the solution. As a result less cation-polysaccharide interactions could be formed.

3. Experimental Section

3.1. Materials

All solutions were prepared from analytical-grade chemicals and double distilled water (DDW) that was passed through a Millipore setup at a final resistivity that was above 10 MΩ/cm.
All reagents and solvents were of analytical grade. Trichloroacetic acid (TCA), thiobarbituric acid (TBA), and butylated hydroxyl toluene (BHT), KO2, KCl, NaCl, K2SO4, Na2SO4, K3PO4, Na3PO4, MgCl2, CaCl2, SrCl2 were purchased from Sigma-Aldrich (Rechovot, Israel). Milk sample was a commercial newborn formula based on soy bean; its composition is given in Table S1 in the supplementary information.

3.2. Algae and Growth Conditions

P. sp. (UTEX 637) was obtained from Culture Collection of Texas University, Austin, Texas, USA. P. arg. (B111.79) was obtained from the culture collection of the University of Gӧttingen, Gӧttingen, Germany. Both species were cultivated in 250 mL Erlenmeyer flasks, each containing 100 mL of growth medium—P. sp. in artificial sea water (ASW) [59], and P. arg. in freshwater [45]. Algae were grown under shaking speed of 100 rpm; temperature of (25 ± 3) °C; illumination was supplied continuously from above with fluorescent cool-white lamps at a photon flux density of 90 µmol photons m−2·s−1; aeration was provided through bubbling air containing 2%–3% CO2 into the shaker. All cultures were inoculated with 48-h-old cells. Initial cell concentration was adjusted to 2 × 106 cells/mL.

3.3. Isolation and Quantitative Analysis of Soluble-Sulfated Polysaccharide Fraction

Cultures at stationary phase of growth were centrifuged (3000 g, 10 min, 4 °C) and the supernatants containing the dissolved polysaccharides were dialyzed (MW cutoff 8000 Da) against DDW at 4 °C until the conductivity of the water reached 300 µs × cm−1. The dialyzed polysaccharide was then freeze-dried and resuspended in DDW to reach 1% w/v, comprising the PS stock. The polysaccharide concentration was determined by a known procedure [60], with D-galactose (Sigma G-0625, St. Louis, MO, USA) as the standard, in a concentration range of 0.1–1 µg/mL.

3.4. Sample Preparation

The sample preparation procedure included three steps: (1) Preparation of the PS-salt solution samples: The diluted PS solution (0.15% w/v in DDW) was incubated for 60 min with an appropriate concentration of one of the following salts: KCl, NaCl, K2SO4, Na2SO4, K3PO4, Na3PO4, MgCl2, CaCl2, SrCl2 at 0.1 M, or KCl, NaCl, MgCl2, CaCl2, SrCl2 at 0.5 M. The solubility of K2SO4, Na2SO4, K3PO4, Na3PO4 in aqueous solutions is lower than 0.5 M, therefore the only concentration used was 0.1 M; (2) Preparation of the PS-formula systems: The PS-salt solution samples were added to 0.5 g milk powder with 35 mM KO2, at a total volume of 10 mL; (3) Malondialdehyde (MDA) levels were determined according to the thiobarbitoric acid (TBA) method described below. Control experiments were performed separately in order to study the oxidation of the polysaccharides and the formula by KO2 (without salts) using the same procedure detailed above. To extend our knowledge regarding the dose-dependency of the polysaccharide effect on the milk powder without salt supplement, two polysaccharide concentrations (0.075/0.15% w/v) were studied for PS1 and PS2.

3.5. Production of Free Radicals

The free radicals were formed by addition of KO2 to the samples. As mentioned above O2 is known as an oxidative agent [4,61].
The KO2 solution was prepared fresh for each experiment and added to the sample immediately after its preparation.

3.6. Malondialdehyde (MDA) Measurements

MDA levels were measured spectroscopically according to Fenaille et al. [62] with minor modifications. The assay is based on a reaction between oxidized lipids and TBA under acidic conditions to yield a pink chromogen with a maximum absorbance at 532 nm. After sample preparation an aliquot of the slurry (2 mL) was transferred to a 5-mL tube, to which the following were added: 1.6 mL DDW, 0.8 mL TBA 0.67%, 0.8 mL TCA 5% and 0.0128 g of BHT. The mixture was homogenized and centrifuged at 3500 rpm for 30 min. The supernatant was incubated in a 70 °C water bath for 60 min, and cooled to room temperature before measuring absorbance. The color produced by the chemical reaction was read at 532 nm in a Cary 100 Bio UV-Visible spectrophotometer, and the amount of MDA formed was determined by using the molar extinction coefficient ε(532 nm) = 1.56 × 10−5 cm·nmol−1 [62].

3.7. Calculation of % Salt Effect

The induction levels of the PS antioxidant activity under different salt environments was calculated according to the following formula: % salt effect = (A0 − A)/A0 × 100, where A0 is the absorbance of the control sample without salt, and A is the absorbance of the test sample with the salt.

3.8. Statistical Analyses

All data were expressed as means ± standard deviation (SD) of at least three replications, and the ANOVA test was used for statistical analysis. Each experiment was repeated at least three times.

4. Conclusions

Red microalgae polysaccharides hold great potential to be used as agents in various products for human benefit, for example, as natural antioxidants in food or cosmetic products. However, there are very few reports on sulfated red micoalgae polysaccharide antioxidant bioactivities and there are still many open questions to be answered regarding the mechanisms through which the polysaccharide copes with the ROS. The results of this study show that both red microalgae soluble-sulfated polysaccharide fractions (PS1 and PS2) exhibit significant radical scavenging abilities in soy bean formula in the presence of KO2.
It was demonstrated that salt composition (cation and anion type) and concentration affect the antioxidant activity of these red microalgal polysaccharides. Thus we can postulate that the salt ions intefere with the polysaccharide chain interactions by changing the intermolecular bonds and causing changes in the three-dimensional structure of the polysaccharide, leading to a newly formed structure that better exposes the antiooxidant sites. Among the cations which were tested, Ca2+ had the strongest enhancement effect on antioxidant activities of both polysaccharides. Since proteins are also part of the cell-wall complex polysaccharides [26,38] they can be involved in the newly-formed three-dimensional structure. It seems, however, that the activity of the polysaccharides does not result from one single component but from synergism of its oligomeric components. Due to the polysaccharide complexity and the lack of knowledge regarding its structure, the mechanism of the salt effect cannot be explained in depth.
Here we report for the first time the potential of the polysaccharides to act as an antioxidant ingredient in infant food formula, which can be used as a model for food products, as well as for other disciplines. We further demonstrate the enhancing effect of salts on this antioxidant activity and propose a hypothesis which can explain the differential effect of the various cations and anions on the two polysaccharides. The physicochemical properties which enable the polysaccharides to be used as a stabilizer or thickener, the relative ease in which they can be produced by controlling algal growth conditions and their uniqueness as a natural material which is dissolved in aqueous systems, reinforce their potential to be used as antioxidants in industrial systems. Our findings have a contribution in furthering knowledge on the polysaccharides’ antioxidant behavior under different environmental conditions.

Supplementary Files

Supplementary File 1

Author Contributions

All authors contributed equally to the manuscript preparation.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Angele-Martinez, C.; Goodman, C.; Brumaghim, J. Metal-mediated DNA damage and cell death: Mechanisms, detection methods, and cellular consequences. Metallomics 2014, 6, 1358–1381. [Google Scholar] [CrossRef] [PubMed]
  2. Bregano, J.W.; Dichi, I. Inflammatory bowel disease. In Role of Oxidative Stress Chronic Diseases; Dichi, I., Breganó, J.W, Simão, A.N.C., Cecchini, R., Eds.; CRC Press, Taylor & Francis Group: Boca Raton, FL, USA, 2014; pp. 501–520. [Google Scholar]
  3. Furlan, A.L.; Jobin, M.-L.; Buchoux, S.; Grelard, A.; Dufourc, E.J.; Gean, J. Membrane lipids protected from oxidation by red wine tannins: A proton NMR study. Biochimie 2014, 107, 82–90. [Google Scholar] [CrossRef] [PubMed]
  4. Harrison, I.P.; Selemidis, S. Understanding the biology of reactive oxygen species and their link to cancer: NADPH oxidases as novel pharmacological targets. Clin. Exp. Pharmacol. Physiol. 2014, 41, 533–542. [Google Scholar] [CrossRef] [PubMed]
  5. Butterfield, D.A. Amyloid β-peptide (1-42)-induced oxidative stress and neurotoxicity: Implications for neurodegeneration in Alzheimer’s disease brain. Free Radic. Res. 2002, 36, 1307–1313. [Google Scholar] [CrossRef] [PubMed]
  6. Halliwell, B.; Aruoma, O.I. DNA damage by oxygen-derived species. Its mechanism and measurement in mammalian systems. FEBS Lett. 1991, 281, 9–19. [Google Scholar] [CrossRef]
  7. Froelich, L.; Riederer, P. Free radical mechanisms in dementia of Alzheimer type and the potential for antioxidative treatment. Arzneimittelforschung 1995, 45, 443–446. [Google Scholar]
  8. Yang, C.S.; Landau, J.M.; Huang, M.-T.; Newmark, H.L. Inhibition of carcinogenesis by dietary polyphenolic compounds. Annu. Rev. Nutr. 2001, 21, 381–406. [Google Scholar] [CrossRef] [PubMed]
  9. Ramsaha, S.; Aumjaud, B.E.; Neergheen-Bhujun, V.S.; Bahorun, T. Polyphenolic rich traditional plants and teas improve lipid stability in food test systems. J. Food Sci. Technol. 2015, 52, 773–782. [Google Scholar] [CrossRef] [PubMed]
  10. Park, P.-J.; Jung, W.-K.; Nam, K.-S.; Shahidi, F.; Kim, S.-K. Purification and characterization of antioxidative peptides from protein hydrolyzate of lecithin-free egg yolk. J. Am. Oil Chem. Soc. 2001, 78, 651–656. [Google Scholar] [CrossRef]
  11. Kazi, A.; Deshmukh, S.; Mirza, R.; Murtadak, S. A comprehensive review on flavonoids. World J. Pharm. Res. 2015, 4, 560–572. [Google Scholar]
  12. Mao, G.; Zhang, S.; Song, H.; Ding, S.; Zhu, P.; Wang, X.; Liang, C. Synthesis, biological activities and therapeutic properties of esculetin and its derivatives. J. Chem. Pharm. Res. 2015, 7, 122–130. [Google Scholar]
  13. Pena-Ramos, E.A.; Xiong, Y.L. Antioxidative activity of whey protein hydrolysates in a liposomal system. J. Dairy Sci. 2001, 84, 2577–2583. [Google Scholar] [CrossRef]
  14. Sharma, R.; Rani, D.; Jain, N.; Kantwa, S.M.; Jaitawat, A. Cinnamon—A natural replacement for synthetic drugs: A review. Int. J. Curr. Res. Biosci. Plant Biol. 2015, 2, 69–78. [Google Scholar]
  15. Jiao, G.; Yu, G.; Zhang, J.; Ewart, H.S. Chemical structures and bioactivities of sulfated polysaccharides from marine algae. Mar. Drugs 2011, 9, 196–223. [Google Scholar] [CrossRef] [PubMed]
  16. Ruperez, P.; Ahrazem, O.; Leal, J.A. Potential Antioxidant Capacity of Sulfated Polysaccharides from the Edible Marine Brown Seaweed Fucus vesiculosus. J. Agric. Food Chem. 2002, 50, 840–845. [Google Scholar] [CrossRef] [PubMed]
  17. Rocha de Souza, M.C.; Marques, C.T.; Guerra Dore, C.M.; Ferreira da Silva, F.R.; Oliveira Rocha, H.A.; Leite, E.L. Antioxidant activities of sulfated polysaccharides from brown and red seaweeds. J. Appl. Phycol. 2007, 19, 153–160. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, J.; Zhang, Q.; Zhang, Z.; Song, H.; Li, P. Potential antioxidant and anticoagulant capacity of low molecular weight fucoidan fractions extracted from Laminaria japonica. Int. J. Biol. Macromol. 2010, 46, 6–12. [Google Scholar] [CrossRef] [PubMed]
  19. Dore, C.M.; das C Faustino Alves, M.G.; Will, L.S.; Costa, T.G.; Sabry, D.A.; de Souza Rêgo, L.A.; Accardo, C.M.; Rocha, H.A.; Filgueira, L.G.; Leite, E.L. A sulfated polysaccharide, fucans, isolated from brown algae Sargassum vulgare with anticoagulant, antithrombotic, antioxidant and anti-inflammatory effects. Carbohydr. Polym. 2013, 91, 467–475. [Google Scholar] [CrossRef] [PubMed]
  20. Qi, H.; Zhang, Q.; Zhao, T.; Hu, R.; Zhang, K.; Li, Z. In vitro antioxidant activity of acetylated and benzoylated derivatives of polysaccharide extracted from Ulva pertusa (Chlorophyta). Bioorg. Med. Chem. Lett. 2006, 19, 2441–2445. [Google Scholar] [CrossRef] [PubMed]
  21. Xue, Z.; Xue, C.; Cai, Y.; Wang, D.; Fang, Y. The study of antioxidant activities of fucoidan from Laminaria japonica. High Technol. Lett. 2005, 11, 91–94. [Google Scholar]
  22. Costa, L.S.; Fidelis, G.P.; Cordeiro, S.L.; Oliveira, R.M.; Sabry, D.A.; Camara, R.B.; Nobre, L.T.; Costa, M.S.; Almeida-Lima, J.; Farias, E.H.; et al. Biological activities of sulfated polysaccharides from tropical seaweeds. Biomed. Pharmacother. 2010, 64, 21–28. [Google Scholar] [CrossRef] [PubMed]
  23. Sun, L.; Wang, C.; Shi, Q.; Ma, C. Preparation of different molecular weight polysaccharides from Porphyridium cruentum and their antioxidant activities. Int. J. Biol. Macromol. 2009, 45, 42–47. [Google Scholar] [CrossRef] [PubMed]
  24. Tannin-Spitz, T.; Bergman, M.; van-Moppes, D.; Grossman, S.; Arad, S. Antioxidant activity of the polysaccharide of the red microalga Porphyridium sp. J. Appl. Phycol. 2005, 17, 215–222. [Google Scholar] [CrossRef]
  25. Chen, B.; You, W.; Huang, J.; Yu, Y.; Chen, W. Isolation and antioxidant property of the extracellular polysaccharide from Rhodella reticulata. World J. Microbiol. Biotechnol. 2010, 26, 833–840. [Google Scholar] [CrossRef]
  26. Wang, J.; Hu, S.; Nie, S.; Yu, Q.; Xie, M. Reviews on Mechanisms of in Vitro Antioxidant Activity of Polysaccharides. Oxid. Medi. Cell. Longev. 2015; in press. [Google Scholar]
  27. Bold, H.C.; Wynne, M.J. Introduction to the Algae: Structure and Reproduction, 2nd ed.; Prentice Hall Inc.: Englewood Cliiffs, NJ, USA, 1985. [Google Scholar]
  28. Ramus, J. Rhodophyte unicells, biopolymer, physiology and production. In Algal Biomass Technologies—An Interdisciplinary Perspective; Barclay, W.R., McIntosh, R.P., Eds.; Cramer: Berlin, Germany, 1986; pp. 51–55. [Google Scholar]
  29. Arad, M.S. Production of sulfated polysaccharides from red unicellular algae. In Algal Biotechnology—An Interdisciplinary Perspective; Stadler, T., Mollion, J., Verduset, M.C., Eds.; Elsevier Applied Science: London, UK, 1988; pp. 65–87. [Google Scholar]
  30. Arad, S.; Levy-Ontman, O. Red microalgal cell wall polysaccharides: Biotechnological aspects. Curr. Opin. Biotechnol. 2010, 21, 358–364. [Google Scholar] [CrossRef] [PubMed]
  31. Ucko, M.; Cohen, E.; Gordin, H.; Arad, S. Relationship between the unicellular red alga Porphyridium sp. and its predator, the dinoflagellate Gymnodinium sp. Appl. Environ. Microbiol. 1989, 55, 2990–2994. [Google Scholar] [PubMed]
  32. Arad, S.; Keristovesky, G.; Simon, B.; Barak, Z.E.; Geresh, S. Biodegradation of the sulfated polysaccharide of Porphyridium by soil bacteria. Phytochemistry 1993, 32, 287–290. [Google Scholar] [CrossRef]
  33. Percival, E.; Foyle, R.A.J. The extracellular polysaccharides of Porphyridium cruentum and Porphyridium aerugineum. Carbohydr. Res. 1979, 72, 165–176. [Google Scholar] [CrossRef]
  34. Geresh, S.; Arad, S. The extracellular polysaccharides of the red microalgae: Chemistry and rheology. Bioresour. Technol. 1991, 38, 195–201. [Google Scholar] [CrossRef]
  35. Heaney-Kieras, J.; Chapman, D.J. Structural studies on the extracellular polysaccharide of the red alga, Porphyridium cruentum. Carbohydr. Res. 1976, 52, 169–177. [Google Scholar] [CrossRef]
  36. Geresh, S.; Adin, I.; Yarmolinsky, E.; Karpasas, M. Characterization of the extracellular polysaccharide of Porphyridium sp.: Molecular weight determination and rheological properties. Carbohydr. Polym. 2002, 50, 183–189. [Google Scholar] [CrossRef]
  37. Geresh, S.; Dubinsky, O.; Arad, M.S.; Christiaen, D.; Glaser, R. Structure of 3-O-(alpha-d-glucopyranosyluronic acid)-l-galactopyranose, an aldobiouronic acid isolated from the polysaccharides of various unicellular red algae. Carbohydr. Res. 1990, 208, 301–305. [Google Scholar] [CrossRef]
  38. Shrestha, R.P.; Weinstein, Y.; Bar-Zui, D.; Arad, S. A glycoprotein noncovalently associated with cell-wall polysaccharide of the red microalga Porphyridium sp. (Rhodophyta). J. Phycol. 2004, 40, 568–580. [Google Scholar] [CrossRef]
  39. Levy-Ontman, O.; Arad, S.; Harvey, D.J.; Parsons, T.B.; Fairbanks, A.; Tekoah, Y. Unique N-glycan moieties of the 66-kDa cell wall glycoprotein from the red microalga Porphyridium sp. J. Biol. Chem. 2011, 286, 21340–21352. [Google Scholar] [CrossRef] [PubMed]
  40. Ucko, M.; Shrestha, R.P.; Mesika, P.; Bar-Zvi, D.; Arad, S. Glycoprotein moiety in the cell wall of the red microalga Porphyridium sp. (Rhodophyta) as the biorecognition site for the Crypthecodinium cohnii-like dinoflagellate. J. Phycol. 1999, 35, 1276–1281. [Google Scholar] [CrossRef]
  41. Arad, S.; Levy-Ontman, O. Sulfated polysaccharides in the cell wall of red microalgae. In Handbook of Biopolymer-Based Materials: From Blends and Composites to Gels and Complex; Sabu, T., Dominique, D., Christophe, C., Jyotishkumar, P., Eds.; Wiley-VCH Verlag: Berlin, Germany, 2013; Volume 2, pp. 351–370. [Google Scholar]
  42. Yaron, A.; Cohen, E.; Arad, S.M. Stabilization of aloe vera gel by interaction with sulfated polysaccharides from red microalgae and with xanthan gum. J. Agric. Food Chem. 1992, 40, 1316–1320. [Google Scholar] [CrossRef]
  43. Eteshola, E.; Gottlieb, M.; Arad, S. Dilute solution viscosity of red microalga exopolysaccharide. Chem. Eng. Sci. 1996, 51, 1487–1494. [Google Scholar] [CrossRef]
  44. Ginzberg, A.; Korin, E.; Arad, S.M. Effect of drying on the biological activities of a red microalgal polysaccharide. Biotechnol. Bioeng. 2008, 99, 411–420. [Google Scholar] [CrossRef] [PubMed]
  45. Savins, J.G. Oil Recovery Process Employing Thickened Aqueous Driving Fluid. U.S. Patent 4,079,544, 21 March 1978. [Google Scholar]
  46. Arad, S.; Weinstein, Y. Novel lubricants from red microalgae: Interplay between genes and products. Biomedic 2003, 1, 32–37. [Google Scholar]
  47. Arad, M.S.; Richmond, A. Industrial production of microalgal cell-mass and secondary products—Species of high potential: Porphyridium sp. In Handbook of Microalgal Culture: Biotechnology and Applied Phycology; Richmond, A., Ed.; Blackwell Publishing Ltd.: Oxford, UK, 2004; pp. 289–299. [Google Scholar]
  48. Arad, M.S.; Rapoport, L.; Moshkovich, A.; van-Moppes, D.; Karpasas, M.; Golan, R.; Golan, Y. Superior biolubricant from a species of red microalga. Langmuir 2006, 22, 7313–7317. [Google Scholar] [CrossRef] [PubMed]
  49. Eteshola, E.; Karpasas, M.; Arad, S.; Gottlieb, M. Red microalga exo polysaccharides. Part 2. Study of the rheology, morphology, and thermal gelation of aqueous preparations. Acta Polym. 1998, 49, 549–556. [Google Scholar] [CrossRef]
  50. Liu, F.; Ooi, V.E.C.; Chang, S.T. Free radical scavenging activities of mushroom polysaccharide extracts. Life Sci. 1997, 60, 763–771. [Google Scholar] [CrossRef]
  51. Liu, D.; Sheng, J.; Li, Z.; Qi, H.; Sun, Y.; Duan, Y.; Zhang, W. Antioxidant activity of polysaccharide fractions extracted from Athyrium multidentatum (Doll.) Ching. Int. J. Biol. Macromol. 2013, 56, 1–5. [Google Scholar] [CrossRef] [PubMed]
  52. Leung, P.H.; Zhao, S.; Ho, K.P.; Wu, J.Y. Chemical properties and antioxidant activity of exopolysaccharides from mycelial culture of Cordyceps sinensis fungus Cs-HK1. Food Chem. 2009, 114, 1251–1256. [Google Scholar] [CrossRef]
  53. Cheung, Y.-C.; Siu, K.-C.; Liu, Y.-S.; Wu, J.-Y. Molecular properties and antioxidant activities of polysaccharide-protein complexes from selected mushrooms by ultrasound-assisted extraction. Process Biochem. 2012, 47, 892–895. [Google Scholar] [CrossRef]
  54. Huang, Q.-L.; Siu, K.-C.; Wang, W.-Q.; Cheung, Y.-C.; Wu, J.-Y. Fractionation, characterization and antioxidant activity of exopolysaccharides from fermentation broth of a Cordyceps sinensis fungus. Process Biochem. 2013, 48, 380–386. [Google Scholar] [CrossRef]
  55. Dumitriu, S.; Vidal, P.F.; Chornet, E. Hydrogels based on polysaccharides. In Polysaccharides in medical application; Dumitriu, S., Ed.; Marcel Dekker, Inc.: New York, NY, USA, 1996; pp. 125–241. [Google Scholar]
  56. Shao, F.; Ankur, T.; Diana, M.S.; Riccardo, L.B.; Ira, S.B.; Sachin, V.; Eric, J.M.; Lawrence, H.B. Relevance of Rheological Properties of Sodium Alginate in Solution to Calcium Alginate Gel Properties. Res. Artic. 2011, 12, 453–460. [Google Scholar]
  57. Seely, G.R.; Hart, R.L. Binding of alkaline earth metal ions to alginate. Macromolecules 1974, 7, 706–710. [Google Scholar] [CrossRef] [PubMed]
  58. Florian-Algarin, V.; Acevedo, A. Rheology and Thermotropic Gelation of Aqueous Sodium Alginate Solutions. J. Pharm. Innov. 2010, 5, 37–44. [Google Scholar] [CrossRef]
  59. Jones, R.H.; Speer, H.L.; Kury, W. Studies on the growth of the red alga Porphyridium cruentum. Physiol. Plant. 1963, 16, 636–643. [Google Scholar] [CrossRef]
  60. Dubois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric method for determination of sugars and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  61. Halliwell, B. Free radicals and antioxidants—Quo vadis? Trends Pharmacol. Sci. 2011, 32, 125–130. [Google Scholar] [CrossRef]
  62. Fenaille, F.; Mottier, P.; Turesky, R.J.; Ali, S.; Guy, P.A. Comparison of analytical techniques to quantify malondialdehyde in milk powders. J. Chromatogr. A 2001, 921, 237–245. [Google Scholar] [CrossRef]
