Renal Replacement Therapy as a New Indicator of Voriconazole Clearance in a Population Pharmacokinetic Analysis of Critically Ill Patients

by
Yuqiong Wang
1,2,
Qinghua Ye
2,
Pengmei Li
3,
Linna Huang
2,
Zhijiang Qi
2,
Wenqian Chen
3,*,†,
Qingyuan Zhan
1,2,*,† and
Chen Wang
1,2,4
1
Peking University China-Japan Friendship School of Clinical Medicine, Beijing 100029, China
2
National Center for Respiratory Medicine, State Key Laboratory of Respiratory Health and Multimorbidity, National Clinical Research Center for Respiratory Diseases, Institute of Respiratory Medicine, Chinese Academy of Medical Sciences, Department of Pulmonary and Critical Care Medicine, Center of Respiratory Medicine, China-Japan Friendship Hospital, Beijing 100029, China
3
Department of Pharmacy, China-Japan Friendship Hospital, Beijing 100029, China
4
Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100730, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceuticals 2024, 17(6), 665; https://doi.org/10.3390/ph17060665
Submission received: 24 April 2024 / Revised: 16 May 2024 / Accepted: 17 May 2024 / Published: 22 May 2024
(This article belongs to the Section Pharmacology)
Browse Figures
Versions Notes

Abstract

:
Aims: The pharmacokinetic (PK) profiles of voriconazole in intensive care unit (ICU) patients differ from that in other patients. We aimed to develop a population pharmacokinetic (PopPK) model to evaluate the effects of using extracorporeal membrane oxygenation (ECMO) and continuous renal replacement therapy (CRRT) and those of various biological covariates on the voriconazole PK profile. Methods: Modeling analyses of the PK parameters were conducted using the nonlinear mixed-effects modeling method (NONMEM) with a two-compartment model. Monte Carlo simulations (MCSs) were performed to observe the probability of target attainment (PTA) when receiving CRRT or not under different dosage regimens, different stratifications of quick C-reactive protein (qCRP), and different minimum inhibitory concentration (MIC) ranges. Results: A total of 408 critically ill patients with 746 voriconazole concentration–time data points were included in this study. A two-compartment population PK model with qCRP, CRRT, creatinine clearance rate (CLCR), platelets (PLT), and prothrombin time (PT) as fixed effects was developed using the NONMEM. Conclusions: We found that qCRP, CRRT, CLCR, PLT, and PT affected the voriconazole clearance. The most commonly used clinical regimen of 200 mg q12h was sufficient for the most common sensitive pathogens (MIC ≤ 0.25 mg/L), regardless of whether CRRT was performed and the level of qCRP. When the MIC was 0.5 mg/L, 200 mg q12h was insufficient only when the qCRP was <40 mg/L and CRRT was performed. When the MIC was ≥2 mg/L, a dose of 300 mg q12h could not achieve ≥ 90% PTA, necessitating the evaluation of a higher dose.

1. Introduction

Owing to unavoidable factors, patients in the intensive care unit (ICU) are more likely to receive long-term broad-spectrum antibiotics and glucocorticoids and invasive surgery (including extracorporeal membrane oxygenation (ECMO) catheterization, catheter placement, and hemodialysis), making them more susceptible to fungal infections [1]. Voriconazole is a new-generation triazole antifungal drug recommended as the first-line treatment against invasive aspergillosis by the Infectious Diseases Society of America (IDSA) [2], and it is also used as an alternative therapy for candidemia [3]. As such, voriconazole is widely used in ICU patients. The serum concentration of voriconazole can vary by up to 100-fold in individuals receiving the same dose [4] as it depends on several covariates, including age, weight, liver function, drug interactions, inflammation, genetic factors, and classical nonlinear pharmacokinetics (PKs) [5]. However, its therapeutic range is narrow; when the plasma trough concentration is too low (<1 mg/L), the therapeutic effect is poor, whereas supratherapeutic plasma trough concentrations (>5.5 mg/L) have been associated with an increased incidence of visual impairment, neurotoxicity, and hepatotoxicity [6].
The pathophysiological characteristics of the critically ill population differ from those of the general ward population; therefore, the PK profiles of voriconazole are significantly different in ICU patients [7]. Patients admitted to the ICU often show changes in fluid balance because of fluid therapy, capillary leakage, changes in plasma protein binding caused by hypoalbuminemia, and altered renal and hepatic function [7,8,9]. These changes are often accompanied by complex co-administered medications, systemic inflammation, bleeding, and transfusion, which can impact the drug clearance rate (CL) and apparent volume of distribution (Vd) [10].
Despite a number of studies evaluating voriconazole PKs in critically ill patients [11,12,13], these studies had small sample sizes, focused only on specific diseases, and lacked the simultaneous analysis of vital factors such as ECMO and continuous renal replacement therapy (CRRT). The frequency of ECMO and CRRT implementation in our ICU department is approximately 6% and 20%, respectively. Of note, the use of ECMO and CRRT is common in ICU patients, with some of them even using both machines concomitantly. Hence, discussing their effects on the voriconazole PK profile separately is unscientific.
Voriconazole exposure is generally believed to be affected by ECMO; however, confirming this speculation is hard as literature is limited, with only five ex vitro studies [14,15,16,17,18], seven case reports [19,20,21,22,23,24,25], and two retrospective studies [26,27]. Moreover, while some studies have indicated that renal function has no effect on clearance [28], others have suggested that reduced renal function may lead to an increase in voriconazole plasma concentrations; however, no clear conclusions can be drawn because of the limited sample size or retrospective nature of these studies [12,29,30,31]. Similarly, although the overall PK of voriconazole is considered to be virtually unaffected by any mode of renal replacement therapy [32,33], one previous study indicated that continuous veno-venous hemofiltration (CVVH) with an ultrafiltration rate of 35 mL/(kg·h) may affect voriconazole clearance [34]. Some experts doubt whether even small amounts of voriconazole can be adsorbed onto the hemofilter membrane in the same way as onto the ECMO membrane; however, no relevant research has confirmed this hypothesis [35].
In view of the properties of voriconazole and the complex physiological changes and various operations in ICU patients, elucidating the PK characteristics of voriconazole in this special population has become challenging. Population pharmacokinetic (PopPK) modeling is widely used in the field because it helps to obtain the sources of PK variability [36]. Therefore, in this study, we developed a PopPK model to evaluate the factors influencing voriconazole PKs in critically ill patients. Monte Carlo simulations (MCS) were then performed to observe the probability of target attainment (PTA) when receiving CRRT or not under different dosage regimens, different stratifications of quick C-reactive protein (qCRP), and different minimum inhibitory concentration (MIC) ranges. To our knowledge, this is the largest PK study on voriconazole in ICU patients aimed at improving its dosing strategies for critically ill patients.

2. Results

2.1. Baseline Characteristics

A total of 408 critically ill patients with 746 voriconazole concentration–time data points were included in this study. Among these, 287 concentration points were collected prospectively and continuously in 42 patients, whereas 459 trough concentrations were obtained retrospectively via routine therapeutic drug monitoring (TDM) in 366 patients. A total of 23 patients were excluded due to incomplete information or their use of a course of drugs that significantly affects voriconazole PKs. Figure 1 shows the time-dependent concentrations of voriconazole. The patient demographics are summarized in Table 1. Of the 408 participants, 287 (70.3%) were men. The mean age of patients was 64 years, while their mean weight was 65.3 kg. The patients showed considerable variability in blood biochemical parameters. During the sampling period, 85 patients received ECMO at 154 concentration points. CRRT was administered to 104 patients at 185 concentrations. As the study population consisted of patients in the respiratory ICU, each patient had either mild or severe lung infection. The most dominant voriconazole dosing regimen was 200 mg every 12 h (342 patients (83.8%)), with the remaining dosing regimens adjusted based on the TDM results.

2.2. Pharmacokinetic Model Building and Model Evaluation

The objective function values (OFVs) of the 1- and 2-compartment model are 1619.599 and 1334.118 respectively. A two-compartment model with first-order elimination adequately characterized voriconazole pharmacokinetics. The population estimates of the CL, central distribution volume (Vc), peripheral distribution volume (Vp), and intercompartmental clearance (Q) were 3.55 L/h (3.5%), 33.5 L (19.1%), 138 L (18.6%), and 52.8 L/h (15.9%), respectively. The inter-individual variability and the residual variability were described by the exponential model and the combined error model, respectively.
In the forward selection procedure, the covariates qCRP, CRRT, creatinine clearance rate (CLCR), platelets (PLT), prothrombin time (PT), and aspartate transaminase (AST) were added to the parameter CL, with decreases in the OFV to 62.678, 23.757, 20.572, 18.755, 15.388, and 10.248, respectively. In the backward elimination steps, the increases in the OFV were 63.738, 34.945, 9.196, 18.755, 11.84, and 11.066, respectively. AST was removed from the final model because it had a poor relative standard error (RSE) (77%) and low estimate value (0.08). Therefore, the final model is:
CL = C L T V × q C R P 73.6 − 0.142 × C L C R 71.8 0.218 × 1.46 CRRT × P L T 144 0.166 × P T 15 − 0.875 × e η C L
where CLTV is the typical value of the total voriconazole CL.
The basic goodness-of-fit (GOF) plots presented in Figure 2 show the good predictive performance of the developed model. Both the population predictions and the individual predictions showed good agreement with the observations (Figure 2A,B). The conditional weighted residuals (CWRES) were uniformly distributed around zero with no trend, and most points were located within the accepted range (y = ±2) (Figure 2C,D). After inspection, no abnormal concentration points were found.
The population parameter estimates obtained from the final PopPK model were close to the median bootstrap values and fell within the 95% CI calculated using the bootstrap method, indicating that the final model was stable and robust (Table 2). The PK parameters grouped by ECMO and CRRT were listed in Table 3 and Table 4, respectively. The CL increased in the CRRT group (p < 0.05), and there was no significant difference in other PK parameters. The PK parameters grouped by the route of administration were listed in Table S1, and there was no significant difference in the PK parameters.
The prediction-corrected visual predictive check (pcVPC) plots based on 1000 simulations on the data is shown in Figure 3. Most of the observed data were within the 95% CIs of the 5th, 50th, and 95th percentiles of the simulated data (shaded areas), showing good performance in predicting the plasma concentrations of voriconazole.

2.3. Simulations and the PTA

Table 5 shows the achievable simulated PTAs of critically ill patients under different dosage regimens when combined with the common clinical MIC stratification, qCRP stratification, and whether CRRT was performed. Overall, 144 different clinical scenarios were simulated. Standardized values of the covariates included in the final model were taken for each individual. The simulation results showed that the PTA value during CRRT decreased compared with that without CRRT. When the patient underwent CRRT, with an MIC ≤ 0.25 mg/L, all simulation plans achieved a ≥90% PTA; with an MIC of 0.5 mg/L, a regimen of at least 200 mg q12h was required to achieve a ≥90% PTA (except when qCRP was 40 mg/L, where a dose of 250 mg q12h was required); with an MIC of 1 mg/L, none of the simulation plans achieved a ≥90% PTA, necessitating the evaluation of a higher dose.

3. Discussion

Voriconazole is a key life-saving drug in the treatment of invasive aspergillosis, and its blood concentration is directly related to the prognosis of the disease. However, patients in the ICU are often treated with CRRT and ECMO, which are considered to result in substandard drug concentrations. In this study, we collected extensive data on voriconazole TDM among respiratory ICU patients, as well as prospective intensive sampling data, which allowed us to investigate the influence of multiple covariates on voriconazole PK parameters. This is the first study to simultaneously explore the effects of ECMO, CRRT, and various physiological and biochemical factors on the PK/pharmacodynamic (PD) profile of voriconazole in ICU patients, and it is the largest study on ICU patients to date. As such, this study revealed several novel findings.

3.1. PK Parameters of This Model

A strong correlation has been demonstrated between plasma and lung epithelial lining fluid (ELF) voriconazole concentrations [37,38]. For practical reasons, using plasma instead of ELF concentrations is preferred. Previous literature on the administration of voriconazole in critically ill patients is limited. Our findings suggested that a two-compartment model with first-order elimination is optimal for modeling voriconazole PK data in critically ill patients. The estimated Vc and Vp in our study were approximately the same as those in a prospective study of 33 ICU patients treated with intravenous voriconazole (28.2 L and 157.3 L, respectively) [39]. According to this model, voriconazole CL was 3.55 L/h, in agreement with the range of 2.88–4.28 L/h reported in other studies [11,29,40].

3.2. CRRT Affects Voriconazole CL

Our observation that CRRT increased voriconazole CL is important because previous data on the elimination of this moderate plasma protein-bound drug in patients receiving CRRT are limited. Conventional wisdom holds that renal and extracorporeal clearance only account for 1–15% of total voriconazole CL, that the overall PKs of voriconazole is virtually unaffected by renal replacement regardless of the mode, and that voriconazole dose adjustment is not necessary [32]. For example, a study including six patients with CVVH concluded that CVVH had no clinical significance on voriconazole CL [33]. Likewise, two case reports on 10 critically ill patients requiring continuous veno-venous hemofiltration (CVVHDF) found that voriconazole dose adjustment was not required [32,41]. In contrast, Quintard et al. [34] studied the PKs of voriconazole in a critically ill patient with anuria who was administered 4 mg/kg voriconazole and under high-volume CVVH at an ultrafiltration rate of 35 mL/kg/h, and found that CVVH helped eliminate 21% of the drug. However, the number of participants in these studies was too small to ensure scientific validity. In contrast, 104 people with 186 concentration points included in our study underwent the CVVH procedure, making them the largest research population on the relationship between CRRT and voriconazole PKs.
Theoretically, drugs with a molecular weight > 5000 Da, high protein binding capacity (>80%), and a large Vd (>1 L/kg) are the least likely to be removed by CRRT [42]. Voriconazole has a molecular weight of 349.31 Da and is widely distributed throughout the body, with 58% of it being bound to plasma proteins, complicating the determination of its clearance. In our ICU, bedside nurses performed CRRT uniformly, and all included patients underwent the CVVH procedure. Except in special circumstances, the blood flow rate was set to approximately 120–150 mL/min, the replacement fluid speed was set to approximately 25–30 mL/(kg·h), and the “predilution” method was adopted. All machines were obtained from Fresenius, and all consumables were purchased together. The membranes employed for CVVH typically contain small pores, easily eliminating molecules smaller than 500 Da. Therefore, we speculated that voriconazole may have been filtered out through the pores. In addition, 50.8% of the CRRT population had hypoalbuminemia (<35 g/L) [43], which resulted in a higher proportion of unbound drugs and more drugs being cleared by the liver and CRRT. Notably, a previous study using an integrated dialysis pharmacometric model suggested that a small amount of voriconazole may be adsorbed onto the blood filtration membrane [35]. Thus, determining whether voriconazole is adsorbed onto the hemofilter membrane in the same way as onto the ECMO membrane [14,15] may be important for determining the increase in voriconazole clearance caused by CRRT.

3.3. Voriconazole CL Increases When the CLCR Increases

Surprisingly, we found that voriconazole CL increased with increasing CLCR, suggesting that renal function may indeed affect voriconazole CL. By contrast, less than 2% of an oral or intravenous dose of voriconazole is believed to be excreted unchanged in the urine; that is, voriconazole CL is not affected by renal function. However, a previous study [12] reported higher voriconazole plasma concentrations in patients with moderate renal impairment (CLCR 40–55 mL/min) than in those with normal renal function (CLCR ≥ 60 mL/min) following the administration of 320 mg and 240 mg doses. Similar findings have been reported using multiple linear regression analyses [30,31,44,45]. In a prospective PK study involving 105 kidney transplant recipients (342 concentrations), the reported voriconazole CL was 2.88 L/h, and the authors speculated that the low CL might be attributed to the unrecovered kidney function [29]. Another possible explanation is that the CLCR value, which can indirectly reflect the clearing effect of CRRT, could be affected by CRRT factors and therefore reflected in the final model.

3.4. Voriconazole CL Increases When the Platelet Count Increases

Unexpectedly, we found a positive correlation between platelet count and voriconazole CL. A review of the literature revealed similar findings in other studies. For example, Tang et al. included 166 samples extracted from 57 patients with liver dysfunction and found that a low platelet count was associated with a significant reduction in voriconazole CL [46]. Another study included 51 patients with liver dysfunction and reached similar conclusions [47]. In patients that underwent kidney transplantation [48], a one-unit increase in platelet count was associated with a 0.004 mg/L decrease in voriconazole trough concentration. Nevertheless, none of the above-mentioned studies explored the reasons for this finding. Platelet count is related to liver function [49]. When liver function declines, the associated portal hypertension and decreased thrombopoietin levels lead to decreased platelet count [50]. Therefore, the platelet count observed in our study may just be a reflection of liver function. The scatter diagram (Supplementary Figure S1A,B) between PLT and AST, as well as between PLT and total bilirubin, confirmed this hypothesis. Therefore, further experiments are required to elucidate the potential mechanism and to confirm whether PLT are innocent bystanders or active players.

3.5. Voriconazole CL Increases When qCRP Decreases

Our study found that an increase in qCRP was related to a decrease in voriconazole CL, which has been widely confirmed in previous studies [39,51,52,53,54,55,56]. This is attributed to the fact that, in an inflammatory state, inflammatory mediators can bind to cytokine and toll-like receptor 4 receptors on the cell membrane and regulate the expression of transporters and drug-related metabolic enzymes through the NF-κB signaling pathway [57]. These findings suggested that metabolizing enzymes, including cytochrome P450 (CYP) isoenzymes, are downregulated by inflammatory cytokines, resulting in a decrease in voriconazole CL [56,58]. Furthermore, the inflammatory status may modulate polymorphisms in PK-related genes, which may influence the metabolic pathway from voriconazole to voriconazole N-oxide [54].

3.6. Voriconazole CL Increases When PT Decrease

In our study, the increase in PT was associated with an increase in the voriconazole concentration. To date, no other PK studies have reported such a finding. Although no collinearity was observed when the covariates were included in the model, we suspect that a correlation exists between PT and liver function. PT, which are mainly metabolized in the liver through CYP isozymes [59], are considered a reliable marker of liver protein synthesis and, therefore, of the liver functional reserve [60]. The scatter diagram (Supplementary Figure S2A,B) between PT and AST, as well as between PT and total bilirubin, confirmed this hypothesis.

3.7. No Effect of ECMO on Voriconazole CL Was Observed

We did not observe any effect of ECMO on voriconazole CL, despite previous in vitro studies [14,15,16,17,18] and one retrospective study [26] reporting that ECMO affects voriconazole PKs. Nevertheless, the largest study to date, a retrospective study from eight centers in four countries (69 patients, 337 samples), suggested that ECMO had no significant effect on voriconazole exposure [27], consistent with our results. One study mentioned binding-site saturation to explain the fluctuations in voriconazole concentrations in ECMO patients [21]. However, the ECMO population in our study was small (85 patients), which may have obscured the impact of ECMO on voriconazole; thus, a larger population may be needed to resolve this controversial issue in the future.

3.8. Limitations

Our study had several limitations. First, the study population was limited to a single-center respiratory ICU, with pulmonary infection being the main diagnosis; therefore, the results may not necessarily reflect those of other ICU patients. Second, other factors, such as diet and CYP genotyping, were not tested in this study but may have an impact on voriconazole PK. Future studies should also include measurements of dialysis specimens to more accurately assess the potential impact of CRRT on voriconazole CL. Finally, in the simulation based on literature data from healthy volunteers, the protein binding rate was fixed at 58%. However, in severely ill patients, due to generally low protein levels, the protein binding rate may be different, thus limiting the applicability of models and simulations.

4. Materials and Methods

4.1. Study Design and Ethics

This study was conducted in a 22-bed respiratory ICU at a 1600-bed teaching tertiary hospital in Beijing. In this department, voriconazole is used approximately 15% of the time for various reasons (prophylactic or therapeutic). We combined prospective intensive sampling and retrospective trough concentration monitoring with routine TDM. This study included patients who were admitted to the respiratory ICU from January 2017 to December 2023 and received intravenous or oral/nasogastric voriconazole (200 mg, Pfizer Pharmaceuticals Ltd., Kalamazoo, MI, USA). The exclusion criteria were as follows: (1) age < 18 years; (2) pregnancy; (3) lack of important dosing information or clinical data; and (4) concomitant use of drugs known to significantly affect the PKs of voriconazole, such as rifampicin, rifabutin, phenytoin, phenobarbital, or carbamazepine. This clinical study was approved by the Ethics Committee of the China–Japan Friendship Hospital (2022-KY-113-1), and written informed consent was obtained from all prospective participants involved in the study. Considering ethical requirements, we only collected 1 mL of blood for testing.

4.2. Drug Regimens and Clinical Data

Voriconazole was administered as recommended by clinicians, whether prophylactically, empirically, or based on microbiological outcomes. We did not interfere with the dose or frequency of drug administration. Retrospective trough concentrations were monitored when the doctor deemed it necessary (usually 5–7 d after administration), and prospective samples were collected when the drug concentration reached a stable state. The definition of the voriconazole stable-state trough concentration is as follows: the trough concentration measured after voriconazole loading-dose treatment for >3 d or without loading-dose treatment for >5 d [61,62,63].
Prospective blood samples (1 mL) were collected from patients using purple blood collection tubes anticoagulated with ethylenediaminetetraacetic acid via an arterial catheter before the start of infusion, at the end of infusion (with voriconazole dissolved in 50 mL or 100 mL of solvent, typically completing the infusion within 30–60 min), and at 2, 4, 6, 8, and 12 h after infusion. The specimens were centrifuged at 2000× g for 5 min, transferred into polypropylene tubes, and frozen at −80 °C until use. The TDM trough concentration was measured by a nurse 30 min before the next dose and immediately sent to the Department of Pharmacy at our hospital for testing.
For each patient, demographic data (age, sex, weight, height, body mass index (BMI)), laboratory test results (routine blood examination, alanine transaminase (ALT), AST, bilirubin, albumin, creatinine, CLCR, estimated glomerular filtration rate (eGFR), urea, qCRP), the Acute Physiology and Chronic Health Evaluation (APACHE) II score, the Sequential Organ Failure Assessment (SOFA) score, CRRT condition, ECMO condition, medication records (dose, time, and frequency), concomitant medications (glucocorticoids and proton-pump inhibitors), and clinical outcomes were recorded. Of note, CLCR was calculated using the Cockcroft–Gault equation.

4.3. Drug Assay

The concentration of voriconazole was analyzed using an ultrahigh-performance liquid chromatography–tandem mass spectrometry (UPLC-MS) method previously validated in our laboratory [26]. Liquid chromatography was performed with a Waters Acquity UPLC system with an Acquity UPLC© BEH-C18 column (50 mm × 2.1 mm, 1.7 μm) at 40 °C. The mobile phases were pumped at a flow rate of 0.2 mL/min and consisted of 2 mmol/L ammonium acetate and 0.1% formic acid (mobile phase A) and acetonitrile containing 0.1% formic acid (mobile phase B). A Waters Quattro Premier XE triple–quadrupole mass spectrometer was used to detect the analytes. Quantification was accomplished via electrospray ionization in the positive ion mode with multiple-reaction monitoring. The lower limit of quantification was 0.097 mg/L for the analytes. The calibration curves were linear over a range of 0.097–12.500 mg/L. The intra- and inter-day precision was less than 7%. The accuracy, extraction recovery, matrix effect, and intra- and inter-assay precision all met the requirements for quantitative analysis of in vivo concentrations.

4.4. Model Selection

4.4.1. Structural Model

The modeling analysis and calculation of the pharmacokinetic parameters were conducted using the nonlinear mixed-effects modeling method (NONMEM, version 7.2.0, ICON Development Solutions, Ellicott City, MD, USA) using a two-compartment model with linear elimination kinetics. The first-order conditional estimation method was applied to all model runs. The CL, Vd, the area under the drug plasma concentration–time curve over 24 h of voriconazole (AUC24), and bioavailability (F) were characterized and estimated. The absorption rate constant (Ka) was fixed to a value of 1.2/h, as reported elsewhere [64,65]. We used the Akaike information criteria (AIC) to compare the models, and the model with the lowest AIC value was considered the best. At the same time, we also consider graphic criteria such as GOF plots and pcVPC plots.

4.4.2. Statistical Model

Inter-individual variations in voriconazole pharmacokinetics were modeled exponentially: Pij = Ppop × exp(ηij), where Pij is the j-th pharmacokinetic parameter estimation of the i-th individual, Ppop is the population typical value of the j-th parameter, and ηij is an inter-individual random variable distributed with a mean of 0 and a variance of ω2.
Residual variability was evaluated by the combined error model: Cobs = Cpred × (1 + ε) + ε’, where Cobs and Cpred are the observed and predicted concentrations, while ε and ε’ are random variables distributed with a mean of 0 and variances of σ2 and σ’2, respectively.

4.4.3. Covariate Model

After base model development, the effect of the potential covariates on voriconazole PK parameters were studied using a stepwise forward selection and backward elimination steps. Preliminary inspections were made on the potential impact of individual covariates on voriconazole PK parameters based on scatterplots (continuous variables) and boxplots (categorical variables) of η values against covariates. Covariates associated with a significant decrease in the OFV (OFV defined as −2 times the log-likelihood) of greater than 3.84 (p < 0.05, χ2 distribution with 1 degree of freedom) were added to the base model. Then, covariates that resulted in a significant increase in the OFV of at least 7.88 (p < 0.005, χ2 distribution with 1 degree of freedom) were retained in the final model during the backward deletion. Additional criteria for evaluating the covariates included were a reduction in unexplained inter-individual variability, diagnostic plots of the weighted residuals, and the GOF. Only biologically plausible covariates could be included in the final model.
The continuous covariates examined were age, weight, height, BMI, body surface area, white blood cell count, neutrophil count, lymphocyte count, hemoglobin, PLT, qCRP, coagulation indicators, AST, ALT, bilirubin, albumin, creatinine, CLCR, eGFR, urea, the APACHE II score, and the SOFA score. The categorical covariates examined were sex, co-medications such as proton pump inhibitors and glucocorticoids, whether to perform an ECMO, and whether to perform a CRRT.

4.5. Model Validation

The model was validated by GOF analyses, the nonparametric bootstrap method and pcVPC. The GOF analyses consisted of four plots as follows: the observed concentration (DV) vs. individual-predicted concentration (IPRED), DV vs. the population-predicted concentration (PRED), the CWRES vs. time, and CWRES vs. PRED graphs.
The nonparametric bootstrap procedure was conducted using 1000 randomly re-sampled data to evaluate the stability of the final model. The parameters (median and 95% CI) obtained from the bootstrap analysis were compared with the estimates of the final model.
Meanwhile, the pcVPC method was also used to graphically evaluate the adequacy of fitting. The data set was simulated 1000 times, and the simulated concentrations (5th, 50th, and 95th percentiles) were compared with the observed data.

4.6. Monte Carlo Simulations

We used the free (unbound to plasma proteins) area under the concentration–time curve from 0 to 24 h (ƒAUC24) divided by the MIC (ƒAUC24/MIC) > 25 as the PK/PD index (64). A value of 58% protein binding in human plasma was used to simulate fAUC24 (65). We then used MCS (n = 1000) to evaluate the impact of CRRT and qCRP on the probability of achieving voriconazole PK/PD targets under different dosing regimens. The most common MICs for clinical isolates of Aspergillus and Candida in our hospital, as certified by microbiology laboratory physicians, were used as PD factors. The MCS results were expressed as the PTA, with a PTA value of >90% considered an optimal empirical dosing regimen.
The following three dosages were selected for the simulation: (1) 200 mg every 12 h by intravenous infusion; (2) 250 mg every 12 h by intravenous infusion; and (3) 300 mg every 12 h by intravenous infusion. All simulated infusion times were 1 h. The simulated MICs were 0.016, 0.032, 0.25, 0.5, 1, 2, 8, and 16 mg/L for Aspergillus or Candida infections.

4.7. Statistical Analysis

Statistical analyses were performed with SPSS 29.0, and figures were drawn using GraphPad Prism 10.0. Continuous variables were expressed as the mean ± SD or median and interquartile range (IQR). Categorical variables are presented in terms of frequency (%). The Student’s t test and the Mann–Whitney U test were used to compare continuous variables and the chi-square test and Fisher’s exact test were used to compare categorical variables. Statistical significance was defined as a p < 0.05.

5. Conclusions

In this study, we established a PopPK model of voriconazole and evaluated the effects of ECMO, CRRT, and various physiological and biochemical factors on PK parameters. We found that the qCRP, CRRT, CLCR, PLT, and PT affected the PK parameter CL. The most commonly used clinical regimen of 200 mg q12h was sufficient against the most common sensitive pathogens (MIC ≤ 0.25 mg/L) [66], regardless of whether CRRT was performed and the level of qCRP. When the MIC was 0.5 mg/L, 200 mg q12h was insufficient only when the qCRP was <40 mg/L and CRRT was performed. When the MIC was 1 mg/L, a dose of 200 mg q12h was insufficient. When the MIC was ≥2 mg/L, a dose of 300 mg q12h could not achieve a ≥90% PTA, necessitating the evaluation of a higher dose.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph17060665/s1, Figure S1: A. The scatter diagram between PLT and AST; B. The scatter diagram between PLT and total bilirubin. Figure S2: A. The scatter diagram between PT and AST; B. The scatter diagram between PT and total bilirubin. Table S1. PK parameters grouped according to the route of administration.

Author Contributions

Methodology, Q.Z., W.C., P.L., Z.Q. and C.W.; Software, W.C.; Validation, W.C.; Data curation, Y.W., Q.Y. and L.H.; Writing—original draft, Y.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fund of National High-Level Hospital Clinical Research Funding, grant number 2023-NHLHCRF-YYPP-TS-03.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of the China–Japan Friendship Hospital (2022-KY-113-1).

Informed Consent Statement

Written informed consent was obtained from all prospective participants involved in the study.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Johnson, L.B.; Kauffman, C.A. Voriconazole: A new triazole antifungal agent. Clin. Infect. Dis. 2003, 36, 630–637. [Google Scholar] [CrossRef] [PubMed]
  2. Patterson, T.F.; Thompson, G.R., 3rd; Denning, D.W.; Fishman, J.A.; Hadley, S.; Herbrecht, R.; Kontoyiannis, D.P.; Marr, K.A.; Morrison, V.A.; Nguyen, M.H.; et al. Practice Guidelines for the Diagnosis and Management of Aspergillosis: 2016 Update by the Infectious Diseases Society of America. Clin. Infect. Dis. 2016, 63, e1–e60. [Google Scholar] [CrossRef] [PubMed]
  3. Pappas, P.G.; Kauffman, C.A.; Andes, D.R.; Clancy, C.J.; Marr, K.A.; Ostrosky-Zeichner, L.; Reboli, A.C.; Schuster, M.G.; Vazquez, J.A.; Walsh, T.J.; et al. Clinical Practice Guideline for the Management of Candidiasis: 2016 Update by the Infectious Diseases Society of America. Clin. Infect. Dis. 2016, 62, e1–e50. [Google Scholar] [CrossRef] [PubMed]
  4. Hope, W.W.; Billaud, E.M.; Lestner, J.; Denning, D.W. Therapeutic drug monitoring for triazoles. Curr. Opin. Infect. Dis. 2008, 21, 580–586. [Google Scholar] [CrossRef] [PubMed]
  5. Moriyama, B.; Obeng, A.O.; Barbarino, J.; Penzak, S.R.; Henning, S.A.; Scott, S.A.; Agundez, J.; Wingard, J.R.; McLeod, H.L.; Klein, T.E.; et al. Clinical Pharmacogenetics Implementation Consortium (CPIC) Guidelines for CYP2C19 and Voriconazole Therapy. Clin. Pharmacol. Ther. 2017, 102, 45–51. [Google Scholar] [CrossRef] [PubMed]
  6. Ashbee, H.R.; Barnes, R.A.; Johnson, E.M.; Richardson, M.D.; Gorton, R.; Hope, W.W. Therapeutic drug monitoring (TDM) of antifungal agents: Guidelines from the British Society for Medical Mycology. J. Antimicrob. Chemother. 2014, 69, 1162–1176. [Google Scholar] [CrossRef] [PubMed]
  7. Hahn, J.; Choi, J.H.; Chang, M.J. Pharmacokinetic changes of antibiotic, antiviral, antituberculosis and antifungal agents during extracorporeal membrane oxygenation in critically ill adult patients. J. Clin. Pharm. Ther. 2017, 42, 661–671. [Google Scholar] [CrossRef]
  8. Heffernan, A.J.; Mohd Sazlly Lim, S.; Lipman, J.; Roberts, J.A. A personalised approach to antibiotic pharmacokinetics and pharmacodynamics in critically ill patients. Anaesth. Crit. Care Pain. Med. 2021, 40, 100970. [Google Scholar] [CrossRef] [PubMed]
  9. Roberts, J.A.; Abdul-Aziz, M.H.; Lipman, J.; Mouton, J.W.; Vinks, A.A.; Felton, T.W.; Hope, W.W.; Farkas, A.; Neely, M.N.; Schentag, J.J.; et al. Individualised antibiotic dosing for patients who are critically ill: Challenges and potential solutions. Lancet Infect. Dis. 2014, 14, 498–509. [Google Scholar] [CrossRef]
  10. Buck, M.L. Pharmacokinetic changes during extracorporeal membrane oxygenation: Implications for drug therapy of neonates. Clin. Pharmacokinet. 2003, 42, 403–417. [Google Scholar] [CrossRef]
  11. Chen, W.; Xie, H.; Liang, F.; Meng, D.; Rui, J.; Yin, X.; Zhang, T.; Xiao, X.; Cai, S.; Liu, X.; et al. Population Pharmacokinetics in China: The Dynamics of Intravenous Voriconazole in Critically Ill Patients with Pulmonary Disease. Biol. Pharm. Bull. 2015, 38, 996–1004. [Google Scholar] [CrossRef] [PubMed]
  12. Myrianthefs, P.; Markantonis, S.L.; Evaggelopoulou, P.; Despotelis, S.; Evodia, E.; Panidis, D.; Baltopoulos, G. Monitoring plasma voriconazole levels following intravenous administration in critically ill patients: An observational study. Int. J. Antimicrob. Agents 2010, 35, 468–472. [Google Scholar] [CrossRef] [PubMed]
  13. Lin, X.B.; Lui, K.Y.; Guo, P.H.; Liu, X.M.; Liang, T.; Hu, X.G.; Tong, L.; Wu, J.J.; Xia, Y.Z.; Chen, P.; et al. Population pharmacokinetic model-guided optimization of intravenous voriconazole dosing regimens in critically ill patients with liver dysfunction. Pharmacotherapy 2022, 42, 23–33. [Google Scholar] [CrossRef] [PubMed]
  14. Cies, J.J.; Moore, W.S., 2nd; Giliam, N.; Low, T.; Marino, D.; Deacon, J.; Enache, A.; Chopra, A. Oxygenator impact on voriconazole in extracorporeal membrane oxygenation circuits. Perfusion 2020, 35, 529–533. [Google Scholar] [CrossRef] [PubMed]
  15. Mehta, N.M.; Halwick, D.R.; Dodson, B.L.; Thompson, J.E.; Arnold, J.H. Potential drug sequestration during extracorporeal membrane oxygenation: Results from an ex vivo experiment. Intensive Care Med. 2007, 33, 1018–1024. [Google Scholar] [CrossRef] [PubMed]
  16. Raffaeli, G.; Cavallaro, G.; Allegaert, K.; Koch, B.C.P.; Mosca, F.; Tibboel, D.; Wildschut, E.D. Sequestration of Voriconazole and Vancomycin Into Contemporary Extracorporeal Membrane Oxygenation Circuits: An in vitro Study. Front. Pediatr. 2020, 8, 468. [Google Scholar] [CrossRef] [PubMed]
  17. Lyster, H.; Pitt, T.; Maunz, O.; Diamond, S.; Roberts, J.A.; Brown, D.; Mills, J.; Armstrong-James, D.; Gerovasili, V.; Carby, M.; et al. Variable Sequestration of Antifungals in an Extracorporeal Membrane Oxygenation Circuit. ASAIO J. 2023, 69, 309–314. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, Y.; Hu, H.; Zhang, Q.; Ou, Q.; Zhou, H.; Sha, T.; Zeng, Z.; Wu, J.; Lu, J.; Chen, Z. Effects of ex vivo Extracorporeal Membrane Oxygenation Circuits on Sequestration of Antimicrobial Agents. Front. Med. 2021, 8, 748769. [Google Scholar] [CrossRef]
  19. Peterson, E.L.; Chittick, P.J.; Richardson, C.L. Decreasing voriconazole requirement in a patient after extracorporeal membrane oxygenation discontinuation: A case report. Transpl. Infect. Dis. 2021, 23, e13545. [Google Scholar] [CrossRef]
  20. Mathieu, A.; Thiboutot, Z.; Ferreira, V.; Benoit, P.; Grandjean Lapierre, S.; Po, H.E.; Halwagi, A. Voriconazole Sequestration During Extracorporeal Membrane Oxygenation for Invasive Lung Aspergillosis: A Case Report. ASAIO J. 2022, 68, e56–e58. [Google Scholar] [CrossRef]
  21. Spriet, I.; Annaert, P.; Meersseman, P.; Hermans, G.; Meersseman, W.; Verbesselt, R.; Willems, L. Pharmacokinetics of caspofungin and voriconazole in critically ill patients during extracorporeal membrane oxygenation. J. Antimicrob. Chemother. 2009, 63, 767–770. [Google Scholar] [CrossRef] [PubMed]
  22. Ruiz, S.; Papy, E.; Da Silva, D.; Nataf, P.; Massias, L.; Wolff, M.; Bouadma, L. Potential voriconazole and caspofungin sequestration during extracorporeal membrane oxygenation. Intensive Care Med. 2009, 35, 183–184. [Google Scholar] [CrossRef] [PubMed]
  23. Bruggemann, R.J.; Antonius, T.; Heijst, A.; Hoogerbrugge, P.M.; Burger, D.M.; Warris, A. Therapeutic drug monitoring of voriconazole in a child with invasive aspergillosis requiring extracorporeal membrane oxygenation. Ther. Drug Monit. 2008, 30, 643–646. [Google Scholar] [CrossRef] [PubMed]
  24. Vu, T.; Feih, J.; Juul, J. Fluctuating Voriconazole Concentrations during Extracorporeal Membrane Oxygenation. J. Pharm. Pract. 2023, 36, 998–1001. [Google Scholar] [CrossRef]
  25. Lin, X.B.; Hu, X.G.; Xia, Y.Z.; Liu, X.M.; Liang, T.; Chen, X.; Cai, C.J. Voriconazole pharmacokinetics in a critically ill patient during extracorporeal membrane oxygenation. J. Chemother. 2022, 34, 272–276. [Google Scholar] [CrossRef] [PubMed]
  26. Ye, Q.; Yu, X.; Chen, W.; Li, M.; Gu, S.; Huang, L.; Zhan, Q.; Wang, C. Impact of extracorporeal membrane oxygenation on voriconazole plasma concentrations: A retrospective study. Front. Pharmacol. 2022, 13, 972585. [Google Scholar] [CrossRef] [PubMed]
  27. Van Daele, R.; Bekkers, B.; Lindfors, M.; Broman, L.M.; Schauwvlieghe, A.; Rijnders, B.; Hunfeld, N.G.M.; Juffermans, N.P.; Taccone, F.S.; Coimbra Sousa, C.A.; et al. A Large Retrospective Assessment of Voriconazole Exposure in Patients Treated with Extracorporeal Membrane Oxygenation. Microorganisms 2021, 9, 1543. [Google Scholar] [CrossRef] [PubMed]
  28. Abel, S.; Allan, R.; Gandelman, K.; Tomaszewski, K.; Webb, D.J.; Wood, N.D. Pharmacokinetics, safety and tolerance of voriconazole in renally impaired subjects: Two prospective, multicentre, open-label, parallel-group volunteer studies. Clin. Drug Investig. 2008, 28, 409–420. [Google Scholar] [CrossRef] [PubMed]
  29. Lin, X.B.; Li, Z.W.; Yan, M.; Zhang, B.K.; Liang, W.; Wang, F.; Xu, P.; Xiang, D.X.; Xie, X.B.; Yu, S.J.; et al. Population pharmacokinetics of voriconazole and CYP2C19 polymorphisms for optimizing dosing regimens in renal transplant recipients. Br. J. Clin. Pharmacol. 2018, 84, 1587–1597. [Google Scholar] [CrossRef]
  30. Kim, S.H.; Kwon, J.C.; Park, C.; Han, S.; Yim, D.S.; Choi, J.K.; Cho, S.Y.; Lee, H.J.; Park, S.H.; Choi, S.M.; et al. Therapeutic drug monitoring and safety of intravenous voriconazole formulated with sulfobutylether beta-cyclodextrin in haematological patients with renal impairment. Mycoses 2016, 59, 644–651. [Google Scholar] [CrossRef]
  31. Huang, H.G.; Wang, H.L.; Lin, Y.K.; Yi, Y.D.; Liu, M.; Dong, J.L.; Liu, J.M.; Chen, F.; Deng, T.Y.; Hu, S. Factors Influencing and Adverse Reactions of Voriconazole Clearance in Patients with Hematological Diseases. Zhongguo Shi Yan Xue Ye Xue Za Zhi 2023, 31, 562–567. [Google Scholar] [PubMed]
  32. Fuhrmann, V.; Schenk, P.; Jaeger, W.; Miksits, M.; Kneidinger, N.; Warszawska, J.; Holzinger, U.; Kitzberger, R.; Thalhammer, F. Pharmacokinetics of voriconazole during continuous venovenous haemodiafiltration. J. Antimicrob. Chemother. 2007, 60, 1085–1090. [Google Scholar] [CrossRef]
  33. Radej, J.; Krouzecky, A.; Stehlik, P.; Sykora, R.; Chvojka, J.; Karvunidis, T.; Novak, I.; Matejovic, M. Pharmacokinetic evaluation of voriconazole treatment in critically ill patients undergoing continuous venovenous hemofiltration. Ther. Drug Monit. 2011, 33, 393–397. [Google Scholar] [CrossRef]
  34. Quintard, H.; Papy, E.; Massias, L.; Lasocki, S.; Arnaud, P.; Desmonts, J.M.; Montravers, P. The pharmacokinetic profile of voriconazole during continuous high-volume venovenous hemofiltration in a critically ill patient. Ther. Drug Monit. 2008, 30, 117–119. [Google Scholar] [CrossRef]
  35. Grensemann, J.; Pfaffendorf, C.; Wicha, S.G.; Konig, C.; Roedl, K.; Jarczak, D.; Iwersen-Bergmann, S.; Manthey, C.; Kluge, S.; Fuhrmann, V. Voriconazole Pharmacokinetics Are Not Altered in Critically Ill Patients with Acute-on-Chronic Liver Failure and Continuous Renal Replacement Therapy: An Observational Study. Microorganisms 2021, 9, 2087. [Google Scholar] [CrossRef]
  36. Kiang, T.K.; Sherwin, C.M.; Spigarelli, M.G.; Ensom, M.H. Fundamentals of Population Pharmacokinetic Modelling: Modelling and Software. Clin. Pharmacokinet. 2012, 51, 515–525. [Google Scholar] [CrossRef]
  37. Heng, S.C.; Snell, G.I.; Levvey, B.; Keating, D.; Westall, G.P.; Williams, T.J.; Whitford, H.; Nation, R.L.; Slavin, M.A.; Morrissey, O.; et al. Relationship between trough plasma and epithelial lining fluid concentrations of voriconazole in lung transplant recipients. Antimicrob. Agents Chemother. 2013, 57, 4581–4583. [Google Scholar] [CrossRef] [PubMed]
  38. Capitano, B.; Potoski, B.A.; Husain, S.; Zhang, S.; Paterson, D.L.; Studer, S.M.; McCurry, K.R.; Venkataramanan, R. Intrapulmonary penetration of voriconazole in patients receiving an oral prophylactic regimen. Antimicrob. Agents Chemother. 2006, 50, 1878–1880. [Google Scholar] [CrossRef] [PubMed]
  39. Ruiz, J.; Gordon, M.; Villarreal, E.; Peruccioni, M.; Marques, M.R.; Poveda-Andres, J.L.; Castellanos-Ortega, A.; Ramirez, P. Impact of voriconazole plasma concentrations on treatment response in critically ill patients. J. Clin. Pharm. Ther. 2019, 44, 572–578. [Google Scholar] [CrossRef]
  40. Han, K.; Capitano, B.; Bies, R.; Potoski, B.A.; Husain, S.; Gilbert, S.; Paterson, D.L.; McCurry, K.; Venkataramanan, R. Bioavailability and population pharmacokinetics of voriconazole in lung transplant recipients. Antimicrob. Agents Chemother. 2010, 54, 4424–4431. [Google Scholar] [CrossRef]
  41. Robatel, C.; Rusca, M.; Padoin, C.; Marchetti, O.; Liaudet, L.; Buclin, T. Disposition of voriconazole during continuous veno-venous haemodiafiltration (CVVHDF) in a single patient. J. Antimicrob. Chemother. 2004, 54, 269–270. [Google Scholar] [CrossRef]
  42. Schetz, M.; Ferdinande, P.; Van den Berghe, G.; Verwaest, C.; Lauwers, P. Pharmacokinetics of continuous renal replacement therapy. Intensive Care Med. 1995, 21, 612–620. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, S.; McClave, S.A.; Martindale, R.G.; Miller, K.R.; Hurt, R.T. Hypoalbuminemia and Clinical Outcomes: What is the Mechanism behind the Relationship? Am. Surg. 2017, 83, 1220–1227. [Google Scholar] [CrossRef] [PubMed]
  44. Zhao, Y.; Liu, H.; Xiao, C.; Hou, J.; Zhang, B.; Li, J.; Zhang, M.; Jiang, Y.; Sandaradura, I.; Ding, X.; et al. Enhancing voriconazole therapy in liver dysfunction: Exploring administration schemes and predictive factors for trough concentration and efficacy. Front. Pharmacol. 2023, 14, 1323755. [Google Scholar] [CrossRef] [PubMed]
  45. Cheng, L.; Liang, Z.; Liu, F.; Lin, L.; Zhang, J.; Xie, L.; Yu, M.; Sun, F. Factors influencing plasma concentration of voriconazole and voriconazole- N-oxide in younger adult and elderly patients. Front. Pharmacol. 2023, 14, 1126580. [Google Scholar] [CrossRef]
  46. Tang, D.; Song, B.L.; Yan, M.; Zou, J.J.; Zhang, M.; Zhou, H.Y.; Wang, F.; Xiao, Y.W.; Xu, P.; Zhang, B.K.; et al. Identifying factors affecting the pharmacokinetics of voriconazole in patients with liver dysfunction: A population pharmacokinetic approach. Basic. Clin. Pharmacol. Toxicol. 2019, 125, 34–43. [Google Scholar] [CrossRef]
  47. Tang, D.; Yan, M.; Song, B.L.; Zhao, Y.C.; Xiao, Y.W.; Wang, F.; Liang, W.; Zhang, B.K.; Chen, X.J.; Zou, J.J.; et al. Population pharmacokinetics, safety and dosing optimization of voriconazole in patients with liver dysfunction: A prospective observational study. Br. J. Clin. Pharmacol. 2021, 87, 1890–1902. [Google Scholar] [CrossRef] [PubMed]
  48. Zhao, Y.C.; Lin, X.B.; Zhang, B.K.; Xiao, Y.W.; Xu, P.; Wang, F.; Xiang, D.X.; Xie, X.B.; Peng, F.H.; Yan, M. Predictors of Adverse Events and Determinants of the Voriconazole Trough Concentration in Kidney Transplantation Recipients. Clin. Transl. Sci. 2021, 14, 702–711. [Google Scholar] [CrossRef]
  49. Marongiu, F.; Mamusa, A.M.; Mameli, G.; Mulas, G.; Cambuli, A.B.; Piga, M.; Tronci, M.B.; Balestrieri, A. Thrombocytopenia and liver cirrhosis evidence for relationship between platelet count, spleen size and hepatic synthetic activity. Thromb. Res. 1987, 45, 275–278. [Google Scholar] [CrossRef]
  50. Pradella, P.; Bonetto, S.; Turchetto, S.; Uxa, L.; Comar, C.; Zorat, F.; De Angelis, V.; Pozzato, G. Platelet production and destruction in liver cirrhosis. J. Hepatol. 2011, 54, 894–900. [Google Scholar] [CrossRef]
  51. Veringa, A.; Ter Avest, M.; Span, L.F.; van den Heuvel, E.R.; Touw, D.J.; Zijlstra, J.G.; Kosterink, J.G.; van der Werf, T.S.; Alffenaar, J.C. Voriconazole metabolism is influenced by severe inflammation: A prospective study. J. Antimicrob. Chemother. 2017, 72, 261–267. [Google Scholar] [CrossRef] [PubMed]
  52. Encalada Ventura, M.A.; Span, L.F.; van den Heuvel, E.R.; Groothuis, G.M.; Alffenaar, J.W. Influence of inflammation on voriconazole metabolism. Antimicrob. Agents Chemother. 2015, 59, 2942–2943. [Google Scholar] [CrossRef] [PubMed]
  53. Vreugdenhil, B.; van der Velden, W.; Feuth, T.; Kox, M.; Pickkers, P.; van de Veerdonk, F.L.; Blijlevens, N.M.A.; Bruggemann, R.J.M. Moderate correlation between systemic IL-6 responses and CRP with trough concentrations of voriconazole. Br. J. Clin. Pharmacol. 2018, 84, 1980–1988. [Google Scholar] [CrossRef] [PubMed]
  54. Aiuchi, N.; Nakagawa, J.; Sakuraba, H.; Takahata, T.; Kamata, K.; Saito, N.; Ueno, K.; Ishiyama, M.; Yamagata, K.; Kayaba, H.; et al. Impact of polymorphisms of pharmacokinetics-related genes and the inflammatory response on the metabolism of voriconazole. Pharmacol. Res. Perspect. 2022, 10, e00935. [Google Scholar] [CrossRef]
  55. Dote, S.; Sawai, M.; Nozaki, A.; Naruhashi, K.; Kobayashi, Y.; Nakanishi, H. A retrospective analysis of patient-specific factors on voriconazole clearance. J. Pharm. Health Care Sci. 2016, 2, 10. [Google Scholar] [CrossRef]
  56. Jiang, Z.; Wei, Y.; Huang, W.; Li, B.; Zhou, S.; Liao, L.; Li, T.; Liang, T.; Yu, X.; Li, X.; et al. Population pharmacokinetics of voriconazole and initial dosage optimization in patients with talaromycosis. Front. Pharmacol. 2022, 13, 982981. [Google Scholar] [CrossRef]
  57. Wu, K.C.; Lin, C.J. The regulation of drug-metabolizing enzymes and membrane transporters by inflammation: Evidences in inflammatory diseases and age-related disorders. J. Food Drug Anal. 2019, 27, 48–59. [Google Scholar] [CrossRef]
  58. Stanke-Labesque, F.; Gautier-Veyret, E.; Chhun, S.; Guilhaumou, R.; French Society of Pharmacology and Therapeutics. Inflammation is a major regulator of drug metabolizing enzymes and transporters: Consequences for the personalization of drug treatment. Pharmacol. Ther. 2020, 215, 107627. [Google Scholar] [CrossRef]
  59. Roffey, S.J.; Cole, S.; Comby, P.; Gibson, D.; Jezequel, S.G.; Nedderman, A.N.; Smith, D.A.; Walker, D.K.; Wood, N. The disposition of voriconazole in mouse, rat, rabbit, guinea pig, dog, and human. Drug Metab. Dispos. 2003, 31, 731–741. [Google Scholar] [CrossRef]
  60. Takikawa, Y.; Harada, M.; Wang, T.; Suzuki, K. Usefulness and accuracy of the international normalized ratio and activity percent of prothrombin time in patients with liver disease. Hepatol. Res. 2014, 44, 92–101. [Google Scholar] [CrossRef]
  61. Wei, X.; Zhao, M.; Fu, P.; Xiao, X. Risk factors associated with insufficient and potentially toxic voriconazole plasma concentrations: An observational study. J. Chemother. 2019, 31, 401–407. [Google Scholar] [CrossRef] [PubMed]
  62. Wang, T.; Yan, M.; Tang, D.; Xue, L.; Zhang, T.; Dong, Y.; Zhu, L.; Wang, X.; Dong, Y. Therapeutic drug monitoring and safety of voriconazole therapy in patients with Child-Pugh class B and C cirrhosis: A multicenter study. Int. J. Infect. Dis. 2018, 72, 49–54. [Google Scholar] [CrossRef] [PubMed]
  63. Hashemizadeh, Z.; Badiee, P.; Malekhoseini, S.A.; Raeisi Shahraki, H.; Geramizadeh, B.; Montaseri, H. Observational Study of Associations between Voriconazole Therapeutic Drug Monitoring, Toxicity, and Outcome in Liver Transplant Patients. Antimicrob. Agents Chemother. 2017, 61, e01211-17. [Google Scholar] [CrossRef] [PubMed]
  64. Liu, P.; Mould, D.R. Population pharmacokinetic analysis of voriconazole and anidulafungin in adult patients with invasive aspergillosis. Antimicrob. Agents Chemother. 2014, 58, 4718–4726. [Google Scholar] [CrossRef] [PubMed]
  65. Kim, Y.; Rhee, S.J.; Park, W.B.; Yu, K.S.; Jang, I.J.; Lee, S. A Personalized CYP2C19 Phenotype-Guided Dosing Regimen of Voriconazole Using a Population Pharmacokinetic Analysis. J. Clin. Med. 2019, 8, 227. [Google Scholar] [CrossRef]
  66. Zhang, Y.; Wang, S.; Zhou, C.; Zhang, Y.; Pan, J.; Pan, B.; Wang, B.; Hu, B.; Guo, W. Epidemiology of Clinically Significant Aspergillus Species from a Large Tertiary Hospital in Shanghai, China, for the Period of Two Years. Infect. Drug Resist. 2023, 16, 4645–4657. [Google Scholar] [CrossRef]
Pharmaceuticals 17 00665 g001

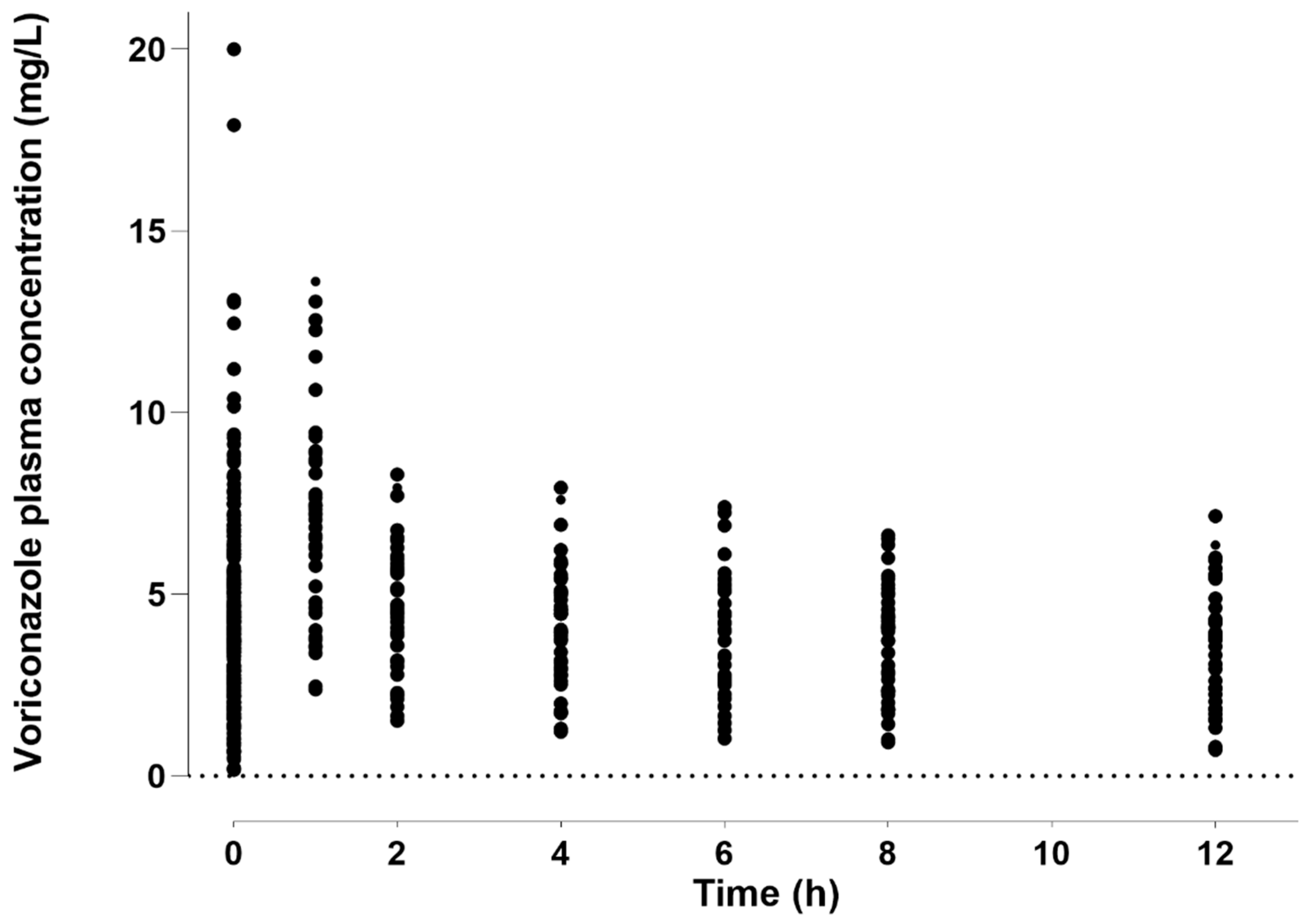

Figure 1. Concentration–time profile of voriconazole concentrations. Therapeutic drug monitoring (TDM) and PK study data are shown.
Figure 1. Concentration–time profile of voriconazole concentrations. Therapeutic drug monitoring (TDM) and PK study data are shown.
Pharmaceuticals 17 00665 g001
Pharmaceuticals 17 00665 g002

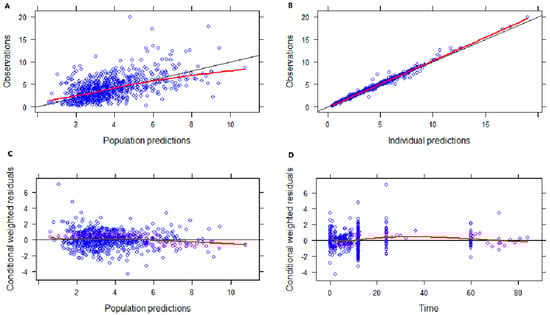

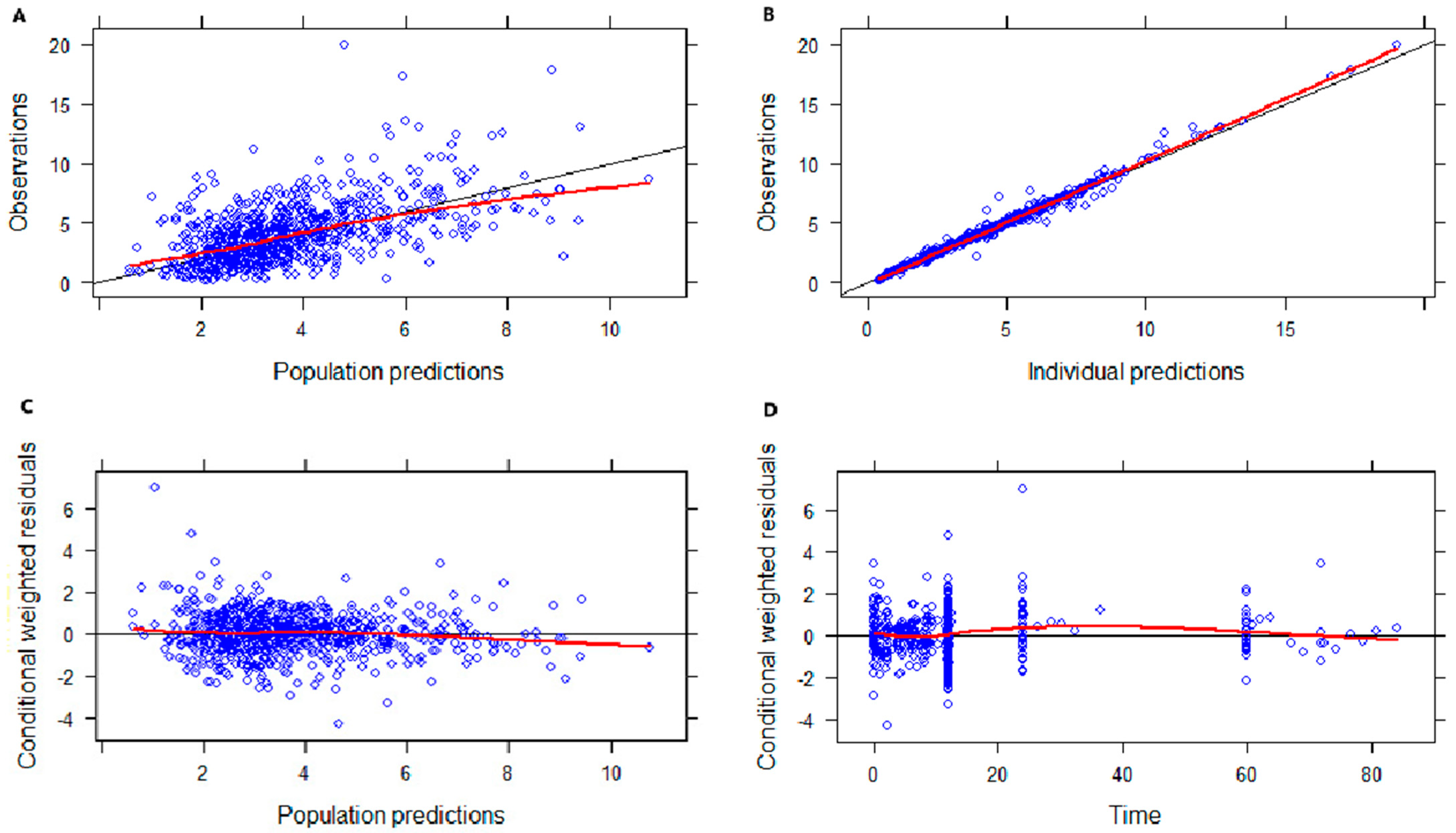

Figure 2. Goodness-of-fit plots of the final model. (A) Observed concentration (DV) versus population-predicted concentration (PRED). (B) DV versus individual−predicted concentration (IPRED). (C) Conditional weighted residuals (CWRES) versus PRED. (D) CWRES versus time.
Figure 2. Goodness-of-fit plots of the final model. (A) Observed concentration (DV) versus population-predicted concentration (PRED). (B) DV versus individual−predicted concentration (IPRED). (C) Conditional weighted residuals (CWRES) versus PRED. (D) CWRES versus time.
Pharmaceuticals 17 00665 g002
Pharmaceuticals 17 00665 g003

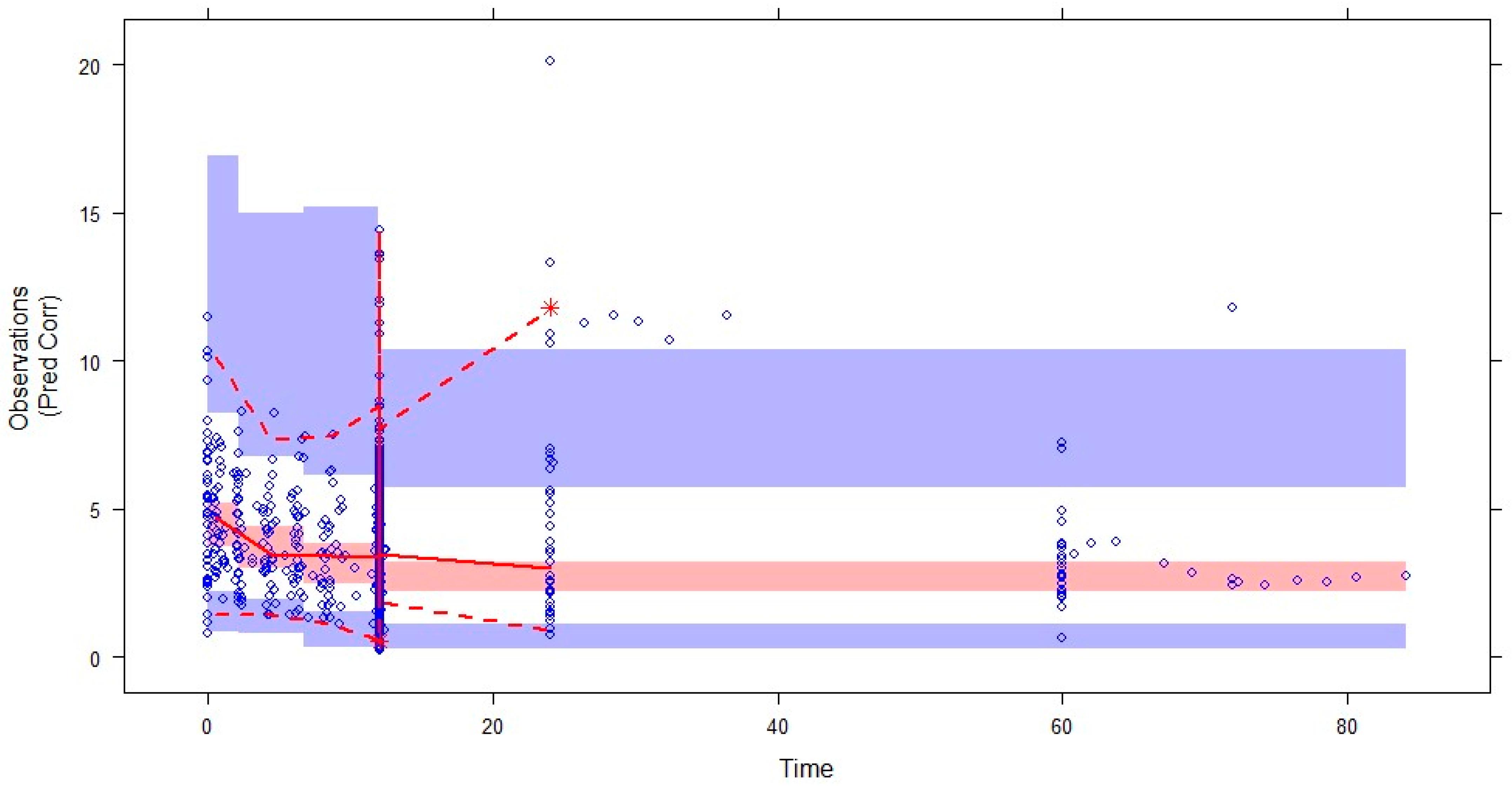

Figure 3. Prediction-corrected VPC (pcVPC) for the final pharmacokinetic model of voriconazole. The blue circles represent the observed data. The middle solid, lower dashed, and upper dashed lines represent the median, 5th, and 95th percentiles for the observed data, respectively. The shaded areas represent a 95% CI for the simulated predicted median, 5th, and 95th percentiles constructed from simulated datasets of individuals from the original data.
Figure 3. Prediction-corrected VPC (pcVPC) for the final pharmacokinetic model of voriconazole. The blue circles represent the observed data. The middle solid, lower dashed, and upper dashed lines represent the median, 5th, and 95th percentiles for the observed data, respectively. The shaded areas represent a 95% CI for the simulated predicted median, 5th, and 95th percentiles constructed from simulated datasets of individuals from the original data.
Pharmaceuticals 17 00665 g003
Table 1. Characteristics of patients included in the study.
Table 1. Characteristics of patients included in the study.
CharacteristicValue a
Age (years) 66 (57, 73)
Sex (male/female) 287/121
Weight (kg) 65 (55, 75)
Height (cm) 169 (162, 173)
Body mass index (kg/m2) 23.2 (20.3, 25.7)
APACHE II score on the day of blood collection19.0 (14.0, 25.0)
SOFA score on the day of blood collection7.0 (4.0, 10.0)
White blood cell count, 109/L, median (IQR)9.9 (6.7, 14.2)
Neutrophilic granulocyte count, 109/L8.4(5.4, 12.4)
Lymphocyte count, 109/L0.8 (0.5, 1.2)
Hemoglobin, 1012/L85.0 (75.0, 100.8)
Platelet, 109/L150.5 (88.0, 223.8)
ALT (U/L)27.0 (16.0, 51.0)
AST (U/L)36.0 (23.0, 61.0)
Total bilirubin (µmol/L)12.9 (8.1, 24.2)
Direct bilirubin (µmol/L)5.7 (2.9, 11.9)
Albumin (mg/dL) 34.0 (30.3, 38.0)
Blood urea (mmol/L)78.5 (54.4, 126.0)
SCR (μmol/L) 78.5 (54.4, 126.0)
CLCR (mL/min) 68.5 (45.5, 102.5)
qCRP (mg/L) 73.6 (30.0, 160.0)
Procalcitonin (ug/L) 0.4 (0.2, 1.5)
Use of proton pump inhibitors (%)353 (70.5)
Use of glucocorticoid (%)197 (39.3)
ECMO (yes/no) 108/393
CRRT (yes/no) 122/379
Administration on day of PK sampling
 Intravenous infusion (%)278 (68.1)
 Oral (%)45 (11.0)
 Nasogastric (%)85 (20.8)
No. (%) receiving voriconazole
200 mg q12h 342 (83.8)
150 mg q12h16 (3.9)
100 mg q12h9 (2.2)
200 mg qm, 100 mg qn b7 (1.7)
Others34 (8.3)
a The median and interquartile range (IQR) are shown for continuous variables; the proportion is shown for categorical variables. These 408 patients generated a total of 501 on-machine occasions. Except for age, sex, weight, height, body mass index (BMI), dosing method and dosage, we used 501 as the base number for all statistics. b qm, every morning; qn, every night. Abbreviations: ALT, alanine transaminase; APACHE, Acute Physiology and Chronic Health Evaluation; AST, aspartate transaminase; CLCR, creatinine clearance; CRRT, continuous renal replacement therapy; ECMO, extracorporeal membrane oxygenation; qCRP, quick C-reactive protein; SCR, serum creatinine concentration; SOFA, Sequential Organ Failure Assessment.
Table 2. Population PK parameters of the final model.
Table 2. Population PK parameters of the final model.
2-Compartment ModelBootstrap (n = 1000)
ParameterEstimateRSE (%)Median95% CI
Fixed effects
CL (L/h) 3.553.53.553.33–3.77
Vc (L)33.5019.133.1122.70–43.38
Vp (L)138.0018.6142.45107.88–183.39
Q (L/h) 52.8015.953.0541.34–70.24
Ka (/h)1.20 (fixed)-1.20 (fixed)-
F0.8355.80.830.75–0.93
θqCRP_CL0.14214.60.140.10–0.19
θCRRT_CL1.465.91.461.29–1.65
θPLT_CL0.16625.20.160.10–0.24
θPT_CL0.87523.20.870.48–1.44
θCLCR_CL0.21815.60.220.14–0.30
Random effects
Inter-individual variability (% CV)
CL (L/h) 49.804.449.2945.05–53.31
Vc (L)66.7026.666.6547.20–90.25
Vp (L)81.7021.878.3946.57–115.06
Q (L/h) 0 (fixed)-0 (fixed)-
Residual error (%CV if proportional, SD if additive)
Additive (mg/L)0.19228.10.200.04–0.33
Proportional 8.99.58.83.78–12.19
Abbreviations: %CV, percent coefficient of variation; CI, confidence interval; CL, clearance; F, bioavailability; Ka, absorption rate constant; Q, intercompartmental clearance; RSE, relative standard error; SD, standard deviation; Vc, volume of distribution in the central compartment; Vp, volume of distribution in the peripheral compartment.
Table 3. Pharmacokinetic parameters grouped by CRRT.
Table 3. Pharmacokinetic parameters grouped by CRRT.
All (n = 501)CRRT (n = 122)Non-CRRT (n = 379)p
CL (L/h)3.78 (4.31–4.78)3.99 (2.99–6.35)3.73 (2.64–5.49)0.027
Vc (L)33.50 (32.84–33.85)33.38 (32.52–34.06)33.50 (32.62–34.00)0.821
Vp (L)138.34 (130.66–136.18)137.15 (127.18–145.88)138.38 (125.23–144.53)0.655
AUC24 (mg·h/L)90.20 (57.30–128.00)87.90 (52.50–119.00)91.50 (60.70–131.00)0.114
Cmin (mg/L)3.62 (1.92–5.33)3.19 (1.73–5.03)3.70 (2.03–5.45)0.110
T1/2β (h)6.21 (3.91–8.82)5.87 (3.70–8.43)6.34 (4.05–9.01)0.068
Note: Data are shown as the median and interquartile range (IQR) for each parameter. The p value between the CRRT group and non-CRRT group was calculated. These 408 patients generated a total of 501 on-machine occasions. Abbreviations: AUC24: the area under the drug plasma concentration–time curve over 24 h of voriconazole; CL, clearance; Cmin, trough plasma concentration; CRRT: continuous renal replacement therapy; T1/2β, elimination half-life; Vc, central distribution volume; Vp, peripheral distribution volume.
Table 4. Pharmacokinetic parameters grouped by ECMO.
Table 4. Pharmacokinetic parameters grouped by ECMO.
All (n = 501)ECMO (n = 122)Non-ECMO (n = 379)p
CL (L/h) 3.78 (4.31–4.78)3.60 (2.75–5.46)3.79 (2.66–5.86)0.929
Vc (L)33.50 (32.84–33.85)33.48 (32.11–33.95)33.50 (32.67–34.01)0.637
Vp (L)138.34 (130.66–136.18)138.11 (119.84–144.86)138.38 (126.65–144.97)0.789
AUC24 (mg·h/L)90.20 (57.30–128.00)93.90 (60.40–123.00)89.70 (57.20–130.00)0.943
Cmin (mg/L)3.62 (1.92–5.33)3.62 (2.06–5.29)3.62 (1.90–5.36)0.935
T1/2β (h)6.21 (3.91–8.82)6.51 (4.11–8.59)6.15 (3.88–9.02)0.898
Note: Data are shown as the median and interquartile range (IQR) for each parameter. The p value between the CRRT group and non-CRRT group was calculated. These 408 patients generated a total of 501 on-machine occasions. Abbreviations: AUC24: the area under the drug plasma concentration–time curve over 24 h of voriconazole; CL, clearance; Cmin, trough plasma concentration; ECMO: extracorporeal membrane oxygenation; T1/2β, elimination half-life; Vc, central distribution volume; Vp, peripheral distribution volume.
Table 5. Probability of target attainment (PTA) for CRRT, qCRP-based voriconazole regimens according to Monte Carlo simulations.
Table 5. Probability of target attainment (PTA) for CRRT, qCRP-based voriconazole regimens according to Monte Carlo simulations.
DoseqCRP
(mg/L)		CRRTMIC (mg/L)
0.0160.0320.250.512816
200 mg q12h40Yes10010097.18147.1900
No10010099.593.674.335.300
80Yes10010099.594.355.21100
No10010099.599.183.635.500
160Yes10010010096.264.315.800
No10010010099.687.544.600
250 mg q12h40Yes10010010096.565.81700
No10010010099.788.745.900
80Yes10010010097.671.521.800
No10010010010091.754.300
160Yes10010010098.477.428.400
No10010010010094.560.100
300 mg q12h40Yes1001001009876.127.400
No1001001001009459.300
80Yes10010010098.883.734.700
No10010010010096.467.700
160Yes10010010099.388.241.500
No10010010010097.875.100
Abbreviations: CRRT: continuous renal replacement therapy; MIC: minimum inhibitory concentration; qCRP: quick C-reactive protein.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Y.; Ye, Q.; Li, P.; Huang, L.; Qi, Z.; Chen, W.; Zhan, Q.; Wang, C. Renal Replacement Therapy as a New Indicator of Voriconazole Clearance in a Population Pharmacokinetic Analysis of Critically Ill Patients. Pharmaceuticals 2024, 17, 665. https://doi.org/10.3390/ph17060665

AMA Style

Wang Y, Ye Q, Li P, Huang L, Qi Z, Chen W, Zhan Q, Wang C. Renal Replacement Therapy as a New Indicator of Voriconazole Clearance in a Population Pharmacokinetic Analysis of Critically Ill Patients. Pharmaceuticals. 2024; 17(6):665. https://doi.org/10.3390/ph17060665

Chicago/Turabian Style

Wang, Yuqiong, Qinghua Ye, Pengmei Li, Linna Huang, Zhijiang Qi, Wenqian Chen, Qingyuan Zhan, and Chen Wang. 2024. "Renal Replacement Therapy as a New Indicator of Voriconazole Clearance in a Population Pharmacokinetic Analysis of Critically Ill Patients" Pharmaceuticals 17, no. 6: 665. https://doi.org/10.3390/ph17060665

APA Style

Wang, Y., Ye, Q., Li, P., Huang, L., Qi, Z., Chen, W., Zhan, Q., & Wang, C. (2024). Renal Replacement Therapy as a New Indicator of Voriconazole Clearance in a Population Pharmacokinetic Analysis of Critically Ill Patients. Pharmaceuticals, 17(6), 665. https://doi.org/10.3390/ph17060665

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
