Review

Synthesis and Biological Studies of Benzo[b]furan Derivatives: A Review from 2011 to 2022

by
Lizeth Arce-Ramos
,
Juan-Carlos Castillo
* and
Diana Becerra
*
Escuela de Ciencias Químicas, Universidad Pedagógica y Tecnológica de Colombia, Avenida Central del Norte 39-115, Tunja 150003, Colombia
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2023, 16(9), 1265; https://doi.org/10.3390/ph16091265
Submission received: 12 August 2023 / Revised: 1 September 2023 / Accepted: 1 September 2023 / Published: 6 September 2023
(This article belongs to the Special Issue Heterocyclic Compounds in Medicinal Chemistry)

Abstract

:
The importance of the benzo[b]furan motif becomes evident in the remarkable results of numerous biological investigations, establishing its potential as a robust therapeutic option. This review presents an overview of the synthesis of and exhaustive biological studies conducted on benzo[b]furan derivatives from 2011 to 2022, accentuating their exceptional promise as anticancer, antibacterial, and antifungal agents. Initially, the discussion focuses on chemical synthesis, molecular docking simulations, and both in vitro and in vivo studies. Additionally, we provide an analysis of the intricate interplay between structure and activity, thereby facilitating comparisons and profoundly emphasizing the applications of the benzo[b]furan motif within the realms of drug discovery and medicinal chemistry.

1. Introduction

Heterocyclic chemistry plays a pivotal role in both chemical and life sciences, serving as a focal point for extensive global research. This branch of organic chemistry is dedicated to developing innovative molecules through the application of numerous synthetic protocols [1,2,3]. Heterocyclic compounds are widely distributed in naturally occurring and synthetic molecules, showcasing a broad range of physiological and pharmacological properties [4,5,6,7]. This diversity makes them particularly intriguing for applications in medicinal chemistry, material sciences, drug discovery, and the agrochemical and pharmaceutical industries [8,9,10,11]. Specifically, an analysis of the U.S. FDA-approved drug database revealed that around 60% of the top-selling drugs contain at least one heterocyclic nucleus [4]. These outstanding results can be attributed to the diverse intermolecular interactions between heterocycles and enzymes, involving hydrogen bonding, π-stacking, metal coordination bonds, and van der Waals and hydrophobic forces, along with their varied ring sizes, which enable a wide range of shapes to match the diverse enzyme binding pockets [12]. Moreover, drugs incorporating heterocycles exhibit improved solubility and the ability to facilitate salt formation, which are crucial factors in enhancing oral absorption and overall bioavailability [12]. Additionally, recent developments in synthetic methodologies targeting functionalized heterocycles play a key role in medicinal chemistry and drug discovery, effectively expanding the drug-like chemical space [1,13,14,15]. The establishment of reliable synthetic pathways for large-scale production further expedites drug development. Notably, the introduction of inventive heterocyclic syntheses, incorporating diverse bond-forming strategies, profoundly influences the pharmaceutical industry [1,13,14,15].

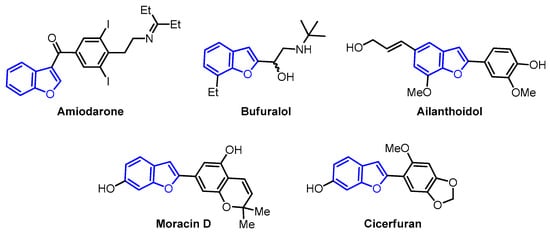

In this context, oxygen-containing heterocycles stand out due to their broad spectrum of biological and pharmacological activities. Their significance stems from their structural similarities with a variety of well-established natural and synthetic compounds [16]. The inherent importance of oxygen-containing heterocycles as therapeutic agents resides in their distinctive structural characteristics, closely resembling those present in biologically active compounds, like ribose derivatives [17,18]. In these compounds, the prevalence presence of oxygen atoms contributes to polar interactions that foster stabilization within the active site [17,18]. Among these compounds, the benzo[b]furan scaffold, positioned within the domain of oxa-heterocycles has recently garnered significant attention. Its distinct physiological and chemotherapeutic properties are accentuated, further accompanied by its widespread prevalence in the natural realm. Some of the most prominent benzo[b]furan derivatives exhibit remarkable pharmaceutical applications, such as Amiodarone, used to treat life-threatening ventricular arrhythmias [19], and Bufuralol, employed as a nonselective β-adrenoceptor antagonist, which can lead to potential complications like hepatic toxicity or adverse drug interactions (Figure 1) [20]. Recent studies have shown that Ailanthoidol exhibits antitumor potential by suppressing TGF-β1-promoted HepG2 hepatoblastoma cell progression [21]. On the other hand, benzo[b]furan derivatives are widely distributed in various plant families, including Asteraceae, Fabaceae, and Moraceae [22,23]. For instance, Moracin D, isolated from Morus alba, exhibited anti-inflammatory and antioxidant activities, as well as induced apoptotic effects in prostate and breast cancer cells (Figure 1) [24,25]. Furthermore, Cicerfuran, isolated from the roots of chickpea (Cicer spp.), demonstrated antibacterial and antifungal activities [26]. The myriad applications in medicinal chemistry, biomedical science, and drug discovery have spurred both academia and the pharmaceutical industry to develop novel, efficient, and straightforward synthetic protocols for preparing a wide array of structurally diverse benzo[b]furan derivatives [23,27,28,29,30,31].

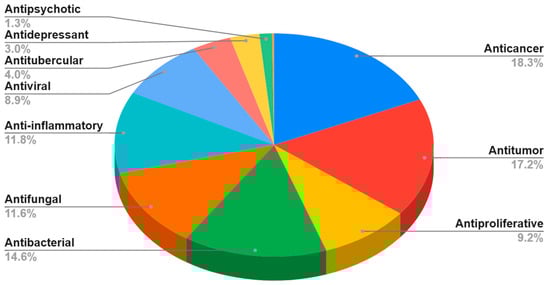

Surprisingly, an exploration of the Scopus database covering the years from 2011 to 2022, encompassing all fields with the keywords “benzo[b]furan” and “biological activity,” has revealed a total of 7482 documents. Among these, 5431 are categorized as articles, while 1451 are identified as reviews. Notably, the array of published articles showcases a diverse spectrum of keywords, spanning a wide range of activities, including anticancer, antitumor, antiproliferative, antibacterial, antifungal, anti-inflammatory, antiviral, antitubercular, antidepressant, antipsychotic, α7 nAChR agonist, and antiosteoporosis activities (Figure 2). The data related to the last two activities are somewhat limited and may not be readily distinguishable on a graphic. Within this broad spectrum of activities, it is important to emphasize that articles related to cancer (anticancer, antitumor, and antiproliferative), as well as those focused on antimicrobial activity (antibacterial and antifungal), collectively constitute approximately 70% of the observed activities (Figure 2).
The most representative articles from these activities were selected and grouped under the headings of anticancer, antibacterial, and antifungal activities. In doing so, a focus was primarily placed on aromatic benzo[b]furans, excluding related search terms like furans and furanones. This approach resulted in a collection of 36 articles for the current review, of which 27 pertain to cancer (anticancer, antitumor, and antiproliferative) and 9 involve antimicrobial activity (antibacterial and antifungal). The articles chosen for this review offer insights into various aspects, including chemical synthesis, molecular docking discussions involving enzyme–substrate complexes, in vitro and in vivo studies, and diverse analytical techniques, such as flow cytometry, Western blotting, and confocal microscopy. These methodologies elucidate how the compounds impact the inhibition of the cell cycle, tumor regression, reduction in colony-forming units, and microbial growth. This broadens the scope for future investigations in the field of benzo[b]furan derivatives, encompassing chemical synthesis and the evaluation of anticancer and antimicrobial activities.

2. Synthesis of Bioactive Benzo[b]furan Derivatives

2.1. Anticancer Activity

Benzo[b]furan derivatives have demonstrated a fascinating array of biological and pharmaceutical activities, including antitumor properties. For instance, Flynn et al. described the discovery of 7-hydroxy-6-methoxy-2-methyl-3-(3,4,5-trimethoxybenzoyl)benzo[b]furan (BNC105, 6a, R1 = OH, R2 = Me), a potent and selective antiproliferative agent. They achieved the synthesis of various derivatives, many of which were obtained through a modified Larock-type coupling between o-iodophenol 1a,b and 3-silyl-1-arylpropinone 2, yielding 2-silylbenzo[b]furans 3a,b in 59% and 69% yields, respectively (Scheme 1) [32,33]. Subsequently, silanes 3a (R1 = H) and 3b (R1 = Oi-Pr) underwent treatment with TBAF in methanol to remove the silyl groups. For compound 3b, an additional reaction with AlCl3 was performed to eliminate the isopropyl group, resulting in the formation of compounds 4a (R1 = H) and 4b (R1 = OAc) with yields of 83% and 86%, respectively. On the other hand, compound 3a underwent bromodesilylation with a 59% yield, producing 2-bromobenzo[b]furan 5a (R1 = H). To avoid competitive bromination of the C–4 position of benzo[b]furan during the bromodesilylation process of 3b, the isopropyl group was first exchanged for an acetyl group, yielding compound 3c. Subsequent bromodesilylation of 3c resulted in the formation of compound 5b with a 69% yield. Additionally, the brominated derivatives 5a and 5b exhibited versatile functionality allowing bromine replacement through palladium coupling or nucleophilic displacement, leading to the formation of analog series 6, which includes heterocyclic, carbocyclic, and alicyclic analogs at C–2 of benzo[b]furan (Table 1). One striking example of the versatility of the brominated derivatives is observed in the synthesis of the biologically significant compound 6a (R1 = OH, R2 = Me), which was obtained via a Negishi reaction, coupling the derivative 5b with methylzinc bromide using palladium, achieving an impressive 93% yield.

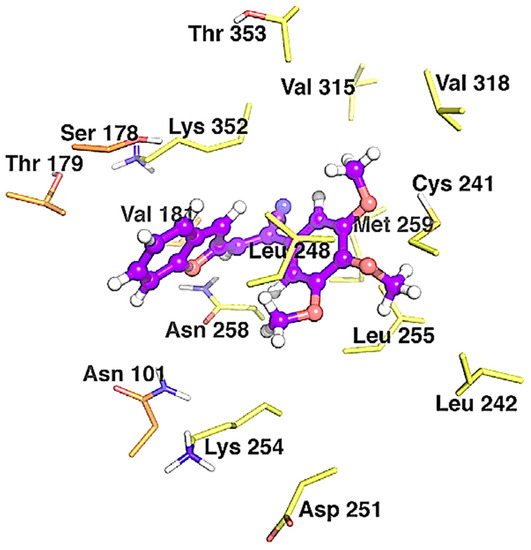

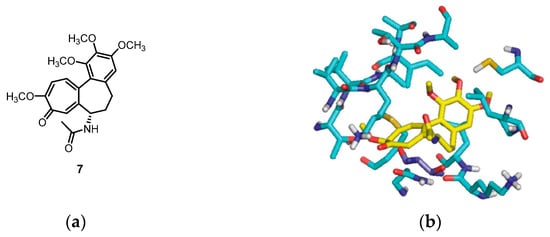

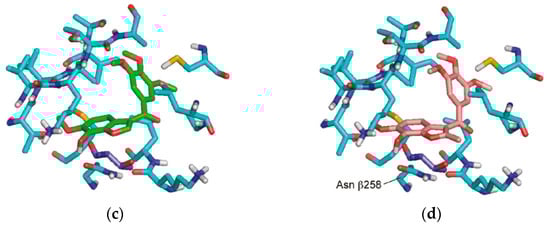

A molecular docking simulation was performed to investigate the interactions of compounds 4b and 6a with the α,β-tubulin dimer complexed with podophyllotoxin (PDB ID code: 1SA1). During the docking study, the structures of compounds 4b and 6a were oriented, considering the structural similarities between these synthesized compounds and colchicine 7. Specifically, the study focused on the interaction of colchicine with the β-tubulin subunit, where the 3,4,5-trimethoxyphenyl rings overlapped with similar rings in colchicine. Additionally, the C6–OMe and C7–OH substituents were examined for their interactions with the methoxy and carbonyl groups on the tropone ring of colchicine (Figure 3). The study showed the formation of a hydrogen bond between the C7–OH group of the benzo[b]furan (4b and 6a) with the Asn β258 side chain, as well as the formation of a hydrogen bond with the amide nitrogen Val 181 in the adjacent subunit of α-tubulin. Furthermore, the orientation of the C–2 position of benzo[b]furan toward a gap between the α- and β-tubulin subunits allows it to harbor large substituents.
Another conducted study aimed to evaluate the effectiveness of benzo[b]furan 6a on various human cancer cell lines using Combretastatin-A4 (CA-4) as a standard drug (Table 2). Interestingly, the results revealed that benzo[b]furan 6a exhibited excellent selectivity against human aortic arterial endothelial cells (HAAECs), a characteristic not observed with CA-4. Furthermore, compound 6a demonstrated significantly higher antiproliferative activity than CA-4, with up to a 10-fold increase in potency observed across many of the tested cell lines.

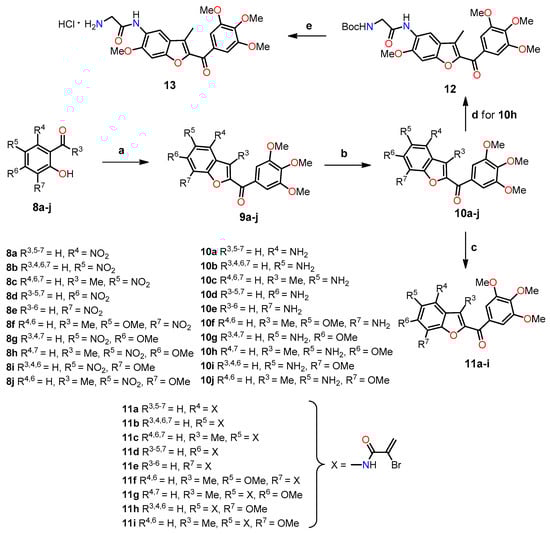

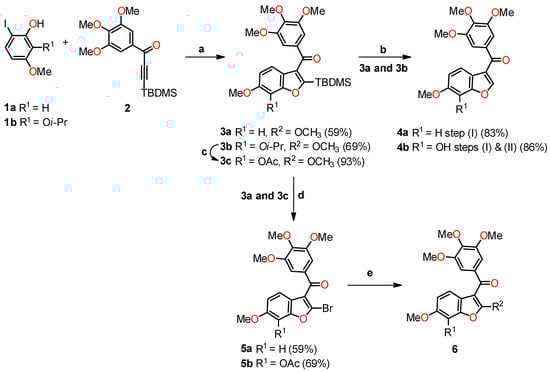

On the other hand, Romagnoli et al. highlighted the significance of incorporating a 3,4,5-trimethoxybenzoyl group at the C–2 position of benzo[b]furan in determining the antiproliferative activity of benzofuran derivatives [34]. As depicted in Scheme 2, they synthesized a series of amino 2-(3′,4′,5′-trimethoxybenzoyl)-benzo[b]furan with good yields through three reaction steps: (1) a one-step cyclization reaction of nitrosalicylaldehydes or 2-hydroxyacetophenone 8 with 2-bromo-1-(3′,4′,5′-trimethoxyphenyl)ethanone and anhydrous potassium carbonate in acetone at reflux, yielding the nitro derivatives of 2-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furanone 9aj; (2) the subsequent reduction of the nitro group using iron in a mixture of 37% HCl in water and ethanol at reflux, leading to the formation of the amino derivatives 10aj; and (3) the preparation of analogs 11ai in good yields through a substitution reaction between α-bromoacrylic acid and the amino benzo[b]furanone derivatives 10af and 10hj, using an excess of two equivalents of EDCI and BtOH in dry DMF as a solvent. The glycine prodrug 13 was obtained in a 95% yield through the reaction between the amino derivative 10h and N-Boc-glycine using EDCI and BtOH as coupling agents, with subsequent scission of the N-Boc protecting group with a solution of 3M HCl in ethyl acetate.
The antiproliferative activity of this series of derivatives, including amino 2-(3′,4′,5′-trimethoxybenzoyl)-benzo[b]furans 10aj and 11aI, was evaluated against various cancer cell lines, along with CA-4 as the standard drug (Table 3). Compound 10h (R4,7 = H, R3 = Me, R5 = NH2, R6 = OMe) demonstrated the most promising results in the series, exhibiting significant growth inhibition against cancer cell lines L1210, FM3A/0, Molt4/C8, CEM/0, and HeLa, with IC50 values ranging from 16 to 24 nM. Notably, compound 10h exhibited higher activity in the FM3A/0 cell line, with an IC50 value of 24 nM, compared to the standard drug CA-4 (IC50 = 42 nM). SAR information derived from the comparison of unsubstituted compounds 10b (R3,4,6,7 = H, R5 = NH2), 10g (R3,4,7 = H, R5 = NH2, R6 = OMe), and 10i (R3,4,6 = H, R5 = NH2, R7 = OMe) vs. methyl derivatives 10c (R4,6,7 = H, R3 = Me, R5 = NH2), 10h (R4,7 = H, R3 = Me, R5 = NH2, R6 = OMe), and 10j (R4,6 = H, R3 = Me, R5 = NH2, R7 = OMe) showed a significant increase in antiproliferative activity against cell lines by introducing the methyl group at the C–3 position of the benzofuran ring. Also, an increase in activity can be observed when comparing the methyl derivative 10c with 10b. When comparing the activities of compounds 10g and 10h with those of 10i and 10j, higher activity can be observed in compounds with methoxy groups at position C–6 rather than at position C–7 of the benzofuran ring. According to the results, compound 10h, with a methyl group at the C–3 position and a methoxy group at the C–6 position, exhibited 2–4 times greater potency than the unsubstituted compound 10g and 3–10 times higher activity than compound 10j, which features a methoxy group at the C–7 position of the benzofuran ring. Changing the positions of the amino and methoxy groups from 10j (R4,6 = H, R3 = Me, R5 = NH2, R7 = OMe) to 10f (R4,6 = H, R3 = Me, R5 = OMe, R7 = NH2) resulted in a reduction in activity.
The unsubstituted α-bromoacryloylamide derivatives 11a (R3,5–7 = H, R4 = X), 11b (R3,4,6,7 = H, R5 = X), 11d (R3–5,7 = H, R6 = X), and 11e (R3–6 = H, R7 = X) exhibited antiproliferative potency that was 10–100 times greater than their amino counterparts, demonstrating the direct relationship between the presence of α-bromoacryloylamides and increased activity (Table 3). Shifting the α-bromoacryloylamide group from the C–4 at the 5 position to the C–6 at the 7 position led to decreased activity. Finally, there were no significant differences in antiproliferative activity on all cell lines observed between compound 10h and its glycine hydrochloride prodrug 13.
To explore the potential correlation between antiproliferative activity and tubulin inhibition, the most active compounds, 10g, 10h, 10i, 10j, and 11a, were evaluated in the inhibition of tubulin polymerization. Among these compounds, 10h demonstrated the highest potency, displaying an IC50 value of 0.56 µM, which was two times higher than that of CA-4 (IC50 = 1.0 µM). Compounds 10g and 10j exhibited IC50 values of 1.4 and 1.6 µM, respectively, for tubulin polymerization, showing a marginal decrease in potency compared to CA-4. Compound 10i exhibited approximately half the activity of 10j. In contrast, compound 11a did not induce any alteration in tubulin assembly, even at a concentration as high as 40 µM, suggesting that the mechanism of action of this α-bromoacryloylamide derivative does not involve interaction with tubulin. Subsequently, the effect of the selected compounds, 10g, 10h, 10j, and 11a, was assessed on the cell cycle of human myeloid leukemia cell lines HL-60 and U937 using flow cytometry. The cells were cultured for 24 h with a concentration of 100 nM for each compound, and the two most active compounds (10g and 10h) were examined at a lower concentration of 10 nM. Figure 4 shows the fractions of hypodiploid cells in the sub-G1 peak of each compound studied, representing apoptotic cells. Compound 10j showed a modest increase in apoptotic cells at 100 nM, while compounds 10g and 10h presented different effects on the cell cycle in the two cell lines. It was observed that compound 11a had no effect on cell cycle distribution at 100 nM, in agreement with the previous results observed in tubulin inhibition. The significant increase in the sub-G1 peak in both cell lines with increasing concentrations of compounds 10g and 10h suggests that these compounds exert their growth inhibitory effect by inducing apoptosis.

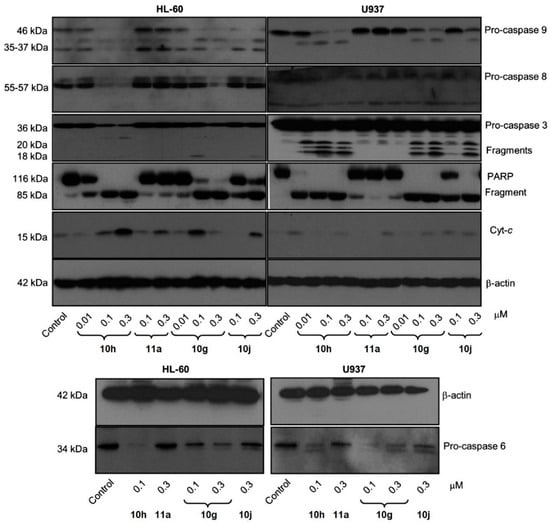

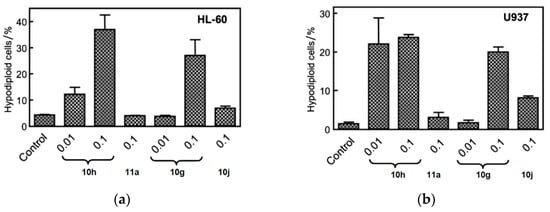

To further examine the apoptotic effects of compounds 10g, 10h, 10j, and 11a, proteolytic processing of caspases in HL-60 and U937 cells was observed by Western blot analysis (Figure 5). Compounds 10g, 10h, 10j, and 11a allowed the cleavage of inactive procaspase-9 to the active 37 kDa fragment, while lower concentrations of compounds 10g and 10h (0.3 µM) significantly promoted procaspase-8 hydrolysis. Furthermore, compounds 10g and 10h significantly led to the cleavage of inactive procaspases-3 and -6 in both cell lines (Figure 5). Additionally, the induction of poly(ADP-ribose)polymerase (PARP) cleavage showed that compounds 10j and 11a exhibited lower potency in inducing PARP cleavage compared to compounds 10g and 10h. The appearance of the fragment at 85 kDa coincided with caspase-3 activation, observed by a decrease in the proenzyme at 36 kDa and an increase in cleaved procaspase-3 levels at 20 and 18 kDa (Figure 5). Dose–response studies were performed, and cytosolic preparations were analyzed by immunoblotting to investigate whether apoptosis induced by compounds 10g, 10h, 10j, and 11a in HL-60 and U937 cells involved the release of cytochrome c from mitochondria into the cytosol during the apoptotic event. The results revealed a significant increase in the amount of cytochrome c in the cytosol of both cell lines at 15 kDa (Figure 5).
CA-4 and its analogs have been clinically termed vascular disruptors agents (VDAs) [35], so glycine prodrug 13 was tested to see its ability as a VDA in an in vivo model in rat breast cancer tumors, using the spatial frequency optical technique (SDFI). With 10 min of administration of compound 13 (30 mg kg−1), there is a rapid decrease in oxygen saturation in tumor tissues similar to that observed with CA-4, confirming that prodrug 13 causes vascular disruption in vivo.

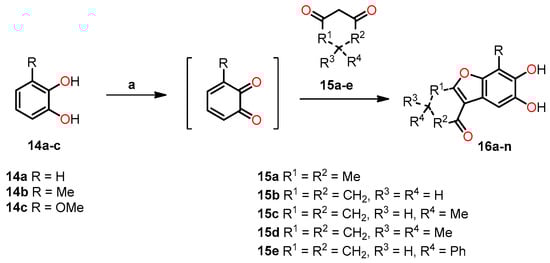

Interestingly, Wellington et al. conducted the synthesis of a variety of dihydroxylated 5,6-benzo[b]furans 16 with catechol derivative 14 using a commercial laccase, Suberase®, under different reaction conditions [36]. All the synthesized compounds were evaluated for their anticancer properties. The synthetic protocol consisted of reacting an equivalent of catechol 14 with an equivalent of the 1,3-dicarbonyl compound 15 at room temperature using Suberase® in an air-open vessel at pH 7.15 (Scheme 3). In method A, the reaction of catechol derivatives 14ac with 1,3-dicarbonyls compounds 15ae was performed at room temperature at pH 7.15 for 24 h. In method B, the reaction was conducted under similar conditions with an extended time of 44 h to investigate the potential enhancement in product yield with prolonged reaction time. In method C, a mixture of the 1,3-dicarbonyl compound and catechol, combined in a 4:1 ratio, was dissolved in DMF. Subsequently, the resulting mixture was left to react for 42 h. The results obtained from methods A–C are shown in Table 4. In particular, method A demonstrated the most favorable outcome of the three methods, exhibiting the highest yield of 98% for compound 16j (Entry 15, Table 4). On the other hand, method B afforded compound 16k in a 77% yield (Entry 18, Table 4), while method C yielded 71% for compound 16g (Entry 11, Table 4). It is worth noting that the reaction time in Method B had minimal impact on the yield, whereas the presence of DMF in method C may have potentially deactivated the laccase, Suberase®, leading to lower yields.
Anticancer studies were performed on various types of cancer, including renal (TK10), melanoma (UACC62), breast (MCF7), and cervical (HeLa), using a sulforhodamine B (SRB) assay to determine the growth inhibitory effects of these compounds. Notably, the 5,6-dihydroxylated benzo[b]furans 16e, 16g, 16h, 16k, 16m and 16n exhibited potent cytotoxic effects against the melanoma cell line (UAC62), with GI50 values ranging from 0.77 to 9.76 µM. Among these compounds, 16h (R = OMe, R1 = R2 = CH2, R3 = H, R4 = Me) and 16n (R = OMe, R1 = R2 = CH2, R3 = H, R4 = Ph) showed better activity than the standard drug Etoposide (GI50 = 0.89 µM). Moreover, compound 16n showed potent activity (GI50 = 9.73 µM) against the renal cancer cell line (TK10), while both 16h and 16n demonstrated strong activity against the breast cancer cell line (MCF7), with GI50 values of 8.79 and 9.30 µM, respectively.

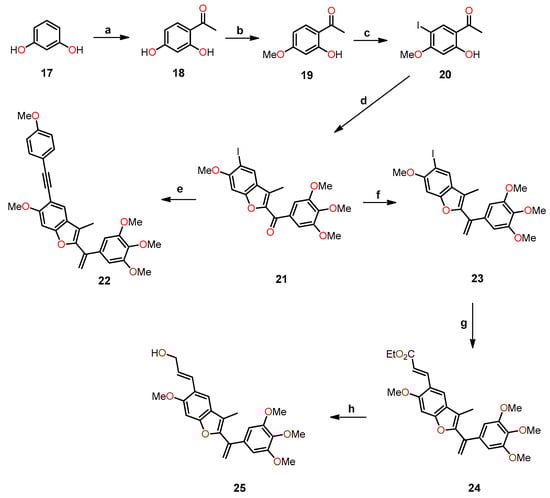

In 2013, Kamal et al. synthesized a series of benzo[b]furans with a modification at position 5 of the benzene ring by introducing C-linked substituents to generate 2-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan derivatives [37]. The most biologically interesting benzo[b]furan derivatives, 22 and 25, were synthesized through a sequence of reactions depicted in Scheme 4, which included (a) the acylation of 17 to yield product 18; (b) methylation using methyl iodide and potassium carbonate, resulting in 19; (c) iodination with iodine and silver nitrate in a catalytic amount to produce 20; (d) cyclization with 2-bromo-1-(3,4,5-trimethoxyphenyl)ethanone and potassium carbonate in acetone to furnish the benzofuran derivative 21; (e) Sonogashira coupling reaction to obtain 22; (f) Wittig reaction with the ylide generated from methyltriphenylphosphonium bromide in the presence of LiHMDS, leading to 23; (g) Heck coupling reaction with ethyl acrylate to yield the ethyl cinnamate derivative 24; and (h) ester reduction with DIBAL resulting in the formation of (E)-allyl alcohol 25.
A study was performed to assess the cytotoxicity of benzofuran analogs against ME-180, A549, ACHNs, HT-29, and B-16 cell lines using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay and CA-4 as the standard drug (Table 5). The results from compound 22, which contains a 4-MeO-phenylacetylene group, showed good activity, with IC50 values in the range of 0.08–1.14 µM against all evaluated cell lines, as shown in Table 5. However, derivative 22 was two times less active against A549 and significantly less active against all four cell lines compared to CA-4. On the other hand, analog 25 exhibited the effect of the alkenyl substituent at position 5 of benzofuran on cytotoxicity, showing higher potency compared to compound 22 against ME-180, A549, ACHN, and B-16 cancer cell lines, with IC50 values ranging from 0.06 to 0.17 µM. These values were comparable to those obtained with CA-4 against A549 and ACHN cancer lines, with IC50 values of 0.05 and 0.09 µM, respectively. Furthermore, compounds 22 and 25 inhibited tubulin polymerization by 37.9 and 65.4%, respectively, which is comparable to the 70.5% tubulin inhibition observed with CA-4 (Table 5).
Apoptotic studies were performed using various assays, including Hoechst staining assay, caspase-3 activation, DNA fragmentation analysis, and Western blot analysis. Specifically, a Hoechst staining assay was utilized to study the effects of compounds 22 and 25 on nuclear condensation. Remarkably, cells treated with these compounds showed a pronounced increase in nuclear condensation compared to untreated cells, strongly suggesting their potent ability to induce cell apoptosis (Figure 6). In addition, caspase-3 activation analysis was conducted on A549 cells, treating them with concentrations of 50 and 100 nM of compounds 22 and 25 and comparing them to CA-4 at 100 nM. The results indicated a significant increase in caspase-3 activation, ranging from 1.5- to 3-fold compared to the control experiment (50 and 100 nM), demonstrating the programmed apoptotic activity induced by compounds 22 and 25 in the A549 cells.

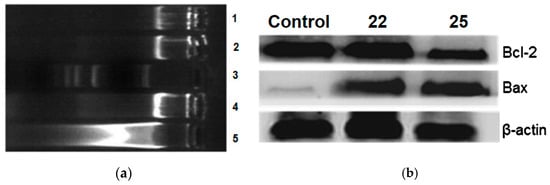

DNA fragmentation analysis was conducted by incubating A549 cells with a 50 nM concentration of compounds 22 and 25. The results revealed a discrete staircase pattern after 48 h of treatment, indicative of significant fragmentation associated with cell death (Figure 7a). Additionally, Western blot analysis was realized on the same cancer cell line, treating it with the same concentration of compounds 22 and 25 as used in the DNA fragmentation analysis (Figure 7b). After 48 h of treatment, it was observed that the anti-apoptotic protein Bcl-2 was down-regulated, while the pro-apoptotic protein Bax was up-regulated. The results provide evidence that the induction of apoptosis by compounds 22 and 25 is associated with Bcl-2 down-regulation.

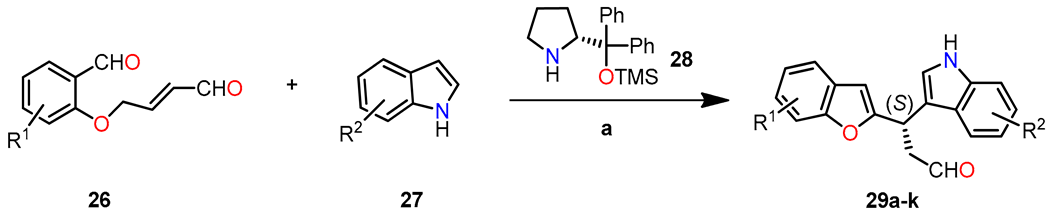

In a study conducted by Frías et al., an asymmetric synthesis of diheteroarylalkanes was presented. This synthesis involved a one-pot reaction using dienamine and Friedel–Crafts reactions between aldehyde 26 and indole 27, catalyzed by the Hayashi–Jorgensen catalyst 28 (20 mol %). Various substituents at different positions on the aldehyde and indole were utilized during the reaction [38]. When starting, materials with electron-withdrawing groups (EWGs) or electron-donating groups (EDGs) were located at the para position to the oxygen atom, and products 29a,gI showed good yields and enantioselectivity ranging from 93% to 97% toward the (S)-enantiomer (Table 6). However, substrates substituted at the ortho and meta positions also enabled the synthesis of products 29j and 29k without a decrease in the final enantioselectivity (ee = 93% and 94%, respectively). Indoles with bromo (29b) or methoxy (29c) substituents exhibited satisfactory yields and enantioselectivity (>95%). Methyl groups displayed good yield and enantioselectivity in products 29d and 29e (ee = 99% and 96%, respectively). Additionally, the introduction of the 1H-benzo[g]indole group resulted in the desired aldehyde 29f with excellent enantioselectivity (ee = 98%).

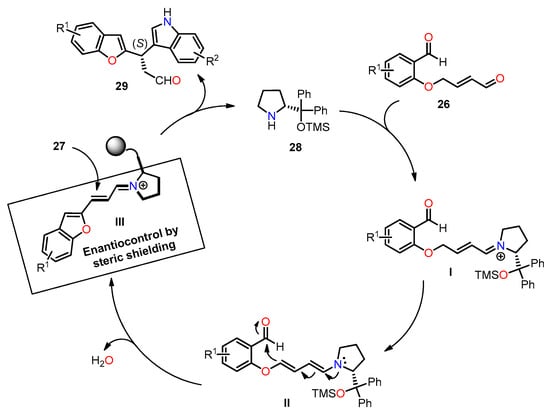

The enantioselectivity of compound 29 is explained through the proposed reaction mechanism depicted in Scheme 5. It begins with the condensation reaction between aldehyde 26 and organocatalyst 28 to form iminium ion I. Then, the isomerization of I gives dienamine intermediate II, which undergoes intramolecular condensation/dehydration sequence to afford iminium ion III. At this pivotal stage, indole 27 undergoes an attack on intermediate III, leading to the formation of product 29 with remarkable enantioselectivity. This precise enantiocontrol is facilitated by the steric shielding offered by the bulkier group (CPhPhOTMS) present in the organocatalyst.

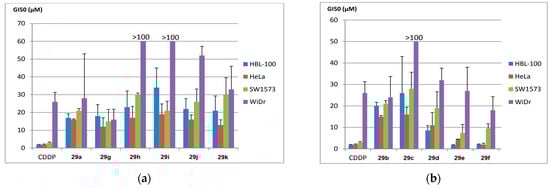

The synthesized products 29ak were evaluated for their antiproliferative activity against a panel of tumor cell lines, including HBL-100 (breast), HeLa (cervix), SW1573 (non-small-cell lung), and WiDr (colon), using the SRB assay. Figure 8 presents the GI50 values, comparing them with cis-platin as the standard drug. The results highlight the significance of the substituent on the aryl moiety of the benzofuran ring in influencing the antiproliferative activity of product 29. The introduction of strong electron-withdrawing groups (EWGs) and electron-donating groups (EDGs) resulted in a decrease in activity for compounds 29h, 29i, and 29j in WiDr cell lines. Notably, compounds 29a (R1 = R2 = H) and 29g (R1 = 5-Cl, R2 = H) exhibited GI50 values comparable to cis-platin in the WiDr cell line, with values of 28 and 16 µM for compounds 29a and 29g, respectively. However, the product of highest biological interest was 29f (R1 = H, R2 = benzo[g]), which showed the most significant activity across all cell lines, achieving similar or even better potency than cis-platin (GI50 = 2–18 µM).

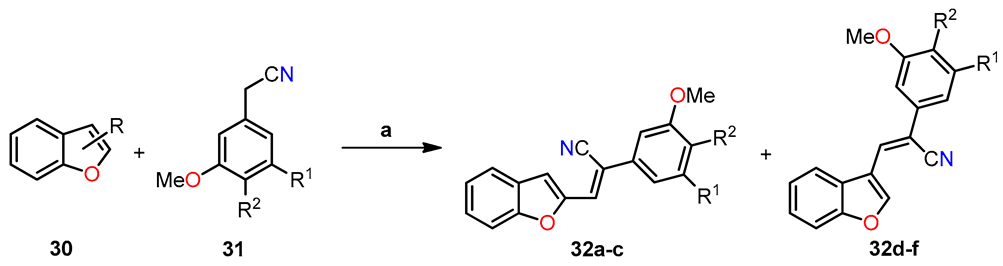

In a separate study, Penthala et al. synthesized a series of heterocyclic analogs, including indoles, benzofurans, and benzothiophenes, based on Combretastatin, and assessed their anticancer activity against a panel of 60 human cancer cell lines [39]. The benzo[b]furans were synthesized by condensing benzo[b]furanocarbaldehyde 30 (1.0 mol) with phenylacetonitrile 31 (1.1 mol) in a 5% sodium methoxide/methanol solution for 3–6 h, resulting in the successful formation of the desired product 32 (Table 7). The evaluation of anticancer studies focused on compounds 32a, 32b, and 32d against 60 cancer cell lines. Compound 32a exhibited the most favorable results, displaying GI50 values ranging from <0.01 to 73.4 µM across all 60 cell lines. It effectively inhibited the growth of 70% of the evaluated cancer cell lines, with a remarkable GI50 value < 0.01 µM in almost all cases. On the other hand, substituting the 3,4,5-trimethoxyphenyl group in 32a (R = 2-CHO, R1 = OMe, R2 = OMe) with the 3,4-dimethoxyphenyl group in 32b (R = 2-CHO, R1 = H, R2 = OMe) resulted in reduced growth inhibition against 54% of the cancer cells, exhibiting GI50 values ranging from 0.229 to 0.996 µM. Furthermore, compound 32b exhibited potent anti-proliferative activity in MDA-MB-435 melanoma cells, exhibiting a remarkable GI50 value of 0.229 µM. Similarly, compound 32d (R = 3-CHO, R1 = OMe, R2 = OMe) displayed significant antiproliferative inhibition, with GI50 values ranging from 0.237 to 19.1 µM, and effectively inhibited 52% of the evaluated cell lines with a GI50 value < 1 µM. In addition, the evaluation of anti-leukemia activity against the MV4–11 cell line was performed for compounds 32ad (Table 7), demonstrating that 32a emerged as the most active compound among the evaluated benzo[b]furans in the leukemia cell line. Later, a molecular docking simulation was performed to investigate the interactions of compound 32a with α/β tubulin in complex with colchicine-DAMA (PDB ID code: 1SA0). The simulation revealed a hydrophobic interaction at the αβ interface, where colchicine binds, and stability was observed through van der Waals interactions with Asn101, Ser178, Thr179, and Val181 in α-tubulin, as well as Asn258 and Lys352 in β-tubulin (Figure 9). The calculated free energy value for these interactions was −7.74 kcal/mol.

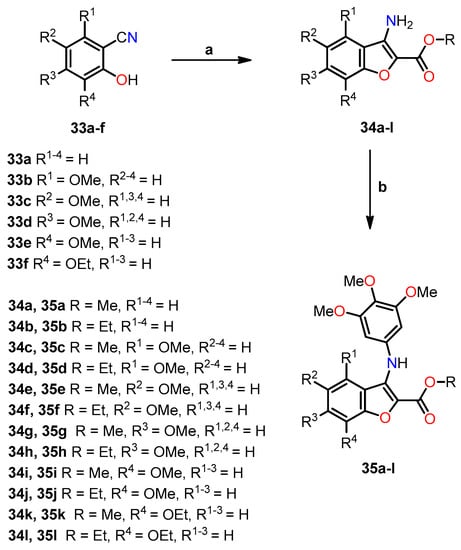

In the same year, Romagnoli et al. synthesized a series of compounds known as 3-(3′,4′,5′-trimethoxyanilino)benzo[b]furan, wherein a 2-methoxy/ethoxycarbonyl group was combined with either no substituent or a methoxy group at each position of the benzene ring [40]. The synthesis of compounds 35al involved a two-step reaction process (Scheme 6). In the first step, 2-hydroxybenzonitrile derivatives 33af were condensed with methyl or ethyl bromoacetate and K2CO3 in DMF, leading to the formation of 3-aminobenzo[b]furan analogs 34al in high yields through a one-pot tandem cyclization method. Subsequently, compounds 35al were synthesized via palladium-catalyzed C-N Buchwald–Hartwig cross-coupling between the deactivated 3-aminobenzo[b]furans 34al and 1-bromo-3,4,5-trimethoxybenzene in toluene at 100 °C, utilizing Pd(OAc)2, rac-BINAP, and Cs2CO3 as the catalyst, ligand, and base, respectively.
The in vitro antiproliferative activity was evaluated against seven cell lines, and the corresponding results are presented in Table 8. The findings revealed a notable correlation between the presence and position of the methoxy substituent on the benzene moiety of the benzo[b]furan system. Among the series of 2-alkoxycarbonyl derivatives, the highest activity was observed when the methoxy group was located at the C–6 position, as exemplified by compounds 35g (R = Me, R3 = OMe, R1,2,4 = H) and 35h (R = Et, R3 = OMe, R1,2,4 = H), exhibiting IC50 values ranging from 0.3 to 27 nM for 35g and from 13 to 100 nM for 35h. On the contrary, compounds 35c (R = Me, R1 = OMe, R2−4 = H) and 35d (R = Et, R1 = OMe, R2−4 = H) displayed the lowest activity when the methoxy group was situated at the C–4 position, with IC50 values exceeding 10 µM. Furthermore, the methoxycarbonyl group demonstrated superior efficacy compared to the ethoxycarbonyl substituent in all cell lines, except for MCF-7 cells, which exhibited equal sensitivity to both compounds. Notably, compounds 35i (R = Me, R4 = OMe, R1−3 = H) (average IC50 = 370 nM) and 35j (R = Et, R4 = OMe, R1−3 = H) (average IC50 = 670 nM), featuring a methoxy C–7 substituent, displayed higher activity compared to 35e (R = Me, R2 = OMe, R1,3,4 = H) (average IC50 = 1.500 nM) and 35f (R = Et, R2 = OMe, R1,3,4 = H) (average IC50 = 2.900 nM), which possessed a methoxy C–5 substituent. These compounds also demonstrated remarkable activity against RS 4;11 cells, with IC50 values of 39 nM for 35e and 1 nM for 35i (R = Me, R4 = OMe, R1−3 = H). Additionally, in Jurkat cells, they displayed an IC50 value of 30 nM for 35i. In contrast, compounds 35a (R = Me, R1−4 = H) and 35b (R = Et, R1−4 = H) exhibited IC50 values of 3.300 and 2.600 nM, respectively. The absence of a methoxy substituent led to lower activity, highlighting the significant enhancement achieved by including a methoxy substituent at C–5. Furthermore, the substitution with ethoxycarbonyl at C–7 resulted in notably lower potency when compared to the substitution with C–7-methoxy (35il).
Compounds 35e and 35gj, along with CA-4, were investigated to determine their inhibitory effects on tubulin polymerization and colchicine binding to tubulin. The aim was to gain insights into their mechanisms of antiproliferative action, particularly their interaction with tubulin microtubules (Table 9). The results revealed that compound 35g exhibited the highest potency among the tested compounds, with an IC50 of 1.1 µM, comparable to that of CA-4. Meanwhile, compound 35h demonstrated slightly lower activity compared to CA-4. Compounds 35e, 35i, and 35j showed 6–7 times lower potency than CA-4, with IC50 values of 7.5, 7.6, and 6.4 µM, respectively. Regarding colchicine binding studies, outcomes were observed exclusively for compounds 35g and 35h, exhibiting inhibition percentages of 83% and 74%, respectively, which are comparable to the 99% inhibition observed with CA-A. The findings underscore the intricate interplay between the inhibition of tubulin polymerization and the hindrance of colchicine binding, shedding light on their potential synergistic effects in influencing antiproliferative pathways.

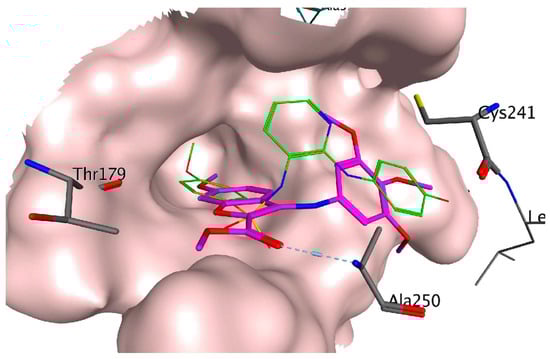

A molecular docking simulation was performed to investigate the interactions of compound 35g with the colchicine site of tubulin (PDB ID code: 3HKC) (Figure 10). This revealed that the trimethoxyphenyl ring of 35g resides near Cys241. Moreover, a potential hydrogen bond interaction was observed between the ester moiety and Ala250, consistent with other colchicine site agents. These findings underscore the potential impact of substitutions at C–4, C–5, and C–7 on the antiproliferative activity of the compounds.

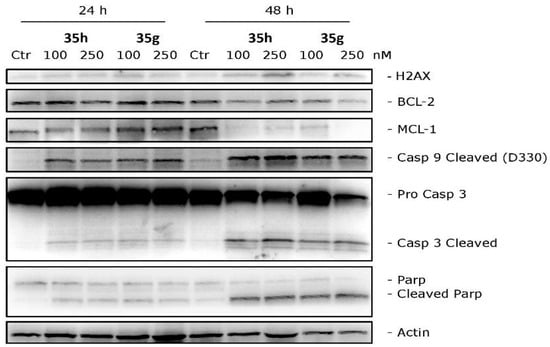

Conducting Western blot studies, we aimed to explore the potential of compounds 35h and 35g in triggering apoptosis via the activation of caspase-3 and caspase-9, crucial components of the mitochondrial apoptotic pathway. Upon exposing HeLa cells to these compounds, we observed a concentration- and time-dependent activation of caspases, as depicted in Figure 11. Moreover, both in vitro and in vivo revealed the activation of poly(ADP-ribose) polymerase (PARP), a major substrate targeted by caspase-3. In addition to these findings, we carefully examined the role of Bcl-2 and Mcl-1 proteins, well known for their capacity to counteract pro-apoptotic proteins and preserve mitochondrial membrane potential. After 48 h of treatment with concentrations of 100 and 250 nM for both compounds, a decrease in Bcl-2 protein expression was observed, while Mcl-1 showed strong down-regulation. Interestingly, at 24 h, Mcl-1 expression increased for 35g but not for 35h. These results suggest that compounds 35g and 35h effectively down-regulate anti-apoptotic proteins.

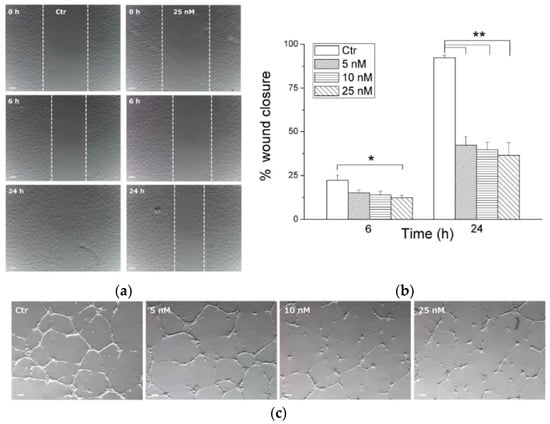

To assess angiogenesis, the vascular properties of 35g (the most potent within the series) were investigated in vitro using HUVEC endothelial cells. The endothelial cell motility and the ability of 35g to disrupt tubular structures formed by HUVECs on Matrigel were investigated. As shown in Figure 12a,b, at a concentration of 25 nM, compound 35g exhibited significant inhibition of cell motility within just 6 h of incubation. This inhibitory effect remained highly significant at all concentrations after 24 h of incubation. Moreover, in Figure 12c, it was observed that compound 35g disrupted the network of HUVECs compared to the control after 1 h of incubation. Remarkably, after 3 h, all tested concentrations demonstrated significant disruption of the tubular-like structures.
Expanding on the encouraging results regarding the antiproliferative and anticancer activity [37], Kamal et al. conducted more extensive investigations on benzo[b]furans 22 and 25 to explore their potential efficacy against breast cancer cell lines, specifically MCF-7 and MDA MB-231. These studies involved assessments of the cell cycle and the PI3K/Akt/mTOR signaling pathway, along with other complementary studies [41]. Table 10 presents the results obtained for the antiproliferative activity of compounds 22 and 25 against the mentioned cancer cell lines. Remarkably, 22 and 25 displayed significant activity, especially in the MCF-7 cell line, exhibiting IC50 values of 0.057 and 0.051 µM, respectively. Due to the MCF-7 cell line showing the highest anticancer activity among the tested cell lines, it was chosen for further analysis to investigate the correlation between cell growth inhibition and cell cycle arrest. In this study, MCF-7 cells were treated with the compounds 22 and 25 at concentrations of 25 nM and 50 nM for 48 h. The results revealed that these compounds induced G2/M cell cycle arrest compared to the untreated control cells. Specifically, at a concentration of 25 nM, compounds 22 and 25 caused a cell accumulation of 36.4% and 37.1%, respectively, in the G2/M phase. Moreover, at 50 nM, these percentages increased to 47.6% and 50.5%, respectively, in the same cell phase (Figure 13).

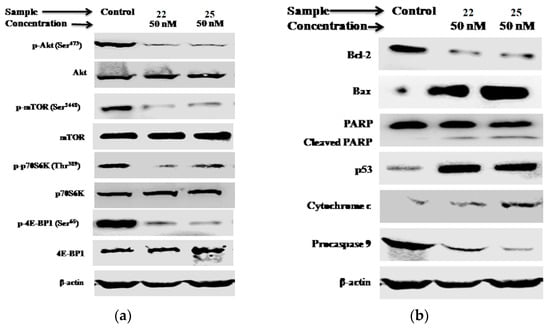

The PI3K/Akt/mTOR signaling pathway plays a crucial role in breast tumor cell growth. Thus, the impact of compounds 22 and 25 on this signaling pathway was investigated in MCF-7 cells. The results demonstrated effective suppression of p-Akt, p-mTOR, p-p70S6K, and p-4E-BP1 expression levels after 48 h of treatment with a concentration of 50 nM (Figure 14a). The findings strongly support the potent inhibitory activity of both compounds against the PI3K/Akt/mTOR pathway. Notably, given the involvement of this pathway in apoptosis regulation, the studies further unveiled that its inhibition resulted in the up-regulation of key apoptotic markers. These markers included the release of cytochrome c, up-regulation of p53, down-regulation of procaspase-9, cleavage of poly(ADP-ribose)polymerase (PARP), up-regulation of Bax, and down-regulation of Bcl-2 (Figure 14b). Collectively, these results firmly establish the inhibition of the PI3K/Akt/mTOR pathway as the primary mechanism underlying the induction of apoptosis in breast cancer cells by compounds 22 and 25.

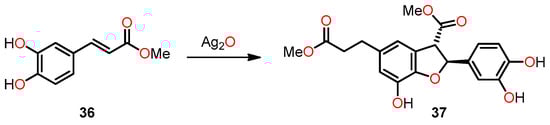

In their study, Yin et al. achieved the successful synthesis of 2,3-dihydrobenzo[b]furan 37 in a 32% yield through the dimerization of methyl caffeate 36 using silver oxide in the presence of anhydrous benzene and acetone (Scheme 7). The primary aim of this study was to explore the potential correlation between IL-25, an endogenous factor secreted by tumor-associated fibroblasts (TAFs), and the inhibition of metastasis in 4T1 mammary tumors in mice [42].

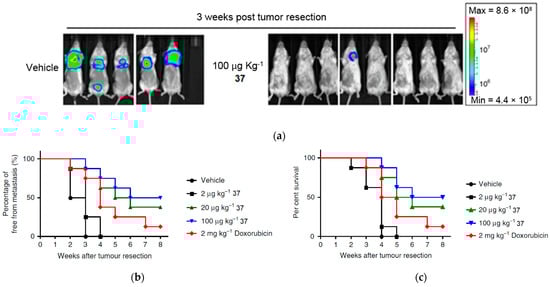

The investigation into the antimetastatic effects of compound 37 involved the injection of luciferase-expressing 4T1-Luc2 transgenic mouse cells into the mammary fat pad of the experimental mice [42]. At 15 days after tumor cell implantation, the 4T1 tumors were surgically resected in situ. Over the following 8 weeks, a comparative analysis of tumor metastatic activity and survival was conducted between the control group and the mice treated with compound 37 (Figure 15a–c). By detection of luminescent activity of 4T1-Luc2 cells as an indicator of tumor metastasis, it was observed that treatment with 37 (≥20 µg kg−1) significantly suppressed 4T1 cell metastasis to the lung (Figure 15a). In addition, treatment with 37 at a relatively low dose (>20 µg kg−1) had considerable antimetastatic activity in comparison with the treatment with Doxorubicin (2 mg kg−1) (Figure 15b), used as a control drug for breast cancer. Treatment with 37 also significantly increased the survival rate of mice with tumor resection (Figure 15c). These results demonstrate that the in vivo administration of compound 37 effectively prevents breast tumor metastasis following tumor resection.
Following the previously mentioned findings, the study showed the potential regulatory effects of administering compound 37 in vivo on metastatic tissues [42]. To assess the physiological significance of compound 37 in the modulatory activity, the researchers evaluated the expression of various cytokines secreted in vivo in the lung tissue of the test mice. Remarkably, the findings demonstrated that the administration of compound 37 (at a dosage of 100 µg kg−1) had a stimulatory effect on IL-25 activity in pulmonary fibroblasts surrounding the pulmonary artery and vein (Figure 16b). In contrast, little to no IL-25 expression was observed in lung fibroblasts from control and Docetaxel-treated mice, which suggests that the induction of IL-25 expression in fibroblasts of the lung tissue microenvironment specifically resulted from the administration of compound 37. This finding is intriguing as IL-25 expression is not typically considered a conventional drug target for anticancer medications.

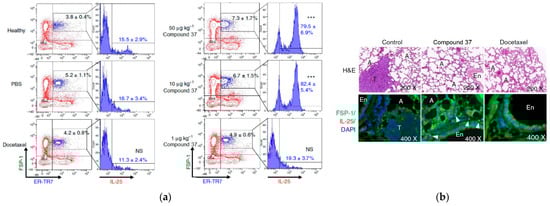

To quantify the change in the cell population of IL-25-expressing lung fibroblasts in response to treatment with compound 37, the researchers assessed FSP-1 + ER-TR7 + IL-25 + cells from lung tissues of test mice and compared their IL-25 expression levels at 3 weeks after tumor resection. The results unveiled a remarkable increase in the IL-25 fibroblast cell population from 16.7% to 79.5% in 37-treated mice compared to those treated with PBS (Figure 16a). Furthermore, the population of fibroblasts in FSP-1 + ER-TR7 + cells in mice treated with 37 exhibited a significant dose-dependent increase from 5.2% to 7.3% (Figure 16a), in contrast to docetaxel treatment, which showed no augmentation in the number or level of evaluated fibroblasts. These findings solidify the evidence that compound 37 effectively stimulates lung fibroblasts in an in vivo setting.

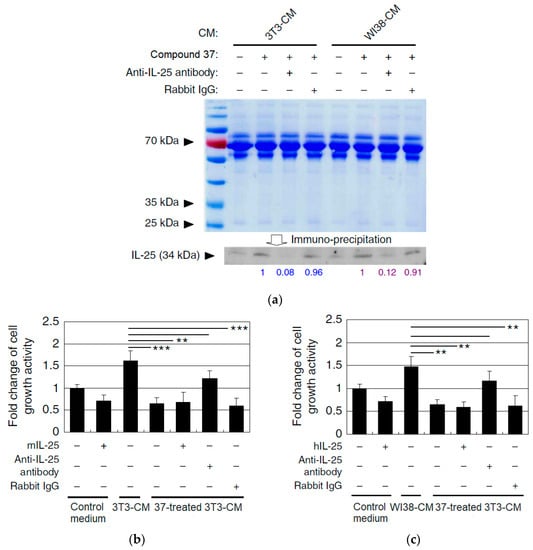

Additionally, the researchers conducted complementary studies to assess the potential suppressive effect of IL-25 secreted by fibroblasts on the growth activity of mammary tumor cells [42]. In this regard, they compared the levels of IL-25 in mouse (4T1) and human (MDA-MB-231) tumor cells treated with compound 37 using an immunoprecipitation method mediated by anti-IL-25 antibodies. To ensure accuracy, the samples were first immunodepleted with 3T3 (3T3-CM) and WI38 (WI38-CM) fibroblasts for IL-25, utilizing anti-rabbit IgG antibody (isotype control) as the negative control for immunodepletion (Figure 17a). The results indicated that the levels of IL-25 secreted in media conditioned with compound 37 treated fibroblasts were significantly higher compared to untreated conditioned media (Figure 17a). Moreover, the researchers detected only a minor fraction of unspecific binding to the protein in the IgG antibody, confirming the high specificity and efficiency of the anti-IL-25 antibody employed. On the other hand, when 4T1 and MDA-MB-231 cells were cultured with 3T3-CM, their growth was notably higher compared to cells cultured solely with fresh medium. This observation implies that in both cases, fibroblasts released critical cellular and molecular factors that contribute to the expansion of tumor cells, potentially influencing the suppression of metastatic mammary tumor cell growth (Figure 17b,c).
In their investigation, Yin et al. conducted a comparative analysis of the in vivo treatment effects of IL-25, examining its additive vs. overlapping impact [42]. They discovered that co-administration of compound 37 (at a dosage of 100 µg kg−1) and IL-25 (at a dosage of 10 µg kg−1) resulted in a similar antimetastatic activity compared to the group of mice treated solely with compound 37 (Figure 18a). The survival rate of mice in the co-treatment group (37 + Anti-IL-25) was also comparable to the group treated with compound 37 alone, in contrast to the untreated group (Figure 18b). These findings suggest that the in vivo antimetastatic effect of 37 can be effectively substituted by the administration of exogenous IL-25.

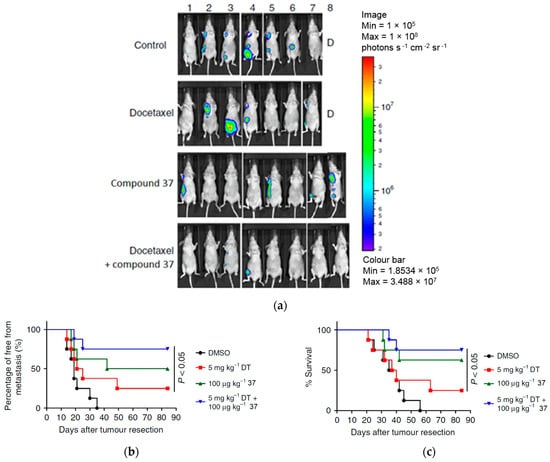

Moreover, the study evaluated the combined effect of compound 37 and docetaxel in suppressing the metastatic activities of human MDA-MB-231-Luc2 cells in mice through bioluminescent studies following the resection of mammary tumor tissues in the experimental mice (Figure 19a). The results demonstrated that the treatment with compound 37 (100 µg kg−1) and docetaxel (5 mg kg−1) showed significantly higher antimetastatic activity than the treatment with docetaxel alone (Figure 19b). As a result, the test mice receiving the combination of compound 37 and docetaxel exhibited a higher survival rate compared to those receiving single treatments (Figure 19c). These findings suggest a complementary effect on the anticancer activity of docetaxel when combined with compound 37, effectively suppressing the metastatic activities of tumor cells by modulating the tumor-associated microenvironment.

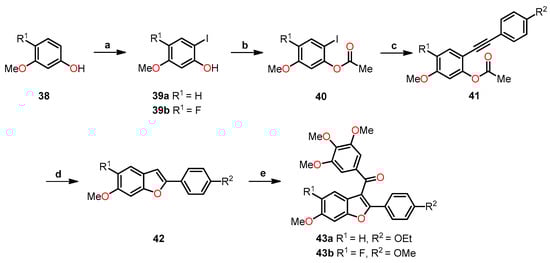

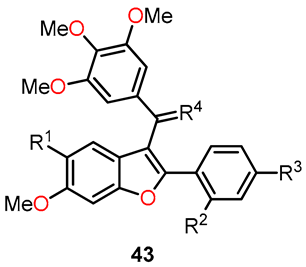

On a different note, Quan et al. conducted a molecular modeling study involving 64 Combretastatin A-4 analogs based on five-membered heterocycles. Their objective was to explore the development of novel anticancer agents by using 3D-QSAR, molecular docking, and molecular dynamic (MD) simulation [43]. Within the 3D-QSAR approach, both CoMFA and CoMSIA models were prepared for both the training and test sets. The CoMFA model incorporated steric and electrostatic fields, while the CoMSIA model included steric, electrostatic, hydrophobic, hydrogen bond donor, and hydrogen bond acceptor fields. Three-dimensional contour maps for both models were performed using the “Stdev*Coeff” field type. By analyzing the results obtained from the study, the researchers identified essential structure–activity relationships, which highlighted substitutions that could enhance biological activity. This was summarized in A–D regions, as shown in Figure 20. Building on this information, they designed five novel benzo[b]furan derivatives. The structures and predicted pIC50c values of compounds 43ae are provided in Table 11. Although these data indicate the presence of inhibitory activity for the designed compounds, they were not comparable to CA-4.
Additionally, the researchers conducted 20 ns molecular dynamics (MD) simulations and binding free energy calculations using the Amber 12.0 package [43]. The stability of the tubulin–inhibitor complex in the designed compounds 43ae was evaluated, employing the general Amber force field (gaff) for ligands and the ff99SB force field for proteins. In this study, binding free energy calculations were performed using both MM/GBSA and MM/PBSA methods. The results showed that the calculated binding free energies using MM/GBSA for CA-4 and the inhibitors 43ae were as follows: −34.32, −57.52, −54.41, −55.78, −50.77, and −55.56 kcal mol−1, respectively. Meanwhile, the MM/PBSA results revealed the binding free energies of −21.54, −43.45, −42.03, −40.99, −39.79, and −36.23 kcal mol−1 for CA-4 and the inhibitors 43ae, respectively. Among the five newly designed compounds, 43a exhibited the most negative binding free energy, suggesting it has the potential for the best inhibitory activity within the series. These computational findings provide valuable insights into the potential efficacy of the designed compounds and can guide further experimental investigations to validate their inhibitory activity against tubulin.
Using the binding free energy calculations, two of the designed compounds, 43a and 43b, were selected for synthesis. The synthetic process involved several sequential steps to obtain the desired compounds. Firstly, the synthesis began with the iodination of methoxyphenol 38 using a catalytic amount of AgOTFA in chloroform at room temperature for 24 h to afford the iodinated compound 39 (Scheme 8). Subsequently, the acetylation of the iodine-phenol 39 was carried out in the presence of acetic anhydride in pyridine at room temperature for 4 h to yield the acetate derivative 40. Next, the Sonogashira coupling of compound 40 with either 1-ethynyl-4-ethoxybenzene or 1-ethynyl-4-methoxybenzene was conducted in the presence of catalytic PdCl2(PPh3)3, leading to the formation of alkyne 41. The intermediates underwent an intramolecular cyclization reaction mediated by K2CO3 in methanol at 60 °C for 16 h to produce the benzo[b]furan derivative 42. Finally, a Friedel–Crafts reaction was performed in the presence of 3,4,5-trimethoxybenzoyl chloride, followed by the addition of compound 42 and tin (IV) chloride to deliver compound 43. By employing this multi-step synthetic approach, the researchers successfully synthesized compounds 43a and 43b, paving the way for further evaluation of their potential as benzo[b]furan-based anticancer agents.
The in vitro antiproliferative activity of compounds 43ab was evaluated against six human cancer cell lines, and their tubulin inhibition was assessed, using CA-4 and CA-4P as standard drugs. As shown in Table 12, the compound 43a (R1 = H, R2 = Oet) exhibits the highest activity with IC50 values of 1.37, 8.99, 1.31, and 0.91 µM against A549, HeLa, HepG2, and MCF-7 cell lines, respectively [43]. Compound 43a exhibits comparable and even superior activity than CA-4 in the mentioned cell lines. Specifically, it is 4.4-fold more active against A549 cells and 12.2-fold more active against HepG2 cells than CA-4. In addition, compound 43a showed only comparable activity with compound CA-4P in the MCF-7 cell line. On the other hand, compound 43b (R1 = H, R2 = Ome) exhibited remarkable activity against A549 and HepG2 cells, with IC50 values of 6.87 and 4.75 µM, respectively, which is comparable to CA-4 (IC50 = 5.99 and 16.04 µM, respectively). Finally, in a tubulin polymerization assay, compound 43a demonstrated potent inhibition of tubulin polymerization, with an IC50 value of 0.86 µM, which is comparable to CA-4 (IC50 = 0.88 µM) and superior to CA-4P (IC50 = 4.79 µM).

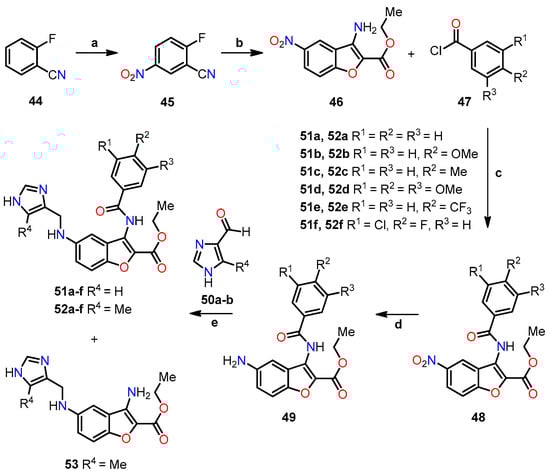

Similarly, Lauria et al. conducted the synthesis of a novel series of 3-benzoylamino-5-(1H-imidazol-4-yl)methylaminobenzo[b]furans 5153 and subsequently evaluated their potential as antitumor agents [44]. The synthetic route involved a sequence of steps (Scheme 9). Initially, 2-fluorobenzonitrile 44 underwent a nitration reaction in the presence of a mixture of concentrated nitric and sulfuric acids under a nitrogen atmosphere at 0 °C for 2 h to afford 2-fluoro-5-nitrobenzonitrile 45. Afterward, ethyl glycolate was utilized for nucleophilic displacement in the presence of K2CO3 and anhydrous DMF at 100 °C for 12 h, facilitating in situ intramolecular cyclization and giving rise to the 3-amino-benzo[b]furan derivative 46. Following this, intermediate 46 underwent acyl substitution with benzoyl chloride 47 in pyridine, serving as both base and solvent, at room temperature for 12 h, yielding compound 48, containing amide functionality at the C–3 position. The subsequent reduction of the nitro group in compound 48 was performed through hydrogenation using a Parr hydrogenation apparatus at 500 psi in the presence of Pd/C (10%) as a catalyst in ethanol at room temperature for 2 h, yielding 5-amino-benzo[b]furan derivative 49. Finally, the compounds 51af and 52af were obtained through a reductive amination with imidazole-4-carbaldehyde 50 using sodium cyanoborohydride as a selective reducing agent in a mixture of ethanol and acetic acid at room temperature for 6–24 h. In this final step, compound 53 was also isolated using carbaldehyde 50b, wherein evidence of the hydrolysis of the amide functionality was observed. These novel compounds hold promise as potential antitumor agents and warrant further investigation to assess their efficacy in cancer treatment.

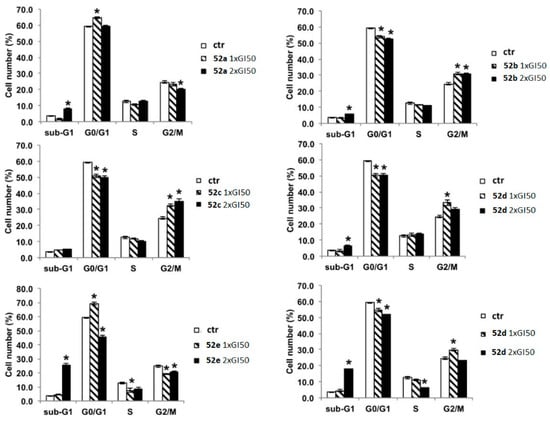

The biological studies focused on the antiproliferative activity in HeLa and MCF-7 cell lines using the MTT assay, cell cycle analysis, and in silico assessment [44]. Table 13 shows the GI50 values of compounds 51af and 52af. Notably, the insertion of a methyl group in the imidazole ring increased activity for compounds 52a (R1 = R2 = R3 = R4 = H), 52e (R1 = H, R2 = CF3, R3 = R4 = H), and 52f (R1 = Cl, R2 = F, R3 = R4 = H) without substitution on the benzoyl moiety (52a vs. 51a), or functionalized with 4-trifluoromethyl- (52e vs. 51e) and 3-chloro-4-fluoro- (52f vs. 51f) substituents. Compound 52f exhibited the highest activity against HeLa and MCF-7 cell lines, with GI50 values of 2.14 µM and 1.55 µM, respectively. In cell cycle analysis, compounds 52b, 52c, 52d, and 52f showed significant suppression of the G0/G1 phase and an accumulation of cells in G2/M at 1xGI50 concentrations (Figure 21). However, at 2xGI50 concentrations, changes in the distribution profile were observed. Albeit compounds 52a and 52e did not show a significant impact on the cell cycle at the evaluated concentrations, they induced G0/G1 arrest at 2.5xGI50 and 5xGI50 concentrations, which correlated with their antiproliferative effects in other phases.

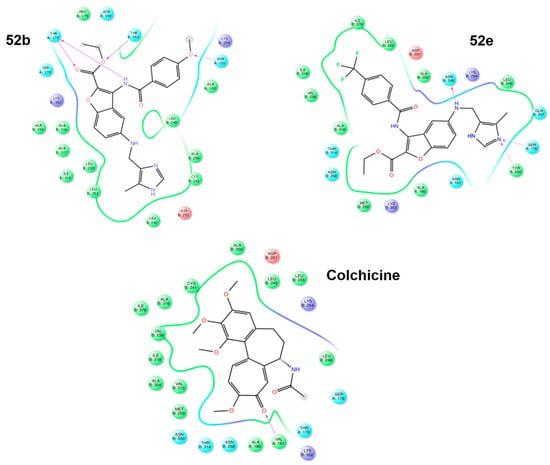

In the in silico studies, the researchers assessed the binding modes of each derivative at the colchicine binding site on tubulin, considering the involved amino acid residues [44]. To facilitate this analysis, they obtained the crystal structure of tubulin bound to colchicine from the PDB database (PDB ID code: 4O2B) and extracted the tubulin dimer with colchicine (chains A and B) from the protein model. Table 14 shows the favorable induced docking protocol (IFD) scores for all ligand–tubulin complexes, with compounds 51 and 52 showing affinity similar to colchicine and higher than CA-4. Notably, significant differences in the binding complexes were observed among the evaluated amino acids. These benzo[b]furans displayed strong interactions with amino acids Alaα180, Serα178, Ileβ318, Alaβ316, Leuβ255, Leuβ248, and Lysβ254, as indicated by the IFD scores. Interestingly, compounds 52bd,f presented an aromatic ring in contact with Cysβ241, a crucial and distinctive feature for identifying new antitubulin molecules. A more detailed illustration of these interactions is found in Figure 22, depicting the ligand interaction maps of compounds 52b and 52e with colchicine as a reference.

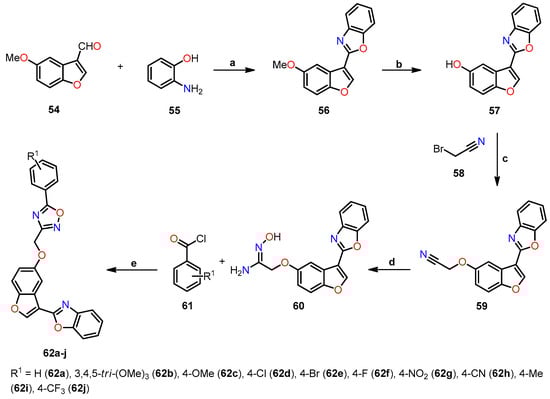

Afterward, Pervaram et al. synthesized 1,2,4-oxadiazole-fused benzo[b]furan derivatives 62aj and assessed their antiproliferative activity against four human cancer cell lines, including A549 (lung), MCF-7 (breast), A375 (melanoma), and HT-29 (colon), using the MTT method [45]. The synthetic route for compounds 62aj is shown in Scheme 10. The synthesis began with the reaction of 5-methoxybenzofuran-3-carbaldehyde 54 with 2-aminophenol 55 in refluxing ethanol for 4 h, leading to the 2,3-dihydrobenzo[d]oxazole intermediate, which was oxidized to 2-(5-methoxybenzofuran-3-yl)benzo[d]oxazole 56 by adding Pb(Oac)4 and acetic acid at room temperature for 1 h. Next, compound 56 reacted with BBr3 in anhydrous CH2Cl2 at room temperature for 5 h to give 3-(benzo[d]oxazol-2-yl)benzofuran-5-ol 57, which is O-alkylated with 2-bromoacetonitrile 58 and K2CO3 in refluxing acetone for 5 h to furnish compound 59. Subsequently, a nucleophilic addition reaction between 59 and hydroxylamine hydrochloride in the presence of K2CO3 in refluxing ethanol for 3 h yielded acetaminide 60. Finally, compound 60 was reacted with the different benzoyl chloride 61 using pyridine at room temperature for 4 h to obtain 1,2,4-oxadiazole-fused benzo[b]furan derivatives 62aj in yields ranging from 63% to 93%.
The antiproliferative activity of all synthesized compounds 62aj was assessed against four cancer cell lines using the MTT method and CA-4 as the standard drug (Table 15) [45]. Notably, compounds 62b (R1 = 3,4,5-tri-(Ome)3), 62g (R1 = 4-NO2), 62h (R1 = 4-CN), and 62j (R1 = 4-CF3) exhibited comparable and, in some cases, even higher potency than CA-4, with IC50 values ranging from 0.012 to 1.45 µM for these compounds, while CA-4 had IC50 values ranging from 0.11 to 0.93 µM.

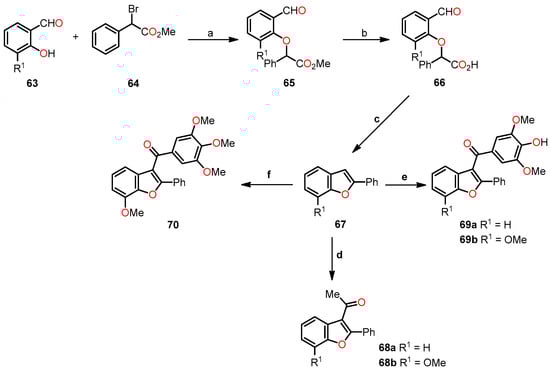

Similarly, Kwiecień et al. conducted a study on the synthesis and evaluation of functionalization at position 3 of 2-phenyl- and 2-alkylbenzo[b]furans as potential antitumor agents [46]. The synthesis of 2-phenylbenzo[b]furan 67 involved a three-step reaction process (Scheme 11). Firstly, 2-hydroxybenzaldehyde 63 was O-alkylated with methyl 2-bromo-2-phenylacetate 64 in the presence of K2CO3 and DMF at 92–94 °C for 4 h to afford methyl 2-(2-formylphenoxy)-2-phenylacetate derivative 65 with yields in the range of 61–76%. Secondly, basic hydrolysis of ester 65 in methanol refluxing for 2 h, and then protonation yielded 2-(2-formylphenoxy)-2-phenylacetic acid 66 in acceptable yields (70–72%). Lastly, an intramolecular cyclization of compound 66 using a mixture of Ac2O and AcONa at 125–130 °C for 4.5 h produced the benzo[b]furan 67 in excellent yields (90–97%).

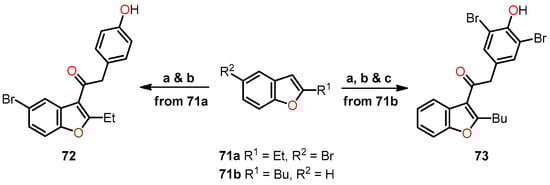

Later, the researchers focused on the acylation of 2-phenylbenzo[b]furan 67. Initially, the acetylation of 67 with Ac2O in the presence of Amberlyst-15 in 1,2-dichloroethane refluxing for 6 h afforded 2-phenylbenzo[b]furan-3-yl)ethan-1-ones 68ab in acceptable yields (69–72%). Then, (4-hydroxy-3,5-dimethoxyphenyl)-(2-phenylbenzo[b]furan-3-yl)methanones 69ab were synthesized in 68–76% yields through an AlCl3-mediated acylation with 3,4,5-trimethoxybenzoyl chloride in 1,2-dichloroethane at 45 °C for 3.5 h. Finally, the phenylbenzo[b]furan-3-yl-(3,4,5-trimethoxyphenyl)methanone 70 was obtained in a 69% yield through an Amberlyst-mediated acylation with 3,4,5-trimethoxybenzoyl chloride in 1,2-dichloroethane refluxing for 6.5 h.
A synthetic route for obtaining 3-phenyl-functionalized 2-alkylbenzo[b]furans 72 and 73 was developed (Scheme 12). Firstly, 1-(5-bromo-2-ethylbenzo[b]furan-3-yl)-2-(4-hydroxyphenyl)ethanone 72 was synthesized from 5-bromo-2-ethylbenzo[b]furan 71a through an acylation with 4-methoxyphenylacetyl chloride, followed by demethylation to convert the methoxy group into a hydroxy group. Secondly, 2-(3,5-dibromo-4-hydroxyphenyl)-1-(2-butylbenzo[b]furan-3-yl)ethanone 73 was prepared from 2-butylbenzo[b]furan 71b by carrying out three sequential reactions: acylation with 4-methoxyphenylacetyl chloride, demethylation of the methoxy group, and bromination.
The biological evaluation encompassed the examination of compounds 68b, 69ab, 70, 72, and 73, focusing primarily on antiproliferative studies, flow cytometry, confocal microscopy imaging, and the tubulin polymerization assay, among other complementary analyses [46]. For the in vitro antiproliferative assessment, the benzo[b]furan derivatives were tested against the A375 cancer cell line using a cell proliferation reagent WST-1 assay (Table 16). The results revealed that compounds 69a (R1 = H), 69b (R1 = Ome), and 70 exhibited the most potent antiproliferative activity, displaying IC50 values of 2.85, 0.86, and 0.09 µM, respectively. Conversely, compounds 68b (R1 = Ome), 72, and 73 demonstrated low activity, with IC50 values exceeding 100 µM.

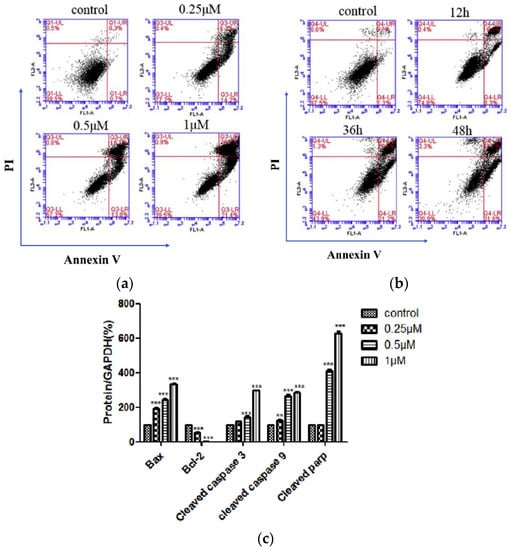

Flow cytometry analysis employed an apoptosis detection kit FITC Annexin V to evaluate apoptosis and necrosis in cells after 48 h of incubation with benzo[b]furan derivatives [46]. The results from the flow cytometry demonstrated minimal cytotoxicity for compounds 68b, 72, and 73, with approximately 90% of live cells, which is similar to the control group. In contrast, compounds 69a, 69b, and 70 exhibited a significant increase in late apoptotic cells, with percentages reaching 57.63%, 71.21%, and 58.52%, respectively. These findings highlight the potent anticancer activity of 3-aryl-2-phenylbenzo[b]furan derivatives.
In addition, a complementary study on cell cycle distribution was performed, revealing that the 3-aryl-2-phenylbenzo[b]furan derivatives induced the accumulation of A375 cells in a tetraploid state (4N), resulting in a decrease in the percentage of cells in the G0/G1 phase. Specifically, compounds 69a, 69b, and 70 led to 66.34%, 58.86%, and 63.62% of A375 cells in the G2/M phase, respectively. In contrast, compounds 68b, 72, and 73 did not show significant differences in the percentages of A375 cells in the G0/G1 and G2/M phases compared to untreated control cells. These findings provide valuable insights into the mode of action of the 3-aryl-2-phenylbenzo[b]furan derivatives and highlight their potential as effective anticancer agents.
After analyzing the cell cycle distribution results, Kwiencień et al. conducted a confocal microscopy analysis [46]. Cells were incubated with the tested compounds for 7 h, fixed, and then stained for α-tubulin and chromosomes. The control cells displayed well-defined bipolar spindle formation with chromosome alignment at the metaphase central plate or anaphase distribution (Figure 23A,B). However, cells treated with 3-aryl-2-phenylbenzo[b]furans exhibited diverse phenotypes, characterized by enlarged nuclei and the absence of a visible mitotic spindle (Figure 23C–H). Notably, compound 70 showed a distinct phenotype with binuclear or enlarged nuclei. These observations suggest that the disparity between the tested compounds and control cells was specifically evident during mitosis, indicating a specific mitotic activity of the compounds. This finding sheds significant light on the potential of these compounds as specific mitosis-targeting agents.

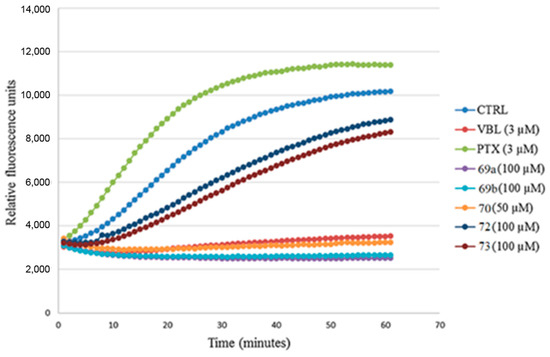

Finally, the effects of benzo[b]furan derivatives on tubulin polymerization were evaluated based on fluorescence [46]. Paclitaxel (PTX), vinblastine (VBL), and DMSO (0.2%) were used as control and reference compounds. As depicted in Figure 24, DMSO had no direct effect on tubulin polymerization. In contrast, the reference compounds (PTX and VBL) interacted with tubulin, resulting in alterations to the normal polymerization curve. Upon comparing the curves of VBL, 69a, 69b, and 70, it became evident that these compounds were the most effective in inhibiting tubulin polymerization, as indicated by a decrease in Vmax (maximum slope values for the growth phase) and a reduction in the final mass of the protein polymer. These findings align with the observations from confocal microscopy and flow cytometry analyses, where the inhibition of tubulin polymerization led to the prevention of mitotic spindle formation, resulting in the presence of polyploid nuclei and cell cycle arrest at 4N. These collective data provide compelling evidence for the significant impact of the tested compounds on tubulin polymerization and their potential as potent agents affecting cell division and proliferation.

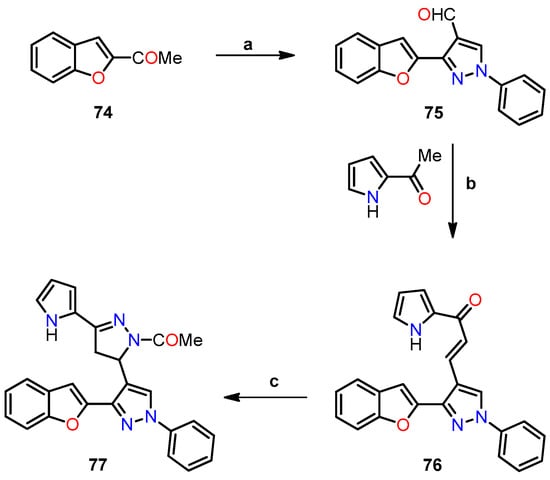

Anwar et al. pursued a unique approach and conducted preliminary studies, which revealed a promising anticancer activity in a benzofuran–pyrazole hybrid 77 [47]. Encouraged by these favorable findings, the researchers explored the potential benefits of its nanorange form, aiming to investigate the influence of the nanorange and its effect on the cytotoxic potency of the hybrid 77 [48]. The synthesis of hybrid 77 involved a three-step process: (1) the conversion of 1-(benzofuran-2-yl)ethanone 74 into the pyrazole-4-carbaldehyde 75 through the Vilsmeier–Haack reaction; (2) Claisen–Schmidt condensation of compound 75 with 2-acetylpyrrole to give chalcone 76 in an 88% yield; and, finally, (3) the cyclocondensation of compound 76 with hydrazine hydrate in acetic acid to afford benzofuran–pyrazole hybrid 77 in an 85% yield (Scheme 13).
On the other hand, nanoparticles of the benzofuran–pyrazole hybrid 77 were synthesized using the nanoprecipitation method and exhibited sizes ranging from 3.8 to 5.7 nm. The characterization of these nanoparticles involved transmission microscopy (TEM) to confirm spherical shape and average size. Additionally, the surface charge and stability of the nanoparticles were analyzed utilizing the Malvern Zetasizer nano Zs instrument. These results indicated that the nanoparticles had an average size of 3.8–5.7 nm and a zeta potential of −27.3 mV, with a polydispersity index (PDI) of 0.77, confirming their uniformity and stability.
The anticancer activity of the benzofuran–pyrazole hybrid 77 and its nanoparticles was assessed against two breast cancer cell lines, MCF-7 and MDA-MB-231, using an MTT assay and doxorubicin as a standard drug (Table 17) [48]. The results showed that the nanoparticles of hybrid 77 exhibited the highest cytotoxic activity against both MCF-7 and MDA-MB-231 cell lines with IC50 values of 1 and 0.6 nM, respectively, outperforming doxorubicin (IC50 = 620 nM in both cases). In contrast, hybrid 77 showed lower activity than its nanoparticles against both cell lines, with IC50 values of 7 and 10 nM. This difference in activity can be attributed to the high surface area/volume ratio of nanoparticles, which allows for selective targeting of cells and tissues, and more effective interactions compared to hybrid 77 (>100-fold). Finally, IC50 values of hybrid 77 and its nanoparticles showed over a 1000-fold difference when targeting normal breast cells MCF-12A compared to cancer cells, indicating their safety profiles in normal cells.

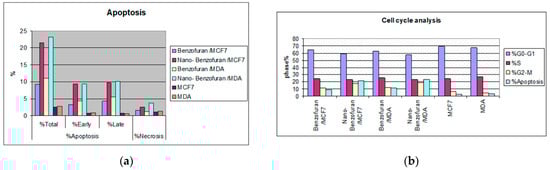

The researchers performed complementary analyses to explore the cell cycle, the effect on caspase-3/p53/Bax/Bcl-2 levels, and PARP-1 cleavage [48]. For the cell cycle analysis, the effects of hybrid 77 and its nanoparticles were evaluated against MCF-7 and MDA-MB-231 cell lines using flow cytometry, comparing the results with a DMSO control. As shown in Figure 25a, both the hybrid 77 and its nanoparticles induced apoptotic cells, resulting in percentages of 9.18% and 21.54% for the MCF-7 line, and 11.09% and 23.17%, for the MDA-MB-231 line, respectively. These findings underscore the significantly greater potency of the nanoparticles of 77, being twice as effective as the hybrid 77 against both cell lines tested. Moreover, exposure to the hybrid 77 and its nanoparticles caused a noticeable disruption in cell cycle distribution, with percentages of 11.26% and 17.52% observed in MCF-7, and 12.11% and 19.24% in MDA-MB-231, respectively (Figure 25b). These results suggest that the inhibitory potency was predominantly associated with the nanoparticles of 77, particularly in the G2/M phase.
In the study focusing on caspase-3/p53/Bax/Bcl-2 levels, the researchers employed an enzyme-linked immunosorbent assay (ELISA) to investigate two cancer cell lines [48]. As shown in Table 18, hybrid 77 exhibited a notable increase in caspase-3 levels (>5-fold) compared to untreated cells. However, the nanoparticles of 77 demonstrated an even more remarkable effect, surpassing the impact of hybrid 77, with caspase-3 levels elevated by over 17-fold vs. untreated cells. Moreover, p53 levels showed an approximately 7-fold increase for hybrid 77 and a remarkable 14-fold increase for nanoparticles of 77 against both cell lines tested. Additionally, Bax levels displayed a significant increase of 5- to 13-fold, while Bcl-2 levels decreased by 4- to 7-fold in both cell lines compared to the untreated cells.
In the final phase of the study, the researchers conducted a PARP-1 cleavage assay, using staurosporine as the standard drug [48]. As depicted in Table 19, hybrid 77 did not exhibit a considerable inhibitory effect on both cancer cell lines compared to staurosporine. However, the nanoparticles of 77 showed a remarkable inhibitory effect, proving to be 4 and 10 times more potent than the hybrid 77 for the MCF-7 and MDA-MB-231 cell lines, respectively. Notably, the nanoparticles of 77 exhibited an IC50 value of 6 nM, whereas staurosporine had an IC50 value of 8 nM for the MDA-MB-231 line.

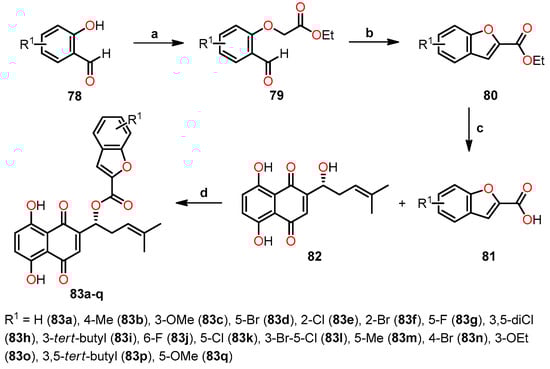

Shikonin–benzo[b]furan hybrids have shown potential as inhibitors of tubulin polymerization. To further explore this, Shao et al. synthesized the compound 79 using the Finkelstein reaction of salicylaldehyde 78 with ethyl bromoacetate in the presence of KI as a catalyst under mild reaction conditions (Scheme 14) [49]. Subsequently, compound 79 underwent condensation with K2CO3 in DMF at 120 °C for 3 h to afford ethyl benzofuran-2-carboxylate 80, which was then hydrolyzed with sodium hydroxide in DMF at 60 °C for 30 min, resulting in benzo[b]furan-2-carboxylic acid 81. Finally, the esterification reaction of carboxylic acid 81 with shikonin 82 using a mixture of DCC and DMAP in dichloromethane at 0 °C for 8 h afforded shikonin–benzo[b]furan hybrids 83aq in low yields (20–36%).
The antiproliferative activity of the shikonin–benzo[b]furan hybrids 83aq was evaluated against five human cancer cell lines (HepG2, HT29, HCT116, MDA-MB-231, and A549) and two non-cancerous cells (293T and LO2) using the MTT assay, with colchicine, shikonin, and CA-4 as the standard drugs (Table 20). The results demonstrated significant antiproliferative activity for the majority of the hybrids against the tested cancer cell lines. Remarkably, compounds 83c (R1 = 3-OMe), 83o (R1 = 3-OEt), and 83i (R1 = 3-tert-butyl) exhibited outstanding activity in the HT29 cell line, with IC50 values of 0.18, 0.73, and 0.82 µM, respectively, compared to shikonin and colchicine (IC50 = 2.80 and 1.81 µM, respectively). Surprisingly, compound 83c (IC50 = 0.18 µM) demonstrated even higher activity than CA-4 (IC50 = 0.31 µM) against the HT29 cell line. The impact of substitutions on antiproliferative activity was evident, as the most active shikonin–benzo[b]furan hybrids 83c, 83i, and 83o with a substitution at position 3 of the salicylaldehyde 78 displayed greater potency than shikonin in four of the cancer cell lines tested. However, this trend was observed only in mono-substituted compounds because di-substituted compounds (83i and 83p) exhibited lower activity than them at the same position. On the other hand, compound 83f (R1 = 2-Br) at position 2 demonstrated significant activity comparable to that of shikonin. Furthermore, the cytotoxicity of all compounds was evaluated in two non-cancerous cells (293T and LO2) (Table 20). The results indicated that all shikonin–benzo[b]furan hybrids exhibited low cytotoxicity (CC50 > 100 µM). These findings suggest their potential as promising candidates for further exploration in cancer treatment research.
Subsequently, the effect of hybrid 83c on tubulin microtubule dynamics was evaluated in the HT29 cell line, using colchicine, CA-4, and paclitaxel as the standard drugs [49]. The hybrid 83c exhibited a similar action to colchicine, indicating its potential as a microtubulin destabilizing agent with a more potent inhibitory effect on tubulin polymerization than both colchicine and CA-4, as evidenced by their respective IC50 values of 0.98, 2.11, and 1.12 µM (Table 21). In addition, compound 83c displayed a competitive trend at the tubulin binding site, demonstrating a remarkable 92.42% inhibition at 4 µM, comparable to colchicine.
The results led to additional biological investigations on hybrid 83c, including cell cycle and apoptosis assays, tubulin antiangiogenesis, and antivascular assays [49]. Flow cytometry was employed to analyze the cell cycle using the HT29 cell line at varying concentrations of hybrid 83c. The results revealed cell cycle arrest at the G2/M phase persisting over time (Figure 26a,b). Moreover, a Western blot study was performed to assess the impact of hybrid 83c on cell-cycle-related proteins. The study revealed that hybrid 83c increased the expression of P21 and cyclin B1, alongside reducing the expression of Cdc2, p-Cdc2, and p-Cdc25c, corroborating the findings from the cell cycle analysis (Figure 26c).
Cell apoptosis analysis was performed using the Annexin V-FITC/PI assay and confirmed by the Western blot in HT29 cells. Hybrid 83c induced cell apoptosis in a concentration- and time-dependent manner (Figure 27a,b) [49]. Moreover, the expression of proteins associated with cell apoptosis, including Bax, PARP, caspase-3, and caspase-9, increased, while Bcl-2 expression decreased, aligning with the observed trend in cell apoptosis (Figure 27c).
A complementary study was conducted to explore the effect of hybrid 83c on inhibiting tubulin polymerization and determine its potential to regulate microtubule dynamics in living cells [49]. The immunofluorescence assay was performed using the HT29 cell line, with colchicine and paclitaxel as positive control drugs (Figure 28). The results demonstrated that cells treated with paclitaxel showed more stable microtubules, whereas those treated with colchicine disintegrated and became soluble. Similarly, cells treated with hybrid 83c showed a similar response to colchicine, inducing the collapse of microtubules in a dose-dependent manner. On the other hand, the potential antivascular activity of hybrid 83c was investigated using endothelial cells (HUVECs), which were treated with different concentrations of 83c and then seeded in Matrigel. After 6 h of treatment, cells treated with hybrid 83c exhibited a dose-dependent inhibition in the formation of HUVEC cords, suggesting that hybrid 83c can impede the formation of HUVEC tubes.
As mentioned earlier, aryl- and alkylbenzo[b]furan groups have exhibited significant biological activity against various types of human cancer. Building upon these promising findings, Sivaraman et al. undertook the synthesis of a series of 2-aryl[b]benzofurans, classified as lignane and neolignane, through a one-pot reaction using 2-bromobenzo[b]furans as crucial intermediates [50]. Lavandula agustifola served as the source for both natural (89a, 99, and 100) and non-natural (88ab, 89b, 94, and 95) compounds in the process (Scheme 15, Scheme 16 and Scheme 17).

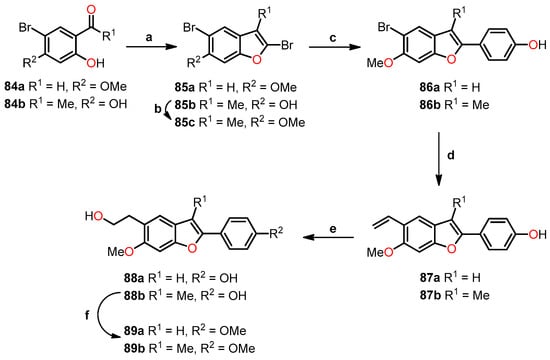

In the initial synthesis, 2,5-dibromo-6-methoxybenzo[b]furan 85a was obtained in a 60% yield through a gem-dibromo olefination/cyclization sequence (Scheme 15). Subsequently, a selective C–2 acylation of the Suzuki-type reaction resulted in the formation of 4-(5-bromo-6-methoxybenzofuran-2-yl)phenol 86a. Further vinylation of 86a, followed by a hydroboration/oxidation sequence, led to the compound 88a, which was then subjected to methylation to afford compound 89a. For the tetrasubstituted benzo[b]furans 88b and 89b, a similar reaction pathway was employed, utilizing 1-(5-bromo-2,4-dihydroxyphenyl)ethanone 84b, leading to the formation of 2,5-dibromo-3-methylbenzo[b]furan-6-ol 85b. Subsequent methylation of 85b gave 2,5-dibromo-6-methoxy-3-methylbenzo[b]furan 85c. By employing the identical reaction steps as previously described, compounds 88b and 89b were obtained with overall yields of 6% and 5%, respectively.
The second reaction was performed following a similar procedure as described in Scheme 15. Initially, a one-pot cyclization of 5-bromo-2-hydroxy-3-methoxybenzaldehyde 90 yielded benzo[b]furan 91. Subsequently, a selective C–2 arylation gave 92, and vinylation led to the formation of 4-(7-methoxy-5-vinyl-benzofuran-2-yl)phenol 93 (Scheme 16). Afterward, a hydroboration/oxidation sequence afforded compound 94, and its methylation yielded compound 95, with overall yields of 22% and 16%, respectively.

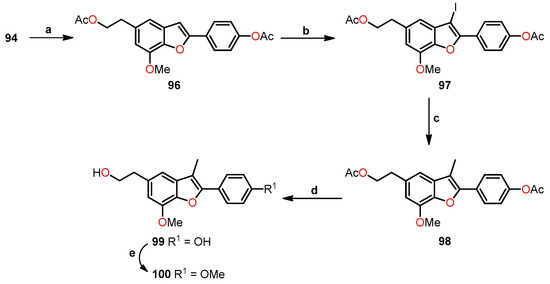

Benzo[b]furan derivatives 99 and 100 were synthesized by a multi-step process starting from 94. Initially, compound 94 underwent diacetylation to afford 96 (Scheme 17). Subsequently, a regioselective iodination reaction of 96 with NIS afforded iodinated compound 97, which underwent a Suzuki reaction to give compound 98. Finally, benzofuran 98 suffered deprotection and methylation to obtain compounds 99 and 100 with overall yields of 10% and 8%, respectively.

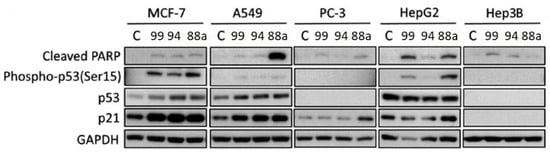

The previously synthesized compounds were evaluated for their cytotoxic effects on five human cancer cell lines, including MCF-7, A549, PC3, HepG2, and Hep3B, utilizing the MTT assay [50]. Notably, compounds 88a, 94, and 99 exhibited significant reductions in cell counts, indicating promising cytotoxic activity. Subsequently, comprehensive biological studies were conducted using Western blot analysis to assess the effects of compounds 88a, 94, and 99 on proteins associated in cellular processes (Figure 29). As expected, all compounds induced the cleavage of PARP, indicative of activation of the apoptosis pathway. Additionally, MCF-7, A549, and HepG2 cells showed phosphorylation and stabilization of p53 in response to the compounds, while PC3 and Hep3B cells did not exhibit this response. Furthermore, the compounds similarly induced the p21 target gene across all cancer cell lines, regardless of the sensitivity of each cell line. This suggests that these compounds affect cancer cell survival through a combination of both p53-dependent and p53-independent mechanisms.

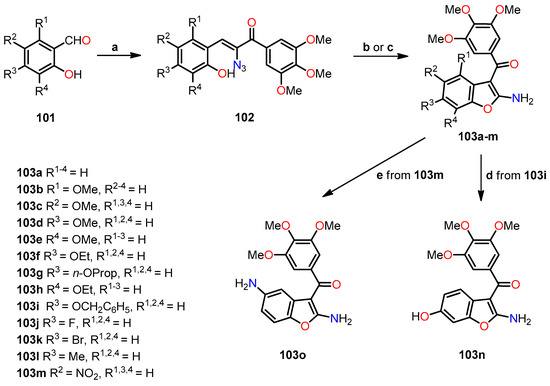

Similarly, Oliva et al. synthesized a novel series of 2-amino-3-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan derivatives 103ao and evaluated their in vivo and in vitro anticancer activity [51]. The synthesis involved two distinct reaction steps, as illustrated in Scheme 18. Initially, the Knoevenagel condensation reaction of salicylaldehyde 101 with 2-azido-1-(3,4,5-trimethoxyphenyl)ethanone was conducted in methanol at room temperature for 24 h, utilizing piperidinium acetate to afford α-azido chalcone 102. Subsequently, the chalcones were treated with PTSA (20 mol%) in refluxing acetonitrile for 12 h, resulting in the formation of 2-amino-3-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan derivatives 103an in 60–80% yields. An alternative photochemical process was also employed, where thermal heating was replaced with irradiation at room temperature using a 25 W compact fluorescent lamp (CFL) to obtain compounds 103an, albeit in reduced yields. Moreover, compound 103n was obtained from 103i through hydrogenation using Pd/C (10%) as the catalyst, while compound 103o was derived from 103m through reduction using iron and ammonium chloride.
The antiproliferative activity of the compounds 103al and 103no was evaluated against six human cancer cell lines (HeLa, HT-29, Daoy, HL-60, SEM, and Jurkat) using the MTT assay and CA-4 as the standard drug (Table 22). The results revealed the remarkable activity of four of the compounds (103d, 103f, 103k, and 103l), with IC50 values below 5 nM. Specifically, compound 103f (R1,2,4 = H, R3 = OEt) displayed the highest potency with an IC50 value of 5 pM against the Daoy cell line, outperforming the other cell lines evaluated. Both compounds 103f and 103l (R1,2,4 = H, R3 = Me) exhibited greater potency than CA-4 in all cancer lines and demonstrated significantly higher sensitivity in Daoy, HL-60, and Jurkat cell lines, with IC50 values ranging from 0.005 to 0.38 nM. Furthermore, a clear and consistent trend in the antiproliferative activity was observed among the methoxy-substituted compounds (103be). The compounds bearing a methoxy group at either the C–5 or C–6 position exhibited the highest activity, while those with the methoxy group at the C–4 or C–7 position displayed the lowest activity. Specifically, the order of potency was as follows: 6-OMe (103d) > 5-OMe (103c) > 7-OMe (103e) > 4-OMe (103b). In particular, compound 103b exhibited a remarkable IC50 value ranging from 2.8 to 8.5 nM. Moreover, the substitution of the methoxy group with a methyl group at C–6 (103d and 103l, respectively) resulted in a 3–14-fold increase in activity against HeLa, HT-9, SEM, and Jurkat cell lines for 103l compared to 103d. However, the substitution of the methoxy group with a hydroxy group at C–6 (103n) did not enhance its activity in any significant manner. Finally, in the halide compounds, increasing the size from fluorine to bromine (103k) led to a 71–338-fold increase in activity across all six cell lines, with particularly pronounced effects observed in the Daoy line.
The antiproliferative studies facilitated the identification of the most promising compounds from the synthesized series of 2-amino-3-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furans [51]. Subsequently, compounds 103cd, 103fg, and 103kl were selected for further evaluation to assess their inhibitory effects on tubulin polymerization and [3H]colchicine binding to tubulin (Table 23). The results demonstrated that all compounds exhibited comparable tubulin polymerization inhibition as compared to CA-4. Specifically, compounds 103f and 103l displayed greater potency than CA-4 (IC50 = 0.54 nM), with IC50 values of 0.37 and 0.39 nM, respectively. Moreover, in the colchicine binding studies to tubulin, compounds 103d, 103f, and 103l showed results similar to CA-4 at concentrations of 5 and 0.5 µM. These findings suggest that the compounds in this assay are robust antiproliferative and antitubulin agents.
The potent inhibition of tubulin polymerization displayed by compounds 103f and 103l prompted the evaluation of their effects on cell cycle progression using flow cytometry with the HeLa cell line. As shown in Figure 30a,b, both compounds caused a remarkable cell cycle arrest at the G2/M phase after 24 h of treatment at a concentration of 10 nM. Furthermore, there was a notable reduction in the number of cells in the G1 phase, while no significant effect was observed on the S phase for both compounds. These findings indicate that compounds 103f and 103l exhibited a strong influence on cell cycle dynamics, which may play a crucial role in their antiproliferative activity.

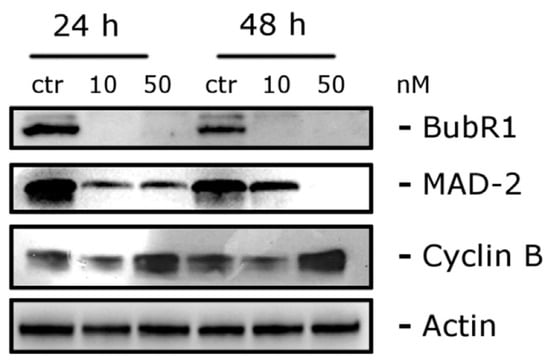

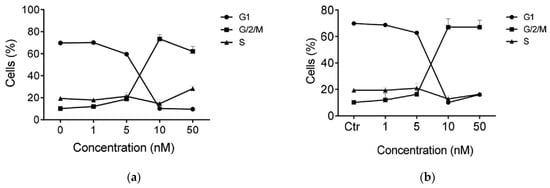

Furthermore, a study was conducted to investigate the effects of compound 103f on two proteins, Bubr1 and Mad-2, which play essential roles in the spindle assembly checkpoint (SAC), and are associated with apoptotic cell death (Figure 31). The treatment with compound 103f resulted in a significant reduction in the expression of both Bubr1 and Mad-2 proteins, even at low concentrations as low as 10 nM, indicating a potential arrest of the mitotic checkpoint. Moreover, the study examined cyclin B, a key regulator in the G2/M phase of the cell cycle, which showed a dose-dependent increase in expression in response to compound 103f. This result aligns with the rapid accumulation of cells in the G2/M phase induced by the compound.
Considering the well-established association of tubulin-targeting agents with antivascular effects against tumor endothelium, the response of compound 103f was evaluated to assess its antivascular activity in angiogenesis in vivo using HUVEC endothelial cells [51]. For this purpose, HUVECs were seeded on Matrigel to analyze the impact of compound 103f on the formation of “tubule-like” structures in these cells. The results indicated that after 1 h of treatment, compound 103f effectively disrupted the HUVEC network at both concentrations tested (10 and 100 nM) compared to the control cells. To quantitatively evaluate these effects, image analysis was conducted to measure parameters such as the tubule segment length, meshwork area, and number of branches. Notably, the results showed a statistically significant effect at a concentration of 10 nM on segment length and mesh area, underscoring the strong potential of compound 103f to induce vascular disruption. These findings strongly suggest that compound 103f holds promise as a potential antivascular agent for inhibiting angiogenesis.

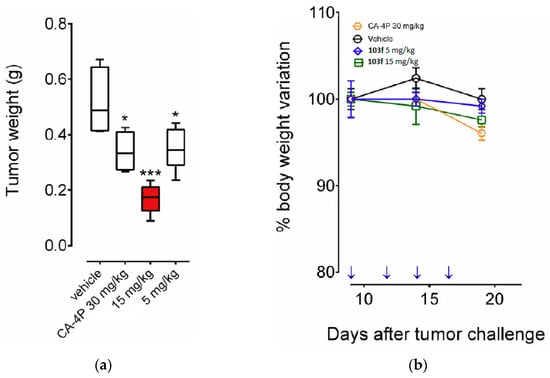

Finally, compound 103f underwent in vivo tests to evaluate its antitumor and cytotoxic effects in syngeneic mice. The method involved injecting E0771 murine breast cancer cells into the mammary fat pads of female C57BL/6 mice. Simultaneously, compound 103f was administered intraperitoneally on alternate days at two doses (5 or 15 mg/kg). The results demonstrated a dose-dependent reduction in tumor growth upon treatment with compound 103f, achieving a decrease of 45.7% and 16.9% at 15 and 5 mg/kg, respectively (Figure 32a). Compound 103f exhibited higher potency than the reference drug (CA-4P), which reduced tumor growth by 26.5% at 30 mg/kg. Importantly, cytotoxicity tests revealed no apparent signs of toxicity at the 15 mg/kg doses of compound 103f (Figure 32b). These findings highlight the potential of compound 103f as a promising antitumor agent with limited toxicity in vivo.

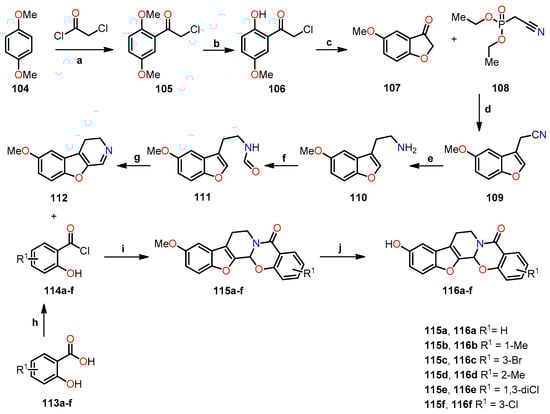

In 2021, Xu et al. accomplished the successful synthesis of novel polycyclic heterocycles derived from Evodiamine, a quinazolinocarboline alkaloid naturally occurring in the Evodia rutaecarpa plant native to China [52]. This research primarily aimed to evaluate these compounds as potential inhibitors of topoisomerase I (Top 1) for treating triple-negative breast cancer (TNBC), an aggressive subtype of breast cancer. The key focus of their synthetic efforts was the preparation of the 2-(5-methoxybenzofuran-3-yl)ethanamine 110, which involved a five-step reaction sequence using 1,4-dimethoxybenzene 104 as the starting reagent (Scheme 19). Subsequently, intermediate 110 underwent an amidation reaction with ethyl formate in reflux conditions for 12 h to afford amide 111 in a 72% yield. The following step involved an intramolecular cyclization of compound 111 using POCl3 in dichloromethane at room temperature for 12 h to give compound 112, which was then reacted with substituted salicylic acid chlorides 114af in dichloromethane at room temperature for 12 h to obtain the compounds 115af in good yields. Finally, the intermediates 115af underwent O-demethylation using BBr3 in dichloromethane at −78 °C for 6 h to furnish evodiamine derivatives 116af in good yields.
The antiproliferative evaluation of evodiamine analogs 115af and 116af was performed on MDA-MB-435 human breast carcinoma cells using the MTT method, with evodiamine as the standard drug (Table 24) [52]. Notably, the results significantly favored compounds 116af, exhibiting a higher percentage of inhibition at 10 µM compared to evodiamine. Building upon these promising findings, compounds 116af underwent further evaluation against four human cancer cell lines: MDA-MB-435, MDA-MB-231, HCT116, and A549, using the MTT method in the presence of evodiamine and camptothecin as the standard drugs (Table 25). The breast cancer lines showed the highest sensitivity to these compounds. For instance, compounds 116a (R1 = H) and 116f (R1 = 3-Cl) showed the best activity against the MDA-MB-435 cell line, with IC50 values of 0.47 and 0.42 µM, respectively, which were comparable to the camptothecin (IC50 = 0.31 µM). The introduction of a halogen at position 3 significantly enhanced the antiproliferative activity of the analogs, as demonstrated by 116f, which was the most active in the series with IC50 values of 0.36, 0.42, and 0.76 µM against the MDA-MB-231, MDA-MB-435, and HCT116 cell lines, respectively.
The data presented above shed light on the main objective of this study, which involves evaluating the topoisomerase inhibitory activity of compounds 116af [52]. To achieve this, a Top-1-mediated DNA cleavage assay was performed using purified Top 1 on compounds 116af. During the assay, DNA and Top 1 were incubated with or without these compounds to observe their effect on the appearance of relaxed DNA fragments. Remarkably, among the tested compounds, only 116f and camptothecin (CPT) exhibited significant inhibition of Top-1-mediated relaxation of supercoiled DNA at a concentration of 50 µM (Figure 33a). Furthermore, in a Top 1 inhibition study, compound 116f showed activity at 20 µM, while evodiamine only displayed moderate activity up to 500 µM (Figure 33b,c). These findings strongly suggest that 116f specifically targets Top 1 and holds great potential as a promising candidate for further investigation in cancer drug development.

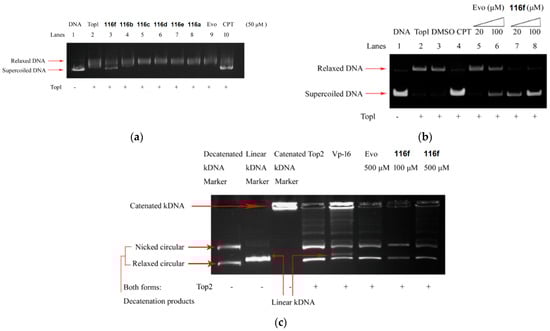

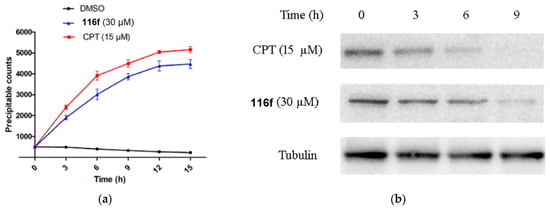

Complementary biochemical studies were performed to explore the ability of the compound 116f to effectively trap Top 1–DNA cleavable complexes within cancer cells, potentially leading to cell death. To assess this, the researchers quantified the number of trapped cleavable complexes using [3H]thymidine incorporation and SDS-K+ precipitation methods. As shown in Figure 34a, there was a significant increase in the formation of the cleavable complex over prolonged periods in cells treated with both camptothecin and the compound 116f. Furthermore, to confirm the formation of the cleavable complex, an immunological band depletion assay was performed to verify the presence of Top 1 in the precipitated complex, demonstrating that the complex could not migrate through the gel. Conversely, in the absence of the complex, Top 1 would have migrated through the gel. The results revealed a proportional decrease in the amount of free Top 1 with increasing time in cells treated with 15 µM of CPT and 30 µM of 116f, particularly evident after 9 h, where almost no free Top 1 was detected (Figure 34b). These compelling findings strongly support the notion that the 116f analog effectively interacts with Top 1, leading to the formation of the cleavable complex, underscoring its potential as a promising candidate for anti-cancer drug development.
Furthermore, a comprehensive study was performed to investigate the potential of stabilizing Top 1–DNA covalent complexes through an indirect process involving ROS generation and subsequent oxidative DNA damage, as observed in other studies with staurosporine. This investigation employed a fluorogenic ROS probe in combination with flow cytometry analysis. As demonstrated in Figure 35a, the treatment of MDA-MB-231 cells with the compound 116f resulted in a compelling, dose-dependent increase in ROS levels. Notably, even in the absence of Top 1 in MDA-MB-231 cells (siRNA-Top 1), the 116f analog induced ROS generation, indicating that the compound has the ability to generate ROS independently of Top 1 (Figure 35b).

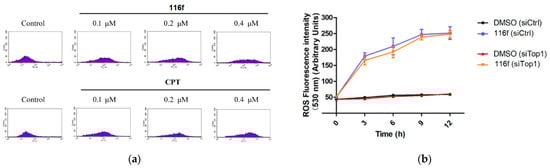

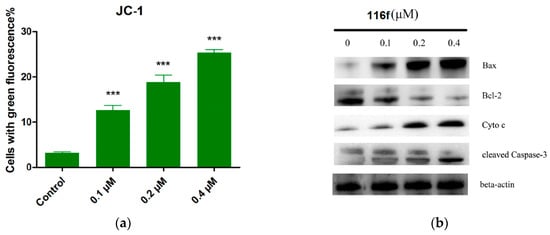

The cell cycle study focused on evaluating the mitochondrial dysfunction involved in the apoptosis process. To achieve this, a JC-1 fluorescent probe was employed to measure the mitochondrial membrane potential, incubated with MDA-MB-231 cells at different concentrations, and quantified by flow cytometry analysis. Mitochondrial dysfunction was found at 3.0% with 0 µM, 12.2% with 0.1 µM, 18.5% with 0.2 µM, and 25.0% with 0.4 µM of cells after treatment with the compound 116f (Figure 36a). These data suggest a direct relationship with the mitochondrial pathway. Therefore, it was also necessary to evaluate the expression of apoptotic proteins, including Bax, Bcl-2, cytochrome C, and caspase-3, using a Western blot assay. Figure 36b shows that following 48 h of treatment with 116f, the levels of Bax, cytochrome C, and caspase-3 proteins noticeably increased, while Bcl-2 expression significantly decreased.

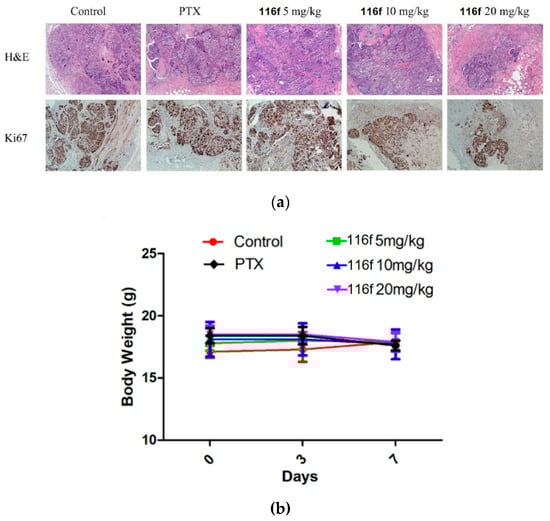

Finally, in vivo studies were conducted using a mouse xenograft model with surgical residual tumor samples from a patient with TNBC to assess the anticancer potency of compound 116f in TNBC, with paclitaxel (PTX) used as the positive control. Different concentrations of 116f were administered to the mice, followed by histological analysis of tumor tissue sections using H&E staining (Figure 37a). The results showed that the tumors from mice treated with 116f exhibited reduced cell density and increased necrosis rates compared to the untreated mice. Furthermore, immunofluorescence labeling of cell proliferation marker Ki67 showed a significant decrease in proliferating Ki67 cells in tumors treated with 116f compared to untreated tumors. This result convincingly demonstrates the potent inhibitory effect of 116f on tumor growth. Additionally, the body weight of the evaluated mice treated with compound 116f showed no significant changes, indicating the absence of apparent toxicity (Figure 37b). These promising findings highlight the potential of compound 116f for future TNBC treatments, even at doses as low as 20 mg/kg.

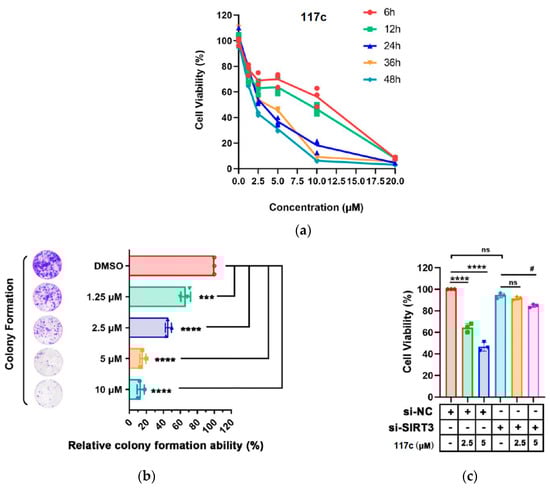

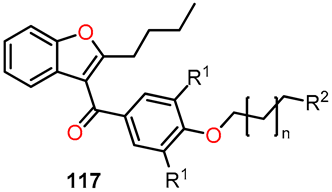

Using a similar approach, Zhang et al. successfully identified potential drugs for triple-negative breast cancer (TNBC) [53]. They focused on the derivatives of ZINCO3830212, which was selected through molecular docking studies involving pocket U of SIRT3, encompassing crucial amino acids, such as Phe157, Arg158, Ser159, Pro176, Glu177, and Glu323. This particular pocket is known for its significant role in modulating autophagy and its associations with various human cancers. To synthesize these derivatives, the researchers utilized alkanes as linkers and introduced halogen substituents to obtain compounds 117ar through an O-alkylation reaction. Subsequently, all synthesized compounds 117ar were evaluated against four human cancer cell lines: HL60, U937, MCF-7, and MDA-MB-231, using the MTT method and ZINCO3830212 as the reference compound (Table 26). Among these derivatives, compounds 117ce exhibited the most promising results in activating SIRT3. The researchers also investigated the impact of alkane length on SIRT3 activation by varying the linker length. Interestingly, they observed a decrease in activity for compound 117o (n = 0, R1 = I, R2 = 1-pyrrolidinyl) with a shorter linker. Moreover, when substituents other than iodine (i.e., H, Cl, Br, and Me) were used, the activity was not favored in compounds 117n (n = 0, R1 = H, R2 = 1-pyrrolidinyl) and 117pr (n = 1, R1 = Cl, Br, Me, R2 = 1-pyrrolidinyl). However, in the case of compound 117c (n = 1, R1 = I, R2 = 1-pyrrolidinyl) containing iodine, its activity surpassed that of compounds 117pr. Remarkably, compound 117c showed the highest antiproliferative activity against the breast carcinoma line MDA-MB-231, with an IC50 value of 2.19 µM, compared to ZINCO3830212 (IC50 = 33.43 µM). This significant finding highlights its potential as a promising SIRT3 activator for TNBC treatment (Table 26).

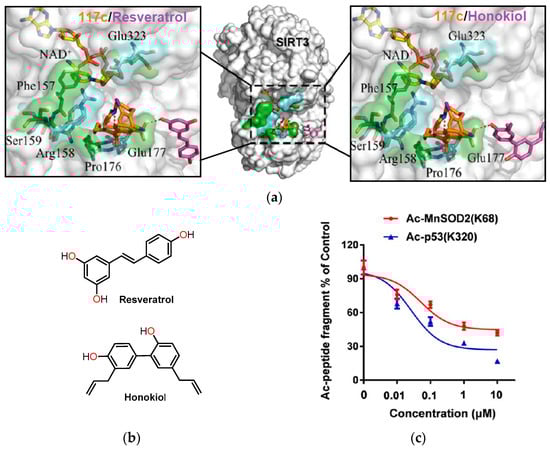

This study compared the deacetylation activity of the compound 117c with resveratrol and honokiol, known SIRT3 activators, using molecular coupling and evaluating their antiproliferative effects [53]. Molecular docking revealed that, unlike the compound 117c, resveratrol and honokiol tended to bind to the acetylated substrate recognition site, indicating no allosteric effect (Figure 38a). Also, compound 117c showed significantly higher potency than the reference activators, with an IC50 value of 2.19 µM against the MDA-MB-231 cell line. In contrast, resveratrol and honokiol showed IC50 values of 98.89 µM and 44.89 µM, respectively, with normalized Emax values of 0.25 for resveratrol, 0.91 for honokiol, and 1.00 for compound 117c (Table 27). Additionally, compound 117c induced the deacetylation of two tested SIRT3 substrates, MnSOD2 and p53 (Figure 38b), further confirming its potent deacetylation and antiproliferative effects.
The conducted studies provided significant insights, demonstrating the activation capability of compound 117c on SIRT3 [53]. To assess its selectivity toward SIRT3, a CETSA cellular thermal shift assay was performed on all SIRTs (SIRT1, SIRT2, SIRT3, and SIRT5). The collected data clearly revealed a direct interaction between compound 117c and SIRT3, while SIRT1, SIRT2, and SIRT5 remained unaffected in their thermal stability. This distinct result confirmed the specific binding affinity of compound 117c for SIRT3 in the MDA-MB-231 cell line (Figure 39). With its selectivity established, the researchers explored the influence of SIRT3 on both short- and long-term effects of compound 117c in the MDA-MB-231 cell line, confirming a concentration- and time-dependent inhibition of tumor cell proliferation (Figure 40a,b). Next, the antiproliferative activity was examined in the presence of SIRT3, and the findings indicated a significant impairment in the inhibitory effect of compound 117c when SIRT3 was absent. As a result, the antiproliferative effect displayed a marked reduction after SIRT3 knockdown, firmly establishing the dependence of compound 117c on SIRT3 for its activity (Figure 40c).

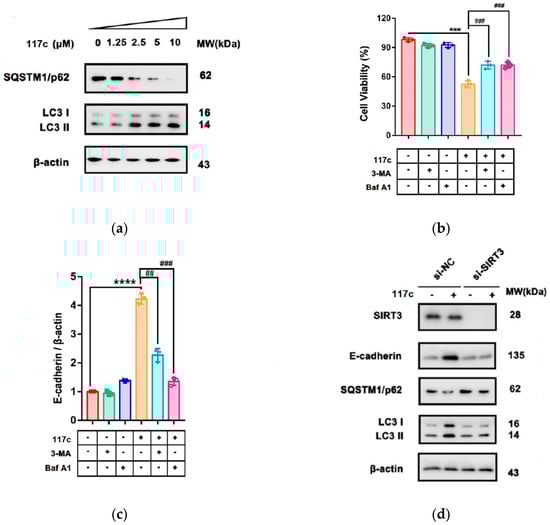

On the other hand, the regulation of autophagy by SIRT3 could have a suppressive effect on tumor growth and elimination [53]. As depicted in Figure 41a, compound 117c inhibits autophagy, as evidenced by the increase in LC3-II expression and the decrease in p56 expression following treatment. Moreover, the inhibition of autophagy resulted in a significant increase in cell viability and a notable attenuation of tumor migration (Figure 41b,c). This indicates that compound 117c exerts its antiproliferative effect on MDA-MB-231 cells by inducing autophagy. To delve into the role of SIRT3 in this process, the researchers employed SIRT3-specific siRNA to attenuate SIRT3 expression. Intriguingly, the attenuation of SIRT3 resulted in a significant decrease in the induction of autophagy, which is evident from the reduced levels of LC3-II and p62, along with the down-regulation of E-cadherin (Figure 41d). These findings suggest that compound 117c regulates autophagy and tumor migration by activating SIRT3.

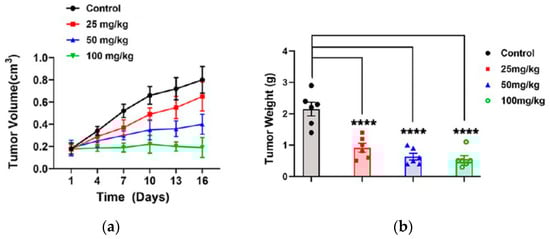

Finally, in vivo studies were carried out to evaluate the antitumor activity of compound 117c in TNBC mouse xenograft models at three different concentrations (25, 50, and 100 mg/kg) [53]. After 16 days of treatment, compound 117c exhibited significant antiproliferative activity in a dose-dependent manner. Additionally, the administration of 117c resulted in a notable decrease in tumor growth, tumor volume, and tumor weight compared to the control group (Figure 42a,b). However, when evaluating the toxicity of 117c, certain degrees of toxicity were observed in vivo at high concentrations, leading to pulmonary septum widening and other cellular abnormalities.

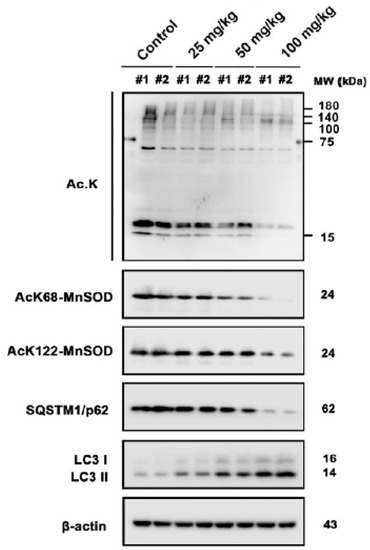

In addition to the previous findings, complementary in vivo studies were conducted to assess the ability of compound 117c to activate SIRT3 and induce autophagy in a mouse xenograft model using MDA-MB-231 TNBC cells [53]. The research team measured acetyl-lysine (Ac. K) acetylation levels, specifically AcK68-MnSOD2 and AcK122-MnSOD2, and examined the expression levels of SQSTM1/p62 and LC3 (Figure 43). The results provided compelling evidence that the acetylation levels of K68-MnSOD2 and K122-MnSOD2 precisely matched the deacetylation sites of SIRT3. Moreover, a noticeable decrease in the expression of p62 was observed, while LC3-II levels were significantly up-regulated compared to the positive control (β-actin). These findings convincingly demonstrate the activation of autophagy by compound 117c. In conclusion, these promising in vivo results underscore the potential of compound 117c, in combination with SIRT3, as a promising alternative for the treatment of TNBC-type cancer.
In their pursuit of employing eco-friendly synthetic strategies and achieving favorable yields, Irfan et al. conducted the synthesis of benzo[b]furan-based oxadiazole/triazole derivatives 120ag and 121ah using ultrasound and microwave irradiation, respectively (Table 28) [54]. In method A, benzo[b]furan–oxadiazole derivatives 120ag were obtained in 60–90% yields through S-nucleophilic substitution of 5-(benzofuran-2-yl)-1,3,4-oxadiazole-2-thiol 118a with bromoacetanilides 119ag utilizing pyridine in acetonitrile under ultrasound irradiation at 40 °C for 30 min. Similarly, method B was employed to synthesize benzo[b]furan–triazole derivatives 121ah in 68–96% yields through a S-nucleophilic substitution of 5-(benzofuran-2-yl)-4-phenyl-4H-1,2,4-triazole-3-thiol 118b with bromoacetanilides 119ah, utilizing pyridine in DMF under microwave irradiation for 60–70 s. In summary, the microwave-assisted method B led to better yields and shorter reaction times for benzo[b]furan derivatives than the ultrasound-assisted method A.
The hemolytic, thrombolytic, and anticancer activities of previously synthesized benzo[b]furan-based oxadiazole/triazole derivatives were assessed (Table 29) [54]. Among these compounds, 121b (X = NPh, R1 = N-morpholinyl) exhibited the lowest cytotoxicity (0.1%), while 121g (X = NPh, R1 = 4-chloro-N-anilinyl) and 120b (X = O, R1 = N-morpholinyl) showed the highest toxicity (23.4% and 22.12%, respectively) compared to ABTS (95.9%). In the thrombolysis assay, the majority of compounds demonstrated moderate activity when compared to the positive control (ABTS). Notably, compound 121f (X = NPh, R1 = 2,4-dimethyl-N-anilinyl) exhibited the highest thrombolytic potential with a value of 61.4% compared to the positive control ABTS (86%).
The IC50 value and cell viability percentage against the A549 lung cancer cell line were determined using an MTT assay, with crizotinib and cisplatin as the standard drugs (Table 29). In summary, compound 120d (X = O, R1 = 2-methoxy-N-anilinyl) exhibited the highest potency with a cell viability of 27.49% and an IC50 value of 6.3 µM, demonstrating greater activity than crizotinib (28.22% and 8.54 µM, respectively) and lower cytotoxicity than cisplatin (15.34% and 3.88 µM, respectively). In addition, compound 121h (X = NPh, R1 = 2,4-dichloro-N-anilinyl) showed slightly lower activity with a cell viability of 29.29% and an IC50 value of 10.9 µM. Other oxadiazole/triazole derivatives, such as 120bc, 120eg, 121a, 121ce, and 121g, exhibited moderate anticancer activity, with cell viability ranging from 34.47% to 49.8%. Although compound 121f (X = NPh, R1 = 2,4-dimethyl-N-anilinyl) had the highest cell viability (99.1%), it did not demonstrate any activity against the A549 cell line.
A molecular docking simulation was performed to investigate the interactions of compound 120d with anaplastic lymphoma kinase (ALK) in conjunction with crizotinib (PDB ID code: 2XP2) [54]. In summary, crizotinib displayed direct contact with ALK residues in the active site, while compound 120d exhibited even more effective binding to these ALK residues (Figure 44a,b). Notably, the phenyl and heterocyclic rings of 120d engaged in π-sigma interactions with Leu1256 and Val1130, while the NH group formed hydrogen bonds with Gly1201 and π-anion bonds with Glu1210.

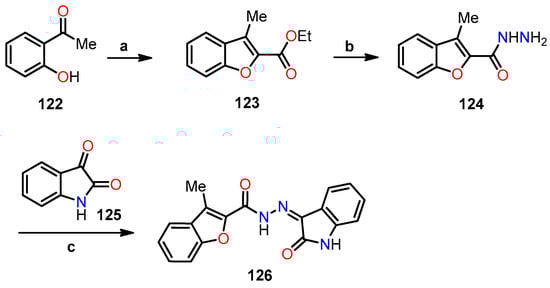

Isatin, also known as 1H-indole-2,3-dione, is an important N-heterocycle in medicinal chemistry and drug discovery [55]. In their study, Mohammed et al. synthesized an isatin–benzofuran hybrid 126 and investigated its antiproliferative activity against HT29 and SW620 cancer cell lines, along with its impact on tumor and metastatic development involved in primary cellular processes [56]. Scheme 20 shows the three-step synthesis of the isatin–benzofuran hybrid 126. Firstly, 2-hydroxyacetophenone 122 underwent cyclization with ethyl bromoacetate utilizing K2CO3 as a base in refluxing acetonitrile for 8 h to afford ethyl 3-methylbenzofuran-2-carboxylate 123, which then reacted with hydrazine hydrate in refluxing methanol for 4 h to give 3-methylbenzofuran-2-carbohydrazide 124. Finally, a condensation reaction between 124 and isatin 125 catalyzed by acetic acid in refluxing ethanol for 5 h afforded isatin–benzofuran hybrid 126 with an 80% yield.
Next, comprehensive biological tests and analyses were carried out, specifically targeting cell viability, real-time migration, invasion studies, cell cycle assays related to apoptosis, and cytotoxicity evaluations [56]. In the initial phase, a cell viability, migration, and invasion assays were carried out using an xCELLigence Automated Dual Layer Real-time Cell Analyzer (RTCA-DP) with various concentrations of isatin–benzofuran hybrid 126. The results revealed a noteworthy dose-dependent reduction in cell proliferation, migration, and invasion in both cancer cell lines compared to untreated cells (Figure 45a–c). Moreover, notable variations were observed in the inhibitory effects of hybrid 126 on the proliferation and migration of the SW620 line compared to the HT29 line, while in invasion, the HT29 line exhibited a more pronounced inhibitory effect. In addition, the impact of hybrid 126 on tumor suppression, based on the p53 protein, was evaluated. The results indicated a significant increase in p53 expression levels, 2.46-fold in HT29 cells, and 4.81-fold in SW260 cells at a concentration of 10 μM, demonstrating the potent inhibitory effect on tumor cell proliferation when utilizing hybrid 126 (Figure 45d).
Apoptotic studies were performed to evaluate the pro-apoptotic effects of hybrid 126, involving its role in suppressing the expression levels of mitochondrial proteins Bcl-x, Bax, and cytochrome C utilizing flow cytometry [56]. The results showed a significant suppression of the Bcl-x protein expression by 50% in the HT29 cells, and by 75% and 90% in the SW620 cells at concentrations of 5 and 10 μM, respectively, in comparison to untreated cells (Figure 46a,b). On the other hand, a significant increase in the expression of Bax and cytochrome C was observed in both HT29 and SW620 cell lines, showing an approximately two-fold increase compared to the basal expression of untreated cells (Figure 46a,b). Moreover, the down-regulation of Bcl-x and the up-regulation of Bax and cytochrome C in both cancer cell lines exposed to hybrid 126 were further confirmed in gene expression levels, when compared to untreated cells. These findings support the apoptotic effects of hybrid 126 on cell cycle disruption in both HT29 and SW620 cell lines (Figure 46c,d).

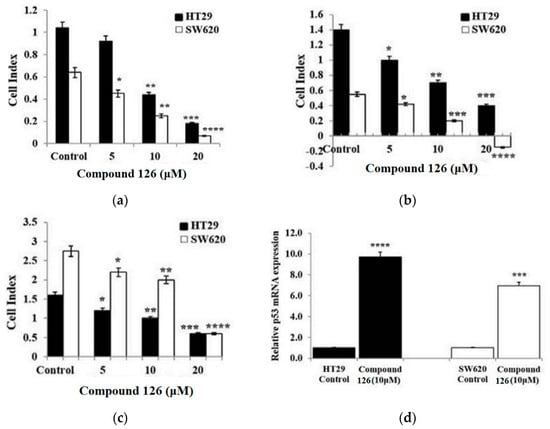

In this particular study, they assessed the cytotoxic effect of hybrid 126 both alone and in combination with three anticancer drugs: irinotecan (IRI), 5-fluorouracil (5-FU), and oxaliplatin (OXA) in the HT29 and SW620 cancer cell lines at different concentrations (Figure 47a,b) [56]. Notably, when combining hybrid 126 with IRI in the HT29 cell line (Figure 47a), there was a significant inhibition of cell proliferation at 10 μM (−75% vs. −50%) and 20 μM (−90% vs. −65%) compared to the single treatment with IRI alone. When combining 5-FU with hybrid 126, cell proliferation was significantly inhibited at 5 μM (−50% vs. −20%) and 10 μM (−67% vs. −55%) compared to the single drug treatment. Similarly, OXA inhibited cell proliferation at 5 μM (−55% vs. −25%) and 10 μM (−75% vs. −45%) when used in conjunction with hybrid 126. On the other hand, in the SW620 cell line (Figure 47b), the combined treatment of IRI with 126 resulted in a substantial inhibition of cell proliferation at 5 μM (−45% vs. −15%) and at 10 μM (−75% vs. −45%). Similarly, 5-FU combined with 126 showed comparable inhibition of cell proliferation to IRI at 5 μM (−55% vs. −15%) and at 10 μM (−70% vs. −50%). Moreover, when utilizing the treatment in conjunction with OXA, a more pronounced inhibition of cell proliferation was observed at 5 μM (−55% vs. −15%), 10 μM (−65% vs. −50%), and 20 μM (−90% vs. −75%) compared to the single drug treatment. These findings demonstrate a significant enhancement in the effectiveness of the anticancer drugs employed in this study when combined with hybrid 126.

2.2. Antibacterial Activity

Antibiotic resistance presents a worldwide concern, steadily escalating in severity, and posing substantial challenges to healthcare systems globally. Novel approaches are urgently needed to address this critical problem. Recently, benzo[b]furans and their derivatives have shown remarkable inhibitory potential against various Gram-positive bacteria, including Staphylococcus aureus (S. aureus), Bacillus subtilis (B. subtilis), and Enterococcus spp. (E. spp.), as well as Gram-negative bacteria, such as Pseudomonas syringae (P. syringae), Klebsiella pneumoniae (K. pneumoniae), Salmonella typhi (S. typhi), Pseudomonas aeruginosa (P. aeruginosa), and Escherichia coli (E. coli) [57]. In the province of Lampang, Thailand, a noteworthy medicinal discovery was made from the root extracts of Stemona aphylla, resulting in the isolation of alkaloids 127ai (Table 30) [58]. The extraction process involved drying 15.14 kg of ground root material, which was then extracted with 95% ethanol for 16 days at room temperature. After evaporating the extract, a portion of the residue was partitioned between 50% aqueous methanol and dichloromethane to give 8.86 g of the dichloromethane extract. The alkaloids were further isolated using column chromatography or preparative thin-layer chromatography through successive separations. The identified alkaloids and their corresponding masses are listed in Table 30.
Antimicrobial studies were conducted on alkaloids 127a, 127cd, 127g, and 127i, evaluating their MIC values against two Gram-negative bacteria (Escherichia coli and Klebsiella pneumoniae) and three Gram-positive bacteria (Staphylococcus aureus, methicillin-resistant Staphylococcus aureus (MRSA), and Streptococcus pyogenes), with gentamicin used as the standard drug (Table 31) [58]. The results indicated minimal activity against Gram-negative bacteria for all tested compounds. However, alkaloids 127a (R1 = H, R2 = H, R3 = Me, R4 = H, R5 = Me, R6 = H), 127c (R1 = H, R2 = H, R3 = Me, R4 = Me, R5 = Me, R6 = H), and 127i (R1 = H, R2 = OMe, R3 = Me, R4 = Me, R5 = Me, R6 = H) showed significant activity against MRSA, exhibiting MIC values of 15.6 µg/mL, outperforming the control antibiotic (MIC = 45.0 µg/mL). Compounds 127d, 127g, and 127i showed moderate activity against S. aureus, with MIC values of 31.3 µg/mL, in comparison to gentamicin (MIC = 22.5 µg/mL).

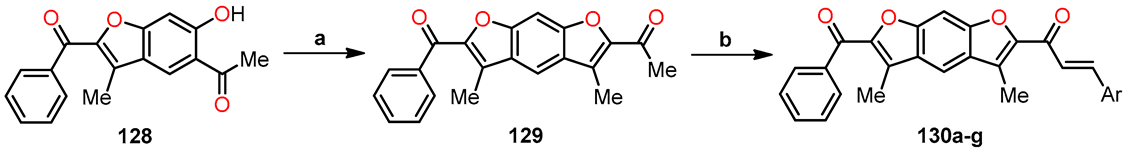

Next, Ashok et al. synthesized a series of E-(1)-(6-benzoyl-3,5-dimethylfuro [3′,2′: 4,5]benzo[b]furan-2-yl)-3-(aryl)-2-propen-1-ones 130ag using both conventional and microwave heating protocols (Table 32) [59]. Firstly, they obtained 2-acetyl-3,5-dimethyl-6-benzoylbenzodifuran 129 by cyclizing 5-acetyl-2-benzoyl-6-hydroxy-3-methylbenzo[b]furan 128 with 2-chloroacetone employing K2CO3 as a base in refluxing acetone for 8 h (Method A), and microwave heating at 120 °C for 4 min under solvent-free conditions (Method B). Subsequently, bis-chalcones 130ag were synthesized through a Claisen–Schmidt condensation reaction of 129 with (hetero)aromatic aldehydes using NaOH as a base in refluxing ethanol for 6–8 h (Method A, 53–68%) and microwave-assisted aldol condensation at 90 °C for 4–5 min under solvent-free conditions (Method B, 87–94%). In summary, method B led to bis-chalcones in higher yields and shorter reaction times compared to method A, which utilized conventional heating.
The antimicrobial activities of bis-chalcones 130ag were evaluated using the plate count method with nutrient agar as the culture medium. The bacterial strains tested included two Gram-negative bacteria, Escherichia coli and Pseudomonas aeruginosa, and two Gram-positive bacteria, Bacillus subtilis and Staphylococcus aureus, using chloramphenicol, carbenicillin, streptomycin, and tetracycline as the standard drugs [59]. The inhibition zones (in mm) were measured after 24 h of incubation at 37 °C (Table 33). In summary, bis-chalcones 130ag showed inhibition zones ranging from 6 to 11 mm and 7 to 17 mm against Gram-negative and Gram-positive bacterial strains, respectively. In particular, compounds 130a (Ar = Ph), 130b (Ar = 2-ClPh), 130f (Ar = 1,3-diphenyl-1H-pyrazol-4-yl), and 130g (Ar = 1-phenyl-3-(4-bromophenyl)-1H-pyrazol-4-yl) showed good activity against all bacterial strains, with inhibition zones in a range of 9 to 17 mm. However, none of these bis-chalcones demonstrated higher activity than the control drugs for each bacterial strain (13–22 mm).

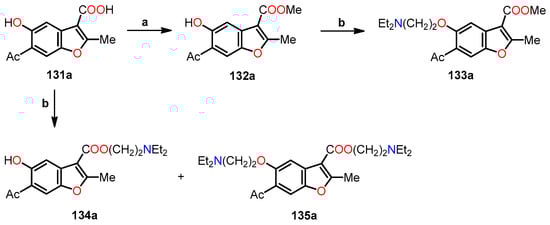

In a separate study, Ostrowska et al. utilized microwave irradiation to synthesize a collection of O-alkylamino benzo[b]furancarboxylates with good yields [60,61]. Firstly, the esterification reaction of 6-acetyl-5-hydroxy-2-methyl-3-benzo[b]furancarboxylic acid 131a with methanol catalyzed by sulfuric acid afforded benzo[b]furancarboxylate 132a (Scheme 21). Subsequently, microwave-assisted O-alkylation reaction of 132a with 2-chloroethyl-N,N-diethylamine in the presence of K2CO3 and Aliquat 336 in acetone gave O-alkylated benzofuran-3-carboxylate 133a. In an alternative approach, compounds 134a and 135a were synthesized under analogous conditions to the previous O-alkylation protocol, using carboxylic acid 131a instead of ester 132a. Notably, compounds 133bg and 134bg were obtained using the corresponding benzo[b]furancarboxylic acids 131bg as the initial reactants (Table 34). Finally, the benzo[b]furancarboxylate derivatives 133ad, 133f, 134ad, 134f, and 135a were transformed into their respective hydrochloride salts.
The antimicrobial activity of hydrochlorides of benzo[b]furancarboxylates 133ad, 133f, 134ad, 134fg, and 135a was screened against six Gram-positive bacterial strains, including Micrococcus luteus, Bacillus cereus, Bacillus subtilis, Staphylococcus epidermidis, Staphylococcus aureus, and Enterococcus hirae, along with two Gram-negative bacterial strains, such as Escherichia coli and Pseudomonas aeruginosa (Table 35). The results unveiled that the O-alkyl-benzo[b]furancarboxylate 133f.HCl (R1 = COOMe, R2 = H, R3 = Br, R4 = OMe, R5 = O(CH2)2NEt2) showed the highest potency, with MIC values ranging from 0.003 to 0.012 µmol/cm3 against all Gram-positive bacterial strains. Conversely, the hydroxy-benzo[b]furancarboxylate 134g.HCl (R1 = COO(CH2)2NEt2, R2 = H, R3 = H, R4 = H, R5 = OMe) showed the lowest potency, with an MIC value of 15.28 µmol/cm3 in all Gram-positive bacterial strains. Additionally, it becomes evident that within the Gram-positive strains, compounds 135a.HCl and 133f.HCl exhibited the most remarkable activity against E. coli and P. aeruginosa with MIC values of 0.59 and 3.12 µmol/cm3, respectively. Notably, the observed structure–activity relationships are as follows: (i) compound 133c.HCl exhibited higher activity than 133b.HCl due to the introduction of a methoxy group at the C–5 position, (ii) compound 133d.HCl displayed higher activity than 133b.HCl due to the presence of the 7-(4-methoxycinnamoyl) group, and (iii) 2-(N,N-diethylamino)ethyl esters 134a.HCl, 134c.HCl, and 134d.HCl exhibited superior activity against Gram-positive strains compared to compounds 133a.HCl, 133c.HCl, and 133d.HCl. These variations underscore the influential role of substituents in the benzo[b]furan moiety, as evidenced by their distinct activities against diverse bacterial strains.

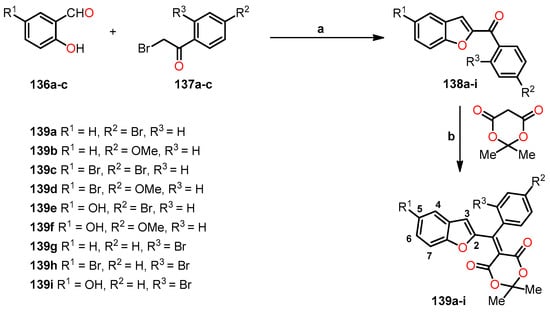

Concurrently, Kenchappa et al. synthesized a series of (5-substituted-1-benzofuran-2-yl)(2,4-phenyl-substituted)methanones 139ai by incorporating a pharmacophore group at the 2 position of the benzo[b]furan ring, a response to the consistent trend of enhanced antimicrobial activity observed across various studies [62]. Initially, the synthesis commenced with the cyclization reaction of salicylaldehyde derivatives 136ac with α-bromoacetophenones 137ac utilizing potassium carbonate as a base in refluxing acetonitrile to afford benzo[b]furan derivatives 138ai (Scheme 22). Subsequently, the Knoevenage condensation of compounds 138ai with Meldrum’s acid catalyzed by acetic acid at temperatures of 110–115 °C for a duration of 8–10 h resulted in the formation of (5-substituted-1-benzofuran-2-yl)(2,4-phenyl)methanones 139ai in 75–91% yields. It is important to emphasize that the presence of acetic acid facilitated the generation of a carbanion in Meldrum’s acid, thereby enhancing the nucleophilic addition and subsequent dehydration processes.
The antimicrobial activity of benzo[b]furan derivatives 139ai was screened against one Gram-positive bacterial strain, including Bacillus subtilis, as well as four Gram-negative bacterial strains, including Pseudomonas syringae, Salmonella typhi, Klebsiella pneumoniae, and Escherichia coli, using the agar well diffusion method [62]. Streptomycin was employed as the standard reference. The minimum inhibitory concentration (MIC) studies were performed using a serial broth-dilution method at different concentrations, including 1, 10, 25, 50, and 100 mol/L [62]. Based on the findings presented in Table 36, compound 139c (R1 = Br, R2 = Br, R3 = H) showed the most potent activity against the Gram-positive strain with an inhibition zone of 13 mm, closely approximating the effectiveness of streptomycin (16 mm) at a concentration of 0.5 mg/mL. Interestingly, compound 139c also emerged as the most effective against all Gram-negative strains with inhibition zones ranging from 10 to 14 mm, akin to the performance of streptomycin (13–17 mm), at a concentration of 0.5 mg/mL. As shown in Table 37, compounds 139c (R1 = Br, R2 = Br, R3 = H) and 139a (R1 = H, R2 = Br, R3 = H) demonstrated remarkable activity across all bacterial strains, displaying MIC values in ranges of 14.80–16.00 µg/mL and 15.50–16.50 µg/mL, aligning closely with the efficacy of streptomycin (MIC = 14.8–16.0 µg/mL). In contrast, compounds 134b (R1 = H, R2 = OMe, R3 = H) and 139f (R1 = OH, R2 = OMe, R3 = H) showed reduced activity, possibly attributed to the presence of electron-donating groups at the C–5 position of the benzo[b]furan ring. Furthermore, the introduction of a bromine group at C–4 of the benzo[b]furan ring did not increase the activity of compound 139i (R1 = OH, R2 = H, R3 = Br) (Table 37).
Naftifine, a topical allylamine, exhibits effectiveness across an extensive spectrum of dermatophytic fungi, including Trichophyton and Microsporum spp., and has also shown significant efficacy against Candida and Aspergillus spp. [63]. In 2016, Wang et al. undertook the synthesis of naphthalene hydrochloride (NFT) derivatives, previously recognized as potent inhibitors of the diapophytoene desaturase (CrtN) enzyme, which is a crucial molecular target against infections caused by pigmented Staphylococcus aureus [64]. The process of molecular design comprised several sequential stages. It commenced with an analysis of the naphthalene moiety of NFT, which served as a potential pharmacophore group. Subsequently, modifications were introduced in the N-methyl group, involving various steric groups (region A). Concurrently, the synthesis of specific analogs was undertaken to explore the impact of different linker types within the allyl portion on inhibitory activity (region B). Finally, a meticulous design approach led to the synthesis of 21 analogs, each featuring distinct substituents (region C), as illustrated in Scheme 23. In pursuit of this goal, several syntheses were undertaken to generate the varied analogs portrayed in Scheme 24.

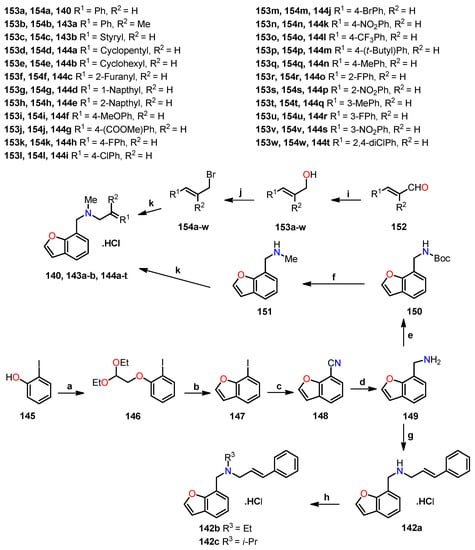

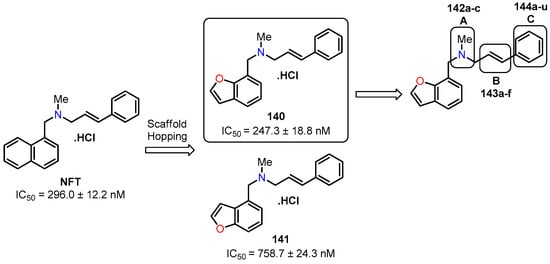

Scheme 24 sowed synthetic procedures to synthesize a series of naftifine analogs—140, 142ac, 143ab, and 144at [64]. The synthesis began with the nucleophilic substitution of 2-iodophenol 145 utilizing 1-bromo-2,2-diethoxyethane and NaH in DMF at 90 °C to give compound 146, which was cyclized in the presence of polyphosphoric acids under refluxing toluene to yield 7-iodobenzofuran 147. Further progression involved the substitution of the iodine atom in 147 with a cyano group in DMF at 130 °C for 4 h to furnish benzofuran-7-carbonitrile 148. The subsequent reduction of the cyano group in 148 was performed with LiAlH4 under mild reaction conditions to obtain benzofuran-7-ylmethanamine 149. Later, allylamine 142a was synthesized with an overall yield of 95% through a reductive amination reaction of compound 149 with trans-cinnamaldehyde utilizing NaBH4 as the reducing agent. Subsequently, the N-alkylation of allylamine 142a was conducted using iodoethane or 2-iodopropane in the presence of NaH as a base in DMF at ambient temperature to deliver compounds 142bc with a purity ≥ 95%. In another synthetic strategy, amine 149 was initially protected with di-tert-butyl dicarbonate, followed by reduction using LiAlH4 to afford 1-(benzofuran-7-yl)-N-methylmethanamine 151 (Scheme 24). Simultaneously, the α,β-unsaturated aldehyde 152 were reduced using NaBH4 to afford allylic alcohol 153, which was subjected to an Appel reaction utilizing PBr3 in Et2O at ambient temperature to afford allylic bromide 154. Finally, aliphatic nucleophilic substitution between compounds 151 and 154 gave a series of naftifine analogs, which were converted into their corresponding hydrochloride salts 140, 143ab, and 144at.

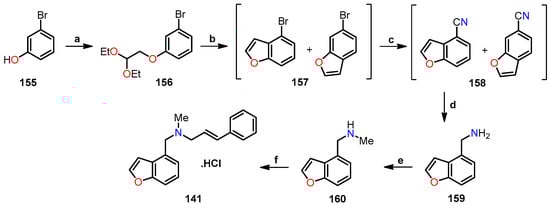

In a similar manner, the synthesis of naftifine analog 141 involved an O-alkylation reaction of 3-bromophenol 155 with 1-bromo-2,2-diethoxyethane to give compound 156, which was then cyclized using polyphosphoric acids, leading to the formation of two isomeric products 157, namely, 4-bromobenzo[b]furan and 6-bromobenzo[b]furan (Scheme 25). Subsequently, the bromine atom within isomers 157 was substituted with a cyano group to afford isomers 158. Finally, through a series of consecutive reactions involving reduction and Boc2O protection, reduction, and nucleophilic substitution, the naftifine analog 141 was successfully synthesized.

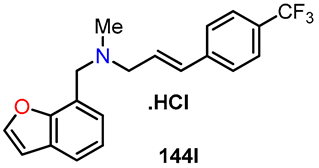

After obtaining the desired analogs, their inhibitory potential against S. aureus Newman was systematically evaluated using naftifine (NFT) as the reference drug [64]. The results indicated that compound 140 (R3 = Me, R5 = 7-benzofuranyl) showed the highest potency with an IC50 value of 247.3 nM, in comparison to NFT as the standard drug (IC50 = 296.0 nM). In contrast, the isomeric compound 141 demonstrated low activity with an IC50 value of 758.7 nM. In the case of analogs featuring N-methyl substitutions 142ac, the incorporation of an ethyl or iso-propyl group markedly diminished activity (IC50 > 1000 nm), as shown in Table 38. While the incorporation of cycloalkyl substituents 144ab and the 2-furanyl group 144c did not improve activity (IC50 > 1000 nM), the incorporation of 1- and 2-naphthalenyl groups 144d and 144e led to better activity (IC50 = 887.7 and 17.1 nM, respectively). It is worth noting that the presence of electron-donating and electron-withdrawing groups attached to the aromatic ring significantly influenced the activity profile. Also, the position of the substituent on the aromatic ring affected the activity, such as compounds 144h (R1 = 4-FPh, IC50 = 31.2 nM) vs. 144o (R1 = 2-FPh, IC50 = 288.3 nM) vs. 144r (R1 = 3-FPh, IC50 = 513.0 nM). The same behavior was observed for compounds 144k (R1 = 4-NO2Ph, IC50 = 71.1 nM) vs. 144p (R1 = 2-NO2Ph, IC50 > 1000 nM) vs. 144s (R1 = 3-NO2Ph, IC50 > 1000 nM). A key highlight is the exceptional activity displayed by compound 144l (R1 = 4-CF3Ph), showcasing an impressive IC50 value of 4.0 nM, which is 74 times lower than NFT (IC50 = 296.0 nM), as shown in Table 39.
Initial investigations unveiled the most prospective analogs with the potential to inhibit diapophytoene desaturase (CrtN) enzyme in the Staphyloxanthin (STX) biosynthesis pathway. STX is a notable golden carotenoid pigment synthesized by S. aureus, which opens up a novel avenue for treating S. aureus or methicillin-resistant S. aureus (MRSA) infections [64]. As shown in Table 40, a selection process identified five analogs (144f, 144i, 144j, 144l, and 144t) with the highest activity against S. aureus Newman, which were subjected to an evaluation of their capacity to inhibit the CrtN enzyme. The results revealed that five analogs displayed a remarkable 40-fold increase in inhibitory potency against CrtN compared to NFT. Interestingly, this potent inhibition of CrtN stands in contrast to their comparatively weaker impact on the enzymatic activity of pigmented S. aureus Newman. Furthermore, an assessment was conducted on the water solubility of the five analogs, revealing NFT to possess low solubility (6.2 mg/mL). This investigation facilitated the clarification of the interplay between solubility and chemical structure. Indeed, the replacement of the naphthalene ring with a benzo[b]furan ring generated an elevation in solubility, particularly evident in the cases of analogs 144f and 144l, showcasing solubilities 2–3 times greater than that of NFT, measuring 19.7 and 10.0 mg/mL, respectively. These findings served as the basis for advancing the assessment of the compound 144l, both in vitro and in vivo.

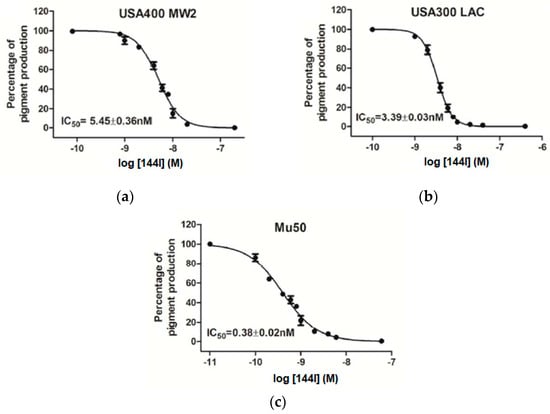

In their in vitro investigations, Wang et al. examined the impact of compound 144l on three MRSA strains: USA400 MW2, USA300 LAC, and Mu50 [64]. The results revealed a reduction in color due to the inhibitory effects of 144l, evidenced by IC50 values of 5.45, 3.39, and 0.38 nM. These findings mirrored the observations made with the S. aureus Newman strain (Figure 48).

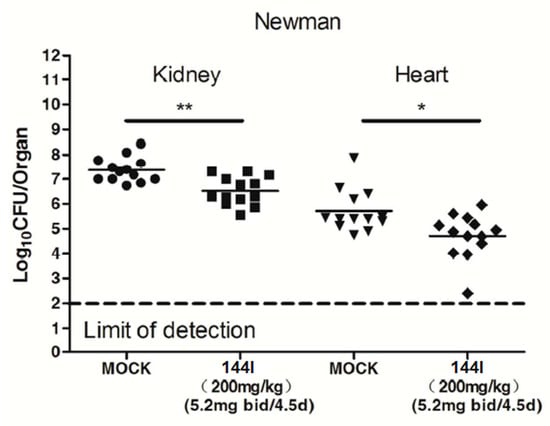

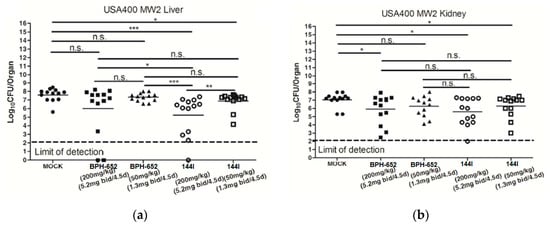

In vivo studies allowed the evaluation of virulence reduction in three of four colonies. Mice were infected with mock or treated with the compound 144l with S. aureus Newman, USA400 MW2, and Mu50 strains by retro-orbital injection [64]. Bacterial survival within host organs was then measured. Notably, in the S aureus Newman strain, the group treated with compound 144l displayed a reduction in bacterial survival. Kidneys and hearts showed decreases of 0.85 and 1.01 log10CFU/organ, respectively (Figure 49).
Regarding the MRSA strains, BPH-652 served as a reference CrtN inhibitor [64]. For the USA400 MW2 strain, the administration of a 200 mg/kg dose of compound 144l to mice resulted in a remarkable 99.6% reduction in survival rates within hepatic organs (2.35 log10CFU). Impressively, this outcome surpassed that of the BPH-652-treated group (1.58 log10CFU). Furthermore, with the dosage scaled down to 50 mg/kg, the bacterial survival rate showed only a marginal increase in both scenarios while still maintaining superiority over BPH-652 by 0.71 log10CFU in the 144l-treated group and by 0.25 log10CFU in the BPH-652-treated group (Figure 50a). Within the renal organs, the administration of the 200 mg/kg dose resulted in a notable 96.6% decrease in staphylococcal loads of the 144l-treated group (1.47 log10CFU), surpassing the BPH-652-treated group outcome of 1.14 log10CFU. Upon reducing the dose to 50 mg/kg, slight increases in bacterial survival rates were noted compared to the high-dose treatment groups (Figure 50b).

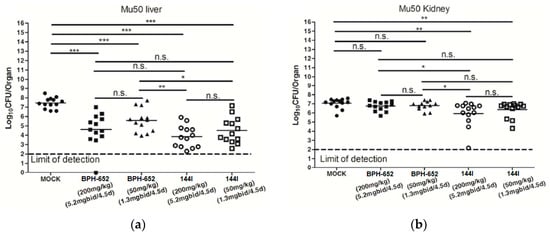

Employing the Mu50 strain, a parallel pattern emerged. Within liver organs, a dose of 200 mg/kg led to a reduction in survival rates by 3.58 log10CFU (144l-treated) and 2.84 log10CFU (BPH-652-treated). Similarly, at 50 mg/kg, the survival rate diminished by 2.94 log10CCFU (144l-treated) and 1.87 log10CFU (BPH-652-treated), as depicted in Figure 51a. However, outcomes in renal organs yielded inconclusive results. With a dosage of 200 mg/kg, the decrease amounted to 1.11 log10CFU (144l-treated) and merely 0.30 log10CFU (BPH-652-treated). At 50 mg/kg, survival was reduced to 0.68 log10CFU (144l-treated) and 0.25 log10CFU (BPH-652-treated), as shown in Figure 51b.

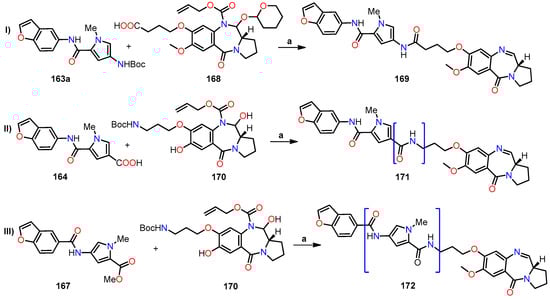

On the other hand, pyrrolobenzodiazepines (PBDs) have garnered considerable attention as promising antibacterial agents derived from natural sources. In line with this, Andriollo et al. undertook the synthesis of a series of PBDs incorporating C–8 linkers (Scheme 26), with the primary objective of evaluating their bioactivity and elucidating the structure–activity relationship (SAR) [65]. The synthetic methodology entails the synthesis of benzo[b]furan-based pyrroles 163ab and 167, achieved through an amidation reaction between N-methylpyrrole derivatives and benzo[b]furans in DMF, utilizing the EDCI/DMAP coupling system. Subsequently, nitrile 163b underwent hydrolysis under reflux conditions using dioxane and H2SO4 to afford carboxylic acid 164 in a modest 9% yield (Scheme 26). After acquiring these intermediate components, the synthesis of PBD derivatives 169, 171, and 172 with C–8 linkers was undertaken (Scheme 27). In this stage, the deprotection of BOC-protected amines 163a and 170 was achieved by treating them with an acidic solution (TFA in DCM). Additionally, derivatives containing methyl esters, identified as 167, underwent hydrolysis using an aqueous NaOH solution. Subsequent to this, an amide coupling reaction was facilitated utilizing the EDCI/DMAP coupling system, effectively linking the PBD core and side chains. Lastly, employing pyrrolidine and Pd(PPh3)4 in DCM, the conjugates underwent deprotection, leading to the generation of PDB derivatives 169, 171, and 172, each exhibiting standard and reverse orientations of the amide bond (Scheme 27).
The previously obtained PBD derivatives 169, 171, and 172 underwent an assessment to determine their capacity to bind to DNA and impart stability using a Förster resonance energy transfer (FRET)-based DNA fusion assay, utilizing netropsin as the positive control [65]. To achieve this objective, two oligonucleotide sequences labeled with distinct fluorophores were utilized: sequence F1′-FAM-TAT-ATA-TAG-ATA-TTT-TTT-TAT-CTA-TAT-ATA-3′-TAMRA and sequence F2′-FAM-TAT-AGA-TAT-AGA-TAT-TAT-TTT-ATA-TCT-ATA-TCT-ATA-TCT-ATA-3′-TAMRA. Here, FAM corresponds to 6-carboxyfluorescein, and TAMRA represents 5-carboxytetramethylrhodamine. The results revealed that compound 169, featuring a conventional orientation, adeptly conferred substantial stability to both DNA sequences, akin to the notable effect seen with netropsin. In contrast, compounds 171 and 172, characterized by reversed orientations, displayed a clear inability to confer stability upon either DNA sequence, as evidenced by ΔTm values below 1 °C. This compelling observation strongly suggests that the inversion of one or more amide bonds within these compounds markedly curtailed their DNA stabilizing efficacy, as firmly corroborated by the comprehensive data outlined in Table 41.
Subsequently, PBD derivatives 169, 171, and 172 were subjected to antimicrobial testing against diverse Gram-positive bacterial strains, including methicillin-sensitive S. aureus (MSSA) strain ATCC 9144, as well as two methicillin-resistant S. aureus (MRSA) strains, namely, EMRSA-15 (strain HO 5096 0412) and EMRSA-16 (strain MRSA 252) [65]. Additionally, the study incorporated vancomycin-sensitive Enterococcus faecalis (VSE) strain NCTC 755, vancomycin-resistant E. faecalis (VRE) strain NCTC 12201, and vancomycin-resistant Enterococcus faecium (VRE) strain NCTC 12204. The results are presented in Table 42. Compound 169, characterized by its standard orientation, exhibited remarkable antibacterial efficacy, with MIC values of 0.125 µg/mL against all assessed Gram-positive strains. In contrast, compound 171, characterized by its inverted amide bond orientation, exhibited a significant reduction in activity across all bacterial strains, particularly evident in MRSA strains, where MIC values exceeded 32 µg/mL. Notably, compound 172, characterized by its inversion of both amide bonds linked to the N-methylpyrrole ring, exhibited enhanced antibacterial activity compared to compound 171. However, its activity was inferior to that of compound 169. It is worth considering that the assessment of the orientation’s impact on antibacterial activity is at the forefront of our analysis.

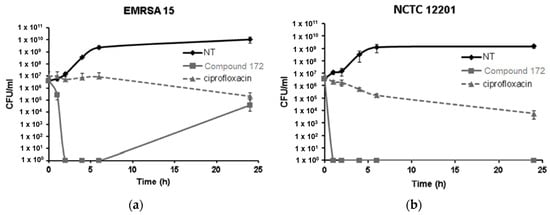

The mechanism of action of compound 172 was investigated via time–kill assays conducted on MRSA (EMRSA-15) and VRE (NCTC 12201) strains. These strains were exposed to compound 172 at a concentration of 4 × MIC for 24 h (Figure 52). Compound 172 demonstrated a rapid and robust bactericidal effect, leading to a reduction in cell counts below the detectable limit within a 2 h period. In contrast, ciprofloxacin exhibited bacteriostatic activity (Figure 52). Despite a modest cell population persisting in EMRSA-15 after 24 h of exposure to compound 172, it exhibited no resistance to the compound, suggesting the presence of a potential persister population. This trend was more pronounced in EMRSA-15 than in NCTC 12201, underscoring the potential role of fluoroquinolone resistance.

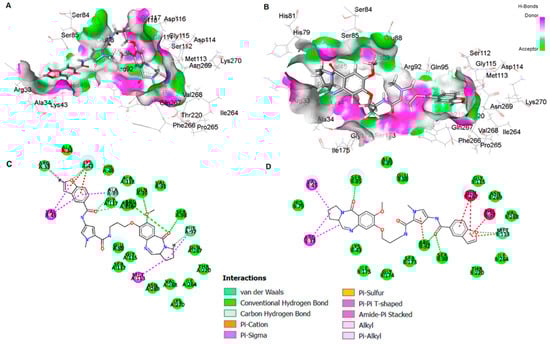

Moreover, an extensive in silico analysis was performed, employing ESI mutagenesis to unravel the mechanism of action inherent in the PBD derivatives. The gathered data unveiled that compound 172 exhibited a distinct interaction pattern with the ligand-binding domain of DNA gyrase, showcasing a notably robust binding affinity for both subunits of the bacterial DNA gyrase complex. The visualization of these interactions involving the bacterial gyrase from Staphylococcus aureus (PDB ID code: 2XCT) is visually presented in Figure 53A,B. As delineated in the 2D patterns depicted in Figure 53C, it becomes apparent that compound 172 forms three conventional hydrogen bonds, establishing connections with serine 98, arginine 92, and glutamine 95 within DNA gyrase A subunit 1. Analogously, the interaction extends to subunit 2 of DNA gyrase A, where it interacts with serine 85, arginine 92, and serine 98 (Figure 53D). The implications of the interaction underscore that the antibacterial activity attributed to compound 172 stems from its direct modulation of gyrase A via enzyme interaction, as opposed to its ability to stabilize DNA.

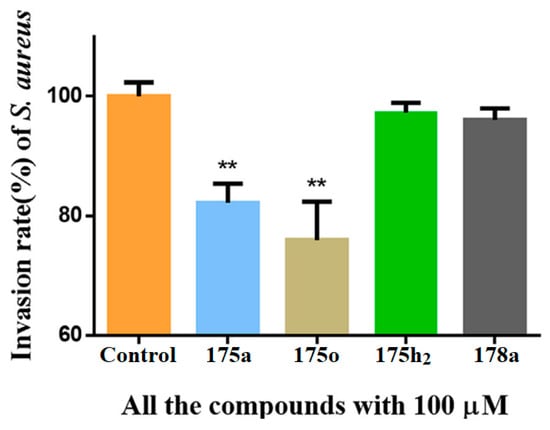

Considering the significance of Sortase A (SrtA) as a cysteine transpeptidase prevalent in most Gram-positive bacteria, its pivotal role in the infection process of these organisms is well-established. Inhibition of this enzyme has been shown to exert a discernible impact on the virulence of Gram-positive bacteria, thereby rendering them more resistant to antibiotics. Acknowledging this premise, Lei et al. embarked upon extending these insights to Staphylococcus aureus (S. aureus). Given its susceptibility to detection and elimination by the immune system due to its lower viscosity, inhibiting SrtA emerged as a pertinent strategy [66]. To this end, a series of derivatives of 2-(4-(1-cyano-2-phenylvinyl)phenyl)-N-isobutylbenzofuran-3-carboxamide 175az, 175a2i2, and 176 were synthesized from intermediates 173 [67], through substitution reactions involving cyanide, the compounds 174 were obtained (Scheme 28). Ultimately, via condensation reactions with diverse aldehydes, the cyano derivatives of benzo[b]furan 175az, 175a2i2, and 176 were successfully generated.
Additionally, three benzofuran-3-carboxamide derivatives were synthesized to evaluate the effect of the olefin cyanide group in inhibiting SrtA activity (Scheme 29). For this, a double reduction was carried out using Pd/C under a hydrogen atmosphere to reduce the olefinic double bond adjacent to the cyanide, followed by the removal of the benzyl group, thus obtaining the compounds 177ab and 178ab, respectively.

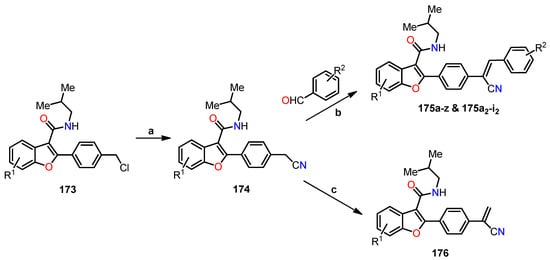

A comprehensive synthesis of 39 benzofuran cyanide derivatives was conducted, followed by their rigorous evaluation for in vitro inhibitory potential against SrtA in S. aureus, with pHMB serving as a positive control. The findings, detailed in Table 43, underscored the noteworthy activity exhibited by most of the synthesized analogs, with IC50 values spanning the range of 3–100 μM. Among these, compounds 175a, 175e, 175g, 175i, 175mo, 175w, and 175h2 emerged as particularly significant performers. This performance differential might be attributed to the intricate interplay of structure–activity relationships, favoring the potency of analog 175a (R1 = H, R2 = H, IC50 = 8.8 μM) over counterparts 175p (R1 = 7-OMe, R2 = H, IC50 = 11.9 μM) and 175z (R1 = 5-Cl, R2 = H, IC50 = 29.9 μM), primarily due to the strategic introduction of a substituent within the benzo[b]furan ring. The influence of R2 substitution on inhibitory activity was distinctly pronounced, as evidenced by the superiority of electron-withdrawing groups over donor groups, 175b (R1 = H, R2 = 4-Me) vs. 175i (R1 = H, R2 = 4-Cl), 175q (R1 = 7-OMe, R2 = 4-Me) vs. 175w (R1 = 7-OMe, R2 = 4-Cl), and 175b2 (R1 = 5-Cl, R2 = 3,4-Me) vs. 175h2 (R1 = 5-Cl, R2 = 4-Cl). Furthermore, the size of substituents emerged as another pivotal determinant, favoring the chlorine group in compounds 175i, 175w, and 175h2 (IC50 = 9.8, 5.9, and 6.8 μM, respectively), in contrast to the bromide group in compounds 175j (R1 = H, R2 = 4-Br), 175x (R1 = 7-OMe, R2 = 4-Br), and 175i2 (R1 = 5-Cl, R2 = 4-Br) with IC50 values of 19.1, 15.5, and 16.4 μM, respectively.
Furthermore, the selection process extended to the identification of four compounds 175a, 175o, 175h2, and 178a boasting the most noteworthy SrtA inhibition activity. Subsequently, the impact of these compounds on impeding the formation of bacterial biofilms, a significant contributor to drug resistance, was diligently evaluated. To facilitate this assessment, SPSS Software was harnessed to compute the inhibitory potential of the chosen compounds, as outlined in Table 44. The findings underscored the inhibitory efficacy of all four compounds against the development of S. aureus biofilms, with IC50 values spanning a range of 2.1–54.2 μM. Remarkably, compound 175o emerged as the most potent inhibitor, displaying an impressive IC50 of 2.1 μM. These results harmoniously align with the outcomes derived from the SrtA inhibition study. In addition, a further assay was performed to investigate the potential of the four compounds to disrupt the invasion of 293T cells (human embryonic kidney cells) by S. aureus, utilizing a group of drug-free FITC-labeled bacteria as the control reference. Intriguingly, all four compounds demonstrated a pronounced reduction in the invasiveness of S. aureus strains within 293T cells. Notably, compound 175o exhibited the most substantial interference, diminishing bacterial invasion by a noteworthy 24.0% at 100 μM, as contrasted with the control blank (Table 44 and Figure 54).

2.3. Antifungal Activity

Furthermore, benzo[b]furans have demonstrated pronounced antifungal efficacy against a diverse spectrum of fungal strains, encompassing Candida albicans (C. albicans), Candida neoformans (C. neoformans), Candida parapsilosis (C. parapsilosis), Aspergillus flavus (A. flavus), and Microspora griseus (M. griseus), among others. A seminal study by Sastraruji et al. has yielded a pivotal series of alkaloids 127ai extracted from Stemona aphylla, meticulously documented in Table 30 [58]. Within this set of nine isolated alkaloid derivatives, a judicious selection of five underwent rigorous examination to assess their antifungal prowess, with Amphotericin B employed as a comparative benchmark. Strikingly, the results unveiled that compounds 127g (R1 = H, R2 = OMe, R3 = Me, R4 = Me, R5 = H, R6 = H) and 127i (R1 = H, R2 = OMe, R3 = Me, R4 = Me, R5 = Me, R6 = H) exhibited performance tantamount to Amphotericin B against C. albicans, each recording an MIC value of 15.6 µg/mL. In contrast, with regard to C. neoformans, none of the evaluated alkaloids surpassed the efficacy of the control drug. Noteworthily, compounds 127a, 127c, and 127g emerged as the exclusive contributors to antifungal activity against the C. neoformans strain, with recorded MIC values of 7.8 µg/mL (Table 45).
In a subsequent study conducted in 2013, Ostrowska et al. synthesized a series of chlorinated 2- and 3-benzo[b]furan carboxylates (Scheme 21 and Table 34). These derivatives underwent meticulous in vitro assessments to gauge their antimicrobial efficacy against both bacterial strains, as previously discussed, and fungal strains [60,61]. In terms of antifungal activity, they were scrutinized across strains encompassing Aspergillus brasiliensis, Candida albicans, Candida parapsilosis, Saccharomyces cerevisiae, and Zygosaccharomyces rouxii. The reference benchmark was fluconazole, spanning a range of MIC values from 3.9 × 10−4 to 8.4 × 10−1 µmol/cm3. The outcomes, as presented in Table 46, align with the antibacterial findings (Table 35), underscoring that the most potent derivative across all tested fungal strains was the compound 133f.HCl (R1 = COOMe, R2 = H, R3 = Br, R4 = OMe, R5 = O(CH2)2NEt2).
In a similar vein, Kenchappa et al. embarked on the synthesis of a series of (5-substituted-1-benzofuran-2-yl)(2,4-phenyl-substituted)methanone derivatives 139ai (Scheme 22), which were subsequently subjected to comprehensive evaluation for their antifungal potential [62]. The outcomes are meticulously presented in Table 47, revealing noteworthy observations. Specifically, compounds 139a (R1 = H, R2 = Br, R3 = H) and 139c (R1 = Br, R2 = Br, R3 = H) exhibited a comparably potent activity to fluconazole (control drug) across all tested fungal strains, displaying MIC values ranging from 6.30 to 12.75 µg/mL. Similarly, compounds 139e (R1 = OH, R2 = Br, R3 = H) and 139h (R1 = Br, R2 = H, R3 = Br) demonstrated robust antifungal efficacy, recording MIC values spanning from 6.40 to 13.70 µg/mL. In contrast, compounds 139d and 139g showcased minimal activity against the tested fungal strains.
In the same year, Wang et al. undertook the synthesis of a series of analogs derived from naftifine hydrochloride (NFT), specifically designed to target the CrtN enzyme for the treatment of MRSA infections [64]. Among this array, compound 144l emerged as the most promising analog (Table 39). Recognizing NFT’s established antifungal properties, a comparative analysis was conducted, gauging whether compound 144l exhibited analogous effects. The outcomes, as presented in Table 48, unveiled that the compound 144l analog displayed modest antifungal activity across all tested fungal strains, including Trichophyton rubrum, with MIC values reaching 16 µg/mL (128 times less potent than NFT). This variance in efficacy might be attributed to the structural difference between the benzofuran core of 144l and the naphthalene moiety of NFT.

2.4. Analysis of the Structure–Activity Relationship in Anticancer Results

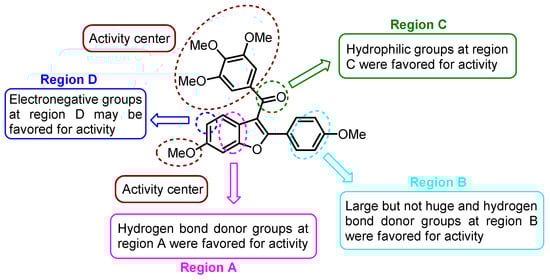

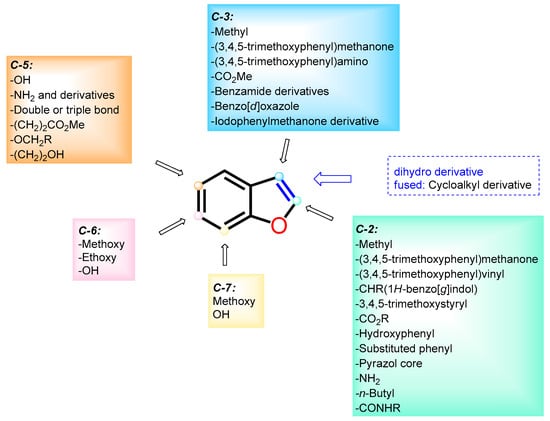

Interactions within the α- and β-tubulin structure have surfaced as a remarkable topic for exploring novel chemotherapeutic agents. Among the key domains, the colchicine binding site has emerged as a pivotal target for potential inducers of destabilization in tubulin polymerization. Colchicine binding site inhibitors (CBSIs) exert their biological impact by impeding tubulin assembly and limiting microtubule formation. In this context, benzo[b]furans have taken center stage, being designed and synthesized into a wide range of molecules interacting with the colchicine binding site, imparting marked structural diversity. Many compounds in this review demonstrated anticancer properties due to their inhibition of tubulin polymerization, achieved primarily through binding to the colchicine binding site on tubulin [32,34,37,39,40,43,46,49,51] (Figure 55). This is mainly achieved by the incorporation of the characteristic recognition fragment analogous to colchicine at positions C–2 or C–3 of benzo[b]furan, (3,4,5-trimethoxyphenyl)methanone [32,34,43,46,51], and their corresponding analogs [37,39,40], which interact through hydrogen bonds between methoxy groups and Cys241 as well as van der Waals interactions between phenyl ring and aromatic residues at the colchicine binding site on tubulin [40]. On the other hand, the methyl group located at positions C–2 or C–3 occupies hydrophobic pockets, while the necessity of hydrogen bonding interactions of methoxy or hydroxyl groups at positions C–6 and C–7 with the tubulin structure is evident. In particular, the hydrogen bonding interaction of the methoxy group at C–6 with Asnβ258 has remarkable significance [32,39]. This interaction not only enhances the antiproliferative activity in breast, renal, and melanoma cancer cell lines [36,46] but also contributes to the suppression of breast cancer metastasis [42]. Furthermore, additional hydrogen bonding interactions with donating groups like amino, hydroxyl, and unsaturations at C–5, along with alkyl ester derivatives [42] and alkoxy derivatives [45], play a role in stabilizing the active site of α- and β-tubulin [32], leading to the inhibition of different cancer cell lines [36]. Regarding substitution at position C–2, the diversity of functional groups allows the formation of hydrogen bonding interactions at active sites, and they also encompass aromatic groups that possess the ability to engage in π–π stacking with aromatic residues [34,37,38,39,42,43,46,48]. Notably, modifications such as the loss of aromaticity in the furan ring and the fusion of aliphatic chains on the d-side of benzo[b]furan enable the maintenance of activity against diverse cancer cell lines.
Some benzo[b]furan derivatives discussed in this review have undergone comprehensive studies analyzing their impact on the apoptotic pathway of cell death across various cell lines, including nuclear condensation [37], increased activation of caspase-3 [37,48,49,52], down-regulation of procaspase-9 [41,49], and negative regulation of the Bcl-2 protein family [37,40,41,48,49,52], as well as Bcl-x expression [54], PARP-1 cleavage [48,49], phosphorylation and stabilization of p53 [37,48,50], and a reduction in the expression of Bubr1 and Mad-2 proteins [51], among other effects. Furthermore, some benzo[b]furan derivatives demonstrated anti-vascular properties [40,51], a significant aspect in tumoral angiogenesis. Several researchers have confirmed the predominant cell cycle arrest in the G2/M phase [37,41,44,46,48,49,51]. Notably, effects on the PI3K/Akt/mTOR signaling pathway have been observed [41], along with the inhibition of Top 1 DNA relaxation activity [52], suppression of SIRT3 histone deacetylase [53], mitigation of tumor cell metastasis as demonstrated in in vivo mouse assays [42], facilitation of the tumor resection process via bioluminescence monitoring [42,51,52,53], and anti-metastatic effects underscored by interleukin-25 secretion from tumor-associated fibroblasts (TAF) [42]. In terms of innovation, this review highlights the advancement of novel compounds through the utilization of comparative molecular field analysis (CoMFA) and comparative molecular similarity indices analysis (CoMSIA) methodologies [43]. What is particularly remarkable is the versatility exhibited by benzo[b]furans, which extends to the exploration of triple-negative breast cancer [52,53], an exceptionally aggressive cancer type known for its rapid recurrence and challenging prognosis.

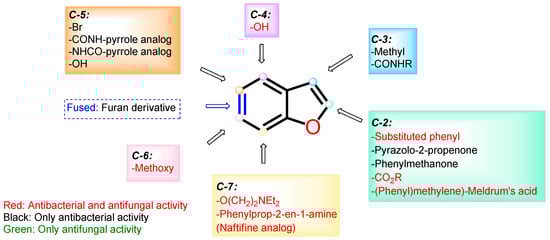

2.5. Analysis of the Structure–Activity Relationship in Antibacterial and Antifungal Results

To date the capacity to regulate the proliferation of bacteria and fungi holds considerable significance. The minimum inhibitory concentration (MIC) enables the identification of chemical structures capable of effectively managing visible growth inhibition in vitro against bacterial and fungal strains. Notably, the investigation into novel compounds possessing antibacterial activity is one of the most significant focuses within the microbial field, owing to the emergence of extensive resistance to conventionally employed antibacterial drugs.
In this review, the adaptability and versatility of benzo[b]furans toward both Gram-positive and Gram-negative bacteria are evident. This adaptability is apparent in the various structural modifications involving the incorporation of different functional groups at the six carbons of the structure (Figure 56). Beginning with the former, significant activity was observed against Gram-positive bacteria, including methicillin-resistant Staphylococcus aureus (MRSA) [58,64,65], Staphylococcus aureus Newman [64], Staphylococcus aureus [59,61], Bacillus subtilis [59,61,62], Micrococcus luteus [61], Bacillus cereus [61], Staphylococcus epidermidis [61], Enterococcus hirae [61], vancomycin-sensitive Enterococcus faecalis (VSE) [65], vancomycin-resistant Enterococcus faecalis (VRE) [65], and vancomycin-resistant Enterococcus faecium (VRE). Additionally, Gram-negative bacteria were targeted, including Escherichia coli [59,61,62], Pseudomonas aeruginosa [59,61], Pseudomonas syringae [62], Salmonella typhi [62], and Klebsiella pneumoniae [62]. Furthermore, enzymatic assays were performed against typical Staphylococcus aureus enzymes, specifically 4,4′-diapophytoene desaturase (CrtN) [64] and cysteine transpeptidase Sortase A (SrtA) [66]. Moreover, dose–response analyses of benzo[b]furans against pigment formation in various bacterial strains were performed [64]. In addition, in vivo assays were conducted to evaluate virulence in mice through retro-orbital injection [64], while incidence measurements were taken in organs such as the kidney and heart [64]. The potential of benzo[b]furans to bind to DNA and provide stability was investigated using the Förster resonance energy transfer (FRET) technique [65]. Additionally, in silico analyses were performed utilizing ESI mutagenesis in gyrase A in Staphylococcus aureus [65]. Among other tests, the disruption of invasion in 293T cells (human embryonic kidney cells) was also examined [66]. It is crucial to emphasize that, in some cases, the benzo[b]furans compiled in this review exhibit superior activity when compared to reference antibacterial drugs, such as Chloramphenicol [59], Carbenicillin [59], Streptomycin [59,62], Tetracycline [59], Netropsin [65], Ciprofloxacin [65], and polyhexamethylene biguanide (pHMB) [66].
Conversely, a significant number of antibacterial compounds also demonstrate antifungal properties. Just like their antibacterial counterparts, the demand for novel compounds is pressing due to the emergence of multiple resistances. This review reveals that at a structural level, numerous benzo[b]furan derivatives exhibit both antibacterial and antifungal properties, as illustrated in Figure 56. The fungal strains examined within the studies discussed in this review displayed significant efficacy against Candida albicans (C. albicans) [58,61], Candida neoformans (C. neoformans) [58], Candida parapsilosis (C. parapsilosis) [61], Saccharomyces cerevisiae (S. cerevisiae) [61], Zygosaccharomyces rouxii (Z. rouxii) [61], Aspergillus flavus (A. flavus), Microspora griseus (M. griseus), and Trichophyton rubrum (T. rubrum) [64]. Notably, in some cases, their antifungal activity is comparable to reference drugs, such as Amphotericin B [58], Fluconazole [62,64], Voriconazole [64], and Ketoconazole [64].

3. Conclusions

Benzo[b]furans play a significant role in drug discovery and medicinal chemistry due to their unique structural features and wide range of biological and pharmaceutical properties. Most of the synthetic approaches for the synthesis and functionalization of these bioactive compounds involve multistep sequences. This comprehensive review provides a detailed overview of the synthesis and biological studies conducted on benzo[b]furans from 2011 to 2022, mainly focusing on their potential as anticancer, antibacterial, and antifungal agents. The selected articles provide invaluable insights related to chemical synthesis, discussions on molecular docking, and both in vitro and in vivo studies. By underscoring the importance of comprehending mechanisms of action, which encompass important processes such as inhibiting the cell cycle, inducing tumor regression, and demonstrating potent antibacterial and antifungal effects. Notably, the anticancer activity of benzo[b]furans correlates with their binding to tubulin’s colchicine site, leading to polymerization inhibition. Colchicine-like fragments on specific positions of benzo[b]furan engage in interactions that impede cancer cell growth and metastasis. These compounds also influence apoptotic pathways, activate caspases, regulate Bcl-2, stabilize p53, affect angiogenesis, impact cell cycle and signaling pathways, modulate DNA activity, and influence metastasis in vivo. Conversely, benzo[b]furans exhibited a dual effectiveness against antibacterial and antifungal infections. In particular, benzo[b]furans exhibited significant efficacy against Gram-positive and Gram-negative bacterial strains, positioning them as potential superior antibacterial agents compared to reference drugs. These findings hold utmost importance in propelling scientific research and drug discovery, possibly paving the way for novel and potent therapeutic agents containing the benzo[b]furan ring.

Author Contributions

Conceptualization, writing—original draft preparation, and writing—review and editing, L.A.-R., J.-C.C. and D.B.; supervision, D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable.

Acknowledgments

The authors give thanks to the Universidad Pedagógica y Tecnológica de Colombia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Taylor, A.P.; Robinson, R.P.; Fobian, Y.M.; Blakemore, D.C.; Jones, L.H.; Fadeyi, O. Modern advances in heterocyclic chemistry in drug discovery. Org. Biomol. Chem. 2016, 14, 6611–6637. [Google Scholar] [CrossRef] [PubMed]
  2. Kerru, N.; Gummidi, L.; Maddila, S.; Gangu, K.K.; Jonnalagadda, S.B. A review on recent advances in nitrogen-containing molecules and their biological applications. Molecules 2020, 25, 1909. [Google Scholar] [CrossRef] [PubMed]
  3. Kabir, E.; Uzzaman, M. A review on biological and medicinal impact of heterocyclic compounds. Results Chem. 2022, 4, 100606. [Google Scholar] [CrossRef]
  4. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the structural diversity, substitution patterns, and frequency of nitrogen heterocycles among U.S. FDA-approved pharmaceuticals. J. Med. Chem. 2014, 57, 10257–10274. [Google Scholar] [CrossRef] [PubMed]
  5. Heravi, M.M.; Zadsirjan, V. Prescribed drugs containing nitrogen heterocycles: An overview. RSC Adv. 2020, 10, 44247–44311. [Google Scholar] [CrossRef] [PubMed]
  6. Nishanth Rao, R.; Jena, S.; Mukherjee, M.; Maiti, B.; Chanda, K. Green synthesis of biologically active heterocycles of medicinal importance: A review. Environ. Chem. Lett. 2021, 19, 3315–3358. [Google Scholar] [CrossRef]
  7. Becerra, D.; Abonia, R.; Castillo, J.C. Recent applications of the multicomponent synthesis for bioactive pyrazole derivatives. Molecules 2022, 27, 4723. [Google Scholar] [CrossRef]
  8. Martins, P.; Jesus, J.; Santos, S.; Raposo, L.R.; Roma-Rodrigues, C.; Baptista, P.V.; Fernandes, A.R. Heterocyclic anticancer compounds: Recent advances and the paradigm shift towards the use of nanomedicine’s tool box. Molecules 2015, 20, 16852–16891. [Google Scholar] [CrossRef]
  9. Kumar, D.; Jain, S.K. A comprehensive review of N-heterocycles as cytotoxic agents. Curr. Med. Chem. 2016, 23, 4338–4394. [Google Scholar] [CrossRef]
  10. Serrano-Sterling, C.; Becerra, D.; Portilla, J.; Rojas, H.; Macías, M.; Castillo, J.-C. Synthesis, biological evaluation and X-ray crystallographic analysis of novel (E)-2-cyano-3-(het)arylacrylamides as potential anticancer agents. J. Mol. Struct. 2021, 1244, 130944. [Google Scholar] [CrossRef]
  11. Hurtado-Rodríguez, D.; Salinas-Torres, A.; Rojas, H.; Becerra, D.; Castillo, J.-C. Bioactive 2-pyridone-containing heterocycle syntheses using multicomponent reactions. RSC Adv. 2022, 12, 35158–35176. [Google Scholar] [CrossRef] [PubMed]
  12. Leeson, P.; Springthorpe, B. The influence of drug-like concepts on decision-making in medicinal chemistry. Nat. Rev. Drug Discov. 2007, 6, 881–890. [Google Scholar] [CrossRef] [PubMed]
  13. Katritzky, A.R.; Ramsden, C.A.; Joule, J.A.; Zhdankin, V.V. Handbook of Heterocyclic Chemistry; Elsevier: Amsterdam, The Netherlands, 2010. [Google Scholar]
  14. Cravotto, G.; Cintas, P. Power ultrasound in organic synthesis: Moving cavitational chemistry from academia to innovative and large-scale applications. Chem. Soc. Rev. 2006, 35, 180–196. [Google Scholar] [CrossRef] [PubMed]
  15. Insuasty, D.; Castillo, J.; Becerra, D.; Rojas, H.; Abonia, R. Synthesis of biologically active molecules through multicomponent reactions. Molecules 2020, 25, 505. [Google Scholar] [CrossRef]
  16. DeSimone, R.W.; Currie, K.S.; Mitchell, S.A.; Darrow, J.W.; Pippin, D.A. Privileged structures: Applications in drug discovery. Comb. Chem. High Throughput Screen. 2004, 7, 473–494. [Google Scholar] [CrossRef]
  17. Karras, G.I.; Kustatscher, G.; Buhecha, H.R.; Allen, M.D.; Pugieux, C.; Sait, F.; Bycroft, M.; Ladurner, A.G. The macro domain is an ADP-ribose binding module. EMBO J. 2005, 24, 1911–1920. [Google Scholar] [CrossRef]
  18. Zhao, K.; Harshaw, R.; Chai, X.; Marmorstein, R. Structural basis for nicotinamide cleavage and ADP-ribose transfer by NAD(+)-dependent Sir2 histone/protein deacetylases. Proc. Natl. Acad. Sci. USA 2004, 101, 8563–8568. [Google Scholar] [CrossRef]
  19. Spaniol, M.; Bracher, R.; Ha, H.R.; Follath, F.; Kralhenbühl, S. Toxicity of amiodarone and amiodarone analogues on isolated rat liver mitochondria. J. Hepatol. 2001, 35, 628–636. [Google Scholar] [CrossRef]
  20. Narimatsu, S.; Takemi, C.; Kuramoto, S.; Tsuzuki, D.; Hichiya, H.; Tamagake, K.; Yamamoto, S. Stereoselectivity in the oxidation of Bufuralol, a chiral substrate, by human cyctochrome P450s. Chirality 2003, 15, 333–339. [Google Scholar] [CrossRef]
  21. Tseng, T.-H.; Lee, H.-J.; Lee, Y.-J.; Lee, K.-C.; Shen, C.-H.; Kuo, H.-C. Ailanthoidol, a neolignan, suppresses TGF-β1-induced HepG2 hepatoblastoma cell progression. Biomedicines 2021, 9, 1110. [Google Scholar] [CrossRef]
  22. Proksch, P.; Rodríguez, E. Chromenes and benzofurans of the asteraceae, their chemistry and biological significance. Phytochemistry 1983, 22, 2335–2348. [Google Scholar] [CrossRef]
  23. Miao, Y.-H.; Hu, Y.-H.; Yang, J.; Liu, T.; Sun, J.; Wang, X.-J. Natural source, bioactivity and synthesis of benzofuran derivatives. RSC Adv. 2019, 9, 27510–27540. [Google Scholar] [CrossRef] [PubMed]
  24. Hwang, S.M.; Lee, H.-J.; Jung, J.-H.; Sim, D.Y.; Hwang, J.; Park, J.E.; Shim, B.S.; Kim, S.-H. Inhibition of Wnt3a/FOXM1/β-catenin axis and activation of GSK3β and caspases are critically involved in apoptotic effect of moracin D in breast cancers. Int. J. Mol. Sci. 2018, 19, 2681. [Google Scholar] [CrossRef] [PubMed]
  25. Yoon, J.S.; Lee, H.-J.; Sim, D.Y.; Im, E.; Park, J.E.; Park, W.Y.; Koo, J.I.; Shim, B.S.; Kim, S.-H. Moracin D induces apoptosis in prostate cancer cells via activation of PPAR gamma/PKC delta and inhibition of PKC alpha. Phytother. Res. 2021, 35, 6944–6953. [Google Scholar] [CrossRef]
  26. Aslam, S.N.; Stevenson, P.C.; Kokubun, T.; Hall, D.R. Antibacterial and antifungal activity of cicerfuran and related 2-arylbenzofurans and stilbenes. Microbiol. Res. 2009, 164, 191–195. [Google Scholar] [CrossRef]
  27. Kadieva, M.G.; Oganesyan, É.T. Methods for the synthesis of benzofuran derivatives. Chem. Heterocycl. Compd. 1997, 33, 1245–1258. [Google Scholar] [CrossRef]
  28. Shamsuzzaman, H.K. Bioactive benzofuran derivatives: A review. Eur. J. Med. Chem. 2015, 97, 483–504. [Google Scholar] [CrossRef]
  29. Khodarahmi, G.; Asadi, P.; Hassanzadeh, F.; Khodarahmi, E. Benzofuran as a promising scaffold for the synthesis of antimicrobial and antibreast cancer agents: A review. J. Res. Med. Sci. 2015, 20, 1094–1104. [Google Scholar] [CrossRef]
  30. Dawood, K.M. An update on benzofuran inhibitors: A patent review. Expert Opin. Ther. Pat. 2019, 29, 841–870. [Google Scholar] [CrossRef]
  31. Dwarakanath, D.; Gaonkar, S.L. Advances in synthetic strategies and medicinal importance of benzofurans: A review. Asian J. Org. Chem. 2022, 11, e202200282. [Google Scholar] [CrossRef]
  32. Flynn, B.L.; Gill, G.S.; Grobelny, D.W.; Chaplin, J.H.; Paul, D.; Leske, A.F.; Lavranos, T.C.; Chalmers, D.K.; Charman, S.A.; Kostewicz, E.; et al. Discovery of 7-hydroxy-6-methoxy-2-methyl-3-(3,4,5-trimethoxybenzoyl)benzo[b]furan (BNC105), a tubulin polymerization inhibitor with potent antiproliferative and tumor vascular disrupting properties. J. Med. Chem. 2011, 54, 6014–6027. [Google Scholar] [CrossRef] [PubMed]
  33. Larock, R.C.; Yum, E.K.; Doty, M.J.; Sham, K.K.C. Synthesis of aromatic heterocycles via palladium-catalyzed annulation of internal alkynes. J. Org. Chem. 1995, 60, 3270–3271. [Google Scholar] [CrossRef]
  34. Romagnoli, R.; Baraldi, P.G.; Lopez-Cara, C.; Cruz-Lopez, O.; Carrion, M.D.; Kimatrai Salvador, M.; Bermejo, J.; Estévez, S.; Estévez, F.; Balzarini, J.; et al. Synthesis and antitumor molecular mechanism of agents based on amino 2-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan: Inhibition of tubulin and induction of apoptosis. ChemMedChem 2011, 6, 1841–1853. [Google Scholar] [CrossRef] [PubMed]
  35. Vincent, L.; Kermani, P.; Young, L.M.; Cheng, J.; Zhang, F.; Shido, K.; Lam, G.; Bompais-Vincent, H.; Zhu, Z.; Hicklin, D.J.; et al. Combretastatin A4 phosphate induces rapid regression of tumor neovessels and growth through interference with vascular endothelial-cadherin signaling. J. Clin. Investig. 2005, 115, 2992–3006. [Google Scholar] [CrossRef] [PubMed]
  36. Wellington, K.W.; Qwebani-Ogunleye, T.; Kolesnikova, N.I.; Brady, D.; De Koning, C.B. One-pot laccase-catalysed synthesis of 5,6-dihydroxylated benzo[b]furans and catechol derivatives, and their anticancer activity. Arch. Pharm. 2013, 346, 266–277. [Google Scholar] [CrossRef]
  37. Kamal, A.; Reddy, N.V.S.; Nayak, V.L.; Reddy, V.S.; Prasad, B.; Nimbarte, V.D.; Srinivasulu, V.; Vishnuvardhan, M.V.P.S.; Reddy, C.S. Synthesis and biological evaluation of benzo[b]furans as inhibitors of tubulin polymerization and inducers of apoptosis. ChemMedChem 2014, 9, 117–128. [Google Scholar] [CrossRef] [PubMed]
  38. Frías, M.; Padrõn, J.M.; Alemán, J. Dienamine and Friedel-Crafts one-pot synthesis, and antitumor evaluation of diheteroarylalkanals. Chem. Eur. J. 2015, 21, 8237–8241. [Google Scholar] [CrossRef]
  39. Penthala, N.R.; Zong, H.; Ketkar, A.; Madadi, N.R.; Janganati, V.; Eoff, R.L.; Guzman, M.L.; Crooks, P.A. Synthesis, anticancer activity and molecular docking studies on a series of heterocyclic trans-cyanocombretastatin analogues as antitubulin agents. Eur. J. Med. Chem. 2015, 92, 212–220. [Google Scholar] [CrossRef]
  40. Romagnoli, R.; Baraldi, P.G.; Salvador, M.K.; Prencipe, F.; Lopez-Cara, C.; Schiaffino Ortega, S.; Brancale, A.; Hamel, E.; Castagliuolo, I.; Mitola, S.; et al. Design, synthesis, in vitro, and in vivo anticancer and antiangiogenic activity of novel 3-arylaminobenzofuran derivatives targeting the colchicine site on tubulin. J. Med. Chem. 2015, 58, 3209–3222. [Google Scholar] [CrossRef]
  41. Kamal, A.; Lakshma Nayak, V.; Nagesh, N.; Vishnuvardhan, M.V.P.S.; Subba Reddy, N.V. Benzo[b]furan derivatives induces apoptosis by targeting the PI3K/Akt/MTOR signaling pathway in human breast cancer cells. Bioorg. Chem. 2016, 66, 124–131. [Google Scholar] [CrossRef]
  42. Yin, S.Y.; Jian, F.Y.; Chen, Y.H.; Chien, S.C.; Hsieh, M.C.; Hsiao, P.W.; Lee, W.H.; Kuo, Y.H.; Yang, N.S. Induction of IL-25 secretion from tumour-associated fibroblasts suppresses mammary tumour metastasis. Nat. Commun. 2016, 7, 11311. [Google Scholar] [CrossRef]
  43. Quan, Y.P.; Cheng, L.P.; Wang, T.C.; Pang, W.; Wu, F.H.; Huang, J.W. Molecular modeling study, synthesis, and biological evaluation of combretastatin A-4 analogues as anticancer agents and tubulin inhibitors. Medchemcomm 2018, 9, 316–327. [Google Scholar] [CrossRef] [PubMed]
  44. Lauria, A.; Gentile, C.; Mingoia, F.; Palumbo Piccionello, A.; Bartolotta, R.; Delisi, R.; Buscemi, S.; Martorana, A. Design, synthesis, and biological evaluation of a new class of benzo[b]furan derivatives as antiproliferative agents, with in silico predicted antitubulin activity. Chem. Biol. Drug Des. 2018, 91, 39–49. [Google Scholar] [CrossRef] [PubMed]
  45. Pervaram, S.; Ashok, D.; Sarasija, M.; Reddy, C.V.R.; Sridhar, G. Synthesis and anticancer activity of 1,2,4-oxadiazole fused benzofuran derivatives. Russ. J. Gen. Chem. 2018, 88, 1219–1223. [Google Scholar] [CrossRef]
  46. Kwiecień, H.; Perużyńska, M.; Stachowicz, K.; Piotrowska, K.; Bujak, J.; Kopytko, P.; Droździk, M. Synthesis and biological evaluation of 3-functionalized 2-phenyl- and 2-alkylbenzo[b]furans as antiproliferative agents against human melanoma cell line. Bioorg. Chem. 2019, 88, 102930. [Google Scholar] [CrossRef] [PubMed]
  47. Abd El-Karim, S.S.; Anwar, M.M.; Mohamed, N.A.; Nasr, T.; Elseginy, S.A. Design, synthesis, biological evaluation and molecular docking studies of novel benzofuran–pyrazole derivatives as anticancer agents. Bioorg. Chem. 2015, 63, 1–12. [Google Scholar] [CrossRef] [PubMed]
  48. Anwar, M.M.; Abd El-Karim, S.S.; Mahmoud, A.H.; Amr, A.E.-G.E.; Al-Omar, M.A. A comparative study of the anticancer activity and PARP-1 inhibiting effect of benzofuran–pyrazole scaffold and its nano-sized particles in human breast cancer cells. Molecules 2019, 24, 2413. [Google Scholar] [CrossRef]
  49. Shao, Y.Y.; Yin, Y.; Lian, B.P.; Leng, J.F.; Xia, Y.Z.; Kong, L.Y. Synthesis and biological evaluation of novel shikonin-benzo[b]furan derivatives as tubulin polymerization inhibitors targeting the colchicine binding site. Eur. J. Med. Chem. 2020, 190, 112105. [Google Scholar] [CrossRef]
  50. Sivaraman, A.; Kim, J.S.; Harmalkar, D.S.; Min, K.H.; Park, J.W.; Choi, Y.; Kim, K.; Lee, K. Synthesis and cytotoxicity studies of bioactive benzofurans from lavandula agustifolia and modified synthesis of ailanthoidol, homoegonol, and egonol. J. Nat. Prod. 2020, 83, 3354–3362. [Google Scholar] [CrossRef]
  51. Oliva, P.; Romagnoli, R.; Manfredini, S.; Brancale, A.; Ferla, S.; Hamel, E.; Ronca, R.; Maccarinelli, F.; Giacomini, A.; Rruga, F.; et al. Design, synthesis, in vitro and in vivo biological evaluation of 2-amino-3-aroylbenzo[b]furan derivatives as highly potent tubulin polymerization inhibitors. Eur. J. Med. Chem. 2020, 200, 112448. [Google Scholar] [CrossRef]
  52. Xu, S.; Yao, H.; Qiu, Y.; Zhou, M.; Li, D.; Wu, L.; Yang, D.H.; Chen, Z.S.; Xu, J. Discovery of novel polycyclic heterocyclic derivatives from evodiamine for the potential treatment of triple-negative breast cancer. J. Med. Chem. 2021, 64, 17346–17365. [Google Scholar] [CrossRef]
  53. Zhang, J.; Zou, L.; Shi, D.; Liu, J.; Zhang, J.; Zhao, R.; Wang, G.; Zhang, L.; Ouyang, L.; Liu, B. Structure-guided design of a small-molecule activator of sirtuin-3 that modulates autophagy in triple negative breast cancer. J. Med. Chem. 2021, 64, 14192–14216. [Google Scholar] [CrossRef]
  54. Irfan, A.; Faiz, S.; Rasul, A.; Zafar, R.; Zahoor, A.F.; Kotwica-Mojzych, K.; Mojzych, M. Exploring the synergistic anticancer potential of benzofuran–oxadiazoles and triazoles: Improved ultrasound- and microwave-assisted synthesis, molecular docking, hemolytic, thrombolytic and anticancer evaluation of furan-based molecules. Molecules 2022, 27, 1023. [Google Scholar] [CrossRef] [PubMed]
  55. Becerra, D.; Castillo, J.; Insuasty, B.; Cobo, J.; Glidewell, C. Synthesis of N-substituted 3-(2-aryl-2-oxoethyl)-3-hydroxyindolin-2-ones and their conversion to N-substituted (E)-3-(2-aryl-2-oxo-ethylidene)indolin-2-ones: Synthetic sequence, spectroscopic characterization and structures of four 3-hydroxycompounds and five oxo-ethylidene products. Acta Cryst. 2020, C76, 433–445. [Google Scholar] [CrossRef]
  56. Vaali-Mohammed, M.-A.; Abdulla, M.-H.; Matou-Nasri, S.; Eldehna, W.M.; Meeramaideen, M.; Elkaeed, E.B.; El-Watidy, M.; Alhassan, N.S.; Alkhaya, K.; Al Obeed, O. The anticancer effects of the pro-apoptotic benzofuran-isatin conjugate (5a) are associated with P53 upregulation and enhancement of conventional chemotherapeutic drug efficiency in colorectal cancer cell lines. Front. Pharmacol. 2022, 13, 923398. [Google Scholar] [CrossRef]
  57. Hiremathad, A.; Patil, M.R.; Chethana, K.R.; Chand, K.; Santos, M.A.; Keri, R.S. Benzofuran: An emerging scaffold for antimicrobial agents. RSC Adv. 2015, 5, 1–65. [Google Scholar] [CrossRef]
  58. Sastraruji, T.; Chaiyong, S.; Jatisatienr, A.; Pyne, S.G.; Ung, A.T.; Lie, W. Phytochemical studies on Stemona aphylla: Isolation of a new stemofoline alkaloid and six new stemofurans. J. Nat. Prod. 2011, 74, 60–64. [Google Scholar] [CrossRef]
  59. Ashok, D.; Sudershan, K.; Khalilullah, M. Solvent-free microwave-assisted synthesis of E-(1)-(6-benzoyl-3,5-dimethylfuro[3′,2′:4,5]benzo[b]furan-2-yl)-3-(aryl)-2-propen-1-ones and their antibacterial activity. Green Chem. Lett. Rev. 2012, 5, 121–125. [Google Scholar] [CrossRef]
  60. Kossakowski, J.; Ostrowska, K.; Hejchman, E.; Wolska, I. Synthesis and structural characterization of derivatives of 2- and 3-benzo[b]furan carboxylic acids with potential cytotoxic activity. Farmaco 2005, 60, 519–527. [Google Scholar] [CrossRef]
  61. Ostrowska, K.; Hejchman, E.; Wolska, I.; Kruszewska, H.; Maciejewska, D. Microwave-assisted preparation and antimicrobial activity of O-alkylamino benzofurancarboxylates. Monatsh. Chem. 2013, 144, 1679–1689. [Google Scholar] [CrossRef]
  62. Kenchappa, R.; Bodke, Y.D.; Telkar, S.; Sindhe, M.A.; Giridhar, M. Synthesis, characterization, and antimicrobial activity of new benzofuran derivatives. Russ. J. Gen. Chem. 2016, 86, 2827–2836. [Google Scholar] [CrossRef]
  63. Abonia, R.; Garay, A.; Castillo, J.-C.; Insuasty, B.; Quiroga, J.; Nogueras, M.; Cobo, J.; Butassi, E.; Zacchino, S. Design of two alternative routes for the synthesis of naftifine and analogues as potential antifungal agents. Molecules 2018, 23, 520. [Google Scholar] [CrossRef]
  64. Wang, Y.; Chen, F.; Di, H.; Xu, Y.; Xiao, Q.; Wang, X.; Wei, H.; Lu, Y.; Zhang, L.; Zhu, J.; et al. Discovery of potent benzofuran-derived diapophytoene desaturase (CrtN) inhibitors with enhanced oral bioavailability for the treatment of methicillin-resistant Staphylococcus aureus (MRSA) infections. J. Med. Chem. 2016, 59, 3215–3230. [Google Scholar] [CrossRef] [PubMed]
  65. Andriollo, P.; Hind, C.K.; Picconi, P.; Nahar, K.S.; Jamshidi, S.; Varsha, A.; Clifford, M.; Sutton, J.M.; Rahman, K.M. C8-linked pyrrolobenzodiazepine monomers with inverted building blocks show selective activity against multidrug resistant gram-positive bacteria. ACS Infect. Dis. 2018, 4, 158–174. [Google Scholar] [CrossRef] [PubMed]
  66. Lei, S.; Hu, Y.; Yuan, C.; Sun, R.; Wang, J.; Zhang, Y.; Zhang, Y.; Lu, D.; Fu, L.; Jiang, F. Discovery of sortase A covalent inhibitors with benzofuranene cyanide structures as potential antibacterial agents against Staphylococcus aureus. Eur. J. Med. Chem. 2022, 229, 114032. [Google Scholar] [CrossRef] [PubMed]
  67. He, W.; Zhang, Y.; Bao, J.; Deng, X.; Batara, J.; Casey, S.; Guo, Q.; Jiang, F.; Fu, L. Synthesis, biological evaluation and molecular docking analysis of 2-phenyl-benzofuran-3-carboxamide derivatives as potential inhibitors of Staphylococcus aureus sortase A. Bioorg. Med. Chem. 2017, 25, 1341–1351. [Google Scholar] [CrossRef]
Figure 1. Bioactive benzo[b]furan derivatives.
Figure 1. Bioactive benzo[b]furan derivatives.
Pharmaceuticals 16 01265 g001
Figure 2. Bibliometric analysis: percentage distribution of articles across various biological activities of benzo[b]furan derivatives from 2011 to 2022 (data obtained from the Scopus database using the keywords: “benzo[b]furan” and each one activity).
Figure 2. Bibliometric analysis: percentage distribution of articles across various biological activities of benzo[b]furan derivatives from 2011 to 2022 (data obtained from the Scopus database using the keywords: “benzo[b]furan” and each one activity).
Pharmaceuticals 16 01265 g002
Scheme 1. Modified Larock coupling synthesis. Reagents and conditions: (a) Pd(OAc)2, Na2CO3, DMF; (b) TBAF, THF, AlCl3, CH2Cl2; (c) AlCl3, CH2Cl2, Ac2O, Pyridine; (d) Br2, 1,2-dichloroethane; (e) coupling with palladium or nucleophilic displacement.
Scheme 1. Modified Larock coupling synthesis. Reagents and conditions: (a) Pd(OAc)2, Na2CO3, DMF; (b) TBAF, THF, AlCl3, CH2Cl2; (c) AlCl3, CH2Cl2, Ac2O, Pyridine; (d) Br2, 1,2-dichloroethane; (e) coupling with palladium or nucleophilic displacement.
Pharmaceuticals 16 01265 sch001
Figure 3. The molecular docking study utilized the X-ray crystal structure of the bovine α,β-tubulin dimer complexed with podophyllotoxin (PDB ID code: 1SA1). The benzo[b]furans were docked at the colchicine site using Glide. (a) The structure of colchicine 7; (b) comparison with the orientation of colchicine 7 bound to the crystal; and (c,d) the docked orientations of 4b and 6a, respectively. The β-subunit of tubulin is represented by carbon atoms in light blue, and the Thr residue R179 is depicted in dark blue. Reprinted (adapted) with permission from ref. [32]. Copyright American Chemical Society, 2023.
Figure 3. The molecular docking study utilized the X-ray crystal structure of the bovine α,β-tubulin dimer complexed with podophyllotoxin (PDB ID code: 1SA1). The benzo[b]furans were docked at the colchicine site using Glide. (a) The structure of colchicine 7; (b) comparison with the orientation of colchicine 7 bound to the crystal; and (c,d) the docked orientations of 4b and 6a, respectively. The β-subunit of tubulin is represented by carbon atoms in light blue, and the Thr residue R179 is depicted in dark blue. Reprinted (adapted) with permission from ref. [32]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g003aPharmaceuticals 16 01265 g003b
Scheme 2. Synthesis of benzo[b]furans 913. Reagents and conditions: (a) 2-bromo-1-(3′,4′,5′-trimethoxyphenyl)ethanone, K2CO3, acetone, reflux, 18 h; (b) Fe, HCl (37% in H2O), EtOH, reflux, 3 h, 42–79%; (c) α-bromoacrylic acid, EDCI, BtOH, DMF, r.t, 18 h, 44–66%; (d) N-Boc-glycine, EDCI, BtOH, DMF, r.t, 12 h, 83%; (e) 3M HCl in EtOAc, r.t, 3 h, 95%. Yields for compounds 9aj have not been reported by the authors.
Scheme 2. Synthesis of benzo[b]furans 913. Reagents and conditions: (a) 2-bromo-1-(3′,4′,5′-trimethoxyphenyl)ethanone, K2CO3, acetone, reflux, 18 h; (b) Fe, HCl (37% in H2O), EtOH, reflux, 3 h, 42–79%; (c) α-bromoacrylic acid, EDCI, BtOH, DMF, r.t, 18 h, 44–66%; (d) N-Boc-glycine, EDCI, BtOH, DMF, r.t, 12 h, 83%; (e) 3M HCl in EtOAc, r.t, 3 h, 95%. Yields for compounds 9aj have not been reported by the authors.
Pharmaceuticals 16 01265 sch002
Figure 4. Compounds 10g, 10h, 10j, and 11a were put on approval against (a) HL-60 and (b) U937 cells for 24 h at indicated concentrations (in µM). Apoptosis was determined using flow cytometry. Values represent the mean ± SE of three independent experiments, each conducted in triplicate. Reproduced with permission from ref. [34]. Copyright John Wiley & Sons Inc., 2023.
Figure 4. Compounds 10g, 10h, 10j, and 11a were put on approval against (a) HL-60 and (b) U937 cells for 24 h at indicated concentrations (in µM). Apoptosis was determined using flow cytometry. Values represent the mean ± SE of three independent experiments, each conducted in triplicate. Reproduced with permission from ref. [34]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g004
Figure 5. Relationship between caspases and the induction of apoptosis in two leukemia cell lines. Cells were incubated at different concentrations of compounds 10g, 10h, 10j, or 11a, and the cell lysates were analyzed by immunoblotting for cleavage of pro-caspases-9, -8, -6, and -3; poly(ADP-ribose) polymerase (PARP); and cytochrome c release. β-Actin served as the loading control. Reproduced with permission from ref. [34]. Copyright John Wiley & Sons Inc., 2023.
Figure 5. Relationship between caspases and the induction of apoptosis in two leukemia cell lines. Cells were incubated at different concentrations of compounds 10g, 10h, 10j, or 11a, and the cell lysates were analyzed by immunoblotting for cleavage of pro-caspases-9, -8, -6, and -3; poly(ADP-ribose) polymerase (PARP); and cytochrome c release. β-Actin served as the loading control. Reproduced with permission from ref. [34]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g005
Scheme 3. Synthesis of dihydroxylated 5,6-benzo[b]furans 16an. Reagents and conditions: (a) Suberase, phosphate buffer, rt, pH 7.15.
Scheme 3. Synthesis of dihydroxylated 5,6-benzo[b]furans 16an. Reagents and conditions: (a) Suberase, phosphate buffer, rt, pH 7.15.
Pharmaceuticals 16 01265 sch003
Scheme 4. Synthesis of benzo[b]furan derivatives 22 and 25, and the reaction conditions: (a) anhydrous ZnCl2, CH3COOH, reflux, 12 h, 73%; (b) K2CO3, CH3I, acetone, reflux, 18 h, 85%; (c) I2, AgNO3 (cat.), Ph3PCH3Br, THF, 0 °C, 50–70%; (d) 2-bromo-1-(3,4,5-trimethoxyphenyl)ethenone, K2CO3, acetone, reflux, 12 h, 75%; (e) substitution alkynes, PdCl2(PPh3)3, CuI, Et3N, THF, 60 °C, 14 h, 62–65%; (f) LiHMDS, Ph3PCH3Br, THF, 0 °C, 50–70%; (g) ethyl acrylate, PdCl2(Ph3P)2, Et3N, DMF, 60 °C, 24 h, 65%; (h) DIBAL, CH2Cl2, 0 °C, 1 h, 60%.
Scheme 4. Synthesis of benzo[b]furan derivatives 22 and 25, and the reaction conditions: (a) anhydrous ZnCl2, CH3COOH, reflux, 12 h, 73%; (b) K2CO3, CH3I, acetone, reflux, 18 h, 85%; (c) I2, AgNO3 (cat.), Ph3PCH3Br, THF, 0 °C, 50–70%; (d) 2-bromo-1-(3,4,5-trimethoxyphenyl)ethenone, K2CO3, acetone, reflux, 12 h, 75%; (e) substitution alkynes, PdCl2(PPh3)3, CuI, Et3N, THF, 60 °C, 14 h, 62–65%; (f) LiHMDS, Ph3PCH3Br, THF, 0 °C, 50–70%; (g) ethyl acrylate, PdCl2(Ph3P)2, Et3N, DMF, 60 °C, 24 h, 65%; (h) DIBAL, CH2Cl2, 0 °C, 1 h, 60%.
Pharmaceuticals 16 01265 sch004
Figure 6. Hoechst staining in the A549 cell line. (a) A549 control cells; (b) CA-4 (50 nm); (c) compound 22 (50 nm); and (d) compound 25 (50 nm). Reproduced with permission from ref. [37]. Copyright John Wiley & Sons Inc., 2023.
Figure 6. Hoechst staining in the A549 cell line. (a) A549 control cells; (b) CA-4 (50 nm); (c) compound 22 (50 nm); and (d) compound 25 (50 nm). Reproduced with permission from ref. [37]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g006aPharmaceuticals 16 01265 g006b
Figure 7. (a) DNA fragmentation analysis was performed on A549 lung cancer cells treated with compounds 22 and 25. The gel electrophoresis results show lane 1: control (A549 cells), lane 2: CA-4 (50 nM), lane 3: marker (100 bp), lane 4: 22 (50 nM), and lane 5: 25 (50 nM). (b) The effect of compounds on Bcl-2 and Bax levels. A549 cells were treated with compounds 22 and 25 at 50 nM for 48 h. Cell lysates were subjected to Western blot analysis to determine the expression levels of Bcl-2 and Bax, using β-actin as the loading control. Reproduced with permission from ref. [37]. Copyright John Wiley & Sons Inc., 2023.
Figure 7. (a) DNA fragmentation analysis was performed on A549 lung cancer cells treated with compounds 22 and 25. The gel electrophoresis results show lane 1: control (A549 cells), lane 2: CA-4 (50 nM), lane 3: marker (100 bp), lane 4: 22 (50 nM), and lane 5: 25 (50 nM). (b) The effect of compounds on Bcl-2 and Bax levels. A549 cells were treated with compounds 22 and 25 at 50 nM for 48 h. Cell lysates were subjected to Western blot analysis to determine the expression levels of Bcl-2 and Bax, using β-actin as the loading control. Reproduced with permission from ref. [37]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g007
Scheme 5. Plausible reaction mechanism for the synthesis of diheteroalkane 29.
Scheme 5. Plausible reaction mechanism for the synthesis of diheteroalkane 29.
Pharmaceuticals 16 01265 sch005
Figure 8. Antiproliferative activity (GI50, µM) in various human solid tumor cell lines, including HBL-100 (breast), HeLa (cervix), SW1573 (non-small-cell lung), and WiDr (colorectal). The compounds evaluated are presented in two groups: (a) 29a, 29gk, and (b) 29bf. Reproduced with permission from ref. [38]. Copyright John Wiley & Sons Inc., 2023.
Figure 8. Antiproliferative activity (GI50, µM) in various human solid tumor cell lines, including HBL-100 (breast), HeLa (cervix), SW1573 (non-small-cell lung), and WiDr (colorectal). The compounds evaluated are presented in two groups: (a) 29a, 29gk, and (b) 29bf. Reproduced with permission from ref. [38]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g008
Figure 9. Binding modes between 32a and α/β tubulin in complex with colchicine-DAMA (PDB ID code: 1SA0). The inhibitors are represented as purple ball-and-stick models, while the tubulin residues are shown as orange (α-tubulin) and yellow (β-tubulin) sticks. Reproduced with permission from ref. [39]. Copyright Elsevier Inc., 2023.
Figure 9. Binding modes between 32a and α/β tubulin in complex with colchicine-DAMA (PDB ID code: 1SA0). The inhibitors are represented as purple ball-and-stick models, while the tubulin residues are shown as orange (α-tubulin) and yellow (β-tubulin) sticks. Reproduced with permission from ref. [39]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g009
Scheme 6. Synthesis of benzo[b]furan analogs 35al and the reactions conditions: (a) BrCH2CO2CH3 or BrCH2CO2C2H5, K2CO3, DMF, 60 °C for 4 h, then reflux for 8 h, 52–78%; (b) 1-bromo-3,4,5-trimethoxybenzene, Pd(OAc)2, BINAP, Cs2CO3, PhMe, 100 °C, 16 h, 52–78%. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Scheme 6. Synthesis of benzo[b]furan analogs 35al and the reactions conditions: (a) BrCH2CO2CH3 or BrCH2CO2C2H5, K2CO3, DMF, 60 °C for 4 h, then reflux for 8 h, 52–78%; (b) 1-bromo-3,4,5-trimethoxybenzene, Pd(OAc)2, BINAP, Cs2CO3, PhMe, 100 °C, 16 h, 52–78%. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 sch006
Figure 10. Binding modes of compound 35g (represented in magenta) in the colchicine site of tubulin (PDB ID code: 3HKC). The co-crystallized ligand N-[2-[(4-hydroxyphenyl)amino]-3-pyridinyl]-4-methoxybenzenesulfonamide (PDB ID code: ABT751) is represented in green. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Figure 10. Binding modes of compound 35g (represented in magenta) in the colchicine site of tubulin (PDB ID code: 3HKC). The co-crystallized ligand N-[2-[(4-hydroxyphenyl)amino]-3-pyridinyl]-4-methoxybenzenesulfonamide (PDB ID code: ABT751) is represented in green. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g010
Figure 11. Western blot analysis was conducted on HeLa cells treated with different concentrations of compounds 35g or 35h to investigate their effects on H2AX, Bcl-2, Mcl-1, caspase-3, cleaved caspase-9, and PARP. β-Actin was used as the loading control. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Figure 11. Western blot analysis was conducted on HeLa cells treated with different concentrations of compounds 35g or 35h to investigate their effects on H2AX, Bcl-2, Mcl-1, caspase-3, cleaved caspase-9, and PARP. β-Actin was used as the loading control. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g011
Figure 12. In vitro antivascular evaluation of compound 35g. (a) Confluent HUVEC samples were prepared in a monolayer, and cells were treated with different concentrations of 35g. The cells were photographed at various time intervals (magnification, 7×; bar, 100 μm). Dotted lines define areas lacking cells. (b) The graph shows the quantitative effect of compound 35g, where gap closure was measured at specified time intervals to assess migration. Data are represented as mean of three independent experiments. * p < 0.05, ** p < 0.01 vs. control. (c) Inhibition of endothelial cell capillary tubule formation by compound 35g. Representative images show preformed capillary tubules treated with increasing concentrations of 35g for 1 or 3 h. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Figure 12. In vitro antivascular evaluation of compound 35g. (a) Confluent HUVEC samples were prepared in a monolayer, and cells were treated with different concentrations of 35g. The cells were photographed at various time intervals (magnification, 7×; bar, 100 μm). Dotted lines define areas lacking cells. (b) The graph shows the quantitative effect of compound 35g, where gap closure was measured at specified time intervals to assess migration. Data are represented as mean of three independent experiments. * p < 0.05, ** p < 0.01 vs. control. (c) Inhibition of endothelial cell capillary tubule formation by compound 35g. Representative images show preformed capillary tubules treated with increasing concentrations of 35g for 1 or 3 h. Reprinted (adapted) with permission from ref. [40]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g012
Figure 13. Cell cycle evaluation of compounds 22 and 25 in the MCF-7 cell line. The data are presented as the percentage of cell count at each induced cell cycle phase for each compound (* p < 0.05 vs. control). Reproduced with permission from ref. [41]. Copyright Elsevier Inc., 2023.
Figure 13. Cell cycle evaluation of compounds 22 and 25 in the MCF-7 cell line. The data are presented as the percentage of cell count at each induced cell cycle phase for each compound (* p < 0.05 vs. control). Reproduced with permission from ref. [41]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g013
Figure 14. Analysis of the PI3K/Akt/mTOR pathway and apoptotic markers in MCF-7 cells treated with compounds 22 and 25 for 48 h at a concentration of 50 nM. The expression levels of (a) Akt, mTOR, p70S6K, and 4E-BP1, including their phosphorylated forms, as well as (b) cytochrome c, Bax, Bcl-2, p53, procaspase-9, and PARP, were measured. Protein expression levels were analyzed using Western blot analysis, with β-actin serving as the loading control in both cases. Reproduced with permission from ref. [41]. Copyright Elsevier Inc., 2023.
Figure 14. Analysis of the PI3K/Akt/mTOR pathway and apoptotic markers in MCF-7 cells treated with compounds 22 and 25 for 48 h at a concentration of 50 nM. The expression levels of (a) Akt, mTOR, p70S6K, and 4E-BP1, including their phosphorylated forms, as well as (b) cytochrome c, Bax, Bcl-2, p53, procaspase-9, and PARP, were measured. Protein expression levels were analyzed using Western blot analysis, with β-actin serving as the loading control in both cases. Reproduced with permission from ref. [41]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g014
Scheme 7. Synthesis of 2,3-dihydrobenzo[b]furan 37 by the dimerization of methyl caffeate 36.
Scheme 7. Synthesis of 2,3-dihydrobenzo[b]furan 37 by the dimerization of methyl caffeate 36.
Pharmaceuticals 16 01265 sch007
Figure 15. In vivo studies of compound 37 in suppressing metastasis in mouse mammary cells (4T1). (a) Bioluminescent images of mouse tumors (n = 8 per group) after treatment with PBS and at different doses of compound 37 after tumor resection. Three of the mice died after treatment with PBS before the end of treatment. (b) Percentage of metastasis by measurement of luciferase activity in photons over time (n = 8 per group). (c) Percentage survival of mice after treatment with compound 37. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Figure 15. In vivo studies of compound 37 in suppressing metastasis in mouse mammary cells (4T1). (a) Bioluminescent images of mouse tumors (n = 8 per group) after treatment with PBS and at different doses of compound 37 after tumor resection. Three of the mice died after treatment with PBS before the end of treatment. (b) Percentage of metastasis by measurement of luciferase activity in photons over time (n = 8 per group). (c) Percentage survival of mice after treatment with compound 37. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Pharmaceuticals 16 01265 g015
Figure 16. Effect of compound 37 on the regulation of IL-25 expression in tumor-associated fibroblasts. (a) Flow cytometry of the population change in FSP-1 + ER-TR7+ cells and their IL-25 expression level in the lungs of mice after treatment with compound 37, PBS, and docetaxel. Data are reported as mean ± SD (n = 3). *** p < 0.001. NS—not significant (two-tailed t-test). (b) IF staining in mouse lung tissues after treatment with compound 37 and docetaxel 21 days after tumor resection. T—tumor, A—alveoli. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Figure 16. Effect of compound 37 on the regulation of IL-25 expression in tumor-associated fibroblasts. (a) Flow cytometry of the population change in FSP-1 + ER-TR7+ cells and their IL-25 expression level in the lungs of mice after treatment with compound 37, PBS, and docetaxel. Data are reported as mean ± SD (n = 3). *** p < 0.001. NS—not significant (two-tailed t-test). (b) IF staining in mouse lung tissues after treatment with compound 37 and docetaxel 21 days after tumor resection. T—tumor, A—alveoli. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Pharmaceuticals 16 01265 g016
Figure 17. (a) Western blot of IL-25 secretion activity in mouse (3T3) and human (WI38) fibroblasts after treatment with compound 37 using Rabbit IgG as the negative control. (b) Evaluation of 3T3-CM cytotoxicity levels in 4T1 cells after IL-25 immunodepletion. (c) Evaluation of WI38-CM cytotoxicity levels in MDA-MB-231 cells after IL-25 immunodepletion. Data are reported as mean ± SD (n = 3). ** p < 0.01; *** p < 0.001 (two-tailed Student’s t-test). This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Figure 17. (a) Western blot of IL-25 secretion activity in mouse (3T3) and human (WI38) fibroblasts after treatment with compound 37 using Rabbit IgG as the negative control. (b) Evaluation of 3T3-CM cytotoxicity levels in 4T1 cells after IL-25 immunodepletion. (c) Evaluation of WI38-CM cytotoxicity levels in MDA-MB-231 cells after IL-25 immunodepletion. Data are reported as mean ± SD (n = 3). ** p < 0.01; *** p < 0.001 (two-tailed Student’s t-test). This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Pharmaceuticals 16 01265 g017
Figure 18. In vivo treatment of compound 37 exhibits comparable antimetastatic activity to IL-25 administration. (a) Mice with tumor resection (n = 8 per group) were treated with PBS, IL-25, compound 37, or co-treated with IL-25 and compound 37 after three weeks. Tumor metastases were quantified by measuring luciferase activity over the indicated time course. (b) Percentage of survival of mice treated with PBS, compound 37, or co-treated with IL-25 and compound 37. The results were analyzed using the log-rank test. NS means not significant. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Figure 18. In vivo treatment of compound 37 exhibits comparable antimetastatic activity to IL-25 administration. (a) Mice with tumor resection (n = 8 per group) were treated with PBS, IL-25, compound 37, or co-treated with IL-25 and compound 37 after three weeks. Tumor metastases were quantified by measuring luciferase activity over the indicated time course. (b) Percentage of survival of mice treated with PBS, compound 37, or co-treated with IL-25 and compound 37. The results were analyzed using the log-rank test. NS means not significant. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Pharmaceuticals 16 01265 g018
Figure 19. The antimetastatic effect after administration of compound 37 in MDA-MB-231 cells in combination with docetaxel. (a) Bioluminescent images of mice with tumor portions (n = 8 per group) after treatment with PBS, compound 37, docetaxel, and co-treatment with docetaxel and compound 37 for three weeks and after tumor resection. (b) Levels of tumor metastasis by measurement of luciferase activity in photons in the treated mice over time. (c) Percentage survival of mice treated with docetaxel and those co-treated with docetaxel and compound 37. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Figure 19. The antimetastatic effect after administration of compound 37 in MDA-MB-231 cells in combination with docetaxel. (a) Bioluminescent images of mice with tumor portions (n = 8 per group) after treatment with PBS, compound 37, docetaxel, and co-treatment with docetaxel and compound 37 for three weeks and after tumor resection. (b) Levels of tumor metastasis by measurement of luciferase activity in photons in the treated mice over time. (c) Percentage survival of mice treated with docetaxel and those co-treated with docetaxel and compound 37. This is an open-access article distributed under the terms of the Creative Commons CC BY license [42].
Pharmaceuticals 16 01265 g019
Figure 20. 3D-QSAR studies in benzo[b]furan derivatives 43ae.
Figure 20. 3D-QSAR studies in benzo[b]furan derivatives 43ae.
Pharmaceuticals 16 01265 g020
Scheme 8. Synthesis of benzo[b]furan derivatives 43a and 43b and the reaction conditions: (a) AgOTFA, I2, 24 h, r.t, 52% for 39a and 39% for 39b; (b) Ac2O, pyridine, 4 h, r.t, 78% for 40a and 81% for 40b; (c) 1-ethynyl-4-ethoxybenzene or 1-ethynyl-4-methoxybenzene, PdCl2(PPh3)3, CuI, Et3N, DMF, 100 °C, 6 h, 46% for 41a and 32% for 41b; (d) K2CO3, CH3OH, 60 °C, 16 h, 40% for 42a and 25% for 42b; (e) 3,4,5-trimethoxybenzoyl chloride, SnCl2, CH2Cl2, 3 h, r.t, 70% for 43a and 43b.
Scheme 8. Synthesis of benzo[b]furan derivatives 43a and 43b and the reaction conditions: (a) AgOTFA, I2, 24 h, r.t, 52% for 39a and 39% for 39b; (b) Ac2O, pyridine, 4 h, r.t, 78% for 40a and 81% for 40b; (c) 1-ethynyl-4-ethoxybenzene or 1-ethynyl-4-methoxybenzene, PdCl2(PPh3)3, CuI, Et3N, DMF, 100 °C, 6 h, 46% for 41a and 32% for 41b; (d) K2CO3, CH3OH, 60 °C, 16 h, 40% for 42a and 25% for 42b; (e) 3,4,5-trimethoxybenzoyl chloride, SnCl2, CH2Cl2, 3 h, r.t, 70% for 43a and 43b.
Pharmaceuticals 16 01265 sch008
Scheme 9. Synthesis of 3-benzoylamino-5-(1H-imidazol-4-yl)methylaminobenzo[b]furan derivatives 51af, 52af, and 53, and the reaction conditions: (a) HNO3/H2SO4, N2, 0 °C, 2 h; (b) ethyl glycolate, K2CO3, anhydrous DMF, 100 °C, 12 h, 63%; (c) pyridine, r.t, 12 h, 62–86%; (d) 10% Pd/C, H2, ethanol, r.t, 2 h, 43–93%; (e) NaBH3CN, ethanol, AcOH, r.t, 6–24 h, 23–65% for 51af, 15–90% for 52af, and 10–23% for 53.
Scheme 9. Synthesis of 3-benzoylamino-5-(1H-imidazol-4-yl)methylaminobenzo[b]furan derivatives 51af, 52af, and 53, and the reaction conditions: (a) HNO3/H2SO4, N2, 0 °C, 2 h; (b) ethyl glycolate, K2CO3, anhydrous DMF, 100 °C, 12 h, 63%; (c) pyridine, r.t, 12 h, 62–86%; (d) 10% Pd/C, H2, ethanol, r.t, 2 h, 43–93%; (e) NaBH3CN, ethanol, AcOH, r.t, 6–24 h, 23–65% for 51af, 15–90% for 52af, and 10–23% for 53.
Pharmaceuticals 16 01265 sch009
Figure 21. Analysis of the influence of the concentrations of compounds 52af on the cell cycle of the HeLa cell line after 24 h using flow cytometry. Data are expressed as the mean of two independent experiments. Statistical analyses were performed using the Student’s t test to determine the differences between the datasets. * p < 0.05 denote significant differences from untreated control cells. Reproduced with permission from ref. [44]. Copyright John Wiley & Sons Inc., 2023.
Figure 21. Analysis of the influence of the concentrations of compounds 52af on the cell cycle of the HeLa cell line after 24 h using flow cytometry. Data are expressed as the mean of two independent experiments. Statistical analyses were performed using the Student’s t test to determine the differences between the datasets. * p < 0.05 denote significant differences from untreated control cells. Reproduced with permission from ref. [44]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g021
Figure 22. Ligand interaction maps of compounds 52b, 52e, and colchicine. Reproduced with permission from ref. [44]. Copyright John Wiley & Sons Inc., 2023.
Figure 22. Ligand interaction maps of compounds 52b, 52e, and colchicine. Reproduced with permission from ref. [44]. Copyright John Wiley & Sons Inc., 2023.
Pharmaceuticals 16 01265 g022
Scheme 10. Synthesis of benzo[b]furan-3-yl-1,3-benzoxazole derivatives 62aj, and reaction conditions: (a) EtOH, reflux, 4 h, then AcOH, Pb(Oac)4, r.t., 1 h, 79%; (b) DCM, BBr3, r.t., 5 h, 88%; (c) acetone, K2CO3, reflux, 5 h, 94%; (d) EtOH, NH2OH. HCl, K2CO3, reflux, 3 h, 92%; (e) pyridine, r.t., 4 h, 63–93%.
Scheme 10. Synthesis of benzo[b]furan-3-yl-1,3-benzoxazole derivatives 62aj, and reaction conditions: (a) EtOH, reflux, 4 h, then AcOH, Pb(Oac)4, r.t., 1 h, 79%; (b) DCM, BBr3, r.t., 5 h, 88%; (c) acetone, K2CO3, reflux, 5 h, 94%; (d) EtOH, NH2OH. HCl, K2CO3, reflux, 3 h, 92%; (e) pyridine, r.t., 4 h, 63–93%.
Pharmaceuticals 16 01265 sch010
Scheme 11. Synthesis of 2-phenylbenzo[b]furan derivatives 68ab, 69ab, and 70, and the reaction conditions: (a) K2CO3, DMF, 92–94 °C, 4 h, 61–76%; (b) KOH (10%), MeOH, 75–80 °C, 2 h, then HCl (10%), r.t., 70–72%; (c) Ac2O, AcONa, 125–130 °C, 4.5 h, 90–97%; (d) Ac2O, Amberlyst-15, 1,2-dichloroethane, reflux, 6 h, 69–72%; (e) 3,4,5-trimethoxybenzoyl chloride, AlCl3, 1,2-dichloroethane, 45 °C, 3.5 h, 68–76%; (f) 3,4,5-trimethoxybenzoyl chloride, Amberlyst-15, 1,2-dichloroethane, reflux, 6.5 h, 69%.
Scheme 11. Synthesis of 2-phenylbenzo[b]furan derivatives 68ab, 69ab, and 70, and the reaction conditions: (a) K2CO3, DMF, 92–94 °C, 4 h, 61–76%; (b) KOH (10%), MeOH, 75–80 °C, 2 h, then HCl (10%), r.t., 70–72%; (c) Ac2O, AcONa, 125–130 °C, 4.5 h, 90–97%; (d) Ac2O, Amberlyst-15, 1,2-dichloroethane, reflux, 6 h, 69–72%; (e) 3,4,5-trimethoxybenzoyl chloride, AlCl3, 1,2-dichloroethane, 45 °C, 3.5 h, 68–76%; (f) 3,4,5-trimethoxybenzoyl chloride, Amberlyst-15, 1,2-dichloroethane, reflux, 6.5 h, 69%.
Pharmaceuticals 16 01265 sch011
Scheme 12. Synthesis of 2-alkylbenzo[b]furan derivatives 72 and 73, and the reaction conditions: (a) 2-(4-methoxyphenyl)acetyl chloride, AlCl3, 1,2-dichloroethane, 0–15 °C, 6 h; (b) pyridine hydrochloride, reflux, 10–12 min; (c) HBr (20%), NaClO3, r.t., 2 h. The authors have not provided information regarding the yields.
Scheme 12. Synthesis of 2-alkylbenzo[b]furan derivatives 72 and 73, and the reaction conditions: (a) 2-(4-methoxyphenyl)acetyl chloride, AlCl3, 1,2-dichloroethane, 0–15 °C, 6 h; (b) pyridine hydrochloride, reflux, 10–12 min; (c) HBr (20%), NaClO3, r.t., 2 h. The authors have not provided information regarding the yields.
Pharmaceuticals 16 01265 sch012
Figure 23. Confocal microscopy images in A375 cells: (A,B) control cells; (C,D) compound 69a; (E,F) compound 69b after 7 h of incubation and at a concentration of 100 µM; (G,H) compound 70 at 10 µM with α-tubulin stained (green) and chromosomes (blue). Arrows indicate abnormal spindles. Reproduced with permission from ref. [46]. Copyright Elsevier Inc., 2023.
Figure 23. Confocal microscopy images in A375 cells: (A,B) control cells; (C,D) compound 69a; (E,F) compound 69b after 7 h of incubation and at a concentration of 100 µM; (G,H) compound 70 at 10 µM with α-tubulin stained (green) and chromosomes (blue). Arrows indicate abnormal spindles. Reproduced with permission from ref. [46]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g023
Figure 24. Analysis of the inhibition of tubulin polymerization in benzo[b]furan derivatives 69a, 69b, 70, 72, and 73. Reproduced with permission from ref. [46]. Copyright Elsevier Inc., 2023.
Figure 24. Analysis of the inhibition of tubulin polymerization in benzo[b]furan derivatives 69a, 69b, 70, 72, and 73. Reproduced with permission from ref. [46]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g024
Scheme 13. Synthesis of benzofuran–pyrazole hybrid 77, and reaction conditions: (a) PhNHNH2, then POCl3, DMF; (b) EtOH, NaOH, 88%; (c) N2H4/AcOH, 85%.
Scheme 13. Synthesis of benzofuran–pyrazole hybrid 77, and reaction conditions: (a) PhNHNH2, then POCl3, DMF; (b) EtOH, NaOH, 88%; (c) N2H4/AcOH, 85%.
Pharmaceuticals 16 01265 sch013
Figure 25. Flow cytometry analysis, showing (a) apoptosis and (b) cell cycle analysis of the benzofuran–pyrazole hybrid 77 and its nanoparticles in MCF-7 and MDA-MB-231 cell lines. This is an open-access article distributed under the terms of the Creative Commons CC BY license [48].
Figure 25. Flow cytometry analysis, showing (a) apoptosis and (b) cell cycle analysis of the benzofuran–pyrazole hybrid 77 and its nanoparticles in MCF-7 and MDA-MB-231 cell lines. This is an open-access article distributed under the terms of the Creative Commons CC BY license [48].
Pharmaceuticals 16 01265 g025
Scheme 14. Synthesis of shikonin–benzo[b]furan hybrids 83aq, and reaction conditions: (a) KI, DMF, r.t, 30 min, then BrCH2CO2Et, 2 h, r.t; (b) K2CO3, DMF, 120 °C, 3 h; (c) NaOH (20%), DMF, 60 °C, 30 min; (d) DCC, DMAP, CH2Cl2, 0 °C, 8 h, 20–36%. Yields for compounds 79, 80, and 81 have not been reported by the authors.
Scheme 14. Synthesis of shikonin–benzo[b]furan hybrids 83aq, and reaction conditions: (a) KI, DMF, r.t, 30 min, then BrCH2CO2Et, 2 h, r.t; (b) K2CO3, DMF, 120 °C, 3 h; (c) NaOH (20%), DMF, 60 °C, 30 min; (d) DCC, DMAP, CH2Cl2, 0 °C, 8 h, 20–36%. Yields for compounds 79, 80, and 81 have not been reported by the authors.
Pharmaceuticals 16 01265 sch014

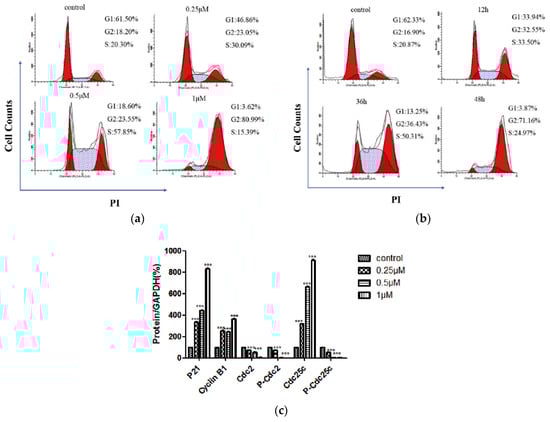

Figure 26. The cell cycle analysis of hybrid 83c: (a) using HT29 cells at concentrations of 0.25, 0.5, and 1 µM; (b) with HT29 cells at time points of 12, 36, and 48 h; and (c) Western blot showing the expression of cell-cycle-related proteins. Data are means ± SD of three independent experiments. *** p < 0.05 vs. control. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Figure 26. The cell cycle analysis of hybrid 83c: (a) using HT29 cells at concentrations of 0.25, 0.5, and 1 µM; (b) with HT29 cells at time points of 12, 36, and 48 h; and (c) Western blot showing the expression of cell-cycle-related proteins. Data are means ± SD of three independent experiments. *** p < 0.05 vs. control. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g026
Figure 27. Apoptosis analysis of hybrid 83c: (a) using HT29 cells at concentrations of 0.25, 0.5, and 1 µM; (b) with HT29 cells at time points of 12, 36, and 48 h; (c) Western blot showing the expression of apoptosis-related proteins. Data are means ± SD of three independent experiments. ** p < 0.01; *** p < 0.05 vs. control. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Figure 27. Apoptosis analysis of hybrid 83c: (a) using HT29 cells at concentrations of 0.25, 0.5, and 1 µM; (b) with HT29 cells at time points of 12, 36, and 48 h; (c) Western blot showing the expression of apoptosis-related proteins. Data are means ± SD of three independent experiments. ** p < 0.01; *** p < 0.05 vs. control. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g027
Figure 28. Evaluation of antimicrotubule effects against HT29 cells using confocal fluorescence microscopy for hybrid 83c (0.25, 0.5, and 1 mM), colchicine (0.5 mM), paclitaxel (0.5 mM), and DMSO. The nucleus was stained with DAPI (blue), and tubulins were labeled with Alexa Fluor 594 (red), captured with a confocal fluorescence microscope. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Figure 28. Evaluation of antimicrotubule effects against HT29 cells using confocal fluorescence microscopy for hybrid 83c (0.25, 0.5, and 1 mM), colchicine (0.5 mM), paclitaxel (0.5 mM), and DMSO. The nucleus was stained with DAPI (blue), and tubulins were labeled with Alexa Fluor 594 (red), captured with a confocal fluorescence microscope. Reproduced with permission from ref. [49]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g028
Scheme 15. Synthesis of 2-arylbenzo[b]furan derivatives 88ab and 89ab, and their reaction conditions: (a) CBr4, TPP, Zn, NH4Cl, Cs2CO3, CuI, CH3CN/DCM (4:1), 85 °C, 2 h, 40–60%; (b) K2CO3, MeI, acetone, 60 °C, 1 h, 64%; (c) K2CO3, 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenol, Pd(PPh3)4, THF/EtOH/H2O (20:1:1), 80 °C, 16 h, 50–60%; (d) K3PO4, vinylboronic acid, Pd(dppf)Cl2.CH2Cl2, DMF/H2O (4:1), 90 °C, 2 h, 81–88%; (e) BH3/THF, 2M NaOH–H2O2, 0 °C, r.t, 2 h, 53–68%; (f) K2CO3, MeI, acetone, 60 °C, 1 h, 72%.
Scheme 15. Synthesis of 2-arylbenzo[b]furan derivatives 88ab and 89ab, and their reaction conditions: (a) CBr4, TPP, Zn, NH4Cl, Cs2CO3, CuI, CH3CN/DCM (4:1), 85 °C, 2 h, 40–60%; (b) K2CO3, MeI, acetone, 60 °C, 1 h, 64%; (c) K2CO3, 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenol, Pd(PPh3)4, THF/EtOH/H2O (20:1:1), 80 °C, 16 h, 50–60%; (d) K3PO4, vinylboronic acid, Pd(dppf)Cl2.CH2Cl2, DMF/H2O (4:1), 90 °C, 2 h, 81–88%; (e) BH3/THF, 2M NaOH–H2O2, 0 °C, r.t, 2 h, 53–68%; (f) K2CO3, MeI, acetone, 60 °C, 1 h, 72%.
Pharmaceuticals 16 01265 sch015
Scheme 16. Synthesis of 2-arylbenzo[b]furan derivatives 94 and 95 and their reaction conditions: (a) CBr4, TPP, Zn, NH4Cl, Cs2CO3, CuI, CH3CN/DCM (4:1), 85 °C, 72%; (b) K2CO3, 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenol, Pd(PPh3)4, THF/EtOH/H2O (20:1:1), 80 °C, 16 h, 57%; (c) K3PO4, vinylboronic acid, Pd(dppf)Cl2.CH2Cl2, DMF/H2O (4:1), 90 °C, 2 h, 90%; (d) BH3/THF, 2 M NaOH–H2O2, 0 °C, r.t, 2 h, 60%; (e) K2CO3, MeI, acetone, 60 °C, 1 h, 70%.
Scheme 16. Synthesis of 2-arylbenzo[b]furan derivatives 94 and 95 and their reaction conditions: (a) CBr4, TPP, Zn, NH4Cl, Cs2CO3, CuI, CH3CN/DCM (4:1), 85 °C, 72%; (b) K2CO3, 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenol, Pd(PPh3)4, THF/EtOH/H2O (20:1:1), 80 °C, 16 h, 57%; (c) K3PO4, vinylboronic acid, Pd(dppf)Cl2.CH2Cl2, DMF/H2O (4:1), 90 °C, 2 h, 90%; (d) BH3/THF, 2 M NaOH–H2O2, 0 °C, r.t, 2 h, 60%; (e) K2CO3, MeI, acetone, 60 °C, 1 h, 70%.
Pharmaceuticals 16 01265 sch016
Scheme 17. Synthesis of 2-arylbenzo[b]furan derivatives 99 and 100 and their reaction conditions: (a) AcCl, DMAP, Et3N, DCM, 0 °C, r.t, 2 h, 88%; (b) NIS, PTSA, CH3CN, 0 °C, r.t, 2 h, 80%; (c) K3PO4, boronic acid, Pd(dppf)Cl2.CH2Cl2, 1,4-dioxane/H2O (100:1), 110 °C, 2 h, MWI, 73%; (d) LiOH/H2O, THF/EtO/H2O (4:4:1), 0 °C, r.t, 2 h, 89%; (e) K2CO3, MeI, acetone, 60 °C, 1 h, 76%.
Scheme 17. Synthesis of 2-arylbenzo[b]furan derivatives 99 and 100 and their reaction conditions: (a) AcCl, DMAP, Et3N, DCM, 0 °C, r.t, 2 h, 88%; (b) NIS, PTSA, CH3CN, 0 °C, r.t, 2 h, 80%; (c) K3PO4, boronic acid, Pd(dppf)Cl2.CH2Cl2, 1,4-dioxane/H2O (100:1), 110 °C, 2 h, MWI, 73%; (d) LiOH/H2O, THF/EtO/H2O (4:4:1), 0 °C, r.t, 2 h, 89%; (e) K2CO3, MeI, acetone, 60 °C, 1 h, 76%.
Pharmaceuticals 16 01265 sch017
Figure 29. Western blot analysis for PARP, Phospho-p53, p53, p21, and GAPDH as the loading control for compounds 88a, 94, and 99. Reprinted (adapted) with permission from ref. [50]. Copyright American Chemical Society, 2023.
Figure 29. Western blot analysis for PARP, Phospho-p53, p53, p21, and GAPDH as the loading control for compounds 88a, 94, and 99. Reprinted (adapted) with permission from ref. [50]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g029
Scheme 18. Synthesis of 2-amino-3-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan derivatives 103ao, and the reaction conditions: (a) 2-azido-1-(3,4,5-trimethoxyphenyl)ethanone, piperidinium acetate, MeOH, r.t, 24 h; (b) PTSA (20 mol%), CH3CN, reflux, 12 h; (c) white CFL (25 W), PTSA (20 mol%), CH3CN, r.t, 24 h; (d) Pd/C (10%), EtOH, 40 bar, 60 °C, 30 min; (e) Fe, NH4Cl, EtOH/H2O, reflux, 3 h.
Scheme 18. Synthesis of 2-amino-3-(3′,4′,5′-trimethoxybenzoyl)benzo[b]furan derivatives 103ao, and the reaction conditions: (a) 2-azido-1-(3,4,5-trimethoxyphenyl)ethanone, piperidinium acetate, MeOH, r.t, 24 h; (b) PTSA (20 mol%), CH3CN, reflux, 12 h; (c) white CFL (25 W), PTSA (20 mol%), CH3CN, r.t, 24 h; (d) Pd/C (10%), EtOH, 40 bar, 60 °C, 30 min; (e) Fe, NH4Cl, EtOH/H2O, reflux, 3 h.
Pharmaceuticals 16 01265 sch018
Figure 30. The cell cycle distribution in the HeLa cell line using flow cytometry analysis of compounds (a) 103f and (b) 103l. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Figure 30. The cell cycle distribution in the HeLa cell line using flow cytometry analysis of compounds (a) 103f and (b) 103l. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g030
Figure 31. Analysis of the effect of compound 103f on the regulation of cell-cycle-related protein levels. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Figure 31. Analysis of the effect of compound 103f on the regulation of cell-cycle-related protein levels. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g031
Figure 32. Suppression of mammary tumor growth in female C57BL/6 mice by compound 103f: (a) tumor weight measurement at the end of the procedure (n = 5 mice/group) and (b) changes in mouse body weight during the procedure. Asterisks indicate significant difference between the treated and the control group. * p < 0.05, *** p < 0.0001. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Figure 32. Suppression of mammary tumor growth in female C57BL/6 mice by compound 103f: (a) tumor weight measurement at the end of the procedure (n = 5 mice/group) and (b) changes in mouse body weight during the procedure. Asterisks indicate significant difference between the treated and the control group. * p < 0.05, *** p < 0.0001. Reproduced with permission from ref. [51]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g032
Scheme 19. Synthesis of evodiamine derivatives 115af and 116af, and reagents and reaction conditions: (a) AlCl3, DCM, r.t, 24 h, 90%; (b) AlCl3, DCM, r.t, 12 h, 88%; (c) AcONa, EtOH, reflux, 2 h, 91%; (d) THF, NaH, r.t, 12 h, 75%; (e) BH3·THF, reflux, 3 h; (f) Ethyl formate, reflux, 12 h, 72%; (g) POCl3, DCM, r.t, 12 h, 76%; (h) SOCl2, reflux, 2 h; (i) DCM, r.t, 12 h, 78–82%; (j) BBr3, DCM, −78 °C, 6 h, 82–91%.
Scheme 19. Synthesis of evodiamine derivatives 115af and 116af, and reagents and reaction conditions: (a) AlCl3, DCM, r.t, 24 h, 90%; (b) AlCl3, DCM, r.t, 12 h, 88%; (c) AcONa, EtOH, reflux, 2 h, 91%; (d) THF, NaH, r.t, 12 h, 75%; (e) BH3·THF, reflux, 3 h; (f) Ethyl formate, reflux, 12 h, 72%; (g) POCl3, DCM, r.t, 12 h, 76%; (h) SOCl2, reflux, 2 h; (i) DCM, r.t, 12 h, 78–82%; (j) BBr3, DCM, −78 °C, 6 h, 82–91%.
Pharmaceuticals 16 01265 sch019
Figure 33. (a) Inhibition of Top 1 DNA relaxation activity in compounds 116af, (b) inhibition of Top 1 relaxation in evodiamine (evo) and compound 116f, (c) catalytic inhibition of Top 2 or a Top 2 poison using a kDNA substrate in compound 116f. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Figure 33. (a) Inhibition of Top 1 DNA relaxation activity in compounds 116af, (b) inhibition of Top 1 relaxation in evodiamine (evo) and compound 116f, (c) catalytic inhibition of Top 2 or a Top 2 poison using a kDNA substrate in compound 116f. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g033
Figure 34. Formation of cleavable complexes of Top 1–DNA induced by compound 116f: (a) [3H]thymidine labeling of the MDA-MB-231 cell line over different time intervals, (b) immunological band assay for Top 1 in MDA-MB-231 across varied time periods. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Figure 34. Formation of cleavable complexes of Top 1–DNA induced by compound 116f: (a) [3H]thymidine labeling of the MDA-MB-231 cell line over different time intervals, (b) immunological band assay for Top 1 in MDA-MB-231 across varied time periods. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g034
Figure 35. Generation of ROS by compound 116f independent of Top 1: (a) flow cytometry analysis of ROS generation in MDA-MB-231 cells treated with 116f, and (b) comparison of ROS generation in parental MDA-MB-231 cells, MDA-MB-231 cells with control siRNA (siRNA-Ctrl), and Top-1-deficient MDA-MB-231 cells (siRNA-Top 1). Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Figure 35. Generation of ROS by compound 116f independent of Top 1: (a) flow cytometry analysis of ROS generation in MDA-MB-231 cells treated with 116f, and (b) comparison of ROS generation in parental MDA-MB-231 cells, MDA-MB-231 cells with control siRNA (siRNA-Ctrl), and Top-1-deficient MDA-MB-231 cells (siRNA-Top 1). Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g035
Figure 36. Effect of compound 116f on (a) mitochondrial dysfunction using JC-1 staining and (b) expression levels of related proteins analyzed by Western blot in the MDA-MB-231 cell line. β-Actin was used as an internal control. *** p < 0.001. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Figure 36. Effect of compound 116f on (a) mitochondrial dysfunction using JC-1 staining and (b) expression levels of related proteins analyzed by Western blot in the MDA-MB-231 cell line. β-Actin was used as an internal control. *** p < 0.001. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g036
Figure 37. In vivo study of 116f in a PDTX model: (a) immunohistochemical analysis with H&E staining and Ki67 expression in TNBC cells, (b) effects of 116f on mice body weight during treatment. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Figure 37. In vivo study of 116f in a PDTX model: (a) immunohistochemical analysis with H&E staining and Ki67 expression in TNBC cells, (b) effects of 116f on mice body weight during treatment. Reprinted (adapted) with permission from ref. [52]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g037
Figure 38. Effect of compound 117c on SIRT3 activation. (a) The molecular coupling of compound 117c with resveratrol and honokiol in SIRT3. (b) The chemical structures of resveratrol and honokiol. (c) SIRT3-dependent substrate deacetylation with compound 117c. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 38. Effect of compound 117c on SIRT3 activation. (a) The molecular coupling of compound 117c with resveratrol and honokiol in SIRT3. (b) The chemical structures of resveratrol and honokiol. (c) SIRT3-dependent substrate deacetylation with compound 117c. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g038
Figure 39. Selectivity of compound 117c binding to SIRT3 in MDA-MB-231 cell line. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 39. Selectivity of compound 117c binding to SIRT3 in MDA-MB-231 cell line. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g039
Figure 40. Inhibition of MDA-MB-231 tumor cell proliferation after treatment with compound 117c. (a) MTT cell viability assay for 6–48 h with 117c. (b) Colony formation assay with concentrations ranging from 1.25 to 10 µM. *** p < 0.001 and **** p < 0.0001 compared with the control group. (c) Transfection of MDA-MB-231 cells with siRNA SIRT3 and treated with 117c at 2.5 and 5 µM. ns means no significance, **** p < 0.0001 compared with the si-NC group, and # p < 0.05 compared with the si-SIRT3 group. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 40. Inhibition of MDA-MB-231 tumor cell proliferation after treatment with compound 117c. (a) MTT cell viability assay for 6–48 h with 117c. (b) Colony formation assay with concentrations ranging from 1.25 to 10 µM. *** p < 0.001 and **** p < 0.0001 compared with the control group. (c) Transfection of MDA-MB-231 cells with siRNA SIRT3 and treated with 117c at 2.5 and 5 µM. ns means no significance, **** p < 0.0001 compared with the si-NC group, and # p < 0.05 compared with the si-SIRT3 group. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g040
Figure 41. Effect of compound 117c on autophagy-induced cell death in MDA-MB-231 cells by activation of SIRT3. (a) Western blot analysis of MDA-MB-231 cells treated with 117c, showing expression levels of p62 and LC3. (b) MTT assay evaluating cellular capacity with 117c in the presence or absence of autophagy inhibitors. (c) Cell migration study with 117c in the presence or absence of autophagy inhibitors. (d) Western blot analysis of MDA-MB-231 cells treated with 117c, measuring expression levels of SIRT3, E-cadherin, MMP-2, and LC3. NS means no significance, *** p < 0.001, **** p < 0.0001, ## p < 0.01, and ### p < 0.001. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 41. Effect of compound 117c on autophagy-induced cell death in MDA-MB-231 cells by activation of SIRT3. (a) Western blot analysis of MDA-MB-231 cells treated with 117c, showing expression levels of p62 and LC3. (b) MTT assay evaluating cellular capacity with 117c in the presence or absence of autophagy inhibitors. (c) Cell migration study with 117c in the presence or absence of autophagy inhibitors. (d) Western blot analysis of MDA-MB-231 cells treated with 117c, measuring expression levels of SIRT3, E-cadherin, MMP-2, and LC3. NS means no significance, *** p < 0.001, **** p < 0.0001, ## p < 0.01, and ### p < 0.001. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g041
Figure 42. In vivo study conducted in a xenograft model with TNBC mice treated with compound 117c. (a) Tumor volume and (b) tumor weight with compound 117c treatment (n = 10 per group). Tumor volume data were collected every 3 days and presented as mean ± SD. Tumor weight data were collected on the final day and presented as mean ± SD. **** p < 0.001 compared with control group. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 42. In vivo study conducted in a xenograft model with TNBC mice treated with compound 117c. (a) Tumor volume and (b) tumor weight with compound 117c treatment (n = 10 per group). Tumor volume data were collected every 3 days and presented as mean ± SD. Tumor weight data were collected on the final day and presented as mean ± SD. **** p < 0.001 compared with control group. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g042
Figure 43. Western blot analysis of the expression levels of Ac. K, AcK68-MnSOD2, AcK122-MnSOD2, SQSTM1/p62, and LC3 in the MDA-MB-231 TNBC mouse xenograft model. β-Actin was used as the positive control. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Figure 43. Western blot analysis of the expression levels of Ac. K, AcK68-MnSOD2, AcK122-MnSOD2, SQSTM1/p62, and LC3 in the MDA-MB-231 TNBC mouse xenograft model. β-Actin was used as the positive control. Reprinted (adapted) with permission from ref. [53]. Copyright American Chemical Society, 2023.
Pharmaceuticals 16 01265 g043

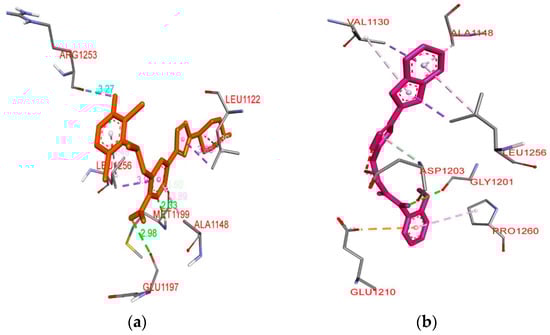

Figure 44. (a) Molecular docking of crizotinib in the ALK protein binding pocket (PDB ID code: 2XP2), and (b) 3D model of compound 120d with its interacting amino acid residues. This is an open-access article distributed under the terms of the Creative Commons CC BY license [54].
Figure 44. (a) Molecular docking of crizotinib in the ALK protein binding pocket (PDB ID code: 2XP2), and (b) 3D model of compound 120d with its interacting amino acid residues. This is an open-access article distributed under the terms of the Creative Commons CC BY license [54].
Pharmaceuticals 16 01265 g044
Scheme 20. Synthesis of benzofuran–isatin hybrid 126, and reagents and conditions: (a) ethyl 2-bromoacetate, CH3CN, K2CO3, reflux, 8 h; (b) hydrazine hydrate, MeOH, reflux, 4 h; (c) ethanol, AcOH, reflux, 5 h, 80%.
Scheme 20. Synthesis of benzofuran–isatin hybrid 126, and reagents and conditions: (a) ethyl 2-bromoacetate, CH3CN, K2CO3, reflux, 8 h; (b) hydrazine hydrate, MeOH, reflux, 4 h; (c) ethanol, AcOH, reflux, 5 h, 80%.
Pharmaceuticals 16 01265 sch020
Figure 45. Inhibition of benzofuran–isatin hybrid 126 on (a) cell proliferation, (b) migration, (c) invasion in the HT29 and SW620 cancer cell lines, and (d) its influence on gene expression in the p53 protein. Data are shown as mean ± SD (n = 3). The data were considered significant when reporting * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Figure 45. Inhibition of benzofuran–isatin hybrid 126 on (a) cell proliferation, (b) migration, (c) invasion in the HT29 and SW620 cancer cell lines, and (d) its influence on gene expression in the p53 protein. Data are shown as mean ± SD (n = 3). The data were considered significant when reporting * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Pharmaceuticals 16 01265 g045

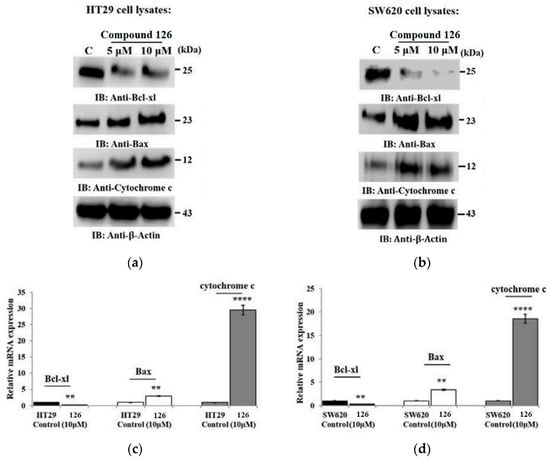

Figure 46. Flow cytometry analysis of hybrid 126 against cell lines (a) HT29 and (b) SW620 at Bcl-x, Bax, and cytochrome C expression levels with β-actin as the control. Additionally, bar graphs show the gene expression of these mitochondrial proteins for (c) HT29 and (d) SW620. Data are shown as mean ± SD (n = 3). ** p < 0.01 and **** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Figure 46. Flow cytometry analysis of hybrid 126 against cell lines (a) HT29 and (b) SW620 at Bcl-x, Bax, and cytochrome C expression levels with β-actin as the control. Additionally, bar graphs show the gene expression of these mitochondrial proteins for (c) HT29 and (d) SW620. Data are shown as mean ± SD (n = 3). ** p < 0.01 and **** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Pharmaceuticals 16 01265 g046

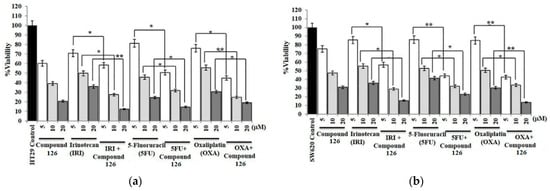

Figure 47. Effects of hybrid 126 on the cellular capacity of (a) HT29 and (b) SW620 cell lines in combination with three chemotherapeutic drugs: irinotecan (IRI), 5-fluorouracil (5-FU), and oxaliplatin (OXA) at concentrations of 5, 10, and 20 μM. Data are expressed as mean ± SD (n = 3). * p < 0.001 and ** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Figure 47. Effects of hybrid 126 on the cellular capacity of (a) HT29 and (b) SW620 cell lines in combination with three chemotherapeutic drugs: irinotecan (IRI), 5-fluorouracil (5-FU), and oxaliplatin (OXA) at concentrations of 5, 10, and 20 μM. Data are expressed as mean ± SD (n = 3). * p < 0.001 and ** p < 0.0001 vs. control. This is an open-access article distributed under the terms of the Creative Commons CC BY license [56].
Pharmaceuticals 16 01265 g047
Scheme 21. Synthesis of O-alkylamino benzo[b]furancarboxylates 132135, and reagents and conditions: (a) MeOH, H2SO4; (b) Cl(CH2)2NEt2.HCl, K2CO3, Aliquat 336 (N-methyl-N,N-dioctyloctan-1-ammonium chloride), acetone, MWI (4–8 cycles: heating 6 min and cooling 2 min).
Scheme 21. Synthesis of O-alkylamino benzo[b]furancarboxylates 132135, and reagents and conditions: (a) MeOH, H2SO4; (b) Cl(CH2)2NEt2.HCl, K2CO3, Aliquat 336 (N-methyl-N,N-dioctyloctan-1-ammonium chloride), acetone, MWI (4–8 cycles: heating 6 min and cooling 2 min).
Pharmaceuticals 16 01265 sch021
Scheme 22. Synthesis of benzo[b]furan derivatives 139ai, and reagents and conditions: (a) K2CO3, CH3CN, reflux; (b) AcOH, reflux, 8–10 h, 110–115 °C, 75–91%.
Scheme 22. Synthesis of benzo[b]furan derivatives 139ai, and reagents and conditions: (a) K2CO3, CH3CN, reflux; (b) AcOH, reflux, 8–10 h, 110–115 °C, 75–91%.
Pharmaceuticals 16 01265 sch022
Scheme 23. Scaffold hopping from the active compound NTF, featuring a central nucleotide modification (140141) along with three structural modifications (142144).
Scheme 23. Scaffold hopping from the active compound NTF, featuring a central nucleotide modification (140141) along with three structural modifications (142144).
Pharmaceuticals 16 01265 sch023
Scheme 24. Synthesis of benzo[b]furan derivatives 140, 142ac, 143ab, and 144at, and reagents and conditions: (a) 1-bromo-2,2-diethoxyethane, NaH, DMF, 90 °C, overnight, 93%; (b) polyphosphoric acids, toluene, reflux, overnight, 55%; (c) CuCN, DMF, 130 °C, 4 h, 90%; (d) LiAlH4, THF, −78 °C to r.t, overnight, N2, 95%; (e) di-tert-butyl dicarbonate, NaOH, THF, 0 °C to r.t, 1 h, 85%; (f) LiAlH4, THF, 0 °C to r.t, overnight, N2, 95%; (g) (i) trans-cinnamaldehyde, molecular sieves, CH2Cl2, reflux, 17 h; (ii) NaBH4, methanol, 0 °C, 30 min, 95% (2 steps); (h) iodoethane or 2-iodopropane, NaH, DMF 0 °C to r.t, overnight, N2, 50%; (i) NaBH4, methanol, 0 °C, 30 min; (j) PBr3, Et2O, 0 °C to r.t, overnight, N2, 57–84% (2 steps); (k) (i) K2CO3, DMF, r.t, overnight, 43–85%, (ii) bubbled into hydrogen chloride gas.
Scheme 24. Synthesis of benzo[b]furan derivatives 140, 142ac, 143ab, and 144at, and reagents and conditions: (a) 1-bromo-2,2-diethoxyethane, NaH, DMF, 90 °C, overnight, 93%; (b) polyphosphoric acids, toluene, reflux, overnight, 55%; (c) CuCN, DMF, 130 °C, 4 h, 90%; (d) LiAlH4, THF, −78 °C to r.t, overnight, N2, 95%; (e) di-tert-butyl dicarbonate, NaOH, THF, 0 °C to r.t, 1 h, 85%; (f) LiAlH4, THF, 0 °C to r.t, overnight, N2, 95%; (g) (i) trans-cinnamaldehyde, molecular sieves, CH2Cl2, reflux, 17 h; (ii) NaBH4, methanol, 0 °C, 30 min, 95% (2 steps); (h) iodoethane or 2-iodopropane, NaH, DMF 0 °C to r.t, overnight, N2, 50%; (i) NaBH4, methanol, 0 °C, 30 min; (j) PBr3, Et2O, 0 °C to r.t, overnight, N2, 57–84% (2 steps); (k) (i) K2CO3, DMF, r.t, overnight, 43–85%, (ii) bubbled into hydrogen chloride gas.
Pharmaceuticals 16 01265 sch024
Scheme 25. Synthesis of benzo[b]furan derivative 141, and reagents and reaction conditions: (a) 1-bromo-2,2-diethoxyethane, NaH, DMF, 90 °C, overnight, 95%; (b) polyphosphoric acids, toluene, reflux, overnight; (c) CuCN, DMF, 130 °C, 4 h, 30% (2 steps); (d) LiAlH4, THF, −78 °C to r.t, overnight, under N2, 94%; (e) (i) di-tert-butyl dicarbonate, NaOH, THF, 0 °C, r.t, 1 h; (ii) LiAlH4, THF, 0 °C to r.t, overnight, N2, 70% (2 steps); (f) (i) cinnamyl bromide, K2CO3, DMF, r.t, overnight, 44%, (ii) bubbled into hydrogen chloride gas.
Scheme 25. Synthesis of benzo[b]furan derivative 141, and reagents and reaction conditions: (a) 1-bromo-2,2-diethoxyethane, NaH, DMF, 90 °C, overnight, 95%; (b) polyphosphoric acids, toluene, reflux, overnight; (c) CuCN, DMF, 130 °C, 4 h, 30% (2 steps); (d) LiAlH4, THF, −78 °C to r.t, overnight, under N2, 94%; (e) (i) di-tert-butyl dicarbonate, NaOH, THF, 0 °C, r.t, 1 h; (ii) LiAlH4, THF, 0 °C to r.t, overnight, N2, 70% (2 steps); (f) (i) cinnamyl bromide, K2CO3, DMF, r.t, overnight, 44%, (ii) bubbled into hydrogen chloride gas.
Pharmaceuticals 16 01265 sch025
Figure 48. Dose–response curves in pigment formation across three MRSA strains: (a) USA400 MW2, (b) USA300 LAC, and (c) Mu50, with their corresponding IC50 values using the compound 144l. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Figure 48. Dose–response curves in pigment formation across three MRSA strains: (a) USA400 MW2, (b) USA300 LAC, and (c) Mu50, with their corresponding IC50 values using the compound 144l. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Pharmaceuticals 16 01265 g048
Figure 49. Effect of the compound 144l on the virulence of S. aureus Newman in mouse kidneys and hearts (n = 13), quantified in terms of colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05 and ** p < 0.01. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Figure 49. Effect of the compound 144l on the virulence of S. aureus Newman in mouse kidneys and hearts (n = 13), quantified in terms of colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05 and ** p < 0.01. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Pharmaceuticals 16 01265 g049
Figure 50. Effect of BPH-652 and compound 144l on the virulence of USA400 MW2 in the livers (a) and kidneys (b) of mice (n = 13) as colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05, ** p < 0.01, *** p < 0.001, and n.s. indicates no significant difference. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Figure 50. Effect of BPH-652 and compound 144l on the virulence of USA400 MW2 in the livers (a) and kidneys (b) of mice (n = 13) as colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05, ** p < 0.01, *** p < 0.001, and n.s. indicates no significant difference. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Pharmaceuticals 16 01265 g050
Figure 51. Effect of BPH-652 and compound 144l on Mu50 virulence in the livers (a) and kidneys (b) of mice (n = 13) as colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05, ** p < 0.01, *** p < 0.001, and n.s. indicates no significant difference. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Figure 51. Effect of BPH-652 and compound 144l on Mu50 virulence in the livers (a) and kidneys (b) of mice (n = 13) as colony-forming units (Log10CFUs/organ). Statistical significance determined by the Mann−Whitney test (two-tailed): * p < 0.05, ** p < 0.01, *** p < 0.001, and n.s. indicates no significant difference. This is an open-access article distributed under the terms of the Creative Commons CC BY license [64].
Pharmaceuticals 16 01265 g051
Scheme 26. Synthesis of benzo[b]furan-based pyrroles, and reagents and reaction conditions: (I) (a) EDCI, DMAP, DMF, 67–79%; (b) dioxane, H2SO4, reflux, 9%; (II) (a) EDCI, DMAP, DMF, 20%.
Scheme 26. Synthesis of benzo[b]furan-based pyrroles, and reagents and reaction conditions: (I) (a) EDCI, DMAP, DMF, 67–79%; (b) dioxane, H2SO4, reflux, 9%; (II) (a) EDCI, DMAP, DMF, 20%.
Pharmaceuticals 16 01265 sch026
Scheme 27. Synthesis of benzo[b]furan-based pyrrolobenzodiazepines, and reagents and reaction conditions: (I) and (II) (a) (i) TFA, DCM, (ii) EDCI, DMAP, DMF, (iii) pyrrolidine, Pd(PPh3)4, PPh3, DCM, 14–38%; (III) (a) (i) NaOH, H2O, dioxane, (ii) TFA, DCM, (iii) EDCI, DMAP, DMF, (iv) pyrrolidine, Pd(PPh3)4, PPh3, DCM, 22%. Bracketed structures denote compounds with an inverted orientation.
Scheme 27. Synthesis of benzo[b]furan-based pyrrolobenzodiazepines, and reagents and reaction conditions: (I) and (II) (a) (i) TFA, DCM, (ii) EDCI, DMAP, DMF, (iii) pyrrolidine, Pd(PPh3)4, PPh3, DCM, 14–38%; (III) (a) (i) NaOH, H2O, dioxane, (ii) TFA, DCM, (iii) EDCI, DMAP, DMF, (iv) pyrrolidine, Pd(PPh3)4, PPh3, DCM, 22%. Bracketed structures denote compounds with an inverted orientation.
Pharmaceuticals 16 01265 sch027
Figure 52. Mechanism of action of compound 172 against two bacterial strains: (a) EMRSA-15 and (b) NCTC 12201. This is an open-access article distributed under the terms of the Creative Commons CC BY license [65].
Figure 52. Mechanism of action of compound 172 against two bacterial strains: (a) EMRSA-15 and (b) NCTC 12201. This is an open-access article distributed under the terms of the Creative Commons CC BY license [65].
Pharmaceuticals 16 01265 g052
Figure 53. Molecular model depicting the interaction between compound 172 and (A) subunit 1 and (B) subunit 2 of the gyrase A in Staphylococcus aureus (PDB ID code: 2XCT). 2D model of the interaction of compound 172 with (C) subunit 1 and (D) subunit 2 of gyrase A in Staphylococcus aureus. This is an open-access article distributed under the terms of the Creative Commons CC BY license [65].
Figure 53. Molecular model depicting the interaction between compound 172 and (A) subunit 1 and (B) subunit 2 of the gyrase A in Staphylococcus aureus (PDB ID code: 2XCT). 2D model of the interaction of compound 172 with (C) subunit 1 and (D) subunit 2 of gyrase A in Staphylococcus aureus. This is an open-access article distributed under the terms of the Creative Commons CC BY license [65].
Pharmaceuticals 16 01265 g053
Scheme 28. Synthesis of benzo[b]furan cyanide derivatives 175az, 175a2i2, and 176. Reagents and conditions: (a) (Me)3Si-CN, TBAF, MeCN, reflux, 2 h, 79–85%; (b) EtONa, EtOH, reflux, 1 h, 40–87%; (c) formaldehyde, EtONa, EtOH, reflux, 1 h.
Scheme 28. Synthesis of benzo[b]furan cyanide derivatives 175az, 175a2i2, and 176. Reagents and conditions: (a) (Me)3Si-CN, TBAF, MeCN, reflux, 2 h, 79–85%; (b) EtONa, EtOH, reflux, 1 h, 40–87%; (c) formaldehyde, EtONa, EtOH, reflux, 1 h.
Pharmaceuticals 16 01265 sch028
Scheme 29. Synthesis of benzo[b]furan cyanide derivatives 177ab and 178ab. Reagents and conditions: (a) Pd/C, H2, MeOH, r.t, 1 h, 41–80%; (b) Pd/C, H2, MeOH, r.t, 12 h, 37–40%.
Scheme 29. Synthesis of benzo[b]furan cyanide derivatives 177ab and 178ab. Reagents and conditions: (a) Pd/C, H2, MeOH, r.t, 1 h, 41–80%; (b) Pd/C, H2, MeOH, r.t, 12 h, 37–40%.
Pharmaceuticals 16 01265 sch029
Figure 54. Quantitative analysis of Staphylococcus aureus invasion in 293T cells using flow cytometry. The evaluation encompasses the effect of compounds 175a, 175o, 175h2, and 178a on the invasion process. Data are reported as mean ± SD of at least three independent experiments performed in duplicate. ** p < 0.05 vs. control. Reproduced with permission from ref. [66]. Copyright Elsevier Inc., 2023.
Figure 54. Quantitative analysis of Staphylococcus aureus invasion in 293T cells using flow cytometry. The evaluation encompasses the effect of compounds 175a, 175o, 175h2, and 178a on the invasion process. Data are reported as mean ± SD of at least three independent experiments performed in duplicate. ** p < 0.05 vs. control. Reproduced with permission from ref. [66]. Copyright Elsevier Inc., 2023.
Pharmaceuticals 16 01265 g054
Figure 55. Analysis of the structure–activity relationship in anticancer results.
Figure 55. Analysis of the structure–activity relationship in anticancer results.
Pharmaceuticals 16 01265 g055
Figure 56. Analysis of the structure–activity relationship in antibacterial and antifungal results.
Figure 56. Analysis of the structure–activity relationship in antibacterial and antifungal results.
Pharmaceuticals 16 01265 g056
Table 1. Anticancer evaluation of benzo[b]furans 46.
Table 1. Anticancer evaluation of benzo[b]furans 46.
Pharmaceuticals 16 01265 i001
CompoundR1R2Tubulin a IC50 (µM)MCF-7 b
IC50 (µM)
Activated
HUVEC c IC50 (µM)
Quiescent
HUVEC d IC50 (µM)
Selectivity
Ratio e
CA-4 f--1.8 ± 0.22.93.63.91.1
4aHH1.6 ± 0.255 ± 545631.4
4bOHHND45 ± 15833223.9
5aHBrND495 ± 255103090.6
6aOHMe3.0 ± 0.62.4 ± 20.312581
6bHPharmaceuticals 16 01265 i002ND71 ± 145270.6
6cH ND215 ± 154854050.8
6dOH2-Furanyl8.7 ± 0.80.6 ± 0.23.63.40.9
6eOH2-ThiophenylND0.5 ± 0.20.310.361.2
6fOHPyrroleNDND2.63.31.3
6gOHPharmaceuticals 16 01265 i003NDND0.382.36.0
6hOHCNNDND1.13.02.7
6iOHPharmaceuticals 16 01265 i004NDND2.62.30.9
6jOHPharmaceuticals 16 01265 i005NDND29361.2
6kOHPharmaceuticals 16 01265 i006NDND3.12.90.9
6lOHNH2NDND1.98.84.6
a The tubulin concentration used was 10 μM. Inhibition of extent of assembly was the parameter measured (n = 2). b Cells were cultured for 48 h at 37 °C in a humidified atmosphere containing 5% CO2. The data presented are the mean ± SD of two independent experiments. c HUVEC cells were seeded at 2500 and 500 cells/well and cultured in EGM-2 (Lonza) or F12K medium containing 0.03 mg/mL endothelial cell growth supplement. d HUVEC and HAAE-1 cells were seeded at 15,000 and 5000 cells/well, respectively, in basal medium (EBM-2 or F12K) containing 0.5% fetal calf serum and antibiotics. e Selectivity ratio (IC50 quiescent)/(IC50 activated). f Combretastatin-A4 (CA-4) is the standard drug for the study. ND means not detected. Reprinted (adapted) with permission from ref. [32]. Copyright American Chemical Society, 2023.
Table 2. In vitro inhibition of cell proliferation in various cancer cell lines by 6a and CA-4.
Table 2. In vitro inhibition of cell proliferation in various cancer cell lines by 6a and CA-4.
EntryCell Line aCell Type6a IC50 (nM)CA-4 IC50 (nM)
1Activated HAAE-1Endothelial cell0.1 (120) b2.2 (1.7) b
2Quiescent HAAE-1Endothelial cell121.3
3U87-MGBrain glioblastoma0.412.6
4DU145Prostate carcinoma0.364
5Calu-6Lung anaplastic carcinoma0.160.94
6MDA-MB-231Breast adenocarcinoma0.633.2
7A431Epidermoid carcinoma18.6188
8A375Malignant skin melanoma1.52.1
9SKOV-3Ovary adenocarcinoma0.595.5
10LoVoColorectal adenocarcinoma0.242.9
11AU565Breast adenocarcinoma5.84.4
12BT549Breast carcinoma0.343.5
a HAAE-1 cells were seeded at 500 cells/well in medium containing 0.03 mg/mL endothelial cell growth supplement (activated) or in basal medium containing 0.5% fetal calf serum and antibiotics (quiescent). Cancer cell lines were seeded at an average of 500–2000 cells/well and cultured as recommended by the ATCC. b Selectivity ratio (IC50 quiescent)/(IC50 activated) in parentheses. Reprinted (adapted) with permission from ref. [32]. Copyright American Chemical Society, 2023.
Table 3. In vitro inhibitory effects of benzo[b]furans 10, 11, and CA-4 against the proliferation of murine leukemia (L1210), murine mammary carcinoma (FM3A), human T-lymphocyte (Molt/4 and CEM), and human cervix carcinoma (HeLa) cells.
Table 3. In vitro inhibitory effects of benzo[b]furans 10, 11, and CA-4 against the proliferation of murine leukemia (L1210), murine mammary carcinoma (FM3A), human T-lymphocyte (Molt/4 and CEM), and human cervix carcinoma (HeLa) cells.
CompoundIC50 (nM) b
L1210FM3A/0Molt4/C8CEM/0HeLa
10a6700 ± 6009200 ± 800ND c5400 ± 12002200 ± 600
10b>10,000>10,000>10,000>10,000>10,000
10c2500 ± 1003600 ± 150ND2400 ± 4005500 ± 530
10d>10,000>10,000>10,000>10,0007500 ± 200
10e>10,000>10,000>10,000>10,000>10,000
10f>10,000>10,000>10,000>10,000>10,000
10g73 ± 2473 ± 266 ± 6.759 ± 4.142 ± 3.8
10h19 ± 224 ± 622 ± 422 ± 516 ± 1
10i600 ± 90560 ± 90870 ± 20450 ± 10370 ± 30
10j67 ± 4140 ± 13360 ± 20120 ± 10490 ± 54
11a78 ± 2.8200 ± 90ND110 ± 201000 ± 80
11b150 ± 8320 ± 30230 ± 1390 ± 301100 ± 90
11c320 ± 17520 ± 29ND310 ± 80430 ± 90
11d420 ± 901200 ± 90ND600 ± 371200 ± 80
11e800 ± 51780 ± 621100 ± 90970 ± 551000 ± 100
11f1200 ± 405900 ± 380ND3200 ± 2405900 ± 900
11g430 ± 23960 ± 78ND340 ± 201000 ± 100
11h120 ± 14250 ± 15300 ± 40240 ± 38780 ± 54
11i390 ± 201100 ± 100920 ± 91770 ± 151400 ± 120
1314 ± 110 ± 818 ± 120 ± 214 ± 1
CA-4 a2.8 ± 1.142 ± 6.016 ± 1.41.9 ± 1.61.9 ± 1.6
a Combretastatin-A4 (CA-4) is the standard drug for the study. b The data presented are the mean ± SD of three independent experiments. c ND means not detected. Reproduced with permission from ref. [34]. Copyright John Wiley & Sons Inc., 2023.
Table 4. Reaction conditions for the synthesis of dihydroxylated 5,6-benzo[b]furans 16an.
Table 4. Reaction conditions for the synthesis of dihydroxylated 5,6-benzo[b]furans 16an.
EntryCatechol
Derivative
1,3-Dicarbonyl
Compound
Reaction
Time (h)
MethodYield 16 (%)
114aPharmaceuticals 16 01265 i00724A16a (48)
214a44B16a (49)
314b24A16b (50)
414aPharmaceuticals 16 01265 i00824A16c (65)
514b24A16d (62)
614b44B16d (67)
714c24A16e (70)
814aPharmaceuticals 16 01265 i00924A16f (59)
914a42C16f (50)
1014b24A16g (78)
1114b42C16g (71)
1214c24A16h (37)
1314aPharmaceuticals 16 01265 i01024A16i (58)
1414a42C16i (40)
1514b24A16j (98)
1614b42C16j (59)
1714c24A16k (73)
1814c44B16k (77)
1914aPharmaceuticals 16 01265 i01124A16l (76)
2014a42C16l (50)
2114b24A16m (80)
2214c24A16n (43)
2314c42C16n (15)
Table 5. The cytotoxicity against a panel of cancer cell lines and the inhibition of tubulin polymerization of compounds 22, 25, and CA-4.
Table 5. The cytotoxicity against a panel of cancer cell lines and the inhibition of tubulin polymerization of compounds 22, 25, and CA-4.
CompoundIC50 (µM) bTubulin
ME-180A549ACHNHT-29B-16IC50 (µM) c%
220.19 ± 0.020.08 ± 0.160.97 ± 0.490.08 ± 0.101.14 ± 0.503.81 ± 0.437.9
250.09 ± 0.020.06 ± 0.110.09 ± 0.140.08 ± 0.010.17 ± 0.091.95 ± 0.165.4
CA-4 a0.007 ± 0.060.05 ± 0.060.09 ± 0.080.008 ± 0.010.06 ± 0.011.86 ± 0.170.5
a Combretastatin-A4 (CA-4) is the standard drug for the study. b Values are the mean ± SD of three independent experiments determined after 48 h of treatment. c Values are the mean ± SD of two independent experiments performed in triplicate.
Table 6. Synthesis of diheteroarylalkanal 29 through a one-pot Friedel–Crafts reaction.
Table 6. Synthesis of diheteroarylalkanal 29 through a one-pot Friedel–Crafts reaction.
Pharmaceuticals 16 01265 i012
CompoundR1R2Yield (S)-29 (%)% ee
29aHH7994
29bH5-Br7195
29cH5-Ome7596
29dH2-Me7999
29eH7-Me7896
29fHbenzo[g]8598
29g5-ClH7697
29h5-MeH7294
29i5-NO2H7593
29j7-OmeH7193
29k6-OmeH6994
Reagent and conditions: (a) 26 (0.1 mmol), 27 (0.12 mmol), 28 (0.02 mmol), DABCO (0.02 mmol), and toluene (0.3 mL).
Table 7. Synthesis of (Z)-benzo[b]furan-2-yl and (Z)-benzo[b]furan-3-yl cyanocombretastatins 32af and the evaluation of their anti-leukemic activity (LD50) against the MV4–11 AML cell line.
Table 7. Synthesis of (Z)-benzo[b]furan-2-yl and (Z)-benzo[b]furan-3-yl cyanocombretastatins 32af and the evaluation of their anti-leukemic activity (LD50) against the MV4–11 AML cell line.
Pharmaceuticals 16 01265 i013
CompoundRR1R2LD50 (µM)
32a2-CHOOMeOMe0.047
32b2-CHOHOMe>20
32c2-CHOOMeH1.169
32d3-CHOOMeOMe4.529
32e3-CHOHOMeND
32f3-CHOOMeHND
Reagent and conditions: (a) 30 (1.0 mol), 31 (1.1 mol), NaOMe (5%), CH3OH, reflux, 3–6 h. ND means not detected.
Table 8. In vitro cell growth inhibitory effects of compounds 35al and CA-4 on various cancer cell lines.
Table 8. In vitro cell growth inhibitory effects of compounds 35al and CA-4 on various cancer cell lines.
CompoundIC50 (nM) b
HeLaA549HT-29JurkatRS 4; 11MCF-7HL-60
35a260 ± 505280 ± 800930 ± 354100 ± 200430 ± 977800 ± 9004400 ± 200
35b1330 ± 5805470 ± 7001600 ± 120180 ± 38300 ± 806600 ± 3102500 ± 130
35c>10.000>10.000>10.000>10.000>10.000>10.000>10.000
35d>10.000>10.000>10.000>10.000>10.000>10.000>10.000
35e250 ± 881570 ± 430240 ± 60210 ± 2039 ± 97900 ± 1300470 ± 30
35f1260 ± 5108900 ± 14601400 ± 5402300 ± 700190 ± 152900 ± 4003400 ± 120
35g2 ± 0.19 ± 1.43 ± 0.98 ± 0.60.3 ± 0.127 ± 25 ± 1
35h13 ± 836 ± 1117 ± 822 ± 6100 ± 1025 ± 324 ± 7
35i130 ± 601270 ± 400290 ± 3030 ± 51 ± 0.1520 ± 40320 ± 17
35j270 ± 801100 ± 300110 ± 50290 ± 50230 ± 102100 ± 90590 ± 50
35k2530 ± 2808900 ± 13003200 ± 2103700 ± 450400 ± 100>10.0004200 ± 200
35l3280 ± 3707250 ± 2375300 ± 2909100 ± 8203000 ± 400>10.0005500 ± 540
CA-4 a4 ± 1180 ± 303100 ± 1005 ± 0.60.8 ± 0.2370 ± 1001 ± 0.2
a Combretastatin-A4 (CA-4) is the standard drug for the study. b Data are expressed as the mean ± SE from the dose–response curves of at least three independent experiments.
Table 9. Antitubular and colchicine binding evaluation by compounds 35e, 35gj, and CA-4.
Table 9. Antitubular and colchicine binding evaluation by compounds 35e, 35gj, and CA-4.
CompoundTubulin Assembly
IC50 (µM) a
Colchicine Binding
% Inhibition b
35e7.5 ± 0.5ND
35g1.1 ± 0.183 ± 0.5
35h1.5 ± 0.274 ± 4.1
35i7.6 ± 1.0ND
35j6.4 ± 0.9ND
CA-4 c1.1 ± 0.199 ± 0.1
a Inhibition of tubulin polymerization: tubulin was used at 10 µM. b Inhibition of [3H] colchicine binding: tubulin, colchicine, and the tested compound were used at 1, 5, and 5 µM, respectively. c Combretastatin-A4 (CA-4) is the standard drug for the study. Values represent the mean ± SE from three independent experiments. ND means not detected.
Table 10. Antiproliferative activity of compounds 22 and 25.
Table 10. Antiproliferative activity of compounds 22 and 25.
Pharmaceuticals 16 01265 i014
CompoundIC50 (µM)
MCF-7MDA MB-231
220.057 ± 0.0080.168 ± 0.008
250.051 ± 0.0020.093 ± 0.006
Data are presented as the mean ± SE from at least three independent experiments.
Table 11. Prediction of pIC50c values for compounds 43ae.
Table 11. Prediction of pIC50c values for compounds 43ae.
Pharmaceuticals 16 01265 i015
CompoundR1R2R3R4pIC50c
CoMFACoMSIA
43aHHOEtO0.3510.291
43bFHOmeO0.2850.308
43cHNme2OmeO0.3480.282
43dHMeOmeO0.4250.346
43eHNH2OmeCH20.5030.206
CA-4 a----0.0000.037
a Combretastatin-A4 (CA-4) is the standard drug for the study.
Table 12. Antiproliferative activities and inhibition of tubulin polymerization of compounds 43ab, CA-4, and CA-4P.
Table 12. Antiproliferative activities and inhibition of tubulin polymerization of compounds 43ab, CA-4, and CA-4P.
CompoundIC50 (µM) aTubulin
A549HCT-116HeLaHepG2MGC-803MCF-7IC50 (µM) a
43a1.37 ± 0.1412.55 ± 0.608.99 ± 1.111.31 ± 0.179.97 ± 0.810.91 ± 0.160.86 ± 0.07
43b6.87 ± 0.3478.23 ± 3.8319.1 ± 1.594.75 ± 0.2047.26 ± 1.176.49 ± 0.55>200
CA-4 b5.99 ± 0.469.00 ± 0.8511.33 ± 1.0316.04 ± 0.501.76 ± 0.850.67 ± 0.130.88 ± 0.22
CA-4P b0.40 ± 0.170.24 ± 0.050.56 ± 0.120.27 ± 0.040.47 ± 0.140.96 ± 0.224.79 ± 0.40
a Data are expressed as the mean ± SE of at least three independent experiments. b Combretastatin-A4 (CA-4) and its disodium phosphate form (CA-4P) serve as the standard drugs for this study.
Table 13. Antiproliferative evaluation of compounds 51 and 52.
Table 13. Antiproliferative evaluation of compounds 51 and 52.
Pharmaceuticals 16 01265 i016
CompoundR1R2R3R4GI50 (µM) a
HeLaMCF-7
51aHHHH41.59 ± 3.0849.65 ± 4.91
51bHOmeHH7.98 ± 0.6713.36 ± 1.94
51cHMeHH13.65 ± 1.0218.22 ± 1.28
51dOmeOmeOmeH12.18 ± 1.193.88 ± 0.40
51eHCF3HH>50>50
51fClFHH13.61 ± 0.8611.25 ± 1.11
52aHHHMe7.69 ± 0.4612.27 ± 1.46
52bHOmeHMe14.31 ± 1.9717.35 ± 1.78
52cHMeHMe9.20 ± 0.3415.53 ± 0.98
52dOmeOmeOmeMe12.19 ± 1.599.21 ± 1.02
52eHCF3HMe2.01 ± 0.1314.16 ± 2.02
52fClFHMe2.14 ± 0.351.55 ± 0.14
a Data are expressed as the mean ± SD of at least three independent experiments.
Table 14. IFD scores for compounds 51af, 52af, colchicine, and CA-4.
Table 14. IFD scores for compounds 51af, 52af, colchicine, and CA-4.
CompoundPrime EnergyGlide ScoreIFD Score a
51a−34,437−7.17−1729
51b−34,462−10.51−1734
51c−34,487−11.96−1736
51d−34,496−12.23−1737
51e−34,480−10.45−1734
51f−34,395−11.78−1732
52a−34,463−8.16−1731
52b−34481−11.04−1735
52c−34,478−10.38−1734
52d−34,545−10.11−1737
52e−34,371−10.53−1729
52f−34,475−11.28−1735
Colchicine−34,392−10.38−1730
CA-4−34,316−9.17−1725
a Defined as: glide score + 0.05 prime energy.
Table 15. Antiproliferative evaluation of 1,2,4-oxadiazole fused benzo[b]furan derivatives 62aj.
Table 15. Antiproliferative evaluation of 1,2,4-oxadiazole fused benzo[b]furan derivatives 62aj.
CompoundIC50 (µM)
A549MCF-7A375HT-29
62a2.90010.560ND3.78
62b0.0300.0111.450.33
62c1.9000.4002.010.18
62d1.0301.760ND1.22
62e3.200NDND9.70
62f10.4002.4405.70ND
62g0.1000.014ND1.89
62h0.0120.0151.090.17
62i7.10013.600ND20.50
62j0.1000.0200.191.23
CA-4 a0.1100.1800.210.93
a Combretastatin-A4 (CA-4) is the standard drug for the study. ND means not detected.
Table 16. Antiproliferative activity of benzo[b]furan derivatives against the A375 cancer cell line.
Table 16. Antiproliferative activity of benzo[b]furan derivatives against the A375 cancer cell line.
CompoundIC50 (µM) a
68b>100
69a2.85 ± 0.82
69b0.86 ± 0.37
700.09 ± 0.03
72>100
73>100
a The data indicate the mean ± SD of at least three independent experiments.
Table 17. Antiproliferative activity of benzofuran–pyrazole hybrid 77 and its nanoparticles.
Table 17. Antiproliferative activity of benzofuran–pyrazole hybrid 77 and its nanoparticles.
CompoundIC50 (nM) a
MCF-7MDA-MB-231MCF-12A
777 ± 110 ± 187,600 ± 335
Nanoparticles—771 ± 0.40.6 ± 0.121,540 ± 66
Doxorubicin b620 ± 31620 ± 31ND
a The data indicate the mean ± SD of at least three independent experiments. b Doxorubicin is the standard drug for the study. ND means not detected.
Table 18. Caspase-3, p53, Bax, and Bcl-2 levels of benzofuran–pyrazole hybrid 77 and its nanoparticles.
Table 18. Caspase-3, p53, Bax, and Bcl-2 levels of benzofuran–pyrazole hybrid 77 and its nanoparticles.
CompoundCell LineCaspasase-3p53BaxBcl-2
77MCF-76.3838367.4538525.7453210.272695
MDA-MB-2315.3990877.7926097.5538530.181989
Nanoparticles—77MCF-714.5652412.514329.1497600.131011
MDA-MB-23117.91514.6053613.192300.134738
Untreated controlMCF-71111
MDA-MB-2311111
Table 19. PARP-1 inhibitory assay of benzofuran–pyrazole hybrid 77 and its nanoparticles.
Table 19. PARP-1 inhibitory assay of benzofuran–pyrazole hybrid 77 and its nanoparticles.
CompoundIC50 (nM) a
MCF-7MDA-MB-231
7740 ± 160 ± 1
Nanoparticles—7710 ± 46 ± 3
Staurosporine b10 ± 18 ± 1
a The data indicate the mean ± SD of at least three independent experiments. b Staurosporine is the standard drug for the study.
Table 20. Antiproliferative activity of shikonin–benzo[b]furan hybrids 83aq, shikonin, colchicine, and CA-4.
Table 20. Antiproliferative activity of shikonin–benzo[b]furan hybrids 83aq, shikonin, colchicine, and CA-4.
CompoundIC50 (µM) aCC50 (µM) a
HepG2HT29HCT116MDA-MB-231A549293T bLO2 b
83a46.75 ± 6.967.16 ± 0.8110.27 ± 1.606.00 ± 0.5124.91 ± 2.29169.08 ± 17.58155.31 ± 9.20
83b75.33 ± 3.231.22 ± 0.092.28 ± 0.321.91 ± 0.3419.05 ± 1.83NDND
83c73.20 ± 4.030.18 ± 0.040.58 ± 0.110.81 ± 0.130.57 ± 0.79184.86 ± 9.88154.76 ± 9.98
83d71.83 ± 5.197.62 ± 0.8510.68 ± 0.188.22 ± 0.3818.53 ± 1.43158.90 ± 19.48151.52 ± 8.23
83eND6.06 ± 0.163.86 ± 0.473.59 ± 0.3347.20 ± 2.24NDND
83f52.38 ± 5.271.03 ± 0.172.21 ± 0.402.63 ± 0.1327.33 ± 1.34162.38 ± 17.77197.07 ± 9.88
83gND10.37 ± 0.4420.36 ± 1.8210.42 ± 0.6142.43 ± 5.35170.07 ± 18.85ND
83h44.60 ± 4.885.89 ± 0.779.16 ± 0.444.09 ± 0.7530.77 ± 2.11158.61 ± 9.77143.36 ± 9.88
83iND0.82 ± 0.081.21 ± 0.071.51 ± 0.1048.81 ± 5.66NDND
83j70.68 ± 6.964.04 ± 0.299.30 ± 0.7610.74 ± 0.6028.19 ± 2.53194.98 ± 10.79107.54 ± 9.93
83k82.60 ± 9.689.14 ± 0.6511.61 ± 0.914.88 ± 0.1223.27 ± 2.65121.92 ± 9.86165.62 ± 11.98
83l74.81 ± 8.507.55 ± 0.4411.99 ± 1.2115.25 ± 0.2221.55 ± 3.26148.46 ± 18.78178.54 ± 8.50
83m80.92 ± 9.1316.35 ± 1.0623.01 ± 0.9718.33 ± 0.0322.24 ± 3.83149.38 ± 7.86104.74 ± 9.85
83n77.71 ± 5.811.12 ± 0.113.57 ± 0.502.01 ± 0.0616.99 ± 0.66NDND
83o81.32 ± 8.760.73 ± 0.091.27 ± 0.341.33 ± 0.449.11 ± 2.21NDND
83pNDNDND24.68 ± 0.56NDNDND
83q90.78 ± 9.7310.94 ± 0.9011.28 ± 0.946.21 ± 0.0319.13 ± 1.89108.40 ± 9.14137.4 ± 8.81
Shikonin c2.92 ± 0.092.80 ± 0.262.47 ± 0.192.77 ± 0.2910.25 ± 1.377.00 ± 0.8911.77 ± 0.14
Colchicine c1.47 ± 0.071.81 ± 0.062.13 ± 0.132.94 ± 0.121.17 ± 0.098.43 ± 0.719.18 ± 0.62
CA-4 c0.27 ± 0.0070.31 ± 0.020.11 ± 0.0060.09 ± 0.0080.23 ± 0.0061.44 ± 0.0110.36 ± 0.003
a The data indicate the mean ± SD of at least three independent experiments. b Cytotoxicity in human normal cells. c Standard drugs for the study. ND means not detected.
Table 21. Evaluation of the impact of hybrids 83c, 83f, and 83i on the inhibition of tubulin polymerization and colchicine binding to tubulin.
Table 21. Evaluation of the impact of hybrids 83c, 83f, and 83i on the inhibition of tubulin polymerization and colchicine binding to tubulin.
CompoundInhibition of Tubulin
Polymerization IC50 (µM) a
Inhibition of Colchicine Binding
(% Inhibition) a
2 µM4 µM
83c0.98 ± 0.01482.36 ± 0.8892.42 ± 0.79
83f4.13 ± 0.26NDND
83i2.37 ± 0.21NDND
Colchicine b2.11 ± 0.32NDND
CA-4 b1.12 ± 0.1381.46 ± 0.9492.96 ± 0.87
a The data indicate the mean ± SD of at least three independent experiments. b Standard references for the study. ND means not detected.
Table 22. Antiproliferative activity of compounds 103al, 103no, and CA-4.
Table 22. Antiproliferative activity of compounds 103al, 103no, and CA-4.
CompoundIC50 (nM) a
HeLaHT-29DaoyHL-60SEMJurkat
103a413 ± 40.3591 ± 29371 ± 19339 ± 21250 ± 28385 ± 52
103b5225 ± 3126512 ± 2633950 ± 2364891 ± 4454557 ± 3692760 ± 156
103c56.0 ± 1962.9 ± 12.936.2 ± 6.936.2 ± 1138.9 ± 1229.2 ± 9.3
103d2.9 ± 0.35.6 ± 0.90.30 ± 0.083.0 ± 0.24.1 ± 0.22.7 ± 0.6
103e496 ± 39477 ± 42345 ± 36233 ± 31285 ± 26333 ± 42
103f2.8 ± 0.32.1 ± 0.20.005 ± 0.0012.7 ± 0.20.31 ± 0.050.28 ± 0.08
103g22.7 ± 1.817.7 ± 1.24.4 ± 0.941.7 ± 15.929.7 ± 8.927.2 ± 1.9
103h1250 ± 98910 ± 581670 ± 87428 ± 36385 ± 27390 ± 39
103i9670 ± 1258680 ± 458>10,0007056 ± 6593675 ± 2984390 ± 154
103j591 ± 26682 ± 45846 ± 28413 ± 56333 ± 45299 ± 39
103k4.5 ± 0.55.4 ± 0.32.5 ± 0.25.6 ± 0.93.5 ± 0.12.8 ± 0.6
103l1.1 ± 0.20.6 ± 0.020.34 ± 0.13.5 ± 0.40.30 ± 0.030.33 ± 0.05
103n591 ± 633420 ± 368428 ± 45285 ± 2.5371 ± 1.5299 ± 37
103o635 ± 1.5790 ± 98494 ± 56413 ± 3.8259 ± 1.8399 ± 58
CA-4 b4 ± 13100 ± 10012.3 ± 0.091 ± 0.25 ± 0.10.8 ± 0.2
a The data indicate the mean ± SD of at least three independent experiments. b The standard drug for the study.
Table 23. Evaluation of the impact of compounds 103cd, 103fg, 103kl, and CA-4 on the inhibition of tubulin polymerization and colchicine binding to tubulin.
Table 23. Evaluation of the impact of compounds 103cd, 103fg, 103kl, and CA-4 on the inhibition of tubulin polymerization and colchicine binding to tubulin.
CompoundInhibition of Tubulin Polymerization IC50 (µM) aInhibition of Colchicine Binding
(% Inhibition) a
5 µM0.5 µM
103c0.50 ± 0.0973 ± 0.5ND
103d0.48 ± 0.0599 ± 0.279 ± 1
103f0.37 ± 0.0299 ± 0.386 ± 0.8
103g0.51 ± 0.191 ± 0.342 ± 0.4
103k0.57 ± 0.0492 ± 156 ± 2
103l0.39 ± 0.0497 ± 0.474 ± 0.1
CA-4 b0.54 ± 0.0697 ± 0.882 ± 2
a The data indicate the mean ± SD of at least three independent experiments. b The standard drug for the study. ND means not detected.
Table 24. Percentage inhibition of evodiamine derivatives 115 and 116 on MDA-MB-435 cell line.
Table 24. Percentage inhibition of evodiamine derivatives 115 and 116 on MDA-MB-435 cell line.
Compound% Inhibition a
100 µM10 µM1 µM
115a36.6 ± 2.710.6 ± 0.56.0 ± 0.4
115b15.0 ± 1.911.9 ± 1.57.1 ± 1.2
115c13.0 ± 0.79.2 ± 0.56.8 ± 2.4
115d41.5 ± 2.619.2 ± 2.87.5 ± 1.0
115e12.1 ± 0.75.5 ± 0.28.6 ± 0.7
115f15.9 ± 0.97.3 ± 0.62.3 ± 0.1
116a96.5 ± 9.661.2 ± 4.955.1 ± 3.0
116b97.4 ± 8.366.5 ± 8.560.6 ± 12.8
116c94.5 ± 6.283.1 ± 6.275.7 ± 8.2
116d94.0 ± 6.164.8 ± 7.062.7 ± 9.3
116e96.9 ± 9.859.5 ± 2.132.7 ± 4.6
116f95.8 ± 4.184.3 ± 5.882.4 ± 7.4
Evodiamine b73.5 ± 5.553.3 ± 3.138.9 ± 3.1
a The data indicate the mean ± SD of at least three independent experiments. b The standard drug for the study.
Table 25. Antiproliferative activity of evodiamine derivatives 116af.
Table 25. Antiproliferative activity of evodiamine derivatives 116af.
CompoundIC50 (µM) a
MDA-MB-435HCT116A549MDA-MB-231
116a0.47 ± 0.031.26 ± 0.104.28 ± 0.300.86 ± 0.07
116b1.95 ± 0.233.45 ± 0.246.79 ± 0.642.52 ± 0.33
116c0.81 ± 0.061.71 ± 0.134.14 ± 0.331.16 ± 0.14
116d1.14 ± 0.094.71 ± 0.3210.49 ± 0.971.05 ± 0.09
116e2.35 ± 0.186.09 ± 0.467.58 ± 0.673.73 ± 0.28
116f0.42 ± 0.030.76 ± 0.075.24 ± 0.340.36 ± 0.02
Evodiamine b6.30 ± 0.5432.67 ± 2.3077.24 ± 6.3313.30 ± 1.84
Camptothecin b0.31 ± 0.070.09 ± 0.0080.10 ± 0.0010.42 ± 0.03
a The data indicate the mean ± SD of at least three independent experiments. b The standard drugs for the study.
Table 26. Antiproliferative activity of compounds 117ar.
Table 26. Antiproliferative activity of compounds 117ar.
Pharmaceuticals 16 01265 i017
CompoundR1R2n10 µM of DMSO
SIRT3
IC50 (µM) a
HL60U937MCF-7MDA-MB-231
117aIPharmaceuticals 16 01265 i0180116.35 ± 1.348.22 ± 1.428.68 ± 0.4839.37 ± 1.286.60 ± 0.27
117bIPharmaceuticals 16 01265 i0190121.12 ± 2.76>50>5012.78 ± 0.52>50
117cIPharmaceuticals 16 01265 i0201144.69 ± 0.732.80 ± 0.642.52 ± 2.3212.46 ± 0.852.19 ± 0.16
117dIPharmaceuticals 16 01265 i0211134.73 ± 0.9311.46 ± 1.4518.19 ± 1.4237.94 ± 0.3715.66 ± 0.95
117eIPharmaceuticals 16 01265 i0221136.73 ± 1.24>50>508.05 ± 0.616.81 ± 1.69
117fIPharmaceuticals 16 01265 i0231114.52 ± 0.71>50>505.37 ± 0.238.76 ± 1.25
117gIPharmaceuticals 16 01265 i0241126.52 ± 2.1928.55 ± 1.5613.65 ± 0.9839.47 ± 1.2617.96 ± 0.94
117hIPharmaceuticals 16 01265 i025193.63 ± 1.97>5041.36 ± 1.3028.67 ± 1.0315.68 ± 1.52
117iIPharmaceuticals 16 01265 i0261113.64 ± 0.1716.02 ± 1.5630.04 ± 2.4521.54 ± 1.9226.80 ± 0.87
117jIPharmaceuticals 16 01265 i0271123.40 ± 1.5024.32 ± 1.497.44 ± 0.3418.52 ± 0.7911.27 ± 0.58
117kIPharmaceuticals 16 01265 i0281107.25 ± 1.534.40 ± 0.462.30 ± 1.578.05 ± 0.1611.57 ± 0.83
117lIPharmaceuticals 16 01265 i029192.43 ± 3.648.51 ± 1.306.86 ± 1.408.02 ± 0.2953.97 ± 1.89
117mHPharmaceuticals 16 01265 i030192.44 ± 1.532.77 ± 3.623.47 ± 0.565.26 ± 0.6819.4 ± 0.78
117nHPharmaceuticals 16 01265 i031193.53 ± 3.146.38 ± 0.746.82 ± 0.163.73 ± 0.2610.54 ± 0.88
117oIPharmaceuticals 16 01265 i0320111.48 ± 1.8323.15 ± 2.2331.66 ± 1.86>5020.43 ± 2.06
117pClPharmaceuticals 16 01265 i0331121.31 ± 2.9211.34 ± 1.0925.24 ± 0.9527.66 ± 1.4228.16 ± 1.53
117qBrPharmaceuticals 16 01265 i0341119.09 ± 1.0638.27 ± 1.36>5031.34 ± 1.2221.64 ± 1.53
117rMePharmaceuticals 16 01265 i0351108.47 ± 1.9541.33 ± 2.2748.29 ± 1.9815.58 ± 0.9629.87 ± 0.91
ZINCO3830212 bIPharmaceuticals 16 01265 i0360115.23 ± 2.205.27 ± 1.069.31 ± 1.45>5033.43 ± 2.84
a The data indicate the mean ± SD of at least three independent experiments. b The reference compound for the study.
Table 27. Emax, EC50, and IC50 values of compound 117c.
Table 27. Emax, EC50, and IC50 values of compound 117c.
CompoundEmax aEC50 (µM)IC50 (µM) a
MDA-MB-231
117c1.00 ± 0.070.212.19 ± 0.16
Resveratrol b0.25 ± 0.0355.1998.89 ± 2.16
Honokiol b0.91 ± 0.060.1744.89 ± 1.86
a The data indicate the mean ± SD of at least three independent experiments. b The reference compounds for the study.
Table 28. Synthesis of benzo[b]furan-based oxadiazole/triazole derivatives 120ag and 121ah under ultrasound/microwave irradiation.
Table 28. Synthesis of benzo[b]furan-based oxadiazole/triazole derivatives 120ag and 121ah under ultrasound/microwave irradiation.
Pharmaceuticals 16 01265 i037
CompoundR1Yield (%)
Method AMethod B
120aPharmaceuticals 16 01265 i0387075
120bPharmaceuticals 16 01265 i0396670
120cPharmaceuticals 16 01265 i0406875
120dPharmaceuticals 16 01265 i0418694
120ePharmaceuticals 16 01265 i0427382
120fPharmaceuticals 16 01265 i0436069
120gPharmaceuticals 16 01265 i0446674
121aPharmaceuticals 16 01265 i0458090
121bPharmaceuticals 16 01265 i0466473
121cPharmaceuticals 16 01265 i0476068
121dPharmaceuticals 16 01265 i0486374
121ePharmaceuticals 16 01265 i0496977
121fPharmaceuticals 16 01265 i0506170
121gPharmaceuticals 16 01265 i0517789
121hPharmaceuticals 16 01265 i0529096
(a) Reagents and conditions: (i) method A: pyridine, CH3CN, 30 min, 40 °C, USI and (ii) method B: pyridine, DMF, 60–70 s, MWI.
Table 29. Hemolysis, thrombolysis, and antiproliferative studies of benzo[b]furan-based oxadiazole/triazole derivatives 120ag and 121ah.
Table 29. Hemolysis, thrombolysis, and antiproliferative studies of benzo[b]furan-based oxadiazole/triazole derivatives 120ag and 121ah.
Compound% Hemolysis a% Thrombolysis a% Cell Viability a A549IC50 (µM) a
A549
120a3.7 ± 0.00856.8 ± 0.08164.1 ± 1.72ND
120b22.12 ± 0.00850.7 ± 0.08145.99 ± 4.22ND
120c1.3 ± 0.00852.8 ± 0.08143.7 ± 0.94ND
120d5.02 ± 0.00853.5 ± 0.08127.49 ± 1.906.3 ± 0.7
120e0.5 ± 0.00852.4 ± 0.08134.47 ± 2.1917.9 ± 0.46
120f0.74 ± 0.00856.5 ± 0.08143.67 ± 4.43ND
120g4.86 ± 0.04748.3 ± 0.08141.45 ± 4.10ND
121a9.6 ± 0.08152.2 ± 0.08149.8 ± 1.06ND
121b0.1 ± 0.00452.5 ± 0.08157.62 ± 4.94ND
121c2.15 ± 0.00854 ± 0.08144.52 ± 5.01ND
121d6.13 ± 0.04756.2 ± 0.08139.12 ± 2.21ND
121e3.11 ± 0.00859.1 ± 0.00844.72 ± 0.84ND
121f15.7 ± 0.08161.4 ± 0.08199.1 ± 5.04ND
121g23.4 ± 0.08149.06 ± 0.04736.26 ± 0.4119.8 ± 0.54
121h14.8 ± 0.08148.1 ± 0.08129.29 ± 3.9810.9 ± 0.94
ABTS95.986NDND
DMSONDND100 ± 0ND
Crizotinib bNDND28.22 ± 3.888.54 ± 0.84
Cisplatin bNDND15.34 ± 2.983.88 ± 0.76
a The data indicate the mean ± SD of at least three independent experiments. b The standard drugs for the study. ND means not determined.
Table 30. Isolation of alkaloids 127ai and their corresponding masses.
Table 30. Isolation of alkaloids 127ai and their corresponding masses.
Pharmaceuticals 16 01265 i053
CompoundR1R2R3R4R5R6Mass (mg)
127aHHMeHMeH13.2
127bHHMeHMeMe1.8
127cHHMeMeMeH33.9
127dHOMeMeHHH6.4
127eHOMeHMeHH0.9
127fHHMeMeMeMe0.6
127gHOMeMeMeHH5.8
127hMeOMeMeHHH2.0
127iHOMeMeMeMeH12.8
Table 31. MIC values (µg/mL) of some alkaloids of 127.
Table 31. MIC values (µg/mL) of some alkaloids of 127.
CompoundGram-Negative BacteriaGram-Positive Bacteria
E. coliK. pneumoniaeS. aureusMRSAS. pyogenes
127a62.562.562.515.6ND
127c62.562.562.515.662.5
127d125.062.531.331.362.5
127g62.5125.031.362.5ND
127i62.562.531.315.6ND
Gentamicin a11.311.322.545.05.6
a The standard drug for the study. ND means not determined.
Table 32. Synthesis of bis-chalcones 130ag via Claisen–Schmidt condensation using both conventional and microwave heating methods.
Table 32. Synthesis of bis-chalcones 130ag via Claisen–Schmidt condensation using both conventional and microwave heating methods.
Pharmaceuticals 16 01265 i054
CompoundArMethod AMethod B
Time (h)Yield (%)Time (min)Yield (%)
130aPh668592
130b2-ClPh764590
130c4-MeOPh765494
130d2-Furyl664489
130eα-Napthyl866592
130f1,3-diPhenyl-1H-pyrazol-4-yl856587
130g1-Phenyl-3-(4-bromophenyl)-1H-pyrazol-4-yl853593
(i) Method A: (a) K2CO3, ClCH2COCH3, CH3COCH3, reflux, 8 h; (b) NaOH, ArCHO, EtOH, reflux, 6–8 h, 53–68%, and (ii) Method B: (a) K2CO3, ClCH2COCH3, 120 °C, 4 min, MWI; (b) NaOH, ArCHO, 90 °C, 4–5 min, MWI, 87–94%.
Table 33. Inhibition zones (in mm) of bis-chalcones 130ag.
Table 33. Inhibition zones (in mm) of bis-chalcones 130ag.
CompoundGram-Negative BacteriaGram-Positive Bacteria
E. coliP. aeruginosaB. subtilisS. aureus
130a9101510
130b109169
130c77108
130d86108
130e7897
130f1091610
130g11101710
Chloramphenicol a13NDNDND
Carbenicillin aND13NDND
Streptomycin aNDND22ND
Tetracycline aNDNDND15
a The standard drugs for the study. ND means not determined.
Table 34. Structures of benzo[b]furancarboxylic acids 131bg, and benzo[b]furancarboxylates 133bd, 133f, 134cd, and 134fg.
Table 34. Structures of benzo[b]furancarboxylic acids 131bg, and benzo[b]furancarboxylates 133bd, 133f, 134cd, and 134fg.
Pharmaceuticals 16 01265 i055
CompoundR1R2R3R4R5
131bCOOHMeHOHAc
131cCOOHMeOMeOHAc
131dCOOHMeHOH4-Methoxycinnamaldehyde
131eCOOHMeHOMeAc
131fCOOHHBrOMeOH
131gCOOHHHHOMe
133bCOOMeMeHO(CH2)2NEt2Ac
133cCOOMeMeOMeO(CH2)2NEt2Ac
133dCOOMeMeHO(CH2)2NEt24-Methoxycinnamaldehyde
133fCOOMeHBrOMeO(CH2)2NEt2
134cCOO(CH2)2NEt2MeOMeOHAc
134dCOO(CH2)2NEt2MeHOH4-Methoxycinnamaldehyde
134fCOO(CH2)2NEt2HBrOMeOMe
134gCOO(CH2)2NEt2HHHOMe
Table 35. Antimicrobial activity of hydrochlorides of methyl benzo[b]furancarboxylates 133, 134, and 135.
Table 35. Antimicrobial activity of hydrochlorides of methyl benzo[b]furancarboxylates 133, 134, and 135.
CompoundMIC (µmol/cm3)
M. luteusB. cereusB. subtilisS. epidermidisS. aureusE. hiraeE. coliP. aeruginosa
133a.HCl0.050.050.050.050.050.396.5113.02
133b.HCl0.751.491.491.493.113.1112.44ND
133c.HCl0.050.360.180.180.180.366.04ND
133d.HCl0.040.300.040.040.150.60NDND
133f.HCl0.0030.0120.0120.0120.0120.0121.503.12
134a.HCl0.010.100.01ND0.41NDNDND
134c.HCl0.010.050.090.190.090.75NDND
134d.HCl0.010.040.040.010.040.08NDND
134f.HCl0.090.710.350.090.18NDNDND
134g.HCl15.2815.2815.2815.2815.28>30.56>30.5630.56
135a.HCl0.040.040.040.040.070.300.59ND
ND means not determined.
Table 36. Zone of inhibition of benzo[b]furan derivatives 139ai.
Table 36. Zone of inhibition of benzo[b]furan derivatives 139ai.
CompoundConcentration (mg/mL)Zone of Inhibition (mm) a
P. syringaeS. typhiB. subtilisK. pneumoniaeE. coli
139a1.09 ± 0.310 ± 0.212 ± 0.113 ± 0.110 ± 0.3
0.57 ± 0.19 ± 0.310 ± 0.311 ± 0.18 ± 0.1
139b1.07 ± 0.26 ± 0.17 ± 0.27 ± 0.36 ± 0.2
0.56 ± 0.35 ± 0.25 ± 0.25 ± 0.14 ± 0.2
139c1.012 ± 0.212 ± 0.115 ± 0.216 ± 0.313 ± 0.2
0.510 ± 0.310 ± 0.213 ± 0.114 ± 0.111 ± 0.3
139d1.010 ± 0.210 ± 0.110 ± 0.211 ± 0.310 ± 0.2
0.58 ± 0.37 ± 0.28 ± 0.110 ± 0.18 ± 0.3
139e1.011 ± 0.211 ± 0.112 ± 0.213 ± 0.311 ± 0.2
0.58 ± 0.38 ± 0.210 ± 0.112 ± 0.19 ± 0.3
139f1.09 ± 0.28 ± 0.19 ± 0.28 ± 0.37 ± 0.2
0.56 ± 0.36 ± 0.16 ± 0.2ND6 ± 0.3
139g1.010 ± 0.29 ± 0.110 ± 0.29 ± 0.39 ± 0.2
0.58 ± 0.38 ± 0.27 ± 0.19 ± 0.17 ± 0.3
139h1.011 ± 0.212 ± 0.113 ± 0.214 ± 0.312 ± 0.2
0.58 ± 0.39 ± 0.211 ± 0.113 ± 0.19 ± 0.3
139i1.08 ± 0.27 ± 0.18 ± 0.28 ± 0.36 ± 0.2
0.57 ± 0.36 ± 0.26 ± 0.25 ± 0.14 ± 0.3
Streptomycin b1.015 ± 0.216 ± 0.118 ± 0.219 ± 0.316 ± 0.2
0.513 ± 0.315 ± 0.216 ± 0.117 ± 0.114 ± 0.3
a The data indicate the mean ± SD of at least three independent experiments. b The standard drug for the study. ND means not determined.
Table 37. Minimum inhibitory concentration (MIC) of benzo[b]furan derivatives 139ai.
Table 37. Minimum inhibitory concentration (MIC) of benzo[b]furan derivatives 139ai.
CompoundMIC (µg/mL)
P. syringaeS. typhiB. subtilisK. pneumoniaeE. coli
139a15.5015.8016.5016.5016.00
139b120.35125.40195.50125.55185.30
139c14.8015.2515.7516.0015.75
139d60.2555.75ND32.8538.65
139e30.2525.2520.25ND40.25
139fND70.3585.2575.3585.35
139g105.35110.3595.25155.35185.35
139h16.2516.7517.5017.2517.50
139i125.35115.35195.25120.35175.35
Streptomycin a14.5014.5015.5015.2515.25
a The standard drug for the study. ND means not determined.
Table 38. Antibacterial activity of naftifine analogs 140, 141, and 142ac against S. aureus Newman.
Table 38. Antibacterial activity of naftifine analogs 140, 141, and 142ac against S. aureus Newman.
