Review

Concept of Hybrid Drugs and Recent Advancements in Anticancer Hybrids

1
Department of Pharmaceutical Sciences and Natural Products, Central University of Punjab, Ghudda, Bathinda 154001, India
2
Laboratory of Computational Modeling of Drugs, Higher Medical and Biological School, South Ural State University, 454008 Chelyabinsk, Russia
3
Smart-Health Initiative (SHI) and Red Sea Research Center (RSRC), Division of Biological and Environmental Sciences and Engineering (BESE), King Abdullah University of Science and Technology (KAUST), Thuwal 23955, Saudi Arabia
4
Core Laboratories, King Abdullah University of Science and Technology (KAUST), Thuwal 23955, Saudi Arabia
5
Bioorganic and Medicinal Chemistry Research Laboratory, Department of Pharmaceutical Sciences, Sam Higginbottom University of Agriculture, Technology and Sciences, Prayagraj 211007, India
6
Department of Pharmacology, Kamla Nehru Institute of Management and Technology, Faridipur, Sultanpur 228118, India
7
Department of Pharmaceutical Chemistry and Pharmacognosy, Unaizah College of Pharmacy, Qassim University, Unayzah 51911, Saudi Arabia
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Pharmaceuticals 2022, 15(9), 1071; https://doi.org/10.3390/ph15091071
Submission received: 30 July 2022 / Revised: 19 August 2022 / Accepted: 22 August 2022 / Published: 28 August 2022
(This article belongs to the Special Issue Hybrid Drugs: Design and Applications)

Abstract

:
Cancer is a complex disease, and its treatment is a big challenge, with variable efficacy of conventional anticancer drugs. A two-drug cocktail hybrid approach is a potential strategy in recent drug discovery that involves the combination of two drug pharmacophores into a single molecule. The hybrid molecule acts through distinct modes of action on several targets at a given time with more efficacy and less susceptibility to resistance. Thus, there is a huge scope for using hybrid compounds to tackle the present difficulties in cancer medicine. Recent work has applied this technique to uncover some interesting molecules with substantial anticancer properties. In this study, we report data on numerous promising hybrid anti-proliferative/anti-tumor agents developed over the previous 10 years (2011–2021). It includes quinazoline, indole, carbazole, pyrimidine, quinoline, quinone, imidazole, selenium, platinum, hydroxamic acid, ferrocene, curcumin, triazole, benzimidazole, isatin, pyrrolo benzodiazepine (PBD), chalcone, coumarin, nitrogen mustard, pyrazole, and pyridine-based anticancer hybrids produced via molecular hybridization techniques. Overall, this review offers a clear indication of the potential benefits of merging pharmacophoric subunits from multiple different known chemical prototypes to produce more potent and precise hybrid compounds. This provides valuable knowledge for researchers working on complex diseases such as cancer.

1. Introduction

Cancer is a complex group of multiple diseases characterized by inappropriately controlled cell proliferation and replication eventually resulting in disruption of normal physiology, metabolism, or structure. Benign tumors are self-limited and do not invade or metastasize, but in complex stages groups of cells display uncontrolled growth, invasion and metastasis [1]. In the metastasis stage, cancer cells migrate from one organ (the original tumor site) to another organ of the body through the circulatory and lymphatic systems [2]. Cancer occurs by a series of successive deleterious mutations that change cell functions. These mutations often cause aberrant proliferation [3].
Cancer is a major global health care problem that continues to remain a leading cause of morbidity and mortality, with >277 different cancer types. According to estimates from the World Health Organization (WHO) in 2019, in 112 of 183 countries, cancer is the first or second major cause of death before the age of 70 and ranks third or fourth in a further 23 countries. In 2020, for all cancers, 19,292,789 new cases were estimated globally, with a total of 9,958,133 cancer deaths [4]. According to global demographic trends, 420 million new cancer cases are expected annually by 2025 [5].
Over the past 20 years, cancer treatments have improved significantly, and more potent medications have better safety profiles and more precise molecular targeting. Drug resistance is a major challenge with cancer treatment. During clinical usage, almost all targeted anticancer medications encounter resistance. Numerous processes have been related to drug resistance, including genetic and/or epigenetic mutation, amplification, cancer stem cells (CSCs), efflux transporters, apoptotic dysregulation, and autophagy, among others [6,7,8,9].
Cancer chemotherapy with single-agent or single mono functional ‘targeted’ drugs has limited rates of success due to resistance and lack of selectivity. To tackle this limitation, combination therapy (multi-component drugs to treat cancer), was developed [10]. Three alternative combination strategies are used: (a) two or more medicines that operate on distinct sites simultaneously or concurrently; (b) multi-targeting or promiscuous drugs treatment; and (c) hybridization drugs [11].
Tumor heterogeneity, drug-drug interactions, unpredictable pharmacokinetic (PK) safety profiles, and poor patient compliance presents a problem for cancer treatment despite the use of drug-combination medicines. Hence, improving drug selectivity while eliminating drug resistance has become crucial for the successful treatment of cancer patients [10].
There are unique challenges to cancer care in the developing as well as developed countries. These include issues with healthcare financing, patient awareness, and treatment delivery [6,7].
To improve the efficiency of using a two-drug cocktail, one approach involves so-called hybrid drugs [12]. The hybridization of biologically active molecules is a new concept and a powerful tool in drug design and development, used to target a variety of diseases [13]. It is a strategy of rational design of such ligands or prototypes based on the recognition of pharmacophoric sub-units that maintain pre-selected characteristics of the original templates [14].
Hybrid drugs are also termed “single molecule multiple targets” or “multiple ligands”. Hybrid molecules imply that one molecule shows structural features of two “parent” molecules. Two parent biologically active molecules (pharmacophores) that independently act at two distinct pharmacological targets. Molecular hybrids designed in a manner to the maintain their activities [15] by merging or blending of two or more bioactive compounds or their pharmacophoric subunits into in a new molecular structure with a dual mode of action. The presence of two or more pharmacophores in a single unit leads to a pharmacological potency greater than the sum of each individual moiety’s potencies [16,17].
Additionally, it is important to note that hybrid drugs usually have high molecular mass and lipophilicity; they violate Lipinski’s and Veber’s rules [17]. However, hybrid anticancer drugs have remarkable advantages over conventional anticancer drugs because they are designed to act on a different bio target or interact with numerous targets simultaneously, reducing the likelihood of drug-drug interactions, with reduced side effects and reduced propensity to elicit resistance relative to the parent drugs. These novel hybrid molecules have improved affinity, enhanced efficacy and improved safety [14,18].
Nowadays, hybrid drugs have drawn interest in the purposeful and logical design of ligands functioning selectively on multiple targets, and this has been reflected by an increase in the number of relevant publications in the field. In this review, we have compiled recent findings from 2011 to 2021 on novel hybrid compounds for different drug classes that exhibit promising anticancer activities. This analysis highlights in vitro anticancer activity of synthesized anticancer hybrids on different cell lines.

2. The Concept of Hybrid Drugs in Anticancer Agent Development

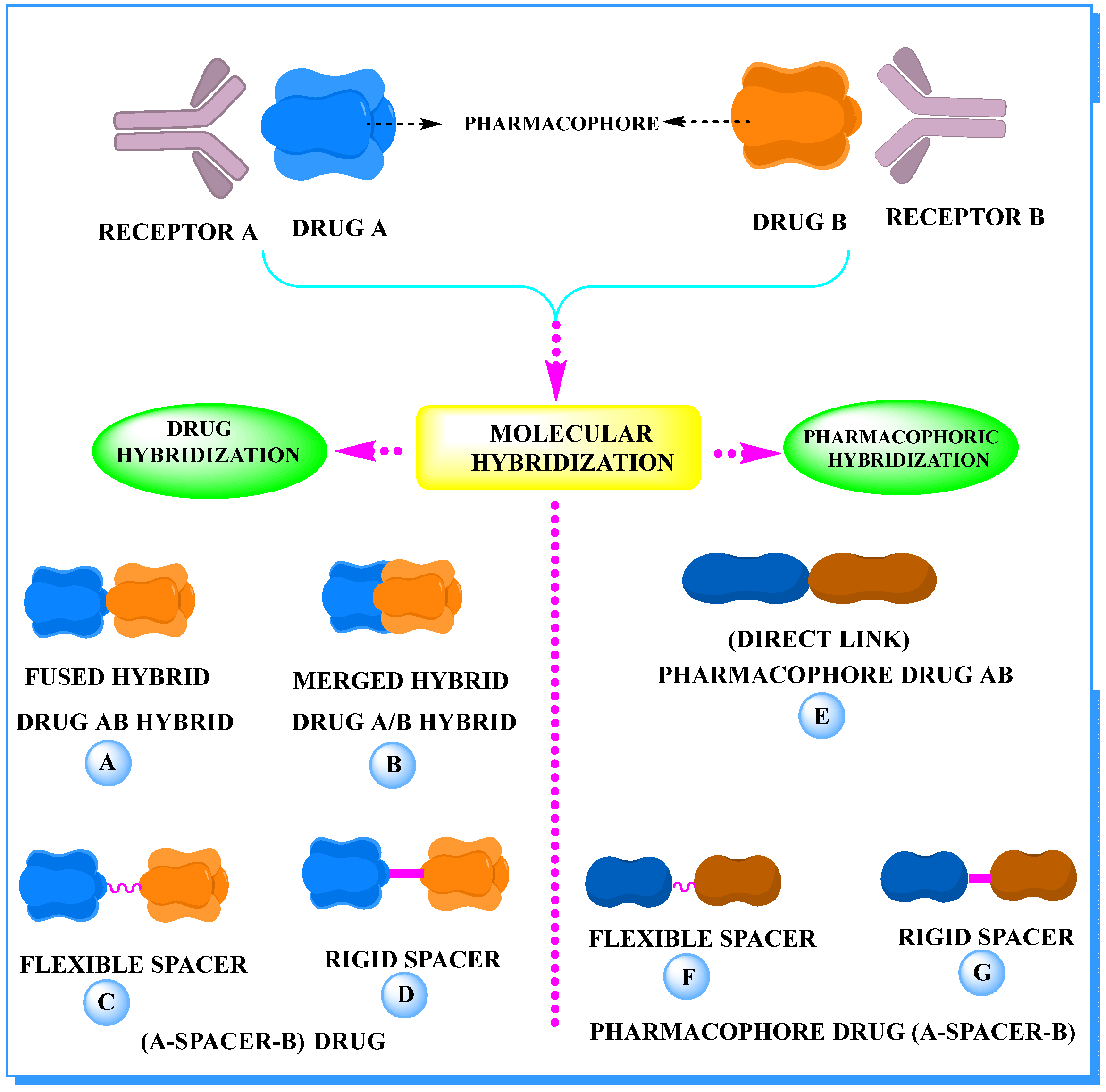

Hybrid drugs are categorized based on the manner in which they are connected to each other. The concept of design and preparation of hybrid molecules is achieved using two strategies, which are described as follows:
1. Combining drug pharmacophoric moieties with: (a) two pharmacophoric groups directly linked; (b) two pharmacophoric groups linked by a spacer.
These approaches are achieved by: (i) the merging of two pharmacophoric groups from two different drugs acting through the same mechanism of action; (ii) the merging of pharmacophoric groups from two drugs acting through different mechanisms of action.
This is the integration of multiple pharmacophores in a single molecule. In this scenario, the starting point is to choose two established pharmacophores with high selectivity for their respective targets and a proper linker is selected to connect these two pharmacophores. This strategy is used to design new anticancer hybrids and is based on the ability of a combination of pharmacophoric moieties on a new molecular structure to retain their affinity and activity for the biological targets (Figure 1).
2. Combining two or more entire drugs: the second approach combines two or more entire medications that can be connected either directly or indirectly using a spacer or linker. The following categories apply:
(a) Directly linked hybrid drugs: each molecule is connected via a functional group. Notable examples are mostly enzymatically hydrolysable esters, and carbamateoramide.
(b) Merged or overlapped hybrid drugs: these types of hybrid agents are obtained by overlapping structural motifs or pharmacophores of two drugs. These hybrid agents differ significantly in their structures compared to the drugs from which they were designed. The hybrid agents may retain the functional properties of either or both of the overlapping drugs.
(c) Spacer linked hybrid drugs: the main purpose of using a linker or spacer is to provide a bridge to connect two drugs and modulate the release of individual drugs in vivo. These molecules can be classified as cleavable and non-cleavable.
(1) Non-cleavable hybrid drugs: non-cleavable linkers are connected with non-hydrolysable chemical bonds to create chemically as well as enzymatically stable linkers. This strategy is also based on the ability of the different molecules to retain their biological activity, specificity and respective affinity for their biological targets.
(2) Cleavable hybrid drugs: a cleavable linker is based on the release of two parental molecular structures under physiological or enzymatic conditions that prevail at the site of activity. The majority of cleavable conjugates have an ester linkage that plasma esterases can cleave to release two separate medicines with independent actions (Figure 1).
The purpose of cleavable hybrid drugs is to either improve poor pharmacokinetic properties and slowly deliver the two therapeutic entities in the body (e.g., ester, amide or carbamate), or to improve the selectivity and the antineoplastic activity of the drugs and release the two drugs directly in the targeted tissues (e.g., phosphorylated DES (Diethylstilbestrol) prodrugs for prostate cancer).
Hybrids drugs have been formed by connecting two drugs with the same mechanism of action or by connecting two drugs with different mechanisms of action. The aim of connecting two drugs is to target specific biological tissues [12,19,20,21,22].

3. Recent Advances in Anticancer Hybrids

3.1. Quinazoline Based Hybrids

Quinazoline is a heterocyclic compound and potent bioactive scaffold that has been associated with anticonvulsant, anticancer, analgesic, sedative, anti-hypertensive, anti-inflammatory, anti-histaminic, antimicrobial, anti-viral and anti-tubercular properties. Quinazoline containing compounds were investigated for their inhibition of kinases, which are major explored targets of cancer medicine development [23,24].

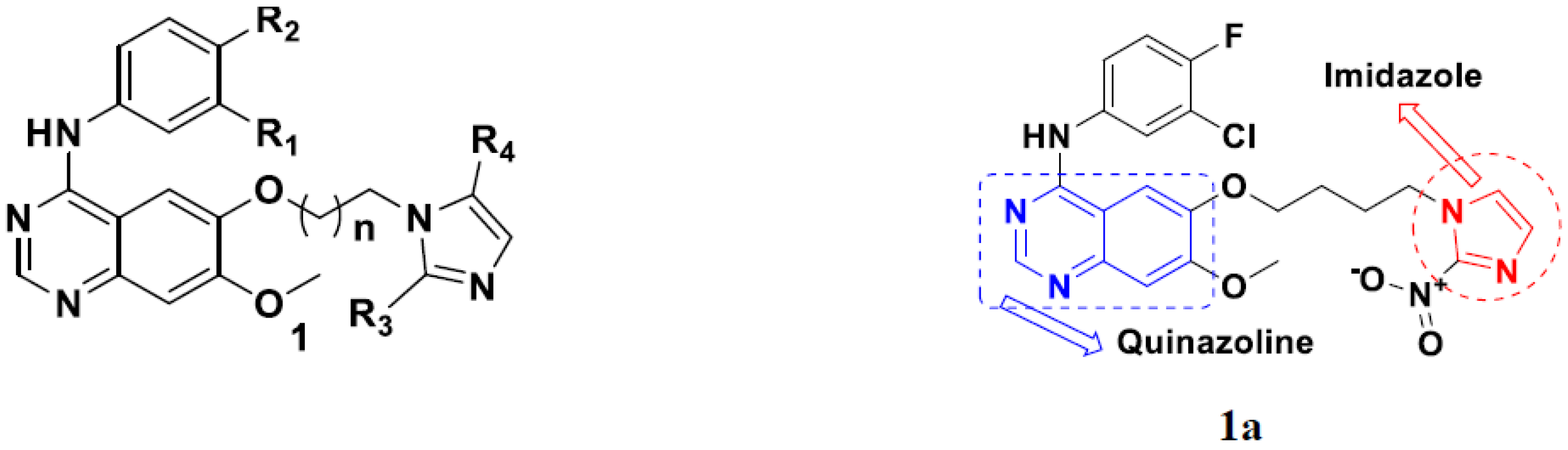

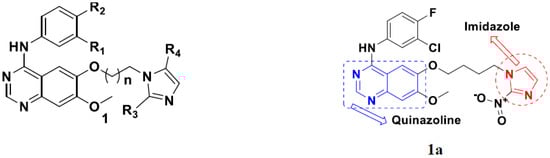

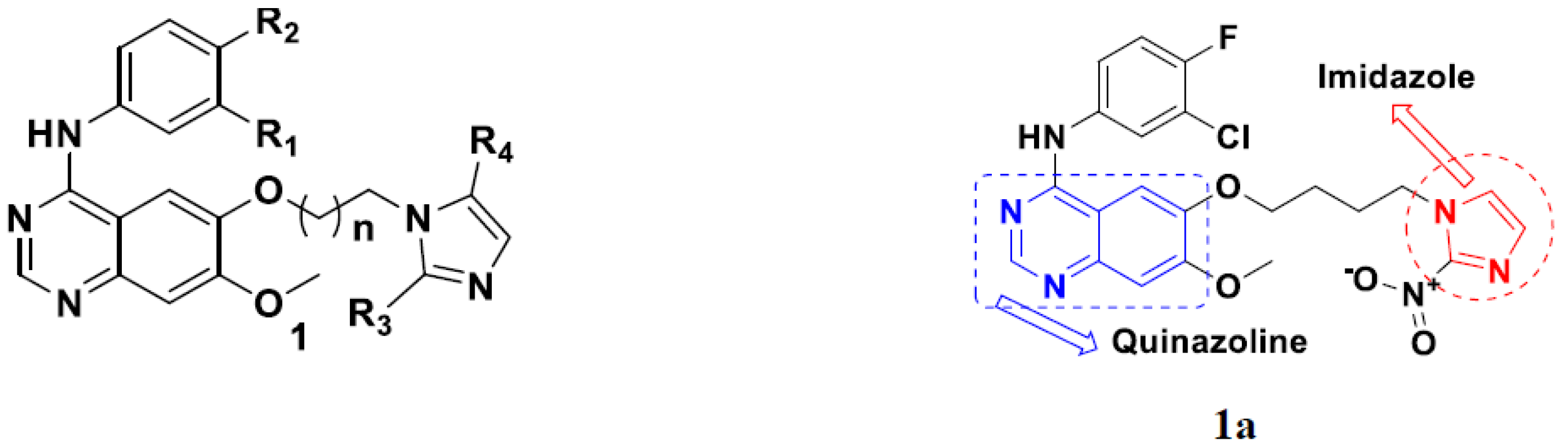

Cheng et al. (2015) synthesized and explored quinazoline based imidazole hybrids and evaluated their anticancer activity against Epidermal Growth Factor Receptor (EGFR) and HT-29 cells (in normoxic and hypoxic conditions). Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 1(a) showed excellent activity with an IC50 of 0.47 nM, 2.21 µM and 1.61 µM, respectively compared to the gefitinib control with an IC50 of 0.45 nM, 3.63 and 5.21 µM, respectively. The structure of quinazoline based imidazole hybrids is given in Figure 2. Table 1 shows in vitro antiproliferative activity against the human cancer cell line HT-29 and EGFR inhibitory activity (nM) of compounds 1(be) [25].
Zhang Y et al. (2017) synthesized and evaluated anticancer activity of quinazolinebased deoxynojirimycin hybrids against Epidermal Growth Factor Receptor (EGFR) and α-glucosidase. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 2(a) showed excellent activity with an IC50 1.79 nM and 0.39 µM, respectively (the control gefitinib had an (−IC50 of = 3.32 nM and >100 µM, respectively). The structure of a quinazoline-based deoxynojirimycin hybrid is given in Figure 3 and in vitro EGFR and α-glucosidase inhibitory activity of compounds 2(be) against human cancer cell lines is shown in Table 2 [26].
Quinazoline based urea hybrids were synthesized by Zhang et al. (2016) and evaluated for their ability to inhibit EGFR and Vascular Endothelial Growth Factor Receptor-2 (VEGFR-2). Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 3(a) showed excellent activity with an IC50 of 1.0 nM and 79 nM, respectively, when the control vandetanib had an IC50 of 11 nM and >15 nM, respectively. The structure of a quinazolinebased urea hybrid is given in Figure 4 and in vitro EGFR and VEGFR-2 inhibitory activity of compounds 3(be) against human cancer cell lines is shown in Table 3 [27].
Yadav et al. (2016) synthesized substituted quinazoline based aryl hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed excellent activity against different isoforms of PI3K, but compound 4(a) showed 3.7 times more potent activity against Phosphoinositide 3-Kinase(PI3K) α (IC50 = 0.201 μM) than γ isoform (IC50 = 0.75 μM), and was a selective inhibitor of MCF-7 cells (human breast adenocarcinoma) with GI50 7 μM. Compound 4(a) also did not show any cytotoxicity to normal human cells. It inhibited 37% and 62% triglyceride (TGI) at 25 mg/kg dose in Ehrlich solid tumor and Ehrlich ascites carcinoma tumor models, respectively, with a control of 5-flurouracil at 22 and 20 mg/kg dose with TGI inhibition 50 and 96%, respectively. The structure of quinazoline-based aryl hybrids is given in Figure 5 and the in vitro cytotoxicity of compounds 4(be) against human cancer cell lines is shown in Table 4 [28].

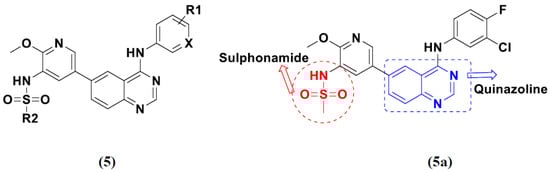

Ding et al. (2018) synthesized and reported aminoquinazoline-sulphonamide based hybrids and evaluated their anticancer activity. Most of these compounds showed dual inhibitory activity against EGFR and PI3K α. Compound 5(a) showed excellent activity with an IC50 of 2.4 and 317 nM, compared to controls gefitinib (IC50 2.4 nM) and dactolisib (IC50 16.4 nM). Compound 5(a) exhibited potent activity against a panel of cell lines including adenocarcinomic human alveolar basal epithelial cells (A549 IC50 = 8.23 µM), epithelial cells (BT549, IC50 = 1.02 µM), human colon cancer cells (HCT-116, IC50 = 5.60 µM), breast cancer cells (MCF-7, IC50 = 5.59 µM), human hepatic adenocarcinoma cells (SK-HEP-1, IC50 = 6.10 µM), and gastric carcinoma cells (SNU638, IC50 = 4.10 µM). For comparison, the controls gefitinib and dactolisib had IC50 doses of 8.27, 6.56, 5.98, 26.7, 10.1, and 7.56 µM or 0.62, 0.74, 0.84, 1.33, 1.82,and 1.24 µM in the same cell lines), respectively. The structure of aminoquinazoline-sulphonamide based hybrids is given in Figure 6 and in vitro cytotoxicity (IC50, μM) of compounds 5(be) against human cancer cell lines is shown in Table 5 [29].
Continuing the work of Ding et al. (2018), Fan et al. synthesized amino quinazoline based hybrids and evaluated their anticancer activity. Most of these compounds showed inhibitory activity against PI3K. Compound 6(a) showed excellent activity towards PI3Kα with an IC50 13.6 nM in comparison to other isoforms of PI3K including PI3Kβ, PI3Kγ and PI3Kδ, which had IC50 of396.2, 117.5, and 101.8 nM. Compound 6(a) exibited potent activity against a panel of cell lines including HCT-116, SK-HEP1, MDA-MB-231 (epithelial, human breast cancer cells), SNU638, A549, and MCF-7 with IC50 values 0.16, 0.28, 0.28, 0.48, 1.32, and 3.24 µM. Control BEZ235 had IC50 values of 0.84, 1.82, 0.18, 1.24, 0.62, and 1.33 µM. The structure of quinazoline-amino sulphonamide based hybrid is given in Figure 7 and in vitro cytotoxicity (IC50, μM) of compounds 6(be) against human cancer cell lines is shown in Table 6 [30].

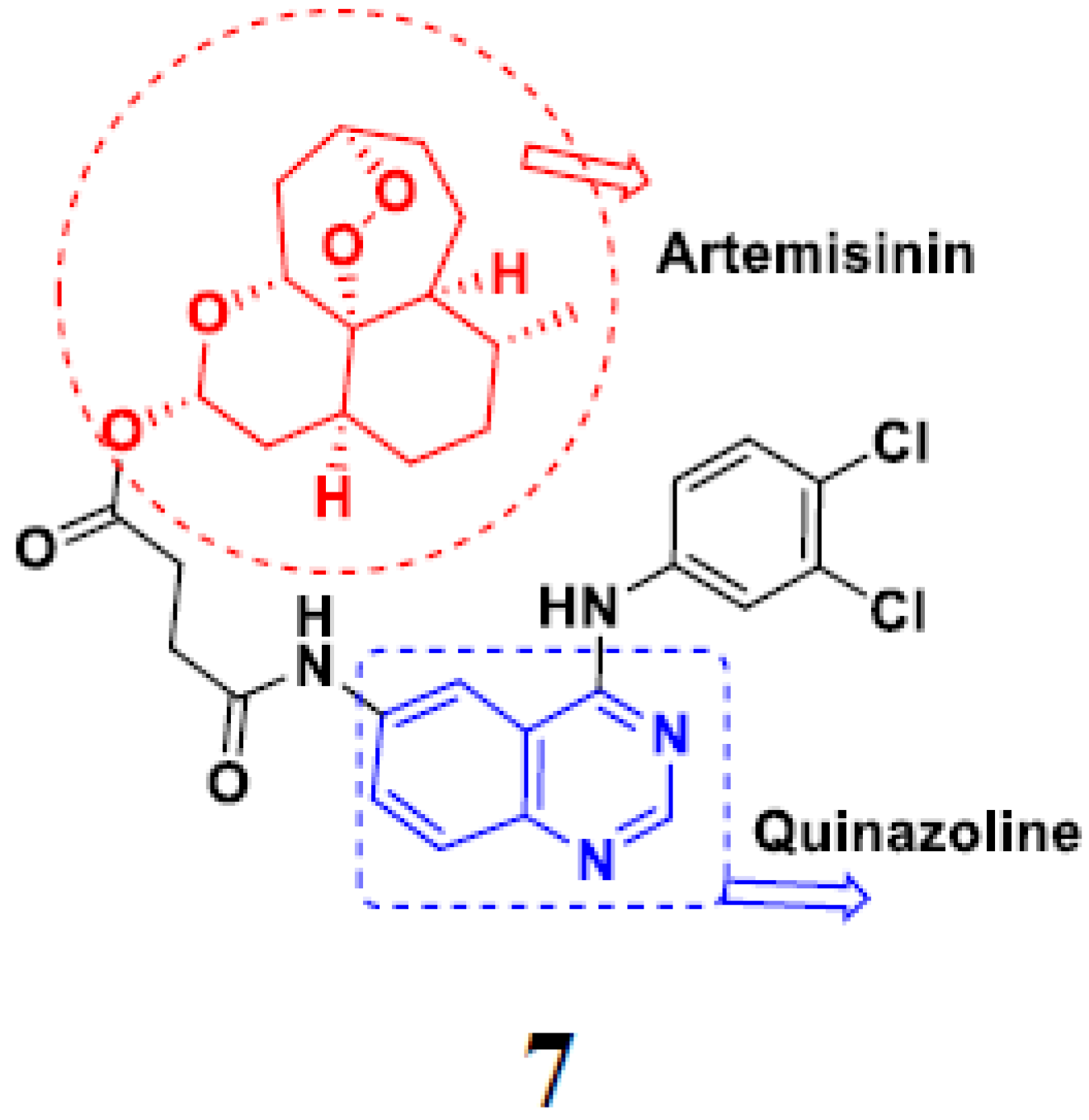

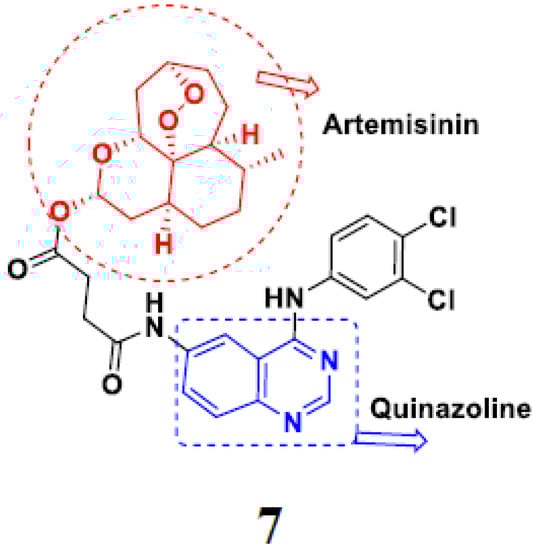

Frohlich et al. (2017) synthesized hybrids of quinazoline with artemisinin and evaluated their in vitro anticancer activity on CCRF-CEM (lymphoblastoid cell) and CEM/ADR5000 (leukemia cells). Most of the synthesized compounds showed potent anticancer activity; out of them, compound 7 (Figure 8) showed excellent activity with an EC50 of 2.8 and 0.6 µM. Control doxorubicin had an EC50 of 0.009 and 23.27 µM, respectively [31].

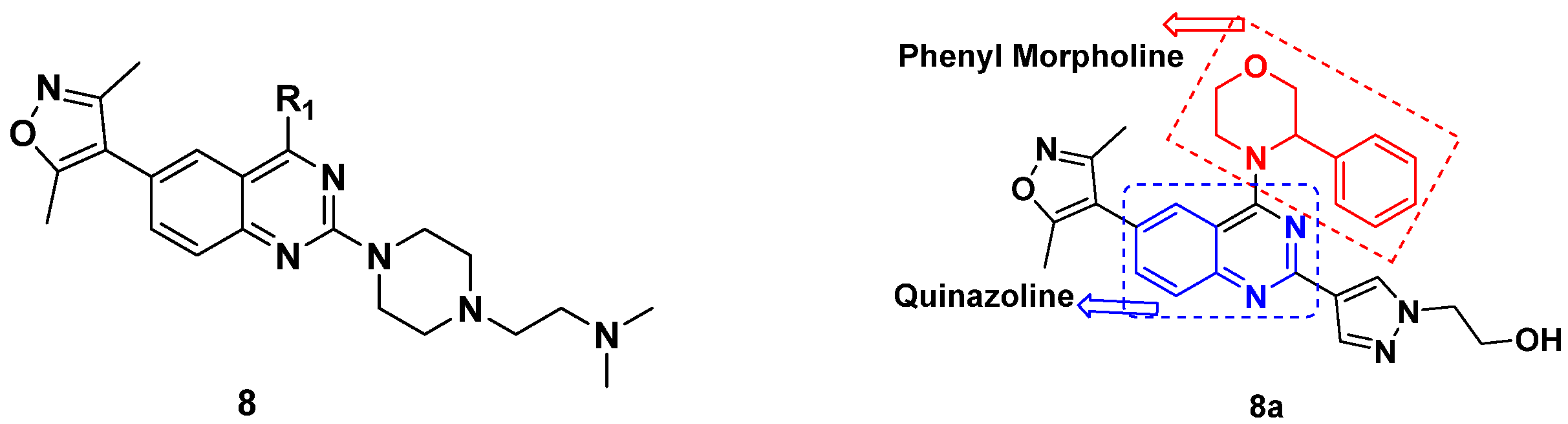

Yang et al. (2018) synthesized quinazoline based hybrids and evaluated them for their Bromodomain-containing protein 4 (BRD4) inhibitory activity. SAR studies revealed that the phynylmorpholine along with the pyrazole skeleton showed potent activity against BRD4. Compound 8(a) showed potent activity against human AML cells (MV4-11) with an IC50 value of 1.10 µM (Kd 66 nM) when control BET760 had an IC50 0.80 µM (Kd 37 nM). The structure of quinazoline-phenyl morpholine based hybrids is given in Figure 9 and in vitro cytotoxicity of compounds 8(be) against human cancer cell lines is shown in Table 7 [32].

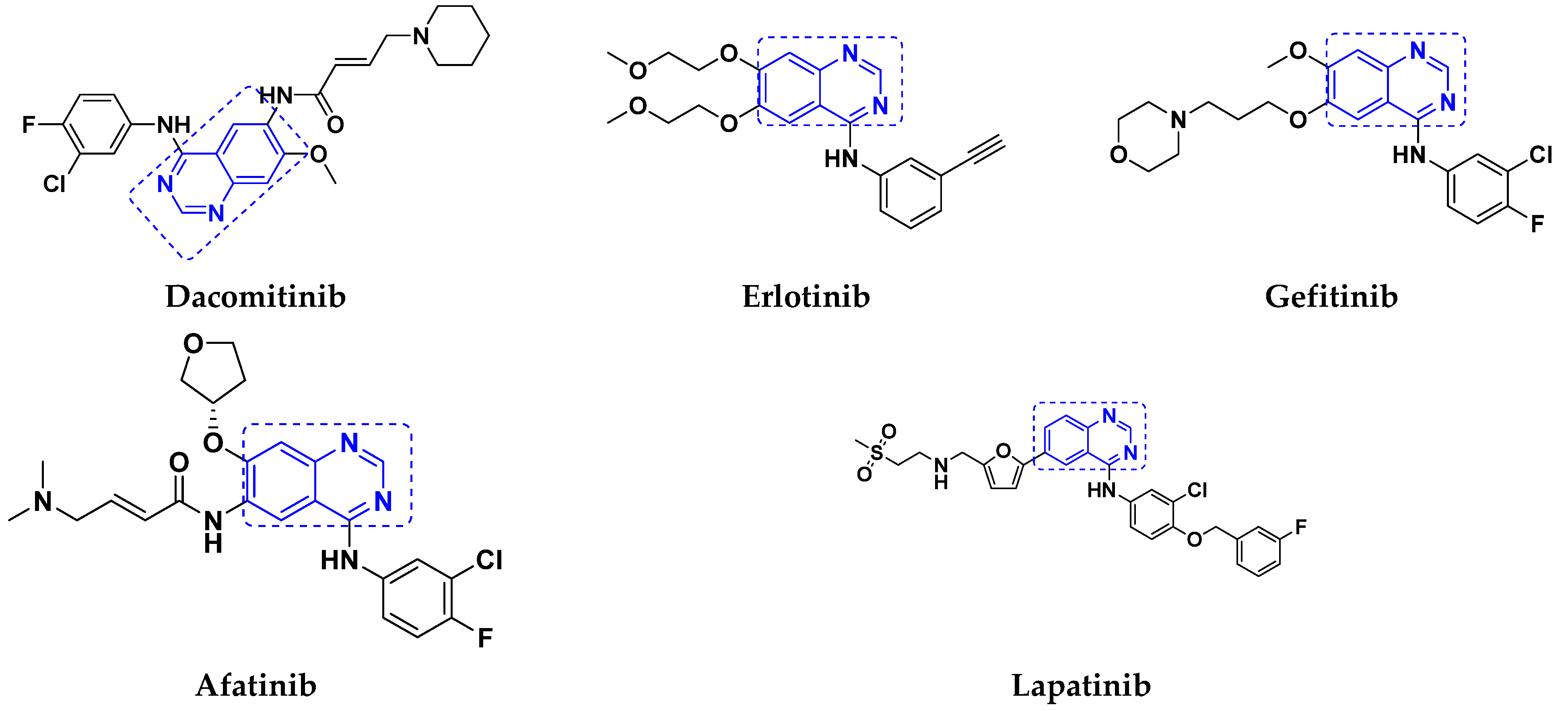

Quinazoline-Based Hybrids That Are FDA Approved or under Clinical Trial

The hybrids of quinazoline have been evaluated in various clinical trials in recent years, with several of them showing promising results. In addition, the Food and Drug Administration (FDA) approved certain quinazoline-based enzyme inhibitors for the management of various malignancies. Dacomitinib, erlotinib, gefitinib, afatinib, and lapatinib are the quinazoline based hybrid drugs approved by the FDA for management of different types of cancers (Figure 10). Additionally, in Table 8, we have summarized quinazoline-based hybrid molecules under clinical trials for the treatment of different types of cancer.

3.2. Indole-Based Hybrids

Indole is a remarkable and adaptable heterocycle that has been used to create important biological scaffolds in pharmaceutical research. Indole/indole derivatives have many reported therapeutic properties, such as anti-virals, anti-convulsants, antibacterials, anti-microbials, anticancer agents, anti-malarials, anti-inflammatories, anti-oxidants, and anti-diabetics. Different natural and synthesized indole motifs have demonstrated considerable anticancer potential. Such substances have been found to act on a variety of protein targets, including sirtuins, PIM (proviral integration site for Moloney murine leukemia virus) kinases, HDACs (histone deacetylases) and DNA topoisomerase [41,42].

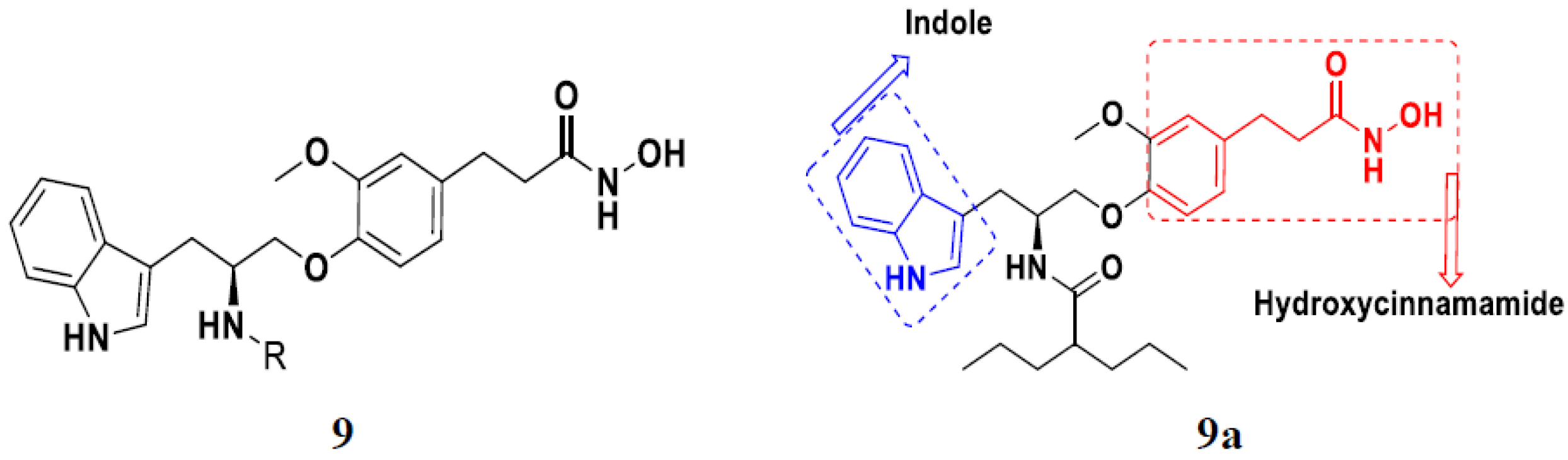

Zhang et al. (2013) synthesized hybrids of indole with hydroxycinnamamide, and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 9(a) exhibited excellent activity against various cell lines including human myeloid leukemia (U937), prostate adenocarcinoma (PC-3), A549, ovarian carcinoma (ES-2), MDA-MB-231, and HCT116 at IC50 1.8, 3.7, 4.4, 5.4, 3.1, and 5.5 µM, respectively with control suberoylanilide hydroxamic acid (SAHA) had IC50 values of 2.3, 9.9, 3.8, 12.7, 5.6, and 6.0 µM, respectively. Furthermore, compound 9(a) showed excellent HDAC (histone deacetylase) inhibitory activity against different isoforms of HDAC including HDAC1, HDAC2, HDAC3, and HDAC6 with IC50 values of 0.39, 1.42, 0.28, and 0.94 µM compared to control SAHA at IC50 values of 0.076, 0.256, 0.028, and 0.118 µM, respectively. The structure of indole with hydroxycinnamamide hybrids is shown in Figure 11 and in vitro cytotoxicity of compounds 9(be) against human cancer cell lines is shown in Table 9 [43].
Zhang et al. (2013) synthesized and explored hybrids of indole with hydroxycinnamamide, evaluating their anticancer activity against different cell lines. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 10(a) exhibited excellent activity against various cell lines including U937, K562 (myelogenous leukemia cells), HEL (human erythroleukemia cells), KG1(myeloid leukemia cells), HL60 (promyelocytic leukemia cells), MDA-MB-231, PC-3, MCF-7, HCT116, and A549 with IC50 values 0.16, 0.51, 0.19, 0.22, 1.69, 0.22, 0.46, 2.68, 0.52, and 2.74 µM, respectively. Furthermore, compound 10a showed excellent HDAC selectivity against different isoforms of HDAC including HDAC1, HDAC2, HDAC3, and HDAC6 with IC50 values 11.8, 498.1, 3.9, and 308.2 nM with control SAHA had IC50 values of 34.6, 184.7, 90.1, and 63.0 nM, respectively. The T structure of indole and hydroxycinnamamide hybrids is shown in Figure 12 and the in vitro cytotoxicity of compounds 10(be) against human cancer cell lines is shown in Table 10 [44].
Mehndiratta et al. (2014) synthesized hybrids of indole with sulphonamides, and evaluated their anticancer and anti-inflammatory activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 11(a) showed excellent activity against HeLa nuclear HDAC enzyme with an IC50 of 7.9 nM. The structure of indole and sulphonamide hybrids is shown in Figure 13 and the in vitro cytotoxicity of compounds 11(be) against human cancer cell lines is shown in Table 11 [45].

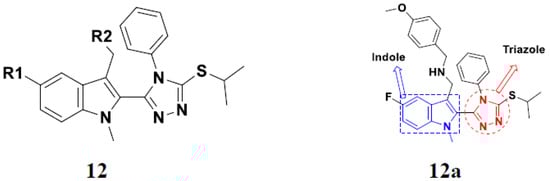

Panathur et al. (2013) synthesized indole based hybrids, and evaluated them for anticancer activity against three cancer cell lines including K562, MDA-MB 231 and LNCaP (androgen-sensitive human prostate adenocarcinoma cells). Most of the synthesized compounds showed potent anticancer activity; among them, 9 compounds showed excellent activity against MDA-MB 231, with three compounds inhibiting growth of LNCaP cell up to 50% at 10 µM. Furthermore, the lead molecule 12(a) showed SIRT1 (Sirtuin 1) inhibitory activity up to 70% with control finasteride (growth inhibition 56%) at 40 µM. The structure of indole-triazole based hybrids is given in Figure 14 and the in vitro cytotoxicity of compounds 12(be) against human cancer cell lines is shown in Table 12 [46].
Lee et al. (2014) synthesized indole based hybrids and evaluated their proto-oncogene serine/threonine-protein kinase (PIM) kinase selectivity against different forms of PIM kinase including PIM1, PIM2, and PIM3. Compound 13(a) showed excellent selectivity towards PIM1 with IC50 values of 0.058, 0.52, and 0.16 µM. Furthermore, the lead molecule 13(a) was tested against different cell lines, including MV-4-11 (acute myeloid leukemia cell), Jurkat (T lymphocyte cells), and K562, and was found to be very selective towards MV-4-11 in a cell viability assay. The lead molecule also showed binding interaction with Lys67 and Glu89 in the active site of PIM1 (ATP-binding). The structure of an indole-pyrimidine based hybrid is shown in Figure 15, and the in vitro cytotoxicity of compounds 13(be) against human cancer cell lines is shown in Table 13 [47].

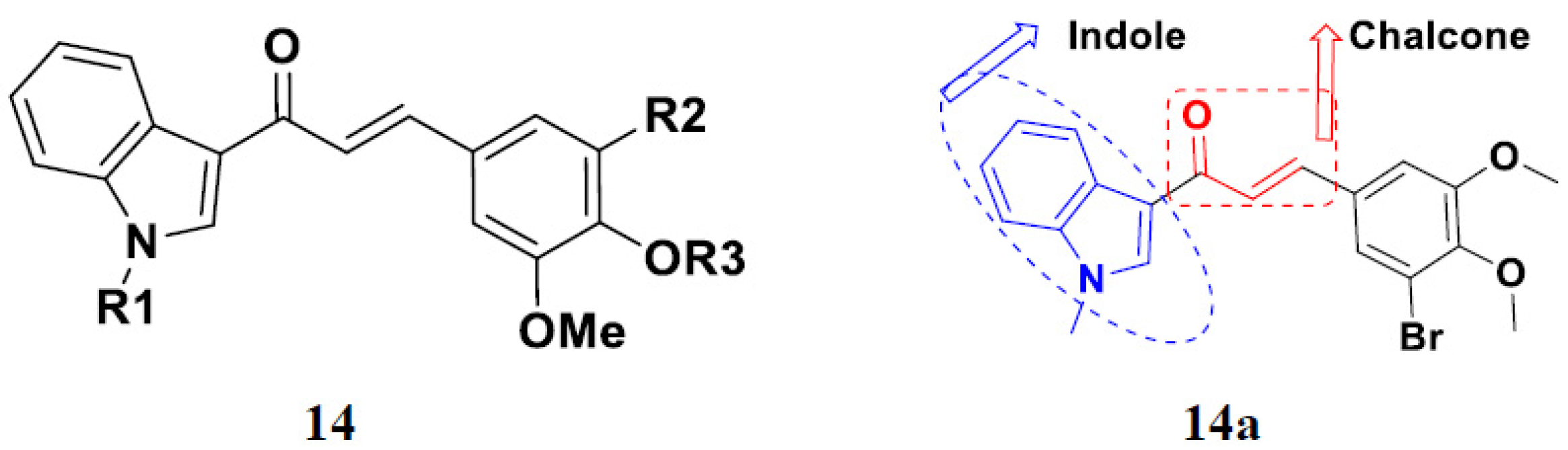

Mirzaei et al. (2017) synthesized and explored indole-chalcone based hybrids and evaluated their anticancer activity against various cell lines including A549, MCF7, SKOV3 (human ovarian cancer cell), and NIH3T3 (embryonic fibroblast cells), finding IC50 values of 4.3, 100, 20.2, and 154.6 µg/mL with control etoposide IC50 of 7.8, 9.9, 8.5, and 118.0 µg/mL, respectively. Furthermore, the lead molecule 14(a) was subjected to a tubulin polymerization inhibitory assay, with results revealing that the lead molecule showed excellent inhibitory activity, having an IC50 of 17.8 µM with control colchicine, having an IC50 of 2.3 µM. The structure of indole-chalcone based hybrids is shown in Figure 16 and the in vitro cytotoxicity of compounds 14(be) against human cancer cell lines is shown in Table 14 [48].
Zhou et al. (2016) synthesized and explored hybrids of indole with pyrrole and evaluated their anticancer activity against various cell lines including HL-60, SMMC-7721 (hepatocarcinoma cells), A-549, MCF-7, and SW480 (colon carcinoma cell). Most of the synthesized compounds showed potent anticancer activity. Among them, compound 15(a) showed excellent activity having IC50 values of 1.27, 1.72, 2.68, 1.78, and 1.44 µM with control cisplatin (DDP) having IC50 values of 1.16, 8.08, 7.10, 10.45, and 8.88 µM, respectively. The structure of indole-pyrole based hybrids is shown in Figure 17 and the in vitro cytotoxicity of compounds 15(be) against human cancer cell lines is shown in Table 15 [49].
Kumar et al. (2014) synthesized indole based chalcone hybrids and evaluated their antiproliferative activity against A549, PC3 and PaCa2 (pancreatic cancer) cell lines. Among the synthesized derivatives, compound 16(a) showed potent activity having IC50 values of 2.4 and 0.8, 36.0 and 22.5, and >50 µM, respectively (with control mitomycin C having an (IC50 = of 0.45 µM against A549 at 24h). The structure of indole-chalcone based hybrids is shown in Figure 18 and the in vitro cytotoxicity of compounds 16(be) against human cancer cell lines is shown in Table 16 [50].
Kumar et al. (2018) synthesized and explored indole-ospemifene-triazole based hybrids and evaluated their anticancer activity against MCF-7 and MDA-MB-231. Most of the synthesized compounds showed good anticancer activity, compound 17(a) exhibited excellent activity at IC50 1.56 and 48.46 µM controls included ospemifene (IC50 55 and 50 µM), tamoxifen (IC50 3.5 and >100 µM), and plumbagin (IC50 75 and 4.4 µM). The structure of the indole-ospemifene-triazole based hybrid is shown in Figure 19 and the in vitro cytotoxicity of compounds 17(be) against human cancer cell lines is shown in Table 17 [51].

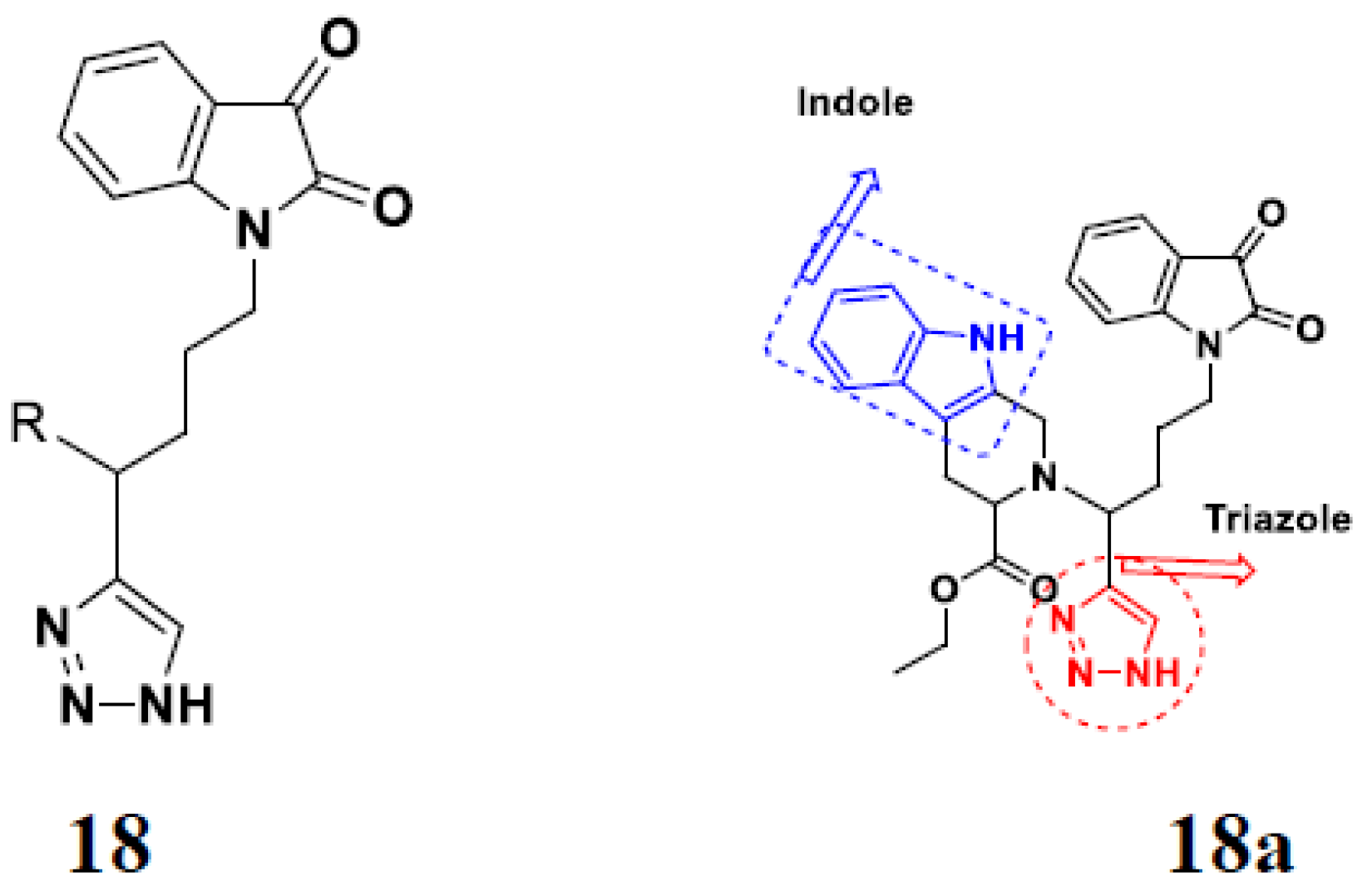

Kumar et al. (2018), and Sharma et al. (2019) synthesized indole-isatin based triazole hybrids and evaluated their anticancer activity. Among the synthesized compounds, compound 18(a) showed excellent activity against MCF-7 and MDA-MB-231 cell lines withIC50 values of 37.42 and >100 µM Control included plumbagin (IC50 3.5 4.4 µM), peganumine A (IC50 38.5 µM and not observed) and tamoxifen (IC50 50 and 75 µM), respectively. Furthermore, the biological activity was validated by docking studies. The structure of the indole-isatin-triazole based hybrid is shown in Figure 20, and the in vitro cytotoxicity (µM) of compounds 18(bc) against human cancer cell lines is shown in Table 18 [52].

3.3. Indole-Based Hybrids That Are FDA Approved or under Clinical Trial

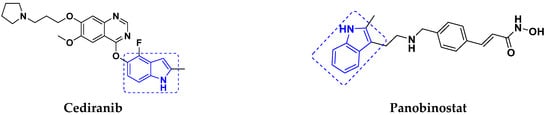

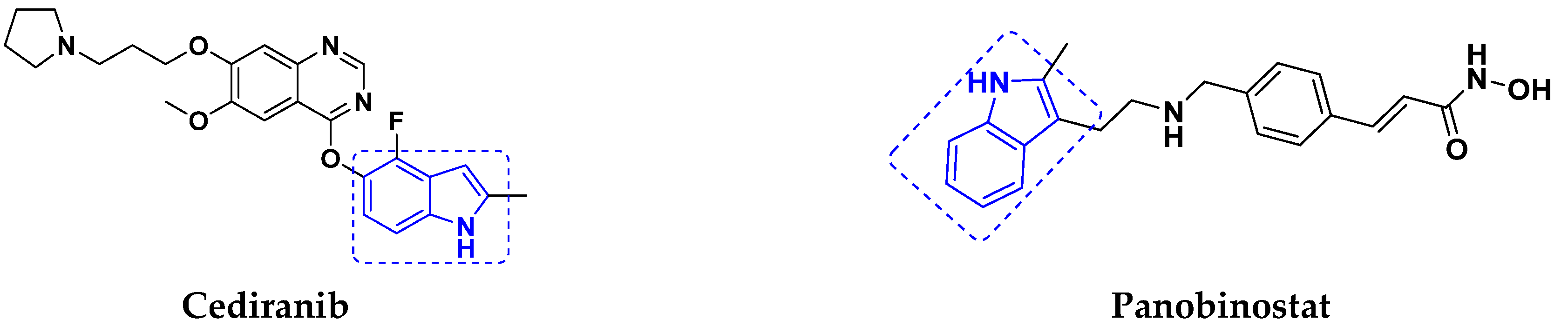

Dacinostat (LAQ824), an indole-based hybrid molecule, is approved for the management of breast and prostate cancer, whereas panobinostat (LBH-589) is a marketed medicine for numerous malignancies. Quisinostat (JNJ-26481585), a synthetic indole-hydroxamic acid molecule (hybrid) with putative antitumor action is an orally available 2nd generation molecule to inhibit HDAC. Cediranib is a tyrosine kinase inhibitor which affects the function and development of endothelial cells in human kidney tumors. Anlotinib (AL3818) is a potent kinase inhibitor with potential antitumor as well as antiproliferative efficacy currently in clinical trials. Figure 21, shows chemical structures of indole-based FDA approved/clinical trial drugs and Table 19 gives descriptions of them.

3.4. Carbazole Based Hybrids

Carbazole is a key scaffold found in a wide range of physiologically potent chemicals, including natural and synthetic analogues. Anticancer, antifungal, antibacterial, anti-HIV, anti-inflammatory, anti-protozoan, anti-psychotic, antidiabetic and anticonvulsant properties are found in molecules with r chemically modified carbazole moiety. The first carbazole compounds, celiptium and ellipticine, targeted topoisomerase II and cytochrome P450, respectively, and are used to combat cancer (metastatic breast cancer). An investigation of the carbazole nucleus for the production of novel structural scaffolds has led to the development of a number of available anti-tumor hybrids [58,59].

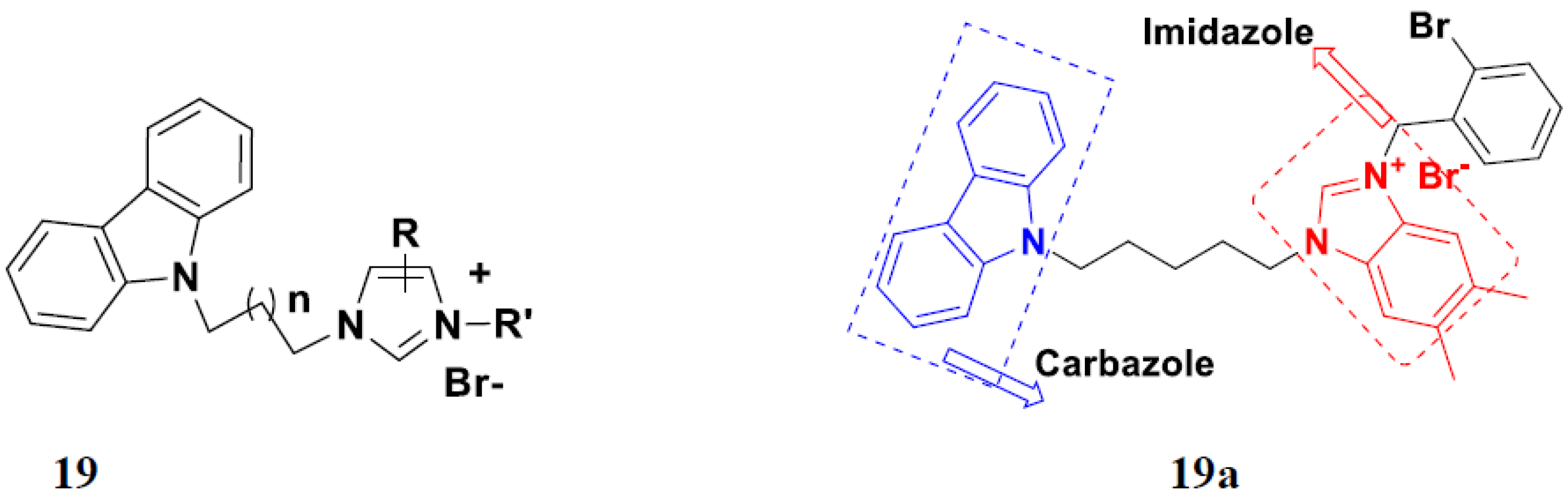

Liu et al. (2015) synthesized and evaluated the anticancer activity of carbazole derivatives against various cell lines including HL-60, SMMC-7721, A549, MCF-7 and SW480. Among the synthesized carbazole derivatives, compound 19(a) showed potent activity with IC50 values of 0.51, 2.38, 3.12, 1.40, and 2.48 µM, where control cisplatin (DDP) hadIC50 values of 1.32, 6.24, 11.83, 15.17, and 12.95 µM, respectively. Compound 19(a) showed cell cycle arrest in SMMC-7721 cells. The structure of carbazole-imidazole based hybrids is shown in Figure 22 and the in vitro cytotoxicity of compounds 20(be) against human cancer cell lines is shown in Table 20 [60].

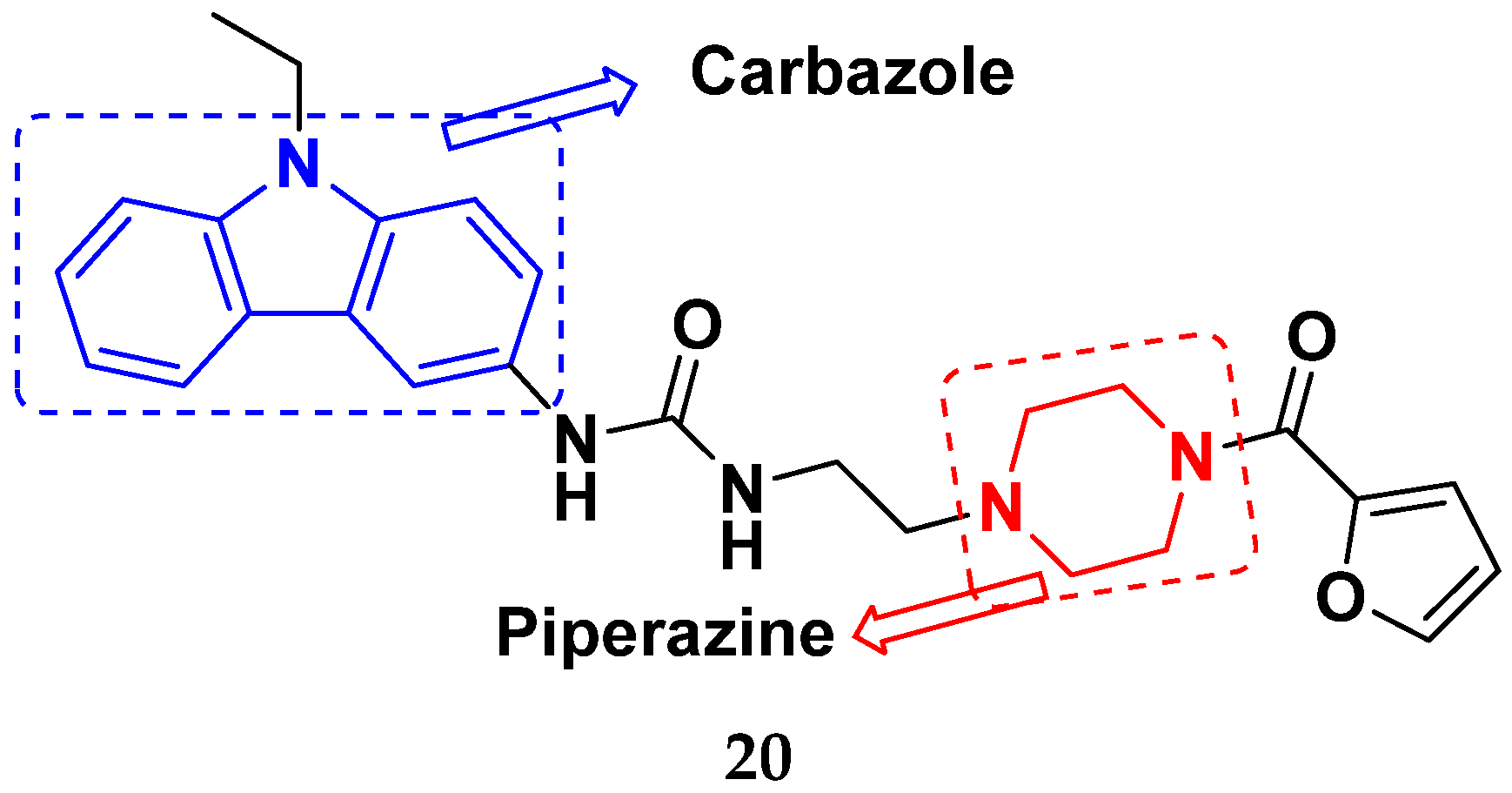

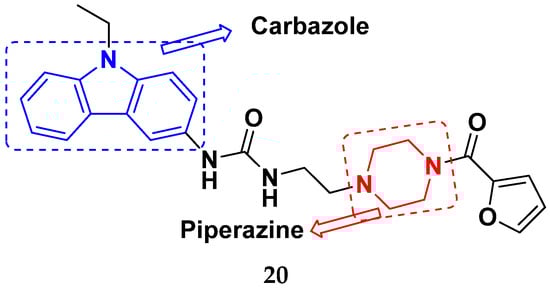

Mongre et al. (2019) synthesized a potent novel hybrid (20) of carbazole and piperazine and evaluated its anticancer activity against various cell lines including A549, NCI-H1299 (non-small cell lung carcinoma cells), HT-29, MCF-7, Hela (cervical carcinoma), and U2OS (osteosarcoma cells). The IC50 values in these cell lined were 1.779, 2.270, 2.20, 2.637, 3.072 and 2.739 µM, respectively. The molecule also showed potent cell cycle arresting activity at concentrations of 0.5, 1.0 and 2.0 µM by affecting G2/M cell cycle transition. Hybrid (20) also inhibited tumor progression in a xenograft model (BALB/c-nu nude mouse) at a dose of 3 mg/kg body weight without any toxicity. A carbzole-piperazine hybrid is depicted in Figure 23 [61].

Carbazole-Based Hybrids That Are FDA Approved or under Clinical Trial

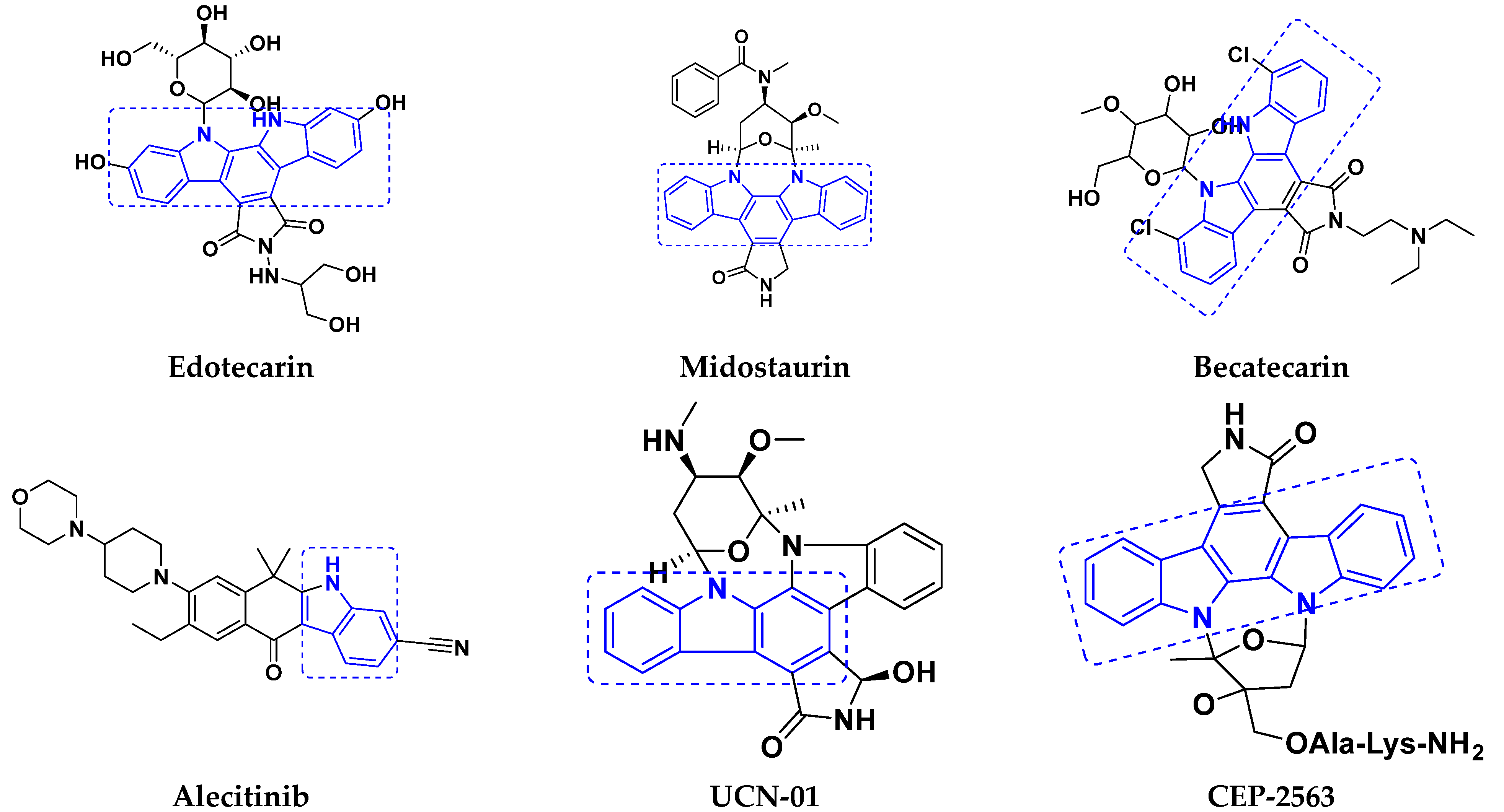

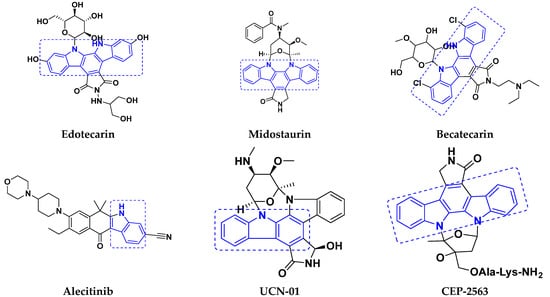

Some well-known carbazole-based hybrids with potential anticancer effects have been published [59,62,63,64]. Some carbazole-based hybrids are FDA approved medications or in clinical studies for cancer treatment. Alectinib was licensed by the US Food and Drug Administration (FDA) and the European Medicines Agency (EMA) in 2015 for the management of anaplastic lymphoma kinase-positive progressive non-small cell lung cancer (NSCLC). Midostaurin is a carbazole hybrid that was approved by the FDA and the European Medicines Agency (EMA) in 2017. It is used to treat recently diagnosed advanced systemic mastocytosis and acute myeloid leukemia [65,66].
Currently, four hybrids of carbzole are being tested in clinical studies including becatecarin and edotecarin, which have been proven to intercalate DNA and maintain the DNA-topo I complex, and are currently in Phase II and Phase III clinical studies, respectively. CEP-2563 is a strong inhibitor of platelet derived growth factor (PDGF) and tyrosine kinase that is now in a Phase I clinical development for medullary thyroid cancer. UCN-01 is now being tested in a Phase II clinical study for breast cancer, lymphoma, and pancreatic by acting upon protein kinases. The structure of FDA approved/clinical trials drugs with carbazole hybrids is given in Figure 24 and their current status is shown in Table 21.

3.5. Pyrimidine-Based Hybrids

The basic structure of RNA, DNA, and nucleic acids is the heterocyclic pyrimidine ring. Pyrimidine and its conjugated counterparts possess antiviral, antibacterial, anticancer, analgesic, anti-inflammatory, antimalarial and antioxidant activities. Anticancer action is the most often described therapeutic property of pyrimidine because it interacts with a variety of targets, as well as receptors to cause cell death. Multiple studies on the anticancer efficacy of pyrimidine compounds, as well as their therapeutic use, have supported their position as a prospective drug development nucleus [70,71].
Combs et al. (2015) synthesized and patented aminopyrimidine hybrids and evaluated their P13K enzyme as well as cell proliferation inhibitory potential in 96-well plates using scintillation counting. Compound 21 (Figure 25) showed potent activity with IC50 < 20 nM [72].

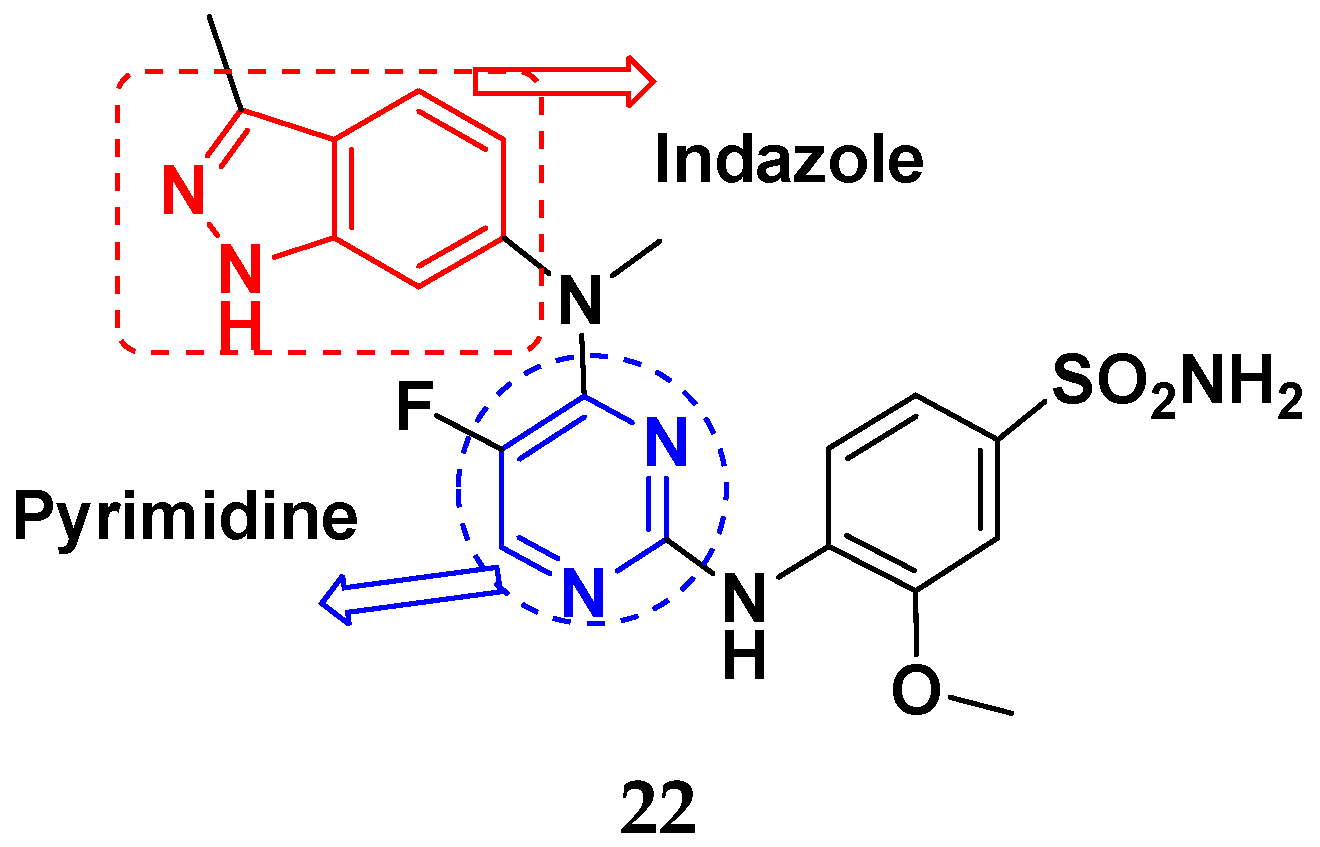

Boloor et al. (2012) synthesized and patented pyrimidine-indazole based hybrids as VEGFR2 inhibitors. Compound 22 showed potent activity with an IC50 < 50 μM. Furthermore, the lead compound 22 (Figure 26) was evaluated in an endothilian cell proliferation assay where it displayed activity withIC50s of 1-200 nM [73].
Hogberg et al. (2012) developed and patented indole based pyrimidine hybrids and evaluated their anticancer activity as tubulin inhibitors. Among the synthesized compounds, compound 23 (Figure 27) showed potent activity on CCRFCEM (T lymphoblastoid cells) with an EC50 value of 0.015 µM [74].
Mao et al. (2012) synthesized and patented pyrimidine-pyrazole based hybrid molecules and evaluated their anticancer activity against H1993 cells. The synthesized compounds did not show desirable activity on representative cell line. Furthermore, potent compound 24 (Figure 28) was subjected to enzymatic assay on cMet protein and displayed excellent activity, having an IC50 in the nM range [75].
Tanaka et al. (2012) synthesized and patented pyrimidine-pyrazole based hybrid molecules and evaluated their anticancer activity as Fyn inhibitors. Among the synthesized compounds, compound 25 (Figure 29) showed excellent activity with an IC50 of 3 nM. Furthermore, 26 (Figure 29) showed excellent activity on carbonyl reductase 1 with an IC50 of 28 nM [76].
Liang et al. (2013) synthesized and patented pyrimidine-pyrazole based hybrid molecules, and evaluated their anticancer activity as mammalian target of rapamycin mTOR inhibitors. Compound 27 (Figure 30) showed potent activity on A549 and U-87MG (glioma cells) with an IC50 < 1 µM [77].

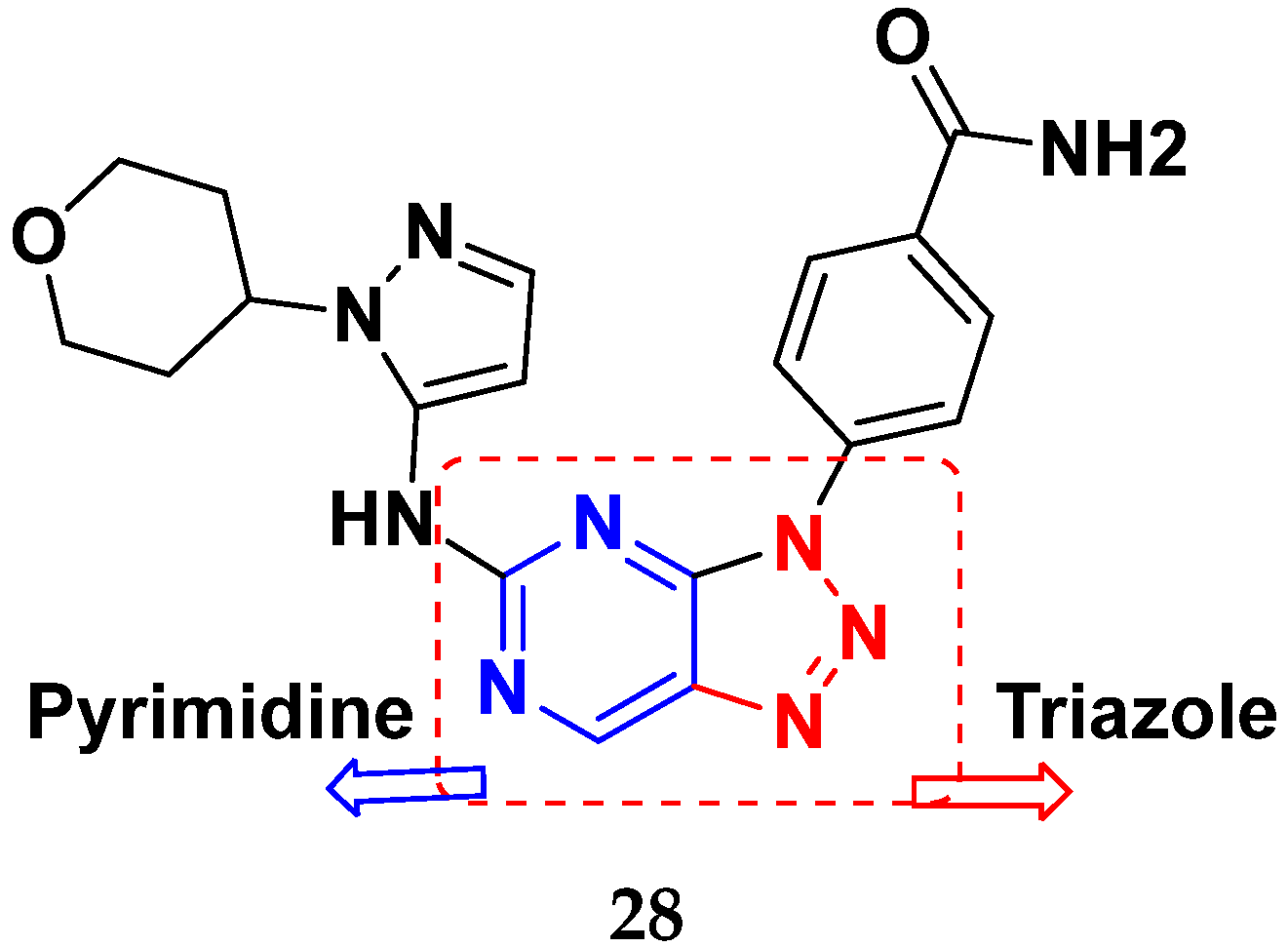

Dorsch et al. (2013) synthesized and patented pyrimidine-triazole based hybrids and evaluated their anticancer activity as general control non-derepressible 2 (GCN2) inhibitors of U20S human cells. Among the synthesized hybrids, the compound 28 (Figure 31) showed excellent activity with IC50 ≤ 0.3µM [78].

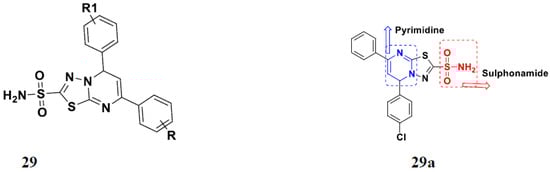

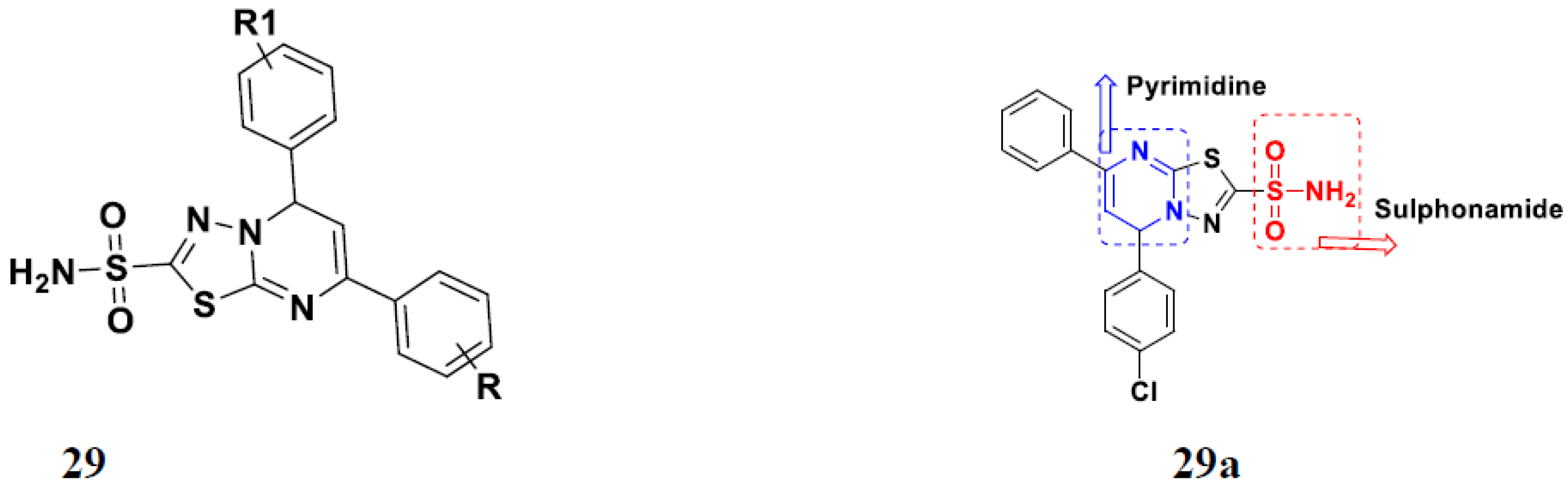

El-Sayed et al. (2011) synthesized sulfonamide-thiazole fused pyrimidine derivatives, and evaluated their anticancer activity in amethyl green/DNA displacement assay. Among the synthesized compounds, compound 29a showed potent activity with an IC50 of 40 µg/mL and high DNA binding affinity. Furthermore, in vivo studies showed that the compound 29a increased the % lifespan of mice by 42.86% over standard fluorouracil. The structure of sulfonamide-thiazole fused pyrimidine derivatives is shown in Figure 32 and the in vitro cytotoxicity of compounds 29(be) against human cancer cell lines is shown in Table 22 [79].
Shao et al. (2013) synthesized tri-substituted pyrimidine based hybrid derivatives, and evaluated their anticancer activity as cyclin-dependent kinase (CDK) inhibitors. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 30a showed potent kinase inhibition against CDK9T1, CDK1B, CDK2A, CDK7H withKi of 14, 262, 316, and 163 nM, and cell toxicity activity against HCT-116, and MCF-7 cell lines with IC50 value of 0.79, and 0.64 µM, respectively. Furthermore, compound 30a showed potent activity of Mal-1 and caspase-3 inhibition by down regulation of apoptotic protein. The structure of substituted pyrimidine derivatives is shown in Figure 33 and the in vitro cytotoxicity of compounds 30(be) against human cancer cell lines is shown in Table 23 [80].
Fares et al. (2014) synthesized pyrimidine-based triazole hybrid derivatives and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 31(a) showed excellent activity against various cell lines including MCF-7, human hepatoma carcinoma cells (HEPG2), A-549, and (PC-3) with IC50 of 37.96, 56.65, 0.41, and 0.36 µM. Furthermore, compound 31a was screened in a CDK4 and CDK6 inhibition assay and compound showed 0 and 2% inhibition at 1 µM, 5 and 1% inhibition at 10 µM and 21 and 17% inhibition at 100 µM with control staurosporine having 93 and 90% inhibition at 1 µM. The structure of pyrimidine-triazole based hybrid derivatives is shown in Figure 34 and the in vitro cytotoxicity (µM) of compounds 31(be) against human cancer cell lines is shown in Table 24 [81].
Kurumurthy et al. (2019) synthesized pyrimidine based triazole hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 32(a) showed excellent activity against various cell lines including U937, THP-1 and Colo205 cells having IC50 values of 6.20, 11.27, and 15.01µg/mL with control etoposide having IC50 values of 17.94, 2.16, 7.24, and 1.26 µg/mL, respectively. The structure of pyrimidine-triazole based hybrid derivatives is shown in Figure 35 and the in vitro cytotoxicity of compounds 32(be) against human cancer cell lines is shown in Table 25 [82].
Nagendra et al. (2014) synthesized pyrimidine based pyrazole hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 33(a) showed excellent activity against various cell lines including A549, MCF7, DU145 (prostate cancer cell) and HeLa with IC50 values of 4.2, 37.2, 5.8, and 34.3 µM and control 5-FU having IC50 values of 1.3, 1.4, 1.5, and 1.3 µM, respectively. The structure of pyrimidine-pyrazole based hybrid derivatives is shown in Figure 36 and the in vitro cytotoxicity (µM) of compounds 33(be) against human cancer cell lines is shown in Table 26 [83].
Huang et al. (2012) synthesized pyrimidine based pyrazole hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 34(a) showed excellent activity against various cell lines including NCI-H226 (human lung squamous carcinoma cells), NPC-TW01 (nasopharyngeal carcinoma), and Jurkat having GI50 29, 30, and 54 µM, respectively. The structure of pyrimidine-pyrazole based hybrid derivatives is shown in Figure 37, and the in vitro cytotoxicity of compounds 34(be) against human cancer cell lines is shown in Table 27 [84].

FDA Approved Pyrimidine Based Hybrids

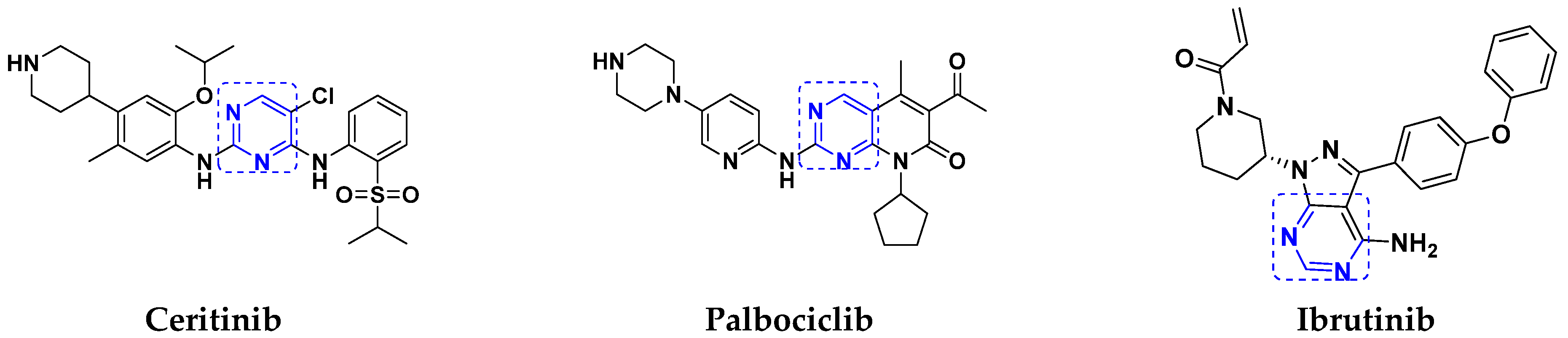

Ceritinib, palbociclib, and ibrutinib are three hybrids which contain pyrimidine scaffold that have received US-FDA approval for their antitumor effects against non-small cell lung cancer, advanced breast cancer and leukemia, respectively. Pyrimidine-based FDA approved drugs are depicted in Figure 38 and their details are shown in Table 28.

3.6. Quinoline-Based Hybrids

Quinoline has been identified as a major scaffold with huge therapeutic potential, including antibacterial, anti-viral, anti-helmintic, anti-malarial and anti-prozoal activities. Due to its derivatives having demonstrated outstanding effects against cancerous cells via various mechanisms, the quinoline nucleus has played a crucial role in the research and development of chemotherapeutic agents. Camptothecin is a natural anticancer agent with the capacity to obstruct DNA topoisomerase [89,90,91].
Sidoryk et al. (2015), synthesized quinoline based guanidine hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 35 showed excellent activity against BALB/3T3, A549, MCF-7, LoVo, and KB cell lines (Table 29). Furthermore, compound 35 (Figure 39) showed excellent activity in a DNA displacement assay and potent activity in G2/M phase of the cell cycle [92].

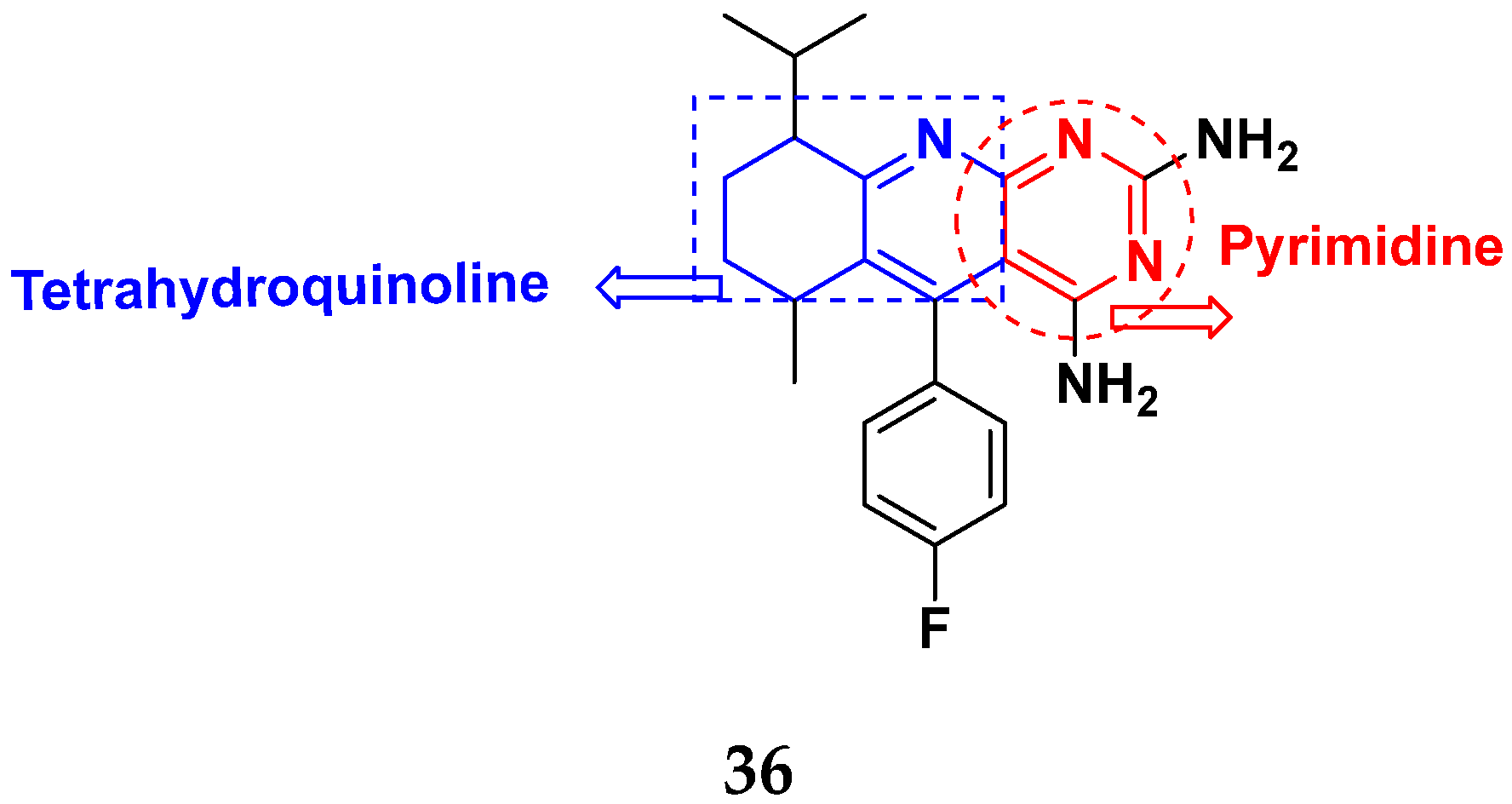

Gedawy et al. (2015) synthesized tetrahydro-pyrimido-quinoline based hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 36 (Figure 40) showed excellent activity against HCT-116, and MCF-7 (Table 30) [93].

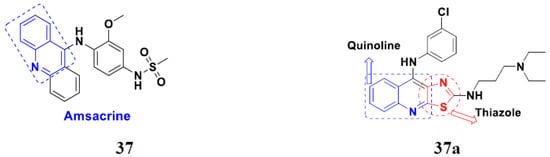

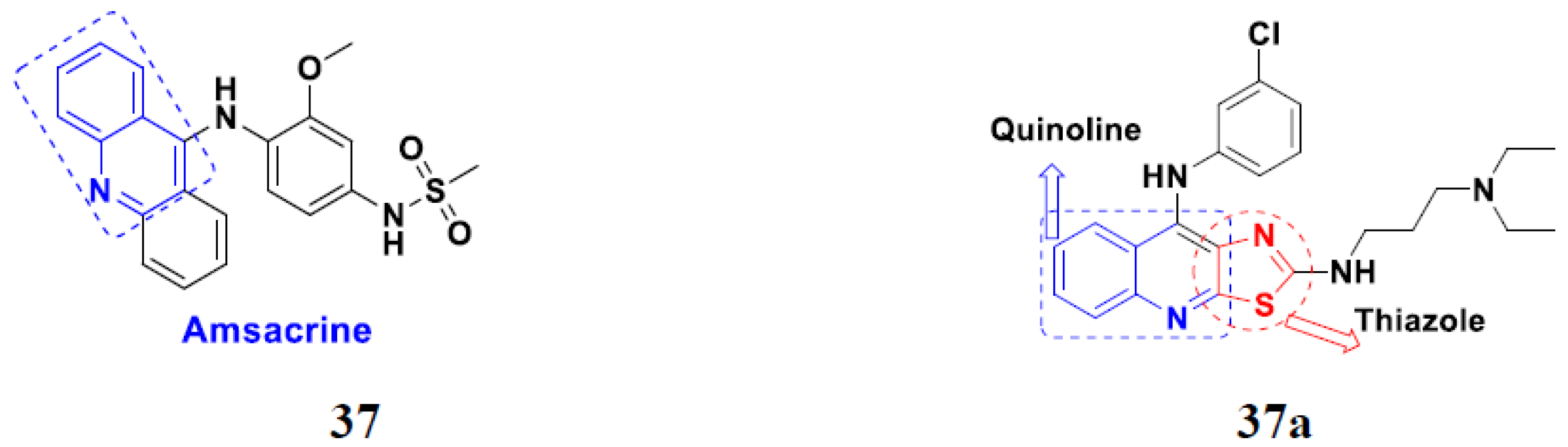

Sanchez et al. (2011) synthesized quinoline-based thiazole hybrids based on the structure of m-Amsacrine (37, Figure 41), and evaluated their anticancer activity against cancerous (K-562) and non-cancerous (PMBCs) cells. Compound 37a showed excellent activity with IC50 values of 28.7 and 7.82 µM, respectively, compared to a control of Paclitaxel (IC50 0.25 µM). Mechanistically, compound 36(a) induced appototic cell death via caspase activation with an IC50 of 7.8 µM [94].
Luniewski et al. (2012) synthesized quinoline based indole hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 38(a) showed excellent activity against KB, A-549, MCF-7, Hs294T, and BALB/3T3 cell lines having IC50 values of 0.15, 0.24, 0.38, 0.62, and 0.31 µM with control 5,11-dimethyl-5H-indolo [2,3-b]quinoline (DIMIQ) at IC50 values 1.14, 2.19, 1.50, 9.70, and 5.70 µM, respectively. Furthermore, compound 38a showed excellent topo II inhibitory activity at concentration of 0.05 µM with control DIMIQ (Conc. 0.5 µM), m-AMSA (Conc. 0.05 µM), and daunorubicind (Conc. 0.5 µM) and cell cycle inhibitory activity at a concentration of 0.10 µM with control DIMIQ (Conc. 1.02 µM). Additionally, it showed positive inhibitory results in the G2M phase of the cell cycle. The structure of quinoline-indole based hybrid derivatives is given in Figure 42 and the in vitro cytotoxicity of compounds 38(be) against human cancer cell lines is shown in Table 31 [95].

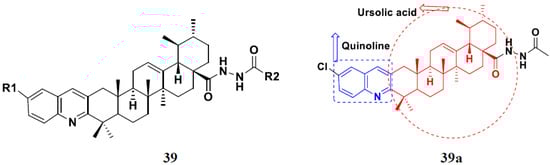

Jin et al. (2019) synthesized quinoline-based ursolic acid hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 39(a) showed excellent activity against MDA-MB-231, HeLa, SMMC-7721, and QSG-7701 (hepatocyte cell line) at IC50 0.12, 0.08, 0.34, and 10.76 µM with control Etoposide with IC50 values of 5.26, 2.98, 3.48, and 28.75 µM, respectively. Furthermore, compound 39(a) showed excellent activity apoptosis-inducing activity in on HeLa cell lines (for 48 h). The structure of quinolinebased ursolic acid hybrids derivatives is shown in Figure 43, and the in vitro cytotoxicity (µM) of compounds 39(be) against human cancer cell lines is shown in Table 32 [96].

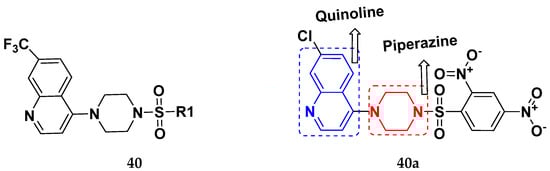

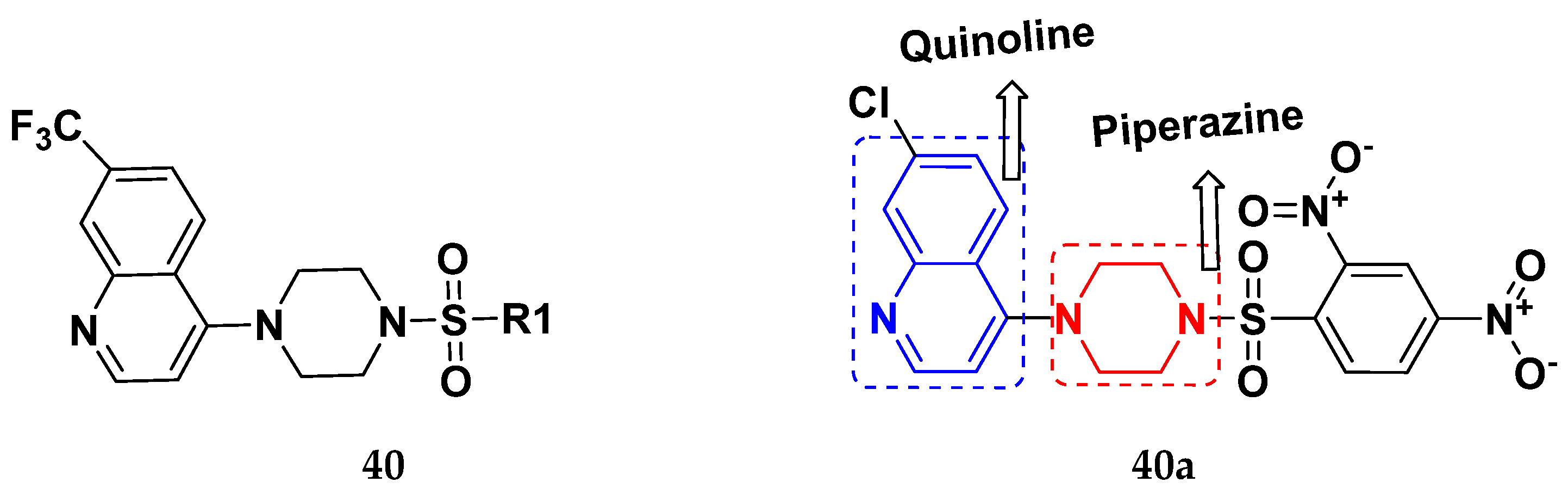

Solomon et al. (2019) synthesized quinoline based sulphonamide/piperazine hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 40(a) showed excellent activity against MB231, MB468, MCF7, 184B5 (normal mammary tissue), and MCF10A cell lines, having GI50 values of 3.4, 0.7, 2.3, 9.0, and 12.3 µM. Control chloroquine, had GI50 values of 22.5, 28.6, 38.4, 76.1, and 81.26 µM and Cisplatin having GI50 value 23.7, 31.0, 25.8, 25.5, and 51.51µM, respectively. Furthermore, compound 40(a) showed cell cycle interruption at the meta phase, and also increased the liposamal volume in cancerous cells which led to cell death. The structure of quinoline based piperazine hybrids is given in Figure 44 and the in vitro cytotoxicity (µM) of compounds 40(be) against human cancer cell lines is shown in Table 33 [97].

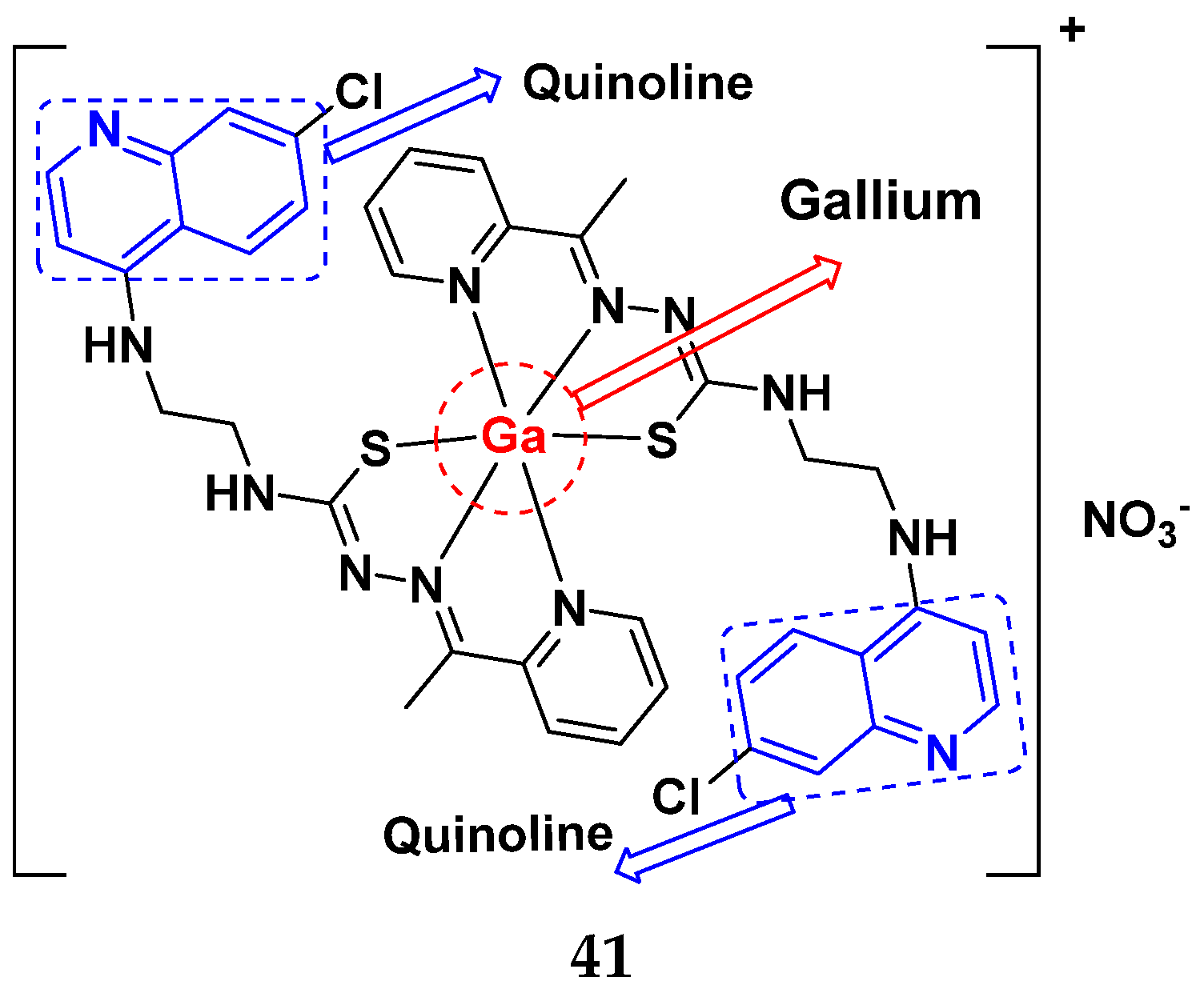

Kumar et al. (2014) synthesized quinoline-based gallium(III) hybrids and evaluated their anticancer activity. Synthesized hybrid 41 showed potent activity against HCT-116, Caco-2 (human colon cancer cell), HT-29, and CCD-18C (colonic fibroblasts), having IC50 values of 14.26, 19.56, 19.66, and 28.28 µM, respectively. Control etoposide had comparative values of 38.10, 32.90, 35.10, and 58.90 µM, respectively. Furthermore, hybrid 41 was evaluated for anti-malarial activity, showing more potent activity than lumefantrine on the 3D7 strain of Plasmodium falciparum. A quinoline-based gallium(III) hybrid is depicted in Figure 45 [98].

Quinoline-Based FDA Approved Drugs

Quinoline containing drugs that have received FDA approval include lenvatinib, cabozantinib, and bosutinib which are protein kinase inhibitors and are used to cure medullary thyroid cancer and chronic myelogenous leukemia accordingly. FDA approved drugs with quinoline hybrids are depicted in Figure 46 and their details are shown in Table 34.

3.7. Quinone Hybrids

Quinones are found in all living beings; particularly animals, plant and microbes. Through serving as crucial links in the cell nucleus respiratory cycle, they play a vital role in the power generation of such species. Numerous distinct medicinal uses of quinones have been noted, such as antiviral, antithrombotic, antiplatelet, antibacterial, antifungal, anti-inflammatory, and antiallergic properties [101,102].

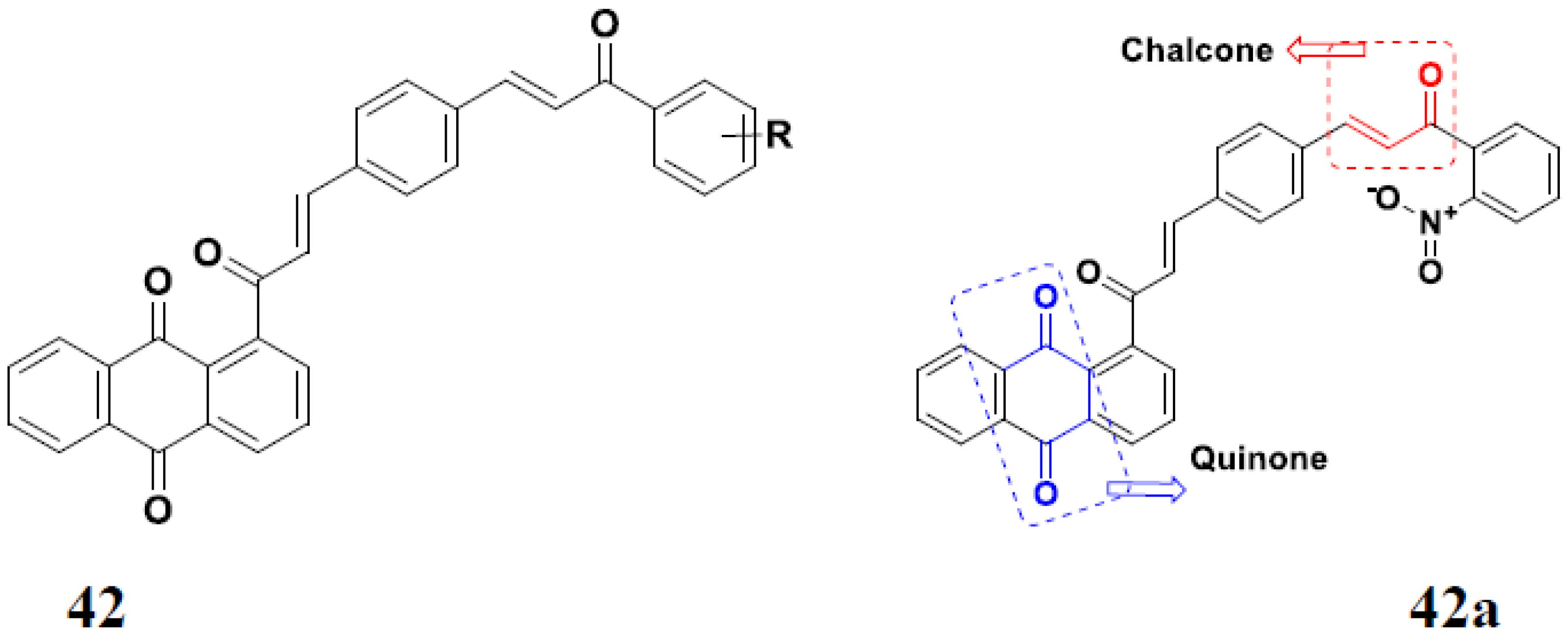

Markovic et al. (2015) synthesized quinone based chalcone hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 42(a) showed excellent activity against HeLa, LS174 (colorectal cancer cells), A549, and MRC-5 (multipotent stem cells) with IC50 values of 2.73, 6.44, 28.84, and 48.76, respectively. Furthermore, compound 42(a) showed caspase based apoptosis in G2/M and S phase of cell division. The structure of quinone-based chalcone hybrids derivatives is given in Figure 47 and the in vitro cytotoxicity of compounds 42(be) against human cancer cell lines is shown in Table 35 [103].

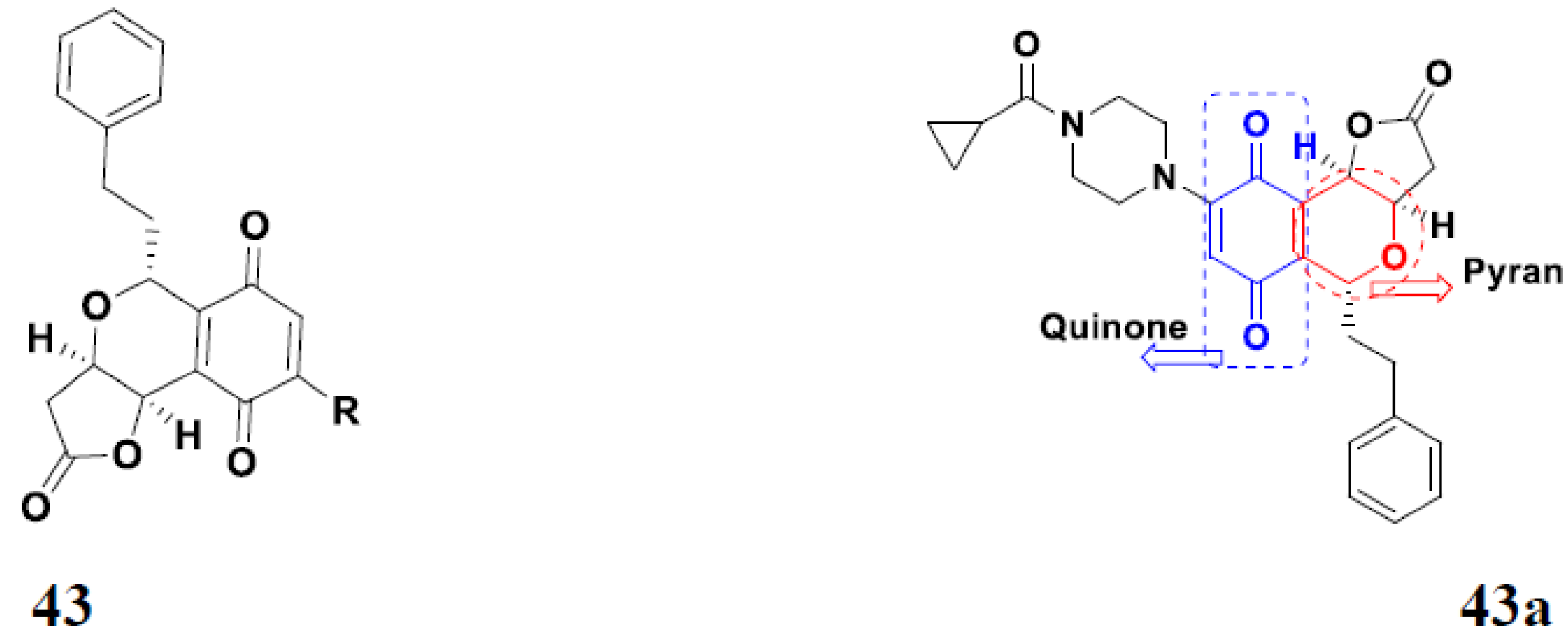

Jiang et al. (2015) synthesized quinone based pyran hybrids and evaluated their anticancer activity. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 43(a) showed excellent activity against KB (throat cancer cells), KB/VCR (colon cancer cells), A549, and HL60, with IC50 values 4.05, 1.28, 0.62, and 1.73 µg/mL. A control vincristine had IC50 values of 0.46, 0.26, and 12.09 µg/mL (for KB, KB/VCR, A549), respectively, and adriamycin had an IC50 value 0.02 µg/mL (HL60). The structure of quinone-based pyran hybrid derivatives is given in Figure 48 and the in vitro cytotoxicity (µg/mL) of compounds 43(be) against human cancer cell lines is shown in Table 36 [104].

Quinone Containing FDA Approved Drugs

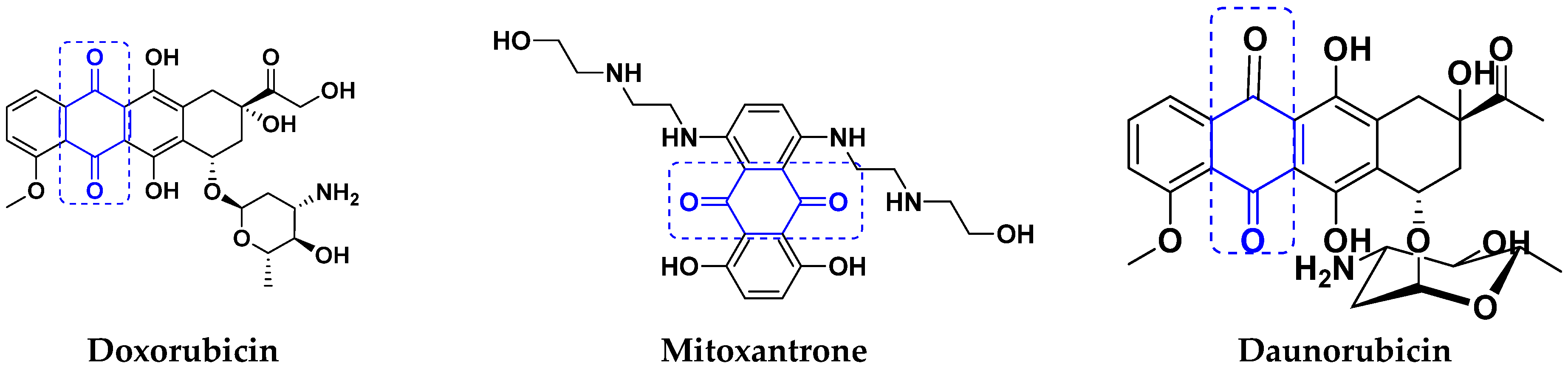

Doxorubicin, daunorubicin, and mitoxantrone drugs are used to treat several types of cancer. These drugs are shown in Figure 49 [101].

3.8. Imidazole Based Hybrids

The imidazole derivatives have recently gained a lot of interest and are already present in many existing treatments. Imidazole was first synthesized in 1858 using glyoxal and formaldehyde by Heinrich Debus [105]. Various medicinal properties of imidazole based hybrid molecules have been reported; especially as antitumor [106], anti-diabetic, anti-HIV, anti-protozoal, anti-mycobacterial, anti-inflammatory, analgesic, and anti-protozoal agents [107,108].

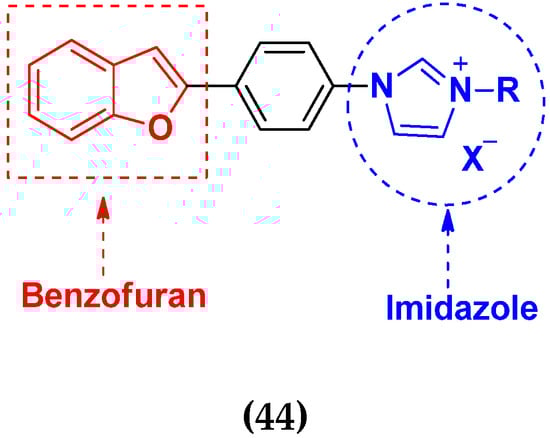

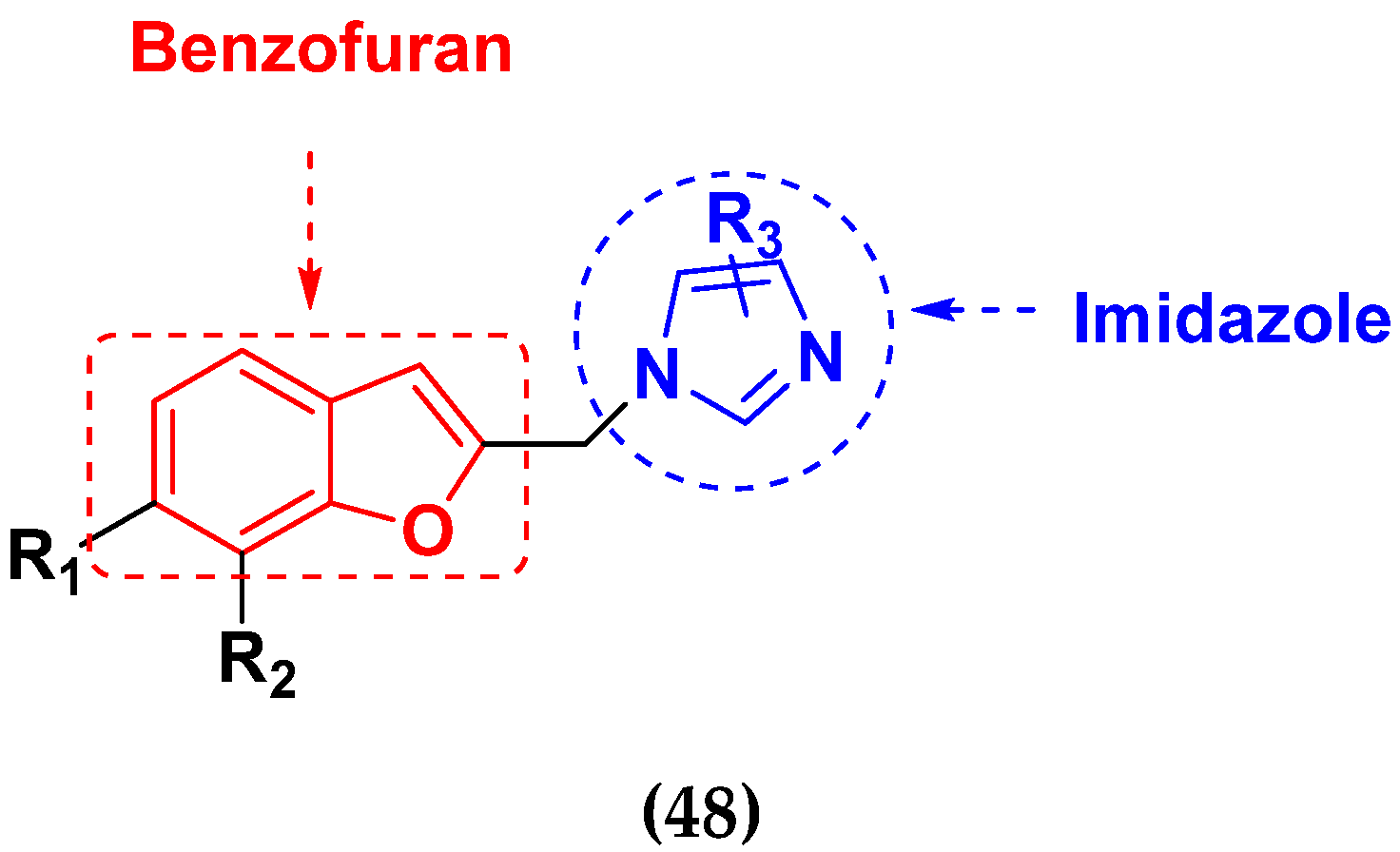

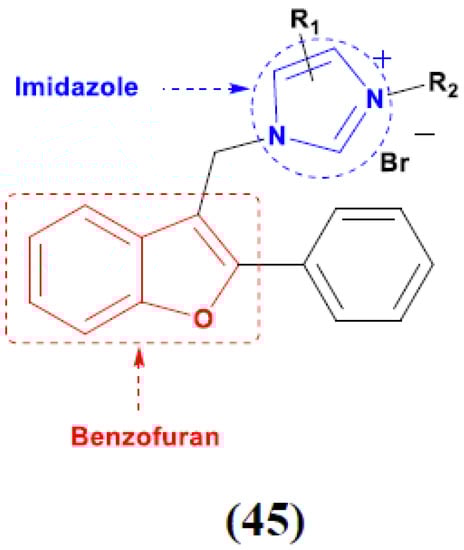

Xiao-Dong Yang et al. (2012) synthesized different derivatives of novel hybrid compounds between 2-phenylbenzofuran and imidazole. Myeloid liver carcinoma (SMMC-7721), colon carcinoma (SW480), breast carcinoma (MCF-7), lung carcinoma (A549) and leukemia (HL-60) cell lines were used for in vitro study of the cytotoxic effects of synthesized hybrids with cisplatin (DPP) as the standard drug. Five derivatives showed more potent cytotoxic activity than standard DPP. The structure of imidazole based benzofuran hybrid derivatives are given in Figure 50 and the in vitro cytotoxic activities of hybrid compounds 44(ae) (IC50, µM) are listed in Table 37 [109].
Wen Chen et al. (2013) synthesized numerous derivatives of novel hybrid 2-phenyl-3-alkylbenzofuran and imidazole compounds. Myeloid liver carcinoma (SMMC-7721), colon carcinoma (SW480), breast carcinoma (MCF-7), lung carcinoma (A549) and leukemia (HL-60) cell lines were used for in vitro cytotoxic testing of synthesized hybrids, with DPP as the standard drug. They found that five derivatives showed more potent cytotoxic activity than standard DPP. The structure of imidazole based benzofuran hybrid derivatives is given in Figure 51 and the in vitro cytotoxic activities of hybrid compounds 45(ae) (IC50, µM) are listed in Table 38 [110].

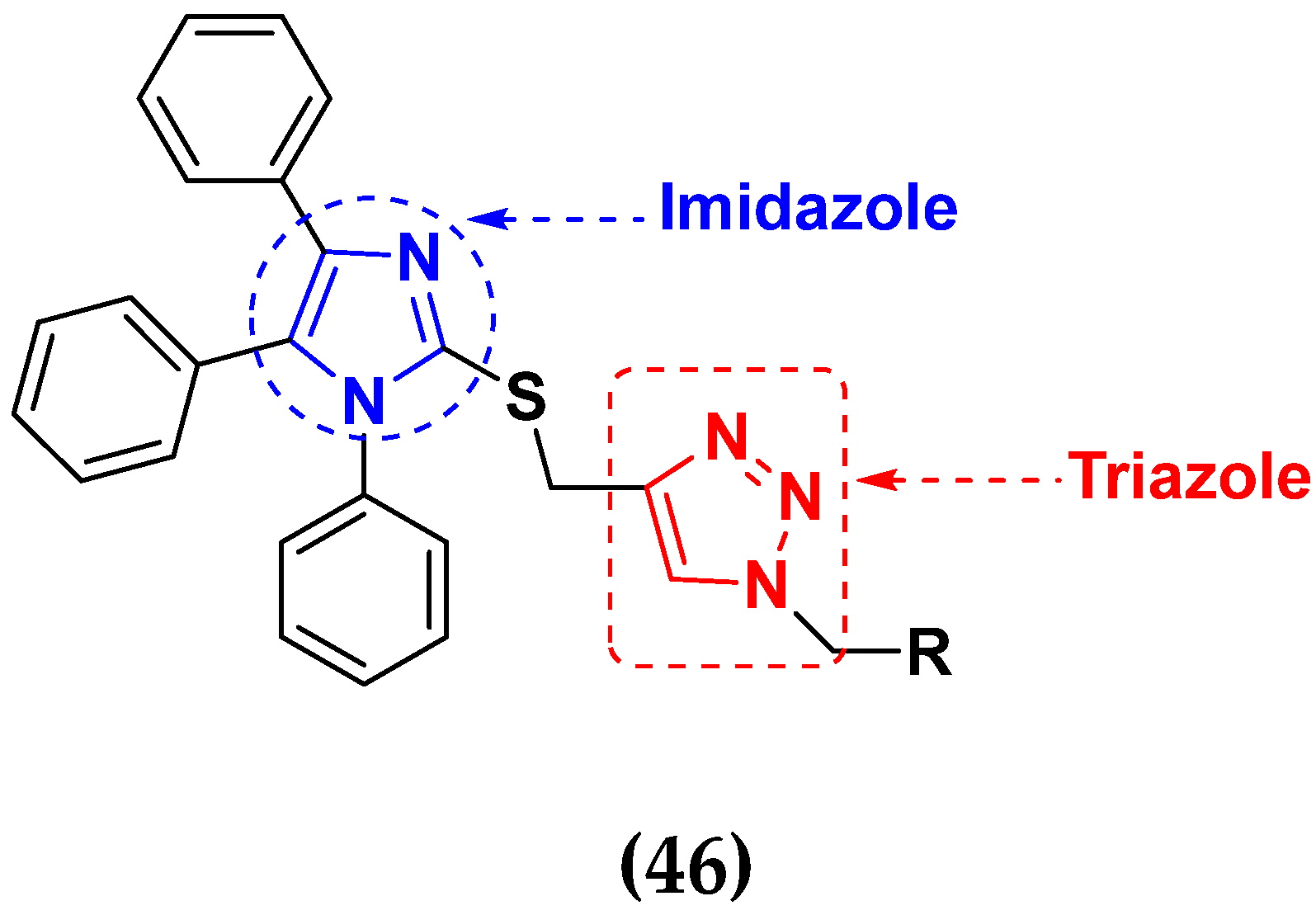

Al-blewi et al. (2013) synthesized numerous derivatives of novel imidazole-1,2,3-triazole hybrids. The synthesized compounds were screened for their anticancer activity against three different types of cancer, namely human colon carcinoma (Caco2 and HCT116), human cervical carcinoma (HeLa) and human breast adenocarcinoma (MCF-7) cancer cells-, using doxorubicin as a standard drug. They found that these derivatives showed potent more cytotoxic activity than standard doxorubicin. The structure of imidazole based triazole hybrid derivatives is given in Figure 52 and in vitro cytotoxic activities of hybrid compounds 46(ae) are listed in Table 39 [111].
Yanping Hu et al. (2019) designed and synthesized a series of artemisinin-imidazole hybrids derivatives with multidrug resistance (MDR) reversal activity. All hybrids were screened in vitro for anticancer activities against four human cancer cell lines, human breast cancer (MCF-7), human non-small-cell lung (A549), (HEPG-2), breast cancer (MDA-MB-231) and normal human hepatic cells (L02). Adriamycin was used as reference drug. They found that most of the synthesized compounds showed higher anticancer activities than artemisinin. The structure of imidazole based artemisinin hybrid derivatives is given in Figure 53 and the in vitro cytotoxic activities of hybrid compounds 47(ae) are listed in Table 40 [112].
Wen-Jian Song et al. (2012) designed and synthesized a series of novel hybrid compounds of 2-substituted benzofuran and imidazole. In vitro anticancer activity of synthesized hybrids against a panel of human tumor cell lines i.e., ovarian carcinoma cell line (Skov-3), leukemia (HL-60) and breast carcinoma (MCF-7) was evaluated. They found that the hybrid compounds were more selective than standard DPP. The structure of imidazole based benzofuran hybrid derivatives is given in Figure 54 and the in vitro cytotoxic activities of hybrid compounds 48(ae) are listed in Table 41 [113].

Imidazole Based Hybrids That Are FDA Approved or under clinical Trial

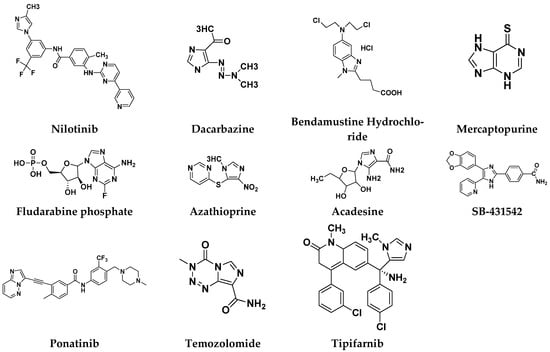

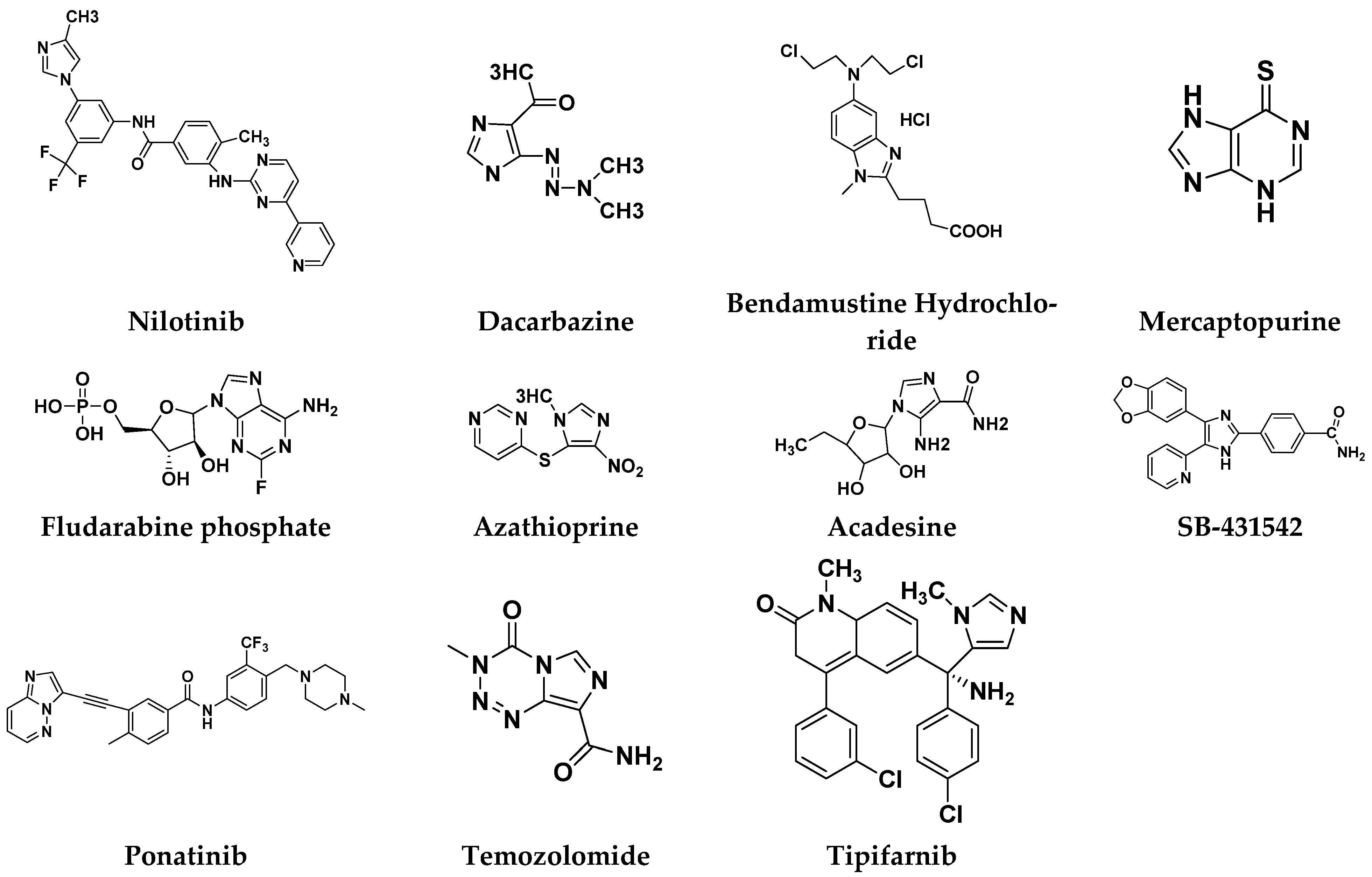

Different imidazole-based anticancer hybrid drugs that are FDA approved/or under clinical trials are shown in (Figure 55), and their chemical structures brand/company name and targets are in Table 42.

3.9. Selenium-Based Hybrids

Selenium (Se) is a unique trace element. Se directly or indirectly exerts antioxidant functions in the human body. However, during recent years, researchers reported that Se containing compounds exhibit superior anticancer effects, with high efficacy and selectivity [117]. It has been reported that a variety of organic selenium compounds, including selenoesters, selenocyanates, methylseleninic acid, isoselenocyanates, diselenides, and endocyclic selenium, have anticancer properties [118].
Organic Se compounds have lower systemic effects, fewer side effects, and strong anti-tumor action. They also have a greater ability to inhibit metastasis. Several novel organic Se compounds have been synthesized in order to further improve the selectivity, specificity and efficacy and to lower the toxicity [119].
Xianran He et al. (2020) synthesized organoselenium (SeCF3) derivatives as potential anticancer agents. The anticancer activity of the synthesized compounds was assessed using human cancer cell lines, human colon adenocarcinoma cells (SW480), human cervical cancer cells (HeLa), human lung carcinoma cells (A549), human breast adenocarcinoma cells (MCF-7). The in vitro biological evaluation was conducted at 24, 48 and 72 h intervals, and it was found that the organoselenium hybrid compounds were more selective than standard Fluorouracil (5FU). The structure of organoselenium hybrid derivatives is given in Figure 56 and the in vitro cytotoxic activities of hybrid compounds 49(ac) are listed in Table 43 [118].

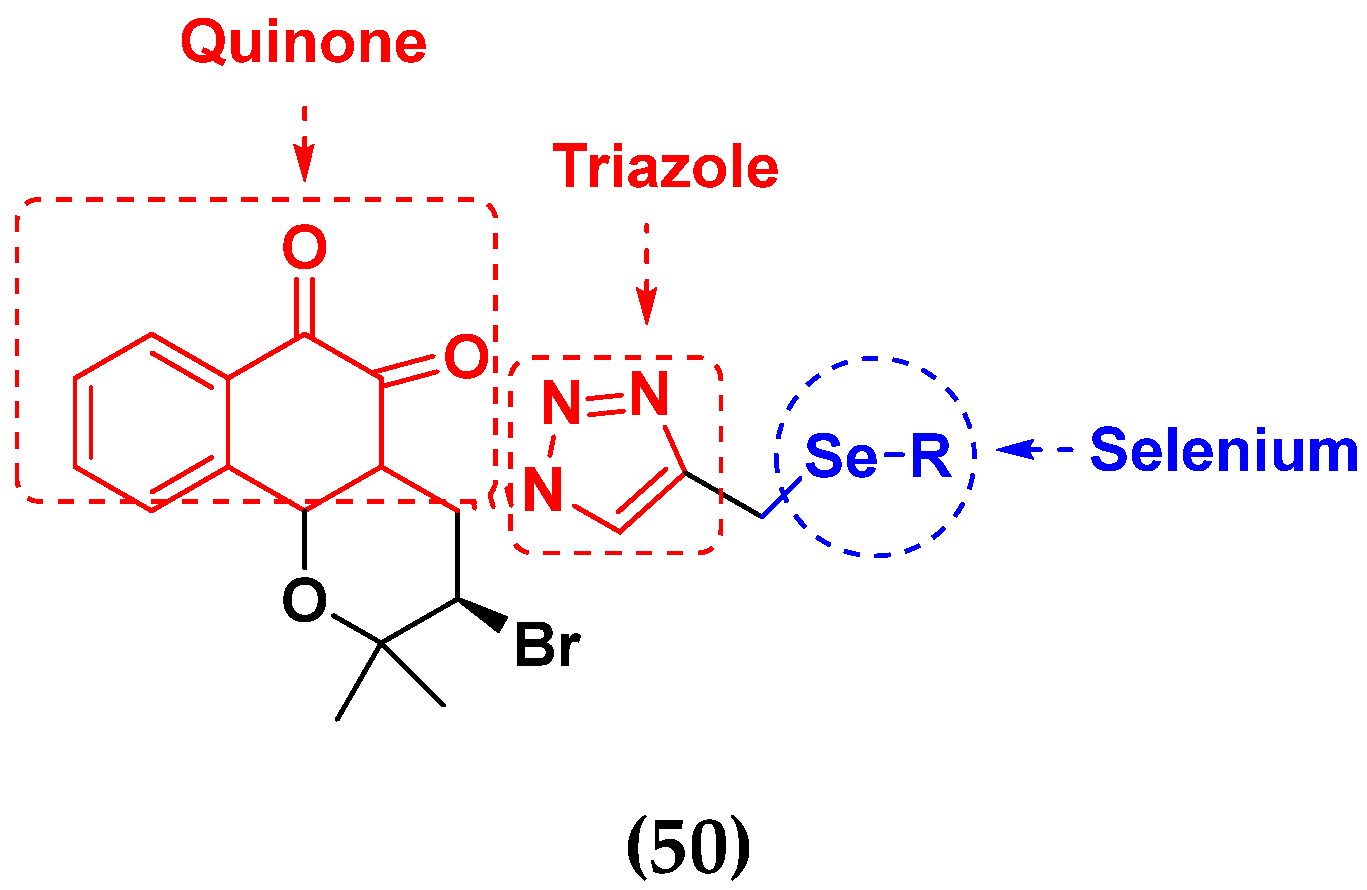

Guilherme A. Jardim et al. (2017) synthesized selenium-containing quinone-based 1,2,3-triazoles with potential antitumor activity via rhodium-catalyzed C-H bond activation and click reactions. All compounds were evaluated against five types of cancer cell lines: human promyelocytic leukemia cells (HL-60), human colon carcinoma cells (HCT-116), human glioblastoma cells (SF295), human lung cells (NCIH-460) and human prostate cancer cells (PC3), using paclitaxel as a positive control. L929 cells were also used to test the cytotoxic potential of the naphthoquinoidal derivatives in non-tumor cells. Overall, these compounds represented promising new lead derivatives with potential antitumor activity. The structure of selenium based quinone triazole hybrids is given in Figure 57 and in vitro cytotoxic activities of hybrid compounds 50(ae) are listed in Table 44 [120].

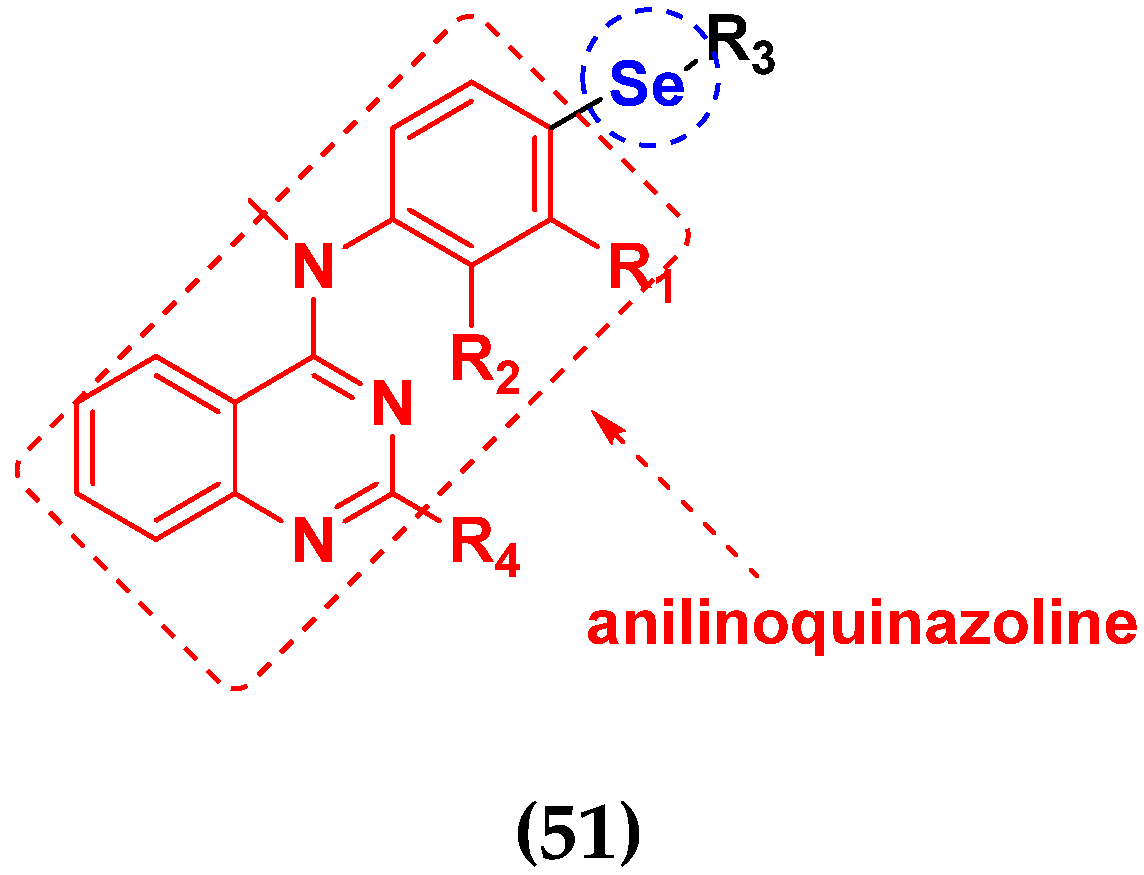

An B et al. (2018) synthesized selenium-containing 4-anilinoquinazoline hybrids and evaluated them as tubulin polymerization inhibitors. All the synthesized compounds were screened against a panel of six human tumor cell lines, human colon cancer cells (RKO), HEPG2, breast adenocarcinoma (MCF-7), human epithelial cervical cancer cells (HeLa), human colon cancer cells (HCT116), and human gastric cancer cells (MGC803). An antiproliferative activity assay showed that most of compounds inhibited human cancer cells at low nano-molar concentrations. These compounds disturbed microtubule dynamics, lowered mitochondrial membrane potential, and stopped Hela cells in the G2/M phase, ultimately leading to apoptosis. The structure of selenium based anilino quinazoline hybrids is given in Figure 58 and the in vitro cytotoxic activities of hybrid compounds 51(ae) are listed in Table 45 [121].
Hairong Tang et al. (2021) synthesized novel selenium-containing chiral 1,4-diarylazetidin-2-ones and biologically evaluated for antitumor activities. All the newly synthesized selenium-containing compounds were screened for their antiproliferative activity against four human cancer cell lines, human epithelial cervical cancer cells (HeLa), human hepatoma cells (HUH-7), ovarian carcinoma cells (Skov-3) and human ovarian cancer cells (A2780), using paclitaxel as the positive control. The structure of Selenium based arylazetidin hybrids is shown in Figure 59 and the in vitro cytotoxic activities of hybrid compounds 51(ad) are listed in Table 46 [122].
Sheng Huang et al. (2021) designed and synthesized fourteen novel selenium N-heterocyclic carbene (Se-NHC) compounds derived from 4,5-diarylimidazole and evaluated their antiproliferative activity towards ovarian cancer cells (A2780) and normal ovarian epithelial cells (IOSE80). Most of them were more effective towards ovarian cancer cells (A2780) than HepG2 hepatocellular carcinoma (HCC) cells. In addition, compound 53 displayed more than two-fold higher cytotoxicity to A2780 cells than to normal ovarian epithelial cells (IOSE80). Further research demonstrated that these inhibitors generated reactive oxygen species (ROS), harmed mitochondrial membrane potential (MMP), stopped cells from entering G0/G1 phase, and ultimately promoted apoptosis in the A2780 cells. The structure of selenium-based diarylimidazole hybrids is shown in Figure 60 and the in vitro cytotoxic activities of hybrid compounds 53(ae) are listed in Table 47 [123].

Selenium-Based Hybrids That Are FDA Approved or under Clinical Trials

Different selenium-based potent anticancer drugs their chemical structure (Figure 61), mode of action and doses are shown in Table 48.

3.10. Platinum-Based Hybrids

Platinum (Pt) medicines are still among the most often used anticancer treatments after more than 40 years of use. It is not unexpected that new research into changes in DNA repair pathways provides a reasonable explanation for Pt medicines’ efficacy since they primarily target DNA [124]. The first platinum drug, cisplatin, was discovered by Barnett Rosenberg in 1960 [125] and received FDA approval in 1978 for the treatment of advanced ovarian, bladder and testicular cancer [126]. Oxaliplatin and carboplatin are also platinum containing clinical drugs. Despite the widespread use of platinum medicines in cancer treatment regimens, there are several associated drawbacks. It is associated with severe side effects such as nephrotoxicity, neurotoxicity, and ototoxicity [127]. Additionally, using platinum medications has a number of adverse effects that range in intensity from mild to toxic (at high doses). In an attempt to circumvent these problems, a large number of platinum complexes have been prepared and tested for anticancer activity [128].

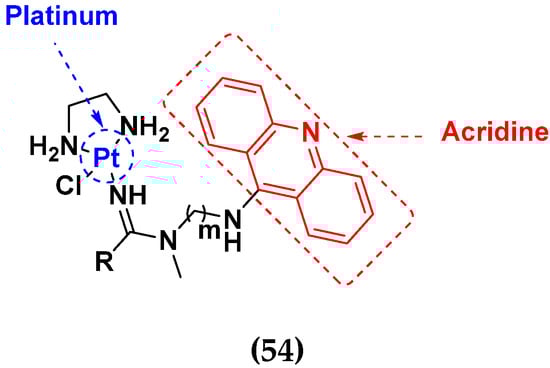

A. Graham et al. (2012) synthesized platinum−acridine hybrid anticancer agents. In vitro cytotoxicity activity was evaluated on different cell lines, ovarian cancer (OVCAR-3), breast cancer (MCF-7, MDA-MB231), pancreatic (PANC1) and non-small cell lung cancer cells (NCI-H460) using cisplatin as the positive control. The structure of Platinum−acridine hybrids is given in Figure 62 and in vitro cytotoxic activities of hybrid compounds 54(ae) are listed in Table 49 [129].

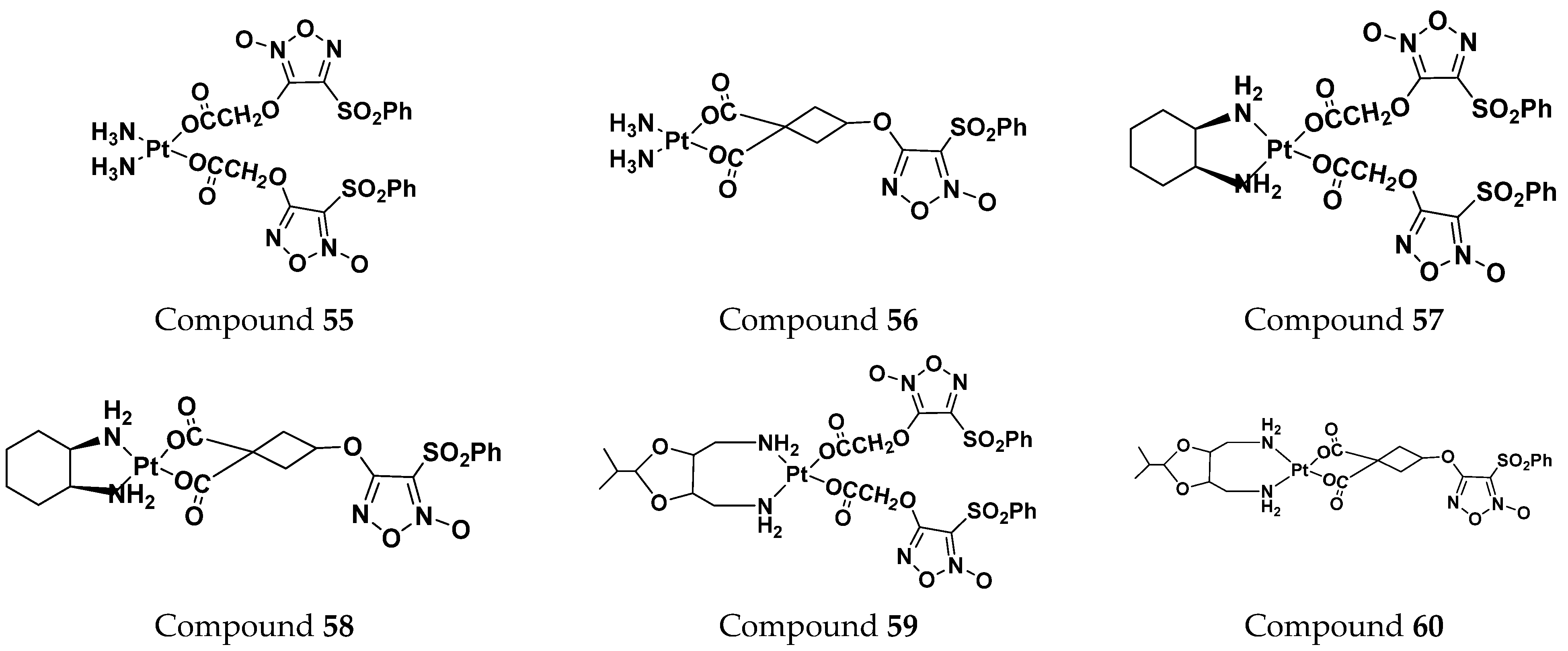

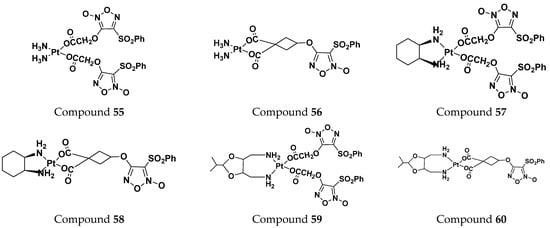

Jian Zhao et al. (2012) designed and synthesized six novel platinum (II) complexes 1−6 bearing different furoxan moieties as nitric oxide (NO) donors. The furoxan groups were introduced to the platinum complexes to release NO, which may have synergisticaction with the platinum-based moieties on the tumor cells. It was found that all compounds exhibited higher cytotoxicity against human cancer cell lines HCT-116 and SGC-7901 compared to standard carboplatin, and oxaliplatin. The structure of platinum hybrids is shown in Figure 63 and the in vitro cytotoxic activities of hybrid compounds (5560) are listed in Table 50 [130].

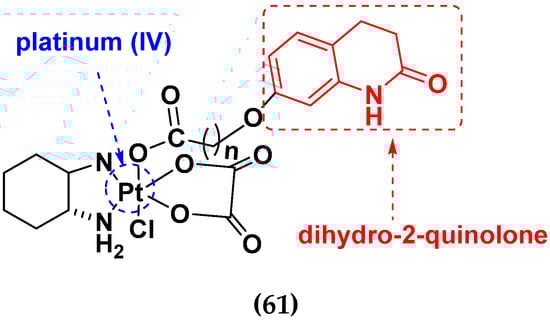

Liu Z et al. (2021) prepared dihydro-2-quinolone (DHQLO) platinum (IV) compounds. Cytotoxic profiles of DHQLO platinum (IV) complexes were tested against five carcinoma cell lines including, ovarian cancer (SKOV-3), human cervical cancer cell (HeLa), human lung cancer (A549), murine colon cancer (CT-26), a cisplatin resistant cell line (A549R), and one normal human embryonic kidney cell line (293T). The antitumor activities of DHQLO platinum (IV) compounds were tested using the MTT assay with cisplatin and oxaliplatin as reference drugs. Cells were treated with drugs at different concentrations for 48 h, and the results were given as IC50 values. The structure of Platinum (iv) dihydro-2-quinolone hybrids is given in Figure 64 and the in vitro cytotoxic activities of hybrid compounds 61(ae) are listed in Table 51 [131].

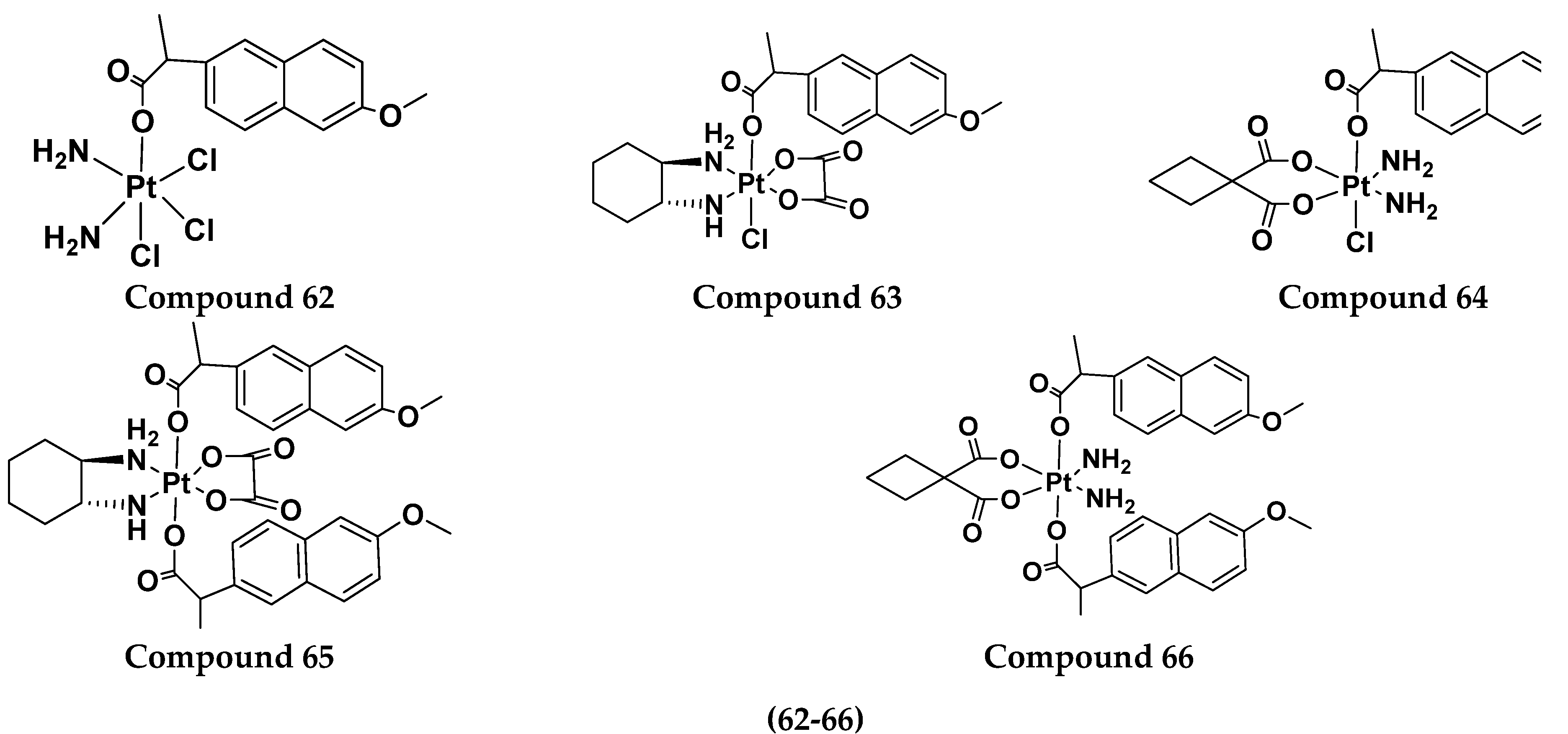

Yan Chen et al. (2020) synthesized naproxen platinum(IV) hybrids (6266, Figure 65) that inhibited, matrix metalloproteinases and caused DNA damage. The antitumor activities of naproxen platinum(IV) compounds (6266) were tested against four tumor cell lines including human lung cancer (A549), human ovarian cancer (SKOV-3), murine colon cancer (CT-26) and a cisplatin resistant cell line (A549R).A human normal liver cell LO-2 was also evaluated. The results are given in Table 52. It was observed that compounds 6266 displayed moderate to effective antitumor activities against the tested tumor cell lines [132].

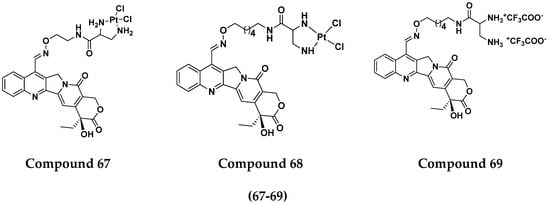

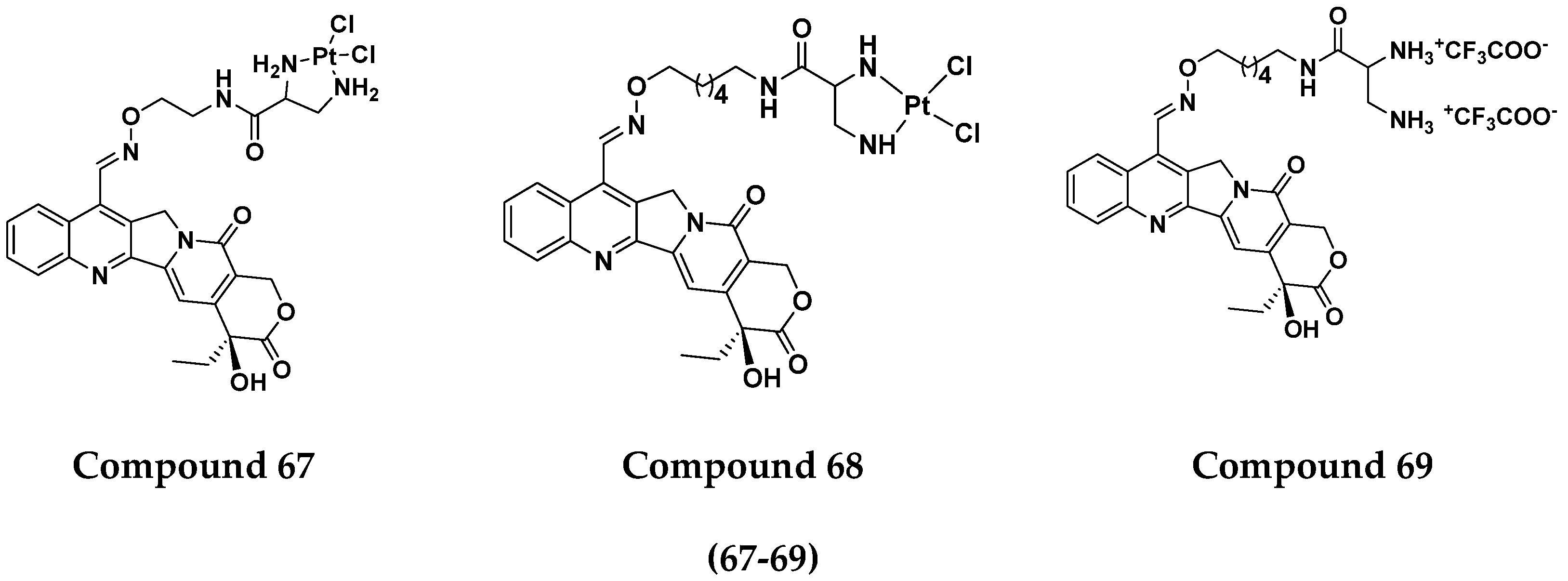

Raffaella Cincinelli et al. (2013) designed and synthesized camptothecin-linked platinum anticancer agents. Biological activity was tested on different cell lines, including non-small cell lung cancer (H460), osteosarcoma (U2OS), cell carcinoma cells (A431), and ovarian carcinoma (IGROV-1, A2780). These compounds showed growth inhibitory activity against a panel of human tumor cell lines, including sublines resistant to topotecan and platinum compounds. A general reduced potency with respect to TPT was observed in ovarian carcinoma IGROV-1 and A2780 cell lines. The structure of camptothecin-linked platinum anticancer hybrids is given in Figure 66 and the in vitro cytotoxic activities of hybrid compounds (6769) are listed in Table 53 [133].

Platinum Based Drugs That Are FDA Approved or under Clinical Trial

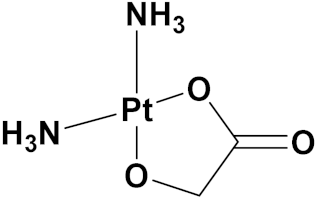

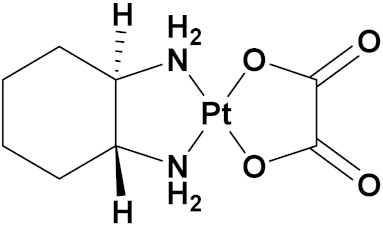

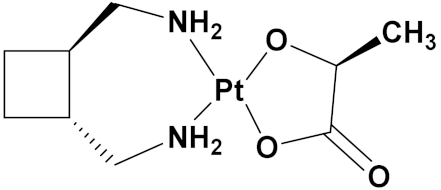

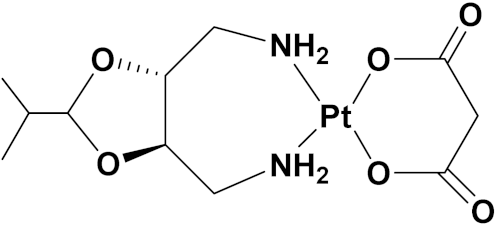

Different platinum-based potent anticancer drugs their chemical structure, specific cancer types and current status are shown in Table 54.

3.11. Hydroxamic Acid Hybrids

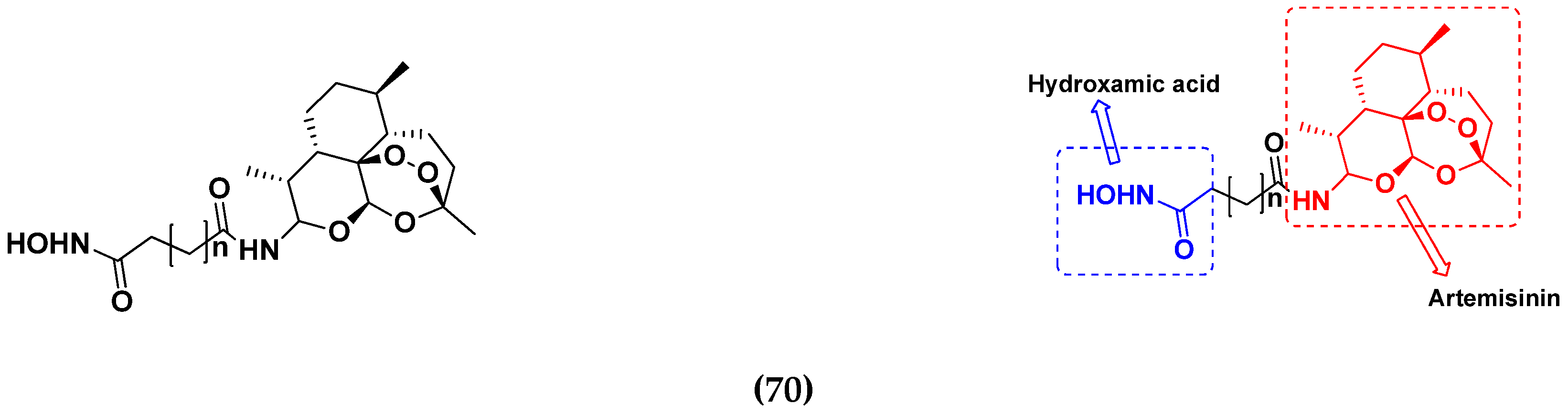

Xing Yan et al. (2016) synthesized hybrids of hydroxamic acid with artemisinin and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds showed potent anticancer activity. Among them, compound 70(a) exhibited excellent activity against various cell lines including HepG2, MCF-7 and HL-60 (human leukemia cell) with IC50 values of 2.50, 2.62, and 1.28 µM, respectively, and control suberoylanilide hydroxamic acid (SAHA) IC50 values of 0.31, 1.90, and 0.18 µM, respectively. Furthermore, they synthesized 14 compounds. Amongst them, only two compounds 70(a), and 70(b), showed excellent HDAC (histone deacetylases) selectivity with IC50 values of 29.31 and 22.7 µM, respectively. The structure of a hydroxamic acid artemisinin hybrid is shown in Figure 67 and the in vitro cytotoxic activities of hybrid compounds 70(ac) are listed in Table 55 [136].

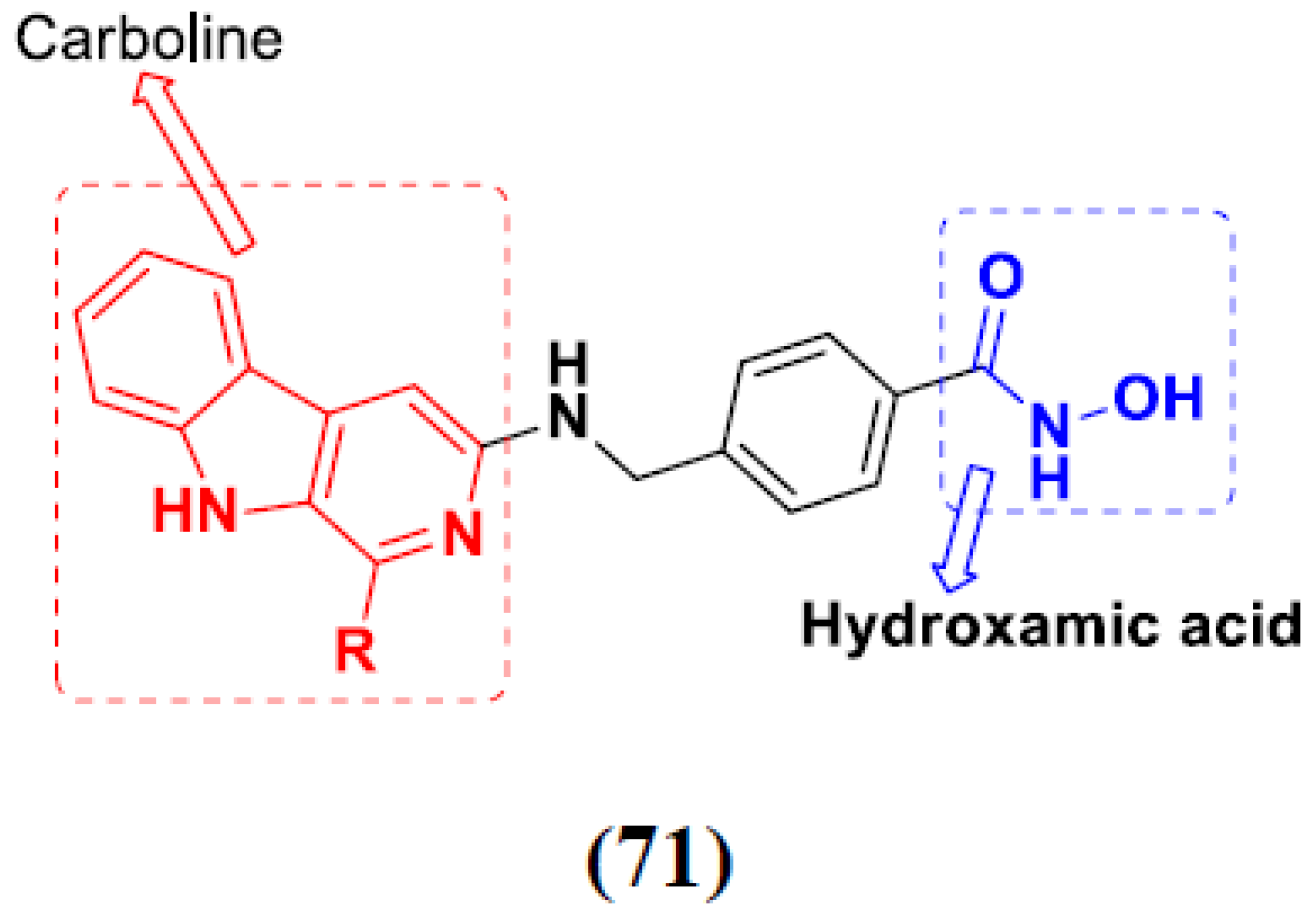

Yong Ling et al. (2018) synthesized hydroxamate-β-carboline based novel hybrids and evaluated their antiproliferative activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 71(a) exhibited potent activity against panel of cell lines including HCT116 (human colon cancer cell), SUMM-7721(human hepatocellular carcinoma cells), HepG2, MCF-7and Huh-7(human hepatocellular carcinoma cells) with IC50 values of 0.82, 1.06, 0.65, 2.25 and 1.52 µM, respectively, and control SAHA IC50 values of 5.53, 5.61, 6.27, 4.48 and 4.95 µM, respectively. The structure of novel hydroxamate-β-carboline based derivatives is given in Figure 68 and the in vitro cytotoxic activities of hybrid compounds 71(ad) are listed in Table 56 [137].
M.F.A. Mohamed et al. (2017) synthesized hybrids of hydroxamic acid and chalcone derivatives and evaluate their antiproliferative activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, 72(a) exhibited potent activity against cancer cell lines including HEPG2, MCF-7 and HcF-116 (human colon cancer cell), having IC50 values of 0.62, 2.05 and 2.92 µM, respectively and control, SAHA having IC50 values of 3.33, 2.18 and 1.23, respectively. The structure of hydroxamic acid based chalcone derivatives is given in Figure 69 and the in vitro cytotoxic activities of hybrid compounds 72(ad) are listed in Table 57 [138].

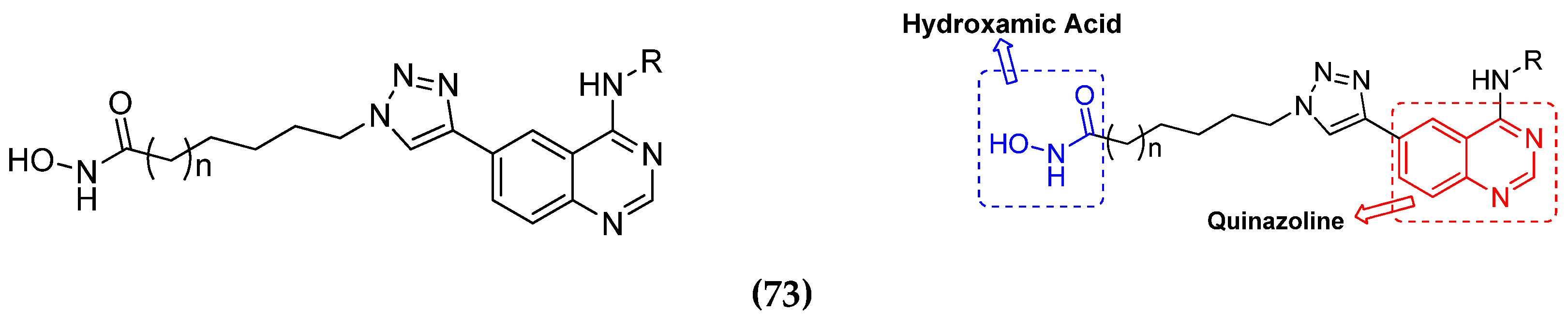

Chao ding et al. (2017) synthesized and investigated novel 6-(1,2,3-triazol-4-yl) 4-aminoquinazolin derivatives possessing a hydroxamic acid moiety for antiproliferative activity against two cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, 73(a) exhibited potent activity against cell lines including A549 and BT-474 (human breast cancer cells) with IC50 values of 0.51 and 3.63 µM, respectively. Controls were lapatinib (IC50: 1.740.28 and 0.100.02) and SAHA (IC50: 2.57 and 2.67). The structure of hydroxamic acid based 4-aminoquinazolin derivatives is given in Figure 70 and the in vitro cytotoxic activities of hybrid compounds 73(ad) (IC50, µM) are listed in Table 58 [139].

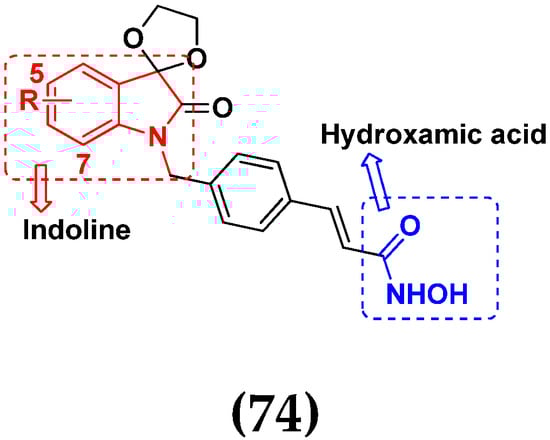

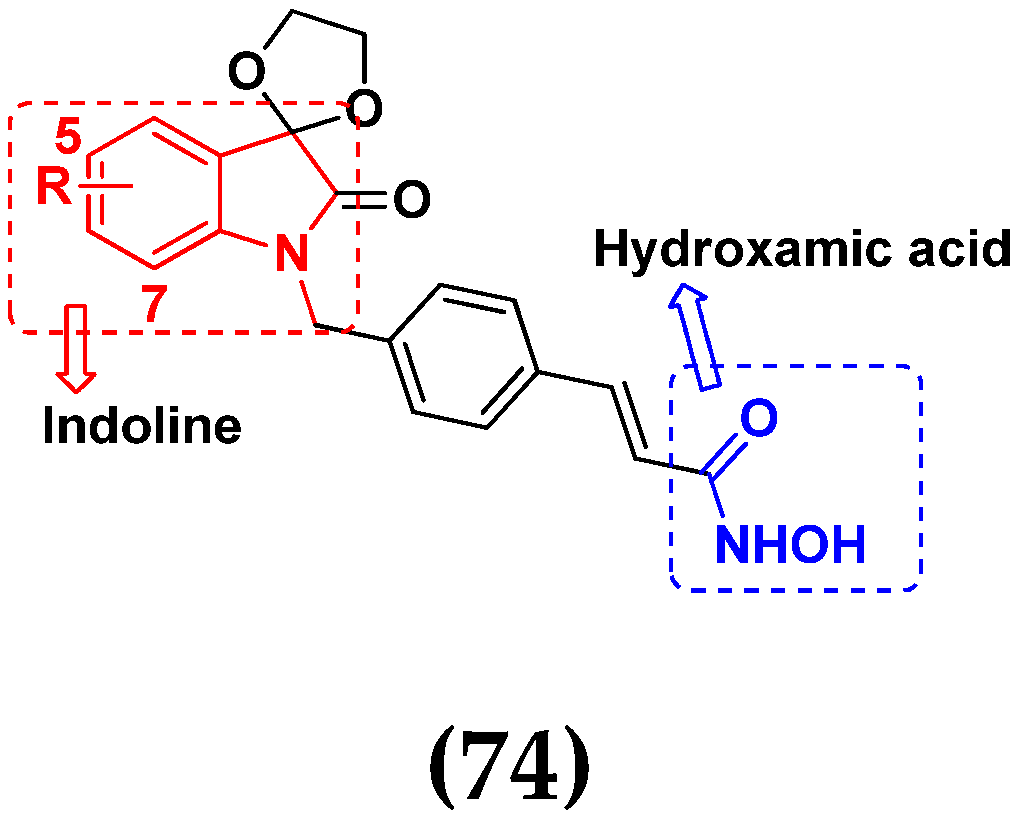

D.T.M. Dung et al. (2017) synthesized hybrids of indoline-based N-hydroxy propenamides and evaluated their antiproliferative activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 74(a) exhibited potent actively against three different cell lines including SW620 (colon cancer), Aspe-1(prostate cancer) and PC-3 at with IC50 values 3.05, 6.83 and 7.30 (µM), respectively with control SAHA having IC50 values of 1.44, 7.04, 5.30 (µM), respectively. The structure of hydroxamic acid based indoline derivatives is given in Figure 71 and the in vitro cytotoxic activities of hybrid compounds 74(ad) are listed in Table 59 [140].

Hydroxamic Acid Based Hybrids That Are FDA Approved or under Clinical Trial

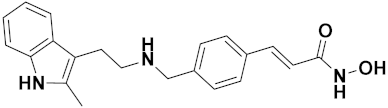

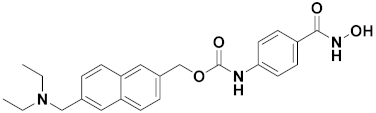

Hydroxamic acid based hybrids that are FDA approved or under clinical trial, and, their chemical structure and current status are listed in Table 60.

3.12. Ferrocene Hybrids

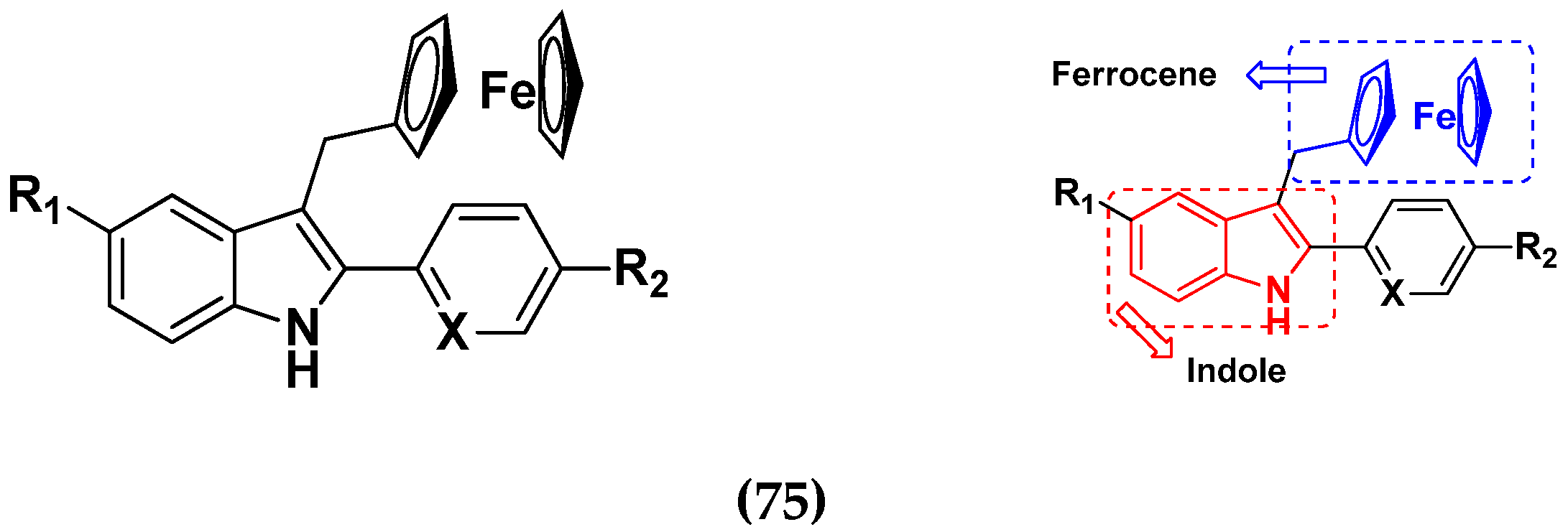

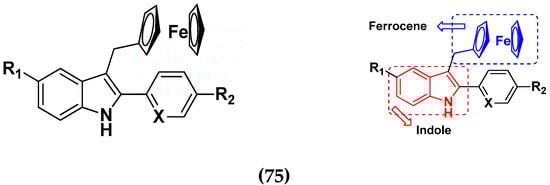

Quirante et al. (2011) synthesized ferrocene-indole based hybrids (Figure 72) and evaluated their cytotoxic activity against A549 cells using 5-fluorouracil (5-FU) as a positive control. They synthesized 14 molecules, and 12 showed cytotoxic activity at IC50 values below 100 µM, where 5-FU had an IC50 value of <5 µM. Among these molecules, ferrocene-indole hybrid 75(a) showed the strongest cytotoxic activity with an IC50 value of 5 µM. Cytotoxic activities of hybrid compounds 75(ad) are listed in Table 61 [145].

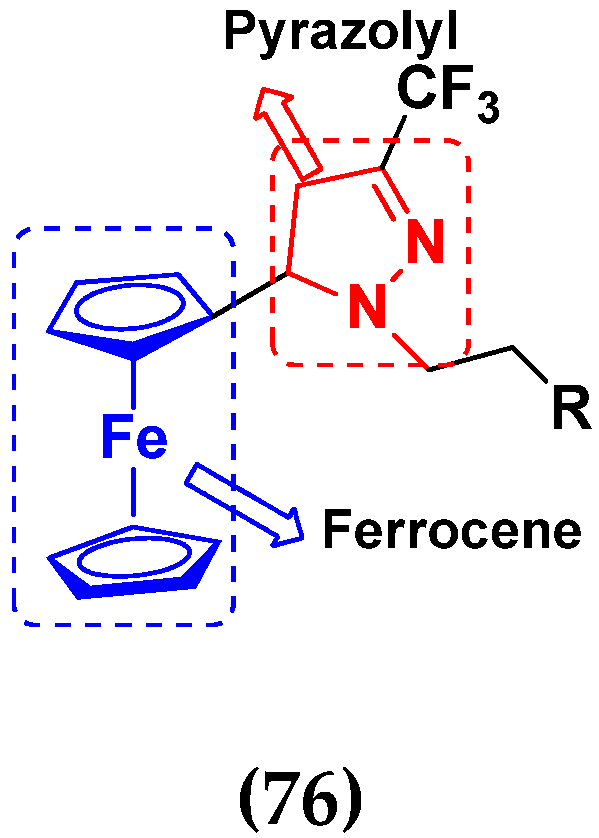

Xian-Feng Huang et al. (2014) synthesized novel hybrids of ferrocene containing pyrazolyl moieties and evaluated their anti-proliferative activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 76(c) exhibited potent activity against three different cell lines; A549 (human lung cancer cell), Hep G2 (human liver cancer cell) and MDA-MB-45 (human breast cancer cell) with IC50 values of 4.44, 20.82, and 4.89 (µM), respectively. Control 5-Fluro Uracil had IC50 values of 16.2, 17.6, 2.80 and cisplatin 0.87, 0.74 and 1.14, respectively. The structure of ferrocene derivatives containing pyrazolyl moiety is given in Figure 73 and in vitro cytotoxic activities of hybrid compounds 76(ad) are listed in Table 62 [146].

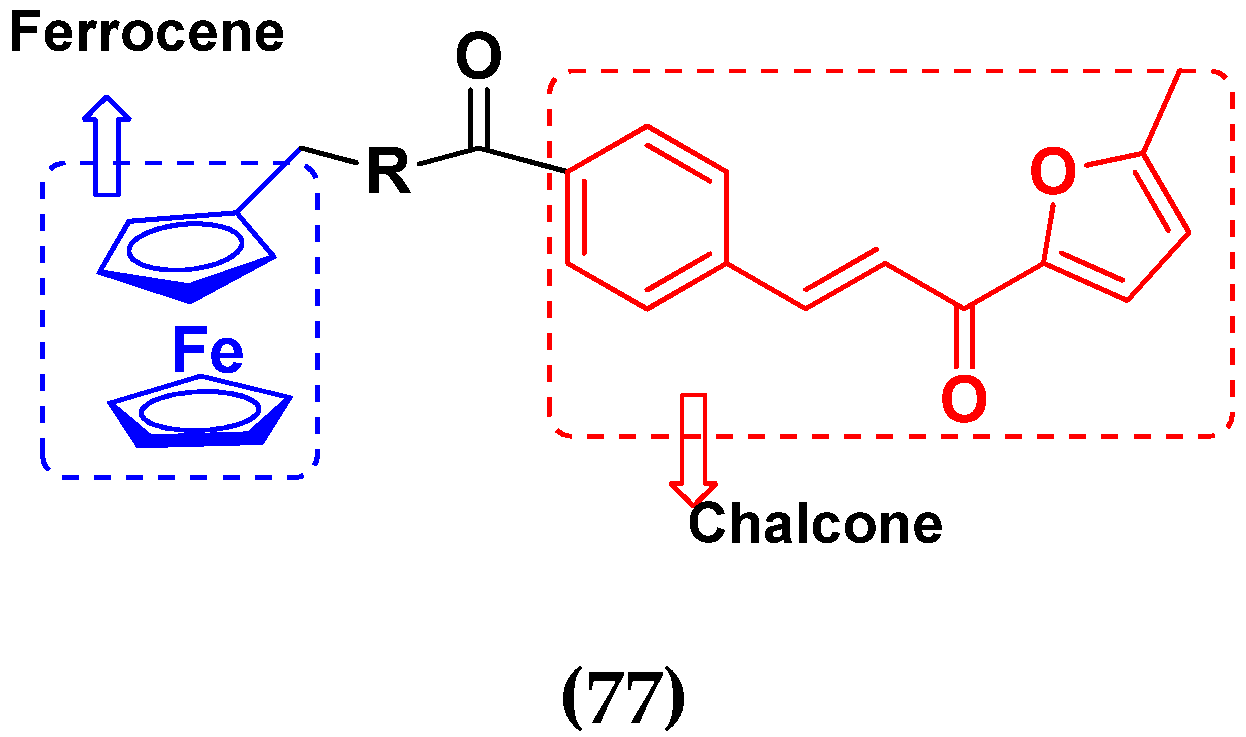

Frans J. Smit et al. (2016) synthesized hybrids of ferrocenyl-chalcone amide, and evaluate their antitumor activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 77(a) exhibited potent activity against three different cell lines, including Tk-10 (renal) UACC-62 (melanoma), and, MCF-7 at IC50 2.4, 3.0 and 2.5 μM, respectively. Control parthenolide (PTD)-had IC50 values of 6.4, 15.0 and 5.8, respectively. The structure of ferrocenyl-chalcone amide derivatives are shown in Figure 74 and the in vitro cytotoxic activities of hybrid compounds 77(ad) are listed in Table 63 [147].

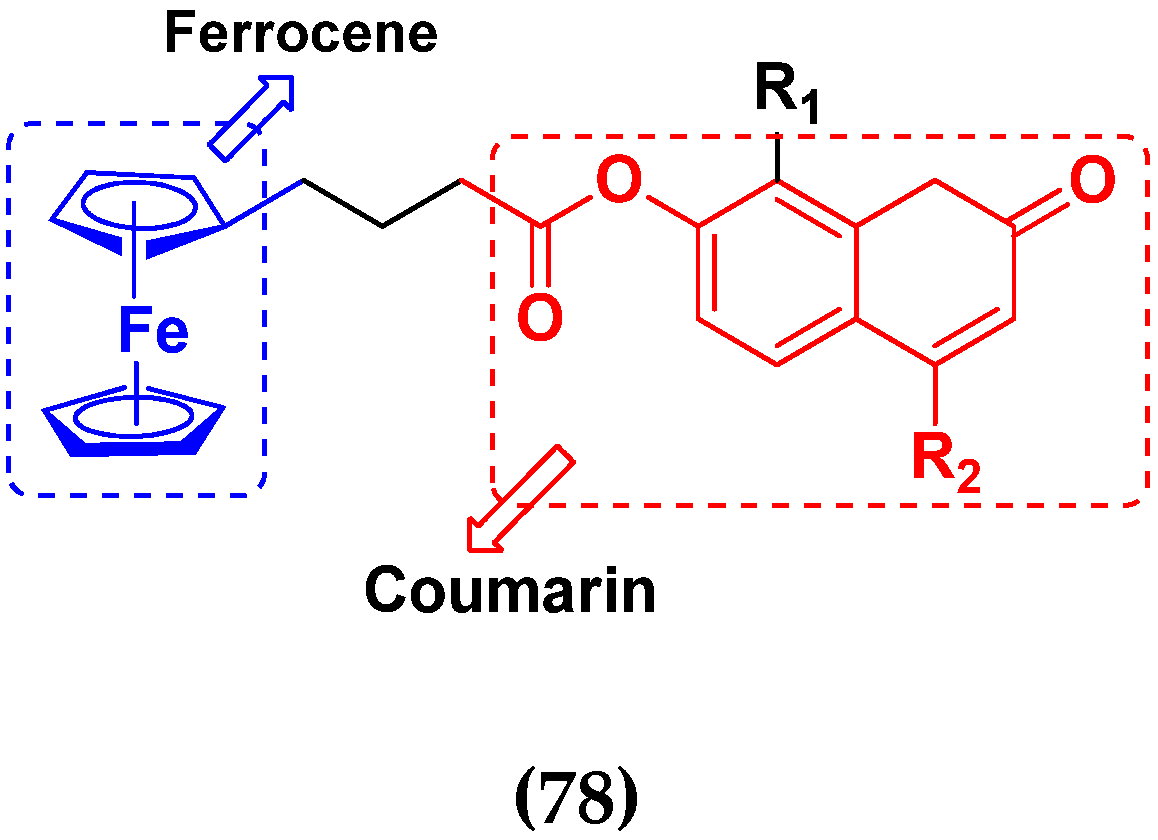

J.N. Wei et al. (2019) synthesized novel hybrids of ferrocene-coumarin moiety and evaluate their antiproliferative activity against six different human cancer cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 78(a) exhibited potent activity against six different cell lines: BIU-87 (Human Bladder Cancer cell), SGC-790 (human cancer gastric cells), EC9706 and ECa1090 (human esophageal cancer cells), MCF-7 (human breast adenocarcinoma cells) and Jurkat (human leukemia cell) with IC50 values 1.09, 10.61, 25.89, 36.38, 12.10 and 53.01 (µM), respectively. Control adriamycin had IC50 values of 6.09, 5.44, 8.56, 6.52, 7.95, 4.50 µM, respectively. The structure of ferrocene-coumarin derivatives is given in Figure 75 and the in vitro cytotoxic activities of hybrid compounds 78(ad) are listed in Table 64 [148].

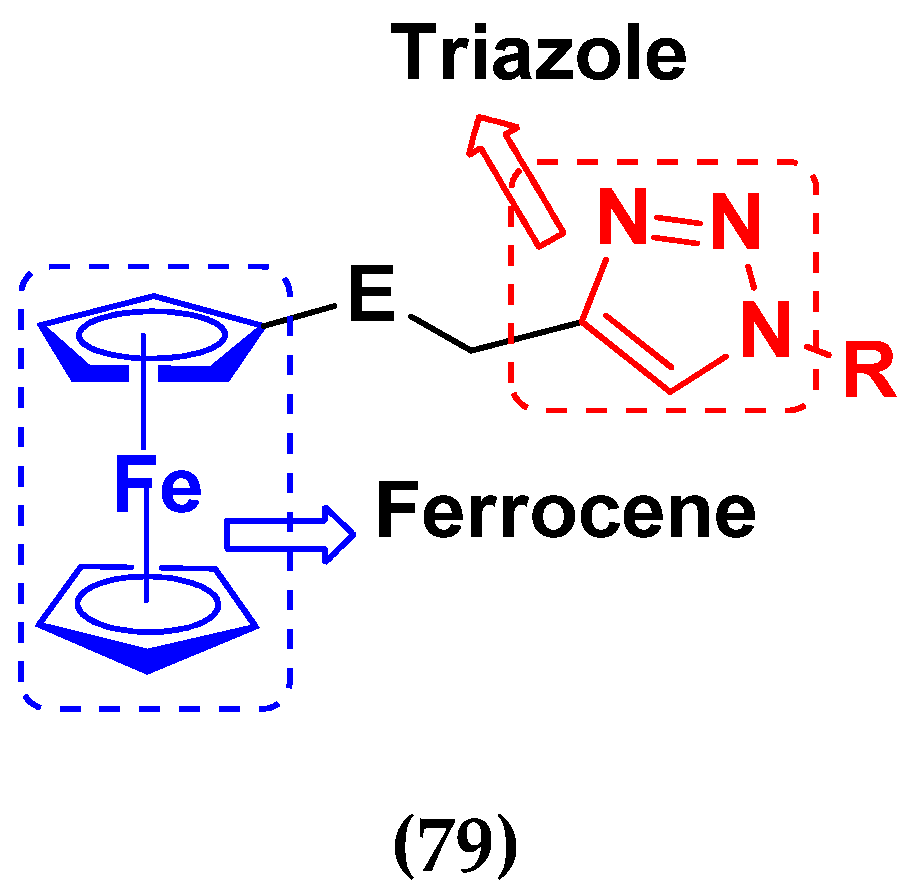

S. Panaka et al. (2016) synthesized hybrids of ferrocenyl chalcogeno (sugar) triazole conjugates and evaluated their antitumor activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 79(a) exhibited potent activity against five different cell lines including A549 (human lung cancer cell), MDA-MB-231 (human breast cancer cell), MCF-7 (human breast adenocarcinoma cell), HeLa (immortal human cell) and HEK-293T (normal non-tumorigenic human embryonic kidney) at IC50 values 2.9, 3.35, 5.58 and 11.6 (μM), respectively. A control, doxorubicin, had IC50 values of 0.36, 0.47, 0.98 and 0.89, respectively. The structure of ferrocenyl-chalcogeno (sugar) triazole conjugates is given in Figure 76 and the in vitro cytotoxic activities of hybrid compounds 79(ad) (IC50, µM) are listed in Table 65 [149].

3.13. Curcumin-Based Hybrids

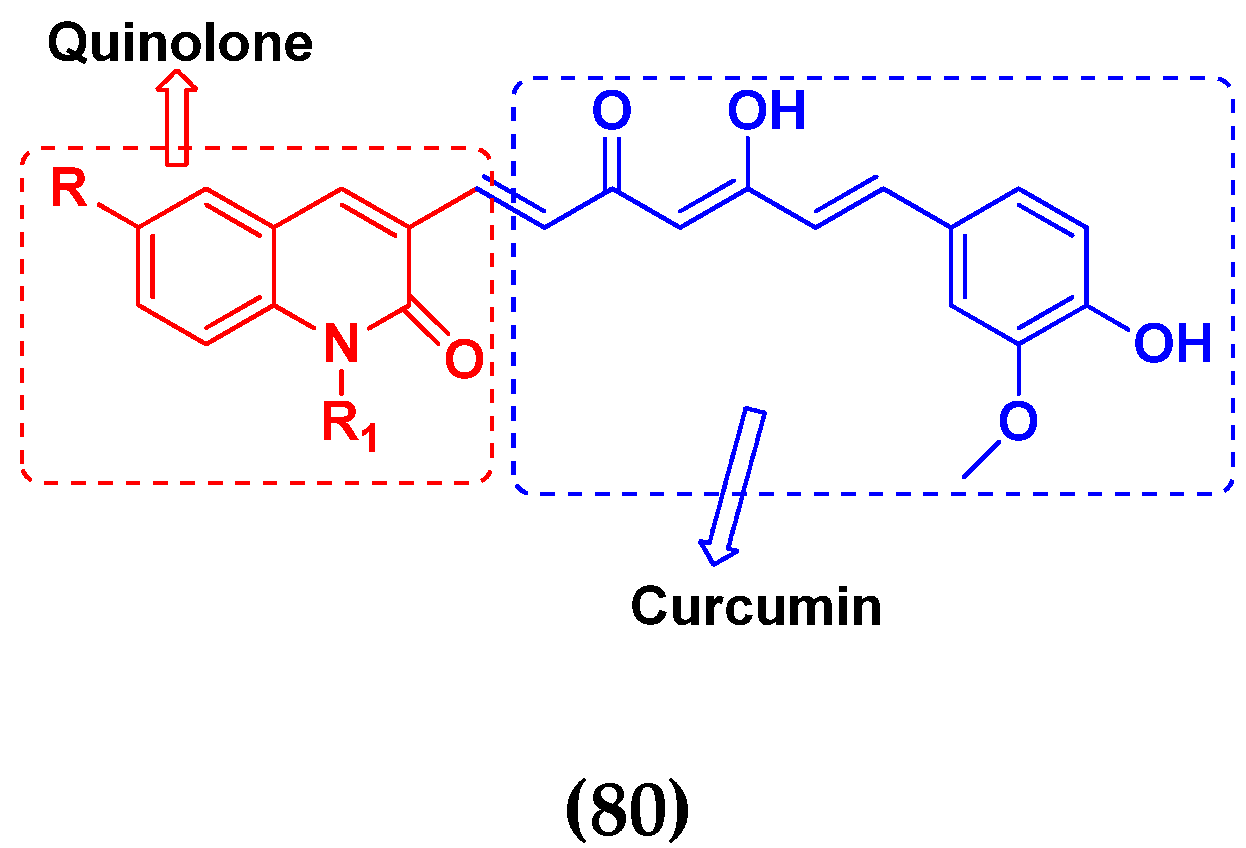

Saiharish Raghavan et al. (2015) synthesized hybrids of curcumin and quinolone and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 80(a) exhibited potent activity against four different cell lines including A549 (human lung cancer cell), MCF-7 (human breast adenocarcinoma cell), SKOV3 (ovarian cancer cell line) and H460 (human lung cancer cell) at IC50 values 23.9, 36.2,12.8, 21.75, respectively. The structure of curcumin-quinolone derivatives is given in Figure 77 and in vitro cytotoxic activities of hybrid compounds 80(ad) are listed in Table 66 [150].
G. Banuppriya et al. (2018) synthesized hybrids of curcumin and sulfonamides and evaluated their anticancer activity against two cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 81(a) exhibited potent activity against two different cell lines including A549 (human lung cancer cell) and AGS (human gastric adenocarcinoma cell) at IC50 values 1.29 and 10.16 (µM), respectively with control Curcumin at IC50 values 25.33 and 20.76, respectively. The structure of curcumin-sulfonamide derivatives is given in Figure 78 and in vitro cytotoxic activities of hybrid compounds 81(ad) are listed in Table 67 [151].

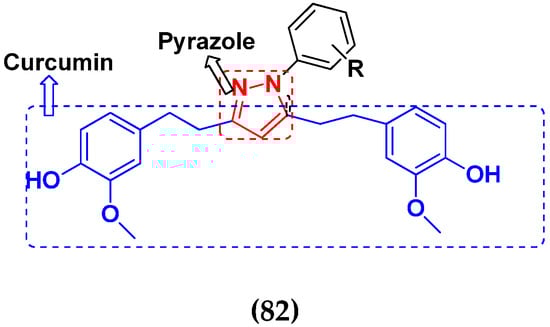

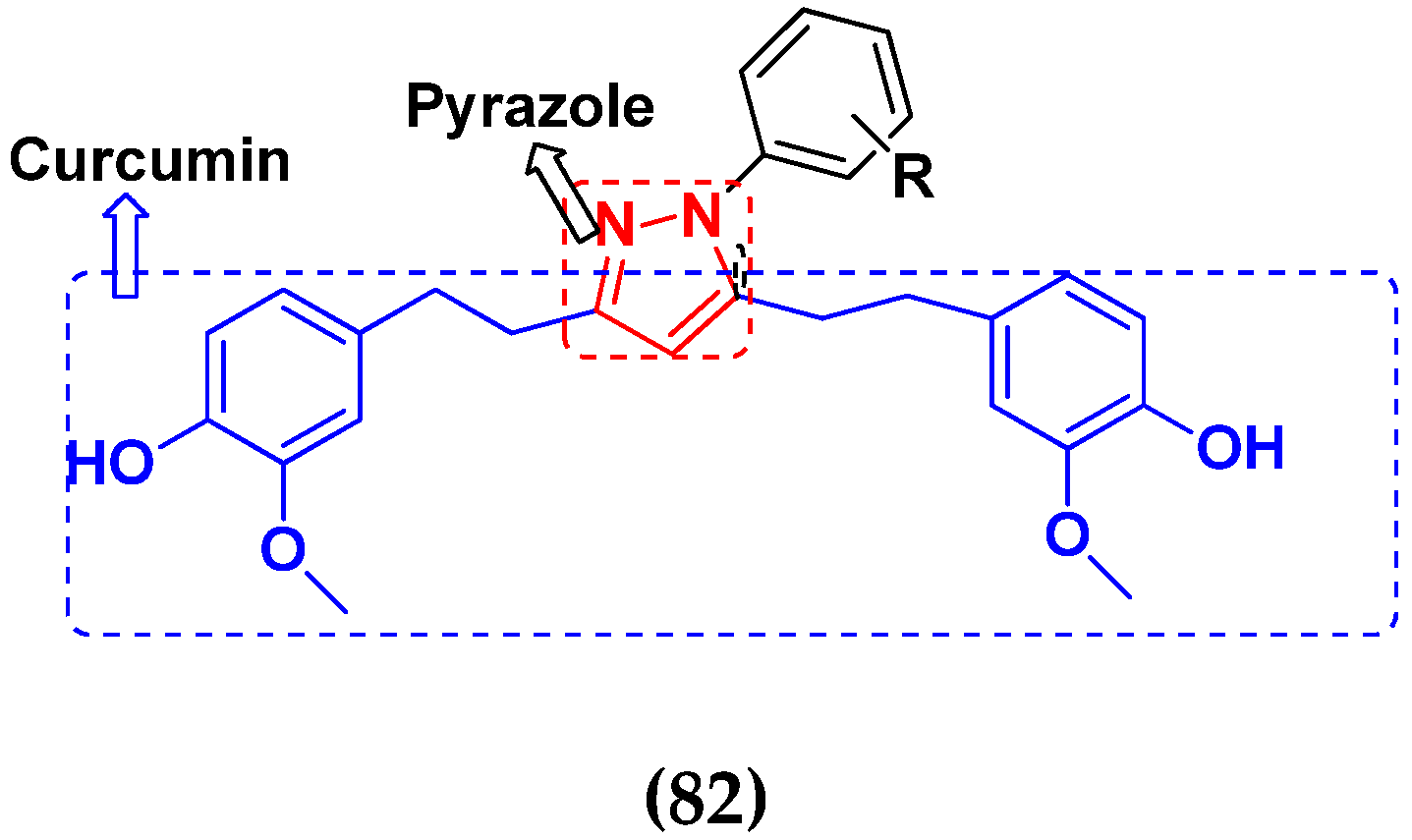

H.R. Puneeth et al. (2016) synthesized hybrids of curcumin-pyrazole and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 82(a) exhibited potent activity against four different cell lines including HeLa (human cervical cell), MCF-7 (human breast adenocarcinoma cell), K562 (human immortalized myelogenous leukemia cell) and HEK293T (normal non-tumorigenic human embryonic kidney) at IC50 values 45.54, 34.99, 25.55 and >1000 (µM), respectively with control Paclitaxel at IC50 values 11.61, 9.12, 8.43 and 1.43 (µM), respectively. The structure of curcumin-pyrazole derivatives is given in Figure 79 and in vitro cytotoxic activities of hybrid compounds 82(ac) (IC50, µM) are listed in Table 68 [152].
Peiju Qui et al. (2013) synthesized hybrids of curcumin, pyrimidine and urea and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 83(a) exhibited potent activity against two different cell lines including HT29 (human colon adenocarcinoma cell) and HCT116 (human colon cancer cell) at IC50 values 7.10.4 and 6.21.2 (µM), respectively with control 5-fluorouracil at IC50 11.61, 9.12, 8.43 and 1.43 (µM), respectively. The structure of curcumin pyrimidine derivatives is given in Figure 80 and in vitro cytotoxic activities of hybrid compounds 83(ac) (IC50, µM) are listed in Table 69 [153].

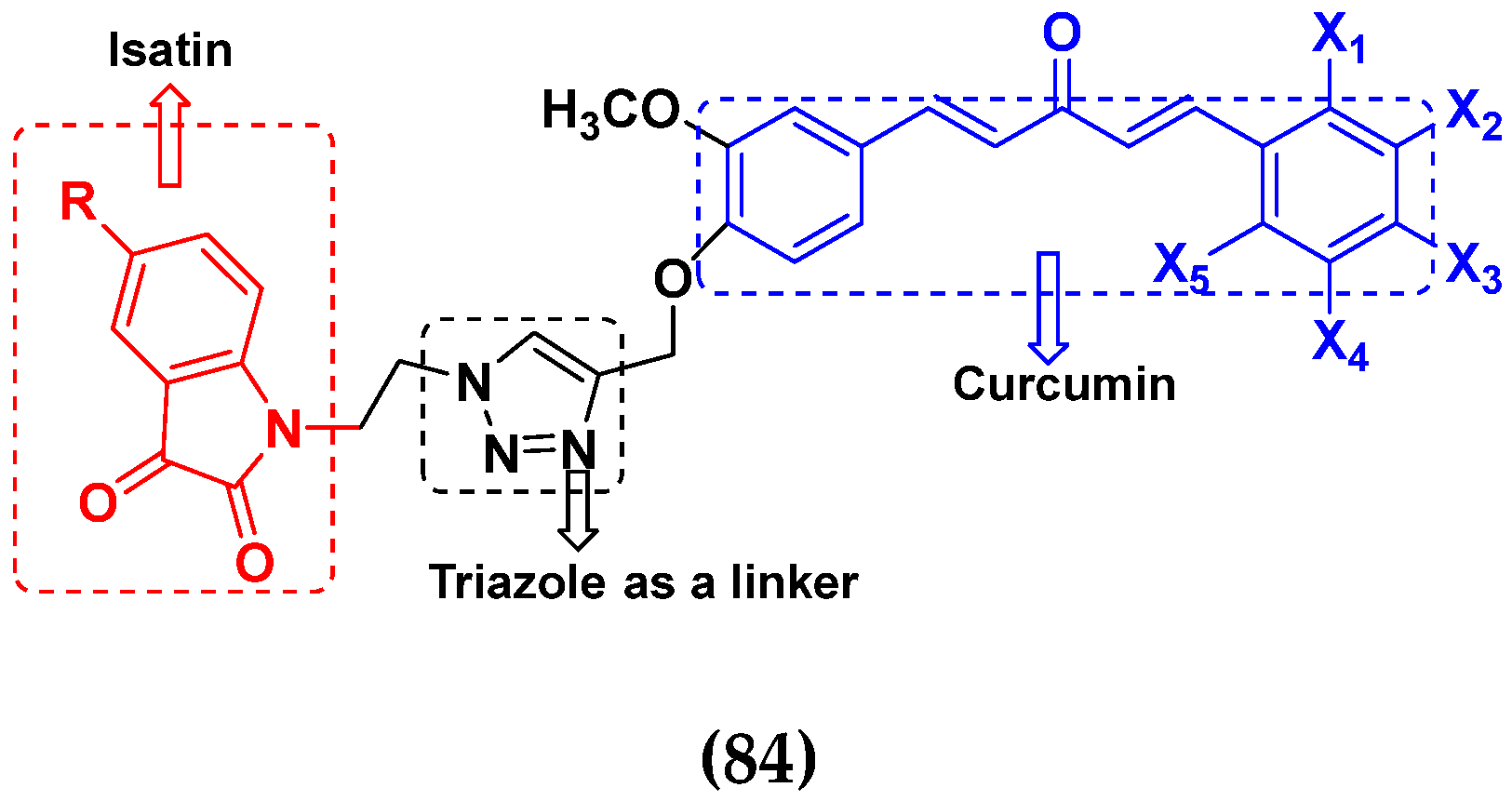

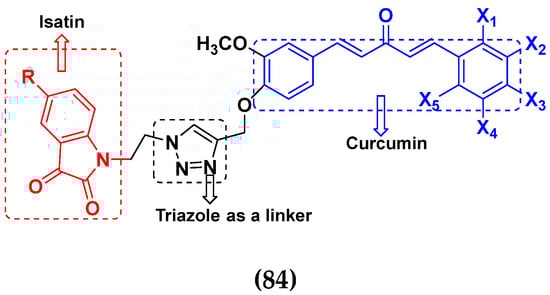

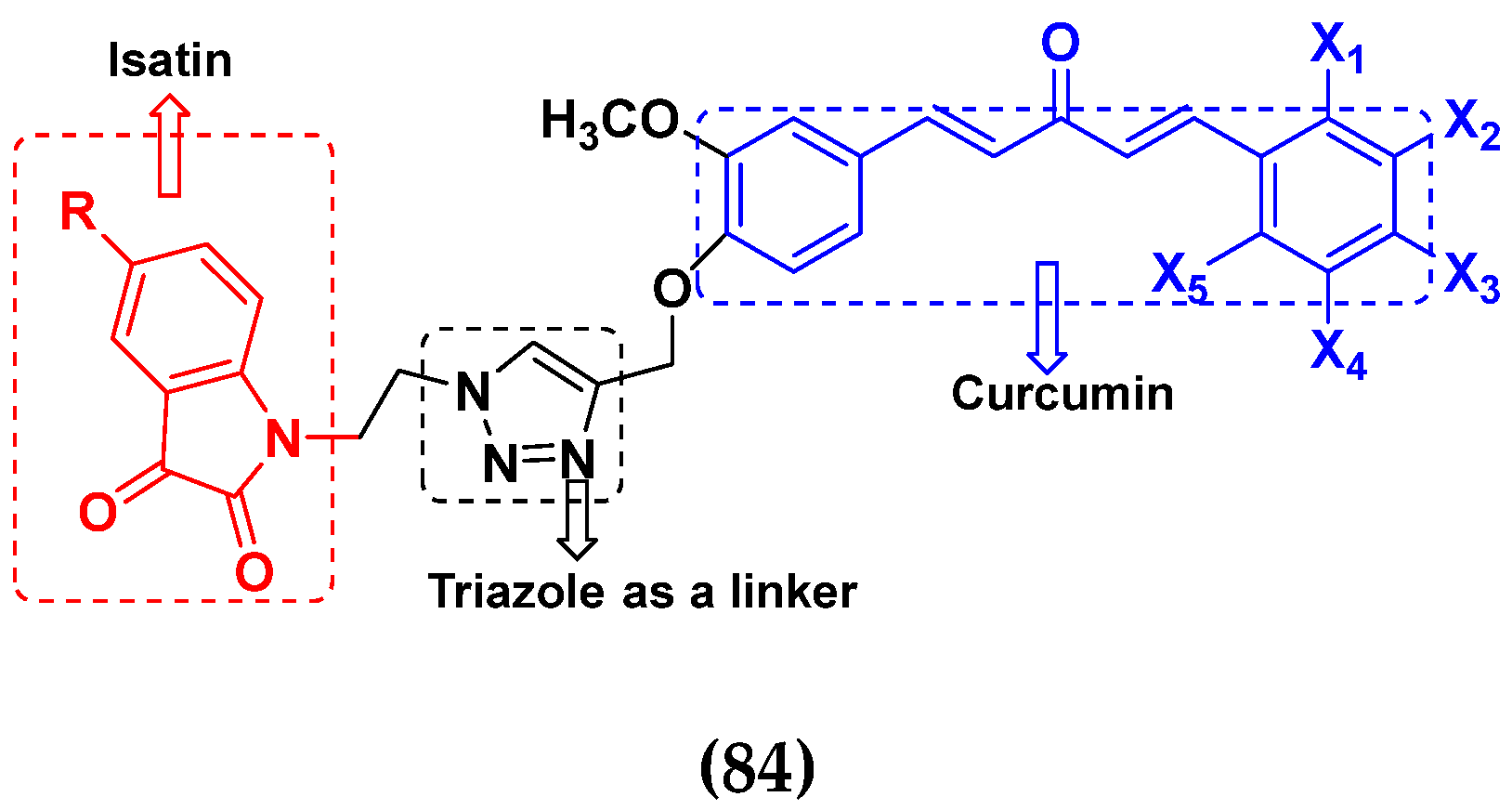

Sahil Sharma et al. (2015) synthesized hybrids of curcumin and isatin and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 84(a) exhibited potent activity against four different cell lines including THP-1 (Leukemia), COLO-205 (Colon), HCT-(116) and PC-3 (Prostate) at IC50 values of 2.87, 4.15, 1.12 and 5.67 (µM), respectively. The structure of curcumin-isatin derivatives is given in Figure 81 and in vitro cytotoxic activities of hybrid compounds 84(ac) are listed in Table 70 [154].

3.14. Triazole-Based Hybrids

Li Ying et al. (2015) synthesized hybrids of triazole, pyrimidine and urea and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 85(a) exhibited potent activity against four different cell lines including EC-109 (squamous cell carcinoma cells), MCF-7 (human breast adenocarcinoma cells), MGC-803 (immortal human cells) and B16-F10 (murine melanoma cells) at IC50 2.96, 3.11, 3.60 and 4.55 (µM), respectively and with control 5-fluorouracil an IC50 of 11.61, 9.12, 8.43 and 1.43 (µM), respectively. The structure of triazole-pyrimidine derivatives is given in Figure 82 and in vitro cytotoxic activities of hybrid compounds 85(ad) are listed in Table 71 [155].

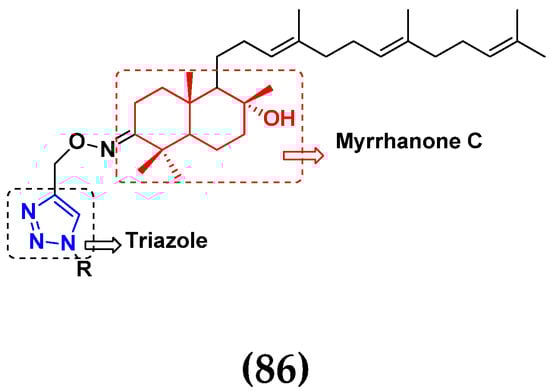

Madasu Chandrashekhar et al. (2016) synthesized hybrids of triazole–myrrhanore Cand evaluated their anticancer activity against different cell lines. Most of synthesized compounds displayed potent anticancer activity. Among them, compound 86(a) exhibited good anticancer activity against different cell lines including A549 (human lung cancer cell), Hela (human cervical cell), MCF-7 (human breast adenocarcinoma cell), DU-I45 (human prostate cancer cell) and HepG2 (human hepatocellular carcinoma cell) at IC50 06.16, 07.76, 09.59, 08.83 and 09.52 (µM), respectively, with control doxorubicin 2.81, 2.57, 1.13, 1.41 and 3.01 (µM), respectively. The structure of triazole–myrrhanore C derivatives is given in Figure 83 and in vitro cytotoxic activities of hybrid compounds 86(ac) (IC50, µM) are listed in Table 72 [156].

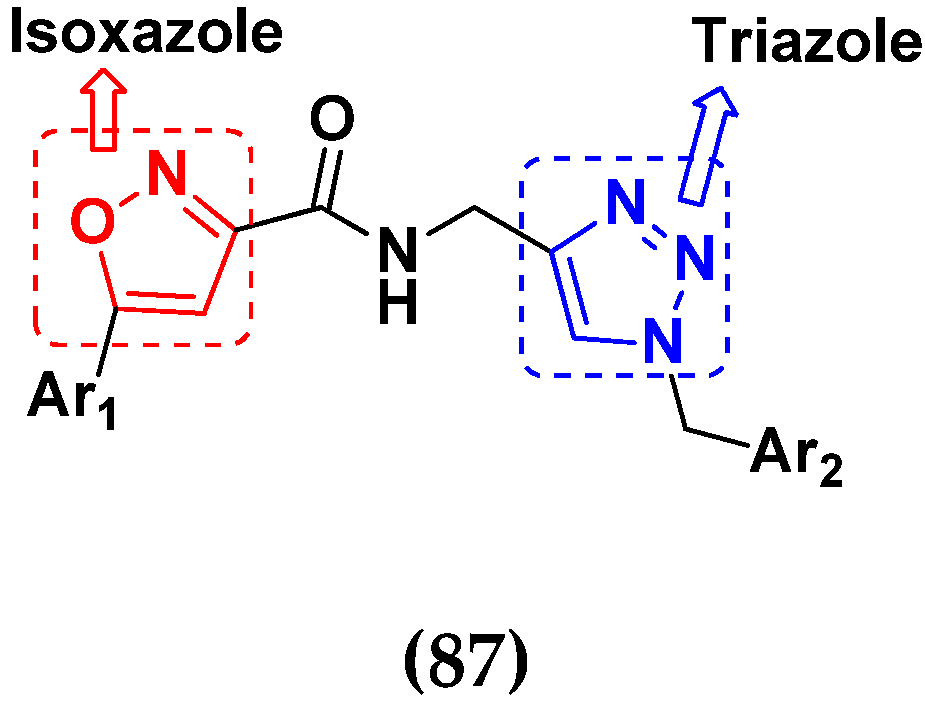

Zahra Najafi et al. (2015) synthesized hybrids of triazole and isoxazole and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 87(a) exhibited potent activity against two different cell lines including MCF-7 and T47D (breast cancer cell line) at IC50 > 100 and 27.7 µM, respectively with control etoposide at IC50 7.5 and 7.9, respectively (µM). The structure of triazole-isoxazole derivatives is given in Figure 84 and in vitro cytotoxic activities of hybrid compounds 87(a-b) (IC50, µM) are listed in Table 73 [157].

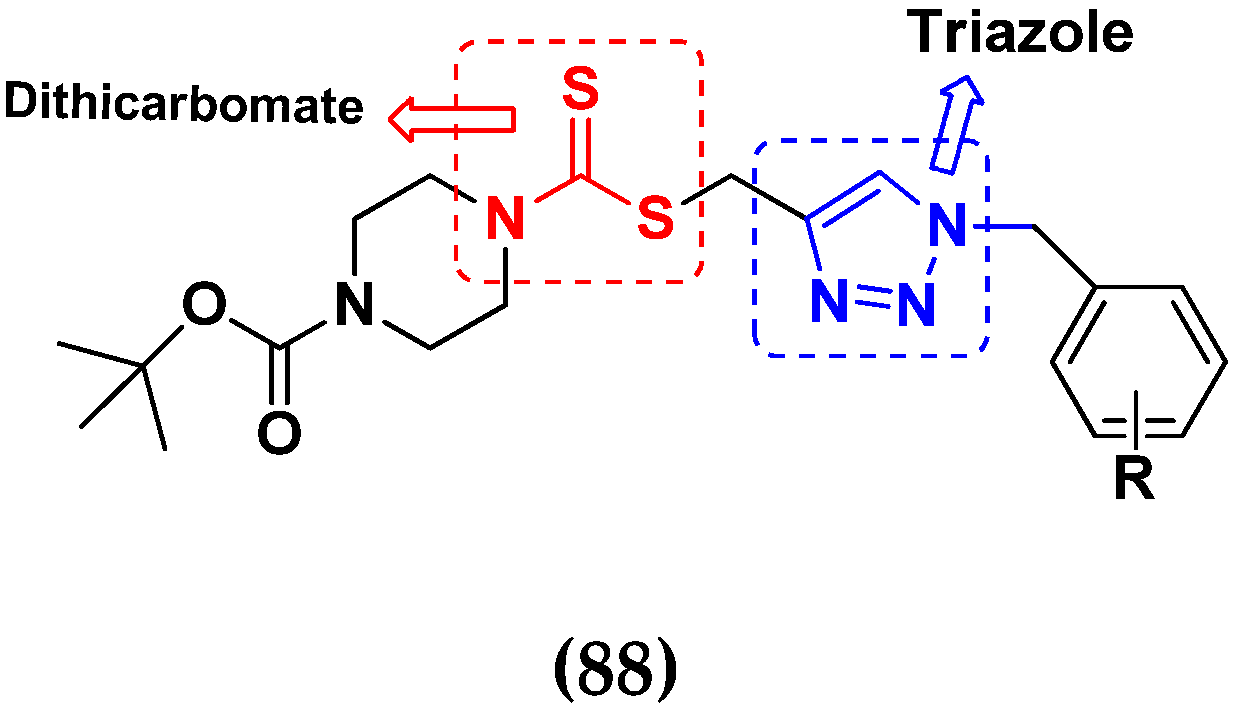

Y.C. Duan et al. (2013) synthesized hybrids of 1,2,3-triazole and dithiocarbamate and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 88(a) exhibited potent activity against four different cell lines including MGC-803 (immortal human cell), MCF-7 (human breast adenocarcinoma cells), PC-3 (human pancreatic cancer cell) and EC-109 (squamous cell carcinoma cell) at IC50 0.73, 5.67, 11.61 and 2.44 µM, respectively with control 5-fluorouracil at IC50 7.01, 7.54, 27.07 and 3.34 µM, respectively. The structure of triazole-dithiocarbamate derivatives is shown in Figure 85 and in vitro cytotoxic activities of hybrid compounds 88(ac) (IC50, µM) are listed in Table 74 [158].
R.M. Kumbhare et al. (2015) synthesized hybrids of triazole thiazole and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 89(a) exhibited potent activity against four different cell lines including MCF-7 (human breast cancer), A549 (human lung cancer), A375 (human melanoma cancer), and MCF-10A (normal breast epithelial cells) with IC50 values of 2.12, 5.48, 4.7 and 29.33 µM, respectively. Control doxorubicin had comparative IC50 0.12, 3.13, 7.2 and 24.0 µM and paclitaxel at IC50 2.58, 4.9, 8.0, 38.0 µM, respectively. The structure of triazole based thiazole derivatives is given in Figure 86 and in vitro cytotoxic activities of hybrid compounds 89(ac) are listed in Table 75 [159].

3.15. Benzimidazole-Based Hybrids

R. Sivaramakarthikeyan et al. (2020) synthesized hybrids of benzimidazole and pyrazole and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 90(a) exhibited potent activity against three different cell lines including SW1990 (human pancreatic adenocarcinoma cell), AsPC1 (human pancreatic tumor cell), MRCS (marginal reticular cells) with IC50 values of 30.9, 32.8, 80.0 µM, respectively and control gemicitabine at IC50 values of 35.09, 39.27 and 54.17 µM, respectively. The structure of benzimidazole-pyrazole derivatives is given in Figure 87 and in vitro cytotoxic activities of hybrid compounds 90(ac) (IC50, µM) are listed in Table 76 [160].

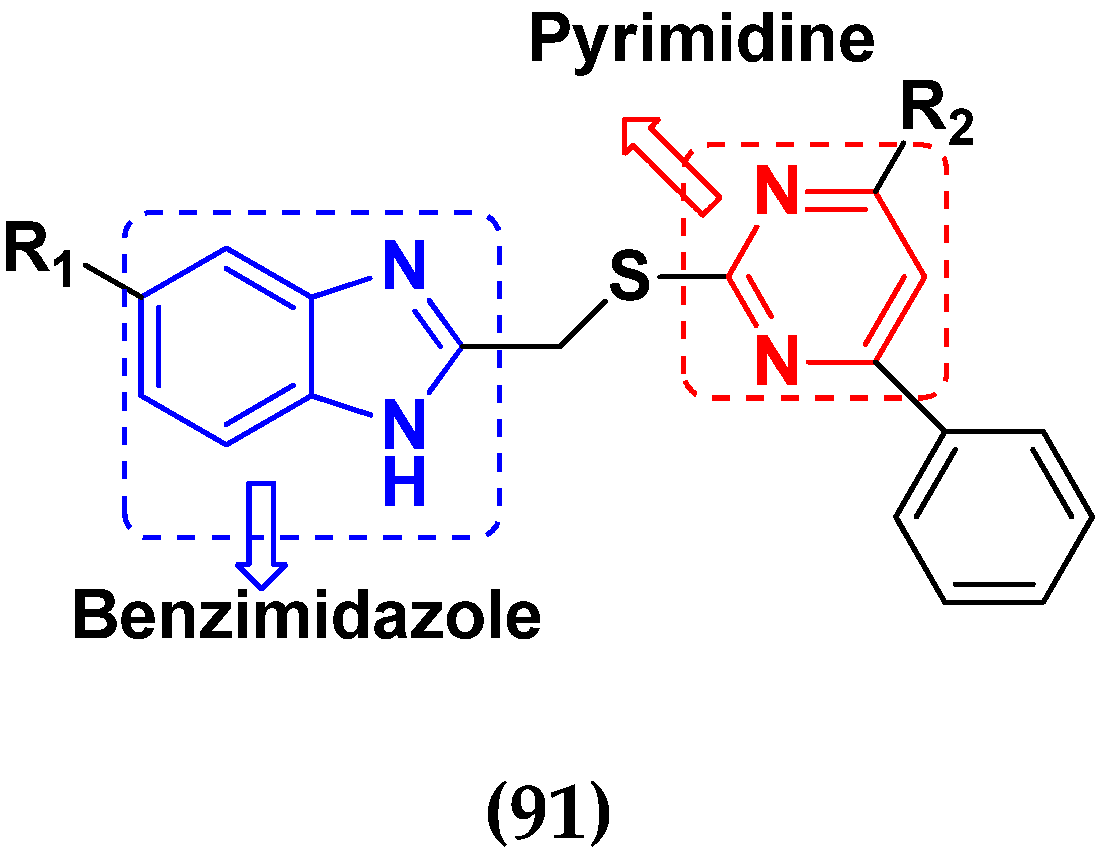

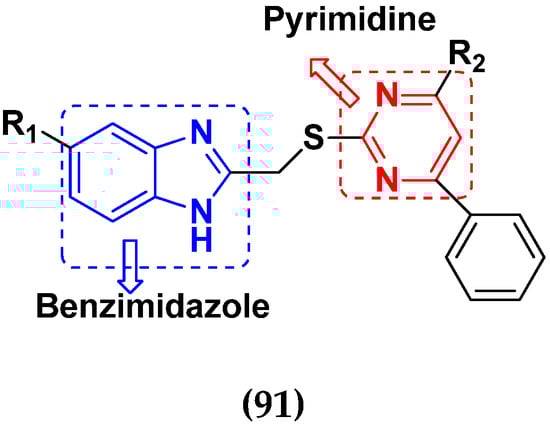

Kun Pena Shao et al. (2014) synthesized hybrids of benzimidazole–pyrimidine and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 91a exhibited potent activity against three different cell lines including MCF-7 (human breast adenocarcinoma cells), MGC-803 (immortal human cells), EC-9706 (esophagus squamous cell carcinoma) and SMMC-7721 (human hepatocellular carcinoma cells) with IC50 values of 1.43, 1.33, 3.33, 20.50 (µM), respectively with control 5-Fluorouracil had IC50 values 7.12, 3.45, 8.07 and 15.08 (µM), respectively. The structure of benzimidazole-pyrimidine derivatives is given in Figure 88 and in vitro cytotoxic activities of hybrid compounds 91(ac) (IC50, µM) are listed in Table 77 [161].

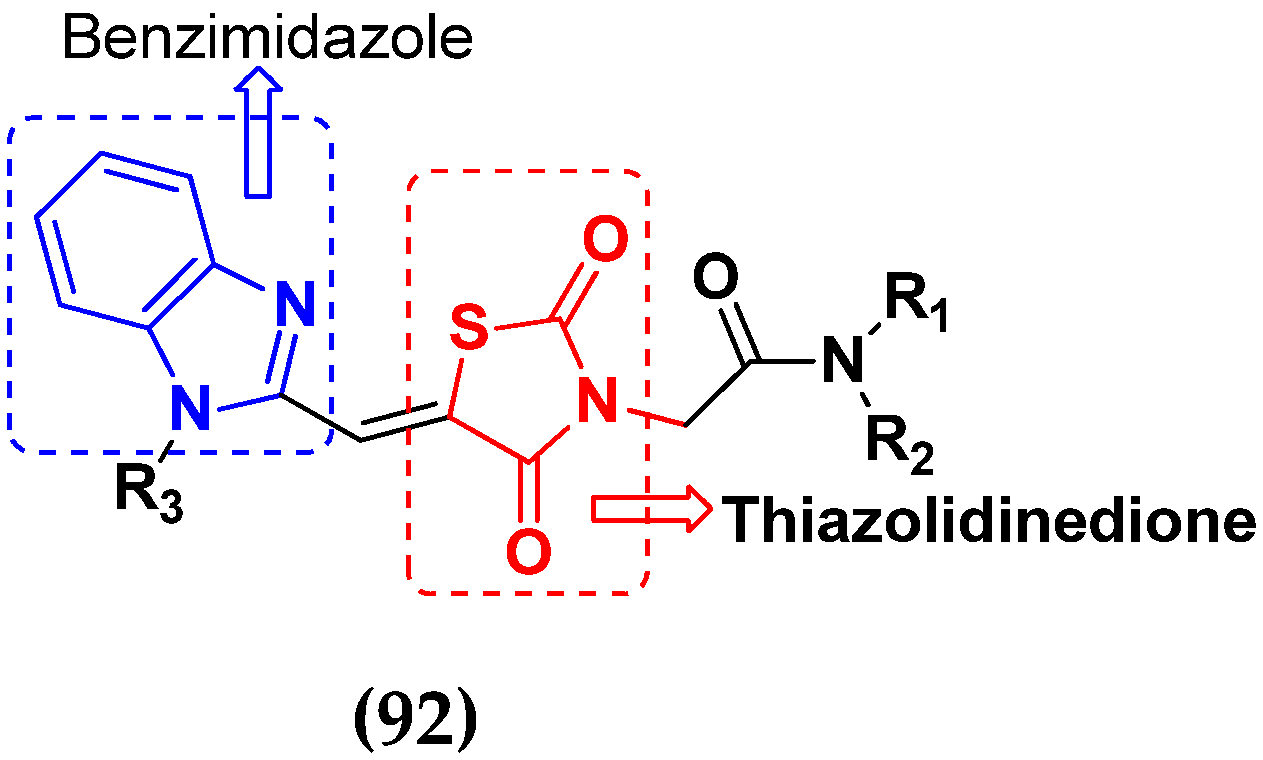

Pankaj Sharma et al. (2016) synthesized hybrids of benzimidazole and thiazolidinedione and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 92a exhibited potent activity against five different cell lines including PC-3, DU-145 (prostate cancer), MDA MB-231 (breast cancer), A549 (lung cancer) and MCF10A (normal breast epithelial cells) with IC50 values of 39.87, 31.41, 29.18, 11.46 and >100 (µM), respectively with control 5-Fluorouracil had IC50 values of 45.32, 40.58, 35.98, 30.47 (µM), respectively. The structure of benzimidazole-pyrimidine derivatives is given in Figure 89 and in vitro cytotoxic activities of hybrid compounds 92(ac) are listed in Table 78 [162].

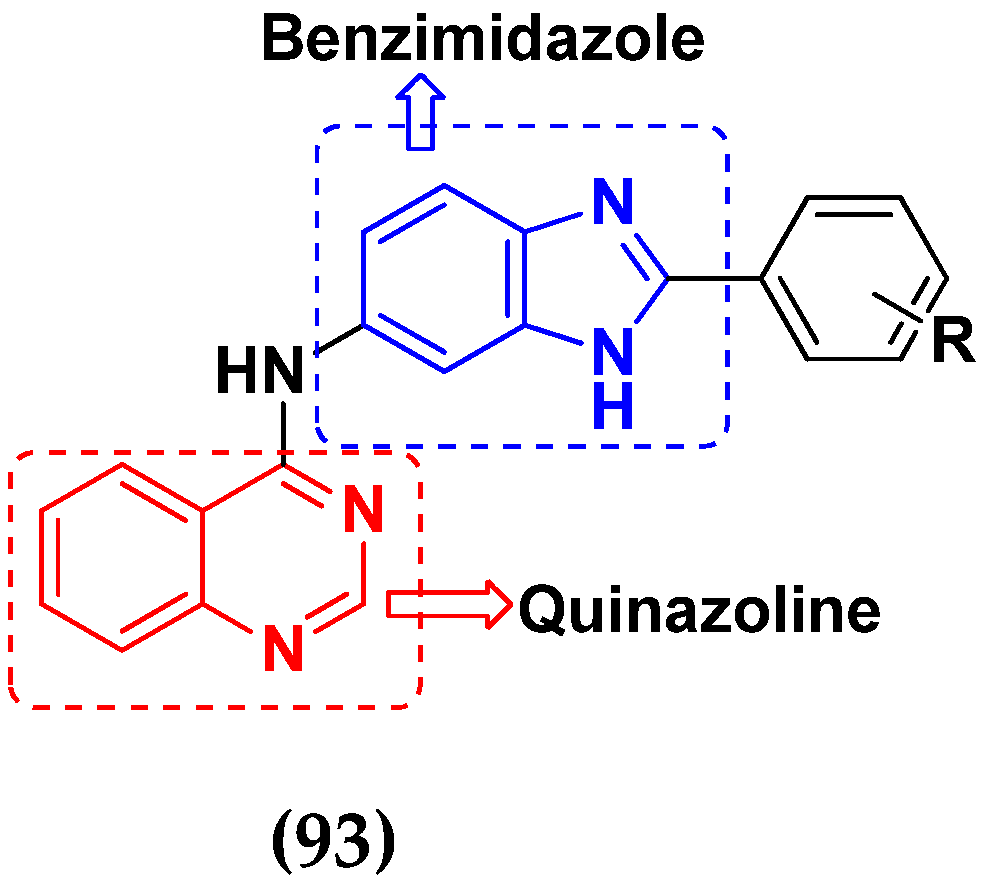

Lei Shi et al. (2014) synthesized benzimidazole-quinazoline hybrids and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 93a exhibited potent activity against two different cell lines including Hep-G2 (human liver carcinoma cells) and MCF-7 (human breast adenocarcinoma cell) at IC50 8.7 and 1.5 (µM), respectively. Control golvatinib had IC50 values of 65.5 and 49.6 µM, respectively. The structure of benzimidazole-quinazoline derivatives is given in Figure 90 and in vitro cytotoxic activities of hybrid compounds 93(ac) are listed in Table 79 [163].

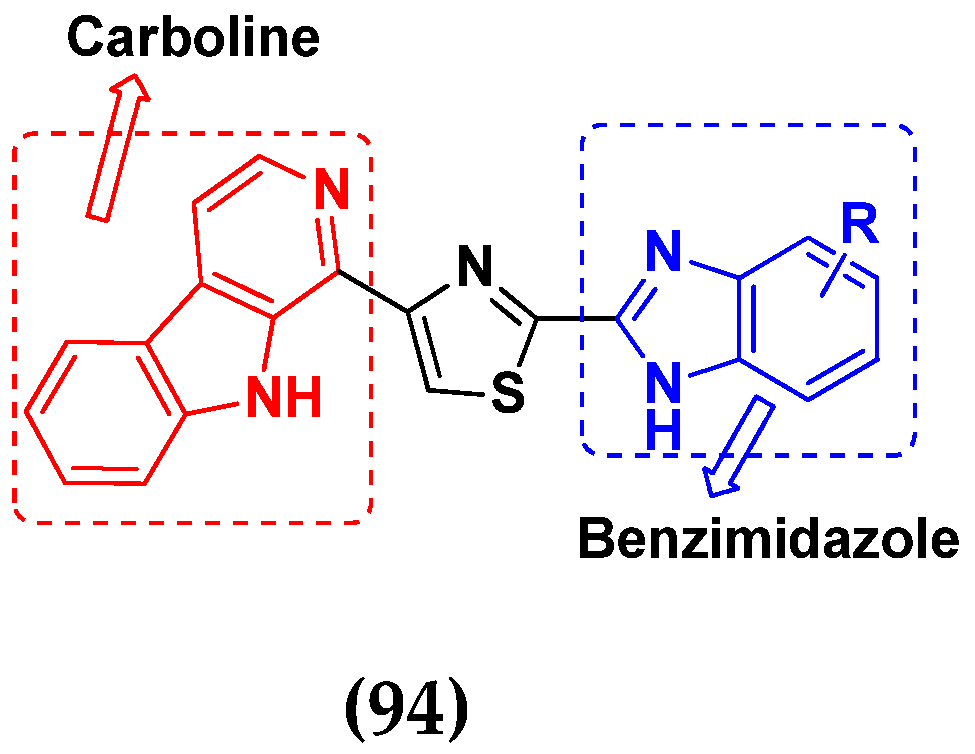

Reddymasu Sireesha et al. (2021) synthesized hybrids of benzimidazole and β-carboline and evaluated their anticancer activity against different cell lines. Most of the synthesized compounds displayed potent anticancer activity. Among them, compound 94a exhibited potent activity against four different cell lines, including MCF-7 (human breast cancer cell line), A549 (a human lung cancer cell line), Colo-205 (a human colon cancer cell line) and A2780 (a human ovarian cancer cell line) with IC50 values of 0.22, 1.55, 1.68 and 1.16 (µM), respectively, with the control etoposide having IC50 values of 2.11, 3.08, 0.13 and 1.31 (µM), respectively. The structure of benzimidazole–β-carboline derivatives is given in Figure 91 and in vitro cytotoxic activities of hybrid compounds 94(ac) are listed in Table 80 [164].

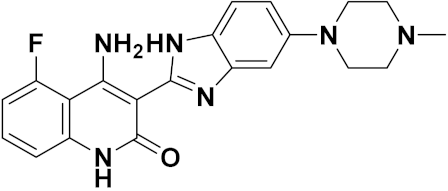

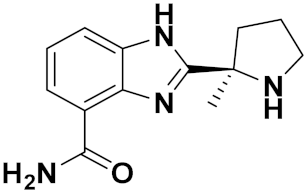

Benzimidazole Based Hybrids That Are FDA Approved or under Clinical Trials

Benzimidazole based hybrids that are FDA approved/under clinical trials and their current status are given in Table 81.

3.16. Isatin Containing Hybrids

In humans and other mammals, isatin is an endogenous compound that has a variety of pharmacological properties, including anticancer activity [169]. Human health is facing several difficulties in the modern medical period, especially with regard to human cancers. As a result, new therapies that selectively target tumor cells will unavoidably be added to the therapeutic arsenal for these cancers [170].

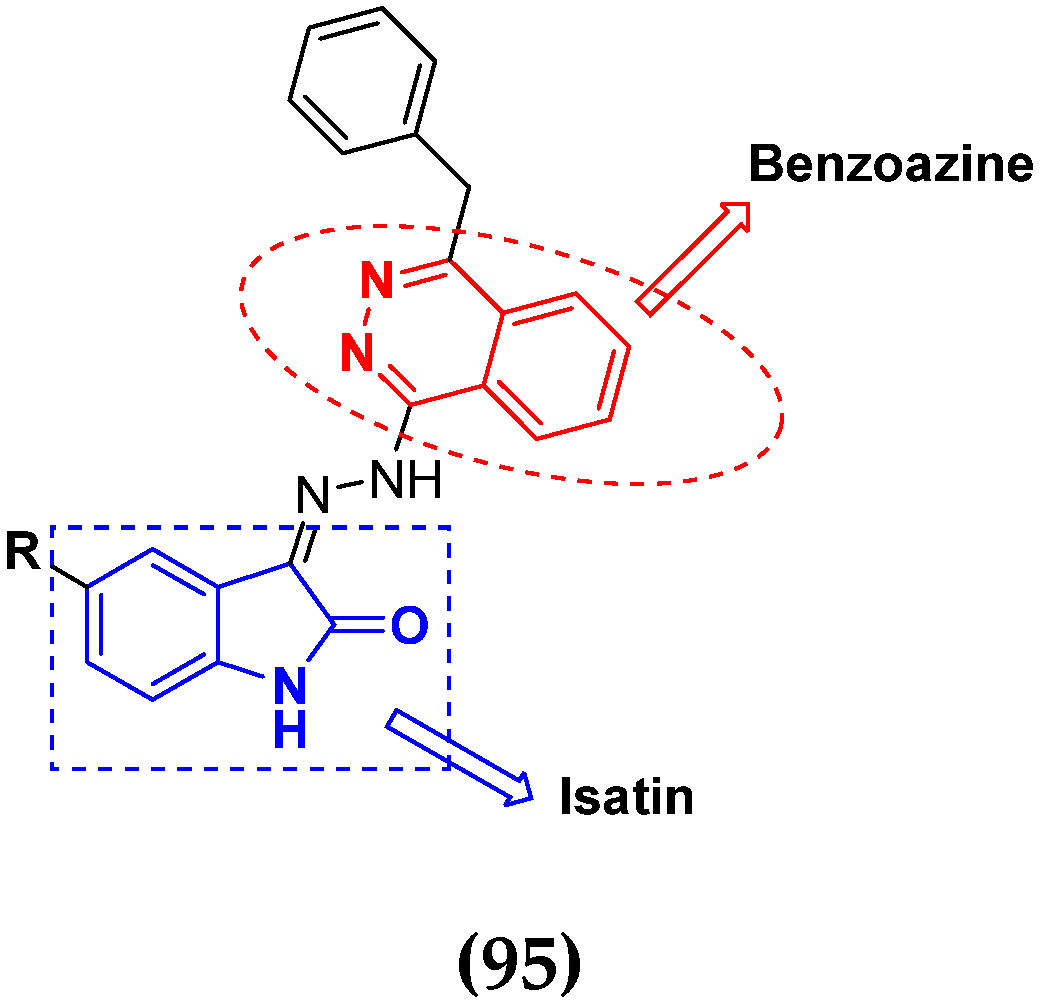

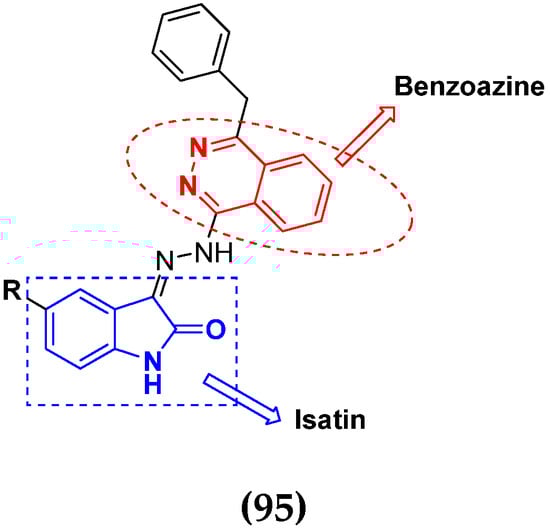

AZIZ et al. (2021) synthesized different sets of isatin-based benzoazine hybrids, i.e., isatin quinoxaline quinazoline and phthalazines hybrids. All the synthesized hybrids were evaluated in vitro for their antiproliferative activity against three human cancer cell lines, namely breast cancer (ZR-75), human colon cancer (HT-29) and lung cancer (A-549). The structure of isatin-based benzoazine derivatives is given in Figure 92 and in vitro cytotoxic activities of hybrid compounds 95(ac) are listed in Table 82 [171].
Meleddu et al. (2017) synthesized isatin-dihydropyrazole derivatives and then evaluated their capability to inhibit tumor cell growth against nine human cancer cell lines, namely A549 (lung carcinoma), IGR39 (melanoma), U87 (glioblastoma), MDA-MB-231 (breast cancer), MCF-7 (breast adenocarcinoma), and BT474 (invasive ductal carcinoma), H1299 (non-small cell lung carcinoma), BxPC-3 (pancreatic adenocarcinoma), SKOV-3 (ovarian cancer) and human foreskin fibroblasts. Sunitinib was the standard drug taken for evaluation of anticancer activity. The structure of dihydropyrazole isatin based hybrids is given in Figure 93 and the in vitro cytotoxicity of hybrid compounds 96(ad) against human cancer cell lines is shown in Table 83 [172].

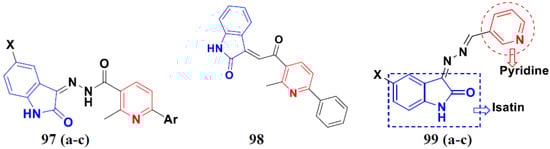

Wagdy et al. (2015) synthesized isatin-pyridine derivatives and tested their anti-proliferative activity against three human tumor cancer cell lines, i.e., hepatocellular carcinoma (HEPG2), lung cancer (A549), and breast cancer (MCF-7) using a sulforhodamine B (SRB) colorimetric assay. Doxorubicin has been used as a reference cytotoxic compound. The structure of pyridine isatin based hybrids is given in Figure 94 and in vitro cytotoxicity of compounds 97(ac), or 98, 99(ac) against human cancer cell lines is shown in Table 84 [173].

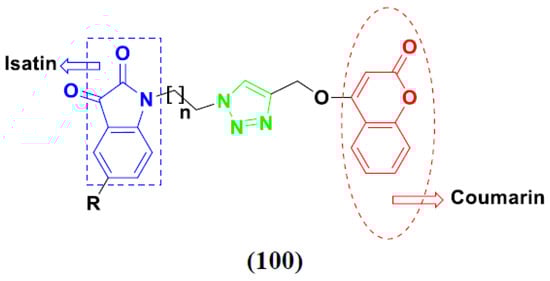

Singh et al. (2015) synthesized isatin-coumarin hybrids which contain triazole as a linker, and investigated their in vitro cytotoxicity activity against four human cancer cell lines (COLO-205, THP-1, HCT-116 and PC-3) using sulforhodamine B19. The cells were given 48 h to multiply in the presence of a test substance. COLO-205, THP-1 and HCT-116 (three of the four cancer cell lines tested) were sensitive to the synthesized hybrids, and the THP-1 cancer cell line was the most susceptible to these hybrids, whereas PC-3 was found to be resistant. The structure of isatin-based coumarin hybrids is given in Figure 95 and in vitro cytotoxicity of compounds 100(ad) against human cancer cell lines is shown in Table 85 [174].
Wabli et al. (2017) synthesized isatin-indole derivatives and evaluated their antiproliferative activity on three cell lines: ZR-75 (human breast), HT-29 (colon) and A-549 (lung). Compound 101(d) had an average IC50 value of 1.17 μM against the tested human cancer cell lines, making it the most active compound, with a potency approximately seven times greater than that of sunitinib. The structure of isatin-based indole hybrids is given in Figure 96 and in vitro cytotoxicity IC50 (µM) of compounds 101(ad) against human cancer cell lines is shown in Table 86 [175].
Panga et al. (2020) synthesized isatin-benzoic acid conjugates and tested their in vitro cytotoxic activity against MCF-7 and HeLa cell lines. All the synthesized isatin-benzoic acid conjugates showed moderate to strong cytotoxicity against both HeLa and MCF-7 cell lines with IC50 values ranging from 4.02 to 17.83 μM and 17.14 to 24.6 μM, respectively. Among all synthesized compounds, 102(b) showed maximum activity on both cell lines. The structure of isatin-based benzoic acid hybrids is given in Figure 97 and in vitro cytotoxicity of compounds 102(ad) against human cancer cell lines is shown in Table 87 [176].
Eldehna et al. (2016) synthesized isatin-thiazolo benzimidazole hybrids and evaluated their anti-proliferative efficacy against MCF-7 and MDA-MB-231 breast cancer cell lines by using sulforhodamine B colorimetric (SRB) assay. Staurosporine was utilized as a positive control, and the results were shown as IC50 values. Compounds 103(a) and 104(a) had maximum anticancer activity towards the tested cell lines. The structure of isatin-based thiazolo-benzimidazole hybrids is shown in Figure 98, and the in vitro cytotoxicity IC50 (µM) of compounds 103(ac), 104(ac) against human cancer cell lines is shown in Table 88 [170].

Isatin Containing FDA-Approved Hybrids

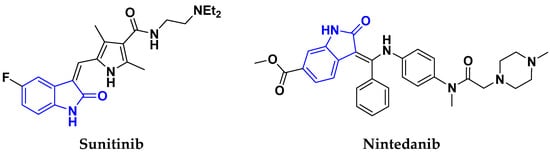

Isatin containing FDA-approved hybrids are depicted in Figure 99 [177].

3.17. Pyrrolo-Benzodiazepines Based Hybrids

Pyrrolo-benzodiazepines (PBD) are naturally found in many actinomycetes species. PBD block transcription factors and promote DNA replication by binding covalently to DNA, and thus inhibits cell growth [178].

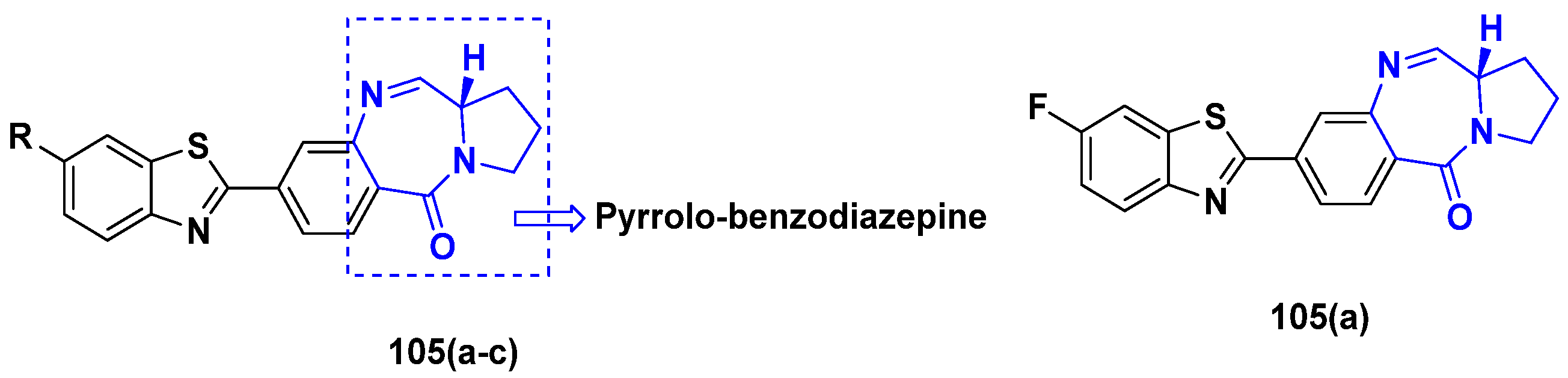

Bose et al. (2012) synthesized hybrids of pyrrole and benzodiazepine and tested cytotoxic activities of the synthesized compounds was in vitro against five tumor cell lines: THP-1 (human acute monocytic leukemia), U-937 (human histiocytic lymphoma), HL-60 (human promyelocytic leukemia), Jurkat (human T-cell leukemia) and A-549 (lung carcinoma). Among the synthesized compounds, 105(a) was the most potent. The structure of pyrrolo-benzodiazepine hybrids is given in Figure 100 and the in vitro cytotoxicity IC50 of compounds 105(ac) against human cancer cell lines is shown in Table 89 [179].

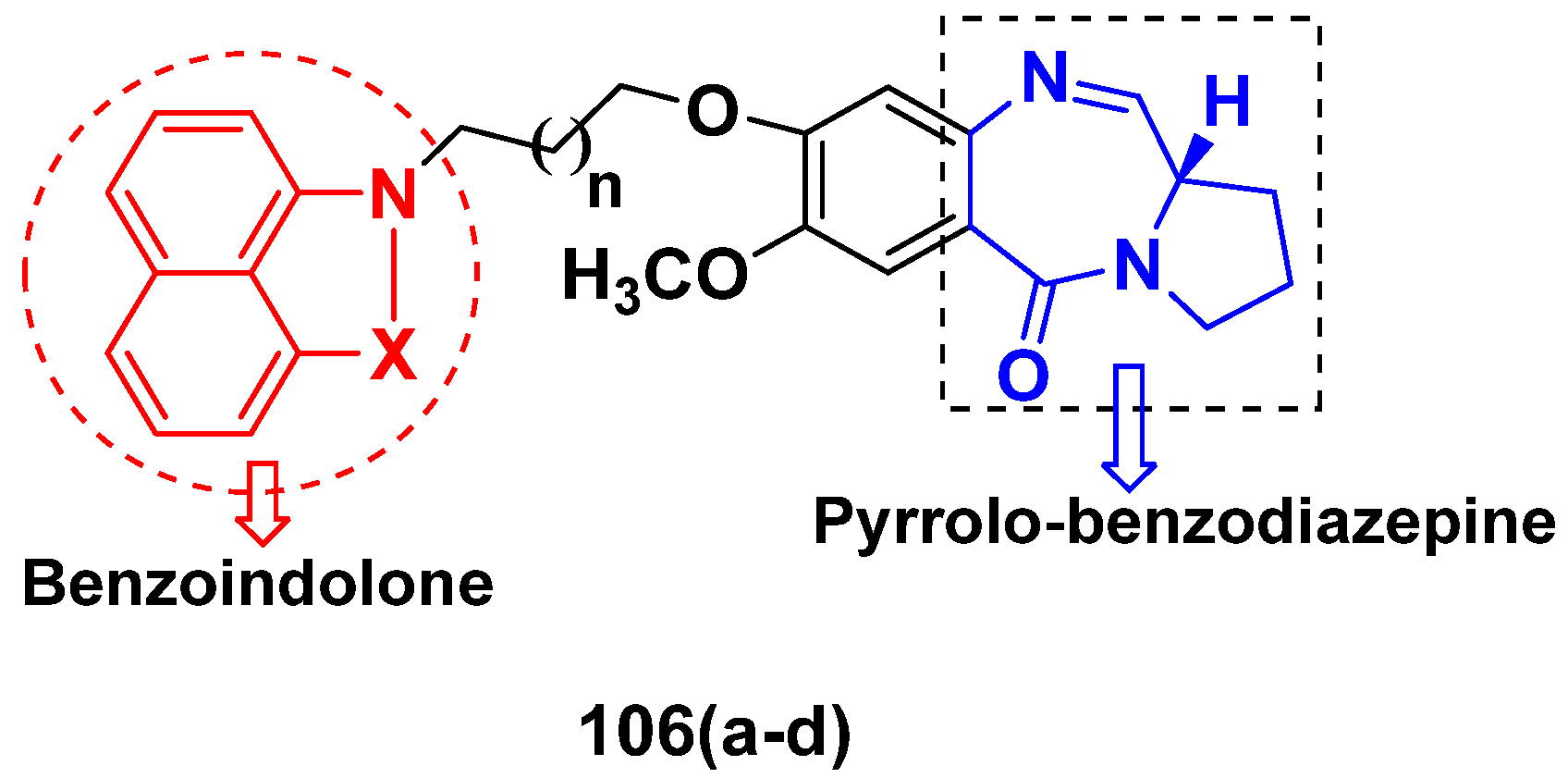

Kamal et al. (2012) synthesized pyrrolo-benzodiazepine conjugated with benzo indolone derivatives. The synthesized derivatives were assessed for their anticancer activity in human cancer cell lines of the lung, skin, colon and prostrate by using the MTT assay. These new conjugates exhibited encouraging anticancer activity, with IC50 values ranging from 1.05 to 36.49 µM. Doxorubicin and DC81, the positive controls, displayed IC50 values in the range of 0.03–2.51 µM and 0.86–1.65 µM, respectively. Compound 106(d) had the maximum anticancer activity. The structure of pyrrolo-benzodiazepine-based benzoindolone hybrids is given in Figure 101 and in vitro cytotoxicity of compounds 106(ad) against human cancer cell lines is shown in Table 90 [180].
Li et al. (2021) synthesized new pyrrolo [2,1-c] [1,4] benzodiazepine-3,11-dione (PBD) derivatives and evaluated their HDAC6 inhibitory effect. When R = H, the activity of the linker with the benzene ring was moderate. However, when the linker was extended by one methylene, the compound’s activity drastically dropped (107a vs. 107b). The structure of pyrrolo-benzodiazepine-dione hybrids is given in Figure 102 and the in vitro IC50 of compounds [107(ac),108(ac)] against HDAC6 enzyme is shown in Table 91 [181].

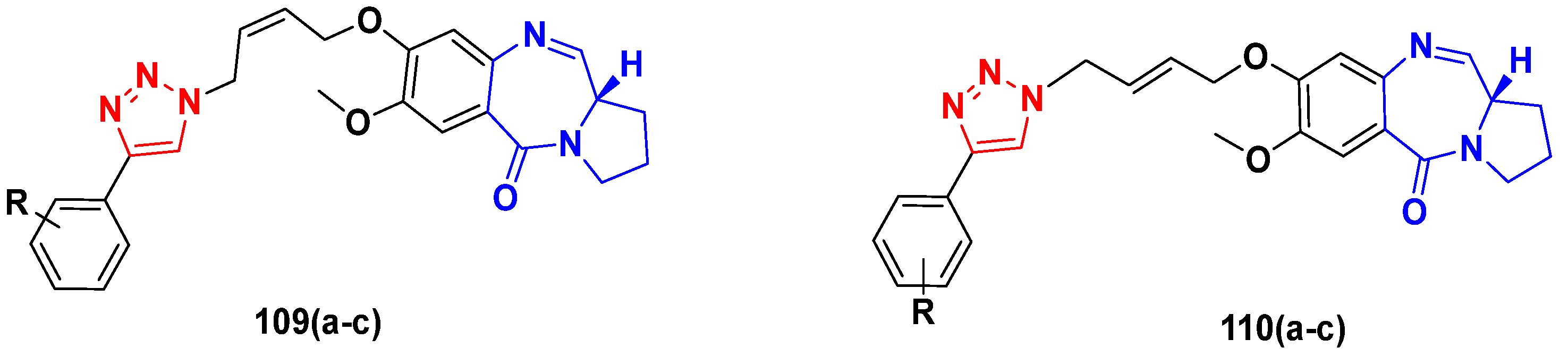

Chen et al. (2013) synthesized a new series of PBD-triazole hybrids and their cytotoxicity was investigated on various mouse and human cells, taking tubastatin A as a positive control. Cis-hybrids (109ac) were much more cytotoxic than trans isomers (110ac) in sensitive melanoma (A375). Compound 109a exhibited a higher inhibitory activity compared to that of other agents on A375 cells. The structure of triazole pyrrolo-benzodiazepine hybrids is given in Figure 103 and the in vitro cytotoxicity of compounds [109(ac), 110(ac)] against cancer cell lines is shown in Table 92 [182].

FDA Approved Drugs Containing Pyrrolo-Benzodiazepines

FDA approved drugs containing pyrrolo-benzodiazepines include tomaymycin, sibiromycin and neothramycin, which are depicted in Figure 104 [178].

3.18. Chalcone-Based Hybrids

Chalcone compounds are one of the most important fundamental categories of natural products as they are abundant within tea leaves, fruits and vegetables, fruits, and are of great interest because of their pharmacological effectiveness in treating many diseases. Some of the naturally occurring chalcones are depicted in Figure 105 [183].
One of the most significant bioactive substances with a chalcone structure (isoliquiritigenin) was isolated from liquorice roots. Butein, a physiologically active flavonoid found in Rhus verniciflua (Stokes’ bark), has been shown to have strong anticancer effects on a variety of cancer types.
Chalcone-based hybrid compounds have the potential to improve selectivity and anticancer activity while also overcoming drug resistance. Therefore, combining the chalcone moiety with additional anticancer pharmacophores is a promising strategy for creating new anticancer drugs. In recent times, a number of chalcone hybrids have been prepared and evaluated for their cytotoxic activity; some of them are found to have remarkable activity both in vitro and in vivo [184].

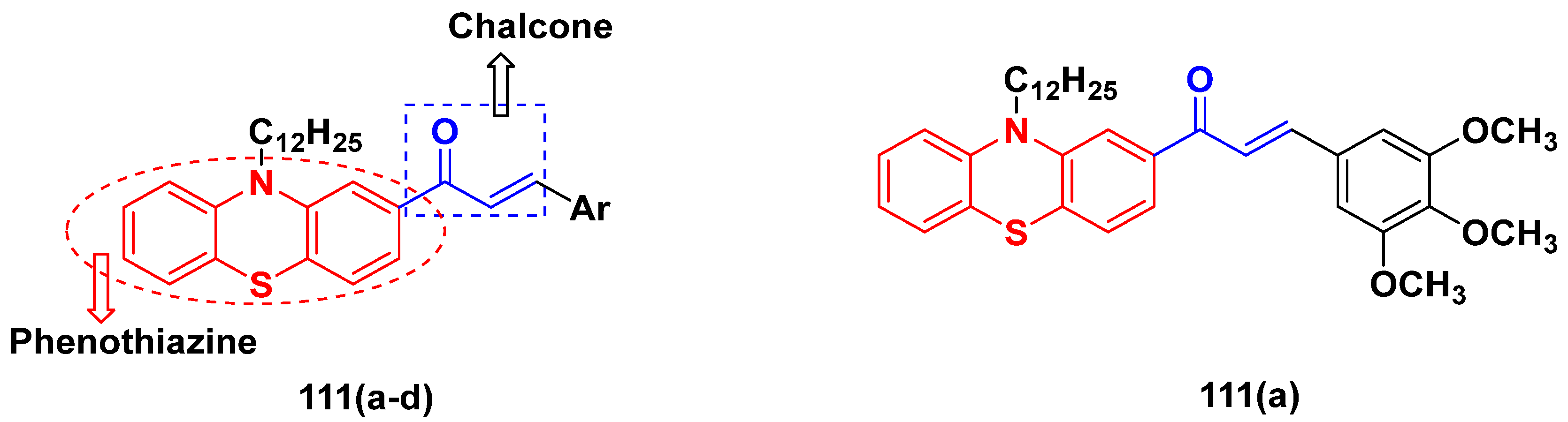

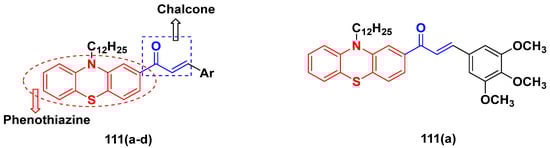

Zahrani et al. (2020) synthesized chalcone-based phenothiazine derivatives and evaluated their cytotoxic activity against two carcinoma cell lines (human breast cancer cell line MCF-7 and human hepatocellular carcinoma HEPG-2 cells) compared with anticancer standard drugs cisplatin and doxorubicin under the similar conditions following the MTT (methylthiazol-tetrazolium) colorimetric assay. 111(a) and 111(b) were the most effective compounds with IC50 values of 7.14 µg/mL and 7.6 g/mL, respectively. The structure of chalcone based phenothiazine hybrids is shown in Figure 106 and the in vitro cytotoxicity of compounds 111(ad) against cancer cell lines is shown in Table 93 [183].
Shivapriya et al. (2021) produced chalcone benzoxadiazole hybrids and evaluated their cytotoxic activity against the human epidermal carcinoma (KB) cell line using MTT assay. Chalcone-benzoxadiazole hybrids were prepared through the Claisen–Schmidt condensation reaction. The structure of chalcone-based benzoxadiazole hybrids is given in Figure 107 and the in vitro cytotoxicity of compounds 112(ad) against cancer cell lines is shown in Table 94 [185].

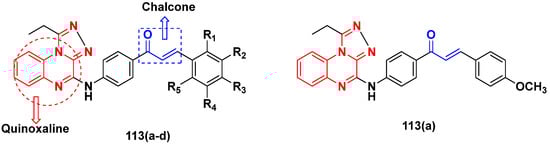

Alswah (2017) et al., designed and synthesized a series of triazolo-quinoxaline-chalcone derivatives 113ad, and evaluated their cytotoxic activity against three target cell lines: human breast adenocarcinoma (MCF-7), human colon carcinoma (HCT-116) and human hepatocellular carcinoma (HEPG-2) using the MTT assay method with doxorubicin as a reference drug. The initial results showed that some of the chalcones exhibited significant antiproliferative effects against most of the cell lines, with selective or non-selective behavior, with IC50 values found to be in the 1.65 to 34.28 µM range. Compound 113(a) showed maximum cytotoxic activity towards given cell lines. The structure of chalcone-based triazolo-quinoxaline hybrids is given in Figure 108 and the in vitro cytotoxicity of synthesized hybrids against cancer cell lines are shown in Table 95 [186].

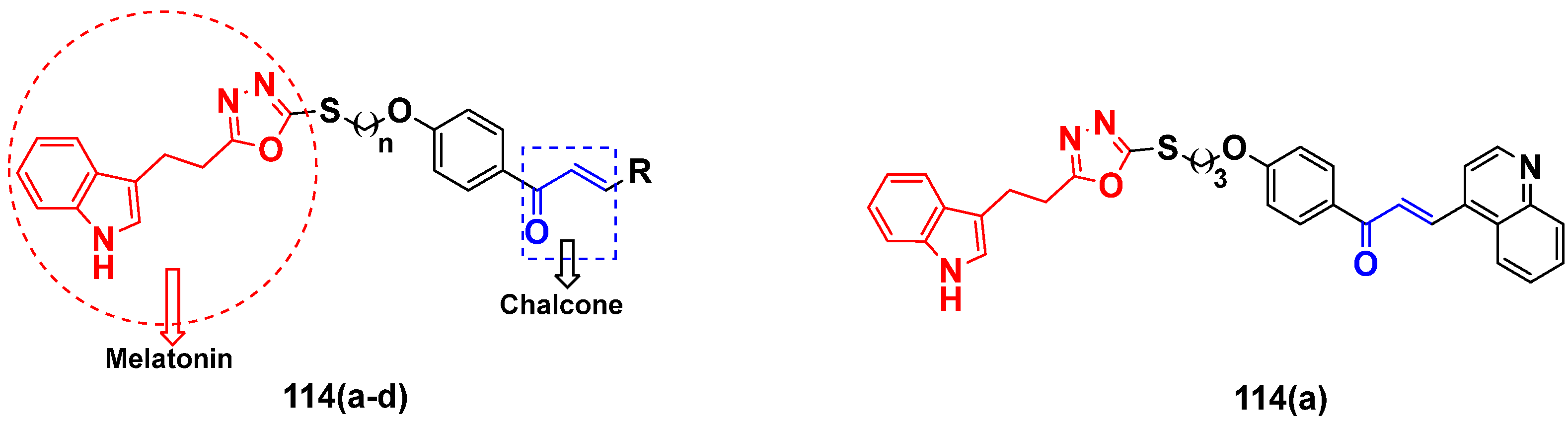

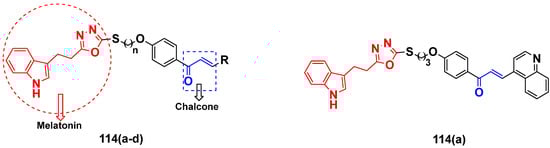

Yepes et al. (2021) synthesized a new series of hybrid molecules by inclusion of two scaffolds: chalcone and melatonin. To achieve this goal, biologically active chalcone was attached via a non-hydrolizable thioalkyloxy linker to the corresponding melatonin bioisostere scaffold. The anticancer activity of the synthesized hybrids was evaluated against an in vitro model of colorectal cancer. In this study, two cell lines were used, i.e., the non-malignant (CHO-K1) and human colon adenocarcinoma cells (SW480). The reference drug used was 5-FU. Compound 114(a) maximum activity. The structure of chalcone based melatonin hybrids is given in Figure 109 and in vitro cytotoxicity of compounds 114(ad) against cancer cell lines is shown in Table 96 [187].

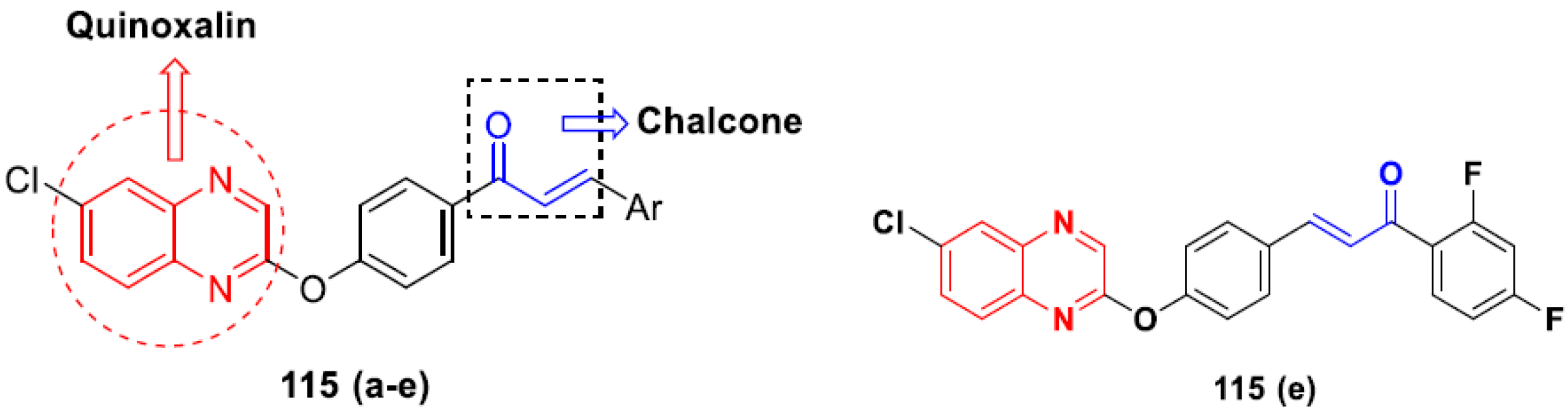

Ma et al. (2021) synthesized chalcone-based quinoxalin as anti-cancer hybrids. All of the synthesized compounds (115ae) were tested in vitro for their anticancer activities against, PC12, BPH-1 and MCF-7 cells using the MTT assay. With IC50 values in the micro molar range (9.1–98.7 mM) against all tested cancer cells, all synthesized compounds demonstrated moderate to good antiproliferative activity and compound 115(e) showed maximum cytotoxic activity. The structure of chalcone-based quinoxalin hybrids is given in Figure 110 and the in vitro cytotoxicity of compounds 115(ae) against cancer cell lines is shown in Table 97 [188].

3.19. Coumarin-Based Hybrids

The coumarin scaffold (2H-1-benzopyran-2-one) is extensive in nature, and it’s derivatives exhibit various antibacterial, antifungal, antimalarial, and anticancer pharmacological properties.

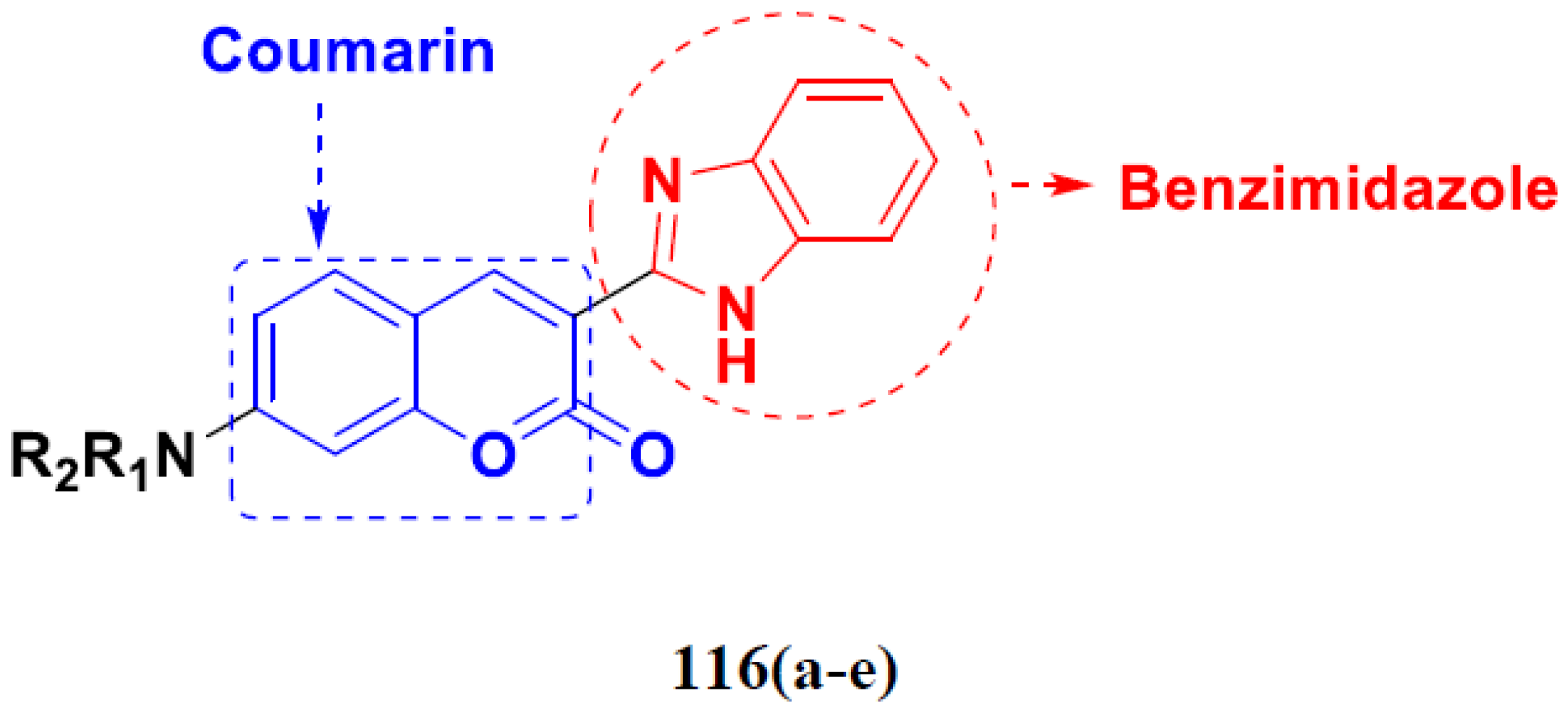

Kamaldeep Paul et al. (2013) synthesized coumarin-benzimidazole hybrids. The synthesized compounds showed potent activity against leukemia cancer cells (CCRF-CEM, HL-60(TB), K-562, RPMI-8226), colon cancer cells (HCT-116, HCT-15), melanoma cancer cells (LOX IMVI, UACC-257) and breast cancer cells (MCF7, T-47D). The compounds containing substitution (NR1R2) were the most potent with inhibition of most of the cell lines. The compound with ethanolamine as a substituent (NR1R2) at position 7 of the coumarin-benzimidazole scaffold, was the most potent synthesized compound. The structure of coumarin-benzimidazole hybrids is given in Figure 111 and the in vitro % growth inhibition of compounds 116(ae) against cancer cell lines is shown in Table 98 [189].

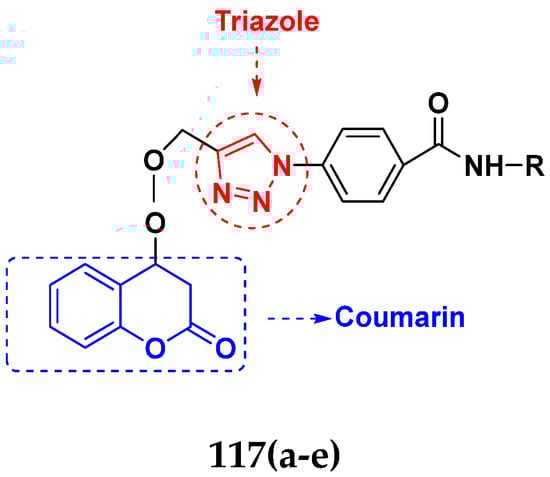

R. An et al. synthesized amide containing 1,2,3-triazole hybrids, which showed moderate to excellent activity against MDB-MB 231 cell lines under both normoxic and hypoxic conditions. The structure of coumarin-triazole hybrids is given in Figure 112 and the in vitro IC50 of compounds 117 (ae) against cancer cell lines are shown in Table 99 [190].

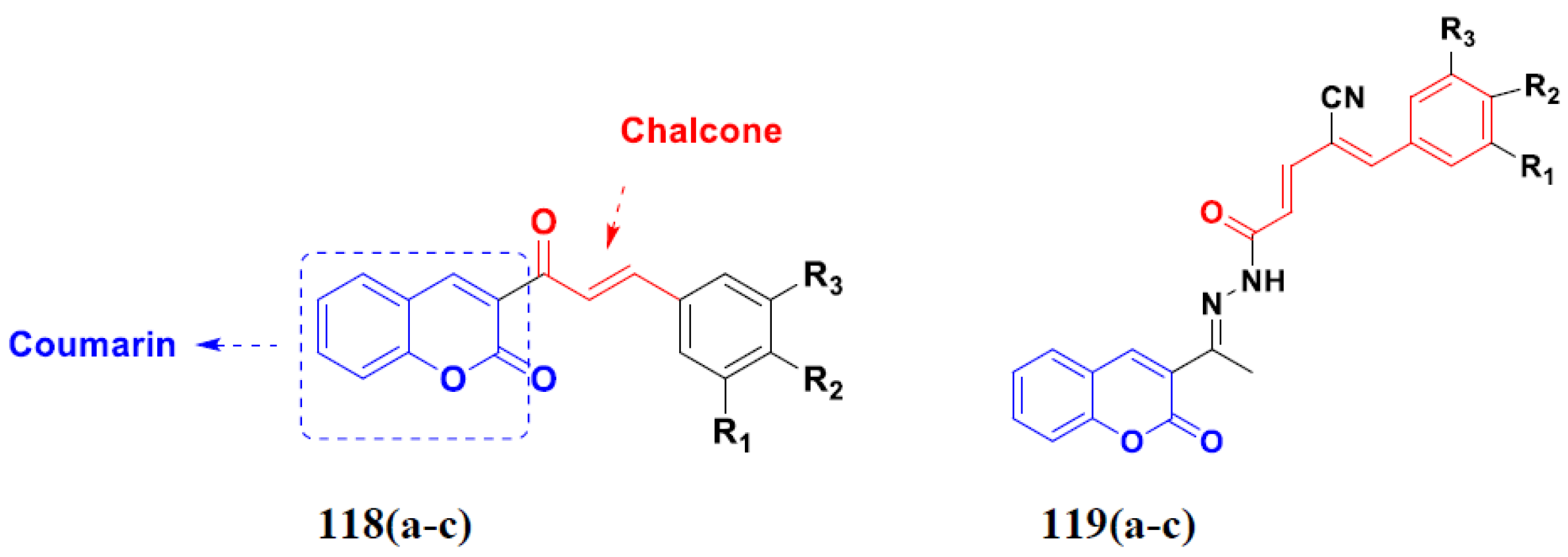

H.A. Elshemy et al., (2017) synthesized coumarin-chalcone hybrids having anticancer activity against HEPG2, leukemia, and WI-38 cell lines. All coumarin-chalcone hybrids had potent activity against HEPG2 and K562, and weak activity against WI-38 cell. Among the coumarin-chalcone hybrids, 4-methoxyphenyl chalcone 118(a) was more potent than 3,4-dimethoxyphenyl chalcone 118(b), which showed higher activity than chalcone with 3,4,5-trimethoxyphenyl moiety 118(c).
In the coumarin-acrylohydrazide series, compound 119(c) showed the highest activity against a leukemia cell line (k562) while compound (119a and 119b) showed potent activity against the HEPG2 cell line and moderate activity against the WI-38 cell line. The structure of coumarin containing chalcone hybrids is shown in Figure 113 and the in vitro IC50 (µM) of compounds [118(ac),119(ac)] against cancer cell lines is shown in Table 100 [191].

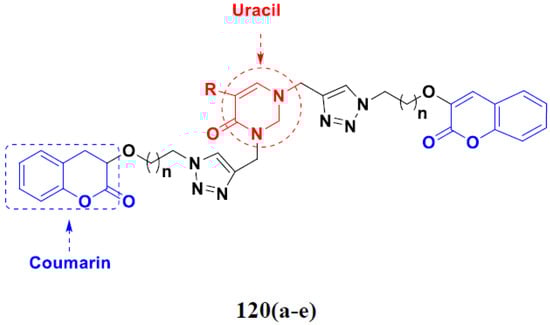

Mohit Sanduja et al. (2020) synthesized uracil-coumarin-based compounds as potent anticancer hybrid compounds. The uracil-coumarin hybrid compounds inhibited the MCF-7 cancer cell proliferation more effectively compared to standard 5-FU. The most potent compound 120b (GI50 = 1.55µM) contained A with fluorine atom as R with two carbon chain lengths between triazole and coumarin moieties. The structure of coumarin containing uracil hybrids is given in Figure 114, and in vitro GI50 (µM) of compounds 120(ae) against cancer cell lines is shown in Table 101 [192].

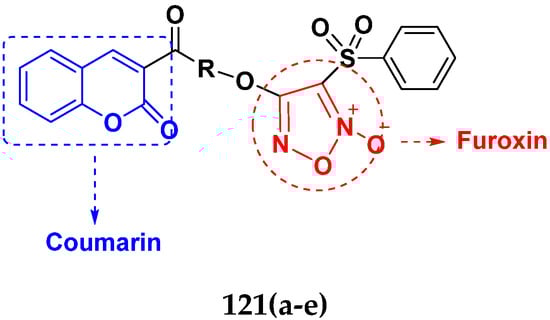

Zhuo zing et al., (2018) synthesized novel coumarin-based furoxin hybrids which had potent activity against Hela cell proliferation. The compound 121(e) had the highest antiproliferative activity and was more potent than standard, doxorubicin. The structure of coumarin containing furoxin hybrids is given in Figure 115 and the in vitro IC50 of compounds 121(ae) against cancer cell lines is shown in Table 102 [193].

3.20. Nitrogen Mustard Based Hybrids

Shengtao Xu et al. (2014) synthesized natural oridonin bearing nitrogen mustard hybrid as potential anticancer compound. The hybrid showed activity against the multidrug resistant cell lines SW620/AD300 and NCL-H460/MX20. Compound 122(b) induced apoptosis and affected cell cycle progression in human hepatoma (Bel-7402) cells. The structure of nitrogen mustard contain oridonin hybrids is given in Figure 116 and the in vitro IC50 of compounds 122(ad) against the cancer cell line (Bel-7402) is shown in Table 103 [194].

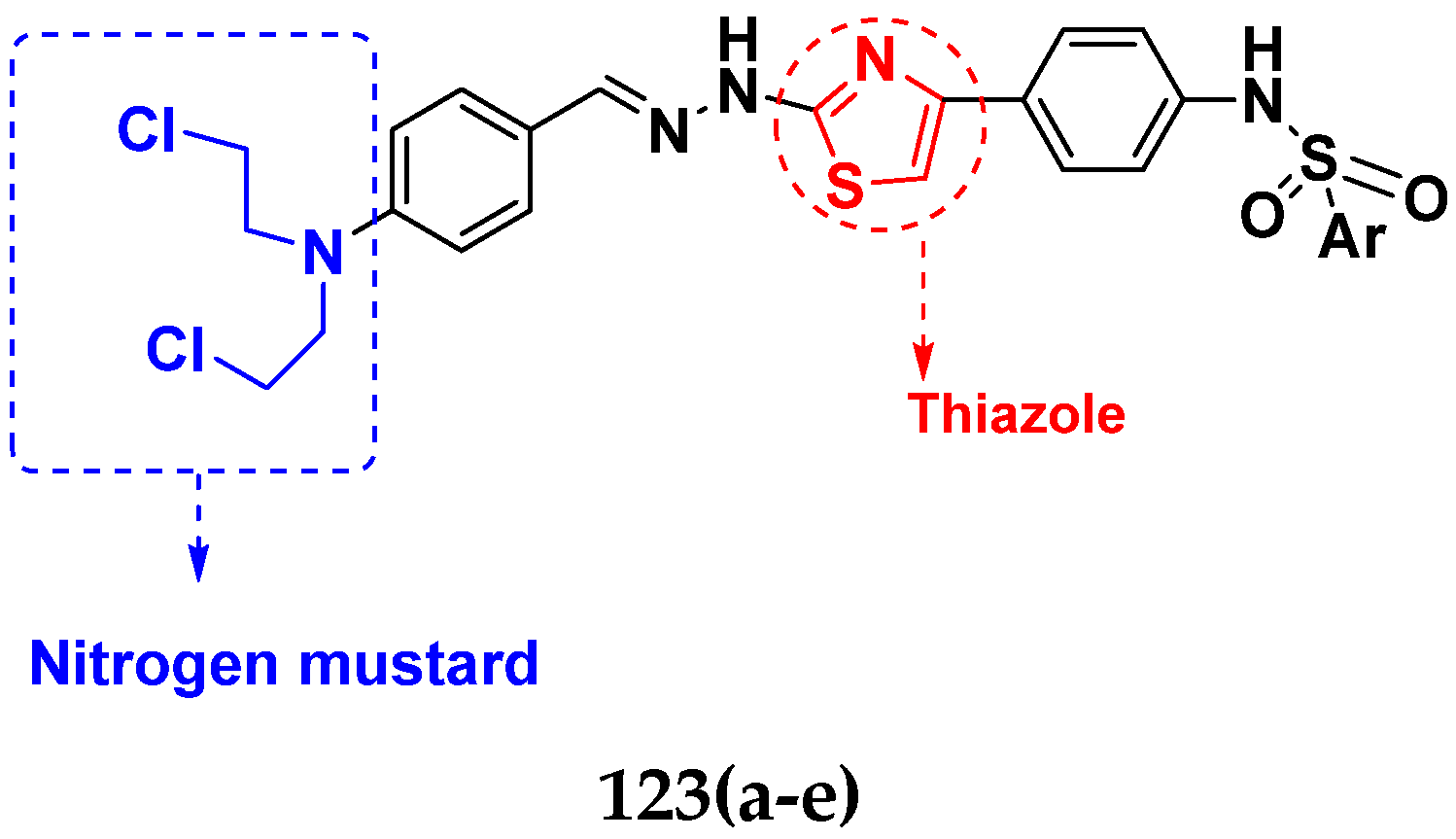

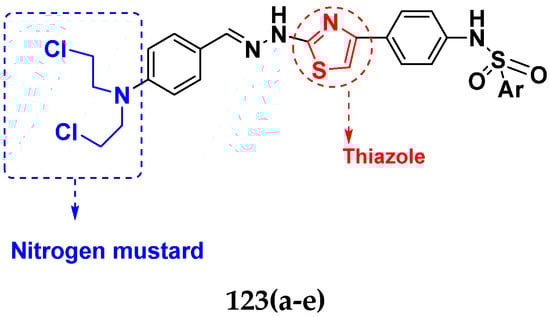

Laczkowski et al. (2016) synthesized nitrogen mustard-based thiazole hybrid drugs that showed antiproliferative activity against human cancer cell lines MV4-11, A549, MCF-7 and HCT-116. Among the all derivatives, 123(ae) was most potent and exhibited activity against human leukemia (MV4-11) cells. The compounds 123(b) and 123(e) had potent activity against MCF-7 and HCT116. The structure of nitrogen mustard contain thiazole hybrids is given in Figure 117 and the in vitro IC50 of compounds 123(ae) against cancer cell lines is shown in Table 104 [195].

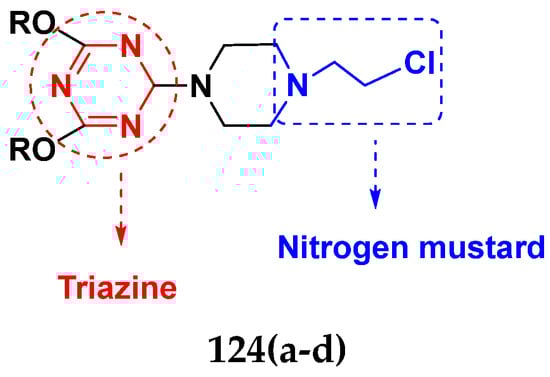

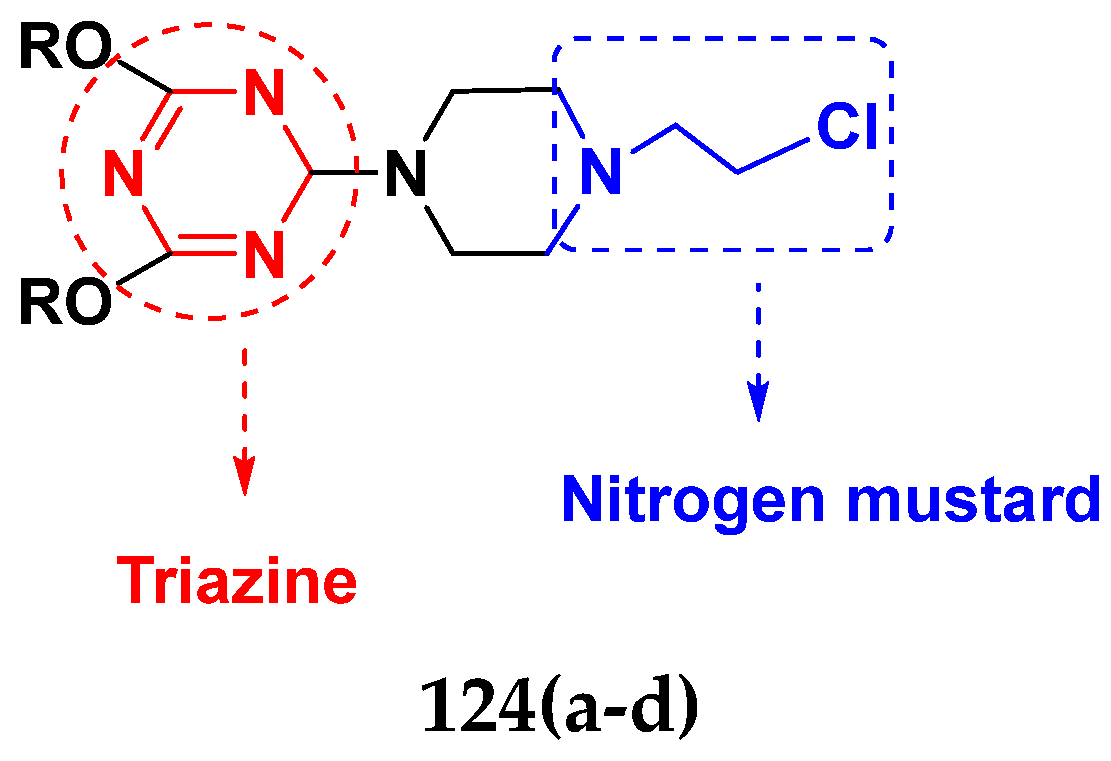

Kolesinska et al. (2012) synthesized hybrids containing a nitrogen mustard-triazine scaffold as potent anticancer compounds. These were prepared by rearrangement of mono, bis and tris-(1,3,5-triazin-2-yl)-1,4-diazacyclo [2.2.2] octanium chlorides leading to the formation of 2-chloroethylamino fragments attached to 1,3,5-triazine via one, two or three piperazine, respectively. Their cytotoxicity and alkylating activity depended on substituents on the triazine ring and nitrogen mustard. Among the above mentioned compounds, 124(b) and 124(d) were the most potent. The structure of nitrogen mustard-containing triazine hybrids is shown in Figure 118 and the in vitro IC50 of compounds 124(ad) against cancer cell lines is shown in Table 105 [196].

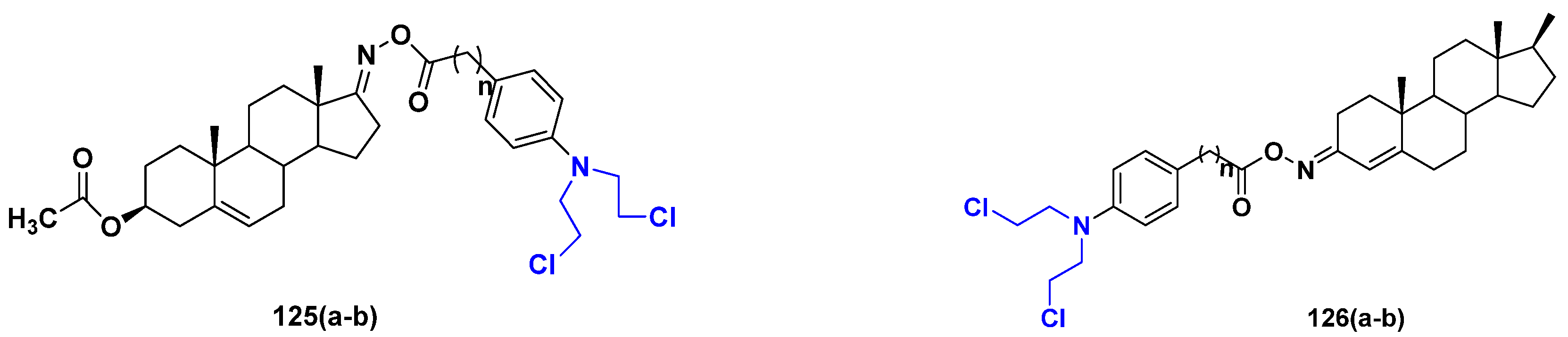

Acharya et al. (2017) synthesized androstene oxime-nitrogen mustard hybrids and nitrogen mustard conjugates of various steroidal oximes. The conjugation was achieved by oxime-ester linkage. The 17-E-steroidal oxime benzoic acid mustard ester, 3β acetoxy-17E-[p-(N,N-bis(2-chloroethyl)amino]benzoyloxiamino-androst-5ene 125(a) showed the highest growth inhibition on IGROV (ovarian cancer cells) with a GI50 of 0.937 µg/mL. The structure of androstene oxime-nitrogen mustard hybrids is shown in Figure 119 and the in vitro GI50 (µg/mL) of compounds (125(a-b),126(a-b)) against cancer cell lines is shown in Table 106 [197].

3.21. Pyrazole-Based Hybrids

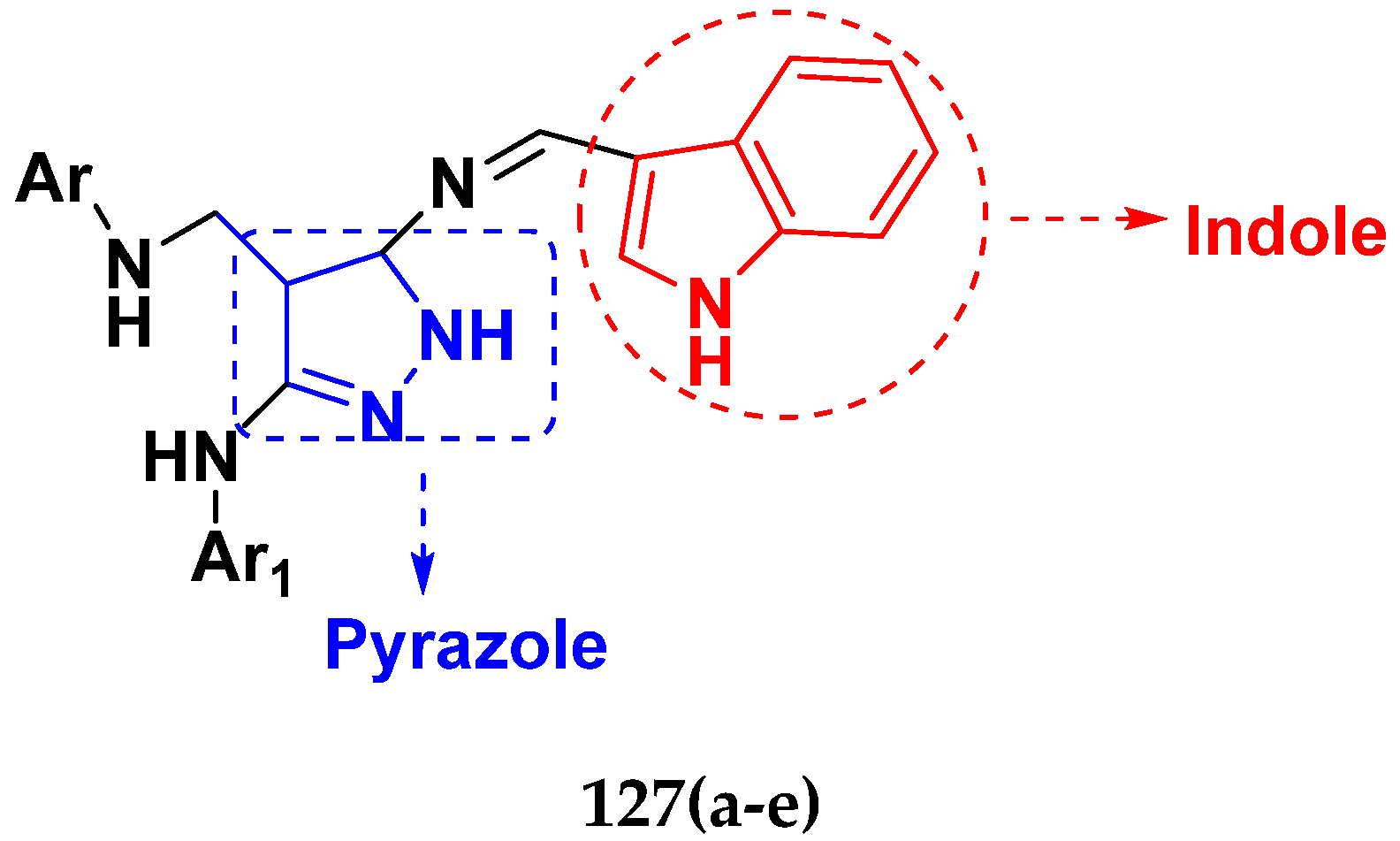

Hassan et al. (2021) synthesized indole-pyrazole hybrids as anticancer agents. The newly synthesized hybrids were screened for their cytotoxicity activities in vitro against four human cancer types, i.e., colorectal (HCT-116), breast carcinoma (MCF-7), liver carcinoma (HepG2) and lung carcinoma (A549). Among all indole-pyrazole hybrids, 126a and 126b showed excellent anticancer activity against the HepG2 cancer cell line with an IC50 of 6.1 and 7.9 µM, respectively. The structure of the pyrazole-based indole hybrid is given in Figure 120 and the in vitro IC50 of compounds 127(ae) against cancer cell lines are shown in Table 107 [198].
Somaia et al. (2015) synthesized benzofuran-pyrazole-based hybrids as anticancer drugs. The newly synthesized compounds showed remarkable growth inhibitory activity against leukemia (CCRF-CEM), A549 (lung carcinoma), and HCT-116 (colorectal carcinoma) cells. Compound 128c showed good src inhibition activity at 10 µM and was found to be most potent compound. The structure of benzofuran-pyrazole hybrids is given in Figure 121 and in vitro IC50 of compounds 128(ad) against cancer cell lines is shown in Table 108 [199].

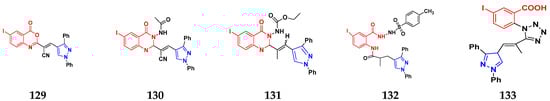

Abdelaal et al. (2021) synthesized quinazoline-pyrazole hybrids as potential antiproliferative agents. The newly synthesized compounds showed activity against hepatocellular carcinoma (liver) HEPG2, mammary gland (breast) MCF-7 and colon cancer HCT-116 cells. The structure of quinazoline-pyrazole hybrids is given in Figure 122 and the in vitro IC50 of compounds (129133) against cancer cell lines is shown in Table 109 [200].
Washim Akhtar et al. (2021) synthesized 15 novel pyrazoline-pyrazole hybrids, all of which showed activity in the MTT growth inhibition assay against five cancer cells lines: MCF-7, A549, SiHa, COLO205 and HePG2 cells. Compound 134 (b) was found to active against A549, SiHa, COLO205 and HePG2 cell lines with IC50 values of 4.94, 4.54, 4.98 and 2.09 µM, respectively, and was non-toxic against normal cells. The structure of pyrazoline-pyrazole hybrids is given in Figure 123 and in vitro IC50 of compounds 134(ae) against cancer cell lines is shown in Table 110 [201].
Garima Verma et al. (2018) synthesized pyrazole acrylic acid-based oxadiazole and amide hybrids as anticancer and antimalarial agents. The anticancer activity of newly synthesized compounds was measured using the sulforhodamine B assay. Compounds 135(ac) demonstrated promising results against all tested cell lines. The non-cyclized compounds (amide derivatives) favored anticancer activity. The structure of pyrazole acrylic acid based oxadiazole hybrids is shown in Figure 124 and the in vitro IC50 of compounds 135(ac) against cancer cell lines is shown in Table 111 [202].

3.22. Pyridine-Based Hybrids

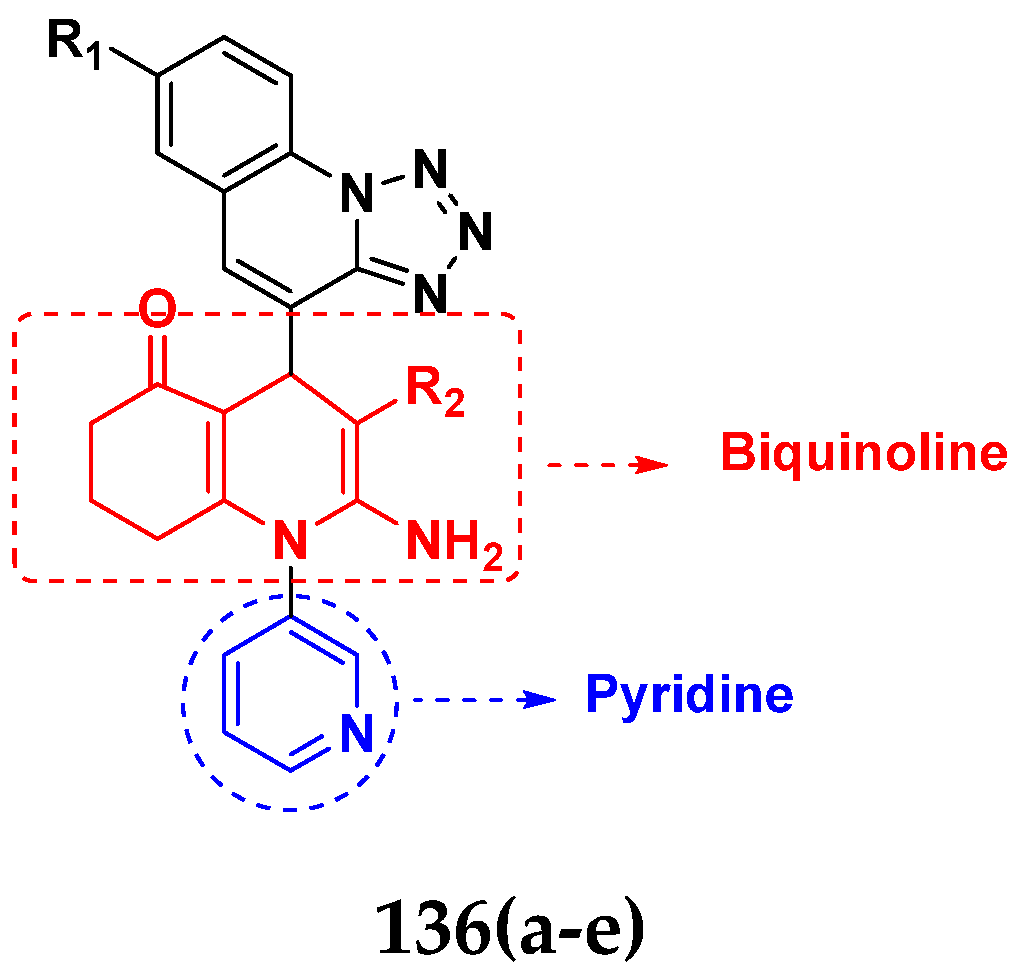

Chetan B. Sangani et al. (2014) synthesized biquinoline-pyridine hybrids as potential EGFR and HER-2 kinase inhibitors by base catalyzed cyclocondensation through one potent multicomponent reaction. All the synthesized compounds were tested against A549 (adenocarcinomic human alveolar basal epithelial) and Hep G2 (liver cancer) cell lines. Enzyme inhibitory activity was measured against HER-2. Compound 136(d) was found to be most potent compound. The structure of biquinoline-pyridine hybrids is given in Figure 125 and the in vitro IC50 of compounds 136(ae) against cancer cell lines is shown in Table 112 [203].

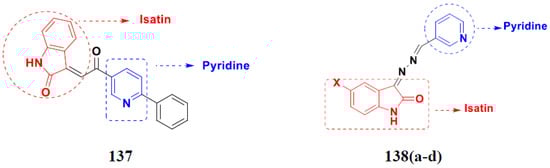

W.M. Eldehna et al. (2015) synthesized isatin-pyridine hybrids as potential antiproliferative agents. They showed antiproliferative activity against hepatocellular carcinoma (HEPG2), lung cancer (A549) and breast cancer (MCF-7) cell lines. Compound 137 showed the most potent activity against HEPG2 with an IC50 of 2.5 µM, while compound 138(c) was the most potent compound against A549 and MCF-7 cell line with IC50 values of 10.8 and 6.3 µM, respectively. The structure of isatin-pyridine hybrids is shown in Figure 126 and the in vitro IC50 of compounds [137,138(a–d)] against cancer cell lines is shown in Table 113 [173].

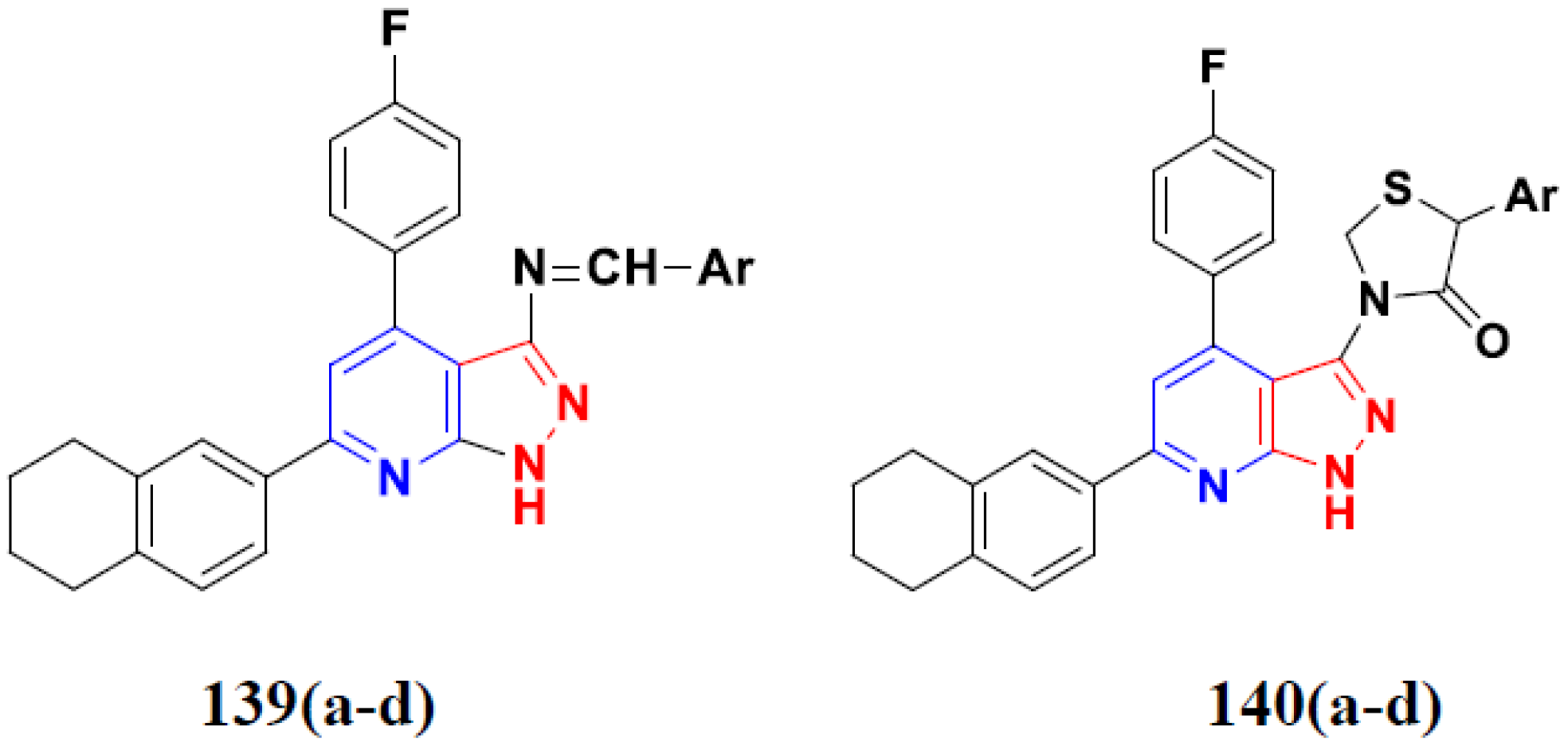

E.K. Hamza et al. (2020) synthesized pyrazolo [3,4] pyridine hybrids as potential anticancer agents. The activity of the newly synthesized compounds was evaluated in vitro against two human cancer cell lines (HCT116 and MCF-7). Compounds 139(ad) showed activity against HCT116 and compounds 140(ad) showed activity against MCF-7 cancer cell lines. The structure of pyrazolo [3,4] pyridine hybrids is shown in Figure 127 and the in vitro IC50 (µM) of compounds [139(ad),140(ad)] against cancer cell lines is shown in Table 114 [204].

4. Conclusions

For a very long time, medicinal chemists from all over the world have been trying to develop new and effective cancer treatments. Combination therapy and hybrid chemotherapeutics haves become more common, because a complex disease such as cancer cannot be properly treated with a single drug. This study presents rational approaches behind the design of anticancer agents employing molecular hybridization. This method has potential because it combines two moieties to create new molecular scaffolds. Molecular hybridization offers a wide range of applications since it can produce compounds with distinct and/or multiple modes of action and minimal side effects. The few examples included in this article are not intended to be an exhaustive collection of anticancer hybrids, but to provide a quick explanation of the idea and its potential uses for researchers working in this field.

Author Contributions

Conceptualization: P.K., M.G. and M.J.; data collection: P.S., H.P. and J.P.Y.; writing the manuscript: A.K.S. and A.K.; sketching of figures: P.P. and H.S.; data interpretation: S.T. and A.-H.E.; writing, review and final editing of the manuscript: A.V. and H.K. All authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by King Abdullah University of Science and Technology (KAUST), Thuwal, Jeddah, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data given in this manuscript has been taken from published research articles, given in the list of references and are available online.

Acknowledgments

The authors are thankful to Central University of Punjab for providing infrastructural facilities for the successful completion of this study. Prateek Pathak and Maria Grishina also acknowledge Ministry of Science and Higher Education of Russia (Grant FENU-2020-0019).

Conflicts of Interest

The authors declare no competing interest.

Abbreviations

EGFREpidermal Growth Factor Receptor
EMAEuropean Medicines Agency
FDAFood and Drug Administration
HDACHistone Deacetylases
MDRMultidrug Resistance
PDGFPlatelet Derived Growth Factor
SAHASuberoylanilide Hydroxamic Acid
VEGFR-2Vascular Endothelial Growth Factor Receptor-2
WHOWorld Health Organization

References

  1. Rana, A.; Alex, J.M.; Chauhan, M.; Joshi, G.; Kumar, R. A review on pharmacophoric designs of antiproliferative agents. Med. Chem. Res. 2015, 24, 903–920. [Google Scholar] [CrossRef]
  2. Kori, S. An overview: Several causes of breast cancer. Epidemol. Int. J. 2018, 2, 000107. [Google Scholar] [CrossRef]
  3. Hassanpour, S.H.; Dehghani, M. Review of cancer from perspective of molecular. J. Cancer Res. Pract. 2017, 4, 127–129. [Google Scholar] [CrossRef]
  4. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  5. Philip, C.C.; Mathew, A.; John, M.J. Cancer care: Challenges in the developing world. Cancer Res. Treat. 2018, 1, 58–62. [Google Scholar]
  6. Penny, L.K.; Wallace, H.M. The challenges for cancer chemoprevention. Chem. Soc. Rev. 2015, 44, 8836–8847. [Google Scholar] [CrossRef]
  7. Zugazagoitia, J.; Guedes, C.; Ponce, S.; Ferrer, I.; Molina-Pinelo, S.; Paz-Ares, L. Current challenges in cancer treatment. Clin. Ther. 2016, 38, 1551–1566. [Google Scholar] [CrossRef]
  8. Zhong, L.; Li, Y.; Xiong, L.; Wang, W.; Wu, M.; Yuan, T.; Yang, W.; Tian, C.; Miao, Z.; Wang, T. Small molecules in targeted cancer therapy: Advances, challenges, and future perspectives. Signal Transduct. Target. Ther. 2021, 6, 201. [Google Scholar] [CrossRef]
  9. Chakraborty, S.; Rahman, T. The difficulties in cancer treatment. Ecancermedicalscience 2012, 6, ed16. [Google Scholar]
  10. Shalini; Kumar, V. Have molecular hybrids delivered effective anticancer treatments and what should future drug discovery focus on? Expert Opin. Drug Discov. 2021, 16, 335–363. [Google Scholar] [CrossRef]
  11. Bass, A.K.; El-Zoghbi, M.S.; Nageeb, E.S.M.; Mohamed, M.F.; Badr, M.; Abuo-Rahma, G.E.D.A. Comprehensive review for anticancer hybridized multitargeting HDAC inhibitors. Eur. J. Med. Chem. 2021, 209, 112904. [Google Scholar] [CrossRef]
  12. Gediya, L.K.; Njar, V.C. Promise and challenges in drug discovery and development of hybrid anticancer drugs. Expert Opin. Drug Discov. 2009, 4, 1099–1111. [Google Scholar] [CrossRef]
  13. Moustafa, A.M.Y.; Bakare, S.B. Synthesis of some hybrid 7-hydroxy quinolinone derivatives as anti breast cancer drugs. Res. Chem. Intermed. 2019, 45, 3895–3912. [Google Scholar] [CrossRef]
  14. Nepali, K.; Sharma, S.; Sharma, M.; Bedi, P.; Dhar, K. Rational approaches, design strategies, structure activity relationship and mechanistic insights for anticancer hybrids. Eur. J. Med. Chem. 2014, 77, 422–487. [Google Scholar] [CrossRef]
  15. Decker, M. Hybrid molecules incorporating natural products: Applications in cancer therapy, neurodegenerative disorders and beyond. Curr. Med. Chem. 2011, 18, 1464–1475. [Google Scholar] [CrossRef]
  16. Kerru, N.; Singh, P.; Koorbanally, N.; Raj, R.; Kumar, V. Recent advances (2015–2016) in anticancer hybrids. Eur. J. Med. Chem. 2017, 142, 179–212. [Google Scholar] [CrossRef]
  17. Szumilak, M.; Wiktorowska-Owczarek, A.; Stanczak, A. Hybrid drugs—A strategy for overcoming anticancer drug resistance? Molecules 2021, 26, 2601. [Google Scholar] [CrossRef]
  18. Abbot, V.; Sharma, P.; Dhiman, S.; Noolvi, M.N.; Patel, H.M.; Bhardwaj, V. Small hybrid heteroaromatics: Resourceful biological tools in cancer research. RSC Adv. 2017, 7, 28313–28349. [Google Scholar] [CrossRef]
  19. Fortin, S.; Bérubé, G. Advances in the development of hybrid anticancer drugs. Expert Opin. Drug Discov. 2013, 8, 1029–1047. [Google Scholar] [CrossRef]
  20. Mishra, S.; Singh, P. Hybrid molecules: The privileged scaffolds for various pharmaceuticals. Eur. J. Med. Chem. 2016, 124, 500–536. [Google Scholar]
  21. Zheng, W.; Zhao, Y.; Luo, Q.; Zhang, Y.; Wu, K.; Wang, F. Multi-targeted anticancer agents. Curr. Top. Med. Chem. 2017, 17, 3084–3098. [Google Scholar] [CrossRef] [PubMed]
  22. Chamseddine, I.M.; Rejniak, K.A. Hybrid modeling frameworks of tumor development and treatment. Wiley Interdiscip. Rev. Syst. Biol. Med. 2020, 12, e1461. [Google Scholar] [CrossRef] [PubMed]
  23. Alagarsamy, V.; Chitra, K.; Saravanan, G.; Solomon, V.R.; Sulthana, M.; Narendhar, B. An overview of quinazolines: Pharmacological significance and recent developments. Eur. J. Med. Chem. 2018, 151, 628–685. [Google Scholar] [CrossRef] [PubMed]
  24. Das, D.; Hong, J. Recent advancements of 4-aminoquinazoline derivatives as kinase inhibitors and their applications in medicinal chemistry. Eur. J. Med. Chem. 2019, 170, 55–72. [Google Scholar] [CrossRef]
  25. Cheng, W.; Zhu, S.; Ma, X.; Qiu, N.; Peng, P.; Sheng, R.; Hu, Y. Design, synthesis and biological evaluation of 6-(nitroimidazole-1H-alkyloxyl)-4-anilinoquinazolines as efficient EGFR inhibitors exerting cytotoxic effects both under normoxia and hypoxia. Eur. J. Med. Chem. 2015, 89, 826–834. [Google Scholar] [CrossRef]
  26. Zhang, Y.; Gao, H.; Liu, R.; Liu, J.; Chen, L.; Li, X.; Zhao, L.; Wang, W.; Li, B. Quinazoline-1-deoxynojirimycin hybrids as high active dual inhibitors of EGFR and α-glucosidase. Bioorg. Med. Chem. Lett. 2017, 27, 4309–4313. [Google Scholar] [CrossRef]
  27. Zhang, H.Q.; Gong, F.H.; Ye, J.Q.; Zhang, C.; Yue, X.H.; Li, C.G.; Xu, Y.G.; Sun, L.P. Design and discovery of 4-anilinoquinazoline-urea derivatives as dual TK inhibitors of EGFR and VEGFR-2. Eur. J. Med. Chem. 2017, 125, 245–254. [Google Scholar] [CrossRef]
  28. Yadav, R.R.; Guru, S.K.; Joshi, P.; Mahajan, G.; Mintoo, M.J.; Kumar, V.; Bharate, S.S.; Mondhe, D.M.; Vishwakarma, R.A.; Bhushan, S. 6-Aryl substituted 4-(4-cyanomethyl) phenylamino quinazolines as a new class of isoform-selective PI3K-alpha inhibitors. Eur. J. Med. Chem. 2016, 122, 731–743. [Google Scholar] [CrossRef]
  29. Ding, H.W.; Deng, C.L.; Li, D.D.; Liu, D.D.; Chai, S.M.; Wang, W.; Zhang, Y.; Chen, K.; Li, X.; Wang, J. Design, synthesis and biological evaluation of novel 4-aminoquinazolines as dual target inhibitors of EGFR-PI3Kα. Eur. J. Med. Chem. 2018, 146, 460–470. [Google Scholar] [CrossRef]
  30. Fan, Y.H.; Ding, H.W.; Liu, D.D.; Song, H.R.; Xu, Y.N.; Wang, J. Novel 4-aminoquinazoline derivatives induce growth inhibition, cell cycle arrest and apoptosis via PI3Kα inhibition. Bioorg. Med. Chem. 2018, 26, 1675–1685. [Google Scholar] [CrossRef]
  31. Fröhlich, T.; Reiter, C.; Ibrahim, M.M.; Beutel, J.; Hutterer, C.; Zeitträger, I.; Bahsi, H.; Leidenberger, M.; Friedrich, O.; Kappes, B. Synthesis of novel hybrids of quinazoline and artemisinin with high activities against Plasmodium falciparum, human cytomegalovirus, and leukemia cells. ACS Omega 2017, 2, 2422–2431. [Google Scholar] [CrossRef]
  32. Yang, S.M.; Urban, D.J.; Yoshioka, M.; Strovel, J.W.; Fletcher, S.; Wang, A.Q.; Xu, X.; Shah, P.; Hu, X.; Hall, M.D. Discovery and lead identification of quinazoline-based BRD4 inhibitors. Bioorg. Med. Chem. Lett. 2018, 28, 3483–3488. [Google Scholar] [CrossRef]
  33. Lee, H.A.; Hyun, S.A.; Byun, B.; Chae, J.H.; Kim, K.S. Electrophysiological mechanisms of vandetanib-induced cardiotoxicity: Comparison of action potentials in rabbit Purkinje fibers and pluripotent stem cell-derived cardiomyocytes. PLoS ONE 2018, 13, e0195577. [Google Scholar] [CrossRef] [Green Version]
  34. Cheng, C.C.; Chang, J.; Huang, S.C.C.; Lin, H.C.; Ho, A.S.; Lim, K.H.; Chang, C.C.; Huang, L.; Chang, Y.C.; Chang, Y.F. YM155 as an inhibitor of cancer stemness simultaneously inhibits autophosphorylation of epidermal growth factor receptor and G9a-mediated stemness in lung cancer cells. PLoS ONE 2017, 12, e0182149. [Google Scholar] [CrossRef]
  35. Han, W.; Pan, H.; Chen, Y.; Sun, J.; Wang, Y.; Li, J.; Ge, W.; Feng, L.; Lin, X.; Wang, X. EGFR tyrosine kinase inhibitors activate autophagy as a cytoprotective response in human lung cancer cells. PLoS ONE 2011, 6, e18691. [Google Scholar] [CrossRef]
  36. Tabasum, S.; Singh, R.P. Fisetin suppresses migration, invasion and stem-cell-like phenotype of human non-small cell lung carcinoma cells via attenuation of epithelial to mesenchymal transition. Chem. Biol. Interact. 2019, 303, 14–21. [Google Scholar] [CrossRef]
  37. Eno, M.R.; El-Gendy, B.E.D.M.; Cameron, M.D. P450 3A-catalyzed O-dealkylation of lapatinib induces mitochondrial stress and activates Nrf2. Chem. Res. Toxicol. 2016, 29, 784–796. [Google Scholar] [CrossRef]
  38. Pham, H.T.T.; Maurer, B.; Prchal-Murphy, M.; Grausenburger, R.; Grundschober, E.; Javaheri, T.; Nivarthi, H.; Boersma, A.; Kolbe, T.; Elabd, M. STAT5B N642H is a driver mutation for T cell neoplasia. J. Clin. Investig. 2018, 128, 387–401. [Google Scholar] [CrossRef]
  39. Sun, H.; Mediwala, S.N.; Szafran, A.T.; Mancini, M.A.; Marcelli, M. CUDC-101, a novel inhibitor of full-length androgen receptor (flAR) and androgen receptor variant 7 (AR-V7) activity: Mechanism of action and in vivo efficacy. Horm. Cancer 2016, 7, 196–210. [Google Scholar] [CrossRef]
  40. Zhou, Y.; Li, Y.; Ni, H.M.; Ding, W.X.; Zhong, H. Nrf2 but not autophagy inhibition is associated with the survival of wild-type epidermal growth factor receptor non-small cell lung cancer cells. Toxicol. Appl. Pharmacol. 2016, 310, 140–149. [Google Scholar] [CrossRef]
  41. Kumari, A.; Singh, R.K. Medicinal chemistry of indole derivatives: Current to future therapeutic prospectives. Bioorg. Chem. 2019, 89, 103021. [Google Scholar] [CrossRef] [PubMed]
  42. Dadashpour, S.; Emami, S. Indole in the target-based design of anticancer agents: A versatile scaffold with diverse mechanisms. Eur. J. Med. Chem. 2018, 150, 9–29. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, Y.; Yang, P.; Chou, C.J.; Liu, C.; Wang, X.; Xu, W. Development of N-hydroxycinnamamide-based histone deacetylase inhibitors with an indole-containing cap group. ACS Med. Chem. Lett. 2013, 4, 235–238. [Google Scholar] [CrossRef] [PubMed]
  44. Li, X.; Inks, E.S.; Li, X.; Hou, J.; Chou, C.J.; Zhang, J.; Jiang, Y.; Zhang, Y.; Xu, W. Discovery of the first N-hydroxycinnamamide-based histone deacetylase 1/3 dual inhibitors with potent oral antitumor activity. J. Med. Chem. 2014, 57, 3324–3341. [Google Scholar] [CrossRef]
  45. Mehndiratta, S.; Hsieh, Y.L.; Liu, Y.M.; Wang, A.W.; Lee, H.Y.; Liang, L.Y.; Kumar, S.; Teng, C.M.; Yang, C.R.; Liou, J.P. Indole-3-ethylsulfamoylphenylacrylamides: Potent histone deacetylase inhibitors with anti-inflammatory activity. Eur. J. Med. Chem. 2014, 85, 468–479. [Google Scholar] [CrossRef]
  46. Panathur, N.; Dalimba, U.; Koushik, P.V.; Alvala, M.; Yogeeswari, P.; Sriram, D.; Kumar, V. Identification and characterization of novel indole based small molecules as anticancer agents through SIRT1 inhibition. Eur. J. Med. Chem. 2013, 69, 125–138. [Google Scholar] [CrossRef]
  47. Lee, J.; More, K.N.; Yang, S.A.; Hong, V.S. 3, 5-bis (aminopyrimidinyl) indole derivatives: Synthesis and evaluation of pim kinase inhibitory activities. Bull. Korean Chem. Soc. 2014, 35, 2123–2129. [Google Scholar] [CrossRef]
  48. Mirzaei, H.; Shokrzadeh, M.; Modanloo, M.; Ziar, A.; Riazi, G.H.; Emami, S. New indole-based chalconoids as tubulin-targeting antiproliferative agents. Bioorg. Chem. 2017, 75, 86–98. [Google Scholar] [CrossRef]
  49. Zhou, Y.; Duan, K.; Zhu, L.; Liu, Z.; Zhang, C.; Yang, L.; Li, M.; Zhang, H.; Yang, X. Synthesis and cytotoxic activity of novel hexahydropyrrolo [2, 3-b] indole imidazolium salts. Bioorg. Med. Chem. Lett. 2016, 26, 460–465. [Google Scholar] [CrossRef]
  50. Kumar, D.; Kumar, N.M.; Tantak, M.P.; Ogura, M.; Kusaka, E.; Ito, T. Synthesis and identification of α-cyano bis (indolyl) chalcones as novel anticancer agents. Bioorg. Med. Chem. Lett. 2014, 24, 5170–5174. [Google Scholar] [CrossRef]
  51. Kumar, S.; Gu, L.; Palma, G.; Kaur, M.; Singh-Pillay, A.; Singh, P.; Kumar, V. Design, synthesis, anti-proliferative evaluation and docking studies of 1 H-1, 2, 3-triazole tethered ospemifene–isatin conjugates as selective estrogen receptor modulators. New J. Chem. 2018, 42, 3703–3713. [Google Scholar] [CrossRef]
  52. Sharma, B.; Singh, A.; Gu, L.; Saha, S.T.; Singh-Pillay, A.; Cele, N.; Singh, P.; Kaur, M.; Kumar, V. Diastereoselective approach to rationally design tetrahydro-β-carboline–isatin conjugates as potential SERMs against breast cancer. RSC Adv. 2019, 9, 9809–9819. [Google Scholar] [CrossRef]
  53. Lindsay, C.R.; MacPherson, I.R.; Cassidy, J. Current status of cediranib: The rapid development of a novel anti-angiogenic therapy. Future Oncol. 2009, 5, 421–432. [Google Scholar] [CrossRef]
  54. Song, F.; Hu, B.; Cheng, J.W.; Sun, Y.F.; Zhou, K.Q.; Wang, P.X.; Guo, W.; Zhou, J.; Fan, J.; Chen, Z. Anlotinib suppresses tumor progression via blocking the VEGFR2/PI3K/AKT cascade in intrahepatic cholangiocarcinoma. Cell Death Dis. 2020, 11, 573. [Google Scholar] [CrossRef]
  55. Heldin, C.H.; Vanlandewijck, M.; Moustakas, A. Regulation of EMT by TGFβ in cancer. FEBS Lett. 2012, 586, 1959–1970. [Google Scholar] [CrossRef]
  56. Yaseen, A.; Chen, S.; Hock, S.; Rosato, R.; Dent, P.; Dai, Y.; Grant, S. Resveratrol sensitizes acute myelogenous leukemia cells to histone deacetylase inhibitors through reactive oxygen species-mediated activation of the extrinsic apoptotic pathway. Mol. Pharmacol. 2012, 82, 1030–1041. [Google Scholar] [CrossRef]
  57. Kato, Y.; Salumbides, B.C.; Wang, X.F.; Qian, D.Z.; Williams, S.; Wei, Y.; Sanni, T.B.; Atadja, P.; Pili, R. Antitumor effect of the histone deacetylase inhibitor LAQ824 in combination with 13-cis-retinoic acid in human malignant melanoma. Mol. Cancer Ther. 2007, 6, 70–81. [Google Scholar] [CrossRef]
  58. Głuszyńska, A. Biological potential of carbazole derivatives. Eur. J. Med. Chem. 2015, 94, 405–426. [Google Scholar] [CrossRef]
  59. Issa, S.; Prandina, A.; Bedel, N.; Rongved, P.; Yous, S.; Le Borgne, M.; Bouaziz, Z. Carbazole scaffolds in cancer therapy: A review from 2012 to 2018. J. Enzyme Inhib. Med. Chem. 2019, 34, 1321–1346. [Google Scholar] [CrossRef]
  60. Liu, L.X.; Wang, X.Q.; Zhou, B.; Yang, L.J.; Li, Y.; Zhang, H.B.; Yang, X.D. Synthesis and antitumor activity of novel N-substituted carbazole imidazolium salt derivatives. Sci. Rep. 2015, 5, 13101. [Google Scholar] [CrossRef]
  61. Mongre, R.K.; Mishra, C.B.; Prakash, A.; Jung, S.; Lee, B.S.; Kumari, S.; Hong, J.T.; Lee, M.S. Novel carbazole-piperazine hybrid small molecule induces apoptosis by targeting BCL-2 and inhibits tumor progression in lung adenocarcinoma in vitro and xenograft mice model. Cancers 2019, 11, 1245. [Google Scholar] [CrossRef] [PubMed]
  62. Rawjewski, R.A. Formulations of Indole-3-Carbinol Derived Antitumor Agents with Increased Oral Bioavailability. U.S. Patent 13/263,838, 19 July 2012. [Google Scholar]
  63. Tucker, J.; Sviridov, S.; Brodsky, L.; Burkhart, C.; Purmal, A.; Gurova, K.; Gudkov, A. Carbazole Compounds and Therapeutic Uses of the Compounds. U.S. Patent 8,765,738, 4 June 2015. [Google Scholar]
  64. Narayanan, R.; Miller, D.D.; Ponnusamy, T.; Hwang, D.J.; Pagadala, J.; Duke, C.B.; Coss, C.C.; Dalton, J.T.; He, Y. Selective Androgen Receptor Degrader (SARD) Ligands and Methods of Use Thereof. U.S. Patent 9,815,776 B2, 14 November 2017. [Google Scholar]
  65. Ruiz-Ceja, K.A.; Chirino, Y.I. Current FDA-approved treatments for non-small cell lung cancer and potential biomarkers for its detection. Biomed. Pharmacother. 2017, 90, 24–37. [Google Scholar] [CrossRef] [PubMed]
  66. Stone, R.M.; Manley, P.W.; Larson, R.A.; Capdeville, R. Midostaurin: Its odyssey from discovery to approval for treating acute myeloid leukemia and advanced systemic mastocytosis. Blood Adv. 2018, 2, 444–453. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Huang, Y.C.; Chao, D.K.; Chao, K.C.; Chen, Y.J. Oral small-molecule tyrosine kinase inhibitor midostaurin (PKC412) inhibits growth and induces megakaryocytic differentiation in human leukemia cells. Toxicol. Vitr. 2009, 23, 979–985. [Google Scholar] [CrossRef]
  68. Zhang, J.; Ren, L.; Yang, X.; White, M.; Greenhaw, J.; Harris, T.; Wu, Q.; Bryant, M.; Papoian, T.; Mattes, W. Cytotoxicity of 34 FDA approved small-molecule kinase inhibitors in primary rat and human hepatocytes. Toxicol. Lett. 2018, 291, 138–148. [Google Scholar] [CrossRef]
  69. Hawkins, W.; Mitchell, C.; McKinstry, R.; Gilfor, D.; Starkey, J.; Dai, Y.; Dawson, K.; Ramakrishnan, V.; Roberts, J.D.; Yacoub, A. Transient exposure of mammary tumors to PD184352 and UCN-01 causes tumor cell death in vivo and prolonged suppression of tumor re-growth. Cancer Biol. Ther. 2005, 4, 1275–1284. [Google Scholar] [CrossRef]
  70. Kumar, S.; Narasimhan, B. Therapeutic potential of heterocyclic pyrimidine scaffolds. Chem. Cent. J. 2018, 12, 38. [Google Scholar] [CrossRef]
  71. Kaur, R.; Kaur, P.; Sharma, S.; Singh, G.; Mehndiratta, S.; MS Bedi, P.; Nepali, K. Anticancer pyrimidines in diverse scaffolds: A review of patent literature. Recent Pat. Anticancer. Drug Discov. 2015, 10, 23–71. [Google Scholar] [CrossRef]
  72. Combs, A.P.; Li, Y.L.; Mei, S.; Yue, E.W. Substituted Diamino-Pyrimidine and Diamino-Pyridine Derivatives as PI3K Inhibitors. U.S. Patent 9,108,984, 18 August 2015. [Google Scholar]
  73. Boloor, A.; Cheung, M.; Harris, P.A.; Hinkle, K.; Laudeman, C.P.; Stafford, J.A.; Veal, J.M. Chemical Compounds. Patent GB201201758D0, 1 February 2012. [Google Scholar]
  74. Hogberg, M.; Dahlstedt, E.; Smitt, O.; Johansson, T. Novel Pyrimidine Derivatives. Patent WO2012127032, 27 September 2012. [Google Scholar]
  75. Liu, J.; Mao, L.; Wang, X.; Xu, X.; Zhao, L. Pyrazolopyrimidine Derivatives and Uses as Anticancer Agents. Patent WO2012/097196 A, 19 July 2012. [Google Scholar]
  76. Tanaka, M.; Zhang, C.; Shokat, K.M.; Burlingame, A.L.; Hansen, K.; Bateman, R.L.; DiMagno, S.G. Pyrazolo Pyrimidine Derivatives and Methods of Use Thereof. Patent US201313862348A, 12 March 2013. [Google Scholar]
  77. Liang, C. mTOR Selective Kinase Inhibitors. U.S. Patent US20130072481, 21 March 2013. [Google Scholar]
  78. Dorsch, D.; Hoelzemann, G.; Schiemann, K.; Wegener, A. Triazolo [4, 5-d] Pyrimidine Derivatives. Patent WO2013110309A1, 1 August 2013. [Google Scholar]
  79. El-Sayed, N.S.; El-Bendary, E.R.; El-Ashry, S.M.; El-Kerdawy, M.M. Synthesis and antitumor activity of new sulfonamide derivatives of thiadiazolo [3, 2-a] pyrimidines. Eur. J. Med. Chem. 2011, 46, 3714–3720. [Google Scholar] [CrossRef]
  80. Shao, H.; Shi, S.; Foley, D.W.; Lam, F.; Abbas, A.Y.; Liu, X.; Huang, S.; Jiang, X.; Baharin, N.; Fischer, P.M. Synthesis, structure–activity relationship and biological evaluation of 2, 4, 5-trisubstituted pyrimidine CDK inhibitors as potential anti-tumour agents. Eur. J. Med. Chem. 2013, 70, 447–455. [Google Scholar] [CrossRef]
  81. Fares, M.; Abou-Seri, S.M.; Abdel-Aziz, H.A.; Abbas, S.E.S.; Youssef, M.M.; Eladwy, R.A. Synthesis and antitumor activity of pyrido [2, 3-d] pyrimidine and pyrido [2, 3-d] [1, 2, 4] triazolo [4, 3-a] pyrimidine derivatives that induce apoptosis through G1 cell-cycle arrest. Eur. J. Med. Chem. 2014, 83, 155–166. [Google Scholar] [CrossRef]
  82. Kurumurthy, C.; Rao, P.S.; Rao, P.S.; Narsaiah, B.; Velatooru, L.; Pamanji, R.; Rao, J.V. Synthesis of novel alkyltriazole tagged pyrido [2, 3-d] pyrimidine derivatives and their anticancer activity. Eur. J. Med. Chem. 2011, 46, 3462–3468. [Google Scholar] [CrossRef]
  83. Nagender, P.; Reddy, G.M.; Kumar, R.N.; Poornachandra, Y.; Kumar, C.G.; Narsaiah, B. Synthesis, cytotoxicity, antimicrobial and anti-biofilm activities of novel pyrazolo [3, 4-b] pyridine and pyrimidine functionalized 1, 2, 3-triazole derivatives. Bioorg. Med. Chem. Lett. 2014, 24, 2905–2908. [Google Scholar] [CrossRef]
  84. Huang, Y.Y.; Wang, L.Y.; Chang, C.H.; Kuo, Y.H.; Kaneko, K.; Takayama, H.; Kimura, M.; Juang, S.H.; Wong, F.F. One-pot synthesis and antiproliferative evaluation of pyrazolo [3, 4-d] pyrimidine derivatives. Tetrahedron 2012, 68, 9658–9664. [Google Scholar] [CrossRef]
  85. Han, M.; Shen, J.; Wang, L.; Wang, Y.; Zhai, X.; Li, Y.; Liu, M.; Li, Z.; Zuo, D.; Wu, Y. 5-chloro-N4-(2-(isopropylsulfonyl) phenyl)-N2-(2-methoxy-4-(4-((4-methylpiperazin-1-yl) methyl)-1H-1, 2, 3-triazol-1-yl) phenyl) pyrimidine-2, 4-diamine (WY-135), a novel ALK inhibitor, induces cell cycle arrest and apoptosis through inhibiting ALK and its downstream pathways in Karpas299 and H2228 cells. Chem. Biol. Interact. 2018, 284, 24–31. [Google Scholar]
  86. The, I.; Ruijtenberg, S.; Bouchet, B.P.; Cristobal, A.; Prinsen, M.B.; van Mourik, T.; Koreth, J.; Xu, H.; Heck, A.J.; Akhmanova, A. Rb and FZR1/Cdh1 determine CDK4/6-cyclin D requirement in C. elegans and human cancer cells. Nat. Commun. 2015, 6, 5906. [Google Scholar] [CrossRef]
  87. Ceribelli, M.; Kelly, P.N.; Shaffer, A.L.; Wright, G.W.; Xiao, W.; Yang, Y.; Mathews Griner, L.A.; Guha, R.; Shinn, P.; Keller, J.M. Blockade of oncogenic IκB kinase activity in diffuse large B-cell lymphoma by bromodomain and extraterminal domain protein inhibitors. Proc. Natl. Acad. Sci. USA 2014, 111, 11365–11370. [Google Scholar] [CrossRef]
  88. Matsui, T.; Miyamoto, K.; Yamanaka, K.; Okai, Y.; Kaushik, E.P.; Harada, K.; Wagoner, M.; Shinozawa, T. Cell-based two-dimensional morphological assessment system to predict cancer drug-induced cardiotoxicity using human induced pluripotent stem cell-derived cardiomyocytes. Toxicol. Appl. Pharmacol. 2019, 383, 114761. [Google Scholar] [CrossRef]
  89. Chu, X.M.; Wang, C.; Liu, W.; Liang, L.L.; Gong, K.K.; Zhao, C.Y.; Sun, K.L. Quinoline and quinolone dimers and their biological activities: An overview. Eur. J. Med. Chem. 2019, 161, 101–117. [Google Scholar] [CrossRef]
  90. Zhao, D.; Hamilton, J.P.; Pham, G.M.; Crisovan, E.; Wiegert-Rininger, K.; Vaillancourt, B.; DellaPenna, D.; Buell, C.R. De novo genome assembly of Camptotheca acuminata, a natural source of the anticancer compound camptothecin. GigaScience 2017, 6, gix065. [Google Scholar] [CrossRef]
  91. Afzal, O.; Kumar, S.; Haider, M.R.; Ali, M.R.; Kumar, R.; Jaggi, M.; Bawa, S. A review on anticancer potential of bioactive heterocycle quinoline. Eur. J. Med. Chem. 2015, 97, 871–910. [Google Scholar] [CrossRef] [PubMed]
  92. Sidoryk, K.; Świtalska, M.; Jaromin, A.; Cmoch, P.; Bujak, I.; Kaczmarska, M.; Wietrzyk, J.; Dominguez, E.G.; Żarnowski, R.; Andes, D.R. The synthesis of indolo [2, 3-b] quinoline derivatives with a guanidine group: Highly selective cytotoxic agents. Eur. J. Med. Chem. 2015, 105, 208–219. [Google Scholar] [CrossRef] [PubMed]
  93. Gedawy, E.M.; Kassab, A.E.; El-Malah, A.A. Synthesis and anticancer activity of novel tetrahydroquinoline and tetrahydropyrimidoquinoline derivatives. Med. Chem. Res. 2015, 24, 3387–3397. [Google Scholar] [CrossRef]
  94. González-Sánchez, I.; Solano, J.D.; Loza-Mejía, M.A.; Olvera-Vázquez, S.; Rodríguez-Sotres, R.; Morán, J.; Lira-Rocha, A.; Cerbón, M.A. Antineoplastic activity of the thiazolo [5, 4-b] quinoline derivative D3CLP in K-562 cells is mediated through effector caspases activation. Eur. J. Med. Chem. 2011, 46, 2102–2108. [Google Scholar] [CrossRef]
  95. Luniewski, W.; Wietrzyk, J.; Godlewska, J.; Switalska, M.; Piskozub, M.; Peczynska-Czoch, W.; Kaczmarek, L. New derivatives of 11-methyl-6-[2-(dimethylamino) ethyl]-6H-indolo [2, 3-b] quinoline as cytotoxic DNA topoisomerase II inhibitors. Bioorg. Med. Chem. Lett. 2012, 22, 6103–6107. [Google Scholar] [CrossRef]
  96. Jin, X.Y.; Chen, H.; Li, D.D.; Li, A.L.; Wang, W.Y.; Gu, W. Design, synthesis, and anticancer evaluation of novel quinoline derivatives of ursolic acid with hydrazide, oxadiazole, and thiadiazole moieties as potent MEK inhibitors. J. Enzyme Inhib. Med. Chem. 2019, 34, 955–972. [Google Scholar] [CrossRef]
  97. Solomon, V.R.; Pundir, S.; Lee, H. Examination of novel 4-aminoquinoline derivatives designed and synthesized by a hybrid pharmacophore approach to enhance their anticancer activities. Sci. Rep. 2019, 9, 6315. [Google Scholar] [CrossRef]
  98. Kumar, K.; Schniper, S.; González-Sarrías, A.; Holder, A.A.; Sanders, N.; Sullivan, D.; Jarrett, W.L.; Davis, K.; Bai, F.; Seeram, N.P. Highly potent anti-proliferative effects of a gallium (III) complex with 7-chloroquinoline thiosemicarbazone as a ligand: Synthesis, cytotoxic and antimalarial evaluation. Eur. J. Med. Chem. 2014, 86, 81–86. [Google Scholar] [CrossRef]
  99. Capozzi, M.; De Divitiis, C.; Ottaiano, A.; von Arx, C.; Scala, S.; Tatangelo, F.; Delrio, P.; Tafuto, S. Lenvatinib, a molecule with versatile application: From preclinical evidence to future development in anticancer treatment. Cancer Manag. Res. 2019, 11, 3847–3860. [Google Scholar] [CrossRef]
  100. Dong, H.; Wade, M.G. Application of a nonradioactive assay for high throughput screening for inhibition of thyroid hormone uptake via the transmembrane transporter MCT8. Toxicol. Vitr. 2017, 40, 234–242. [Google Scholar] [CrossRef]
  101. Pereyra, C.E.; Dantas, R.F.; Ferreira, S.B.; Gomes, L.P.; Silva, F.P., Jr. The diverse mechanisms and anticancer potential of naphthoquinones. Cancer Cell Int. 2019, 19, 207. [Google Scholar] [CrossRef]
  102. Powis, G. Free radical formation by antitumor quinones. Free Radic. Biol. Med. 1989, 6, 63–101. [Google Scholar] [CrossRef]
  103. Marković, V.; Debeljak, N.; Stanojković, T.; Kolundžija, B.; Sladić, D.; Vujčić, M.; Janović, B.; Tanić, N.; Perović, M.; Tešić, V. Anthraquinone–chalcone hybrids: Synthesis, preliminary antiproliferative evaluation and DNA-interaction studies. Eur. J. Med. Chem. 2015, 89, 401–410. [Google Scholar] [CrossRef]
  104. Jiang, X.; Wang, M.; Song, S.; Xu, Y.; Miao, Z.; Zhang, A. Design, synthesis, and anticancer activities of new compounds bearing the quinone–pyran–lactone tricyclic pharmacophore. RSC Adv. 2015, 5, 27502–27508. [Google Scholar] [CrossRef]
  105. Ali, I.; Lone, M.N.; Aboul-Enein, H.Y. Imidazoles as potential anticancer agents. Med. Chem. Comm. 2017, 8, 1742–1773. [Google Scholar] [CrossRef]
  106. Wan, W.C.; Chen, W.; Liu, L.X.; Li, Y.; Yang, L.J.; Deng, X.Y.; Zhang, H.B.; Yang, X.D. Synthesis and cytotoxic activity of novel hybrid compounds between 2-alkylbenzofuran and imidazole. Med. Chem. Res. 2014, 23, 1599–1611. [Google Scholar] [CrossRef]
  107. Bhatnagar, A.; Sharma, P.; Kumar, N. A review on “Imidazoles”: Their chemistry and pharmacological potentials. Int. J. Pharm. Tech. Res. 2011, 3, 268–282. [Google Scholar]
  108. Narasimhan, B.; Sharma, D.; Kumar, P. Biological importance of imidazole nucleus in the new millennium. Med. Chem. Res. 2011, 20, 1119–1140. [Google Scholar] [CrossRef]
  109. Yang, X.D.; Wan, W.C.; Deng, X.Y.; Li, Y.; Yang, L.J.; Li, L.; Zhang, H.B. Design, synthesis and cytotoxic activities of novel hybrid compounds between 2-phenylbenzofuran and imidazole. Bioorg. Med. Chem. Lett. 2012, 22, 2726–2729. [Google Scholar] [CrossRef]
  110. Chen, W.; Deng, X.Y.; Li, Y.; Yang, L.J.; Wan, W.C.; Wang, X.Q.; Zhang, H.B.; Yang, X.D. Synthesis and cytotoxic activities of novel hybrid 2-phenyl-3-alkylbenzofuran and imidazole/triazole compounds. Bioorg. Med. Chem. Lett. 2013, 23, 4297–4302. [Google Scholar] [CrossRef]
  111. Al-Blewi, F.; Shaikh, S.A.; Naqvi, A.; Aljohani, F.; Aouad, M.R.; Ihmaid, S.; Rezki, N. Design and synthesis of novel imidazole derivatives possessing triazole pharmacophore with potent anticancer activity, and in silico ADMET with GSK-3β molecular docking investigations. Int. J. Mol. Sci. 2021, 22, 1162. [Google Scholar] [CrossRef]
  112. Hu, Y.; Li, N.; Zhang, J.; Wang, Y.; Chen, L.; Sun, J. Artemisinin-indole and artemisinin-imidazole hybrids: Synthesis, cytotoxic evaluation and reversal effects on multidrug resistance in MCF-7/ADR cells. Bioorg. Med. Chem. Lett. 2019, 29, 1138–1142. [Google Scholar] [CrossRef]
  113. Song, W.J.; Yang, X.D.; Zeng, X.H.; Xu, X.L.; Zhang, G.L.; Zhang, H.B. Synthesis and cytotoxic activities of novel hybrid compounds of imidazole scaffold-based 2-substituted benzofurans. RSC Adv. 2012, 2, 4612–4615. [Google Scholar] [CrossRef]
  114. Di Martino, S.; Rainone, A.; Troise, A.; Di Paolo, M.; Pugliese, S.; Zappavigna, S.; Grimaldi, A.; Valente, D. Overview of FDA-approved anti cancer drugs used for targeted therapy. WCRJ 2015, 2, e553WCRJ. [Google Scholar]
  115. Sun, J.; Wei, Q.; Zhou, Y.; Wang, J.; Liu, Q.; Xu, H. A systematic analysis of FDA-approved anticancer drugs. BMC Syst. Biol. 2017, 11, 87. [Google Scholar] [CrossRef]
  116. Khojasteh Poor, F.; Keivan, M.; Ramazii, M.; Ghaedrahmati, F.; Anbiyaiee, A.; Panahandeh, S.; Khoshnam, S.E.; Farzaneh, M. Mini review: The FDA-approved prescription drugs that target the MAPK signaling pathway in women with breast cancer. Breast Dis. 2021, 40, 51–62. [Google Scholar] [CrossRef] [PubMed]
  117. Tan, H.W.; Mo, H.Y.; Lau, A.T.; Xu, Y.M. Selenium species: Current status and potentials in cancer prevention and therapy. Int. J. Mol. Sci. 2018, 20, 75. [Google Scholar] [CrossRef]
  118. He, X.; Zhong, M.; Li, S.; Li, X.; Li, Y.; Li, Z.; Gao, Y.; Ding, F.; Wen, D.; Lei, Y. Synthesis and biological evaluation of organoselenium (NSAIDs-SeCN and SeCF3) derivatives as potential anticancer agents. Eur. J. Med. Chem. 2020, 208, 112864. [Google Scholar] [CrossRef]
  119. Gandin, V.; Khalkar, P.; Braude, J.; Fernandes, A.P. Organic selenium compounds as potential chemotherapeutic agents for improved cancer treatment. Free Radic. Biol. Med. 2018, 127, 80–97. [Google Scholar] [CrossRef]
  120. Jardim, G.A.; da Cruz, E.H.; Valença, W.O.; Lima, D.J.; Cavalcanti, B.C.; Pessoa, C.; Rafique, J.; Braga, A.L.; Jacob, C.; da Silva Júnior, E.N. Synthesis of selenium-quinone hybrid compounds with potential antitumor activity via Rh-catalyzed CH bond activation and click reactions. Molecules 2017, 23, 83. [Google Scholar] [CrossRef]
  121. An, B.; Zhang, S.; Hu, J.; Pan, T.; Huang, L.; Tang, J.C.O.; Li, X.; Chan, A.S. The design, synthesis and evaluation of selenium-containing 4-anilinoquinazoline hybrids as anticancer agents and a study of their mechanism. Org. Biomol. Chem. 2018, 16, 4701–4714. [Google Scholar] [CrossRef] [PubMed]
  122. Tang, H.; Liang, Y.; Cheng, J.; Ding, K.; Wang, Y. Bifunctional chiral selenium-containing 1, 4-diarylazetidin-2-ones with potent antitumor activities by disrupting tubulin polymerization and inducing reactive oxygen species production. Eur. J. Med. Chem. 2021, 221, 113531. [Google Scholar] [CrossRef] [PubMed]
  123. Huang, S.; Sheng, X.; Bian, M.; Yang, Z.; Lu, Y.; Liu, W. Synthesis and in vitro anticancer activities of selenium N-heterocyclic carbene compounds. Chem. Biol. Drug Des. 2021, 98, 435–444. [Google Scholar] [CrossRef] [PubMed]
  124. Rottenberg, S.; Disler, C.; Perego, P. The rediscovery of platinum-based cancer therapy. Nat. Rev. Cancer 2021, 21, 37–50. [Google Scholar] [CrossRef]
  125. Ndagi, U.; Mhlongo, N.; Soliman, M.E. Metal complexes in cancer therapy–an update from drug design perspective. Drug Des. Dev. Ther. 2017, 11, 599–616. [Google Scholar] [CrossRef]
  126. Ciarimboli, G. Anticancer Platinum Drugs Update. Biomolecules 2021, 11, 1637. [Google Scholar] [CrossRef]
  127. Zajda, J.; Wróblewska, A.; Ruzik, L.; Matczuk, M. Methodology for characterization of platinum-based drug’s targeted delivery nanosystems. J. Control. Release 2021, 335, 178–190. [Google Scholar] [CrossRef]
  128. Johnstone, T.C.; Park, G.Y.; Lippard, S.J. Understanding and improving platinum anticancer drugs–phenanthriplatin. Anticancer Res. 2014, 34, 471–476. [Google Scholar]
  129. Graham, L.A.; Suryadi, J.; West, T.K.; Kucera, G.L.; Bierbach, U. Synthesis, aqueous reactivity, and biological evaluation of carboxylic acid ester-functionalized platinum–acridine hybrid anticancer agents. J. Med. Chem. 2012, 55, 7817–7827. [Google Scholar] [CrossRef]
  130. Zhao, J.; Gou, S.; Sun, Y.; Fang, L.; Wang, Z. Antitumor platinum (II) complexes containing platinum-based moieties of present platinum drugs and furoxan groups as nitric oxide donors: Synthesis, DNA interaction, and cytotoxicity. Inorg. Chem. 2012, 51, 10317–10324. [Google Scholar] [CrossRef]
  131. Liu, Z.; Li, Z.; Du, T.; Chen, Y.; Wang, Q.; Li, G.; Liu, M.; Zhang, N.; Li, D.; Han, J. Design, synthesis and biological evaluation of dihydro-2-quinolone platinum (IV) hybrids as antitumor agents displaying mitochondria injury and DNA damage mechanism. Dalton Trans. 2021, 50, 362–375. [Google Scholar] [CrossRef]
  132. Chen, Y.; Wang, Q.; Li, Z.; Liu, Z.; Zhao, Y.; Zhang, J.; Liu, M.; Wang, Z.; Li, D.; Han, J. Naproxen platinum (iv) hybrids inhibiting cycloxygenases and matrix metalloproteinases and causing DNA damage: Synthesis and biological evaluation as antitumor agents in vitro and in vivo. Dalton Trans. 2020, 49, 5192–5204. [Google Scholar] [CrossRef]
  133. Cincinelli, R.; Musso, L.; Dallavalle, S.; Artali, R.; Tinelli, S.; Colangelo, D.; Zunino, F.; De Cesare, M.; Beretta, G.L.; Zaffaroni, N. Design, modeling, synthesis and biological activity evaluation of camptothecin-linked platinum anticancer agents. Eur. J. Med. Chem. 2013, 63, 387–400. [Google Scholar] [CrossRef]
  134. Zhou, J.; Kang, Y.; Chen, L.; Wang, H.; Liu, J.; Zeng, S.; Yu, L. The drug-resistance mechanisms of five platinum-based antitumor agents. Front. Pharmacol. 2020, 11, 343. [Google Scholar] [CrossRef]
  135. Dilruba, S.; Kalayda, G.V. Platinum-based drugs: Past, present and future. Cancer Chemother. Pharmacol. 2016, 77, 1103–1124. [Google Scholar] [CrossRef]
  136. Ha, V.T.; Kien, V.T.; Binh, L.H.; Tien, V.D.; My, N.T.T.; Nam, N.H.; Baltas, M.; Hahn, H.; Han, B.W.; Thao, D.T.; et al. Design, synthesis and biological evaluation of novel hydroxamic acids bearing artemisinin skeleton. Bioorg. Chem. 2016, 66, 63–71. [Google Scholar] [CrossRef]
  137. Ling, Y.; Guo, J.; Yang, Q.; Zhu, P.; Miao, J.; Gao, W.; Peng, Y.; Yang, J.; Xu, K.; Xiong, B.; et al. Development of novel β-carboline-based hydroxamate derivatives as HDAC inhibitors with antiproliferative and antimetastatic activities in human cancer cells. Eur. J. Med. Chem. 2018, 144, 398–409. [Google Scholar] [CrossRef]
  138. Mohamed, M.F.A.; Shaykoon, M.S.A.; Abdelrahman, M.H.; Elsadek, B.E.M.; Aboraia, A.S.; Abuo-Rahma, G. Design, synthesis, docking studies and biological evaluation of novel chalcone derivatives as potential histone deacetylase inhibitors. Bioorg. Chem. 2017, 72, 32–41. [Google Scholar] [CrossRef]
  139. Ding, C.; Chen, S.; Zhang, C.; Hu, G.; Zhang, W.; Li, L.; Chen, Y.Z.; Tan, C.; Jiang, Y. Synthesis and investigation of novel 6-(1,2,3-triazol-4-yl)-4-aminoquinazolin derivatives possessing hydroxamic acid moiety for cancer therapy. Bioorg. Med. Chem. 2017, 25, 27–37. [Google Scholar] [CrossRef]
  140. Dung, D.T.M.; Dung, P.T.P.; Oanh, D.T.K.; Vu, T.K.; Hahn, H.; Han, B.W.; Pyo, M.; Kim, Y.G.; Han, S.B.; Nam, N.H. Exploration of novel 5′(7′)-substituted-2′-oxospiro[1,3]dioxolane-2,3′-indoline-based N-hydroxypropenamides as histone deacetylase inhibitors and antitumor agents. Arab. J. Chem. 2017, 10, 465–472. [Google Scholar] [CrossRef]
  141. Bubna, A.K. Vorinostat-An Overview. Indian J. Dermatol. 2015, 60, 419. [Google Scholar] [CrossRef]
  142. Moore, D. Panobinostat (Farydak): A Novel Option for the Treatment of Relapsed Or Relapsed and Refractory Multiple Myeloma. Pharm. Ther. 2016, 41, 296–300. [Google Scholar]
  143. Tak, W.Y.; Ryoo, B.Y.; Lim, H.Y.; Kim, D.Y.; Okusaka, T.; Ikeda, M.; Hidaka, H.; Yeon, J.E.; Mizukoshi, E.; Morimoto, M.; et al. Phase I/II study of first-line combination therapy with sorafenib plus resminostat, an oral HDAC inhibitor, versus sorafenib monotherapy for advanced hepatocellular carcinoma in east Asian patients. Investig. New Drugs 2018, 36, 1072–1084. [Google Scholar] [CrossRef]
  144. Alam, M.A. Methods for Hydroxamic Acid Synthesis. Curr. Org. Chem. 2019, 23, 978–993. [Google Scholar] [CrossRef]
  145. Quirante, J.; Dubar, F.; González, A.; Lopez, C.; Cascante, M.; Cortés, R.; Forfar, I.; Pradines, B.; Biot, C. Ferrocene–indole hybrids for cancer and malaria therapy. J. Organomet. Chem. 2011, 696, 1011–1017. [Google Scholar] [CrossRef]
  146. Huang, X.F.; Wang, L.Z.; Tang, L.; Lu, Y.X.; Wang, F.; Song, G.Q.; Ruan, B.F. Synthesis, characterization and antitumor activity of novel ferrocene derivatives containing pyrazolyl-moiety. J. Organomet. Chem. 2014, 749, 157–162. [Google Scholar] [CrossRef]
  147. Smit, F.J.; Bezuidenhout, J.J.; Bezuidenhout, C.C.; N’Da, D.D. Synthesis and in vitro biological activities of ferrocenyl–chalcone amides. Med. Chem. Res. 2016, 25, 568–584. [Google Scholar] [CrossRef]
  148. Wei, J.N.; Jia, Z.D.; Zhou, Y.Q.; Chen, P.H.; Li, B.; Zhang, N.; Hao, X.Q.; Xu, Y.; Zhang, B. Synthesis, characterization and antitumor activity of novel ferrocene-coumarin conjugates. J. Organomet. Chem. 2019, 902, 120968. [Google Scholar] [CrossRef]
  149. Panaka, S.; Trivedi, R.; Jaipal, K.; Giribabu, L.; Sujitha, P.; Kumar, C.G.; Sridhar, B. Ferrocenyl chalcogeno (sugar) triazole conjugates: Synthesis, characterization and anticancer properties. J. Organomet. Chem. 2016, 813, 125–130. [Google Scholar] [CrossRef]
  150. Raghavan, S.; Manogaran, P.; Gadepalli Narasimha, K.K.; Kalpattu Kuppusami, B.; Mariyappan, P.; Gopalakrishnan, A.; Venkatraman, G. Synthesis and anticancer activity of novel curcumin–quinolone hybrids. Bioorg. Med. Chem. Lett. 2015, 25, 3601–3605. [Google Scholar] [CrossRef]
  151. Banuppriya, G.; Sribalan, R.; Padmini, V. Synthesis and characterization of curcumin-sulfonamide hybrids: Biological evaluation and molecular docking studies. J. Mol. Struct. 2018, 1155, 90–100. [Google Scholar] [CrossRef]
  152. Puneeth, H.R.; Ananda, H.; Kumar, K.S.S.; Rangappa, K.S.; Sharada, A.C. Synthesis and antiproliferative studies of curcumin pyrazole derivatives. Med. Chem. Res. 2016, 25, 1842–1851. [Google Scholar] [CrossRef]
  153. Qiu, P.; Xu, L.; Gao, L.; Zhang, M.; Wang, S.; Tong, S.; Sun, Y.; Zhang, L.; Jiang, T. Exploring pyrimidine-substituted curcumin analogues: Design, synthesis and effects on EGFR signaling. Bioorg. Med. Chem. 2013, 21, 5012–5020. [Google Scholar] [CrossRef] [PubMed]
  154. Sharma, S.; Gupta, M.K.; Saxena, A.K.; Bedi, P.M.S. Triazole linked mono carbonyl curcumin-isatin bifunctional hybrids as novel anti tubulin agents: Design, synthesis, biological evaluation and molecular modeling studies. Bioorg. Med. Chem. 2015, 23, 7165–7180. [Google Scholar] [CrossRef]
  155. Ma, L.Y.; Wang, B.; Pang, L.P.; Zhang, M.; Wang, S.Q.; Zheng, Y.C.; Shao, K.P.; Xue, D.Q.; Liu, H.M. Design and synthesis of novel 1,2,3-triazole–pyrimidine–urea hybrids as potential anticancer agents. Bioorg. Med. Chem. Lett. 2015, 25, 1124–1128. [Google Scholar] [CrossRef]
  156. Chandrashekhar, M.; Nayak, V.L.; Ramakrishna, S.; Mallavadhani, U.V. Novel triazole hybrids of myrrhanone C, a natural polypodane triterpene: Synthesis, cytotoxic activity and cell based studies. Eur. J. Med. Chem. 2016, 114, 293–307. [Google Scholar] [CrossRef]
  157. Najafi, Z.; Mahdavi, M.; Safavi, M.; Saeedi, M.; Alinezhad, H.; Pordeli, M.; Kabudanian Ardestani, S.; Shafiee, A.; Foroumadi, A.; Akbarzadeh, T. Synthesis and In vitro Cytotoxic Activity of Novel Triazole-Isoxazole Derivatives. J. Heterocycl. Chem. 2015, 52, 1743–1747. [Google Scholar] [CrossRef]
  158. Duan, Y.C.; Ma, Y.C.; Zhang, E.; Shi, X.J.; Wang, M.M.; Ye, X.W.; Liu, H.M. Design and synthesis of novel 1,2,3-triazole-dithiocarbamate hybrids as potential anticancer agents. Eur. J. Med. Chem. 2013, 62, 11–19. [Google Scholar] [CrossRef]
  159. Kumbhare, R.M.; Dadmal, T.L.; Ramaiah, M.J.; Kishore, K.S.V.; Pushpa Valli, S.N.C.V.L.; Tiwari, S.K.; Appalanaidu, K.; Rao, Y.K.; Bhadra, M.P. Synthesis and anticancer evaluation of novel triazole linked N-(pyrimidin-2-yl)benzo[d]thiazol-2-amine derivatives as inhibitors of cell survival proteins and inducers of apoptosis in MCF-7 breast cancer cells. Bioorg. Med. Chem. Lett. 2015, 25, 654–658. [Google Scholar] [CrossRef]
  160. Sivaramakarthikeyan, R.; Iniyaval, S.; Saravanan, V.; Lim, W.M.; Mai, C.W.; Ramalingan, C. Molecular Hybrids Integrated with Benzimidazole and Pyrazole Structural Motifs: Design, Synthesis, Biological Evaluation, and Molecular Docking Studies. ACS Omega 2020, 5, 10089–10098. [Google Scholar] [CrossRef]
  161. Shao, K.P.; Zhang, X.Y.; Chen, P.J.; Xue, D.Q.; He, P.; Ma, L.Y.; Zheng, J.X.; Zhang, Q.R.; Liu, H.M. Synthesis and biological evaluation of novel pyrimidine–benzimidazol hybrids as potential anticancer agents. Bioorg. Med. Chem. Lett. 2014, 24, 3877–3881. [Google Scholar] [CrossRef]
  162. Sharma, P.; Srinivasa Reddy, T.; Thummuri, D.; Senwar, K.R.; Praveen Kumar, N.; Naidu, V.G.M.; Bhargava, S.K.; Shankaraiah, N. Synthesis and biological evaluation of new benzimidazole-thiazolidinedione hybrids as potential cytotoxic and apoptosis inducing agents. Eur. J. Med. Chem. 2016, 124, 608–621. [Google Scholar] [CrossRef]
  163. Shi, L.; Wu, T.T.; Wang, Z.; Xue, J.Y.; Xu, Y.G. Discovery of quinazolin-4-amines bearing benzimidazole fragments as dual inhibitors of c-Met and VEGFR-2. Bioorg. Med. Chem. 2014, 22, 4735–4744. [Google Scholar] [CrossRef]
  164. Sireesha, R.; Sreenivasulu, R.; Chandrasekhar, C.; Jadav, S.S.; Pavani, Y.; Rao, M.V.B.; Subbarao, M. Design, synthesis, anticancer evaluation and binding mode studies of benzimidazole/benzoxazole linked β-carboline derivatives. J. Mol. Struct. 2021, 1226, 129351. [Google Scholar] [CrossRef]
  165. Kim, E.S. Abemaciclib: First Global Approval. Drugs 2017, 77, 2063–2070. [Google Scholar] [CrossRef]
  166. Ghisoni, E.; Giannone, G.; Tuninetti, V.; Genta, S.; Scotto, G.; Aglietta, M.; Sangiolo, D.; Mittica, G.; Valabrega, G. Veliparib: A new therapeutic option in ovarian cancer? Future Oncol. 2019, 15, 1975–1987. [Google Scholar] [CrossRef]
  167. Choi, Y.J.; Kim, H.S.; Park, S.H.; Kim, B.S.; Kim, K.H.; Lee, H.J.; Song, H.S.; Shin, D.Y.; Lee, H.Y.; Kim, H.G.; et al. Phase II Study of Dovitinib in Patients with Castration-Resistant Prostate Cancer (KCSG-GU11-05). Cancer Res. Treat. 2018, 50, 1252–1259. [Google Scholar] [CrossRef] [PubMed]
  168. Cui, J.; Xiao, Z.; Zhang, L.L. Clinical efficacy and safety of nazartinib for epidermal growth factor receptor mutated non-small cell lung cancer: Study protocol for a prospective, multicenter, open-label. Medicine 2021, 100, e25992. [Google Scholar] [CrossRef]
  169. Karthikeyan, C.; Solomon, V.R.; Lee, H.; Trivedi, P.J.B.; Nutrition, P. Design, synthesis and biological evaluation of some isatin-linked chalcones as novel anti-breast cancer agents: A molecular hybridization approach. Biomed. Prev. Nutr. 2013, 3, 325–330. [Google Scholar] [CrossRef]
  170. Eldehna, W.M.; El Hassab, M.A.; Abo-Ashour, M.F.; Al-Warhi, T.; Elaasser, M.M.; Safwat, N.A.; Suliman, H.; Ahmed, M.F.; Al-Rashood, S.T.; Abdel-Aziz, H.A.J.B.C. Development of isatin-thiazolo [3, 2-a] benzimidazole hybrids as novel CDK2 inhibitors with potent in vitro apoptotic anti-proliferative activity: Synthesis, biological and molecular dynamics investigations. Bioorg. Chem. 2021, 110, 104748. [Google Scholar] [CrossRef]
  171. Abdel-Aziz, H.A.; Eldehna, W.M.; Keeton, A.B.; Piazza, G.A.; Kadi, A.A.; Attwa, M.W.; Abdelhameed, A.S.; Attia, M.I.J.D.D. Development; Therapy, Isatin-benzoazine molecular hybrids as potential antiproliferative agents: Synthesis and in vitro pharmacological profiling. Drug Des. Dev. Ther. 2017, 11, 2333–2346. [Google Scholar] [CrossRef] [PubMed]
  172. Meleddu, R.; Petrikaite, V.; Distinto, S.; Arridu, A.; Angius, R.; Serusi, L.; Škarnulytė, L.; Endriulaitytė, U.; Paškevičiūtė, M.; Cottiglia, F.J.A.M.C.L. Investigating the anticancer activity of isatin/dihydropyrazole hybrids. ACS Med. Chem. Lett. 2018, 10, 571–576. [Google Scholar] [CrossRef] [PubMed]
  173. Eldehna, W.M.; Altoukhy, A.; Mahrous, H.; Abdel-Aziz, H.A. Design, synthesis and QSAR study of certain isatin-pyridine hybrids as potential anti-proliferative agents. Eur. J. Med. Chem. 2015, 90, 684–694. [Google Scholar] [CrossRef] [PubMed]
  174. Singh, H.; Singh, J.V.; Gupta, M.K.; Saxena, A.K.; Sharma, S.; Nepali, K.; Bedi, P.M.S.J.B.; Letters, M.C. Triazole tethered isatin-coumarin based molecular hybrids as novel antitubulin agents: Design, synthesis, biological investigation and docking studies. Bioorg. Med. Chem. Lett. 2017, 27, 3974–3979. [Google Scholar] [CrossRef]
  175. Al-Wabli, R.I.; Almomen, A.A.; Almutairi, M.S.; Keeton, A.B.; Piazza, G.A.; Attia, M.I. New Isatin–Indole Conjugates: Synthesis, Characterization, and a Plausible Mechanism of Their in vitro Antiproliferative Activity. Drug Des. Dev. Ther. 2020, 14, 483–495. [Google Scholar] [CrossRef]
  176. Panga, S.; Podila, N.K.; Asres, K.; Ciddi, V. Synthesis and anticancer activity of new isatin-benzoic acid conjugates. Ethiop. Pharm. J. 2016, 31, 75–92. [Google Scholar] [CrossRef]
  177. Cheke, R.S.; Patil, V.M.; Firke, S.D.; Ambhore, J.P.; Ansari, I.A.; Patel, H.M.; Shinde, S.D.; Pasupuleti, V.R.; Hassan, M.I.; Adnan, M.J.P. Therapeutic Outcomes of Isatin and Its Derivatives against Multiple Diseases: Recent Developments in Drug Discovery. Pharmaceuticals 2022, 15, 272. [Google Scholar] [CrossRef]
  178. Ferguson, L.; Bhakta, S.; Fox, K.R.; Wells, G.; Brucoli, F.J.M. Synthesis and Biological Evaluation of a Novel C8-Pyrrolobenzodiazepine (PBD) Adenosine Conjugate. A Study on the Role of the PBD Ring in the Biological Activity of PBD-Conjugates. Molecules 2020, 25, 1243. [Google Scholar] [CrossRef] [Green Version]
  179. Bose, D.S.; Idrees, M.; Todewale, I.K.; Jakka, N.; Rao, J.V. Hybrids of privileged structures benzothiazoles and pyrrolo [2, 1-c][1, 4] benzodiazepin-5-one, and diversity-oriented synthesis of benzothiazoles. Eur. J. Med. Chem. 2012, 50, 27–38. [Google Scholar] [CrossRef]
  180. Kamal, A.; Ramakrishna, G.; Nayak, V.L.; Raju, P.; Rao, A.S.; Viswanath, A.; Vishnuvardhan, M.; Ramakrishna, S.; Srinivas, G. Design and synthesis of benzo [c, d] indolone-pyrrolobenzodiazepine conjugates as potential anticancer agents. Bioorg. Med. Chem. 2012, 20, 789–800. [Google Scholar] [CrossRef]
  181. Li, Y.; Quan, J.; Song, H.; Li, D.; Ma, E.; Wang, Y.; Ma, C. Novel pyrrolo [2, 1-c][1, 4] benzodiazepine-3, 11-dione (PBD) derivatives as selective HDAC6 inhibitors to suppress tumor metastasis and invasion in vitro and in vivo. Bioorg. Chem. 2021, 114, 105081. [Google Scholar] [CrossRef]
  182. Chen, C.Y.; Lee, P.H.; Lin, Y.Y.; Yu, W.T.; Hu, W.P.; Hsu, C.C.; Lin, Y.T.; Chang, L.S.; Hsiao, C.T.; Wang, J.-J.; et al. Synthesis, DNA-binding abilities and anticancer activities of triazole-pyrrolo [2, 1-c][1, 4] benzodiazepines hybrid scaffolds. Bioorg. Med. Chem. Lett. 2013, 23, 6854–6859. [Google Scholar] [CrossRef]
  183. Al Zahrani, N.A.; El-Shishtawy, R.M.; Elaasser, M.M.; Asiri, A.M. Synthesis of novel chalcone-based phenothiazine derivatives as antioxidant and anticancer agents. Molecules 2020, 25, 4566. [Google Scholar] [CrossRef]
  184. Ouyang, Y.; Li, J.; Chen, X.; Fu, X.; Sun, S.; Wu, Q. Chalcone Derivatives: Role in Anticancer Therapy. Biomolecules 2021, 11, 894. [Google Scholar] [CrossRef]
  185. Sivapriya, S.; Sivakumar, K.; Manikandan, H. Anticancer effects of chalcone-benzoxadiazole hybrids on KB human cancer cells. Chem. Data Collect. 2021, 35, 100762. [Google Scholar] [CrossRef]
  186. Alswah, M.; Bayoumi, A.H.; Elgamal, K.; Elmorsy, A.; Ihmaid, S.; Ahmed, H.E.A. Design, synthesis and cytotoxic evaluation of novel chalcone derivatives bearing triazolo [4, 3-a]-quinoxaline moieties as potent anticancer agents with dual EGFR kinase and tubulin polymerization inhibitory effects. Molecules 2017, 23, 48. [Google Scholar] [CrossRef]
  187. Yepes, A.F.; Arias, J.D.; Cardona-G, W.; Herrera-R, A.; Moreno, G. New class of hybrids based on chalcone and melatonin: A promising therapeutic option for the treatment of colorectal cancer. Med. Chem. Res. 2021, 30, 2240–2255. [Google Scholar] [CrossRef]
  188. Ma, X.; Wang, D.; Wei, G.; Zhou, Q.; Gan, X. Synthesis and anticancer activity of chalcone–quinoxalin conjugates. Synth. Commun. 2021, 51, 1363–1372. [Google Scholar] [CrossRef]
  189. Paul, K.; Bindal, S.; Luxami, V. Synthesis of new conjugated coumarin–benzimidazole hybrids and their anticancer activity. Bioorg. Med. Chem. Lett. 2013, 23, 3667–3672. [Google Scholar] [CrossRef]
  190. An, R.; Hou, Z.; Li, J.T.; Yu, H.N.; Mou, Y.H.; Guo, C. Design, synthesis and biological evaluation of novel 4-substituted coumarin derivatives as antitumor agents. Molecules 2018, 23, 2281. [Google Scholar] [CrossRef]
  191. Elshemy, H.A.; Zaki, M.A. Design and synthesis of new coumarin hybrids and insight into their mode of antiproliferative action. Bioorg. Med. Chem. 2017, 25, 1066–1075. [Google Scholar] [CrossRef] [PubMed]
  192. Sanduja, M.; Gupta, J.; Singh, H.; Pagare, P.P.; Rana, A. Uracil-coumarin based hybrid molecules as potent anticancer and antibacterial agents. J. Saudi Chem. Soc. 2020, 24, 251–266. [Google Scholar] [CrossRef]
  193. Zhang, Z.; Bai, Z.W.; Ling, Y.; He, L.Q.; Huang, P.; Gu, H.X.; Hu, R.F. Design, synthesis and biological evaluation of novel furoxan-based coumarin derivatives as antitumor agents. Med. Chem. Res. 2018, 27, 1198–1205. [Google Scholar] [CrossRef]
  194. Xu, S.; Pei, L.; Wang, C.; Zhang, Y.K.; Li, D.; Yao, H.; Wu, X.; Chen, Z.S.; Sun, Y.; Xu, J. Novel hybrids of natural oridonin-bearing nitrogen mustards as potential anticancer drug candidates. ACS Med. Chem. Lett. 2014, 5, 797–802. [Google Scholar] [CrossRef]
  195. Łączkowski, K.Z.; Świtalska, M.; Baranowska-Łączkowska, A.; Plech, T.; Paneth, A.; Misiura, K.; Wietrzyk, J.; Czaplińska, B.; Mrozek-Wilczkiewicz, A.; Malarz, K. Thiazole-based nitrogen mustards: Design, synthesis, spectroscopic studies, DFT calculation, molecular docking, and antiproliferative activity against selected human cancer cell lines. J. Mol. Struct. 2016, 1119, 139–150. [Google Scholar] [CrossRef]
  196. Kolesinska, B.; Barszcz, K.; Kaminski, Z.J.; Drozdowska, D.; Wietrzyk, J.; Switalska, M. Synthesis and cytotoxicity studies of bifunctional hybrids of nitrogen mustards with potential enzymes inhibitors based on melamine framework. J. Enzyme Inhib. Med. Chem. 2012, 27, 619–627. [Google Scholar] [CrossRef]
  197. Acharya, P.C.; Bansal, R. Synthesis of androstene oxime-nitrogen mustard bioconjugates as potent antineoplastic agents. Steroids 2017, 123, 73–83. [Google Scholar] [CrossRef]
  198. Hassan, A.S.; Moustafa, G.O.; Awad, H.M.; Nossier, E.S.; Mady, M.F. Design, synthesis, anticancer evaluation, enzymatic assays, and a molecular modeling study of novel pyrazole–indole hybrids. ACS Omega 2021, 6, 12361–12374. [Google Scholar] [CrossRef]
  199. Abd El-Karim, S.S.; Anwar, M.M.; Mohamed, N.A.; Nasr, T.; Elseginy, S.A. Design, synthesis, biological evaluation and molecular docking studies of novel benzofuran–pyrazole derivatives as anticancer agents. Bioorg. Chem. 2015, 63, 1–12. [Google Scholar] [CrossRef]
  200. Abdalha, A.A.; Hekal, M.H. An efficient synthesis and evaluation of some novel quinazolinone-pyrazole hybrids as potential antiproliferative agents. Synth. Commun. 2021, 51, 2498–2509. [Google Scholar] [CrossRef]
  201. Akhtar, W.; Marella, A.; Alam, M.M.; Khan, M.F.; Akhtar, M.; Anwer, T.; Khan, F.; Naematullah, M.; Azam, F.; Rizvi, M.A. Design and synthesis of pyrazole–pyrazoline hybrids as cancer-associated selective COX-2 inhibitors. Archiv. Der. Pharmazie. 2021, 354, 2000116. [Google Scholar] [CrossRef]
  202. Verma, G.; Chashoo, G.; Ali, A.; Khan, M.F.; Akhtar, W.; Ali, I.; Akhtar, M.; Alam, M.M.; Shaquiquzzaman, M. Synthesis of pyrazole acrylic acid based oxadiazole and amide derivatives as antimalarial and anticancer agents. Bioorg. Chem. 2018, 77, 106–124. [Google Scholar] [CrossRef]
  203. Sangani, C.B.; Makawana, J.A.; Duan, Y.T.; Yin, Y.; Teraiya, S.B.; Thumar, N.J.; Zhu, H.L. Design, synthesis and molecular modeling of biquinoline–pyridine hybrids as a new class of potential EGFR and HER-2 kinase inhibitors. Bioorg. Med. Chem. Lett. 2014, 24, 4472–4476. [Google Scholar] [CrossRef]
  204. Hamza, E.K.; Hamdy, N.A.; Zarie, E.S.; Fakhr, I.M.; Elwahy, A.H.; Awad, H.M. Synthesis and in vitro evaluation of novel tetralin-pyrazolo [3, 4-b] pyridine hybrids as potential anticancer agents. J. Heterocycl. Chem. 2020, 57, 182–196. [Google Scholar] [CrossRef]
Figure 1. Different methods of molecular hybridization. (A) Drug A and B are directly linked to each other; (B) brug A and B are merged with each other; (C) drug A and B are connected by a flexible spacer; (D) drug A and B are connected through a rigid spacer; (E) two pharmacophoric moieties are directly connected to each other; (F) two pharmacophoric moieties are connected by a flexible spacer; (G) two pharmacophoric moieties are connected by a rigid spacer.
Figure 1. Different methods of molecular hybridization. (A) Drug A and B are directly linked to each other; (B) brug A and B are merged with each other; (C) drug A and B are connected by a flexible spacer; (D) drug A and B are connected through a rigid spacer; (E) two pharmacophoric moieties are directly connected to each other; (F) two pharmacophoric moieties are connected by a flexible spacer; (G) two pharmacophoric moieties are connected by a rigid spacer.
Pharmaceuticals 15 01071 g001
Figure 2. Structure of quinazoline-based imidazole hybrids and the most promising compound 1a.
Figure 2. Structure of quinazoline-based imidazole hybrids and the most promising compound 1a.
Pharmaceuticals 15 01071 g002
Figure 3. Structure of quinazoline-based deoxynojirimycin hybrids and the most promising compound 2a.
Figure 3. Structure of quinazoline-based deoxynojirimycin hybrids and the most promising compound 2a.
Pharmaceuticals 15 01071 g003
Figure 4. Structure of quinazoline-based urea hybrids and the most promising compound 3a.
Figure 4. Structure of quinazoline-based urea hybrids and the most promising compound 3a.
Pharmaceuticals 15 01071 g004
Figure 5. Structure of quinazoline-based aryl hybrids and the most promising compound 4a.
Figure 5. Structure of quinazoline-based aryl hybrids and the most promising compound 4a.
Pharmaceuticals 15 01071 g005
Figure 6. Structure of aminoquinazoline-sulphonamide hybrids and the most promising compound 5a.
Figure 6. Structure of aminoquinazoline-sulphonamide hybrids and the most promising compound 5a.
Pharmaceuticals 15 01071 g006
Figure 7. Structure of quinazoline-amino sulphonamide based hybrids and the most promising compound 6a.
Figure 7. Structure of quinazoline-amino sulphonamide based hybrids and the most promising compound 6a.
Pharmaceuticals 15 01071 g007
Figure 8. Structure of quinazoline-artemisinin based hybrid 7.
Figure 8. Structure of quinazoline-artemisinin based hybrid 7.
Pharmaceuticals 15 01071 g008

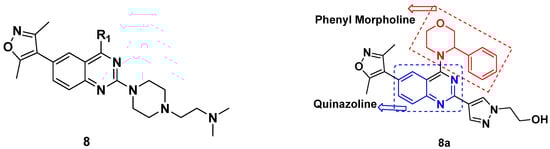

Figure 9. Structure of quinazoline phenyl morpholine based hybrids and the most promising compound 8a.
Figure 9. Structure of quinazoline phenyl morpholine based hybrids and the most promising compound 8a.
Pharmaceuticals 15 01071 g009
Figure 10. FDA approved/clinical trial drugs with quinazoline hybrids.
Figure 10. FDA approved/clinical trial drugs with quinazoline hybrids.
Pharmaceuticals 15 01071 g010
Figure 11. Structure of indole with hydroxycinnamamide hybrid and the most promising compound 9a.
Figure 11. Structure of indole with hydroxycinnamamide hybrid and the most promising compound 9a.
Pharmaceuticals 15 01071 g011
Figure 12. Structure of indole with hydroxycinnamamide hybrids and the most promising compound 10a.
Figure 12. Structure of indole with hydroxycinnamamide hybrids and the most promising compound 10a.
Pharmaceuticals 15 01071 g012
Figure 13. Structure of indole with sulphonamide hybrids and the most promising compound 11a.
Figure 13. Structure of indole with sulphonamide hybrids and the most promising compound 11a.
Pharmaceuticals 15 01071 g013
Figure 14. Structure of indole-triazole based hybrids and the most promising compound 12a.
Figure 14. Structure of indole-triazole based hybrids and the most promising compound 12a.
Pharmaceuticals 15 01071 g014
Figure 15. Structure of indole-pyrimidine based hybrids and the most promising compound 13a.
Figure 15. Structure of indole-pyrimidine based hybrids and the most promising compound 13a.
Pharmaceuticals 15 01071 g015
Figure 16. Structure of indole-chalcone based hybrids and the most promising compound 14a.
Figure 16. Structure of indole-chalcone based hybrids and the most promising compound 14a.
Pharmaceuticals 15 01071 g016
Figure 17. Structure of indole-pyrole based hybrids and the most promising compound 15a.
Figure 17. Structure of indole-pyrole based hybrids and the most promising compound 15a.
Pharmaceuticals 15 01071 g017
Figure 18. Structure of indole-chalcone based hybrids and the most promising compound 16a.
Figure 18. Structure of indole-chalcone based hybrids and the most promising compound 16a.
Pharmaceuticals 15 01071 g018
Figure 19. Structure of indole-ospemifene-triazole based hybrids and the most promising compound 17a.
Figure 19. Structure of indole-ospemifene-triazole based hybrids and the most promising compound 17a.
Pharmaceuticals 15 01071 g019
Figure 20. Structure of indole-ospemifene-triazole based hybrids and the most promising compound 18a.
Figure 20. Structure of indole-ospemifene-triazole based hybrids and the most promising compound 18a.
Pharmaceuticals 15 01071 g020
Figure 21. FDA approved/clinical trial drugs with indole hybrids.
Figure 21. FDA approved/clinical trial drugs with indole hybrids.
Pharmaceuticals 15 01071 g021aPharmaceuticals 15 01071 g021b
Figure 22. Structure of carbazole-imidazole based hybrids and the most promising compound 19a.
Figure 22. Structure of carbazole-imidazole based hybrids and the most promising compound 19a.
Pharmaceuticals 15 01071 g022
Figure 23. A carbazole-piperazine hybrid (20).
Figure 23. A carbazole-piperazine hybrid (20).
Pharmaceuticals 15 01071 g023
Figure 24. Carbazole hybrids that are FDA approved/or under clinical trials.
Figure 24. Carbazole hybrids that are FDA approved/or under clinical trials.
Pharmaceuticals 15 01071 g024

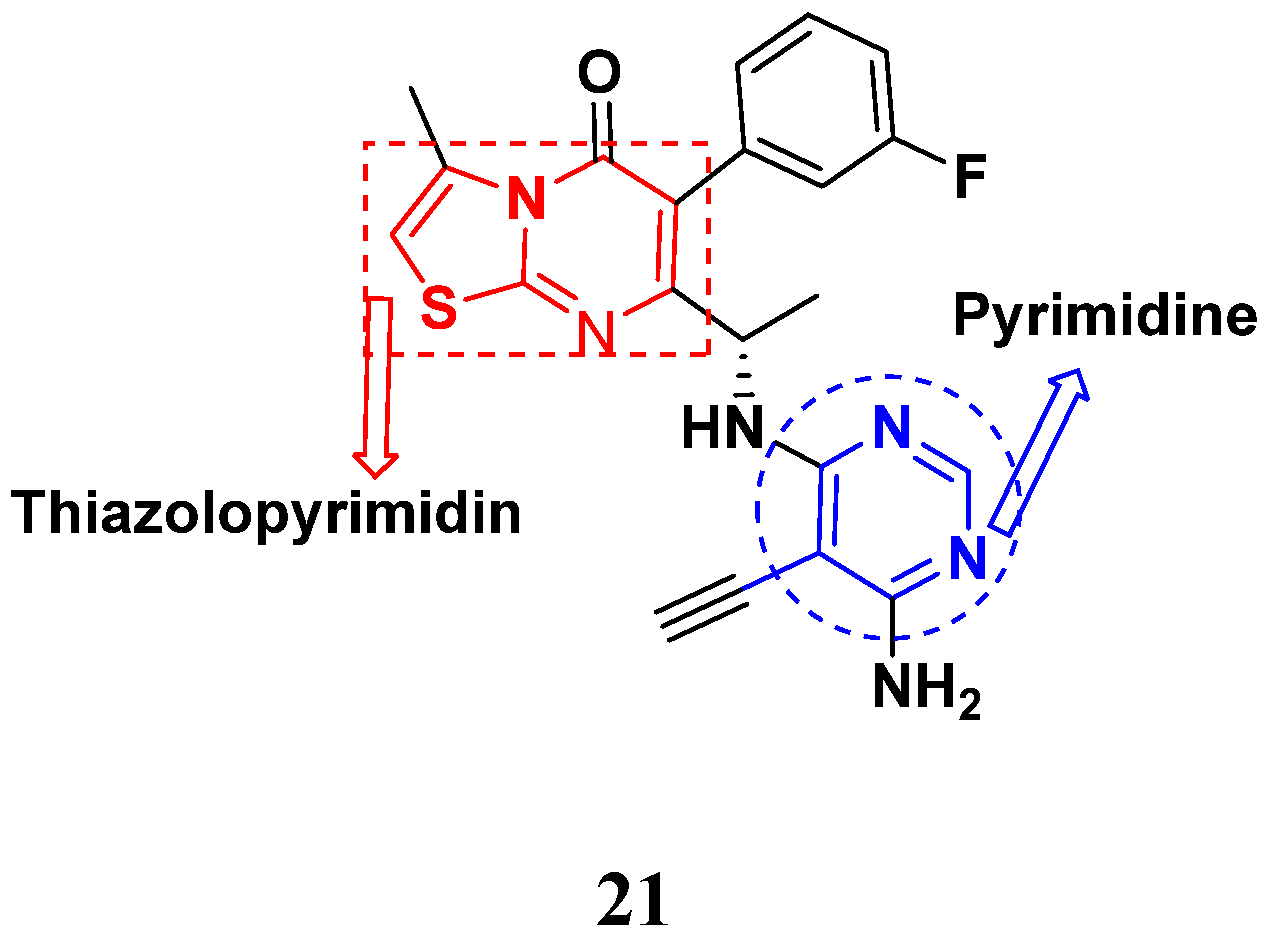

Figure 25. A pyridine hybrid (21).
Figure 25. A pyridine hybrid (21).
Pharmaceuticals 15 01071 g025
Figure 26. A pyrimidine-indazole based hybrid 22.
Figure 26. A pyrimidine-indazole based hybrid 22.
Pharmaceuticals 15 01071 g026
Figure 27. A pyrimidine-di-indazole based hybrid (23).
Figure 27. A pyrimidine-di-indazole based hybrid (23).
Pharmaceuticals 15 01071 g027
Figure 28. A pyrimidine hybrid (24).
Figure 28. A pyrimidine hybrid (24).
Pharmaceuticals 15 01071 g028
Figure 29. Pyrimidine-pyrazole based hybrid (25 and 26).
Figure 29. Pyrimidine-pyrazole based hybrid (25 and 26).
Pharmaceuticals 15 01071 g029

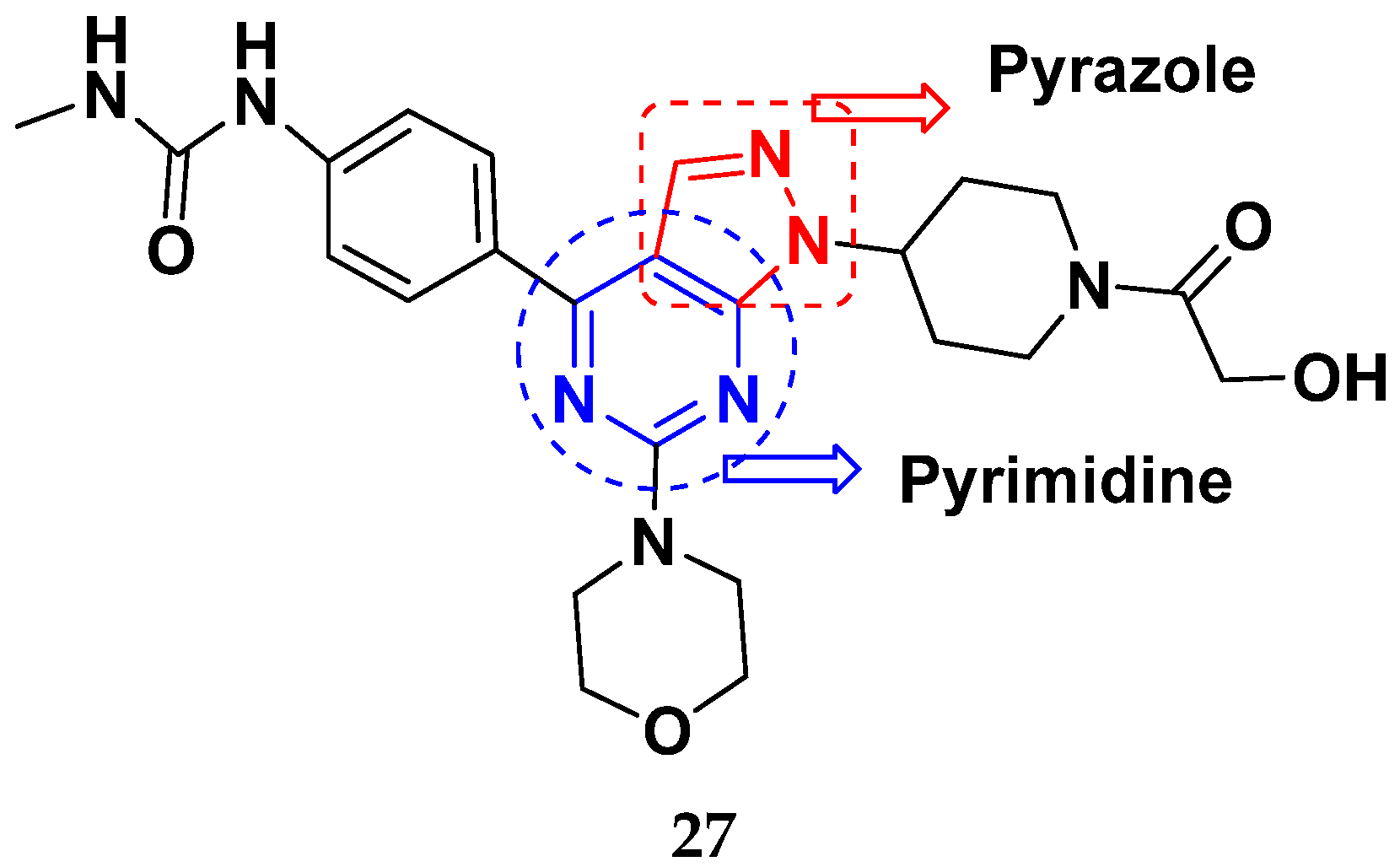

Figure 30. A Pyrimidine-pyrazole based hybrid (27).
Figure 30. A Pyrimidine-pyrazole based hybrid (27).
Pharmaceuticals 15 01071 g030
Figure 31. A pyrimidine-triazole based hybrid (28).
Figure 31. A pyrimidine-triazole based hybrid (28).
Pharmaceuticals 15 01071 g031
Figure 32. Structure of sulfonamide-thiazole fused pyrimidine hybrids and the most promising compound 29a.
Figure 32. Structure of sulfonamide-thiazole fused pyrimidine hybrids and the most promising compound 29a.
Pharmaceuticals 15 01071 g032
Figure 33. Structure of tri-substituted pyrimidine hybrids and the most promising compound 30a.
Figure 33. Structure of tri-substituted pyrimidine hybrids and the most promising compound 30a.
Pharmaceuticals 15 01071 g033

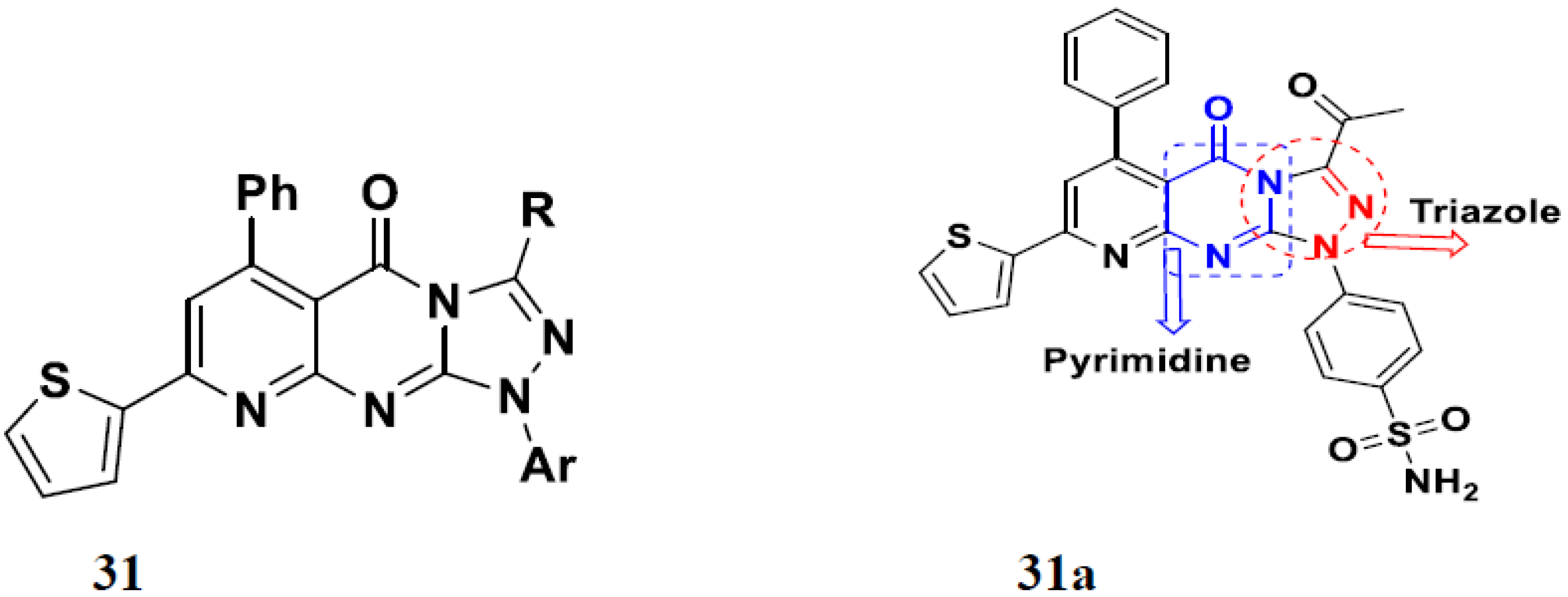

Figure 34. Structure of a pyrimidine-triazole based hybrids and the most promising compound 31a.
Figure 34. Structure of a pyrimidine-triazole based hybrids and the most promising compound 31a.
Pharmaceuticals 15 01071 g034
Figure 35. Structure of pyrimidine-triazole based hybrids and the most promising compound 32a.
Figure 35. Structure of pyrimidine-triazole based hybrids and the most promising compound 32a.
Pharmaceuticals 15 01071 g035
Figure 36. Structure of pyrimidine-pyrazole based hybrids and the most promising compound 33a.
Figure 36. Structure of pyrimidine-pyrazole based hybrids and the most promising compound 33a.
Pharmaceuticals 15 01071 g036
Figure 37. Structure of pyrimidine-pyrazole based hybrids and the most promising compound 34a.
Figure 37. Structure of pyrimidine-pyrazole based hybrids and the most promising compound 34a.
Pharmaceuticals 15 01071 g037
Figure 38. Pyrimidine based FDA approved drugs.
Figure 38. Pyrimidine based FDA approved drugs.
Pharmaceuticals 15 01071 g038
Figure 39. Structure of quinoline-guanidine based hybrid 35.
Figure 39. Structure of quinoline-guanidine based hybrid 35.
Pharmaceuticals 15 01071 g039
Figure 40. Structure of tetrahydro-pyrimido-quinoline based hybrid 36.
Figure 40. Structure of tetrahydro-pyrimido-quinoline based hybrid 36.
Pharmaceuticals 15 01071 g040
Figure 41. Structure of quinoline hybrid amsacrine 37 and the most promising compound 37a.
Figure 41. Structure of quinoline hybrid amsacrine 37 and the most promising compound 37a.
Pharmaceuticals 15 01071 g041
Figure 42. Structure of quinoline-indole based hybrids and the most promising compound 38a.
Figure 42. Structure of quinoline-indole based hybrids and the most promising compound 38a.
Pharmaceuticals 15 01071 g042
Figure 43. Structure of quinoline based ursolic acid hybrids and the most promising compound 39a.
Figure 43. Structure of quinoline based ursolic acid hybrids and the most promising compound 39a.
Pharmaceuticals 15 01071 g043
Figure 44. Structure of quinolone-based piperazine hybrids and the most promising compound 40a.
Figure 44. Structure of quinolone-based piperazine hybrids and the most promising compound 40a.
Pharmaceuticals 15 01071 g044
Figure 45. Quinoline-based gallium(III) hybrid (41).
Figure 45. Quinoline-based gallium(III) hybrid (41).
Pharmaceuticals 15 01071 g045
Figure 46. FDA approved drugs with quinoline hybrids.
Figure 46. FDA approved drugs with quinoline hybrids.
Pharmaceuticals 15 01071 g046
Figure 47. Structure of quinone-based chalcone hybrids and the most promising compound 42a.
Figure 47. Structure of quinone-based chalcone hybrids and the most promising compound 42a.
Pharmaceuticals 15 01071 g047
Figure 48. Structure of quinone based pyran hybrids and the most promising compound 43a.
Figure 48. Structure of quinone based pyran hybrids and the most promising compound 43a.
Pharmaceuticals 15 01071 g048
Figure 49. FDA approved drugs with Quinone hybrids.
Figure 49. FDA approved drugs with Quinone hybrids.
Pharmaceuticals 15 01071 g049
Figure 50. Structure of imidazole-based benzofuran hybrid derivatives (44).
Figure 50. Structure of imidazole-based benzofuran hybrid derivatives (44).
Pharmaceuticals 15 01071 g050
Figure 51. Structure of imidazole based benzofuran hybrid derivatives (45).
Figure 51. Structure of imidazole based benzofuran hybrid derivatives (45).
Pharmaceuticals 15 01071 g051
Figure 52. Structure of imidazole based triazole hybrid derivatives (46).
Figure 52. Structure of imidazole based triazole hybrid derivatives (46).
Pharmaceuticals 15 01071 g052
Figure 53. Structure of imidazole-based artemisinin hybrid derivatives (47).
Figure 53. Structure of imidazole-based artemisinin hybrid derivatives (47).
Pharmaceuticals 15 01071 g053

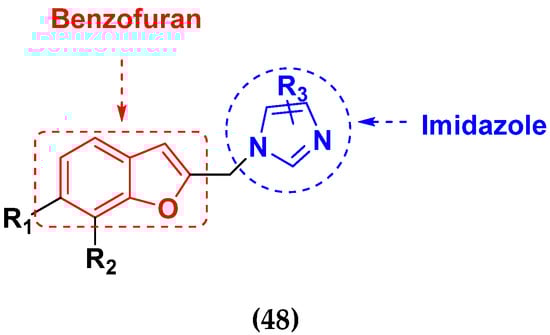

Figure 54. Structure of imidazole based benzofuran hybrid derivative 48.
Figure 54. Structure of imidazole based benzofuran hybrid derivative 48.
Pharmaceuticals 15 01071 g054
Figure 55. Imidazole based anticancer drugs that are FDA approved or in clinical trials.
Figure 55. Imidazole based anticancer drugs that are FDA approved or in clinical trials.
Pharmaceuticals 15 01071 g055
Figure 56. Organoselenium hybrid derivatives (49).
Figure 56. Organoselenium hybrid derivatives (49).
Pharmaceuticals 15 01071 g056
Figure 57. Structure of selenium-based quinone triazole hybrid derivatives (50).
Figure 57. Structure of selenium-based quinone triazole hybrid derivatives (50).
Pharmaceuticals 15 01071 g057
Figure 58. Structure of selenium based anilino quinazoline hybrid derivatives (51).
Figure 58. Structure of selenium based anilino quinazoline hybrid derivatives (51).
Pharmaceuticals 15 01071 g058
Figure 59. Structure of selenium based anilino quinazoline hybrid derivatives (52).
Figure 59. Structure of selenium based anilino quinazoline hybrid derivatives (52).
Pharmaceuticals 15 01071 g059
Figure 60. Structure of selenium-based diaryl imidazole hybrid derivatives (53).
Figure 60. Structure of selenium-based diaryl imidazole hybrid derivatives (53).
Pharmaceuticals 15 01071 g060
Figure 61. Selenium based potent anticancer compounds.
Figure 61. Selenium based potent anticancer compounds.
Pharmaceuticals 15 01071 g061
Figure 62. Structure of Platinum−acridine hybrid derivatives (54).
Figure 62. Structure of Platinum−acridine hybrid derivatives (54).
Pharmaceuticals 15 01071 g062
Figure 63. Platinum hybrid derivatives (5560).
Figure 63. Platinum hybrid derivatives (5560).
Pharmaceuticals 15 01071 g063
Figure 64. Structure of Platinum (iv) dihydro-2-quinolone hybrid derivatives (61).
Figure 64. Structure of Platinum (iv) dihydro-2-quinolone hybrid derivatives (61).
Pharmaceuticals 15 01071 g064
Figure 65. Structure of naproxen platinum (IV) hybrid derivatives.
Figure 65. Structure of naproxen platinum (IV) hybrid derivatives.
Pharmaceuticals 15 01071 g065
Figure 66. Structure of Camptothecin-linked platinum hybrid derivatives (6769).
Figure 66. Structure of Camptothecin-linked platinum hybrid derivatives (6769).
Pharmaceuticals 15 01071 g066
Figure 67. Structure of hydroxamic acid with artemisinin hybrid derivatives (70).
Figure 67. Structure of hydroxamic acid with artemisinin hybrid derivatives (70).
Pharmaceuticals 15 01071 g067
Figure 68. Structure of hydroxamate-β-carboline based hybrid derivatives (71).
Figure 68. Structure of hydroxamate-β-carboline based hybrid derivatives (71).
Pharmaceuticals 15 01071 g068
Figure 69. Structure of hydroxamic acid based chalcone derivatives (72).
Figure 69. Structure of hydroxamic acid based chalcone derivatives (72).
Pharmaceuticals 15 01071 g069
Figure 70. Structure of hydroxamic acid based 4-aminoquinazolin derivatives (73).
Figure 70. Structure of hydroxamic acid based 4-aminoquinazolin derivatives (73).
Pharmaceuticals 15 01071 g070
Figure 71. Structure of hydroxamic acid based indoline derivatives (74).
Figure 71. Structure of hydroxamic acid based indoline derivatives (74).
Pharmaceuticals 15 01071 g071
Figure 72. Structure of ferrocene-indole derivatives (75).
Figure 72. Structure of ferrocene-indole derivatives (75).
Pharmaceuticals 15 01071 g072
Figure 73. Structure of ferrocene containing a pyrazolyl derivative (76).
Figure 73. Structure of ferrocene containing a pyrazolyl derivative (76).
Pharmaceuticals 15 01071 g073
Figure 74. Structure of ferrocenyl-chalcone amide derivative (77).
Figure 74. Structure of ferrocenyl-chalcone amide derivative (77).
Pharmaceuticals 15 01071 g074
Figure 75. Structure of ferrocene-coumarin moiety derivative (78).
Figure 75. Structure of ferrocene-coumarin moiety derivative (78).
Pharmaceuticals 15 01071 g075
Figure 76. Structure of ferrocene-chalcogeno (sugar) triazole conjugate derivatives (79).
Figure 76. Structure of ferrocene-chalcogeno (sugar) triazole conjugate derivatives (79).
Pharmaceuticals 15 01071 g076
Figure 77. Structure of curcumin-quinolone derivatives (80).
Figure 77. Structure of curcumin-quinolone derivatives (80).
Pharmaceuticals 15 01071 g077
Figure 78. Structure of curcumin-sulfonamide derivatives (81).
Figure 78. Structure of curcumin-sulfonamide derivatives (81).
Pharmaceuticals 15 01071 g078
Figure 79. Structure of curcumin-pyrazole derivative (82).
Figure 79. Structure of curcumin-pyrazole derivative (82).
Pharmaceuticals 15 01071 g079
Figure 80. Structure of curcumin-pyrimidine derivatives (83).
Figure 80. Structure of curcumin-pyrimidine derivatives (83).
Pharmaceuticals 15 01071 g080
Figure 81. Structure of curcumin-isatin derivatives (84).
Figure 81. Structure of curcumin-isatin derivatives (84).
Pharmaceuticals 15 01071 g081
Figure 82. Structure of triazole-pyrimidine derivatives (85).
Figure 82. Structure of triazole-pyrimidine derivatives (85).
Pharmaceuticals 15 01071 g082
Figure 83. Structure of triazole–myrrhanore C derivatives (86).
Figure 83. Structure of triazole–myrrhanore C derivatives (86).
Pharmaceuticals 15 01071 g083
Figure 84. Structure of triazole-isoxazole derivatives (87).
Figure 84. Structure of triazole-isoxazole derivatives (87).
Pharmaceuticals 15 01071 g084
Figure 85. Structure of triazole-dithiocarbamate derivatives (88).
Figure 85. Structure of triazole-dithiocarbamate derivatives (88).
Pharmaceuticals 15 01071 g085
Figure 86. Structure of triazole-thiazole derivative (89).
Figure 86. Structure of triazole-thiazole derivative (89).
Pharmaceuticals 15 01071 g086

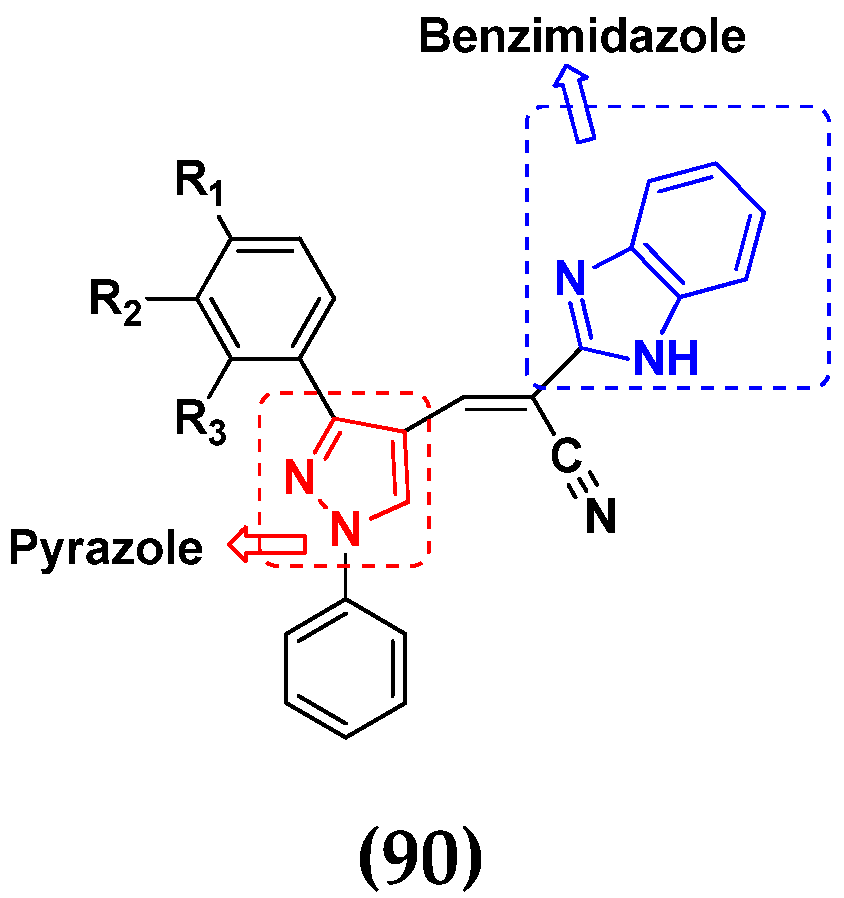

Figure 87. Structure of benzimidazole-pyrazole derivatives (90).
Figure 87. Structure of benzimidazole-pyrazole derivatives (90).
Pharmaceuticals 15 01071 g087
Figure 88. Structure of benzimidazole-pyrimidine derivatives (91).
Figure 88. Structure of benzimidazole-pyrimidine derivatives (91).
Pharmaceuticals 15 01071 g088
Figure 89. Structure of benzimidazole–thiazolidinedione derivatives (92).
Figure 89. Structure of benzimidazole–thiazolidinedione derivatives (92).
Pharmaceuticals 15 01071 g089
Figure 90. Structure of benzimidazole-quinazoline derivatives (93).
Figure 90. Structure of benzimidazole-quinazoline derivatives (93).
Pharmaceuticals 15 01071 g090

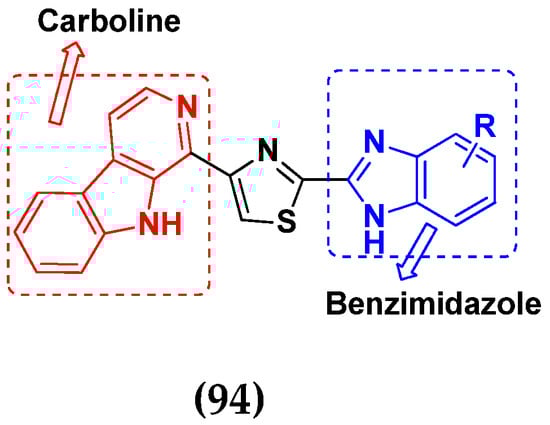

Figure 91. Structure of benzimidazole-β-Carboline derivatives (94).
Figure 91. Structure of benzimidazole-β-Carboline derivatives (94).
Pharmaceuticals 15 01071 g091
Figure 92. Structure of isatin-based benzoazine derivatives (95).
Figure 92. Structure of isatin-based benzoazine derivatives (95).
Pharmaceuticals 15 01071 g092
Figure 93. Structure of isatin-dihydropyrazole derivatives (96).
Figure 93. Structure of isatin-dihydropyrazole derivatives (96).
Pharmaceuticals 15 01071 g093
Figure 94. Structure of isatin-pyridine derivatives [97(ac), 98, and 99 (ac)].
Figure 94. Structure of isatin-pyridine derivatives [97(ac), 98, and 99 (ac)].
Pharmaceuticals 15 01071 g094
Figure 95. Structure of isatin-based coumarin derivatives (100).
Figure 95. Structure of isatin-based coumarin derivatives (100).
Pharmaceuticals 15 01071 g095
Figure 96. Structure of isatin-indole derivatives (101).
Figure 96. Structure of isatin-indole derivatives (101).
Pharmaceuticals 15 01071 g096
Figure 97. Structure of isatin-benzoic acid derivatives (102).
Figure 97. Structure of isatin-benzoic acid derivatives (102).
Pharmaceuticals 15 01071 g097
Figure 98. Structure of isatin-thiazolo benzimidazole derivatives (103,104).
Figure 98. Structure of isatin-thiazolo benzimidazole derivatives (103,104).
Pharmaceuticals 15 01071 g098
Figure 99. The isatin moiety as FDA-approved anticancer drug.
Figure 99. The isatin moiety as FDA-approved anticancer drug.
Pharmaceuticals 15 01071 g099
Figure 100. Structure of pyrrolo-benzodiazepine hybrids and the most promising compound 105a.
Figure 100. Structure of pyrrolo-benzodiazepine hybrids and the most promising compound 105a.
Pharmaceuticals 15 01071 g100
Figure 101. Structure of pyrrolo-benzodiazepine-based benzoindolone derivative (106).
Figure 101. Structure of pyrrolo-benzodiazepine-based benzoindolone derivative (106).
Pharmaceuticals 15 01071 g101
Figure 102. Structure of pyrrolo-benzodiazepine-dione derivatives [107(ac),108(ac)].
Figure 102. Structure of pyrrolo-benzodiazepine-dione derivatives [107(ac),108(ac)].
Pharmaceuticals 15 01071 g102
Figure 103. Structure of triazole-pyrrolo-benzodiazepines derivative [109(ac),110(ac)].
Figure 103. Structure of triazole-pyrrolo-benzodiazepines derivative [109(ac),110(ac)].
Pharmaceuticals 15 01071 g103
Figure 104. Pyrrolo-benzodiazapine containing FDA approved anticancer drug.
Figure 104. Pyrrolo-benzodiazapine containing FDA approved anticancer drug.
Pharmaceuticals 15 01071 g104
Figure 105. Naturally occurring phytoconstituents containing chalcone.
Figure 105. Naturally occurring phytoconstituents containing chalcone.
Pharmaceuticals 15 01071 g105
Figure 106. Structure of chalcone-based phenothiazine hybrids and the most promising compound 111a.
Figure 106. Structure of chalcone-based phenothiazine hybrids and the most promising compound 111a.
Pharmaceuticals 15 01071 g106
Figure 107. Structure of chalcone-based benzoxadiazole hybrids and the most promising compound 112a.
Figure 107. Structure of chalcone-based benzoxadiazole hybrids and the most promising compound 112a.
Pharmaceuticals 15 01071 g107
Figure 108. Structure of chalcone-based triazolo-quinoxaline hybrids and the most promising compound 113a.
Figure 108. Structure of chalcone-based triazolo-quinoxaline hybrids and the most promising compound 113a.
Pharmaceuticals 15 01071 g108
Figure 109. Structure of chalcone based melatonin hybrids and the most promising compound 114a.
Figure 109. Structure of chalcone based melatonin hybrids and the most promising compound 114a.
Pharmaceuticals 15 01071 g109
Figure 110. Structure of chalcone-based quinoxalin hybrids and the most promising compound 115e.
Figure 110. Structure of chalcone-based quinoxalin hybrids and the most promising compound 115e.
Pharmaceuticals 15 01071 g110
Figure 111. Structure of coumarin-benzimidazole derivatives 116(ae).
Figure 111. Structure of coumarin-benzimidazole derivatives 116(ae).
Pharmaceuticals 15 01071 g111
Figure 112. Structure of coumarin containing 1,2,3-triazole derivatives 117(ae).
Figure 112. Structure of coumarin containing 1,2,3-triazole derivatives 117(ae).
Pharmaceuticals 15 01071 g112
Figure 113. Structure of coumarin containing chalcone derivative [118(ac),119(ac)].
Figure 113. Structure of coumarin containing chalcone derivative [118(ac),119(ac)].
Pharmaceuticals 15 01071 g113
Figure 114. Structure of coumarin-based uracil derivatives 120(ae).
Figure 114. Structure of coumarin-based uracil derivatives 120(ae).
Pharmaceuticals 15 01071 g114
Figure 115. Structure of coumarin-based furoxin derivatives 121(ae).
Figure 115. Structure of coumarin-based furoxin derivatives 121(ae).
Pharmaceuticals 15 01071 g115
Figure 116. Structure of nitrogen mustard contain oridonin derivatives 122(ad).
Figure 116. Structure of nitrogen mustard contain oridonin derivatives 122(ad).
Pharmaceuticals 15 01071 g116
Figure 117. Structure of nitrogen mustard-containing thiazole derivatives 123(ae).
Figure 117. Structure of nitrogen mustard-containing thiazole derivatives 123(ae).
Pharmaceuticals 15 01071 g117
Figure 118. Structure of nitrogen mustard-containing triazine derivatives 124(ad).
Figure 118. Structure of nitrogen mustard-containing triazine derivatives 124(ad).
Pharmaceuticals 15 01071 g118
Figure 119. Structure of androstane oxime-nitrogen mustard hybrids [125(a-b),126(a-b)].
Figure 119. Structure of androstane oxime-nitrogen mustard hybrids [125(a-b),126(a-b)].
Pharmaceuticals 15 01071 g119
Figure 120. Structure of pyrazole-based indole derivatives 127(ae).
Figure 120. Structure of pyrazole-based indole derivatives 127(ae).
Pharmaceuticals 15 01071 g120
Figure 121. Structure of benzofuran-pyrazole-based derivatives 128(ad).
Figure 121. Structure of benzofuran-pyrazole-based derivatives 128(ad).
Pharmaceuticals 15 01071 g121
Figure 122. Structure of quinazoline-pyrazole-based derivatives (129131) and pyrazole derivative (132133).
Figure 122. Structure of quinazoline-pyrazole-based derivatives (129131) and pyrazole derivative (132133).
Pharmaceuticals 15 01071 g122
Figure 123. Structure of pyrazoline-pyrazole-based derivatives 134(ae).
Figure 123. Structure of pyrazoline-pyrazole-based derivatives 134(ae).
Pharmaceuticals 15 01071 g123
Figure 124. Structure of pyrazole acrylic acid-based oxadiazole derivatives 135(ac).
Figure 124. Structure of pyrazole acrylic acid-based oxadiazole derivatives 135(ac).
Pharmaceuticals 15 01071 g124
Figure 125. Structure of biquinoline-pyridine hybrid derivative 136(ae).
Figure 125. Structure of biquinoline-pyridine hybrid derivative 136(ae).
Pharmaceuticals 15 01071 g125
Figure 126. Structure of isatin-pyridine derivative [137,138(ad)].
Figure 126. Structure of isatin-pyridine derivative [137,138(ad)].
Pharmaceuticals 15 01071 g126
Figure 127. Structure of pyrazolo [3,4] pyridine derivatives [139(ad),140(ad)].
Figure 127. Structure of pyrazolo [3,4] pyridine derivatives [139(ad),140(ad)].
Pharmaceuticals 15 01071 g127
Table 1. In vitro cytotoxic activities of hybrid compounds 1(be).
Table 1. In vitro cytotoxic activities of hybrid compounds 1(be).
Compound
No.
R1R2R3R4nEGFR (IC50 nM)HT-29 (IC50 µM)
NormoxiaHypoxia
1bClFNO2H50.3212.899.81
1cBrHNO2H20.664.484.01
1dethynylHNO2H30.5610.085.96
1eethynylHNO2H50.502.933.46
Gefitinib 0.453.635.21
Table 2. In vitro cytotoxic activities of hybrid compounds 2(be).
Table 2. In vitro cytotoxic activities of hybrid compounds 2(be).
Compound
No.
R1R2R3EGFR (IC50 nM)α-Glucosidase
(IC50 µM)
2b3-Cl, 4-(3-fluorobenzyloxy)Pharmaceuticals 15 01071 i001Pharmaceuticals 15 01071 i0054.530.14
2c3-ethynylPharmaceuticals 15 01071 i002Pharmaceuticals 15 01071 i0064.870.09
2d3-ethynylPharmaceuticals 15 01071 i003Pharmaceuticals 15 01071 i007ND *6.25
2e3-Cl, 4-FPharmaceuticals 15 01071 i004Pharmaceuticals 15 01071 i00810.714.34
Gefitinib 3.32≥100
* Not determined.
Table 3. In vitro cytotoxic activities of hybrid compounds 3(be).
Table 3. In vitro cytotoxic activities of hybrid compounds 3(be).
Compound
No.
R1R2XEGFR (IC50 nM)VEGFR-2 (IC50 nM)
3bPharmaceuticals 15 01071 i009m-Cl, p-FCl1414
3cPharmaceuticals 15 01071 i010m-CH3, p-CH3Cl7851
3dPharmaceuticals 15 01071 i011o-CH3Cl15178
3ePharmaceuticals 15 01071 i012HCl14261
vandetanib 1115
Table 4. In vitro cytotoxic activities of hybrid compounds 4 (be).
Table 4. In vitro cytotoxic activities of hybrid compounds 4 (be).
Compound No.Ar.MCF-7
(GI50 μM)
PI3K (IC50 μM)
Aβγ
4bPharmaceuticals 15 01071 i013155.3162.3
4cPharmaceuticals 15 01071 i0141222.21.922.2
4dPharmaceuticals 15 01071 i01512133565.9
4ePharmaceuticals 15 01071 i0163214.20.514.2
Table 5. In vitro cytotoxic activities of hybrid compounds 5(be).
Table 5. In vitro cytotoxic activities of hybrid compounds 5(be).
Compounds
No.
R1R2XA549
(µM)
BT549
(µM)
HCT-116
(µM)
MCF-7
(µM)
SK-HEP-1
(µM)
SNU638
(µM)
5b3-COOCHPharmaceuticals 15 01071 i017CH1.101.080.4010.12.401.12
5c3-COOCH3-4-ClPharmaceuticals 15 01071 i018CH2.132.363.131.437.062.20
5d4-OCH3Pharmaceuticals 15 01071 i019CH3.581.883.491.791.613.97
5e2,4-diFPharmaceuticals 15 01071 i020CH4.712.484.011.612.492.05
Gefitinib 8.276.565.9826.710.17.56
Dactolisib0.620.740.841.331.821.24
Table 6. In vitro cytotoxic activities of hybrid compounds 6(be).
Table 6. In vitro cytotoxic activities of hybrid compounds 6(be).
Compound
No.
R1R2HCT-116
(µM)
SK-HEP1
(µM)
MDA-MB-231
(µM)
SNU638
(µM)
A549
(µM)
MCF-7
(µM)
6bPharmaceuticals 15 01071 i021Pharmaceuticals 15 01071 i0251.444.720.710.620.941.02
6cPharmaceuticals 15 01071 i022Pharmaceuticals 15 01071 i0260.490.860.881.263.524.73
6dPharmaceuticals 15 01071 i023Pharmaceuticals 15 01071 i0270.590.440.420.611.5610.8
6ePharmaceuticals 15 01071 i024Pharmaceuticals 15 01071 i0281.741.142.580.983.144.59
BEZ235 0.841.820.181.240.621.33
Table 7. In vitro cytotoxic activities of hybrid compounds 8(be).
Table 7. In vitro cytotoxic activities of hybrid compounds 8(be).
Compound
No.
R1BRD4 Kd
(nM)
MV4-11,
IC50 (µM)
8bPharmaceuticals 15 01071 i0294804.88
8cPharmaceuticals 15 01071 i0302502.54
8dPharmaceuticals 15 01071 i031605.07
8ePharmaceuticals 15 01071 i032281.83
BET760-370.80
Table 8. Quinazoline-based compounds approved/under clinical trial with their current status.
Table 8. Quinazoline-based compounds approved/under clinical trial with their current status.
Company NameCompound NameDrug TargetType of CancerStatusReferences
AstraZenecaVandetanibKinase inhibitorMedullary thyroid cancerApproved[33]
Boehringer
Ingelheim
AfatinibTyrosine kinaseNon-small cell lung
Carcinoma
Approved[34]
PfizerDacomitinibEGFR inhibitorNon-small cell lung
carcinoma
Approved[10]
AstraZeneca
and Teva
GefitinibEGFR inhibitorBreast and Lung cancerApproved[35]
Roche
Pharmaceuticals
ErlotinibEGFR inhibitorpancreatic
cancer and non-small cell lung cancer
Approved[36]
GlaxoSmith
Kline (GSK)
LapatinibDual tyrosine kinase
inhibitor
solid tumors and
Breast cancer
Approved[37]
AstraZenecaSapitinib
(AZD 8931)
Erb8 receptor
tyrosine kinase
Breast cancer and
metastatic cancer
Clinical trials[10]
Array
Biopharma
Tucatinib
(ARRY 380)
Kinase inhibitorBreast cancerApproved[10]
Selleck
chemicals
Barasertib
(AZD 1152)
Aurora KinaseTumor lymphoma, solid tumors and myeloid leukemiaClinical trials[38]
Spectrum
Pharmaceuticals
PoziotinibTyrosine kinaseBreast cancerClinical trials[10]
AstraZenecaAZD 3759EGFR antagonistNon-small cell lung
Cancer
Clinical trials[10]
Curis Inc.CUDC-101By inhibiting Histone deacetylase, EGFR and HER2Advanced
/Liver/Neck/Gastric/Head/non-small cell lung cancer and Breast
Clinical trials[39]
Beta-PhamaIcotinibEGFR-TK1
inhibitor
Non-small cell lung
cancer
Approved[40]
Table 9. In vitro cytotoxicity (IC50) of hybrid compounds 9(be).
Table 9. In vitro cytotoxicity (IC50) of hybrid compounds 9(be).
Compound
No.
RU937 (µM)PC-3
(µM)
A549
(µM)
ES-2
(µM)
MDA-MB-231
(µM)
HCT116
(µM)
9bPharmaceuticals 15 01071 i0333.110.511.829.27.26.0
9cPharmaceuticals 15 01071 i0342.210.44.225.14.53.8
9dPharmaceuticals 15 01071 i0352.25.81.64.46.85.9
9ePharmaceuticals 15 01071 i0362.75.47.08.97.22.4
SAHA-2.39.93.812.75.66.0
Table 10. In vitro cytotoxic activities of hybrid compounds 10(be).
Table 10. In vitro cytotoxic activities of hybrid compounds 10(be).
Compound
No.
RU937
(µM)
K562
(µM)
HEL
(µM)
KG1
(µM)
HL60
(µM)
MDA-MB-231
(µM)
PC-3
(µM)
MCF-7
(µM)
HCT116
(µM)
A549
(µM)
10bPharmaceuticals 15 01071 i0370.33 0.790.200.392.110.240.333.470.373.39
10cPharmaceuticals 15 01071 i0380.32 0.680.270.721.590.410.532.950.573.91
10dPharmaceuticals 15 01071 i0390.18 1.010.190.241.040.270.512.70.372.96
10ePharmaceuticals 15 01071 i0400.340.890.160.471.680.150.292.320.223.27
SAHA 1.453.240.491.594.261.723.573.782.813.9
Table 11. In vitro cytotoxic activities of hybrid compounds 11(be).
Table 11. In vitro cytotoxic activities of hybrid compounds 11(be).
Compound
No.
R1R2R3HeLa Nuclear HDAC
(nM)
11bHH4′-(N-3-hydroxyacrylamide)2.8
11cCH3H4′-(N-3-hydroxyacrylamide)3.3
11dCH2CH3H4′-(N-3-hydroxyacrylamide)3.4
11eHCH34′-(N-3-hydroxyacrylamide)47.4
LBH589.HCl 7.5
Table 12. In vitro cytotoxic activities of indole-triazole based hybrid compounds 12(be).
Table 12. In vitro cytotoxic activities of indole-triazole based hybrid compounds 12(be).
Compound
No.
R1R2K562
(Upto %)
MDA-MB 231
(µM)
LNCaP
(µM)
12bHPharmaceuticals 15 01071 i04188232
12cHPharmaceuticals 15 01071 i042872838
12dFPharmaceuticals 15 01071 i043645824
12eFPharmaceuticals 15 01071 i044676835
Table 13. In vitro cytotoxic activities of indole-pyrimidine based hybrid compounds 13(be).
Table 13. In vitro cytotoxic activities of indole-pyrimidine based hybrid compounds 13(be).
Compound
No.
RPIM (µM)
PIM1PIM2PIM3
13bMe2N(CH2)2O0.301.400.50
13cEt2N(CH2)2O0.140.840.27
13dEt2N(CH2)3O0.110.380.081
13eEt2N(CH2)3NH0.0673.160.61
Table 14. In vitro cytotoxic activities of indole-chalcone based hybrid compounds 14(be).
Table 14. In vitro cytotoxic activities of indole-chalcone based hybrid compounds 14(be).
Compound
No.
R1R2R3A549
(µg/mL)
MCF7
(µg/mL)
SKOV3
(µg/mL)
NIH3T3
(µg/mL)
14bC2H5BrMe4.950.168.852.0
14cHBrn-Bu8.054.074.1141.3
14dMeOMeMe5.136.253.0_
14eHBrMe27.928.052.0_
Etoposide 7.89.98.5118.0
Table 15. In vitro cytotoxic activities of indole-pyrole based hybrid compounds 15(be).
Table 15. In vitro cytotoxic activities of indole-pyrole based hybrid compounds 15(be).
Compound
No.
R1R2R3HL-60
(µM)
SMMC-7721
(µM)
A-549
(µM)
MCF-7
(µM)
SW480
(µM)
15bBnBenzimidazole2-Bromobenzyl1.214.696.762.236.35
15cBnBenzimidazole4-Methylbenzyl1.204.986.232.726.57
15dBn5,6-Dimethyl-benzimidazole2-Naphthylmethyl1.212.274.801.681.76
15eMe5,6-Dimethyl-benzimidazole2-Naphthylmethyl1.354.036.181.844.5
DPP---1.168.087.1010.458.88
Table 16. In vitro cytotoxic activities of indole-chalcone based hybrid compounds 16(be).
Table 16. In vitro cytotoxic activities of indole-chalcone based hybrid compounds 16(be).
Compound
No.
R1R2R3R4R5R6A549
(µM)
PC3
(µM)
PaCa2
(µM)
24 h48 h24 h48 h24 h48 h
16bHHHOCH3HH9.65.833.312.527.5>50
16cHOCH3HHHH6.47.5>5012.013.5>50
16dHOCH3OCH3HHH3.75.531.137.1>50>50
16e 4.93.017.28.124.0>50
Mitomycin C 0.45
Table 17. In vitro cytotoxic activities of indole-ospemifene-triazole based hybrid compounds 17(be).
Table 17. In vitro cytotoxic activities of indole-ospemifene-triazole based hybrid compounds 17(be).
Compound
No.
RMCF-7
(µM)
MDA-MB-231
(µM)
17bPharmaceuticals 15 01071 i045≥10071.40
17cPharmaceuticals 15 01071 i04616.50≥100
17dPharmaceuticals 15 01071 i04710.9971.40
17ePharmaceuticals 15 01071 i048≥100≥100
Ospemifene 5550
Tamoxifen 3.5≥100
Plumbagin 754.4
Table 18. In vitro cytotoxic activities of indole-isatin-triazole based hybrid compounds 18(bc).
Table 18. In vitro cytotoxic activities of indole-isatin-triazole based hybrid compounds 18(bc).
Compound No.RMCF-7 (µM)MDA-MB-231 (µM)
18bPharmaceuticals 15 01071 i04950>100
18cPharmaceuticals 15 01071 i050>100>100
Plumbagin 3.54.4
Peganumine A 38.5Not observed
Tamoxifen 5075
Table 19. Current status of indole-based hybrids that are approved or/-under clinical trials.
Table 19. Current status of indole-based hybrids that are approved or/-under clinical trials.
Company NameCompound NameDrug TargetType of CancerStatusReference
AstraZenecaCediranibVEGFR tyrosine
kinases
GlioblastomaApproved[53]
Chia-tai Tianqing
Pharmaceutical Co.
AL 3818 (Anlotinib)Tyrosine kinaseSynovial sarcoma, Advanced alveolar soft part sarcomaClinical trials[54]
Janssen
pharmaceuticals
QuisinostatHDAC inhibitorMultiple myelomaApproved[55]
NovartisPanobinostat
(LBH-589)
Non-selective HDAC inhibitorMultiple myelomaApproved[56]
SelleckDacinostat
(LAQ824)
Histone deacetylase inhibitorBreast and Prostate cancer Approved[57]
Table 20. In vitro cytotoxic activities of carbazole-imidazole based hybrid compounds 19(be).
Table 20. In vitro cytotoxic activities of carbazole-imidazole based hybrid compounds 19(be).
Compound
No.
nRR’HL-60
(µM)
SMMC-7721
(µM)
A549
(µM)
MCF-7
(µM)
SW480
(µM)
19b2Benzimidazole-3.113.2112.365.0618.25
19c2imidazole4-methylbenzyl0.845.743.922.249.56
19d2benzimidazole2-bromobenzyl0.713.663.582.143.08
19e3benzimidazole4-methylbenzyl0.572.552.652.823.19
DDP 1.326.2411.8315.1712.95
Table 21. Current status of carbazole-based hybrid drugs that are approved/or under clinical trials.
Table 21. Current status of carbazole-based hybrid drugs that are approved/or under clinical trials.
Company NameCompound NameDrug TargetType of CancerStatusReferences
Novartis
Pharmaceutical
Corporation
MidostaurinKinase inhibitorAdvanced systemic mastocytosis, myelodysplastic syndromeApproved[67]
Chugai Pharmaceuticals Co.AlectinibTyrosine kinaseNon-small
cell lung cancer
Approved[68]
Schwarz PharmaCEP-2563Tyrosine kinaseSolid tumorsClinical trials[10]
Cayman ChemicalsUCN-01Tyrosine kinasePancreatic, malignant melanoma, ovarian
Cancer and small cell lung
Clinical trials[69]
Helsinn HealthcareBecatecarinTopoisomerase-ILeukemia and gastric cancerClinical Trials[10]
Pfizer
Pharmaceutical
Co.
EdotecarinTopoisomerase-IOesophageal cancer and solid tumorsClinical trials[10]
Table 22. In vitro cytotoxic activities of sulfonamide-thiazole fused pyrimidine hybrid compounds 29(be).
Table 22. In vitro cytotoxic activities of sulfonamide-thiazole fused pyrimidine hybrid compounds 29(be).
Compound
No.
RR1DNA Displacement Assay (µg/mL)DNA Binding Affinity
29b4-H4-Br74High
29c4-H4-NO281weak
29d4-H4-OCH381Moderate
29e4-H3,4-diOMe62High
Ethidium bromide--1.4-
Table 23. In vitro cytotoxic activities of tri-substituted pyrimidine hybrid compounds 30(be).
Table 23. In vitro cytotoxic activities of tri-substituted pyrimidine hybrid compounds 30(be).
Compound
No.
R1R2R3CDK9T1
(µM)
CDK1B
(µM)
CDK2A
(µM)
CDK7H
(µM)
HCT-116
(µM)
MCF-7
(µM)
30bNH2Fm-SO2NH23732520.050.41
30cNHMeCNm-SO2Me519431100.200.43
30dNHMeFm-SO2NH(CH2)2OCH33106300.300.72
30eNHMeCNp-CO-N-(1-methylpiperidin-4-yl)843323040.180.5
Table 24. In vitro cytotoxic activities of pyrimidine-triazole hybrid compounds 31(be).
Table 24. In vitro cytotoxic activities of pyrimidine-triazole hybrid compounds 31(be).
Compound
No.
ArRA-549
(IC50 (µM)
PC-3
31b4-MeC6H4COCH319.3316.92
31cC6H5COOC2H526.6433.56
31d4-SO2NH2C6H4COOC2H516.427.15
31d4-ClC6H4COCH330.5622.90
5-FU 4.2112.00
Table 25. In vitro cytotoxic activities of pyrimidine-triazole hybrid compounds 32(be).
Table 25. In vitro cytotoxic activities of pyrimidine-triazole hybrid compounds 32(be).
Compound
No.
R1R2U937
(µg/mL)
THP-1
(µg/mL)
Colo205
(µg/mL)
32bHCH3-(CH2)8-CH2-8.1616.9119.25
32cCH3-(CH2)4-CH2-6F13-CH2-CH2-7.56-132.42
32c(CH3)2CH-8F17-CH2-CH2-8.35142.23-
32dC2H5CH3-(CH2)8-CH2-17.8382.65-
Etoposide 17.942.167.24
Table 26. In vitro cytotoxic activities of pyrimidine-pyrazole based hybrid compounds 33(be).
Table 26. In vitro cytotoxic activities of pyrimidine-pyrazole based hybrid compounds 33(be).
Compound
No.
RA549
(µM)
MCF7
(µM)
DU145
(µM)
HeLa
(µM)
33bCH3CH2OC(O)CH2-16.3 12.418.29.8
33cCH3(CH2)6CH2-5.7 24.76.322.7
33dCF3(CF2)7CH2CH2-33.7 -37.7-
33ePharmaceuticals 15 01071 i0514.1 -4.7-
5-FU-1.3 1.41.51.3
Table 27. In vitro cytotoxic activities of pyrimidine-pyrazole based hybrid compounds 34(be).
Table 27. In vitro cytotoxic activities of pyrimidine-pyrazole based hybrid compounds 34(be).
Compound
No.
R1R2NCI-H226
(µM)
NPC-TW01
(µM)
Jurkat
34bPhp-Me-Ph 354948
34c2-Quinolinylp-Cl-Ph 393569
34d2-Quinolinylp-OMe-Ph 3736>100
34ePhp-Cl-Ph 182336
N0-(4-formyl-1,3-diphenyl-1H-pyrazol-5-yl)-N,N-dimethyl-methanimidamide 9.331.423.5
Table 28. FDA approved pyrimidine based hybrids.
Table 28. FDA approved pyrimidine based hybrids.
Company NameCompound NameDrug TargetType of CancerStatusReference
NovartisCeritinibAbnormal ALK-geneNon-Small cell lung
Cancer
Approved[85]
Pfizer Pharmaceutical
company
PalbociclibCDK4/6 inhibitorBreast cancerApproved[86]
AbbVie PharmaceuticalsIbrutinibTyrosine kinaseMantle cell lymphomaApproved[87,88]
Table 29. In vitro cytotoxic activities of quinoline-pyrimidine based hybrid compounds 35.
Table 29. In vitro cytotoxic activities of quinoline-pyrimidine based hybrid compounds 35.
Compounds No.BALB/3T3
(µM)
A549
(µM)
MCF-7
(µM)
LoVo
(µM)
KB
(µM)
3530.043.240.819.380.87
Doxorubicin1.080.330.440.110.84
DiMIQ5.772.191.540.201.14
Table 30. In vitro cytotoxic activities of tetrahydro-pyrimido-quinoline based hybrid compound 36.
Table 30. In vitro cytotoxic activities of tetrahydro-pyrimido-quinoline based hybrid compound 36.
Compound No.HCT116 (µM)MCF7 (µM)
3616.3327.26
Imatinib34.40-
Tamoxifien--34.30
Table 31. In vitro cytotoxic activities of quinoline-indole based hybrid compounds 38(be).
Table 31. In vitro cytotoxic activities of quinoline-indole based hybrid compounds 38(be).
Compound
No.
R1R2KB
(µM)
A-549
(µM)
MCF-7
(µM)
Hs294T
(µM)
BALB/3T3
(µM)
38bPharmaceuticals 15 01071 i052H0.150.810.790.640.67
38cPharmaceuticals 15 01071 i053H0.360.290.990.720.60
38dHPharmaceuticals 15 01071 i0540.640.170.470.350.34
38eHPharmaceuticals 15 01071 i0550.080.190.660.760.57
DIMIQ 1.142.191.509.705.70
Table 32. In vitro cytotoxic activities of quinoline based ursolic acid hybrids compounds 39(be).
Table 32. In vitro cytotoxic activities of quinoline based ursolic acid hybrids compounds 39(be).
Compound
No.
R1R2MDA-MB-231(µM)HeLa
(µM)
SMMC-7721(µM)QSG-7701(µM)
39bHCH31.841.1817.4840.59
39cOCH3CH31.420.8317.6545.20
39dFCH31.160.9919.41>50
39eHn-C4H9>50>50>50Not tested
Etoposide--5.262.983.4828.75
Table 33. In vitro cytotoxic activities of quinoline based piperazine hybrids compounds 40(be).
Table 33. In vitro cytotoxic activities of quinoline based piperazine hybrids compounds 40(be).
Compound
No.
R1MB231
(GI50 µM)
MB468
(GI50 µM)
MCF-7
(GI50 µM)
184B5
(GI50 µM)
MCF10A
(GI50 µM)
40b2,4-Dinitrophenyl24.319.210.837.835.4
40c3-Nitrophenyl32.218.69.417.715.4
40d2,4-Dichlorophenyl20.318.616.720.415.6
40eBiphenyl27.220.514.819.115.5
Chloroquine-22.528.638.476.181.26
Cisplatin-23.731.025.825.551.51
Table 34. Quinoline based FDA approved hybrids.
Table 34. Quinoline based FDA approved hybrids.
Company NameCompound NameDrug TargetType of CancerStatusReference
Eisai Co.LenvatinibKinase inhibitorThyroid cancerApproved[99]
Exelixis Inc.CabozantinibTyrosine-kinaseThyroid cancer and renal carcinomaApproved[68]
Wyeth and PfizerBosutinibBCR and Src
tyrosine kinase
myelogenous
leukemia
Approved[100]
Table 35. In vitro cytotoxic activities of quinone based chalcone hybrid compounds 42(be).
Table 35. In vitro cytotoxic activities of quinone based chalcone hybrid compounds 42(be).
Compound
No.
RHeLa
(µM)
LS174
(µM)
A549
(µM)
MRC-5
(µM)
42bH2.41 4.5626.2033.57
42c2-CH32.36 3.1329.0541.87
42d3-CH32.45 11.7933.7052.00
42e4-CH32.64 22.6324.1538.49
cisplatin-2.105.5411.9214.21
Table 36. In vitro cytotoxic activities of quinone based pyran hybrid compounds 43(be).
Table 36. In vitro cytotoxic activities of quinone based pyran hybrid compounds 43(be).
Compound
No.
RKB
(µg/mL)
KB/VCR
(µg/mL)
A549
(µg/mL)
HL60
(µg/mL)
43bPharmaceuticals 15 01071 i0564.312.216.584.45
43cPharmaceuticals 15 01071 i057>8.00>8.00>8.00>8.00
43dPharmaceuticals 15 01071 i058>8.608.524.494.46
Vincristine-0.460.2612.09-
Adriamycin I----0.02
Table 37. In vitro cytotoxic activities of imidazole based benzofuran hybrid compounds 44(ae).
Table 37. In vitro cytotoxic activities of imidazole based benzofuran hybrid compounds 44(ae).
Compound
No.
RXSMMC-7721 (µM)SW480 (µM)MCF-7
(µM)
A549
(µM)
HL-60
(µM)
44a2-BromobenzylBr4.3812.7114.299.771.97
44bPhenacylBr3.7110.3411.9012.942.61
44c4-BromophenacylBr3.392.852.848.463.15
44dNaphthyl acylBr1.653.385.8710.932.49
44e2′-Phenyl-phenacylBr3.316.936.906.792.70
DPP--8.8615.9216.6511.681.81
Table 38. In vitro cytotoxic activities of imidazole based benzofuran hybrid compounds 45(ae).
Table 38. In vitro cytotoxic activities of imidazole based benzofuran hybrid compounds 45(ae).
Compound
No.
R1R2SMMC-7721
(µM)
SW480
(µM)
MCF-7
(µM)
A549
(µM)
HL-60
(µM)
45aBenzimidazole2-Bromobenzyl2.105.564.783.340.64
45b2-Ethylimidazole4-Hydroxyphenacyl11.815.693.1712.900.58
45c2-Ethylimidazole4-Bromophenacyl6.073.582.8912.760.72
45d2-EthylimidazoleNaphthylacyl2.303.143.035.350.61
45e2-Ethylimidazole2-Bromobenzyl0.520.470.510.550.08
DPP 1.6912.4914.0920.8218.85
Table 39. In vitro cytotoxic activities of imidazole based triazole hybrid compounds 46(ae).
Table 39. In vitro cytotoxic activities of imidazole based triazole hybrid compounds 46(ae).
Compound
No.
RCaco2
(µM)
HCT116
(µM)
HeLa
(µM)
MCF-7
(µM)
46aPharmaceuticals 15 01071 i0596.3112.047.913.80
46bPharmaceuticals 15 01071 i0608.4518.329.454.45
46cPharmaceuticals 15 01071 i0614.6716.786.870.38
46dPharmaceuticals 15 01071 i0625.2218.708.423.87
46ePharmaceuticals 15 01071 i06310.8730.9820.3415.56
Doxorubicin-5.175.641.250.65
Table 40. In vitro cytotoxic activities of imidazole-based artemisinin hybrid compounds 47(ae).
Table 40. In vitro cytotoxic activities of imidazole-based artemisinin hybrid compounds 47(ae).
Compound
No.
R1R2R3nMCF-7
(µM)
A549
(µM)
HEPG-2
(µM)
MDA-MB-231 (µM)LO2
(µM)
47aHCNCN110.7512.3625.59>10049.05
47bHNO2H212.8620.9539.30>10046.37
47cHHBr212.4026.0241.5980.92>100
47d
