Pediatric patients (neonates through 18 years of age) placed in an intensive care unit (ICU) require multiple intravenous medications and/or parenteral nutrition. Typically these medications may be administered together through a Y-site connection; however, depending on physical compatibilities, patients may also require multiple access points, which can be difficult to establish [1
]. In addition to finding other venous access points, presence of additional entry locations may increase the risk of complications related to infection or thromboembolism [2
]. For patients with continuous infusions, temporarily stopping medications or nutrition may be necessary in order to administer other medications that are incompatible or with unknown compatibilities. Patients requiring continuous total parenteral nutrition (TPN) have greater complexity in their regimen due to the multiple components within TPN formulations which could potentially interact with medications. This may lead to clinically suboptimal outcomes, or in the case of parenteral nutrition, malnutrition [1
]. Alternatively, studies have shown that when compatibility data is missing, medications are likely to be mixed together inappropriately [2
]. This can lead to events such as pulmonary embolism in the case of TPNs containing calcium and phosphorus when mixed with medications that can induce precipitate formation [1
Pediatric patients present further challenges when administering medications via IV route. Information regarding physical compatibility may not be as readily available as it is for adults due to differences in doses, vehicles, and parenteral nutrition requirements. Furthermore, available information that does exist cannot simply be extrapolated to pediatric patients [3
]. Due to body composition, their veins are harder to visualize and they are more likely to become distressed and uncooperative during venipuncture [6
]. Additionally, repeated flushing of IV lines prior to and after drug administration may pose problematic for pediatric patients in relation to hypervolemia due to small fluid capacity. This would require that medications and TPN use the same line for infusion [1
A device that may be utilized to overcome the issue of limited access sites is known as a multiport manifold device. This device follows the same concept as a Y-site connector but can instead administer up to seven different medications through one IV line. A potential issue with the use of a multiport device is that infusing numerous medications, with or without TPN, into one central line at slow infusion rates could lead to development of drug incompatibilities. With a deficit in compatibility data available regarding the administration of multiple drugs through the same central venous line using a Y-site set or multiport manifold, healthcare providers are more reluctant to co-administer multiple medications in this manner [3
In a previous study from a single center, researchers assessed the physical compatibility of a lipid-free TPN in combination with a standard mixture of epinephrine, vasopressin, milrinone, and calcium gluconate with the following: furosemide, esmolol, amiodarone, and dexmedetomidine. Results from this study demonstrated that the standard mixture with the lipid-free TPN was compatible with all the previously listed medications except for amiodarone [7
]. This study seeks to build upon these results and expand clinical utility to additional medications and combinations. The objective of this study was to investigate the physical compatibilities of intravenous medications in circumstances where data for institutional specific pediatric concentrations and/or vehicles does not exist, or for multiple medications in the presence of a common TPN formulation in pediatric cardiovascular intensive care unit (CVICU) patients.
The overall physical compatibility results of this study for each combination at 240 min are shown in Table 3
, Table 4
and Table 5
. The observed pH range, turbidity range, visual appearance, odor, and gas evolution values from each combination from all phases of this study are reported in Table 6

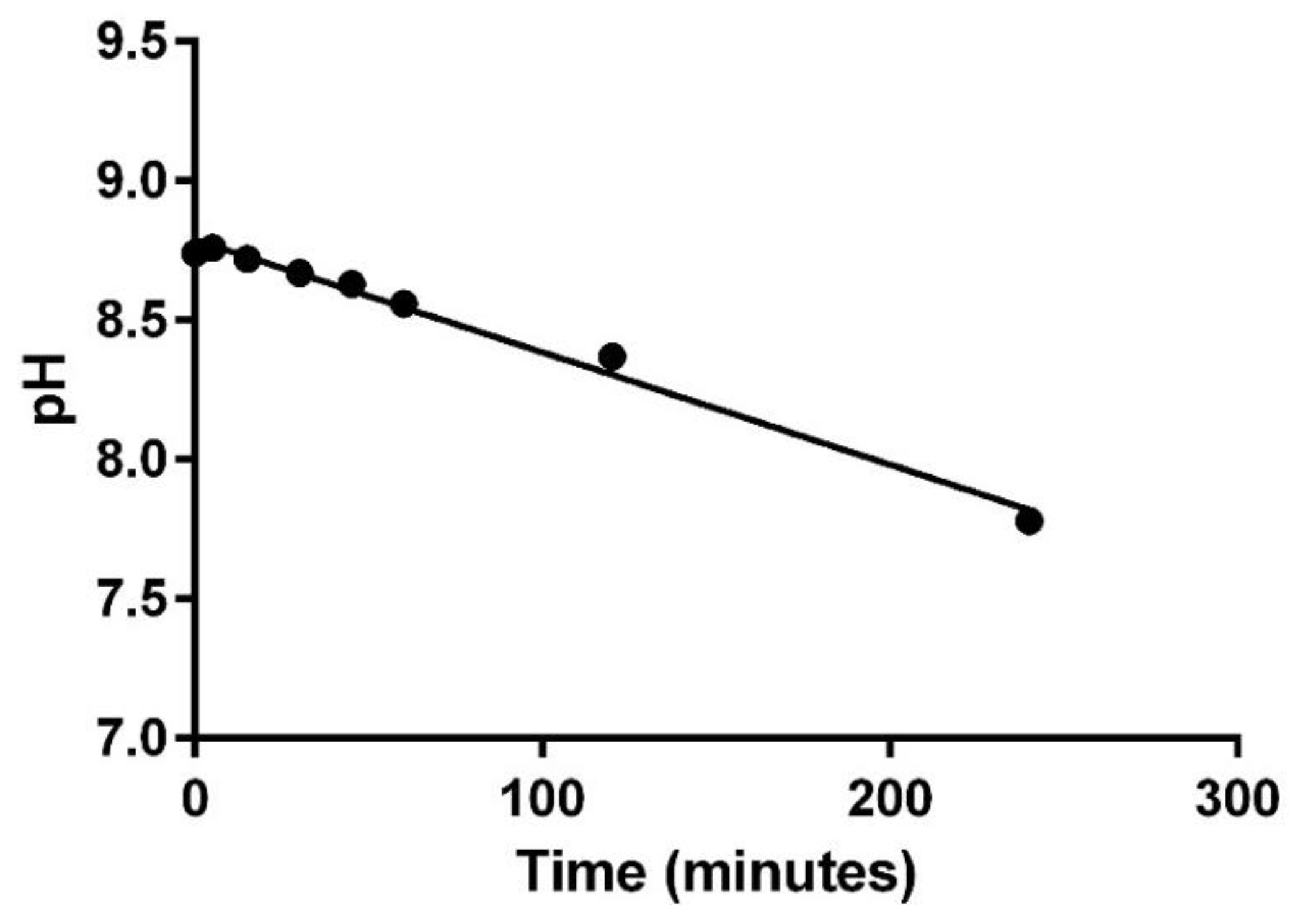

. Reported changes in turbidity and pH were calculated by subtracting the lowest or highest measured value from the baseline measurement, whichever value represented the largest difference. Of the thirteen combinations assessed in phase I, all were found to be physically compatible up to the maximum 240 min based on the previously defined assessment criteria. The combination of furosemide (1 mg/mL) with epinephrine (16 mcg/mL) was closest to exceeding the threshold for change in pH at the 240-minute time point, as it began trending down after the first measured time point (Figure 1
). Continued evaluations beyond the 240-minute time point would have resulted in a pH change of greater than 1 making this combination incompatible. Additionally, the combination of furosemide (1 mg/mL) with alprostadil (10 mcg/mL) displayed a slight positive trending slope in measured turbidity which could have potentially exceeded 1 NTU but not until some point well beyond 240 min. All other combinations had minimal non-trending changes in the measured parameters. Phase II multi-drug combinations containing three or more medications were all found to be physically incompatible (Table 4
). Each combination in this phase immediately produced a milky-white, fluent, and cloud-like precipitate, similar to the effect of food-coloring, when milrinone (3rd drug in sequence) was added; however, this fluent precipitate quickly dissipated within a few seconds after milrinone was completely added. Combinations II.1 and II.2 also formed white speck-like precipitates within five minutes of all drugs being added to the mixture and combination II.3 formed a milky-white precipitate similar in appearance to the initial precipitate immediately after mixing of all five drugs. While all three combinations were determined incompatible due to turbidity changes of ≥ 0.5 NTU, combinations II.1 and II. 2 were still below the physical incompatibility threshold for pH despite the drastic increases in turbidity and precipitate formation that was observed. The pH was only tested at baseline for II.3 because of the immediate and stable precipitate formation that occurred upon mixing of all five drugs. No changes in odor or observation of evolved gases were noted in any of the phase II drug combinations. In phase III the four drug combination evaluated with TPN was found to be physically compatible through the 240-minute observation period in all parameters measured. As with the phase II combinations, no changes in odor or observation of evolved gases were noted. Furthermore, measured changes in both pH and turbidity for the phase III combination were very minimal with no observed trends.
Critically ill patients placed in intensive care units typically require multiple IV medications, while others may also require parenteral nutrition. Unknown or known physical incompatibilities would require that medications be given through separate IV lines. In cases of limited or no additional venous access, infused medications or TPN may have to be temporarily discontinued in order to administer other medications, requiring multiple saline flushes throughout the day. For pediatric patients, establishing extra IV access may be difficult due to their level of agitation, physical mobility, and body composition. Using additional flushes to administer medications or nutrition through the same IV line could be detrimental to the patient depending on volume status. Additionally, information regarding physical compatibilities of medications at pediatric specific doses is not as extensive as it is for adults. Extrapolation of information from adult to pediatric patients is not feasible due to the variations in nutrition requirements and concentrations needed for medications due to volume issues and dosing. This gap in published data demonstrates there is a need for physical compatibility data for medications commonly used in pediatric patients.
This study helps to bridge this paucity of data by yielding results from multiple combinations of medications with a complex TPN solution. The data collected from this study shows that the majority of the routinely used clinical combinations evaluated were able to demonstrate physical compatibility. The investigators recognize that the results of this study may not be applicable to every institution or patient circumstance due to the design being specific to the doses and combinations used at the partnered institution.
Overall, the binary combinations of phase I were all found to be physically compatible based on our predefined physical incompatibility evaluation criteria. However, two of the combinations were observed to have trending data suggesting imminent incompatibility. Overall, due to the trend in pH and turbidity in combinations I.5 and I.10, respectively, caution should be taken when using these combinations at the given concentrations. According to the IV compatibility data in Lexicomp and Micromedex, which are both powered by Trissel’s, alprostadil and furosemide are compatible for IV Y-site administration [8
]. The study compared a lower concentration of alprostadil in a different vehicle (7.5 mcg/mL in D5W) with a higher concentration of furosemide (5 mg/mL) in an unknown vehicle over 60 min using only visual observations and evolution of gas as endpoints. With the absence of trending pH and turbidity data in this study the potential for incompatibility could not be predicted [12
Previous data published in Trissel’s for esmolol and furosemide show they are incompatible; however, these studies were conducted at different concentrations and with different vehicles as compared to our study. Esmolol concentrations were either at 10 mg/mL or 40 mg/mL in either D5W, NS, or undiluted. The esmolol concentration in this study of 20 mg/mL falls in between; however, the furosemide concentration used in this study was much lower than reported in Trissel’s, 1 mg/mL vs. 5–10 mg/mL, respectively. Additionally, the furosemide reported in Trissel’s was either undiluted or dissolved in D5W solvent as opposed to NS in this study. The only study reported in Trissel’s that used furosemide in NS compared the 5 mg/mL to esmolol 40 mg/mL When compared to this study, the concentration of esmolol and furosemide were twice and five times as high, respectively [8
]. These large differences in concentrations between the study reported in Trissel’s and this study further show the void in drug compatibility data for pediatric dosages and highlight the importance of drug compatibility studies targeting common doses and concentrations for pediatric patients.
In the case of epinephrine and furosemide, Trissel’s shows that they are compatible via Y-site connection; however, the concentrations and vehicles used were again different than the ones used in this study. For norepinephrine and furosemide, Trissel’s shows they are compatible when norepinephrine is at a lower concentrations (128 mcg/mL and below) and incompatible when norepinephrine is at 0.5 mg/mL [8
]. This study used lower concentrations that would be appropriate for pediatric patients, which is likely why the two were physically compatible.
Per Micromedex and Lexicomp (Trissel’s), the Y-site compatibility of furosemide and norepinephrine bitartrate is reported as variable primarily due to a function of concentration [8
]. At norepinephrine concentrations greater than 128 mcg/mL combined with furosemide at 5 mg/mL in all fluids tested, the combinations were found to be incompatible. For concentrations of norepinephrine at or below 128 mcg/mL with furosemide as high as 10 mg/mL the combinations are reported as compatible. Of the 4 pediatric dose combinations of furosemide and norepinephrine we evaluated, all were found to be compatible (Table 3
); however, only one of the concentration pairs (furosemide 10 mg/mL with norepinephrine 100 mcg/mL) could be found in the database. Even still, the vehicle was different from that used in this study.
The y-site compatibility data resulting from nine listings comparing furosemide and vasopressin have variable results, according to Micromedex and Lexicomp [8
]. One study used the same concentrations of each medication as we report in this study with the same results but in a different vehicle and for 24 hours [13
]. The remaining studies evaluated furosemide at either 4 or 5 mg/mL with vasopressin at either 0.4 or 4 units/mL. Interestingly, incompatibility occurred when vasopressin and furosemide were both at the lower concentration (0.4 units/mL and 4 mg/mL, respectively) regardless of the vehicle [14
All combinations of Phase II failed physical compatibility based on the predefined evaluation criteria with the formation of precipitates and an increase in turbidity measurements of ≥ 0.5 NTU (Table 4
). Milrinone (200 mcg/mL) in D5W and furosemide (10 mg/mL) are known to be incompatible drugs for Y-site administration, per Lexicomp and Micromedex [8
]. In this study, it was found that upon mixing milrinone (1000 mcg/mL) in NS with furosemide (10 mg/mL) in NS, precipitation occurred regardless of the addition of more drugs in attempt to further dilute furosemide and milrinone. According to Micromedex and Lexicomp, the only drugs of the 5-drug combination that are not compatible are: (1) furosemide and milrinone and (2) furosemide and vasopressin, which had variable data; however, from Phase I data we found that the combinations of furosemide (10 mg/mL and 1 mg/mL) in NS with vasopressin (1 unit/mL) in NS were physically compatible [8
]. Thus, it can be concluded that the precipitation formed during the testing of drugs in phase II must be due to the incompatibilities of furosemide and milrinone. The order in which the medications were mixed could have affected the outcome of our study, but the addition order was chosen so that milrinone would be added last for combination II.1, the first combination that was tested. In addition to this, the order in which the medications were added was kept synonymous for combinations II.2 and II.3, so milrinone was added third to the mixtures and not added last for II.2 and II.3. Even if the order in which milrinone was added in phase II was changed and subsequently produced a positive outcome, it would still be unlikely to affect the use of this combination in clinical practice since the order in which the medications enter the Y-site multiport would realistically be much harder to control.
The results from phase III of epinephrine 100 mcg/mL, milrinone 1000 mcg/mL, vasopressin 1 unit/mL, and calcium gluconate 100 mg/mL with lipid-free TPN showed the combination to be compatible. The use of this combination has since been successfully implemented in clinical practice by the partnered institution. As a result, calcium and phosphorus are no longer left out of parenteral nutrition for patients requiring calcium gluconate infusions. Therefore, this has the potential to reduce the incidence and risk of hypophosphatemia for patients requiring calcium gluconate infusions for longer than 48 hours which could require IV phosphate supplementation. An important consideration regarding this study is the TPN solution used was lipid-free. Compared to lipid containing TPN solutions which are opaque and non-transparent emulsions, lipid-free TPN, while yellow in color, is visually clear and allows for visual and turbidimetric evaluation of the drug mixture to assess chemical compatibility. These assessment endpoints could not be used in drug mixtures with lipid containing TPN solutions, thus making it difficult to determine physical compatibility. The information gathered from this study may make it more feasible to use a multiport manifold device for patients requiring several IV medications, reducing the need for multiple IV lines.
