Positioning in 5G and 6G Networks—A Survey
Abstract
:1. Introduction
- Section 2 is an overview of the characteristics of cellular-network-based positioning—the different types of cellular positioning are summarized here.
- Section 3 describes the capabilities of conventional positioning techniques, and several non-ML positioning solutions are introduced and compared here.
- An extensive study of ML-aided positioning techniques is provided in Section 4, and the different methods are compared to each other based on positioning accuracy.
- Section 5 summarizes the expected advancements of 6G networks in terms of positioning.
- Major results of real-world use cases that have been published within the scientific communities so far are collected in Section 6.
2. Positioning in Cellular Networks
2.1. Cell-Identity-Based Localization Techniques

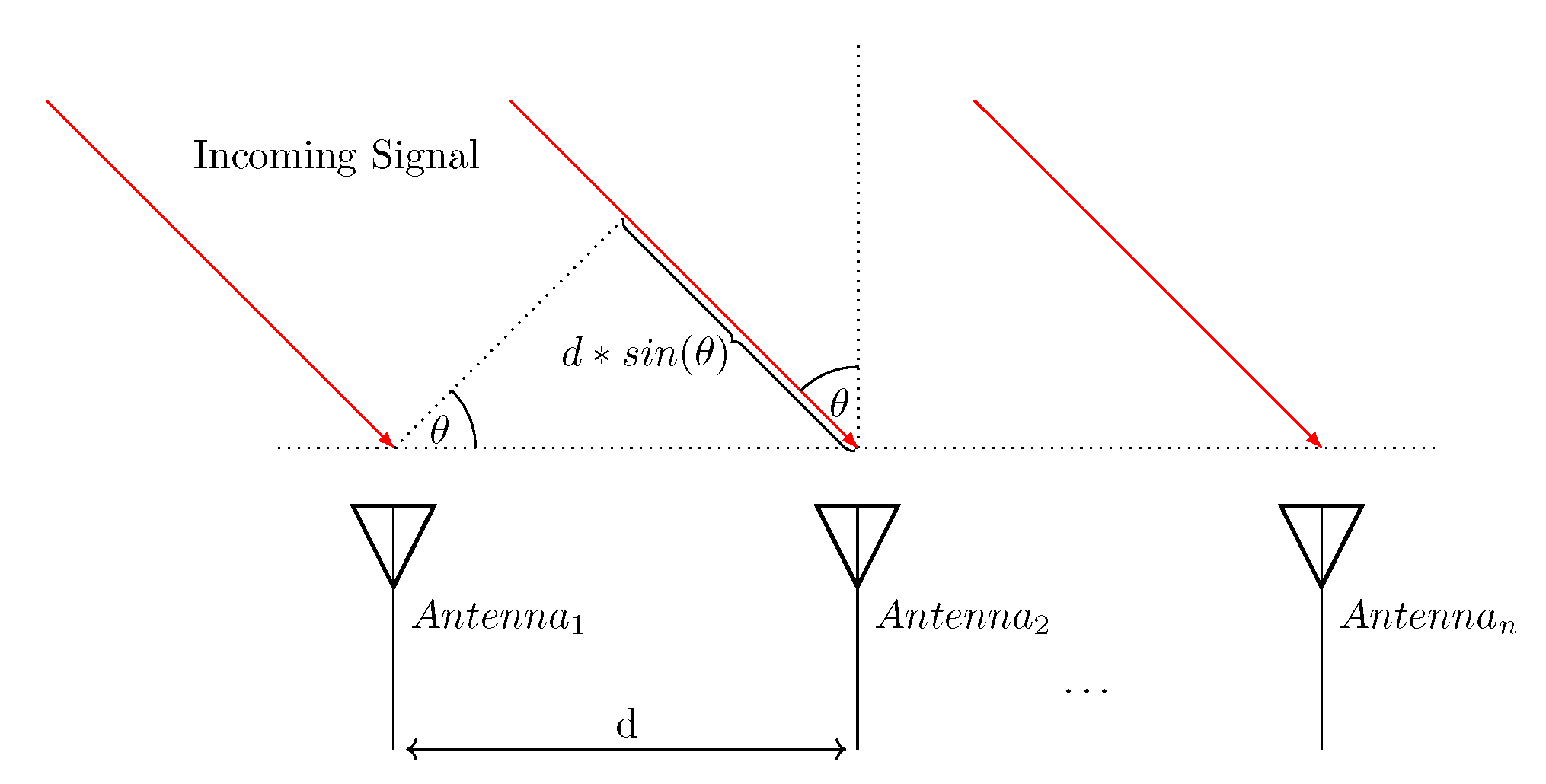

2.2. Angle-Based Localization Techniques

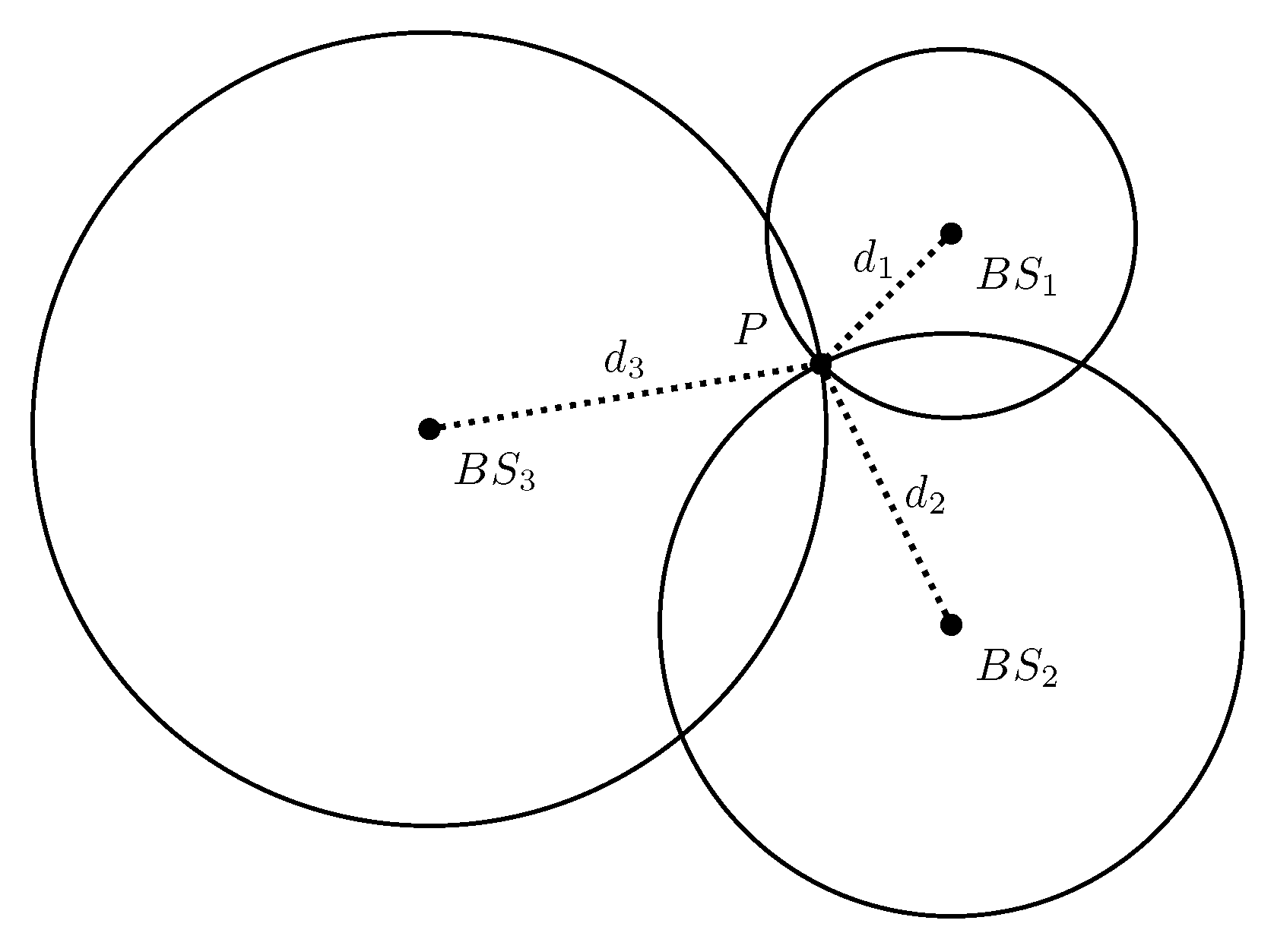

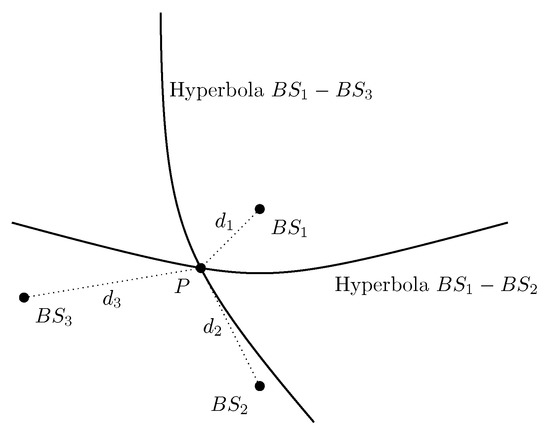

2.3. Range-Based Localization Techniques
2.4. Fingerprinting-Based Localization Techniques

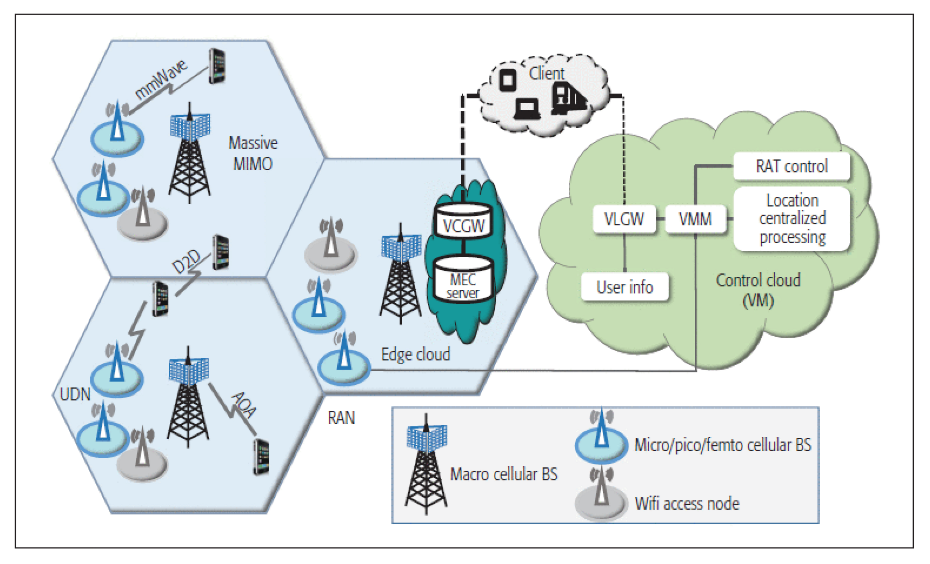

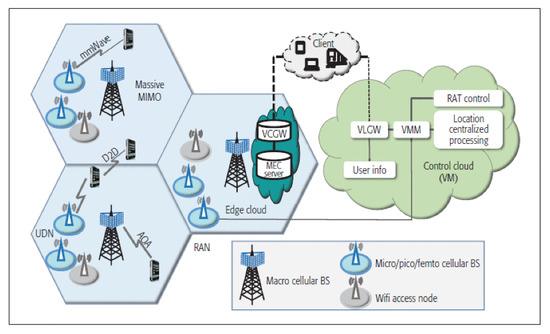

3. Conventional Positioning Solutions in 5G Networks
3.1. Pure 5G Network-Based Positioning

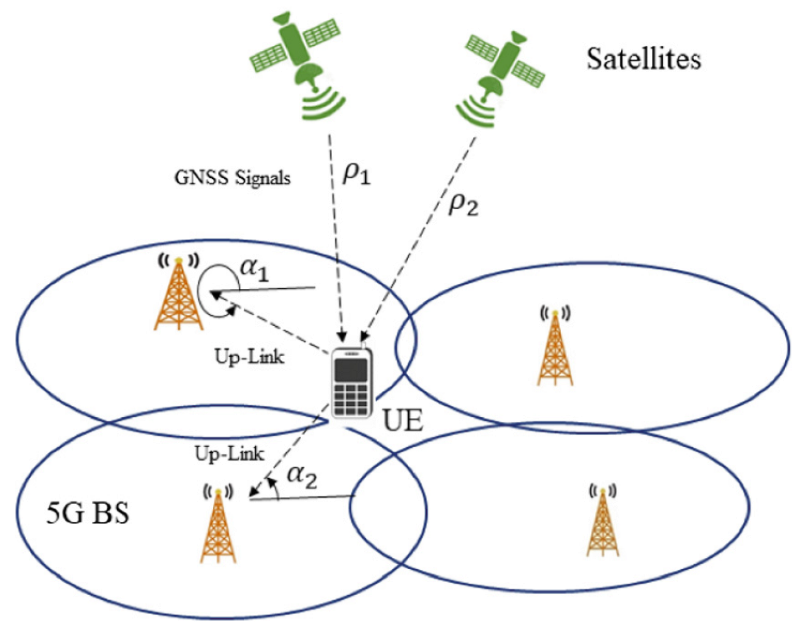

3.2. Assisted Positioning in 5G Networks
3.3. Lessons Learned
4. Machine-Learning-Aided Positioning in 5G Networks
4.1. Advances in Positioning Aided by Machine Learning
4.2. Lessons Learned

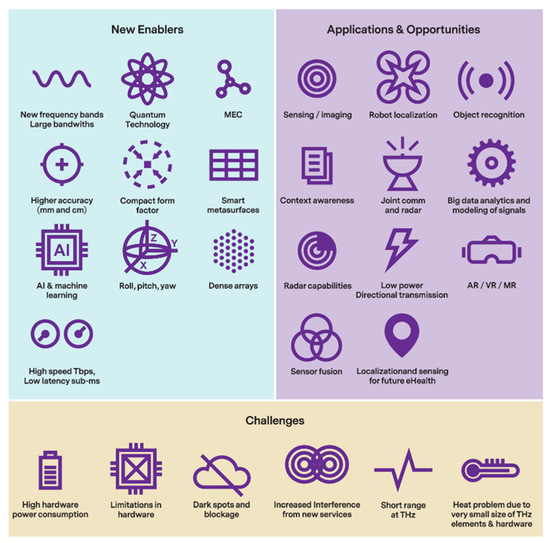

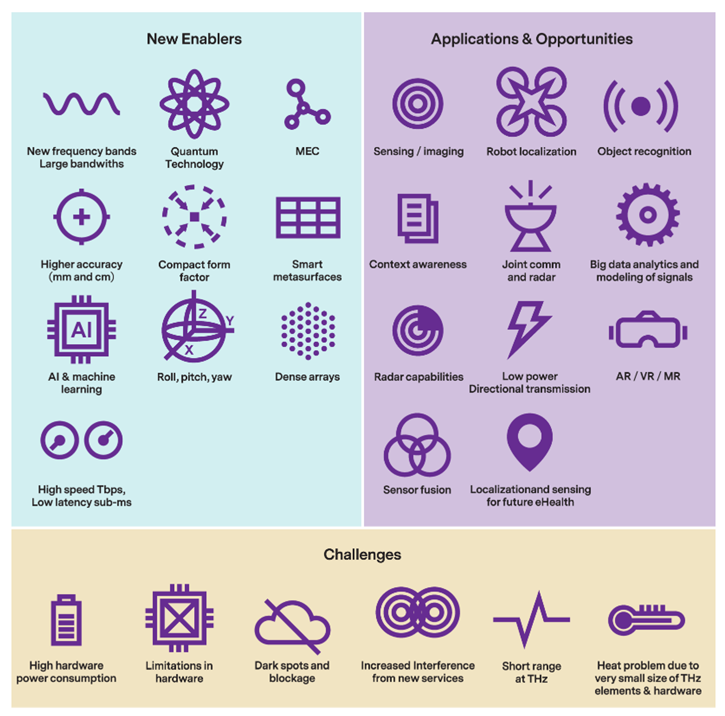

5. Beyond 5G
6. Use-Case Examples
- 1
- 2
- 3
- 4
- Emergency and mission critical use cases are related to emergency services, first responders, alerting nearby responders, emergency vehicle and equipment location [14].
- 5
- Road-related use cases include traffic monitoring, management and control, V2X, car and bike sharing, as well as flow control in transportation hubs and public transportation [99].
- 6
6.1. Positioning in Industrial Settings and Cyber–Physical Systems
6.2. Specialties of V2X Positioning
7. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Li, Z.; Xu, K.; Wang, H.; Zhao, Y.; Wang, X.; Shen, M. Machine-Learning-Based Positioning: A Survey and Future Directions. IEEE Netw. 2019, 33, 96–101. [Google Scholar] [CrossRef]
- Lu, Y.; Richter, P.; Lohan, E.S. Opportunities and Challenges in the Industrial Internet of Things based on 5G Positioning. In Proceedings of the 2018 8th International Conference on Localization and GNSS (ICL-GNSS), Guimaraes, Portugal, 26–28 June 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 1–6. [Google Scholar]
- Tariq, Z.B.; Cheema, D.M.; Kamran, M.Z.; Naqvi, I.H. Non-GPS positioning systems: A survey. ACM Comput. Surv. (CSUR) 2017, 50, 1–34. [Google Scholar] [CrossRef]
- Brena, R.F.; García-Vázquez, J.P.; Galván-Tejada, C.E.; Muñoz-Rodriguez, D.; Vargas-Rosales, C.; Fangmeyer, J. Evolution of indoor positioning technologies: A survey. J. Sensors 2017, 2017, 2630413. [Google Scholar] [CrossRef]
- Jang, B.; Kim, H. Indoor positioning technologies without offline fingerprinting map: A survey. IEEE Commun. Surv. Tutorials 2018, 21, 508–525. [Google Scholar] [CrossRef]
- Aqel, M.O.; Marhaban, M.H.; Saripan, M.I.; Ismail, N.B. Review of visual odometry: Types, approaches, challenges, and applications. SpringerPlus 2016, 5, 1897. [Google Scholar] [CrossRef] [Green Version]
- Gustafsson, F.; Gunnarsson, F. Mobile positioning using wireless networks: Possibilities and fundamental limitations based on available wireless network measurements. IEEE Signal Process. Mag. 2005, 22, 41–53. [Google Scholar] [CrossRef]
- Sun, G.; Chen, J.; Guo, W.; Liu, K.R. Signal processing techniques in network-aided positioning: A survey of state-of-the-art positioning designs. IEEE Signal Process. Mag. 2005, 22, 12–23. [Google Scholar]
- Liu, H.; Darabi, H.; Banerjee, P.; Liu, J. Survey of wireless indoor positioning techniques and systems. IEEE Trans. Syst. Man Cybern. Part Appl. Rev. 2007, 37, 1067–1080. [Google Scholar] [CrossRef]
- Keating, R.; Säily, M.; Hulkkonen, J.; Karjalainen, J. Overview of Positioning in 5G New Radio. In Proceedings of the 2019 16th International Symposium on Wireless Communication Systems (ISWCS), Oulu, Finland, 27–30 August 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 320–324. [Google Scholar]
- Tahat, A.; Kaddoum, G.; Yousefi, S.; Valaee, S.; Gagnon, F. A look at the recent wireless positioning techniques with a focus on algorithms for moving receivers. IEEE Access 2016, 4, 6652–6680. [Google Scholar] [CrossRef]
- Vo, Q.D.; De, P. A survey of fingerprint-based outdoor localization. IEEE Commun. Surv. Tutorials 2015, 18, 491–506. [Google Scholar] [CrossRef]
- Dardari, D.; Closas, P.; Djurić, P.M. Indoor tracking: Theory, methods, and technologies. IEEE Trans. Veh. Technol. 2015, 64, 1263–1278. [Google Scholar] [CrossRef] [Green Version]
- Cherian, S.S.; Rudrapatna, A.N. LTE location technologies and delivery solutions. Bell Labs Tech. J. 2013, 18, 175–194. [Google Scholar] [CrossRef]
- del Peral-Rosado, J.A.; Raulefs, R.; López-Salcedo, J.A.; Seco-Granados, G. Survey of cellular mobile radio localization methods: From 1G to 5G. IEEE Commun. Surv. Tutorials 2017, 20, 1124–1148. [Google Scholar] [CrossRef]
- Tran, H.Q.; Ha, C. Machine Learning in Indoor Visible Light Positioning Systems: A Review. Neurocomputing 2022, 491, 117–131. [Google Scholar] [CrossRef]
- Subedi, S.; Pyun, J.Y. A survey of smartphone-based indoor positioning system using RF-based wireless technologies. Sensors 2020, 20, 7230. [Google Scholar] [CrossRef] [PubMed]
- Liu, Y.; Shi, X.; He, S.; Shi, Z. Prospective positioning architecture and technologies in 5G networks. IEEE Netw. 2017, 31, 115–121. [Google Scholar] [CrossRef]
- Shahmansoori, A.; Seco-Granados, G.; Wymeersch, H. Survey on 5G positioning. In Multi-Technology Positioning; Springer: Berlin/Heidelberg, Germany, 2017; pp. 165–196. [Google Scholar]
- Wen, F.; Wymeersch, H.; Peng, B.; Tay, W.P.; So, H.C.; Yang, D. A survey on 5G massive MIMO localization. Digit. Signal Process. 2019, 94, 21–28. [Google Scholar] [CrossRef] [Green Version]
- Zhang, P.; Lu, J.; Wang, Y.; Wang, Q. Cooperative localization in 5G networks: A survey. ICT Express 2017, 3, 27–32. [Google Scholar] [CrossRef]
- Lohan, E.S.; Alén-Savikko, A.; Chen, L.; Järvinen, K.; Leppäkoski, H.; Kuusniemi, H.; Korpisaari, P. 5G positioning: Security and privacy aspects. Compr. Guide Secur. 2018, 281–320. [Google Scholar] [CrossRef]
- Traboulsi, S. Overview of 5G-oriented Positioning Technology in Smart Cities. Procedia Comput. Sci. 2022, 201, 368–374. [Google Scholar] [CrossRef]
- Xiao, Z.; Zeng, Y. An overview on integrated localization and communication towards 6G. Sci. China Inf. Sci. 2022, 65, 1–46. [Google Scholar] [CrossRef]
- Säily, M.; Yilmaz, O.N.; Michalopoulos, D.S.; Pérez, E.; Keating, R.; Schaepperle, J. Positioning Technology Trends and Solutions Toward 6G. In Proceedings of the 2021 IEEE 32nd Annual International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), Virtual, 13–16 September 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–7. [Google Scholar]
- Chen, J.; Xu, W.; He, S.; Sun, Y.; Thulasiraman, P.; Shen, X. Utility-based asynchronous flow control algorithm for wireless sensor networks. IEEE J. Sel. Areas Commun. 2010, 28, 1116–1126. [Google Scholar] [CrossRef]
- Al-Rashdan, W.Y.; Tahat, A. A Comparative Performance Evaluation of Machine Learning Algorithms for Fingerprinting Based Localization in DM-MIMO Wireless Systems Relying on Big Data Techniques. IEEE Access 2020, 8, 109522–109534. [Google Scholar] [CrossRef]
- Yan, J.; Tiberius, C.C.J.M.; Janssen, G.J.M.; Teunissen, P.J.G.; Bellusci, G. Review of range-based positioning algorithms. IEEE Aerosp. Electron. Syst. Mag. 2013, 28, 2–27. [Google Scholar] [CrossRef] [Green Version]
- Patel, D. First Report on New Technological Features to be Supported by 5G Standardization and Their Implementation Impact. Technical Report. 2020. Available online: https://5gsmart.eu/wp-content/uploads/5G-SMART-D5.1.pdf (accessed on 16 October 2020).
- Horsmanheimo, S.; Lembo, S.; Tuomimaki, L.; Huilla, S.; Honkamaa, P.; Laukkanen, M.; Kemppi, P. Indoor positioning platform to support 5G location based services. In Proceedings of the 2019 IEEE International Conference on Communications Workshops (ICC Workshops), Shanghai, China, 20–24 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–6. [Google Scholar]
- Fischer, S. 5G NR Positioning. In 5G and Beyond; Springer: Berlin/Heidelberg, Germany, 2021; pp. 429–483. [Google Scholar]
- Dwivedi, S.; Shreevastav, R.; Munier, F.; Nygren, J.; Siomina, I.; Lyazidi, Y.; Shrestha, D.; Lindmark, G.; Ernström, P.; Stare, E.; et al. Positioning in 5G Networks. IEEE Commun. Mag. 2021, 59, 38–44. [Google Scholar] [CrossRef]
- Papp, Z.; Irvine, G.; Smith, R.; Mogyorosi, F.; Revisnyei, P.; Toros, I.; Pasic, A. TDoA based indoor positioning over small cell 5G networks. In Proceedings of the IEEE/IFIP Network Operations and Management Symposium (NOMS), Budapest, Hungary, 25–29 April 2022; IEEE: Piscataway, NJ, USA; IFIP: Laxenburg, Austria, 2022; pp. 1–6. [Google Scholar]
- Zhang, Y.; Jin, J.; Liu, C.; Jia, P. Indoor 3D Dynamic Reconstruction Fingerprint Matching Algorithm in 5G Ultra-Dense Network. KSII Trans. Internet Inf. Syst. (TIIS) 2021, 15, 343–364. [Google Scholar]
- Menta, E.Y.; Malm, N.; Jäntti, R.; Ruttik, K.; Costa, M.; Leppänen, K. On the performance of AoA–based localization in 5G ultra–dense networks. IEEE Access 2019, 7, 33870–33880. [Google Scholar] [CrossRef]
- Koivisto, M.; Hakkarainen, A.; Costa, M.; Leppänen, K.; Valkama, M. Continuous device positioning and synchronization in 5G dense networks with skewed clocks. In Proceedings of the 2017 IEEE 18th International Workshop on Signal Processing Advances in Wireless Communications (SPAWC), Sapporo, Japan, 3–6 July 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–5. [Google Scholar]
- Koivisto, M.; Costa, M.; Werner, J.; Heiska, K.; Talvitie, J.; Leppänen, K.; Koivunen, V.; Valkama, M. Joint device positioning and clock synchronization in 5G ultra-dense networks. IEEE Trans. Wirel. Commun. 2017, 16, 2866–2881. [Google Scholar] [CrossRef] [Green Version]
- METIS. D6.1 Simulation Guidelines. METIS-I Deliv. 2013. Available online: https://metis2020.com/wp-content/uploads/deliverables/METIS_D6.1_v1.pdf (accessed on 22 June 2022).
- Sun, B.; Tan, B.; Wang, W.; Valkama, M.; Morlaas, C.; Lohan, E.S. 5G Positioning Based on the Wideband Electromagnetic Vector Antenna. In Proceedings of the WiP Proceedings of the International Conference on Localization and GNSS (ICL-GNSS 2021), Virtual, 1–3 June 2021. [Google Scholar]
- Jia, Y.; Tian, H.; Fan, S.; Liu, B. Motion feature and millimeter wave multi-path AoA-ToA based 3D indoor positioning. In Proceedings of the 2018 IEEE 29th Annual International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), Bologna, Italy, 9–12 September 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 1–7. [Google Scholar]
- Kakkavas, A.; Garcia, M.H.C.; Stirling-Gallacher, R.A.; Nossek, J.A. Multi-array 5G V2V relative positioning: Performance bounds. In Proceedings of the 2018 IEEE Global Communications Conference (GLOBECOM), Abu Dhabi, United Arab Emirates, 9–13 December 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 206–212. [Google Scholar]
- 3rd Generation Partnership Project (3GPP). Technical Specification Group Services and System Aspects; Enhancement of 3GPP support for V2X scenarios; Stage 1 (Release 15). TS22.186 V15.2.0. 2017. Available online: https://www.etsi.org/deliver/etsi_ts/122100_122199/122186/15.03.00_60/ts_122186v150300p.pdf (accessed on 22 June 2022).
- Sun, C.; Zhao, H.; Bai, L.; Cheong, J.W.; Dempster, A.G.; Feng, W. GNSS-5G hybrid positioning based on TOA/AOA measurements. In Proceedings of the China Satellite Navigation Conference, Chengdu, China, 22–25 November 2020; Springer: Berlin/Heidelberg, Germany, 2020; pp. 527–537. [Google Scholar]
- Abu-Shaban, Z.; Seco-Granados, G.; Benson, C.R.; Wymeersch, H. Performance Analysis for Autonomous Vehicle 5G-Assisted Positioning in GNSS-Challenged Environments. In Proceedings of the 2020 IEEE/ION Position, Location and Navigation Symposium (PLANS), Portland, Oregon, 20–23 April 2020; pp. 996–1003. [Google Scholar]
- Yin, L.; Ni, Q.; Deng, Z. A GNSS/5G integrated positioning methodology in D2D communication networks. IEEE J. Sel. Areas Commun. 2018, 36, 351–362. [Google Scholar] [CrossRef]
- Yang, H.; Zhong, W.D.; Chen, C.; Alphones, A. Integration of visible light communication and positioning within 5G networks for internet of things. IEEE Netw. 2020, 34, 134–140. [Google Scholar] [CrossRef]
- Pages-Zamora, A.; Vidal, J.; Brooks, D.H. Closed-form solution for positioning based on angle of arrival measurements. In Proceedings of the 13th IEEE International Symposium on Personal, Indoor and Mobile Radio Communications, Lisboa, Portugal, 15–18 September 2002; IEEE: Piscataway, NJ, USA, 2002; Volume 4, pp. 1522–1526. [Google Scholar]
- Fascista, A.; Ciccarese, G.; Coluccia, A.; Ricci, G. Angle of arrival-based cooperative positioning for smart vehicles. IEEE Trans. Intell. Transp. Syst. 2017, 19, 2880–2892. [Google Scholar] [CrossRef]
- Malmström, M.; Skog, I.; Razavi, S.M.; Zhao, Y.; Gunnarsson, F. 5G Positioning-A Machine Learning Approach. In Proceedings of the 2019 16th Workshop on Positioning, Navigation and Communications (WPNC), Bremen, Germany, 23–24 October 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–6. [Google Scholar]
- Gante, J.; Falcão, G.; Sousa, L. Deep Learning Architectures for Accurate Millimeter Wave Positioning in 5G. Neural Process. Lett. 2020, 51, 487–514. [Google Scholar] [CrossRef]
- Xhafa, A.; del Peral-Rosado, J.A.; López-Salcedo, J.A.; Seco-Granados, G. Evaluation of 5G Positioning Performance Based on UTDoA, AoA and Base-Station Selective Exclusion. Sensors 2021, 22, 101. [Google Scholar] [CrossRef]
- Huang, J.; Wang, C.X.; Bai, L.; Sun, J.; Yang, Y.; Li, J.; Tirkkonen, O.; Zhou, M. A big data enabled channel model for 5G wireless communication systems. IEEE Trans. Big Data 2018, 6, 211–222. [Google Scholar] [CrossRef] [Green Version]
- Decurninge, A.; Ordóñez, L.G.; Ferrand, P.; Gaoning, H.; Bojie, L.; Wei, Z.; Guillaud, M. CSI-based outdoor localization for massive MIMO: Experiments with a learning approach. In Proceedings of the 2018 15th International Symposium on Wireless Communication Systems (ISWCS), Lisbon, Portugal, 28–31 August 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 1–6. [Google Scholar]
- Orabi, M.; Abdallah, A.A.; Khalife, J.; Kassas, Z.M. A Machine Learning Multipath Mitigation Approach for Opportunistic Navigation with 5G Signals. In Proceedings of the 34th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2021), St. Louis, MO, USA, 20–24 September 2021; pp. 2895–2909. [Google Scholar]
- Comiter, M.Z.; Crouse, M.B.; Kung, H. A data-driven approach to localization for high frequency wireless mobile networks. In Proceedings of the GLOBECOM 2017-2017 IEEE Global Communications Conference, Singapore, 4–8 December 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–7. [Google Scholar]
- Klus, R.; Talvitie, J.; Valkama, M. Neural Network Fingerprinting and GNSS Data Fusion for Improved Localization in 5G. In Proceedings of the 2021 International Conference on Localization and GNSS (ICL-GNSS), virtual conference, 1–3 June 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–6. [Google Scholar]
- Butt, M.M.; Rao, A.; Yoon, D. RF Fingerprinting and Deep Learning Assisted UE Positioning in 5G. arXiv 2020, arXiv:2001.00977. [Google Scholar]
- Sun, X.; Gao, X.; Li, G.Y.; Han, W. Single-site localization based on a new type of fingerprint for massive MIMO-OFDM systems. IEEE Trans. Veh. Technol. 2018, 67, 6134–6145. [Google Scholar] [CrossRef]
- Wang, X.; Patil, M.; Yang, C.; Mao, S.; Patel, P.A. Deep Convolutional Gaussian Processes for Mmwave Outdoor Localization. In Proceedings of the ICASSP 2021-2021 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Toronto, ON, Canada, 6–11 June 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 8323–8327. [Google Scholar]
- Liu, C.; Helgert, H.J. Beammap: Beamforming-based machine learning for positioning in massive mimo systems. In Proceedings of the Eleventh International Conference on Evolving Internet, Rome, Italy, 30 June–4 July 4 2019. [Google Scholar]
- Liu, C.; Helgert, H.J. An Improved Adaptive Beamforming-based Machine Learning Method for Positioning in Massive MIMO Systems. Int. J. Adv. Internet Technol. 2020, 6, 1–12. [Google Scholar]
- Prasad, K.S.V.; Hossain, E.; Bhargava, V.K.; Mallick, S. Analytical approximation-based machine learning methods for user positioning in distributed massive MIMO. IEEE Access 2018, 6, 18431–18452. [Google Scholar] [CrossRef]
- El Boudani, B.; Kanaris, L.; Kokkinis, A.; Kyriacou, M.; Chrysoulas, C.; Stavrou, S.; Dagiuklas, T. Implementing Deep Learning Techniques in 5G IoT Networks for 3D Indoor Positioning: DELTA (DeEp Learning-Based Co-operaTive Architecture). Sensors 2020, 20, 5495. [Google Scholar] [CrossRef]
- El Boudani, B.; Kanaris, L.; Kokkinis, A.; Chrysoulas, C.; Dagiuklas, T.; Stavrou, S. Positioning as Service for 5G IoT Networks. In Proceedings of the 2021 Telecoms Conference (ConfTELE), Leiria, Portugal, 11–12 February 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–6. [Google Scholar]
- Prasad, K.S.V.; Hossain, E.; Bhargava, V.K. Machine learning methods for RSS-based user positioning in distributed massive MIMO. IEEE Trans. Wirel. Commun. 2018, 17, 8402–8417. [Google Scholar] [CrossRef]
- Huang, S.; Zhao, K.; Zheng, Z.; Ji, W.; Li, T.; Liao, X. An Optimized Fingerprinting-Based Indoor Positioning with Kalman Filter and Universal Kriging for 5G Internet of Things. Wirel. Commun. Mob. Comput. 2021, 2021, 9936706. [Google Scholar] [CrossRef]
- Gao, K.; Wang, H.; Lv, H.; Liu, W. Towards 5G NR High-Precision Indoor Positioning via Channel Frequency Response: A New Paradigm and Dataset Generation Method. IEEE J. Sel. Areas Commun. 2022, 40, 2233–2247. [Google Scholar] [CrossRef]
- Butt, M.M.; Pantelidou, A.; Kovács, I.Z. ML-Assisted UE Positioning: Performance Analysis and 5G Architecture Enhancements. IEEE Open J. Veh. Technol. 2021, 2, 377–388. [Google Scholar] [CrossRef]
- Bourdoux, A.; Barreto, A.N.; van Liempd, B.; de Lima, C.; Dardari, D.; Belot, D.; Lohan, E.S.; Seco-Granados, G.; Sarieddeen, H.; Wymeersch, H.; et al. 6G white paper on localization and sensing. arXiv 2020, arXiv:2006.01779. [Google Scholar]
- Mahmoud, H.H.H.; Amer, A.A.; Ismail, T. 6G: A comprehensive survey on technologies, applications, challenges, and research problems. Trans. Emerg. Telecommun. Technol. 2021, 32, e4233. [Google Scholar] [CrossRef]
- Wild, T.; Braun, V.; Viswanathan, H. Joint design of communication and sensing for beyond 5G and 6G systems. IEEE Access 2021, 9, 30845–30857. [Google Scholar] [CrossRef]
- De Lima, C.; Belot, D.; Berkvens, R.; Bourdoux, A.; Dardari, D.; Guillaud, M.; Isomursu, M.; Lohan, E.S.; Miao, Y.; Barreto, A.N.; et al. Convergent communication, sensing and localization in 6G systems: An overview of technologies, opportunities and challenges. IEEE Access 2021, 9, 26902–26925. [Google Scholar] [CrossRef]
- Tan, D.K.P.; He, J.; Li, Y.; Bayesteh, A.; Chen, Y.; Zhu, P.; Tong, W. Integrated sensing and communication in 6G: Motivations, use cases, requirements, challenges and future directions. In Proceedings of the 2021 1st IEEE International Online Symposium on Joint Communications & Sensing (JC&S), Dresden, Germany, 23–24 February 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–6. [Google Scholar]
- Chen, S.; Liang, Y.C.; Sun, S.; Kang, S.; Cheng, W.; Peng, M. Vision, requirements, and technology trend of 6G: How to tackle the challenges of system coverage, capacity, user data-rate and movement speed. IEEE Wirel. Commun. 2020, 27, 218–228. [Google Scholar] [CrossRef] [Green Version]
- Viswanathan, H.; Mogensen, P.E. Communications in the 6G era. IEEE Access 2020, 8, 57063–57074. [Google Scholar] [CrossRef]
- Mourad, A.; Yang, R.; Lehne, P.H.; de la Oliva, A. Towards 6G: Evolution of key performance indicators and technology trends. In Proceedings of the 2020 2nd 6G wireless summit (6G SUMMIT), Levi, Lapland, Finland, 17–20 March 2020; IEEE: Piscataway, NJ, USA, 2020; pp. 1–5. [Google Scholar]
- Chen, L.; Zhou, X.; Chen, F.; Yang, L.L.; Chen, R. Carrier Phase Ranging for Indoor Positioning with 5G NR Signals. IEEE Internet Things J. 2021, 9, 10908–10919. [Google Scholar] [CrossRef]
- Zhao, J. A survey of intelligent reflecting surfaces (IRSs): Towards 6G wireless communication networks. arXiv 2019, arXiv:1907.04789. [Google Scholar]
- Wang, W.; Zhang, W. Joint beam training and positioning for intelligent reflecting surfaces assisted millimeter wave communications. IEEE Trans. Wirel. Commun. 2021, 20, 6282–6297. [Google Scholar] [CrossRef]
- Pan, C.; Zhou, G.; Zhi, K.; Hong, S.; Wu, T.; Pan, Y.; Ren, H.; Di Renzo, M.; Swindlehurst, A.L.; Zhang, R.; et al. An Overview of Signal Processing Techniques for RIS/IRS-aided Wireless Systems. arXiv 2021, arXiv:2112.05989. [Google Scholar]
- Xiao, Y.; Shi, G.; Li, Y.; Saad, W.; Poor, H.V. Toward self-learning edge intelligence in 6G. IEEE Commun. Mag. 2020, 58, 34–40. [Google Scholar] [CrossRef]
- Zhang, T.; Wang, S.; Li, G.; Liu, F.; Zhu, G.; Wang, R. Accelerating Edge Intelligence via Integrated Sensing and Communication. arXiv 2021, arXiv:2107.09574. [Google Scholar]
- Bartoletti, S.; Conti, A.; Dardari, D.; Giorgetti, A. 5G localization and context-awareness. In 5G Italy White Book: From Research to Market; National, Inter-University Consortium for Telecommunications: Pisa, Italy, 2018; pp. 167–187. [Google Scholar]
- Li, J.; Yu, C.; Luo, Y.; Sun, Y.; Wang, R. Passive Motion Detection via mmWave Communication System. arXiv 2022, arXiv:2203.14588. [Google Scholar]
- Kanhere, O.; Goyal, S.; Beluri, M.; Rappaport, T.S. Target localization using bistatic and multistatic radar with 5G NR waveform. In Proceedings of the 2021 IEEE 93rd Vehicular Technology Conference (VTC2021-Spring), Virtual, 25 April–9 May 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–7. [Google Scholar]
- Li, G.; Wang, S.; Li, J.; Wang, R.; Peng, X.; Han, T.X. Wireless sensing with deep spectrogram network and primitive based autoregressive hybrid channel model. In Proceedings of the 2021 IEEE 22nd International Workshop on Signal Processing Advances in Wireless Communications (SPAWC), Virtual, 27–30 September 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 481–485. [Google Scholar]
- 3rd Generation Partnership Project (3GPP). Technical Specification Group Services and System Aspects; Study on Positioning Use Cases; Stage 1 (Release 16). TR22.872 V16.1.0. 2018. Available online: https://portal.3gpp.org/desktopmodules/Specifications/SpecificationDetails.aspx?specificationId=3280 (accessed on 22 June 2022).
- 3rd Generation Partnership Project (3GPP).Technical Specification Group Services and System Aspects; Service Requirements for Cyber-Physical Control Applications in Vertical Domains; Stage 1 (Release 18). 22.104 v18.3.0. 2018. Available online: https://portal.3gpp.org/desktopmodules/Specifications/SpecificationDetails.aspx?specificationId=3528 (accessed on 22 June 2022).
- Piekarski, W.; Thomas, B. ARQuake: The outdoor augmented reality gaming system. Commun. ACM 2002, 45, 36–38. [Google Scholar] [CrossRef] [Green Version]
- Billinghurst, M.; Duenser, A. Augmented reality in the classroom. Computer 2012, 45, 56–63. [Google Scholar] [CrossRef]
- Li, K.; Du, T.C. Building a targeted mobile advertising system for location-based services. Decis. Support Syst. 2012, 54, 1–8. [Google Scholar] [CrossRef]
- Wainer, G.; Aloqaily, M. Machine learning-based indoor localization and occupancy estimation using 5G ultra-dense networks. Simul. Model. Pract. Theory 2022, 118, 102543. [Google Scholar]
- Frankó, A.; Vida, G.; Varga, P. Reliable Identification Schemes for Asset and Production Tracking in Industry 4.0. Sensors 2020, 20, 3709. [Google Scholar] [CrossRef]
- Lenz, J.; MacDonald, E.; Harik, R.; Wuest, T. Optimizing smart manufacturing systems by extending the smart products paradigm to the beginning of life. J. Manuf. Syst. 2020, 57, 274–286. [Google Scholar] [CrossRef]
- Khatib, E.J.; Barco, R. Optimization of 5G Networks for Smart Logistics. Energies 2021, 14, 1758. [Google Scholar] [CrossRef]
- Van Haute, T.; De Poorter, E.; Crombez, P.; Lemic, F.; Handziski, V.; Wirström, N.; Wolisz, A.; Voigt, T.; Moerman, I. Performance analysis of multiple Indoor Positioning Systems in a healthcare environment. Int. J. Health Geogr. 2016, 15, 1–15. [Google Scholar] [CrossRef] [Green Version]
- Laaki, H.; Miche, Y.; Tammi, K. Prototyping a digital twin for real time remote control over mobile networks: Application of remote surgery. IEEE Access 2019, 7, 20325–20336. [Google Scholar] [CrossRef]
- Patnaik, M.; Mishra, S. Indoor Positioning System Assisted Big Data Analytics in Smart Healthcare. In Connected e-Health; Springer: Berlin/Heidelberg, Germany, 2022; pp. 393–415. [Google Scholar]
- Zantalis, F.; Koulouras, G.; Karabetsos, S.; Kandris, D. A review of machine learning and IoT in smart transportation. Future Internet 2019, 11, 94. [Google Scholar] [CrossRef] [Green Version]
- Singh, A.; Kumar, D.; Hötzel, J. IoT Based information and communication system for enhancing underground mines safety and productivity: Genesis, taxonomy and open issues. Ad Hoc Netw. 2018, 78, 115–129. [Google Scholar] [CrossRef]
- Khaloo, A.; Lattanzi, D.; Cunningham, K.; Dell’Andrea, R.; Riley, M. Unmanned aerial vehicle inspection of the Placer River Trail Bridge through image-based 3D modelling. Struct. Infrastruct. Eng. 2018, 14, 124–136. [Google Scholar] [CrossRef]
- Kussat, N.H.; Chadwell, C.D.; Zimmerman, R. Absolute positioning of an autonomous underwater vehicle using GPS and acoustic measurements. IEEE J. Ocean. Eng. 2005, 30, 153–164. [Google Scholar] [CrossRef]
- Dong, L.; Sun, D.; Han, G.; Li, X.; Hu, Q.; Shu, L. Velocity-free localization of autonomous driverless vehicles in underground intelligent mines. IEEE Trans. Veh. Technol. 2020, 69, 9292–9303. [Google Scholar] [CrossRef]
- Shi, Y.; Han, Q.; Shen, W.; Zhang, H. Potential applications of 5G communication technologies in collaborative intelligent manufacturing. IET Collab. Intell. Manuf. 2019, 1, 109–116. [Google Scholar] [CrossRef]
- 3GPP. Service Requirements for Enhanced V2X Scenarios; Technical Specification (TS) 22.186 v16.2.0, 3rd Generation Partnership Project. 2019. Available online: https://www.etsi.org/deliver/etsi_ts/122100_122199/122186/16.02.00_60/ts_122186v160200p.pdf (accessed on 22 June 2022).
- Bagheri, H.; Noor-A-Rahim, M.; Liu, Z.; Lee, H.; Pesch, D.; Moessner, K.; Xiao, P. 5G NR-V2X: Toward Connected and Cooperative Autonomous Driving. IEEE Commun. Stand. Mag. 2021, 5, 48–54. [Google Scholar] [CrossRef]
- Wymeersch, H.; Seco-Granados, G.; Destino, G.; Dardari, D.; Tufvesson, F. 5G mmWave Positioning for Vehicular Networks. IEEE Wirel. Commun. 2017, 24, 80–86. [Google Scholar] [CrossRef] [Green Version]
- Bartoletti, S.; Wymeersch, H.; Mach, T.; Brunnegård, O.; Giustiniano, D.; Hammarberg, P.; Keskin, M.F.; Lacruz, J.O.; Razavi, S.M.; Rönnblom, J.; et al. Positioning and Sensing for Vehicular Safety Applications in 5G and Beyond. IEEE Commun. Mag. 2021, 59, 15–21. [Google Scholar] [CrossRef]
- Fouda, A.; Keating, R.; Ghosh, A. Dynamic Selective Positioning for High-Precision Accuracy in 5G NR V2X Networks. In Proceedings of the 2021 IEEE 93rd Vehicular Technology Conference (VTC2021-Spring), Virtual, 25 April–19 May 2021; pp. 1–6. [Google Scholar] [CrossRef]
Refs. | Algorithm | Input Data Type | Simulation? | Environment | Error |
---|---|---|---|---|---|
[33] | Robust Weighted Least Squares + RANSAC and IDD combined | TDoA | realistic | indoor | <3 m |
[34] | Dynamic reconstruction fingerprint matching algorithm | Received signal strength indicator | simulated | indoor | <1 m |
[35] | Extended Kalman filter | AoA | realistic | outdoor | <1 m |
[36,37] | Extended Kalman filter | Uplink reference signal | simulated | outdoor | <1 m |
[39] | Expectation maximization, subspace-spaced algorithm | Uplink reference signal | simulated | indoor | <1 m |
[40] | Unscented Kalman filter | AoA, ToA | simulated | indoor | <1 m |
[41] | Deriving Cramer–Rao bound | AoA, TDoA | realistic | outdoor (vehicle) | <1 m |
[43] | Taylor series least-square method | GNSS-TOA, 5G-AoA | simulated | outdoor | <10 m (95%) |
[44] | Deriving Ficher information of 5G and GNSS signals | Simulated GNSS, simulated 5G signals | simulated | outdoor | <1 m |
[45] | Particle filter | Real GNSS, simulated 5G signals | simulated | outdoor | <3 m (RMSE) |
[46] | OFDMA-based VLCP | Light signals, RSS | simulated | indoor | <1 m |
Refs. | ML Method | Measurement Type | Simulation/ Realistic | Environment | Error |
---|---|---|---|---|---|
[49] | NN, RF | BRSRP | realistic | outdoor | <10 m (80%) |
[53] | kNN, ELM | CSI | realistic | outdoor | 8.2m |
[54] | NN, TDNN (time-delay neural network) | TOA, code phase estimate | realistic | outdoor | 4.9 m (ranging RMSE) |
[55] | NN | AoA | hybrid | both | 0.4 m |
[56] | Densely connected Neural Network | RSS, GNSS signal | simulation | outdoor | 0.74 m |
[57] | NN, DT | BRSRP | simulation | outdoor | 1.4 m |
[50] | CNN, LSTM, TCN | Beamformed fingerprint | simulation | outdoor | 1.78 m |
[58] | weighted kNN | CSI | simulation | outdoor | 2 m (90%) |
[59] | Deep convolutional Gaussian process | Beamforming images | simulation | outdoor | 2.79 m |
[27] | 13 ML models including NN, kNN, RF | RSRP | simulation | outdoor | 3.3 m (kNN) |
[60,61] | GPR, kNN, SVM | RSRP | simulation | outdoor | 3.5 m |
[62] | Gaussian Processes | RSRP | simulation | outdoor | 10 m |
[63] | NN, kNN, SVM | RSRP | simulation | indoor | 1.6 m |
[64] | DNN | RSS | simulation | indoor | 1.6 m |
[65] | Gaussian Processes | RSRP | simulation | indoor | <2 m |
[66] | kNN | RSS | realistic | indoor | <2 m |
[67] | NN | CSI | simulation | both | <1 m |
Major Factors | 6G | 5G |
---|---|---|
Peak data rate | >100 Gb/s | 10[20] Gb/s |
User experience data rate | >10 Gb/s | 1 Gb/s |
Traffic density | >100 Tb/s/km2 | 10 Tb/s/km2 |
Connection density | >10 million/km2 | 1 million/km2 |
Delay | <1 ms | ms level |
Mobility | >1000 km/h | 350 km/h |
Spectrum efficiency | >3x relative to 5G | 3–5x relative to 4G |
Energy efficiency | >10x relative to 5G | 1000x relative to 4G |
Coverage percent | >99% | ∼70% |
Reliability | >99.999% | ∼99.9% |
Positioning precision | Centimeter level | Meter level |
Receiver sensitivity | <–130 dBm | About –120 dBm |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Mogyorósi, F.; Revisnyei, P.; Pašić, A.; Papp, Z.; Törös, I.; Varga, P.; Pašić, A. Positioning in 5G and 6G Networks—A Survey. Sensors 2022, 22, 4757. https://doi.org/10.3390/s22134757
Mogyorósi F, Revisnyei P, Pašić A, Papp Z, Törös I, Varga P, Pašić A. Positioning in 5G and 6G Networks—A Survey. Sensors. 2022; 22(13):4757. https://doi.org/10.3390/s22134757
Chicago/Turabian StyleMogyorósi, Ferenc, Péter Revisnyei, Azra Pašić, Zsófia Papp, István Törös, Pál Varga, and Alija Pašić. 2022. "Positioning in 5G and 6G Networks—A Survey" Sensors 22, no. 13: 4757. https://doi.org/10.3390/s22134757
APA StyleMogyorósi, F., Revisnyei, P., Pašić, A., Papp, Z., Törös, I., Varga, P., & Pašić, A. (2022). Positioning in 5G and 6G Networks—A Survey. Sensors, 22(13), 4757. https://doi.org/10.3390/s22134757
