Article

Hybrid Nanocomposite Platform, Based on Carbon Nanotubes and Poly(Methylene Blue) Redox Polymer Synthesized in Ethaline Deep Eutectic Solvent for Electrochemical Determination of 5-Aminosalicylic Acid

1
Department of Chemistry, CEMMPRE, Faculty of Sciences and Technology, University of Coimbra, 3004-535 Coimbra, Portugal
2
Department of Analytical Chemistry, Faculty of Pharmacy, “Iuliu Haţieganu” University of Medicine and Pharmacy, 400349 Cluj-Napoca, Romania
3
National Institute of Material Physics, 077125 Magurele, Romania
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(4), 1161; https://doi.org/10.3390/s21041161
Received: 12 January 2021 / Revised: 4 February 2021 / Accepted: 4 February 2021 / Published: 7 February 2021
(This article belongs to the Special Issue Electrochemical Nanosensors for Analysis of Pharmaceuticals)

Abstract

:
A novel hybrid composite of conductive poly(methylene blue) (PMB) and carbon nanotubes (CNT) was prepared for the detection of 5-aminosalicylic acid (5-ASA). Electrosynthesis of PMB with glassy carbon electrode (GCE) or with carbon nanotube modified GCE was done in ethaline deep eutectic solvent of choline chloride mixed with ethylene glycol and a 10% v/v aqueous solution. Different sensor architectures were evaluated in a broad range of pH values in a Britton-Robinson (BR) buffer using electrochemical techniques, chronoamperometry (CA), and differential pulse voltammetry (DPV), to determine the optimum sensor configuration for 5-ASA sensing. Under optimal conditions, the best analytical performance was obtained with CNT/PMBDES/GCE in 0.04 M BR buffer pH 7.0 in the range 5–100 µM 5-ASA using the DPV method, with an excellent sensitivity of 9.84 μA cm−2 μM−1 (4.9 % RSD, n = 5) and a detection limit (LOD) (3σ/slope) of 7.7 nM, outclassing most similar sensors found in the literature. The sensitivity of the same sensor obtained in CA (1.33 μA cm−2 μM−1) under optimal conditions (pH 7.0, Eapp = +0.40 V) was lower than that obtained by DPV. Simultaneous detection of 5-ASA and its analogue, acetaminophen (APAP), was successfully realized, showing a catalytic effect towards the electro-oxidation of both analytes, lowering their oxidation overpotential, and enhancing the oxidation peak currents and peak-to-peak separation as compared with the unmodified electrode. The proposed method is simple, sensitive, easy to apply, and economical for routine analysis.

1. Introduction

Deep eutectic solvents (DES) are generally composed of at least one hydrogen bond donor (HBD) and a hydrogen bond acceptor (HBA). This mixture particularly resembles a self-melting property as, when put in contact, they form an eutectic phase with a melting point lower than that of each component individually [1,2]. DES have been shown to overcome the most important pitfalls of ionic liquids, i.e., predecessors of DES, such as high toxicity, cost, and non-biodegradability [3]. As a result, scientists have gained more interest in using eutectic solvents in various research domains due to their easily tailored and non-toxic “green” solvent properties [4,5]. Wide-ranging operational windows for electrochemical procedures coupled with DES intrinsic ionic features, ease of alloy, and semiconductor electrodeposition are now available. The combined use of cosolvents, counterions, or applied potential are, as yet, under-explored strategies for tailoring electrode surface interactions leading to controlled film synthesis [6].
Recently, multiple ethylene glycol (EG)-based eutectic solvents were synthesized for electrochemical applications [7]. The physical properties of these DES such as density, viscosity, conductivity, and surface tension are greatly influenced by the ratio of the EG (HBD) and the nature and concentration of the HBA [8]. All these properties along with coordination with solutes or other surfaces play noteworthy roles in modulating the synthesis of nanostructures.
Conducting polymers, especially electroactive polymers, have been used, in recent years, to develop new polymeric materials, with significantly good electrical and optical properties and high conductivity/weight ratio that exhibit biodegradable, biocompatible, and porous properties [9,10,11]. In addition, the synthesis of polymers in DES media can lead to the formation of films in which the DES components are able to modulate nucleation and growth mechanisms by charge neutralization and shifts in oxidation/reduction potentials, promoting growth in optimal nanoscale-sized systems [4]. It has been shown that the addition of counterions in aqueous solutions, at a low percentage, highly influences the conductivity of polymers synthesized in DES as compared with their analogues, either in pure DES or in aqueous media [12], tailoring the monomer reactivity and mass transport; in this way, the electrochemical stability and reactivity of EG can be increased. For polymer electrosynthesis, parameters such as surface tension, polarity, and viscosity have a strong influence on the structure of the films [13]. This has been shown for poly(3,4-ethylenedioxythiophene) [14,15], polyaniline [16,17,18], 3-aminophenylboronic acid [19], polypyrrole [20,21], poly(acrylic acid) [22], poly(ethylene terephthalate) [23], poly(brilliant cresyl blue) [24], poly(thionine) [25], poly(methylene green) [26], and poly(neutral red) [27], mainly because of their control of monomer reactivity and mass transport properties.
Another strategy to obtain highly performing electroconductive platforms is the integration of nanomaterials to form polymer composites. Nanomaterials such as carbon nanotubes, graphene, metallic nanoparticles, or magnetic particles have been introduced in the synthesis of polymer-based materials to obtain hybrid composites with synergetic properties [28]. The use of deep eutectic solvents for the development of new nanomaterials has shown great success as an alternative in the synthesis of conjugated conducting polymers [4,29], DNA/RNA architectures, metal-organic frameworks, electrodeposited films, colloidal assemblies, hierarchically porous carbons [6,30]. Recently, the electropolymerization procedure for poly(methylene blue) (PMB) synthesis in DES was optimized [12] and combined with carbon nanotubes (CNT) to develop new platforms for electrochemical sensors [31].
5-Aminosalicylic acid (5-ASA, mesalazine, or mesalamine) is one of the non-steroidal anti-inflammatory drugs, structurally related to both acetaminophen and acetyl salicylic acid. It is widely prescribed for the treatment of inflammatory bowel disease (IBD) such as ulcerative colitis and Crohn’s disease and prevention of inflammation-associated colorectal cancer (CRC) [32,33]. 5-ASA is a prodrug of sulfasalazine, both being used for the same purpose. Although, sulfasalazine has superior therapeutic activity against ulcerative colitis, in a later publication, it was highlighted that oral 5-ASA formulations present inferior side effects as compared with sulfasalazine [34]. However, the overdose or long-term use of 5-ASA can severely affect the physiological functions of body systems such as renal, hepatic, pancreas, respiratory, cardiac, and immune system [35]. Therefore, it is of high importance to develop simple and cost-effective tools for the monitorization of 5-ASA in pharmaceutical formulations or biological samples to ensure high performance quality control and clinical analysis procedures.
In this work, an electrochemical method was developed and successfully applied for the detection of 5-ASA by using an electrochemical platform composed of a nanostructured phenazine polymer electrochemically synthesized in ethaline (PMBDES) combined with multiwalled carbon nanotubes (CNT). First, the oxidation mechanism of 5-ASA was determined, and the experimental conditions optimized for electrochemical detection by chronoamperometry (CA) and differential pulse voltammetry (DPV). Various electrode architectures based on PMBDES and CNT were evaluated with only one, or two components, in order to evaluate the contribution of each component and to find the optimal electrode configuration for 5-ASA determination in pharmaceutical samples and simultaneously with its analogue, acetaminophen.

2. Materials and Methods

2.1. Reagents and Solutions

All reagents were of analytical grade and were used without further purification. Millipore Milli-Q nanopure water (resistivity ≥ 18 MΩ cm) was used for the preparation of all solutions.
5-Sminosalicylic acid (5-ASA), acetaminophen (APAP), methylene blue (MB), choline chloride, ethylene glycol, potassium chloride, sodium monobasic phosphate, sodium dibasic phosphate, sodium hydroxide, acetic, boric, hydrochloric, perchloric, and phosphoric acid were purchased from Sigma-Aldrich (Darmstadt, Germany).
For the electrochemical characterization of the modified electrodes, the supporting electrolyte was 0.04 M Britton Robinson (BR) buffer solution, pH 7.0. All experiments were carried out at room temperature (25 ± 1 °C).

2.2. Instrumentation

Electrochemical experiments were performed in a three-electrode cell (2 mL), containing the glassy carbon electrode (GCE, geometric area 0.00785 cm2) as the working electrode, a Pt wire counter electrode, and an Ag/AgCl (3.0 M KCl) reference electrode (Metrohm Autolab, Utrecht, The Netherlands), using a potentiostat/galvanostat µ-Autolab system (Metrohm Autolab, Utrecht, The Netherlands). Before each use, the surface of the GCE was cleaned with diamond spray and polishing paper (Kemet, High Wycombe, UK).
The pH measurements were carried out with a CRISON 2001 micro pH-meter (Crison Instruments SA, Barcelona, Spain) at room temperature.

2.3. PMBDES and CNT-Based Modified GCE

The hybrid composite, based on multiwalled CNT and PMB in ethaline (PMBDES) modified GCE, was prepared, in accordance with the optimized procedure reported in our previous work [31]. Briefly, two layers of 1 µL of 1% HNO3-CNT dispersion in chitosan solution (1.0% m/m chitosan dissolved in 1.0% v/v acetic acid) [36] were deposited by drop coating on the surface of GCE and allowed to dry at room temperature. Thereafter, the CNT/GCE was electrochemically modified by potential cycling (−0.6–1.1 V, 150 mV s−1 for 30 scans) polymerization in a solution containing 5 mM MB in DES (ethaline = choline chloride (1): ethylene glycol (2)) with an additional 10% aqueous mixture of 0.1 M NaOH and HClO4 to lead to the formation of PMBDES/CNT/GCE. To form CNT/PMBDES/GCE, polymerization was done before drop coating with CNT [12].
The different electrode architectures studied for 5-ASA detection were the following: bare GCE, PMBDES/GCE, CNT/GCE, PMBDES/CNT/GCE, and CNT/PMBDES/GCE.

2.4. Electrochemical Measurements

Electrochemical characterization by cyclic voltammetry (CV), chronoamperometry (CA), and differential pulse voltammetry (DPV) was conducted. Cyclic voltammograms (CVs) were recorded in 0.1 M KCl + 5 mM HCl in the potential range from −0.4 to 1.0 V at 50 mV s−1. The CA measurements were done at a fixed potential of + 0.40 V vs. Ag/AgCl at different platforms based on PMBDES and CNT for 5-ASA determination in 0.04 M BR buffer at pH 7.0. The DP voltammograms were recorded by scanning the potential from 0.0 to +0.50 V with a scan rate of 4 mV s−1, 2 mV step potential, and 50 mV pulse amplitude. To determine the oxidation mechanism of 5-ASA and analyzing sensor performance by both CA and voltammetric methods, a pH study was conducted involving 5-ASA detection in 0.04 M BR buffer in the pH range from 2.0 to 8.0.

2.5. Analytical Applications

Standard solutions of 5-ASA and APAP were prepared and kept in the refrigerator for further use. All 5-ASA and APAP solutions for testing were prepared by diluting the stock solutions to the desired concentration. To ensure the dissolution and improved stability of 5-ASA, the stock solution was prepared in 0.5 M HCl, the pH of the diluted solutions being thereafter adjusted in BR buffer.
Twenty PENTASA® tablets (Ferring GmbH containing 500 mg 5-ASA/tablet) were finely ground and an accurately weighed quantity of powder was dissolved in 50 mL distilled water with the addition of 5 mL of 5 M HCl and sonicated for 20 min. After centrifugation, the removed supernatant was diluted to the desired concentration and sample aliquots of approximately twice the concentration of the standard were added, applying the standard addition method.
Coldrex Max Grip® (1 g acetaminophen, 10 mg phenylephrine hydrochloride, and 40 mg ascorbic acid) pharmaceutical sachets were dissolved in 50 mL distilled water. The analysis of 5-ASA and APAP was performed in a 2 mL cell, the CNT/PMBDES/GCE acting as a working electrode, by both CA and DPV methods, as previously described. Aliquots of approximately twice the concentration of that of the 5-ASA and APAP pharmaceutical formulations were added, and measurements made in triplicate, using the standard addition method, with four additions of standard solution.

3. Results and Discussion

3.1. Electrochemical Characterization of 5-Aminosalicylic Acid (5-ASA) by Cyclic Voltammetry and Differential Pulse Voltammetry

Figure 1 shows cyclic voltammograms (CVs) in 0.1 M KCl + 5 mM HCl with PMBDES/GCE in the absence and presence of 100.0 µM 5-ASA. It can be observed that PMB oxidation and reduction peaks both decrease upon 5-ASA addition, which might be due to the high concentration of 5-ASA present in the solution that can impede the redox reaction at the polymer interface. Moreover, the –COOH group in the 5-ASA structure is prone to form hydrogen bonds with the nitrogen atoms in the polymer film [37]. This interaction has two results as follows: (i) increases the 5-ASA concentration at the PMB surface, which improves the 5-ASA reaction kinetics and implicitly the sensitivity of the method and (ii) hinders the electrochemical process of PMB, due to a decrease in counter ion density/availability at the polymer/solution interface. Furthermore, a new oxidation peak at E = +0.64 V appears, corresponding to 5-ASA oxidation (16.0 µA cm−2) demonstrating the possibility of electrochemically detecting 5-ASA with the PMBDES based sensor.
The pH of the supporting electrolyte plays an important impact on the anodic peak currents and peak potentials; therefore, Figure 2 presents the electrochemical oxidation of 50.0 μM 5-ASA with GCE and PMBDES/GCE assessed by DPV in BR buffer solutions in the pH range from 2.0 up to 8.0 in order to determine the oxidation mechanism (Figure 2a) and to obtain the best peak resolution and maximum sensitivity towards 5-ASA. With an increase in pH, Figure 2c,d, the oxidation peak potential, Epa, shifts linearly in the negative direction according to the following equation: Epa/mV = 624 − 56.5 pH (R2 = 0.9830) and Epa/mV = 622 − 61.2 pH (R2 = 0.9986) with GCE, and at PMBDES/GCE, respectively. As both slopes are very close to the theoretical value of –58 (m/n) mV per pH unit, where m represents the number of protons and n represents the number of electrons, it can be determined that the number of H+ involved in the oxidation process of 5-ASA is equal to the number of e [38]. Concerning the anodic peak potential of 5-ASA, there is a shift towards more negative values from +0.51 V at pH 2.0 to +0.15 V at pH 8.0. In acid media, the amino group of 5-ASA is protonated and hinders the oxidation process, which requires higher potential values. Above pH 6, the oxidation of 5-ASA occurs at a lower potential, as the -NH2 group is no longer protonated (pKa2 = 5.8) [39]. No influence of the 5-ASA electrochemical process was observed when the PMB oxidation mechanism was investigated (Figure S1, Supplementary Materials).
The value of the DPV peak width at half-height W1/2, is 61 mV and 57 mV at CNT/PMBDES/GCE and PMBDES/CNT/GCE, respectively. The theoretical minimum value is 45 mV for a reversible electrochemical reaction involving the transfer of two electrons [38]. However, the theoretical width of the DPV response for a slow transfer can increase to ca. two-fold [40], as also seen for GCE (87 mV) and PMBDES/GCE (125 mV). Therefore, considering the ΔE/ΔpH slope values and W1/2, it was concluded that 5-ASA oxidation occurs with a two electron and two proton transfer, as also found in other 5-ASA reported papers [41,42]. A possible oxidation mechanism is displayed in Scheme 1.
The highest peak current value for 5-ASA oxidation was obtained in pH 2.0 solution at +0.52 V, while at pH 7.0 (Epa = +0.18 V) the peak current is 50% of that in pH 2.0 buffer, but occurs at a much lower potential, being more suitable for pharmaceutical analysis since fewer electroactive molecules in complex samples interfere at this potential. In addition, the pH of blood and many other body fluids is close to 7.0, and therefore pH 7.0 (0.04 M BR buffer) was selected as the best supporting electrolyte for the electrochemical determination of 5-ASA in pharmaceutical formulations.
A comparison of the 5-ASA response in BR buffer at pH 7.0 at different electrode architectures is displayed in Figure 2b. With a bare GCE, a small oxidation peak current of 34.5 μA cm−2 was observed, slightly increasing with PMBDES/GCE, being shifted by 70 mV towards more negative potential values, indicating a catalytic effect from the PMB polymer towards 5-ASA oxidation. The presence of CNT in the electrode architecture led to a significant increase in the oxidation peak values by a factor of 5.5 (jpa = 194 μA cm−2) and 11.6 (jpa = 405 μA cm−2) for PMBDES/CNT/GCE and CNT/PMBDES/GCE, respectively, which can be explained by the increased electroactive area of the modified electrode.

3.2. Electrochemical Detection of 5-ASA

3.2.1. Chronoamperometry

Optimization of Experimental Conditions: pH and Applied Potential

Considering the oxidation peak potential of 5-ASA with PMBDES/GCE, the CA measurements were first performed at E = +0.60 V. The effect of pH on the CA response of 50 µM 5-ASA with PMBDES/GCE was evaluated at different pH values in the range from 2.0 to 8.0 using 0.04 M BR buffer solutions as supporting electrolyte (Figure 3a). Due to the presence of the carboxylic group (-COOH, pKa1 = 3.0), primary aromatic amino group (-NH2, pKa2 = 5.8), and phenolic group (-OH, pKa3 = 13.9) in the molecule [43], the charge of 5-ASA is highly dependent on pH. As seen in Figure 3a, the highest currents were obtained at pH 2.0 and 7.0. The current at pH 3.0 is less by approximately 25% than that at pH 2.0, but thereafter, follows a positive trend up to the highest current at pH 7.0 which is 11% higher than that at pH 2.0. On the basis of these results, pH 7.0 was used in the subsequent experiments.
Secondly, the applied potential for 5-ASA determination was optimized. The CA response to 50 µM 5-ASA with PMBDES/GCE in BR buffer at pH 7.0 was analyzed at applied potential values ranging from E = +0.20 to +0.60 V. As seen in Figure 3b, the highest current density is obtained at E = +0.60 V and slightly decreases down to E = +0.30 V, and almost disappears at E = +0.20 V. Although the current density is higher at E = +0.60 V, in real sample analyses, the possible interference reactions at this potential are much higher than at lower applied potentials. Therefore, E = +0.40 V was chosen as the applied potential to ensure the anodic conversion of 5-ASA to its quinonoid form, whilst minimizing the matrix effect.
An overview of the CA response of 5-ASA at different pH values and applied potentials can be seen in Figure S2a, Supplementary Materials. The influence of pH and applied potential was also evaluated at sensors based on CNT together with PMBDES (Figure S2b).

Analytical Parameters of the Optimized Sensors

Different sensor architectures based on the phenazine polymer and CNT were evaluated for 5-ASA determination by CA at E = +0.40 V vs. Ag/AgCl using BR buffer, pH 7.0, as supporting electrolyte. The analytical parameters of the sensors are presented in Table S1.
As can be seen in Table S1, an increase in the sensitivity towards 5-ASA from bare GCE to one component-modified (PMBDES or CNT) electrode to hybrid composite platforms (PMBDES-CNT) in the sequence GCE < PMBDES/GCE < CNT/GCE < PMBDES/CNT/GCE < CNT/PMBDES/GCE is observed, with CNT greatly improving sensor performance. Figure 4 shows the CA response in the concentration range 0.5–80 µM 5-ASA for CNT/PMBDES/GCE, and 10.0–80 µM 5-ASA for CNT/GCE and PMBDES/GCE, respectively. The best synergistic effect from PMBDES together with CNT was observed when CNT were deposited on top of the polymer film (Figure 4b) with the corresponding regression equation Δj (μA cm−2) = 1.33 [5-ASA] (μM) – 0.13 (R2 = 0.9998). The detection limit (LOD) was calculated as three times the standard deviation of the calibration plot divided by the slope of the calibration plot [44], obtaining a low LOD of 56.9 nM 5-ASA and a sensitivity of 1.33 μA cm−2 μM−1, by CNT/PMBDES/GCE sensor.

3.2.2. Differential Pulse Voltammetry

The quantification of 5-ASA by DPV was carried out in a BR buffer solution, pH 7.0, as supporting electrolyte with PMBDES/CNT/GCE and CNT/PMBDES/GCE sensors, which exhibited the best analytical performance using the fixed potential technique. A sharp and well-defined oxidation peak appears at the peak potential of +0.17 and + 0.19 V in the presence of 5-ASA with PMBDES/CNT/GCE and CNT/PMBDES/GCE, respectively. Figure 5 illustrates DPVs with PMBDES/CNT/GCE and CNT/PMBDES/GCE in BR buffer (pH 7.0). A linear range of 5–100 µM was obtained for 5-ASA with sensitivities of 3.85 μA cm−2 μM−1 (RSD = 2.2%, n = 5) with PMBDES/CNT/GCE and 9.84 μA cm−2 μM−1 (RSD = 4.9%, n = 5) with CNT/PMBDES/GCE. The resulting detection limits for 5-ASA were 58.2 and 7.7 nM with PMBDES/CNT/GCE and CNT/PMBDES/GCE, respectively.
The analytical parameters of the developed 5-ASA electrochemical sensors were compared with other reported sensors, Table 1. The CNT/PMBDES/GCE sensor showed an overall superior performance to those found in the literature, presenting a significantly lower detection limit with high sensitivity over a wide linear dynamic range. Although the sensor based on CuW NSs/GCE [45] had a wider working range and demonstrated a lower LOD (1.2 nM), the proposed voltammetric sensors in this work outclass it in terms of sensitivity (1.20 μA μM–1 cm–2) and peak potential value (+0.33 V). Additionally, the analysis time of our voltammetric sensors is ca. 20 times lower than that of the previously reported sensor (2100 s).
The repeatability of the analytical methods employing the 5-ASA sensors was examined by determining the relative standard deviations of five responses, obtaining 2.5% for PMBDES/CNT/GCE and 1.6% for CNT/PMBDES/GCE using the CA method and 2.2% for PMBDES/CNT/GCE and 4.9% for CNT/PMBDES/GCE by means of DPV. The stability of both hybrid sensors was evaluated in two steps. First, 30 consecutive measurements of 50.0 μM 5-ASA were performed, both platforms showed excellent operational and conservation stability, maintaining their electrochemical response (only a 6% decrease). Second, multiple scans in BR buffer were performed with CNT/PMBDES/GCE, the sensitivity decreasing only to 93%. All modified electrodes were stored at 4 °C.

3.3. Simultaneous Analyses of 5-ASA and Acetaminophen

DPV was selected for the quantification of 5-ASA using the sensor with the best analytical performance (CNT/PMBDES/GCE) in the presence of its structural analogue APAP, and for real sample analysis due to its advantages such as ca. seven-fold improved sensitivity as compared with the CA technique, the speed of measurement (100 s), lower detection limit (7.7 nM), low background current, and easy signal processing.
For interference studies, the response of CNT/PMBDES/GCE sensor to 5-ASA was tested in the presence of different concentrations of APAP.
CNT/PMBDES/GCE revealed a very good separation of peak potentials (+0.18 V) to achieve the accurate simultaneous determination of 5-ASA and APAP in their mixture. Figure 6a shows the DPVs obtained with CNT/PMBDES/GCE for different concentrations (10–70 µM) of 5-ASA in the presence of 10 µM APAP, while Figure 6b shows the corresponding oxidation peaks of APAP (5–60 µM) in the presence of a constant concentration of 5-ASA (10 µM). The hybrid nanostructured sensor revealed a peak-to-peak separation of the analytes; hence, the faradaic currents of 5-ASA were dependently increased in accordance with the bulk concentration in the presence of a constant oxidation peak of APAP corresponding to 10 µM, the sensitivity (9.27 μA cm−2 μM−1) being very close to that obtained in standard conditions (5.7% decrease).
Furthermore, by keeping the 5-ASA concentration constant, a calibration plot for APAP with very good sensitivity of 12.5 μA cm−2 μM−1 and low detection limit (2.9 µM) was obtained. The potential value (+0.35 V) corresponding to the APAP oxidation peak value is even lower in the BR buffer (pH 7.0) than that in 0.1 M KCl reported in one of our previous studies [31]. This shows that the hybrid PMBDES–CNT film is very sensitive towards simultaneous detection of both analytes.

3.4. Real Sample Analysis

The sensor architecture CNT/PMBDES/GCE was used under optimized conditions for the analysis of pharmaceutical formulations (Pentasa®, 500 mg 5-ASA/tablet). After sample preparation and adequate dilution steps, as previously described in the Materials and Methods Section, the sensor was employed for both CA (Figure 7a,b) and DPV (Figure 7c,d) measurements, obtaining good recovery values. A slightly higher recovery was found with the CA technique (105.2 ± 3.1% RSD), while by DPV analysis was 97.8 ± 3.0% RSD, both being very close to 100%, Table 2. The sensitivity of both methods was ca. 85% of that in standard solutions, showing that the proposed electrochemical sensor provided a good stable response when used in a complex matrix.
In order to further test the application to different pharmaceutical formulations, the sensor was employed for APAP determination. In Coldrex Max Grip® (1 g acetaminophen, 10 mg phenylephrine hydrochloride, 40 mg ascorbic acid), recovery values were 101.2% ± 2.7% for APAP detection in the presence of 50 µM 5-ASA constant concentration. For 5-ASA detection from Pentasa® tablets in the presence of 50 µM APAP, the recovery values were 102.0% ± 3.3%. The apparent recoveries indicate that the proposed electrochemical sensor is efficient for one component determination, and also for simultaneous analysis of 5-ASA and APAP, having an excellent level of reliability for practical applications.

4. Conclusions

In this work, the developed CNT/PMBDES/GCE electrochemical sensor provides a new, sensitive and selective method for 5-aminosalicylic acid (5-ASA) detection, by utilizing the unique properties of phenazine poly(methylene blue) film synthesized electrochemically in deep eutectic solvents, such as high specific surface area and electrocatalytic properties. The sensing properties were greatly improved by combining the polymer film with carbon nanotubes. The pH of the BR supporting electrolyte and the applied potential in the CA method were optimized and several sensing architectures based on PMBDES and CNT were tested for 5-ASA detection. The CNT/PMBDES/GCE sensor was applied to the simultaneous detection of 5-ASA and acetaminophen; the sensitivity towards 5-ASA decreased by only 5.7% in the presence of APAP. The possible application and robustness of this method were confirmed by the determination of 5-ASA in a drug tablet, without any prior complex sample pretreatment or preconcentration at the electrode surface, with CNT/PMBDES/GCE, in which recovery values between 97.8% and 105.2% were obtained, demonstrating that this method is promising for application to biological samples.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/21/4/1161/s1, Figure S1: Effect of pH on PMBDES anodic peak current, jpa(i/ii) (µA cm−2, ●) and peak potential, Epa(i/ii) (V, ●) at PMBDES/GCE (a) in BR buffer solution and (b) in the presence of 50.0 µM 5-ASA., Figure S2: (a) The pH effect on CA response of 50 µM 5-ASA at GCE and PMBDES/GCE in 0.04 M BR buffer pH 2.0–8.0 at applied potentials between E = +0.20 V and +0.60 V; (b) calibration plots obtained at CNT/PMBDES/GCE in different experimental conditions, Table S1: Analytical parameters obtained for 5-ASA sensors from corresponding calibration plots (CA in 0.04 M BR pH 7.0, E = +0.40 V vs. Ag/AgCl).

Author Contributions

Conceptualization, O.H. and M.M.B.; methodology, O.H. and M.M.B.; validation: O.H. and M.M.B.; writing—original draft preparation, O.H.; writing—review and editing, O.H., M.M.B., R.S., C.C., and C.M.A.B.; supervision, M.M.B. and C.M.A.B.; project administration, C.M.A.B.; funding acquisition, R.S., C.C., and C.M.A.B. All authors have read and agreed to the published version of the manuscript.

Funding

The authors thank Fundação para a Ciência e a Tecnologia (FCT), Portugal, project PTDC/QEQ-QAN/2201/2014, in the framework of Project 3599-PPCDT, co-financed by the European Community Fund FEDER), and CEMMPRE, project UIDB/EMS/00285/2020 by FEDER funds through the program COMPETE, Programa Operacional Factores de Competitividade, and by national funds through FCT. O.H. thanks the European Social Fund, Human Capital Operational Programme 2014–2020, project no. POCU/380/6/13/125171.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tomé, L.I.N.; Baião, V.; da Silva, W.; Brett, C.M.A. Deep eutectic solvents for the production and application of new materials. Appl. Mater. Today 2018, 10, 30–50. [Google Scholar] [CrossRef]
  2. Brett, C.M.A. Deep eutectic solvents and applications in electrochemical sensing. Curr. Opin. Electrochem. 2018, 10, 143–148. [Google Scholar] [CrossRef]
  3. Abbott, A.P.; Boothby, D.; Capper, G.; Davies, D.L.; Rasheed, R.K. Deep Eutectic Solvents Formed between Choline Chloride and Carboxylic Acids: Versatile Alternatives to Ionic Liquids. J. Am. Chem. Soc. 2004, 126, 9142–9147. [Google Scholar] [CrossRef]
  4. Jablonský, M.; Škulcová, A.; Šima, J. Use of Deep Eutectic Solvents in Polymer Chemistry–A Review. Molecules 2019, 24, 3978. [Google Scholar] [CrossRef][Green Version]
  5. Roda, A.; Matias, A.; Paiva, A.; Duarte, A. Polymer Science and Engineering Using Deep Eutectic Solvents. Polymers 2019, 11, 912. [Google Scholar] [CrossRef][Green Version]
  6. Wagle, D.V.; Zhao, H.; Baker, G.A. Deep eutectic solvents: Sustainable media for nanoscale and functional materials. Acc. Chem. Res. 2014, 47, 2299–2308. [Google Scholar] [CrossRef]
  7. Ibrahim, R.K.; Hayyan, M.; AlSaadi, M.A.; Ibrahim, S.; Hayyan, A.; Hashim, M.A. Physical properties of ethylene glycol-based deep eutectic solvents. J. Mol. Liq. 2019, 276, 794–800. [Google Scholar] [CrossRef]
  8. Hayyan, A.; Mjalli, F.S.; Alnashef, I.M.; Al-Wahaibi, Y.M.; Al-Wahaibi, T.; Hashim, M.A. Glycerol-based deep eutectic solvents: Physical properties. J. Mol. Liq. 2013, 178, 137–141. [Google Scholar] [CrossRef]
  9. Barsan, M.M.; Ghica, M.E.; Brett, C.M.A. Electrochemical sensors and biosensors based on redox polymer/carbon nanotube modified electrodes: A review. Anal. Chim. Acta 2015, 881, 1–23. [Google Scholar] [CrossRef] [PubMed]
  10. Guo, B.; Glavas, L.; Albertsson, A.-C. Biodegradable and electrically conducting polymers for biomedical applications. Prog. Polym. Sci. 2013, 38, 1263–1286. [Google Scholar] [CrossRef]
  11. Balint, R.; Cassidy, N.J.; Cartmell, S.H. Conductive polymers: Towards a smart biomaterial for tissue engineering. Acta Biomater. 2014, 10, 2341–2353. [Google Scholar] [CrossRef] [PubMed]
  12. Hosu, O.; Bârsan, M.M.; Cristea, C.; Săndulescu, R.; Brett, C.M.A. Nanostructured electropolymerized poly(methylene blue) films from deep eutectic solvents. Optimization and characterization. Electrochim. Acta 2017, 232, 285–295. [Google Scholar] [CrossRef]
  13. Golgovici, F.; Anicai, L.; Florea, A.; Visan, T. Electrochemical Synthesis of Conducting Polymers Involving Deep Eutectic Solvents. Curr. Nanosci. 2020, 16, 478–494. [Google Scholar] [CrossRef]
  14. Prathish, K.P.; Carvalho, R.C.; Brett, C.M.A. Electrochemical characterisation of poly(3,4-ethylenedioxythiophene) film modified glassy carbon electrodes prepared in deep eutectic solvents for simultaneous sensing of biomarkers. Electrochim. Acta 2016, 187, 704–713. [Google Scholar] [CrossRef]
  15. Prathish, K.P.; Carvalho, R.C.; Brett, C.M.A. Highly sensitive poly(3,4-ethylenedioxythiophene) modified electrodes by electropolymerisation in deep eutectic solvents. Electrochem. Commun. 2014, 44, 8–11. [Google Scholar] [CrossRef]
  16. Fernandes, P.M.V.; Campiña, J.M.; Pereira, C.M.; Silva, F. Electrosynthesis of Polyaniline from Choline-Based Deep Eutectic Solvents: Morphology, Stability and Electrochromism. J. Electrochem. Soc. 2012, 159, G97–G105. [Google Scholar] [CrossRef]
  17. Ismail, H.K.; Alesary, H.F.; Mohammed, M.Q. Synthesis and characterisation of polyaniline and/or MoO2/graphite composites from deep eutectic solvents via chemical polymerisation. J. Polym. Res. 2019, 26, 65. [Google Scholar] [CrossRef]
  18. Alabdullah, S.S.M.; Ismail, H.K.; Ryder, K.S.; Abbott, A.P. Evidence supporting an emulsion polymerisation mechanism for the formation of polyaniline. Electrochim. Acta 2020, 354, 136737. [Google Scholar] [CrossRef]
  19. Wang, F.; Zou, F.; Yu, X.; Feng, Z.; Du, N.; Zhong, Y.; Huang, X. Electrochemical synthesis of poly(3-aminophenylboronic acid) in ethylene glycol without exogenous protons. Phys. Chem. Chem. Phys. 2016, 18, 9999–10004. [Google Scholar] [CrossRef]
  20. Golgovici, F.; Cârlan, M.-S.; Popescu, A.-G.; Anicai, L. Electrochemical Synthesis of Polypyrrole and Polypyrrole-Indomethacin Coatings on NiCr Alloys Involving Deep Eutectic Solvents. Metals 2020, 10, 1130. [Google Scholar] [CrossRef]
  21. Ghoorchian, A.; Tavoli, F.; Alizadeh, N. Long-term stability of nanostructured polypyrrole electrochromic devices by using deep eutectic solvents. J. Electroanal. Chem. 2017, 807, 70–75. [Google Scholar] [CrossRef]
  22. Mota-Morales, J.D.; Gutiérrez, M.C.; Ferrer, M.L.; Jiménez, R.; Santiago, P.; Sanchez, I.C.; Terrones, M.; Del Monte, F.; Luna-Bárcenas, G. Synthesis of macroporous poly(acrylic acid)-carbon nanotube composites by frontal polymerization in deep-eutectic solvents. J. Mater. Chem. A 2013, 1, 3970–3976. [Google Scholar] [CrossRef]
  23. Wang, Q.; Yao, X.; Geng, Y.; Zhou, Q.; Lu, X.; Zhang, S. Deep eutectic solvents as highly active catalysts for the fast and mild glycolysis of poly(ethylene terephthalate)(PET). Green Chem. 2015, 17, 2473–2479. [Google Scholar] [CrossRef]
  24. da Silva, W.; Ghica, M.E.; Brett, C.M.A. Novel nanocomposite film modified electrode based on poly(brilliant cresyl blue)-deep eutectic solvent/carbon nanotubes and its biosensing applications. Electrochim. Acta 2019, 317, 766–777. [Google Scholar] [CrossRef]
  25. Dalkıran, B.; Fernandes, I.P.G.; David, M.; Brett, C.M.A. Electrochemical synthesis and characterization of poly(thionine)-deep eutectic solvent/carbon nanotube–modified electrodes and application to electrochemical sensing. Microchim. Acta 2020, 187, 609. [Google Scholar] [CrossRef]
  26. da Silva, W.; Queiroz, A.C.; Brett, C.M.A. Poly(methylene green)—Ethaline deep eutectic solvent / Fe2O3 nanoparticle modified electrode electrochemical sensor for the antibiotic dapsone. Sens. Actuators B Chem. 2020, 325, 128747. [Google Scholar] [CrossRef]
  27. da Silva, W.; Brett, C.M.A. Novel biosensor for acetylcholine based on acetylcholinesterase/poly(neutral red)—Deep eutectic solvent/Fe2O3 nanoparticle modified electrode. J. Electroanal. Chem. 2020, 872, 114050. [Google Scholar] [CrossRef]
  28. Hosu, O.; Florea, A.; Cristea, C.; Sandulescu, R. Functionalized Advanced Hybrid Materials for Biosensing Applications. In Advanced Biosensors for Health Care Applications; Elsevier: Amsterdam, The Netherlands, 2019; pp. 171–207. [Google Scholar] [CrossRef]
  29. Mota-Morales, J.D.; Sánchez-Leija, R.J.; Carranza, A.; Pojman, J.A.; del Monte, F.; Luna-Bárcenas, G. Free-radical polymerizations of and in deep eutectic solvents: Green synthesis of functional materials. Prog. Polym. Sci. 2018, 78, 139–153. [Google Scholar] [CrossRef]
  30. Hansen, B.B.; Spittle, S.; Chen, B.; Poe, D.; Zhang, Y.; Klein, J.M.; Horton, A.; Adhikari, L.; Zelovich, T.; Doherty, B.W.; et al. Deep Eutectic Solvents: A Review of Fundamentals and Applications. Chem. Rev. 2020. [Google Scholar] [CrossRef]
  31. Hosu, O.; Barsan, M.M.; Cristea, C.; Săndulescu, R.; Brett, C.M.A. Nanocomposites based on carbon nanotubes and redox-active polymers synthesized in a deep eutectic solvent as a new electrochemical sensing platform. Microchim. Acta 2017, 184, 3919–3927. [Google Scholar] [CrossRef]
  32. Mahfuz, M. Inflammatory bowel disease: Foiling inflammatory bowel disease. Sci. Transl. Med. 2013, 5, 49–57. [Google Scholar] [CrossRef]
  33. Solitano, V.; D’Amico, F.; Fiorino, G.; Paridaens, K.; Peyrin-Biroulet, L.; Danese, S. Key Strategies to Optimize Outcomes in Mild-to-Moderate Ulcerative Colitis. J. Clin. Med. 2020, 9, 2905. [Google Scholar] [CrossRef]
  34. Wang, Y.; Parker, C.E.; Feagan, B.G.; MacDonald, J.K. Oral 5-aminosalicylic acid for maintenance of remission in ulcerative colitis. Cochrane Database Syst. Rev. 2016, 1–88. [Google Scholar] [CrossRef] [PubMed]
  35. Shahdadi Sardo, H.; Saremnejad, F.; Bagheri, S.; Akhgari, A.; Afrasiabi Garekani, H.; Sadeghi, F. A review on 5-aminosalicylic acid colon-targeted oral drug delivery systems. Int. J. Pharm. 2019, 558, 367–379. [Google Scholar] [CrossRef]
  36. Barsan, M.M.; Toledo, C.T.; Brett, C.M.A. New electrode architectures based on poly(methylene green) and functionalized carbon nanotubes: Characterization and application to detection of acetaminophen and pyridoxine. J. Electroanal. Chem. 2015, 736, 8–15. [Google Scholar] [CrossRef]
  37. Manasa, G.; Mascarenhas, R.J.; Satpati, A.K.; D’Souza, O.J.; Dhason, A. Facile preparation of poly(methylene blue) modified carbon paste electrode for the detection and quantification of catechin. Mater. Sci. Eng. C 2017, 73, 552–561. [Google Scholar] [CrossRef] [PubMed]
  38. Brett, C.M.A.; Brett Oliveira, A.-M. Electrochemistry. Principles, Methods, and Applications; Oxford University Press: Oxford, UK, 1993. [Google Scholar]
  39. Shahrokhian, S.; Hosseini, P.; Kamalzadeh, Z. Investigation of the Electrochemical Behavior of Mesalazine on the Surface of a Glassy Carbon Electrode Modified with CNT/PPY Doped by 1,5-Naphthalenedisulfonic Acid. Electroanalysis 2013, 25, 2481–2491. [Google Scholar] [CrossRef]
  40. Brumleve, T.R.; Osteryoung, J. Theory of differential normal pulse voltammetry in the alternating pulse mode for totally irreversible electrode reactions. Anal. Chem. 1981, 53, 988–991. [Google Scholar] [CrossRef]
  41. Komorsky-Lovrić, Š.; Nigović, B. Identification of 5-aminosalicylic acid, ciprofloxacin and azithromycin by abrasive stripping voltammetry. J. Pharm. Biomed. Anal. 2004, 36, 81–89. [Google Scholar] [CrossRef] [PubMed]
  42. Sukanya, R.; Ramki, S.; Chen, S.-M.; Karthik, R. Ultrasound treated cerium oxide/tin oxide (CeO2/SnO2) nanocatalyst: A feasible approach and enhanced electrode material for sensing of anti-inflammatory drug 5-aminosalicylic acid in biological samples. Anal. Chim. Acta 2020, 1096, 76–88. [Google Scholar] [CrossRef] [PubMed]
  43. Harisha, K.V.; Swamy, B.E.K.; Ganesh, P.S.; Jayadevappa, H. An electrochemical sensor for the determination of 5-amino salicylic acid at poly (Alanine) modified carbon paste electrode: A cyclic voltammetric study. Anal. Bioanal. Electrochem. 2018, 10, 1273–1287. [Google Scholar]
  44. Brett, C.M.A.; Oliveira-Brett, A.-M. Electroanalysis; Compton, R.G., Ed.; Oxford University Press: New York, NY, USA, 1998. [Google Scholar]
  45. Vinoth Kumar, J.; Kokulnathan, T.; Chen, S.-M.; Chen, T.-W.; Elgorban, A.M.; Elshikh, M.S.; Marraiki, N.; Nagarajan, E.R. Two-Dimensional Copper Tungstate Nanosheets: Application toward the Electrochemical Detection of Mesalazine. ACS Sustain. Chem. Eng. 2019, 7, 18279–18287. [Google Scholar] [CrossRef]
  46. Kim, S.; Wang, N.; Li, Y.; He, X. Electrochemical determination of mesalazine by using graphene oxide coated with a molecularly imprinted sol-gel. Anal. Methods 2016, 8, 7780–7788. [Google Scholar] [CrossRef]
  47. Štěpánková, M.; Šelešovská, R.; Janíková, L.; Chýlková, J. Voltammetric determination of mesalazine in pharmaceutical preparations and biological samples using boron-doped diamond electrode. Chem. Pap. 2017, 71, 1419–1427. [Google Scholar] [CrossRef]
  48. Torkashvand, M.; Gholivand, M.B.; Taherkhani, F. Fabrication of an electrochemical sensor based on computationally designed molecularly imprinted polymer for the determination of mesalamine in real samples. Mater. Sci. Eng. C 2015, 55, 209–217. [Google Scholar] [CrossRef] [PubMed]

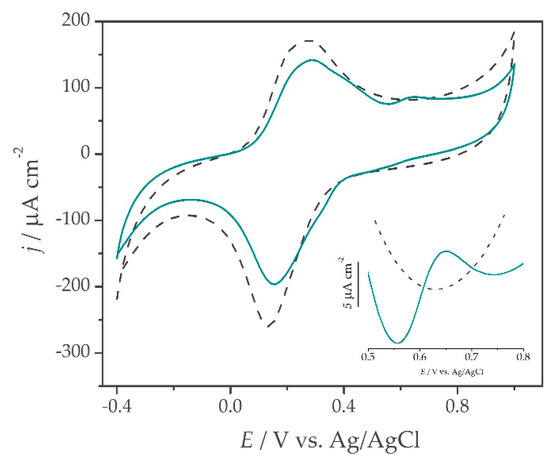

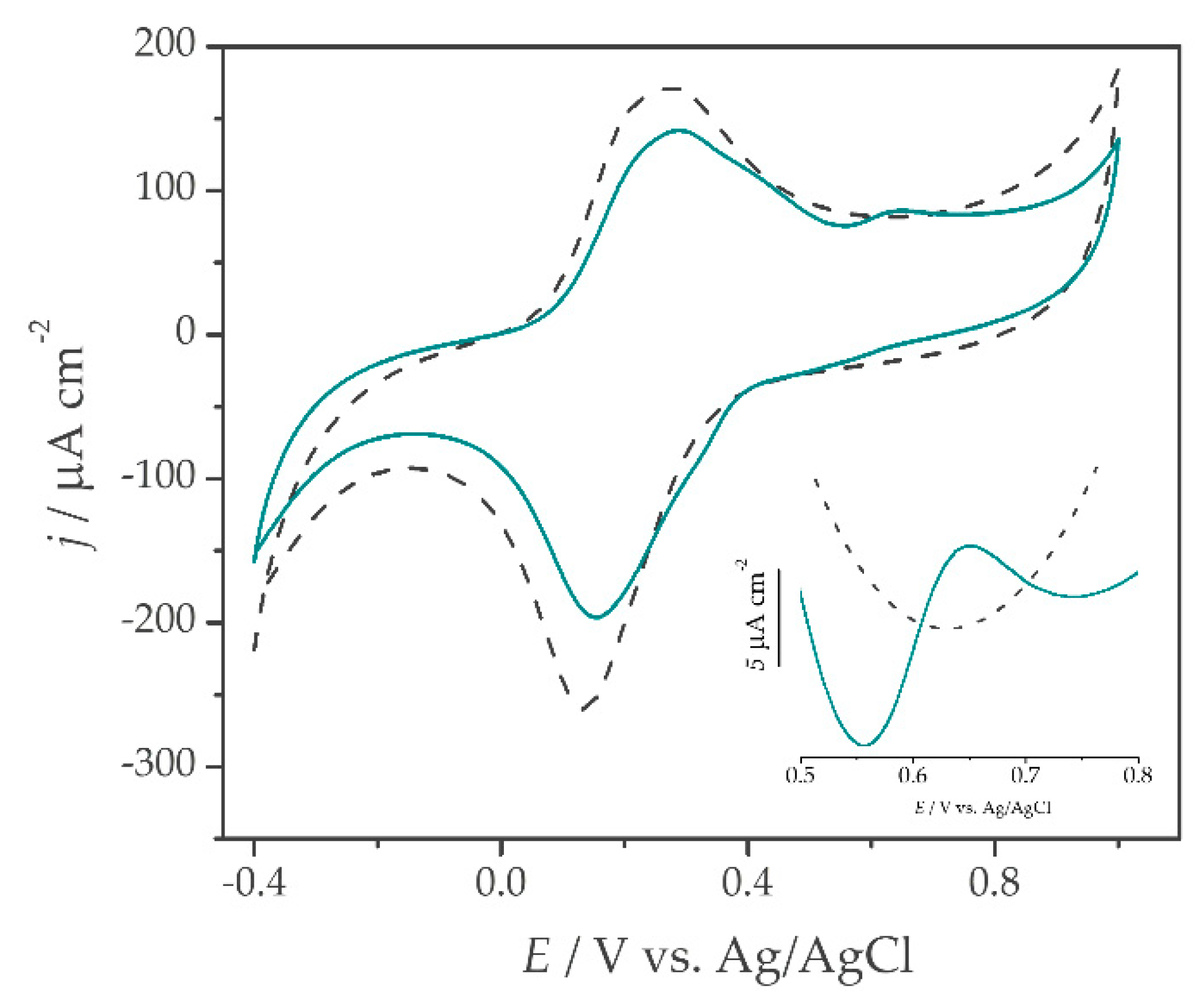

Figure 1. Cyclic voltammograms (CVs) (v = 50 mV s−1) recorded in 0.1 M KCl + 5 mM HCl with PMBDES/GCE (dotted black) and in the presence of 100.0 µM 5-aminosalicylic acid (5-ASA) (green). Inset, magnification of the cyclic voltammetry (CV) curves at the onset potential region of the 5-ASA oxidation.
Figure 1. Cyclic voltammograms (CVs) (v = 50 mV s−1) recorded in 0.1 M KCl + 5 mM HCl with PMBDES/GCE (dotted black) and in the presence of 100.0 µM 5-aminosalicylic acid (5-ASA) (green). Inset, magnification of the cyclic voltammetry (CV) curves at the onset potential region of the 5-ASA oxidation.
Sensors 21 01161 g001

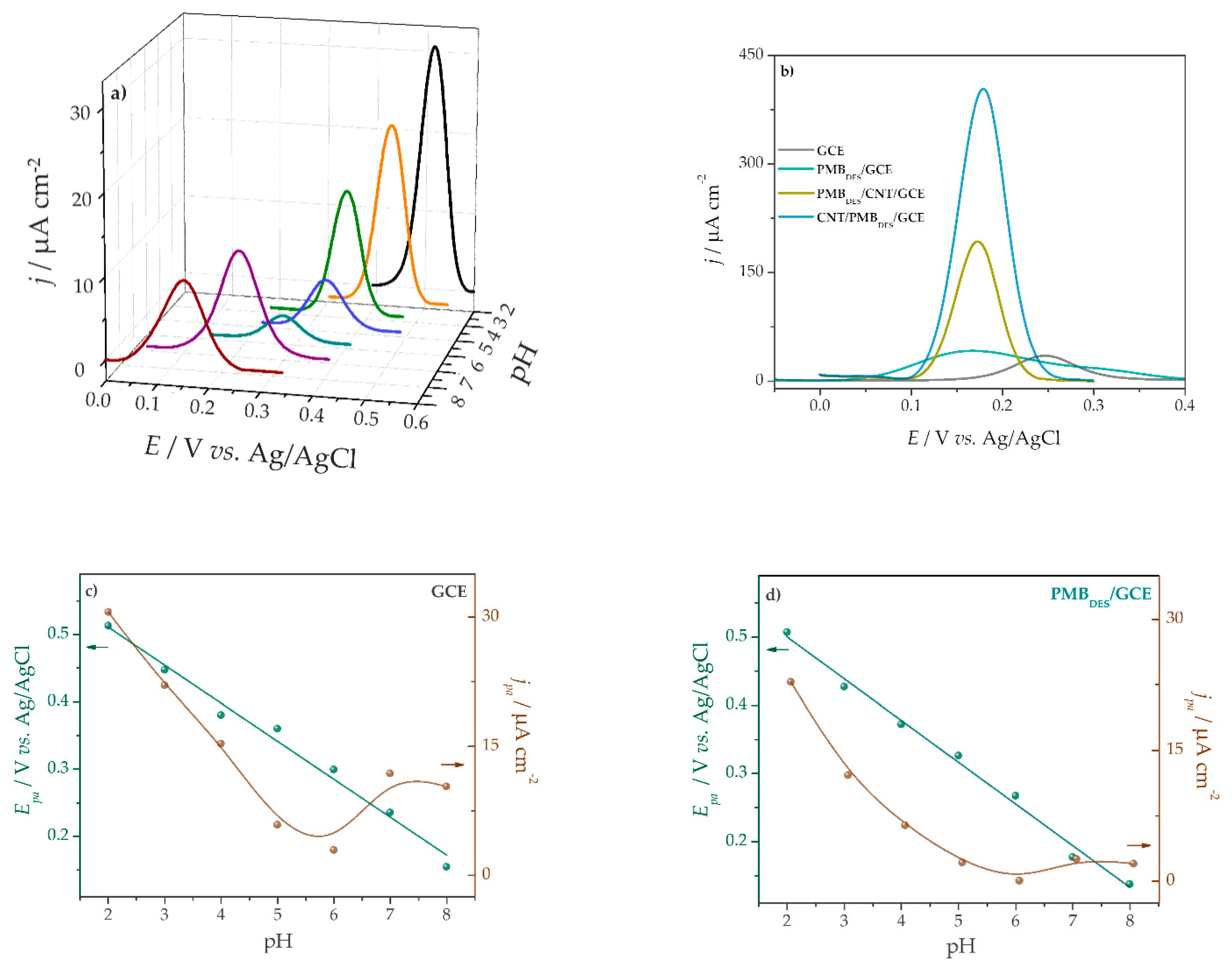

Figure 2. Differential pulse voltammograms DPVs (v = 4 mV s−1) of 50.0 µM 5-ASA in 0.04 M BR. (a) With glassy carbon electrode (GCE) in buffer solution from pH 2.0 to 8.0; (b) With different electrode architectures in buffer solution at pH 7.0. Effect of pH on 50.0 µM 5-ASA oxidation peak current, jpa (µA cm−2, ) and peak potential, Epa (V, ) with (c) GCE and (d) PMBDES/GCE, respectively.
Figure 2. Differential pulse voltammograms DPVs (v = 4 mV s−1) of 50.0 µM 5-ASA in 0.04 M BR. (a) With glassy carbon electrode (GCE) in buffer solution from pH 2.0 to 8.0; (b) With different electrode architectures in buffer solution at pH 7.0. Effect of pH on 50.0 µM 5-ASA oxidation peak current, jpa (µA cm−2, ) and peak potential, Epa (V, ) with (c) GCE and (d) PMBDES/GCE, respectively.
Sensors 21 01161 g002

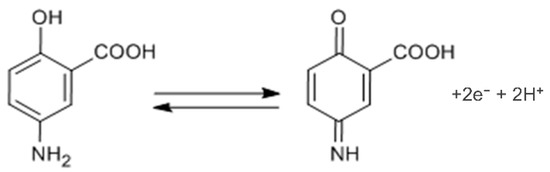

Scheme 1. Oxidation mechanism for 5-ASA.
Scheme 1. Oxidation mechanism for 5-ASA.
Sensors 21 01161 sch001

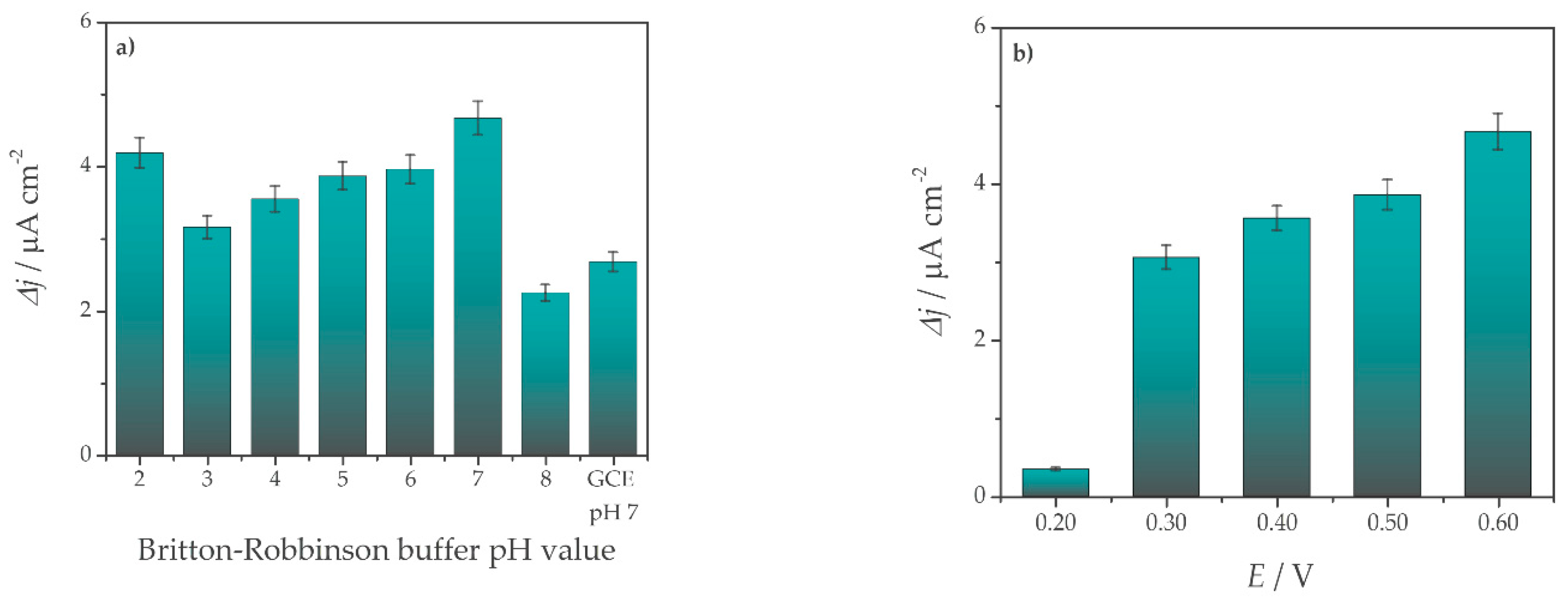

Figure 3. The chronoamperometry (CA) response of 50 µM 5-ASA in 0.04 M BR buffer with PMBDES/GCE. (a) For different pH values (pH 2.0–8.0), E = +0.60 V; (b) For different applied potentials (E = +0.20 − +0.60 V), BR buffer pH 7.0.
Figure 3. The chronoamperometry (CA) response of 50 µM 5-ASA in 0.04 M BR buffer with PMBDES/GCE. (a) For different pH values (pH 2.0–8.0), E = +0.60 V; (b) For different applied potentials (E = +0.20 − +0.60 V), BR buffer pH 7.0.
Sensors 21 01161 g003

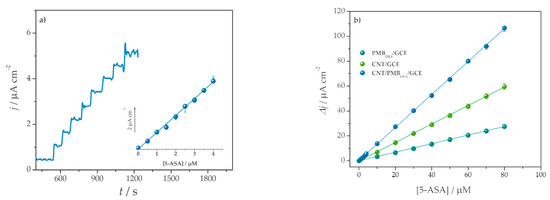

Figure 4. (a) CA response (Eapp =+ 0.40 V vs. Ag/AgCl) of CNT/PMBDES/GCE sensor for 5-ASA in the concentration range from 0.5 to 4 µM in 0.04 M BR pH 7.0. Inset, the corresponding calibration plot; (b) Calibration plots for 5-ASA determination with PMBDES/GCE, CNT/GCE for 10.0, 20.0, 30.0, 40.0, 50.0, 60.0, 70.0, and 80 µM 5-ASA and with CNT/PMBDES/GCE for 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 10.0, 20.0., 30.0, 40.0, 50.0, 60.0, 70.0, and 80 µM 5-ASA, respectively.
Figure 4. (a) CA response (Eapp =+ 0.40 V vs. Ag/AgCl) of CNT/PMBDES/GCE sensor for 5-ASA in the concentration range from 0.5 to 4 µM in 0.04 M BR pH 7.0. Inset, the corresponding calibration plot; (b) Calibration plots for 5-ASA determination with PMBDES/GCE, CNT/GCE for 10.0, 20.0, 30.0, 40.0, 50.0, 60.0, 70.0, and 80 µM 5-ASA and with CNT/PMBDES/GCE for 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 10.0, 20.0., 30.0, 40.0, 50.0, 60.0, 70.0, and 80 µM 5-ASA, respectively.
Sensors 21 01161 g004

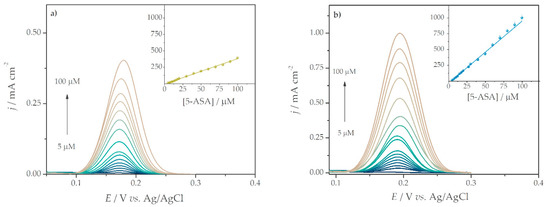

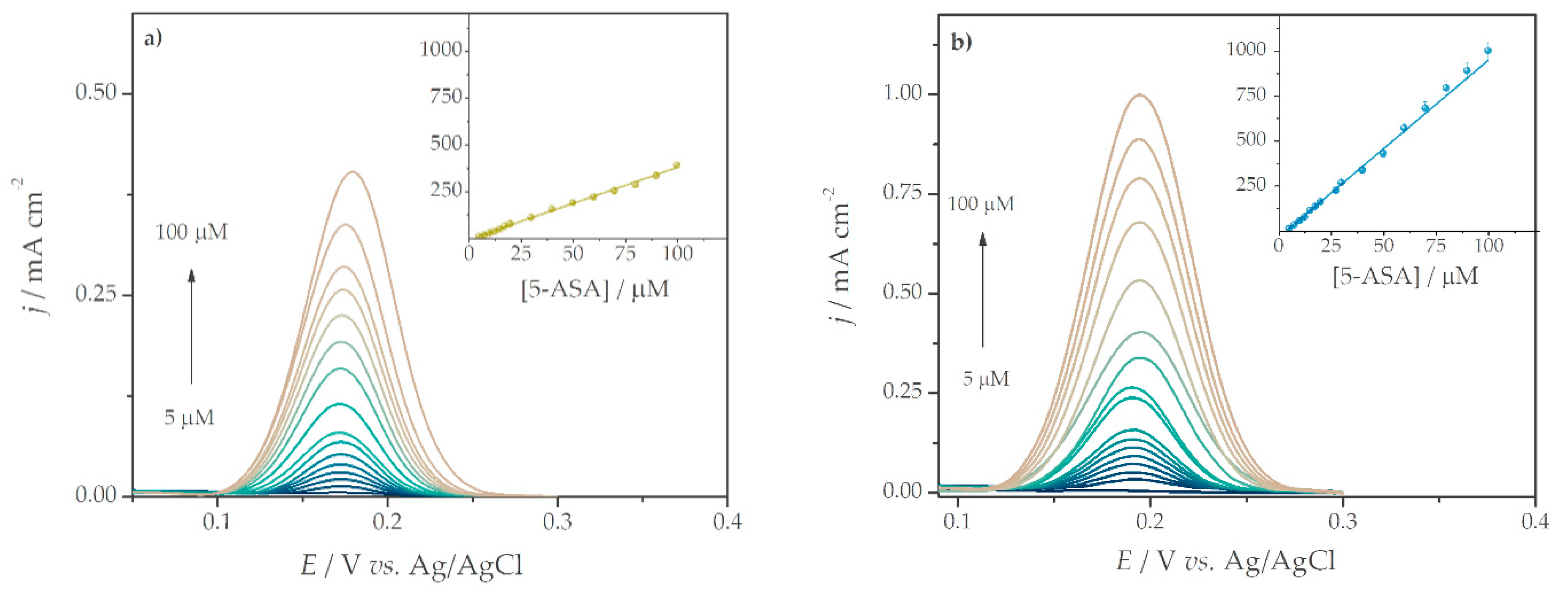

Figure 5. DPVs (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with (a) PMBDES/CNT/GCE and (b) CNT/PMBDES/GCE in 0.04 M BR buffer solution pH 7.0 for 5.0, 7.5, 10.0, 12.5, 15.0, 17.5, 20.0, 22.5, 25, 27.5, 30.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, and 100.0 µM 5-ASA. Inset, corresponding calibration plots.
Figure 5. DPVs (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with (a) PMBDES/CNT/GCE and (b) CNT/PMBDES/GCE in 0.04 M BR buffer solution pH 7.0 for 5.0, 7.5, 10.0, 12.5, 15.0, 17.5, 20.0, 22.5, 25, 27.5, 30.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, and 100.0 µM 5-ASA. Inset, corresponding calibration plots.
Sensors 21 01161 g005

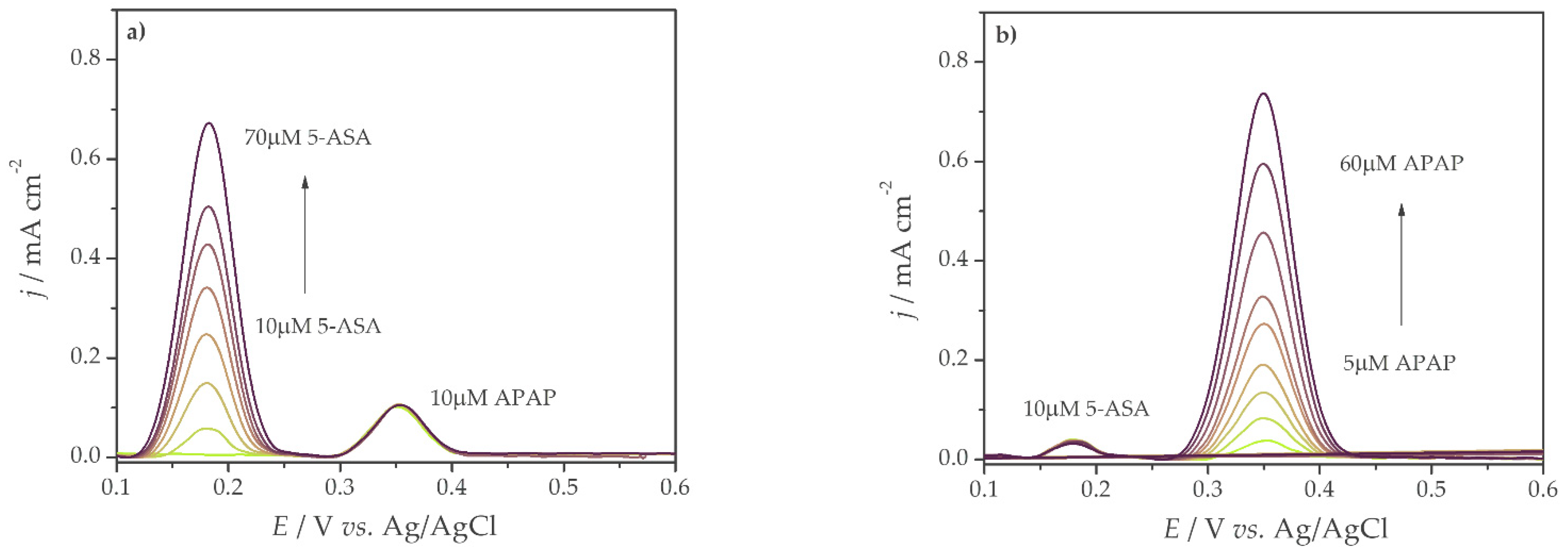

Figure 6. DPVs (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with CNT/PMBDES/GCE in 0.04 M BR pH 7.0 for a solution containing 5-ASA and acetaminophen (APAP) in different ratios. (a) 10.0, 20.0, 30.0, 40.0, 50.0, 60.0, and 70.0 µM 5-ASA in the presence of 10.0 µM APAP; (b) 5.0, 10.0, 15.0, 20.0, 30.0, 40.0, 50.0, and 60.0 µM APAP in the presence of 10.0 µM 5-ASA.
Figure 6. DPVs (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with CNT/PMBDES/GCE in 0.04 M BR pH 7.0 for a solution containing 5-ASA and acetaminophen (APAP) in different ratios. (a) 10.0, 20.0, 30.0, 40.0, 50.0, 60.0, and 70.0 µM 5-ASA in the presence of 10.0 µM APAP; (b) 5.0, 10.0, 15.0, 20.0, 30.0, 40.0, 50.0, and 60.0 µM APAP in the presence of 10.0 µM 5-ASA.
Sensors 21 01161 g006

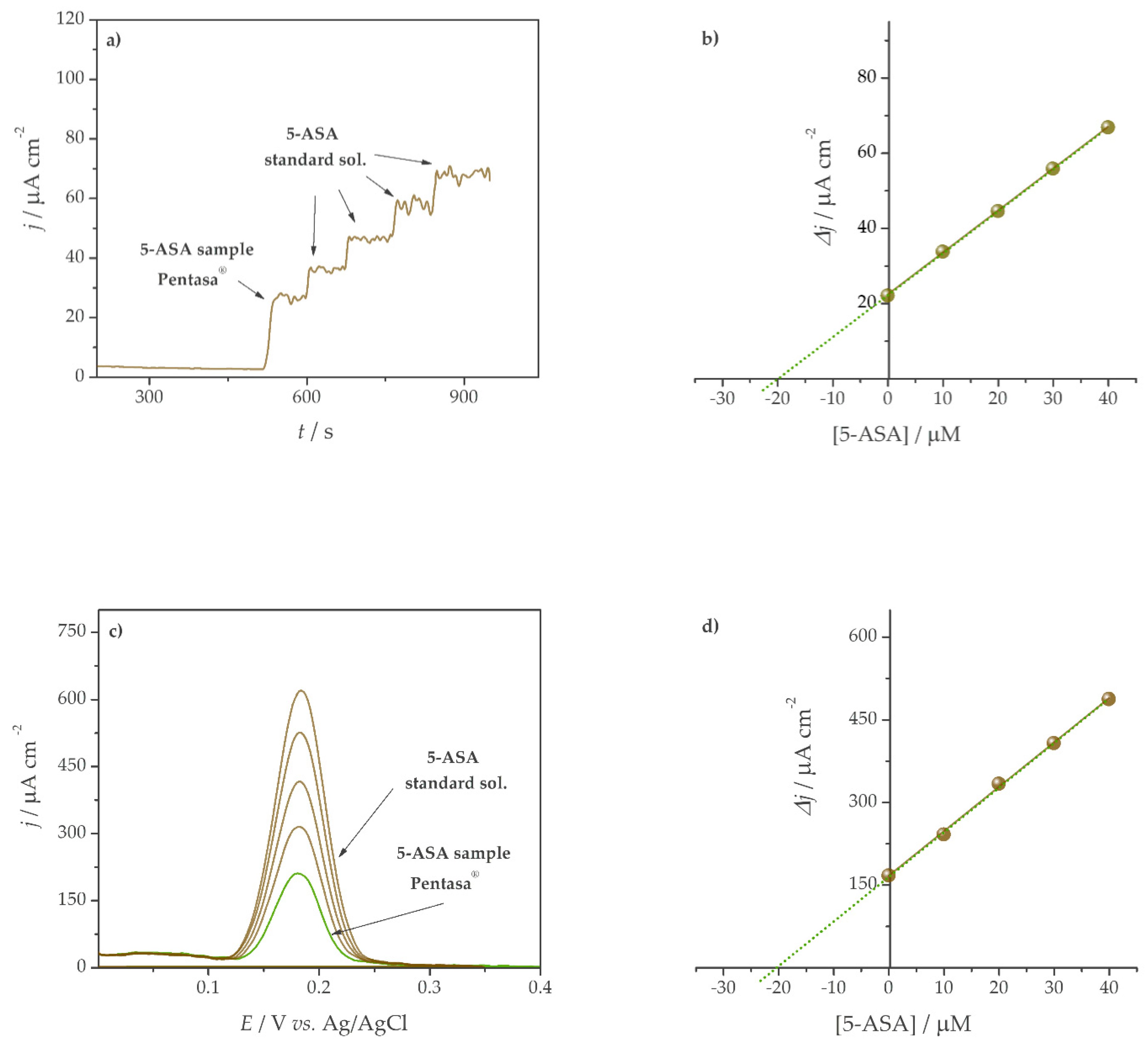

Figure 7. (a) CA response (Eapp = + 0.40 V vs. Ag/AgCl) and (c) DPVs measurements (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with CNT/PMBDES/GCE in 0.04 M BR pH 7.0 for 5-ASA analyzed from pharmaceutical samples (Pentasa® tablets); (b,d) The corresponding calibration plots.
Figure 7. (a) CA response (Eapp = + 0.40 V vs. Ag/AgCl) and (c) DPVs measurements (v = 4 mV s−1, step potential 2 mV, pulse amplitude 50 mV) with CNT/PMBDES/GCE in 0.04 M BR pH 7.0 for 5-ASA analyzed from pharmaceutical samples (Pentasa® tablets); (b,d) The corresponding calibration plots.
Sensors 21 01161 g007
Table 1. Determination of 5-ASA with different modified electrodes.
Table 1. Determination of 5-ASA with different modified electrodes.
Sensor ArchitecturePotential/
V vs. Ag/AgCl
BufferpHLinear Range/μMSensitivity/
μA cm−2 μM−1
LOD/
μM
Ref.
Poly(alanine)/
MCPE a
0.17 i0.2 M PBS7.420–1800.61 *0.230[43]
CNT/PPY/
GCE d
0.57 i0.04 M BR2.00.01–0.1 0.1–10136.10 *0.003[39]
CeO2/SnO2NPs/
GCE b
0.26 i0.05 M PBS7.00.02–15720.170.006[42]
CuW NSs/
GCE f
0.33 ii0.05 M PBS7.00.005–3671.200.0012[45]
GO/MIP/
GCE b
0.48 i0.04 M BR2.02–20
20–150
3.120.970[46]
BDDE c0.75 i0.04 M BR7.02–3000.340.700[47]
AgDs/MIP/
GCE e
0.47 i
−0.60 iii (120s)
0.01 M PBS2.00.05–1000.13 *0.015[48]
PMBDES/CNT/
GCE f
0.40 ii0.04 M BR7.010–1001.060.193This work
CNT/PMBDES/
GCE f
0.40 ii0.04 M BR7.00.5–1001.330.057This work
PMBDES/CNT/
GCE b
0.17 i0.04 M BR7.05–1003.850.058This work
CNT/PMBDES/
GCE b
0.19 i0.04 M BR7.05–1009.840.007This work
Electrochemical technique: a Cyclic voltammetry; b differential pulse voltammetry; c square wave voltammetry; d linear sweep voltammetry; e anodic stripping square wave voltammetry; f amperometry; i Ep, peak potential; ii Eapp, applied potential; iii Eac, accumulation potential; * diameter of the working electrode not reported (sensitivity expressed in μA μM−1); AgDs/MIP, Ag dendrite molecularly imprinted polymer; BDDE, boron-doped diamond electrode; BR, Britton-Robinson buffer; CeO2/SnO2 NPs, cerium oxide/tin oxide nanoparticles; CuW NSs, copper tungstate nanosheets; GCE, glassy carbon electrode; GO/MIP, graphene oxide coated with an imprinted sol-gel; MCPE, modified carbon paste electrode; PBS, phosphate buffer saline; PPY, polypyrrole.
Table 2. Determination of 5-ASA in pharmaceutical formulations.
Table 2. Determination of 5-ASA in pharmaceutical formulations.
MethodFound/
μM
Declared/
μM
Recovery */
%
CA21.0 ± 0.620.0105.2 ± 1.1%
DPV19.5 ± 0.620.097.8 ± 1.0%
PENTASA® Ferring GmbH (5-ASA 500 mg) * Average of 3 measurements.
