Functional Electrical Stimulation for Foot Drop in Post-Stroke People: Quantitative Effects on Step-to-Step Symmetry of Gait Using a Wearable Inertial Sensor

by
Giulia Schifino
1,2,
Veronica Cimolin
3,*,
Massimiliano Pau
4,
Maira Jaqueline da Cunha
1,2,
Bruno Leban
4,
Micaela Porta
4,
Manuela Galli
3 and
Aline Souza Pagnussat
1,2,5
1
Rehabilitation Sciences Graduate Program, Universidade Federal de Ciências da Saúde de Porto Alegre (UFCSPA), Porto Alegre 90050-170, Brazil
2
Movement Analysis and Rehabilitation Laboratory, Universidade Federal de Ciências da Saúde de Porto Alegre (UFCSPA), Porto Alegre 90050-170, Brazil
3
Department of Electronics, Information and Bioengineering, Politecnico di Milano, Piazza Leonardo da Vinci 32, 20133 Milano, Italy
4
Department of Mechanical, Chemical and Materials Engineering, University of Cagliari, Piazza d’Armi, 09123 Cagliari, Italy
5
Department of Physiotherapy, Universidade Federal de Ciências da Saúde de Porto Alegre (UFCSPA), Porto Alegre 900050-170, Brazil
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(3), 921; https://doi.org/10.3390/s21030921
Submission received: 18 December 2020 / Revised: 25 January 2021 / Accepted: 25 January 2021 / Published: 29 January 2021
(This article belongs to the Special Issue Wearables for Movement Analysis in Healthcare)
Browse Figure
Versions Notes

Abstract

:
The main purpose of the present study was to assess the effects of foot drop stimulators (FDS) in individuals with stroke by means of spatio-temporal and step-to-step symmetry, harmonic ratio (HR), parameters obtained from trunk accelerations acquired using a wearable inertial sensor. Thirty-two patients (age: 56.84 ± 9.10 years; 68.8% male) underwent an instrumental gait analysis, performed using a wearable inertial sensor before and a day after the 10-session treatment (PRE and POST sessions). The treatment consisted of 10 sessions of 20 min of walking on a treadmill while using the FDS device. The spatio-temporal parameters and the HR in the anteroposterior (AP), vertical (V), and mediolateral (ML) directions were computed from trunk acceleration data. The results showed that time had a significant effect on the spatio-temporal parameters; in particular, a significant increase in gait speed was detected. Regarding the HRs, the HR in the ML direction was found to have significantly increased (+20%), while those in the AP and V directions decreased (approximately 13%). Even if further studies are necessary, from these results, the HR seems to provide additional information on gait patterns with respect to the traditional spatio-temporal parameters, advancing the assessment of the effects of FDS devices in stroke patients.

1. Introduction

Stroke and cerebrovascular disease are leading causes of morbidity, mortality, and disability and represent the most common reason for long-term care not only in developed countries, but also in low- and middle-income countries where stroke is the fourth-leading cause of disability among people older than age 65 [1]. Stroke may severely affect a wide range of motor skills at different levels, including upper and lower limb functioning, particularly due to muscular weakness or partial paralysis (often restricted to one side of the body), which are present in more than 80% of individuals [2]. Hemiparetic individuals often suffer from limitations in mobility and the most common post-stroke impairment that affects gait is foot drop [3]. This motor impairment is associated with the weakness or lack of voluntary control in ankle dorsiflexors and/or the increased spasticity of plantar flexor muscles [4,5,6]. Foot drop interferes with ankle dorsiflexion during the swing phase of gait and contributes to the disruption in weight acceptance and weight transfer in the initial foot contact and stance phases [7]. The most evident alterations in gait, besides a marked asymmetry, include walking speed reduction, longer durations of double-stance and paretic swing phases, reduced paretic single-stance phase duration, cadence, and stride length [3,8], asymmetric postural behavior during walking and standing [9], altered kinematics, and reduced ankle push-off ability in terminal stance [10,11]. In this context, gait impairments cause difficulties with performing the activities of daily living and mobility, thus reducing independence and quality of life [12]. The different degrees of impairment that characterize the affected and not-affected side suggest that the study of gait symmetry represents a crucial feature in characterizing and quantifying locomotion in hemiparetic individuals, also considering that an asymmetric gait pattern is generally characterized by poor efficiency and requires high energy expenditure. In addition, the restoration of gait symmetry is not only an indicator of functional recovery but also an important aim for clinical rehabilitation practice.
Generally, the gait asymmetry metrics of both healthy [13] and injured individuals [14,15,16] are based on the assessments of right vs. left spatio-temporal parameters, kinematics (e.g., joint angles), and kinetics (e.g., ground reaction forces, GRFs) carried out using three-dimensional motion analysis systems. However, due to a number of issues associated with high cost, operator skills, and space requirements, their application is often limited to research settings [17]. Therefore, it appears important to have available reliable quantitative tools that are suitable for clinical daily use and are able to effectively quantify gait asymmetry. For this purpose, wearable accelerometers represent a very appealing option due to their relatively low cost and ease of use, and are becoming widespread in investigating several aspects of human movement in a variety of contexts [18]. Usually, gait asymmetry is quantified on the basis of conventional spatio-temporal parameters, including step time asymmetry, stance time asymmetry, swing time asymmetry, and step length asymmetry; these are calculated as the absolute difference between consecutive left and right steps. However, further asymmetry variables derived from the cyclical acceleration signals during gait have been found to be effective in detecting gait alterations. In particular, trunk accelerations acquired during gait, using a single sensor placed on the lower back, allows us to obtain information about the so-called “smoothness” of gait (also defined as step-to-step symmetry) by means of a parameter called the Harmonic Ratio (HR) [19,20,21]. The HR is based on a spectral analysis of the acceleration signals and is related to the bilateral rhythmicity of movement, based on the measure of trunk acceleration during a stride that is expected to be formed by two alternating symmetric steps; it provides different kinds of information with respect to the traditional spatio-temporal parameters, which are focused on the lower limb symmetry at the distal level [22]. Recent studies demonstrated that the HR parameter is worthwhile in quantifying gait alterations associated with neurologic and orthopedic conditions, such as older people [23], Parkinson’s disease patients [22], multiple sclerosis [24], normal weight and obese children/adolescents [25,26], Prader–Willi patients [27,28], and cognitively impaired individuals [29]; in several cases, it is able to reveal subtle changes in gait that might occur well before they become detectable in terms of conventional spatio-temporal parameters [22,24,25,26,30]. Furthermore, it must be emphasized that trunk accelerations could be easily recorded by a single sensor in clinical settings or in other ecological contexts, without the limitations of a movement analysis laboratory, which requires expensive equipment, long setup times, and time-consuming post-processing procedures [26,28,30,31].
Concerning its application on individuals with stroke, to date, several studies reported that the HR could be considered a robust outcome in quantifying the step-to-step asymmetry during gait [18,32,33,34,35,36,37]. However, to the best of our knowledge, the HR has not been used so far as an indicator of the effectiveness of rehabilitative treatment targeting the improvement of gait in individuals with stroke. Thus, in the present study, we employed the HR to quantify the possible changes originating from the use of the foot drop stimulator (FDS) on gait asymmetry in chronic post-stroke subjects while walking in an outdoor environment. FDSs are based on the functional electrical stimulation (FES) of the peroneal nerve to elicit ankle dorsiflexion during the swing phase of the step cycle [38,39,40]. Such devices have been proven to be effective in enhancing gait speed in short- and long-term studies [41,42,43], but there is no evidence about the reduction of step-to-step symmetry.
The FDS device seems to have positive effects on gait in stroke patients [40,44]; thus, it appears of interest to assess the feasibility of the HR and to compare it to conventional spatio-temporal measures. Our hypothesis is that changes in the spatio-temporal parameters of gait previously reported [41,43] could also be accompanied by modifications of step-to-step symmetry in stroke patients.

2. Materials and Methods

2.1. Study Design

This quasi-experimental clinical trial was registered at ClinicalTrial.gov (NCT04266899) and approved by the Ethics and Research Committee of the Santa Casa de Misericórdia Hospital of Porto Alegre (CAAE 64819617.0.0000.5335). Procedures were conducted according to the Template for Intervention Description and Replication (TIDeR) checklist [45].

2.2. Participants

Participants were recruited through a database of the Santa Casa de Misericórdia Neurology service in Porto Alegre and social networks, and then selected according to eligibility criteria. We included individuals with ischemic or hemorrhagic chronic stroke confirmed by head Computerized Tomography (CT) or Magnetic Resonance Imaging (MRI) at least 6 months before recruitment, aged 20 to 80 years, with mild (29–34/34), moderate (20–28/34), or severe hemiparesis (0–19/34) according to the Fugl–Meyer score’s lower limb subdivision [46]. Patients had to have minimal cognitive ability on the Mini-Mental State Examination (>20 points (illiterate) or >24 (literate)) [47], and no history of seizures or recent episodes of a fall (at least 3 months before study engagement). In addition, participants were required to be able to walk at least 30 m autonomously without assistive devices. Individuals who presented any contraindication for electrical stimulation were excluded (any electric or metallic implant; skin problems or lesion in proximity to the site of FDS stimulation; pregnancy). Furthermore, subjects with any lower limb musculoskeletal disorder, significant visual impairment, low response to FDS electrical stimulation (no response to the highest stimulation intensity provided by the FDS device, namely 200 mA intensity), or relevant ankle restriction (fixed ankle contracture at ≥10 degrees of plantar flexion in the hemiplegic leg with the knee extended) were also excluded.
A group of healthy individuals (Control Group: CG) matched by age and sex were also tested. Exclusion criteria for the CG were the existence of cardiorespiratory, neurological, or musculoskeletal disorders. All of them exhibited normal flexibility and muscle strength, had no evident gait abnormalities, and were able to walk independently.
The experimental protocol was carried out in accordance with the ethical standards of the institute and the 1964 Declaration of Helsinki and its later amendments. All participants signed a free and informed consent form before enrolment.

2.3. Procedures

This study was conducted at the Movement Analysis and Rehabilitation Laboratory of the Federal University of Health Sciences of Porto Alegre (UFCSPA) between January 2018 and May 2019. Each participant participated in a clinical and documented evaluation session. Indirect assessment of spasticity was done by the Modified Ashworth Scale (MAS) [48], which consists of five ordinal values ranging from 0 (no tonus increase) to 4 (stiffness) [48]. Participants were evaluated while lying in a supine position and were instructed to remain relaxed during the test. The spasticity of plantar flexors, knee extensors, and hip adductors was tested. All clinical assessments were performed by the same researcher at baseline (pre-intervention; 2 days before the first session) and post-intervention (1 day after the last session).

2.4. Intervention

Subjects underwent 10 face-to-face sessions of 20 min of walking on a treadmill (Athletic advanced 720EE, Buenos Aires, Argentina) with a self-selected comfortable velocity while using the FDS device, configured according to each subject’s need (Figure 1).
The WalkAide device (Innovative Neurotronics, Austin, TX, USA) was used to stimulate the peroneal nerve on the affected side through a tilt sensor that detects the affected leg tilt when the foot contact on the ground changes from posterior to anterior (pre-swing phase). The stimulus stops when the leg is tilted forward on foot strike [49,50]. Before treatment, subjects underwent a 3-day adaptation period with the FDS device that included walking overground on a flat surface, walking up and down stairs, and walking on a treadmill. The FDS device was set at enough intensity to achieve the movement, but, at the same time, was required to be comfortable. Before each session, subjects underwent 15 min of lower limb stretching and vital sign measurements. The training sessions, which were interspersed by 5 min rest periods, consisted of 20 min of walking on a treadmill. Each session was administered by the same physical therapist that annotated the overall covered distance and also periodically checked subjects’ heart rate and blood pressure. Subjects were allowed to stop the trial at any time, if necessary.

2.5. Data Acquisition

A single miniaturized inertial sensor (G-Sensor®, BTS Bioengineering, Milano, Italy), previously validated for investigations on gait in unaffected individuals and people with neurologic conditions [25,26,27,51,52,53], was placed on the participants’ lower back, approximately at the L4–L5 vertebrae position. The sensor, which is sized 70 mm × 40 mm × 18 mm and weighs 37 g, is composed of a three-axis accelerometer, a three-axis gyroscope, and a three-axis magnetometer. After a brief familiarization phase, participants were asked to walk at a self-selected speed on a 30-m flat pathway of the university outdoors. The gait test was performed before and a day after the 10-session treatment and named as PRE and POST session, respectively. Each trial was repeated three times and a mean of them was calculated. Participants were equipped with the FDS device during the gait assessment of the PRE and POST session.
The values of the linear accelerations along the antero-posterior (AP), medio-lateral (ML), and vertical (V) directions were acquired by means of the inertial sensor at a frequency of 100 Hz. The elaboration and parameter computations were performed with a custom Matlab® routine. The first 5 s of the acquisition (during which the subject was requested to stand still) were used to verify the orientation of the sensor, and this information was then used to correct the acceleration vectors’ data during the gait trial.
Based on the raw acceleration data, the main spatio-temporal parameters (gait speed, stride length, cadence, and duration of stance and double support phase) were calculated following the approaches described in the literature [27,54,55]. The HRs for the AP, ML, and V directions were computed according to the procedure proposed by Pasciuto et al. [20].

2.6. Statistical Analysis

Sample size was determined by G-Power 3.0 software (version 3.1.9.4.; Faul & Buchner, Germany) based on a previous study [18] considering the minimum effect size of 0.56% to detect a minimum clinical difference in the HR of the ML direction. Sample size was calculated by adopting 90% power and an alpha value of 0.05. A total of 29 participants was calculated as necessary to perform this study. The parametric Student’s t-test, non-parametric Mann–Whitney U test, and Chi-square test were used to compare the demographic characteristics between the stroke and the control groups. After verifying their normality (using the Shapiro–Wilk test) and homogeneity of variances (Levene’s test), a one-way analysis of variance for repeated measure (RM-ANOVA) was conducted using SPSS software (v.20, IBM, Armonk, NY, USA) to verify the effect of the use of the foot drop stimulator (FDS) on spatio-temporal parameters and the HR PRE and POST training. Time (PRE/POST) was set as an independent variable, while the five gait parameters previously listed and the three HRs represented the dependent variables. After the Bonferroni correction was performed considering the three main outcomes (HR in the AP, ML, and V direction), the statistical significance was fixed at p = 0.017. The Student’s t-test assessed the differences between PRE evaluations and the controls (Control Group).

3. Results

Participants were recruited from March 2017 to August 2019, while the final measurements were carried out in August 2019. Forty-one stroke survivors were contacted and the final tested sample included 32 individuals. Their baseline demographic and clinical characteristics are reported in Table 1.
Table 2 presents the values of the spatio-temporal parameters and the HR features for stroke patients in the PRE and POST session and for the Control Group. In the comparison of the PRE session of stroke individuals vs. the Control Group, all parameters exhibited significant differences, with the exception of the double support phase.
As for the assessment of time effects (PRE vs. POST session in stroke patients), a significant effect of time was found and, in particular, the post-hoc analysis detected a significant increase in gait speed (p = 0.028). Regarding the symmetry parameters (HR features), the statistical analysis detected a significant effect of time for the HR in all three directions. In particular, the HR in the ML direction increased (+20%, p = 0.02), while those in the AP and V directions decreased after training (both approximately 13%, AP direction: p = 0.003, V direction: p = 0.007).

4. Discussion

The purpose of the present study was to assess the effects of FDS use in individuals with stroke by means of spatio-temporal and step-to-step symmetry parameters obtained from trunk accelerations acquired using a wearable inertial sensor.
In terms of the spatio-temporal parameters, the only significant change observed post-treatment involved gait speed. This result is consistent with previous, similar studies [41,42,43]. However, it is worth noting that such improvement (+0.04 m/s), although statistically significant, was lower than the value indicated in the literature as clinically meaningful; several authors reported that the minimally clinical important difference in individuals who undergo inpatient rehabilitation after stroke lies between 0.10 and 0.18 m/s [56,57]. Concerning the HR parameters, mixed effects were observed in the treatment. Generally speaking, higher HR values denote better gait stability [30] and improved symmetry, smoothness, and rhythmicity. Our results show that the HR in the ML direction significantly increased, and this result may be explained by the fact that, during gait, the central nervous system controls the ML displacements related to the weight acceptance of each step [58,59]. However, in hemiplegic subjects the lack of lower muscle strength and increased instability observed in the affected side often acts by disrupting this strategy [60,61,62,63,64,65,66,67]. In this sense, the FDS walking training may have increased the ML gait symmetry by generating better foot contact [68] while shifting the body weight to a medial position, resulting in an improved ML stability during the walking movement and possibly, in the medium term, improving muscle strength and spasticity [69]. The important role played by the HR in the ML direction as a determinant of stability is also confirmed by previous studies reporting that a good lateral harmonic stability in gait may be important for minimizing fall risk in older people [70,71]. In addition, however, the p value observed in the HR of the ML direction is slightly higher than the post-Bonferroni correction fixed statistical significance; the improvement of the HR in the ML direction is highly clinically relevant (+20%) and must be taken into consideration. Furthermore, it is important to note that the improvement of the HR appears in the more critical direction, the ML direction, which exhibited, in the PRE session, a much lower value than the control group value with respect to the V and AP directions.
In contrast, we also detected a reduction of the AP and V components of the HR, even though it is worth noting that the magnitude of such changes is approximately half compared with those related to the ML direction (−13% vs. +20%). This result suggests that the number of training sessions may be insufficient to let participants completely adapt to the new gait strategy. Further studies are thus necessary to verify whether a longer training period may trigger a complete readaptation of gait, from the point of view of symmetry, which involves all directions. This hypothesis is somewhat supported by previous studies that report how neuroprostheses are effective in enhancing balance control during walking (and thus effectively manage foot drop) after 8 weeks [41].
In addition, it is important to consider that our study’s participants are mainly severely impaired. In this view, they probably need longer intervention periods to exhibit substantial changes in walking symmetry, which may contribute to the lack of improvement in the AP and V components of the HR.
While walking, maintaining balance requires continuous integrative control, especially in the ML direction, in order to cope with instability during single limb support [72]; thus, we can hypothesize that, after the treatment, patients are trying to adapt to the new gait strategy, which is characterized by higher velocity too, and the importance is given to the ML direction. Furthermore, it has been demonstrated that the HR is speed-dependent and it is especially affected in the very slow condition [73]. It is important to underline that, in this study, only the HR and spatio-temporal parameters were investigated; further research should be conducted, integrating these parameters with kinematic and kinetic data, to evaluate the most sensitive measures to changes in walking due to the FDS. Kinematics and kinetics may clarify where the symmetry deviations occur. In addition, in this study, no placebo control group was included. Further research that includes a placebo control group should be conducted in order to distinguish, more clearly, whether the procedure is effective or if the changes could be associated with a placebo effect.
Future studies may also wish to assess the effects of the FDS at a longer follow-up to more fully understand if the gait changes are maintained over time. In addition, this study contains a disproportionate number of men, who make up 68.8% of the study participants. Thus, by increasing the number of female patients, further work could be conducted to better understand the possible sex-related differences in trunk movement asymmetry. In addition, a large range of time since stroke (from 6 to 96 months) could have influenced the results. Further studies with a larger sample size and with a restricted range of time since stroke should investigate whether the results differ in stroke patients with dissimilar levels of impairment (i.e., mild–moderate vs. severe impairment).
Even though this study presents some limitations, it presents two original aspects: (1) the assessments were conducted using an inertial wearable sensor to document the effects of the FDS on gait in stroke patients; and (2) the analysis was conducted considering not only the traditional spatio-temporal parameters but also the HR, which has never been used to quantify the modifications of step-to-step symmetry in stroke patients induced by FDS treatment.

Author Contributions

G.S. and M.J.d.C.: conceptualization, methodology, clinical and instrumental assessment of the participants, and writing—original draft; V.C.: writing—original draft, formal analysis, and data curation; M.P. (Massimiliano Pau), B.L., and M.P. (Micaela Porta): formal analysis and software; M.G.: review and editing; A.S.P.: conceptualization, methodology, and review. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics and Research Committee of the Santa Casa de Misericórdia Hospital of Porto Alegre (CAAE 64819617.0.0000.5335).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sousa, R.M.; Ferri, C.P.; Acosta, D.; Albanese, E.; Guerra, M.; Huang, Y.; Jacob, K.S.; Jotheeswaran, A.T.; Rodriguez, J.J.; Pichardo, G.R.; et al. Contribution of chronic diseases to disability in elderly people in countries with low and middle incomes: A 10/66 Dementia Research Group population-based survey. Lancet 2009, 374, 1821–1830. [Google Scholar] [CrossRef] [Green Version]
  2. Aqueveque, P.; Ortega, P.; Pino, E.; Saavedra, F.; Germany, E.; Gómez, B. After Stroke Movement Impairments: A Review of Current Technologies for Rehabilitation. In Physical Disabilities—Therapeutic Implications; Tan, U., Ed.; IntechOpen Limited: London, UK, 2017. [Google Scholar]
  3. Sheffler, L.R.; Chae, J. Hemiparetic Gait. Phys. Med. Rehabil. Clin. N. Am. 2015, 26, 611–623. [Google Scholar] [CrossRef] [PubMed]
  4. Chisholm, A.E.; Perry, S.D.; McIlroy, W.E. Correlations between ankle–foot impairments and dropped foot gait deviations among stroke survivors. Clin. Biomech. 2013, 28, 1049–1054. [Google Scholar] [CrossRef] [PubMed]
  5. Stewart, J.D. Foot drop: Where, why and what to do? Pr. Neurol. 2008, 8, 158–169. [Google Scholar] [CrossRef] [PubMed]
  6. Pittock, S.J.; Moore, A.; Hardiman, O.; Ehler, E.; Kovac, M.; Bojakowski, J.; Al Khawaja, I.; Brozman, M.; Kaňovský, P.; Skorometz, A.; et al. A Double-Blind Randomised Placebo-Controlled Evaluation of Three Doses of Botulinum Toxin Type A (Dysport®) in the Treatment of Spastic Equinovarus Deformity after Stroke. Cerebrovasc. Dis. 2003, 15, 289–300. [Google Scholar] [CrossRef] [PubMed]
  7. Duncan, P.W. Stroke Disability. Phys. Ther. 1994, 74, 399–407. [Google Scholar] [CrossRef] [PubMed]
  8. Titianova, E.B.; Pitkänen, K.; Pääkkönen, A.; Sivenius, J.; Tarkka, I.M. Gait Characteristics and Functional Ambulation Profile in Patients with Chronic Unilateral Stroke. Am. J. Phys. Med. Rehabil. 2003, 82, 778–786, quiz 787–779, 823. [Google Scholar] [CrossRef]
  9. Beyaert, C.; Vasa, R.; Frykberg, G. Gait post-stroke: Pathophysiology and rehabilitation strategies. Neurophysiol. Clin. Neurophysiol. 2015, 45, 335–355. [Google Scholar] [CrossRef]
  10. Wonsetler, E.C.; Bowden, M.G. A systematic review of mechanisms of gait speed change post-stroke. Part 1: Spatiotemporal parameters and asymmetry ratios. Top. Stroke Rehabil. 2017, 24, 435–446. [Google Scholar] [CrossRef]
  11. Wonsetler, E.C.; Bowden, M.G. A systematic review of mechanisms of gait speed change post-stroke. Part 2: Exercise capacity, muscle activation, kinetics, and kinematics. Top. Stroke Rehabil. 2017, 24, 394–403. [Google Scholar] [CrossRef]
  12. Li, S.; Francisco, G.E.; Zhou, P. Post-stroke Hemiplegic Gait: New Perspective and Insights. Front. Physiol. 2018, 9, 1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Herzog, W.; Nigg, B.M.; Read, L.J.; Olsson, E. Asymmetries in ground reaction force patterns in normal human gait. Med. Sci. Sports Exerc. 1989, 21, 110–114. [Google Scholar] [CrossRef] [PubMed]
  14. McCrory, J.L.; White, S.C.; Lifeso, R.M. Vertical ground reaction forces: Objective measures of gait following hip arthroplasty. Gait Posture 2001, 14, 104–109. [Google Scholar] [CrossRef]
  15. Queen, R.M.; Attarian, D.; Bolognesi, M.P.; Butler, R.J. Bilateral symmetry in lower extremity mechanics during stair ascent and descent following a total hip arthroplasty: A one-year longitudinal study. Clin. Biomech. 2015, 30, 53–58. [Google Scholar] [CrossRef]
  16. Wiik, A.V.; Aqil, A.; Brevadt, M.; Jones, G.G.; Cobb, J. Abnormal ground reaction forces lead to a general decline in gait speed in knee osteoarthritis patients. World J. Orthop. 2017, 8, 322–328. [Google Scholar] [CrossRef]
  17. Buckley, C.; Alcock, L.; McArdle, R.; Rehman, R.Z.U.; Del Din, S.; Mazza, C.; Yarnall, A.J.; Rochester, L. The Role of Movement Analysis in Diagnosing and Monitoring Neurodegenerative Conditions: Insights from Gait and Postural Control. Brain Sci. 2019, 9, 34. [Google Scholar] [CrossRef] [Green Version]
  18. Iosa, M.; Bini, F.; Marinozzi, F.; Fusco, A.; Morone, G.; Koch, G.; Cinnera, A.M.; Bonnì, S.; Paolucci, S. Stability and Harmony of Gait in Patients with Subacute Stroke. J. Med. Biol. Eng. 2016, 36, 635–643. [Google Scholar] [CrossRef]
  19. Menz, H.B.; Lord, S.R.; Fitzpatrick, R.C. Acceleration patterns of the head and pelvis when walking on level and irregular surfaces. Gait Posture 2003, 18, 35–46. [Google Scholar] [CrossRef]
  20. Pasciuto, I.; Bergamini, E.; Iosa, M.; Vannozzi, G.; Cappozzo, A. Overcoming the limitations of the Harmonic Ratio for the reliable assessment of gait symmetry. J. Biomech. 2017, 53, 84–89. [Google Scholar] [CrossRef]
  21. Iosa, M.; Fusco, A.; Morone, G.; Paolucci, S. Development and Decline of Upright Gait Stability. Front. Aging Neurosci. 2014, 6, 14. [Google Scholar] [CrossRef] [Green Version]
  22. Lowry, K.A.; Smiley-Oyen, A.L.; Carrel, A.J.; Kerr, J.P. Walking stability using harmonic ratios in Parkinson’s disease. Mov. Disord. 2009, 24, 261–267. [Google Scholar] [CrossRef] [PubMed]
  23. Menz, H.B.; Latt, M.D.; Tiedemann, A.; San Kwan, M.M.; Lord, S.R. Reliability of the GAITRite walkway system for the quantification of temporo-spatial parameters of gait in young and older people. Gait Posture 2004, 20, 20–25. [Google Scholar] [CrossRef]
  24. Pau, M.; Mandaresu, S.; Pilloni, G.; Porta, M.; Coghe, G.; Marrosu, M.G.; Cocco, E. Smoothness of gait detects early alterations of walking in persons with multiple sclerosis without disability. Gait Posture 2017, 58, 307–309. [Google Scholar] [CrossRef] [PubMed]
  25. Leban, B.; Cimolin, V.; Porta, M.; Arippa, F.; Pilloni, G.; Galli, M.; Pau, M. Age-Related Changes in Smoothness of Gait of Healthy Children and Early Adolescents. J. Mot. Behav. 2019, 52, 694–702. [Google Scholar] [CrossRef]
  26. Cimolin, V.; Cau, N.; Sartorio, A.; Capodaglio, P.; Galli, M.; Tringali, G.; Leban, B.; Porta, M.; Pau, M. Symmetry of Gait in Underweight, Normal and Overweight Children and Adolescents. Sensors 2019, 19, 2054. [Google Scholar] [CrossRef]
  27. Cimolin, V.; Pau, M.; Cau, N.; Leban, B.; Porta, M.; Capodaglio, P.; Sartorio, A.; Grugni, G.; Galli, M. Changes in symmetry during gait in adults with Prader-Willi syndrome. Comput. Methods Biomech. Biomed. Eng. 2020, 2020, 1–8. [Google Scholar] [CrossRef]
  28. Belluscio, V.; Bergamini, E.; Salatino, G.; Marro, T.; Gentili, P.; Iosa, M.; Morelli, D.; Vannozzi, G. Dynamic balance assessment during gait in children with Down and Prader-Willi syndromes using inertial sensors. Hum. Mov. Sci. 2019, 63, 53–61. [Google Scholar] [CrossRef]
  29. Pau, M.; Mulas, I.; Putzu, V.; Asoni, G.; Viale, D.; Mameli, I.; Leban, B.; Allali, G. Smoothness of Gait in Healthy and Cognitively Impaired Individuals: A Study on Italian Elderly Using Wearable Inertial Sensor. Sensors 2020, 20, 3577. [Google Scholar] [CrossRef]
  30. Brach, J.S.; McGurl, D.; Wert, D.; VanSwearingen, J.M.; Perera, S.; Cham, R.; Studenski, S. Validation of a Measure of Smoothness of Walking. J. Gerontol. Ser. A Boil. Sci. Med. Sci. 2010, 66, 136–141. [Google Scholar] [CrossRef]
  31. Cimolin, V.; Galli, M. Summary measures for clinical gait analysis: A literature review. Gait Posture 2014, 39, 1005–1010. [Google Scholar] [CrossRef]
  32. Mizuike, C.; Ohgi, S.; Morita, S. Analysis of stroke patient walking dynamics using a triaxial accelerometer. Gait Posture 2009, 30, 60–64. [Google Scholar] [CrossRef] [PubMed]
  33. Iosa, M.; Fusco, A.; Morone, G.; Pratesi, L.; Coiro, P.; Venturiero, V.; De Angelis, D.; Bragoni, M.; Paolucci, S. Assessment of upper-body dynamic stability during walking in patients with subacute stroke. J. Rehabil. Res. Dev. 2012, 49, 439–450. [Google Scholar] [CrossRef] [PubMed]
  34. Iosa, M.; Picerno, P.; Paolucci, S.; Morone, G. Wearable Inertial Sensors for Human Movement Analysis. Expert Rev. Med. Devices 2016, 13, 641–659. [Google Scholar] [CrossRef] [PubMed]
  35. Isho, T.; Usuda, S. Association of trunk control with mobility performance and accelerometry-based gait characteristics in hemiparetic patients with subacute stroke. Gait Posture 2016, 44, 89–93. [Google Scholar] [CrossRef]
  36. Yen, C.L.; Chang, K.C.; Wu, C.Y.; Hsieh, Y.W. The relationship between trunk acceleration parameters and kinematic characteristics during walking in patients with stroke. J. Phys. Ther. Sci. 2019, 31, 638–644. [Google Scholar] [CrossRef]
  37. Buckley, T.A.; Oldham, J.R.; Watson, D.J.; Murray, N.G.; Munkasy, B.A.; Evans, K.M. Repetitive Head Impacts in Football Do Not Impair Dynamic Postural Control. Med. Sci. Sports Exerc. 2019, 51, 132–140. [Google Scholar] [CrossRef]
  38. Kottink, A.I.; Tenniglo, M.J.; de Vries, W.H.; Hermens, H.J.; Buurke, J.H. Effects of an implantable two-channel peroneal nerve stimulator versus conventional walking device on spatiotemporal parameters and kinematics of hemiparetic gait. J. Rehabil. Med. 2012, 44, 51–57. [Google Scholar] [CrossRef] [Green Version]
  39. Bae, Y.H.; Ko, Y.J.; Chang, W.H.; Lee, J.H.; Lee, K.B.; Park, Y.J.; Ha, H.G.; Kim, Y.H. Effects of Robot-assisted Gait Training Combined with Functional Electrical Stimulation on Recovery of Locomotor Mobility in Chronic Stroke Patients: A Randomized Controlled Trial. J. Phys. Ther. Sci. 2014, 26, 1949–1953. [Google Scholar] [CrossRef] [Green Version]
  40. Hwang, D.-Y.; Lee, H.-J.; Lee, G.-C.; Lee, S.-M. Treadmill training with tilt sensor functional electrical stimulation for improving balance, gait, and muscle architecture of tibialis anterior of survivors with chronic stroke: A randomized controlled trial. Technol. Health Care 2015, 23, 443–452. [Google Scholar] [CrossRef]
  41. Ring, H.; Treger, I.; Gruendlinger, L.; Hausdorff, J.M. Neuroprosthesis for Footdrop Compared with an Ankle-Foot Orthosis: Effects on Postural Control during Walking. J. Stroke Cerebrovasc. Dis. 2009, 18, 41–47. [Google Scholar] [CrossRef]
  42. Sheffler, L.R.; Hennessey, M.T.; Naples, G.G.; Chae, J. Peroneal Nerve Stimulation versus an Ankle Foot Orthosis for Correction of Footdrop in Stroke: Impact on Functional Ambulation. Neurorehabilit. Neural Repair 2006, 20, 355–360. [Google Scholar] [CrossRef] [PubMed]
  43. Kottink, A.I.; Hermens, H.J.; Nene, A.V.; Tenniglo, M.J.; van der Aa, H.E.; Buschman, H.P.; Ijzerman, M.J. A randomized controlled trial of an implantable 2-channel peroneal nerve stimulator on walking speed and activity in poststroke hemiplegia. Arch. Phys. Med. Rehabil. 2007, 88, 971–978. [Google Scholar] [CrossRef] [PubMed]
  44. Fatone, S.; Gard, S.A.; Malas, B.S. Effect of ankle-foot orthosis alignment and foot-plate length on the gait of adults with poststroke hemiplegia. Arch. Phys. Med. Rehabil. 2009, 90, 810–818. [Google Scholar] [CrossRef] [PubMed]
  45. von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gotzsche, P.C.; Vandenbroucke, J.P.; Initiative, S. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) Statement: Guidelines for reporting observational studies. Int. J. Surg. 2014, 12, 1495–1499. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Daly, J.J.; Zimbelman, J.; Roenigk, K.L.; McCabe, J.P.; Rogers, J.M.; Butler, K.; Burdsall, R.; Holcomb, J.P.; Marsolais, E.B.; Ruff, R.L. Recovery of Coordinated Gait: Randomized Controlled Stroke Trial of Functional Electrical Stimulation (FES) Versus No FES, with Weight-Supported Treadmill and Over-Ground Training. Neurorehabilit. Neural Repair 2011, 25, 588–596. [Google Scholar] [CrossRef]
  47. Almeida, O.P. Mini mental state examination and the diagnosis of dementia in Brazil. Arq. Neuropsiquiatr. 1998, 56, 605–612. [Google Scholar] [CrossRef] [Green Version]
  48. Bohannon, R.W.; Andrews, A.W. Interrater reliability of hand-held dynamometry. Phys. Ther. 1987, 67, 931–933. [Google Scholar] [CrossRef] [Green Version]
  49. Damiano, D.L.; Prosser, L.A.; Curatalo, L.A.; Alter, K.E. Muscle Plasticity and Ankle Control after Repetitive Use of a Functional Electrical Stimulation Device for Foot Drop in Cerebral Palsy. Neurorehabilit. Neural Repair 2012, 27, 200–207. [Google Scholar] [CrossRef]
  50. Everaert, D.G.; Stein, R.B.; Abrams, G.M.; Dromerick, A.W.; Francisco, G.E.; Hafner, B.J.; Huskey, T.N.; Munin, M.C.; Nolan, K.J.; Kufta, C.V. Effect of a foot-drop stimulator and ankle-foot orthosis on walking performance after stroke: A multicenter randomized controlled trial. Neurorehabil. Neural Repair 2013, 27, 579–591. [Google Scholar] [CrossRef]
  51. Kleiner, A.; Galli, M.; Gaglione, M.; Hildebrand, D.; Sale, P.; Albertini, G.; Stocchi, F.; De Pandis, M.F. The Parkinsonian Gait Spatiotemporal Parameters Quantified by a Single Inertial Sensor before and after Automated Mechanical Peripheral Stimulation Treatment. Parkinsons Dis. 2015, 2015, 390512. [Google Scholar] [CrossRef] [Green Version]
  52. Pau, M.; Corona, F.; Pilloni, G.; Porta, M.; Coghe, G.; Cocco, E. Do gait patterns differ in men and women with multiple sclerosis? Mult. Scler. Relat. Disord. 2017, 18, 202–208. [Google Scholar] [CrossRef] [PubMed]
  53. Pau, M.; Coghe, G.; Corona, F.; Marrosu, M.G.; Cocco, E. Effect of spasticity on kinematics of gait and muscular activation in people with Multiple Sclerosis. J. Neurol. Sci. 2015, 358, 339–344. [Google Scholar] [CrossRef] [PubMed]
  54. Brandes, M.; Zijlstra, W.; Heikens, S.; Van Lummel, R.; Rosenbaum, D. Accelerometry based assessment of gait parameters in children. Gait Posture 2006, 24, 482–486. [Google Scholar] [CrossRef] [PubMed]
  55. Bugané, F.; Benedetti, M.G.; Casadio, G.; Attala, S.; Biagi, F.; Manca, M.; Leardini, A. Estimation of spatial-temporal gait parameters in level walking based on a single accelerometer: Validation on normal subjects by standard gait analysis. Comput. Methods Programs Biomed. 2012, 108, 129–137. [Google Scholar] [CrossRef] [PubMed]
  56. Bohannon, R.W.; Andrews, A.W.; Glenney, S.S. Minimal Clinically Important Difference for Comfortable Speed as a Measure of Gait Performance in Patients Undergoing Inpatient Rehabilitation after Stroke. J. Phys. Ther. Sci. 2013, 25, 1223–1225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Fulk, G.D.; Ludwig, M.; Dunning, K.; Golden, S.; Boyne, P.; West, T. Estimating Clinically Important Change in Gait Speed in People with Stroke Undergoing Outpatient Rehabilitation. J. Neurol. Phys. Ther. 2011, 35, 82–89. [Google Scholar] [CrossRef]
  58. Halliday, S.E.; Winter, D.A.; Frank, J.S.; Patla, A.E.; Prince, F. The initiation of gait in young, elderly, and Parkinson’s disease subjects. Gait Posture 1998, 8, 8–14. [Google Scholar] [CrossRef]
  59. Rossi, S.A.; Doyle, W.; Skinner, H.B. Gait initiation of persons with below-knee amputation: The characterization and comparison of force profiles. J. Rehabil. Res. Dev. 1995, 32, 120–127. [Google Scholar]
  60. Pérennou, D. Weight bearing asymmetry in standing hemiparetic patients. J. Neurol. Neurosurg. Psychiatry 2005, 76, 621. [Google Scholar] [CrossRef] [Green Version]
  61. Roerdink, M.; Geurts, A.C.H.; De Haart, M.; Beek, P. On the Relative Contribution of the Paretic Leg to the Control of Posture after Stroke. Neurorehabilit. Neural Repair 2008, 23, 267–274. [Google Scholar] [CrossRef]
  62. Roerdink, M.; De Haart, M.; Daffertshofer, A.; Donker, S.F.; Geurts, A.C.; Beek, P.J. Dynamical structure of center-of-pressure trajectories in patients recovering from stroke. Exp. Brain Res. 2006, 174, 256–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Sackley, C.M. Falls, sway, and symmetry of weight-bearing after stroke. Int. Disabil. Stud. 1991, 13, 1–4. [Google Scholar] [CrossRef] [PubMed]
  64. Genthon, N.; Rougier, P.; Gissot, A.-S.; Froger, J.; Pélissier, J.; Pérennou, D. Contribution of Each Lower Limb to Upright Standing in Stroke Patients. Stroke 2008, 39, 1793–1799. [Google Scholar] [CrossRef] [PubMed]
  65. Chow, J.W.; Stokic, D.S. Relations between knee and ankle muscle coactivation and temporospatial gait measures in patients without hypertonia early after stroke. Exp. Brain Res. 2020, 238, 2909–2919. [Google Scholar] [CrossRef]
  66. Tamaya, V.C.; Wim, S.; Herssens, N.; Van De Walle, P.; Willem, D.H.; Steven, T.; Ann, H. Trunk biomechanics during walking after sub-acute stroke and its relation to lower limb impairments. Clin. Biomech. 2020, 75, 105013. [Google Scholar] [CrossRef]
  67. Calvo-Lobo, C.; Useros-Olmo, A.I.; Almazán-Polo, J.; Becerro-De-Bengoa-Vallejo, R.; Losa-Iglesias, M.E.; Palomo-López, P.; Rodríguez-Sanz, D.; López-López, D. Rehabilitative ultrasound imaging of the bilateral intrinsic plantar muscles and fascia in post-stroke survivors with hemiparesis: A case-control study. Int. J. Med. Sci. 2017, 15, 907–914. [Google Scholar] [CrossRef] [Green Version]
  68. Nolan, K.J.; Yarossi, M.; McLaughlin, P. Changes in center of pressure displacement with the use of a foot drop stimulator in individuals with stroke. Clin. Biomech. 2015, 30, 755–761. [Google Scholar] [CrossRef]
  69. Everaert, D.G.; Thompson, A.K.; Chong, S.L.; Stein, R.B. Does functional electrical stimulation for foot drop strengthen corticospinal connections? Neurorehabil. Neural Repair 2010, 24, 168–177. [Google Scholar] [CrossRef]
  70. Brodie, M.; Menz, H.B.; Smith, S.T.; Delbaere, K.; Lord, S.R. Good Lateral Harmonic Stability Combined with Adequate Gait Speed Is Required for Low Fall Risk in Older People. Gerontology 2015, 61, 69–78. [Google Scholar] [CrossRef]
  71. Asai, T.; Misu, S.; Sawa, R.; Doi, T.; Yamada, M. The association between fear of falling and smoothness of lower trunk oscillation in gait varies according to gait speed in community-dwelling older adults. J. Neuroeng. Rehabil. 2017, 14, 5. [Google Scholar] [CrossRef] [Green Version]
  72. O’Connor, S.M.; Kuo, A.D. Direction-Dependent Control of Balance during Walking and Standing. J. Neurophysiol. 2009, 102, 1411–1419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Bellanca, J.L.; Lowry, K.A.; Vanswearingen, J.M.; Brach, J.S.; Redfern, M.S. Harmonic ratios: A quantification of step to step symmetry. J. Biomech. 2013, 46, 828–831. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Sensors 21 00921 g001 550

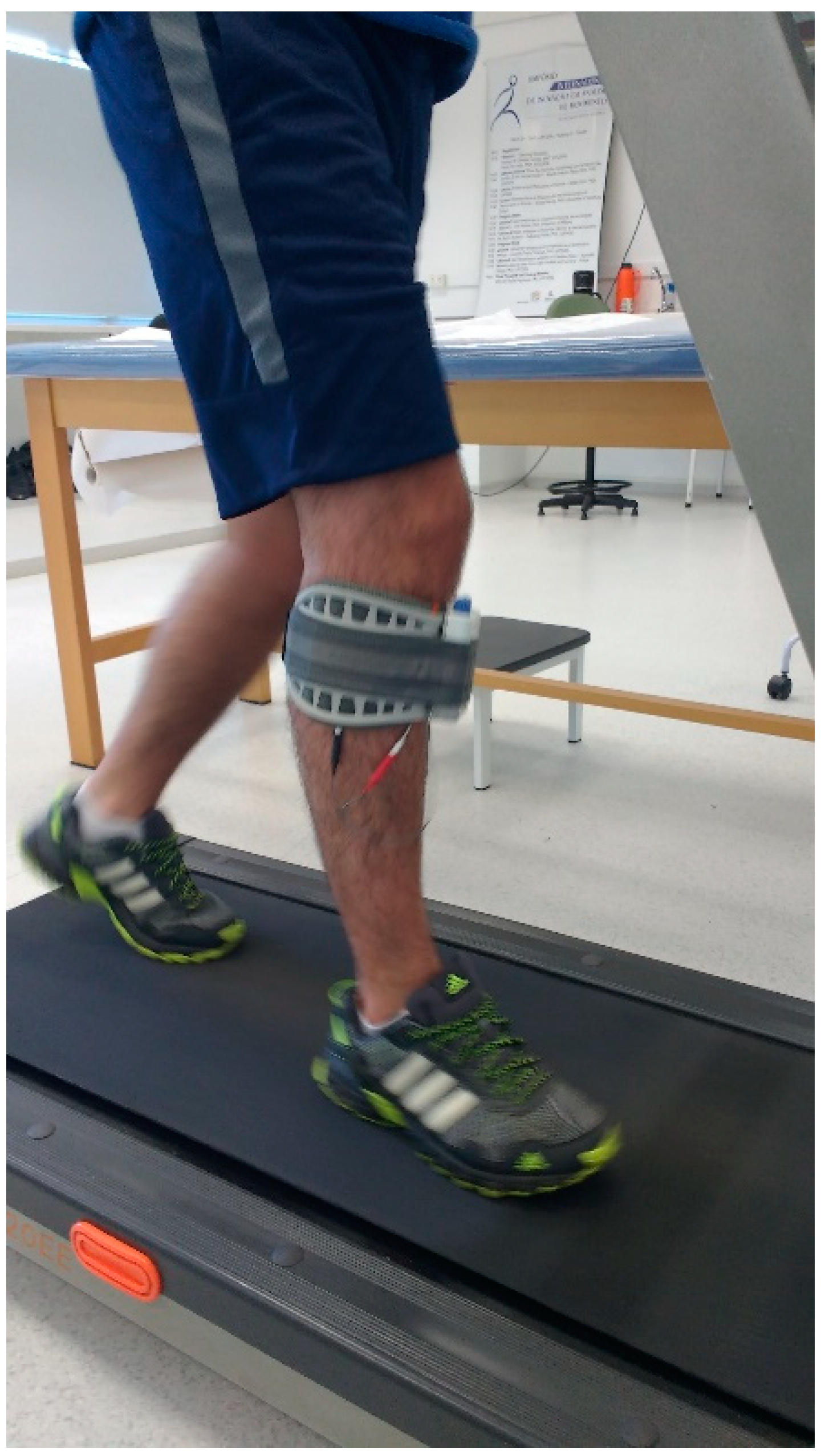

Figure 1. The experimental setup.
Figure 1. The experimental setup.
Sensors 21 00921 g001
Table
Table 1. Participant characteristics.
Table 1. Participant characteristics.
StrokeControl Groupp Value
(n = 32)(n = 32)
Gender, n (%)
Male22 (68.8)22 (68.8)0.444 ¥
Age (years)56.84 ± 9.1056.81 ± 8.880.989 #
Height (m)1.68 ± 9.731.72 ± 8.230.221 #
Body mass (kg)75.13 ±11.9078.26 ± 12.970.318 *
Time since stroke (months) (min–max)39.41 (6–96)
Stroke type, n (%)
Ischemic24 (75)
Hemorrhagic8 (25)
Affected hemisphere, n (%)
Right19 (59.4)
Left13 (40.6)
FMA–LL (0–34), (min–max)19.63 (11–32)
MAS, frequency (0/1/1 + /2/3/4)
Plantiflexors0/3/2/4/11/12
Knee extensors5/7/6/4/8/2
Adductors5/4/4/12/7/0
FMA—LL, Fugl–Meyer Assessment—Lower Limb; MAS, Modified Ashworth Scale; max, maximum; min, minimum; n, number of participants; SD, standard deviation. # p-value parametric Student’s t-tests; * p-value nonparametric Mann–Whitney and ¥ p-value Chi-square tests were used to compare the demographic characteristics between the stroke and control groups.
Table
Table 2. The spatio-temporal parameters of gait and the Harmonic Ratio values of the participants.
Table 2. The spatio-temporal parameters of gait and the Harmonic Ratio values of the participants.
StrokeControl Group
PREPOSTFp Value p Value
Spatio-temporal parameters
Gait speed (m/s)0.62 ± 0.470.66 ± 0.25 *4.6150.0401.22 ± 0.23<0.001 #
Stride length (m)1.28 ± 0.471.23 ± 0.483.230.0821.47± 0.120.044 #
Cadence (steps/min)85.06 ± 26.7888.64 ± 25.814.490.043116.99 ± 9.60<0.001 #
Stance phase (% Gait Cycle)55.66 ± 7.9856.17 ± 6.920.8450.36559.46 ± 1.400.010 #
Double support phase (% Gait Cycle)9.72 ± 4.2610.13± 5.030.800.3799.82 ± 1.500.102
Harmonic Ratio
AP direction80.87 ± 11.2471.44 ± 18.00 *10.470.00395.12 ± 2.33<0.001 #
ML direction38.02 ± 19.9247.65 ± 21.44 *6.050.02085.61 ± 8.03<0.001 #
V direction72.38 ± 11.8964.13 ± 19.97 *8.390.00795.18 ± 2.02<0.001 #
Values are expressed as mean ± SD. PRE = pre-training (after habituation with FDS—3 days); POST = post-training (after 10 sessions of intensive training with the Foot Drop Stimulator); AP = Antero-posterior; ML = medio-lateral; V = vertical; * significant difference between PRE and POST training: One-way Repeated Measure Analysis of variance (spatio-temporal parameters p = 0.05; Harmonic Ratio parameters’ statistical significance after Bonferroni correction (p < 0.017); # significant difference when comparing the PRE intervention and control group: Student’s t-test (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Schifino, G.; Cimolin, V.; Pau, M.; da Cunha, M.J.; Leban, B.; Porta, M.; Galli, M.; Souza Pagnussat, A. Functional Electrical Stimulation for Foot Drop in Post-Stroke People: Quantitative Effects on Step-to-Step Symmetry of Gait Using a Wearable Inertial Sensor. Sensors 2021, 21, 921. https://doi.org/10.3390/s21030921

AMA Style

Schifino G, Cimolin V, Pau M, da Cunha MJ, Leban B, Porta M, Galli M, Souza Pagnussat A. Functional Electrical Stimulation for Foot Drop in Post-Stroke People: Quantitative Effects on Step-to-Step Symmetry of Gait Using a Wearable Inertial Sensor. Sensors. 2021; 21(3):921. https://doi.org/10.3390/s21030921

Chicago/Turabian Style

Schifino, Giulia, Veronica Cimolin, Massimiliano Pau, Maira Jaqueline da Cunha, Bruno Leban, Micaela Porta, Manuela Galli, and Aline Souza Pagnussat. 2021. "Functional Electrical Stimulation for Foot Drop in Post-Stroke People: Quantitative Effects on Step-to-Step Symmetry of Gait Using a Wearable Inertial Sensor" Sensors 21, no. 3: 921. https://doi.org/10.3390/s21030921

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
